ASRock A780GM-LE 128M User Manual V1

A780GM-LE/128M

User Manual

Version 1.0

Published April 2009

No part of this manual may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Disclaimer:Disclaimer:

Specifications and information contained in this manual are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this manual. With respect to the contents of this manual, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from a n y defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

ContentsContents

Contents

ContentsContents

1.1.

IntroductionIntroduction

Introduction

1.1.

IntroductionIntroduction

1.1 Package Contents..................................................................... 5

1.2 Specifications ............................................................................ 6

1.3 Minimum Hardware Requirement for 1080p Blu-ray (BD) /

HD-DVD Playba ck Support......................................................... 10

1.4 1080p Blu-ray (BD) / HD-DVD Films Which Pass Our Lab Test . 11

1.5 Motherboard Layout ................................................................... 12

1.6 I/O Panel.................................................................................... 13

2.2.

InstallationInstallation

Installation

2.2.

InstallationInstallation

Pre-installation Precautions ................................................................ 14

2.1 CPU Installation ......................................................................... 15

2.2 Installation of CPU Fan a nd Heatsink......................................... 15

2.3 Installation of Memory Modules (DIMM) .................................... 16

2.4 Expansion Slots (PCI a nd PCI Express Slots)........................... 17

2.5 Dual Monitor and Surround Display Feature s............................. 18

2.6 ATITM Hybrid CrossFireXTM Operation Guide............................... 21

2.7 Jumpers Se tup .......................................................................... 23

2.8 Onboard Headers and Connectors ............................................. 24

2.9 SAT AII Hard Dis k Setup Guide................................................... 28

2.10 Serial ATA (SATA) / Serial ATAII (SATAII) Hard Disks

Installation ................................................................................. 29

2.1 1 Hot Plug and Hot Swap Functions for SATA / SA TAII HDDs ....... 30

2.12 SATA / SA TAII HDD Hot Plug Feature a nd Operation Guide ....... 31

2.13 Driver Installation Guide ............................................................. 33

2.14 Installing Windows® XP / XP 64-bit / VistaTM / Vista

With RAID Functions ................................................................. 33

2.14.1 Installing Windows® XP / XP 64-bit With RAID

2.14.2 Installing Windows® VistaTM / Vista

2.15 Installing Windows® XP / XP 64-bit / VistaTM / Vista

Without RAID Functions ............................................................ 35

2.15.1 Installing Windows® XP / XP 64-bit Without RAID

2.15.2 Installing Windows® VistaTM / Vista

2.16 Untied Overclocking T echnology ................................................ 37

........................................................................................................................

............................................................

........................................................................................................................

..........................................................................................................................

.............................................................

..........................................................................................................................

64-bit

Functions .................................................................. 33

Functions ...................................................................... 34

Functions ...................................................................... 35

RAID Functions ............................................................. 36

64-bit With RAID

64-bit

64-bit Without

5 5

14 14

3.3.

BIOS SBIOS S

BIOS S

3.3.

BIOS SBIOS S

3.1 Introduction ................................................................................ 38

3.2 Main Screen .............................................................................. 39

3.3 Smart Screen ............................................................................ 40

3.4 Advanced Screen ....................................................................... 41

3.5 Hardware Health Event Monitoring Screen ............................. 57

3.6 Boot Screen.............................................................................. 58

3.7 Security Screen........................................................................ 59

3.8 Exit Screen ............................................................................... 60

4.4.

Software SupportSoftware Support

Software Support

4.4.

Software SupportSoftware Support

4.1 Install Operating System........................................................... 61

4.2 Support CD Information............................................................. 61

ETUP UTILITYETUP UTILITY

ETUP UTILITY

ETUP UTILITYETUP UTILITY

3.1.1 BIOS Menu Bar ............................................................... 38

3.1.2 Navigation Keys .............................................................. 39

3.4.1 CPU Configuration .......................................................... 4 1

3.4.2 Memory Configuration .................................................... 44

3.4.3 Chipset Configuration ..................................................... 49

3.4.4 ACPI Configuration ......................................................... 51

3.4.5 IDE Configuration ............................................................ 52

3.4.6 PCIPnP Configuration ...................................................... 54

3.4.7 Floppy Configuration ...................................................... 55

3.4.8 Super IO Configuration ................................................... 55

3.4.9 USB Configuration .......................................................... 56

3.6.1 Boot Settings Configuration ........................................... 58

4.2.1 Running Support CD ....................................................... 61

4.2.2 Drivers Menu .................................................................. 61

4.2.3 Utilities Menu ................................................................... 61

4.2.4 Contact Information ........................................................ 61

....................................................................................................

..................................................

....................................................................................................

......................................................................................................

...................................................

......................................................................................................

38 38

61 61

1.1.

IntroductionIntroduction

Introduction

1.1.

IntroductionIntroduction

Thank you for purchasing ASRock A780GM-LE/128M motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance. In this manual, cha pter 1 a nd 2 contain introduction of the motherboard and step-by-ste p guide to the hardware installation. Chapter 3 and 4 contain the configuration guide to BIOS setup and information of the Support CD.

Because the motherboard specifications and the BIOS software might be updated, the content of this manual will be subject to change without notice. In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website If you require technical support related to this motherboard, please visit our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.11.1

ackack

1.1

1.11.1

1 x ASRock A780GM-LE/128M Motherboard

(Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm) 1 x ASRock A780GM-LE/128M Quick Installation Guide 2 x ASRock A780GM-LE/128M Support CD 1 x Ultra ATA 66/100/133 IDE Ribbon Cable (80-conductor) 1 x Serial ATA (SAT A) Data Ca ble (Optional) 1 x Serial ATA (SATA) HDD Power Cable (Optional) 1 x I/O Shield

age Contentsage Contents

ack

age Contents

ackack

age Contentsage Contents

http://www.asrock.com

1.21.2

SpecificationsSpecifications

1.2

Specifications

1.21.2

SpecificationsSpecifications

Platform - Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm

CPU - Support for Socket AM2+ / AM2 processors: AMD Phenom

FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor

- Support for AM3 processors: AMD PhenomTM II X4 / X3 and Athlon II X4 / X3 / X2 processors

- Supports AMD OverDriveTM with ACC feature (Advanced Clock Calibration)

- AMD LIVE!TM Ready

- Supports AMD’s Cool ‘n’ QuietTM T echnology

- FSB 2600 MHz (5.2 GT/s)

- Supports Untied Overclocking Technology (see CAUTION 1)

- Supports Hyper-Transport 3.0 (HT 3.0) Technology

Chipset - Northbridge: AMD 780G

- Southbridge: AMD SB710

Memory - Dual Channel DDR2 Memory T echnology (see CAUTION 2)

- 2 x DDR2 DIMM slots

- Support DDR2 1066/800/667/533 non-ECC, un-buf fered memory (see CAUTION 3)

- Max. capacity of system memory: 8GB (see CAUTION 4)

Expansion Slot - 1 x PCI Express 2.0 x16 slot (green @ x16 mode)

- 1 x PCI Express 2.0 x1 slot

- 2 x PCI slots

- Supports A TITM Hybrid CrossFireX

Graphics - Integrated AMD Ra deon HD 3200 gra phics

- D X10 class iGPU, Pixel Shader 4.0

- Max. shared memory 512MB (see CAUTION 5)

- Integrated 128MB side port memory for iGPU

- Dual VGA Output: support DVI-D and D-Sub ports by independent display controllers

- Supports HDCP function with DVI-D port

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback (see CAUTION 6)

Audio - 5.1 CH Windows® VistaTM Premium Level HD Audio

(ALC662 Audio Codec)

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL81 1 1DL

- Supports Wake-On-LAN

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA/D-Sub Port

- 1 x VGA/DVI-D Port

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jack: Line in/Front Speaker/Microphone

Connector - 6 x Serial ATAII 3.0Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 10 a nd JBOD), NCQ, AHCI and “Hot Plug” functions (see CAUTION 7)

- 1 x A TA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x Print port header

- 1 x COM port header

- CPU/Chassis/Power FAN connector

- 24 pin A TX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports) (see CAUTION 8)

BIOS Feature - 8Mb AMI BIOS

- AMI Legal BIOS

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- VCCM, NB V oltage Multi-adjustment

- Supports Smart BIOS

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), AMD

OverDriveTM Utility

Unique Feature - ASRock OC Tuner (see CAUTION 9)

- Intelligent Energy Saver (see CAUTION 10)

- Instant Boot

- ASRock Instant Flash (see CAUTION 11)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 12)

- ASRock U-COP (see CAUTION 13)

- Boot Failure Guard (B.F.G.)

- ASRock AM2 Boost: ASRock Patented Technology to boost

memory performance up to 12.5% (see CAUTION 14) Hardware - CPU Temperature Sensing Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® XP / XP Media Center / XP 64-bit /

Vista

/ VistaTM 64-bit compliant

Certifications - FCC, CE, Microsoft® WHQL Certificated

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using the thirdparty overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

CAUTION!

1. This motherboard supports Untied Overclocking Technology. Please read “Untied Overclocking Technology” on page 37 for details.

2. This motherboard supports Dual Channel Memory Technology. Before you implement Dual Channel Memory Technology, make sure to read the installation guide of memory modules on page 16 for proper installation.

3. Whether 1066MHz memory speed is supported depends on the AM2+ CPU you adopt. If you want to adopt DDR2 1066 memory module on this motherboard, please refer to the memory support list on our website for the compatible memory modules. ASRock website http://www.asrock.com

4. Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows bit with 64-bit CPU, there is no such limitation.

5. The maximum shared memory size is defined by the chipset vendor and is subject to change. Please check AMD website for the latest information.

6. 1080p Blu-ray (BD) / HD-DVD playback support on this motherboard requires the proper hardware configuration. Please refer to page 10 and 11 for the minimum hardware requirement and the passed 1080p Blu-ray (BD) / HD-DV D films in our lab test.

VistaTM. For Windows® XP 64-bit and Windows® VistaTM 64-

7. Before installing SAT AII hard dis k to SATAII connector, please read the “SATAII Hard Disk Setup Guide” on page 28 to adjust your SATAII hard disk drive to SATAII mode. You can also connect SATA hard disk to SATAII connector directly.

8. Power Management for USB 2.0 works fine under Microsoft® Windows

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2.

9. It is a user-friendly ASRock overclocking tool which allows you to surveil your system by hardware monitor function and overclock your hardware devices to get the best system performance under Windows

environment. Please visit our website for the operation procedures of ASRock OC Tuner. ASRock website:

http://www.asrock.com

10. Featuring an advanced proprietary hardware and software design, Intelligent Energy Saver is a revolutionary technology that delivers unparalleled power savings. The voltage regulator can reduce the number of output phases to improve efficiency when the CPU cores are idle. In other words, it is able to provide exceptional power saving and improve power efficiency without sacrificing computing performance. To use Intelligent Energy Saver function, please enable Cool ‘n’ Quiet option in the BIOS setup in advance. Please visit our website for the operation procedures of Intelligent Energy Saver. ASRock website: http://www.asrock.com

11. ASRock Instant Flash i s a BIOS flash utility embedded in Flash ROM. This convenient BIOS update tool allows you to update system BIOS

without entering operating systems first like MS-DOS or Windows

. With this utility, you can press <F6> key during the POST or press <F2> key to BIOS setup menu to access ASRock Instant Flash. Just launch this tool and save the new BIOS file to your USB flash drive, floppy disk or hard drive, then you can update your BIOS only in a few clicks without preparing an additional floppy diskette or other complicated flash utility. Please be noted that the USB flash drive or hard drive must use FAT32/16/12 file system.

12. Although this motherboard offers stepless control, it is not recommended to perform over-clocking. Frequencies other than the recommended CPU bus frequencies may cause the instability of the system or damage the CPU.

13. While CPU overheat is detected, the system will automatically shutdown. Before you resume the system, please check if the CPU fan on the motherboard functions properly and unplug the power cord, then plug it back again. To improve heat dissipation, remember to spray thermal grease between the CPU a nd the heatsink when you in stall the PC system.

14. This motherboard supports ASRock AM2 Boost overclocking technology. If you enable this function in the BIOS setup, the memory performance will improve up to 12.5%, but the effect still depends on the AM2 CPU you adopt. Enabling this function will overclock the chipset/CPU reference clock. However, we can not guarantee the system stability for all CPU/DRAM configurations. If your system is unstable after AM2 Boost function is enabled, it may not be applicative to your system. You may choose to disable this function for keeping the stability of your system.

1.31.3

Minimum Hardware Requirement for 1080p Blu-rayMinimum Hardware Requirement for 1080p Blu-ray

1.3

Minimum Hardware Requirement for 1080p Blu-ray

1.31.3

Minimum Hardware Requirement for 1080p Blu-rayMinimum Hardware Requirement for 1080p Blu-ray

(BD) / HD(BD) / HD

(BD) / HD

(BD) / HD(BD) / HD

1080p Blu-ray (BD) / HD-DVD playback support on this motherboard requires the proper hardware configuration. Please refer to below table for the minimum hardware requirement.

CPU AMD Sempron Dual Core 2100 VGA Onboard VGA with DVI-D port Memory Dual Channel DDR2 533, 1GB x 2 Suggested OS Windows

* If you need to use CyberLink PowerDVD Ultra version 7.3, we suggest to disable Hardware Acceleration function for better playback performance and compatibility. After executing CyberLink PowerDVD Ultra program, please follow below steps to disable Hardware Acceleration function.

A. Right-click the main page of CyberLink PowerDVD Ultra program. B. Click “Configuration”. C. Select “Video”. D. Click “Enable hardware acceleration (ATI Avivo)” to remove the “V” mark in this item.

E. Click “OK” to save the change. * Currently, 1080p Blu-ray (BD) / HD-DVD playback is only supported under Windows VistaTM / VistaTM 64-bit OS. If you install Windows® XP / XP 64-bit OS, the function of 1080p Blu-ray (BD) / HD-DVD playback is not available, please visit our website for AMD 780G VGA driver update in the future. ASRock website

-D-D

VD Playback SupporVD Playback Suppor

-D

VD Playback Suppor

-D-D

VD Playback SupporVD Playback Suppor

VistaTM or Windows® VistaTM 64

http://www.asrock.com

1010

1.41.4

1.4

1.41.4

assed 1080p Blu-ray (BD) / HDassed 1080p Blu-ray (BD) / HD

assed 1080p Blu-ray (BD) / HD

assed 1080p Blu-ray (BD) / HDassed 1080p Blu-ray (BD) / HD

estest

est

estest

DVD Film Name Format Producer Type Blu-ray SWORDFISH VC-1 WB DVD UNDERWORLD EVOLUTION MPEG-2 SONY

THE LAST STAND MPEG-4-AV C FOX CASINO ROYALE MPEG-4-AV C SONY THE LEAGUE OF MPEG-4-AVC FOX

EXTRAORDINARY GENTLEMEN HD- KING KONG VC-1 UNIVERSAL DVD NEW ORLEANS CONCERT MPEG-2 WEA

THE INTERPRETER MPEG-4-AVC UNIVERSAL

* MPEG-4-AVC mentioned above refers to the same format of H.264. * Above passed films are tested under below configuration. Items Configurations CPU AMD Sempron Dual Core 2100 VG A Onboard V GA with D VI-D port Memory Dual Channel DDR2 533, 1GB x 2 OS Windows® VistaTM or Windows® VistaTM 64 Playback Software CyberLink PowerDVD Ultra (Version 7.3 or above) DVD Player Pioneer BDR-101A / LG GBW-H10N (BD)

HP HD100 (HD-DVD)

-D-D

-D

-D-D

VD FVD F

VD F

VD FVD F

ilms in Our Lilms in Our L

ilms in Our L

ilms in Our Lilms in Our L

abab

1111

1.5 Motherboard Layout1.5 Motherboard Layout

1.5 Motherboard Layout

1.5 Motherboard Layout1.5 Motherboard Layout

CPU_FAN1

DDRII_2 (64bit, 240-pin module)

PWR_FAN1

CMOS

BATTERY

CLRCMOS1

IDE1

SATAII_4(SATAII_5 SATAII_6 PORT3) (PORT4) (PORT5)

Sideport memory

128M

PANEL1

SATAII_1(SATAII_2 SATAII_3 PORT0) (PORT1) (PORT2)

1920

24.4cm (9.6-in)

ATXPWR1

12 13

SPEAKER1

PLEDPWRBTN

HDLED RESET

14 15 16

Keyboard

Mouse

PS2

PS2_USB_PW1

VGA1

ATX12V1

DVI_CON1

RoHS

USB2.0 T:USB2 B:USB3

USB2.0 T:USB4 B:USB5

USB2.0

Top:

T: US B0

RJ-45

B:USB1

Bottom:

MIC IN

Top:

LINE IN

Center:

FRONT

30 29 28

LAN

AUDIO CODEC

Super

I/O

CD1

HD_AUDIO1

LPT1

COM1

HT3.0

DX10

PCIE1

A780GM-LE/128M

PCI1

PCI2

IR1

FLOPPY1

2627

19.8cm (7.8-in)

Hybrid CrossFire

AMD

780G

Chipset

PCIE2

USB10_11

SOCKET AM2

FSB2.6GHz

Dual Channel

AM2+/AM3

DDR2 1066

SB710

Chipset

8Mb BIOS

USB8_9

FSB800

DDRII_1 (64bit, 240-pin module)

AMD

CHA_FAN1

USB6_7

1 A TX 12V Power Connector (A TX12V1) 19 Primary SAT AII Connector 2 PS2_USB_PW1 Jumper (SATAII_1 (PORT 0)) 3 CPU Heatsink Retention Module 20 Chassis Fan Connector (CHA_FAN1) 4 AM2 940-Pin CPU Socket 21 USB 2.0 Header (USB6_7, Blue) 5 2 x 240-pin DDR2 DIMM Slots 2 2 SPI Flash Memory (8Mb)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 23 USB 2.0 Header (USB8_9, Blue) 6 CPU Fan Connector (CPU_FAN1) 24 USB 2.0 Header (USB10_11, Blue) 7 Power Fan Connector (PWR_FAN1) 25 Floppy Connector (FLOPPY1) 8 ATX Power Connector (A TXPWR1) 26 Infrared Module Header (IR1) 9 Clear CMOS Jumper (CLRCMOS1) 27 Print Port Header (LPT1, Purple) 10 Primary IDE Connector (IDE1, Blue) 28 Front Panel Audio Header 11 Sixth SAT AII Connector (SA TAII_6 (PORT 5)) (HD_AUDIO1, Lime) 12 Fifth SAT AII Conne ctor (SA TAII_5 (PORT 4)) 29 Internal Audio Connector: CD1 (Black) 13 Fourth SAT AII Connector (SATAII_4 (PORT 3)) 30 PCI Slots (PCI1- 2) 14 Southbridge Controller 31 PCI Express 2.0 x16 Slot (PCIE2; Green) 15 Chassis Speaker Header 3 2 PCI Express 2.0 x1 Slot (PCIE1; Green)

(SPEAKER 1, Purple) 33 Northbridge Controller 16 System Panel He ader (P ANEL1, Orange) 34 Serial Port Connector (COM1) 17 Third SAT AII Connector (SA TAII_3 (PORT 2)) 18 Secondary SAT AII Conne ctor (SAT AII_2 (PORT 1))

1212

1.61.6

1.6

1.61.6

I/O PI/O P

I/O P

I/O PI/O P

anelanel

anel

anelanel

1 PS/2 Mouse Port (Green) * 7 Microphone (Pink) 2 VGA/D-Sub Port 8 USB 2.0 Ports (USB01)

* 3 VGA/DVI-D Port 9 USB 2.0 Ports (USB45)

4 RJ-45 Port 10 USB 2.0 Ports (USB23) 5 Line In (Light Blue) 11 PS/2 Keyboard Port (Purple) 6 Front Speaker (Lime)

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front panel audio header. Please refer to below steps for the software setting of Multi-Streaming. For Windows® XP: After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then reboot your system. For Windows After restarting your computer, please double-click “Realtek HD Audio Manager” on the system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device advanced settings”, choose “Make front and rear output devices playbacks two different audio streams simultaneously”, and click “ok”. Then reboot your system.

VistaTM:

1313

2.2.

InstallationInstallation

Installation

2.2.

InstallationInstallation

This is a Micro ATX form factor (9.6-in x 7.8-in, 24.4 cm x 19.8 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Pre-installation PrecautionsPre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

Before you install or remove any component, ensure that the power is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity, NEVER place your motherboard directly on the carpet or the like. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

1414

2.12.1

CPU InstallationCPU Installation

2.1

CPU Installation

2.12.1

CPU InstallationCPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90

angle.

Step 2. Position the CPU directly above the socket such that the CPU corner with

the golden triangle matches the socket corner with a small triangle.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the CPU into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab to indicate that it is locked.

Lever 90° Up

CPU Golden Triangle

Socket Corner Small Triangle

STEP 1: Lift Up The Socket Lever

2.22.2

Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink

2.2

Installation of CPU Fan and Heatsink

2.22.2

Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink

STEP 2 / STEP 3: Match The CPU Golden Triangle To The Socket Corner Small Triangle

STEP 4: Push Down And Lock The Socket Lever

After you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation. Make sure that the CPU and the heatsink are securely fastened and in good contact with each other. Then connect the CPU fan to the CPU FAN connector (CPU_FAN1, see Page 12, No. 6). For proper installation, please kindly refer to the instruction manuals of the CPU fan and the heatsink.

1515

2.3 Installation of Memor2.3 Installation of Memor

2.3 Installation of Memor

2.3 Installation of Memor2.3 Installation of Memor

A780GM-LE/128M motherboard provides two 240-pin DDR2 (Double Data Rate 2) DIMM slots, and supports Dual Channel Memory Technology. For dual channel configuration, you always need to install two identical (the same brand, speed, size and chip-type) memory module s in the DD R2 DIMM slots to activate Dual Cha nnel Memory Technology. Otherwise, it will operate at single channel mode.

1. It is not allowed to install a DDR memory module into DDR2 slot; otherwise, this motherboard and DIMM may be damaged.

2. If you install only one memory module or two non-identical memory modules, it is unable to activate the Dual Channel Memory Technology.

Installing a DIMMInstalling a DIMM

Installing a DIMM

Installing a DIMMInstalling a DIMM

Please make sure to disconnect power supply before adding or removing DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward. Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break

on the slot.

y Modules (DIMM)y Modules (DIMM)

y Modules (DIMM)

y Modules (DIMM)y Modules (DIMM)

notch

break

notch

break

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully

sna p back in place and the DIMM is properly seated.

1616

2.4 Expansion Slots (PCI and PCI Express Slots)2.4 Expansion Slots (PCI and PCI Express Slots)

2.4 Expansion Slots (PCI and PCI Express Slots)

2.4 Expansion Slots (PCI and PCI Express Slots)2.4 Expansion Slots (PCI and PCI Express Slots)

There are 2 PCI slots and 2 PCI Express slots on this motherboard. PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

PCIE slots:

PCIE1 (PCIE x1 slot; Green) is used for PCI Expre ss cards with x1 la ne width cards, such as Gigabit LAN card, SA TA2 card, etc. PCIE2 (PCIE x16 slot; Green) is used for PCI Expre ss cards with x16 lane width gra phics cards.

Installing an expansion cardInstalling an expansion card

Installing an expansion card

Installing an expansion cardInstalling an expansion card

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

Step 2. Remove the bracket facing the slot that you intend to use. Keep the screws

for later use.

Step 3. Align the card connector with the slot and press firmly until the card is

completely seated on the slot.

Step 4. Fasten the card to the chassis with screws.

1717

2.5 Dual Monitor and Surround Display Features2.5 Dual Monitor and Surround Display Features

2.5 Dual Monitor and Surround Display Features

2.5 Dual Monitor and Surround Display Features2.5 Dual Monitor and Surround Display Features

Dual Monitor Feature

This motherboard supports dual monitor feature. With the internal dual VGA output support (DVI-D and D-Sub), you can easily enjoy the benefits of dual monitor feature without installing any add-on VGA card to this motherboard. This motherboard also provides independent display controllers for D VI-D and D-Sub to support dual VGA output so that DVI-D and D-sub can drive same or different display contents. To enable dual monitor feature, please follow the below steps:

1. Connect the DVI-D monitor cable to the VGA/DVI-D port on the I/O panel. And connect the D-Sub monitor cable to the VGA/D-Sub port on the I/O panel.

VGA/D-Sub port VGA/DVI-D port

2. If you have installed onboard VGA driver from our support CD to your system already, you can freely enjoy the benefits of dual monitor function after your system boots. If you haven’t installed onboard VGA driver yet, please install onboard VGA driver from our support CD to your system and restart your computer. Then you can start to use dual monitor function on this motherboard.

When you playback HDCP-protected video from Blu-ray (BD) or HD-DVD disc, the content will be displayed only in one of the two monitors instead of both monitors.

Surround Display Feature

This motherboard supports surround display upgrade. With the internal dual V GA output support (DVI-D and D-Sub) and the external add-on PCI Express VGA card, you can easily enjoy the benefits of surround display feature. Please refer to the following steps to set up a surround display environment:

1. Install the ATITM PCI Express V GA card on PCIE2 slot. Please refer to page 17 for proper expansion card installation procedures f or details.

2. Connect the DVI-D monitor cable to the VGA/DVI-D port on the I/O panel. And connect the D-Sub monitor cable to the VGA/D-Sub port on the I/O panel. Connect the other DVI-D monitor cable a nd D-Sub monitor ca ble to the corresponding connectors of the add-on PCI Express VGA card on PCIE2 slot.

1818

3. Boot your system. Press <F2> to enter BIOS setup. Enter “Share Memory” option to adjust the memory capability to [32MB], [64MB], [128MB] [256MB] or [512MB] to enable the function of VGA/D-sub. Please make sure that the value you select is less than the total capability of the system memory. If you do not adjust the BIOS setup, the default value of “Share Memory”, [Auto], will disable VGA/D-Sub function when the add-on VGA card is inserted to this motherboard.

4. Install the onboard VGA driver and the add-on PCI Express VGA card driver to your system. If you have installed the drivers already, there is no need to install them again.

5. Set up a multi-monitor display.

For Windows® XP / XP 64-bit OS:

Right click the desktop, choose “Properties”, and select the “Settings” tab so that you can adjust the parameters of the multi-monitor according to the steps below. A. Click the “Identify” button to display a large number on each monitor. B. Right-click the display icon in the Display Properties dialog that you wish to be your primary monitor, and then select “Primary”. When you use multiple monitors with your card, one monitor will always be Primary, and all additional monitors will be designated as Secondary. C. Select the display icon identified by the number 2. D. Click “Extend my Windows desktop onto this monitor”. E. Right-click the display icon and select “Attached”, if necessary. F. Set the “Screen Resolution” and “Color Quality” as appropriate for the second monitor. Click “Apply” or “OK” to apply these new values. G. Repeat steps C through E for the diaplay icon identified by the number one, two, three and four.

For Windows® VistaTM / VistaTM 64-bit OS:

Right click the desktop, choose “Personalize”, and select the “Display Settings” tab so that you can adjust the parameters of the multi-monitor according to the steps below. A. Click the number ”2” icon. B. Click the items “This is my main monitor” and “Extend the desktop onto this monitor”. C. Click “OK” to save your change. D. Repeat steps A through C for the display icon identified by the number three and four.

6. Use Surround Display. Click and drag the display icons to positions representing the physical setup of your monitors that you would like to use. The placement of display icons determines how you move items from one monitor to another.

1919

HDCP Function

HDCP function is supported on this motherboard. To use HDCP function with this motherboard, you need to adopt the monitor that supports HDCP function a s well. Theref ore, you ca n enjoy the superior display quality with high-definition HDCP encryption contents. Plea se refer to below instruction for more details about HDCP function.

What is HDCP?

HDCP stands for High-Bandwidth Digital Content Protection, a specification developed by Intel® for protecting digital entertainment content that uses the DVI interface. HDCP is a copy protection scheme to eliminate the possibility of intercepting digital data midstream between the video source, or transmitter - such as a computer, DVD player or set-top box - and the digital display, or receiver - such as a monitor, television or projector. In other words, HDCP specification is designed to protect the integrity of content as it is being transmitted.

Products compatible with the HDCP scheme such as DVD players, satellite and cable HDTV set-top-boxes, as well as few entertainment PCs requires a secure connection to a compliant display. Due to the increase in manufacturers employing HDCP in their equipment, it is highly recommended that the HDTV or LCD monitor you purchase is compatible.

2020

TMTM

2.62.6

2.6

2.62.6

This motherboard supports A TITM Hybrid CrossFireXTM feature. A TITM Hybrid CrossFireXTM brings multi-GPU performance capabilities by enabling an AMD 780G integrated graphics proce ssor a nd a discrete graphics processor to operate simultaneously with combined output to a single display f or blisteringly-fast frame rates. Currently, ATITM Hybrid CrossFireXTM Technology is only supported with Windows® Vista Hybrid CrossFireXTM may be supported with Windows® XP OS. Plea se visit our website for updated information.

TMTM

TITI

Hybrid CrossF Hybrid CrossF

Hybrid CrossF

TITI

Hybrid CrossF Hybrid CrossF

OS, and is not available with Windows® XP OS. In the future, ATI

TMTM

ireXireX

Operation Guide Operation Guide

ireX

Operation Guide

ireXireX

Operation Guide Operation Guide

What does an ATITM Hybrid CrossFireXTM system include?

An ATITM Hybrid CrossFireXTM system includes an ATITM RadeonTM 2400 or ATI RadeonTM 3450 series graphics processor and a motherboard based on an AMD 780G integrated chipset, all operating in a Windows refer to below PCI Express graphics card support list for ATI For the future update of more compatible PCI Express graphics cards, please visit our website for further information.

Vendor Chipset Model Driver

ATI RADEON X2400PRO MSI RX2400 PRO-TD256EH Catalyst 8.512

RADEON HD2400XT * POWERCOLOR HD2400 XT Catalyst 8.512

256MB DDR3

RADEON HD3450 POWERCOLOR AX3450 Catalyst 8.512

256MD2-S * Currently, RADEON HD2400XT series graphics cards are only supported with AMD Phenom CPU. Please visit our website for the future driver update and the latest information.

TMTM

Enjoy the benefit of AEnjoy the benefit of A

Enjoy the benefit of A

Enjoy the benefit of AEnjoy the benefit of A

Step 1. Install one compatible PCI Express gra phics card to PCIE2 slot (green). For

the proper installation procedures, plea se refer to section “Expansion Slots”.

Step 2. Connect the monitor cable to the correspondent connector on the PCI

Express graphics card on PCIE2 slot.

Step 3. Boot your system. Press <F2> to enter BIOS setup. Enter “Advanced” screen,

and enter “Chipset Settings”. Then set the option “Surround View” to [Enabled].

Step 4. Boot into OS. Pleas e remove the ATITM driver if you have any VGA driver

installed in your system.

Step 5. Install the onboard V GA driver from our support CD to your syste m for both the

onboard VGA and the discrete gra phics card.

Step 6. Restart your computer. Then you will find “ATI Catalyst Control Center” on

your Windows® tas kbar.

TMTM

TITI

Hybrid CrossF Hybrid CrossF

Hybrid CrossF

TITI

Hybrid CrossF Hybrid CrossF

VistaTM environment. Please

Hybrid CrossFireXTM.

TMTM

ireXireX

ireX

ireXireX

ATI Catalyst Control Center

2121

Step 7. Double-click “ATI Catalyst Control Center”. Click “V iew”, click “CrossFireTM”,

and then select the option “Ena ble CrossFireTM”.

View

CrossFire

Step 8. Click “Yes” to continue.

Step 9. Click “OK” to save your change.

Enable CrossFire

Step 10. Reboot your system. Then you can freely enjoy the benefit of Hybrid

CrossFireXTM feature.

* Hybrid CrossFireXTM appearing here is a registered trademark of ATITM Technologies Inc., and is used only for identification or explanation and to the owners’ benefit, without intent to infringe. * For further information of ATI for up dates and details.

Hybrid CrossFireXTM technology, please check AMD website

2222

2.72.7

Jumpers SetupJumpers Setup

2.7

Jumpers Setup

2.72.7

Jumpers SetupJumpers Setup

The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is pla ced on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when jumper cap is pla ced on these 2 pins.

Jumper Setting

PS2_USB_PW1 Short pin2, pin3 to enable

(see p.12, No. 2) +5VSB (standby) for PS/2 or

1_2

+5V

2_3

+5VSB

USB wake up events.

Note: To select +5VSB, it requires 2 Amp and higher standby current provided by

power supply.

Clear CMOS Jumper

(CLRCMOS1) (see p.12, No. 9)

1_2

Default

2_3

Clear CMOS

Note: CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes

system setup information such as system password, date, time, and system setup parameters. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action.

2323

2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors

2.8 Onboard Headers and Connectors

2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard!

•

Floppy Connector

(33-pin FLOPPY1) (see p.12 No. 25)

Pin1

FLOPPY1

the red-striped side to Pin1

Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the

connector.

Primary IDE connector (Blue)

(39-pin IDE1, see p.12 No. 10)

PIN1

connect the blue end

to the motherboard

IDE1

connect the black end to the IDE devices

80-conductor A T A 66/100/133 ca ble

Note: Please refer to the instruction of your IDE device vendor for the details.

Serial ATAII Connectors These six Serial ATAII (SATAII)

(SATAII_1 (PORT 0): connectors support SA T AII see p.12, No. 19) or SATA hard disk for internal (SATAII_2 (PORT 1): storage devices. The current see p.12, No. 18) SATAII interface allows up to (SAT AII_3 (PORT 2): 3.0 Gb/s data transfer rate.

see p.12, No. 17) (SATAII_4 (PORT 3): see p.12, No. 13) (SATAII_5 (PORT 4): see p.12, No. 12) (SATAII_6 (PORT 5): see p.12, No. 1 1)

SATAII_4 SATAII_5 SATAII_6 (PORT 3) (PORT 4) (PORT 5)

SATAII_1 SATAII_2 SATAII_3 (PORT 0) (PORT 1) (PORT 2)

Serial A TA (SATA) Either end of the SA T A data cable Data Cable can be connected to the SATA /

(Optional) SATAII hard disk or the SATAII

connector on the motherboard.

2424

Serial ATA (SATA) Plea se conne ct the black end of Power Cable SAT A power ca ble to the power

(Optional) connector on each drive. Then

connect to the SATA

HDD power connector

connect to the power supply

connect the white end of SA TA power cable to the power connector of the power supply.

USB 2.0 Headers Besides six default USB 2.0

(9-pin USB10_11) ports on the I/O panel, there are (see p.12 No. 24) three USB 2.0 headers on this

(9-pin USB8_9) (see p.12 No. 23)

(9-pin USB6_7) (see p.12 No. 21)

Print Port Header This is an interfa ce f or print

(25-pin LPT1) port cable that allows (see p.12 No. 27) convenient connection of printer

AFD#

STB#

ERROR#

PINIT#

SPD1

SPD0

SLIN#

SPD2

SPD3

USB_PWR

P-11

P-10

USB_PWR

P-9

P-8

USB_PWR

P-7

P-6

USB_PWR

SPD5

SPD4

P+11

P+10

P+9

P+8

P+7

P+6

GND

SPD6

GND

SPD7

DUMMY

ACK#

BUSY

motherboard. Each USB 2.0 header can support two USB

2.0 ports.

devices.

SLCT

Infrared Module Header This header supports a n

(5-pin IR1) optional wireless transmitting (see p.12 No. 26) and receiving infrared module.

IRTX

+5V

DUMMY

GND

IRRX

Internal Audio Connectors This connector allows you

(4-pin CD1) to receive stereo audio input (CD1: see p.12 No. 29) from sound sources such as

CD1

a CD-ROM, DVD-ROM, TV tuner card, or MPEG card.

2525

Front Panel Audio Header This is an interface f or the front

(9-pin HD_AUDIO1) panel audio cable that allows (see p.12, No. 28) convenient connection and

GND

PRE SENCE#

MIC2_R

MIC2_L

MIC_RET

J_SENSE

OUT2_R

OUT_R ET

OUT2_L

control of audio devices.

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio header as below: A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for HD audio panel only. You don’t need to connect them for AC’97 audio panel. E. Enter BIOS Setup Utility. Enter Advanced Settings, and then select

Chipset Configuration. Set the Front Panel Control option from

[Auto] to [Enabled].

F. Enter Windows system. Click the icon on the lower right hand

taskbar to enter Realtek HD Audio Manager.

For Windows

XP / XP 64-bit OS:

Click “Audio I/O”, select “Connector Settings” , choose

“Disable front panel jack detection”, and save the change by

clicking “OK”.

For Windows

VistaTM / VistaTM 64-bit OS:

Click the right-top “Folder” icon , choose “Disable front

panel jack detection”, and save the change by clicking “OK”.

G. To activate the front mic.

For Windows

XP / XP 64-bit OS: Please select “Front Mic” as default record device. If you want to hear your voice through front mic, please deselect "Mute" icon in “Front Mic” of “Playback” portion. For Windows® VistaTM / VistaTM 64-bit OS: Go to the "Front Mic" Tab in the Realtek Control panel. Click "Set Default Device" to make the Front Mic as the default record device.

PLED+

PLED-

HDLED -

HDLED +

PWRBTN#

GND

DUMMY

RES ET#

GND

2626

System Panel Hea der This header a ccommodates

(9-pin PANEL1) several system front panel (see p.12 No. 16) functions.

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1) speaker to this header. (see p.12 No. 15)

SPEAKER

DUMMY

+5V

Chassis and Power Fan Connectors Please connect the fan cables

(3-pin CHA_FAN1) to the fan connectors and (see p.12 No. 20) match the black wire to the

GND

+12V

CHA_FAN_SPEED

ground pin.

(3-pin PWR_FAN1) (see p.12 No. 7)

CPU Fan Connector Please connect the CPU fan

(4-pin CPU_FAN1) cable to this connector and (see p.12 No. 6) match the black wire to the

FAN_S PEED_CONTROL

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin CPU fan still can work successfully even without the fan speed control function. If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this motherboard, please connect it to Pin 1-3.

ATX Power Conne ctor Please connect an A TX power

(24-pin ATXPW R1) supply to this connector. (see p.12 No. 8)

Though this motherboard provides 24-pin ATX power connector, it can still work if you adopt a traditional 20-pin ATX power supply. To use the 20-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 13.

GND

+12V

PWR_FAN_SPEED

4 3 2 1

GND

+12V

CPU_FAN_SPEED

12 124

ground pin.

Pin 1-3 Connected

3-Pin Fan Installation

20-Pin A TX Power Supply Installation

ATX 12V Power Connector Please note that it is necessary

(4-pin ATX12V1) to connect a power supply with (see p.12 No. 1) A TX 12V plug to this connector.

Failing to do so will cause power up failure.

2727

RRXD1

DDTR#1

TTXD1

DDCD#1

DDSR#1

CCTS#1

RRTS#1

GND

RRI#1

Serial port Header This COM1 header supports a

(9-pin COM1) serial port module. (see p.12 No. 34)

2.92.9

SASA

2.9

2.92.9

AII Hard Disk Setup GuideAII Hard Disk Setup Guide

AII Hard Disk Setup Guide

SASA

AII Hard Disk Setup GuideAII Hard Disk Setup Guide

Before installing SATAII hard disk to your computer , please carefully read below SATAII hard disk setup guide. Some default setting of SATAII hard disks may not be at SATAII mode, which operate with the best performance. In order to ena ble SATAII function, please f ollow the below instruction with dif ferent vendors to correctly a djust your SATAII hard disk to SATAII mode in advance; otherwise, your SA TAII hard disk may fail to run at SATAII mode.

Western Digital

1357

2468

If pin 5 and pin 6 are shorted, SATA 1.5Gb/s will be enabled. On the other hand, if you want to enable SATAII 3.0Gb/s, please remove the jumpers from pin 5 and pin 6.

SAMSUNG

1357

2468

If pin 3 and pin 4 are shorted, SATA 1.5Gb/s will be enabled. On the other hand, if you want to enable SATAII 3.0Gb/s, please remove the jumpers from pin 3 and pin 4.

HIT ACHI

Please use the Feature Tool, a DOS-bootable tool, for changing various ATA features. Please visit HITACHI’s website for details: http://www.hitachigst.com/hdd/support/download.htm

The above examples are just for your reference. For different SATAII hard disk products of different vendors, the jumper pin setting methods may not be the same. Please visit the vendors’ website for the updates.

2828

2.102.10

Serial ASerial A

2.10

Serial A

2.102.10

Serial ASerial A

InstallationInstallation

Installation

InstallationInstallation

This motherboard adopts AMD SB710 south bridge chipset that supports Serial ATA (SATA) / Serial ATAII (SATAII) hard disks and RAID (RAID 0, RAID 1, RAID 10 and JBOD) functions. You may install SATA / SATAII hard disks on this motherboard for internal storage devices. This section will guide you to install the SATA / SATAII hard disks.

STEP 1: Install the SATA / SATAII hard disks into the drive bays of your chassis. STEP 2: Connect the SAT A power cable to the SATA / SA TAII hard disk. STEP 3: Connect one end of the SAT A data ca ble to the motherboard’s SATAII

connector.

STEP 4: Connect the other end of the SATA data cable to the SATA / SATAII hard

disk.

A (SAA (SA

A (SA

A (SAA (SA

If you plan to use RAID 0 or RAID 1 function, you need to install at least 2 SATA / SATAII hard disks. If you plan to use RAID 10 function, you need to install 4 SATA / SATAII hard disks.

A) / Serial AA) / Serial A

A) / Serial A

A) / Serial AA) / Serial A

AII (SAAII (SA

AII (SA

AII (SAAII (SA

AII) Hard DisksAII) Hard Disks

AII) Hard Disks

AII) Hard DisksAII) Hard Disks

2929

2.11 Hot Plug and Hot Swap F2.11 Hot Plug and Hot Swap F

2.11 Hot Plug and Hot Swap F

2.11 Hot Plug and Hot Swap F2.11 Hot Plug and Hot Swap F

HDDs HDDs

HDDs

HDDs HDDs

This motherboard supports Hot Plug and Hot Swap functions for SATA / SATAII Devices in RAID / AHCI mode. AMD SB710 south bridge chipset provides hardware support for Advanced Host controller Interface (AHCI), a new programming interface for SATA host controllers developed thru a joint industry effort. AHCI also provides usability enhancements such as Hot Plug.

NOTE What is Hot Plug Function?

If the SATA / SATAII HDDs are NOT set for RAID configuration, it is called “Hot Plug” for the action to insert and remove the SATA / SATAII HDDs while the system is still power-on and in working condition. However, please note that it cannot perform Hot Plug if the OS has been installed into the SATA / SATAII HDD.

What is Hot Swap Function?

If SATA / SATAII HDDs are built as RAID 1 then it is called “Hot Swap” for the action to insert and remove the SATA / SATAII HDDs while the system is still power-on and in working condition.

unctions for SAunctions for SA

unctions for SA

unctions for SAunctions for SA

A / SAA / SA

A / SA

A / SAA / SA

AIIAII

AII

AIIAII

3030

2.12 SA2.12 SA

2.12 SA

2.12 SA2.12 SA

This motherboard supports Hot Plug feature for SATA / SATAII HDD in RAID / AHCI mode. Please re ad below operation guide of SA TA / SA T AII HDD Hot Plug feature carefully . Before you process the SATA / SATAII HDD Hot Plug, please check below cable accessories from the motherboard gift box pack. A. 7-pin SATA data cable B. SATA power cable with SATA 15-pin power connector interface

A / SAA / SA

A / SA

A / SAA / SA

GuideGuide

Guide

GuideGuide

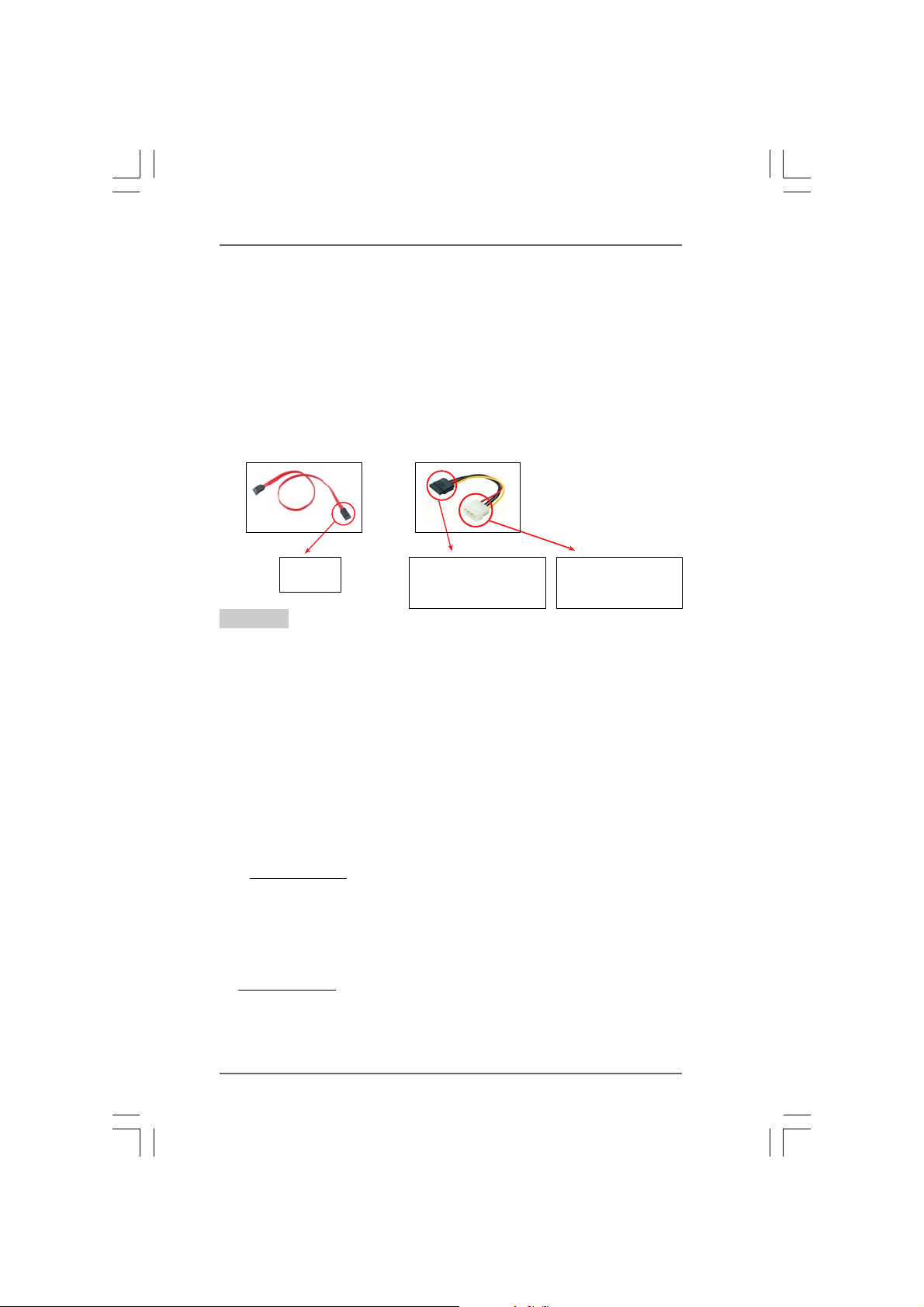

A. SATA data cable (Red) B. SATA power cable

AII HDD Hot Plug FAII HDD Hot Plug F

AII HDD Hot Plug F

AII HDD Hot Plug FAII HDD Hot Plug F

eature and Operationeature and Operation

eature and Operation

eature and Operationeature and Operation

SAT A 7-pin connector

The SATA 15-pin power

connector (Black) connect

to SATA / SATAII HDD

1x4-pin conventional power connector (White) connect to power supply

Caution

1. Without SATA 15-pin power connector interface, the SATA / SATAII Hot Plug cannot be processed.

2. Even some SATA / SATAII HDDs provide both SATA 15-pin power connector and IDE 1x4-pin conventional power connector interfaces, the IDE 1x4-pin conventional power connector interface is definitely not able to support Hot Plug and will cause the HDD damage and data loss.

Points of attention, before you process the Hot Plug:

1. Below operation procedure is designed only for our motherboard, which supports SA TA / SATAII HDD Hot Plug. * The SATA / SATAII Hot Plug feature might not be supported by the chipset because of its limitation, the SATA / SATAII Hot Plug support information of our motherboard is indicated in the product spec on our website: www.asrock.com

2. Make sure your SATA / SATAII HDD can support Hot Plug function from your dealer or HDD user manual. The SATA / SATAII HDD, which cannot support Hot Plug function, will be damaged under the Hot Plug operation.

3. Please make sure the SATA / SATAII driver is installed into system properly. The latest SATA / SATAII driver is available on our support website: www.asrock.com

4. Make sure to use the SATA power cable & data cable, which are from our motherboard package.

5. Please follow below instructions step by step to reduce the risk of HDD crash or data loss.

3131

How to Hot Plug a SATA / SAT AII HDD:

Points of attention, before you process the Hot Plug: Please do follow below instruction sequence to process the Hot Plug, improper procedure will cause the SATA / SATAII HDD damage and data loss.

Step 1

Please conne ct SATA power cable 1x4-pin end (White) to the power supply 1x4-pin cable.

SAT A power cable 1x4-pin power connector (White)

Step 3

Connect SATA 15-pin power cable connector (Black) end to SATA / SATAII HDD.

Step 2

Connect SATA data cable to the motherboard’s SATAII connector.

Step 4

Connect SATA data cable to the SAT A / SAT AII HDD.

How to Hot Unplug a SATA / SATAII HDD:

Points of attention, before you process the Hot Unplug: Please do follow below instruction sequence to process the Hot Unplug, improper procedure will cause the SATA / SATAII HDD damage and data loss.

Step 1

Unplug SATA data cable from SATA / SATAII HDD side.

Unplug SATA 15-pin power cable connector (Black) from SATA / SATAII HDD side.

Step 2

3232

2.132.13

Driver Installation GuideDriver Installation Guide

2.13

Driver Installation Guide

2.132.13

Driver Installation GuideDriver Installation Guide

To install the drivers to your system, please insert the support CD to your optical drive first. Then, the drivers compatible to your system can be auto-detected and listed on the support CD driver page. Please follow the order from up to bottom side to install those required drivers. Therefore, the drivers you install can work properly.

®®

2.142.14

Installing WindowsInstalling Windows

2.14

Installing Windows

2.142.14

Installing WindowsInstalling Windows

TMTM

VistaVista

Vista

VistaVista

If you want to install Windows® XP , Windows® XP 64-bit, Windows® VistaTM or Windows VistaTM 64-bit on a RAID dis k composed of 2 or more SATA / SAT AII HDDs with RAID functions, plea se f ollow below procedures according to the OS you install.

2.14.1 Installing Windows2.14.1 Installing Windows

2.14.1 Installing Windows

2.14.1 Installing Windows2.14.1 Installing Windows

F F

If you want to install Windows® XP or Windows® XP 64-bit on a RAID dis k composed of 2 or more SATA / SATAII HDDs with RAID functions, ple a se f ollow below ste ps.

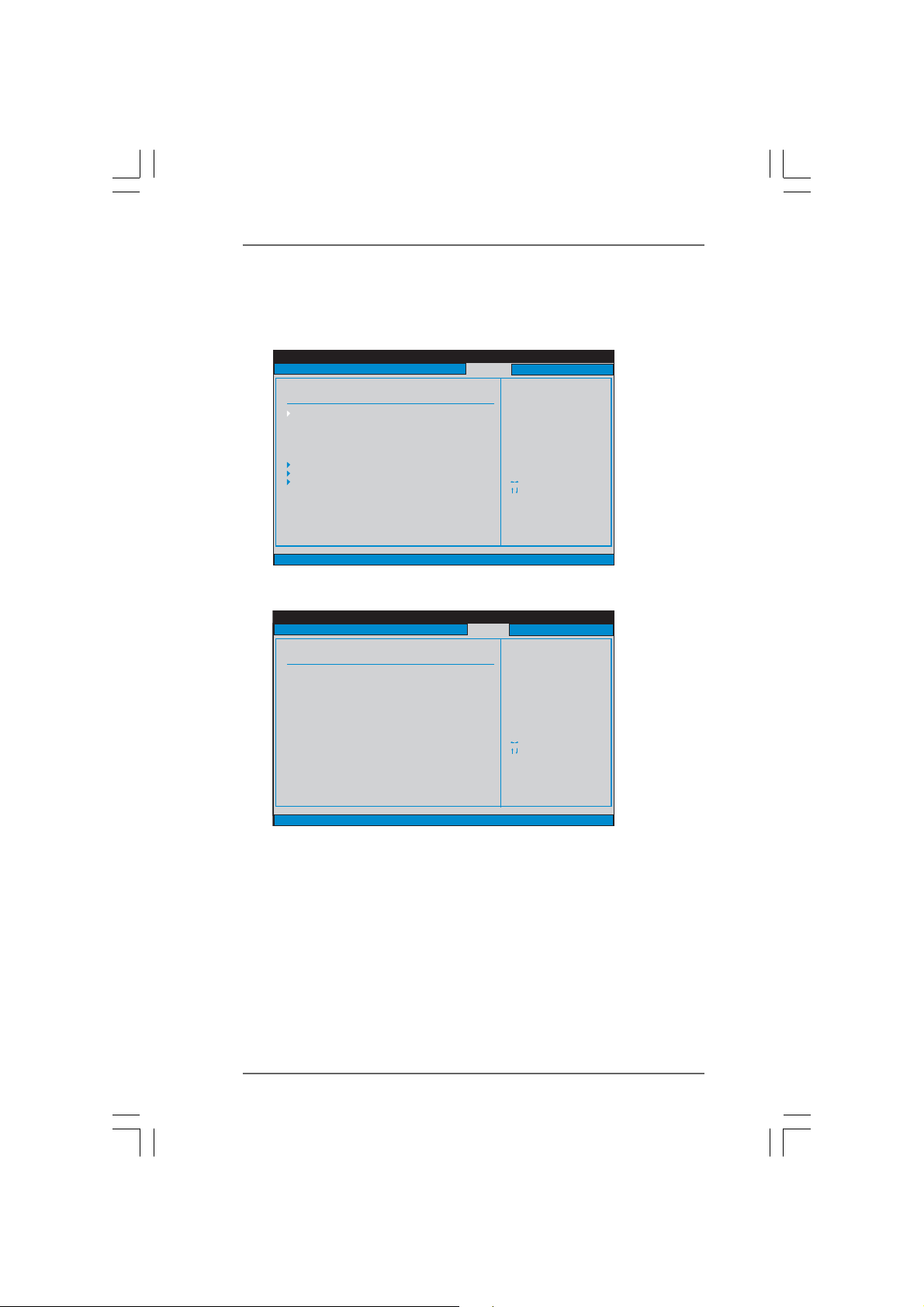

STEP 1: Set up BIOS.

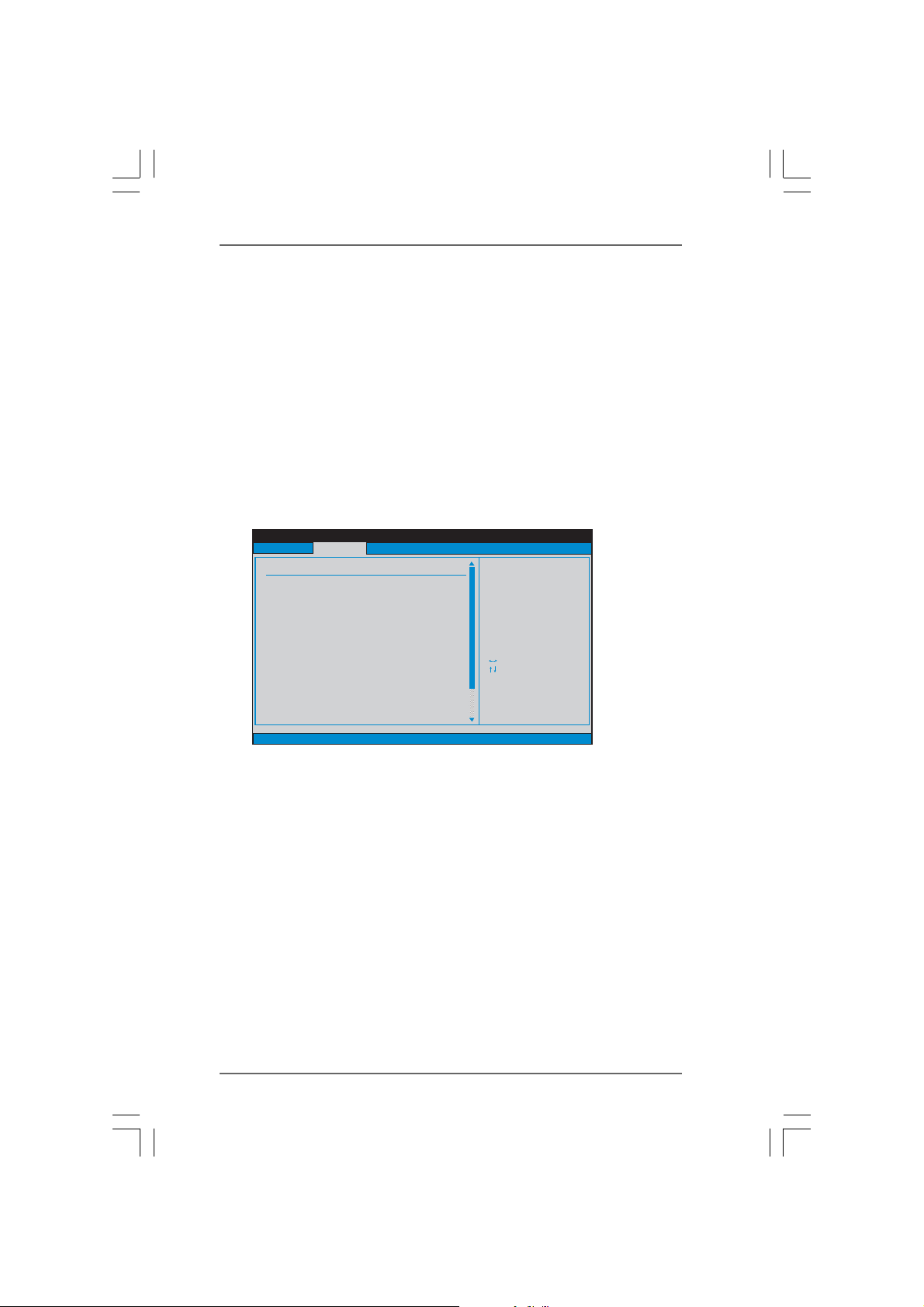

A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration. B. Set the “SATA Operation Mode” option to [RAID].

STEP 2: Make a SATA / SATAII Driver Diskette.

A. Insert the ASRock Support CD into your optical drive to boot your system.

B. During POST at the beginning of system boot-up, press <F11> key, and

C. When you see the message on the screen, “Generate Serial ATA driver

D. Then you will see these messages,

E. The system will start to format the floppy diskette and copy SATA / SATAII

64-bit W 64-bit W

64-bit W

64-bit W 64-bit W

unctionsunctions

unctions

unctionsunctions

(There are two ASRock Support CD in the motherboard gift box pa ck, please choose the one for Windows® XP / XP 64-bit.)

then a window for boot devices selection appears. Please select CD-ROM as the boot device.

diskette [YN]?”, press <Y>.

Please insert a blank formatted diskette into floppy drive A: press any key to start

Please in sert a floppy dis kette into the floppy drive, and press any key.

drivers into the floppy diskette.

®®

XP / XP 64-bit / Vista XP / XP 64-bit / Vista

XP / XP 64-bit / Vista

XP / XP 64-bit / Vista XP / XP 64-bit / Vista

ith RAID Fith RAID F

ith RAID F

ith RAID Fith RAID F

unctionsunctions

unctions

unctionsunctions

®®

XP / XP 64-bit With RAID XP / XP 64-bit With RAID

XP / XP 64-bit With RAID

XP / XP 64-bit With RAID XP / XP 64-bit With RAID

TMTM

/ /

3333

STEP 3: Use “RAID Installation Guide” to set RAID configuration.

Before you start to configure RAID function, you need to check the RAID installation guide in the Support CD for proper conf iguration. Please refer to the BIOS RAID installation guide part of the document in the following path in the Support CD:

.. \ RAID Installation Guide STEP 4: Install Windows® XP / Windows® XP 64-bit OS on your system.

After step 1, 2, 3, you can start to install Windows® XP / Windows® XP 64-bit OS on your system. At the beginning of Windows® setup, press F6 to install a third-party RAID driver. When prompted, insert the SATA / SATAII driver diskette containing the AMD RAID driver . After reading the floppy dis k, the driver will be presented. Select the driver to install according to the OS you install. (Select “AMD AHCI Compatible RAID Controllerx86 platform” for Windows® XP , or “AMD AHCI Compatible RAID Controller-x64 platform” for Windows® XP 64-bit.)

NOTE. If you install Windows® XP / Windows® XP 64-bit on IDE HDDs and want to manage

(create, convert, delete, or rebuild) RAID functions on SATA / SATAII HDDs, you still need to set up “SATA Operation Mode” to [RAID] first. Then, please set the RAID configuration by using the Windows RAID installation guide in the following path in the Support CD:

.. \ RAID Installation Guide

®®

2.14.2 Installing Windows2.14.2 Installing Windows

2.14.2 Installing Windows

2.14.2 Installing Windows2.14.2 Installing Windows

RAID F RAID F

RAID F

RAID F RAID F

If you want to install Windows® VistaTM or Windows® VistaTM 64-bit on a RAID disk composed of 2 or more SATA / SA TAII HDDs with RAID functions, please follow below steps.

STEP 1: Set up BIOS.

A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration. B. Set the “SATA Operation Mode” option to [RAID].

STEP 2: Use “RAID Installation Guide” to set RAID configuration.

.. \ RAID Installation Guide STEP 3: Install Windows® VistaTM / VistaTM 64-bit OS on your system.

Insert the Windows® VistaTM / Windows® VistaTM 64-bit optical disk into the optical drive to boot your system, and follow the instruction to install Windows® VistaTM / Windows VistaTM 64-bit OS on your system. When you see “Where do you want to install Windows? ” page, please insert the ASRock Support CD into your optical drive, and click the “Load Driver” button on the left on the bottom to load the AMD RAID drivers. AMD RAID drivers are in the following path in our Support CD:

unctionsunctions

unctions

unctionsunctions

®®

Vista Vista

Vista

Vista Vista

3434

TMTM

/ Vista / Vista

/ Vista

/ Vista / Vista

TMTM

64-bit With 64-bit With

64-bit With

64-bit With 64-bit With

(There are two ASRock Support CD in the motherboard gift box pack, please choose the one for Windows® VistaTM / VistaTM 64-bit.)

.. \ I386 (For Windows® Vista .. \ AMD64 (For Windows® Vista

After that, please insert Windows® VistaTM / Windows® VistaTM 64-bit optical disk into the optical drive again to continue the installation.

NOTE1. If you install Windows® VistaTM / Windows® VistaTM 64-bit on IDE HDDs and want to

manage (create, convert, delete, or rebuild) RAID functions on SATA / SATAII HDDs, you still need to set up “SATA Operation Mode” to [RAID] in BIOS first. Then, please set the RAID configuration by using the Windows RAID installation guide in the following path in the Support CD:

.. \ RAID Installation Guide

NOTE2. Currently, if you install Windows® VistaTM / Windows® VistaTM 64-bit on IDE HDDs

and there are no SA TA / SATAII device used, plea se set up “SATA Operation Mode” to [IDE] in BIOS.

OS)

64-bit OS)

®®

2.152.15

Installing WindowsInstalling Windows

2.15

Installing Windows

2.152.15

Installing WindowsInstalling Windows

TMTM

VistaVista

Vista

VistaVista

If you want to install Windows® XP , Windows® XP 64-bit, Windows® VistaTM or Windows VistaTM 64-bit OS on your SATA / SATAII HDDs without RAID functions, please follow below procedures according to the OS you install.

2.15.1 Installing Windows2.15.1 Installing Windows

2.15.1 Installing Windows

2.15.1 Installing Windows2.15.1 Installing Windows

F F

If you want to install Windows® XP or Windows® XP 64-bit on your SA TA / SA TAII HDDs without RAID functions, please follow below steps.

Using SATA / SATAII HDDs with NCQ and Hot Plug functions

STEP 1: Set Up BIOS.

A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration. B. Set the “SATA Operation Mode” option to [IDE].

STEP 2: Make a SATA / SATAII driver diskette.

Make a SATA / SATAII driver diskette by following section 2.14.1 step 2 on page

33.

STEP 3: Set Up BIOS.

A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration. B. Set the “SATA Operation Mode” option to [AHCI].

64-bit W 64-bit W

64-bit W

64-bit W 64-bit W

unctionsunctions

unctions

unctionsunctions

®®

XP / XP 64-bit / Vista XP / XP 64-bit / Vista

XP / XP 64-bit / Vista

XP / XP 64-bit / Vista XP / XP 64-bit / Vista

ithout RAID Fithout RAID F

ithout RAID F

ithout RAID Fithout RAID F

®®

XP / XP 64-bit Without RAID XP / XP 64-bit Without RAID

XP / XP 64-bit Without RAID

XP / XP 64-bit Without RAID XP / XP 64-bit Without RAID

unctionsunctions

unctions

unctionsunctions

TMTM

/ /

3535

STEP 4: Install Windows® XP / Windows® XP 64-bit OS on your system.

You can start to install Windows® XP / Windows® XP 64-bit OS on your system. At the beginning of Windows® setup, press F6 to install a third-party AHCI driver. When prompted, insert the SATA / SATAII driver diskette containing the AMD AHCI driver. After reading the floppy disk, the driver will be presented. Select the driver to install according to the OS you install. (Select “AMD AHCI Compatible RAID Controllerx86 platform” for Windows® XP, or “AMD AHCI Compatible RAID Controller-x64 platform” for Windows® XP 64-bit.)

Using SATA / SA TAII HDDs without NCQ and Hot Plug function s

STEP 1: Set up BIOS.

A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration. B. Set the “SATA Operation Mode” option to [IDE].

STEP 2: Install Windows® XP / Windows® XP 64-bit OS on your system.

®®

OS)

®®

64-bit OS)

2.15.2 Installing Windows2.15.2 Installing Windows

2.15.2 Installing Windows

2.15.2 Installing Windows2.15.2 Installing Windows

RAID F RAID F

RAID F

RAID F RAID F

If you want to install Windows® VistaTM or Windows® VistaTM 64-bit on your SATA / SATAII HDDs without RAID functions, please follow below steps.

Using SATA / SATAII HDDs with NCQ and Hot Plug functions

STEP 1: Set Up BIOS.

A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration. B. Set the “SATA Operation Mode” option to [AHCI].

STEP 2: Install Windows® VistaTM / VistaTM 64-bit OS on your system.

Insert the Windows® VistaTM / Windows® VistaTM 64-bit optical disk into the optical drive to boot your system, and follow the instruction to install Windows® VistaTM / Windows VistaTM 64-bit OS on your system. When you see “Where do you want to install Windows? ” page, plea se insert the ASRock Support CD into your optical drive, a nd click the “Loa d Driver” button on the left on the bottom to load the AMD AHCI drivers. AMD AHCI drivers are in the following path in our Support CD: (There are two ASRock Support CD in the motherboard gift box pack, please choose the one for Windows® VistaTM / VistaTM 64-bit.)

.. \ I386 (For Windows® Vista .. \ AMD64 (For Windows® Vista

After that, please insert Windows® VistaTM / Windows® VistaTM 64-bit optical disk into the optical drive again to continue the installation.

unctionsunctions

unctions

unctionsunctions

Vista Vista

Vista

Vista Vista

TMTM

/ Vista / Vista

/ Vista

/ Vista / Vista

TMTM

64-bit Without 64-bit Without

64-bit Without

64-bit Without 64-bit Without

3636

Using SATA / SATAII HDDs without NCQ and Hot Plug functions

STEP 1: Set up BIOS.

A. Enter BIOS SETUP UTILITY Advanced screen IDE Configuration. B. Set the “SATA Operation Mode” option to [IDE].

STEP 2: Install Windows® VistaTM / VistaTM 64-bit OS on your system.

2.162.16

Untied Overclocking TUntied Overclocking T

2.16

Untied Overclocking T

2.162.16

Untied Overclocking TUntied Overclocking T

This motherboard supports Untied Overclocking Technology, which means during overclocking, FSB enjoys better margin due to fixed PCI / PCIE buses. Before you enable Untied Overclocking function, please enter “Overclock Mode” option of BIOS setup to set the selection from [Auto] to [CPU, PCIE, Async.]. Therefore, CPU FSB is untied during overclocking, but PCI / PCIE buses are in the fixed mode so that FSB can operate under a more stable overclocking environment.

Please refer to the warning on page 8 for the possible overclocking risk before you apply Untied Overclocking Technology.

echnologyechnology

echnology

echnologyechnology

3737

3.3.

BIOS SETUP UTILITYBIOS SETUP UTILITY

BIOS SETUP UTILITY

3.3.

BIOS SETUP UTILITYBIOS SETUP UTILITY

3.1 Introduction3.1 Introduction

3.1 Introduction

3.1 Introduction3.1 Introduction

This section explains how to use the BIOS SETUP UTILITY to configure your system. The SPI Memory on the motherboard stores the BIOS SETUP UTILITY. You may run the BIOS SETUP UTILITY when you start up the computer. Please press <F2> during the Power-On-Self-Test (POST) to enter the BIOS SETUP UTILITY, otherwise, POST will continue with its test routines. If you wish to enter the BIOS SETUP UTILITY after POST, restart the system by pressing <Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system chassis. You may also re start by turning the system off and then back on.

Because the BIOS software is constantly being updated, the following BIOS setup screens and descriptions are for reference purpose only, and they may not exactly match what you see on your screen.

3.1.13.1.1

BIOS Menu BarBIOS Menu Bar

3.1.1

BIOS Menu Bar

3.1.13.1.1

BIOS Menu BarBIOS Menu Bar

The top of the screen has a menu bar with the f ollowing selection s:

Main To set up the system time/date information Smart To load the BIOS a ccording to your requirements Advanced T o set up the a dvanced BIOS fe atures H/W Monitor To display current hardware status Boot To set up the default system device to locate a nd load the Op-

erating System

Security To set up the security features Exit T o exit the current screen or the BIOS SETUP UTILITY

Use < > key or < > key to choose among the selections on the menu bar, and then press <Enter> to get into the sub screen.

3838

3.1.23.1.2

Navigation KeysNavigation Keys

3.1.2

Navigation Keys

3.1.23.1.2

Navigation KeysNavigation Keys

Please check the following table for the function description of each navigation key.

Navigation Key(s) Function Description / Moves cursor left or right to select Screens / Moves cursor up or down to select items + / - To change option for the selected items <Enter> To bring up the selected screen <F1> To display the General Help Screen <F9> To load optimal default values for all the settings <F10> To save changes and exit the BIOS SETUP UTILITY <ESC> To jump to the Exit Screen or exit the current screen

3.23.2

Main ScreenMain Screen

3.2

Main Screen

3.23.2

Main ScreenMain Screen

When you enter the BIOS SETUP UTILITY, the Main screen will appear and display the system overview.

Smart H/WMonitor Boot Security ExitAdvanced

Main

System Overview

System Time

System Date

BIOS Version Processor Type

Processor Speed Microcode Update L1 Cache Size L2 Cache Size

Total Memory

DDRII1 DDRII2

BIOS SETUP UTILITY

[ :00:09]

: A780GM-LE/128M P1.0 : AMD Athlon(tm) 64 X2 Dual Core

Processor 4000+ (64bit) : 2000MHz : 40F32/62 : 256KB : 2048KB

: 1024MB with 128MB shared memory

Single-Channel Memory Mode : 1024MB/400MHz (DDR2 800) : None

[Mon 04/20/2009]

System Time [Hour:Minute:Second]

Use this item to specify the system time.

System Date [Day Month/Date/Year]

Use this item to specify the system date.

3939

Use [Enter], [TAB] or [SHIFT-TAB] to select a field.

Use [+] or [-] to configure system Time.

Select Screen

Select Item +- Change Field Tab Select Field F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

3.33.3

Smart ScreenSmart Screen

3.3

Smart Screen

3.33.3

Smart ScreenSmart Screen

In the Smart screen, you can load the BIOS setup according to your requirements.

Main

Smart

Smart Settings

Save Changes and Exit

Load BIOS Defaults Load Performance Setup Default (IDE/SATA) Load Performance Setup AHCI Mode Load Performance Setup RAID Mode Load Power Saving Setup Default

BIOS Update Utility

ASRock Instant Flash

BIOS SETUP UTILITY

Advanced H/WMonitor Boot Security Exit

Exit system setup after saving the changes.

F10keycanbeused for this operation.

Select Screen

Select Item Enter Go to Sub Screen F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

Save Changes and Exit

When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?” Select [OK] to save the changes and exit the BIOS SETUP UTILITY.

Load BIOS Defaults

Load BIOS default values for all the setup questions. F9 key can be used for this operation.

Load Performance Setup Default (IDE/SATA)

This performance setup default may not be compatible with all system configurations. If system boot failure occurs after loading, please resume optimal default settings. F5 key can be used for this operation.

Load Performance Setup AHCI Mode

This performance setup AHCI mode may not be compatible with all system configurations. If system boot failure occurs after loading, please resume optimal default settings. F3 key can be used for this operation.

Load Performance Setup RAID Mode

This performance setup RAID mode may not be compatible with all system configurations. If system boot failure occurs after loading, please resume optimal default settings. F4 key can be used for this operation.

Load Power Saving Setup Default

Load power saving setup default. F6 key can be used for this operation.

ASRock Instant Flash

ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM. This convenient BIOS update tool allows you to update system BIOS without entering operating systems first like MS-DOS or Windows®. Just launch this tool and save the new BIOS file to your USB flash drive, floppy disk or hard drive, then you can update your BIOS only in a few clicks without

4040

preparing an additional floppy diskette or other complicated flash utility. Please be noted that the USB flash drive or hard drive must use FAT32/16/ 12 file system. If you execute ASRock Instant Flash utility, the utility will show the BIOS files and their respective information. Select the proper BIOS file to update your BIOS, and reboot your system after BIOS update process completes.

3.43.4

Advanced ScreenAdvanced Screen

3.4

Advanced Screen

3.43.4

Advanced ScreenAdvanced Screen

In this section, you may set the configurations for the following items: CPU Configuration, Memory Configuration, Chipset Configuration, ACPI Configuration, IDE Configuration, PCIPnP Configuration, Floppy Configuration, SuperIO Configuration, and USB Configuration.

BIOS SETUP UTILITY

Main Smart

Advanced Settings

WARNING: Setting wrong values in below sections

CPU Configuration

Memory Configuration Chipset Configuration ACPI Configuration IDE Configuration PCIPnP Configuration Floppy Configuration SuperIO Configuration USB Configuration

Advanced

may cause system to malfunction.

H/W Monitor Boot Security Exit

Options for CPU

Select Screen

Select Item Enter Go to Sub Screen F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

Setting wrong values in this section may cause the system to malfunction.

3.4.13.4.1

CPU ConfigurationCPU Configuration

3.4.1

CPU Configuration

3.4.13.4.1

CPU ConfigurationCPU Configuration

Advanced

CPU Configuration

AM2 Boost Overclock Mode

CPU Frequency (MHz) PCIE Frequency (MHz)

Spread Spectrum Boot Failure Guard Cool'n'Quiet Secure Virtual Machine L3 Cache Allocation Advanced Clock Calibration

Processor Maximum Frequency Processor Maximum Voltage

Multiplier/Voltage Change

HT Bus Speed HT Bus Width

BIOS SETUP UTILITY

[Disabled] [Auto]

[200] [100]

[Auto] [Enabled] [Auto] [Enabled] [Auto] [Disabled]

x15.0 3000 MHz

1.400 V

[Auto]

[Auto] [Auto]

4141

If AUTO, multiplier and voltage will be left at the rated frequency/voltage. If Manual,

multiplier and

will be set based

voltage on User Selection in Setup.

Select Screen

Select Screen Select Item

Select Item

+- Change Option

+- Change Option F1 General Help

F1 General Help F9 Load Defaults

F9 Load Defaults F10 Save and Exit

F10 Save and Exit ESC Exit

ESC Exit

AM2 Boost

This option appears only when you adopt AM2 CPU. If you set this option to [Enabled], you will enable ASRock AM2 Boost function, which will improve the memory performance. The default value is [Disabled]. Please refer to caution 14 on page 9 for details.

Overclock Mode

Use this to select Overclock Mode. The default value is [Auto]. Configuration options: [Auto], [CPU, PCIE, Sync.], [CPU, PCIE, Async.] a nd [Optimized].

CPU Frequency (MHz) Use this option to adjust CPU frequency. PCIE Frequency (MHz) Use this option to adjust PCIE frequency. Spread Spectrum

This item should always be [Auto] for better system stability.

Boot Failure Guard

Enable or disable the feature of Boot Failure Guard.

Cool ‘n’ Quiet

Use this item to enable or disable AMD’s Cool ‘n’ QuietTM technology. The default value is [Auto]. Configuration options: [Auto], [Enabled] and [Disabled]. If you install Windows® VistaTM and want to enable this function, please set this item to [Enabled]. Please note that enabling this function may reduce CPU voltage and memory frequency, and lead to system stability or compatibility issue with some memory modules or power supplies. Please set this item to [Disable] if above issue occurs.

Secure Virtual Machine

When this option is set to [Enabled], a VMM (Virtual Machine Architecture) can utilize the additional hardware capabilities provided by AMD-V. The default value is [Enabled]. Configuration options: [Enabled] and [Disabled].

Enhance Halt State

This option appears only when you a dopt Phenom CPU. All processors support the Halt State (C1). The C1 state is supported through the native processor instructions HLT and MWAIT and requires no hardware support from the chipset. In the C1 power state, the processor maintains the context of the system caches.

L3 Cache Allocation

This option appears only when you adopt Phenom CPU. The default value is [Auto]. Configuration options: [Auto], [BSP Only] and [All Cores].

Advanced Clock Calibration

This allows you to adjust Advanced Clock Calibration feature. The default value is [Disabled]. Configuration options: [Disabled], [Auto], [All Cores] and [Per Core]. If you select [All Cores], you will see the option “Value (All Cores)”. Configuration options: [+12%] to [-12%]. If you select [Per Core],

4242

you will see the options “Value (Core 0)”, “Value (Core 1)”, “Value (Core 2) ” and “Value (Core 3)”. Configuration options: [+12%] to [-12%].

Processor Maximum Frequency

It will display Processor Maximum Frequency for reference.

North Bridge Maximum Frequency

This option appears only when you adopt Phenom CPU. It will display North Bridge Maximum Frequency for reference.

Processor Maximum Voltage

It will display Processor Maximum Voltage for reference.

Multiplier/Voltage Change

This item is set to [Auto] by default. If it is set to [Manual], you may adjust the value of Processor Frequency and Processor Voltage. However, it is recommended to keep the default value for system stability.

Advanced

CPU Configuration

AM2 Boost Overclock Mode

CPU Frequency (MHz) PCIE Frequency (MHz)

Spread Spectrum Boot Failure Guard Cool'n'Quiet Secure Virtual Machine L3 Cache Allocation Advanced Clock Calibration

Processor Maximum Frequency Processor Maximum Voltage

Multiplier/Voltage Change

Processor Frequency Processor Voltage

HT Bus Speed

BIOS SETUP UTILITY

[Disabled] [Auto]

[200] [100]

[Auto] [Enabled] [Auto] [Enabled] [Auto] [Disabled]

x15.0 3000 MHz

1.400 V

[Manual]

[x9.0 1800 MHz] [1.350 V]

[Auto]

If AUTO, multiplier and voltage will be left at the rated frequency/voltage. If Manual,

multiplier and

will be set based

voltage on User Selection in Setup.

Select Screen

Select Screen Select Item

Select Item

+- Change Option

+- Change Option F1 General Help

F1 General Help F9 Load Defaults

F9 Load Defaults F10 Save and Exit

F10 Save and Exit ESC Exit

ESC Exit

Processor Frequency

This option appears only when you adopt AM2 CPU. This item will show when “Multiplier/Voltage Cha nge” is set to [Ma nual]; otherwise, it will be hidden. The range of the value depends on the CPU you adopt on this motherboard. However , for system stability, it is not recommended to adjust the value of this item.

Processor Voltage

This option appears only when you adopt AM2 CPU. This item will show when “Multiplier/Voltage Cha nge” is set to [Ma nual]; otherwise, it will be hidden. The range of the value depends on the CPU you adopt on this motherboard. However , for safety and system stability, it is not recommended to adjust the value of this item.

CPU Frequency Multiplier

This option appears only when you a dopt Phenom CPU. However, for safety and system stability, it is not recommended to adjust the value of this item.

4343

CPU Voltage

This option appears only when you adopt Phenom CPU. It allows you to adjust the value of CPU voltage. However, for safety and system stability, it is not recommended to adjust the value of this item.

NB Frequency Multiplier

This option appears only when you adopt Phenom CPU. However, for safety and system stability, it is not recommended to adjust the value of this item.

NB Voltage

This option appears only when you adopt Phenom CPU. It allows you to adjust the value of NB voltage. However, for safety and system stability, it is not recommended to adjust the value of this item.

HT Bus Speed

This feature allows you selecting Hyper-Transport bus speed. Configuration options: [Auto], [200 MHz], [400 MHz], [600 MHz], [800 MHz] and [1000 MHz]. If you adopt Phenom CPU, the configuration options are: [Auto], [200 MHz], [400 MHz], [600 MHz], [800 MHz], [1000 MHz], [1800 MHz], [2000 MHz], [2200 MHz], [2400 MHz] and [2600 MHz]. The configuration options depend on the CPU you adopt.

HT Bus Width

This feature allows you selecting Hyper-Transport bus width. Configuration options: [Auto], [8 Bit] and [16 Bit].

3.4.23.4.2

Memory ConfigurationMemory Configuration

3.4.2

Memory Configuration

3.4.23.4.2

Memory ConfigurationMemory Configuration

Advanced

Memory Configuration

Memory Clock

Flexibility Option Memory Controller Mode Power Down Enable Bank Interleaving Channel Interleaving

Timing : 4-4-4-12

CAS Latency (CL)

TRCD

TRP

TRAS

Timing : 2-2-2-4-16

TRTP

TRRD

TWTR

TWR

BIOS SETUP UTILITY

[Auto]

[Disabled] [Unganged] [Enabled] [Auto] [XOR of Address bit]

[Auto] [Auto] [Auto] [Auto]

Select Screen

Select Screen Select Item

Select Item

+- Change Option

+- Change Option F1 General Help

F1 General Help F9 Load Defaults

F9 Load Defaults F10 Save and Exit

F10 Save and Exit ESC Exit

ESC Exit

Memory Clock

This item can be set by the code using [Auto]. You can set one of the standard values as listed: [200 MHz (DDR2 400)], [266 MHz (DDR2 533)], [333 MHz (DDR2 667)] and [400MHz (DDR2 800)]. If you adopt Phenom CPU, there is one more option: [533MHz (DDR2 1066)]

4444

TRC

Use this to adjust TRC values. Configuration options: [Auto], [11CLK] to [26CLK]. The default value is [Auto].

TRWTWB

Use this to adjust TRWTWB values. Configuration options: [Auto], [3CLK] to [10CLK]. The default value is [Auto].

Flexibility Option

The default value of this option is [Disabled]. It will allow better tolerance for memory compatibility when it is set to [Enabled].

Memory Controller Mode

This option appears only when you adopt Phenom CPU. It allows you to adjust the memory controller mode. Configuration options: [Unganged] and [Ganged]. The default value is [Unganged].

Power Down Enable

Use this item to enable or disable DDR power down mode.

Bank Interleaving

Interleaving allows memory accesses to be spread out over banks on the same node, or accross nodes, decreasing access contention.

Channel Interleaving

This option appears only when you adopt Phenom CPU. It allows you to enable Channel Memory Interleaving. Configuration options: [Disabled], [XOR of Address bit [20:16, 6]], [XOR of Address bit [20:16, 9]], [Address bits 6] and [Address bits 12]. The default value is [XOR of Address bit [20:16, 6]].

CAS Latency (CL)

Use this item to adjust the means of memory accessing. Configuration options: [Auto] to [7CLK]. The default value is [Auto].

TRCD

Use this to adjust TRCD values. Configuration options: [Auto], [3CLK] to [6CLK]. The default value is [Auto].

TRP

Use this to adjust TRP values. Configuration options: [Auto], [3CLK] to [6CLK]. The default value is [Auto].

TRAS

Use this to adjust TRAS values. Configuration options: [Auto], [5CLK] to [18CLK]. The default value is [Auto].

TRTP

Use this to adjust TRTP values. Configuration options: [Auto], [2-4 CLK] and [3-5 CLK]. The default value is [Auto].

TRRD

Use this to adjust TRRD values. Configuration options: [Auto], [2CLK] to [5CLK]. The default value is [Auto].

4545

TWTR

Use this to adjust TWTR values. Configuration options: [Auto], [1CLK] to [3CLK]. The default value is [Auto].

TWR

Use this to adjust TWR values. Configuration options: [Auto], [3CLK] to [6CLK]. The default value is [Auto].

TRWTTO

Use this to adjust TRWTTD values. Configuration options: [Auto], [3CLK] to [17CLK]. The default value is [Auto].

TWRRD

Use this to adjust TWRRD values. Configuration options: [Auto], [1CLK] to [4CLK]. The default value is [Auto].

TWRWR

Use this to adjust TWRWR values. Configuration options: [Auto], [1CLK] to [4CLK]. The default value is [Auto].

TRDRD

Use this to adjust TRWTTD values. Configuration options: [Auto], [3CLK] to [5CLK]. The default value is [Auto].

TRFC0

Use this to adjust TRFC0 values. Configuration options: [Auto], [75ns], [105ns], [127.5ns], [195ns] and [327.5ns]. The default value is [Auto].

TRFC1

Use this to adjust TRFC1 values. Configuration options: [Auto], [90ns], [110ns], [160ns], [300ns] and [350ns]. The default value is [Auto].

TRFC2

Use this to adjust TRFC2 values. Configuration options: [Auto], [90ns], [110ns], [160ns], [300ns] and [350ns]. The default value is [Auto].

TRFC3

Use this to adjust TRFC3 values. Configuration options: [Auto], [90ns], [110ns], [160ns], [300ns] and [350ns]. The default value is [Auto].

MA Timing

Use this to adjust values for MA timing. Configuration options: [Auto], [2T], [1T]. The default value is [Auto].

CHA Addr/Cmd Fine Delay

Use this to adjust values for CHA Addr/Cmd Fine Delay feature. Configuration options: [Auto], [No Delay], [1/64CLK] to [31/64CLK]. The default value is [Auto].

CHA Addr/Cmd Setup Time

Use this to adjust values for CHA Addr/Cmd Setup Ti me fe ature. Configuration options: [Auto], [1/2CLK] and [1CLK]. The default value is [Auto].

4646

CHA CS/ODT Fine Delay

Use this to adjust values for CHA CS/ODT Fine Delay feature. Configuration options: [Auto], [No Delay], [1/64CLK] to [31/64CLK]. The default value is [Auto].

CHA CS/ODT Setup Time

Use this to adjust values for CHA CS/ODT Setup Time feature. Configuration options: [Auto], [1/2CLK] and [1CLK]. The default value is [Auto].

CHB Addr/Cmd Fine Delay

Use this to adjust values for CHB Addr/Cmd Fine Delay feature. Configuration options: [Auto], [No Delay], [1/64CLK] to [31/64CLK]. The default value is [Auto].

CHB Addr/Cmd Setup Time

Use this to adjust values for CHB Addr/Cmd Setup Time feature. Configuration options: [Auto], [1/2CLK] and [1CLK]. The default value is [Auto].

CHB CS/ODT Fine Delay

Use this to adjust values for CHB CS/ODT Fine Delay feature. Conf iguration options: [Auto], [No Delay], [1/64CLK] to [31/64CLK]. The default value is [Auto].

CHB CS/ODT Setup Time

Use this to adjust values for CHB CS/ODT Setup Time feature. Configuration options: [Auto], [1/2CLK] and [1CLK]. The default value is [Auto].

CHA CKE Drive Strength

Use this to adjust values for CHA CKE Drive Strength. Configuration options: [Auto], [1.00x], [1.25x], [1.50x] and [2.00x]. The default value is [Auto].

CHA CS/ODT Drive Strength

Use this to adjust values for CHA CS/ODT Drive Strength. Configuration options: [Auto], [1.00x], [1.25x], [1.50x] and [2.00x]. The default value is [Auto].

CHA ODDR/CMD Drive Strength

Use this to adjust values for CHA ODDR/CMD Drive Strength. Configuration options: [Auto], [1.00x], [1.25x], [1.50x] and [2.00x]. The default value is [Auto].

CHA CLK Drive Strength

Use this to adjust values for CHA CLK Drive Strength. Configuration options: [Auto], [0.75x], [1.00x], [1.25x] and [1.50x]. The default value is [Auto].

CHA DATA Drive Strength

Use this to adjust values for CHA DATA Drive Strength. Configuration options: [Auto], [0.75x], [1.00x], [1.25x] and [1.50x]. The default value is [Auto].

CHA DQS Drive Strength

Use this to adjust values for CHA DQS Drive Strength. Configuration options: [Auto], [0.75x], [1.00x], [1.25x] and [1.50x]. The default value is [Auto].

4747

CHA Processor ODT

Use this to adjust values for CHA Processor ODT. Configuration options: [Auto], [240 ohms], [120 ohms] and [60 ohms]. The default value is [Auto].

CHB CKE Drive Strength

Use this to adjust values for CHB CKE Drive Strength. Configuration options: [Auto], [1.00x], [1.25x], [1.50x] and [2.00x]. The default value is [Auto].

CHB CS/ODT Drive Strength

Use this to adjust values for CHB CS/ODT Drive Strength. Configuration options: [Auto], [1.00x], [1.25x], [1.50x] and [2.00x]. The default value is [Auto].

CHB ODDR/CMD Drive Strength

Use this to adjust values for CHB ODDR/CMD Drive Strength. Configuration options: [Auto], [1.00x], [1.25x], [1.50x] and [2.00x]. The default value is [Auto].

CHB CLK Drive Strength

Use this to adjust values for CHB CLK Drive Strength. Configuration options: [Auto], [0.75x], [1.00x], [1.25x] and [1.50x]. The default value is [Auto].

CHB DATA Drive Strength

Use this to adjust values for CHB DA TA Drive Strength. Configuration options: [Auto], [0.75x], [1.00x], [1.25x] and [1.50x]. The default value is [Auto].

CHB DQS Drive Strength

Use this to adjust values for CHB DQS Drive Strength. Conf iguration options: [Auto], [0.75x], [1.00x], [1.25x] and [1.50x]. The default value is [Auto].

CHB Processor ODT

Use this to adjust values for CHB Processor ODT. Configuration options: [Auto], [240 ohms], [120 ohms] and [60 ohms]. The default value is [Auto].

4848

3.4.33.4.3

3.4.3

3.4.33.4.3

Chipset ConfigurationChipset Configuration

Chipset Configuration

Chipset ConfigurationChipset Configuration

Advanced

Chipset Settings

Onboard HD Audio

Front Panel OnBoard LAN Primary

Graphics Adapter

Internal Graphics Mode Share Memory SidePort Clock Speed Onboard HDMI HD Audio Onboard GPU Clock Override Surround View

DRAM Voltage

mGPU Voltage

Thermal Throttle

BIOS SETUP UTILITY

[Auto] [Auto] [Enabled] [PCI]

[UMA+SIDEPORT] [Auto] [Auto] [Disabled] [Disabled] [Disabled]

[Auto]

To set DRAM Voltage.

Select Screen

Select Item + - Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

Onboard HD Audio

Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio feature. If you select [Auto], the onboard HD Audio will be disabled when PCI Sound Card is plugged.

Front Panel

Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio Front Panel.

OnBoard LAN

This allows you to enable or disable the onboard LAN feature.

Primary Graphics Adapter

This item will switch the PCI Bus scanning order while searching for video card. It allows you to select the type of Primary VGA in ca se of multiple video controllers. The default value of this feature is [PCI]. Configuration options: [PCI], [Onboard] and [PCI Express].

Internal Graphics Mode

This allows you to adjust internal graphics mode. The default value is [UMA+SIDEPORT]. Configuration options: [UMA], [SIDEPORT] and [UMA+SIDEPORT].

Share Memory

This allows you to set share memory feature. The default value is [Auto]. Configuration options: [Auto], [32MB], [64MB], [128MB], [256MB] and [512MB]. This option only appears when you set “Internal Graphics Mode” to [UMA] or [UMA+SIDEPORT].

SidePort Clock Speed

This allows you to select sideport clock speed. The default value is [Auto]. Configuration options: [Auto], [400 MHz], [533 MHz], [667 MHz], [800 MHz] and [1066 MHz]. This option only appears when you set “Internal Graphics Mode” to [SIDEPORT] or [UMA+SIDEPORT].

4949

Onboard HDMI HD Audio

This allows you to enable or disable the onboard HDMI HD Audio in AMD 780G.

Onboard GPU Clock Override

This allows you to enable or disable the Onboard GPU Clock Override feature.

Onboard GPU Clock

This option only appears when you enable “Onboard GPU Clock Override”. The default value is [500].

Surround View

This allows you to enable or disable the Surround View feature or Hybrid CrossFireXTM feature.

DRAM Voltage

Use this to select DRAM voltage. Configuration options: [Auto], [1.80V], [1.85V], [1.90V], [1.96V], [2.02V], [2.08V], [2.14V], [2.20V], [2.31V], [2. 37V], [2.42V], [2.48V], [2.54V], [2.60V], [2.66V] and [2.72V]. The default value is [Auto].

mGPU Voltage

Use this to select mGPU voltage. Configuration options: [Auto], [1.10V], [1.15V], [1.20V], [1.25V], [1.30V], [1.35V], [1.40V] and [1.45V]. The default value is [Auto].

Thermal Throttle

Use this to enable CPU internal thermal control mechanism to keep the CPU from overheated. Configuration options: [Disabled], [Auto], [12.5%], [25%], [37.5%], [50%], [62.5%], [75%] and [87.5%]. The default value is [Auto].

5050

3.4.43.4.4

3.4.4

3.4.43.4.4

ACPI ConfigurationACPI Configuration

ACPI Configuration

ACPI ConfigurationACPI Configuration

Advanced

ACPI Settings

Suspend To RAM

Repost Video on STR Resume Check Ready Bit

Restore on AC / Power Loss Ring-In Power On PCI Devices Power On PS /2 Keyboard Power On RTC Alarm Power On

ACPI HPET Table

BIOS SETUP UTILITY

[Auto]

[No] [Auto]

[Power Off] [Disabled] [Disabled] [Disabled] [Disabled]

[Disabled]

Select auto-detect or disable the STR feature.

Select Screen

Select Item +- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

Suspend to RAM

Use this item to select whether to auto-detect or disable the Suspend-toRAM feature. Select [Auto] will enable this feature if the OS supports it. If you set this item to [Disabled], the function “Repost Video on STR Resume” will be hidden.

Repost Video on STR Resume

This feature allows you to repost video on STR resume. (STR refers to

suspend to RAM.)

Check Ready Bit

Use this item to enable or disable the feature Check Ready Bit.

Restore on AC/Power Loss

This allows you to set the power state after an unexpected AC/power loss. If [Power Off] is selected, the AC/power remains off when the power recovers. If [Power On] is selected, the AC/power resumes and the system starts to boot up when the power recovers.

Ring-In Power On

Use this item to enable or disable Ring-In signals to turn on the system from the power-soft-off mode.

PCI Devices Power On

Use this item to enable or disable PCI devices to turn on the system from the power-soft-off mode.

PS/2 Keyboard Power On

Use this item to enable or disable PS/2 keyboard to turn on the system from the power-soft-off mode.

RTC Alarm Power On

Use this item to enable or disable RTC (Real Time Clock) to power on the system.

5151

ACPI HPET T able

Use this item to enable or disable ACPI HPET Table. The default value is [Disabled]. Please set this option to [Enabled] if you plan to use this motherboard to submit Windows® VistaTM certification.

3.4.53.4.5

IDE ConfigurationIDE Configuration

3.4.5

IDE Configuration

3.4.53.4.5

IDE ConfigurationIDE Configuration

Advanced

IDE Configuration

Onboard SATA Controller

SATA Operation Mode

IDE1 Master IDE1 Slave SATAII_1 SATAII_2 SATAII_3 SATAII_4 SATAII_5 SATAII_6

BIOS SETUP UTILITY

Onboard SA TA Controller

Use this item to enable or disa ble the “Onboard SATA Controller” feature.

SATA Operation Mode

Use this item to adjust SATA Operation Mode. The default value of this option is [IDE]. If you want to operate RAID function on SATA / SATAII HDDs, plea se sele ct [RAID]. Configuration options: [AHCI], [RAID] and [IDE].

IDE Device Configuration

You may set the IDE configuration for the device that you specify. We will use the “IDE1 Master” as the example in the following instruction, which can be applied to the configuration s of “IDE1 Slave” a s well.

Advanced

IDE Master

:Hard Disk

Device

:MAXTOR 6L080J4

Vendor

:80.0 GB

Size

:Supported

LBA Mode

:16Sectors

Block Mode

PIO Mode

:MultiWord DMA-2

Async DMA

:Ultra DMA-6

Ultra DMA

:Supported

S.M.A.R.T.

Type

LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode DMA Mode S.M.A.R.T. 32Bit Data Transfer

[Enabled]

[IDE]

[Hard Disk] [Not Detected] [Not Detected] [Not Detected] [Not Detected] [Not Detected] [Not Detected] [Not Detected]

BIOS SETUP UTILITY

[Auto]

[Auto] [Auto] [Auto] [Auto] [Disabled] [Disabled]

Configure onboard serial ATA controller.

Select Screen

Select Screen Select Item

Select Item

+- Change Option

+- Change Option F1 General Help

F1 General Help F9 Load Defaults

F9 Load Defaults F10 Save and Exit

F10 Save and Exit ESC Exit

ESC Exit

Select the type

of device connected

to the system.

Select Screen

Select Item +- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

5252

TYPE

Use this item to configure the type of the IDE device that you specify. Configuration options: [Not Installed], [Auto], [CD/DVD], and [ARMD].

[Not Installed]: Select [Not Installed] to disable the use of IDE device. [Auto]: Select [Auto] to automatically detect the hard disk drive.

After selecting the hard disk information into BIOS, use a disk utility, such as FDISK, to partition and format the new IDE hard disk drives. This is necessary so that you can write or read data from the hard disk. Make sure to set the partition of the Primary IDE hard disk drives to active.

[CD/DVD]:This is used for IDE CD/DVD drives. [ARMD]: This is used for IDE ARMD (ATAPI Removable Media Device),

such as MO.

LBA/Large Mode

Use this item to select the LBA/Large mode for a hard disk > 512 MB under DOS and Windows; for Netware and UNIX user, select [Disabled] to disable the LBA/Large mode.

Block (Multi-Sector Transfer)

The default value of this item is [Auto]. If this feature is enabled, it will enhance hard disk performance by reading or writing more data during each transfer.

PIO Mode

Use this item to set the PIO mode to enhance hard disk performance by optimizing the hard disk timing.

DMA Mode

DMA capability allows the improved transfer-speed and data-integrity for compatible IDE devices.

S.M.A.R.T.

Use this item to enable or disable the S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) feature. Configuration options: [Disabled], [Auto], [Enabled].

32Bit Data Transfer

Use this item to enable 32-bit access to maxi mize the IDE hard disk data transfer rate.

5353

3.4.63.4.6

PCIPnP ConfigurationPCIPnP Configuration

3.4.6

PCIPnP Configuration

3.4.63.4.6

PCIPnP ConfigurationPCIPnP Configuration

Advanced

Advanced PCI /PnP Settings

PCI Latency Timer

PCI IDE BusMaster

BIOS SETUP UTILITY

[32]

[Enabled]

ValueinunitsofPCI clocks for PCI device latency timer register.

Select Screen

Select Item +- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

Setting wrong values in this section may cause the system to malfunction.

PCI Latency Timer

The default value is 32. It is recommended to keep the default value unless the installed PCI expansion cards’ specifications require other settings.

PCI IDE BusMaster

Use this item to enable or disable the PCI IDE BusMaster feature.

3.4.73.4.7

Floppy ConfigurationFloppy Configuration

3.4.7

Floppy Configuration

3.4.73.4.7

Floppy ConfigurationFloppy Configuration

In this section, you may configure the type of your floppy drive.

Advanced

Floppy Configuration

Floppy A

BIOS SETUP UTILITY

[1.44 MB 3 "]

Select the type of floppy drive connected to the system.

Select Screen

Select Item +- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

5454

3.4.83.4.8

Super IO ConfigurationSuper IO Configuration

3.4.8

Super IO Configuration

3.4.83.4.8

Super IO ConfigurationSuper IO Configuration

Advanced

Configure Super IO Chipset

OnBoard Floppy Controller

Serial Port Address Infrared Port Address Parallel Port Address

Parallel Port Mode

EPP Version ECP Mode DMA Channel

Parallel Port IRQ

BIOS SETUP UTILITY

[Enabled]

[3F8 /IRQ4] [Disabled] [378] [ECP + EPP] [1.9] [DMA3] [IRQ7]

Allow BIOS to Enable or Disable Floppy Controller.

Select Screen

Select Item +- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

OnBoard Floppy Controller

Use this item to enable or disable floppy drive controller.

Serial Port Address

Use this item to set the address for the onboard serial port or disable it. Configuration options: [Disabled], [3F8 / IRQ4], [2F8 / IRQ3], [3E8 / IRQ4], [2E8 / IRQ3].

Infrared Port Address

Use this item to set the address for the onboard infrared port or disable it. Configuration options: [Disabled], [2F8 / IRQ3], a nd [2E8 / IRQ3].

Parallel Port Address

Use this item to set the address for the onboard parallel port or disable it. Configuration options: [Disabled], [378], a nd [278].

Parallel Port Mode

Use this item to set the operation mode of the parallel port. The default value is [ECP+EPP]. If this option is set to [ECP+EPP], it will show the EPP version in the following item, “EPP Version”. Configuration options: [Normal], [Bi-Directional], and [ECP+EPP].

EPP Version

Use this item to set the EPP version. Configuration options: [1.9] and [1.7].

ECP Mode DMA Channel

Use this item to set the ECP mode DMA channel. Configuration

options: [DMA0], [DMA1], and [DMA3].

Parallel Port IRQ

Use this item to set the IRQ for the parallel port. Configuration options: [IRQ5] and [IRQ7].

5555

3.4.93.4.9

USB ConfigurationUSB Configuration

3.4.9

USB Configuration

3.4.93.4.9

USB ConfigurationUSB Configuration

Advanced

USB Configuration

USB Controller

USB 2.0 Support Legacy USB Support Async Park Mode

BIOS SETUP UTILITY

[Enabled]

[Enabled] [BIOS Setup Only] [Disabled]

To enable or disable the onboard USB controllers.

Select Screen

Select Item +- Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

USB Controller

Use this item to enable or disable the use of USB controller.

USB 2.0 Support

Use this item to enable or disable the USB 2.0 support.

Legacy USB Support

Use this option to select legacy support f or USB devices. There are f our configuration options: [Enabled], [Auto], [Disabled] and [BIOS Setup Only]. The default value is [BIOS Setup Only]. Please refer to below de scription s for the details of these four options: [Enabled] - Enables support f or legacy USB. [Auto] - Enables lega cy support if USB device s are connected. [Disabled] - USB devices are not allowed to use under legacy OS a nd BIOS setup when [Disabled] is selected. If you have USB compatibility issue, it is recommended to select [Disabled] to enter OS. [BIOS Setup Only] - USB devices are allowed to use only under BIOS setup and Windows / Linux OS.

Async Park Mode

Use this option to enable or disable Async Park Mode. For normal operation the APM function should be disabled. If APM is enabled, some USB card reader devices may not work properly. The USB controller uesd on these devices may not be able to ha ndle the short delay ti me between the data packets.

5656

3.53.5

Hardware Health Event Monitoring ScreenHardware Health Event Monitoring Screen

3.5

Hardware Health Event Monitoring Screen

3.53.5

Hardware Health Event Monitoring ScreenHardware Health Event Monitoring Screen

In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard te mperature, CPU fan speed, chassis fan speed, and the critical voltage.

Main Smart Advanced

Hardware Health Event Monitoring

CPU Temperature M /B Temperature

CPU Fan Speed Chassis Fan Speed

Fan Speed

Power

Vcore + 3.30V + 5.00V + 12.00V

CPU Quiet Fan [Disabled]

BIOS SETUP UTILITY

H/W Monitor

: 37C/98F : 31C/87F

: 3400 RPM : 3399 RPM : 3288 RPM

: 1.629V : 3.306V : 5.067V : 11.890V

Boot Security Exit

Enable/Disable CPU Quiet Fan Function.

Select Screen

Select Item F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

CPU Quiet Fan

This item allows you to identify the temperature of CPU fan. If you set this option as [Disabled], the CPU fan will operate in full speed. If you set this option as [Enabled], you will find the items “Target CPU Temperature” and “Target Fan Speed” appear to allow you a djusting them. The default value is [Disabled]. You are allowed to enable this function only when you install 4-pin CPU fan.

Target CPU Temperature

The target temperature will be between 45 C/113 F a nd 65 C/149 F. The default value is [50 C/122 F].

Target Fan Speed

Use this option to set the target fan speed. You can freely adjust the target fan speed a ccording to the target CPU temperature that you choose. Configuration options: [Level 1], [Level 2], [Level 3], [Level 4], [Level 5], [Level 6] [Level 7], [Level 8] and [Level 9].

5757

3.63.6

Boot ScreenBoot Screen

3.6

Boot Screen

3.63.6

Boot ScreenBoot Screen

In this section, it will display the available devices on your system for you to configure the boot settings and the boot priority.

Main Smart Advanced H/WMonitor

Boot Settings

Boot Settings Configuration

1st Boot Device 2nd Boot Device 3rd Boot Device 4th Boot Device

Hard Disk Drives Removable Drives CD/DVD Drives

3.6.13.6.1

3.6.1

3.6.13.6.1

Boot Settings ConfigurationBoot Settings Configuration

Boot Settings Configuration

Boot Settings ConfigurationBoot Settings Configuration

Boot Settings Configuration

Full Screen Logo

AddOn ROM Display

Boot Logo Boot From Onboard LAN

Bootup Num-Lock

BIOS SETUP UTILITY

[1st Floppy Device] [HDD: PM -HDS722580VL] [CD/DVD: 3S-CD-ROM C] [USB]

BIOS SETUP UTILITY

[Enabled]

[Enabled] [Auto] [Disabled]

[On]

Boot

Security Exit

Configure Settings during System Boot.

Enter Go to Sub Screen F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

Disabled: Displays normal POST messages. Enabled: Displays OEM Logo instead of POST messages.

+ - Change Option F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

Select Screen Select Item

Full Screen Logo

Use this item to enable or disable OEM Logo. The default value is [Enabled].

AddOn ROM Display

Use this option to adjust AddOn ROM Display. If you enable the option “Full Screen Logo” but you want to see the AddOn ROM information when the system boots, please sele ct [En a bled]. Conf iguration option s: [Enabled] and [Disabled]. The default value is [Enabled].

5858

Boot Logo

Use this option to select logo in POST screen. This option only appears when you enable the option “Full Screen Logo”. Configuration options: [Auto], [PCIE2.0 Revolution], [Scenery] and [ASRock]. The default value is [Auto]. Currently, the option [Auto] is set to Aircraft.

Boot From Onboard LAN

Use this item to enable or disable the Boot From Onboard LAN feature.

Boot Up Num-Lock

If this item is set to [On], it will automatically activate the Numeric Lock function after boot-up.

3.73.7

Security ScreenSecurity Screen

3.7

Security Screen

3.73.7

Security ScreenSecurity Screen

In this section, you may set or change the supervisor/user pa ssword f or the system. For the user password, you may also clear it.

Main Smart Advanced H/WMonitor Boot

Security Settings

Supervisor Password : Not Installed User Password : Not Installed

Change Supervisor Password

Change User Password

BIOS SETUP UTILITY

Security

Install or Change the password.

Enter Change F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

Exit

Select Screen Select Item

5959

3.83.8

Exit ScreenExit Screen

3.8

Exit Screen

3.83.8

Exit ScreenExit Screen

Main Smart Advanced H/WMonitor Boot Security

Exit Options

Save Changes and Exit

Discard Changes and Exit Discard Changes

Would you like to save current setting user defaults ?

Save 1st User Defaults

Load 1st User Defaults

Save 2nd User Defaults

Load 2nd User Defaults

Save 3rd User Defaults

Load 3rd User Defaults

BIOS SETUP UTILITY

Exit system setup after saving the changes.

F10 key can be used for this operation.

Enter Go to Sub Screen F1 General Help F9 Load Defaults F10 Save and Exit ESC Exit

Save Changes and Exit

When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?” Select [OK] to save the changes and exit the BIOS SETUP UTILITY.

Discard Changes and Exit

When you select this option, it will pop-out the following message, “Discard changes and exit setup?” Select [OK] to exit the BIOS SETUP UTILITY without saving any changes.

Discard Changes

When you select this option, it will pop-out the following message, “Discard changes?” Select [OK] to discard all changes.

Would you like to save current setting user defaults?

In this option, you are allowed to load and save three user defaults according to your own requirements.

Exit

Select Screen Select Item

6060

4.4.

SofSof

4.4.

4.1 Install Operating System4.1 Install Operating System

4.1 Install Operating System

4.1 Install Operating System4.1 Install Operating System

This motherboard supports various Microsoft® Windows® operating systems: XP / XP Media Center / XP 64-bit / VistaTM / VistaTM 64-bit. Because motherboard settings and hardware options vary, use the setup procedures in this chapter for general reference only. Refer to your OS documentation for more information.

4.2 Support CD Information4.2 Support CD Information

4.2 Support CD Information

4.2 Support CD Information4.2 Support CD Information

The Support CD that came with the motherboard contains necessary drivers and useful utilities that enhance the motherboard features.

4.2.1 Running The Support CD4.2.1 Running The Support CD

4.2.1 Running The Support CD

4.2.1 Running The Support CD4.2.1 Running The Support CD

To begin using the support CD, insert the CD into your CD-ROM drive. The CD automatically displays the Main Menu if “AUTORUN” is enabled in your computer. If the Main Menu did not appear automatically, locate and double click on the file “ASSETUP.EXE” from the BIN folder in the Support CD to display the menus.

4.2.2 Drivers Menu4.2.2 Drivers Menu

4.2.2 Drivers Menu

4.2.2 Drivers Menu4.2.2 Drivers Menu

The Drivers Menu shows the available devices drivers if the system detects the installed devices. Please install the necessary drivers to activate the devices.

4.2.3 Utilities Menu4.2.3 Utilities Menu

4.2.3 Utilities Menu

4.2.3 Utilities Menu4.2.3 Utilities Menu

The Utilities Menu shows the applications software that the motherboard supports. Click on a specific item then follow the installation wizard to install it.

tware Supportware Suppor

Sof

tware Suppor

SofSof

tware Supportware Suppor

4.2.44.2.4

4.2.4

4.2.44.2.4

If you need to contact ASRock or want to know more about ASRock, welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information.

Contact InformationContact Information

Contact Information

Contact InformationContact Information

6161

ASRock A780GM-LE 128M User Manual V1

Specifications and Main Features

Frequently Asked Questions

User Manual
