Operating Instructions
WARNING: Read the instructions before using the machine.
Tumble dryer
ASKO T754C
Contents
Before using your machine for the fi rst
time 3
Laundry labels 3
Safety instructions 4
Safety 4
Installation 4
Transport/Winter storage 5
Packing material 5
Recycling 5
Safety instructions 5
Safety instructions 6
Child safety 7
General 7
Description of the tumble dryer 8
Care and cleaning 15
Cleaning the lint fi lter 15
Emptying the condensed water container 16
Cleaning the condenser 17
Cleaning the outside of the machine 18
Troubleshooting 19
The machine will not start 19
The machine loses all power during a
program 19
Drying takes too long 19
Error messages 19
Technical information 20
Technical data 20
Standard tests 20
Service 21
Advice and tips before you tumble-dry 9
Materials that can be tumble-dried 9
Materials that must not be tumble-dried 9
Static electricity 9
Tumble drying 10
Sort your fabrics 10
Press the main power switch until the
display lights. 10
Open the door, load the items and then
close the door 10
Select the program 11
Selecting Options 13
Press the Start button 13
Drying programme fi nished 14
Before contacting the service division 21
Installation 22
Positioning the tumble dryer 22
Condensed water 24
Electrical installation 24
Door hanging 25
Follow these instructions 26
Quick guide 28
Original Instructions
2
Before using your machine for the fi rst time
Laundry labels
Certain materials are not suitable for tumbledrying. Always check and follow the instructions
on each item’s laundry label. You can fi nd more
information in the Advice and tips before you
tumble-dry chapter.
NOTE!
When starting the tumble dryer for the fi rst time
or after a long period without use, you may
notice a slight thumping noise. This noise is
completely normal and will disappear after a few
loads.
3
Safety instructions
Read the operating instructions and
keep them in a safe place!
• Electrical installation, if required,
should be carried out by a qualifi ed
electrician.
• The machine should only be used for
tumble-drying as described in these
instructions.
• Your dryer is intended solely for
household use.
• Repairs and maintenance must be
carried out by a qualifi ed professional.
• Damaged mains cables must only be
replaced by a qualifi ed electrician.
• Suffi cient ventilation is required to
prevent smoke from open fi res or
fumes from equipment burning other
fuels being sucked into the room when
the tumble dryer is running.
• Do not dry dirty laundry in the tumble
dryer.
• Items that are stained with e.g.
cooking oil, acetone, alcohol, petrol,
kerosene, stain remover, turpentine,
wax and wax remover should be
washed in hot water with extra
detergent before they go in the
tumbler dryer.
• Items such as foam rubber, latex,
plastic, waterproof textiles, rubbercoated items and clothes and foamrubber fi lled cushions must not be
dried in the tumbler dryer.
• Fabric softener or similar products
should be used as per the
recommendations of the detergent
manufacturer.
• The machine is not designed to be
used by persons (even children)
that are physically or mentally
handicapped or lack experience
and knowledge. Such persons must
receive instruction in how to use the
machine from the person responsible
for their safety.
• Children must be watched to ensure
they do not play with the machine.
Safety
• The machine must not be used for
drying items that have been drycleaned at home or fabrics that may
contain residues of fl ammable liquids.
• The tumble dryer is protected by an
overheating cut-out. This shuts off the
machine if the temperature gets too
high.
• The appliance is not intended for use
by young children or infi rm persons
without supervision.
• The machine automatically cuts off
if the condenser water tank is full or
outlet hose is blocked.
WARNING!
When the tumble dryer is operating, the
back of the tumble dryer will get very hot.
Leave the machine to cool completely
before touching the back.
Installation
See the section Installation.
4
Safety instructions
Transport/Winter storage
If you need to move your machine or
store it over the winter in unheated
premises, make sure that you drain the
condensed water container beforehand.
Packing material
Sort waste materials in accordance with
local guidelines.
Recycling
This machine is manufactured and
labelled for recycling. In order to prevent
personal injury, the machine must be
made inoperable after deciding to take
it out of service. Contact your local
authority for information about where and
how your machine should be correctly
recycled.
To minimize the risk of fi re in a
tumble dryer, the following should be
observed:
• Items that have been spotted or
soaked with vegetable or cooking
oil constitute a fi re hazard and
should not be placed in a tumble
dryer. Oil-aff ected items can ignite
spontaneously, especially when
exposed to heat sources such as in a
tumble dryer.
The items become warm, causing
an oxidation reaction in the oil.
Oxidation creates heat. If the heat
cannot escape, the items can become
hot enough to catch fi re. Piling,
stacking or storing oil-aff ected items
can prevent heat from escaping
and so create a fi re hazard. If it is
unavoidable that fabrics that contain
vegetable or cooking oil or have been
contaminated by hair care products be
placed in a tumble dryer they should
fi rst be washed in hot water with extra
detergent - this will reduce, but not
eliminate, the hazard. The ’cool down’
cycle of tumble dryers should be
used to reduce the temperature of the
items. They should not be removed
from the tumble dryer or piled or
stacked while hot.
• Items that have been previously
cleaned in, washed in, soaked in or
spotted with petrol/gasoline, drycleaning solvents or other fl ammable
or explosive substances should not
be placed in a tumble dryer. Highly
fl ammable substances commonly
used in domestic environments
include acetone, denatured alcohol,
petrol/gasoline, kerosene, spot
removers (some brands), turpentine,
waxes and wax removers.
5
Safety instructions
• Items containing foam rubber (also
known as latex foam) or similarly
textured rubberlike materials should
not be dried in a tumble dryer on a
heat setting. Foam rubber materials
can, when heated, produce fi re by
spontaneous combustion.
• Fabric softeners or similar products
should not be used in a tumble dryer
to eliminate the eff ects of static
electricity unless this practice is
specifi cally recommended by the
manufacturer of the fabric softener or
product.
• Undergarments that contain metal
reinforcements should not be placed
in a tumbledryer. Damage to the
tumble dryer can result if metal
reinforcements come loose during
drying. When available a drying rack
could be used for such items.
• Plastic articles such as shower caps
or babies’ waterproof napkin covers
should not be placed in a tumble
dryer. Rubber-backed articles, clothes
fi tted with foam rubber pads, pillows,
galoshes and rubber-coated tennis
shoes should not be placed in a
tumble dryer.
Vented dryers
• There has to be adequate ventilation
to avoid the back fl ow of gases into
the room from appliances burning
other fuels, including open fi res, when
operating the tumble dryer.
• The exhaust air must not be
discharged into a fl ue which is used
for exhausting fumes from appliances
burning gas or other fuels.
CAUTION!
Air from the tumble dryer must not be fed
through ducts used for equipment that
burns gas or other fuels.
6
Child safety
General
WARNING!
Do not allow children to play with the
tumble dryer.
• If the door is opened when a program
is running the garments may be very
hot, with a risk of burn injuries.
• The tumble dryer does not start
automatically when the door is closed
(if a child pulls the door shut from the
inside, for example).
7
Description of the tumble dryer
12 3 4 5 6
7
1. Main power switch
2. Condensed water container
3. Panel
4. Serial Number
5. Lint fi lter
6. Outer door
7. Co n d e n s e r
8
Advice and tips before you tumble-dry
Here are some tips that may help you before
you begin tumble-drying.
Have the clothes been spun?
Items to be tumble-dried should be spun at
1000 rpm or faster. Higher spin speeds save
energy and reduce drying time.
Materials that can be tumble-dried
This symbol means that the material is
suitable for tumble-drying. Fabrics best suited
to tumble-drying are cotton fabrics, terry cloth
and synthetic fi bres. Garments will be softer and
lighter when tumbled than when hung out to dry.
NOTE!
The tumble dryer does not cause any signifi cant
wear on fabrics. The lint that collects in the lint
fi lter consists of dust and fi bre residues formed
when the items are used.
Static electricity
To reduce the risk of static electricity in the
laundry after tumble drying you can:
• Use fabric softener when washing.
• Wait fi ve minutes after the drying program
ends before opening the door and removing
the laundry from the dryer.
NOTE!
You can stop the tumble dryer by pressing the
Stop button for three seconds or by opening the
door. In both cases the program is stopped and
starts from the beginning if restarted.
If you do not want to restart the program then
immediately remove all laundry and spread it
out to allow the heat to dissipate.
Materials that must not be tumbledried
This symbol means that the material is not
suitable for tumble-drying. Certain materials
may melt or become a fi re hazard if exposed to
heat, and others can lose their shape or shrink.
And do not tumble-dry
• materials labelled "Do not dry near heat".
• garments that have been dry-cleaned at
home.
• plastic foam.
• fi breglass material.
• wool because of the risk of felting.
9
Tumble drying
Below are step-by-step instructions to help you
achieve the best possible tumble-drying results.
Sort your fabrics
You will achieve the most uniform drying
1
type of material. Do up zips and buttons, fasten
belts, sort the items and adjust the load and
temperature.
Do not overload the drum!
Overloading the dryer will result in poor drying
results and wrinkling.
results if the items are made of the same
Press the main power switch
until the display lights.
2
NOTE!
Power on
Press the on/off button for min. 1 sec and max.
5 sec.
Power off
Press the on/off button for min. 5 sec.
If the ON/OFF command is not correctly
accepted by the machine, wait min. 8 sec before
any further press.
Open the door, load the items
and then close the door
3
Make sure that objects e.g. detergent
dispensing balls, have been removed from the
laundry. They could melt and cause damage to
the dryer or the laundry.
To save energy, always observe the maximum
load for each programme (see Program chart).
10
Tumble drying
Select the program
4
Programme selector
/
Main power switch Display windowOptions buttons
Select a programme by turning the programme selector. An LED lights next to the selected
programme. Use the option buttons to select any options.
Guidelines as to what specifi c programs
can be used for:
Auto extra dry
This programme is for items that are particularly
diffi cult to dry, e.g. jeans with very thick seams.
NOTE!
to tumble-dry a load of mixed fabrics, some of
the garments may remain damp. Tumble-dry
any damp garments for a further 30 minutes or
so using the Timed dry program.
Select the desired time by pressing the Delayed
Start button. A program time between 30
minutes and 3 hours can be selected and each
button press changes the time by 15 minutes.
Stop Start
Knitted fabrics in particular are prone to
shrinkage. Use the Auto dry, Auto normal dry or
Auto Iron dry programs for these items. Stretch
clothes back into shape immediately after
drying.
Auto dry and Auto normal dry
These programs end automatically when the
load is dry. The Auto dry program gives slightly
drier laundry than Auto normal dry.
Auto Iron dry
This program shuts off the heat once the load is
just damp enough for ironing or pressing.
Timed dry
The most suitable program time depends
on what you intend to do with the items after
tumble-drying them. Use trial and error to fi nd
out what works best. When you use Timed dry
NOTE!
When using the Timed dry program with a
program time that is too long, the garments
can become “over-dry”. This can cause items
to shrink or crease and feel rough to the touch.
Synthetic materials can also become charged
with static electricity.
Revitalise
Use the Air fl uff program when you just want to
refresh, air or soften up items.
Select the desired time by pressing the Delayed
Start button. A program time between 15
minutes and 3 hours can be selected and each
button press changes the time by 15 minutes.
11
Tumble drying
Program chart
Here we present the energy and time consumption of a few diff erent programs. The table shows the
eff ect of using diff erent spin speeds when washing the load. Consumption can vary depending on
room temperature, humidity, load, variations in the power supply and selected options.
For the consumption values given below, the requirements are as follows
Temperature of intake air: 23 °C
Moisture content of intake air: 55 %
Drying temperature: Normal
Heater output: 1950W, 10A
Program Material Load Spin speed (rpm) Energy consumption,
Auto extra dry Cotton, linen 1/1 800 rpm 4,2 2:15
1000 rpm 3,9 2:05
1400 rpm 3,4 1:50
1600 rpm 3,3 1:45
Auto dry Cotton, linen 1/1 800 rpm 4,0 2:05
1000 rpm 3,6 1:55
1400 rpm 3,2 1:45
1600 rpm 3,0 1:40
Crease-resistant, polyester/
cotton
Auto normal dry Cotton, linen 1/1 800 rpm 3,9 2:00
Crease-resistant, polyester/
cotton
Auto Iron dry Cotton, linen 1/1 800 rpm 3,8 1:55
1/2 1000 rpm 1,9 1:05
1000 rpm 3,6 1:50
1400 rpm 3,1 1:40
1600 rpm 2,6 1:25
1/2 1000 rpm 1,3 0:40
1000 rpm 3,3 1:40
1400 rpm 2,6 1:25
1600 rpm 2,0 1:05
approx. (kWh)
Programme time,
approx. (min)
12
Tumble drying
Selecting Options
By selecting options, you can
5
requirements. The available options depend on
the selected program. Once you have started
the program, the options you selected are saved
for the next time you use the same program.
The exception is Delayed Start, which is not
saved for the next time.
You can select Energy Save with all programs
except Revitalise and Revitalise.
• Select Energy Save by pressing the button
• The lamp next to the button lights when
You can select Time saver with all programs
except Revitalise. The program is shortened by
about 12 minutes.
• Press the button next to the symbol.
• The lamp next to the button lights when Time
This option means that the drum will rotate for
three seconds per minute for two hours after
the drying program has fi nished. The option
prevents the fabrics from remaining in the
same position and becoming creased, if you
are unable to remove them immediately after
tumble-drying has fi nished. Cannot be selected
with the Air fl uff program.
• Select Anti crease by pressing the button
• The lamp next to the button lights when Anti
tailor a drying program to suit your
Energy Save
next to the symbol.
Energy Save is selected.
Time saver
saver is selected.
Anti crease
next to the symbol.
crease is selected.
Delayed Start
Select a program and then press Delayed Start.
Press the button to select a delayed start of 1
to 24 hours. The lamp next to the button lights
when this option is activated. Next press Start
and the machine counts down 1 hour at a time
and starts after the selected delay. To cancel
Delayed Start press and hold Stop for three
seconds. Delayed Start cannot be selected with
Timed dry or Revitalise.
Press the Start button
Remaining drying time
6
will be shown on the display a few minutes after
the drying program starts. 1:35 means that it will
take approximately 1 hour and 35 minutes for
the load to dry.
The actual remaining time may be longer than
the estimated time shown on the display. The
remaining time is then shown as 0:15 until the
load is suffi ciently dry. If you selected Time
saver the display will show 0:05 instead.
You can stop the tumble dryer by pressing the
Stop button or by opening the door. In both
cases the program is stopped and starts from
the beginning if restarted.
NOTE!
The program will not be aff ected if you change
the program selector after the program has
started.
An estimate of the remaining drying time
13
Tumble drying
Drying programme fi nished
The text "End" is shown on the display
7
The machine then turns off .
Condensed water
The condensed water container must
be emptied after each load. Remove the
condensed water container, empty out the water
and replace the container. If the condensed
water container becomes full to overfl owing, the
program is interrupted. Empty the container and
press the Start button to start a new program.
TIP!
The condensed water is decalcifi ed and can
be used in steam irons. Pour it through a coff ee
fi lter.
for 2 minutes.
NOTE!
• Clean the lint fi lter in the outer door after
each load. See the Care and cleaning
chapter.
• Empty the condensed water container after
each load.
WARNING!
If the lint fi lter becomes clogged, the machine’s
automatic overheating cut-out may be triggered.
Clean the fi lter, wait until the machine has
cooled then try starting it. If it still does not start:
call the service division.
Once drying has fi nished
Remove the clothes and close the door to
prevent small children from climbing into the
machine.
14
Care and cleaning
Cleaning the lint fi lter
The lint fi lter must be cleaned after each load.
1. Lift the fi lter from the holder in the door.
2. Open the lint fi lter. Push against the edge
with your thumb as shown in the fi gure.
3. Open the inner fi lter as shown in the fi gure.
4. Use your hand or a soft cloth to remove the
lint from all sides of the fi lter. If necessary,
use a damp sponge and a small amount of
washing-up liquid dish soap to remove any
deposits. Dry the fi lter thoroughly with a
towel.
NOTE!
Clean the surface of the lint (fl uff ) fi lter after
each drying program.
5. To close the lint fi lter, follow the reverse order
of steps used for opening. Then, replace the
fi lter by sliding it back into the door. Close the
lint fi lter before closing the door.
15
Care and cleaning
Emptying the condensed water
container
If you have not connected the machine to a
separate drain the condensed water container
must be emptied after each load. Remove the
condensed water container, empty out the water
and replace the container.
If the condensed water container becomes too
full, the program is interrupted and F10 is shown
in the display. Empty the container and press
the Start button to restart the program.
For connection to a separate drain, see the
installation instructions in the set of documents.
NOTE!
The dryer must not be used without the
condenser unit in place.
16
Care and cleaning
Cleaning the condenser
The condenser should be cleaned at least three
times a year. If you have pets, the condenser
must be cleaned more frequently.
NOTE!
Do not clean the condenser in a dishwasher.
1. Turn off the tumble dryer with the main power
switch and open the outer door.
2. Remove the plinth.
3. Open the condenser panel by turning the two
knobs.
5. Wipe any lint from the channel in front of
the condenser and inside the condenser
compartment. Use a cotton bud or similar
item to remove any lint from the drain hole at
the front edge of the compartment.
NOTE!
It is quite normal for water to collect in the
channel in front of the condenser.

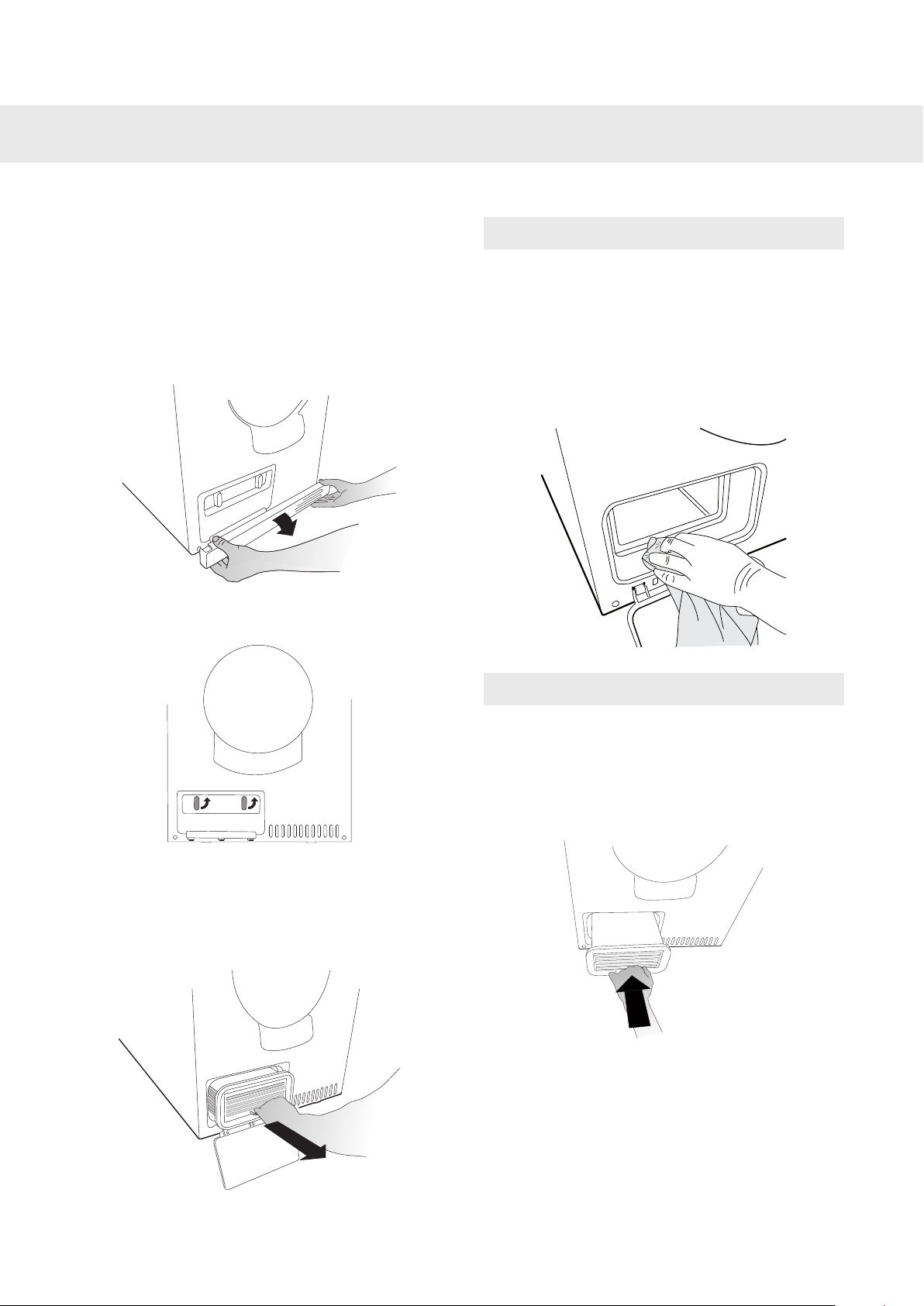

4. Remove the condenser and rinse the ribs
clean, such as with a hand-held shower. Do
not poke around in the rib gaps as you may
damage the condenser. Do not use pointed
metal objects when cleaning.
6. Replace the condenser with the handle
facing down as illustrated.
7. Reattach the plinth.
17
Care and cleaning
NOTE!
Clean the fi lters after each drying.
Do not replace the fi lters if they are damp or
wet. Damp or wet fi lters could cause operational
faults.
NOTE!
The dryer should never be operated without
the fi lters in place, or with damaged fi lters as
excessive amount of accumulated fi bres from
the fabric could cause malfunction or failure of
the dryer.
Cleaning the outside of the machine
Clean the outside of the machine and the
program panel with a mild cleaner. Do not use
solvents, as these can damage the machine. Do
not hose down or spray the machine with water.
NOTE!
Do not allow dust to accumulate around the
machine. Keep the area around the tumble
dryer clean and cool; dust, heat and moisture
prolong drying times.
18
Troubleshooting
The machine will not start
Check
• that the door is properly closed.
• that the main power switch is on.
• that the Delayed Start option has not been
selected. To cancel Delayed Start, press the
Stop button for three seconds.
• that the plug is connected.
• that the main fuses have not blown.
• that the overheating cut-out has not been
triggered.
The machine loses all power during a
program
The overheating cut-out shuts off the tumble
dryer if the temperature is too high, e.g.
because dust is clogging the lint fi lter.
• Clean the lint fi lter.
• Check also that the condensed water
container is not full and, if necessary, clean
the condenser. See the Care and cleaning
chapter.
• Wait until the machine has cooled then try
starting it. If it still does not start: Call the
service division.
Drying takes too long
• Check that the lint fi lter is not blocked. See
the Care and cleaning chapter.
• Empty the condensed water container and
check that the condenser is not blocked. See
the Care and cleaning chapter.
• Overly long drying times may also be due to
the tumble dryer being located in a confi ned
area or in a room that is too small, causing
the air to become too hot.
• Make sure that the tumble dryer has access
to more cold air, open doors and/or windows,
for example.
Error messages
If F10 fl ashes in the display, the condensed
water container is full. Empty the container and
restart the program.
If F30 is fl ashing on the display, the maximum
permitted program time has been reached.
Empty the condensed water container
and check that neither the lint fi lter nor the
condenser are blocked. See the Care and
cleaning chapter.
19
Technical information
Techni ca l data
Height: 850 mm
Width: 595 mm
Depth: 585 mm
Weight (net): 44 kg
Cylinder volume: 112 l
Max. drying capacity: 6.5 kg
Speed: 50-55 rpm
Rated power: See type plate.
Drum material: Stainless steel
Outer casing material: Powder-coated and hot-galvanized sheet steel or stainless steel.
Setup Stacking or freestanding
Standard tests
For the standard test the machine’s condensed water hose must be connected to a drain.
Australia:
Drying performance: AS/NZS 2442.1:1996.
Auto normal dry ,6.5 kg cotton, temperature Normal, Time saver.
Energy declaration: AS/NZS 2442.1:1996.
Auto normal dry, 6.5 kg cotton, temperature Normal, Time saver.
Test method for noise
measurement:
IEC 60 704-2-6.
20
Service
Before contacting the service
division
See the Troubleshooting and Care and cleaning
chapters to see whether you can rectify the
problem. If you need to contact the service
division, make sure that you know the model
designation, type designation and serial
number.

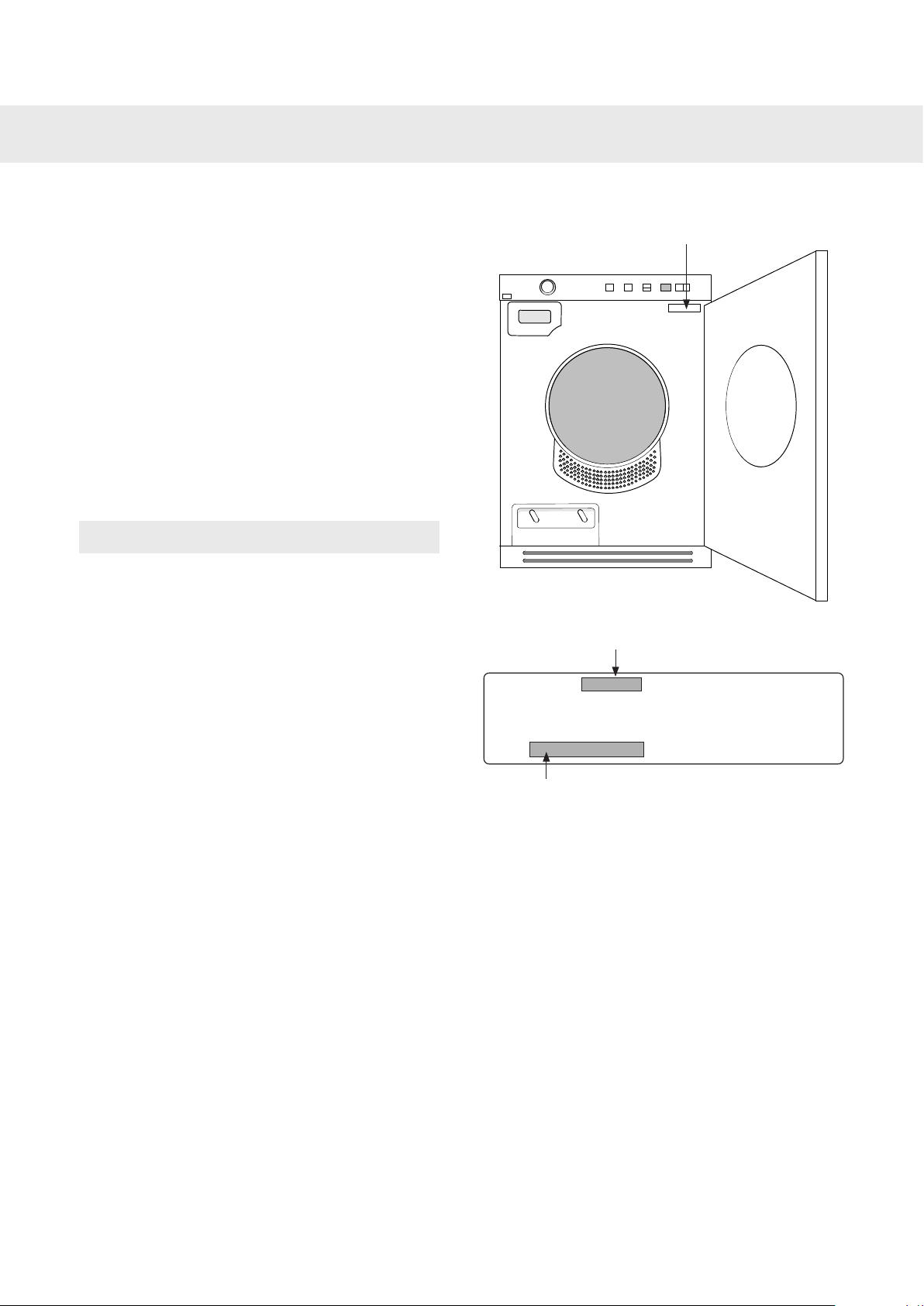

The model designation (1) can be found on the
fi rst page of the operating instructions and on
the machine panel. The type designation (2)
and serial number (3) can be found on the type
plate, which is found on the front of the tumble
dryer inside the outer door.
NOTE!
Repair or any warranty claim resulting from
incorrect connection or use of the dryer shall not
be covered by the warranty. In such cases, the
costs of repair shall be charged to the user.
1
2
TYPE
3
21
Installation
Positioning the tumble dryer
The tumble dryer can be free-standing or
in a stack. Remember that the tumble dryer
produces heat and should therefore not be
located in a room that is too small. If the room
is very small, drying will take longer due to the
limited quantity of air.
NOTE!
Do not install the machine in a room where
there is a risk of frost occurring. At temperatures
around freezing point the machine may not be
able to operate properly.
The room in which the appliance is installed
should be adequately ventilated, with
temperature between 15°C and 25°C.
WARNING!
• Any electrical installation must be carried out
by qualifi ed professionals.
• The machine must not be installed behind a
lockable door, a sliding door or a door with
hinges on the opposite side to those of the
tumble dryer.
• The tumble dryer's plinth ventilation must not
be blocked by a rug or the like.

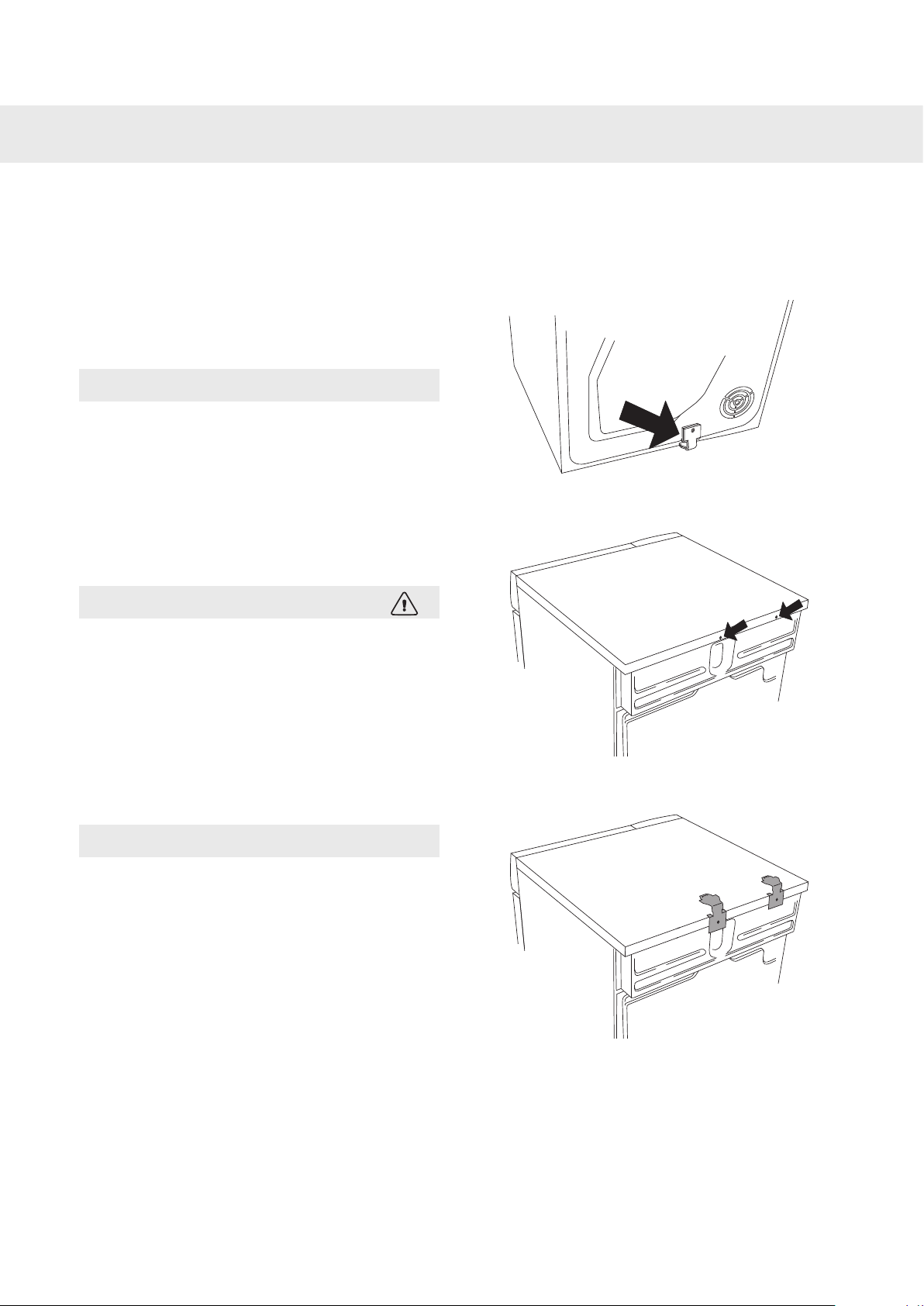

How to assemble the stack:
1. Remove the two tip guards from the back of
the tumble dryer. Replace the screws that
held the tip guards in place.
2. Undo the two screws indicated on the back
of the washing machine.
3. Secure the anti-tilt device using the screws
as shown in the picture.
NOTE!
To improve ventilation, leave the door to the
room where the tumble dryer is located open.
Freestanding
The tumble dryer can be positioned beside the
washing machine.
Stacking
The tumble dryer can be placed on top of a
ASKO washing machine. Use the two foot cups
found in the document bag included with the
machine and the two tip guards attached to the
bottom left corner of the back of the machine.
22
Installation
4. Attach the plastic cups for fi xing the tumble
dryer’s front feet to the washing machine’s
top cover. This is essential, as only when the
tumble dryer’s feet are resting in the plastic
cups can you be sure that the tumble dryer is
correctly positioned on the washing machine.
Break off tag A on the cup fi tted on the right-
hand side and tag B on the cup fi tted on the
left-hand side. Then remove the paper from
the self-adhesive surface under the plastic
cups.
A
B
5. Fit the plastic cups so that the “tags” marked
with arrows are against the front edge or side
edge of the cover and press them fi rmly onto
the cover. Then break off the remaining tags.
7. Lower the tumble dryer’s front feet into the
plastic cups and adjust the tumble dryer to
ensure it is level.
Adjusting the feet
Screw the feet in or out so that the tumble dryer
is both stable and level.
6. Push the tumble dryer in under the metal
brackets. At the same time keep the front
edge raised by 10 mm to 20 mm.
23
Installation

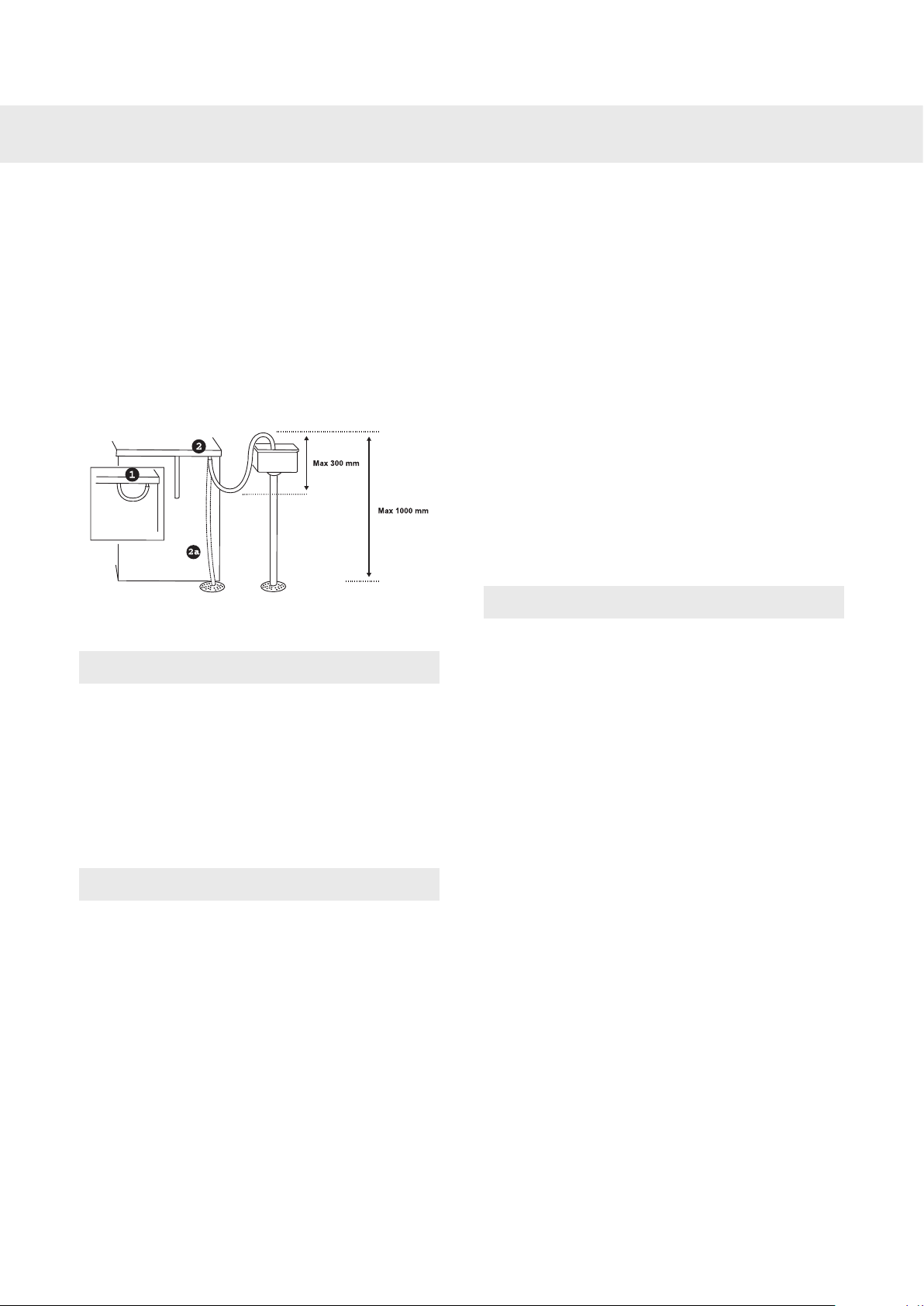

Condensed water
The machine is supplied as shown in Option 1
(inset). This means that the condensed water
is pumped into the condensed water container,
which must be removed and emptied by hand.
Option 2 allows you to remove the small short
hose from the nipple. Attach the rubber hose
supplied to the same nipple. The water can then
be pumped out into a sink or a fl oor drain (2a).
NOTE!
Electrical installation
Connect the machine by plugging it into an
earthed wall socket. The electrical wall socket
must be placed outside of the installation area
to be easily accessible.
If this appliance is supplied from a cord
extensions set or electrical portable outlet
device, the cord extension ser or electrical
portable outlet device must be positioned so
that it is not subject to splashing or ingress of
moisture.
Connection on delivery
• 230 V, 1-Phase, 10 A
• 50 Hz
• Heat output 1950 W, 10 A
• Use a type A residual current device.
NOTE!
Do not connect the machine to the mains
electricity supply by an extension lead.
• Do not pull on the drain hose and do not
stretch it or allow it to become kinked as it
could get damaged.
• Secure the hose carefully (e.g. by trying it to
a tap to make sure it cannot slip during use).
Otherwise there is a risk of overfl owing water
which could cause damage.
WARNING!
If the tumble dryer is to be connected to a
drainage system already in use by another
appliance it is essential to fi t a non-return valve.
The non-return valve will prevent the risk of
back-fl ow into the dryer which could cause
damage.
24
Door hanging

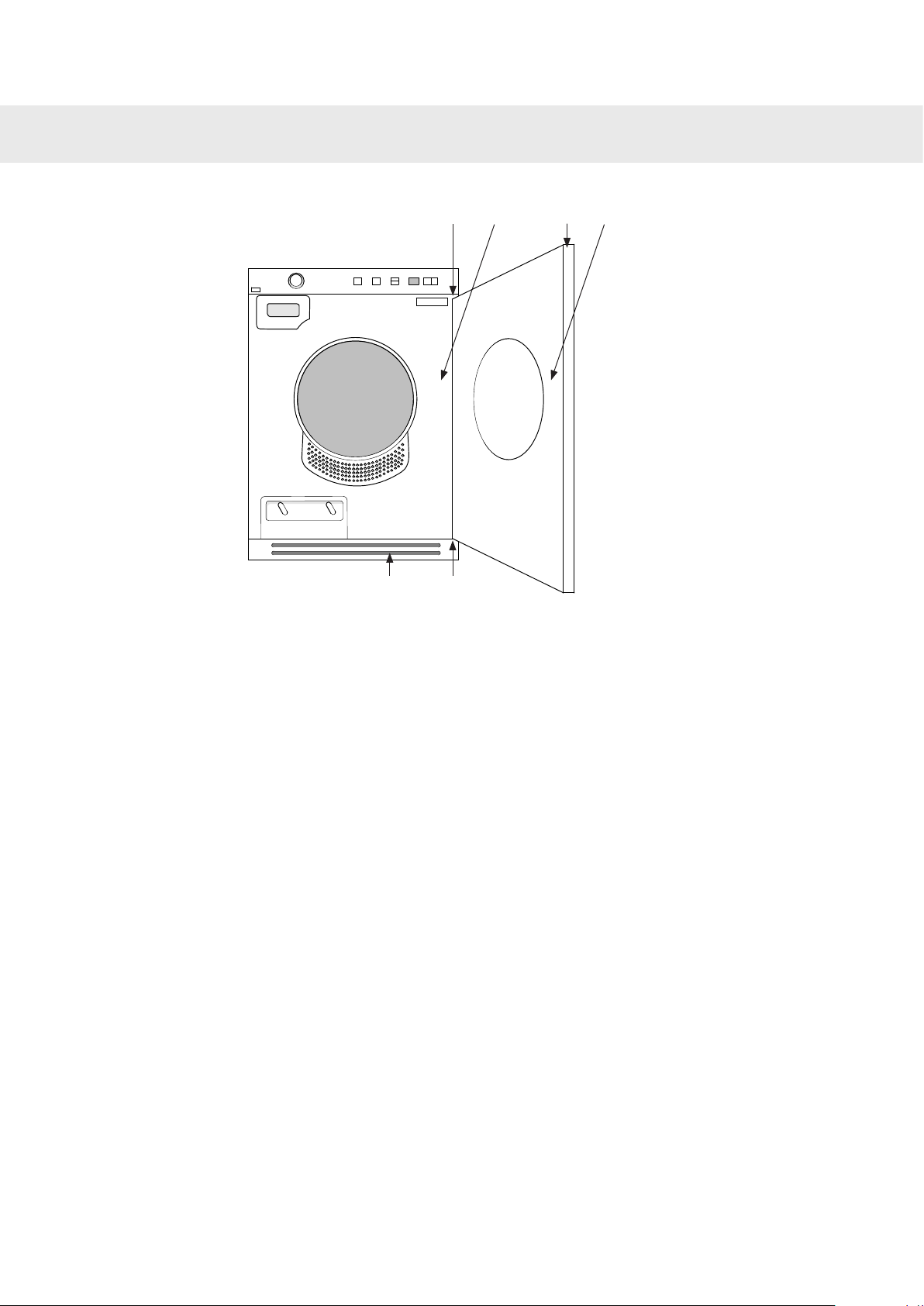

3214
1. Hinge pins (top and bottom)
2. Cover plate
3. Plastic plugs (on the upper and lower edges)
56
4. Locking hook
5. Hinges (left + right side)
6. Plinth
25
Door hanging
You can choose whether the door is hung on the
right or the left.
NOTE!
Follow these instructions:
1. Remove the plinth.
2. Remove the hinge, two screws
3. Lift the door up and remove it. Support the
door at the same time.
4. Remove both door pins (top and bottom). Fit
them on the other side of the machine. Refi t
the hinge.
Be careful not to damage the appliance with the
screwdriver.
6. Loosen and remove the catch (lift up and
pull out) and the cover plate on the door and
the machine. Switch the catch and the cover
plate.
1
2
7. R e fi t the door by loosening the hinge screws
slightly, affi xing the door, and closing it.
Tighten the hinges. Replace the Toe kick.
pin
5. Also change the hole plug (A) (on top) and
the door hinge bushing (B) (at the top and on
the bottom), and replace them on the other
side of the door.
(A) (B)
Use a fl at screwdriver to remove the plugs.
26
Your notes
27

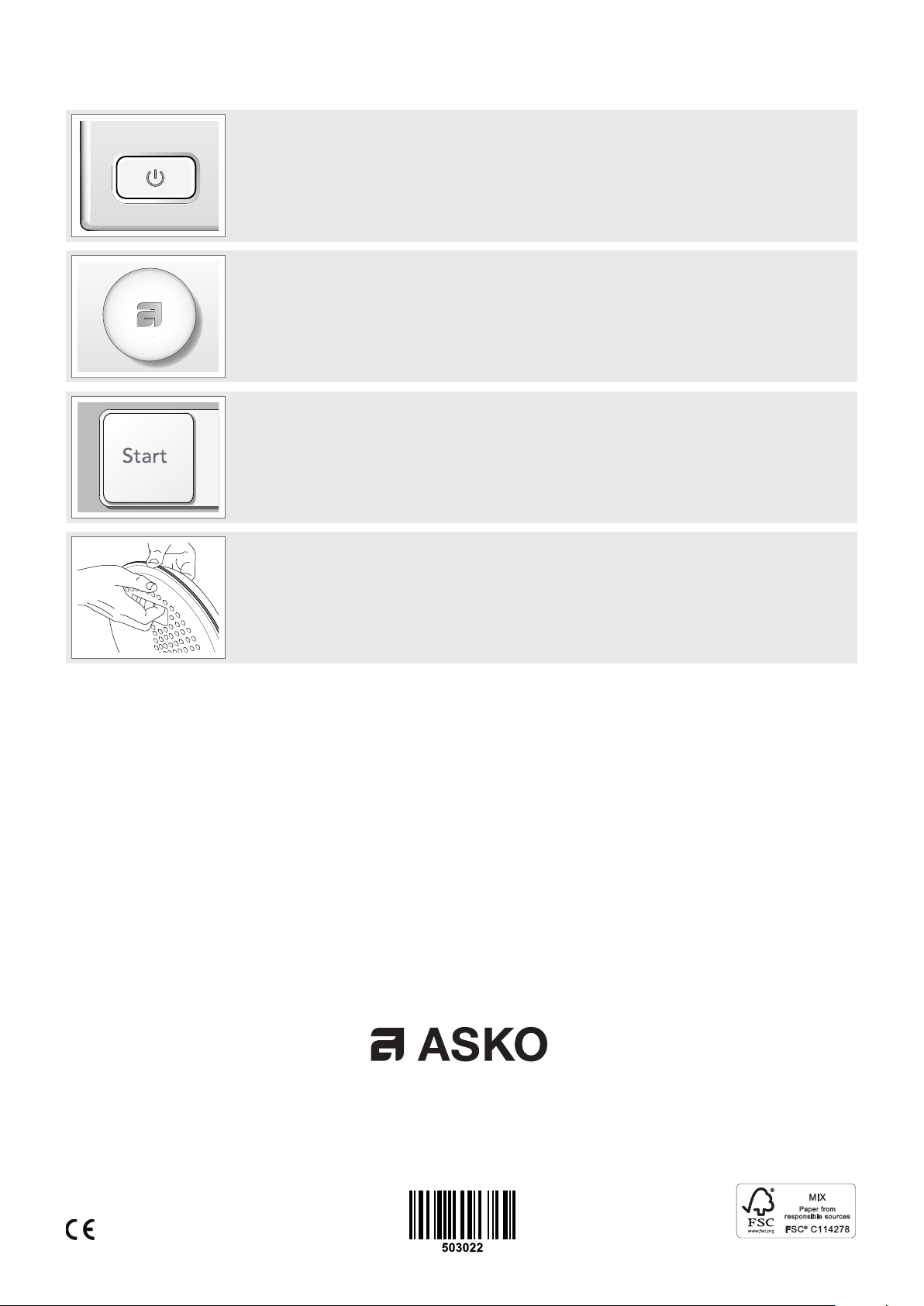

QUICK GUIDE
TURN ON THE MAIN POWER SWITCH
Load the garments. Close the door.
1.
SELECT A PROGRAM AND ANY OPTIONS
Turn the program selector to the desired program.
2.
PRESS THE START BUTTON
3.
4.
DRYING PROGRAM FINISHED
The text ”End” is shown on the display for 2 minutes.
The machine then turns off .
Clean the lint fi lter after each load.
Close the door.
We reserve the right to make changes.
TD70.1
T754C W AU/NZ
www.asko.com
en (11-16)
Loading...
