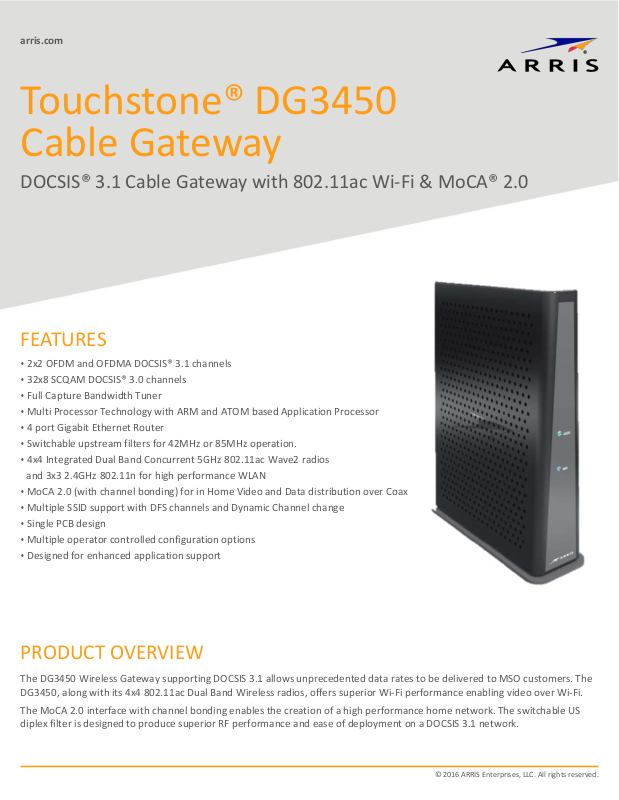

Touchstone® DG3450
Cable Gateway
DOCSIS® 3.1 Cable Gateway with 802.11ac Wi-Fi & MoCA® 2.0
FEATURES
• 2x2 OFDM and OFDMA DOCSIS® 3.1 channels
• 32x8 SCQAM DOCSIS® 3.0 channels
• Full Capture Bandwidth Tuner
• Multi Processor Technology with ARM and ATOM based Application Processor
• 4 port Gigabit Ethernet Router
• Switchable upstream filters for 42MHz or 85MHz operation.
• 4x4 Integrated Dual Band Concurrent 5GHz 802.11ac Wave2 radios
and 3x3 2.4GHz 802.11n for high performance WLAN
• MoCA 2.0 (with channel bonding) for in Home Video and Data distribution over Coax
• Multiple SSID support with DFS channels and Dynamic Channel change
• Single PCB design
• Multiple operator controlled configuration options
• Designed for enhanced application support
PRODUCT OVERVIEW
The DG3450 Wireless Gateway supporting DOCSIS 3.1 allows unprecedented data rates to be delivered to MSO customers. The
DG3450, along with its 4x4 802.11ac Dual Band Wireless radios, offers superior Wi-Fi performance enabling video over Wi-Fi.
The MoCA 2.0 interface with channel bonding enables the creation of a high performance home network. The switchable US
diplex filter is designed to produce superior RF performance and ease of deployment on a DOCSIS 3.1 network.
© 2016 ARRIS Enterprises, LLC. All rights reserved.
Page 2
DG3450
Increased DRAM, Flash and Multiple embedded processor cores are designed to allow new applications to be
deployed on the gateway. This feature-packed unit is intended to serve as the hub of the subscribers network,
connecting all IP capable devices (Internet, Data and Video) throughout the customers premises.
Residential gateway support has always been a concern of the operator. The DG3450 distinguishes itself with
capabilities to minimize these support needs. Multiple provisioning methods (SNMP, Configuration File, Remote
WebGUI access, TFTP, and TR-069/181) allow custom designed setups to be applied to monitor the end user more
efficiently. Multiple remote access levels (User, Cusadmin, and MSO) also allow more ease and flexibility for manual
configuration and control.
The DG3450 will help lead the future to advanced home and small business services.
SPECIFICATIONS
Physical
Operating Temperature 0 to 40°C
Operating Relative Humidity 5-85% (Non condensing)
Storage Temperature -40 to 70°C
Dimensions (H x W x D) 9.33in x 2.87in x 8in
237mm x 73mm x 205mm
Backup Capacity (not supplied) External BBU
Weight 1.94lbs
0.88kg
Diagnostic LED’s (Top) Integrated LED for status of
Power, US/DS, Online, 2.4GHz,
5GHz, Battery, MoCA
Diagnostic LED’s (Rear) MoCA, Ethernet Link/Speed
SPECIFICATIONS
Interfaces
RF Interface 1 External ‘F’ type connector
Date Interfaces
(bridged)
MoCA MoCA 2.0
Input Voltage (nominal) 12V DC
AC-DC External
4 x 10/100/1000 Base-T Ethernet
(RJ-45 connector)
© 2016 ARRIS Enterprises, LLC. All rights reserved.
Page 3
DG3450
SPECIFICATIONS
RF Downstream
Bonded Channels Up to 32 SCQAM or 2 OFDM
Tuner Configuration Full capture tuning range
Frequency Range (MHz) 108MHz - 1002MHz DOCSIS
Data Rate (Mbps Max.) Up to 5Gbps
RF Input Sensitivity Level -15dBmV to +15dBmV (DOCSIS)
RF Upstream
Bonded Channels Up to 8 SCQAM or 2 OFDMA
Frequency Range 5MHz to 85MHz
Configurable Diplex Filter 42MHz-85MHz
Data Rate (Mbps Max.) Up to 1Gbps
RF Output Level +65 dBmV (64 QAM, single upstream)
+57 dBmv (64 QAM, 4-8 upstreams)
+65 dBmV (16 QAM, single upstream)
SPECIFICATIONS
Wireless
Frequency Range 2.4GHz and 5GHz
Transmit Power (from any
antenna)
Spatial Streams 3 for 2.4GHz, 4 for 5GHz
Receive Levels 2.4GHz -<-88dBM 802.11n (MCS0) ,
Antennas 7 transmit, and 7 receive (total)
MoCA
Frequency Range 1150MHz –1500MHz
Network Channel
Bandwidth
Max Transmit Power + 9 dBm max (adjustable)
Max PhyRate 1400 Mbps
+29dBm (MCS7, 2.4GHz)
+28 dBm (MCS7, 5GHz, HT20)
+26 dBm (MCS9, 5GHz, VHT40
<-71dBm 802.11n (MCS7), HT20
5.0GHz -<-89dBM 802.11ac (MCS0) ,
<-60dBm 802.11ac (MCS9), VHT80
50MHz
CUSTOMER CARE
Contact Customer Care for product information and sales:
• United States: 866-36-ARRIS
• International: +1-678-473-5656
Application Data Rate 800 Mbps bidirectional combined
