Congratualtions on choosing an Ariston appliance, which you will find is dependable and easy to use . W e recommend
that you read this manual for best performance and to extend the life of your appliance. Thank y ou.
Close-up View
A. Electric Hot Plates
B. Control Knobs for Electric Hot Plates
C. Indicator Light for Electric Hot Plates
How T o Use Y our Appliance
The position of the corresponding electric hot plate is
indicated on each control knob.
Electric Hot Plates
The hot plates vary in diameter and power: "normal" and
"fast". The latter can be identified by a red boss in the
center of the hot plate itself.
The hot plate can be regulated by turning the
corresponding knob in the clockwise or counter-clockwise
direction to any one of the 6 different settings:
A
BC
0 Off
1 Low
2-5 Medium
6 High
The section entitled, "Practical Cooking Advise", provides
information on the recommended settings for various types
of food or cooking processes.
When the knob is on any of the settings other than "Off",
the "C" operating light comes on.
How to Keep Your Cooktop in Shape
Before cleaning or performing maintenance on your appliance, disconnect it from the electrical power supply.
To extend the life of the cooktop, it is absolutely indispensable that it be cleaned carefully and thoroughly on a frequent basis, keeping in mind the following:
··
· Do not use steam equipment to clean the appliance.
··
• The enamelled parts must be washed with warm water without using abrasive powders or corrosive substances which could ruin them;
• The electric hobs should be cleaned using a damp cloth
Practical Cooking Advice
Practical Advice on Using the Electric Hot Plates
In order to avoid heat loss and damage to the hot plate,
use cookware with a flat bottom the diameter of which is
not less than that of the hot plate.
and then rubbed with oil while still warm;
• Stainless steel can be stained if it remains in contact
with highly calcareous water or aggressive detergents
(containing phosphorous) for an extended period of
time. It is recommended that these parts be rinsed thoroughly with water and then dried well. It is also a good
idea to clean up any spills;
Before using the hot plates for the first time, you
should heat them at maximum temperature for
approximately 4 minutes, without any pans. During
this initial stage, their protective coating hardens and
reaches its maximum resistance.
6
Setting Normal or Fast Plat e
0 Off
1 Coo king veg etables , fish
Using the Cooktop
To get the best performance from your appliance, there
are a few fundamental rules to follow during the cooking
process or when preparing food.
• Use cookware with a flat bottom to ensure that the pot
or pan is in direct contact with the cooking surface.
2
3
4
5
6
Cooking potatoes (usin g stea m) sou ps,
chickpeas, bea ns.
Continuing the cooking of lar ge quan tities
of food, minestrone
For roasting (average)
For roasting (above a verage )
For browning and reachi ng a boi l in a
short time.
• Use cookware the diameter of which is at least as large
as the cooking area so that all of the heat produced by
the heating element is used.
• Make sure that the bottom of the pot is alwa ys dry and
clean to insure good contact between the cookware
and the cooking surface. This will also increase the life
of the pots and of the ceramic glass surface as well.
Safety Is a Good Habit to Get Into
T o maintain the EFFICIENCY and SAFETY of this appliance, we recommend:
• call only the Service Centers authorized by the manufacturer
• always use original Spare Parts
• This manual is for a class 3 built-in cooktop.
• This appliance is designed for non-professional use in the home
and its features and technical characteristics must not be
modified.
• These instructions are only valid for the countries the symbols
for which appear on the manual and the serial plate.
• The electrical system of this appliance is safe only when it is
correctly connected to an adequate earthing system, as required
by current safety standards .
Prevent children and the disabled from coming into contact
or having access to the following, as they are possib le
sources of danger:
- The controls and the appliance in general;
- The packaging (plastic bags, polystyrene, nails, etc.);
- The appliance, during and immediately after use given the heat
generated by its use;
- The appliance when no longer in installed (in this case, all
potentially dangerous parts must be made safe).
The following should be av oided:
- Touching the appliance with wet parts of the body;
- Using the appliance with bare feet;
- Pulling on the appliance or the power supply cord to disconnect
them from the electrical outlet;
- Improper and/or dangerous use;
- Obstructing the ventilation or heat dissipation slots;
- Allowing the power supply cord of small appliances to come
into contact with the hot parts of the cooktop;
- Exposure to atmospheric agents (rain, sun);
- Using flammable liquids nearby;
- Using adaptors, multiple outlet plugs and/or extensions;
- Using unstable or deformed cookware;
- Leaving the electric hobs on without cookware on top of them;
- Trying to install or repair the appliance without the assistance
of qualified personnel.
The assistance of qualified personnel must be called upon
in the following cases:
- Installation (in accordance with the manufacturer's instructions);
- When in doubt about the operation of the appliance;
- Replacement of the electrical outlet becuase it is incompatible
with the plug.
Contact service centers authorized by the manufacturer in
the following cases:
- When in doubt about the condition of the appliance after having
removed the packing;
- Damage to or replacement of the power supply cord;
- In the case of a breakdown or malfunction: ask f or original spare
parts.
It is recommended that you follow the guidelines belo w:
- Only use the appliance to cook food, av oiding all other uses;
- Check the condition of the appliance after it has been unpacked;
- Disconnect the appliance from the power supply in the ev ent of
malfunction and always bef ore cleaning or maintenance;
- When not in use, disconnect the appliance from the power
supply and turn off the gas valve (if present);
- Always chec k to make sure that the control knobs are on the
“•”/”o” setting when the appliance is not in use;
- Cut the power supply cord after disconnecting it from the
electrical mains when you decide to no longer use the appliance.
• The manufacturer will not be held liable for any damages arising
out of : incorrect installation or improper, incorrect or
unreasonable use.
7

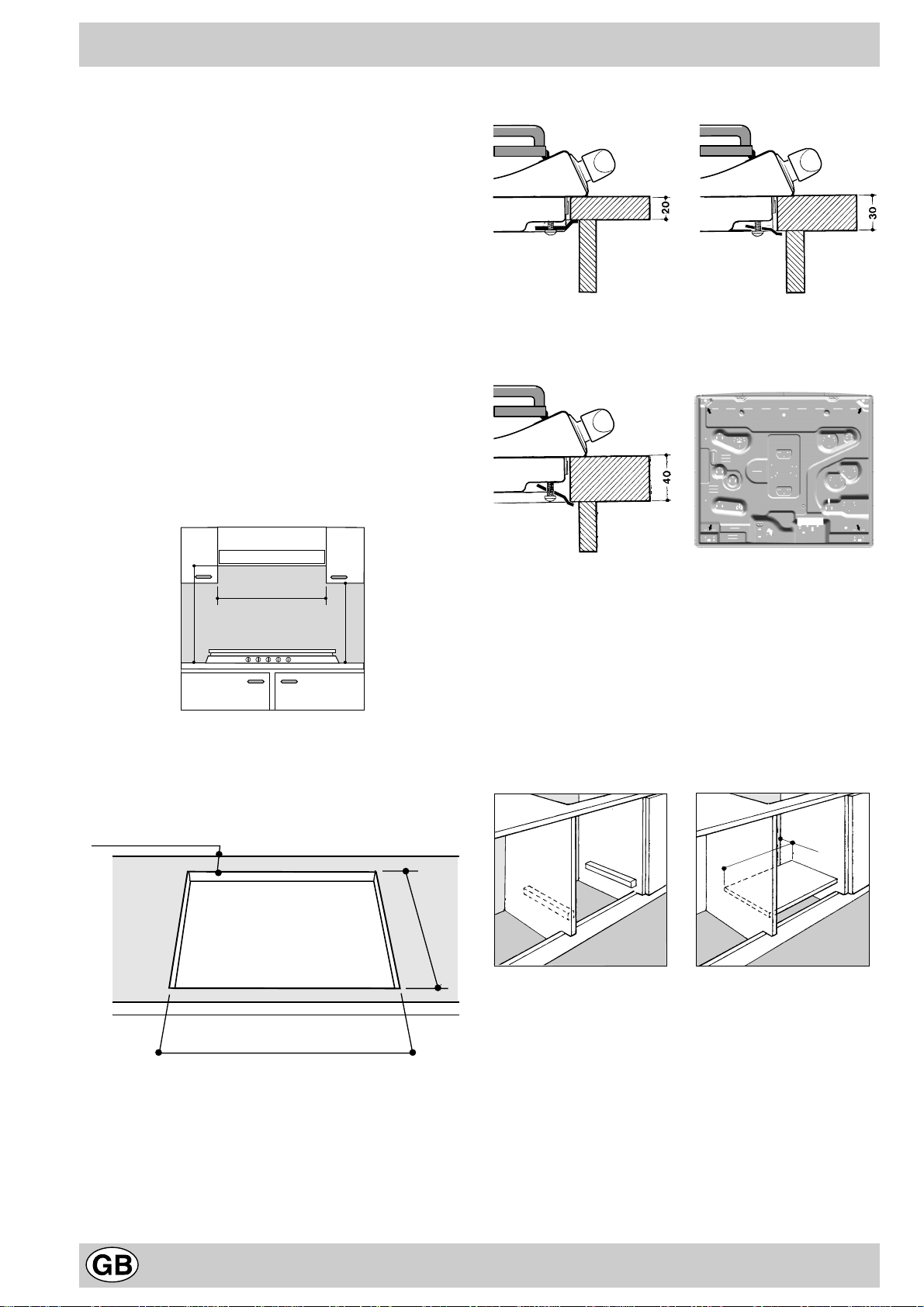

Installation Instructions for b uilt-in
The following instructions are intended for the installer so
that the installation and maintenance procedures may be
followed in the most professional and expert manner
possible.
Important: Disconnect the appliance from the
electrical supply before performing an y maintenance
or regulation upkeep work.
Installation of Built-in Cooktops
The appliance can be installed next to cabinets which are
not higher than the cooktop itself. The follo wing precautions
must be observed for proper installation:
a) If the cabinet(s) located next to the cooktop are higher
than the cooktop itself, the cabinet(s) must be installed
at least 110 mm from the edge cooktop;
b) Hoods must be installed in accordance with the
instructions contained in the installation manual for the
hoods themselves, and no less than 650 mm from the
cooktop;
c) The cabinets installed next to the hood must be located
at a height of at least 420 mm from the top.
d) Should the cooktop be installed directly under a
cupboard, the latter should be at least 700 mm
(millimetres) from the top, as shown in figure .
Fastening Clamps - Assembly Diagram
Clamp Position f or Clamp Position f or
H=20mm top H=30mm top
Front
600mm min.
700mm min.
540mm min.
e) The dimensions of the cutout for the appliance must
be those indicated in the figure. Clamps are provided
to fasten the cooktop to counters measuring from 20
to 40 mm in thickness. To fasten the cooktop securely ,
it is recommended that all the clamps be used.
55
mm
475
mm
555
mm
Clamp Position f or
H=40mm top Back
N.B: Use the clamps contained in the "accessory kit."
f) In the event the cooktop is not installed abov e a built-
in oven, a wood panel must be inserted as insulation.
This panel must be placed at least 20 mm from the
bottom of the cooktop itself.
Important: When installing the cooktop above a built-in
oven, the ov en should be placed on two wooden strips; in
the case of a joining cabinet surface, remember to leave
a space of at least 45 x 560 mm at the back.
45 mm.
560 mm.
When installing the cooktop above a built-in ov en without
forced ventilation, ensure that there are air inlets and
outlets for ventilating the interior of the cabinet adequately .
8
Connect the wires as shown in the diagram.
Electrical Connection
The electric cooktops are not fitted with a power supply
cord because the type of cord used depends on the
connection to the mains (see the wiring diagram below).
To connect the cable, proceed as f ollo ws:
Open the terminal box by removing the "V" screw and
taking off the cover.
V
1
2
5
4
3
F
H05RR-F 5x1.5 CEI-UNEL 35363
380-400V 3N~
380-400V 2N~
H05RR-F 4x1.5 CEI-UNEL 35363
220-230V 1N~
H05RR-F 3x2.5 CEI-UNEL 35363
1 2
R
S
12345
R
1
2
3
T
N
S
3
R
4
4
5
N
5
N
Fix the cable in place with the "F" cable clamp, close the
lid and fasten it with the "V" screw.
Electrical Connection for Gas Cooktop
Fit the supply cord with a standard plug for the demand
rate indicated on the rating plate or connect it directly to
the electrical mains. In the latter case , a single pole switch
must be placed between the appliance and the mains,
with a minimum opening between the contacts of 3 mm in
compliance with current safety codes (the earthing wire
must not be interrupted by the switch). The power supply
cord must be positioned so that it does not reach a temperature in excess of 50°C above room temperature at
any point.
Before making the actual connection, make sure that:
• The fuse and electrical system can withstand the load
required by the appliance;
• That the electrical supply system is equiped with an
efficient earth hook-up according to the norms and
regulations prescribed by law;
• That the plug or switch is easily accessible.
N.B: Never use adaptors, shunts or the lik e because they
could overheat or cuase burns.
Attention: If the appliance is installed above a built-in
oven, the electrical connection for the cooktop must be
independent of that for the ov en not only for safe y reasons,
but also to facilitate remo v ab le of the o ven in the future.
Technical Information
Voltage and frequency of electrical power supply:
220-230/380-400V 3N~ 50/60Hz 5600W
This appliance complies with the following European
Economic Community directives:
- 73/23/EEC of 19/02/73 (Low V oltage) and subsequent
modifications;
- 89/336/EEC of 03/05/89 (Electromagnetic
Compatibility) and subsequent modifications;
- 93/68/EEC of 22/07/93 and subsequent modifications.
9
viale Aristide Merloni, 47 - 60044 Fabriano
tel. 0732/6611 - telex 560196 - fax 0732/662954
www .Merloni.com
Nuovo piano incasso elettrico 60 STYLE
02/03 - 195035839.01 Xerox Business Services - Docutech
Loading...
