Margherita 2000
Washing machine
safe
and easy to use
M
2000
Quick guide to
Margherita 2000
Here are the 11 topics explained in this manual. Read,
learn and have fun: you will discover many secret
ways to get a better wash, more easily and making
your washing machine last longer.
1. Installation and removal (p. 10)
Installation, after delivery or transport, is the most important
operation for the correct functioning of your Margherita 2000 washing
machine. Always check:
1. That the electric system conforms to regulations;
2. That the inlet and draining pipes are connected correctly.
Never use pipes that have already been used.
3. That the washing machine is levelled properly; something worth
checking to aid the performance of your washing machine;
4. That the drum's fixing screws have been removed from the back
ARGHERITA
of the washing machine;
8. Care and maintenance (p. 12)
2. What goes in your washing machine and how
to start your Margherita 2000 (p. 2)
A correct distribution of your laundry is vital to the successful
outcome of the wash and the life of the washing machine. Learn all
the tips and secrets to dividing your linen: colour, type of fabric.
3. Guide to understanding labels (p. 5)
The symbols on the labels of your garments are easy to understand
and equally important for the success of your wash. The guide
includes simple instructions to help you choose the right temperature, wash cycles and ironing methods.
4. Useful tips to avoid mistakes (p. 6)
Years back, our grandmothers were the ones who gave us good advice and in those days synthetic fibres did not exist: washing was easy. Today,
Margherita 2000 offers you helpful advice allowing you to wash wool
even better than an expert laundress would by hand.
5. The detergent dispenser (p.7)
How to use the detergent dispenser and the bleach compartment.
Margherita 2000 is a true friend. With just a bit of care, it will repay
you with loyalty and devotion.
With the necessary upkeep, it will wash for years and years to come.
9. Problems and solutions (p. 8 and 9)
Before calling a technician, read these pages: immediate solutions
may be found for a number of problems. If the problem persists, call
your local Ariston customer services who will be pleased to help.
Any failure will be repaired, as soon as possible.
10. Technical characteristics (p. 9)
Herein are the technical features of your washing machine: model
type number, electric and water specifications, size, capacity, speed
of the spin cycle and compliance with Italian and European
regulations.
11. Safety for you and your family (p.13)
Here you will find the necessary safety guidelines, and it is important
for you to read this section carefully.
6. Understanding the control panel (p. 3)
Margherita 2000s control panel is very simple. It has only a few
essential buttons to help you choose any type of wash cycle, ranging
from the most energetic, capable of cleaning a mechanics overalls,
to the most delicate for wool. Familiarising yourself with it will help
you get the best out of your wash while helping your washing machine
last longer. Its easy.
7. Guide to Margherita 2000s programmes (p. 4)
Herein is an easy table to help you choose the right programme,
temperature, detergents and possible additives. Choose the right
programme and you will get better results with your wash while
saving time, water and energy, day after day.
1 Margherita 2000 - Instructions for installation and use
M
M
ARGHERITA
2000
What goes in your washer?
Before washing, you can do a great deal to ensure better results. Divide your
garments according to fabric and colour. Read the labels, follow their guidelines.
Before washing.
Divide your washing according to
the type of fabric and colour
fastness.
Empty all pockets (coins, paper,
money and small obejects) and
ensure all loose buttons are
repaired or removed prior to
loading.
Starting Margherita 2000
After installing your new washing machine, start a
wash cycle by setting programme "1" at 90 degrees.
Starting Margherita 2000 in the
right way is important for the
quality of your wash, to help
prevent future problems and
enhance life expectancy of your
appliance. Once you have loaded
your washing machine and added
the detergent together with any
fabric conditioner, always check
that:
For more delicate
garments:
protect underwear,
tights and stockings
and delicate items by
placing them in a
canvas pouch
The labels say it all.
Always look at the labels: they
tell you everything about your
garment and how to wash it in
the best possible way.
The table on page 5 shows all
meanings behind these symbols.
Their recommendations are
important to achieve better
wash results
1. The door is closed correctly.
2. The plug is secured in the
socket.
3. The water supply is turned on.
4. Selector knob A is positioned
on one of the symbols
Reset).
Choose the desired programme
The programme is selected
according to the type of garments
that need to be washed. To choose
a programme, refer to the table on
page 4. Turn knob A until the
selected programme coincides
with the pointer situated on the
control panel. Set the temperature using knob B and, if
necessary, use buttons D, E, F
and G and then press on/off
button H (position ON).
(Stop/
Big and small happily
together.
This washing machine has a special
electronic control device for even
distribution: before the spin cycle
starts, this device allows the
garments to positions themselves,
to minimise noise and vibrations
during the spin cycle.
Remember that, if you want to
use it, the "programmed start"
should be set before the wash
cycle.
At the end of the wash cycle...
The L lamp to extinguish: it will
take about three minutes.
Then turn Margherita 2000 off by
pressing on-off button H (OFF
position). You can now open the
washing machine door safely.
Dividing your
garments according to
fabric and colour, is
very important for
good results
After having removed the freshly
cleaned washing, leave the door
open to allow air circulation
inside the drum.
Always disconnect electricity at
the socket and turn off the water
supply.
Remember that, in the event
of a power failure, or should
the washing machine switch
itself off, the programme
chosen will remain in its
memory.
How to eliminate the most common stains
Ink and biro Dab with a wad of cotton soaked in methyl alcohol or alcohol at 90°.
Tar Dab with fresh butter, rub in turpentine then wash immediately.
Wax Scrape away, then run a hot iron between two sheets of absorbent paper. Then rub in cotton with
turpentine or methyl alcohol.
Chewing gum Rub in nail polish remover and wipe with a clean rag.
Mold Cotton and white linen should be placed in a solution of 5 parts water, one bleach and a spoon of vinegar,
then washed immediately. For other white fabrics, use hydrogen peroxide at 10 volumes and wash immediately.
Lipstick Dab with ether on wool or cotton. Use tricloroetilene for silk.
Nail polish Place a sheet of absorbent paper on the side of the stain, wet it with nail polish remover, shifting the
garment as the sheet gradually changes colour.
Grass Dab with a wad of cotton soaked in methyl alcohol.
Margherita 2000 - Iinstructions for installation and use 2
GE
H
FD
L
I
B
C
A
M
2000
Understanding the control panel
Here Im in command
Making the right choice is important. And its easy.
Programme selector knob
and programmed start
Use this knob to select the wash
programme.
Turn this knob clockwise only.
To select a programme, you
should turn the knob so that the
symbol/number of the desired
programme is in line with the
pointer on the control panel.
Now press on/off button H
(position ON), pilot lamp I will
ARGHERITA
start flashing.
After 5", the setting will be
accepted, pilot lamp I will stop
flashing (staying lit) and the wash
cycle will begin.
Should you wish to interrupt the
programme in progress or set a
new one, select one of the
symbols (Stop/Reset) and wait
5" : when the cancellation has
been accepted, pilot lamp I
flashes, and you can then turn the
appliance off.
Delay timer
You can use this knob to delay
the appliance's operation.
Select one of the four delay time
positions, press the on/off button
H (position ON) and wait 5". The
setting has now been accepted
(pilot lamp I stays lit) and you
can select the programme you
desire.
Pilot lamp 1 has a particular
flashing motion (2" on and 4"
off) to indicate that a delayed
start has been set.
During this phase, you can open
the appliance door and change
the washing load, should you
wish to do so.
After the wash cycle has been set
and accepted by the washing
machine, turning the knob will
have no effect (except for when
it is on position

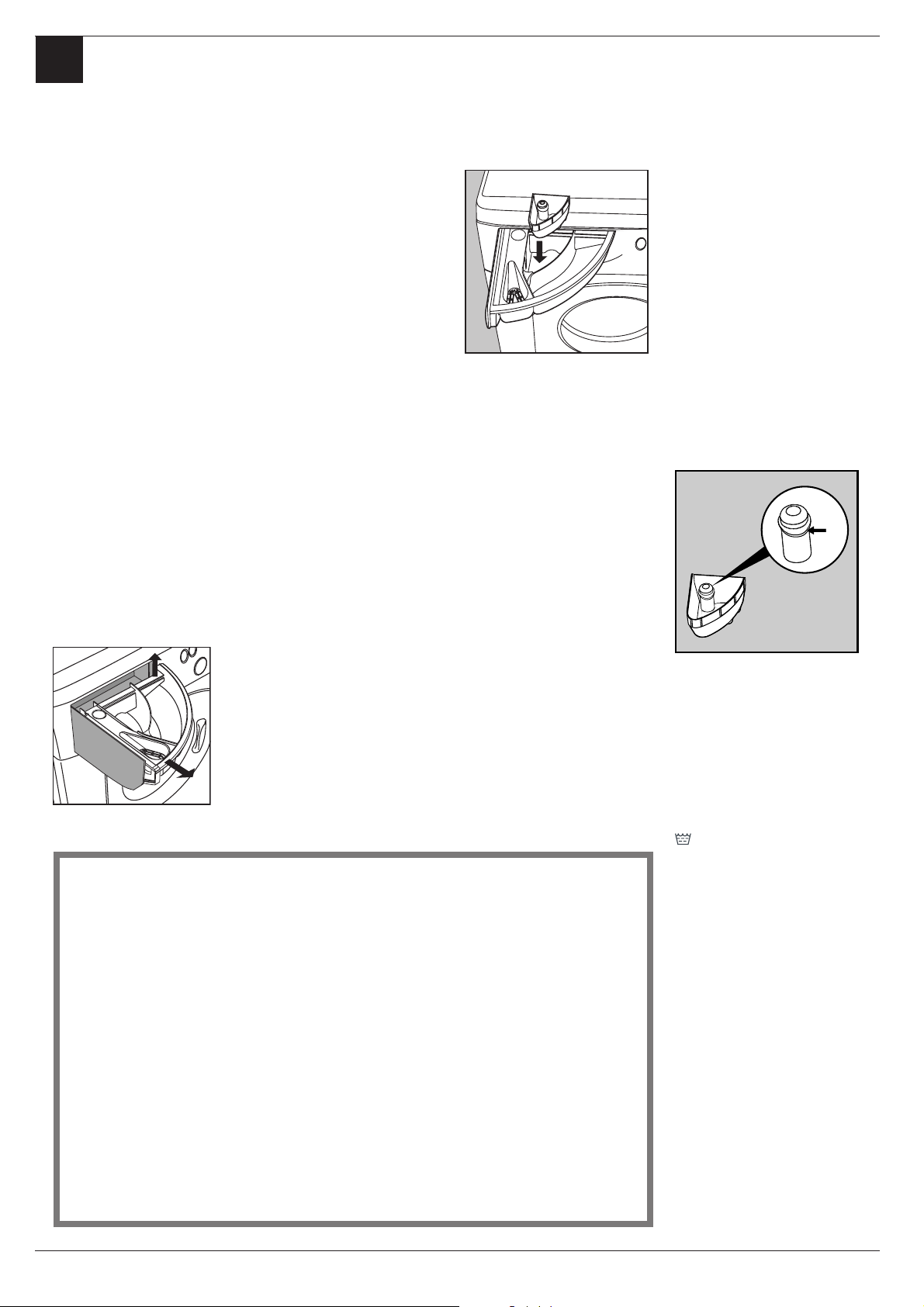

The detergent dispenser with
the additional bleach
compartment is here.
Stop/Reset).
Temperature control knob
It is used to set the wash temperature in the recommended
programme table on pag. 4. It also
allows you to reduce the temperature recommended for the
selected programme, and even to
set a cold wash cycle ( ).
Detergent dispenser
It is divided into three
compartments:
1. Detergent for pre-wash;
2. Detergent for the main cycle wash;
3. Fabric conditioner.
The washing machine is
equipped with an extra
compartment 4 (provided as an
accessory) for the bleach, to be
inserted in compartment 1.
90° Energic
The strongest standard cycle is at
60°C. To start the wash cycle at
90°C, you must turn knob A to the
programme 1 setting, turn the
knob B to the highest temperatu-
re setting (60°C) and then press
this button. This feature can only
be used with wash programme 1
for washing very strong materials,
like cotton, linen and hemp and
should be used when the clothes
are very dirty.
4
MAX
1
3
2
Soak
With this button, you can leave
your washing to soak, which lasts
approximately 12 hours, after
which the appliance will carry out
the wash cycle set.
Should you wish to interrupt the
soaking, press button E once more.
This function can be used with all
wash cycles except for cycle
number 5.
Rinse-Hold
This button allows you to
interrupt a programme (on symbol
) keeping the washing soaking
in water before the spin cycle. It
is a very useful button in
particular because it can be used
for delicates and synthetics. It is
only to be used with wash
programmes for synthetic fabrics,
silk and curtains when it is
impossible for you to take the
washing out immediately. Before
opening the washing machine
door, finish the wash cycle as
follows:
Silk and curtains: press button F
and Margherita 2000 will drain the
water.
Synthetic fabrics: press button F
if you want a spin cycle, or turn
knob A to symbol if you want
the water to be drained.
Extra Rinse
This helps to increase the amount
of rinse cycles in programmes for
sturdy fabrics. We recommend that
you use it to improve the machine's
rinsing power when dealing with a
full load and a great amount of
detergent.
This button also allows you to carry
out the bleach cycle (see page 7).
On-off
When button H is pressed, the
washing machine is switched on,
when it is not the machine is
switched off.
Turning the appliance off does
not cancel the selected
programme.
The on-off lamp
Lamp I flashes when the
appliance is switched on and
awaiting a programme to be set.
A steady light means the
appliance has accepted the
selected programme.
The door block lamp
The safety lamp indicates that the
washing machine door is locked
to prevent it from being opened
accidentally. To avoid any
damages to lock mechanism, you
must wait for the lamp to
extinguish, before attempting to
open the door which takes
around three minutes.
3 Margherita 2000 - Instructions for installation and use
What are you washing today?
M
A programme for all seasons
ARGHERITA
2000
Type of fabric and degree of soil Programme
knob
WASH CYCLES
Exceptionally soiled whites (sheets,
tablecloths, etc.)
Heavily soiled whites and fast colours
Heavily soiled fast colour synthetics
(baby linen, etc.)
Delicate colour synthetics and cottons
(all types of slightly soiled garments)
Delicate colour synthetics and cottons
(all types of slightly soiled garments)
Particularly delicate garments and
fabrics (curtains, silk, viscose, etc.)
SPECIAL CYCLES
Rinsing/Bleach
Spin Draining and delicate spin cycle
Draining Draining
Stop/Reset
PROGRAMMED START
12 - 9 - 3 - 1 hour delay Start is delayed by 12 - 9 - 3 -1
Stop/Reset
Temperature
knob
1 60°C
1 60°C
2 60°C
3 40°C
4 30°C
5 30°C
90°C
Energic
Button
Detergent
for wash
Fabric
softener
◆◆ ◆
◆◆
◆◆
◆◆
◆◆
◆◆
◆
Extra Rinse
button/
Bleach
Del./Trad.
Del./Trad.
Delicate
Delicate
Length of
the cycle
(minutes)
120
85
65
50
30
50
Description of wash cycle
Wash cycle at 90°C, rinse cycles,
intermediate and final spin cycles
Wash cycle at 60°C, rinse cycles,
intermediate and final spin cycles
Wash cycle at 60°C, rinse cycles,
anti-crease or delicate spin cycle
Wash cycle at 40°C, rinse cycles,
anti-crease or delicate spin cycle
Wash cycle at 30°C, rinse cycles
and delicate spin cycle
Wash cycle at 30°C, rinse cycles,
anti-crease or draining
Rinse cycles, anti-crease
or draining
Interrupts/Cancels the selected
programme
hours
Interrupts/Cancels the selected
programme
Important: to cancel the wash programme you have just set, select one of the symbols (Stop/Reset) and wait for at least 5 seconds.
The data found in the table is purely indicative, and can vary according to the quantity and type of washing, the water system
temperature and the room temperature.
Margherita 2000 - Instructions for installation and use 4
M
2000
Understanding labels
Learn the meaning of these symbols and you will get
better results, your garments will last longer resulting
in an improved wash.
ARGHERITA
All over Europe, garment labels
contain messages expressed in
small yet important symbols.
Understanding them is very
important if you want to get
better results and treat your
garments the way they deserve to
be treated.
Useful tips
Turn shirts inside out to get better results
and make them last longer.
Always empty pockets of their contents.
These symbols are divided in five
different categories and shapes:
washing
bleaching
cleaning
,
, ironing , dry
and drying .
Look at the label: it will always give you
useful advice.
When loading your washing, try to have a
mixture of large to small items.
Consult and learn the symbols in this table: they will help you
obtain a better wash, treat your clothes properly, and get a
better performance out of your Ariston Margherita 2000.
Wash Bleaching Ironing Dry cleaning Drying
Strong
action
Wash at
95°C
Wash at
60 ° C D o not b l e a ch
Delicate action
c
l
Blea chin g only in
cold water
Hot iron at
max 200°C
Medium hot
ironing at
max 150°C
Dry clean with any
Dry clean only with
perchloride, benzine
av., pure alcohol,
R11 1 and R 1 13
A
solvent
P
High
Temp.
Make sure you select the right
temperature!
Low
Temperat.
Machine
dryable
D o not m a c h ine
dry
Wash at
40°C
Wash at
30°C Not ironable Do not dry clean
Hand wash
Not
washable in
water
5 Margherita 2000 - Instructions for installation and use
Iron at max
110°C
F
Dry clean with av.
benzine, pure
alcohol and R113 Spread to dry
Hang to dry
without spin
drying
Dry on clothes
hanger
Useful tips
M
ARGHERITA
2000
Never use your washing
machine to wash... torn, fraying
or non-hemmed linen. If it is
absolutely neccessary, place it in
a bag for protection. Do not wash
coloured linen with whites.
Watch the weight!
For best results, do not exceed
the weight limits stated below
(figures show weight of dry
garments):
- Resistant fabrics:
5.5 kg maximum
- Synthetic fabrics:
2.5 kg maximum
- Delicate fabrics:
2 kg maximum
- Pure new wool:
1 kg maximum
How much does it weigh?
1 sheet 400-500 gr.
1 pillow case 150-200 gr.
1 tablecloth 400-500 gr.
1 bathrobe 900-1,200 gr.
1 towel 150-250 gr.
Coloured T-shirts, printed
ones and shirts last longer if
turned inside out before washing.
Printed T-shirts and sweatshirts
should always be ironed inside
out.
Dungaree alert.
Very popular salopette type
overalls have straps with hooks
that can damage the drum of your
washing machine or other
garments during the wash. To
minimise the risk, place hooks in
the pocket and fasten with safety
pins.
Holidays: unplug the
appliance.
It is recommended that you
should unplug the machine from
the socket and turn off the water
supply. Leave the door ajar to
allow air circulation to the draw
and the door gasket area. This
will prevent unpleasant odours.
WOOL CYCLE
For best results, we
recommend you use a
specific detergent, taking
care not to wash more
than 1 kg of laundry.
How to wash almost anything
Curtains.
Curtains tend to crease a great
deal. A useful tip to reduce
creasing: fold the curtains and
place them in a pillow case or
mesh bag. Do not load anything
else inside the appliance, this will
ensure that the overall weight
does not exceed the half load.
Remember to use the specific
programme 5 which automatically excludes the spin cycle.
Quilted coats and anorak.
You can wash quilted coats and
wind-cheaters, too, if they are
padded with goose or duck
down. Do not load more than
2-3 kg and never load 5.5 kg.
Repeat rinse once or twice using
the gentle spin.
Trainers.
Once you have removed mud and
dirt from trainers, you can even
wash them with jeans or any
other tough garments. Do not
wash trainers with whites.
Margherita 2000 - Instructions for installation and use 6
M
2000
Its important for a good wash
Useful tips about the detergent dispenser
ARGHERITA
The first secret is the easiest: the detergent
dispenser is opened by rotating it outwards.
You must follow the dosage
recommendations provided by
the manufacturers when adding
detergent or fabric conditioner.
Doses will vary according to the
wash load, the water hardness and
how soiled the washing is.
Experience will help you select
the right dosage almost
automatically: it will become
your secret.
Before adding detergent for prewashing in compartment 1, make
sure that the extra compartment
for bleach 4 has not been inserted.
Ensure no overfilling when adding
fabric conditioner in compartment 3.
The washing machine automatically adds the softener to the
wash in each programme.
Liquid detergent is poured into
compartment 2 just a few
seconds before starting the wash
cycle.
1
2
Cutting costs efficiently
MAXIMISE THE LOAD SIZE
Achieve the best use of energy, water, detergent and time by using the
recommended maximum load size.
SAVE up to 50% energy by washing a full load instead of 2 half loads.
Remember that liquid detergent
is only designed for wash cycles
of up to 60 degrees on non prewash items.
Special containers are sold with
liquid or powder detergents for
placing inside the washing
machine drum, these are
positioned according to the
instructions found in the
detergent box
Never use hand wash detergent,
because it may form too much
foam, which could damage the
washing machine.
Detergents that are specifically
formulated for both hand and
machine wash are an exception.
One last secret: when washing
with cold water, always reduce
the amount of detergent you use:
it dissolves less easily in cold
water than in hot water, so part
of it would be wasted.
The detergent dispenser can be
removed and cleaned: just lift it up
and pull it outwards ,as indicated in
the figure. Then leave it under running
water for a few minutes.
3
Bleach cycle and stain remover
button
If bleaching is necessary, the extra case 4 (provided) must be
inserted into compartment 1 of
the detergent dispenser.
When pouring in the bleach, be
careful not to exceed the "max"
level indicated on the central
pivot (see illustration).
The use of the additional bleach
container excludes the
possibility of using the pre-wash
cycle. Traditional bleach can
only be used on sturdy white
fabrics, whereas delicate
bleach can be used for
coloured fabrics, synthetics
and for wool.
A guide to
environmentally
friendly and economic
use of your appliance.
In compartment 1:
Detergent for pre-washing (powder)
4
MAX
1
2
In compartment 2:
Detergent for washing
(powder or liquid)
In compartment 3:
Additives (softeners, perfumes, etc.)
In compartment 4:
Bleach and delicate bleach.
MAX
MAX
You cannot bleach with the
programmes 4 and 5 (see page 4).
Use the Extra Rinse button
every time you want to bleach.
Should you want to do it
separately you must pour the
bleach into the additional
container 4, press button G (Ex-
tra Rinse), start the washing
machine, then select the symbol
.
When you bleach during a
normal wash cycle, pour the
detergent and any additives in
the special compartments, press
button G (Extra Rinse), set the
desired programme and then
start your Margherita 2000.
DO YOU NEED TO PRE-WASH?
For heavily soiled laundry only!
SAVE detergent, time, water and between 5 to 15% energy consumption by
NOT selecting Prewash for slight to normally soiled laundry.
IS A HOT WASH REQUIRED?
Pretreat stains with stain remover or soak dried in stains in water before
washing to reduce the necessity of a hot wash programme.
SAVE up to 50% energy by using a 60°C wash programme.
BEFORE USING A DRYING PROGRAMME ...
SAVE energy and time by selecting the highest suitable spin speed to reduce
the water content in laundry before using a drying programme.
7 Margherita 2000 - Instructions for installation and use
M
2000
Troubleshooting
Before calling, read the following
In most cases, when your washing machine fails to work, the problems
arising can be easily solved without having to call for a technician. Before
calling for assistance, always check these points.
ARGHERITA
The washing machine
fails to start.
Is the plug correctly
inserted into the socket? It
could have been moved whilst
cleaning.
Is there electricity in the
house?
A circuit breaker may have
switched off as a result of too
many electrical appliances
working at the same time. Or
maybe due to a general failure
in your entire area.
Is the washing machine door
closed properly?
For safety reasons, the
RIGHT
Turn off the water
supply after use.
This will eliminate
the possibility of
leakage.
Always leave the
appliance door
ajar to avoid bad
odours.
Clean the
appliances
exteriors gently.
To clean the
exteriors and the
rubber parts of
the appliance,
always use a soft
cloth dipped in
warm and soapy
water.
WRONG
washing machine cannot work
if the door is open or not shut
properly.
Is the On/Off button
pressed?
If it is, then a programmed
start has been set.
Is the programmed start
knob, in the correct position
for those models concerned?
Is the water supply turned
on? For safety reasons, if the
washing machine does not
load water, it cannot start a
wash cycle.
Leave the washing
machine plugged in
while cleaning.
Even during maintenance, the appliance
should always be
unplugged.
Use solvents and
aggressive abrasives.
Never use solvents or
abrasives to clean the
external and rubber
parts of the washing
machine.
Neglect the detergent
dispenser.
It is removable and
can easily be cleaned
by leaving it under
running water.
Go on holiday without
thinking about her.
Before leaving, always
make sure that the
washing machine is
unplugged and that
the water supply is
turned off.
But where did all the water go?
Simple: with the new Ariston technology, you need less than
half of it, to get good results on twice as much!
This is why you cannot see the water through the door:
because there is little, very little of it, to respect the
environment yet without renouncing maximum cleanliness.
And, on top of that, you are also saving electricity.
The programme
selector knob keeps
turning?
Wait a few minutes for the
drain pump to empty the tub,
switch Margherita 2000 off,
The washing machine
fails to fill with
water.
Is the hose correctly
connected to the tap?
Is there a water shortage ?
There could be work in
progress in your building or
street.
Is there sufficient water
pressure? The autoclave may
be malfunctioning.
Is the tap filter clean? If the
water is very calcareous, or if
work has recently been carried
out on the water piping, the tap
filter could be clogged with
particles and debris.
Is the rubber hose kinked?
The tract of the rubber hose
bringing water to washing
machine must be as straight as
possible. Make sure it is not
squashed or kinked.
select one of the symbols stop/
reset , then switch it back on.
If the knob continues to turn,
call for assistance because it
is showing an anomaly.
The washing machine
continuously fills and
drains water.
Is the drain hose
positioned too low? It must
be installed at a height ranging
from 60 to 100 cm.
Is the end of the hose
immersed in water?
Does the wall drainage
system have a breather
pipe? If the problem persists
even after these checks, turn
the water supply off the
machine and call for
assistance.
If you live on an upper floor of
your building, there may be a
problem with your drain trap.
To solve this problem, a special
valve must be installed.
Margherita 2000 - Instructions for installation and use 8
M
ARGHERITA
2000
Is the washing machines
drain duct clogged? Is there
an extension of the drain
hose? If so, is it positioned
incorrectly, blocking the water
flow?
The washing machine
does not drain or
spin.
Does the selected
programme incorporates
water draining? Some
programmes stop at the end of
the wash cycles and draining
will have to be selected
manually.
Is the Rinse-Hold"
function -where provided enabled? This function
requires manual selection for
draining.
Is the drain hose kinked?
The tract of the drain hose
must be as straight as possible.
Make sure the drain hose is not
squashed or kinked.
Always get
assistance from
authorised
technicians and
always insist on
original spare
parts.
Excessive vibration
during the spin cycle.
Have all transit screws been
removed durind installation? See the following
page on installation
procedures.
Has the washing machine
been levelled correctly? The
levelling of the appliance
should be checked
periodically. Adjust the feet
and check them with a level.
Is there space between the
machine and adjacent units?
If it is not a built-in model, the
washing machine will oscillate
a bit during the spin cycle. A
few cm of space should
therefore be left around it.
The washing machine
leaks.
Is the metal ring of the inlet
hose properly attached? Turn
off the water supply, unplug
the appliance and try
tightening its attachment
without forcing it.
Is the detergent dispenser
obstructed? Remove and
wash it under tap water.
Is the drain hose well
attached? Turn off the water
supply, unplug the appliance
and try tightening its
attachment.
Too much foam.
Is the detergent appropriate
for machine washing? Check
whether the definition on its
label reads for machine wash
or hand and machine wash,
or any other similar wording.
Is the correct amount being
used? An excessive amount of
detergent, besides producing
too much foam, does not
guarantee a more effective
wash, and causes scaling in the
internal parts of the appliance.
If, despite all checks, the
washing machine fails to
function and the problem
persists, call your nearest
authorised Customer Service
Centre, providing the following
information:
- the nature of malfunction
- the model type no. (Mod. ....)
- the serial number (S/N ....)
This information can be found on
the data plate situated at the back
of the washing machine.
Technical characteristics
Model
Dimensions
Capacity
Electrical
connections
Water
connections
Spinning speed
Control programs
in compliance
with IEC
regulation 456
9 Margherita 2000 - Instructions for installation and use
AB 65 X
width 59,5 cm
height 85 cm
depth 53,5 cm
fr om 1 to 5,5 k g
voltage 230/240 Volt 50-60 Hz
maximum absorbed power 1850 W
ma xim um p res su re 1 MPa (10 bar)
minimum pressure 0,05 MPa (0,5 bar)
drum capacity 46 litre
up to 600 rpm
ca rri ed ou t with 5,0 kg load
This appliance conforms with the following E.E.C. directives:
- 73/23/EEC of 19 /02/73 (L ow V ol tage ) a nd su bse q uent mod ifi cat ion s
- 89/336/EE C of 03/05/89 (Electromagnetic Compatibility ) and subsequent modifications
Installation and removal
When Margherita
2000 arrives
Whether new or just transported to a new house,
installation is extremely important for the correct
functioning of your washing machine.
After removing the appliance
from its packaging, check that it
is intact. If in doubt, contact a
qualified technician immediately.
The inside of the machine is
supported, for transportation, by
four screws on the back panel.
Before using the washing
machine, remove the screws,
remove the spacers together with
the rubber tubes attached to
them (keeping all the parts) and
use the plastic plugs provided to
fill in the holes.
Important: Use the cap (provided)
to close the 3 holes which housed
the stop pin, situated in the righthand part of the lower back of the
washing machine.
A
Part A must not be removed.
Levelling
The washing machine must be
levelled appropriatey in order to
guarantee its correct functioning.
To level the appliance, the front
feet must be adjusted; the angle
of inclination, measured according
to the worktop, must not exceed
2°. When placed on carpet, make
sure the ventilation is not reduced.
Retain the transit screws,
spacers and washers.
Should you move house
then these should be
replaced to support the
inside of the machine to
prevent damage when
transporting the
machine.
The front feet are adjustable.
Connection to the water
mains
Water pressure must range within
the values indicated on the data
plate on the rear of your washing
machine. If the water pipes are
new or left unused, then before
connecting the machine run the
water until clear to remove
debris. Connect the inlet hose to
a cold water tap having a ¾ BSP
thread. Ensure that the rubber
sealing washers are fitted at each
end of the inlet hose, with the fitter
washer at the tap end.
A
The rubber hose filter.
Connect the inlet hose to the
threaded connector on the
machine rear.
Water pipe inlet at the top right.
Connecting the drain
hose
There are two hooks (right or
left) on the rear of your washing
machine to which the drain hose
is to be fixed. Insert the other
end in a stand pipe or place it on
the edge of a sink or tub avoiding
excessive kinks and bending. It
should be placed at a height
ranging from 60 to 100 cm. If it
is necessary to fix the end of the
hose at a height below 60 cm
from the ground, it must be fixed
in the appropriate hook placed
on the upper part of the back
panel.
The hook to be used in case the drain
hose ends at a height below 60 cm.
If the drains hose empties into a
tub or sink then fit the plastic
guide and secure it to the tap.
The guide for draining into tubs and
sinks.
The end of the drain hose must
be positioned so that it cannot
become submerged.
Extensions are unadvisable. In
case of absolute need, the
extension must have the same
diameter as the original hose and
must not exceed 150 cm. In case
of wall draining pipes, their
efficiency must be checked by a
qualified technician. If the
dwelling is on one of the upper
floors of a building, there may be
drain trap problems causing the
washing machine to load and
unload water continuously.
In order to avoid such an
inconvenience, special anti-drain
trap valves are available in shops.
M
2000
Electric connection
Your appliance is now supplied
with a 13 amp fused plug it can
be plugged into a 13 amp socket
for immediate use. Before using
the appliance please read the
instructions below.
WARNING - THIS APPLIANCE
MUST BE EARTHED.
THE FOLLOWING OPERATIONS
SHOULD BE CARRIED OUT BY
A QUALIFIED ELECTRICIAN.
Replacing the fuse:
When replacing a faulty fuse, a
13 amp ASTA approved fuse to
BS 1362 should always be used,
and the fuse cover re-fitted. If
the fuse cover is lost, the plug
must not be used until a
replacement is obtained.
Replacement fuse covers:
If a replacement fuse cover is
fitted, it must be of the correct
colour as indicated by the
coloured marking or the colour
that is embossed in words on the
base of the plug. Replacements
can be obtained directly from
your nearest Service Depot.
Warning!
The company denies
all liability if and
when these norms are
not respected.
Plastic bags,
expanded styrofoam,
nails and other
packaging parts are
not childrens toys,
and are potentially
dangerous.
ARGHERITA
Margherita 2000 - Instructions for installation and use 10
M
ARGHERITA
2000
Removing the plug:
If your appliance has a nonrewireable moulded plug and you
should wish to re-route the mains
cable through partitions, units
etc., please ensure that either:
the plug is replaced by a fused
13 ampere re-wearable plug
bearing the BSI mark of approval.
or:
the mains cable is wired directly
into a 13 amp cable outlet,
controlled by a switch, (in
compliance with BS 5733) which
is accessible without moving the
appliance.
Disposing of the plug:
Ensure that before disposing of
the plug itself, you make the pins
unusable so that it cannot be
accidentally inserted into a
socket.
Instructions for connecting
cable to an alternative plug:
Important: the wires in the
mains lead are coloured in
accordance with the following
code:
Green & Yellow Earth
Blue Neutral
Brown Live
As the colours of the wires in the
lead may not correspond with the
coloured markings identifyng the
terminals in your plug, proceed
as follows:
Connect Green & Yellow wire to
terminal marked E or or
coloured Green or Green &
Yellow.
Connect Brown wire to terminal
marked L or coloured Red.
Connect Blue wire to terminal
marked N or coloured Black.
If a 13 amp plug (BS 1363) is used
it must be fitted with a
13 amp fuse, either in the plug
or adaptor or at the distribution
board.
If you are in any doubt the
electrical supply to your
machine, consult a qualified
electrician before use.
How to connect an alternative plug:
The wires in this mains lead are
coloured in accordance with the
following code:
BLUE NEUTRAL (N)
BROWN LIVE (L)
GREEN & YELLOW EARTH (E)
Disposing of the appliance:
When disposing of the appliance
please remove the plug by
cutting the mains cable as close
as possible to the plug body and
dispose of it as described above.
GREEN &
YELLOW
BROWN
BLUE
13 ampere fuse
CROSS-BAR
CORD GRIP
11 Margherita 2000 - Instructions for installation and use
ARGHERITA
Easy Care and Maintenance
M
2000
Treat your machine well and it will provide
many years of trouble free service
Your washing machine is a reliable companion in life and on the job. It is just as important for you to
keep it in shape.
Margherita 2000 is a washing
machine designed to provide
reliable service over many years.
A few simple steps will help to
prolong its life and avoid
problems. It is advisable, to turn
off water taps when the machine
is not to be used, this protects
the hoses, etc.
If the water in your area is too
hard, use a deliming product
(water is hard if it often leaves
whitish stains around taps or
drains, especially of bath tubs.
For more accurate information as
to the type of water in your
system, call the local water
works or a local plumber).
Pockets must always be emptied
removing even pins, badges and
any other hard object.
The washing machine exterior
should be cleaned with a rag
dipped in lukewarm water and
soap.
It is important to
wash the detergent
dispenser regularly.
To prevent dried
washing powder from
accumulating, place
the dispenser under
running water for a
few minutes.
Never exaggerate with
doses.
Normal detergents already
contain deliming agents. Only if
the water is particularly hard,
that is, rich in lime content, do
we recommend the use of a
specific product at every wash.
A periodical wash cycle with a
dose of a deliming product,
without detergents or washing,
may prove useful.
Never use too much detergent or
additives because this could cause an excess amount of foam,
scaling and possible damage to
the component parts of your
washing machine.
Do not forget to empty all pockets: small objects can cause
damage to your friend Margherita 2000.
When in need, check the pump and the rubber hose.
Margherita 2000 comes equipped with a self-cleaning pump that does not require any cleaning or maintenance.
The water inlet hose
Check the rubber hose at least once a year. If you see any cracks, replace it immediately. When you use your washing
machine, water pressure is very strong and a cracked tube could easily split open.
Margherita 2000 - Instructions for installation and use 12
M
2000
Important for the safe use of your Margherita 2000
Your safety and that of
Margherita 2000 has been built in compliance
with the strictest international safety
regulations. To protect you and all your
ARGHERITA
your family
family.
Read these instructions and all
the information in this manual
carefully: they are an
important source, not only of
numerous useful tips, but also
of vital information on safety,
use and maintenance.
1. Margherita 2000 should
not be installed in an
outdoor environment,
not even when a roof
shelters the area, because
it may be very dangerous
to leave it exposed to rain
and thunderstorms.
2. It must only be used by
adults and exclusively for
washing clothes following
the instructions provided in
this manual.
3. Should it have to be moved,
proceed with the help of
two or three people and
handle it with the utmost
care. Never try to do this
alone, because the
appliance is very heavy.
4. Before loading the washing
machine, make sure the
drum is empty.
5. Never touch the washing
machine when barefoot
or with wet or damp
hands or feet.
6. Never use extensions or
multiple plugs, which are
particularly dangerous in
humid environments. The
power supply cable must
never be bent or
dangerously compressed.
I only want an
authorised specialised
technician with original
Ariston spare parts!
7. Never open the detergent
dispenser while the
appliance is functioning;
do not use hand wash
detergent because the
abundance of foam could
damage its internal parts.
8. Never pull on the supply
cable or the washing
machine to disconnect it
from the wall socket: it is
extremely dangerous.
9. While the appliance is
functioning, do not touch
the drain water as it
could reach very high
temperatures. The
appliance door, during
wash cycles, tends to
become hot; ensure that
children do no touch it.
Never force the washing
machine door because
this could damage the
safety lock which prevents
accidental opening when
the nachine is working.
Allow a few minutes at the
end of the program for the
lock to release.
10. In case of malfunctioning, first close the
water tap and unplug the
appliance from the wall
socket; do not under any
circumstances touch
internal parts in order to
attempt repairs.
How to change the power supply cable
(For this operation we suggest you contact a qualified engineer)
The Margherita 2000
power supply cable is
special and can be
purchased exclusively
from authorised Technical Service Centres.
To replace the cable:
1. Make sure that Margherita 2000 is switched
off and unplugged.
I
Fig. 1
2. Remove the covering lid
by unscrewing the two
screws I, and then pull it
towards you [fig. 1].
3. Disconnect the wires
from the radio interference
suppressor F [fig. 2] noting
as to their position (Blue=N
wire; Brown=L wire)
leaving the earth wire until
last
.
N
L
F
Fig. 2
N.B.: letters L, N and the
symbol are indicated on
the radio interference
suppressor.
4. Remove the upper part
of the cable slightly from
the back panel of the
appliance, pull the power
supply cable upwards and
take it out [fig. 3].
To connect the new power
supply cable, reverse the
procedure.
To put the covering lid back
on, rest it on the washing
machine [fig. 4] and let it
slide forwards until the
hooks situated on the front
slide into the special slots
formed into the control
panel and tighten the
screws back on.
Fig. 3 Fig. 4
13 Margherita 2000 - Instructions for installation and use
M
ARGHERITA
2000
Margherita 2000 - Instructions for installation and use 14
Via Aristide Merloni, 47 - 60044 Fabriano - tel. (0732) 6611 - Italy
09/2000 - 195027570.00 - XEROX BUSINESS SERVICES - DOCUTECH
Loading...
