ariston Clas HE R12 User guide

Country of destination GB, IE
Gas red condensing wall hung boiler
G.C.N : 41-116 - 30 (12 kW) G.C.N : 41-116 - 31 (18 kW) G.C.N : 41-116 - 32 (24 kW)
CLAS HE R 12 CLAS HE R 18 CLAS HE R 24
overview
Overview
General Information ........................................................... 3
Advice for the Installer ....................................................... 4
CE Labelling ........................................................................... 4
Data Plate Symbols ............................................................. 4
Safety Regulations ..............................................................5
Product description
Control Panel.........................................................................6
Overall View ........................................................................... 7
Overall Dimension .............................................................. 8
Minimum Clearances .........................................................8
Technical Information ........................................................ 9
Installation
Reference Standards ........................................................11
Installing the Boiler ........................................................... 17
Gas Connection ..................................................................18
Central heating Connection ..........................................18
Instructions for Opening the Casing and Performing
an Internal Inspection ...................................................... 19
Connecting the Flue ......................................................... 21
Fitting the Coaxial Flue (Ø 60/100 Horizontal) ........22
Fitting the 5” Flue (Ø 80/125 Horizontal / Vertical)
Fitting the Coaxial Flue (Ø 60/100 Vertical) .............. 24
Fitting the Twin Pipe (Ø 80/80) .....................................25
Table of Flue Gas Exhaust Duct Lengths ...................27
Electrical Connections .....................................................29
Peripheral Unit Connection ...........................................29
Electrical Diagram .............................................................30
Wiring diagrams .................................................................31
23
Settings - Adjustment - Problem Identication Menus
Accessing the Menus .......................................................42
Maintenance
General Comments ...........................................................49
General Access ...................................................................50
Electrical Unit ......................................................................51
Hydraulic Unit ..................................................................... 53
Burner Unit ..........................................................................55
Annual Maintenance ........................................................ 60
Benchmark Commissioning Checklist .......................61
Benchmark Service Interval Record ............................62
Spare Parts Short List .......................................................61
Commissioning
Initial Preparation .............................................................. 35
Electricity Supply ...............................................................35
Filling the Heating System .............................................35
Gas Supply ...........................................................................35
Water Treatment ................................................................35
First Igniton Operation .................................................... 36
Ignition procedure ............................................................ 37
Test Function and Combustion Analysis ...................39
AUTO Function ...................................................................40
Boiler Protection Devices
Boiler Protection Devices ...............................................41
Anti-Frost Device ...............................................................41
Table Summarising Error Codes ...................................41
2
overview
These instructions are suitable for CLAS HE R boilers : Do not forget the Log Book!
The Benchmark Scheme Benchmark places responsibilities on both manufacturers and installers. The purpose is to ensure that customers are provided with the correct equipment for their needs, that it is installed, commissioned and serviced in accordance with the manufacturer’s instructions by competent persons and that it meets the requirements of the appropriate Building Regulations England & Wales. The Benchmark Checklist can be used to demonstrate compliance with Building Regulations England & Wales and should be provided to the customer for future reference.
Installers are required to carry out installation, commissioning and servicing work in accordance with the Benchmark Code of Practice which is available from the Heating and Hotwater Industry Council who manage and promote the Scheme. Visit www.centralheating.co.uk for more information.
To The Installer
As part of the commissioning of this appliance it is vital that the Log Book is completed and given to the Householder. Please ensure that your customer is aware of the importance of keeping the Log Book safe as a record of the installation and the appliance service history.
Please ensure that your customer is aware of the correct operation of the system, boiler and controls.
MTS recommend the use of protective clothing, when installing and working on the appliance i.e. gloves.
CUSTOMER CARE
MTS, as a leading manufacturer of domestic and commercial water heating appliances is committed to providing high quality products and a high quality after sales service. Advice on installation or servicing can also be obtained by contacting the MTS Technical and Customer Service Departments at High Wycombe. TECHNICAL DEPARTMENT CUSTOMER SERVICE DEPARTMENT Tel: 0870 241 8180 Tel: 0870 600 9888 Fax: 01494 459775 Fax: 01494 459775
GUARANTEE
The manufacturer’s guarantee is for 2 years from the date of purchase. The guarantee is invalidated if the appliance is not installed in accordance with the recommendations made herein or in a manner not approved by the manufacturer. To assist us in providing you with an ecient after sales service, please return the guarantee registration card enclosed with the boiler without delay.
CAUTION
In the United Kingdom, installation, start-up, adjustments and maintenance, must be performed by a competent person only, in accordance with the current Gas Safety (Installation & Use) Regulations and the instructions provided.
In the Republic of Ireland, the installation and initial start up of the appliance must be carried out by a Competent Person in accordance with the current edition of I.S.813 “Domestic Gas Installations”, the current Buidling Regulations, reference should also be made to the current ETCI rules for electrical installation.
All CORGI registered installers carry a CORGI ID card, and have a registration number. Both should be recorded in your boiler Log Book. You can check your installer is CORGI registered by calling CORGI directly on:- 0800 915 0485.
Improper installation may cause damage or injury to individuals, animals and personal property for which the manufacturer will not be held liable. To ensure ecient and safe operation it is recommended that the boiler is serviced annually by a competent person.
If it is known that a fault exists on the appliance, it must not be used until the fault has been corrected by a competent person.
This instruction booklet is especially designed for appliances installed in the UK and the Republic of Ireland
3
overview
Gas
MAX
MIN
Gas
mbar
mbar
1
2
5
4
3
6
7
19
8
9
10
11
12
14 15
16
17
18
13
20 21 22
Advice for the installer
The installation and rst ignition of the boiler must be performed by qualied personnel in compliance with current national regulations regarding installation, and in conformity with any requirements established by local authorities and public health organisations. After the boiler has been installed, the installer must ensure that the end user receives the declaration of conformity and the operating manual, and should provide all necessary information as to how the boiler and the safety devices should be handled.
These appliance are designed for use on open vented central heating systems. A kit is available to allow the boiler to be used on a sealed system. These appliances are designed for domestic use only. It should be connected to a heating system and a distribution network for domestic hot water, both of which must be compatible with its performance and power levels. The use of the appliance for purposes other than those specied is strictly forbidden. The manufacturer cannot be held responsible for any damage caused by improper, incorrect and unreasonable use of the appliance or by the failure to comply with the instructions given in this manual. Installation, maintenance and all other interventions must be carried out in full conformity with the governing legal regulations and the instructions provided by the manufacturer. Incorrect installation can harm persons, animals and possessions; the manufacturing company shall not be held responsible for any damage caused as a result. The boiler is delivered in a carton. Once you have removed all the packaging, make sure the appliance is intact and that no parts are missing. If this is not the case, please contact your supplier. Keep all packaging material (clips, plastic bags, polystyrene foam, etc.) out of reach of children as it may present a potential hazard. In the event of a fault and/or malfunction, turn the appliance o, turn o the gas cock and do not attempt to repair it yourself. Contact a qualied professional instead. Before any maintenance or repair work is performed on the boiler, make sure you have disconnected it from the electricity supply by switching the external bipolar switch to the “OFF” position and removing the fuse. All repairs, which should only be performed using original spare parts, should be carried out by a qualied professional. Failure to comply with the above instructions could compromise the safety of the appliance and invalidate all liability on the part of the manufacturer. In the event of any maintenance or other structural work in the immediate vicinity of the ue or ue gas exhaust devices and their accessories, switch the appliance o by switching the external bipolar switch to the “OFF” position and shutting o the gas control valve. When the work has been completed, a
4
qualied technician must check the eciency of the ue and the devices. Turn the boiler o and turn the external switch “OFF” to clean the exterior parts of the appliance. Clean using a cloth dampened with soapy water. Do not use aggressive detergents, insecticides or toxic products. If the appliance is used in full compliance with current legislation, it will operate in a safe, environmentally-friendly and cost-ecient manner.
If using kits or optional extras, make sure they are authentic.
CE labelling
The CE mark guarantees that the appliance conforms to the following directives:
-
90/396/CEE
relating to gas appliances
-
2004/108/CEE
relating to electromagnetic compatibility
-
92/42/CEE
relating to energy eciency
-
2006/95/CEE
relating to electrical safety
Legend :
1. Brand
Symbols used on the data plate
2. Manufacturer
3. Boiler model - Serial number
4. Commercial reference
5. Certication number
6. Destination country - gas category
7. Gas setting
8. Installation type
9. Electrical data
11. Maximum heating pressure
12. Boiler type
13. NOx class / Eciency
14. Input rating nominal heating
15. Power ouput heating
17. Boiler output eciency
18. Input rating nominal DHW
19. Gases which may be used
20. Minimum ambient temperature for use
21. Max. central heating temperature
Safety regulations
Key to symbols:
Failure to comply with this warning implies the risk of personal injury, in some circumstances even fatal. Failure to comply with this warning implies the risk of damage, in some circumstances even serious, to property, plants or animals.
Install the appliance on a solid wall which is not subject to vibration.
Noisiness during operation.
When drilling holes in the wall for installation purposes, take care not to damage any electrical wiring or existing piping.
Electrocution caused by contact with live wires. Explosions, res or asphyxiation caused by gas leaking from damaged piping. Damage to existing installations. Flooding caused by water leaking from damaged piping.
Perform all electrical connections using wires which have a suitable section.
Fire caused by overheating due to electrical current passing through undersized cables.
Protect all connection pipes and wires in order to prevent them from being damaged.
Electrocution caused by contact with live wires. Explosions, res or asphyxiation caused by gas leaking from damaged piping. Flooding caused by water leaking from damaged piping.
Make sure the installation site and any systems to which the appliance must be connected comply with the applicable norms in force.
Electrocution caused by contact with live wires which have been installed incorrectly. Damage to the appliance caused by improper operating conditions.
Use suitable manual tools and equipment (make sure in particular that the tool is not worn out and that its handle is xed properly); use them correctly and make sure they do not fall from a height. Replace them once you have nished using them.
Personal injury from falling splinters or fragments, inhalation of dust, shocks, cuts, pricks and abrasions. Damage to the appliance or surrounding objects caused by falling splinters, knocks and incisions.
Use electrical equipment suitable for its intended use (in particular, make sure that the power supply cable and plug are intact and that the parts featuring rotary or reciprocating motions are fastened correctly); use this equipment correctly; do not obstruct passageways with the power supply cable, make sure no equipment could fall from a height. Disconnect it and replace it safely after use.
Personal injury caused by falling splinters or fragments, inhalation of dust, knocks, cuts, puncture wounds, abrasions, noise and vibration. Damage to the appliance or surrounding objects caused by falling splinters, knocks and incisions.
Make sure any portable ladders are positioned securely, that they are suitably strong and that the steps are intact and not slippery and do not wobble when someone climbs them. Ensure someone provides supervision at all times.
Personal injury caused by falling from a height or cuts (stepladders shutting accidentally).
Make sure any rolling ladders are positioned securely, that they are suitably strong, that the steps are intact and not slippery and that the
overview
ladders are tted with handrails on either side of the ladder and parapets on the landing.
Personal injury caused by falling from a height.
During all work carried out at a certain height (generally with a dierence in height of more than two metres), make sure that parapets are used to surround the work area or that individual harnesses are used to prevent falls. The space where any accidental fall may occur should be free from dangerous obstacles, and any impact upon falling should be cushioned by semi-rigid or deformable surfaces.
Personal injury caused by falling from a height.
Make sure the workplace has suitable hygiene and sanitary conditions in terms of lighting, ventilation and solidity of the structures.
Personal injury caused by knocks, stumbling etc.
Protect the appliance and all areas in the vicinity of the work place using suitable material.
Damage to the appliance or surrounding objects caused by falling splinters, knocks and incisions.
Handle the appliance with suitable protection and with care.
Damage to the appliance or surrounding objects from shocks, knocks, incisions and squashing.
During all work procedures, wear individual protective clothing and equipment.
Personal injury caused by electrocution, falling splinters or fragments, inhalation of dust, shocks, cuts, puncture wounds, abrasions, noise and vibration.
Place all debris and equipment in such a way as to make movement easy and safe, avoiding the formation of any piles which could yield or collapse.
Damage to the appliance or surrounding objects from shocks, knocks, incisions and squashing.
All operations inside the appliance must be performed with the necessary caution in order to avoid abrupt contact with sharp parts.
Personal injury caused by cuts, puncture wounds and abrasions.
Reset all the safety and control functions aected by any work performed on the appliance and make sure they operate correctly before restarting the appliance.
Explosions, res or asphyxiation caused by gas leaks or an incorrect ue gas exhaust. Damage or shutdown of the appliance caused by out-of-control operation.
Before handling, empty all components that may contain hot water, carrying out any bleeding if necessary.
Personal injury caused by burns.
Descale the components, in accordance with the instructions provided on the safety data sheet of the product used, airing the room, wearing protective clothing, avoid mixing dierent products, and protect the appliance and surrounding objects.
Personal injury caused by acidic substances coming into contact with skin or eyes; inhaling or swallowing harmful chemical agents. Damage to the appliance or surrounding objects due to corrosion caused by acidic substances.
If you detect a smell of burning or smoke, keep clear of the appliance, disconnect it from the electricity supply, open all windows and contact the technician.
Personal injury caused by burns, smoke inhalation, asphyxiation.
5
product description
5
3
2
1
4
9
10
11
8 7
6
12
Control panel
Legend :
1. Display
eset button
2. R
3. Red indicator lockout light
4. Button
5. Temperature regulation knob
6. Esc button
_
6
7. Menu / OK button (Programming key)
8. Button
+
9. ON/OFF button / Green indicator ON/OFF
10. Blue indicator burner ON
11. Green indicator A
12. A
uto button (To activate Thermoregulation)
uto function
Overall view
1
2
3
4
7
5
6
8
9
10
11
18
19
17
16
15
14
13
12
product description
1. Central heating return
2. Central heating ow
3. Burner
4. Detection electrode
5. C.H. Return temperature probe
6. C.H. Flow temperature probe
7. Manual air vent
8. Gas valve
9. Trap
10. Electrical box
11. Gas tap
12. Display box
13. Electrical connection box
14. Modulating fan
15. Ignition electrodes
16. Ignitor
17. Thermal fuse
18. Combustion analysis test point
19. Flue connector
7
product description
200
200
120
120
85
77
122
25
595
49
161
292 (12-18-24 kW) 362 (30 kW)
135
162
665
44.5
450
300
250
5
5
Overall Dimensions
Minimum clearances
In order to allow easy access to the boiler for maintenance operations, the boiler must be installed in accordance with the clearances stated.
8
Technical Data
GENERAL
NOTE
Model CLAS HE R
12
18
CE Certication (pin)
0085BR0347
Boiler type
B23-C13-C33-C43-C53-C83
POWER SPECIFICATIONS
Max/min nominal caloric ow rate (Pci) Qn
kW
12.0/3.0
18.0/4.5
Max/min nominal caloric ow rate (Pcs) Qn
kW
13.3/3.3
20.0/5.0
Max/min power output (80°C-60°C) Pn
kW
11.7/2.8
17.6/4.3
Max/min power output (50°C-30°C) Pn
kW
12.9/3.2
19.1/4.7
Combustion eciency (of ue gas)
%
97.8
97.6
Nominal caloric ow rate eciency (60/80°C) Hi/Hs
%
97.6/87.9
97.7/88.0
Nominal caloric ow rate eciency (30/50°C) (condensation) Hi/Hs
%
107.1/96.4
106.2/95.6
Eciency at 30% at 30°C (condensation) Hi/Hs
%
108.7/97.9
107.8/97.1
Eciency at 30% at 47°C Hi/Hs
%
99.2/89.3
101.9/91.8
Minimum caloric ow rate eciency (60/80°C) Hi/Hs
%
94.3/84.9
94.7/85.3
Eciency rating (dir. 92/42/EEC)
stars
****
****
Sedbuk Band Rating
band/%
A / 90.1
A / 90.1
Loss when stopped (∆T = 50°C)
%
0.3
0.2
Loss of burner gas when operating
%
2.2
2.4
EMISSIONS
Available air pressure
Pa5391
NoX class (less than 70mg/kWh)
class55
Flue gas temperature (G20) (80°C-60°C)
°C6569
CO2 content (G20) (80°C-60°C)
%
9.0
9.2
CO content (0%O2) (80°C-60°C)
ppm
< 80
< 170
O2 content (G20) (80°C-60°C)
%
4.5
4.2
Maximum ue gas ow (G20) (80°C-60°C)
Kg/h
19.8
29.1
Excess air (80°C-60°C)
%2725
HEATING
CIRCUIT
Minimum/Maximum heating pressure
bar
0,2/3
0,2/3
Min/max heating temperature (high temperature range)
°C
35/82
35/82
Min/max heating temperature (low temperature range)
°C
20/45
20/45
ELECTRICAL
Power supply frequency/voltage
V/Hz
230/50
230/50
Total electrical power absorbed
W
135
142
Minimum ambient temperature for use
°C+5+5
Protection level for the electrical appliance
IP
X5D
X5D
Weightkg23
23
product description
9
product description
GENERAL
NOTE
Model CLAS HE R
24
CE Certication (pin)
0085BR0347
Boiler type
B23-C13-C33-
C43-C53-C83
POWER SPECIFICATIONS
Max/min nominal caloric ow rate (Pci) Qn
kW
24.6/5.3
Max/min nominal caloric ow rate (Pcs) Qn
kW
27.3/5.9
Max/min power output (80°C-60°C) Pn
kW
24.1/5.0
Max/min power output (50°C-30°C) Pn
kW
26.0/5.4
Combustion eciency (of ue gas)
%
97.5
Nominal caloric ow rate eciency (60/80°C) Hi/Hs
%
98.2/88.4
Nominal caloric ow rate eciency (30/50°C) (condensation) Hi/Hs
%
105.7/95.2
Eciency at 30% at 30°C (condensation) Hi/Hs
%
109.0/98.1
Eciency at 30% at 47°C Hi/Hs
%
103.7/93.4
Minimum caloric ow rate eciency (60/80°C) Hi/Hs
%
94.3/84.9
Eciency rating (dir. 92/42/EEC)
stars
****
Sedbuk Band Rating
band/%
A / 90.3
Loss when stopped (∆T = 50°C)
%
0.2
Loss of burner gas when operating
%
2.5
EMISSIONS
Available air pressure
Pa
137
NoX class (less than 70mg/kWh)
class
5
Flue gas temperature (G20) (80°C-60°C)
°C
72
CO2 content (G20) (80°C-60°C)
%
9.3
CO content (0%O2) (80°C-60°C)
ppm
< 180
O2 content (G20) (80°C-60°C)
%
4.0
Maximum ue gas ow (G20) (80°C-60°C)
Kg/h
39.4
Excess air (80°C-60°C)
%
23
HEATING
CIRCUIT
Minimum/Maximum heating pressure
bar
0,2/3
Min/max heating temperature (high temperature range)
°C
35/82
Min/max heating temperature (low temperature range)
°C
20/45
ELECTRICAL
Power supply frequency/voltage
V/Hz
230/50
Total electrical power absorbed
W
144
Minimum ambient temperature for use
°C
+5
Protection level for the electrical appliance
IP
X5D
Weightkg23
Technical Data
10
Reference Standards
In the United Kingdom, the installation and initial start-up of the boiler must be by a CORGI registered installer in accordance with the installation standards currently in eect, as well as with any and all local health and safety standards i.e. CORGI.
In the Republic of Ireland the installation and initial start-up of the appliance must be carried out by a Competent Person in accordance with the current edition of I.S.813 “Domestic Gas Installations” and the current Building Regulations, reference should also be made to the current ETCI rules for electrical installation.
The installation of this appliance must be in accordance with the relevant requirements of the Local Building Regulations, the current I.E.E. Wiring Regulations, the by-laws of the local authority, in Scotland, in accordance with the Building Standards (Scotland) Regulation and Health and Safety document No. 635, “Electricity at Work Regulations 1989” and in the Republic of Ireland with the current edition of I.S. 813 and the Local Building Regulations (IE).
C.O.S.H.H.
Materials used in the manufacture of this appliance are non-hazardous and no special precautions are required when servicing.
Codes of Practive
Installation should also comply with the following British Standards Code of Practice:
BS 7593:1992 Treatment of water in domestic
hot water central heating systems
BS 5546:1990 Installation of hot water supplies
for domestic purposes BS 5440-1:2008 Flues BS 5440-2:2008 Air supply BS 5449:1990 Forced circulation hot water
systems BS 6798:2000 Installation of gas red hot
water boilers of rated input not
exceeding 70kW BS 6891:1989 Installation of low pressure gas
pipes up to 28mm BS 7671:2001 IEE Wiring Regulations BS 4814:1990 Specication for expansion
vessels BS 5482:1994 Installation of L.P.G. Domestic heating compliance
guide
and in the Republic of Ireland in accordance with the following codes of practice:
I.S. 813 Domestic Gas Installations
installation
Avoid installing the boiler where the air inlet can be polluted by chemical products such as chlorine (swimming pool area), or ammonia (hair dresser), or alkalin products (launderette).
Flue
Detailed information on ue assembly can be found in the “Connecting the Flue” section. The boiler must be installed so that the ue terminal is exposed to the free passage of external air at all times and must not be installed in a place likely to cause nuisance. It must not be allowed to discharge into another room or space such as an outhouse or closed lean-to.
Condensing boilers have a tendency to form a plume of water vapour from the ue terminal due to the low temperature of the ue gases. The terminal should therefore be located with due regard for the damage or discolouration that may occur to building within the vicinity and consideration must also be given to adjacent boundaries, openable windows etc. The minimum acceptable clearances are shown on page
12.
11
installation
The minimum acceptable clearances are shown below:
- A Directly above or below an opening, window, etc 300 mm
- B Horizontally to an opening, window, etc 300 mm
- C Below gutters, soils pipes or drain pipes 75 mm
- D Below eaves 200 mm
- E From vertical drain pipe or soil pipe 75 mm
- F From internal or external corner 300 mm
- G Above ground, roof or balcony level 300 mm
- H From a surface facing the terminal 2500 mm
- I From a terminal facing a terminal 2500 mm
- J Vertically from a terminal on the same wall 1500 mm
- K Horizontally from an terminal on the same wall 300 mm
- L Fixed by vertical ue terminal
Note: the flue must Not be iNstalled iN a place likely to
cause a NuisaNce aNd positioNed to eNsure that products of combustioN do Not discharge across a bouNdary
It may be necessary to protect the terminal with a guard, if this is the case it will be necessary to purchase a stainless steel terminal guard. Reference should be made to the Building Regulations for guidance.
Ventilation
The room in which the boiler is installed does not require specic ventilation. If the boiler is installed in a cupboard or compartment, ventilation is not required for cooling purposes.
Gas Supply
The gas installation and tightness testing must be in accordance with the requirements of BS6891. Ensure that the pipe size is adequate for demand including other gas appliances on the same supply.
12
Electrical Supply
The appliance requires an earthed 230V - 50 Hz supply and must be in accordance with current I.E.E. regulations. It must also be possible to be able to completely isolate the appliance electrically. Connection should be via a 3 amp double pole fused isolating switch with contact separation of at least 3mm on both poles. Alternatively, a fused 3 amp, 3 pin plug and unswitched socket may be used, provided it is not used in a room containing a bath or shower, it should only supply the appliance.
Automatic by pass
Ariston recommend that an automatic by pass is installed a minimum of 1.5 metres away from the boiler to ensure the minimum required ow rate is achieved at all times. Additionally the design of the system and its controls must ensure that an adequate temperature dierential is met, and should be such to prevent boiler cycling.
Feed and vent pipework
Heating Circuit
Boiler
15mm (Min.) Automatic By-Pass
Pump
2M Minimum
150mm Max.
500mm Minimum Height
22mm (Min.) Vent Pipe
15mm (Min.) Cold Feed
Cylinder
R
F
Return
Flow
Return
Flow
The feed and vent pipework from the boiler to the F & E (Feed & Expansion) tank should be congured as shown in the g. below.
installation
13
installation
mWH
l/h
0
100
200
300
400 500 600 700 800 900
1000 1100
1200
1300
1400
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
12-18 kW
12 kW
18 kW
821 l/h = 20 Δ @ 19.1 kW
555 l/h = 20 Δ @ 12.9 kW
1.3 mWH
2.65 mWH
24 kW
1118 l/h = 20 Δ @ 26.0 kW
3.7 mWH
Note:
• The distance between the cold feed and the open
vent pipe shall be no more than 150mm.
• The cold feed must be inverted as shown.
• The open vent pipe must be a minimum of 22mm
diameter.
• The cold feed pipe must be a minimum of 15mm
diameter.
• The cold feed and open vent pipes must rise
continuously and be unrestricted.
• The minimum distance from the top of the boiler
to the bottom of the F & E tank shall be no less than 2m. Whilst the maximum distance shall be not more than 27m.
• The distance between the bottom of the F & E
tank and the highest point of the open vent must be no less than 500mm.
• The ow and return pipes from the boiler must
rise continuously and be unrestricted.
• The supply of water to the F & E tank should be
taken from the mains water supply via a suitable oat operated valve. While the supply from the F & E tank to the boiler/heating circuit (via the cold feed) shall be unrestricted.
• The F & E tank must be adequately supported
and installed in accordance with relevant Building Regulations.
Pressure Loss Graphs through the boilers
Pump specication
The pump should be tted on the ow pipe from the boiler and have isolating valves each side. A variable duty pump should be set to give a tempe­rature dierential of no greater than 20ºC.
Draining tap
A draining tap must be provided at all the lowest points of the system which will allow the entire system to be drained. A drain tap must also be installed on the ow and return pipes immediately above the boiler to ensure complete draining of the primary ow and return is possible. Drain taps shall be to the current standard of BS
2879.
Sealed water systems
A sealed system kit is available from Ariston. Installa­tion instructions are supplied with the kit.
14
Flushing and Water Treatment
The boiler is equipped with a stainless steel heat exchanger.
The detailed recommendations for water treatment are given in BS 7593:1992 (Treatment of water in domestic hot water central heating systems); the following notes are given for general guidance.
If the boiler is installed on an existing system, any unsuitable additives must be removed.
Under no circumstances should the boiler be red before the system has been thoroughly ushed; the ushing procedure must be in line with BS 7593:1992.
We highly recommend the use of a ushing detergent appropriate for the metals used in the circuit. These include cleansers produced by Fernox BetzDearbon, whose function is to dissolve any foreign matter that may be in the system.
In hard water areas or where large quantities of water are in the system the treatment of water to prevent premature scaling of the main exchanger is necessary.
The formation of scale compromises the eciency of the thermic heat exchanger because small areas of scale cause a high increase in the temperature of the metallic walls and therefore add to the thermal stress of the heat exchanger.
Demineralised water is more aggressive so in this situation it is necessary to treat the water with an appropriate corrosion inhibitor.
Any treatment of water by additives in the system for frost protection or for corrosion inhibition has to be absolutely suitable for all metals used in the circuit.
The use of a corrosion inhibitor in the sysem such as Fernox MB-1, BetzDearborn Sentinel X100 or Fernox System Inhibitor is recommended to prevent corrosion (sludge) damaging the boiler and system.
If anti-freeze substances are to be used in the system, check carefully that they are compatible with the metals used in the circuit.
MTS suggests the use of suitable anti-freeze products such as Fernox ALPHI 11, which will prevent rust and incrustation taking place. Periodicaly check the pH balance of the water/anti­freeze mixture of the boiler circuit and replace it when the amount measured is out of the range stipulated by the manufacturer (7 < pH < 8). DO NOT MIX DIFFERENT TYPES OF ANTI-FREEZE
In under-oor systems, the use of plastic pipes without protection against penetration of oxygen through the walls can cause corrosion of the systems metal parts (metal piping, boiler etc), through the formation of oxides and bacterial agents.
installation
To prevent this problem it is necessary to use pipes with an “oxygen proof barrier”, in accordance with standards DIN 4726/4729. If pipes of this kind are
not used, keep the system separate by installing heat exchangers of those with a specic system water treatment.
IMPORTANT Failure to carry out the water treatment procedure will invalidate the appliance guarantee.
System Controls
The boiler is electrically controlled and is suitable for most modern electronic time and temperature controls. The addition of such external controls can be benecial to the ecient operation of the system. The boiler connections for external controls are 240V. MTS supply a range of wired and wireless system controls. Contact your supplier for more details.
Location
The boiler can be installed on any suitable internal wall (suitable sound proong may be required when installing onto a stud partition wall). Provision must be made to allow for the correct routing of the ue and siting of the terminal to allow the safe and ecient removal of the ue products. A compartment or cupboard may be used provided that it has been built or modied for this purpose. It is not necessary to provide permanent ventilation for cooling purposes. Detailed recommendations are given in BS 5440 Part 2. If it is proposed that it is to be installed in a timber framed building then reference should be made to British Gas Document DM2, IGE/UP/7 or advice sought from CORGI.
Where a room sealed appliance is installed in a room containing a bath or shower, the appliance and any electrical switch or appliance control, utilising mains electricity should be situated specically in accordance with current IEE Wiring Regulations.
For unusual locations, special procedures may be necessary. BS 6798:2000 gives detailed guidance on this aspect.
15
installation
trap
trap
Condensate Discharge
The condensate discharge hose from the boiler must have a continuous fall of 2.5o and must be inserted by at least 50mm into a suitable acid resistant pipe - e.g. plastic waste or overow pipe. The condensate discharge pipe must have a minimum diameter of 22mm, must have a continuous fall and preferably be installed and terminated to prevent freezing. The discharge pipe must be terminated in a suitable position:
i) Connecting into an internal soil stack (at least 450mm above the invert of the stack). A trap giving a water seal of at least 75mm must be incorporated into the pipe run, there also must be an air break upstream of the trap. ii) Connecting into the waste system of the building such as a washing maching or sink trap. The connection must be upstream of the washing machine/sink. If the connection is downstream of the waste trap then an additional trap giving a minimum water seal of 75mm and an air break must be incorporated in the pipe run, as above. iii) Terminating into a gully, below the grid level but above the water level iv) Into a soakaway
Note: If any condensate pipework is to be installed externally then it should be kept to a minimum and be insulated with a waterproof insulation and have a continuous fall. The total length of external pipe used should not exceed 3 metres.
Some examples of the type of condensate terminations can be found below.
2. External terminaton of condensate drainage pipe via internal discharge branch (e.g. sink waste) and condensate siphon.
3. External termination of condensate drainage pipe via internal discharge branch (e.g. sink waste
- proprietary tting).
1. Internal termination of codensate drainage pipe to internal stack.
16
4. External termination of condensate drainage pipe via condensate siphon
Installing the Boiler
Please check that you are familiar with the installation requirement before commencing work (pages 8 - 16).
The installation accessories described in the following list are included in the boiler packaging:
- Hanging bracket
- A paper template (showing the dimensions of
the boiler with 5 mm side clearances)
- Gas isolation valve (compression)
- Washers
- Installation, Servicing and User manual
- Flue gasket
- Fixing screws
installation
Filling the system/condensate discharge
Fill the central heating and bleed air from the system as described in the Commissioning Instructions.
The system should be carefully checked for leaks, as frequent relling could cause premature system corrosion or unnecessary scaling of the heat exchanger.
Pay special attention not to bend the condensate silicone drain pipe is such a way as to interrupt the ow. Please only use drain pipe material compatible with condensate products (refer to BS 6798:2000).
The condensate ow can reach 2 litres/hour because of the acidity of the condensate products (Ph close to 2), take care before operation.
See page 16 for condensate discharge options.
Method of positioning the boiler on the wall
The paper template can be used to ensure the correct positioning of kitchen cabinets etc.
The paper template has to be xed to the wall and used to locate the position of the hanging bracket and the centre for the ue hole. Drill and plug the wall and secure the hanging bracket using the screws provided, ensure the hanging bracket is xed square on the wall. Remove the boiler from its packaging. Place the boiler on the hanging bracket.
N
ote: the appliaNce must Not be fitted oN a combustible
wall surface.
Connecting the boiler to the system
- Remove the boiler casing as described on page 19
- Remove the cap and connect the gas isolation
valve to the boiler using the washer provided (C) page 18;
17
installation
A
B
C
Gas connection
Make sure, using the labels on the packaging and the data plate on the appliance itself, that the boiler is in the correct country and that the gas category for which the boiler was designed corresponds to one of the categories available in the country where it will be used. The gas supply piping must be created and measured out in compliance with specic legal requirements and in accordance with the maximum power of the boiler; ensure the gas isolation valve is connected correctly, see drawing opposite. Check that the supplied gas corresponds to the type of gas for which the boiler was designed (see the data plate located on the appliance itself). It is also important to check that the pressure of the gas (methane or LPG) you will be using to feed the boiler is suitable, because if it is insucient the power may be reduced, causing inconvenience for the user.
Central Heating connection
Drain O Cocks
C. Gas Inlet
A. Central Heating Return B. Central Heating Flow
(pipes 22mm)
18
Note: For IE use 3/4"» + 1/2"
olives provided
Instructions for opening the casing and perform­ing an internal inspection
Before performing any work on the boiler, rst disconnect it from the electrical power supply using the external bipolar switch, removing the fuse and shutting o the gas valve. To access the inside of the boiler, the following is
necessary:
1. Loosen the two screws on the front casing (a), pull
it forwards and unhook it from the upper pins (b)
3. Remove the control panel (c)
4. Unhook the two clips on the combustion chamber
panel and lift o (d).
(a)
installation
(c)
(b)
(d)
19
installation
2
1
4
3
6
7
8
5
A
B
C
Before the boiler is used for the rst time, the trap must be lled with water. To do this, add approximately 1/4 litre of water via the ue outlet before tting the ue system, or unscrew the cap on the trap positioned under­neath the boiler, ll it with water and ret it
Warning! Insucient water in the trap can
temporarily cause the ue gas to be expelled
into the surrounding ambient air.
Water circuit diagram
1. C.H. ow temperature probe
2. C.H. return temperature probe
3. Burner
4. Detection electrode
5. Condensate trap
6. Modulating fan
7. Ignition electrodes
8. Thermal fuse
20
Connecting the Flue
118 mm
See table
118 mm
4
Flue System The provision for satisfactory ue termi­nation must be made as described in BS 5440-1. The appliance must be installed so that the ue terminal is exposed to outdoor air. The terminal must not discharge into another room or space such as an outhouse or lean-to. It is important that the position of the terminal allows a free passage of air across it at all times. The terminal should be located with due regard for the damage or discolouration that might occur on buildings in the vicinity, it must also be located in a place not likely to cause nuisance. In cold or humid weather water vapour may condense on leaving the ue terminal. The eect of such “steaming” must be consi­dered. If the terminal is less than 2 metres above a balcony, above ground or above a at roof to which people have access, then a suitable stain­less steel terminal guard must be tted.
The minimum acceptable spacing from the ter­minal to obstructions and ventilation openings are specied in Fig. 1.
See table on page 27 & 28
installation
Fig. 1
- A Directly above or below an opening, window, etc 300 mm
- B Horizontally to an opening, window, etc 300 mm
- C Below gutters, soils pipes or drain pipes 75 mm
- D Below eaves 200 mm
- E From vertical drain pipe or soil pipe 75 mm
- F From internal or external corner 300 mm
- G Above ground, roof or balcony level 300 mm
- H From a surface facing the terminal 2500 mm
- I From a terminal facing a terminal 2500 mm
- J Vertically from a terminal on the same wall 1500 mm
- K Horizontally from an terminal on the same wall 300 mm
- L Fixed by vertical ue terminal
Fig. 2
122
21
installation
150 mm
118
* pente 5 mm par mètre
150
mm
* pente
Warning
The exhaust gas ducts must not be in contact with or close to inammable material and must not pass throu­gh building structures or walls made of inammable material. When replacing an old appliance, the ue system must be changed.
Important
Ensure that the ue is not blocked. Ensure that the ue is supported and assembled in accordance with these instructions.
Installation without extension
Fig. 3
Level
Installation with extension
slope
Fitting the Coaxial Flue (Ø 60 / 100 Horizontal)
Contents: 1x Silicone O-Ring (60mm) 1x Elbow (90°) 2x Wall Seals (Internal & External) 1x Flue Pipe including Terminal (1 metre - 60/100) 2x Flue Clamps 4x Screws 2x Seals
Once the boiler has been positioned on the wall, t the rubber ue seal into the internal ue turret (see diagram opposite).
Insert the elbow into the socket and rotate to the required position. Note: It is possible to rotate the elbow 360° on its vertical axis.
Using the ue clamp, seals and screws supplied (Fig
4) secure the elbow to the boiler.
The 1 metre horizontal ue kit (3318073) supplied is suitable for an exact X dimension of 811mm.
Measure the distance from the face of the external wall to the face of the ue elbow (X - Fig 2), this gure must now be subtracted from 811mm, you now have the total amount to be cut from the plain end of the ue.
22
Level
slope 5 mm per metre
Draw a circle around the outer ue and cut the ue to the required length taking care not to cut the inner ue, next cut the inner ue ensuring that the length between the inner and outer ue is maintai­ned. (Fig 4).
e.g. X = 555mm 811-555 = 256mm (Length to be cut from the plain end of the ue).
Once cut to the required length, ensure that the ue is free from burrs and reassemble the ue. If tting the ue from the inside of the building attach the grey outer wall seal to the ue terminal and push the ue through the hole, once the wall seal has passed through the hole, pull the ue back until the seal is ush with the wall. Alternatively, the ue can be installed from the outside of the building, the grey outer seal being tted last.
Should the ue require extending, the ue connec­tions are push t, however, one ue bracket should be used to secure each metre of ue.
Note: See table for maximum and minimum ue runs.
During use it is possible small quantities of con­densate will drip from the end of the terminal. Pay attention when siting the ue termination point.
Applies to all horizontal terminations.
Clamp
180 mm
Total length of vertical kit 1240 mm
Useable length of vertical ue 575 mm*
installation
Seal
Screws
Fitting the 5” Flue (Ø 80 / 125 Horizontal/vertical)
Fig. 5
Fig. 4
Once the boiler has been positioned on the wall, it is ne­cessary to insert the Ø80/125 adaptor (Fig. 5) for both horizontal and vertical ue runs into the boiler ue soc­ket (not supplied with ue kit - Part No 3318095).
Push the adaptor onto the boiler’s ue connection, grease the seals then add extensions or elbows as re­quired, secure the adaptor, using the clamp and screws provided.
To t extensions or elbows it is rst necessary to en­sure that the lip seal is tted correctly into the inner ue, once veried, it is simply necessary to push them together, no clamps are necessary to secure the ue components.
Before proceeding to t the ue, ensure that the ma­ximum ue length has not been exceeded (See the tables) and that all elbows and bends have been taken into consideration, the maximum ue length is 10 metres, for each additional 90° elbow 1 metre must be subtracted from the total ue length, and for each 45° bend 0.5 metres must be subtracted from the total ue length (the height of the vertical adaptor and a 45° bend can be seen in Fig.6 and a 90° bend in Fig. 7).
Note: DO NOT cut the vertical ue kit.
Fig. 6
Fig. 7
23
installation
180 mm
Total length of Vertical Kit 1355 mm
Useable length of Vertical ue 690 mm*
Fitting the Coaxial Flue (Ø 60 / 100 Vertical) Note: See table for maximum and minimum ue runs.
Contents: 1x Silicone O-Ring (60mm) 1x Conical Adaptor (60/100mm) 1x Vertical Flue Kit (80/125mm) 3x Screws
122
Fig. 7
The vertical ue kit is supplied with a specially de­signed weather proof terminal tted, it can be used either with a at roof or a pitched roof.
The vertical ue kits useable lengths with the pitched roof ashings are indicated in Fig. 7.
Before proceeding to t the ue, ensure that the maximum ue length has not been exceeded (See the tables) and that all elbows and bends have been taken into consideration, the maximum ue length can be found on the table on page 27 & 28. For each additional 90° elbow 1 metre must be subtracted from the total ue length, and for each 45° bend
0.5 metres must be subtracted from the total ue length (the height of the vertical adaptor and a 45° bend can be seen in Fig. 7).
Mark the position of the ue hole in the ceiling and/or roof (see Fig. 7 for distance from wall to the centre of the ue).
Cut a 130mm diameter hole through the ceiling and/or roof and t the ashing plate to the roof.
DO NOT cut the vertical ue kit.
To connect the vertical ue kit directly to the boiler, place the vertical starter kit (Part No. 3318079) (see Fig. 7) onto the exhaust manifold and secure with the clamp, t the vertical adaptor onto the vertical starter kit (note: there is no need to use a clamp to secure this as it is a push t connection), the vertical ue kit must then be inserted through the roof ashing, this will ensure that the correct clearance above the roof is provided as the terminal is a xed height.
Should extensions be required, they are available in 1 metre (Part No. 3318077), 500mm (Part No.
3318078), they must be connected directly to the vertical starter kit before connecting the adaptor to allow the vertical ue kit to be tted. In the event that extension pieces need to be shortened, they must only be cut at the male end and it must be ensured that the inner and outer ue remain ush.
When utilising the vertical ue system, action must be taken to ensure that the ue is supported adequately to prevent the weight being transferred to the appliance ue connection by using 1 ue bracket per extension.
When the ue passes through a ceiling or wooden oor, there must be an air gap of 25mm between any part of the ue system and any combustible material. The use of a ceiling plate will facilitate this. Also when the ue passes from one room to another a re stop must be tted to prevent the passage of smoke or re, irrespective of the structural material through which the ue passes.
24
Fig. 8
Fitting the Twin Pipe (Ø80 / 80)
Note: See on page 27 for maximum and minimum ue runs.
Where it is not possible to terminate the ue within the distance permitted for coaxial ues, the twin ue pipe can be used by tting a special adaptor to the ue connector and using the aperture for the air intake located on top of the combustion chamber.
installation
the previous section of ue pipe or elbow, check that the o-ring is not dislodged when assembling the ue (greasing the seal will aid assembly).
Twin pipe can also be converted back to coaxial ue to enable vertical termination with a coaxial kit by using the pipe bridge (Twin - Coaxial Adaptor - Part No. 3318089). When running the twin ue pipe vertically.
It is not possible to terminate concentrically hori­zontally. Termination is only possible with separate air and exhaust terminals. When siting the twin ue pipe, the air intake and exhaust terminals must terminate on the same wall, the centres of the terminals must be a minimum of 280 mm apart and the air intake must not be sited above the exhaust terminal (refer to Fig. 10). The air intake pipe can be run horizontally, however, the terminal and the nal 1 metre of ue must be installed either horizontally or with a slight fall away from the boiler to avoid rain ingress.
It is also strongly recommended that the air intake pipe run be constructed of insulated pipe to prevent condense forming on the outside of the tube.
The maximum permissible ue length for twin ue is dependent on the type of run used (see table on page 28).
For further information relating to ue runs not illustrated, please contact the Technical Department on 0870 241 8180.
Always ensure that the ue is adequately supported, using one ue bracket per extension and avoiding low points. (MTS supply suitable clamps as Part No.
705778). To utilise the air intake it is necessary to:
1) Take the air intake cover o the top of the ap­pliance;
2) Assemble the ange on the header supplied with the boiler;
3) Insert the header on the tube or the elbow up until the lower stop (you do not have to use the washer);
4) Insert the elbow/header in the boiler air intake hole and fasten it with screws.
The twin ue pipes can be tted with or without ad­ditional elbows and need no clamps, simply ensure that the black o-ring is inserted in the female end of the ue pipe and push the extension piece fully into
25
installation
195
105
120
180
Fig. 9
For coaxial systems, the maximum ue lengths, mentioned in the table on page 28 also take into account an elbow. For twin ue systems the maximum ue length, mentioned in the table includes the exhaust gas/air intake terminal.
Twin ue outlets should respect the following instructions: 1- Use the same ø 80 mm ue pipes for the air
intakes and exhaust gas ducts.
2- If you need to insert elbows in the air intake and
exhaust gas ducts, you should consider for each one the equivalent length to be included in the ue length calculation.
3- The exhaust terminal should jut above the roof by
at least 0.5 m.
4- The intake and exhaust gas ducts in Type C13 +
C53 must be installed on the same wall, or where the exhaust is vertical and the air intake horizon­tal, the terminals must be on the same side of the building.
26
Fig. 10
Table of ue gas exhaust duct lengths
COAXIAL SYSTEM
FLUE TYPE
MAX
LENGTH
DIAMETER
of PIPE
Equivalent
length
45° 90°
C13
Flue gas exhaust and air
suction duct through
external wall in the same
range of pressure
12
16 m 48 m
60/100 80/125
0.5 m
1 m
18
14 m 42 m
60/100 80/125
24
12 m 36 m
60/100 80/125
C 33
Flue gas exhaust and air
suction duct from outside
with roof terminal in the
same range of pressure
12
16 m 56 m
60/100 80/125
18
10 m 49 m
60/100 80/125
24
12 m 42 m
60/100 80/125
C43
Individual or shared ue
gas exhaust and air suction
through ue ducting built
into the building
Note: A specialist ue
system is required
12
16 m
0 m
60/100 80/125
18
14 m
0 m
60/100 80/125
24
12 m
0 m
60/100 80/125
installation
27
installation
TWIN-PIPE SYSTEM
FLUE TYPE
MAX
LENGTH
DIAMETER
of PIPE
Equivalent
length
45° 90°
C13
Flue gas exhaust and air
suction duct through
external wall in the same
range of pressure
12
48 m
(S1=S2)
80/80
0.5 m
1 m
18
42 m
(S1=S2)
24
36 m
(S1=S2)
C 33
Flue gas exhaust and air
suction duct from outside
with the roof terminal
in the same range of
pressure
12
80 m
(S1=S2)
80/80
18
70 m
(S1=S2)
24
60 m
(S1=S2)
C53
Flue gas exhaust leading
outside and air suction
duct through external
wall not in the same
range of pressure
12
112 m
(S1+S2)
80/80
18
98 m
(S1+S2)
24
84 m
(S1+S2)
S1 = Air intake S2 = Flue gas exhaust
S1 = S2 - Air intake and ue gas exhaust equal lengths S1 + S2 - Air intake and ue gas exhaust unequal lengths
28
WARNING
H05V2V2-F
120
140
Before performing any work on the boiler, rst disconnect it from the electrical power supply using the external bipolar switch and removing the fuse.
Electrical connections
For increased safety, ask a qualied technician to perform a thorough check of the electrical system. The manufacturer is not responsible for any damage caused by the lack of a suitable earthing system or by the malfunctioning of the electricity mains supply. Make sure that the system is able to withstand the maximum power absorbed by the boiler (this is indicated on the appliance data plate). Check that the section of the wires is suitable and is not less than
0.75 mm2 The appliance must be connected to an ecient earthing system if it is to operate correctly. The power supply cable must be connected to a 230V-50Hz network, where the L-N poles and the earth connection are all respected. Important! In the event that the power supply cable must be changed, replace it with one with the same specications.
Power supply cable
installation
Electrical connection unit
To access the electrical connection unit carry out the following steps:
- Disconnect the boiler from the power supply
- Loosen the screws on the cover of the outside connection box below the boiler (see diagram below)
- Open the cover
- The connection PCB may be accessed in order to connect :
Main supply Live to pump Zone valves Outdoor sensor Switched live connection/s Cylinder stat
Important! The appliance is supplied with a y-lead already connected, this must be connected to a 240V supply fused at 3 Amp and must facilitate complete electrical isolation of the appliance, by use of a fused double pole isolator having a contact separation of at least 3mm in all poles or alternatively by means of a 3A fused three pin plug and unswitched shuttered socket outlet both complying with BS1363.
The use of multiplugs, extension leads or adaptors is strictly prohibited. It is strictly forbidden to use the piping from the hydraulic, heating and gas systems for the appliance earthing connection.
Caution! For the connection and positioning of the wires belonging to optional peripheral units, please refer to the installation manu­als of these units.
29
installation
8
1
Solar probe
A
5
1
Display
Display
1 8
detection
electrode
Ignitor
Gas valve
L N
FAN
EARTH
FLAME
FLOW
PUMP
ZONE1
FILLING
PUMP
SPEED
1
1
FUSE 2AT
1 2 3 4 1 2 3 45 6
6
1
1 234
Gas valve Ignitor
BUS P.C.B.
e-bus (optional)
C.H. flow temp.probe
CN04
CN04
CN07
CN22
CN22
13 12 11 10 9 8 7 6 5 4 3 2 1
12 11 10 9 8 7 6 5 4 3 2 1
11 10 9 8 7 6 5 4 3 2 1
11 10 9 8 7 6 5 4 3 2 1
2
1
8 7 6 5 4 3 2 1
C.H. return temp.probe
Thermal fuse
Modulating fan
Electrical diagram
For increased safety, ask a qualied technician to perform a thorough check of the electrical system. The manufacturer is not responsible for any damage caused by the lack of a suitable earthing system or by the malfunctioning of the electricity mains supply.
NOTE: For separate 2 zone temperature management with an outdoor sensor connected contact the Technical Help Desk on 0870 241 8180
30
installation
TERMINAL
STRIP
S Plan system utilizing external 2 channel programmer and Ariston unvented hot water cylinder
31
installation
S Plan system utilizing integral 2 channel programmer and Ariston unvented hot water cylinder
32
Y Plan system utilizing external 2 channel programmer
installation
33
installation
Y Plan system utilizing integral 2 channel programmer
34
Initial preparation
MTS (GB) Limited support the benchmark initiative. On pag es pages 61 and 62 of this manual the Benchmark Commissioning Checklist and Service Interval Record can be found. It is important that this is completed in the presence of your customer, they are shown how to use it, and it is signed by them. Please instruct your customer that they must have this manual with them whenever they contact a service engineer or us.
commissioning
Water Treatment:
The boiler is equipped with a stainless steel heat exchanger. The detailed recommendations for water treatment are given in BS 7593:1992 (Treatment of water in domestic hot water central heating systems); the following notes are given for general guidance;
If the boiler is installed on an existing system, any unsuitable additives must be removed;
Preliminar y electrical system checks to ensure electrical safety must be carried out by a competent person i.e. polarity, earth continuity, resistance to earth and short circuit.
Electricity supply
- Check that the voltage and frequency of the electricity supply correspond to the data shown on the boiler data plate;
- Make sure that the earthing connection is ecient.
Filling the Heating System:
Close all air release valves on the central heating system;
Open system
Fill the boiler system via the feed and expansion tank.
Sealed system
Gradually open the valves at the filling point (filling loop) until water is heard to flow, do not open fully; Open each air release tap starting with the lowest point and close them only when clear water free of air is visible; Inspect the system for water tightness and remedy any leaks discovered.
Gas Supply:
Inspec t the entire installation including the gas meter and test for tightness. The entire installation should be in accordance with the relevant standards. In GB this is BS 6891 and in IE this is the current edition of I.S.813.
Under no circumstances should the boiler be fired before the system has been thoroughly flushed and refilled; the flushing procedure must be in line with BS7593:1992.
Firstly fill the central heating system with the power off, and flush through cold, fill the central heating system again, adding a flushing detergent, run the boiler on central heating until it reaches its operating temperature and flush the system, refill the system with a suitable corrosion inhibitor,
Note : FAilu Re to cAR Ry out the Flus hiNg pRoce duRe will
Result iN the wARRANty becomiNg void.
The connection on the the appliance is a 15mm nut and olive located at the rear of the gas isolating valve.
If the gas supply serves other appliances, ensure that an adequate supply is available both to the boiler and the other appliances when they are in use at the same time.
Pipe work must be of an adequate size. Pipes of less than 22mm should not be used, final connection being 15mm. Open the gas isolating valve (supplied with the connection kit) to the appliance and check the gas connection on the appliance for leaks.
35
commissioning
Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installer . . . . . . . . . . . . . . . . . . . . . . . . . .
FIRST IGNITION OPERATION
1. Check the electrical supply.
Complete . . . . . . . . . . . . . . . . . . .
4. Measure the gas inlet standing pressure
Complete . . . . . . . . . . . . . . . . . . .
7. Check the hydraulic water tightness.
Complete . . . . . . . . . . . . . . . . . . .
10. Measure the gas inlet working pressure.
Complete . . . . . . . . . . . . . . . . . . .
13. Explain to the end user
how to use the boiler/ timer/control
Complete . . . . . . . . . . . . . . . . . . .
2. Check the type of gas and change the gas if necessary.
Complete . . . . . . . . . . . . . . . . . . .
5. Check the ue installation. See page 21 - 28….
Complete . . . . . . . . . . . . . . . . . . .
8. Set the heating power. See
page 38….
Complete . . . . . . . . . . . . . . . . . . .
11. Check the boiler combustion.
Complete . . . . . . . . . . . . . . . . . . .
14. Complete the Benchmark Log Book (page 61)
Complete . . . . . . . . . . . . . . . . . . .
3. Check the gas tightness.
Complete . . . . . . . . . . . . . . . . . . .
6. Fill the installation. See page 35….
Complete . . . . . . . . . . . . . . . . . . .
9. Balance the central heating circuit.
Complete . . . . . . . . . . . . . . . . . . .
12. Gas rate the appliance.
Complete . . . . . . . . . . . . . . . . . . .
36
Ignition procedure
Press the ON/OFF button on the control panel to switch on the boiler. The display shows:
The operating mode will be indicated by the three gures marked out on the diagram above.
The rst gure indicates the operating mode: 0 XX - Stand-by C XX - Boiler active c XX - “CH External Pump Overrun” - Heating exter­nal pump overrun F XX - -Anti-freeze protection enabled
The second and third gures indicate:
-
the ow temperature when no heating requests have been made
- the ow temperature in heating mode
- the ow temperature in anti-freeze mode.
commissioning
Electricity supply
- Check that the voltage and frequency of the electricity supply correspond to the data shown on the boiler data plate;
- Make sure that the earthing connection is ecient.
First ignition
1. Make sure that:
- The gas valve is closed;
- The electrical connection has been properly carried out. Make sure that, the green/yellow earthing wire is connected to an ecient earthing system;
- Switch on the boiler (by pressing the ON/OFF button)
- Bleed the air from the system;
- The ue system should be suitable and free from any obstructions;
2. Open the gas isolating valve and check the connection seals, including the boiler connection joints, making sure that the meter does not detect any passage of gas. Eliminate any leaks.
3. Start the boiler by turning on the time control + ensure thermostats are calling for heat.
37
commissioning
gas setting
parameters
12 kW
18 kW
24 kW
G20
G31
G20
G31
G20
G31
lower Wobbe index
(15°C, 1013 mbar) (MJ/m3)
45,67
70,69
45,67
70,69
45,67
70,69
slow ignition
220506050605060
minimum fan speed(%)
233000002020505
maximum output fan speed (%)
234707080808585
gas valve restrictor(ø)
4,40
3,10NO3,80NO3,80
gas ow max/min (15°C, 1013 mbar)
(nat - m3/h) (GPL - kg/h)
max D.H.W
1,27
0,93
1,90
1,40
2,65
1,94
max C.H.
1,27
0,93
1,90
1,40
2,33
1,71
min
0,32
0,23
0,48
0,35
0,58
0,43
25
30
35
18
12
menu 2 - Boiler parameters NOTE: To access the menus, see page 42 submenu 3 - parameter 1 Maximum Heating Power adjustment
submenu 2 - parameter 0
submenu 3 - parameter 5 Heating ignition delay
Soft light Ignition

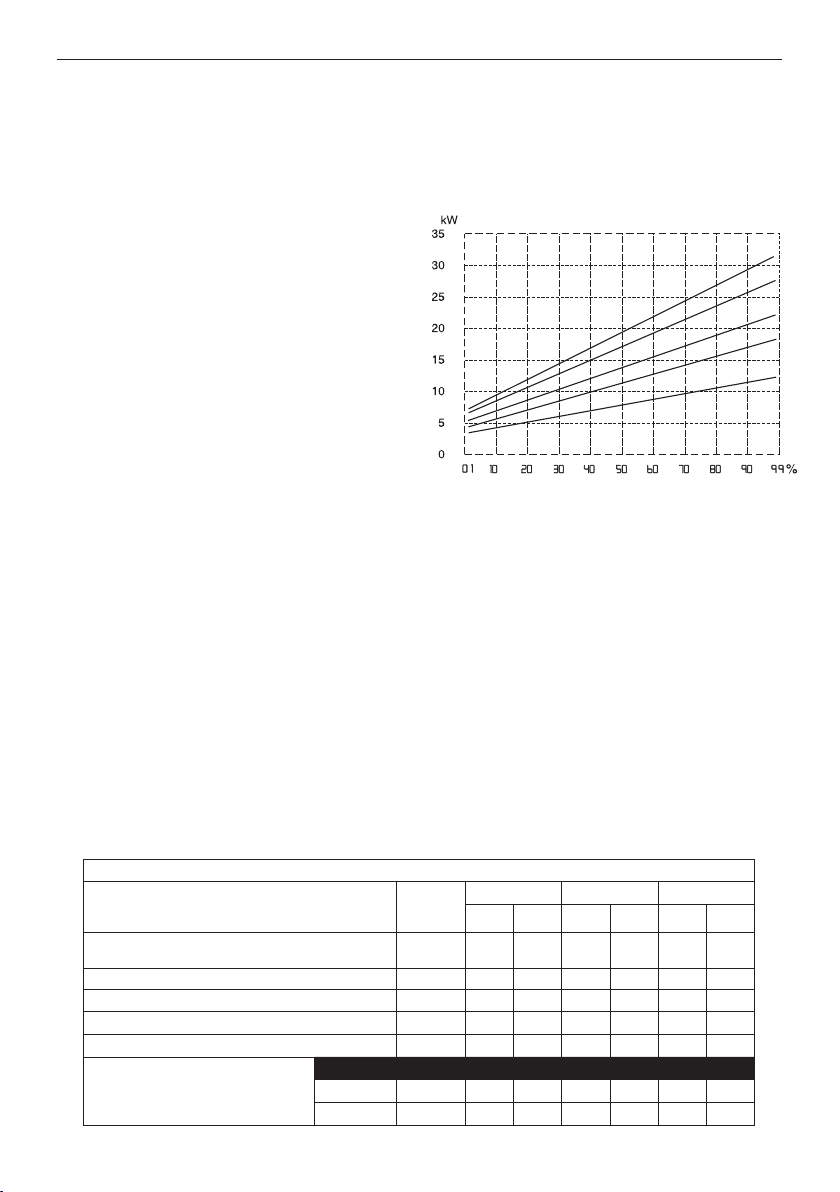

Maximum Heating Power adjustment
The maximum heating power can be adjusted to between the maximum power allowed by the boiler and the minimum power. The display shows the value between 100% (“99” on the display) and 0% (“0”). To check the maximum heating power, access menu 2/sub menu 3/parameter 1, check the value and, if necessary, modify it as indicated in the Gas Regulation table. (below).
Checking slow ignition power
The soft light can be adjusted between the maximum power (shown on the display as “99”, i.e. 100%) and the minimum power (shown on the display as “1”, i.e. 1%). To check the slow ignition power, access menu 2/sub menu 2/parameter 0.
Heating ignition delay adjustment
This parameter – menu 2/sub menu 3/parameter 5
- can be used to manually (0) or automatically (1) set
the delay time before the subsequent reignition of the burner after it has switched o on reaching the desired temperature in central heating mode. By selecting manual (0), it is possible to set the delay in minutes using the successive parameter (menu 2/ sub menu 3/parameter 6), to a time between 0 and 7 minutes. Automatic selection means that the boiler will establish the delay time based on the set-point temperature.
38
24
38
Test function and combustion analysis
Maximum or
minimum CO
2
12 kW
18 kW
24 kW
CO2 (%)
G20
9.0 ± 0.2
9.2 ± 0.2
9.3 ± 0.2
G31
10.2 ± 0.2
10.3 ± 0.2
10.2 ± 0.2
The boiler has two pressure test points to measure the combustion gas temperature, the combustive air and the concentrations of O2 and CO2 on the outside of the ue gas header. To access these pressure test points, unscrew the screw which holds the blanking cover and its seal together.
Checking the gas setting
To carry out combustion analysis, the test function must be activated.
Test function
The PCB allows the appliance to be forced to minimum or maximum power. Activate the test function by pressing the Reset button for 5 seconds, the boiler switches to maximum heating power, the following appears on the display: To select the function at maximum domestic hot
water, press the button, the following appears on the display : To select the function at minimum domestic hot
water, press the button, the following appears on the display : The function is automatically deactivated after 10
minutes or by pressing the Reset button. Note: the appliance can be forced to minimum or maximum power from menu 7 (see the section on the display - setting - diagnostics menu). WARNING! By activating the test function, the temperature of the water sent to the installation is limited to 88°C; caution is therefore required with regard to low-temperature installations.
Maximum gas ow combustion analysis
Activate the test function at the maximum heating power, press the + button. Wait for the boiler to stabilise before carrying out the combustion analysis. Check the CO2 value according to the table opposite.
commissioning
N.B: when the front combustion chamber panel is open, the CO2 value drops by 0.3%.
If the values taken dier from the table, adjust the gas valve following the procedure described below.
Adjust the CO2 content to screw 50 (2.5 mm allen key)
- tighten to lower the CO2 value
- unscrew to increase the CO2 value Set the content by turning the screw about a 1/4 of a turn then wait after each change for approximately 1 minute for the CO2 value to stabilise, then repeat.
± 0.2 by turning setting
8
2
Only a 2.5 mm allen
key must be used. Do
not use a screwdriver
Minimum gas ow combustion analysis
Activate the test function at minimum power by pressing the - button. Wait for the boiler to stabilise before carrying out the combustion analysis. Check the CO2 value according to the table above. Important: do not remove silencer 13
N.B: when the combustion chamber is open, the CO2 value drops by 0.3%.
If the values taken dier from the table, adjust the gas valve following the procedure described below.
To adjust the CO2 value, remove cap content to ± 0.2 by turning setting screw 51 (4 mm al- len key)
- unscrew to lower the CO2 value
- tighten to increase the CO2 value
2, adjust the CO2
51
Only a 4 mm allen key
must be used. Do not
use a screwdriver
Set by turning the screw about a 1/4 of a turn then wait after each change for approximately 1 minute for the CO2 value to stabilise, then repeat. Once the settings and analyses are complete, exit test mode, and reposition the blanking cover and its seal correctly.
39
50
commissioning
AUTO function
The AUTO function determines the best power output and ow temperature for the heating system by continually monitoring demand. It uses advanced modulating technology to clo­sely track demand and matches output with the highest precision. This ensures that either with or without the addition of further controls the activation of the AUTO function will enhan­ce boiler performance. Optimum performance can be achieved by the addition of an outdoor sensor and indoor modulating controls. Depending on the peripheral units connected and the number of zones controlled, the boiler adjusts its ow temperature automatically. The various corresponding parameters should therefore be set (see adjustments menu). To activate the function, press the Auto button.
Example 2:
single zone system (high-temperature) with on/o room thermostat + outdoor sensor: In this case the following parameters must be set: 4 21 - Activation of temperature adjustment
using sensors
- Select 3 = outdoor sensor only 4 22 -
Temperature adjustment curve selection
- Select the relevant curve according to the type of system, installation, heat insulation used in the building, etc (see pae 45).
4 23 - Perform a parallel curve shift if
necessary, increasing or decreasing the set-point temperature (this may also be modied by the user, using the heating temperature adjustment knob, which, with the Auto function activated, is used to shift the curve in a parallel manner).
NOTE: Two zone temperature management is
not suitable for use with Y Plan systems.
NOTE: Where an outdoor sensor is connected
and the system is supplying stored domestic hot water and a central heating circuit, each circuit must be separately connected to the PCB using the ‘RT’ and ‘Cyl’ connections.
Example 1:
single zone system (high-temperature) with on/o room thermostat: In this case the following parameters must be set: 4 21 - Activation of temperature adjustment
using sensors
- Select 1 = Basic temperature adjustment
2 44 - Boost Time (optional) The wait time for the ow temperature
increase in steps of 4°C may be set. The value varies according to the type of system and installation.
If the Boost Time value = 00 the
function is not activated.
40
This is to ensure a correct ow temperature to the stored hot water in the summer.
For further information please contact the Technical Help Desk on 0870 241 8180
Boiler protection devices
Central Heating circuit
Display
Description
1 01
Overheat
1 03
Insucient circulation
1 04
1 05
1 06
1 07
1 10
Flow temp. probe circuit open / short circuit
1 12
Return temp. probe circuit open / short circuit
1 14
External sensor circuit open / short circuit
1 18
Heating delivery probe problem
1 P1
Insucient circulation indication
1 P2
1 P3
Internal P.C.B.’s
3 01
EEPROM error
3 02
Comunication error
3 03
Main P.C.B. error
3 04
Too many (> 5) resets in 15 minutes
3 05
Main P.C.B. error
3 06
Main P.C.B. error
3 07
Main P.C.B. error
Ignition and Detection
5 01
No ame detected
5 02
Flame detected with gas valve closed
5 04
Flame lift
5 P1
1st Ignition Failed
5 P2
2nd Ignition Failed
5 P3
Flame cut-o
Air Inlet / Flue gas outlet
6 04
Insucient fan speed
6 10
Thermofuse open
The boiler is protected from malfunctioning by means of internal checks performed by the P.C.B., which stops the boiler from operating if necessary. In the event of the boiler being shut o in this manner, a code appears on the display which refers to the type of shut-o and the reason behind it. There are two types of shut-o:
Safety shut-o
This type of error is “volatile”, which means that the boiler starts up again automatically as soon as the problem which caused the shut-o is removed; the error is indicated by the «Err» symbol which appears on the display and the error code. In fact, as soon as the cause of the shut-o disap­pears, the boiler starts up again and continues to operate normally. While the boiler is shut o for safety reasons it is possible to attempt to restore normal operation by switching the appliance o and on again using the on/o button on the control panel. If after attempting this the boiler still shows a safet shut o, switch it o and ensure that the external electrical switch is in the o position.
Shutdown
This type of error is “non-volatile”, which means that it is not removed automatically. To restore normal operation press the button on the control panel. The rst gure of the error code (e.g. 1 01) indicates within which operational assembly the error occurred. 1 - Primary Circuit 3 - Internal Electronic Part 5 - Ignition and Detection 6 - Air inlet - ue gas outlet
Malfunction warning
This warning is shown by the display in the following format: 5 P1 = FIRST IGNITION ATTEMPT UNSUCCESSFUL the rst gure indicating the operational assembly is followed by a P (warning) and the code relating to the specic warning.
Important
If this shutdown occurs frequently, contact an authorised Technical Service Centre for assistance. For safety reasons, the boiler will permit a maximum of 5 resets in 15 minutes (5 presses of the RESET button); at the 6th attempt within this 15-minute period the boiler will shut down and may only be operated again after the electricity supply has been disconnected. If the shutdown is occasional or an isolated event, this is not a problem.
Anti-frost Device.
The anti-frost function acts on the central heating ow temperature probe, independently from other regulations, when the electrical supply is turned on. If the primary circuit temperature is between 3°C and 8°C the pump will run until the temperature reaches > 9°C. If the ow temperature remains between 3°C and
boiler protection devices
8°C the pump will continue to run for a maximum of 20 minutes unless a temperature above > 9°C is de tected in the central heating ow, after this the the burner will re (heating position) until a temperature of > 30°C is detected. If the central heating ow temperature is < 3°C, the burner will re (heating position) at minimum power until the temperature reaches > 30°C, the burner will go out. If lockout is caused by overheat the burner will not re but the pump will continue to run. The anti-frost device activates only when (with the boiler operating correctly):
- the boiler is electrically powered;
- there is a supply of gas.
Table summarising error codes
41
-
settings - adjustment - problem identication menus
Accessing the settings - adjustment - pro­blem identication menus
The boiler can be used to manage the heating system in its entirety. Navigation within the menus enables the boiler system + connected peripheral units to be customised, optimising operation for maximum comfort and maximum saving. It also provides important information relating to the ecient operation of the boiler.
The following menus are available:
The parameters relating to each individual menu are listed in the following pages. The various parameters can be accessed and modied using the meNu/ok button and
programming buttons and . (see g.
below).
programmiNg
buttons
2 Boiler Parameter
2 1 Service code (234) 2 2 General setting 2 3 C.H. Parameters - Part 1 2 4 C.H. Parameters - Part 1 2 5 Do not use 2 9 Menu 2 Reset to factory setting
3 Solar & Storage
3 0 General setting 3 1 Service code (234) 3 2 Special setting
4 Zone 1 Parameters
4 0 Set-point Zone1 4 1 Service code (234) 4 2 Zone 1 Setting 4 3 Diagnostics 4 4 Zone device mangement
5 Zone 2 Parameters
5 0 Set-point Zone2 5 1 Service code (234) 5 2 Zone 2 Setting 5 3 Diagnostics 5 4 Zone device mangement 5 5 Multizone
7 Test & Utilities 8 Service Parameter
8 1 Service code (234) 8 2 Boiler 8 3 Boiler Temperature
8 4 Don’t use 8 5 Service 8 6 Statistics 8 7 E@sy - NOT ACTIVE 8 8 Error History
42
Menu/Ok button
To access the Menus, open the cover and proceed as follows:
1. Press the meNu/ok button; the rst gure 000
will ash on the display.
2. Press the buttons or to select a menu,
for example: “200
3. Press the meNu/ok button; the second gures on
the display will ash, e.g. “210.
Caution! The menus reserved for qualied
technicians may only be accessed after setting the access code.
4. Press the meNu/ok button; 222 will appear on
the display unit.
5. Press the buttons or to select code
234
6. Press the meNu/ok button to select the sub menu;
the second gures will ash, e.g. “220”.
7. Press the buttons or to select a sub
menu; for example: “230
8. Press the meNu/ok button to access the sub menu parameters; the three gures will ash, for example: “230”.
9. Press the buttons or to select a parameter; for example: “231
10. Press the meNu/ok button to access the parameter; the display will indicate the value, e.g “70”.
Note: The parameter value will be displayed for
20 seconds, then will begin to ash in alternation with the parameter, e.g. “70 > 231.
11. Press the buttons or to select the new value, e.g. “75”.
12. Press meNu/ok to save the change or press esc to exit without saving.
To exit, press the esc button until the normal display screen is restored. For menus which do not require the access code, it is possible to pass directly from the menu to the sub menu.
settings - adjustment - problem identication menus
menu
sub-menu
parameter
description value 2 BOILER PARAMETER SET TING 2 1 Entering access code 222 press the programming "+" button to
2 2 BOILER GENERAL SETTING 2 2 0 Slow ignition 0 to 99 60 RESERVED FOR SAT
2 2 1 Minimum ambient temperature
for antifreeze activation
2 2 2 NOT PRESENT
2 2 3 Underoor thermostat or zone 2
ambient thermostat selection
2 2 4 NOT PRESENT
2 2 5 NOT PRESENT 2 2 6 NOT PRESENT
2 2 7 NOT PRESENT
2 2 8 Boiler Version
Do not modify
2 3 BOILER PARAMETER  PART 1
2 3 0 NOT PRESENT
2 3 1 Maximum heating power setting 0 to 99 see the "gas setting" table, in
2 3 2 Domestic hot water maximum
RPM percentage
CANNOT BE MODIFIED 2 3 3 Minimum RPM percentage
CANNOT BE MODIFIED 2 3 4 Heating maximum RPM
percentage
CANNOT BE MODIFIED
2 3 5 Selection of ignition delay type
when heating 2 3 6 Ignition delay when heating
timer setting
2 3 7 Post-circulation when heating from 0 to 15 minutes or OC (AC) 3
2 3 8 NOT PRESENT 2 3 9 NOT PRESENT
from 2 to 10 °C 5 Activated only with the modulating
0 = Underoor safety thermostat 1 = Zone 2 ambient ther­mostat
0 to 5 0 RESERVED FOR TECHNICAL
0 to 99 RESERVED FOR TECHNICAL
0 to 99
0 to 99
0 = Manual 1 = Automatic
from 0 to 7 minutes 3
default setting
select 234 and press the meNu button
peripheral device (optional)
1 Do not modify
ASSISTANCE Only if the PCB is changed
commissioning
ASSISTANCE Only if the gas or PCB is changed
see "gas setting" table in commissioning
1 see section on "gas setting" in
commissioning
43
settings - adjustment - problem identication menus
menu
sub-menu
parameter 2 4 BOILER PARAMETER  PART 2 2 4 0 NOT PRESENT 2 4 1 NOT PRESENT 2 4 2 NOT PRESENT 2 4 3 Post-ventilation after heating
2 4 4 Time delay after heating
2 4 5 NOT PRESENT
2 4 6 NOT PRESENT
2 4 7 Device indicator for heating
2 4 8 NOT PRESENT
2 5 DOMESTIC HOT WATER PARAMETER
2 5 0 NOT PRESENT 2 5 1 NOT PRESENT 2 5 2 NOT PRESENT 2 5 3 NOT PRESENT 2 5 4 NOT PRESENT 2 5 5 NOT PRESENT
2 9 RESET MENU 2 2 9 0 Automatically resetting to the
description value
request
temperature increase
This parameter allows the time delay to be set before automatic increase of the ow temperature calculated in increments of 4°C (max 12°C). If this parameter retains the value 00, this function is not active.
circuit pressure
default setting in menu 2
0 = OFF 1 = ON from 0 to 60 minutes 16 activated only with thermostat
0 = temperature sensor only 1 = pressure switch at minimum 2 = pressure sensor
Reset OK = yes ESC = no
default setting
0
On/O and heating control activated (parameter 421 or 521 = 01
0 RESERVED FOR TECHNICAL
ASSISTANCE Only if the PCB is changed
To reset all default parameter settings, press the MENU button
44
settings - adjustment - problem identication menus
temperatura di mandata all’impianto
bassa tempertaura alta tempertaura
temperatura esterna
valore di consegna
temperatura ambiente
°C
20
25
15
30
40
50
60
70
80
90
100°C
10
2.5 3.0 3.5 2.0
1.5
1.2
1.0
0.8
0.6
0.4
0.2
5 0 -5 -10 -15 -20 °C
menu
sub-menu
parameter
description value 4 ZONE 1 PARAMETER 4 0 ZONE 1 TEMPERATURE SETTING 4 0 0 Zone 1 comfort temperature
from 10 to 30 °C 19 Activated only with the modulating
setting "Comfort ambience T" 4 0 1 Zone 1 reduced temperature
from 10 to 30 °C 16
setting "Reduced ambience T" 4 0 2 Heating xed temperature
from 20 to 82 °C 70 Activated only with temperature
setting "Heating xed temp"
4 1 Entering access code 222 press the programming "+" button
4 2 ZONE 1 SETTING 4 2 0 Heating appliance
temperature value setting 4 2 1 Basic heating control type
selection type depending
on the peripheral devices
connected
0 = from 20 to 45°C (low temperature) 1 = from 35 to 85°C (high temperature) 0 = xed ow temperature 1 = device On/O 2 = ambient sensor only 3 = external sensor only 4 = ambient sensor + external sensor
4 2 2 Slope 0_2 to 3_5 1_5
If the external sensor is
used, the boiler calculates
the most suitable heating
ow temperature taking the
external temperature and
the type of appliance into
account.
The type of curve must be
chosen according to the type
of appliance radiator and the
heat losses present in the
Flow Temperature
Ambient temperature
setting value
building.
4 2 3 Parallel shift - 20 to + 20 0
To adapt the thermal curve to the appliance requirements, it is possible to perform a parallel shift of the curve in order to alter the
calculated ow temperature and therefore the ambient temperature.
The shift value between - 20 and + 20 is shown on the display. Each level corresponds to a
in relation to the initial setting.
4 2 4 Compensation 0 to + 20 20
if setting = 0, the temperature taken from the ambient sensor does not aect the calculation of the setting. If setting = 20, the temperature taken has maximum inuence on the setting.
4 2 5 Zone 1 heating maximum
temperature setting 4 2 6 Zone 1 heating minimum
temperature setting
4 3 DIAGNOSTICS display only 4 3 0 4 3 1 4 3 2
4 3 3 NOT PRESENT 4 4 ZONE DEVICE MANAGEMENT 4 4 0 NOT PRESENT
Zone 1 room temperature
Zone 1 set temperature
Zone 1 heat request
35 to + 82°C 82 if parameter 420 = 1 20 to + 45°C 35 to + 82°C 35 if parameter 420 = 1 20 to + 45°C 20 if parameter 420 = 0
Activated only with the modulating
0=OFF 1=ON
default etting
device connected (option)
control and xed temperature
to select 234 and press the meNu button
1 select in the appliance type base
1 To activate heating control, press
the AUTO button. The Auto light is illuminate
High temperature
External temperature
low temperature
1°C increase in the ow temperature
45 if parameter 420 = 0
device connected (option)
45
settings - adjustment - problem identication menus
menu
sub-menu
parameter
description value 5 ZONE 2 PARAMETER 5 0 ZONE 2 TEMPERATURE SETTING
5 0 0 NOT PRESENT 5 0 1 NOT PRESENT 5 0 2 NOT PRESENT
5 1 Entering access code
5 2 CYLINDER SETTING
Heating appliance temperature
5 2 0
value setting
Basic heating control type selection
5 2 1
type depending on the peripheral
devices connected
5 2 2 NOT PRESENT 5 2 3 NOT PRESENT 5 2 4 NOT PRESENT
Zone 2 heating maximum
5 2 5
temperature setting
Zone 2 heating minimum
5 2 6
temperature setting
5 3 DIAGNOSTICS
5 3 0 NOT PRESENT 5 3 1 NOT PRESENT 5 3 2 NOT PRESENT
Zone 2 set temperature
5 3 3
Zone 2 heat request
5 3 4
Zone 2 Pump status
5 3 5
5 4 ZONE DEVICE MANAGEMENT
5 4 0 NOT PRESENT 5 4 1 NOT PRESENT 5 4 2 NOT PRESENT
5 5 MULTIZONE
5 5 0 NOT PRESENT 5 5 1 NOT PRESENT
0 = from 20 to 45°C (low temperature) 1 = from 35 to 85°C (high temperature) 0 = xed ow temperature 1 = device On/O 2 = ambient sensor only 3 = external sensor only 4 = ambient sensor + external sensor
35 to + 82°C 82 if parameter 420 = 1 20 to + 45°C 35 to + 82°C 20 to + 45°C 20 if parameter 420 = 0
0=OFF 1=ON 0=OFF 1=ON
default setting
222 press the programming "+" button to
select 234 and press the m
1 select in the appliance type base
0 To activate heating control, press
the AUTO button. The Auto light is
eNu button
illuminate
45 if parameter 420 = 0 35 if parameter 420 = 1
46
settings - adjustment - problem identication menus
menu
sub-menu
parameter 7 TEST & UTILITIES 7 0 0 Function test - Cleaning
7 0 1 Bleed cycle press Menu 8 PARAMETER FOR TECHNICAL ASSISTANCE
8 1 Entering access code 222
8 2 BOILER
8 2 0 NOT PRESENT
8 2 1 Fan status ON or OFF 8 2 2 Fan speed (x100) rpm
8 2 3 NOT PRESENT 8 2 4 NOT PRESENT 8 2 5 NOT PRESENT
8 2 6 NOT PRESENT
8 3 BOILER TEMPERATURE 8 3 0 Heating adjustment temperature (°C) 8 3 1 Heating ow temperature (in °C) 8 3 2 Heating backow temperature (in °C) 8 3 3 NOT PRESENT 8 4 SOLAR APPLIANCE AND TANK
8 4 0 NOT PRESENT 8 4 1 NOT PRESENT 8 4 2 NOT PRESENT 8 4 3 NOT PRESENT 8 4 4 NOT PRESENT 8 4 5 NOT PRESENT 8 4 6 NOT PRESENT
8 5 SERVICE - TECHNICAL ASSISTANCE 8 5 0 NOT PRESENT 8 5 1 NOT PRESENT 8 5 2 NOT PRESENT
8 5 3 NOT PRESENT
8 5 4 PCB hardware version 8 5 5 PCB software version
8 5 6 NOT PRESENT
description value
t-- = funct. at Max heating power t-- activation can also be obtained by turn the encoder to select the operating mode
default setting
pressing the Reset button for 10 seconds. The function is deactivated after 10 minutes or by pressing Reset
press the programming "+" button to select 234 and press the meNu button
47
settings - adjustment - problem identication menus
menu
sub-menu
Parameter
8 6 STATISTICS 8 6 0 Number of hours burner operating in heater mode (xxh/10)
8 6 1 NOT PRESENT
8 6 2 Number of ame separations (nr/10) 8 6 3 Number of ignition cycles (nr/10)
8 6 4 NOT PRESENT
8 6 5 Average length of heating request (minutes) 8 7 E@SY HOTLINE NOT ACTIVE 8 7 0 8 7 1 8 8 ERROR LIST 8 8 0 10 last errors from E00 to E99
8 8 1 Error list reset
Description value
This parameter allows the last 10 boiler errors agged to be displayed, indicating the day, month and year. When the parameter is accessed, the errors are displayed listed from E00 to E99. For each error, the following sequence is displayed: E00 - error number 108 - error code
Reset OK = yes ESC = no
default setting
48
Important
Maintenance is an essential part of the safe and ecient operation of the boiler and ensures its durability. It should be performed according to the instructions given in current legislation. Perform combustion analysis regularly in order to check the operating eciency of the boiler and to make sure any polluting substances released are within the boundaries set by current legislation. Before beginning maintenance work:
- Disconnect the appliance from the electricity supply by turning the external bipolar switch to the “OFF” position;
- Remove the fuse
- Close the gas isolation valve.
After the work has been completed the initial settings will be restored.
General comments
It is recommended that the following inspections be carried out on the boiler at least once a year:
1. Check the seals in the water part and, if necessary, replace the gaskets and restore the seal to perfect working order.
2. Check the seals in the gas part and, if necessary, replace the gaskets and restore the seal to perfect working order.
3. Visually check the overall condition of the boiler.
4. Visually check the combustion and, if necessary, disassemble and clean the burner.
5. Following the inspection detailed in point “3”, disassemble and clean the combustion chamber, if necessary.
6. Following the inspection detailed in point “4”, disassemble and clean the burner and injector, if necessary.
7. Cleaning the primary heat exchanger
8. Make sure the following heating safety devices are operating correctly:
- temperature limit safety device.
9. Make sure that the following gas part safety devices are operating correctly:
- absence of gas or ame safety device (ionisation).
10. Perform a general inspection of the boiler operation.
11. Remove oxide from the detection electrode using an emery cloth.
12. After servicing, complete the relevant Service Interval Record section of the Benchmark Checklist (page 62).
13. These checks are not exhaustive. Further mechanical, electrical, condensate and combustion maintenance checks may be required.
14. Clean and rell the condensate trap
Operational test
After having carried out the maintenance operations, ll the heating circuit at a pressure of approximately 1.5 bar and release the air from the system (scaled system only).
- Begin operating the boiler.
- If necessary, release the air from the heating system
again.
- Check the settings and make sure all the command,
adjustment and monitoring parts are working correctly.
maintenance
- Check the ue system is sealed and operating correctly.
Draining procedures
The heating system must be drained using the
following procedure:
- Switch o the boiler, make sure the external bipolar
switch is in the OFF position;
- Open the system drain o cock and collect the
escaping water in a container;
- Empty the water from the lowest points of the
system (where applicable). If the system is to be left inactive in areas where the room temperature may fall below 0°C during winter, we recommend that anti-freeze liquid is added to the water in the heating system in order to avoid the need for repeated draining; when this liquid is used make sure it is compatible with the stainless steel used for the bodywork of the boiler. We recommend the use of anti-freeze products which contain PROPYLENE GLYCOLS as these inhibit corrosion and that they are used in conjunction with the anti­scaling and anti-corrosion function, in the quantities suggested by the manufacturer, at the mimimum temperature. Regularly check the pH level of the water/anti-freeze mix in the boiler circuit and replace it when the value measured is lower than the limit prescribed by the manufacturer.
DO NOT MIX DIFFERENT TYPES OF ANTI-FREEZE.
The manufacturer will not be held liable for any damage caused by the appliance or the system due to the use of inappropriate anti-freeze substances or additives.
WARNING
Before handling, empty all components which may contain hot water, performing bleeding where necessary. Descale the components in accordance with the instructions provided on the safety data leaet supplied with the product used, make sure the room is well ventilated, wear protective clothing, avoid mixing dierent products, and protect the appliance and surrounding objects. Seal all openings used to take a gas pressure reading or to make any gas adjustments. Make sure that the nozzle is compatible with the supplied gas. If a smell of burning is detected or smoke is seen leaking from the appliance, or there is a smell of gas, disconnect it from the electricity supply, shut o the gas valve, open the windows and call for technical assistance.
Cleaning the condensate trap
The trap is accessed by emptying the condensate bowl located in the bottom section. Wash with water and detergent. Replace the condensate collection bowl in its housing. NB: In the event of prolonged use of the appliance, the trap must be lled before being used again. A lack of water in the siphon is dangerous and may cause exhaust gases to be released into the atmos­phere.
49
MAINTENANCE GUIDE
1. GENERAL ACCESS
GENERAL ACCESS
Tools
1
Remove the two screws
Time
Remove the front panel Lower the control panel
3 min
2
Remove the combustion chamber front panel by releasing the clips
50
2. ELECTRICAL UNIT
2.1 CONTROL BOX ACCESS
MAINTENANCE GUIDE
Tools
1
2.2 FUSE
Tools
Pull and Lower the electrical box cover
Time
Time
4 min
4 min
1
Remove the fuse
51
MAINTENANCE GUIDE
2.3 MAIN PCB
Tools
1
After opening the control box,
disconnect the electrical plug
connectors
2.4 DISPLAY PCB
Tools
1
Unscrew the two screws and
remove the PCB
Time
Time
7 min
7 min
Remove the two screws
Remove the control knob
2
Unscrew the four screws and
pull the assembly towards you
52
Remove the front panel
Disconnect the electrical plug
connectors, unlock the four clamps,
and remove the PCB
Lower the door
NTC1
NTC2
3. HYDRAULIC UNIT
3.1 CONDENSE TRAP
MAINTENANCE GUIDE
Tools
1
3.2 TEMPERATURE SENSORS
Tools
Time
Unscrew the condense trap from the condense body
Time
3 min
5 min
1
NTC1 : Black wires NTC2 : Grey wires
IMPORTANT ! Do not use conducting paste for the contact sensors because it will alter the resistance value.
TEMPERATURE RESISTANCE (kOmh)
0 27
10 17
20 12
10
25
30 8
40 5
50 4
Unplug the electrical
connectors
Remove the clip and the
temperature sensor
53
MAINTENANCE GUIDE
3.3 MAIN HEAT EXCHANGEUR
Tools
1
Remove the two clips and dis-
connect the two pipes
Disconnect electrical gas valve,
and electrode (detection and
ignition)
Remove the four screws and
disconnect the gas pipe from the
2
gas valve
Time
Remove the four screws to free
the heat exchanger
20 min
Pull the heat exchanger towards
you
54
Twist the thermal fuse to remove
1
2
3
5
4
6
7
8
9
4. BURNER UNIT
MAINTENANCE GUIDE
LEGEND
1. Burner 6. Mixing tube
2. Fan 7. Detection electrode
3. Air inlet 8. Ignition electrode
4. Gas inlet 9. Spark generator
5. Gas valve
55
MAINTENANCE GUIDE
4.1 SPARK GENERATOR
Tools
1
Unplug the ignition electrode
from the spark generator
4.2 ELECTRODES
Tools
Remove the screws and the
spark generator
Time
Time
5 min
6 min
56
1
Unplug the electrodes Remove the screws and pull the
electrodes towards you
4.3 BURNER
1
2
3
Length
MAINTENANCE GUIDE
Tools
1
Isolate the gas supply. Remove the four screws and disconnect the
gas pipe from the gas valve
2
Remove the three screws to free the burner door Pull the burner toward you
Time
Pull the assembly towards you
Replace any gaskets that are
damaged or showing signs of
15 min
deterioration
1. Stainless Steel Burner
2. Ignition electrode
3. Detection electrode
Power Length Venturi
12 kW 73.4 mm 18 kW 73.4 mm 24 kW 30 kW 135.8 mm /
104.6 mm
ø 42 mm ø 42 mm ø 42 mm
57
MAINTENANCE GUIDE
1
2
3
4.4 FAN
Tools
1
Remove the combustion
assembly (see 4.3)
Remove the three screws to free the fan.
Twist the gas valve anti-clockwise to
disengage it from the fan
Time
15 min
1. Venturi
2. Gasket
3. Fan
Fan & mixer venturi according to the model
Power Fan Venturi diameter
12 kW EBM RG 128 45 W
18 kW EBM RG 128 45 W
24 kW EBM RG 128 45 W
30 kW EBM RG 128 45 W
58
ø 14 mm ø 17 mm ø 17 mm ø 21 mm
4.5 GAS VALVE
1
2
3
5
4
6
Gas inlet
Gas outlet
MAINTENANCE GUIDE
Tools
1
Remove the combustion
assembly (see 4.3)
Twist the gas valve anti-clockwise to
disengage it from the fan
Time
Replacement Gas Valves are
not factory set and will need to
be set up ( see page 39)
15 min
LEGEND
1. Venturi 4. Inlet test niple
2. Gas valve 5. Oset adjustment
3. Solenoids 6. Throttle adjustment
59
MAINTENANCE GUIDE
5 ANNUAL MAINTENANCE
Ignition & detection electroded
Maintenance Interval : Annually How : Visual inspection / Clean as necessary / Distance from the burner / Ionisation current more than 1 µA
Burner
Maintenance Interval : Annually How : Visual inspection / Clean as necessary
Fan
Maintenance Interval : Annually How : Visual inspection / Clean as necessary
Primary heat exchanger
Maintenance Interval : Annually How : Visual inspection / Clean as necessary
Condensate trap
Maintenance Interval : Annually or after cleaning primary heat exchanger
How : Visual inspection / Clean as necessary / Add water before replacing
60
GAS BOILER SYSTEM COMMISSIONING CHECKLIST
CONTROLS
Tick the appropriate boxes
Time and Temperature Control to Heating Room Thermostat and Programmable
Load/Weather Optimum Start
Programmer/Timer Room Thermostat Compensation Control
Time and Temperature Control to Hot Water Cylinder Thermostat and Programmer/Timer Combination Boiler
Heating Zone Valves Fitted Not Required
Hot Water Zone Valves Fitted Not Required
Thermostatic Radiator Valves Fitted Not Required
Automatic Bypass to System Fitted Not Required
Boiler Interlock Provided
ALL SYSTEMS
The system has been fl ushed and cleaned in accordance with BS7593 and boiler manufacturer’s instructions Yes
What system cleaner was used?
What inhibitor was used? Quantity
litres
CENTRAL HEATING MODE
Measure and Record:
Gas Rate
m3/hr OR
ft3/hr
Burner Operating Pressure (if applicable)
mbar OR Gas Inlet Pressure mbar
Central Heating Flow Temperature
°C
Central Heating Return Temperature
°C
COMBINATION BOILERS ONLY
Is the installation in a hard water area (above 200ppm)? Yes No
If yes, has a water scale reducer been fi tted? Yes No
What type of scale reducer has been fi tted?
DOMESTIC HOT WATER MODE Measure and Record:
Gas Rate
m3/hr OR
ft3/hr
Burner Operating Pressure (at maximum rate) mbar OR Gas Inlet Pressure (at maximum rate) mbar
Cold Water Inlet Temperature
°C
Hot water has been checked at all outlets Yes
Temperature
°C
Water Flow Rate
l/min
CONDENSING BOILERS ONLY
The condensate drain has been installed in accordance with the manufacturer’s instructions and/or BS5546/BS6798 Yes
ALL INSTALLATIONS
If required by the manufacturer, record the following CO2 % OR CO ppm OR CO/CO
2
Ratio
The heating and hot water system complies with the appropriate Building Regulations Yes
The boiler and associated products have been installed and commissioned in accordance with the manufacturer’s instructions Yes
The operation of the boiler and system controls have been demonstrated to and understood by the customer Yes
The manufacturer’s literature, including Benchmark Checklist and Service Record, has been explained and left with the customer Yes
*
All installations in England and Wales must be notifi ed to Local Authority Building Control (LABC) either directly or through a Competent Persons Scheme. A Building Regulations Compliance Certifi cate will then be issued to the customer.
©Heating and Hotwater Industry Council (HHIC) www.centralheating.co.uk
Commissioning Engineer’s Signature
Customer’s Signature
(To confi rm satisfactory demonstration and receipt of manufacturer’s literature)
This Commissioning Checklist is to be completed in full by the competent person who commissioned the boiler as a means of demonstrating compliance with the appropriate Building Regulations and then handed to the customer to keep for future reference.
Failure to install and commission this equipment to the manufacturer’s instructions may invalidate the warranty but does not affect statutory rights.
Customer Name Telephone Number
Address
Boiler Make and Model
Boiler Serial Number
Commissioned by (print name) CORGI ID Number
Company Name Telephone Number
Company Address
Commissioning Date
To be completed by the customer on receipt of a Building Regulations Compliance Certifi cate*:
Building Regulations Notifi cation Number (if applicable)
SERVICE RECORD
It is recommended that your heating system is serviced regularly and that the appropriate Service Record is completed.
Service Provider
Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions.
Always use the manufacturer’s specifi ed spare part when replacing controls.
SERVICE 1 Date
Energy Effi ciency Checklist completed? Yes
No
Engineer Name
Company Name
Telephone Number
CORGI ID Number
Comments
Signature
SERVICE 3 Date
Energy Effi ciency Checklist completed? Yes
No
Engineer Name
Company Name
Telephone Number
CORGI ID Number
Comments
Signature
SERVICE 5 Date
Energy Effi ciency Checklist completed?
Yes No
Engineer Name
Company Name
Telephone Number
CORGI ID Number
Comments
Signature
SERVICE 7 Date
Energy Effi ciency Checklist completed? Yes
No
Engineer Name
Company Name
Telephone Number
CORGI ID Number
Comments
Signature
SERVICE 9 Date
Energy Effi ciency Checklist completed? Yes
No
Engineer Name
Company Name
Telephone Number
CORGI ID Number
Comments
Signature
SERVICE 2 Date
Energy Effi ciency Checklist completed? Yes
No
Engineer Name
Company Name
Telephone Number
CORGI ID Number
Comments
Signature
SERVICE 4 Date
Energy Effi ciency Checklist completed? Yes
No
Engineer Name
Company Name
Telephone Number
CORGI ID Number
Comments
Signature
SERVICE 6 Date
Energy Effi ciency Checklist completed?
Yes No
Engineer Name
Company Name
Telephone Number
CORGI ID Number
Comments
Signature
SERVICE 8 Date
Energy Effi ciency Checklist completed? Yes
No
Engineer Name
Company Name
Telephone Number
CORGI ID Number
Comments
Signature
SERVICE 10 Date
Energy Effi ciency Checklist completed? Yes
No
Engineer Name
Company Name
Telephone Number
CORGI ID Number
Comments
Signature
SHORT LIST
Ind 01 - 06/2008
Key N
Description
Manf. Pt.N
Type
Manf. date
from to
H
E
R
12 18 24 30
0100 B
URNER ASSEMBLY
0110 IGNITION ELECTRODE 61317432
....
0111 IONIZATION ELECTRODE 61317433
....
0112 G
ASKET D:85-66.5-2.5
61314753
....
0134 ELECTRODE GASKET 60000286
....
0135 COMBUSTION CHAMBER LINING KIT 60000297
....
0136 DOOR GASKET 60000623
....
0400 GAS SECTION
0401 GAS VALVE 60000537
....
0407 FAN ASSY 60000622
....
0500 HYDRAULIC
0507 TEMPERATURE PROBE + CLIP 990686
....
0600 ELECTRICAL BOX
0607 IGNITER 61002105-20
....
0615 PRINTED CIRCUIT BOARD 60000566
....
0616 PRINTED CIRCUIT BOARD (DISPLAY) 65104448
....
407
401
615
SHORT LIST
607
616
136 135
112
134 111
110
507
CLAS
63
Commercial subsidiaries: MTS (GB) Limited Professional Team Limited MTS Building Suites 9 & 10, Plaza 256 Hughenden Avenue Blanchardstown Corporate Park 2 High Wycombe Ballycoolin Bucks HP13 5FT Dublin 15 Telephone: (01494) 755600 Telephone: (01) 899 1500 Fax: (01494) 459775 Fax: (01) 899 1501 Internet: www.ariston.co/uk Internet: www.mtsgroup.com/ie E-mail: info@uk.mtsgroup.com E-mail: info@ie.mtsgroup.com Technical Advice: 0870 241 8180 Technical Advice: (01) 437 0121 Customer Service: 0870 600 9888 Customer Service: (01) 437 0121
420010128500 - 07/2008
Loading...
