4',4'6 and 5' Lavendon End Opening Ottoman Bed
Assembly Instructions Please keep for future reference |
3979286 |
|
hygena |
4129626 |
|
4183040 |
||
|
||
|
5723681 |
|
|
5744866 |
|
|
5747588 |
|
|
7118225 |
|
|
7118294 |
|
|
7232936 |
|
|
7238105 |
|
|
7343997 |
|
|
7345328 |
|
|
7392395 |
|
|
7396951 |
|
|
7420937 |
Dimensions (4') |
|
Dimensions (4'6) |
|
Dimensions (5') |
Length - 203cm |
|
Length - 203cm |
|
Length - 213cm |
Width - 130cm |
|
Width - 145cm |
|
Width - 160cm |
Height - 82cm |
|
Height - 82cm |
|
Height - 82cm |
|
|
|
|
|
Important Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800
Issue 1 - 03/05/17
Safety and Care Advice

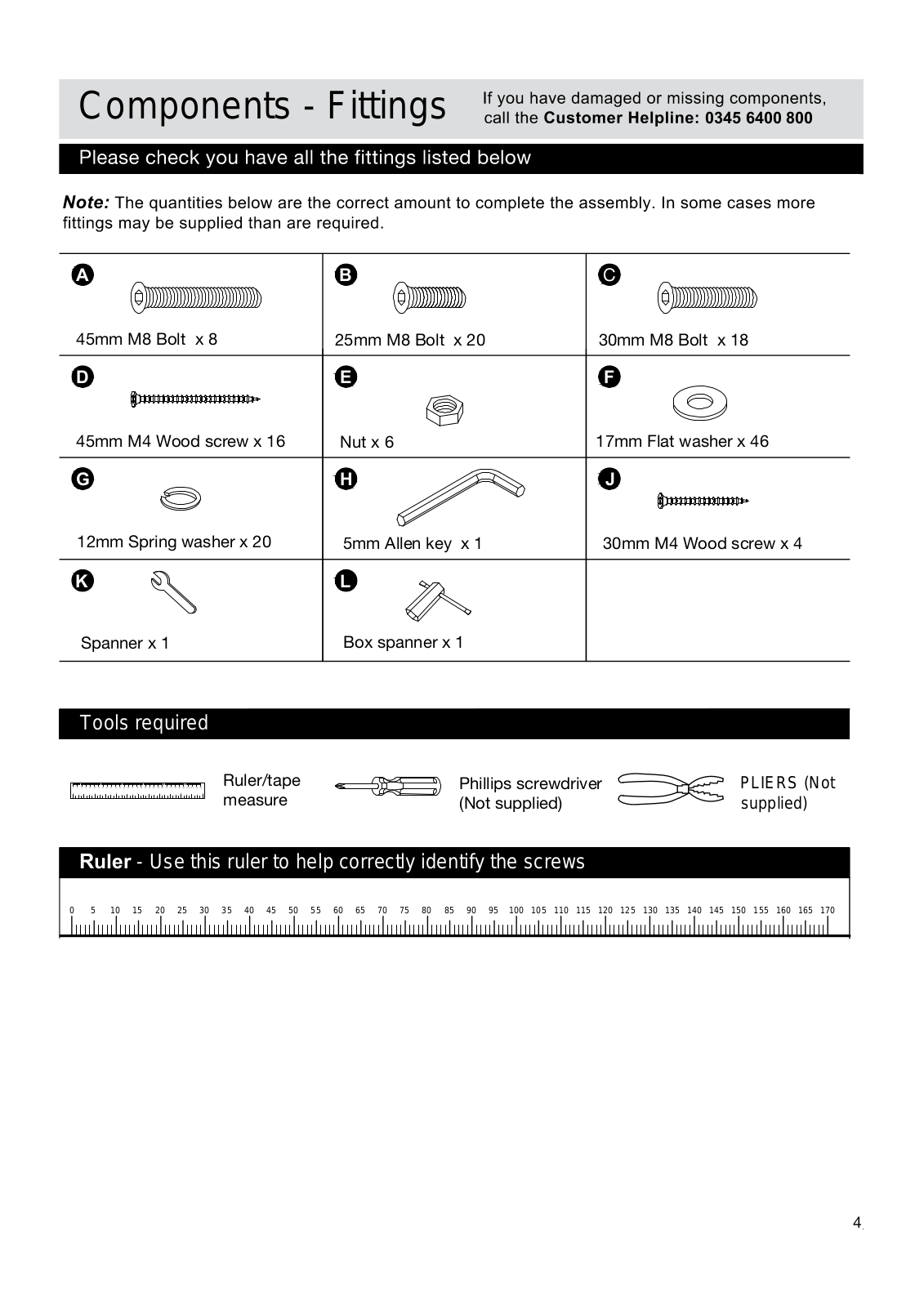

Check you have all the components and tools listed on pages 2, 3 and 4.
Remove all fittings from the plastic bags and separate them into their groups.
Keep children and animals away from the work area, small parts could choke if swallowed.
Make sure you have enough space to layout the parts before starting.
Minor stains and spillages should be removed immediately from cushion fabric, by wiping over lightly with a damp cloth and mild soapy water.
Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.
Assemble the item as close
to its final position (in the same room) as possible.
Assemble on a soft level surface to avoid damaging the unit or your floor.
Assembly requires 2 people.
Do not fully tighten bolts until the whole bed is assembled. Do not overtihgten the nuts to avoid causing damage to the threads.
Light marking can also be removed using this method.
We do not recommend the use of power drill/drivers for inserting screws,
as this could damage the unit. Only use hand screwdrivers and Allen keys.
Dispose of all packaging carefully and responsibly.
To remove more stubborn stains or marking, a good quality proprietary domestic fabric cleaner can be used, although it should first be tested on and inconspicuous area of the fabric.
From time to time check that |
This product should not be |
there are no loose screws on |
discarded with household |
this unit. |
waste. Take to your local |
|
authority waste disposal centre. |
Important Ottoman Safety Warnings
illustrated on the product.
to do so may result in injury.
mechanism.
mechanism.
1
0345 6400 800
INSIDE
INSIDE
FRONT
|
|
|
|
|
|
INSIDE
|
|
Hinge Mechanism |
|
|
||
|
|
(x 1 pair) |
|
|
||
|
|
NOTE: PISTON ATTACHED |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fabric base x 1 |
|
|
|
||||||
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ottoman end frame (Headboard) x 1
NOTE: EXTRA HOLES
Ottoman end frame (Footboard) x 1
2
0345 6400 800
Ottoman frame (Sides) x 2 (4'/4'6-1822*30mm)(5'-1922*30mm)
Ottoman frame centre support x 1 (4'/4'6-1822*30mm)(5'-1922*30mm)
Stretcher x 1
Mattress support
Ottoman frame support x 1
Bentwood slats x28(4'-598*9*53mm) Bentwood slats x28(4'6-675*9*53mm) Bentwood slats x30(5'-750*9*53mm)
Double slat caps x 14 (4'-55mm) Double slat caps x 14 (4'6-55mm) Double slat caps x 15 (5'-55mm)
Single slat caps x 28 (4'-55mm) Single slat caps x 28 (4'6-55mm) Single slat caps x 30 (5'-55mm)
3
