Archos Blood Pressure Monitor User guide

Version:1.0

User Manual

ARCHOS Blood Pressure Monitor

* Thank you very much for selecting ARCHOS Blood Pressure Monitor. * Please do read the user manual carefully and thoroughly so as to ensure the safe usage of this product, and keep the manual well for your further reference in case you have problems.

CATALOGUE

INTRODUCTION ......................................................................................................................................................................... 2

Safety Information LCD Display Signal Monitor Components

BEFORE YOU START ..................................................................................................................................................................6

Installing and Replacing the Batteries Setting Date and Time

MEASUREMENT........................................................................................................................................................................ 11

Tie the Cuff Start Measurement

DATA MANAGEMENT............................................................................................................................................................ 13

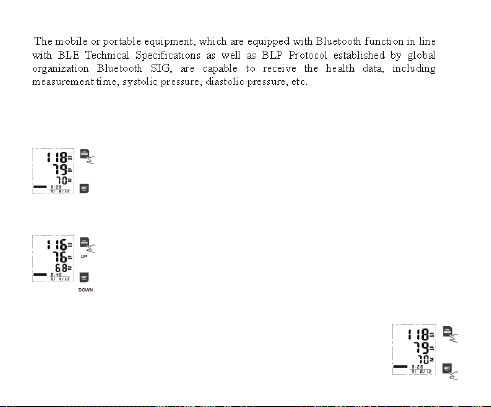

Recalling the Records Deleting the Records

INFORMATION FOR USER..................................................................................................................................................... 15

Tips for Measurement Maintenance

ABOUT BLOOD PRESSURE.................................................................................................................................................... 17

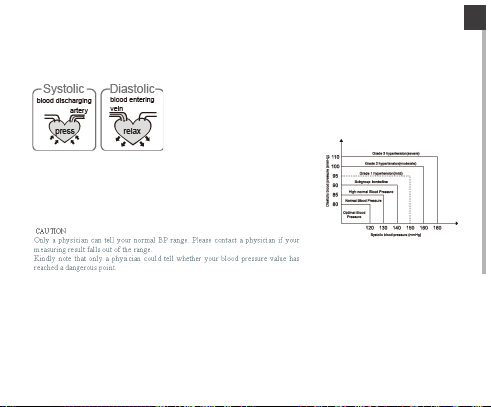

What are systolic pressure and diastolic pressure? What is the standard blood pressure classification? Why does my blood pressure fluctuate throughout the day? Why the blood pressure I get from the hospital is different from home? If the result is the same if measuring on the right wrist?

TROUBLESHOOTING.............................................................................................................................................................. 19

SPECIFICATIONS ..................................................................................................................................................................... 20

CONTACT INFORMATION..................................................................................................................................................... 21

COMPLIED EUROPEAN STANDARD LIST .........................................................................................................................21

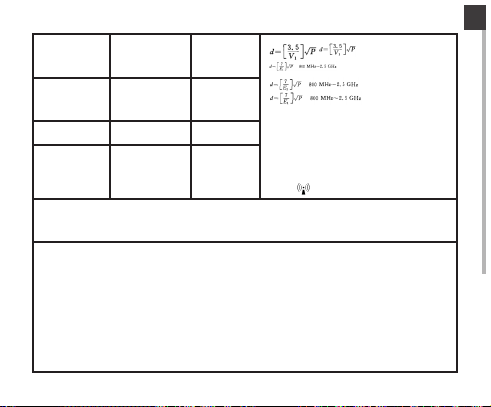

EMC GUIDANCE .......................................................................................................................................................................22

Table of Contents

INTRODUCTION

General Description Thank you for selecting ARCHOS Blood Pressure Monitor. The monitor features blood pressure measurement, pulse rate measurement and the result storage. The design provides you with two years of reliable service. Reading taken by the Blood Pressure Monitor are equivalent to those obtained by a trained observer using the cuff and stethoscope auscultation method. This manual contains important safety and care information, and provides step by step instructions for using the product. Read the manual thoroughly before using the product. FEATURES: * Systolic Blood Pressure * Diastolic Blood Pressure * Pulse Rate * Memory: Up to 60 pieces of records Safety Information The below signs might be in the user manual, labeling or other components. They are the requirement of standard and using.

Symbol for “THE OPERATION GUIDE MUST BE READ”

Symbol for “COMPLIES WITH MDD93/42/ECC REQUIREMENTS”

Symbol for “TYPE BF APPLIED PARTS”

Symbol for “SERIAL NUMBER” Symbol for “ENVIRONMENT

Symbol for “DIRECT CURRENT”

Symbol for “MANUFACTURE DATE”

Symbol for “MANUFACTURER”

Symbol for “Authorized Representative in the European Community”

The Bluetooth Combination Mark

PROTECTION – Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice”

CAUTION

Please do read this user manual carefully and thoroughly before use. This device is intended for adult use only. This device is intended for non-invasive measuring and monitoring of arterial blood pressure. It is not intended for use on extremities other than the wrist or for functions other than obtaining a blood pressure measurement. Do not confuse self-monitoring with self-diagnosis. This unit allows you to monitor your blood pressure. Please start or end medical treatment basing solely on physician’s treatment advice. If you are taking medication, consult your physician to determine the most appropriate time for your measurement. Never change a prescribed medication without your physician’s consent. This unit is not suitable for continuous monitoring during medical emergencies or operations. If the pressure of the cu exceeds 40 kPa (300 mmHg), the unit will automatically deate. Should the cu not deate when its pressure exceeds 40 kPa (300 mmHg), detach the cu from the wrist and press the START/STOP button to stop ination. Do not use the monitor under the conditions of strong electromagnetic eld (e.g. medical RF equipment) that radiates interference signal or electrical fast transient / burst signal. The maximum temperature that the applied part can be achieved is 42.5℃ while the environmental temperature is 40℃. The device is not AP/APG equipment. It is not suitable for use in the presence of a ammable anesthetic mixture with air (or oxygen, nitrous oxide). Please keep the unit out of reach of infants or children, since inhalation or swallowing of small parts is dangerous or even fata. Please use ACCESSORIES and detachable parts specied / authorized by

MANUFACTURER. Otherwise, it may cause damage to the unit or danger to the user / patient. Manufacturer will make available on request circuit diagrams, component parts listed. Sensitive people, including pregnant women and those who implanted medical electronic Instrument, should avoid using the unit whenever possible. This unit is not suitable for continuous monitoring during medical emergencies or operations. After the cu inated long time, the patient’s wrist and ngers will is insucient, anesthesia, distending pain and ecchymosis. Please use the device under the environment which was provided in the user manual. Otherwise, the performance and lifetime of the device will been impacted and reduced. During using, the patient will contact with the cu. The materials of the cu have been tested and found to comply with requirements of ISO 10993-5:2009 and ISO 10993-10:2010. It will not cause any potential allergic reaction or contact injury. The device has been evaluated clinically used manual cu/ stethoscope auscultation as the reference. The device doesn’t need to be calibrated in two years of reliable service. When the device was used to measure patients who have common arrhythmias such as atrial or ventricular premature beats or atrial brillation, the test result may occur deviation. Please consult your physician about the result. This device is contraindicated for any female subject who may be suspected of, or is pregnant. Besides provided inaccurate readings, the eects of this device on the fetus are unknown.

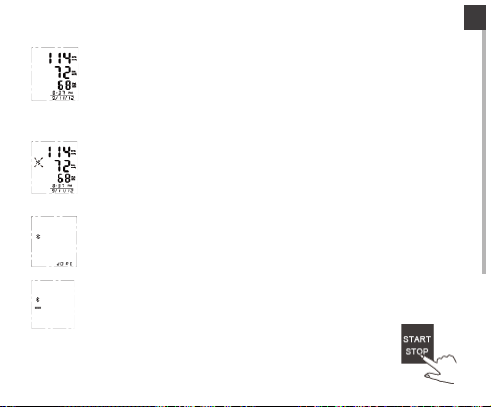

LCD Display Signal

SYMBOL DESCRIPTION EXPLANATION

Systolic Blood Pressure High blood pressure

Diastolic Blood Pressure Low blood pressure

Pulse beat/minute

Low Battery Low battery and please replace the batteries.

Unit Measurement unit of blood pressure

Time Hour: Minute (Month/Day/Year)

IHB Detector Irregular Heartbeat Detector

Bluetooth Successful Bluetooth Connection

Error Error

Memory Recalling the history records

Monitor Components Component List:

1. PCBA; 2. Air Pipe; 3. Pump; 4. Valve; 5. Cu.

List

1. Wrist Blood Pressure Monitor 2. Two AAA-size batteries 3. User Manual BEFORE YOU START Installing and Replacing the Batteries

•.Open the battery door.

•.Insert the batteries according to the polarity indications. (Always select the authorized / specied battery: Two LR03 AAA-size batteries).

•.Close the battery door.

Battery Life: Approx. 57 days (Battery capacity: 600 mAH. If measured 3 times per day, each measurement takes

30s, and memory checked once per day, each checking takes 60s. The current for measurement is 350 mA, and that for records display is 50 mA while the current when shutdown is 25 uA.)

Setting Date and Time Please proceed to time setting before your initial use so as to ensure each piece of

record is labeled with a time stamp. (Year Range: 2012-2052; Time Format: 12 Hours)

1. When the monitor is OFF, press and hold “SET” button for 3 seconds to enter Time Setting Mode.

2. As pictured in the right, the blinking numeral “6” representing [HOUR]. Press “MEM” button to change the numeral. Each press will increase the numeral by one in a cycling manner.

3. Press “SET” button again to conrm [HOUR]. Then the numeral representing [MINUTE] blinks.

4. Repeat step 2 and 3 to conrm [MINUTE].

5. Repeat step 2 and 3 to conrm [MONTH], [DAY] and [YEAR].

6. After conrming [YEAR], the LCD will display “DONE” and the monitor will shut o.
