Arcam CD-73 Owners Manual
CD73

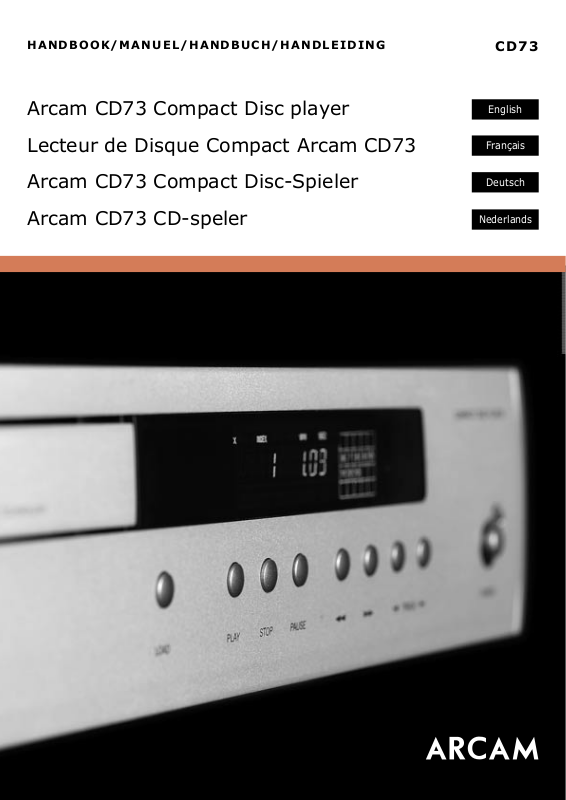

HANDBOOK/MANUEL/HANDBUCH/HANDLEIDING
English
Français
Deutsch
Arcam CD73 Compact Disc player
Lecteur de Disque Compact Arcam CD73
Arcam CD73 Compact Disc-Spieler
Arcam CD73 CD-speler
Nederlands
CD73
2
Safety guidelines
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
ATTENTION
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
CAUTION: To reduce the risk of electric shock, do not
remove cover (or back). No user serviceable parts
inside. Refer servicing to qualied service personnel.
WARNING: To reduce the risk of re or electric shock,
do not expose this apparatus to rain or moisture.
The lightning ash with an arrowhead symbol within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated ‘dangerous voltage’ within the
product’s enclosure that may be of sufcient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
CAUTION: In Canada and the USA, to prevent electric
shock, match the wide blade of the plug to the wide
slot in the socket and insert the plug fully into the
socket.
Important safety instructions
This product is designed and manufactured to meet
strict quality and safety standards. However, you should
be aware of the following installation and operation
precautions:
1. Take heed of warnings and
instructions
You should read all the safety and operating instructions
before operating this appliance. Retain this handbook
for future reference and adhere to all warnings in the
handbook or on the appliance.
2. Water and moisture
The presence of electricity near water can be dangerous.
Do not use the appliance near water – for example next to
a bathtub, washbowl, kitchen sink, in a wet basement or
near a swimming pool, etc.
3. Object or liquid entry
Take care that objects do not fall and liquids are not
spilled into the enclosure through any openings. Liquid
lled objects such as vases should not be placed on the
equipment.
4. Ventilation
Do not place the equipment on a bed, sofa, rug or similar
soft surface, or in an enclosed bookcase or cabinet, since
ventilation may be impeded. We recommend a minimum
distance of 50mm (2 inches) around the sides and top of
the appliance to provide adequate ventilation.
5. Heat
Locate the appliance away from naked ames or heat
producing equipment such as radiators, stoves or other
appliances (including other ampliers) that produce heat.
6. Climate
The appliance has been designed for use in moderate
climates.
8. Cleaning
Unplug the unit from the mains supply before cleaning.
The case should normally only require a wipe with a soft,
damp, lint-free cloth. Do not use paint thinners or other
chemical solvents for cleaning.
We do not advise the use of furniture cleaning sprays or
polishes as they can cause indelible white marks if the unit
is subsequently wiped with a damp cloth.
9. Power sources
Only connect the appliance to a power supply of the type
described in the operating instructions or as marked on the
appliance.
10. Power-cord protection
Power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon
or against them, paying particular attention to cords and
plugs, and the point where they exit from the appliance.
11. Grounding
Ensure that the grounding means of the appliance is not
defeated.
12. Power lines
Locate any outdoor antenna/aerial away from power lines.
13. Non-use periods
If the unit has a standby function, a small amount of
current will continue to ow into the equipment in this
mode. Unplug the power cord of the appliance from the
outlet if left unused for a long period of time.
14. Abnormal smell
If an abnormal smell or smoke is detected from the
appliance, turn the power off immediately and unplug the
unit from the wall outlet. Contact your dealer immediately.
15. Servicing
You should not attempt to service the appliance beyond that
described in this handbook. All other servicing should be
referred to qualied service personnel.
16. Damage requiring service
The appliance should be serviced by qualied service
personnel when:
A. the power-supply cord or the plug has been damaged,
or
B. objects have fallen, or liquid has spilled into the
appliance, or
C. the appliance has been exposed to rain, or
D. the appliance does not appear to operate normally or
exhibits a marked change in performance, or
E. the appliance has been dropped or the enclosure
damaged.
Safety compliance
This product has been designed to meet the IEC 60065
international electrical safety standard.
7. Racks and stands
Only use a rack or stand that is recommended for use with
audio equipment. If the equipment is on a portable rack it
should be moved with great care, to avoid overturning the
combination.
Using this handbook
This handbook has been designed to give you all the
information you need to install, connect, set up and use the
Arcam CD73 compact disc player. The CR224 remote control
handset supplied with this equipment is also described.
Safety
Safety guidelines are set out on the inside front cover of
this handbook.
Many of these items are common sense precautions, but for
your own safety, and to ensure that you do not damage the
unit, we strongly recommend that you read them.
Digital to Analogue conversion
The CD73 has a Delta-Sigma DAC (Digital to Analogue
Converter) with 24-bit ltering.
English
Contents
Safety guidelines...................................................2
Using this handbook ..............................................3
Installation ...........................................................4
Positioning the unit ..........................................4
Connecting to other equipment..........................4
Connecting to a power supply............................4
Using your CD player .............................................5
CDs with text ..................................................5
Using the CR224 remote control ..............................6
Remote-control codes ............................................7
Technical specication............................................8
Guarantee ............................................................9
Worldwide Guarantee .......................................9
On line registration ..........................................9
CD73
3
CD73
4
Installation
Positioning the unit
Always place the CD player on a level, rm surface. Placing your player on a set of dedicated
sorbothane isolation feet will isolate the unit from its surroundings as well as absorbing the vibrations
created within the player itself. You will generally hear some sonic improvements, which makes this an
extremely cost-effective upgrade.
Connecting to other equipment
Interconnect cables
Interconnecting cables are not supplied with this CD player. We recommend high quality cables as
inferior quality cables will degrade the sound quality of your system. Please contact your Arcam dealer
for details of suitable cables.
Audio outputs
3
Connect these to your ampli er’s CD or any other line-level input using suitable high quality
interconnect cables. Ensure that the left and right audio outputs from the CD play
er are connected to
the same left and right inputs on your ampli er.
The second set of sockets can be used to connect to a second ampli er set up for multi-room use.
Coaxial digital output
4
Use this socket if you are using a separate digital to analogue converter (DAC) or digital recorder.
Connect to the DAC or recorder’s digital input using a suitable 75Ω screened cable.
CAUTION: Never connect the digital output socket to a conventional audio input.
Optical digital output
5
Use this socket if you are using a separate DAC or digital recorder with an optical connection. Connect
using a suitable optical cable.
Remote IR input 6 and 12V Trigger input
7
These connections are for use in multi-room installations. In normal use there is no need to make any
connections to these sockets.
Connecting to a power supply
Wrong plug?
Check that the plug supplied with the unit ts your supply and that your mains supply voltage agrees
with the voltage setting (120V/230V)
2
indicated on the rear panel of the unit.
If your mains supply voltage or mains plug is different, consult your Arcam dealer or Arcam Customer
Support on +44 (0)1223 203200.
Mains lead
The appliance is normally supplied with a moulded mains plug already tted to the lead. If for any
reason the plug needs to be removed, it must be disposed of immediately and securely, as it is a
potential shock hazard when inserted into the mains socket. Should you require a new mains lead,
contact your Arcam dealer.
Plugging in
Push the plug (IEC line socket) of the power cable supplied with the unit into the socket 1 (marked
POWER INLET) in the back of the unit. Make sure it is pushed in rmly.
Put the plug on the other end of the cable into your power supply socket and switch the socket on.
POWER INLET
6 7
5
4
1
3
2
IR-IN
12V
TRIGGER
IN
VOLTAGE
SELECT
120V/230V
1
L
R
2
L
R
AUDIO – OUT
COAXIAL
OPTICAL
DIGITAL OUT
English
CD73
5
Using your CD player
POWER
1
Press this button to switch the CD player on and off. When rst
powered up with no CD installed the display shows ‘No disc’.
LOAD
2
To install a CD, press LOAD (or OPEN on the remote control). The
CD tray opens – it accepts 12cm and 8cm discs. Place the CD in the
tray with the label facing uppermost. Press
LOAD again (or press
PLAY, or gently push the tray in 5mm) to close the tray. You will
see the total number of tracks and total disc time.
The display returns to ‘0’ after a few seconds. The disc is now ready
to play.
PLAY
3
Press to play the CD. To restart from track 1, press STOP and then PLAY.
Make sure your ampli er’s input source selector is set to the correct input.
STOP
4
Press to stop the CD playing. The display shows ‘0’ and the number of tracks.
PAUSE
5
Press to pause the disc (interrupt play). Press PLAY to resume play from the same point.
SEARCH
6
Press to search backwards, or to search forwards for a particular passage within the currently
playing track. If the player is in ‘PAUSE’ mode the search is made at high speed with the sound muted.
Press
, or PLAY to stop the search action and resume playing.
SKIP TRACK
7
To start a CD with a track other than the rst, press or to locate the desired track.
To select another track during play, press
or . The track is played automatically after selection.
CDs with text
Load
You will see the total number of tracks and the total disc time with
‘CD TEXT’ illuminated in the display. The artist and album title
scrolls across the display before returning to show the artist and
total number of tracks.
Play
The track number is brie y displayed, followed by the track title scrolling across the display. The display
returns to showing the track number and time.
Track selection
When a new track is selected, the track number is brie y displayed, followed by the track title scrolling
across the display. The display returns to showing the track number and time.
NOTE: The track title is always displayed when a track is selected, either for playing or programming.
The artist is always displayed when the disc is stopped.
76532 4
POWER
COM PACT DI SC PL AYER
TRACK
PAUSESTOPPLAYLOAD
1
CD 73
24 B IT DA C
TRACK INDEX MIN SEC
1 2 345
6 7 8
TRACK INDEX MIN SEC
CD TEXT
1 2 345
6 7 8910
1112
Using the CR224 remote control
PROG (Program)
You can program a selection of up to 24 tracks
from a disc to play in any order. Select a track by
using the
program the track into memory (‘PROGRAM’ appears
on the display to indicate that you have started
programming a sequence). Repeat these steps to
program the remaining tracks in your selection.
Alternatively, press
The display shows the track numbers programmed,
the total length of the programmed sequence and
the number of tracks programmed (shown by a
Each time you enter a track the number below ‘STEP’
increments by one and ashes until you press
to conrm. If you fail to press
seconds the display stops ashing and you will have
to play the program. Press again to replay
Press
the entire sequence from the start. Press PROG
again to exit the program facility: the display ashes
Press
TIME once to display the remaining time of the
currently playing track. Press again to display the
time remaining on the disc. Press a third time to turn
Press
original setting, showing the time elapsed for the
For CDs with text, pressing
is loaded but not playing displays the artist’s name.
Pressing
Turns the display on or off. Turning the display off
generally produces a slight improvement in sound
These operate in the same way as the source
selector on the front panel of an Arcam integrated
and buttons, then press PROG to
PROG once and enter your track
selection using the 0–9 keypad.
number below the word ‘STEP’).
PROG
PROG within about ve
to reselect the track.
‘CONTINUE’ and shows ‘0’.
Skip and Search Track
Skip track backwards and forwards; search
backwards and forwards (see page 5)
TIME
the text display on.
TIME again and the display reverts to its
current track.
TIME once while the disc
TIME a second time displays the total
number of tracks and the total playing time.
DISP (Display)
quality.
OPEN
Opens and closes the CD tray.
Source selection
amplier.
0–9 keypad
This allows direct access to individual tracks on
the disc. To select a track, press the corresponding
keypad button. For tracks greater than 9, enter the
digits in sequence. For example, to play track 15,
press and hold
moves to the left, then press
Playback control
Play, Stop and Pause (see page 5).
REPEAT
To repeat the entire CD or a pre-programmed
selection of tracks press
lights on the display. To repeat a particular track,
select that track and then press
that ‘REPEAT 1’ is shown on the display. If you now
select a different track, that track is repeated
instead.
To cancel the repeat function press
time.
A–B
This button enables you to repeat any section of
music within a track. Whilst the disc is playing, press
A–B button at the start of the section you wish
the
to repeat. ‘REPEAT’ is shown on the display and the
letter ‘A–’ ashes. Press the button a second time
when you reach the end of the section you wish to
repeat. The ‘A–B’ letters stop ashing and remain
lit. This section will repeat until you press
. The forward search button ( ) moves forward
within the selected loop.
SHUFFLE
Press once to shufe play CD tracks (i.e. play them
in a random order). Press again to cancel shufe
play.
MUTE
Stops sound to the speaker outputs of certain Arcam
ampliers.
VOL (Volume) +/–
Adjusts the volume on Arcam remote-controllable
ampliers.
Note that the volume (+/–) controls and
button have no effect on the audio output level of the
CD players.
1 until the number on the display
5.
REPEAT once: ‘REPEAT’
REPEAT twice so
REPEAT a third
or or
MUTE
CD73
6
NOTE: Remember to install the two AAA batteries
supplied before trying to use your remote control.
Do not place anything in front of the display area
on the CD player (where the IR receiver is located),
or the remote control may not work.
Remote-control codes
The following table gives the IR-commands accepted by the
CD73. Items shown in italics reference the buttons on the
supplied CR224 remote control. The items not in italics are
additional commands accepted by the CD73.
Power commands
Command Decimal Code
Power toggle 20–12
Power-on 20–123
Power-off 20–124
Playback control commands
Command Decimal Code
Track number ‘n’, (e g , 1) 20–n (e g , 20–1)
Track selection 10+ 20–10
Time 20–66
Remain 20–11
Track forward 20–32
Track back 20–33
Fast forward 20–52
Fast rewind 20–50
Open 20–45
Pause 20–48
Stop 20–54
Play 20–53
English
Advanced control commands
Command Decimal Code
Repeat toggle 20–29
Repeat off 20–125
Repeat one 20–126
Repeat all 20–127
Repeat A-B 20–59
Search 20–76
Scan 20–43
Scan 10 seconds 20–79
Scan 20 seconds 20–88
Scan 30 seconds 20–90
Scan off 20–90
Clear 20–58
Clear all 20–57
Programme 20–41
Programme on 20–99
Programme off 20–100
PMode (Shufe) 20–64
Shufe 20–28
Shufe on 20–114
Shufe off 20–115
Display control commands
Command Decimal Code
Display toggle 20–18
Display on 20–14
Display dim 20–20
Display off 20–21
Display remaining track time 20–110
Display elapsed track time 20–111
Display remaining disk time 20–112
Display remaining titles 20–113
CD73
7
CD73
8
Technical speci cation
Digital to Analogue conversion
24-bit multilevel Delta-Sigma DAC
Laser pick-up 3 beam
Laser wavelength 780nm
Numerical aperture 0.45
Signal to noise ratio 112dB
Harmonic distortion (1kHz) 0.003%
Frequency response (±0.5dB) 0.3Hz–20kHz
Output level (0dB) 2.2Vrms
Output impedance 150Ω
Minimum recommended load 5kΩ
Physical
Dimensions W430 x D290 x H85mm
Weight 4.6kg nett/6.5kg packed
Power consumption 32VA maximum
Digital output connection 75Ω co-axial
optical TOSLINK
Supplied accessories
Mains lead
CR224 remote control
2 x AAA batteries
E&OE
NOTE: All speci cation values are typical unless otherwise stated.
Continual improvement policy
Arcam has a policy of continual improvement for its products. This means that designs and
speci cations are subject to change without notice.
Radio interference
The CD73 player is a digital audio device which has been designed to very high standards of
electromagnetic compatibility.
Both CD players and DACs generate, and can radiate RF (radio frequency) energy. In some cases this
can cause interference with FM and AM radio reception. If this is the case, keep the CD player and its
connecting cables as far from the tuner and its aerials as possible. Connecting the CD play
er and the
tuner to different mains sockets can also help to reduce interference.
EC COUNTRIES – These products have been designed to comply with directive 89/336/EEC.
USA – These products comply with FCC requirements.
Laser radiation
If an Arcam CD player is operated whilst the outer casing is removed, invisible laser radiation could
cause eye damage.
Guarantee
Worldwide Guarantee
This entitles you to have the unit repaired free of charge, during the rst two years after purchase, at
any authorised Arcam distributor provided that it was originally purchased from an authorised Arcam
dealer or distributor. The manufacturer can take no responsibility for defects arising from accident,
misuse, abuse, wear and tear, neglect or through unauthorised adjustment and/or repair, neither can
they accept responsibility for damage or loss occurring during transit to or from the person claiming
under the guarantee.
The warranty covers:
Parts and labour costs for two years from the purchase date. After two years you must pay for both
parts and labour costs. The warranty does not cover transportation costs at any time.
Claims under guarantee
This equipment should be packed in the original packing and returned to the dealer from whom it was
purchased, or failing this, directly to the Arcam distributor in the country of residence. It should be
sent carriage prepaid by a reputable carrier — NOT by post. No responsibility can be accepted for the
unit whilst in transit to the dealer or distributor and customers are therefore advised to insure the unit
against loss or damage whilst in transit.
For further details contact Arcam at:
Arcam Customer Support Department,
Pembroke Avenue,
Waterbeach,
CAMBRIDGE, CB5 9QR,
England
Telephone: +44 (0)1223 203200
Fax: +44 (0)1223 863384
Email: support@arcam.co.uk
English
Problems?
If you have a problem, always contact your dealer in the rst instance. If your dealer is unable to
answer any query regarding this or any other Arcam product please contact Arcam Customer Support
and we will do our best to help you.
On line registration
You can register your Arcam product on line at: www.arcam.co.uk
CD73
9
CD73
10
Consignes de sécurité
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
ATTENTION
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
ATTENTION : Pour éviter tout risque de choc
électrique, ne pas enlever le couvercle (ou le
panneau arrière). Aucune intervention n’est possible
pour l’utilisateur. Pour le service, voir un personnel
qualié.
AVERTISSEMENT : Pour éviter tout risque d’incendie
ou de choc électrique, ne pas exposer l’appareil à la
pluie ou à l’humidité.
Le symbole d’un éclair dans un triangle a pour objet
d’avertir l’utilisateur de la présence à l’intérieur du boîtier
de l’appareil de “tension électrique dangereuse” nonisolée et de force sufsante à constituer un risque de choc
électrique.
Le point d’exclamation dans un triangle a pour objet
d’avertir l’utilisateur de la présence de renseignements
importants concernant l’utilisation et la maintenance (le
service après vente) dans la documentation fournie avec le
produit.
ATTENTION : Au Canada et aux États-Unis, pour
éviter tout risque de choc électrique, alignez la lame
large de la che secteur avec la fente large de la
prise murale, puis enfoncez la che complètement.
7. Étagères et supports
Utilisez uniquement des étagères ou des supports pour
appareils audio. Si l’appareil est posé sur un support
mobile, déplacez celui-ci avec précaution, pour éviter tout
risque de chute.
8. Nettoyage
Débranchez l’appareil du secteur avant de le nettoyer.
Pour le nettoyage, utilisez un chiffon doux, humide et non
pelucheux. N’utilisez pas de diluant pour peinture ou de
solvant chimique.
L’emploi d’aérosols ou de produits de nettoyage pour
meubles est déconseillé, car le passage d’un chiffon humide
risquerait de laisser des marques blanches indélébiles.
9. Alimentation secteur
Branchez l’appareil uniquement sur une alimentation
secteur du type mentionné dans le manuel d’utilisation ou
indiqué sur l’appareil lui-même.
10. Protection des cordons secteur
Veillez à ce que les cordons secteur ne se trouvent pas
dans un lieu de passage ou pincés par un objet quelconque.
Prêtez particulièrement attention aux cordons et ches
secteur à leurs points de sortie de l’appareil.
11. Mise à la terre
Assurez-vous que l’appareil est correctement mis à la terre.
Conseils de sécurité
importants
Cet appareil a été conçu et fabriqué conformément aux
normes de qualité et de sécurité les plus strictes. Vous
devez cependant observer les précautions suivantes lors de
son installation et de son utilisation.
1. Avertissements et consignes
Il est conseillé de lire les consignes de sécurité et
d’utilisation avant de mettre cet appareil en marche.
Conservez ce manuel pour pouvoir vous y référer par la
suite et respectez scrupuleusement les avertissements
gurant dans ce manuel ou sur l’appareil lui-même.
2. Eau et humidité
L’installation d’un appareil électrique à proximité d’une
source d’eau présente de sérieux risques. Il ne faut pas
utiliser l’appareil à proximité d’un point d’eau : près d’une
baignoire, d’un lavabo, d’un évier, dans une cave humide
ou à côté d’une piscine, etc.
3. Chute d’objets ou inltration de
liquides
Veillez à ne pas laisser tomber d’objets ni faire couler de
liquides à travers l’une des ouvertures du boîtier. Ne posez
pas d’objet contenant du liquide sur l’appareil.
4. Ventilation
Évitez de placer l’appareil sur un lit, un canapé, un tapis
ou une surface similaire instable, ou dans une bibliothèque
ou un meuble fermé, ce qui risquerait d’empêcher une
ventilation correcte. Pour permettre une ventilation
appropriée, il est conseillé de prévoir au minimum un
espace de 5 cm de chaque côté et au-dessus de l’appareil.
5. Exposition à la chaleur
Ne placez pas l’appareil près d’une amme nue ou d’un
dispositif produisant de la chaleur, tel un radiateur, un poêle
ou autre appareil (y compris les amplicateurs).
12. Câbles haute tension
Évitez de monter une antenne extérieure à proximité de
câbles haute tension.
13. Périodes de non-utilisation
Si l’appareil possède une fonction de mise en veille, un
courant faible continuera de circuler lorsqu’il est réglé
sur ce mode. Débranchez le cordon secteur de la prise
murale si l’appareil doit rester inutilisé pendant une période
prolongée.
14. Odeur suspecte
Arrêtez et débranchez immédiatement l’appareil en cas de
fumée ou d’odeur anormale. Contactez immédiatement
votre revendeur.
15. Service
Ne tentez pas d’effectuer d’autres opérations que celles
mentionnées dans ce manuel. Toute autre intervention doit
être effectuée par un personnel qualié.
16. Entretien par un personnel qualié
L’appareil doit être entretenu par du personnel qualié
lorsque :
A. la che ou le cordon secteur a été endommagé,
B. des objets sont tombés ou du liquide a coulé dans
l’appareil,
C. l’appareil a été exposé à la pluie,
D. l’appareil ne semble pas fonctionner normalement ou
présente des altérations dans son fonctionnement,
E. l’appareil est tombé ou le boîtier a été endommagé.
Conformité aux normes de
sécurité
Cet appareil est conçu pour répondre à la norme
internationale de sécurité électrique IEC 60065.
6. Conditions climatiques
L’appareil est conçu pour fonctionner dans des climats
modérés.
Utilisation de ce manuel
Ce manuel a été rédigé pour vous fournir toutes les
informations dont vous avez besoin pour installer, brancher,
régler et utiliser le lecteur de CD Arcam CD73. Il décrit
également le boîtier de télécommande CR224 fourni avec
l’appareil, tel qu’il doit être utilisé avec le lecteur de CD.
Sécurité
Les consignes de sécurité gurent au verso de la couverture
de ce manuel.
Bien que bon nombre d’entre elles fassent appel au simple
bon sens, il est conseillé de les lire pour votre propre
sécurité et pour éviter d’endommager l’appareil.
Conversion numérique/
analogique
Ce lecteur comporte un convertisseur DAC Delta-Sigma
(Digital to Analogue Converter) avec ltrage 24 bits.
Table des matières
Consignes de sécurité .......................................... 10
Utilisation de ce manuel ....................................... 11
Mise en place du CD73 ...................................12
Branchement à d’autres appareils ....................12
Branchement à une alimentation électrique ....... 12
Installation ......................................................... 12
Utilisation de votre lecteur de CD...........................13
CD avec texte ...............................................13
Utilisation de la télécommande CR224.................... 14
Tableau des commandes IR .................................. 15
Spécications techniques...................................... 16
Garantie............................................................. 17
Garantie mondiale .........................................17
Enregistrement en ligne.................................. 17
Français
CD73
11
Loading...
