BDP100
HANDBOOK Blu-ray Disc player
English
ULTRA HIGH PERFORMANCE 24-BIT DAC
safety
guidelines
CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer
servicing to qualied service personnel.
WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.
e lightning ash with an arrowhead symbol within an equilateral triangle is intended to alert the user to the
presence of uninsulated ‘dangerous voltage’ within the product’s enclosure that may be of sucient magnitude to
constitute a risk of electric shock to persons.
e exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the product.
CAUTION: In Canada and the USA, to prevent electric shock, match the wide blade of the plug to the wide slot in the
socket and insert the plug fully into the socket.
CAUTION: Use of any controls, adjustments or procedures other than those specied herein may result in hazardous
radiation exposure.
Important safety instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s
instructions.
8) Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug.
A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third
grounding prong. e wide blade or the third prong are
provided for your safety. If the provided plug does not t
into your outlet, consult an electrician for replacement
of the obsolete outlet.
10) Protect the power cord from being walked
on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
11) Only use attachments/accessories specied by the
manufacturer.
12) Use only with the cart, stand, tripod, bracket, or
table specied by the manufacturer, or sold with the
apparatus.
When a cart is used, use caution
when moving the cart/apparatus
combination to avoid injury from
tip-over.
13) Unplug this apparatus during lightning storms or
when unused for long periods of time.
14) Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
dropped.
15) Object or liquid entry
WARNING – Take care that objects do not fall and
liquids are not spilled into the enclosure through any
openings. e equipment shall not be exposed to
dripping or splashing. Liquid-lled objects such as vases
should not be placed on the equipment.
16) Climate
e equipment has been designed for use in moderate
climates and in domestic situations.
17) Cleaning
Unplug the unit from the mains supply before cleaning.
e case should normally only require a wipe with a
so, lint-free cloth. Do not use chemical solvents for
cleaning.
We do not advise the use of furniture cleaning sprays or
polishes as they can cause permanent white marks.
18) Power sources
Only connect the equipment to a power supply of
the type described in the operating instructions or as
marked on the equipment.
e primary method of isolating the equipment from
the mains supply is to remove the mains plug. e
equipment must be installed in a manner that makes
disconnection possible.
19) Abnormal smell
If an abnormal smell or smoke is detected from the
equipment, turn the power o immediately and unplug
the equipment from the wall outlet. Contact your dealer
and do not reconnect the equipment.
20) Damage requiring service
e equipment should be serviced by qualied service
personnel when:
A. the power-supply cord or the plug has been
damaged, or
B. objects have fallen, or liquid has spilled into the
equipment, or
C. the equipment has been exposed to rain, or
D. the equipment does not appear to operate
normally or exhibits a marked change in
performance, or
E. the equipment has been dropped or the enclosure
damaged.
Safety compliance
is equipment has been designed to meet the IEC/EN
60065 international electrical safety standard.
is device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) is device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
E-2
Contents
safety ...........................................................E-2
welcome ......................................................E-3
installation .................................................E-4
Placing the unit ..................................................... E-4
Power ......................................................................... E-4
The remote control and trigger inputs ......... E-4
Interconnect cables.............................................. E-4
Making video connections ................................ E-6
Making audio connections ...............................E-6
The HDMI interface ..............................................E-7
About HDMI ........................................................... E-7
Connecting using HDMI ..................................... E-7
Troubleshooting HDMI ....................................... E-7
disc & file formats .....................................E-8
Playable discs .........................................................E-8
Playable les ........................................................... E-8
Region coding ........................................................ E-8
Network connection ............................................E-9
USB connection ..................................................... E-9
basic operation ....................................... E-10
remote control ........................................E-11
Controlling the BDP100 ....................................E-12
Advanced controls..............................................E-13
Useful information ..............................................E-14
Device Mode / Source keys .............................E-14
Controlling other devices ...............................E-15
Code blink-back ...................................................E-15
advanced operation .............................. E-16
Disc Information ..................................................E-16
Menus ......................................................................E-16
Soundtrack Selection ........................................E-16
Subtitles ..................................................................E-16
Bonusview & BD-Live.........................................E-17
Playing les ...........................................................E-18
Advanced playback controls ..........................E-19
settings menus ....................................... E-20
troubleshooting ..................................... E-23
audio & video output formats ............. E-24
Audio output format .........................................E-24
Video Output Resolution .................................E-25
ank you and congratulations for purchasing your Arcam FMJ Blu-ray Disc player.
Arcam has been producing specialist hi- and home cinema products of remarkable quality
for over three decades and the BDP100 – which plays Blu-ray Discs, DVD-Video discs and
Audio CDs – is the latest in a long line of award winning home cinema equipment. e design
of the FMJ range draws upon all of Arcam’s experience as one of the UK’s most respected audio
companies and is built to give you years of trouble-free listening enjoyment.
is handbook has been designed to give you all the information you need to install, connect
and use the Arcam BDP100 Blu-ray Disc player. e CR104 remote control handset supplied
with this equipment is also described. Use the contents list shown on this page to guide you to
the section of interest.
We hope that your FMJ Blu-ray Disc player will give you years of trouble-free operation. In the
unlikely event of any fault, or if you simply require further information about Arcam products,
our network of dealers will be happy to help you. Further information can also be found on the
Arcam website at www.arcam.co.uk.
e FMJ development team
customising the CR104 ......................... E-26
Code Learning ......................................................E-26
Creating Macros ..................................................E-27
Volume punch-through ...................................E-27
Key Mover ..............................................................E-27
Mode Mover ..........................................................E-28
Locking/Unlocking .............................................E-28
Mode key IR punch-through ..........................E-29
Resetting the CR104 ..........................................E-29
Command summary ..........................................E-29
Device codes .........................................................E-29
IR commands .......................................... E-30
specications .......................................... E-31
Radio interference ..............................................E-31
Laser radiation......................................................E-31
software licencing .................................E-32
product guarantee ................................E-33
device code tables .....................................34
welcome
English
E-3
installation
Arcam’s BDP100 provides class-leading sound quality from
Blu-ray Discs, DVD-Video discs and compact discs.
e BDP100 has a state-of-the-art Delta-Sigma DAC
(Digital-to-Analogue Converter) which provides audiophile
sound quality for video and audio discs.
e BDP100 is supplied with the CR104 ‘universal’ remote
control, which is simple to use and can control up to eight
audio devices – such as an amplifer, television or Personal
Video Recorder.
e high performance BDP100 Blu-ray Disc player is
designed to truly bring your movies and music to life.
Placing the unit
< Place the BD player on a level, rm surface,
avoiding direct sunlight and sources of heat or
damp.
< Do not place the BD player on top of an amplier
or other source of heat.
< Do not place the BD player in an enclosed space
such as a bookcase or closed cabinet unless there
is good provision for ventilation. e BD player is
designed to run warm during normal operation.
< Do not place any other component or item on
top of the BD player as this may obstruct airow
around the unit, causing the BD player to run hot.
< Make sure the remote-control receiver (next to
the display on the front panel) is unobstructed, or
remote control will be impaired.
< Do not place your record deck on top of this
unit. Record decks are very sensitive to the noise
generated by mains power supplies which will be
heard as a background ‘hum’ if the record deck is
too close.
Power
e BD player is supplied with a moulded mains plug
already tted to the lead. Check that the plug supplied
ts your supply – should you require a new mains lead,
please contact your Arcam dealer.
If your mains supply voltage or mains plug is dierent,
please contact your Arcam dealer immediately
Push the IEC plug end of the power cable into the
socket on the back of the BD player, making sure that it
is pushed in rmly. Plug the other end of the cable into
your mains socket and, if necessary, switch the socket
on.
The remote control and trigger
inputs
e REMOTE IN input can be used to pass RC5 codes
(listed on page E-30) to the BDP100 if it is installed in a
position, or a system, where infrared cannot be used. If
this is required, please contact your dealer for further
information.
e
TRIGGE R IN input can be used to switch the BDP100
in and out of stand-by. Connecting the trigger output of
your Arcam amplier (or other compatible device), will
cause the BDP100 to come out of stand-by automatically
when the amplier is switched on, returning to stand-by
when the amplier is switched o. Please see your
amplier handbook for further information.
In normal use there is no need to make any connections
to these inputs.
e remote control input requires a mono 3.5mm
jack, with the tip active and the sleeve grounded.
e remote control signals must be in modulated
RC5 format (at 36kHz), with a voltage level of
between 5V and 12V.
RS232 input is for optional connection to a home
e
automation system or a computer. Various third-party
sytems are available providing sophisticated control
over all your entertainment devices using touch screens
etc. Contact your dealer or installer for further details.
e technical details of the remote control protocol
are available from Arcam on request (email support@
arcam.co.uk).
Interconnect cables
We recommend the use of high-quality screened cables
that are designed for the particular application. Other
cables will have dierent impedance characteristics
that will degrade the performance of your system (for
example, do not use cabling intended for video use to
carry audio signals). All cables should be kept as short as
is practically possible.
It is good practice when connecting your equipment to
make sure that the mains power-supply cabling is kept
as far away as possible from your audio cables. Failure to
do so may result in unwanted noise in the audio signals.
E-4
Power inlet
Connect the correct
mains cable here.
Analogue audio output
Connect these to your amplier’s CD (or other
line-level) input using suitable high quality
interconnect cables. Ensure that the le and
right audio outputs from the BD player are
connected to the same le and right inputs on
your amplier.
12V trigger input
is socket allows the BDP100 to be switched
in and out of stand-by mode by an amplier
(or another item of AV equipment) with a
12V TRIG OU T function. See page E-4.
Coaxial digital output
Use this socket if you are using an
AV receiver with a coaxial digital
input. Connect to the digital input
using a suitable 75Ω screened cable.
CAUTION: Never connect
the digital output socket to a
conventional audio input.
Composite video output
Connect this output to your
display if the display does not
support any other connection
types.
USB connection
Insert USB ash memory
devices here. USB memory can
be used to save downloaded
content. e BDP100 can also
play certain digital les stored
on USB memory drives (see
page E-8).
English
RS232
is connection allows for remote
control from a third-party home
automation system or computer.
See page E-4 for more information.
is allows remote-control signals
to be received by the BDP100
if the remote sensor is covered
(or otherwise not ‘visible’ to the
remote-control).
See page E-4 for more information.
Remote in
Optical digital output
Use this socket if you are
using an AV receiver with an
optical digital audio input.
Zone 2 audio output
Use this analogue output to
provide audio for use in your
AV receiver’s Zone 2. It can also
be used to connect a recording
device or headphone amplier.
Component video output
If your display does not support
HDMI but has a component input,
connect it to this video output.
E-5
Network connection
Connect this socket to a port on your
network router using an Ethernet
patch cable (see page E-9). An internet
connection enables interactive
content for BD-Live discs (for setup
details see “Network” on page E-22).
HDMI digital video output
Connect this output to your display
or AV receiver if available for the best
digital video and audio connection
(see. page E-7 for details).
Making video connections
To view the pictures from the BD player you need to connect one of its video outputs to your display device (TV,
monitor, projector, etc.) or AV receiver (such as the Arcam AVR600).
e BDP100 has three video output options, described below. You need only use one type of video from the list;
choose a type that your display device or AV receiver supports. If your equipment does not support any of the above
connection types then you will be unable to use it directly with the BDP100 and a video converter device may be
required. In this case, please contact your dealer for further assistance.
AV receivers and other video processing devices may be connected between the BDP100 and your display. Ensure
that all the equipment supports the type of video signal you intend to use. For instructions on how to connect AV
equipment, consult the manual for that equipment.
HDMI DIGITAL VIDEO
e HDMI connector oers uncompressed digital video and audio transmission between
the BDP100 and the display device, and provides the highest quality output. Generally, it
is also the easiest connection type to congure.
To use this video connection, you will require a HDMI or HDMI/DVI cable between the
BDP100 and your display device or receiver. See page E-7 for further details.
COMPONENT VIDEO
Use three 75 phono cables to connect the Component Y, Pb, Pr outputs of the BD
player to the Y, Pb, Pr inputs of the display device. Ensure that the cables are suitable for
video use and that they are approximately the same length.
If your television is capable of accepting a progressively scanned (de-interlaced) video
signal, you may wish to use the progressive video output from the BDP100. If you are
unsure whether your display device can accept progressive video, please refer to its
instruction manual or consult your dealer.
Making audio connections
e BDP100 oers a number of alternatives for connecting audio. e connection type to use depends on the rest of
your system; chose the type most appropriate to your amplier.
If you want to listen to audio through... ...we recommend the following:
Your television
<
How you listen to audio through your TV depends on the inputs it has and your
video connection:
HDMI: If you are using an HDMI connection (not DVI), this will carry both
<
audio and video. No further connection is required.
Digital Audio (Coaxial or Optical): If your TV has Digital Audio inputs on
<
Coaxial or Optical connectors, connect the appropriate digital audio lead
between the TV input and the appropriate BDP100 digital output. Do not
make a connection between the BDP100 and a TV’s Digital Audio output.
Stereo phono: If your TV has stereo phono inputs, follow the instructions
<
below for a stereo amplier.
Your stereo amplier
<
If you wish to listen to audio from your player through a stereo amplier, then use the
stereo analogue outputs. ese outputs provide a stereo down-mix of the source material.
Using a stereo phono cable of a suitable length, connect the outputs labeled
the le and right inputs (respectively) for DVD or CD on your amplier.
Your surround-sound receiver
<
Connect the HDMI output to your receiver (for audio and video) if the receiver supports
audio over HDMI. e HDMI connection supports all possible audio formats including
Dolby TrueHD, DTS Master Audio and multichannel PCM.
If your receiver does not support HDMI audio, connect one of the Digital Audio outputs
(Optical or Coaxial) to the ‘Blu-ray’, ‘BD’ or ‘DVD’ input of your receiver. ese digital
outputs provide PCM, Dolby Digital, DTS or MPEG multi-channel audio, depending on
the source material. e BDP100 can also be set to re-encode all audio to DTS (“Bitstream
Mixed”) (see “Audio” on page E-21). is option provides the best surround sound quality for
Digital Audio connections.
You may also wish to connect the stereo analogue audio outputs to the CD input on your
receiver, for listening to CDs. is will allow the BDP100’s audiophile digital-to-analogue
circuitry to be utilised, for the best stereo sound quality.
ZONE 1 AUDI O to
COMPOSITE VIDEO
If your display device oers only a composite input (sometimes labelled CVBS or just
‘video’), connect this to the
cable suitable for video use. Note that a composite video connection gives the lowestquality output; if your display device supports other video connection types, we advise
that those are used instead.
COMPOSI TE video output of the BD player using a 75 phono
E-6
Using two video connections simultaneously
It is possible to use two video connections simultaneously (routing one connection to a
second room or display, for example). If you wish to do this, please read these notes:
e Composite video output is always active.
<
It carries interlaced output at all times.
e Component video output is always active.
<
It can be set to carry either interlaced or progressive-scan output.
e HDMI output is active only if a compatible display is detected by the BDP100.
<
It can be set to carry either interlaced, progressive-scan or high-denition output.
The HDMI interface
If you have a HDMI- or DVI-equipped monitor or
display, you can connect it to the BDP100 using a HDMI
cable. e HDMI connector carries uncompressed
digital video, as well as digital audio.
About HDMI
HDMI (High Denition Multimedia Interface) supports
both video and audio on a single digital connection
for use with Blu-ray Disc players, digital TV, set-top
boxes, and other AV devices. HDMI was developed to
combine the technologies of High-bandwidth Digital
Content Protection (HDCP) and the Digital Visual
Interface (DVI) in one specication, with the addition
of transmission of digital audio information; HDCP is
used to protect digital content transmitted to DVIcompliant displays.
HDMI has the capability to support standard or
high-denition video, together with stereo or multichannel surround-sound audio. HDMI features include
uncompressed digital video, one connector (instead of
several cables and connectors), and communication
between the AV source and AV devices.
Connecting using HDMI
Use a HDMI cable to connect the HDMI socket on
this player to a HDMI socket on a compatible display
device or receiver. e arrow on the cable connector
body should be face up for correct alignment with
the connector on the BDP100. If the BDP100 video
resolution has been congured to ‘HDMI Auto’, then the
BDP100 will congure its video output automatically to
match the capabilities of the attached HDMI device.
NOTE: A HDMI connection can be made only with
HDMI or DVI-equipped components compatible
with both DVI and HDCP. Note that if you choose
to connect to a DVI device, you will need an adaptor
(HDMI to DVI) to do so; a DVI/HDCP connection,
however, does not support audio signals.
If you require further information on the
possibilities for connecting your BDP100 to your
DVI/HDMI equipped display device, please contact
your Arcam dealer.
Troubleshooting HDMI
Problems with video
No video (blank screen)
Check that the HDMI cable is connected correctly at
<
both ends. If an HDMI-equipped A/V receiver is in
use, try connecting the BDP100 directly to the display
device, in order to isolate where the fault may lie.
Check that the display device is set to display the
<
HDMI input (i.e., has not been set to some other
video input, instead).
Check that the HDMI input of the receiver and/or
<
display device is enabled. See the user handbook of
the connected device for details on doing this.
Using an alternative video display device (e.g.,
<
connected via the composite video out), check that
video is output.
Consult the user handbook of the display device to
<
ensure that it can handle the output formats provided
by the BDP100. e BDP100 can provide the
following:
720 x 480p (NTSC progressive scan) 1280 x 720p
720(1440) x 480i (NTSC interlaced) 1920 x 1080i
720 x 576p (PAL progressive scan) 1920 x 1080p
720(1440) x 576i (PAL interlaced)
At least one of these standards must be supported by
the connected device in order for it to work with the
BDP100.
No video (random noise)
Random noise will be displayed if the content-protection
algorithm fails to authenticate the attached device. is will
occur, for example, if a DVI device that does not support
HDCP (such as a computer monitor) is connected to the
BDP100.
To attempt to isolate this problem, remove all discs from the
BDP100, then power-o both the BDP100 and the connected
display device. Switch the display device on, then the BDP100
– at this point, the idle logo of the BDP100 should be shown on
the display device. If this is not the case, please check the items
listed above for a blank screen.
If the noise appears when a copy-protected disc (Blu-ray/DVD)
is played, then it is the authentication that is failing. Please
contact your dealer for further information.
Problems with audio
e type of audio provided by the HDMI connector
depends on the conguration of the BDP100 (see
‘Audio Setup’ on page E-21). Choose a setting according
to the capabilities of your audio system. Note that
pure DVI devices (connections requiring a HDMI to
DVI converter cable) do not support audio via this
connection.
English
E-7
disc & file
formats
Playable discs
e player supports the following disc types:
Blu-ray Disc
DVD-Video
DVD-R
DVD-RW
NOTE
< Only BD-RE/-R, DVD-R/-RW and
CD-R/-RW discs recorded with UDF or
ISO9660 format can be played back.
< is unit supports Ver 2.0 BD-ROM, Ver 3.0
BD-RE and Ver 2.0 BD-R.
< Unnalized BD-RE/-R, DVD-R/-RW and
CD-R/-RW discs cannot be played back.
< Some 8 cm BD-REs/8 cm BD-Rs cannot be
played on this unit.
< When a BD-Java title is played, loading may
take longer than a normal title, and some
functions may perform slowly.
< When an Audio CD recorded in DTS-ES
or Dolby Digital EX is played, noise may be
heard.
Unplayable discs
Any disc type not listed is not supported by the
BDP100. Do not attempt to play an unsupported
disc.
Some BD-RE/BD-R, DVD-RWs/DVD-Rs or
CD-Rs/CDRWs cannot be played due to incomplete
disc nalization, poor recording quality or physical
condition of the disc, incompatible characteristics of
the recording device or authoring soware, etc. Try
recording the disc at a lower speed, or try a dierent
brand of media.
See the operating instructions supplied with your
recording device or soware for more information.
Playable files
e player supports the following le types:
< MP3 (“.mp3”)
Sample rate: 44.1kHz, 48kHz
Bit rate: Up to 320kbps.
ID3 tags are not supported.
MP3i and MP3 Pro are not supported.
< WMA (“.wma”)
Sample rate: 44.1kHz, 48kHz
Bit rate: Up to 192kbps.
WMA tags are not supported.
< JPEG (“.jpg, .jpeg”)
Maximum resolution : 4,272x2,848 pixels.
JPEG format images stored in progressive format
cannot be played back.
< AVI (“.avi”)
Playable codec : Xvid
Maximum size of image : 1920 x 1080@30 fps
< WMV (“.wmv”)
Playable codec : WMV9
Maximum size of image : 1920 x 1080@30 fps
Region coding
Blu-ray Disc players and Blu-ray or DVD Video discs
are assigned region codes according to the region in
which they are sold. If the region codes do not match,
the disc will not play.
Blu-ray Disc
region code
A + B + C All areas
DVD region
code
All All areas
Area
A North America, Central America,
South America, Korea, Japan, Taiwan,
Hong Kong and South East Asia
B Europe, Greenland, French territories,
Middle East, Africa, Australia and
New Zealand
C India, China, Russia, Central and
South Asia
Area
1 North America
2 Europe, Japan, Middle East, Egypt,
South Africa, Greenland
3 Taiwan, Korea, the Philippines,
Indonesia, Hong Kong
4 Mexico, South America, Central
America, Australia, New Zealand,
Pacic Islands, Caribbean
5 Russia, Eastern Europe, India,
most of Africa, North Korea, Mongolia
6 China
CD-Audio
CD-R
CD-RW
NOTE
< Characters except “A~Z”, “a~z”, “0~9”, “ - “
may be not be displayed.
< is unit supports multi-session discs. Some
multisession discs may take a long time to
load and some may not be loaded at all.
< For some les, it may not be possible to use
certain functions during playback.
< It may not be possible to play some les, even
if they have the extension of a le playable on
this player.
< Files protected by DRM (Digital Rights
Management) cannot be played.
Symbols indicating disc will play in North America:
Blu-ray Discs: DVDs:
Symbols indicating disc will play in Europe:
Blu-ray Discs: DVDs:
E-8
Network connection
BD-Live discs can enable the downloading of extra
content from the Internet. To enjoy on-line content,
connect the Network socket of the BDP100 to a LAN
port on your network router using an Ethernet patch
cable (available from a computer supplies retailer).
A local network with Internet connection is required. If
you do not connect to the Internet through a router (e.g.
you connect a single computer directly), please contact
your Internet Service Provider or an IT professional
regarding setting up a home network.
NOTE
< When the player is powered on with no
network congured, a pop-up is shown
on-screen with an option to press the
function key on the remote control to access
network settings. Pressing RED will navigate
directly to the Network Settings menu. Please
refer to page E-22 for details.
< Remember to press the
in order to access the red button.
u
key followed by
S
RED
USB connection
USB memory devices (ash drives) can be used for
media playback and are necessary for storage of
downloaded BD-Live content. To enjoy BD-Live
content, the following specication is recommended:
• Capacity 2GB
• Formatted FAT32
• USB2.0 high speed (480Mbps)
Connect the USB device to the USB socket on the rear
of the unit.
Arcam BDP100
English
LAN
Internet
Router
USB ash drive
E-9
basic
operation
Introduction
‘Basic use’ explains how to play a Blu-ray Disc (BD),
DVD, CD or other type of disc. Note that it may be
necessary to congure your player correctly for your
system before optimum – or any – playback can be
achieved. Player conguration is described beginning
on page E-20.
More sophisticated features – such as special playback
modes and programming jumps and playback sequences
– are described in the “advanced operation” section,
later in this handbook.
Switching on
Switch the unit on by pressing the
status LED glows green when the unit is powered up and
red when in stand-by mode. e remote control is used
to enter and exit standby mode. If the POWER button is
pressed (or power is removed) whilst in standby, the
unit will enter standby mode when power is re-applied.
Note that the remote control sensor is located on the
right-hand side of the display window. Do not obstruct
this or the remote control will not work.
POWER button. e
Loading a disc
Press
and place the disc on the tray, with the playback side
facing down (some discs are double sided, in which case
the side labelled ‘side A’ should face up to play side A).
Press
loads aer a pause of a few seconds.
Playing a disc
A disc may take some time to load once the tray is
closed. When the ‘Optical Disc Autoplay’ setting is set
to On (default setting), playback will automatically start.
(For details, refer to “Optical Disc AutoPlay” on page
page E-22).
If Autoplay is not set, the player’s Main Menu will
appear on your TV. Use the cursor keys
disc, then press O to start playback.
Some titles begin by displaying a menu. Select the menu
item ‘Play movie’ (or similar) using the cursor pad, then
press
For discs that do not play automatically, press
the front panel or press 4 on the remote control.
on the front panel (or 1 on the handset)
</1
on the front panel to close the tray. e disc
</1
to select the
OK to start playback.
4/ ;
on
ULTRA HGH PERFORMANCE 24-BIT DAC
Fast play
Press
or 7 on the front-panel or remote control to
8
play fast forwards or backwards. e following speeds
for fast playback are available: x2, x4, x8, x16, x32, x64
and x128 (depending on disc type). Press the button
repeatedly to cycle through the dierent speeds. To
resume normal playback speed, press PLAY.
Skipping chapters/tracks
To skip chapters (or tracks on a CD), press
When skipping back, the rst button press takes you to
the beginning of the current chapter. Pressing the button
again takes you to the start of the previous chapter.
Pausing playback
Press
control to pause playback. To resume playback, press 4/
;
Stopping playback
Press the
remote control to stop playback.
When playing a BD/DVD, pressing
a ‘resume stop’. If you now press 4, playback resumes
from the point it was stopped.
If you press
control twice, this is a ‘complete stop’, and playback
resumes from the beginning of the disc.
on the front panel or
4/ ;
on the front panel or
button on the front panel or
</1
on the front panel or
</1
;
on the handset.
4
on the remote
or 0.
/
on the
<
once performs
<
on the remote
<
NOTE
When you press a button, if the unit does not accept
its operation, appears on the TV screen.
Operations are occasionally unacceptable even if
is not displayed.
Invalid operation may occur as expected if :
< e region codes of the unit is dierent from
that of the disc and playback will not be
allowed.
< e parental control is set to prevent
operation.
(For details, refer to "Parental Control" on
page E-21.)
< BD/DVD Video operations and functions
may be dierent from the explanations in
this manual and some operations may be
prohibited due to disc manufacturer’s settings.
E-10
remote
control
e BDP100 is supplied with the CR104 universal
remote control.
Using the remote control
Please keep in mind the following when using the
remote control:
< Ensure there are no obstacles between the
remote control and the remote sensor on the
front panel. e remote has a range of about 7
metres. (If the remote sensor is obscured, the
IR in remote control input jack on the rear
panel is available. Please consult your dealer
for further information.)
< Remote operation may become unreliable if
strong sunlight or uorescent light is shining
on the remote sensor of the unit.
< Replace the batteries when you notice a
reduction in the operating range of the
remote control.
Inserting batteries into the
remote control
1. Open the battery compartment by pressing
the button on the back of the handset.
Notes on batteries:
Incorrect use of batteries can result in hazards
<
such as leakage and bursting.
Do not mix old and new batteries together.
<
Do not use non-identical batteries together –
<
although they may look similar, dierent batteries
may have dierent voltages.
Ensure the plus (+) and minus (-) ends of each
<
battery match the indications in the battery
compartment.
Remove batteries from equipment that is not
<
going to be used for a month or more.
When disposing of used batteries, please comply
<
with governmental or local regulations that apply
in your country or area.
English
2. Insert four ‘AAA’ batteries into the battery
compartment – two facing the top of the unit,
and two facing the end, as in the diagram.
3. Lower the end cap onto the plastic locating
plate in the handset. is acts as a hinge, and
you can now push the end cap rmly into its
locked position with a click.
E-11
Controlling the BDP100
e CR104 is a sophisticated ‘universal’ remote control
that can control up to eight devices – including the
BDP100. As it’s a ‘learning’ remote, it can copy almost
any function from an existing single-device remote.
You can also program the CR104 to issue a sequence of
commands (‘macros’) from a single button press.
Select the source key rst
Remember to select a source key before pressing
command buttons – commands vary depending on the
source selected.
To operate the BDP100 from the remote, rst press the
BD source button.
AMP
AVSAT
PVR VCR
TUN
CD
DISP (display)
Press to cycle through the front panel display’s
brightness options (dim to bright, o).
Source selection and handset conguration
BD
BD input/BD controls
SAT
Satellite decoder input/SAT controls
AV
Television (sound) input/AV controls
TUN
Radio tuner input/TUN controls
AMP
Arcam amplier
PVR
Personal Video Recorder input/controls
VCR
Video Cassette Recorder input/controls
CD
CD player input/CD controls
Press the relevant button once to select input and
recongure the handset.
Press and hold the button until the power LED blinks
once if you wish to recongure the handset without
changing the input.
Navigation buttons
Arrow buttons allow navigation around the settings
menus on the BDP100 and disc menus.
Conrm a selection by pressing
OK.
On/Stand-by
is allows the BDP100 to be put into and taken out of
stand-by remotely.
Numeric keys
Used for data entry. Also gives direct access to
individual tracks on audio CDs.
RND
DISP
SHIFT
BD
AMP
T
RND
STATUS
SAT
PVR
iPOD
AV
TUN
VCR
CD
Toggles random (‘shue’) play of chapters/tracks on
and o.
Press
SHIFT followed by RND to cycle through repeat play
options (chapter, title, disc, etc.).
STATUS
Toggles the disc information display.
Press
SHIFT followed by STATUS to activate or deactivate
24p mode (supported discs and TVs only).
MENU
Activates the BD ‘popup’ menu or the DVD disc menu.
MODE
is button activates the Picture-in-Picture Secondary
Video function, where available.
MUTE
Press once to mute an Arcam amplier. Press again (or
use
+/ volume) to un-mute.
VOLUME +/–
Adjusts the volume of a compatible amplier.
OPEN
Opens and closes the disc tray
SETUP
Press
SETUP to access the system settings menu.
E-12
MODE
SETUP TITLE AUDIO SUBT
23425
CR104
MENU
RTN
U
SRCH
RTN
Navigates to the previous menu.
0 /
Press to skip backwards to the previous track(0) or
forwards to the next track (/).
Playback control
Pause (
), Play (4) and Stop (<). SHIFT+Pause
;
activates slow playback.
Advanced controls
ese buttons are described on the next page.
Advanced controls
NOTE
Many of these controls are labelled according
to the functions assigned to other device
modes. For example, the
the bass control of an A/V receiver when the
remote is in AMP mode.
RED/GREEN/YELLOW/BLUE
e colour-coded buttons
provide interactive controls for Blu-ray Discs and some
player functions and will be displayed on-screen. ey
are accessed by rst pressing SHIFT followed immediately
by the button required. eir function depends on the
disc and the part of the disc being viewed.
key will activate
8
RED, GRE EN, YELLOW and BLUE
Transport control buttons
Fast rewind.
7
Starts playback.
4
Pause playback. Press 4to resume playback.
;
When paused, pressing ; advances one frame.
SHIFT +
Fast forward.
8
Open / Close the disc tray.
1
<
Stop playback
Cycles through dierent camera angles, if present on the disc.
=
activates slow motion playback.
;
English
U
SRCH
ANGLE
Displays Angle menu, to allow selection of
dierent camera angles, if present on the disc.
SETUP
Ensure no disc is playing and press
access the ‘Settings’ menu.
TITLE
Press
TITLE to access the DVD’s ‘Title’ menu (a
feature that only applies to multi-title discs) or
to access the main menu if a Blu-ray Disc.
SETUP to
V F V
SETUP TITLE AUDIO SUBT
AUDIO
Some discs oer the facility to select dierent
audio tracks. Press
that allows selection of the available tracks. See
“Soundtrack Selection” on page E-16.
AUDIO to access a menu
E-13
SRCH
Displays Search menu with Time, Title and
Track options.
SUBT
Cycles through the available subtitle languages,
including ‘O’. Some discs force subtitles on,
overriding any set up preferences.
Useful information
Backlight
A blue backlight comes on for ve seconds whenever
a key is pressed. is helps you use the handset in
subdued lighting conditions. It may be possible to hear a
quiet tone being emitted from the remote control when
the backlight is on. is is perfectly normal.
Power LED blinks
Short blinks indicate a valid key press.
Multiple short blinks convey information (such as a
device code) or signal the beginning and successful
completion of a programming sequence.
Long blinks indicate an invalid key press or entry.
e symbol ‘*’ is used in the manual to indicate a
power LED blink.
Timeouts and unassigned keys
Time out – Aer 10 seconds the CR104 exits the
programming state and returns to normal operation.
Stuck key timeout – Aer any key is pressed
continuously for 30 seconds, the CR104 stops sending
IR transmission to conserve battery life. e CR104
remains o until all keys are released.
Unassigned keys – the CR104 ignores any unassigned
key presses for a particular Device Mode and does not
transmit IR.
Low voltage indicator
When the batteries are running down, the IR transmit
indicator on the CR104 (the LED under the Power
button) ashes ve times whenever you press a button:
* * * * *
If this happens, please t four new AAA alkaline
batteries as soon as possible.

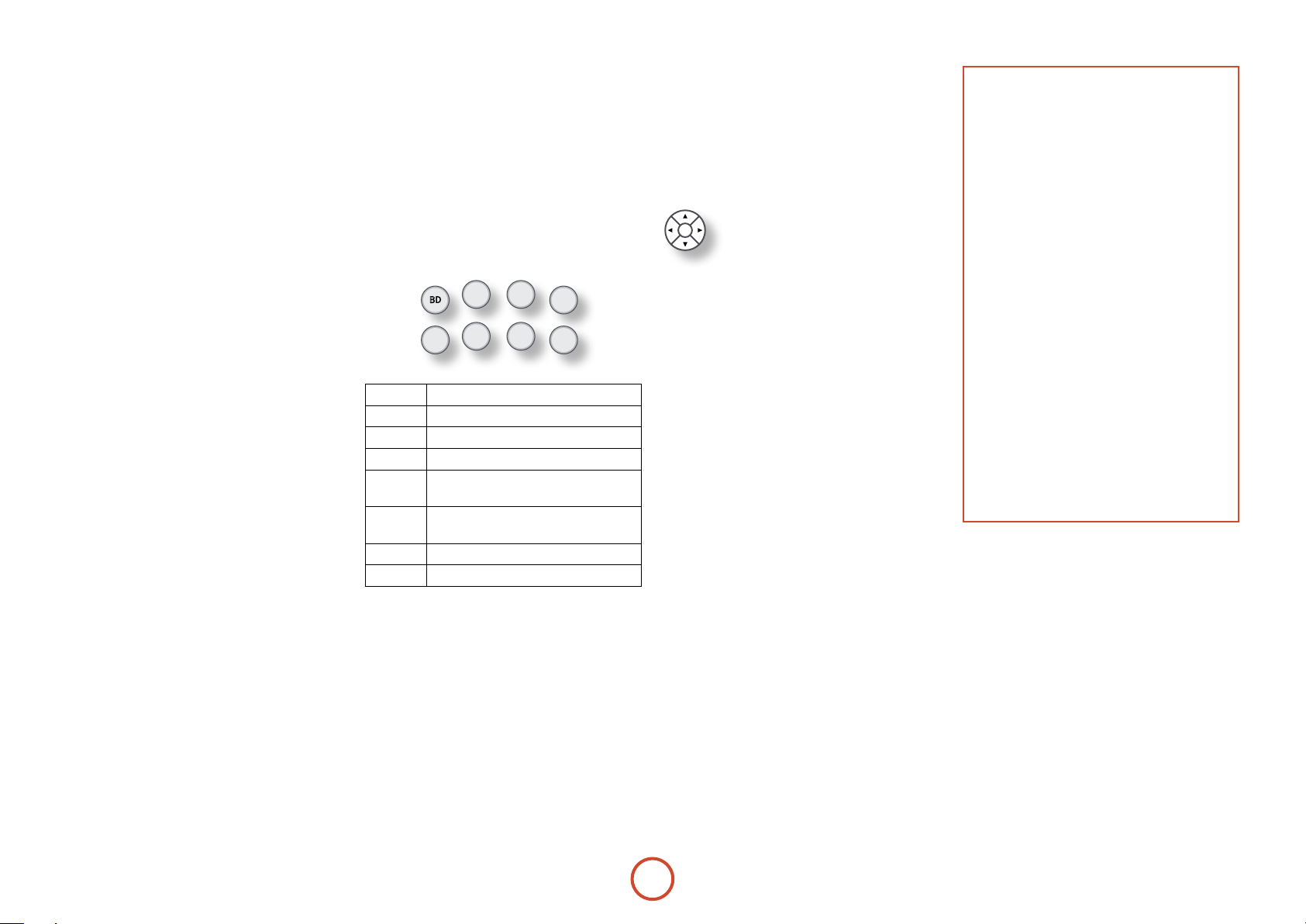

Device Mode / Source keys
As the CR104 can control your BDP100, AVR500,
AVR600 or AV888 as well as a range of other equipment,
many of the buttons have more than one function
depending on the ‘device mode’ selected on the remote
control.
e Device Mode keys (shown below) select the source
on the AVR500/AVR600/AV888. If one of these keys is
pressed briey, a command is transmitted to change the
source on the unit. Also the functionality of the remote
control changes to operate the selected source device. It’s
like having eight dierent remotes in your hand!
AVSAT
D
PVR VCR
AMP
BD
SAT
AV
TUN
AMP
BDP100 Blu-ray player
Satellite set-top box
Audio-visual sound input (use with TV)
DAB, Sirius, FM or AM tuner
Controls the amplier and setup features
of the AVR500/AVR600 and AV888
PVR
Personal Video Recorder (or Digital
Video Recorder)
VCR
CD
Video Cassette Recorder
Compact Disc player
If you press and hold a Device Mode key for about four
seconds, you change the Device Mode of the CR104
without changing the signal source on the AVR500/
AVR600/AV888. is can also be done by pressing S
followed by a Device Mode key (within two seconds).
ese two methods allow you to change which device
the CR104 controls without also changing the AVR500/
AVR600/AV888 source, allowing uninterrupted
listening.
Each Device Mode changes the behaviour of many
of the CR104 keys to control the source device
appropriately. For example:
In
CD mode
plays the previous CD track.
0
TUN
CD
In AV mode 0 issues the TV ‘channel down’ command.
e CR104 remains in the last selected Device Mode
so it is not necessary to press a Device Mode key before
every command key if all you are doing is playing or
skipping tracks on a CD, for example.
Navigation keys
e Navigation keys steer the cursor in Setup menus or
on-screen menus. ey also replicate the
navigation functions of original remotes
supplied with other home entertainment
devices in your system.
conrms a setting.
O
Volume control
By default, the CR104 is set up so that the volume
control buttons always control the volume of an Arcam
amplier or receiver, regardless of which Device Mode
the remote is currently set for. is is known as volume
‘punch through’.
For example, if you are listening to a CD, you will
probably have the CR104 in
the CD player. You can use the volume controls on
the remote directly to adjust the volume of an Arcam
amplier without rst having to press A to put the
remote into AMP Device Mode. e volume buttons
‘punch through’ the CD Device Mode on the remote to
the AMP Device Mode. Volume ‘punch through’ can be
disabled individually for any Device Mode if desired.
CD Device Mode to control
The CR104 complies with Part 15 of the
FCC rules
is equipment has been tested and found to
comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. ese limits
are designed to provide a reasonable protection
against harmful interference in a residential
installation. is equipment generates, uses, and can
radiated radio frequency energy and if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment o
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet or a circuit
dierent from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV
technician for help.
E-14
Controlling other devices
Code blink-back
Method 1 (Direct code setup)
is section describes the simplest (preferred) way to
program the CR104’s Device Mode keys to control the
non-Arcam devices in your system.
AVSAT
D
PVR VCR
AMP
Some of the modes are locked to Arcam operation
<
but can be unlocked if required (see “Locking/
Unlocking a specic Device Mode” on page E-28).
A mode only controls Arcam equipment.
<
BD mode Locked
SAT mode Unlocked
AV mode Unlocked
TUN mode Locked
AUX mode Locked
VCR mode Unlocked
CD mode Locked
Here is a specic example of how to program the a
key to control an Addison television. e principles for
controlling other devices are exactly the same.
1. Make sure your device is switched on (not just on
standby).
2. Find the correct Device Code table (e.g. TV) for
the type of device you want to control from the
CR104.
3. Find the row containing the codes for the
manufacturer of your device (e.g. Addison) (page
34). e most popular code is listed rst.
4. Press the appropriate Device Mode key (e.g. a)
on the CR104.
5. Press and hold S until the red Power LED
blinks twice:
you press the key, then twice aer about three
seconds).
6. Enter the rst four-digit device code using the
number keys. e power key blinks twice:
7. Aim the CR104 at the device and press P. If the
device switches o, the setup is complete.
8. Turn your device back on and test all the CR104’s
functions to ensure they are working properly.
(It actually blinks once when
* *
TUN
CD
* *
9. Important! Write your device code down on the
right hand side of the page so you can remember
it if you ever reset the CR104.
What if I still can’t control my device?
If your device doesn’t respond, repeat the above
<
steps until one of the device codes listed for your
brand works.
If none of the codes listed for your brand operates
<
your device, or if your brand is not listed at all, try
the Library Search Method described in the next
section.
Notes:
Some codes are quite similar. If your device does
<
not respond or is not functioning properly with
one of the codes, try another code listed under
your brand.
If your device’s original remote control does not
<
have a P (POWER) key, press $ instead of P
when setting up your device.
Remember to press the corresponding device key
<
before operating your device.
Many TVs do not switch on pressing P. Please
<
try pressing a number key (‘channel select’) to
switch your TV back on.
To search for the code for another device follow
<
the instructions above, but press the appropriate
device key instead of a during step 2.
.
Method 2 (Library search)
is section describes another way to program the
CR104 to control third-party equipment.
Library Search allows you to scan through all the
codes contained in the CR104’s memory. It can take a
lot longer than the previous method, so only use this
method if:
Your device does not respond to the CR104 aer
<
you have tried all the codes listed for your brand.
Your brand is not listed at all in the Device Code
<
tables.
Example: To search for a TV code
1. Switch your TV on (not standby) and aim the
CR104 at it.
2. Press a on your CR104.
3. Press and hold S until the power LED blinks
twice.
4. Press 9 9 1. e power LED key blinks
twice: * *.
5. Press P.
6. Aim the CR104 at your Television and press [
repeatedly until your Television turns o.
Every time you press [ the CR104 sends out a
POWER signal from the next code contained in its
memory. In the worst case, you may have to press this
key up to 150 times, so patience is required! If you
skip past a code, step back by pressing ]. Remember
to keep pointing the CR104 at your Television while
pressing this key.
7. As soon as your television turns o, press S to
store the code.
Notes:
Many TVs do not switch on by pressing P. Try
<
pressing a number key (‘channel select’) to switch
your TV back on.
If you cannot control your Television properly,
<
please continue the Search Method: you may be
using the wrong code.
To search for the code for another device follow
<
the instructions above, but press the appropriate
Device Mode key instead of a during step 2.
If your device’s original remote control does not
<
have a P (STANDBY) key, press $ instead during
step 5.
Once you have set up your CR104, you can blink back
your device set-up codes for future reference.
Example: To blink back your Television code
1. Press the appropriate Device Mode key (e.g. a)
once.
2. Press and hold S until the red Power LED
blinks twice *
you press the key, then twice aer about three
seconds).
3. Press 9 9 0. e P key blinks twice.
4. For the rst digit of your four-digit code, press
and count all the red blinks. If there are no blinks,
the digit is ‘0’.
5. For the second, third and fourth digits, repeat the
previous step, pressing 2, 3, or 4 in order.
Now you have the four-digit code.
(It actually blinks once when
*
Make a note of the codes
Write down the codes for your devices in the boxes
below for future reference.
Device Code
1
2
3
4
5
6
7
8
English
1
E-15
advanced
operation
Disc Information
Press STATUS to display disc information on your TV
screen. e information shown depends on the disc
type.
For Audio CD:
Disc type
Elapsed time
(current track)
Press
Current track/Total track number
Track : 1 / 11
0 : 00 : 23
CD DA
Progress bar Total
STATUS again to turn o this display.
0 : 06 : 46
track
time
Off O ff P lay
Random
playback
mode
Search
e h button allows you to search for a specic title,
chapter or track on the medium. Press h to display
the search box. Press h repeatedly to select the search
type:
Video Discs Audio Discs Media Files
Go to Title Go to Track Go to File No.
Go to Chapter Go to Time
Go to Time
Use the remote control numeric buttons to enter the
search data. Press
location.
to start playback from the selected
O
Menus
Many of BD Video and DVD Video disc contains disc
menu, top menu or pop-up menu which guides you
through the available functions in the disc.
e contents of menus and corresponding menu
operations depend on the disc.
Repeat playback
mode
Playback
mode
NOTE
If the secondary audio is not heard, set the Digital
Output to PCM Stereo, Bitstream Mixed, PCM 5.1
or PCM 7.1. (For details, refer to “Digital Output”
on page E-21.)
When the primary and the secondary Audio
streams are all switched, they will be mixed and
heard together. Set the PIP Audio to O to switch
o the secondary audio stream.
< Disc Menu: Press
the disc menu (‘Top Menu’) on
the TV.
< Popup Menu: Press
display the ‘Popup’ menu on the
TV.
Use the remote control cursor keys to
navigate the menus. Highlight an item
and press
press the relevant menu key to exit the
menu.
to select it, otherwise,
O
to display
t
U
to
Soundtrack Selection
Some discs contain multiple audio streams, such as
a standard Dolby Digital 5.1 soundtrack and a high
denition Dolby TrueHD 7.1 surround soundtrack.
e audio stream can be changed during playback. e
secondary audio (e.g. director’s commentary) of Blu-Ray
Discs (if present) can also be changed (if alternatives are
available).
Note: Audio language is changed using the settings
menu. Refer to page E-21.
Press
to display the current audio stream
o
information:
Current audio stream/total number of streams
Primary Audio
Au dio
PI P Aud io
Secondary Audio
Highlight either the Primary (Audio) or the Secondary
(PIP) audio stream selection using the '/,
buttons.
Press
to show alternate audio streams. Press
>
to highlight the desired audio stream then
'/,
press O to select it.
01 / 04 E NG D olby Dig ital
Off
Subtitles
Some discs contain multiple subtitles. e subtitles can
be changed during playback. Subtitles for the secondary
video (e.g. director’s commentary) of Blu-Ray Discs
(if present) can also be changed (if alternatives are
available).
Note: Subtitle language is changed using the settings
menu. Refer to page E-21.
Press
to display the current subtitle information:
b
Current subtitle/total number of subtitles
Primary Subtitle
S ubtitl e
PI P Su btitle
Secondary Subtitle
Highlight either the Primary (Subtitle) or the Secondary
(PIP Subtitle) subtitle selection using the
buttons.
Press
to show alternate subtitles. Press '/, to
>
highlight the desired subtitle then press O to select it.
01 / 08 E NG
Off
'/,
E-16
Bonusview & BD-Live
Bonusview and BD-Live are features of the Blu-ray Disc
format.
Bonusview provides Picture in Picture and Virtual
Package functions for compatible discs. BD-Live discs
additionally provide a variety of features via the Internet.
Virtual Package/BD-LIVE data must be saved to a
USB memory device connected to the BDP100. To
enjoy these functions, connect a USB memory device
(minimum 1 GB capacity, 2 GB or more recommended)
supporting FAT 32 and USB 2.0 High Speed (480
Mbit/s) to the USB connector. (For details, refer to “USB
Connection” on page E-9.)
< If there is insucient storage space, the data will
not be copied/downloaded. Delete unneeded
contents or use a new USB memory device.
< If a USB memory device containing other
contents (previously recorded) is used, the video
and audio may not play back properly.
< If the USB memory device is disconnected from
this unit during playback of Virtual Package/
BD-LIVE contents, playback of the disc will stop.
< Some time may be required for the contents to
load (read/write).
NOTE
< It may not be possible to use the BD-LIVE
functions if there is insucient space on
the USB memory device. In this case, refer
to “Erase Blu-ray Storage?” on page E-22 for
erasing the Virtual Package contents and
the BD-LIVE contents in the USB memory
device.
< Operation of USB memory devices is not
guaranteed.
< Do not use a USB extension cable when
connecting a USB memory device to the USB
connector.
Picture in Picture (secondary video)
Some Blu-ray discs include secondary video screens
that can be played back as a small video overlaid in the
corner of the screen. Press the M button on the remote
control to display the PiP menu:
PI P Off
Press > to enter the PiP menu. Select a secondary video
stream using the remote control cursor keys '/,.
Press O to view the secondary video in PiP mode.
NOTE
< To listen to secondary audio or to display
secondary subtitles, refer to “Soundtrack
selection” or “Subtitles” on page E-16.
< Secondary video may not be present for every
scene of a disc. The feature is disc-dependant,
please consult the disc manual for further
details.
Virtual Package
Blu-ray discs supporting Virtual Package allow for extra
content to be automatically transferred from the disc or
from the Internet to USB storage for interactive viewing.
Features available include secondary video and audio,
subtitles and movie trailers.
NOTE
< Playback methods are disc-dependant — refer
to the disc manual.
< Playback operations may require use of the
colour-coded keys on the remote control. To
access the colour key functions on the CR104
remote control, press
S
first.
BD-Live
e BDP100 is compatible with BD-Live, allowing for a
variety of functions when used with BD-Live compatible
discs. BD-Live allows content such as the latest movie
trailers and BD-J interactive games to be downloaded
from the Internet to USB storage.
Available BD-Live functions are entirely dependant on
the Blu-ray disc being played. Consult the disc manual
for operational information.
NOTE
< e BDP100 must have an active Internet
connection to use BD-Live functions. Refer
to “Network connection” on page E-9 and
“Network” on page E-22
< BD-Live Internet access can be disabled using
the BD-Live Internet access setting in the
System menu. See “System” on page E-22
< Playback operations may require use of the
colour-coded keys on the remote control. To
access the colour key functions on the CR104
remote control, press
S
first.
English
E-17
Playing files
Please select Play mode
Play All
Play Selection
Play Current Folder
Cancel
Video and audio les can be played from USB media or
CD-R/RW discs. e following formats are supported:
< Video: AVI, WMV
< Image: JPG
< Audio: MP3, WMA
To play media les, insert the USB device or optical disc
into the player. e main menu is displayed with music,
video and/or picture le symbols:
Video le
System settings
Music le
JPEG le
Use the '/, cursor keys on the remote control to
highlight the media file type to play/view. Press > to
select the file type. The 'Play' menu is displayed:
Mus ic
2 ite m(s )
Main Men u
Pl ay Fil es
B rows e Pi ctur es
Now Pl ayi ng
Play menu Media menu
To play all available files without making any selection,
press < to go to the Play menu, described below.
To select particular les, use the
on the remote control to highlight the media device
to navigate in the Media menu. Press > to select the
media device and display the file and folder contents.
Pl ayli st
US B 1
'/,
cursor keys
NOTE
< You will only be able to browse the selected
type of les (music, picture or video), even
if a CD-R/CD-RW or a USB memory device
contains a mix of music, picture and video
les. To play a dierent le type, return to the
main menu using the
SETUP button.
< When there are playble files or folders within
the selected media or folder, “Empty” will be
displayed.
A single le can be played or les can be added to a
playlist in order to play a selection of les.
Highlight a le using the remote control cursor keys
'/,/</>
. Press O to select the file.
If the file has not been added to the playlist, the
following menu is displayed:
A dd T o P la ylis t
P lay (F ile)
If the file has already been added to the playlist, the
following menu is displayed:
R emo ve from P lay lis t
P lay (F ile)
NOTE
< “Play (File)” cannot be selected for JPEG
images. Add the images to be viewed to the
playlist in order to play a slideshow of images.
< e playlist is cleared whenever the USB
device is removed or the optical disc is
ejected.
Use the '/, cursor keys on the remote control to
highlight a menu item and press O to select it.
Select “Play (file)” to play a single file, or select “Add to
Playlist” to add the file to the playlist. When the desired
files have been added to the playlist, press
<
remote control to go back to the Play menu.
The Play menu
Mus ic
2 ite m(s )
Main Men u
Pl ay Fil es
B rows e Pi ctur es
Now Pl ayi ng
Play menu
e items listed on the play menu vary according to the
selected media and current status. When media is
playing, press the STOP button to display the Play menu.
Select an option using the
'/,
cursor keys and
press O to select it.
< Main Menu: Returns to the main menu.
< Play Files: Navigates to the Play Mode menu.
< Browse Pictures / Browse Music: Changes
the le type to be played and navigates to the
media device showing the le type selected.
< Add all to playlist: Adds all les to the playlist.
< Remove all from playlist: Clears all les from
the playlist.
< Previous folder: Navigates to the previous folder
or menu.
< Now Playing: Displays the playback status for
music les.
E-18
on the
The Play Mode menu
Use the '/, cursor keys on the remote control to
highlight “Play Files” and press O to show the Play
Mode menu:
Select an option using the
press O to select it.
< Play All: Plays all the les of the selected type on
the disc or device.
< Play Selection: Plays all items added to the
playlist.
< Play Current Folder: Plays all the les of the
selected type in the current folder.
< Cancel: Return to Play menu.
When a play option is selected, the media will play and
the “Now Playing” information panel will be shown:
File : 1 / 1 Anima ls - When I drea m. mp3
Title :
Artis t :
Album
0 : 00 : 28 0 : 04 : 36
NOTE
< When playing JPEG les, each le is displayed
for a time interval. is can be adjusted by
pressing
SHIFT followed by
control, or by entering the Slideshow Effects
menu, described opposite.
< e selectable play mode varies according to
the operation status and the selected media,
etc.
'/,
cursor keys and
Off Off P lay
on the remote
&
Advanced playback controls
e following advanced controls are available during
disc or le playback (depending on media type):
Slow playback
Press SHIFT followed by & to activate slow motion
playback. Press this button combination again to
change the playback speed. Speeds of /, / and / are
available.
Time interval
When viewing JPEG picture slideshows, the time
interval between pictures can be changed between 5, 10,
15 and 30 seconds. Press SHIFT followed by & to switch
between dierent time intervals
Rapid Playback
Press ) or ( during playback to activate rapid
reverse or forward playback. Further button presses
change the playback speed. Speeds of 2x, 4x, 8x, 16x,
32x, 64x and 128x normal speed are available. Press $
to resume normal playback.
Displaying File Information
Press the STATUS button to display the le information
panel. e le information panel shows the following
information:
Current le/total le number
File type
Elapsed time
Title
File : 2 / 3 .. L ove.Actua lly.DVD Div...
0 : 01 : 59 1 : 04 : 56
Progress bar
Repeat playback mode
Random
playback mode
Total playing time
of current le
S lide S how E ffec ts
S lide S how Del ay
Use the '/, cursor keys on the remote control to
highlight a menu item and press > to select it.
< Slide Show Eects: Use the
to select one of the following eects:
<Horizontal Scroll
<Fade
<Shutter
<None
Press
< Slide Show Delay: Use the
to select the delay time between pictures:
<5 seconds
<2 seconds
<1 second
Off O ff P lay
to conrm the selection.
O
<None
<10 seconds
<15 seconds
<30 seconds
Press
O
No ne
5 s ec (s )
'/,
'/,
to conrm the selection.
Playing music whilst viewing
pictures
Playback
mode
During the playback of music les,
press the O button to display the
cursor keys
cursor keys
Play menu. Use the
control to highlight “Browse Pictures” and press O.
Select pictures and play them as described in “The Play
menu” on page E-18. The JPEG pictures will be displayed
whilst the music continues to play.
NOTE
< When playing JPEG les and music
simultaneously, the playback controls aect
the JPEG le playback only.
< To control the music les:
1. Press the stop button
JPEG slideshow and display the Play
menu.
2. Use the
remote control to highlight “Now
Playing” and press O. The playback
controls nowaffect music playback.
cursor keys on the remote
'/,
'/,
cursor keys on the
to stop the
#
English
Press status again to hide the le information panel.
Note that the le information panel is always shown
when playing music les.
Slideshow Eects
When viewing a JPEG picture slideshow, press the U
button to display the Slideshow Menu:
E-19
settings
menus
e Settings menus allow you to congure all aspects
of your BDP100. e next few pages will go through
the menu items and explain their function. e Settings
menus may look daunting if you are new to setting up
home cinema, but the majority of them need only be
congured once when you rst install the system.
e only way to view the Settings menus is on your
display device (TV or projector) using the on-screen
display (OSD) capability of the BDP100. To view the
OSD for the initial setting up, connect any of the video
outputs to your display device (or AV receiver connected
to your display).
Entering the settings menu
To enter the settings menu, use the ' and , cursor
keys to highlight the ‘Settings’ option on the main menu.
If the main menu is not currently displayed, press SETU P
on the remote control to display it. Note that during the
playback of music, video or JPEG les further button
presses may be required to exit the folder structure.
Press > to enter the Settings menu.
Unstable OSD menu or picture display?
e default BDP100 output video resolution when rst
powered up out of the box has been chosen according
to the national standard in the country wheso that most
display devices can synchronise to the video signal
automatically. is can be changed in the Video Outputs
section of the Setup Menus.
If the output resolution and frame rate is set to a setting
your display device does not support, the picture
may become unstable or may not display at all. If this
happens, connect the BDP100 directly to your display
using the composite video connection in order to see
the menus. Once the correct video settings have been
entered, a higher-quality connection can be used.
Navigating the menus
e BDP100 menus can be navigated by using the
cursor (arrow) keys on the remote control.
1. To display the main menu, press the
2. Use the
and C keys to navigate up and
B
down the main section headings in the le-hand
panel.
3. Once you have the main section that you require
highlighted, use the
4. Use the
B
and C keys to navigate up and
key to enter the section.
E
down the section settings in the right-hand panel.
Some settings may be greyed out. ese are either
for information only (e.g. incoming sampling
frequency) or are not currently selectable (e.g.
network IP address when DHCP is used).
5. Pressing
6. Use the
7. Press
> selects a setting to change it,
and C keys to change the setting.
B
OK to conrm the setting. Go back to step 4
to adjust the other settings in the current section.
6. Press
or RETURN to go back to the previous
<
screen, to select another section to adjust.
SETUP button.
S ys tem
Ne twork
Info
Dis play
Audio
L angua ge
P arenta l
Dis play
HD MI S tatu s
HD MI P ref erre d F orm at
TV T ype
R es olu tion
TV A s pec t
F ilm M ode
C olor De pth
C onne cted
720 p
NT S C
HD MI A uto
16: 9 P ill arb ox
Of f
24 Bi t
E-20
Display
TV Type – Set the video signal format. If the colour or
picture quality of analogue video appears incorrect,
change this setting. It should not need to be adjusted in
normal use.
< NTSC: USA and Canada video standard.
< PAL: Europe, Australia and China video standard.
Resolution – Set the video resolution of the
COMPONE NT VIDEO outputs.
< HDMI Auto: Sets the TV’s preferred resolution.
< 1080p: Full HD progressive video.
< 1080i: interlaced HD video.
< 720p: progressive HD video.
< 480p/576p: 480 lines (NTSC) or 576 lines (PAL)
progressive video
< 480i/576i: 480 lines (NTSC) or 576 lines (PAL)
Standard Denition interlaced video.
NOTE
< e HDMI Auto setting may not set the best
possible resolution. If you have a 1080p Full
HD display, set the resolution to 1080p.
< For full details of output resolutions available
at dierent outputs, refer to the table on page
E-25.
TV Aspect – Set the aspect ratio (shape) of your display.
< 16:9 Wide: Use with widescreen TVs. 4:3 material
will be zoomed to t the screen.
< 16:9 Pillarbox: Use with widescreen TVs. 4:3
material will be displayed in full, with vertical
black bars at the sides.
< 4:3 Pan and Scan: Use with 4:3 non-widescreen
TVs. 16:9 widescreen content will be displayed
with the le- and right-hand sides of the image
cropped to t the screen (no black bars). e
aspect ratio will be maintained (the image will not
be stretched).
< 4:3 Letterbox: Use with 4:3 non-widescreen TVs.
16:9 widescreen content will be displayed with
black bars at the top and bottom.
24p Mode – Enable or disable 24 frames-per-second
video output (1080/24p).
< On: Select to output 24p signals from the
output.
< O: Disable 24p video output.
HDMI and
HDMI
NOTE
< 1080/24p video signals can only be output
using the HDMI connection.
< e connected equipment (AV receiver, TV/
projector) must be 1080/24p compatible.
< e output resolution must be set to 1080p or
HDMI Auto.
Color Depth – Set the level of Deep Color processing
applied to the HDMI video output.
< 36-bit: Select to output 36-bit Deep Color signals
from the
HDMI output.
< 30-bit: Select to output 30-bit Deep Color signals
from the
HDMI output.
< 24-bit: Select to output 24-bit standard color
signals from the
NOTE
< e connected equipment (AV receiver, TV/
projector) must be Deep Color compatible
in order to use 30/36-bit Deep Color signals.
Refer to your TV & AV receiver user manual.
< All system HDMI interconnect cables must
be Deep Color compatible in order to use
30/36-bit Deep Color signals.
< If you experience a ickering or abnormal
picture aer changing the Deep Color
setting, connect the unit using a Composite
video cable and change the setting to a value
supported by the display.
HDMI output (Deep Color o).
Audio
PCM Downsampling – Set the maximum sample
rate of audio output from the OPTICAL or COAXIAL
DIGITAL OU T.
< 96kHz: Output digital audio with a 96kHz sample
rate (best quality).
< 48kHz: Output digital audio with a 48kHz sample
rate (most compatible).
NOTE
< If the connected equipment (e.g. AV receiver)
does not support 96kHz, silence or loud noise
may result from this setting. If this happens,
set PCM Downsampling to 48kHz.
Digital Output – Sets the audio format output from the
HDMI, OP TICAL or COAXIAL DIGI TAL OUT.
< Bitstream HD: Output the HD bitstream Blu-ray
Disc soundtrack for decoding in your AV receiver
(HDMI output only, requires compatible AV
receiver).
< Bitstream Legacy: Output the relevant legacy
format for the soundtrack. is option is suitab;e
for older AV receivers that are not HD, HDMI
Audio or DTS compatible.
< Bitstream Mixed: Convert all surround audio to
DTS 5.1 surround format. is option gives the
best quality for DTS-compatible AV receivers that
are not HD or HDMI Audio compatible.
< PCM 7.1: Decodes all formats within the player
and outputs PCM audio. Use this option for HD
receivers that cannot decode all HD formats. e
OPTIC AL and COAXIAL digital outputs will output
stereo PCM audio.
< PCM 5.1: As PCM 7.1 but any HD 7.1-format
surround soudtracks will be converted to 5.1format surround (
< PCM Stereo: Decodes all formats within the
player and outputs PCM audio. All surroundsound formats are converted to stereo on all audio
output connections.
NOTE
< e signal at the HDMI output is also
determined by the formats supported by the
connected equipment.
< For full details of output formats, refer to the
table on page E-25.
Dynamic Range Control – Set whether to compress the
dynamic range between the loudest and soest sounds
when a Dolby Digital, Dolby Digital Plus or
DolbyTrueHD audio is played back.
< On: Turns on Dynamic Range Control so that
quiet sounds can be heard more easily.
< O: Turns Dynamic Range Control o.
< Auto: Allows coding embedded within a Dolby
TrueHD soundtrack to set the dynamic range. For
other soundtracks, responds the same as ‘On’.
HDMI output only).
Language
OSD – Set the language used for the On Screen Display
(OSD).
Menu – Set the language used for the Disc Menu and
Pop-up Menu.
< Auto: Sets the priority language of the disc.
Audio – Set the language for the soundtrack.
< Auto: Sets the priority language of the disc.
Subtitle – Set the language used for the subtitles.
< O: Displays no subtitles.
NOTE
< e ability to select a particular language may
depend on the disc played.
Parental Control
Parental control settings can be engaged to prevent
viewing of discs or scenes with material inappropriate
for children. A 4-digit code is required to enable or
disable Parental Control. Parental Control has various
levels; according to the level set, a disc may be stopped
or have certain scenes cut or substituted with alternative
scenes, depending on the disc.
To activate Parental Control:
1. Select the Parental Control menu:
Settings > Parental Control
u
2. If Parental Control is set to On, you must enter your
PIN using the remote control numeric buttons.
The default PIN is 3308.
P lea se Input 4-D igit P arental P as sword :
P arental Pa s s word
OK Ca ncel
3. Once the Parental Control menu is accessed, press
the '/, cursor buttons on the remote to
select from the following items. Press > to select
an item.
>
English
E-21
Parental Control – Set whether Parental Control is On
or O.
< O: All discs are played back.
< On: Disc palyback is restricted according to the
Parental Level set in the following menu item.
Parental Level – Set the degree of disc restriction. e
lower the value, the stricter the limitation.
< 1 [Kid Safe]: Suitable for children.
< 2 [G]: General audience.
< 3 [PG]: Parental Guidance suggested.
< 4 [PG-13]: Unsuitable for children under 13.
< 5 [PG-R]: Parental Guidance Recommended.
< 6 [R]: Restricted; cinemas require children under
the age of 17 to have an accompanying adult
parent or guardian.
< 7 [NC-17]: Cinemas do not admit anyone
younger than 17 years old.
< 8 [Adult]: Discs of any rating (Adult/General/
Children) can be played back.
Parental Password – Press
highlighted to enter a new password. Enter a new 4-digit
code using the numeric buttons on the remote control,
then navigate to the on-screen OK button using the
remote control cursor keys, then press OK on the remote
control. You will be prompted to re-enter the code for
conrmation, repeating the process above.
with this option
>
Please enter a new Parental Control Password:
P arental Pa s sword
OK Cancel
System
Optical Disc Autoplay – controls whether an optical disc
(e.g. Blu-ray Disc, DVD, CD) will play automatically
aer it has loaded.
< On: Optical discs will play automatically.
< O:
PLAY must be pressed to play a disc.
BD-Live Internet access – sets restrictions on Internet
access.
< Limit Access: Only allows Blu-ray discs with
owner certication to access the Internet.
< Always Allow Access: All BD-Live discs are
allowed access to BD-Live websites.
< Prohibit Access: Prohibit all BD-Live discs from
accessing BD-Live websites.
NOTE
< e available on-line functions are disc-
dependent.
< Refer to the BD-Live disc instructions for
information about accessing on-line content.
< e BDP100 must be connected to the
Internet and set up correctly to allow access
to on-line content. See page E-9 for network
connections and page E-22 for network settings.
BD-Live Storage – BD-Live content is stored in the
attached USB memory device. is menu item displays
the amount of USB memory remaining.
Erase Blu-Ray Storage – Press
highlighted to erase the BD-Live content stored on the
USB storage device.
Screensaver duration –sets the duration of static image
display before the screensaver is shown. e screensaver
prevents screen damage due to burn-in of a static image.
< O: Deactivates the screensaver function.
< 5/10/20/30 minutes: sets the period of time
that a static image can be displayed before the
screensaver activates.
NOTE
< e screensaver can be deactivated by
pressing any button on the unit or remote.
Reset Settings – Press OK with this item highlighted to
reset all settings to factory defaults (except parental
controls).
OK with this item
Network
An active, congured Internet connection is required
if you wish to use BD-Live websites and downloaded
content. See page E-9 for physical connections.
Most home networks will automatically congure
the connection using DHCP. If your network is not
congured automatically, you will need to know the
following settings:
IP Address
<
Subnet Mask
<
Gateway
<
Primary DNS
<
Secondary DNS
<
Wired Network
Select and press OK to set the network connection
parameters:
Link Status – Information only
MAC Address – Information only
IP Mode – Set whether the network settings are
automatic or set manually.
O: Disables network functions.
<
Manual: Enter settings manually, for expert users.
<
Dynamic: Allows the connected router or modem
<
to congure the network settings automatically,
using the network’s DHCP server. is setting
should be used for the majority of home networks.
e following settings are only available when IP Mode
is set to Manual:
IP Address – Press OK to set the IP address assigned
to your player by your network administrator. Use
the cursors to navigate between segments and use the
numeric keys on the remote control to enter the address.
Navigate to the on-screen OK button and press OK on
the remote to save the setting.
Subnet Mask – Press OK to set the subnet mask of your
network. Use the cursors to navigate between segments
and use the numeric keys on the remote control to enter
the subnet mask. Navigate to the on-screen OK button
and press OK on the remote to save the setting.
Gateway – Press OK to set the IP address of your
Internet gateway. Use the cursors to navigate between
segments and use the numeric keys on the remote
control to enter the address. Navigate to the on-screen
OK button and press OK on the remote to save the
setting.
Primary DNS – Press OK to set the IP address of your
Primary DNS server. Use the cursors to navigate
between segments and use the numeric keys on the
remote control to enter the address. Navigate to the
on-screen OK button and press OK on the remote to
save the setting.
Secondary DNS – Press OK to set the IP address of
your Secondary DNS server. Use the cursors to navigate
between segments and use the numeric keys on the
remote control to enter the address. Navigate to the
on-screen OK button and press OK on the remote to
save the setting.
Network Test
Press OK to run a network test. is will also congure
the network settings automatically if they have not been
congured and if automatic conguration (DHCP) is
supported by the network.
E-22
trouble-
shooting
If a fault occurs, run through the table below before taking your unit for repair.
If the fault persists, attempt to solve it by switching the unit o and on again. If this fails to resolve the situation, consult your
dealer. Under no circumstances should you repair the unit yourself as this will invalidate the guarantee!
Problem Possible cause Remedy
No power • e AC input cord is disconnected.
• Poor connection at AC wall outlet or the outlet is inactive.
No playback • e disc is loaded upside down.
• e disc is not playable.
• e disc is dirty.
• e recorded disc is not correctly nalized.
• e parental level is not set correctly.
• e symbol about invalid operation is displayed.
Malfunction • e disc is scratched, dirty, poorly recorded or unplayable. • Press the POWER switch to switch the power o, press the
No picture • e video cords are disconnected.
• e incorrect selection of input source on the TV.
• e disc is not playable.
Noisy or distorted picture • e unit is connected to a recording device directly and the
copyguard function is activated.
• e disc is dirty.
• It is in rapid advance or reverse playback, or in frame
advance playback.
Abnormal picture or no picture • e resolution is not set correctly for video signals to be output form the
COMPONENT and the HDMI OUTs.
• e TV does not support HDCP.
• e TV type of this unit is dierent from that of your TV or the disc.
Slight pause of picture • e layer transition occurs during playback of DVD Videos, etc. recoded in
dual-layer format.
No sound • e audio cords are disconnected.
• e speakers are disconnected to the amplier.
• e incorrect selection of input source on the amplier.
Noisy or distorted sound • e disc is dirty.
• Poor connections.
BD-LIVE contents cannot be loaded • Poor connections between this unit and broadband router and/or modem.
• e USB memory device is disconnected.
• e BD-Live Internet Access is set to “Prohibit Access”.
• e BD disc does not support BD-LIVE.
• e network settings are not set correctly.
Remote control unit does not operate. • Batteries are not loaded or exhausted.
• e remote sensor is obstructed.
• Connect cord securely.
• Check the outlet using a lamp or another appliance.
• Reload the disc with the printed side up.
• Use a playable disc.
• Clean the disc.
• Load a disc that is correctly nalized.
• Set the parental level setting correctly. (Refer to page E-21.)
• Adjust the setting correctly.
POWER switch again and then unload the disc.
• Connect the cords correctly.
• Select the input source correctly.
• Use a playable disc.
• Connect the unit so that the picture signal is
transferred directly to the TV.
• Clean the disc.
• Sometimes a small amount of picture distortion may
appear. is is not a malfunction.
• Set the resolution correctly. (Refer to page E-21.)
• is unit will not transfer the video signals via the HDMI
connector to TV that does not support HDCP. is is not a
malfunction.
• Set the TV type correctly. (Refer to page E-21.)
• Sometimes a slight pause may occur. is is not a malfunction.
• Connect the cords correctly.
• Connect the speakers correctly.
• Select the input source correctly.
• Clean the disc.
• Check the connections and connect all cords securely.
• Check the connections and connect all cords securely.
• Connect the USB memory device to this unit.
• Set it to “Always Allow Access” (Refer to page E-22.)
• Load a disc that supports BD-LIVE.
• Set the network settings correctly. (Refer to page E-22.)
• Replace the batteries.
• Remove the obstacle.
English
E-23
audio
& video
output
START
formats
Audio output format
e audio output format available from the digital audio
outputs depends on the soundtrack format being played,
the audio output in use and the Digital Output setting
in the Audio settings menu (“Audio” on page E-21).e
table opposite shows all possible combinations.
Use the owchart on this page to guide you to the
correct setting for your home cinema setup.
Do you use an AV receiver?
YES
Do you connect audio using
HDMI?
YES
Is your receiver HDMI1.3
compatible (Dolby TrueHD/
DTS HD)?
YES
NO
NO
NO
Use “PCM Stereo”
NO
Do you connect audio using
Optical or Coaxial Digital?
YES
Does your receiver support
the DTS audio format?
YES
Use “Bitstream Mixed”
NO
Use “Bitstream Legacy”
Do you want to play back
Secondary Audio from
Blu-ray Discs?
NO
Use “Bitstream HD”
YES
Do you have a 7.1-format
surround sound
speaker system?
YES
Use “PCM 7.1”
E-24
NO
Do you have a
surround sound
speaker system?
YES
Use “PCM 5.1”
NO
Use “PCM Stereo”
Audio Format Digital Output setting HDMI out Optical/Coax out
Bitstream HD Dolby Digital 5.1 Dolby Digital 5.1
Bitstream Legacy Dolby Digital 5.1 Dolby Digital 5.1
Dolby Digital
Dolby Digital Plus /
Dolby TrueHD
DTS-HD High
Resolution Audio /
DTS-HD Master Audio
DTS
LPCM 7.1 (48kHz /
96kHz)
LPCM 5.1 192kHz
LPCM 2.0
(44.1kHz / 48kH)
Bitstream Mixed DTS 5.1 DTS 5.1
PCM 7.1 PCM 5.1 PCM Stereo
PCM 5.1 PCM 5.1 PCM Stereo
PCM Stereo PCM Stereo PCM Stereo
Bitstream HD Dolby Digital Plus /
Dolby TrueHD
Bitstream Legacy Dolby Digital 5.1 Dolby Digital 5.1
Bitstream Mixed DTS 5.1 DTS 5.1
PCM 7.1 PCM 7.1 PCM Stereo
PCM 5.1 PCM 5.1 PCM Stereo
PCM Stereo PCM Stereo PCM Stereo
Bitstream HD DTS-HD High
Resolution Audio /
DTS-HD Master Audio
Bitstream Legacy DTS 5.1 DTS 5.1
Bitstream Mixed DTS 5.1 DTS 5.1
PCM 7.1 PCM 7.1 PCM Stereo
PCM 5.1 PCM 5.1 PCM Stereo
PCM Stereo PCM Stereo PCM Stereo
Bitstream HD DTS 5.1 DTS 5.1
Bitstream Legacy DTS 5.1 DTS 5.1
Bitstream Mixed DTS 5.1 DTS 5.1
PCM 7.1 PCM 5.1 PCM Stereo
PCM 5.1 PCM 5.1 PCM Stereo
PCM Stereo PCM Stereo PCM Stereo
Bitstream HD PCM 7.1 PCM Stereo
Bitstream Legacy PCM 7.1 PCM Stereo
Bitstream Mixed DTS 5.1 DTS 5.1
PCM 7.1 PCM 7.1 PCM Stereo
PCM 5.1 PCM 5.1 PCM Stereo
PCM Stereo PCM Stereo PCM Stereo
Bitstream HD PCM Stereo PCM Stereo
Bitstream Legacy PCM Stereo PCM Stereo
Bitstream Mixed DTS 5.1 PCM Stereo
PCM 7.1 PCM Stereo PCM Stereo
PCM 5.1 PCM Stereo PCM Stereo
PCM Stereo PCM Stereo PCM Stereo
Bitstream HD PCM Stereo PCM Stereo
Bitstream Legacy PCM Stereo PCM Stereo
Bitstream Mixed DTS 2.0 DTS 2.0
PCM 7.1 PCM Stereo PCM Stereo
PCM 5.1 PCM Stereo PCM Stereo
PCM Stereo PCM Stereo PCM Stereo
Dolby Digital 5.1
PCM Stereo
English
Video Output Resolution
e following table shows the video output resolution
at each video output for the dierent resolution settings
(see “Display” on page E-21).
Resolution setting Video Outputs
Composite video out Component video out HDMI out
NTSC PAL NTSC PAL NTSC PAL
HDMI Auto 480i 576i 1080i 1080i Preferred Preferred
1080p 480i 576i 1080i 1080i 1080p 1080p
1080i 480i 576i 1080i 1080i 1080i 1080i
720p 480i 576i 720p 720p 720p 720p
480p/576p 480i 576i 480p 576p 480p 576p
480i/576i 480i 576i 480i 576i 480i 576i
NOTES:
< If the HDMI and Component video outputs are used simultaneously, the Component video
will be output at standard denition (480i/576i resolution).
< Copy protected DVDs can only be output at standard denition over analogue video
connections (component or composite).
< If the BDP100 is set to a resolution that your TV does not support, there may be no picture.
If this happens, connect the Composite Video output to your TV. Select the appropriate
video input on your TV to display the settings menu. Change the resolution to a value
supported by your TV then change the connections back to the desired conguration.
< e ‘HDMI Auto’ setting uses the resolution value that the TV requests. is may not be
the best resolution. It is recommended to consult your TV documentation to discover the
best resolution setting and to set this resolution manually.
E-25
customising
the CR104
Code Learning
e CR104 comes with a complete library of
preprogrammed codes. Aer you have set up the CR104
for your device, you may nd that there are one or more
functions on your original remote which do not have a
place on the CR104 keypad. For convenience, the CR104
oers a Code Learning feature that allows you to copy
up to 16 functions from an original remote control onto
the CR104 keypad.
Before you start, make sure that:
e original remote control is working correctly.
<
e remotes are not pointing at your device.
<
e remotes have new batteries.
<
e remotes are not in direct sunlight or under
<
strong uorescent lights.
Learned functions are mode-dependent: You could
theoretically assign up to eight dierent functions
to a single key (the CR104 can handle a total of 16
learned functions).
Example: To copy the ‘text hold’ function
from a TV remote onto the ( key of your
CR104
1. Place both remotes on a at surface, 2 to 5cm
apart, with the IR ports facing each other.
2. On the CR104, press and hold S until the power
LED blinks twice:
3. Press 9 7 5. e power LED blinks twice:
.
* *
4. On the CR104, press the device key that matches
the ‘source’ device (e.g. if you’re learning a TV
function, press a).
5. On the CR104, press the key to which you want to
assign the learned function (e.g. (). e device
key blinks rapidly.
6. On the original remote, press and hold the
function key that you want to learn (e.g.
TEXT H OLD) until the CR104 device key blinks
twice:
7. If you want to learn other functions from the
same source device, simply repeat steps 5 and 6
pressing the next key you want to learn.
8. To exit Code Learning mode, press and hold S
* *
.
* *
.
until the device key blinks twice: * *.
9. To use the learned function on the CR104, press
the Device Mode key, followed by the function
key.
In this example, you’d press
followed by
a
(
Shifted Learning
You can assign a learned function to a CR104 key
without sacricing its original function.
You can assign Shied Learning functions to any key
except for: Device Mode keys (e.g. a), S, or number
keys (0 to 9).
1. To assign a Shied Learning function, simply
follow Code Learning steps in the previous
section. During step 5, press S once before you
press the key to which you want to assign the
learned function.
2. To access the shied function, press S and then
the target key.
Important notes
Once you start a Code Learning session, you have
<
approximately 10 seconds to conduct each step.
Any longer, and a timeout means that you’ll have
to start the process again.
e Learning feature is mode-specic – you can
<
copy one feature per mode onto a key.
e CR104 can learn approximately 16 functions
<
in total.
To replace a learned function, simply assign a new
<
one to the same key.
Learned functions are retained when you change
<
batteries.
If Code Learning fails, try altering the distance
<
between the two remotes; make sure that the light
in the area is not too bright.
To delete a learned function
1. Press and hold S until the power LED blinks
twice: * *.
2. Press 9 7 6. e power LED blinks twice: .
3. Press a Device Mode key once. For example, if you
want to delete one of your learned TV functions,
press a.
4. Press twice on the key you want to deassign. e
handset blinks twice: * * to conrm.
e original function of the CR104 is restored.
To delete a Shifted Learned function:
To delete a Shied Learned function, press S before
you press the key to be deassigned (during step 4 above).
To delete ALL learned functions within a
given Device Mode
1. Press and hold S until the power LED blinks
twice:
2. Press 9 7 6 – the power LED blinks twice:
* *
3. Press the appropriate Device Mode key twice.
* *
.
.
E-26
Creating Macros
You can program your CR104 to issue a sequence of
commands when you press a single key. Any sequence of
commands you regularly use can be reduced to a single
key press for your convenience.
For example, you might want to turn o your TV, VCR
and Satellite at the same time.
A key programmed with a Macro is available in all
<
modes; it will replace that key’s dierent functions
for all modes.
A Macro can consist of up to eight key presses.
<
Example: To assign a Macro to the h key
1. Press and hold S until the power LED blinks
twice: * *.
2. Press
3. Press h (the Macro will be assigned to this key).
4. Press a, P, w, P, z, P. (ese are the
5. To store the Macro, press and hold S until the
Now, whenever you press h, the CR104 will toggle the
power to your TV, VCR and Satellite.
<
<
<
<
9 9 5
Macro steps you wish to record.)
power LED blinks twice: * *.
e important word here is ‘toggle’. For example,
if the TV and Satellite devices are currently on,
but the VCR is o, pressing h will switch o the
TV and Satellite and switch on the VCR (rather
than switching all three devices on or o).
When using Macros, remember that you may
need to change mode or use S, and that each
key press (including changing modes and pressing
) counts as one of the Macro steps. You cannot
S
use a Macro key within another Macro.
If the amount of memory storage for a particular
Macro is exceeded, the power LED comes on for
ve seconds. You can, however, save the macro
steps up to that point by pressing S, or you can
cancel the Macro recording by pressing any other
key.
e delay between key presses is recorded as
part of the Macro. A delay of up to 30 seconds is
permitted.
.
Example: To deassign the Macro associated
with the h key
1. Press and hold S until the power LED blinks
twice: * *.
2. Press 9 9 5.
3. Press h.
4. Press and hold S until the power LED blinks
twice: * *.
Volume punch-through
Volume punch-through means that, no matter which
Device Mode is selected, the CR104 controls the
AVR500, AVR600 or AV888 volume. You don’t need to
press A on your CR104; this feature is switched on by
default.
ere are times, however, when you might want to
control a device’s volume directly when in a specic
Device Mode.
Example: To cancel volume punch-through
for a TV (AV mode)
1. Press a once.
2. Press and hold S until the power LED blinks
twice: * *.
3. Press 9 9 3.
4. Press -. e power LED blinks four times.
Now, while in TV (AV) mode, you will be able to control
the volume or mute functions of your TV directly.
To completely cancel all volume punchthrough settings
1. Press and hold S until the power LED blinks
twice: * *.
2. Press 9 9 3.
3. Press +. e power LED blinks four times *
* *
9 9 3
.
.
.
.
* * *
Now, whichever mode you’re in, you will have direct
access to that device’s volume or mute functions,
assuming they are available. You would need to switch to
AMP mode to alter the AVR500/AVR600/AV888 volume.
Example: To restore default volume punchthrough settings to all Device Modes
1. Press and hold S until the power LED blinks
twice:
2. Press
3. Press A. e power key LED blinks twice: *
*
Key Mover
Sometimes you might nd that a key you use a lot for
your system is in the ‘wrong’ place on the CR104 keypad
for your comfort. It’s quite easy to reassign a favourite
function to a more accessible key. It is even possible
to move a function from one Device Mode to another
Device Mode.
Example: To assign the D function to the U
key in SAT mode
1. Press z.
2. Press and hold S until the power LED blinks
twice: * *.
3. Press 9 9 4.
4. Press the key you want to move (e.g. D)
5. Press the key you want to move the key to (e.g.
).
U
Now, pressing either D or U while in SAT Device
Mode makes the CR104 transmit the D function.
To completely swap over the functionality of the two
keys to put the U functionality on the D key, repeat
the above process again, but swap over the D and U
key presses in the example.
Note that the function that is copied over to the new key
is always the original function of the old key.
Restore a moved key
To restore a key to its previous function, repeat the
example above, pressing the key to be restored twice
(copy it back to itself).
Restore all moved keys for a Device Mode
To restore all keys in a Device Mode to their original
functional positions, repeat the example above, but press
the relevant Device Mode key (e.g. A) at points 1,4 and
5 in the example.
English
E-27
Copy a key between Device Modes
It is possible to copy functions between Device Modes.
However, remember that button functions are Device
Mode specic and therefore eectively ‘punch-through’
to the original Device Mode when copied over.
e following example copies the AVR500/AVR600/
AV888
DIREC T function from the CR104 AMP device
mode to the shied function of the # button on AV
Device Mode.
1. Press and hold S until the power LED blinks
twice: * *.
2. Press 9 9 4.
3. Press the Device Mode key of the function you
want to move (e.g. A).
4. Press the function key you want to move (e.g.)/
DIREC T)
5. Press the key of the Device Mode you want to
copy the function to (e.g. a)
6. Press the S button graphic
7. Press the key you want to copy the function to
(e.g. #)
If you prefer to copy the key to the main function of the
button instead of the ‘shied’ function, omit point 6
#
in the above example.
Mode Mover
If your home entertainment setup contains devices of
the same type (e.g. two TVs, perhaps from dierent
manufacturers) you can still control both those devices
with the CR104. You simply need to reassign an unused
Device Mode key.
NOTE
Before using Mode Mover, make sure both the
source and destination Device Mode keys are
unlocked (see next section).
Example: To use the z key to control a
second TV
1. Press and hold S until the power LED blinks
twice: * *.
3. Press 9 9 2.
3. Press the Device Mode key for the type of device
you want to control (e.g. for a TV, press a).
4. Press the Device Mode key you want to use (e.g.
).
z
5. Don’t forget to set up the CR104 to control the
second device, using one of the methods from
“Controlling other devices” on page E-15.
Note that volume punch-through is not applied to a
Device Mode that has been copied using Mode Mover.
However, volume punch-through functionality can be
restored when you have used Mode Mover, by copying
and @ from the AMP Device Mode to the
-, +
same physical buttons on the new moved Device Mode
using the last example shown in Key Mover.
To restore a moved Device Mode key to its
original state
1. Press and hold S until the power LED blinks
twice: * *.
2. Press 9 9 2.
3. Press the Device Mode key you want to restore
twice.
Locking/Unlocking a specific
Device Mode
When you rst unpack your CR104 and insert the
batteries, for your convenience it is able to control
certain Arcam components automatically (e.g. DVD
players, Ampliers, Tuners and CD Players). We achieve
this by preprogramming specic Arcam device codes
onto the relevant Device Mode keys, then locking
the Device Modes so you don’t reprogram them
inadvertently.
If you want to override these locked default settings – to
control a third-party CD player, for example – you will
rst need to unlock CD Mode before setting up the
CR104 using one of the methods described at the start
of this guide.
Here are the factory default settings:
Device Mode Default status Default Arcam
codes
BD
SAT
AV
TUN
AMP
PVR
VCR
CD
Alternative codes are available for multi-room solutions,
or in the case of code clashes with other manufacturer’s
products.
For example:
AMP (system code 19) 1954
You will need to change the system code on the product
you wish to control, as well as the CR104.
NOTE
e
AMP Device Mode can only be used to control
Arcam ampliers like the AVR500, AVR600 and
AV888, either on its default or alternative IR system
codes.
Locked 0762
Unlocked 1205
Unlocked 0586
Locked 2009
Locked 1242
Unlocked 1930
Unlocked 0111
Locked 2010
To toggle a Device Mode lock setting:
1. Press the Device Mode key you want to unlock
(e.g.
)
c
2. Press and hold S until the power LED blinks
twice: * *.
3. Press 9 8 2.
e power LED blinks twice when being locked,
<
and blinks four times when being unlocked.
If you enter an invalid key sequence, the power
<
LED gives one long blink and returns to normal
operation.
While the Device Mode key is locked, the Direct Code
Setup and Move Mode functions are not available.
E-28
Mode key IR punch-through
e Mode key IR punch-through default is ‘on’.
Example: To set the Mode key IR punchthrough to AMP
1. Press and hold S until the power LED blinks
twice: * *.
2. Press 9 7 1. e power LED blinks twice:
.
* *
3. Press A to punch through IR from it.
Now, whenever you press and release a Mode key, the
IR data assigned to
the current mode is (i.e. it ‘punches through’ any other
device).
AMP is transmitted, no matter what
To cancel Mode key IR punch-through
1. Press and hold S until the power LED blinks
twice: * *.
2. Press 9 7 1. e power LED blinks twice:
.
* *
3. Press S until the power LED blinks twice: *
.
*
Resetting the CR104
Resetting the CR104 will erase all learned functions
across all modes, as well as some other programmed
functions like Macros. It will not reset the Device Mode
keys; these will remain programmed to your choice of
component.
1. Press and hold S until the power LED blinks
twice: * *.
2. Press 9 8 0. e power LED blinks four
times: * * * *.
3. Press and hold S until the power LED blinks
twice: * *.
4. Press 9 9 3.
5. Press A. e power key LED blinks twice: *
.
*
6. Press and hold S until the power LED blinks
twice: * *.
7. Press 9 7 1. e power LED blinks twice:
.
* *
8. Press A. e power key LED blinks twice: *
.
*
Command summary
Direct code setup
(e.g. AV mode, NNNN=code number)
a S * *
Library search
(e.g. AV mode)
a S 9 9 1 * * P [
to save
S
Code blink back
a S 9 9 0 **
1 count blinks for rst N
2 count blinks for second N
3 count blinks for third N
4 count blinks for fourth N
Code learning
(e.g. AV mode fast forward key)
S * * 9 7 5 * * a ( *
rapid blinks)
(Press key on original remote that you wish to copy)
* * S * *
Delete a learned function
(e.g. AV mode fast forward key)
S * * 9 7 5 * * a ( ( * *
Delete all learned functions with a device
(e.g. AV mode)
S * * 9 7 5 a a
Creating macros
(e.g. SRCH key)
S * * 9 9 5 h a P w P z P S
* *
Deassign macro
S * * 9 9 5 h S * *
NNNN * *
P
until unit turns o
(many
Key mover
(e.g. SAT mode, DISP key to MENU key)
z S * * 9 9 4 D U
Mode mover
(e.g. change SAT to TV(AV))
S * * 9 9 2 a z
Restore device mode
(e.g. restore SAT)
S * * 9 9 2 z z
Locking/unlocking a mode
(e.g. CD mode)
c S * * 9 8 2 * *
(i.e. two blinks for lock)
c S * * 9 8 2 * * * *
(i.e. four blinks for unlock)
Cancel all volume punch-through
S * * 9 9 3 + * * * *
Restore volume punch-through
S * * 9 9 3 A * *
Mode key IR punch-through
S * * 9 7 1 * * A
Cancel mode key IR punch-through
S * * 9 7 1 * * S * *
NOTE
As elsewhere in this Handbook, a single ‘blink’ of
the red LED behind the power button is indicated
by the symbol
*
.
Device codes
e tables that begin on page 34 (in the nal section of
this Handbook) list the four-gure codes for dierent
manufacturers’ devices.
Use these when setting your CR104 up to control your
devices, as described in Method 1 (see page E-15).
If more than one code number is listed, try the rst
number. If the results are unsatisfactory, continue trying
the numbers for that manufacturer to get the best ‘t’
with the functionality required.
If the manufacturer of your equipment is not listed, you
can try Method 2, the Library Search (see page E-15). is
allows you to scan through every set of codes contained
in the CR104’s memory.
English
E-29
IR
commands
ese are the IR commands generated from the BD player
remote control, and accepted by the BDP100. e codes are
useful if you wish to programme another remote handset
to control the BDP100. e codes are given in the format
SystemCode–CommandCode. 25 (0x19) is the Arcam
System Code for a Blu-ray Disc player.
Key name Decimal Hexadecimal
0
1
2
3
4
5
6
7
8
9
DISP
RND
RPT
SRCH
/
0
7
8
MENU P OPUP MENU
CANCE L
RETUR N
TITLE TOP MENU
25–0 0x19–0x00
25–1 0x19–0x01
25–2 0x19–0x02
25–3 0x19–0x03
25–4 0x19–0x04
25–5 0x19–0x05
25–6 0x19–0x06
25–7 0x19–0x07
25–8 0x19–0x08
25–9 0x19–0x09
25–18 0x19–0x12
25–64 0x19–0x40
25–29 0x19–0x1D
25–76 0x19–0x4C
25–32 0x19–0x20
25–33 0x19–0x21
25–50 0x19–0x32
25–52 0x19–0x34
25–67 0x19–0x43
25–58 0x19–0x3A
25–72 0x19–0x48
25–66 0x19–0x42
Key name Decimal Hexadecimal
NAVIGATE UP
NAVIGATE LEFT
OK
NAVIGATE RIGHT
NAVIGATE DOWN
LOAD
PAUSE
PLAY
STOP
STATUS
MUTE
VOL+
VOL
24P
ANGLE
AUDIO
SUBT
SETUP
RED / A
GREEN / B
YELLOW / C
BLUE / D
25–86 0x19–0x13
25–81 0x19–0x51
25–87 0x19–0x57
25–80 0x19–0x50
25–85 0x19–0x55
25–45 0x19–0x2D
25–48 0x19–0x30
25–53 0x19–0x35
25–54 0x19–0x36
25–75 0x19–0x4B
16–13 0x10–0x0D
16–16 0x10–0x10
16–17 0x10–0x11
25–88 0x19–0x58
25–73 0x19–0x49
25–69 0x19–0x45
25–65 0x19–0x41
25–74 0x19–0x4A
25–107 0x19–0x6B
25–108 0x19–0x6C
25–109 0x19–0x6D
25–110 0x19–0x6E
E-30
specications
Analogue Audio Output
Digital to Analogue conversion 24-bit 192kHz Delta-Sigma DAC
Signal to noise ratio 110dB CCIR
Harmonic distortion (1kHz) 0.002%
Frequency response (±0.5dB) 10Hz–20kHz
Output level (0dB) 2.2Vrms
Output impedance 47
Minimum recommended load 5kΩ
Video Outputs
Composite video 1 x phono. 1V pk-pk in 75
Component video Interlaced or Progressive
HDMI 19-pin HDMI connector
Digital interfaces
USB USB 2.0 High Speed (480 Mbit/s)
Network 10 BASE-T / 100 BASE-TX
Physical
Dimensions W430 x D400 x H100mm
Weight 6.2kg nett/10.0kg packed
Power consumption 30W maximum
Digital output connection 75
Supplied accessories
E&OE
NOTE: All specication values are typical unless otherwise stated
Ω
3 phono sockets.
Y 1V pk-pk in 75, Pb 0.7V pk-pk in 75, Pr 0.7V pk-pk in 75
Supported video formats are:
720 x 576p, 720(1440) x 576i, 720 x 480p, 720(1440) x 480i,
1280 x 720p, 1920 x 1080i, 1920 x 1080p
Audio to 6-channel/96kHz or 2-channel/192kHz (24-bit).
Ω co-axial
optical TOSLINK
Mains lead
CR104 remote control
4 x AAA batteries
Radio interference
e BDP100 Blu-ray Disc player is a digital device
which has been designed to very high standards of
electromagnetic compatibility.
All Blu-ray players generate, and can radiate RF
(radio frequency) energy. In some cases this can cause
interference with FM and AM radio reception. If this is
the case, keep the player and its connecting cables as far
from the tuner and its aerials as possible. Connecting
the player and the tuner to dierent mains sockets can
also help to reduce interference.
EC COUNTRIES – is products have been designed to
comply with EMC Directive 2004/108/EC.
USA – ese products comply with FCC Part 15
Class B.
Laser radiation
If the BDP100 Blu-ray Disc
player is operated whilst
the outer casing is removed,
invisible laser radiation could
cause eye damage.
English
E-31
Continual improvement policy
Arcam has a policy of continual improvement for its
products. is means that designs and specications
are subject to change without notice.
software
licencing
is item incorporates copy protection technology that is
protected by U.S. patents and other intellectual property rights
of Rovi Corporation. Reverse engineering and disassembly are
prohibited.
“AVCHD” and the “AVCHD” logo are trademarks of Panasonic
Corporation and Sony Corporation.
Java and all Java-based trademarks and logos are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries.
e “BD-LIVE” logo is a trademark of Blu-ray Disc
Association.
“Blu-ray Disc”, “Blu-ray” and the “Blu-ray Disc” logo are
trademarks of Blu-ray Disc Association.
“BONUSVIEW” is a trademark of Blu-ray Disc Association.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
Manufactured under license under U.S. Patent #’s: 5,451,942;
5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,392,195;
7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide
patents issued & pending. DTS and the Symbol are registered
trademarks, & DTS-HD, DTS-HD Master Audio | Essential and
the DTS logos are trademarks of DTS, Inc. Product includes
soware. © DTS, Inc. All Rights Reserved.
is a trademark of DVD format/Logo licensing
Corporation.
HDMI, the HDMI logo and High-Denition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
MPEG Layer-3 audio coding technology licensed from
Fraunhofer IIS and omson.
Windows Media and the Windows logo are trademarks or
registered trademarks of Microso Corporation in the United
States and/or other countries.
is product uses some soware programs which are listributed
under the GPL license. Accordingly, the following GPL soware
source codes that have been used in this product can be
provided aer asking at http://www.sherwoodamerica.com.
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Soware Foundation, Inc.
51 Franklin Street, Fih Floor, Boston, MA 02110-1301, USA
Everyone is permitted to copy and distribute verbatim copies of
this license document, but changing it is not allowed.
Preamble
e licenses for most soware are designed to take away your
freedom to share and change it. By contrast, the GNU General
Public License is intended to guarantee your freedom to share
and change free soware--to make sure the soware is free for
all its users. is General Public License applies to most of the
Free Soware Foundation’s soware and to any other program
whose authors commit to using it. (Some other Free Soware
Foundation soware is covered by the GNU Lesser General
Public License instead.) You can apply it to your programs, too.
When we speak of free soware, we are referring to freedom,
not price. Our General Public Licenses are designed to make
sure that you have the freedom to distribute copies of free
soware (and charge for this service if you wish), that you
receive source code or can get it if you want it, that you can
change the soware or use pieces of it in new free programs;
and that you know you can do these things.
To protect your rights, we need to make restrictions that forbid
anyone to deny you these rights or to ask you to surrender the
rights. ese restrictions translate to certain responsibilities for
you if you distribute copies of the soware, or if you modify
it. For example, if you distribute copies of such a program,
whether gratis or for a fee, you must give the recipients all the
rights that you have. You must make sure that they, too, receive
or can get the source code. And you must show them these
terms so they know their rights.
We protect your rights with two steps: (1) copyright the
soware, and (2) oer you this license which gives you legal
permission to copy, distribute and/or modify the soware.
Also, for each author’s protection and ours, we want to make
certain that everyone understands that there is no warranty for
this free soware. If the soware is modied by someone else
and passed on, we want its recipients to know that what they
have is not the original, so that any problems introduced by
others will not reect on the original authors’ reputations.
Finally, any free program is threatened constantly by soware
patents. We wish to avoid the danger that redistributors of a
free program will individually obtain patent licenses, in eect
making the program proprietary. To prevent this, we have made
it clear that any patent must be licensed for everyone’s free use
or not licensed at all.
e precise terms and conditions for copying, distribution and
modication follow.
TERMS AND CONDITIONS FOR COPYING,
DISTRIBUTION AND MODIFICATION
is License applies to any program or other work which
contains a notice placed by the copyright holder saying it may
be distributed under the terms of this General Public License.
e “Program”, below, refers to any such program or work, and
a “work based on the Program” means either the Program or
any derivative work under copyright law: that is to say, a work
containing the Program or a portion of it, either verbatim or
with modications and/or translated into another language.
(Hereinaer, translation is included without limitation in the
term “modication”.) Each licensee is addressed as “you”.
Activities other than copying, distribution and modication are
not covered by this License; they are outside its scope. e act
of running the Program is not restricted, and the output from
the Program is covered only if its contents constitute a work
based on the Program (independent of having been made by
running the Program). Whether that is true depends on what
the Program does.
ENGLISH
1.You may copy and distribute verbatim copies of the Program’s
source code as you receive it, in any medium, provided that
you conspicuously and appropriately publish on each copy an
appropriate copyright notice and disclaimer of warranty; keep
intact all the notices that refer to this License and to the absence
of any warranty; and give any other recipients of the Program a
copy of this License along with the Program.
You may charge a fee for the physical act of transferring a
copy, and you may at your option oer warranty protection in
exchange for a fee.
2. You may modify your copy or copies of the Program or any
portion of it, thus forming a work based on the Program, and
copy and distribute such modications or work under the terms
of Section 1 above, provided that you also meet all of these
conditions:
a) You must cause the modied les to carry prominent notices
stating that you changed the les and the date of any change.
b) You must cause any work that you distribute or publish, that
in whole or in part contains or is derived from the Program or
any part thereof, to be licensed as a whole at no charge to all
third parties under the terms of this License.
c) If the modied program normally reads commands
interactively when run, you must cause it, when started running
for such interactive use in the most ordinary way, to print or
display an announcement including an appropriate copyright
notice and a notice that there is no warranty (or else, saying
that you provide a warranty) and that users may redistribute
the program under these conditions, and telling the user how to
view a copy of this License. (Exception: if the Program itself is
interactive but does not normally print such an announcement,
your work based on the Program is not required to print an
announcement.)
ese requirements apply to the modied work as a whole.
If identiable sections of that work are not derived from the
Program, and can be reasonably considered independent and
separate works in themselves, then this License, and its terms,
do not apply to those sections when you distribute them as
separate works. But when you distribute the same sections
as part of a whole which is a work based on the Program, the
distribution of the whole must be on the terms of this License,
whose permissions for other licensees extend to the entire
whole, and thus to each and every part regardless of who wrote
it.
us, it is not the intent of this section to claim rights or contest
your rights to work written entirely by you; rather, the intent is
to exercise the right to control the distribution of derivative or
collective works based on the Program.
In addition, mere aggregation of another work not based on
the Program with the Program (or with a work based on the
Program) on a volume of a storage or distribution medium does
not bring the other work under the scope of this License.
3. You may copy and distribute the Program (or a work based
on it, under Section 2) in object code or executable form under
the terms of Sections 1 and 2 above provided that you also do
one of the following:
a) Accompany it with the complete corresponding machinereadable source code, which must be distributed under the
terms of Sections 1 and 2 above on a medium customarily used
for soware interchange; or,
b) Accompany it with a written oer, valid for at least three
years, to give any third party, for a charge no more than your
cost of physically performing source distribution, a complete
machine-readable copy of the corresponding source code, to
be distributed under the terms of Sections 1 and 2 above on a
medium customarily used for soware interchange; or,
c) Accompany it with the information you received as to the
oer to distribute corresponding source code. (is alternative
is allowed only for noncommercial distribution and only if you
received the program in object code or executable form with
such an oer, in accord with Subsection b above.)
e source code for a work means the preferred form of the
work for making modications to it. For an executable work,
complete source code means all the source code for all modules
it contains, plus any associated interface denition les, plus
the scripts used to control compilation and installation of
the executable. However, as a special exception, the source
code distributed need not include anything that is normally
distributed (in either source or binary form) with the major
components (compiler, kernel, and so on) of the operating
system on which the executable runs, unless that component
itself accompanies the executable.
If distribution of executable or object code is made by oering
access to copy from a designated place, then oering equivalent
access to copy the source code from the same place counts as
distribution of the source code, even though third parties are
not compelled to copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the
Program except as expressly provided under this License.
Anyattempt otherwise to copy, modify, sublicense or distribute
the Program is void, and will automatically terminate your
rights under this License. However, parties who have received
copies, or rights, from you under this License will not have
their licenses terminated so long as such parties remain in full
compliance.
5. You are not required to accept this License, since you have
not signed it. However, nothing else grants you permission to
modify or distribute the Program or its derivative works. ese
actions are prohibited by law if you do not accept this License.
erefore, by modifying or distributing the Program (or any
work based on the Program), you indicate your acceptance
of this License to do so, and all its terms and conditions for
copying, distributing or modifying the Program or works based
on it.
6. Each time you redistribute the Program (or any work based
on the Program), the recipient automatically receives a license
from the original licensor to copy, distribute or modify the
Program subject to these terms and conditions. You may not
E-32
impose any further restrictions on the recipients’ exercise of
the rights granted herein. You are not responsible for enforcing
compliance by third parties to this License.
7. If, as a consequence of a court judgment or allegation of
patent infringement or for any other reason (not limited to
patent issues), conditions are imposed on you (whether by
court order, agreement or otherwise) that contradict the
conditions of this License, they do not excuse you from the
conditions of this License. If you cannot distribute so as to
satisfy simultaneously your obligations under this License and
any other pertinent obligations, then as a consequence you
may not distribute the Program at all. For example, if a patent
license would not permit royalty-free redistribution of the
Program by all those who receive copies directly or indirectly
through you, then the only way you could satisfy both it and
this License would be to refrain entirely from distribution of
the Program. If any portion of this section is held invalid or
unenforceable under any particular circumstance, the balance
of the section is intended to apply and the section as a whole is
intended to apply in other circumstances. It is not the purpose
of this section to induce you to infringe any patents or other
property right claims or to contest validity of any such claims;
this section has the sole purpose of protecting the integrity of
the free soware distribution system, which is implemented
by public license practices. Many people have made generous
contributions to the wide range of soware distributed through
that system in reliance on consistent application of that system;
it is up to the author/donor to decide if he or she is willing to
distribute soware through any other system and a licensee
cannot impose that choice. is section is intended to make
thoroughly clear what is believed to be a consequence of the
rest of this License.
8. If the distribution and/or use of the Program is restricted in
certain countries either by patents or by copyrighted interfaces,
the original copyright holder who places the Program under
this License may add an explicit geographical distribution
limitation excluding those countries, so that distribution is
permitted only in or among countries not thus excluded. In
such case, this License incorporates the limitation as if written
in the body of this License.
9. e Free Soware Foundation may publish revised and/
or new versions of the General Public License from time to
time. Such new versions will be similar in spirit to the present
version, but may dier in detail to address new problems
or concerns. Each version is given a distinguishing version
number. If the Program species a version number of this
License which applies to it and “any later version”, you have
the option of following the terms and conditions either of that
version or of any later version published by the Free Soware
Foundation. If the Program does not specify a version number
of this License, you may choose any version ever published by
the Free Soware Foundation.
10. If you wish to incorporate parts of the Program into other
free programs whose distribution conditions are dierent,
write to the author to ask for permission. For soware which
is copyrighted by the Free Soware Foundation, write to the
Free Soware Foundation; we sometimes make exceptions for
this. Our decision will be guided by the two goals of preserving
the free status of all derivatives of our free soware and of
promoting the sharing and reuse of soware generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE
OF CHARGE, THERE IS NO WARRANTY FOR THE
PROGRAM, TO THE EXTENT PERMITTED BY
APPLICABLE LAW. EXCEPT WHEN OTHERWISE
STATED IN WRITING THE COPYRIGHT HOLDERS
AND/OR OTHER PARTIES PROVIDE THE PROGRAM
“AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND
PERFORMANCE OF THE PROGRAM IS WITH YOU.
SHOULD THE PROGRAM PROVE DEFECTIVE, YOU
ASSUME THE COST OF ALL NECESSARY SERVICING,
REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE
LAW OR AGREED TO IN WRITING WILL ANY
COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO
MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM
AS PERMITTED ABOVE, BE LIABLE TO YOU FOR
DAMAGES, INCLUDING ANY GENERAL, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING
OUT OF THE USE OR INABILITY TO USE THE PROGRAM
(INCLUDING BUT NOT LIMITED TO LOSS OF DATA
OR DATA BEING RENDERED INACCURATE OR LOSSES
SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE
OF THE PROGRAM TO OPERATE WITH ANY OTHER
PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply ese Terms to Your New Programs
If you develop a new program, and you want it to be of the
greatest possible use to the public, the best way to achieve this
is to make it free soware which everyone can redistribute and
change under these terms.
To do so, attach the following notices to the program. It is safest
to attach them to the start of each source le to most eectively
convey the exclusion of warranty; and each le should have at
least the “copyright” line and a pointer to where the full notice
is found.
One line to give the program’s name and a brief idea of what
it does.
Copyright (C) <year><name of author>
is program is free soware; you can redistribute it and/or
modify it under the terms of the GNU General Public License
as published by the Free Soware Foundation; either version 2
of the License, or (at your option) any later version.
is program is distributed in the hope that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied
warranty of MERCHANTABILITY or FITNESS FOR A
PARTICULAR PURPOSE. See the GNU General Public
License for more details.
You should have received a copy of the GNU General Public
License along with this program; if not, write to the Free
Soware Foundation, Inc., 59 Temple Place, Suite 330, Boston,
MA 02111-1307 USA
Also add information on how to contact you by electronic and
paper mail.
If the program is interactive, make it output a short notice like
this when it starts in an interactive mode:
Gnomovision version 69, Copyright (C) year name of author
Gnomovision comes with ABSOLUTELY NO WARRANTY; for
details type ‘show w’. is is free soware, and you are welcome
to redistribute it under certain conditions; type ‘show c’ for
details.
e hypothetical commands ‘show w’ and ‘show c’ should show
the appropriate parts of the General Public License. Of course,
the commands you use may be called something other than
‘show w’ and ‘show c’; they could even be mouse-clicks or menu
items--whatever suits your program.
You should also get your employer (if you work as a
programmer) or your school, if any, to sign a “copyright
disclaimer” for the program, if necessary. Here is a sample; alter
the names:
Yoyodyne, Inc., hereby disclaims all copyright interest in the
program ‘Gnomovision’ (which makes passes at compilers)
written by James Hacker.
signature of Ty Coon, 1 April 1989
Ty Coon, President of Vice
is General Public License does not permit incorporating
you program into proprietary programs. If your program is
subroutine library, you may consider it more useful to permit
linking proprietary applications with the library. If this is what
you want to do,
use the GNU Library General Public License instead of this
License.
English
E-33
E-34
product
guarantee
Worldwide Guarantee
is entitles you to have the unit repaired free of charge, during the rst two years aer
purchase, provided that it was originally purchased from an authorised Arcam dealer.
e Arcam dealer is responsible for all aer-sales service. e manufacturer can take no
responsibility for defects arising from accident, misuse, abuse, wear and tear, neglect or
through unauthorised adjustment and/or repair, neither can they accept responsibility
for damage or loss occurring during transit to or from the person claiming under the
guarantee.
The warranty covers:
Parts and labour costs for two years from the purchase date. Aer two years you must pay
for both parts and labour costs. e warranty does not cover transportation costs at any
time.
Claims under guarantee
is equipment should be packed in the original packing and returned to the dealer from
whom it was purchased. It should be sent carriage prepaid by a reputable carrier – not
by post. No responsibility can be accepted for the unit whilst in transit to the dealer or
distributor and customers are therefore advised to insure the unit against loss or damage
whilst in transit.
For further details contact Arcam at:
Arcam Customer Support Department,
Pembroke Avenue, Waterbeach, CAMBRIDGE, CB25 9QR, England
or via www.arcam.co.uk.
Problems?
If your Arcam dealer is unable to answer any query regarding this or any other Arcam
product please contact Arcam Customer Support at the above address and we will do our
best to help you.
English
On-line registration
You can register your product on-line at www.arcam.co.uk.
E-35
