7450502
GETTING STARTED

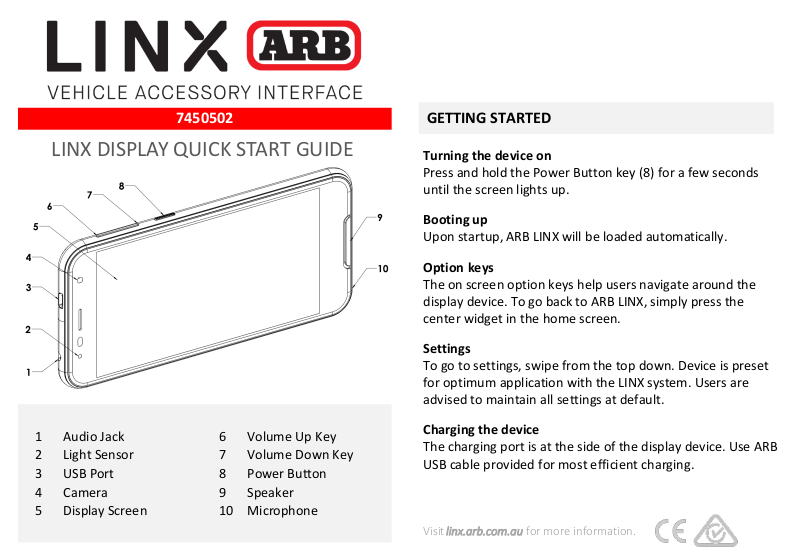

LINX DISPLAY QUICK START GUIDE
1 Audio Jack
2 Light Sensor
3 USB Port
4 Camera
5 Display Screen
6 Volume Up Key
7 Volume Down Key
8 Power Button
9 Speaker
10 Microphone
Turning the device on
Press and hold the Power Button key (8) for a few seconds
until the screen lights up.
Booting up
Upon startup, ARB LINX will be loaded automatically.
Option keys
The on screen option keys help users navigate around the
display device. To go back to ARB LINX, simply press the
center widget in the home screen.
Settings
To go to settings, swipe from the top down. Device is preset
for optimum application with the LINX system. Users are
advised to maintain all settings at default.
Charging the device
The charging port is at the side of the display device. Use ARB
USB cable provided for most efficient charging.
Visit linx.arb.com.au for more information.
LOCATING FCC E-LABEL ON THE DEVICE
Regulatory Information
To view regulatory marks and related information on the device, go to:
Settings > About phone > Regulatory information
Setting Menu
Step 1 Select ‘About Phone’
Step 2 Select ‘Regulatory information’
FCC ID is also applied in the battery compartment.
FCC ID
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
2AA2H-LINXD2
P/N
7450502
FCC RF Exposure Information and Statement
f USA
The SAR limit o
(FCC ID: 2AA2H-LINXD2) has also been tested against this SAR limit. SAR information on this and other pad
can be viewed onϋline at http://www.fcc.gov/oet/ea/fccid/. Please use the device FCC ID number for search. This
device was tested for typical body-worn operations with the back of the handset kept 10mm from the body. To
maintain compliance with FCC RF exposure requirements, use accessories that maintain a 10mm separation
distance between the user's body and the back of the handset. The use of belt clips, holsters and similar
accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy
these requirements may not comply with FCC RF exposure requirements, and should be avoided.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
(FCC) is 1.6 W/kg averaged over one gram of tissue. Device types LINX DISPLAY /
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
