Welcome to Macintosh

Congratulations on the purchase of your new Macintosh. Your computer is designed to give you the highest performance combined with real ease of use—it’s easy to set up, easy to use, a nd easy to expand. This book will guide you through the setup procedure, tell you how to expand your Macintosh, and provide many tips on using your new system.

Your Macintosh computer is powered by the new † microprocessor (or “chip”). This microprocessor was designed by Apple Computer, Inc., Motorola, Inc., and IBM Corporation. The † microprocessor uses Reduced Instruction Set Computing (RISC) technology to deliver very high performance at the lowest possible cost. The † RISC microprocessor represents the state of the ar t in microprocessor design.

Your new Macintosh will run almost all of your existing Macintosh software, but for best performance a nd greatest speed, look for the new software programs designed especially for computers that contain the † microprocessor. You’ll find † microprocessor–compatible programs at any software store that carries products for the Macintosh computer.

Macintosh Performa computer

Keyboard cable

(permanently attached

to the keyboard)

Keyboard

Mouse

Computer power cord

Follow the instructions in this

chapter to set up your computer

and learn the basics.

Getting Started

The illustration on the facing page shows all the equipment you will need to set up your computer and begin using it. Place your equipment on a sturdy, flat surface near a grounded wall outlet. Before following the setup instructions in this chapter, you may want to read “Arra nging Your Office” in Appendix A (in the section on health-related information) for tips on adjusting your work furniture so that you’re comfortable when using the computer.

If you used the setup poster: The poster included with your Macintosh Performa computer was designed to help you start using your computer as quickly as possible. This chapter contains more detailed information than the poster. If you have already set up your computer using the poster, you may want to turn to the section “What’s Next?” later in this chapter.

Plugging in the computer

Before you plug your Macintosh into a wall socket, carefully read all the setup instructions in this chapter. T hen, before you connect anything to your Macintosh, follow the instructions in this section to plug it in. The plug grounds the computer and protects it from electrical damage while you are setting up.

When you are ready to begin, follow these steps:

1 Place the computer where you want it.

Carry the computer with its screen facing you. Most of its weight is near the screen. Lift with your knees, not your back.

Chapter 1

2 Plug the socket end of the power cord into the recessed power plug (marked with the

symbol ≤) on the back of the computer.

Make sure at least one end of the power cord is within easy reach so that you can unplug the computer when you need to.

IMPORTANT

To protect both yourself and the computer from electrical hazards, the computer should remain turned off until you are finished connecting its parts. Check the power switch at the back of the computer. Make sure that the side of the switch marked with the j symbol is pressed in.

“Off” position

Power switch

Getting Started

3 Plug the other end of the power cord into a three-hole grounded outlet or power strip.

Socket end of the power cord

Power cord plug

WARNING

Macintosh is equipped with a three-wire groundi ng plug—a plug that has a third (grounding) pin. This plug will fit only a grounded AC outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact a licensed electrician to replace the outlet with a properly grounded outlet. Do not defeat the purpose of the grounding plug!

Installing an expansion card

If you purchased an expansion card for your Macintosh, install it now. (See Appendix B, “Installing an Expansion Card,” for instructions.) If you don’t have an expansion card, continue with the next section, “Connecting the Mouse and Keyboard.”

This equipment is intended to be electrically grounded. Your

Chapter 1

Connecting the mouse and keyboard

1 Plug the mouse cable into the recessed port on the back of the keyboard.

The plug and the port are marked with the ◊ icon (symbol). The positions of the port and icon on your keyboard may be different from those pictured.

By the way: A port marked with the ◊ icon is called an Apple Desktop Bus (ADB) port.

This cable plugs into the Apple Desktop Bus (ADB) port,

◊

marked with the

icon, on the back of the computer.

Plug the mouse into the recessed port on the keyboard. The flat part of the plug should be pointing down, as shown here.

Getting Started

2 Plug the keyboard cable into the port marked with the

◊

icon on the back of the

computer.

ADB port

If you use a second monitor in addition to the one built into your computer, it may also have a port to which you can connect the keyboard or mouse. See the information that came with the monitor.

3 If you want to adjust the keyboard angle, lower the feet on the keyboard.

To adjust the keyboard angle, lower the feet until they snap into position.

Chapter 1

Adjusting the angle of the screen

You can adjust the angle of the screen to avoid glare and reflections by using the computer’s tilt-and-swivel base. Turn the computer to either side or tilt it slightly back or forward.

For more information on setting up your office for comfort and safety, see Appendix A, “Health, Safety, and Maintenance Tips.”

Connecting other equipment

If you are new to the Macintosh, it’s a good idea to get some experience using your computer before you connect other equipment, such as a printer or scanner. To learn basic Macintosh skills, continue with the instructions in this chapter.

When you’re ready to connect other equipment to your Macintosh, see the instructions in Chapter 3.

Getting Started

Turning the computer on for the first time

To turn the computer on for the first time, follow these steps:

1 On the back of the computer, press the side of the power switch marked with the

symbol i.

2 Press the Power key (marked with a triangle) on your keyboard.

You hear a tone from the computer as it starts up.

Chapter 1

3 Check to see what’s on your screen.

m You will see a welcome screen that gives you a choice about what you want

to do next. m If you’re new to the Macintosh or would like some review of the basics,

you’ll want to go through the Performa Tutorial, a program that teaches how to use your computer. Press the Return key on your keyboard to go to the tutorial.

m If you already know how to use your Macintosh and you don’t want to

use the tutorial, you can leave the welcome screen (by clicking Go To Desktop) and go to the Macintosh desktop.

m When you see the Macintosh desktop, as in the illustration below, your

computer is ready to use. Skip now to the section “What’s Next?” later in this chapter.

Hard disk icon

Your Launcher has

more items in it

than are shown in

this illustration.

Macintosh desktop

m If you see a blinking question mark, or nothing at all, see the next section,

“Problems Starting Up?”

Getting Started

Problems star ting up?

If the screen is dark, check these items to see if you can identify the problem:

m Is the computer turned on? The power-on light on the front of the

computer should be on. Make sure the side of the power switch marked with the symbol i (on the back of the computer) is pressed in.

m Is the power cord connected to the computer, and is the cord plugged

into a power source?

m If the computer is plugged into a power strip, is the power strip

turned on a nd plugged in?

m Are the keyboard and mouse cables connected correctly? (Don’t

disconnect the keyboard or mouse cable while the computer is on. You could damage your equipment.)

m Are the screen control buttons on the front of the computer (marked

with the ¸ icon) adjusted correctly?

m If you have an external hard disk attached to your computer, is that

hard disk turned on? Was it turned on before you turned on the computer? If you’re not sure, turn everything off. Then tur n on the external hard disk before you turn on your computer.

What’s next?

Chapter 1

If you see a blinking question mark on the screen, turn to “Solutions to Common Problems” in Chapter 6.

Congratulations! You’ve finished setting up your computer. Now continue with one of the following steps:

m If you are new to the Macintosh, see the next section, “Learning the Basics.” m If you are an experienced Macintosh user, turn to Chapter 2, “Getting

Help,” to learn about Macintosh Guide, your main source of information when you’re working with the Macintosh.

m If you want to connect other equipment, such as a printer, to your

computer, see Chapter 3, “Expandi ng Your Computer and Using Special Features.”

m If you want to install application software on your computer, see Chapter 4

of this book for information on setting up your programs and managing memory. You’ll need this information to properly set up any software programs specifically designed for computers with PowerPC microprocessors.

Before you begin working with your computer, b e sure to read the important health and safety information in Appendix A.

IMPORTANT

“Turning the Computer Off” later in this chapter. It is very important to use the correct procedure for shutting down your Macintosh before turning it off.

Learning the basics

If you are new to the Macintosh, you should begin by looking at the easyto-use program called Performa Tutorial. The tutorial teaches you the basic skills you’ll need to use your computer. To start the tutorial once you are past the introductory screens, follow these steps:

1 Slide your mouse along your mouse pad or desk.

Hold the mouse as shown, with the cable pointing away from you. Don’t press the mouse button (under your index finger). Notice that the arrow (8) on the screen moves in the same direction that you move the mouse.

If you need to turn off your computer at any point, please see

If the arrow doesn’t move, make sure that the cables connecting the mouse and keyboard are secure and that your mouse is positioned as shown in the illustration.

Getting Started

2 Move the mouse so that the arrow (

) is over the picture labeled “Performa Tutorial.”

If you don’t see the Performa Tutorial picture on your screen, put the ar row on the word “Learning” and click (press and release) the mouse button.

If you run out of room on your mouse pad or desk while moving the mouse, pick up the mouse and place it where there’s more room. (The arrow on the screen moves only when the mouse is in contact with the mouse pad or desk.)

3 Without moving the mouse, click the mouse button.

A window appears welcoming you to the tutorial. You can set this book aside for now and follow the instructions on the screen. When you have completed both parts of the tutorial, return to this book.

Chapter 1

Reviewing the basics

You can use the following illustrations to review the elements you use on your screen to do work with your computer.

Menus

Icons

Window

The strip across the top of the screen is called the menu bar. Th e symbols and words in it represent menus of commands. To open a menu, place the pointer on the symbol or word for the menu and press the mouse button.

Guide menu

To find an answer to a question,

look in the Guide (

) menu.

Application menu

You can have several application programs open at once. To see which program is active or to switch from one program to another, use this menu (called the Application menu).

Getting Started

Icons

Icons are small pictures that represent disks, programs, documents, and folders. You can double-click any icon to open it and see what it contains.

This icon represents your computer’s internal hard disk.

Icons like this one represent application programs, which you use to create documents and do other work.

Icons like this one represent documents, which you can create and edit.

Icons like this represent folders. A folder contains other icons.

To throw away an item you no longer want, drag it to the Trash icon and choose Empty Trash from the Special menu.

Windows

Windows are boxes that display text, graphics, or icons. To change the shape or position of a window, or to close the window, use the elements shown here.

To bring a partially

covered window

to the front, click

anywhere in it.

Chapter 1

Close box

To close a window, click the close box.

Title bar

To move a window, drag it by the middle of the title bar (anywhere in the bar except the small box on each end).

Scroll arrow

To bring hidden portions of a window’s contents into view, click one of the four scroll arrows.

Size box

To change the shape or size of a window, drag the size box.

Turning the computer off

To turn the computer off:

1 Press the Power key (marked with a triangle) on the keyboard.

You will see a message asking whether you want to shut down or continue working.

2 Click Shut Down.

You can also turn off your computer by choosing Shut Down from the Apple (K) menu. Detailed instructions follow. (Note: The Shut Down command is also available in the Special menu.)

1 Move the tip of the arrow to the Apple ( 2 With the tip of the arrow on the apple, press and hold down the mouse button. 3 While holding down the mouse button, move the arrow down the list of choices until the

words “Shut Down” are highlighted, then release the mouse button.

Turning the computer on

To turn on the computer after you’ve shut it down (using either the Power key on the keyboard or the Shut Down command):

) menu at the top left of the screen.

Press the Power key (marked with a triangle) on the keyboard.

Leave the power switch on the back of your computer in the “on” position. (The side of the switch marked with the i symbol should be pressed in.)

Getting Started

Where to find answers

When you have questions about using your Macintosh, there are several places you can look for answers.

In this book

Macintosh Performa

User’s Guide

Use this book to help you set up your computer and learn about it, or to find solutions to problems with your equipment.

In the Guide menu

The Guide menu (marked with the hicon) is your main source of information about the Macintosh. To learn how to get different kinds of help from the Guide menu, see Chapter 2 in this book.

In other manuals

For answers to questions about other equipment or about application programs you have purchased, see the manuals that came with the equipment or programs.

From the Read Me files in the Apple Extras folder

The Apple Extras folder (in your System Folder) on your hard disk contains SimpleText documents with important information about some of the application programs included with your computer.

From Apple’s customer support hotline

Chapter 1

If you can’t find an answer in any of the materials provided, call the customer support hotline. The phone number for the hotline is in the service and support information that came with your computer.

Note:

If you have problems with an application program not

( published by Apple, call the program’s publisher. Click the Phone Numbers button in the Service/Support area of the Launcher to get a software publisher’s phone number.)

Use the instructions in this

chapter to learn about the help

available to you in the Guide menu.

Getting Help

The Guide menu is your main source of information when you’re working with your computer. The menu is identified by a question mark (h) in the upper-right corner of the screen.

Getting answers to your questions

When you have a question while working with your computer, you can get the answer by choosing Macintosh Guide from the Guide menu.

1 Pull down the Application menu (in the upper-right corner of the screen) and choose

Finder to make it the active application program.

A checkmark in the menu indicates that the Finder is the active program.

2 Pull down the Guide menu (marked with the

icon) and choose Macintosh Guide.

The Macintosh Guide window appears.

Whenever you use Macintosh Guide, its window remains in front of other windows. If the window gets in your way, you can move it by dragging its title bar (the gray bar across the top of the window).

Chapter 2

3 Notice the three buttons at the top of the window: Topics, Index, and Look For.

Macintosh Guide gives you three ways of finding information:

Topics

lets you choose from a list of general subjects; it is like the table of

contents in a book.

Index

lets you choose from an alphabetical list of more specific subjects; it

is like the index in a book.

Look For

lets you search for information related to a specific word or phrase

that you type. In the following sections you will practice using each method. If you have problems while using Macintosh Guide, see “Tips for Using

Macintosh Guide” later in this chapter.

Getting answers with the Topics button

1 In the Macintosh Guide window, click the Topics button.

A list of general topics appears on the left side of the Macintosh Guide window. (Depending on the hardware and software you have, the list of topics may look different.)

Getting Help

2 Click “Setting Options” in the list of topics.

When you click any topic area, a list of related questions appears on the right side of the Macintosh Guide window.

To get instructions, click a question…

…and then click OK.

3 Click the question “How do I set the time and date?” and then click OK. Or double-click

the question.

A small window appears with instructions for you to follow.

If you want to

return to the main

Macintosh Guide

window, click here.

4 Read and follow the instructions in this window.

5 When you have completed all the steps, click the Topics button in the lower-left corner to

Chapter 2

Click here to see the next step (if there is one).

Macintosh Guide provides step-by-step instructions to answer the question you selected. When you have completed each step, click the right arrow in the lower-right corner to see the next step.

return to the main Macintosh Guide window.

Now continue with the next section.

Getting answers with the Index button

1 In the Macintosh Guide window, click the Index button.

An alphabetical list of subjects appears on the left side of the window.

Slider

Scroll bar

2 Scroll through the alphabetical list until the phrase “background pattern” is visible.

You can scroll through the list either by dragging the slider to the letter B or by using the scroll bar at the right of the list.

3 Click the phrase “background pattern” in the alphabetical list.

When you click any index entry, a list of related questions appears on the right side of the Macintosh Guide window.

To get instructions, click a question…

…and then click OK.

Getting Help

4 Click the question “How do I change the background pattern?” and then click OK. Or

If you want to

return to the main

Macintosh Guide

window, click here.

5 Read and follow the instructions in the window.

6 When you have completed all the steps, click the Topics button in the lower-left corner to

double-click the question.

A small window appears with instructions for you to follow.

Click here to see the next step (if there is one).

Macintosh Guide provides step-by-step instructions to answer the question you selected. When you have completed each step, click the right arrow in the lower-right corner to see the next step.

return to the main Macintosh Guide window.

Now continue with the next section.

Chapter 2

1 In the Macintosh Guide window, click the Look For button.

To activate the text

box, click here.

Type a word or phrase

in the text box…

…and then click here.

2 Click the arrow button to activate the text box. 3 Type “sound” in the text box and then click Search.

Getting answers with the Look For button

A small box appears on the left side of the window, where you can type text.

When you click Search, a list of questions related to the word or phrase you typed appears on the right side of the Macintosh Guide window.

To get instructions, click a question…

…and then click OK.

Getting Help

4 Click the question “How do I change the beep sound?” and then click OK. Or double-

If you want to close

Macintosh Guide,

click here.

5 Read and follow the instructions in the window.

6 When you have completed all the steps, click the close box in the upper-left corner to

click the question.

A small window appears with instructions for you to follow.

Click here to see the next step (if there is one).

Macintosh Guide provides step-by-step instructions to answer the question you selected. When you have completed each step, click the right arrow in the lower-right corner to display the next step.

close Macintosh Guide.

Chapter 2

Tips for using Macintosh Guide

Here are a few tips for using Macintosh Guide effectively:

m Macintosh Guide is available only when you are in the Finder—the

desktop area where you can see the icons of disks, folders, and files. (Other programs may also have help available in the Guide menu, however.) If you don’t see Macintosh Guide in the Guide menu, pull down the Application menu (to the right of the Guide menu) and choose Finder.

m Follow the steps when you’re instructed to; don’t skip ahead or read

ahead. That way the computer can check to make sure you’ve done a step correctly.

m Unlike most windows, the Macintosh Guide window stays in front of

other windows on the screen so that your instructions are never covered. If you need to move the Guide window out of the way, drag it by the title bar at the top of the window.

You can also move the window out of the way by clicking the zoom box. Click the box once to shrink the window; click it a second time to expand the window to its original size.

m If you need more information about an instr uction or a term, click the

button labeled “Huh?” to get further explanation. (The “Huh?” button is dimmed when no additional information is available.)

m If you want to return to the main Macintosh Guide window, click the

Topics button in the lower-left corner of the Guide window.

m When you’re finished using Macintosh Guide, click the close box in

the upper-left corner of the window.

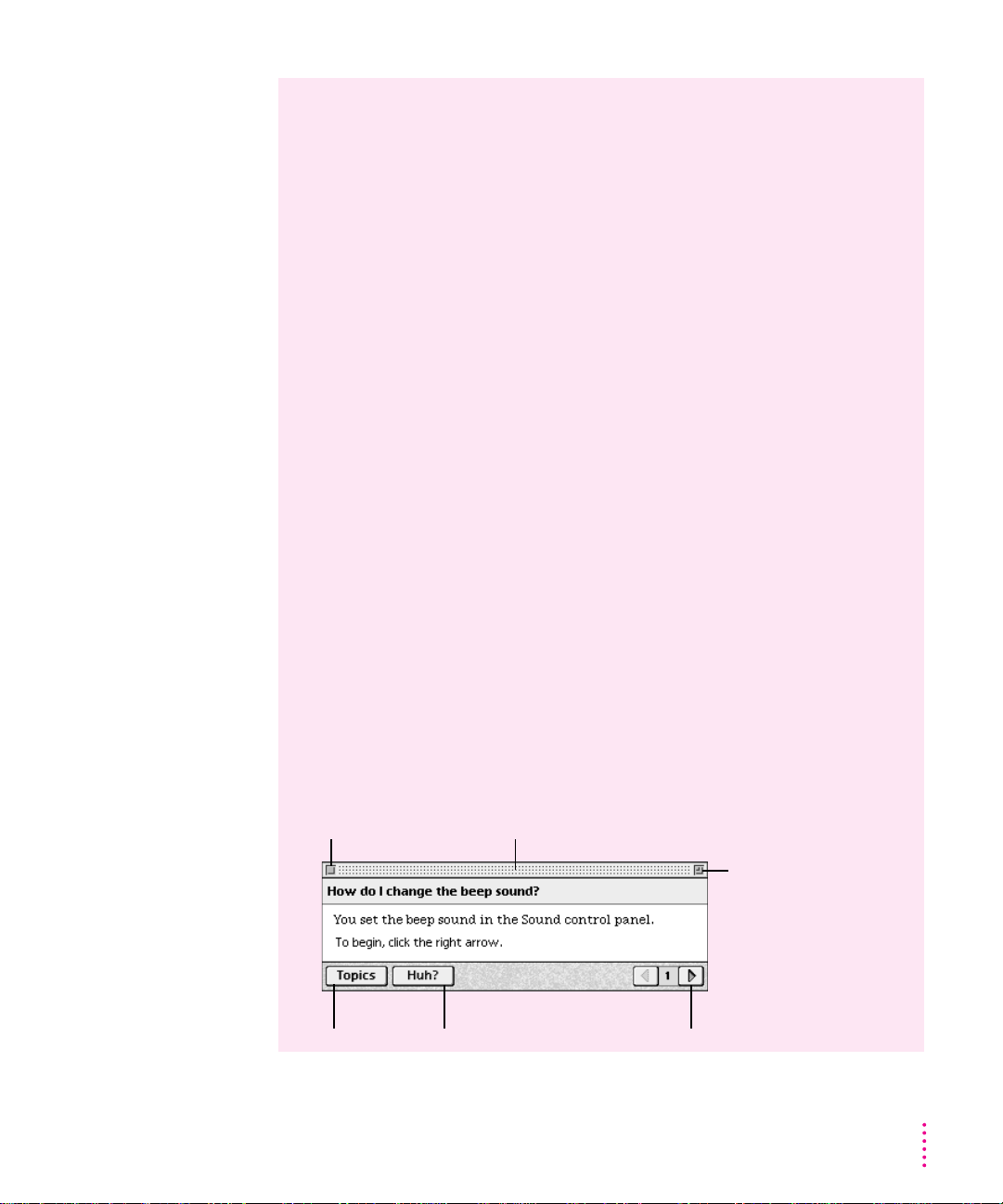

Close box

Topics button

“Huh?” button

Title bar

Zoom box

Right arrow

Getting Help

Identifying objects on the screen

Sometimes you’ll see an unfamiliar item on the screen and ask yourself, “What’s that?” You can get an answer by using a Macintosh feature known as Balloon Help.

Balloon Help explains the function of icons, menus, commands, and other items on the Macintosh screen in balloons like those you see in comic strips.

Follow these steps to use Balloon Help:

1 Pull down the Guide menu (marked with the

2 Point to any object on the screen that you want to identify.

icon) and choose Show Balloons.

A balloon appears next to the object. In the following illustration, for example, pointing to the Trash displays a balloon that explains how to use the Trash to throw items away.

Although balloons appear next to items when you point to them, the way you work does not change; you can still select icons, choose commands, and so on.

3 When you’re finished using Balloon Help, choose Hide Balloons from the Guide menu.

Chapter 2

Learning u seful shortcuts

You can perform many tasks in the Finder more quickly if you use keyboard or mouse shortcuts. For example, instead of clicking an icon and choosing Open from the File menu, you can simply double-click the icon to open it.

Follow these steps to learn keyboard and mouse shortcuts:

1 Pull down the Guide menu (marked with the

2 Click one of the category buttons.

If you want to

close the window,

click here.

icon) and choose Shortcuts.

The main Macintosh Shortcuts window appears.

Another window appears, describing shortcuts for that category.

Click here to return to

the main Macintosh

Shortcuts window for

more categories.

Click here to see the next window (if there is one).

Getting Help

3 Read about the shortcuts available for the category you selected.

Click the right arrow in the lower-right corner of the window to display the next window (if there is one).

4 When you finish reading about the shortcuts for your category, click the Topics button in

the lower-left corner to return to the main Macintosh Shortcuts window. Or click the close box in the upper-left corner to close the window.

Chapter 2

Read this chapter for information on expanding

your computer system with additional hardware

and using special features of your computer.

Expanding Your Computer

and Using Special Features

Read this chapter to learn how to connect additional equipment to your Macintosh. Also read this chapter to learn about some of the special features of your Macintosh:

m using the sound control buttons m using the screen control buttons m using the built-in microphone

Your computer at a glance

This illustration shows your Macintosh Performa system. You can expand your computer system by connecting additional hardware (such as a printer, modem, or scanner).

Built-in microphone Color display

Your built-in monitor can

CD-ROM drive

display thousands of colors.

CD-ROM drive Open/Close button

Screen control buttons

Use these buttons to lighten or darken your screen.

Stereo speakers

Tilt-and-swivel base

Remote control sensor

Power-on light

A green light indicates that the computer is on.

Keyboard

Headphone jack

Floppy disk drive

Sound control buttons Use these buttons to

change the volume of the computer’s sound.

Power key

Use this key to turn your computer on and off.

Mouse

Chapter 3

Connecting additional equipment

The illustration on this page shows where equipment should be connected to your computer.

For instructions on connecting equipment such as a printer or scanner, see the manual that came with the equipment.

SCSI port

Connects your Macintosh to SCSI equipment, such as external hard disk drives and scanners.

Power switch

≤

Power socket

Video input card (optional)

Connects your Macintosh to a video camera, VCR, or other video equipment.

Apple Desktop

Bus (ADB) port

Connects your Macintosh to an input device, such as a keyboard or a trackball.

[

Printer port

Connects your Macintosh to a printer or LocalTalk network.



Modem port

Connects an external modem to your Macintosh.

Hard disk drive (internal)



TV tuner card (optional) Connects your Macintosh to an external TV antenna or cable TV service.

External video connector (optional)

Connects your Macintosh to a presentation system or a second monitor for video mirroring.

LC-PDS card access cover

Covers port for optional LC-processor-direct slot (LC-PDS) expansion card. 

Internal modem (optional) You may have an internal modem or other communication card installed.

Sound output port

Connects your Macintosh to sound output equipment, such as externally powered (amplified) speakers. 

Sound input port

≈

Connects your Macintosh to another audio source, such as a compact disc or audio cassette player. 

Security lock port

If your computer has an internal modem, this port is covered. Don’t remove the cover or connect anything to this

port if you have an internal modem.

Expanding Your Computer and Using Special Features

Using the sound control buttons on your computer

There are two sets of buttons on the front of your Macintosh. The set on the right (marked with the - icon) is for sound control. You can use these buttons to increase or decrease the volume of the sound your Macintosh plays:

m Press the button on the right to make the sound louder. m Press the button on the left to make the sound softer.

Sound control buttons

You can also adjust the sound by using the Sound control panel. For more information about adjusting sound, see the “Sound” topic of Macintosh Guide, available in the Guide (h) menu.

Chapter 3

Using the screen control buttons on your computer

You can adjust the level of light and dark on the screen of your built-in monitor by using the screen control buttons on your computer (marked with the ¸ icon).

m Press the button on the right to lighten your screen. m Press the button on the left to darken your screen.

Screen control buttons

Expanding Your Computer and Using Special Features

Using th e built-in microphone

Your Macintosh comes with a built-in microphone for recording live sounds. The microphone is highly sensitive. Once you’ve turned it on (which you do with a sound-recording application program), it can pick up sounds within a range of several feet. For information on recording sound, see the “Sound” topic of Macintosh Guide, available in the Guide (h) menu.

Built-in microphone

Chapter 3

WARNING

Do not stick any small objects into the built-in microphone.

Doing so may damage your equipment.

Expanding memory

You can install additional random-access memory (RAM) in your computer, which allows you to work with more programs and larger documents. Additional memory comes on memory chips (also called SIMMs). The Technical Information booklet that came with your computer describes how much additional memory can be installed in your Macintosh.

WARNING

only an Apple-certified technician install additional RAM. Consult the service and support i nformation that came with your computer for instructions on how to contact an Apple-authorized service provider or Apple for service. If you attempt to install additional RAM yourself, any damage you may cause to your equipment will not be covered by the limited warranty on your computer. See an Apple-authorized dealer or service provider for additional information about this or any other warranty question.

To avoid damage to your computer, Apple recommends that

Replacing internal storage devices

Your Macintosh comes with three internal storage devices—a floppy disk drive, a CD-ROM (compact disc read-only memory) drive, and a hard disk drive (several capacities are available). If you want to replace your internal drive, see your Apple-authorized dealer.

Adding an Ethernet card or a second monitor

If you purchase an Ethernet card or another monitor for your computer, see Appendix D, “If You Purchase Additional Equipment,” for more information.

Expanding Your Computer and Using Special Features

Read this chapter to learn how to work

with application programs and protect

the information on your disks.

Using Programs and Backing Up Disks

Your computer came with several application programs already installed. You can open these programs by clicking their buttons in the Launcher.

The Apple Extras folder on your hard disk (and on the Macintosh Performa CD) contains additional programs, including the following:

m QuickDraw GX gives your computer more powerful printing and font

capabilities. You’ll want to install QuickDraw GX only if you purchased

another program that requires it. Your computer needs at least 8 megabytes

of random-access memory (RAM) to use QuickDraw GX. You can install

QuickDraw GX by openi ng the QuickDraw GX folder and double-clicking

the Installer icon. m PowerTalk provides an open collaboration environment with a universal

mailbox and other electronic mail services. You’ll want to install PowerTalk

only if you use your computer on a local area network (connected to other

computers) and if you purchased another program that requires it. Your

computer needs at least 8 megabytes of RAM to use PowerTalk. You can

install PowerTalk by openi ng the PowerTalk folder and double-clicking the

Installer icon. m Apple Video Player lets you watch video or TV on your computer. With

Apple Video Player and a video input card, you can watch video on your

computer. With Apple Video Player, a video input card, and a TV tuner

card, you can watch video and TV. For instructions on using Apple Video

Player, open Apple Video Player and then choose Apple Video Player Guide

from the Guide (h) menu.

Installing application programs

You may want to buy and install additional application programs. See the manuals you receive with your programs for instructions on installing and using them.

In most cases, you’ll i nstall an application program on your internal hard disk from floppy disks that contain the program. The following illustration shows how to insert a floppy disk in your computer’s floppy disk drive.

Insert the floppy disk, metal end first, into the floppy disk drive of your computer.

For instructions on how to eject floppy disks, see the “Disks” topic of Macintosh Guide, available in th e Guide (h) menu.

To use your programs most effectively, follow these guidelines: m Put only one copy of each program on your hard disk. Having more than

one copy can cause errors.

m Whenever you copy a program disk to your hard disk, be careful not to

copy a System Folder. Always check to see what you’ve copied, and drag any extra System Folders to the Trash.

m If you have problems using a program, read the manuals you received with

the program.

m If a program malfunctions consistently, try i nstalling a fresh copy. If that

doesn’t help, find out from the software ma nufacturer whether your version of the program is compatible with your computer model and the system software you’re using.

To put a program into the Launcher, simply drag the program’s icon (or its alias) into the Launcher window, or onto the Applications category button in the Launcher.

Chapter 4

Working with several programs at a time

You can open as many application programs and desk accessories as your computer’s memory allows.

All open programs are listed in the Application menu at the right end of the menu bar. The name of the active program (the one you’re using right now) has a checkmark next to it, and its icon appears in the menu bar.

The Finder icon Commands to hide or

display open windows

A checkmark

indicates the active

program.

Programs that are open

Finding out which programs are open

If you have several programs and windows open, you can find out which program is active and which other programs are open by pulling down the Application menu.

Switching programs

You can switch to another open program or desk accessory by choosing its name from the Application menu.

If a program’s icon is dimmed in the menu, that means its windows are hidden. Choosing the program from the Application menu displays its windows.

You can also switch to another program by clicking in a window that belongs to an open program, by double-clicking a program icon, or by double-clicking the icon of a document that was created with the program.

Using Programs and Backing Up Disks

Hiding and showing windows on the desktop

You can hide all windows except those of the active program by choosing Hide Others from the Application menu.

The other programs remain open even though their windows are hidden. When you switch to another program, its windows become visible again.

If you want to see all the open windows, choose Show All from the Application menu.

Protecting the information on a disk

When you have a valuable document like a birth certificate, you probably make an extra copy of it for safekeeping. Similarly, you should make a copy of the documents you create on your computer. The extra copy is called a backup, and the process of making the copy is called backing up.

Once you have a backup, you’re protected from accidentally losing the information on your hard disk. In the unlikely event that something happens to your hard disk, you can easily get the information back.

Your computer’s hard disk comes with a lot of valuable information already stored on it, including system software and some application programs. The Macintosh Performa CD contains a backup copy of all the system software and application programs that came with your computer. See the Macintosh Performa CD booklet for instructions on using the CD to reinstall software.

Making backup copies of your documents

m You should regularly make copies of the documents you create. m You can back up files stored on your hard disk by copying them to

floppy disks.

m You can back up an entire floppy disk by copying it to another floppy disk

of the same capacity or larger, or by copying it to a hard disk.

m You can use a commercial backup program to copy new and changed files

from a hard disk to another hard disk, to a tape drive, or to a series of floppy disks.

m If your computer is on a network, you may be able to back up files by

copying them to a shared disk on the network.

Chapter 4

Restoring the information on your hard disk

If information on your hard disk becomes damaged or lost, you can restore it if you have a backup copy of the information. The Macintosh Performa CD contains copies of all the system software and application programs that came with your computer. See the Macintosh Performa CD booklet for instructions on using the Macintosh Performa CD.

Using Programs and Backing Up Disks

Using application programs designed for the PowerPC microprocessor

Your Macintosh is compatible with most application programs intended for use with Macintosh computers. But certain programs are designed especially for use with computers that have the PowerPC microprocessor. (Th ese programs are sometimes called “native” applications.) You’ll find that these programs take best advantage of your computer’s speed.

Special memory requirements

Some native applications may be slightly larger than other programs and may take up more memory. If you find that you are running out of memory when you use one of these programs, you can use space on your computer’s hard disk as additional memory. For instructions on how to use hard disk space as memory, see the “Memory” topic of Macintosh Guide, available in the Guide (h) menu.

You can also add more memory to your computer, as described in “Expanding Memory” in Chapter 3.

Using older Macintosh programs

If you experience problems using an older Macintosh program, it may be incompatible with your Macintosh. You may be able to use your older program if you change the Moder n Memory Manager setting in your Memory control panel. For detailed instructions on using older programs with your Macintosh, see the “Working with Programs” topic of Macintosh Guide, available in the Guide (h) menu.

Chapter 4

Read this chapter for information about your computer’s built-in CD-ROM drive.

Using the CD-ROM Drive

This chapter provides information on the CD-ROM drive (also called a CD-ROM player). Refer to Appendix A, “Health, Safety, and Maintenance Tips,” for information on the proper handling of these discs.

Your internal CD-ROM (Compact Disc Read-Only Memory) drive for Macintosh computers works with CD-ROM discs, standard audio compact discs (CDs), and single-session or multisession Photo CDs. Your CD-ROM drive provides access to large amounts of information. However, you cannot save information on CD-ROM discs. ROM stands for read-only memory, meaning that the drive cannot “write” i nformation onto CD-ROM discs.

A wide selection of CD-ROM discs is available for entertainment, education, and business. A typical disc can hold over 650 megabytes (MB) of information—the equivalent of 270,000 pages of text, up to 8 hours of speech or music (depending on the sound quality), hundreds of highresolution images, or any combination of text, sound, and graphics.

Inserting a CD-ROM disc

Follow these instructions to insert a CD-ROM disc into your CD-ROM drive. Then follow the instructions provided with your disc, as well as the instructions in this manual.

1 Start up your Macintosh computer, if it’s not already on. 2 Press the Open/Close button to open the tray of the CD-ROM drive.

The tray opens.

3 Place a CD-ROM disc in the tray, with the disc label facing up.

Make sure the disc is lying flat and centered in the tray. If you are using a small (8cm) disc, make sure it is centered within the inside ring on the tray.

Open/Close button

4 Push the tray in, or press the Open/Close button, to close the tray.

In a few moments, an icon for the CD-ROM disc appears on your screen.

Chapter 5

Ejecting a CD-ROM disc

Follow these instructions to open the tray and eject a CD-ROM disc from your computer.

IMPORTANT

You may not be able to eject a disc if it is being shared. To tur n

off file sharing, use the Sharing Setup control panel.

1 Open the tray.

There are several ways to open the tray of your CD-ROM drive.

If a CD-ROM disc icon appears on your screen:

m Select the disc icon on your screen and drag the icon to the Trash. m Click the disc icon, then choose the Put Away command in the File menu. m While the AppleCD Audio Player window is active, choose Eject CD from

the File menu, or simultaneously press the x and E keys. (AppleCD Audio

Player is a program that allows you to control your CD-ROM player and is

available in the Apple [K] menu.)

If no CD-ROM disc icon appears on your screen:

m Press the Op en/Close button for your CD-ROM drive.

2 Take the CD-ROM disc out of the tray.

Store your disc in a safe place, away from heat, dust, and moisture.

3 Push the tray in, or press the Open/Close button, to close the tray.

To avoid possible damage to the tray or the CD-ROM drive, keep the tray closed when you are not using it.

Using the CD-ROM Drive

Types of compact discs you can use

Not all CD-ROM discs store information in the same way. A disc stores and displays information according to a given file format. Your computer’s system software must understand the file format in order to use the contents of the disc.

Standard file formats

You can use CD-ROM discs with these standard file formats: m HFS (Hierarchical File System)—the standard format used by the

Macintosh.

m ISO 9660—the Inter national Standards Organization’s file format for

CD-ROM discs. This format has been adopted by many CD manufacturers to make their discs compatible with a variety of computers. It is also the format that allows you to use Photo CDs in your CD-ROM drive.

m The High Sierra format, a predecessor of the ISO 9660 format. m Photo CDs m Audio CDs

The software that lets you use discs with these file formats is already installed on your computer.

Other CD-ROM formats

Your CD-ROM drive also works with file formats other than the ones listed above (for example, CD-ROM XA), provided that you install the appropriate software on your Macintosh. To find out about the availability of Macintosh software for additional file formats, contact the publisher of a particular disc.

Audio CDs

Your CD-ROM drive can play audio CDs and audio tracks on CD-ROM discs using your computer’s built-in speaker. You can also attach headphones or speakers to your computer for stereo sound. For further information, see the “CD-ROM Discs” topic of Macintosh Guide, availabl e in th e Guide (h) menu.

Chapter 5

Photo CDs

With your CD-ROM drive, you can use QuickTime to open digitized images stored on Photo CDs.

For further information on Photo CDs, see the “CD-ROM Discs” topic of Macintosh Guide, available in th e Guide (h) menu.

Playing audio CDs

With your CD-ROM drive and your computer’s built-in speaker, you can play audio compact discs (CDs) or audio tracks on CD-ROM discs. You can also attach headphones or speakers to the computer to listen to audio CDs and audio tracks. See Chapter 3 for information on connecting sound equipment to your computer.

To start, stop, and otherwise control audio discs, use the AppleCD Audio Player program, available in the Apple () menu. Your audio CD software will only play tracks that contain audio information. You can listen to an audio CD or audio tracks in the background while you do other work on your computer. For more information about playing audio CDs, see the “CD-ROM Discs” topic of Macintosh Guide, available in the Guide (h) menu.

You can listen to an audio CD or CD-ROM disc with audio tracks in the background while you use your computer for other work.

Using the CD-ROM Drive

Working with Photo CDs

You can use your CD-ROM drive to open Photo CD images stored on Photo CDs. A Photo CD image is a digitized version of a standard photograph that you can open and view on your computer screen.

You can do many things with the images on your Photo CDs:

m Open and view the images individually on your computer screen. m View the images on your computer screen in a series, as you would view

a slide presentation.

m Copy and save the images, print them, paste them into word-processing

documents or other documents that accept graphics, and edit them with a graphics application program.

Photo CD images are an excellent source of graphics for desktop publishing, multimedia presentations, business documents, and professional-quality graphic design. For more information on working with Photo CD images, see the “CD-ROM Discs” topic of Macintosh Guide, available in the Guide (h) menu.

Chapter 5

Obtaining Photo CDs

Your own photographs can be recorded as Photo CD images on a Photo CD. To obtain a Photo CD of your own photographs, take your standard 35-mm film to a photofinisher who has a Photo CD system. The photofinisher develops your film, digitizes the photographs, and gives you back a Photo CD containing your Photo CD images. A single Photo CD can hold approximately a hundred images.

If your Photo CD isn’t full, you can take it back to the photofinisher and have more photos added until the disc is full. Such discs are called multisession discs because they contain images added after the first session. Your CD-ROM drive can read both single-session and multisession Photo CDs. (Other CD-ROM drives can read only single-session discs and are unable to read the additional images placed on a multisession disc.)

Before viewing the contents of a Photo CD

Normally, you open Photo CD images with the SimpleText program that came with your computer. If you wish, you can use a graphics or image-editing program instead of SimpleText to open images. For instr uctions, see the “Working with Programs” topic of Macintosh Guide, available in the Guide (h) menu. If you use SimpleText to view high-resolution images, you should increase the amount of memory that SimpleText uses. For more information on memory, see the “Memory” topic of Macintosh Guide, available in the Guide (h) menu.

A note ab ou t res olution

When a Photo CD image is created, it’s recorded at five different levels of resolution. The higher the resolution, the more information is recorded about the image, a nd the sharper the image appears when displayed or printed at larger sizes. However, high-resolution images take up a lot of memory—up to 18 MB of data for one photograph—which affects file size, as well as the amount of time it takes to display or print an image.

It’s best to work with a resolution appropriate for your monitor or printer. Some monitors and printers cannot display or print very high-resolution images.

Using the CD-ROM Drive

For most work, a resolution of 768 x 512 pixels or smaller is suitable. For detailed work or very high-quality reproductions, you may want to use a higher resolution.

Make sure to open high-resolution images with application programs designed to handle large image files. SimpleText cannot open very large files.

Sharing a CD-ROM disc over a network

You can share a CD-ROM disc using the file-sharing feature of System 7.5. If the disc has audio portions, you will be able to hear the audio yourself, but other people on the network will not. Likewise, you cannot hear the audio portions of discs you access over a network.

For further information about file sharing in System 7.5, see the “Networks and Telecommunications” topic of Macintosh Guide, available in th e Guid e (h) menu.

Chapter 5

Consult this chapter if you experience

problems using your computer.

Troubleshooti ng

When you have questions

If you want to know how to do a particular task with your computer, refer to Macintosh Guide in the Guide (h) menu. For instructions on using Macintosh Guide, see Chapter 2 of this manual.

If you have trouble

While you’re using your computer, you may occasionally see a bomb icon or an error message, or the pointer (8) may “freeze” on the screen. If you have trouble with your computer, take a few minutes to read the information in this chapter. If your problem is related to a particular procedure, you should also look for information on that procedure in Macintosh Guide, available in th e Guide (h) menu. For additional troubleshooting information and a list of common questions relating to your system software, see the “Troubleshooting” topic of Macintosh Guide.

If you are unable to access Macintosh Guide (for example, if your screen is “frozen”), refer to this chapter to see if you can resolve the problem.

Take your time

When you see an error message, you don’t have to take action immediately. The message stays on the screen until you click the OK (or Restart) button or turn off the Macintosh.

To help diagnose and correct the problem, follow the suggestions in this section. Gather as much information on the situation as you can. Then follow the instructions in the next section, “Start Over.”

m Make a note of exactly what you were doing when the problem occurred.

Write down the message on the screen. List the programs you were using and the names of any items you know have been added to the System Folder since the system software was installed. T his information will help a service person diagnose the problem. (It is helpful to keep a printed copy of the items in your System Folder. For instructions on printing the contents of a folder, see the “Printing & Fonts” topic of Macintosh Guide , available in the Guide [h] menu.)

m Check the screen for any clues. Is a menu selected? What programs and

document icons are open? Note anything else that seems relevant.

m If you were typing text and were not able to save it before the problem

occurred, you can write down the parts of the text still visible on the screen so that some of your work will be easy to replace.

m Ask other Macintosh users about the problem you’re having; they may have

a solution for it.

If you need repair service, consult the service and support information that came with your computer for instructions on how to contact an Appleauthorized service provider or Apple for assistance.

Chapter 6

Start over

Often you can eliminate a problem simply by clearing the computer’s memory and starting over.

If you can, save any open documents before restarting the Macintosh. If your system is frozen and does not respond to anything you do, or if you have a “bomb” message on the screen, saving may not be possible. You can try pressing x-Option-Esc to quit the program in use when the problem occurred; if this works, you can then save the documents open in other programs before restarting. (Note: Use this key combination to force a program to quit only when you can’t choose Quit from the File menu.)

To restart your Macintosh, try the following steps:

1 If you can, choose Restart from the Special menu or from the dialog box that’s on

screen.

Dialog boxes contain messages from the computer. If something goes wrong, a message may appear on the screen, asking you to restart the computer.

2 If you can’t choose Restart, hold down the

Power key (marked with a triangle).

and Control keys while you press the

This key combination restarts the computer. (Use this key combination only when you can’t choose Restart from the Special menu.)

3 If nothing happens, turn off your computer with the power switch, wait at least 10

seconds, and then turn it on again.

4 If the power switch doesn’t turn off the computer, unplug your Macintosh.

If you suspect that the problem is with other equipment, such as a printer or an external hard disk that’s attached to your computer, turn that equipment off for 10 seconds or longer, then turn it on again and restart the Macintosh.

Troubleshooting

Rebuild your desktop regularly

A process known as “rebuilding the desktop” helps your Macintosh keep track of data on your disks. It’s a good idea to rebuild the desktop of your disks once a month or so, especially your startup disks. (Although you usually use the hard disk in your computer as a startup disk, you can also start up from any other disk that has system software i nstalled.)

To rebuild the desktop of your internal hard disk disk, follow these steps:

1 Hold down the Option and xkeys while you start up your computer.

Do not release the keys until you see a message asking whether you wa nt to rebuild the desktop.

2 Click OK.

You can also use this procedure to rebuild the desktop of an external hard disk or a floppy disk. Simply turn on the external hard disk or insert the floppy disk into a floppy disk drive before you turn on the computer.

If icons do not appear correctly after you rebuild the desktop, restart your computer while pressing the Shift key to temporarily turn off system extensions. When you see the “Welcome to Macintosh—extensions off” message, release the Shift key and press the Option and x keys until you see a message asking if you want to rebuild the desktop.

Chapter 6

Solutions to common problems

This section contains descriptions of problems you could experience with your computer. Some problems may be caused by your CD-ROM drive, so if you don’t find your problem here, be sure to check the section, “Solutions to CD-ROM Problems,” later in this chapter.

The computer is turned on but the screen is dark.

One of the following is probably the cause: m You have a screen saver program that darkens the screen when the

computer has not been used for a certain period.

Press a key or move the mouse to turn off the screen saver. m The screen control buttons (¸) are not adjusted properly.

Press the top screen control button to lighten the screen. m The Macintosh is not getting power.

Check that the computer’s power cord is firmly connected to the computer

and plugged into a grounded electrical outlet, and that the outlet has power. If you are displaying video from your computer on a television screen, it is

normal for your computer monitor to be dark.

The screen image is off center.

If the picture on your screen appears to be off center, use the centering controls on the back of the computer to adjust it. Use a small screwdriver to turn the controls.

Vertical centering control

Horizontal centering control

The computer’s clock keeps time inaccurately.

Your computer has a clock that runs continuously. When the computer is turned off, a battery keeps the clock running. If your clock begins to keep time inaccurately, have your Apple-authorized service provider replace the battery.

Troubleshooting

When you start up, a disk icon with a blinking question mark appears in the middle of the screen.

This icon indicates that your Macintosh cannot find the system software it needs to start up. One of the following is probably the cause:

m Your computer may be having a problem recognizing external SCSI

equipment, such as hard disks, CD-ROM drives, and scanners. (SCSI stands for Small Computer System Interface.)

Turn off all external SCSI equipment and disconnect the first SCSI device in the chain from your computer’s SCSI port. Then restart the computer. If the computer starts up after you disconnect your SCSI equipment, refer to the manuals that came with the equipment for information on the proper way to connect SCSI equipment and assign SCSI ID numbers.

If you have a printer connected to your computer’s SCSI port, make sure your printer is connected properly. Most printers connect to the printer port, not the SCSI port. Check the manuals that came with your printer for information on how to connect it properly.

m System software is not installed on the startup hard disk, the system

software is damaged, or the hard disk is not working properly. Insert the Macintosh Performa CD. Then follow the instructions in

“Repairing a Damaged Disk” to test your startup hard disk and repair any damage.

If repairing the disk doesn’t help, follow the instructions in the Macintosh Performa CD booklet to reinstall system software on your startup hard disk.

Chapter 6

A disk icon with an X appears in the middle of the screen and a floppy disk is ejected from the disk drive.

This icon indicates that the floppy disk you tried to start up from is not a startup disk. When you turn on your computer, it looks first in the floppy disk drive for a disk containing system software. If the disk in the drive does not contain system software, the computer ejects the disk and looks on its internal hard disk for system software.

Wait a few seconds. The computer should start up from its internal hard disk. Make sure you insert floppy disks only after the computer has begun starting up.

A “sad Macintosh” icon appears and the computer won’t start up.

This icon indicates that your Macintosh cannot start up because of a problem with the system software or the computer hardware.

Eject any floppy disks by turning off the computer and then holding down the mouse button while you turn the computer on again. Try starting up with the Macintosh Performa CD. (For instructions on how to start up your computer from the CD-ROM disc, see the Macintosh Performa CD booklet, which came with your computer.) If the “sad Macintosh” icon appears again, consult the service and support i nformation that came with your computer for information on contacting an Apple-authorized service provider or Apple for assistance.

Troubleshooting

The hard disk icon does not appear on the desktop.

If you don’t see a hard disk icon on the desktop, try the following: m Use the Drive Setup program to make the disk available. Drive Setup is

located in the Apple Extras folder. For instructions, start Drive Setup, then choose Drive Setup Guide from the Guide (h) menu.

m If the hard disk is internal, shut down your computer, wait at least 10

seconds, and then turn it on again.

m If the hard disk is external, make sure that it is turn ed on a nd that its cable

is connected firmly; then restart the Macintosh.

m Check the ID numbers of all SCSI equipment connected to your computer.

See the manuals that came with your SCSI equipment for information on setting SCSI ID numbers.

m If the hard disk is your startup disk, start your computer with the Macintosh

Performa CD. (For instr uctions on how to start up your computer from the

CD-ROM disc, see the Macintosh Performa CD booklet.) Then follow the rest of the instructions on repairing a disk to test your startup hard disk and repair any damage.

If repairing the disk doesn’t help, follow the instructions in “Installi ng or Reinstalling System Software” later in this chapter to reinstall system software on your startup hard disk.

Icons do not appear correctly on your screen.

You need to rebuild the desktop—a process that helps your Macintosh keep track of files and folders on your hard disks. For instructions, see “Rebuild Your Desktop Regularly” in the section “If You Have Trouble” earlier in this chapter.

Chapter 6

Your Macintosh can’t read a floppy disk.

If you see a message that a floppy disk is unreadable, try one of the following: m If the disk has never been used, you may simply need to initialize it. For

instructions, see the “Disks” topic of Macintosh Guide, available in the

Guide (h) menu. m The disk may be damaged. See “Repairing a Damaged Disk” later in this

chapter for information on testing and repairing disks. m If the disk is a high-density disk previously used on another computer, th e

disk may have been formatted incorrectly as an 800K disk rather than as a

1440K (high-density) disk. If so, use the other computer to copy the disk’s

contents onto a properly formatted disk. m The disk may have been formatted for use on another kind of computer.

You may be able to use a program that lets you work with such disks on

your Macintosh. If you are trying unsuccessfully to use a DOS floppy disk, consider the

following: m When formatting floppy disks on a DOS computer for use in a Macintosh,

you need to format standard double-sided disks as 720K disks and high-

density disks as 1440K disks. Double-sided disks formatted in 1440K

format and high-density disks formatted in 720K format may not work in a

Macintosh.

If you think your DOS floppy disk might have a format that doesn’t work

in a Macintosh, use a DOS computer to copy the contents of the disk onto

a properly formatted disk.

Troubleshooting

You can’t start an application program or it quits unexpectedly. Or, when you try to open a program, you see a message that not enough memory is available.

One of the following is probably the cause: m The Macintosh ran out of memory.

Quit the programs that you have open and then open the program you want to use, or restar t your Macintosh.

Use the Memory control panel to turn on virtual memory. For more information on virtual memory, see the “Memory” topic of Macintosh Guide, available in the Guide (h) menu.

m The program needs more memory.

Use the program’s I nfo window to give it more memory. For more information on increasing a program’s memory, see the “Memory” topic of Macintosh Guide, available in th e Guide (h) menu.

m The program is incompatible with your Macintosh.

Contact the program’s publisher to see if there is an upgrade available for the program.

You see a message that you need to have an FPU installed.

Your computer has a floating-point unit (FPU) installed. If you see this message, the program is probably incompatible with your Macintosh. Contact the program’s publisher to see if there is an upgrade available for the program.

Chapter 6

A dialog box with a bomb appears.

There is a software problem. m Write down what you were doing when the message appeared, and write

down the text of the message. m Restart your Macintosh. (See “Start Over” in the section “If You Have

Trouble” earlier in this chapter for instructions.) Most software problems

are temporary, and restarting usually corrects the problem. m If the problem recurs, check the startup disk and application program you

were using when the dialog box appeared. Make sure that all programs,

desk accessories, and system extensions you’re using are compatible with

the system software. Reinstalling the system software may correct the

problem. m Sometimes incompatible system extensions or control panels can cause

system software problems. Restart while holding down the Shift key; this

temporarily turns off all system extensions. If your computer works

normally after you do this, use the Extensions Manager control panel to

turn on extensions and control panels one at a time. Restart after you turn

on each extension. This procedure should identify incompatible extensions

and control panels.

For information on using the Extensions Manager control panel to manage

system extensions, see the “Setting Options” topic of Macintosh Guide,

available in the Guide (h) menu. m If the problem recurs, you may need to reinstall system software. See the

Macintosh Performa CD booklet for instructions.

Troubleshooting

The pointer (8) doesn’t move when you move the mouse.

One of the following situations is probably the cause. m There is a software problem. Try the following:

Press x-Option-Esc to quit the application program in use when the problem occurred. If this works, you can save the documents open in other programs before restarting.

Restart your Macintosh. See “Start Over” in the section “If You Have Trouble” earlier in this chapter for instructions.

m Follow the suggestions in the previous section, “A Dialog Box With a Bomb

Appears.”

m The mouse is not connected properly.

Turn the computer off using the power switch, check that the mouse and keyboard cables are connected properly, and then restart the computer.

IMPORTANT

Do not connect or disconnect the mouse while the computer is

turned on. You may damage your computer. m Signals from the mouse are not reaching the computer, either b ecause the

mouse needs cleaning or because there is something wrong with the mouse.

Clean the mouse according to the instructions in Appendix A of this book. If you have another mouse or pointing device, try connecting and using it.

(Turn the computer off before connecting it.) If the new device works, there is probably something wrong with the mouse you replaced.

If none of these procedures solves the problem, consult the service and support information that came with your computer for instructions on how to contact an Apple-authorized service provider or Apple for assistance.

Chapter 6

Typing on the keyboard produces nothing on the screen.

One of the following is probably the cause: m Some system software features are turned on that affect the way the

keyboard works.

Use the Easy Access control panel to turn off Sticky Keys, Slow Keys, and

Mouse Keys. m There is a software problem.

Restart your Macintosh. For instructions, see “Start Over” in the section

“If You Have Trouble” earlier in this chapter.

Check the startup disk and application program you were using when the

problem occurred. Make sure that all programs, desk accessories, and

system extensions you’re using are compatible with the system software.

If the problem recurs, you may need to reinstall system software. See the

Macintosh Performa CD booklet for instructions. m You haven’t selected any text or set the insertion point (i).

Make sure the program you want to type in is the active program. Then

place the pointer (8

) in the active window and click to set an insertion

point (i) or drag to select text (if you want to replace the text with your

typing). m The keyboard is not connected properly.

Turn off the computer using the power switch, then check that the keyboard

cable is connected properly at both ends.

If you have a keyboard with an ADB port (marked with the ◊ icon) on

each end, turn off the Macintosh using the power switch and plug the

keyboard cable into the other ADB port on the keyboard. (You may have to

unplug the mouse to do this.) Then restart the computer. m The keyboard is damaged.

If you have access to another keyboard, try using it instead. (Turn the

computer off before connecting it.) If the n ew keyboard works, there is

probably something wrong with the one you replaced. If none of these procedures solves the problem, consult the service and

support information that came with your computer for instructions on how to contact an Apple-authorized service provider or Apple for assistance.

Troubleshooting

You can’t open a document, or you see a message that an application program can’t be found.

m Some documents can be opened by more than one application program.

Try starting a program that you think might be able to open the document, then choose Open from the program’s File menu to try to open the document.

m Purchase and install the correct software to use the document, or find out

if the creator of the document can convert it to a form that one of your programs can use.

m Don’t try to open the files in your System Folder. Most of the files in your

System Folder are used by your computer for inter nal purposes and are not intended to be opened.

m Rebuild your desktop by holding down the Option and x keys while

starting up your computer. Keep holding down the keys until you see a message asking whether you want to rebuild the desktop. Click OK.

m If the document is from a DOS computer, use the PC Exchange control

panel to specify which Macintosh program will open the document. For information about working with DOS documents on your Macintosh, see the “Using DOS Files & Disks” topic of Macintosh Guide, available in the Guide (h) menu.

Chapter 6

You experience problems using a document from a DOS computer.

If you can’t open a DOS document using a Macintosh program, try the following:

m Op en the document from within the program by choosing Open in the

program’s File menu. m Use the PC Exchange control panel to specify which Macintosh program

will open the document. If a DOS document is displayed incorrectly, or you see strange codes or

characters in the document, try one of the following: m Your application program may have special procedures for openi ng and

saving documents with different file formats. See the information that

came with your program, or call the program’s publisher. m Try opening the document in another program. Note: Some characters that can be displayed on the Macintosh are not

accurately displayed on DOS computers. For more information about working with DOS documents on your

Macintosh, see the “Using DOS Files & Disks” topic of Macintosh Guide, available in the Guide (h) menu.

Troubleshooting

You see a message that your application program can’t be opened because a file can’t be found.

Macintosh programs designed specifically for the PowerPC microprocessor (also called “native” applications) use special files called shared libraries. Any necessary shared libraries should be installed automatically when you install these special Macintosh programs.

Follow the directions that came with your program to reinstall the program. If the shared library is still missing, contact the software program’s ma nufacturer for assistance.

You experience problems using an older Macintosh program.

Some older Macintosh programs are not completely compatible with Macintosh computers that have the PowerPC microprocessor.

m Contact the program’s publisher to see if an upgrade is available. m Open the Memory control panel and tur n off Modern Memory Manager.

For more detailed instructions, see the “Working with Programs” topic of Macintosh Guide, available in th e Guide (h) menu.

Chapter 6

Solutions to CD-ROM problems

Problems using the CD-ROM drive

The CD-ROM disc icon does not appear on screen.

m If you have other SCSI devices attached to your computer, make sure that

each device has a unique SCSI ID number (your CD-ROM drive has SCSI

ID 3). Refer to the documentation that came with your SCSI devices if you

need to reset SCSI ID numbers.

Your computer starts up and you see large folder-shaped areas, containing labeled pictorial buttons, instead of the usual Macintosh desktop.

m Your computer may have started up from a CD-ROM disc containing

At Ease, a n alternative to the Macintosh desktop. You need to have the

Macintosh desktop on your screen before you can use any of the

installation instructions in this manual.

To return to the Macintosh desktop, choose Shut Down from the Special

menu. When your computer is off, press the Open/Close button of your

CD-ROM drive to open the tray, then remove the CD-ROM disc. Close the

tray. Then start up your computer again. To avoid having the computer start up from a CD-ROM disc, remember to

remove any disc in the drive before you shut down your computer.

The tray of your CD-ROM drive won’t open.

If a CD-ROM disc icon appears on your screen:

m Drag the disc icon to the Trash, or select it and choose Put Away from the

File menu. If the AppleCD Audio Player is active, choose Eject CD from

the File menu.

If you see a message that a disc can’t be put away because it is being

shared, turn off file sharing, then try again to put away the disc.

If no CD-ROM disc icon appears on your screen:

m Press the Op en/Close button for your CD-ROM drive.

Troubleshooting

m The signal to open the tray may not be reaching the computer. Turn off

your computer and locate the small pinhole to the lower right of the CD-ROM tray opening. Insert the end of a large straightened paper clip firmly and horizontally into the pinhole. Push gently until the tray is released, then carefully pull the tray open. Do not force the tray open; wait until the paper clip has dislodged it or you may break the front of the tray.

WARNING

Turn off your computer before you attempt to eject the tray

using a paper clip. If you don’t, you may damage the CD-ROM drive.

If neither of these suggestions works, your CD-ROM drive may be damaged. Contact an Apple-authorized service provider or Apple for further assistance.

Your computer won’t restart, and a CD-ROM disc is in the CD-ROM drive.

m Your computer may be trying to start up from the CD-ROM disc. Press the

Open/Close button of your CD-ROM drive to open the tray, a nd remove the CD-ROM disc. Close the tray, then restart your computer.

Problems using CD-ROM discs

You insert a CD-ROM disc, but its icon doesn’t appear on the Macintosh desktop.

m Make sure that the disc label is facing up and the disc is centered in the

tray. If you’re using a small (8 cm) disc, make sure it is within the tray’s inner ring.

m Make sure the tray is closed all the way. m Try restarting your computer.

Chapter 6

Your computer displays the message “This is not a Macintosh disk: Do you want to initialize it?” when you insert a CD-ROM disc in the CD-ROM drive.

m The disc may use a format that the Macintosh cannot recognize.

Your computer ejects a CD-ROM disc without giving you any error message.

m Make sure the disc is flat in the tray and the disc label is facing up. If

you’re using a small (8 cm) disc, make sure it’s centered within the tray’s

inner ring. m The disc may need to be cleaned. (See “Handling CD-ROM Discs” in

Appendix A.) If there are visible scratches on the shiny side of the disc,

you may be able to remove them with a CD polishing kit (available from

your audio CD dealer). If the scratches can’t be removed, you’ll need to

replace the disc. m The disc may be damaged. Try a nother disc in the drive, and try the

original disc in another drive. If the original drive reads other discs or if

the original disc also doesn’t work in another drive, the disc is probably

damaged. You’ll need to replace the disc.

You can’t open a document on a CD-ROM disc.

m Try op ening the application program first; then open the do cument. m Read the manual that came with your CD-ROM disc. Some discs come

with software that you need to install on your computer before using

the disc.

You can’t save changes you make to information on a CD-ROM disc.

m CD-ROM is a read-only medium. This means that information can be read

(retrieved) from it, but not written (stored) on it. You can save the changed

information on a hard disk or floppy disk.

Problems using ISO 9660 or High Sierra discs

You cannot access files on a CD-ROM disc that uses the ISO 9660 or High Sierra format.

m Discs in the ISO 9660 and High Sierra disc formats have version numbers

attached to file names. Some application programs need these version

numbers in order to work with files. To make the version numbers

available to programs on your computer, follow these instructions.

Troubleshooting

Drag the CD icon to the Trash. When the tray opens, hold down the Option key and push the tray back in. Continue to hold down the Option key until the disc is in the drive. The program you are using should now be able to locate file names on that CD-ROM disc.

Problems playing audio CDs

You don’t hear any sound when you play an audio CD or an audio track on a CD-ROM disc using the AppleCD Audio Player.

m If you have headphones or speakers connected to the computer, adjust the

connector to make sure they are firmly connected. Make sure the column control on your headphones or speakers is not turned down too low.

m If you do not have headphones or speakers connected to the computer,

make sure that nothing else is plugged into the sound output port on your computer.

m Some programs change the sound options to suit their needs. You may need

to reset the sound options in the Sound control panel. Refer to the “Sound” topic of Macintosh Guide available in the Guide (h) menu.

m If you are using a CD-ROM disc over a network, you won’t be able to hear

the audio portion.

m Make sure the volume is turned up in the AppleCD Audio Player. With the

Audio Player open, drag the volume control slider up or press the Up Arrow key on your keyboard.

m The CD may have been paused. Click the Play/Pause button in the

AppleCD Audio Player once or twice.

While playing an audio track on a CD-ROM disc that combines audio tracks and data, you double-click the disc icon and the audio track stops playing.

m You can’t open data files on a CD-ROM disc and listen to audio tracks on

that disc at the same time.

You are unable to record sound from an audio CD.

m Check your computer’s sound input por t to see if a microphone or other

device is connected.

m You may need to reset the sound options in the Sound control panel. Refer

to the “Sound” topic of Macintosh Guide, available in th e Guide (h) menu.

Chapter 6

Problems using Photo CDs

You can’t open Photo CDs that are in your CD-ROM drive.

m Reinstall the CD-ROM and QuickTime software (available through the

“MultiMedia Software” option in Custom Install).

Your computer does not display color icons for individual images on a Photo CD.

m Your computer may be low on memory. To view color icons, restart your

computer and then reopen the Photos folder. See the “Memory” topic of

Macintosh Guide, available in th e Guide (h) menu for more information

on managing memory.

After you open an image on a Photo CD, the image is scrambled, colors are displayed incorrectly, or no image appears in the window.

m The program you are using may not be designed to work with large (high-

resolution) image files. You can open the image with another program or

you can assign more memory to the program. (See the “Memory” topic of

Macintosh Guide, available in th e Guide (h) menu for more information

on managing memory.)

After you open an image on a Photo CD, your system is “frozen” and does not respond to any input, or you have a “bomb” message on your screen.

m Restart your Macintosh. The program you are using may not be designed

to work with large (high-resolution) image files. You can open the image

with another program or you can assign more memory to the program

(see the “Memory” topic of Macintosh Guide available in the Guide (h)

menu, for more information on managing memory.)

Troubleshooting

If your computer’s performance decreases

If you notice a decrease in your computer’s sp eed and general performance after you add special software (a control panel, system extension, or custom utility), it may be because the software does not work well with Macintosh computers built with the PowerPC microprocessor.

m To find out if the new software is the problem, hold down the Shift key

while you restart the computer. This temporarily turns off control panels and extensions. If the computer performs better without this software, one of these items is likely to be the problem.

m Use the Extensions Manager control panel to turn off a system extension or

set of extensions. For detailed instructions, see the “Setting Options” topic of Macintosh Guide, available in the Guid e (h) menu. If the computer performs better when an extension is turned off, contact the extension’s manufacturer for information or an upgrade.

m Use the Memory control panel to turn off virtual memory. For more

information on virtual memory, see the “Memory” topic of Macintosh Guide, available in the Guide (h) menu.

m If you use several application programs at the same time, your computer’s

performance will increase if you install more RAM (random-access memory). See “Expanding Memory” in Chapter 3.

If you still do not notice an improvement, you may want to reinstall system software on your startup hard disk. See the Macintosh Performa CD booklet for instructions.

Chapter 6

Repairing a damaged disk

If you see a message reporting that a disk is damaged or unreadable, you may need to repair the disk.

Try these suggestions first

If you can’t start up from a hard disk or you don’t see the hard disk icon on the desktop, try the following:

m If the hard disk is internal, shut down your Macintosh, wait at least 10

seconds, and then turn it on again. m If the hard disk is external, make sure that it is turn ed on a nd that its cable

is connected firmly; then restart the Macintosh. m If the hard disk is your startup disk, start up with a different startup disk.

(See the following section, “Starting Up From a CD-ROM Disc.”)

If, after you start up from a different disk, your hard disk’s icon appears on

your desktop, reinstall system software on the hard disk. (See “Installing or

Reinstalling System Software” later in this chapter). m Check the ID numbers of all SCSI equipment connected to your computer.

Each device must have a unique ID number. The computer itself has the

ID number 7 and the internal CD-ROM drive has the ID number 3. The ID

numbers 0, 1, 2, 4, 5, and 6 are available for additional SCSI devices.

Also check that the chain of devices is terminated properly. For

information on setting SCSI ID numbers and terminating a SCSI chain,

see the manuals that came with your SCSI equipment. m If none of these suggestions solves the problem, test the disk by following

the instructions given later in this section.

Troubleshooting

Starting up from a CD-ROM disc

To test, repair, or initialize a hard disk, or to install system software on a hard disk, you need to start up your computer from another disk. You can star t up your computer using the Macintosh Performa CD that came with your computer.

The procedure for starting up from the CD varies depending on the condition of the system software on your hard disk. To find out which procedure to use, you must turn on your Macintosh.

The steps that follow tell how to start up from a CD-ROM disc, depending on what you see on your screen.

If you see a blinking question mark on your screen

The blinking question mark means that your Macintosh is unable to find usable system software on your hard disk.

1 Press the Open/Close button of your CD-ROM drive to open the CD-ROM tray.

Chapter 6

2 Place the

Macintosh Performa CD

disc in the tray with the disc label facing up.

Make sure the disc is lying flat in the tray.

3 Push the tray in, or press the Open/Close button, to close the tray.

Your Macintosh recognizes the CD as a startup disk, and in a few seconds the Macintosh desktop with a Launcher appears.

If you see the Macintosh desktop

1 Press the Open/Close button of your CD-ROM drive to open the CD-ROM tray. 2 Place the

Macintosh Performa CD

disc in the tray with the disc label facing up.

Make sure the disc is lying flat in the tray.

3 Push the tray in, or press the Open/Close button, to close the tray.

If the Macintosh Performa CD icon does not appear on your screen, follow the steps in the next section, “Problems Starting Up From the CD?”

If the Macintosh Performa CD icon appears on the right side of your screen, continue with these steps.

4 Choose Control Panels from the Apple ( 5 Double-click the Startup Disk icon.

) menu.

The Startup Disk control panel window appears.

6 Click the CD icon to select it as your startup disk. 7 Choose Restart from the Special menu.

Your computer recognizes the CD as its startup disk, and in a few seconds the Macintosh desktop with a Launcher appears.

Troubleshooting

Problems starting up from the CD?

If you’ve followed the steps in the previous sections and the Macintosh Performa CD icon does not appear on your screen, follow these steps:

1 Insert the CD into the tray. 2 Choose Restart from the Special menu. 3 Immediately press and hold down the Command (

), Shift, Option, and Delete keys.

The computer bypasses the internal hard disk, and the Macintosh Performa CD icon appears on the desktop.

If the Macintosh Performa CD icon still does not appear on the desktop, continue with these steps:

4 Choose Control Panels from the Apple ( 5 Double-click the Startup Disk icon.

) menu.

The Startup Disk control panel appears.

6 Click the CD icon to select it as your startup disk. 7 Close the Startup Disk control panel. 8 Choose Restart from the Special menu (or the Apple menu).

The computer starts up using the CD, and i n a few moments the Macintosh desktop with a Launcher appears.

Chapter 6

Checking for damage on your hard disk

You can test a hard disk for damage with the Drive Setup program, which is on the Macintosh Performa CD that came with your computer.

1 Start up your computer from the

Macintosh Performa CD

See “Starting Up From a CD-ROM Disc” earlier in this section.

2 Open the Drive Setup program.

You may need to look in a folder called Utilities to find Drive Setup.

3 In the list of drives, click the disk you want to test.

4 Choose Test Disk from the Functions menu. 5 When a message tells you that the testing is complete, click Quit.

If the test reveals a problem, you may be able to correct it by using Disk First Aid or another disk repair program (see the instructions in the next section), or you may need to reinitialize the disk (see “Initializing a Hard Disk” later in this chapter). Consult an Apple-authorized service provider for assistance if necessary. If you had a hard disk from another manufacturer installed after you bought your computer, use the software that came with the disk or contact the disk vendor to get the latest version of software.

Troubleshooting

How to repair a hard disk or floppy disk

You can repair some types of disk damage by using the Disk First Aid program, which is on the Macintosh Performa CD that came with your computer.

1 Start up your computer from the

Macintosh Performa CD

See “Starting Up From a CD-ROM Disc” earlier in this section.

2 Open the Disk First Aid icon.

3 Click the icon of the disk you want to test.

Disk icons appear in a box at the top of the Disk First Aid window.

Chapter 6

4 Click Repair to begin testing and repairing the disk.

If you want to test and repair another disk, click its icon and then click Repair.

5 When testing and repair are done, choose Quit from the File menu.

If Disk First Aid cannot correct the problem

m Try repai ring the disk again. Sometimes repeating the process corrects the

problem. m Use another disk repair or recovery program. Some disk repair programs

let you recover information from a damaged disk.

m Consult an Apple-authorized service provider for help. m If you can’t repair the disk, you’ll need to reinitialize it, which erases all the

information on it. Before you reinitialize, be sure you recover all the

information you can and back it up. Th en erase (reinitialize) the disk. For

instructions on reinitializing a floppy disk, see the “Disks” topic of

Macintosh Guide, available in th e Guide (h) menu. For instructions on

reinitializing a hard disk, see the next section, “Initializing a Hard Disk.”

If initialization doesn’t work, discard the damaged disk (if it’s a floppy

disk), or take it to your Apple-authorized service provider for repair (if it’s

a hard disk). Bring the Macintosh Performa CD (which you received with

your computer) with you to the service provider.

Initializing a hard disk

The hard disk inside your computer was initialized (formatted for use) at the factory, so you shouldn’t need to initialize it. You need to initialize a hard disk only if

m you purchase an uninitialized hard disk from a nother ma nufacturer m your hard disk is damaged

If a hard disk needs to be initialized, the disk’s icon does not appear on the desktop when you start up the computer using another disk.

You initialize your internal hard disk using a program called Drive Setup, which is on the Macintosh Performa CD that came with your computer.

Troubleshooting

WARNING

Initializing a disk erases any information that may be on it. Before you initialize a damaged disk, try to repair it as described in “Repairing a Damaged Disk” earlier in this chapter.

1 Start up your computer from the

Macintosh Performa CD.

See “Starting Up From a CD-ROM Disc” in the section “Repairing a Damaged Disk,” earlier in this chapter.

2 Open the Drive Setup program.

You may need to look in a folder called Utilities to find Drive Setup.

3 In the list of drives, click the disk you want to initialize.

Click the drive you want to initialize...

...then click Initialize.

4 Click Initialize to initialize the hard disk. 5 When you see a message reporting that initialization was successful, click Quit.

If a message reports that initialization failed, try again. If initialization fails a second time, take the disk to your Apple-authorized service provider for repair.

Chapter 6

Installing or reinstalling system software

System software is the set of programs and other files that your computer uses to start itself up, keep track of your files, and run the application programs you use. System software is kept in the System Folder. When you turn on your computer, it looks for a startup disk, which is a disk that contains the system software. The startup disk is usually the hard disk that’s i nside your computer, though another hard disk or a floppy disk can also be a startup disk.

When should you install or reinstall system software?

Your Macintosh came with all the necessary system software installed on its internal hard disk, so you don’t need to install system software on that disk unless you encounter software problems.

If you have a new hard disk or a newly initialized hard disk that doesn’t contain system software, or if you want to upgrade to a more recent version of system software on a hard disk, you’ll need to install system software. You can install or reinstall system software by following the instructions in the Macintosh Performa CD booklet that came with your computer.

If your hard disk already has system software installed on it but there is a problem with the disk or the software, you may see this icon in the middle of the screen:

If this icon appears, first try testing your startup hard disk and repairing any damage. To do this, follow the instructions in “Repairing a Damaged Disk” earlier in this chapter. If repairing the disk doesn’t help, you may need to reinstall system software. You can install or reinstall system software by following the instructions in the Macintosh Performa CD booklet that came with your computer.

If you’ve used Apple Backup to back up the contents of your hard disk, you can use Apple Restore to reinstall system software. See “Restoring the Information on Your Hard Disk” in the section “Protecting the Information on a Disk” in Chapter 4.

Troubleshooting

Appendix A Health, Safety, and Maintenance Tips

For your own safety and that of your equipment, follow all the instructions in this chapter. Keep these instructions available for reference by you and others.

Health-related information about computer use

Muscle soreness, eye fatigue, and other discomforts and injuries sometimes associated with using computers can occur from performing any number of activities. In fact, misuse of the same muscles during multiple activities can create a problem that might not otherwise exist. For example, if you engage in nonwork activities that involve repetitive stress on the wrist—such as bicycling—and also use your computer’s keyboard improperly, you may increase your likelihood of developing wrist problems. Some individuals are at greater risk of developing these problems because of their health, physiology, lifestyle, and general exposure to stress. Work organization and conditions, such as workstation setup and lighting, also play a part i n your overall health and comfort. Preventing health problems is a multifaceted task that requires careful attention to the way you use your body every hour of every day.

Read this appendix for important

health and safety instructions,

as well as tips on keeping your

computer in good working order.

The most common health effects associated with using a computer are musculoskeletal discomfort and eye fatigue. We’ll discuss each area of concern below.

Musculoskeletal discomfort

As with any activity that involves sitting for long periods of time, using a computer can make your muscles sore and stiff. To minimize these effects, set up your work environment carefully, using the guidelines that follow, and take frequent breaks to rest tired muscles. To make working with your computer more comfortable, allow enough space in your work area so that you can change position frequently and maintain a relaxed posture.

Another type of musculoskeletal concern is repetitive stress injuries (RSIs), also known as cumulative trauma disorders (CTDs). These problems can occur when a certain muscle or tendon is repeatedly overused and forced into an unnatural position. The exact causes of RSIs are not totally understood, but in addition to awkward posture, such factors as the amount of repetition, the force used in the activity, the individual’s physiology, workplace stress level, and lifestyle may affect the li kelihood of experiencing an RSI.

RSIs did not suddenly arise when computers were invented; tennis elbow and writer’s cramp, for example, are two RSIs that have been with us for a long time. Although less common than other RSIs, one serious RSI discussed more often today is a wrist problem called carpal tunnel syndrome, which may be aggravated by improper use of computer keyboards. This nerve disorder results from excessive pressure on the median nerve as it passes through the wrist to the hand.

This section offers advice on setting up your work area to enhance your comfort while you use your computer. Since the effects of repetitive movements associated with using a computer can be compounded by those of other work and leisure activities to produce or aggravate physical problems, proper use of your computer system must be considered as just one element of a healthy lifestyle.

No one, of course, can guarantee that you won’t have problems even when you follow the most expert advice on using computer equipment. You should always check with a qualified health specialist if muscle, joint, or eye problems occur.

Appendix A

Eye fa ti gue

Eye fatigue can occur whenever the eyes are focused on a nearby object for a long time. This problem occurs because the eye muscles must work harder to view an object that’s closer than about 20 feet (6 meters). Improper lighting can hasten the development of eye fatigue. Although eye fatigue is annoying, there’s no evidence that it leads to permanent damage.

Whenever you’re engaged in an activity that i nvolves close-up work—such as reading a magazine, doing craft work, or using a computer—be sure to have sufficient glare-free lighting and give your eyes frequent rest breaks by looking up and focusing on distant objects. Remember to have your eyes examined regularly.

To prevent discomfort and eye fatigue: m Arra nge your work space so that the furniture is properly adjusted for you

and doesn’t contribute to an awkward working posture.

m Take frequent short breaks to give your muscles and eyes a chance to rest.

Arranging your office

Here are some guidelines for adjusting the furniture in your office to accommodate your physical size and shape.

m An adjustable chair that provides firm, comfortable support is best. Adjust

the height of the chair so your thighs are horizontal and your feet flat on the floor.

The back of the chair should support your lower back (lumbar region). Follow the manufacturer’s instr uctions for adjusting the backrest to fit your body properly.

m When you use the computer keyboard, your shoulders should be relaxed.

Your upper arm and forearm should form an approximate right angle, with your wrist and hand in roughly a straight line.

Health, Safety, and Maintenance Tips

Shoulders relaxed

Forearms and hands

in a straight line

Forearms level

or tilted up slightly

Lower back supported

You may have to raise your chair so your forearms and hands are at the proper angle to the keyboard. If this makes it impossible to rest your feet flat on the floor, you can use a footrest with adjustable height and tilt to make up for any gap between the floor and your feet. Or you may lower the desktop to eliminate the need for a footrest. Another option is to use a desk with a keyboard tray that’s lower than the regular work surface.

m Position the mouse at the same height as your keyboard. Allow adequate

space to use the mouse comfortably.

m Arra nge the monitor so the top of the screen is slightly below your eye

level when you’re sitting at the keyboard. The best distance from your eyes to the screen is up to you, although most people seem to prefer 18 to 28 inches (45 to 70 cm).

m Position the computer to minimize glare and reflections on the screen from

overhead lights and windows.

45–70 cm (18–28 in.)



Top of the screen at or slightly below eye level (You may need to adjust the height of your computer by placing something under it or by raising your work surface.)

Screen positioned to avoid reflected glare

Clearance under work surface

Thighs horizontal

Feet flat on the floor

Appendix A

Avoiding fatigue

m Change your seated position, stand up, or stretch whenever you start to feel

tired. Frequent short breaks are helpful in reducing fatigue.

m Use a light touch when typing or using a mouse and keep your hands and

fingers relaxed.

m Some computer users may develop discomfort in their hands, wrists, or

arms after intensive work without breaks. If you begin to develop chronic pain or discomfort in your hands, wrists, or arms, consult a qualified health specialist.

m Allow adequate workspace so that you can use your keyboard and mouse

comfortably. Place papers or other items so you can view them easily while using your computer. A document stand may make reading papers more comfortable.

m Eye muscles must work harder to focus on nearby objects. Occasionally

focus your eyes on a distant object, and blink often while you work.

m Clean your screen regularly. Keeping the screen clean helps reduce

unwanted reflections.

What about electromagnetic emissions?

There has been recent public discussion of the possible health effects of prolonged exposure to extremely low frequency (ELF) and very low frequency (VLF) electromagnetic fields. Such fields are associated with electromagnetic sources such as television sets, electrical wiring, and some household appliances—as well as computer monitors.

Apple has reviewed scientific reports and sought the counsel of government regulatory agencies and respected health organizations. Based on the prevailing evidence and opinions, Apple believes that the electric and magnetic fields produced by computer monitors do not pose a health risk.

In response to those customers who wish to reduce their exposure to electromagnetic fields, Apple has lowered the emission levels of our products. We are also actively encouraging further scientific research so we can continue to promote the health and safety of our customers and employees.

Health, Safety, and Maintenance Tips

Safety instructions

For your own safety and that of your equipment, always take the following precautions.

Turn off the computer completely and disconnect the power plug (by pulling the plug, not the cord) if any of the following conditions exists:

m the power cord or plug becomes frayed or otherwise damaged m you spill something into the case m your Macintosh is exposed to rain or any other excess moisture m your Macintosh has been dropped or the case has been otherwise damaged m you suspect that your Macintosh needs service or repair m you want to clean the case (use only the recommended procedure

Be sure that you always do the following:

m Keep your Macintosh away from sources of liquids, such as wash basins,

m Protect your Macintosh from dampness or wet weather, such as rain, snow,

described later in this chapter)

bathtubs, shower stalls, and so on.

and so on.

Appendix A

m Read all the installation instructions carefully before you plug your

Macintosh into a wall socket.

m Keep these instructions handy for reference by you and others. m Follow all instructions and warnings dealing with your system.

WARNING

Electrical equipment may be hazardous if misused. Operation of this product, or similar products, must always be supervised by an adult. Do not allow children access to the interior of any electrical product and do not permit them to handle any cables.

Handling your computer equipment

Follow these guidelines for handling your computer and its components: m When setting up your computer, place components on a sturdy, flat surface,

and carefully follow all setup instructions.

m When connecting or disconnecting a cable, always hold the cable by its

connector (the plug, not the cord).

m Tur n off your computer and all its components before connecting or

disconnecting any cables to add or remove any component. Failure to do so could seriously damage your equipment.

m Never force a connector into a port. If the connector and port do not join

with reasonable ease, they probably don’t match. Make sure that the connector matches the port and that you have positioned the connector correctly in relation to the port.

m Take care not to spill any food or liquid on the computer, keyboard, mouse,

or other components. If you do, turn your computer off immediately and unplug it before cleaning up the spill. Depending on what you spilled and how much of it got into your equipment, you may have to bring your equipment to an Apple-authorized service provider.

m Protect the computer and its components from direct sunlight and rain or

other moisture.

m Keep all ventilation openings clear and unobstructed. Without proper air

circulation, components can overheat, causing damage or unreliable operation.

WARNING

This equipment is intended to be electrically grounded. Your Macintosh is equipped with a three-wire grounding plug—a plug that has a third (grounding) pin. This plug will fit only a grounded AC outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact a licensed electrician to replace the outlet with a properly grounded outlet. Do not defeat the purpose of the grounding plug!

Health, Safety, and Maintenance Tips

Handling the built-in monitor

Follow these procedures for handling the built-in monitor: m Tur n down the screen brightness control if you leave the computer turned

on for extended periods. If the brightness is not turned down, the image on the screen could “burn in” and damage the screen.

You can also use a “screen saver” program, which dims or varies the image on the screen when the computer has been idle for a specified period of time. These programs are available from independent suppliers and user groups.

m If there is interference on the monitor’s screen or on a television or radio

near your computer, move the affected equipment farther away.

Handling the keyboard

Take care not to spill any liquid on the keyboard. If you do, turn off your computer immediately.

m If you spill liquid that is thin and clear, unplug the keyboard, turn it upside

down to let the liquid drain out, and let it dry for 24 hours at room temperature. If, after you take these steps, the keyboard doesn’t work, take it to your Apple-authorized service provider for repair.

m If you spill liquid that is greasy, sweet, or sticky, unplug the keyboard and

take it to your Apple-authorized service provider for repair.

Appendix A

Apple 5300CD, 5200CD User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents
