AORUS WATERFORCE X Quick Start Guide

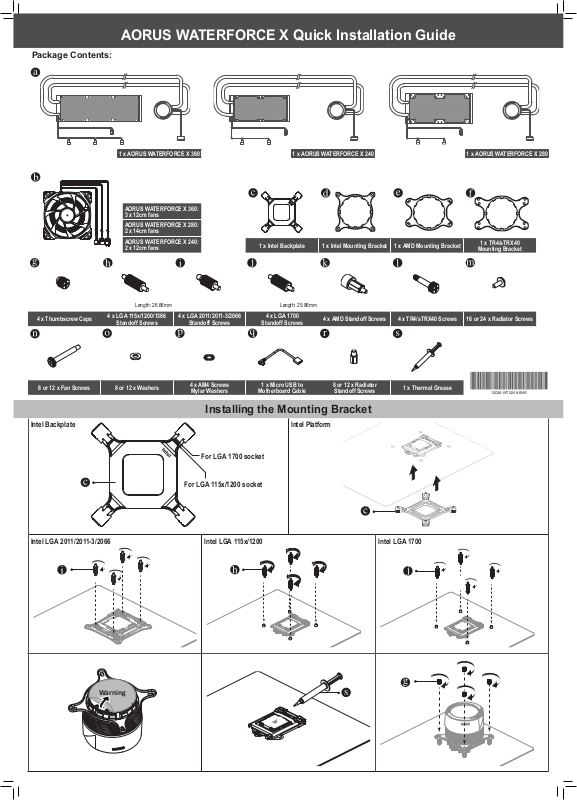

AORUS WATERFORCE X Quick Installation Guide
Installing the Mounting Bracket
Package Contents:
1 x AORUS WATERFORCE X 360 1 x AORUS WATERFORCE X 2801 x AORUS WATERFORCE X 240
AORUS WATERFORCE X 360:
3 x 12cm fans
AORUS WATERFORCE X 280:
2 x 14cm fans
AORUS WATERFORCE X 240:
2 x 12cm fans
1 x Intel Backplate 1 x Intel Mounting Bracket 1 x AMD Mounting Bracket
1 x TR4/sTRX40
Mounting Bracket
4 x Thumbscrew Caps
8 or 12 x Fan Screws 8 or 12 x Washers
4 x LGA 115x/1200/1366
Standoff Screws
Intel Backplate
Length: 25.86mmLength: 26.66mm
4 x LGA 2011/2011-3/2066
Standoff Screws
4 x AM4 Screws
Mylar Washers
4 x LGA 1700
Standoff Screws
1 x Micro USB to
Motherboard Cable
Intel Platform
4 x AMD Standoff Screws 4 x TR4/sTRX40 Screws 16 or 24 x Radiator Screws
For LGA 1700 socket
For LGA 115x/1200 socket
8 or 12 x Radiator
Standoff Screws
1 x Thermal Grease
12QM-WTX248-0NR
Intel LGA 2011/2011-3/2066
Warning
Intel LGA 115x/1200
Intel LGA 1700
Installing the Mounting Bracket
Cable Connection
SATA
SATA
Warning
Warning
AMD AM4 AMD TR4/sTRX40
AMD Platform
AMD TR4/sTRX40 Platform
SATA Power
Micro SD Socket
USB 2.0 Cable
Micro USB Socket
Fan connection
Fan ARGB connection
Contact Us
GIGA-BYTE TECHNOLOGY CO., LTD.
Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan
TEL: +886-2-8912-4000, FAX: +886-2- 8912-4005
Tech. and Non-Tech. Support (Sales/Marketing) : https://esuppor t.gigabyte.com
WEB address (English): https://w ww.gigaby te.com
WEB address (Chinese): https://www.gigabyte.com/tw
Note: screws are for use on AC300G & AC300W only.
