LCD TV
FOR YOUR SAFETY
. Some features may not be
Before operating the TV please read this manual thoroughly. This manual should be retained for future reference.
NOTICE
The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.
WARNING:
To prevent fire or shock hazard, do not expose the TV to rain or moisture. Dangerously high voltages are present inside the TV. Do not open the cabinet. Refer servicing to qualified personnel only.
Disposal of Waste Equipment by Users in Private Household in the European Union. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
This manual applies to several TV set models available on the model you purchased. Optional functions are indicated by the following symbol:

1
Compliance Information
CE Conformity for European Countries
The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility”, and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety.”
Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:
2
Certain components of products as stated above are exempted under the Annex of the RoHS Directives as noted below: Examples of exempted components are:
1. Mercury in compact fluorescent lamps not exceeding 5 mg per lamp and in other lamps not specifically mentioned in the Annex of RoHS Directive.
2. Lead in glass of cathode ray tubes, electronic components, fluorescent tubes, and electronic ceramic parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.
3
IMPORTANT SAFETY INSTRUCTIONS
Read before operating equipment
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with the
manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug.
When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. The TV should be operated only from the type of power source indicated
on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
14. Unplug this apparatus during lightning storms or when unused for long
periods of time.
15. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
16. This product may contain lead or mercury. Disposal of these materials
may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org
17. Damage Requiring Service – The appliance should be serviced by
qualified service personnel when: A. The power supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the appliance; or C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits a
marked change in performance; or
E. The appliance has been dropped, or the enclosure damaged.
4
18. Tilt/Stability – All televisions must comply with recommended
international global safety standards for tilt and stability properties of its cabinets design. Do not compromise these design standards by applying excessive
pull force to the front, or top, of the cabinet, which could ultimately overturn the product.
Also, do not endanger yourself, or children, by placing electronic
equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.
19. Wall or Ceiling Mounting – The appliance should be mounted to a wall or
ceiling only as recommended by the manufacturer.
20. Power Lines – An outdoor antenna should be located away from power
lines.
21. Outdoor Antenna Grounding – If an outside antenna is connected to the
receiver, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges. Section 810 of the National Electric Cord, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna-discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See Figure below.
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE Note to the CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. Please, make sure to connect the power plug to the wall outlet socket after connecting the TV to the adapter!
22. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
5
PREPARATION
1. Place the TV on a solid surface.
Ensure that the TV is placed in a position to allow free flow of air. Do not cover the ventilation openings on the back cover. To prevent any unsafe situations, no naked flame sources, such as lighted candles, should be placed on or in the vicinity. Avoid heat, direct sunlight and exposure to rain or water. The equipment shall not be exposed to dripping or splashing.
2. Insert the aerial plug firmly into the aerial socket ANT IN 75Ω at the back of the TV.
19” 22”
6
3. Remote control:
Remove the cover of the battery compartment. Insert the 2 batteries supplied (Type AA 1.5V).
4. Power:
Insert the power cord in the wall socket having an AC power supply .
5. Turn the TV on:
Press the power button of the TV to turn it on. When the TV is ON, the indicator turns green.
If the TV is in power off, the indicator in front of the TV illuminates amber.
7
Select your input source to
minutes. The timer begins to
count down from the number
is not available on
or
DISPLAY
where y
is not available
OPERATING INSTRUCTIONS
USE OF THE REMOTE CONTROL
POWER:
Press to turn on/off the TV. The TV is never completely powered off unless it is physically unplugged.
CH
Press + or - (or MENU / button) buttons to scroll through the channels.
VOL Press + or – to increase or decrease the volume.
PC
PC.
SLEEP
With this key you can set a time period after which the TV should switch itself to standby. Press the key repeatedly to select the number of minutes. The counter runs from 0~120
of minutes selected after the display has disappeared.
SWAP
SWAP this model.
MENU Press this key to display exit main menu.
Size
Size is not available on this model.
Press this key to
display:
(1) the channel number
when watching a TV program.
(2) the input source
when watching the other video program.
MUTE
Temporarily interrupt the sound or restore it.
SUBPAGE
In the Teletext mode, this is subpage function.In theTV mode,Press subpage to select 1** channel
0~9 DIGIT BUTTONS
To select a TV channel.
PRE-CH
To display the previously selected TV channel.
TV/VIDEO
Select your input source: press repeatedly to select
TV, AV, S-VIDEO or SCART,YPbPr, HDMI
mode, according to
ou connected
your external source.
SOUND
To select Mono/ Stereo/Dual from TV RF input.
PIP/POP
PIP/POP
on this model.
8
TELETEXT
TELETEXT
MIX
to superimpose the teletext over a
normal broadcast picture. Press again to return
SIZE
repeatedly to display the upper
teletext part, the lower teletext part and then to
RED / GREEN / YELLOW
/ BLUE
to operate the
INDEX
SUBTITLE
s a subtitle
HOLD
o hold the Teletext page when
viewing information. Press again to return to
REVEAL
to display reveal hidden words
PAGE SELECTION
Teletext is an information service organized like a magazine, which is provided by some TV stations in addition to regular television broadcasting.
Press TELETEXT. The Teletext screen appears. To turn off the Teletext mode, press TELETEXT again.
Press MIX
to Teletext mode.
Press SIZE
return to the normal.
Use the COLOURED BUTTONS Teletext screen.
Press INDEX to return to the main index page.
Press to select the next page marked a page and request it as the display page.
Press HOLD t
automatic page update.
Press REVEAL e.g. quiz page answers. Press again to hide.
Page can be selected in two ways. a. Press or to increase or decrease the page number by one. b. By entering the page number, using digit buttons 0~9.
9
10
To use the menus
1. Press the MENU button to display or close main menu.
2. Use the cursor up/down to select a menu item.
3. Use the cursor left/right to enter a submenu or enable/disable the function.
4. Press the MENU button to exit the menu.
MAIN MENU
Press the MENU button to enter the main OSD (On Screen Display). Adjust the items including Picture Setup, Sound setup, Function Setup and TV setup. When the input source is AV/S-VIDEO /SCART/YPbPr/ PC/ HDMI mode, only the Sound Setup, Picture Setup and Function Setup can be selected; shown in the figure below:
When the input source is TV mode, the Sound Setup, Picture Setup, Channel select Setup, Function Setup and TV Setup can be selected; shown in the figure below:
11
Sound Setup (Same as in TV/AV/S-VIDEO /SCART/YPbPr/ PC/ HDMI)
1. The range of adjusting volume, bass and treble is from 0~100.
2. Bass and Treble:the easy Equalizer function,Bass can adjust the low frequency sound and Treble can adjust the high frequency sound.
3. The range of adjusting Balance is -50~+50; when adjusting from 0 to -50, the sound from the left track fades until silence; when adjusting from 0 to +50, the sound from the right track fades until silence.
4. AVL: you can set it “ON” or “OFF”.
The function is to adjust the input sound automatically. You may enable this function when you notice that the sound in the two tracks are very different, in order to prevent the bad sound effect resulting from large sound variation.
5. Select "ON" or "OFF" for Loudness: a default setting is preset, you may adjust when necessary. The following menu will appear when selecting continuously:
6. Preset: Designed for different types of sound output, where in, the voice music ,personal and theatre modes are preset; you can set Bass, Treble and Equalizer in sound output mode according to your preference.
7. Equalizer: You can select and adjust 100, 300, 1K, 3K and 8K respectively (the figures represent the sound frequency range).
8. Reset to default: Reset the sound setting to the factory default value.
12
Picture Setting
When the input source is in TV/AV/S-VIDEO /SCART/ YPbPr/ HDMI, you can select Brightness, Contrast, Colour, Sharpness, Dyn. Colour Temp, preset and Reset to default respectively; shown in the figure below:
When the input source is in PC mode, you can select Brightness, Contrast, Position, Video noise, Sharpness, Auto Adjust, Info, Colour Temp., Red, Green, Blue and Reset to default.
1. Brightness and Contrast: The range can be adjusted from 0~100.
2. Position: There are two options, Horizontal and Vertical, which can be adjusted from -50 to +50.
3. Video noise: There are two options, Phase and Clock, which can be adjusted from -50 to +50.
4. Sharpness: Select from five options of Softest, Soft, Auto, Sharp and Sharpest. You may adjust the above options according to your preference.
5. Auto Adjust: Automatically adjust PC input to the optimal screen size.
6. Information: Prompt the current size for PC input definition (only the definition that can be shown by this device).
7. Colour Temp.: There are four options of colour temperature provided for users - normal, warm, cold and User. You can select the three colour temperatures of normal, warm, and cold, or manually adjust red, green or blue in the User setting (you can only adjust red, green and blue in the user setting).
8. Reset to default: It is used to reset the picture settings to the factory default mode.
Function Setup
When the input source is in TV mode, you can select Source OSD, Language, Country, ACI, Timers, TT Language, Teletext E/W and Reset to default; shown in the figure below:
13
1. Current Source OSD setting: When OSD is set to ON, the left upper corner of the display will show the input source or the TV channel number; when OSD is set to OFF, the input source or the TV channel number will disappear.
2. OSD language setting: There are ten language options provided - English, France, Deutsch, Spanish, Portuguese, Poland, Russian, Italian, Finnish, Swedish.
3. Country and ACI functionthe user can select Country and if the program system has ACI Auto Channel Installationfunction.
4. Timers
(1).Sleep Timer:preset a time so that the set can get into standby mode
after that time . And the alert function will count down when there is one minute left.
(2). Reminder timer: set an alert time so that when the time finished,
there will be a warning to remind the user.
5. TT Language. and Teletext E/Wthe user can set the teletext language.
6. Reset: It is used to reset the OSD settings.
When the input source is in AV, S-Video or SCART mode, you can select Source OSD, Language, Timers, TT Language., Teletext E/W and Reset to default; When the input source is in PC and HDMI mode, you can select Source OSD, Language, Timers and Reset to default;
TV Setting
The following menu appears only in the TV mode. A.channel select function This set can give the user a channel list that all channel received
14
B.channel setup function
1. Program nr: Shows the current program number.
2. Program nameshow the program name,also the user can give the program a unique name
3. Colour System / sound system: select the colour and sound system the current channel.you can selet ”auto”,the set will identify it by oneself
4. Auto search: Select "Auto Search" to search all signaled channel; when the searching is complete, it stays at the first channel with signal and all channels that have been located are stored. If you would like to stop "Auto Search" during the process, simply by pressing the function button.
5. Frequencyshow the current signal Frequency
6. AFC can be set to ON or OFF. When it is set to ON, the TV will search the TV signal automatically; when there is any offset in the signal, it will automatically adjust the channel to the correct position.
7. Skip can be set to ON or OFF. When it is set to ON, a channel can be skipped by pressing the CH button on the remote control or on the front panel.
8. Reset to default: Reset to the factory default value.
15
Press this button to turn on the TV or allow the TV to enter standby
illuminates
the

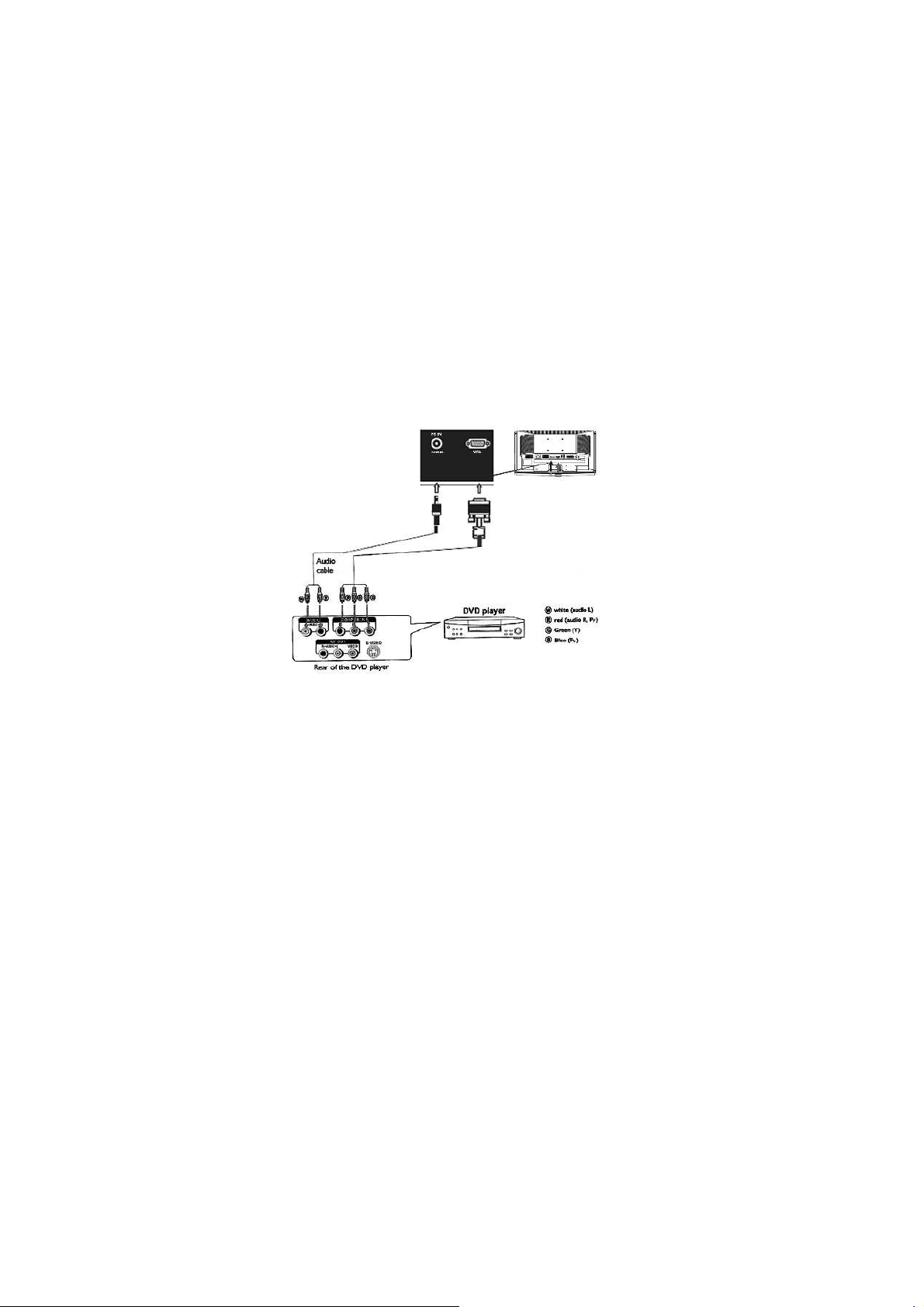

CONNECT PERIPHERAL EQUIPMENT
CONTROL KNOBS
Power :
Menu : Press this button to display or exit the OSD menu.
CH( ): When the OSD menu appears, press these two buttons to select the
Vol(+ -) : When the OSD menu appears, press these two buttons to confirm
Input: Press this button to change input source.
mode.
If the TV is in standby mode, the indicator at the front will
amber.
item you want to execute; when no OSD menu appears, use to
change channels in TV mode.
selected item; when no OSD menu appears, use to adjust the volume.
There is a wide range of video and audio equipment that can be connected to your TV. The following connection diagrams show you how to connect them.
16
PREPARATION
Lay the LCD TV with the screen down on a table, as it will be easier to connect your peripheral equipment. Please take your precautions not to damage the screen.
19”
22”

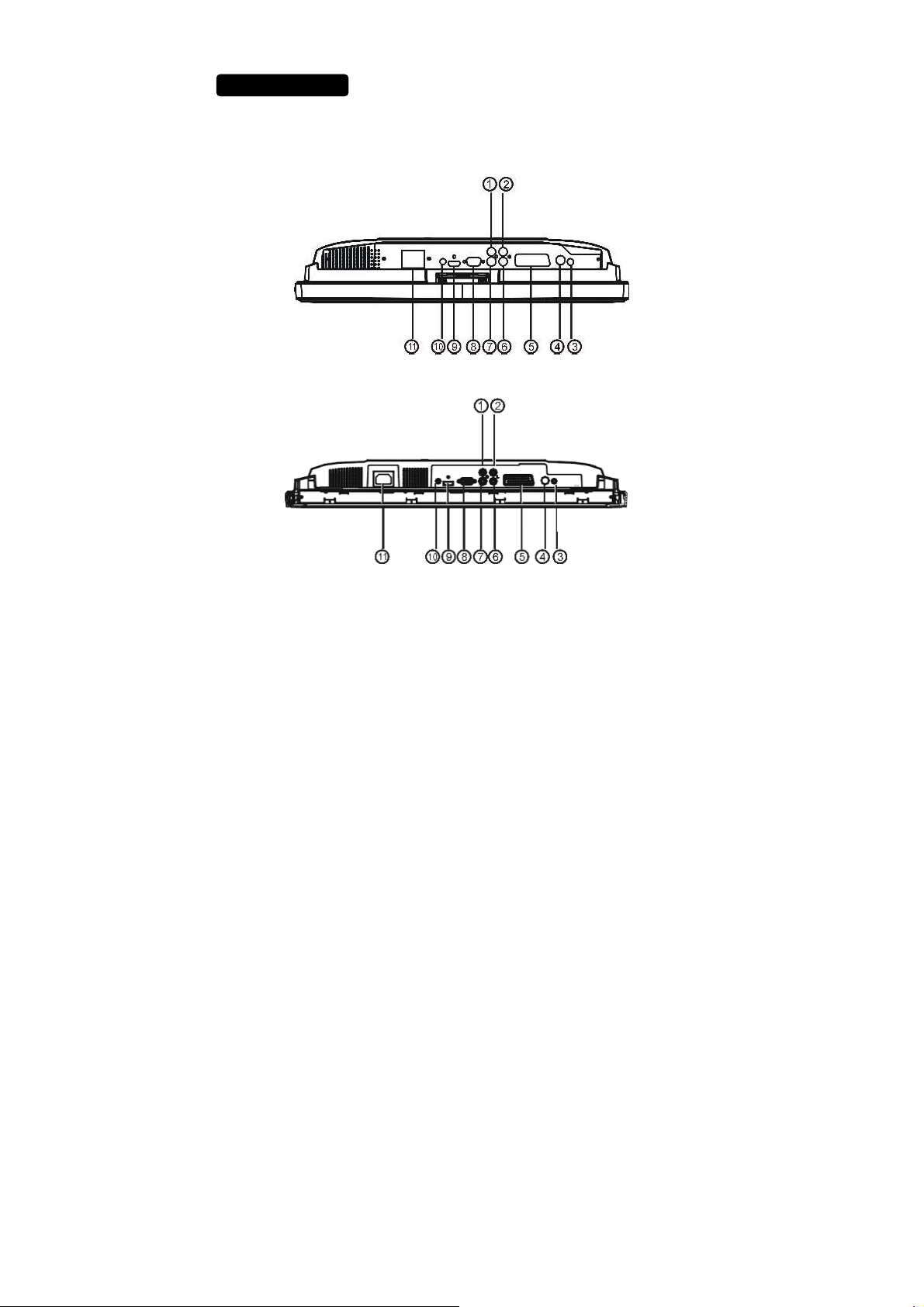

1: AV1 signal input 2: Right audio track input 3: Headphone outlet 4: TV signal input 5: SCART signal input 6: Left audio track input 7: S-Video signal input 8: VGA input or YPbPr signal input 9: HDMI input 10: VGA audio input or YPbPr audio input 11: AC power input terminal
17
1> PC input: Note: For the connection between the PC and the TV, (see Figure 1) below.
(Figure 1)
(1)How to connect to the PC mainframe:
VGA interface – Connect the VGA signal cable supplied with the TV to the D-sub interface at the rear of the TV as in. (Figure 1)
(2)How to connect the audio cable:
Connect the PC audio cable supplied with the TV to the TV’s PC Audio Input
as in. (Figure 1) Note: If no signal is present on the VGA screen, the TV will enter into standby mode automatically after 3 seconds.
2> HDMI input:
HDMI is the leading new standard for Digital video and audio interconnection. To the HDMI connector you can connect HDMI devices such as a Set Top Box or compatible DVD-R or DVD player with HDMI export, or DVI-equipped devices like a computer. So you can display high-definition pictures on this TV in the digital form.
(1) How to use HDMI:
1. Connect one HDMI to the “HDMI” port and connect the other HDMI to device with HDMI export as left figure.
Select the T-Line button,change source button can come into HDMI source.
3. The HDMI connectors allow the following TV
and monitor display mod: SDTV 720x576i, 50Hz /720x480i, 60Hz EDTV 720x576p 50Hz /640x480p 60Hz
HDTV 1920x1080i 50/60Hz
1280x720p 50/60Hz
VGA 720x480 60Hz
18
Notes:
1.Your TV supports HDCP(High-bandwidth Digital Content Protection).This Is a system for protecting DVD content outputted via DVI from being copied. It provides a secure digital link between a video source (DVD, PC, etc.) and your TV. Content is encrypted at the source device to prevent unauthorized copies from being made.
2.Digital devices from different manufacturers have the possibility of differing output standards which may cause difficulties for the television to properly display.
3.In case no signal is detected from your HDMI device, turn off the HDMI device and then on again.
4.To get an optimal viewing, it is advised to turn your DVD player to one of the following TV display standards:1280x720p 50hz.
3> S-Video Input: Connect the S-Video cable to DVD player, Laser Disc
player,
videocassette recorder or camcorder. pin
4> YPbPr input:
How to connect a DVD Player orHome Cinema System using Compont Video Connections :
Connect the Video cable between the D-Sub interface on the unit and Y, Pb, Pr output jacks on the DVD player. Connect the Audio cable between the Audio input socket on the unit and Audio output jacks on the DVD player.
Notes:
The Y, Pb, Pr output on your DVD palyer are sometime labeled Y, Cb, Cr or Y, B-Y, R-Y. if so, connect cables to like colours.
19
5> Audio Input: Connect the audio signal source. (PC, DVD player, Laser
Disc
player, videocassette recorder or camcorder) to the Audio Input ports.
6> Video Input: Connect the video signal source. (PC, DVD player, Laser
Disc player, videocassette recorder or camcorder) (The audio is for S-Video and AV)
TIPS
Care of the screen
Do not rub or strike the screen with anything hard as this may scratch, mar, or damage the screen permanently. Unplug the power socket before cleaning the screen. Dust the TV by wiping the screen and the cabinet with a soft, clean cloth. If the screen requires additional cleaning, use a clean, damp cloth. Do not use liquid cleaners or aerosol cleaners.
Mobile telephone warning
To avoid disturbances in picture and sound, malfunctioning of your TV or even damage to the TV, keep away your mobile telephone from the TV.
End of life directives
We are paying a lot of attention to produce environmentally friendly in green focal areas. Your new receiver contains materials which can be recycled and reused. At the end of its life specialized companies can dismantle the discarded receiver to concentrate the reusable materials and to minimize the amount of materials to be disposed of. Please ensure you dispose of your old receiver according to local regulations.
20
BEFORE CALLING SERVICE
Please make these simple checks before calling service. These tips may save you time and money since charges for receiver installation and adjustments of customer controls are not covered under your warranty.
Symptoms Items to Check and Actions to follow “ Ghost ” or double image
*This may be caused by obstruction to the
antenna due to high rise buildings or hills. Using a highly directional antenna may inprove the picture.
No power *Check that the TV’s AC power cord is plugged
into the mains socket.
*Unplug the TV, wait for 60 seconds. Then
re-insert plug into the mains socket and turn on the TV again.
No picture *Check antenna connections at the rear of the
TV to see if it is properly connected to the TV.
*possible broadcast station trouble. Try another
channel. *Adjust the contrast and brightness settings. *Check the Closed Captions control. Some
TEXT modes could block the screen.
Good picture but no sound
*Increase the VOLUME. *Check that the TV is not muted; press the
button on the remote control.
Good sound but poor color
*Adjust the contrast, color and brightness
settings.
Poor picture *Sometimes, poor picture quality occurs when
having activated an S-VHS camera or
camcorder connected and having connected
another peripheral at the same time. In this
case switch off one of the other peripherals
Snowy picture and
*Check the antenna connection
noise Horizontal dotted line *This may be caused by electrical interference
(e.g. hairdryer, nearby neon lights, etc.) *Turn off the equipment.
Television not responding to remote control
*Check whether the batteries are working.
Replace if necessary *Clean the remote control sensor lens on the TV. *You can still use the buttons at the front of your
TV. *Select the TV mode to be sure your remote
control is in the TV mode. *Remove plug from mains for 5 seconds then
replug to power on again.
GLOSSARY
21
Audio / Video Inputs
Located on the rear and the front of the receiver these connectors (RCA phono type plug) are used for the input of audio and video signals. Designed for use with VCRs (or other accessories) in order to receive higher picture resolution and offer sound connection options.
S-Video Input
Allows direct connection of high-resolution video sources, such as a Super VHS videocassette recorder, Laser Disc player, etc. Provides improved picture resolution, sharpness, and clarity.
Menu
An on-screen listing of feature controls shown on the TV screen that are made available for user adjustments.
RF
Radio Frequency or modulated signal design used as the carrier for television broadcasts.
Sleep Timer
Function with which you can set a time period after which the TV should turn itself off.
22
TV Tuning
Used as a stereo
phone mini jack
jack for stereo
VGA to
s
Product Specification
Items
LCD Panel
TV Function
Video Inputs
PC mode
Audio Output
OSD language
Power
Dimension
Weight
Accessories
Specification
Screen Size
Contrast Ratio 500:1 Resolution 1440 x 900 pixels
19.05” TFT-LCD Panel
Viewable image size: 481mm diagonal
System Sound System Teletext Yes (10 Pages) Color systems PAL / SECAM
SCART (RGB+CVBS) x1 AV1 RCA(Composite) x 1
S-Video S-Video x 1
Component
HDMI HDMI x 1
Signal input Analog: D-Sub 15 pins (separate) Plug and play
compatible Recommended Analog: 1440x900 (60Hz)
Audio input
Audio output: L/R Speaker (built-in):2*5 watt speakers
English/France/Germany/Spanish/Danish/Russian/Italy/ Finland/Sweden/Poland
Power supply AC100V~240V, 50/60Hz
Power Consumption
W x H x D (with stand) 477.9mmx405.9mmx204.4mm
KG(W/O Accessories) 6.2kg/8.8kg
Remote control with batteries(AAX2),AC power cord,
Component cable(x1), PC Audio to RL cable(x1) , User’
Guide, QSG
Analog
Analog
PAL/SECAM
Nicam / A2
Audio L/R x 1 (Share)
Video input: D-Sub 15 pins Audio input:
earphone mini jack (3.5 ø)
DDC 2B
Used as a stereo ear (3.5 ø)
Headphone: Mini­(3.5ø)
Power-on<70W; Power saving-off<3W
23
TV Tuning
a stereo
Used as a stereo earphone mini jack
jack for stereo
VGA to
s
Product Specification
Items
LCD Panel
TV Function
Video Inputs
PC mode
Specification
Screen Size
Contrast Ratio 500:1 Resolution 1680 x 1050 pixels
Viewable image size: 558mm diagonal
System Sound System Teletext Yes (10 Pages) Color systems PAL / SECAM
SCART (RGB+CVBS) x1 AV1 RCA(Composite) x 1
S-Video S-Video x 1
Component
HDMI HDMI x 1
Signal input Analog: D-Sub 15 pins (separate) Plug and play
compatible Recommended Analog: 1680x1050 (60Hz)
Analog
Analog
22” TFT-LCD Panel
PAL/SECAM
Nicam / A2
Audio L/R x 1 (Share)
Video input: D-Sub 15 pins
Audio input:Used as earphone mini jack (3.5 ø)
DDC 2B
Audio Output
OSD language
Power
Dimension
Weight
Accessories
Audio input
Audio output: L/R Speaker (built-in):2*5 watt speakers
English/France/Germany/Spanish/Danish/Russian/Italy/ Finland/Sweden/Poland
Power supply AC100V~240V, 50/60Hz
Power Consumption
W x H x D (with stand) 539mmx447mmx209mm
KG(W/O Accessories) 6.2kg/8.6kg
Remote control with batteries(AAX2),AC power cord,
Component cable(x1), PC Audio to RL cable(x1) , User’
Guide, QSG
(3.5 ø)
Headphone: Mini­(3.5ø)
Power-on<75W; Power saving-off<3W
24
Loading...
