AOC L19DH93 Schematic

维 修 手 册

品牌 机种

AOC

L19DH93/L19DH93-R
L22DH93/L22DH93-R
L26DH93

1

变更说明

版本 发布日期 变更说明 对外机种名 对内机种名

L19DH93

A00 2009-8-14

A01 2010-1-10

增加新机种，二次发布

首次发布

L22DH93

L26DH93

L26DH93 E2692ANC4WA1NN

L19DH93-R E1992AND4WAANN

L22DH93-R

E1992AND4WA1NN
E1992AND4WA8NN
E2292AND4WA1NN
E2292AND4WA8NN
E2692AND4WA1NN
E2692AND4WA8NN

E2295AND4WAANN
E2292AND4WAANN

2

目录

1.技术规格 --------------------------------------------------------------------------------------------------------------- 04

1.1一般规格 ---------------------------------------------------------------------------------------------------------- 04

1.2预设显示模式 ---------------------------------------------------------------------------------------------------- 05

2.操作说明 --------------------------------------------------------------------------------------------------------------- 06

2.1遥控器操作 ------------------------------------------------------------------------------------------------------- 06

2.2控制面板 ---------------------------------------------------------------------------------------------------------- 07

2.3背面信源接口 ---------------------------------------------------------------------------------------------------- 08

2.4侧边信源接口 ---------------------------------------------------------------------------------------------------- 09

2.5菜单操作 ---------------------------------------------------------------------------------------------------------- 10

3.工厂模式调整 --------------------------------------------------------------------------------------------------------- 14

4.故障处理流程 --------------------------------------------------------------------------------------------------------- 15

5.电气方框图 ------------------------------------------------------------------------------------------------------------ 23

5.1 主板功能框图------------------------------------------------------------------------------------------------------ 23

5.2 主板电源框图------------------------------------------------------------------------------------------------------ 24

6.线路图 ------------------------------------------------------------------------------------------------------------------ 25

6.1 主板------------------------------------------------------------------------------------------------------------------ 25

6.2 电源板--------------------------------------------------------------------------------------------------------------- 35

6.3 按键板--------------------------------------------------------------------------------------------------------------- 40

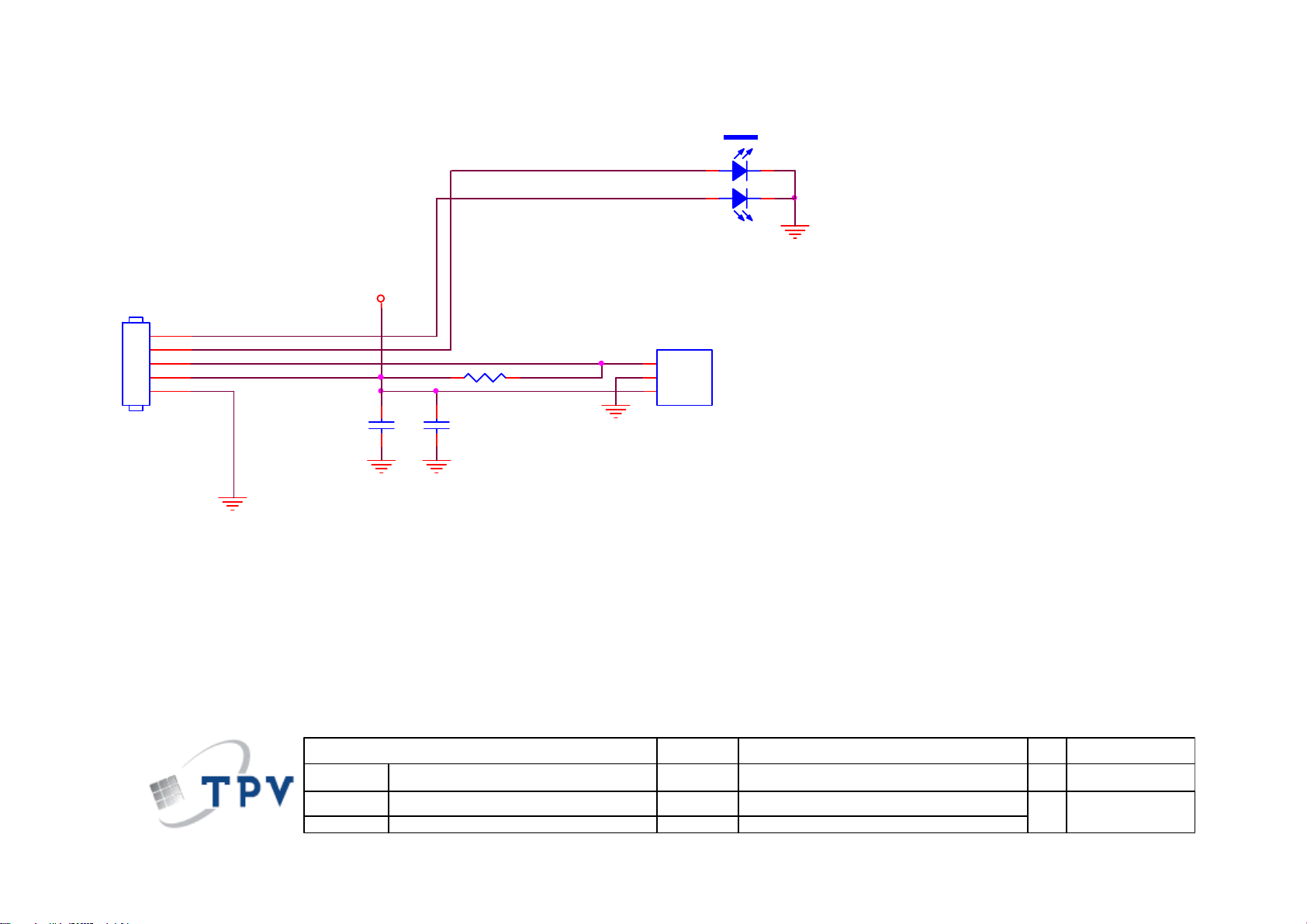

6.4 IR 板----------------------------------------------------------------------------------------------------------------- 41

7. BOM-------------------------------------------------------------------------------------------------------------------- 42

7.1 L19DH93 ----------------------------------------------------------------------------------------------------------- 42

7.2 L22DH93 ----------------------------------------------------------------------------------------------------------- 60

7.3 L26DH93 ----------------------------------------------------------------------------------------------------------- 78

3

1.技术规格

1.1 一般规格

功能

项目

可视尺寸 470mm 对角 548mm 对角 660mm 对角

电视功能

视频输入

视频输出 视频 AV OUT RCA x 1、音频 L / R x 1

电脑输入

电脑输入功能
支持电视、视频、S 端子、分量信号输入功能、HDMI 输入功能（只针对 L26DH93）

L19DH93 L22DH93 L26DH93

电视标准 PAL B/G、D/K、I、NTSC M、SECAM D/K

声音系统 FM-MONO、STEREO

视频 AV

S 端

分量输入

YPbPr/YCbCr

分量输入支持模式 480i、576i、480p、576p、720p、1080i

推荐分辨率 推荐使用： 1360*768/60Hz

声音输入 用于立体声的耳机迷你型插孔 (3.5ø)

RCA x 2

S-Videox 1

YPbPr/YCbCr x 1

音频 L / R x 1

音频 L / R x 1

音频输出

OSD 语

言

桌台支架 包括

墙壁装配件

电源

使用环境

尺寸 宽 x 高 x 厚（含底座）

音频输出：L / R

简体中文 /繁体中文/英文/阿拉伯语/俄罗斯语/泰语 (出厂设定为简体中文)

VESA 100 x 100 mm

电源

功率消耗

待机功耗

温度

储存温度

湿度

扬声器（内置）：两个 3W 扬声器

用于立体声的耳机迷你型插孔 (3.5ø)

AC100V~240V, 50/60Hz

≤65W ≤75W ≤120W

<1W <1W <1W

+ 5 °C ~ + 35 °C

- 20 °C ~ + 60 °C

10% ~ 85%

466.0x344.0x171.0(mm) 535.4x384.1x171.0(mm) 659x489x232(mm)

4

1.2 预设显示模式

电脑格式

编号 分辨率 模式 垂直频率（Hz） 水平频率（KHz）

1 640 x 480 VGA 59.94 31.469

2 800 x 600 VESA 60.317 37.879

3 1024 x 768 VESA 60.004 48.363

*4 1360 x 768 VESA CVT 59.799 47.72

*推荐分辨率

视频格式

编号 分辨率 模式 垂直频率（Hz） 水平频率（KHz）

1 640 x 480 VESA 59.94 31.469

2 800 x 600 VESA 60.317 37.879

3 1024 x 768 VESA 60.004 48.363

4 1360 x 768 VESA 59.799 47.72

5 720 x 480 CVI 30 15.734

6 720 x 480 CVI 60 31.5

7 720 x 576 CVI 25 15.625

8 720 x 576 CVI 50 31.25

9 1280 x 720 VESA CVT 50 37.5

10 1280 x 720 VESA CVT 60 45

11 1920 x 1080 CVI 25 28.125

12 1920 x 1080 CVI 30 33.75

5

2. 操作说明

2.1 遥控器操作

电源
按此键可开启/关闭电视。电视不会完全断

电，除非关闭交流电源开关或者拔下电源

插头。

视频/S 端子

按此键可在视频-1、视频-2 与 S 端子输入

模式互切。

分量信号

按此键可切到分量模式。

HDMI

此键无作用(针对 L19DH93&L22DH93)

按此键可切到 HDMI 模式(针对 L26DH93)

电脑

按此键可切到电脑模式。

0~9/1-- (数字按钮)

用来选择电视频道。

节目

按 “+”或“-”（或上/下键）

可以切换电视频道。

音量

按 + 或 –（或左/右键）可以调整声音音量

大小。

丽音

用来选择电视声音效果.

缩放

按此键可切换画面比例。

静止

此键无作用。

睡眠

设定电视自动进入待机状态的时间间隔。

（电脑模式下此键无作用）

图片预览

此键无作用

音乐

此键无作用

菜单/离开

按这个键可以显示或者

退出菜单。

OK

对所选项目进行确认。

回看
用来显示前一次选择的电视频道。

静音

暂时中断声音或恢复声音。

显示

(1) 当使用射频电视信号输入时显示频道

(2) 当使用射频电视信号之外其它输入时，

(3) 显示的信息会在3秒钟后自动消失。

信源

选择信号源：按出可以选择电视、视频-1、

视频-2、S 端子、分量信号、电脑。

音质

切换画面声音预设模式，有个人、音乐、

对白三种模式。

画质

切换画面图像预设模式，有个人、标准、

鲜明、电影、经济模式（省电模式）等五

种模式。

此键无作用

此键无作用

此键无作用

号码，声音制式等信息。

显示输入源信息。

此键无作用

6

2.2 控制面板

VOL(音量):

CH(频道):

MENU(菜单): 按此键可以进入或退出菜单。

INPUT(信号源): 按此键屏幕可以显示输入信号源菜单。

POWER(电源):

在屏幕出现菜单时，按+键或-键可以确认所选择之选项，在屏幕无菜单时，可
以调整音量大小。

在屏幕出现菜单时，按+键或-键可以选择所要执行选项，在屏幕无菜单且信号
源为电视模式时可以换台。

按此键可以开启电视或使电视进入待机状态，如果电视处在待机状态，则前面
的指示灯会亮显示红色。

7

2.3 背面信源接口

背面信源接口如下图：

L19DH93&L22DH93 L26DH93

天线输入:
将天线接头插入电视机的天线插孔，本接口为 75Ω 同轴电缆输入。

视频 1（AV IN 1）：
将 DVD、激光影碟机、录像机或摄像机等设备的视频输出连接至本机视频（VIDEO）输入上。
音频输入：将音频信号源(计算机、DVD、激光影碟机、录像机或摄像机等)连接至音频输入端口。

视频信号输出（AV OU T ）:
通过该接口可以将本机的电视信号输出给另一台电视。

分量（YPbPr）输入：
将分量信号源音频及视频(DVD、激光影碟机、录像机或摄像机等)连接至分量信号输入端口。

电脑信号（VGA）与电脑音频(AUDIO)输入：
将电脑信号线连接电脑主机和本机的电脑接口。
将音频线连接电脑和本机的电脑音频输入接口。

HDMI：(仅针对 L26DH93)
即为“高清晰多媒体接口”，将此接口用 HDMI 信号连接线连接至 DVD 等设备上。

8

2.4 侧边信源接口

耳机插孔:
使用者可通过耳机插孔使用耳机。

视频 2（AV IN 2）/S 端子输入：
将 DVD、激光影碟机、录像机或摄像机等设备的视频输出或 S 端子输出连接至本机视频（VIDEO）输入或
S 端子输入上。（S 端子与视频 2 音频共享）

音频输入：
将音频信号源(计算机、DVD、激光影碟机、录像机或摄像机等)连接至音频输入端口。

友情提示：

每当将外部设备与电视机连接时，请先确保电视机的电源已关闭。

9

2.5 菜单说明

使用菜单

1. 按菜单按钮可以显示或退出主菜单。

2. 使用上或下键可以选择所要调整之功能选项。

3. 使用左或右键或“OK”

信源菜单
按“信源”按钮选择输入信源：包括电视、视频-1、视频-2、S 端子、分量信号、HDMI (仅针对 L26DH93)、
电脑。
按菜单按钮进入 OSD 主菜单。

电视模式时可调节项目包括：视频、音频、功能、频道。
视频 1、视频 2、S 端子、分量信号、HDMI（仅针对 L26DH93）输入时可调节项目包括：视频、音频、功
能。
电脑模式时可调节项目包括：视频、音频、功能、电脑。

一、 图像设定

按钮可以进入子菜单或启用或调整所选择之功能。

1. 预设：可提供个人、标准、鲜明、电影、经济模式（省电模式）五种图像设定模式选择。

2. 对比度：使图像黑色部分的暗色变丰富，而白色变亮。

3. 亮度：调节画面的背景亮度，一般与对比度配合使用，调整范围 是 0 到 100。

4. 色彩：调整范围为 0～100，通过调整此项可以改变画面颜色及画面彩色浓度。（电脑模式无该选项）

5. 锐利度：调整范围为 0～100，通过调整此项改变画面清晰锐利程度。（HDMI（仅针对 L26DH93）、电
脑模式无该选项）

6. 降噪：可以选择关闭、低、正常、高四种选项。请用户根据实际画面判定选项。建议在画面出现严重
噪点时选择高选项，有轻微噪点时选择关闭选项。（电脑模式无该选项）

7. 色温：非电脑模式此选项为用户提供了三种色温选项：正常、暖色、冷色。电脑模式下则多出“用户”
选项，可调节 R, G, B 三色。

8. 画面比例：非电脑模式可选择正常、缩放 1、缩放 2、宽屏四种选项。
当分量模式分辨率为 720P,1080I，1080P（仅针对 L19DH93& L22DH93）时，图像比例还可以选择“1：
1”模式。电脑模式下有正常、宽屏两种选项。

10

二、音频设定

预设：可选择个人、音乐、对白三种输出声音模式。其中对白、音乐两种声音模式无法调整高低音，而个

人模式则可以根据自己喜好调整低音、高音、平衡器来设定声音输出效果。

1. 低音、高音调整范围是从-10～10。

2. 平衡：调整范围是从-10～10。从 0~10 调整时，左声道声音 慢慢减小直至消失，从 0~-10 调整时，右
声道声音慢慢减小直至消失。

3. 虚拟环绕：环绕音效开关。默认值是关。

4. AVL：自动音量控制

三、功能设定

L19DH93& L22DH93 L26DH93

1. 菜单语言：设定菜单语言功能，提供英文、简体中文、繁体中文、阿拉伯文、泰文、俄文 6种语言选择。

2. 菜单显示时间：有 10，20，30，40，50，60s 的时间可供选择，来设置菜单的显示时间。

3. 睡眠定时： 设定电视自动进入待机状态的时间间隔(电脑模式无该项功能)。

当睡眠时间设定完成后，开始计时；

4. 高级对比度：进一步加强电视图像的对比度。

5. 动态对比度：加强电视动态画面的对比度,使图像更加有层次感。

6. 系统重置：将各个调整项目设定内容恢复为出厂预设值。

四、电视设定（以下菜单只有在电视模式才出现）

11

1. 自动搜台：用于给用户自动搜索并存储节目,按“菜单/离开”键可以退出自动搜台模式。

2. 更新搜台：保存已存储节目并重新开始搜台，按“菜单”键可以退出更新搜台模式。

3. 手动搜台： 按左右按钮进入子菜单，见下图

(1) 频道号：显示当前电视频道号
(2) 节目名称：可编辑当前电视频道名
(3) 频率：显示当前电视频道频率
(4) 彩色制式：显示当前电视信号彩色制式。
(5) 声音制式：显示当前电视信号声音制式。
(6) AFC：可以被设定为开和关，当设定为开时，电视会对电视信号自动侦测，在一定频率范围内当信号有

偏移时会自动调整频道到正确位置。

4. 频道列表：按右按钮进入子菜单，见下图

可以按照菜单最下方的指示，对频道列表进行编辑。

12

五、系统设定

1. 菜单语言：设定菜单语言功能，提供英文、简体中文、繁体中文、阿拉伯文、泰文、俄文 6种语言选择。

2. 菜单显示时间：有 10，20，30，40，50，60s 的时间可供选择，来设置菜单的显示时间。

3. 睡眠定时： 设定电视自动进入待机状态的时间 (电脑模式无该项功能) 。当睡眠时间设定完成后，开始

计时。

4. 高级对比度：进一步加强电视图像的对比度。

5. 动态对比度：加强电视动态画面的对比度,使图像更加有层次感.

6. 系统重置：恢复为工厂预设值。

六、电脑设定（以下菜单只有在电脑模式才出现）

1. 自动调整：将电脑画面调整到最佳位置

2. 水平位置：调整范围-50～50，调整画面水平位置。

3. 垂直位置：调整范围-50～50，调整画面垂直位置。

4. 时钟，相位：调整范围-50～50，调整画面显示效果。

13

3.工厂模式调整

进入工厂模式的方法: 先按遥控器上的“菜单/退出”键，再按 1→9→9→9。

此 3 个机种无需调白平衡，只需做 Auto Color 动作。

色温值及规格：

L19DH93& L22DH93:

L26DH93:

X(center) 0.313 ± 0.030 0.285 ± 0.030 0.272 ± 0.030

y(center) 0.329 ± 0.030 0.293 ± 0.030 0.278 ± 0.030

X(center) 0.313 ± 0.030 0.283 ± 0.030 0.270 ± 0.030

y(center) 0.329 ± 0.030 0.297 ± 0.030 0.281 ± 0.030

Warm (6500K) Normal (9300K) Cold (12000K)

Warm (6500K) Normal (9300K) Cold (12000K)

14

4.故障处理流程

检测插座是否有电或硬开关是否打开

检测电源板 CN902 的 PIN6&7(For L19&22DH93)或 PIN11&12(For L26DH93)是否有 5V 电压输出

检测 IR 板及 LED 灯

更换 IR 板

无法启动（LED橙色）

无电（LED 不亮）

有

无

重插电源插座或开启硬开关

无

更换电源板

检测电源板 CN902 的 PIN10&11(For L19&22DH93)是否有 12V 输出；

PIN8&9(For L26DH93)是否有 24V 电压输出

无

否

更换按键板

有

检测按键板的POWER键是否失灵

是

检测IR板的U001红外接收器是否失灵

是

更换IR板

更换电源板

否

更换主板

15

无画（LED绿色）

检测TV是否受控，能否用遥控器或按键板开关机

检测主板上CN407的

PIN1是否有5V供电

是

先更换主板

检测是否OK

否

检测LVDS 线是否良好

是

否

更换主板

是

检测是否有背光

是

否

重插或更换LVDS 线

检测电源板 CN902 的 PIN10&11(For L19&22DH93)是否有 12V 供电；

PIN8&9(For L26DH93)是否有 24V 供电

是

否

否

检测主板CN701是否有BL信号

是

否

更换主板

否

更换主板

更换Panel

更换Panel

更换电源板

16

检测是否

否需要更新

否

信号格式

亮线、亮带、白
斑、黑 斑、漏 光、
亮点超规等

更换Panel

是

先更换主板

OK

否

更换Panel

花屏/白屏

检测LVDS接口

和线材是否良好

重插或更换

LVDS 线

否

画异

OSD乱码，切换频
道时间长，切换频
道瞬间画异

检测软体版本是

是

升级软体

更换主板

画面扭曲，超频，长宽比
例失调，中心偏移，截边，
上下或左右有黑带等

进入菜单进行自动调
整或复位看是否OK

否

检测输入信号格式是
否在TV的支持范围内

是 否

更换主板

调整输入

17

信

检测是否

有高频干扰源

彩条、水波纹、画抖、画闪、

鬼影、残影、拖影等干扰

检测附近是否有干扰源

是 否

排除干扰源

先更换主板

否

更换Panel

检测信号线

是否良好

是 否

OK

检测信号源出

号是否正常

是 否

更换信号线

重新设置

信号源

画异

TV画面雪花点、重

影、细线、条纹干扰

检测TV信号线

是否接触不良

是 否

重新连接

TV信号线

排除干扰源 用场强仪检测信号强度

检测附近是否

是 否

是否在45-100db之间，

65db左右为最佳值

是

更换主板

间歇性画异加温
画异冷开机画异

检测软体版本是
否需要更新
是 否

升级软体

检测是否OK

否

太弱：加装信号放大器
太强：减少信号放大器

或加装信号衰减器

先更换主板

否

取回站内
加温检测

18

无声或声音异常

更换连接线

检测信号源音频接口是否正确，或TV制式是否为DK制

是

检测TV是否被静音，调整音量大小，

或进入菜单进行复位看是否OK

否

检测主板到喇叭的连接线是否断路

是 否

检测喇叭阻抗是否变质
（喇叭阻抗值标在喇叭

是 否

更换喇叭 更换主板

否

重插音频接口或设置TV制式

19

收不到台或收台不全

检测软体版本是否需要更新

是 否

检测此频道是否发生频
偏，尤其是使用卫星信

是

建议客户重新

设置信号源

升级软体

用别的TV测试是否能收到此

是

否

更换主板

用场强仪检测信号强度是否在
45-100db之间，65db左右为最佳

是

和客户说明当地TV信号未转播此

否

太弱：加装信号放大器
太强：减少信号放大器或加装信号衰减

否

20

喇叭异响

（破音，滋滋声）

检测喇叭是否变质

是 否

更换喇叭 主板功放异常

更换主板

异响

电源板，PANEL 异响

更换电源板/PANEL

遥控失灵

检查遥控器电池是否未安置好或没电

是 否

重新安置或更换电池 用别的遥控器测试是否可用

是 否

更换遥控器 检测IR板是否异常

是

否

更换IR板

21

更换主板

更换按键

OSD 不稳定或无法正常工作

按键板连接正常吗？

否

接好按键板

是

按键正常吗？

否

是

按键板有无故障？

否

更换按键板

是

检查主板

22

5.电气方框图

5.1 主板功能框图

BACK BACK

CN301
HDMI

CN104
YPbP r

BACK BACKSIDE

CN107
AV&S -VIDEO

CN102
VGA

BACK

CN101
AV1

CN105
SCART

EU/CH Opti on

TU201
Tuner
OR

IF U201

TU202
Tuner

RF/IF Tuner Optio n

Hotel Pin

IR

ADC KEY

RX0,RX 1,RX2,RXCL K

Y,P b,Pr

CVBS

Y/C

R,B, G,H,V

RS232

SC_R,S C_G,SC_B

FB_BLANK,S TATUS

SAWFILTER

RS232

IR_DAT

HDMI EDID(U301)

SDA,SCL

CVBS

CVBS

SCL,SDA

U404
EEPROM 24C32

RS232

Himax M2D U405

HDMI_RXA0,A1,A2,CLK

AINA2,AINB2,AINC2,SOG2

AIN A5

AIN B4 ,AIN C4

AIN A1,AI NB 1,AI NC 1

HS YNC ,VSYN C

Himax M2D

AIN A3

AIN C3 ,AIN B3 ,AIN D1

AIN0_FAD,AIN1_FAD

AIN D4

ADCINN,ADCINP

P0,P1

HDMI/ADC

Hima x M2D
MCU

Hima x M2D U405

CVBS_O

Hima x M2D
TTL/LVDS/RSDS

Hima x M2D U405

U402
SPI EEROM

AV Li ne O ut
SCART CVBS Out
(Option)
(CN106&CN105)

LVDS BUS

Backl ight
On/Off,Brightness

CN404
CN406
LVDS I/O

BACK

LVDS BUS

PANEL

PC Audio

CN103

AV&S-V ideo

SIDE

Audio(CN107)

AV1&SCART O ption Aud io
(CN104&CN105)

BACK BACK

Tuner

YPbP r
Audio

AV Audio Line Out
SCART Audio
(Option)

BACK

(CN106&CN105)

MONO_AUD

COM1_AUL/ R

SIF

74HC4052D

(U601)

SCR_AUOUT_L/R

MUX_AUL/R

RAIN0,LAIN0

RAIN2,LAIN2

RAIN1,LA IN1

Himax M2D
Audio

Hima x M 2D U405

23

U603
AMP TDA7297

U604
APA2176A

CN601
Earphone

CN603
Connector

BACK

5.2 主板电源框图

5VSB

POWER_ON

5VSB

5VSB

1084-33
U701

AO4449
Q706

VCC3

1077mA

VCC5

VCC5

VCC5

VCC5

VCC5

1084_1.8
U708

1084_33
U707

AP1117D33
U705

AP1117D18
U703

AP1117D18
U709

VCC5

VCC3
MX25L4005AM2C
U402

281mA

V33_ADC

39mA

V33_AUD

117mA

VCC18

16mA

VCC18_PLL

AP2176
U604
EARPHONE AMP

822mA

VCC18_CORE

V18_33HDMI
HX6201
U405

VCC3AD
VCC3IO / V33LV
HX6201
U405

AVDD18 / VCCLV
HX6202A
U405

V33ADC / VCCADC / VDDA33
HX6201
U405

V33AUD
HX6201
U405

V18AUD / PVDD_LV
HX6201
U405

VCC5

PI5V33
U107
VIDEO SWITCH

VCC3AD
VCC3IO / V33LV

AVDD18 / VCCLV

V33HDMI / VCCADC / VDDA33

V33AUD

V18_33HDMI

V18AUD / PVDD_LV

PANEL_ON

POWER_ON

+12V_SB

POWER_ON

5VSB

5VSB

5VSB

500mA--1.0A

V12_ADP

V12_ADP

Q406

AO3407
Q701

AO4449
Q406

MPS2171
U711

400mA

M24C02
U301

PANEL_VCC

USB boad power

VCC5

5V,5V TO 3.3v
5v to 1.8V

PANEL_VCCAO4449

USB 2.0 HOST

VCC12 BA17808

U706

A1117D5.0
U202

PANEL

PANEL

M24C02­U101

5mA

VCC8

160mA

+5VT

74HC4052
U601
AUDIO SWITCH

TUNER
TU100

M24C32
U404

PANEL_ON

V12_ADP

TDA7297
U603

24

6.线路图

6.1 主板 715G3365M01000004K

33A3802-12B
CONN

CN701

+12V

1
2
3
4
5
6
7
8
9
10
11
12

PWR_ON

FB706
300 OHM

GND

10uF/16V

C701

C730

0.1uF 50V

VCC5

+5V

BL_ON1

PWR_ON

V_IPWM

2008-9-23

5VSB

GND

1 2

+

GND

C714

0.1uF 50V

0.1uF 50V

R733
10K OHM 1/10W

Q711
PMBS3904

C738

0.1uF 50V

5VSB

H1
NC

1

1

GND

H4

H2

H3

NC

NC

NC

1

1

1

1

1

1

GND

GND

GND

V12_ADP

+

C715
470uF/16V

GND

R734

1K OHM 1/16W

5VSB

C726

+

C727
470uF/16V

GND

PW_ON 12

Add Thermal Pad

U707

3

VOUT2VIN

GND

1

2008-8-19

H6

H5

V1

NC

NC

NC

1

1

1

1

1

GND

GNDGND

V_IPWM

BL_ON1

V33_ADC

ADC 3 .3V

1

+

C740
220uF/16V

R719

10K OHM 1/10W

C723
NC

C728

0.1uF 50V

V33_ADC

GND

5VSB

GND

5VSB

R728
10K OHM 1/10W

Q710
PMBS3904

GND

C739

0.1uF 50V

R717
10K OHM 1/10W

R720

1K OHM 1/16W
Q707
PMBS3904

R731

1K OHM 1/16W

R718
NC

BL_ADJ 11

BL_ON 12

10uF/16V

V33_AUD

C702

12

+

C716
220uF/16V

+

5VSB

FB709
300 OHM

5VSB

GND

5VSB

C712
NC

VCC3

TP402

Add Thermal Pad

U701

AIC1084-33PM

3

VIN

C720

0.1uF 50V

C706
NC

GND

C737

C744NCC745

NC

NC

GND

Add Thermal Pad

AZ1117D-1.8-E1

3

INPUT

2

OUTPUT

1

ADJ/GND

U703

C717

0.1uF 50V

E_PAD

VOUT

1

C709
NC

ADJ

VCC3

VCC3

2

C710
NC

V33_AUD

GND

VCC3

C748

0.001uF

GND

+

C741
220uF/16V

GND

3.3V StandBy

V12_ADP

C711
NC

VCC8

C746

C747

NC

NC

GND

TP403

V33_ADC

1 2

VCC18

VCC18

+

C721

C718

0.1uF 50V

220uF/16V

GNDGND

C749

0.001uF

3

C724

0.1uF 50V

R702

0 OHM 1/10W

C729
NC

2008-11-24
FOR EMI

FB701

300 OHM

U708

AIC1084-18PM

2

OUT

IN

GND

1

R703

NC

5V TO 3.3V TO 1.8V

VCC5

C731NCC732

NC

GND

V33_AUD

C736
NC

VCC5

VCC5

VCC18_CORE

+

C742

C743

0.1uF 50V

220uF/16V

GND

Add Thermal Pad

ADJ(GND)

NC

C733
NC

C707

0.1uF 50V

1
2
3
4

C719

0.1uF 50V

+

715T336503.Power

412Wednesday , July 22, 2009

C713

4.7uF/16V

C725

4.7uF/16V

of

Q706

S

D

S

D

S

D

G

D

AO4449 -7A/-30V

VCC8

C704
100uF/16V

8
7
6
5

C705

0.1uF/16V

VCC12

+

C708
100uF/16V

GND

VCC 12

VCC5

+

C722
100uF/16V

GND

VCC5

A2

Size

Rev

F

称爹

R712
1K OHM 1/16W

R727

1K OHM 1/16W

VCC12

330R 1/10W 5%

+

R701

C703
100uF/16V

V12_ADP

R704
22K OHM 1/16W

Q704
PMBS3904

GND

5VSB

R716
22K OHM 1/16W

Q708
PMBS3904

GND

Q703
PMBS3904

1 2

GND

FB702

R710
10K OHM 1/16W

R726
10K OHM 1/16W

R705

NC

ZD701
RLZ9.1B

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

NC

Q702 AO3407

GND

GND

VCC8

AUDIO MUX /
Amplifi er 8 V

For 26"
FB702 =>61G1206000
Q702 =>NC
For 19" 22"
FB702 =>NC
Q702 =>AO3407

SYS_PW
Normal: Low
Stand_By: High

5VSB

R709
10K OHM 1/10W

12V SW

R713

1K OHM 1/16W

R729

1K OHM 1/16W

Q705
PMBS3904

GND

5VSB

R725
10K OHM 1/10W

Q709
PMBS3904

GND

POWER_ON12

SYS_PW
Normal: Low
Stand_By: High

5V SW

POWER_ON12

V33_AUD

U705

3

VIN

2

VOUT

1

+

C734
NC

AUDIO 3.3V

V33_AUD

C735
NC

GNDGND

VCC 12

T P V ( Top Victory Electronics Co . , Ltd. )

G3365-F-X-X-3-090722

絬 隔 瓜 絪 腹

Key Component

Date

25

5VSB

HDMIA_5VIN

TMDSC-

TMDSC+

TMDSD0-

TMDSD0+

TMDSD1-

TMDSD1+

TMDSD2-

TMDSD2+

DSHLD0
DSHLD1
DSHLD2
CSHLD0

DDC_GND

SHLD_GN D1
SHLD_GN D2

HDMI

D301

BAT54C

SDA
CEC
HPD

VCC5

SHLD1
SHLD2
SHLD3
SHLD4
SHLD5

SCL

NC

CN301

12
10

9
7

6
4

3
1

15
16
13
19

18

14

2
5
8
11
17

20
21
22
23
24
25
26

RXACLKN_M2
RXACLKP_M2

RXA0N_M2
RXA0P_M2

RXA1N_M2
RXA1P_M2

RXA2N_M2
RXA2P_M2

HDMIA_5V_EEPR OM

C304

NC

U301

1

A0

VCC

2

A1

WP

3

A2

SCL

VSS4SDA

NC

HDMIA_CEC

8
7
6
5

DDCA_SCL

DDCA_SDA

R317

DDCA_SCL
DDCA_SDA

SP302
SP303
SP304
SP305

SP309
SP310
SP311

HDMIA_HPD
HDMIA_5VIN

R309

4.7K

NC

D302

12

12

12

12

12

12

R310

4.7K

1 2

12

12

12

12

SP306
SP307
SP301
SP308

R303
1K OHM 1/16W

5VSB

NC

NC

D303

1 2

12

HDMIA_5VIN

Q302
PMBS3904

R311
NC

R312

100 OHM 1/10W

R313

100 OHM 1/10W

R316 47K 1/16W 5%

R304
10K OHM 1/10W

EDID _WP 12
DDCHA_SCL 9
DDCHA_SDA 9

HPDA 9

U302

1

IN1

2

IN2

4

IN3
IN45OUT4

U303

1

IN1

2

IN2

4

IN3
IN45OUT4

HDMIA_CEC

NC

10

OUT1

9

OUT2

7

OUT3

6

GND

GND

3

8

NC

10

OUT1

9

OUT2

7

OUT3

6

GND

GND

3

8

HDMIA_5VIN

5VSB

R306
1K OHM 1/16W

2N7002
Q301

RXACLKN_M2 9
RXACLKP_M2 9

RXA0N_M2 9
RXA0P_M2 9

RXA1N_M2 9
RXA1P_M2 9

RXA2N_M2 9
RXA2P_M2 9

5VSB

R305
10K OHM 1/10W

VCC3

R307
27K OHM 1/16W

R308
1M 1/10W 5%

R302
10K OHM 1/10W

HA5V_DET

Q303
PMBS3904

HA_CEC 9

HA5V_DET 11

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

26

G3365-F-X-X-3-090722

Date

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

715T336504.HD MI

512Wednes day, J uly 22, 20 09

of

Size

Rev

称爹

A3

F

+5VT

R202
NC

ADS

R204
0 OHM 1/10W

TGN D

RF_AGC

+5VT
TSC L
TSD A

ADS
IF+OUT
IF-OUT
IF_AGC

AS_IF
SIF
TV_CVBS
+5VT
TUN_AUD

PHILIPS TUNER
FQ 1236 =>NTSC
FQ 1216 =>PAL

SH201
SH202
SH203
SH204
SH205
SH206
SH207

GND

TU2 01

1

NC

2

NC

3

Vb

4

SCL

5

SDA

6

AS

7

NC

8

NC

9

NC

10

NC

11

IF_SOUND

12

CVBS

13

VS

14

AF_SOUND

M15WPP-2PN-E

TUN_AUD

TUN_AUD10

SIF

SIF10

Put short symbol near by

1. Tuner pow er input

2. CVBS signal output

3. Audio IF/Mono output

15

TH1

16

TH2

17

TH3

18

TH4

TGND

RF_AGC AGC

RF_AGC

AS_IF

R220 NC

TGND

TSCL

C215
NC

TSDA

C220
NC

IF+OUT

IF-OUT

Put Near to tuner

TGN D

TV_C VBS

R218
NC

TGND

TGN D

C229

C230

R206

2.2uH

C207
220PF50V

R212
NC

TGND

NC

NC

+5VT

C208
220PF50V

C227

L208
NC

C239

R207
18R OHM 1/16W 5%

NC

NC

100 OHM 1/10W

R210
56 OHM 1/16W

R237

R238

L206

NC

L207

NC

R208

0R05 1/16W

R221
NC

0R05 1/16W

C206

0.1uF 50V

GND

C212
NC

TGND

R223
NC

C234 NC

Put Near to IC

5V for Tuner

VCC12

R203

R205

T_C VBS

Put Near
to IC

R216
NC

SCL_A_Tuner 12

SCL_A 1 1

SDA_A 11

SDA_A_Tuner 12

C228
NC

GND

C240
NC

47 OHM 1/2W

47 OHM 1/2W

C203

100uF/16V

T_C VBS 9

+5VT

R213
NC

R217
NC

ADCINP 10

ADCINN 10

Add Therma l Pa d

U202

AZ1117D- 5.0-E1

3

INPUT

+

C202

0.1uF 50V

GNDGND

VCC3

1

R214
NC

NC
Q201

1

IF_AGC

OUTPUT

ADJ/GN D

1

TGND

2

RFAGC 10

TGN D

+

C213
NC

C204
100uF/16V

TGN D

R219
NC

FB202
300 OHM

C205

0.1uF 50V

+5VT VCC3

R224
NC

R222
NC

+5VT

1

R215
NC

NC
Q202

1

IFAGC 10

T P V ( Top Victory Electronics Co . , Ltd. )

G3365-F-X-X-3-090722

絬 隔 瓜 絪 腹

Key Component

Date

27

OEM MO DEL

TPV MOD EL

PCB NAME

Sheet

715T336505.TUNER

of

612Wednesday , July 22, 2009

Size

Rev

称爹

A3

F

VGASDA_IN

VGA_VIN

VGASCL_IN

CN103

PHONEJ ACK

11

12

13

14

15

CN102

DSUB15-FEM

VGA PIN DEFIINITION

1 R_OUT
2 G_OUT
3 B_OUT
4 NC
5 GND

3

2
1

SP105

NC

1716

18 19

6 R_GND
7 G_GND
8 B_GND
9 +5V(DDC)
10 GND

VGA_AUR_O

VGA_AUL_O

12

SP106

NC

12

6
1
7
2
8
3
9
4
10
5

D108

NC

RED_GND
RED
GRN_GND
GRN
BLU_GND
BLUVGA_HIN
VGA_5V

11 NC
12 DDC SDA
13 TTL H-S
14 TTL V-S
15 DDC SCL

12

D109

1 2

R117

68K OHM 1/16W

R118

68K OHM 1/16W

12

ZD603

NC

FB604

100R 1/10W 5%

ZD602

NC

1 2

08/20

FB605

100R 1/10W 5%

R123

R124

NC

NC

UART_TX 11

VGA_AUR 10

C115
10uF/16V

C116
10uF/16V

VGA_AUL 10

UART_RX 11

R/G/B : 75 Ohm Trace

GRN

12

SP102

NC

GRN_GN D

RED

12

SP103

NC

RED_GND

BLU

12

SP104

NC

BLU_GND

5VSB

VGA_5V

D103

D104

D106

NC

D133
NC

FB101

1 2

1 2

1 2

D102
RLZ5.6B

1 2FB102

D105
RLZ5.6B

80 OHM

R106

2.2K OHM 1/10W

80 OHM

R112

2.2K OHM 1/10W

R103

33 OHM 1/10W

R111

33 OHM 1/10W

C103
NC

C109
NC

VSYN C

HSYNC

VSYNC 9

HSYNC 9

R102

R104

1 2

12

C104
NC

R108

1 2

12

C107
NC

R101

1 2

12

C111
NC

60 OHM

60 OHM

60 OHM

RGB_G1

C105
NC

RGB_R1

C108
NC

RGB_B1

C112
NC

R105

390 OHM 1/10W

R107
75 OHM 1/10W

R109

390 OHM 1/10W

R110
75 OHM 1/10W

R113

390 OHM 1/10W

R114
75 OHM 1/10W

390 OHM 1/10W

C102
100pF

C101

0.047uF

C106

0.047uF

C110

0.047uF

SOGAIN 9

GAIN 9

GND

RAIN 9

GND

BAIN 9

GND

VGA_VIN

VGA_HIN

Near to IC

D101

BAT54C

VGA_5V_EEPROM

C117

0.22uF

1

A0

2

A1

3

A2
VSS4SDA

U101

NC

VCC

8
7

R144

WP

VGASCL_IN

6

SCL

VGASDA_IN

5

12

SP108

NC

R119

4.7K

NC

5VSB

R120

R121

4.7K

NC

R125

100 OHM 1/10W

12

SP109

NC

R127
100 OHM 1/10W

EDID _WP 12
VGA_DDCSCL 9
VGA_DDCSDA 9

YPbPr1 INPUT

CN104

2

1

4

3

6

5

8

7

10

9

JACK

Y1_IN

Y_GND

PB1_IN

PB_GND

PR1_IN

PR_GND

COM1_AUL_O

COM1_AUR_O

SP110

NC

SP111

NC

SP114

NC

12

12

12

Y1_IN

D111

NC

Y_GND

D112

NC

PB_GND

PR1_IN

D115

NC

PR_GND

12

PB1_IN

12

12

R128

0R05 1/10W 5%

C121
75R

R132

0R05 1/10W 5%
C127
75R

R135

0R05 1/10W 5%

C130
75R

C128
NC

C131
NC

C122
100PF

Y2_IN

COM1_AUL_O

SP112

COM1_AUR_O

12

SP113

12

12

D113

OEM MODEL

TPV MODEL

PCB NAME

Sheet

PB2_IN

PR2_IN

T P V ( Top Victory Electronics Co . , Ltd. )

G3365-F-X-X-3-090722

絬 隔 瓜 絪 腹

Key Component

Date

R195

20K OHM 1/10W

20K OHM 1/10W

12

D114

NC

715T336506.VGA/Y PbPr Connector

712Wednesday , July 22, 2009

of

R196

R197

NC

R198
NC

C124

4.7uF/16V

C125

4.7uF/16V

Size

Rev

称爹

COM1_AUL 10

COM1_AUR 10

A3

E

28

CN101

2

1

4

3

6

5

5105-870-083-98

CN107A
SJACK+RC A1X3H

12

SC_IN SY_I N

SC_GND

7 8

CY

9 10

GG

13

S-video

CN107B

CN108

NC

SJACK+RC A1X3H

2

1

4

3

6

5

2

1

4

3

6

5

CVBS & R/L

SVAV_AUL

SVAV_AUR

SP125

NC

12

SP126

NC

12

12

D126

NC
NC

D127

AVI/Y1

SCA1I _L

SCA1I _R

11

R162
27K 1/16W 5%

12

SY_GND

CVBS_IN

CVBS_GND

SVAV_AUL

SVAV_AUR

R193 NC

R165
27K 1/16W 5%

R192 NC

SP127

NC

SP131

NC

SP132

NC

SP115

NC

SCA1I_L

SCA1I_R

SP117

NC

12

CVBS_IN

12

CVBS_GND

SY_I N

12

SY_GND

SC_IN

12

SC_GND

AVI/Y1

D116

NC

AV_G1

12

SP118

NC

C149

4.7uF/ 16V

C151

4.7uF/ 16V

D130

NC

D131

NC

D132

NC

R138

12

2.2uH

C134
NC

12

12

D117

D118

NC

NC

12

C159
NC

R182

12

C164
NC

R186

12

C167
NC

SV/AV_AUL 10

SV/AV_AUR 10

C135
220pF

R141
27K 1/16W 5%

R143
27K 1/16W 5%

12

R175

2.2uH

2.2uH

2.2uH

R139

18R OHM 1/16W 5%

C160
220pF

C165
220pF

C168
220pF

R142
56 OHM 1/16W

R190

NC

R174

18R OHM 1/16W 5%

R183

18R OHM 1/16W 5%

R187

18R OHM 1/16W 5%

Near to IC

R140
100R 1/10W 5%

R191
NC

R176

R179
56 OHM 1/16W

100 OHM 1/10W

R185
56 OHM 1/16W

R188

100 OHM 1/10W

R189
56 OHM 1/16W

C132

0.1uF 50V

C133

4.7uF/ 16V

C136

4.7uF/ 16V

100R 1/10W 5%

R184

SCR_Y 9

GND

SCR_AU_L 10

SCR_AU_R 10

Audio Input

C158

0.1uF 50V

GND

C163

0.1uF 50V

GND

C166

0.1uF 50V

GND

Csync/CVBS/
S-Video(Y)
Inp ut

CVBS 9

SV_Y 9

SV_C 9

CVBS signal output

CN106

5105-870-083-98

SCA1O_L

SCA1O_R

2

1

4

3

6

5

D120

NC

D123

NC

SCA1O_L

1 2

SP129

SCA1O_R

1 2

SP130

12

12

12

SP128

NC

R152
47K

C156

0.1uF 50V

FB104
300 OHM

1 2

C161
220PF50V

PMBS3904

R158
47K

GND

R177

75 OHM

C162
680P 50V X7R +/-10%

C140

4.7uF/ 16V

Q104

C145

4.7uF/ 16V

Q105
PMBS3904

VCC5

23

Audio Output

R153
10K OHM 1/10W

R159
10K OHM 1/10W

Q107
PMBS3906

1

R178

470 OHM

SCR_AUOU T_L 10

OFF_MUTE

SCR_AUOUT_R 10

OFF_MUTE

R172
470 OHM

Q108

PMBS3904

R180

220 OHM

GND

GND

OFF_MUTE 12

OFF_MUTE 12

R173
18K OHM 1/10W

C157
10uF/16V

R181
10K OHM 1/10W

CVBS_O 9

C169
NC

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

29

G3365-F-X-X-3-090722

Date

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

715T336507.SCART SV/ AV

of

812Wednesday , July 22, 2009

Size

Rev

称爹

A3

F

FB302

V33_ADC

1 2

C305
10uF/16V

VCC18

1 2

FB306 300 O HM

VCC18

FB303

1 2

300 OHM

C316
10uF/16V

VCC3

FB307

1 2

300 OHM

HDMI 3.3V POWER

C306

GNDGND

GND

GNDGND

V33HDMI

C312

0.1uF 50V

AVDD18

C317

0.1uF 50V

V33ADC_PLL

C330
100pF

C307

0.1uF 50V

300 OHM

0.1uF 50V

V18_33HDMI

C313

0.1uF 50V

C318

0.1uF 50V

C329

C328

0.1uF 50V

0.1uF 50V

GND

C314

0.1uF 50V

HPDA5
HA_CEC5
DDCHA_SDA5
DDCHA_SCL5

VGA_DDCSDA7

VGA_DDCSCL7

Slave IIC

RXACLKN_M25
RXACLKP_M25
RXA0N_M25
RXA0P_M25
RXA1N_M25
RXA1P_M25
RXA2N_M25
RXA2P_M25

R315

0 OHM

V33HDMI REXT

VGA_DDCSCL
VGA_DDCSDA

R318 390 OHM 1/10W

R301
R319

CN302

1
2
3
4

JST-4-2.0

33A3802-4B

0 OHM
0 OHM

GND

AVDD18
V18_33HDMI
V33HDMI

5

U405A

3

HDMI_RXACKN

4

HDMI_RXACKP

6

HDMI_RXA0N

7

HDMI_RXA0P

8

HDMI_RXA1N

9

HDMI_RXA1P

10

HDMI_RXA2N

11

HDMI_RXA2P

170

GPIO_52/H PD

171

GPIO_53/C EC

172

GPIO_54/H DMIDDC_SDA

173

GPIO_55/H DMIDDC_SCL

13

EXT_R

168

GPIO_47/D SUBDDC_SDA/UART_TX1

169

GPIO_48/D SUBDDC_SCL/UART_RX1

2

VSSD(0V)

17

VSSDP_AD (0V)

42

VSSA_AD(0V)

174

VSSD_AL(0V)

HX6201

176

AVDD33_RX

VDDD_AL(1. 8V)

HDMI /ADC

V33ADC
V33ADC1

FILT : component place close to IC

V33ADC_PLL

12

175

1

DVCC(1.8V)

VDD18(1. 8V)

VDDA_AL(1.8V)

14

36

22

19

45

FILT

HSYNC
VSYN C

AINA1
AINB1

VDDA_AD(3. 3V)41VDDA_AD(3. 3V)

VDDP_AD(3. 3V)

SOG1

VDDD_AD(3.3V)

BVDDA_AD(3. 3V)

VDDDP_AD(3.3V)

AINC1

SOG2
AINA2

AINC2

SOG3
AINA3

AINB3
AINC3

AIND1
AINA5
AINB4
AINC4
AIND4

AOUT1

AOUT2
AIN0_F AD
AIN1_F AD
AIN2_F AD

VMIDS

VREF

Trace width as width as possible

FILT

18

15
16
23
24
25
26

27

C315 0.1UF 16V

28

C319 0.1UF 16V

29AINB2

C333 0.1UF 16V

30

31
32
33
34

35
37
38

C334 0.1UF16V

39
40

43
44
48
47
46

20
21

0.1uF 50V

C320

0.1UF 16V

VMID
ADC_VR EF

C321

GND GND

C301

0.01UF 25V

C322

10uF/16V

R314

1K621/10W

HSYNC 7
VSYNC 7
BAIN 7
GAIN 7
SOGAIN 7
RAIN 7

RAIN 7

SV_Y 8
SV_C 8

CVBS 8
T_C VBS 6

CVBS_O 8

C323

0.1uF 50V

V33ADC_PLL

C311

0.1UF 16V

GND

SCR_Y 8

SOY1 7
Y1 7
PB1 7
PR1 7

C324
10uF/16V

GND

GND

V33_ADC

C325
10uF/16V

1 2

1 2

300 OHM

ADC 3.3V POWER

FB301 300 OHM

FB305

V33ADCV33AD C

V33ADC1

C327

0.1uF 50V

C326

0.1uF 50V

GNDGND

C331

0.1uF 50V

GND

C332

0.1uF 50V

30

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

G3365-F-X-X-3-090722

Date

OEM MO DEL

TPV MO DEL

PCB NAME

Sheet

Size

715T336508.M2D HD MI/Analog I/O

of

912Wednesday , July 22, 2009

Rev

称爹

B

F

84
85
86
167

SW_AMP_RIN

70

SW_AMP_LIN

71

68
69

66
67

VREFI_PIF

73

SIF_VCMG

74

SIF_VREFN

75

SIF_VREFP

76

51

GND

R621

4.7K OHM 1/16W

R626

NC

100K OHM 1/10W

SW_AMP_LIN

SW_AMP_RIN

VCC5

R630
47K OHM 1/16W

C656

AMP_MUT12

0.1uF 50V

GND

MUTE_ HPH ONE 1 2

SIF_VREFP

SIF_VREFN

1 2

R627

5VSB

R603
10K OHM 1/10W

R606
R608

SCR_AUOUT_R 8
SCR_AUOUT_L 8

C611

0.1uF 50V

ZD601

RLZ6.8C

4K7 1/10W 5%

4K7 1/10W 5%

5VSB

0 OHM
0 OHM

GND

C617

0.1uF 50V

C634

0.1uF 50V

R622
47K OHM 1/16W

R625
10K OHM 1/10W

Q603

PMBS3904

R609

C601

1000pF

R610

C646

1000pF

R632
10K OHM 1/10W

R637
10K OHM 1/10W

R638

1

10K OHM 1/10W

31

C613

0.1uF 50V

GND

23

Q413
PMBS3906

RFAGC 6
IFAGC 6
EAR_DET

C620

0.1uF 50V

5VM

R628
75K 1/10W 5%

R629

75K 1/10W 5%

C610

+

100uF/16V

R639
10K OHM 1/10W

VCC3

FB606 300 OHM

R623
47K OHM 1/16W

Q602

PMBS3904

R613

0R05 1/10W 5%

NC

R614

0R05 1/10W 5%

NC

1 2

R624

C665

C666

GND

10K OHM 1/10W

5VM

R631
47K OHM 1/16W

Q605

PMBS3904

C643
1UF25V

C644
1UF25V

VCC3AD

C661

C663

0.1uF 50V

0.1uF 50V

V12_ADP

R617

R618

R620

R619

C642
1UF25V

12

10
11

PW_GND

C657
1UF25V

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

3.9 OHM 3W

3.9 OHM 3W

3.9 OHM 3W

3.9 OHM 3W

13

U603

VCC3VCC

4

IN1

7

ST_BY

9

S_GND

IN2

6

MUTE

8

PW_GND

5

NC
NC
NC

G3365-F-X-X-3-090722

Wednesday , July 22, 2009

0.1uF25V

OUT1+

OUT1-

OUT2+

OUT2-

C639

TDA7297SA

V33_AUD

FB602

1 2

C604
10uF/16V

GND

+

C640

1000uF/25V

PW_GND

1

2

15

14

680P 50V X7R +/-10%
680P 50V X7R +/-10%
680P 50V X7R +/-10%
680P 50V X7R +/-10%

AUDIO 1.8V POWER

V33AUD

300 OHM

C605

0.1uF 50V

GND

C654

C653

C651

C652

GND

OEM MODEL

TPV MOD EL

715T336509.M2D Audio

PCB NAME

Sheet

of

10

12

C606

0.1uF 50V

CN603

4
3
2
1

CONN

SH601
SH602
SH603

GND

PW_GND

GND

C

Size

Rev

F

称爹

V33AUD

R602

SIF6

TUN_AUD6

RP602

100 KOHM +-5% 1/16W

COM1_AUL7

COM1_AUR7

TP601

TP603

MONO_AUD

MONO_AUD

USB_AUL

USB_AUR

RP604

100 KOHM +-5% 1/16W

VCC_CLAMP

GND

C647

1UF25V

EAR_DET

0 OHM 1/16W

GND GND

TUN_AUD

Tuner input

VCC_CLAMP

1 2

123

4

876

876

5

123

123

4

876

876

5

123

C645

1UF25V

SIF1+

C602

0.1uF 50V

SIF1-

R604

C603

0.1uF 50V

NC

MONO_AUD

C609

330NF16V

COM1_AUR

COM1_AUL

FB601

300 OHM

GND

5

RP603
100 KOHM +-5% 1/16W

4

Audio I nput MUX

12

1Y0

1

2Y0

14

1Y1

5

2Y1

15

1Y2

2

2Y2

11

1Y3

4

2Y3

5

RP601
100 KOHM +-5% 1/16W

4

GND

U604

16

1

CP+

2

PGND

3

CP-

4

NC

VCC5

R634

5.1K

C660

NC

SP604

GND

R640

R641

VCC8

74HC4052D

15

GND14/LSD

PVDD

APA2176A

CVSS5VSS6LOUT7VDD

12

VCC

VEE

GND

1Z

2Z

S0

S1

/E

13

NC

RIN

/RSD

ROUT

8

C658

0.1uF 50V

ADCINN6
ADCINP6

MUX_AU R

NC

MUX_AU L

NC

U601

16

7

8

13

3

10

9

6

GND

12

11

10

LIN

9

12

SP601

GND

R605

NC

R607

NC

VGA_AUR7
VGA_AUL7

SCR_AU_R8

SCR_AU_L8

SV/AV_AUR8

SV/AV_AUL8

MUX_AU R
MUX_AU L

VREF_ADC
VCM_ADC
AGSCRT
VBG
VRN
VRP

C625

0.1uF

VCC_CLAMP

C637
10uF/16V

GND GND

R615 10 0 OHM 1/10W

R616 100 OHM 1/10W

R635

10K OHM 1/10W

VCC_CLAMP

VCC5

C648

0.1uF 50V

C649
10uF/16V

GND

C650 1UF25V

C655

1UF25V

5
4

C659

0.1uF 50V

SPGND

3
2
6
7
1

12

SP603

VCC3AD

79

65

58

U405B

SIF1-

77

ADCINN

SIF1+

78

ADCINP

49

RAIN0

50

LAIN0

52

AVDD_DAC(3.3V)

RAIN1

53

LAIN1

54

AVDD(3.3V)(ForPIFADC)

RAIN2

55

LAIN2

AUDIO

56

RAIN3

57

LAIN3

59

VREF_ADC

60

VCM

61

AGSCRT

62

VBG

63

VRN

64

VRP

C631

C629

C627

HX6201

0.1uF

0.1uF

0.1uF

VRN

VRP

GND

C638

0.1uF 50V

C635

4.7uF/16V
C636

4.7uF/16V

R636
10K OHM 1/10W

HEADPHONE R/L OUTPUT

C662
NC

0R05 1/16W
R643

0R05 1/16W

C664
NC

CN601

PHONEJA CK

R642

MUX_AU L

MUX_AU R

C621

0.1uF

AU_S0 12

AU_S1 12

GND

C615
1500pF

R612

1K 1/16W 5%

R611

1K 1/16W 5%

C616
1500pF

GND

C622
10uF/16V

C623

0.1uF

GND

SW_AMP_LIN

10K OHM 1/10W

VDDA(3.3V)

STYAMP_MUT12

SW_AMP_RIN

R633

GPIO_03/PIF_AGC
GPIO_04/PIF _AMP

GPIO_02/SPDIF I

GPIO_40/SPDIFO

DAC_LSR
DAC_LSL

SCART1R
SCART1L

SCART2R
SCART2L

VREF(ForPIFADC )

SIF_VCMG
SIF_VREFN
SIF_VR EFP

VSSA(0V)

C641

0.1uF 50V

GND

Q604

PMBS3904

VCC3

CSN
SDO

U402

1

CS#

VCC

2

SO

HOLD#

WP

3

W#

SCK

4

GND

MX25L4005AM2C-12G

GND

MCU SDO to EEPROM SDI
MCU SDI to EEPROM SDO

TP40 1

SI

SDO
CSN
SCK
SDI
WP

PD0
PD1

LU_SEN

8
7
6
5

System PLL 1.8V POWER

VCC18_CORE

1 2

C418
10uF/16V

FB415
300 OHM

0.1uF 50V

GNDGND

C403

0.22uF

GND

SCK
SDI

VCC3

100R

R432

R429
R430
R401

RST_N
TSTMD
IRDAT GPIO39

V18AUD

C419

R402

4.7K OH M 1/16W

GND

R417

R420

R416

R419

R418

GPIO33
GPIO34

GPIO36
GPIO30

SARIN0

0 OHM 1/16W

SARIN1

0 OHM 1/16W

SARIN2

0 OHM 1/16W

C420
100pF

C423
10uF/16V

GND

10K OHM 1/10W
10K OHM 1/10W
10K OHM 1/10W
10K OHM 1/10W
10K OHM 1/10W

155
156

GPIO35

157
158
152

160
161
162
163

90
89

159

VCC3

U404

1

E0

2

E1

3

E2

4

VSS

M24C32-WMN6TP

USER DATA

U405D

GPIO_33/SPI _SDI
GPIO_34/SPI _CSN
GPIO_35/SPI _SCK
GPIO_36/SPI _SDO
GPIO_30/SPI _WP

SARIN0
SARIN1
SARIN2
SARIN3

RST_N
TSTMD
GPIO_39/IR_RX

HX6201

C421
33pF

GND GND

R455
NC

TSTMD

R436

1K OHM 1/10W

C402

0.22uF

8

VCC

7

WC

6

SCL

5

SDA

V18AUD

83

82

AVSS_PL(0V)

AVDD_PL(1.8V)

GPIO_27/PW M_B/DBLC

PAD_OSCI81PAD_OSCO

80

R441

XTAL_O

1M OHM 1/10W

X401

12

24.576MHz

5VSB

R403

4.7K OHM 1/16W

MCU _WP

GND

GPIO_00/U ART_TX0

GPIO_01/U ART_RX0

GPIO_31/MSDA
GPIO_32/MSCL

GPIO_29/PW M_D

XTAL_IN

C422
33pF

SCL_A
SDA_A

87
88

153
154

150
151

10K OHM 1/10W

5VSB

R465

LEDY12
LEDG12MCU_WP 12

10K OHM 1/10W
10K OHM 1/10W

4.7K OHM 1/10W

4.7K OHM 1/10W

R425

R422

R423

R426

R421

R424

10K OHM 1/10W
10K OHM 1/10W

UART_TX
UART_RX

R427 100 OHM 1/10W
R428 100 OHM 1/10W

BL_ADJ 4
HA5V_DET 5

5VSB

3

1 2

D403
BAV99

R460
1KΩ 1/10W

C425
10uF/16V

10K OHM 1/10W

IRDAT8

PD0

PD1

UART_TX 7

UART_RX 7

123Q414

R466

IRDAT

R404 10K OHM 1/10W
R406 10K OHM 1/10W

Q402

PMBS3906

POWER KEY

ADC KEY

SDA_A 6
SCL_A 6

C410

47uF/16V

+

PMBS3906

R438

100Ω 1/10W

R454

10K OHM 1/10W

VCC3

VCC3

23

1

1

1 2 FB407

1 2 FB408

VCC3

R456

5.1K OHM 1/ 10W

PMBS3904
Q404

C415

C427

100pF

NC

23

Q403
PMBS3906

R405

1K 1/10W 5%

R407

1K 1/10W 5%

150OHM

150OHM

10.2K1/10W

RST_N

C424
10uF/16V

5VSB

1 2 FB402
1 2 FB403

LED_YLEDY

1 2 FB405

LED_GLEDG

1 2 FB406

C404

100pF

GND

R409

R408

10.2K1/10W

VCC3

D401

RLZ5.6B

AOC HOTEL

UART_RX

2008-12-15

R435

IRDAT

NC

UART_RX
UART_TX

Check pin order

150OHM
150OHM

150OHM
150OHM

C405

100pF

D402

RLZ5.6B

1 2

R434 NC

R433 NC

5VSB

Q409

NC

NC

R431

SCL_A
SDA_A

Master IIC

D404

RLZ5.6B

1 2

12

SP411
NC

1 2

GND

SP400
NC

GND

SP407

NC

GND

SP409
NC

GND

R414
R415

RS-232

R412
R413

C407

100pF

12

12

12

12

NC
NC

SP410
NC

NC
NC

C408

100pF

C406

100pF

GND

246

135

5VSB

IRVCC

IR_D

L_Y

L_G

PW

ADC

GND

8

7

5VSB

1
2
3
4

JST-4-2.54

CN25-4VS

C409

100pF

CN403

NC

CN405

CN401

1
2
3
4

JST-4-2.0

33A3802-4B

IRVCC
IR_D

L_G
L_Y

ADC
PW

GND

GND

GND

SCL_A

SCL_A

12

SDA_AUART_TX

12

SP406
NC

SP408
NC

CONN

CN402

8
7
6
5
4
3
2
1

GND

JP3 NC(1): Test Mode
Short(0): Normal
Mode

32

T P V ( Top Victory Electronics Co . , Ltd. )

G3365-F-X-X-3-090722

絬 隔 瓜 絪 腹

Key Component

Date

OEM MO DEL

TPV MOD EL

PCB NAME

Sheet

Size

715T336510. M2D MC U

11 12Wednesday , July 22, 2009

of

Rev

称爹

A3

F

POWER_ON

LEDY 11
LEDG 11

PW_ON
IR_EN

Video_SEL

5VSB

GND

4

EDID_WP 11

MCU_WP 11

AU_S0 10

AU_S1 10

PANEL_ON

4
<IR EF>

4

R510 10K O HM 1/10W
R523 10K O HM 1/10W
R522 10K O HM 1/10W
R518 10K O HM 1/10W
R519 10K O HM 1/10W
R526 10K O HM 1/10W
R512 10K O HM 1/10W
R509 10K O HM 1/10W

SCL_A_Tuner 6

SDA_A_Tuner 6

AMP_MUT 10
STYAMP_MUT 1 0
OFF_MUTE 8
MUTE_ HPH ONE 10
BL_ON 4

C432

NC

C433

0.1uF 50V

PANEL POWER
1>OFF ;
0>ON

PANEL_ON

33

+

V12_ADP

R570

NC

R569

4.7K OHM 1/16W

TX0AP1
TX1AP1
TX2AP1
TXCKAP1
TX3AP1
TX0BP1
TX1BP1
TX2BP1
TXCKBP1
TX3BP1

GND

5VSB

VCC5

2
4
6

8
10
12
14
16
18
20
22
24
26
28
30

VCC5_IN

CN404

5VSB

R566

4.7K OHM 1/16W

Q408
PMBS3904

GND

TX0AN1

1

TX1AN1

3

TX2AN1

5

TXCKAN1

7

TX3AN1

9

TX0BN1

11

TX1BN1

13

TX2BN1

15

TXCKBN1

17

TX3BN1

19
21
23
25
27
29

FB420 300 OHM

1 2

1 2

FB421
NC

R568

4.7K OHM 1/16W

R556

CN407

CONN

TX3BN1TX3BN

TX3BP1TX3 BP
TXCKBN1TXC KBN
TXCKBP1TXCKBP

TX2BN1TX2BN

TX2BP1TX2 BP

TX1BN1TX1BN

TX1BP1TX1 BP

TX0BN1TX0BN

TX0BP1TX0 BP

TX3AN1TX3AN

TX3AP1TX3 AP
TXCKAN1TXC KAN
TXCKAP1TXCKAP

TX2AN1TX2AN

TX2AP1TX2 AP

TX1AN1TX1AN

TX1AP1TX1 AP

TX0AN1TX0AN

TX0AP1TX0 AP

NC

SELLVDS

R559

NC

VCC5_PANEL_IN

R565
10K 1/16W 5%

Q407
PMBS3904

GND

C470

0.1uF 50V

R567

120K OHM 1/16W 5%

T P V ( Top Victory Electronics Co . , Ltd. )

G3365-F-X-X-3-090722

絬 隔 瓜 絪 腹

Key Component

Date

GND

SELLVDS

C471

NC

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

VCC5_IN

CN408

NC

715T336511.M2D LVDS

123456789

TX1AP1

123456789

TX0AP1

TX0AN1

TX1AN1

C

F

101112131415161718192021222324252627282930

GND

VCC5_IN

12 12Wednesday , July 22, 2009

of

SELLVDS

TX3AP1

TX3AN1

TXCKAP1

TXCKAN1

TX2AN1

TX2AP1

Size

Rev

称爹

101112131415161718192021222324252627282930

TX0AN1

TX1AP1

TX1AN1

TX0AP1

TXCKAN1

TX2AP1

TX2AN1

TX3AP1

TX3AN1

TXCKAP1

Panel Power

AO4449 -7A/-30V

Q406

1
2
3
4

VCC5_IN

8

S

D

7

S

D

6

S

D

5

G

D

PN swap for layout

TX0BP

TX3AP

TXCKAP

TX0AN

TX1AN

TX2AN

TX3AN

TX0BN

TX2AP

TX0AP

TX1AP

TXCKAN

117

120

122

116

FRSG1N/LVA3N /EG4

FRSG2P/LVACKP/ EG3

BRSG1N/GPO_15

BRSG2P/GPO_16

140

141

C456

C466

0.1uF 50V

118

FRSG2N/LVAC KN/EG2

BRSG2N/GPO_17

142

GND

119

144

C457

1UF25V

C467

0.1uF 50V

124

121

123

GPIO_20/OEV/TTL_DE
GPIO_21/CPV/TTL_HS
GPIO_22/STV1/TTL_VS

FRSB0P/LVA2P/ER 7

FRSB1P/LVA1P/ER 5

FRSB2P/LVA0P/ER 3

GPIO_25/FSTH1/TTL_CLK

FRSB0N/LVA2N /ER6

FRSB1N/LVA1N /ER4

FRSB2N/LVA0N /ER2

BRSB0N/GPO_38

BRSB0P/GPO_37

BRSB1N/GPO_44

BRSB1P/GPO_43

BRSB2N/GPO_46

BRSB2P/GPO_45

145

147

146

149

148

VCC3IO

C458

C459

1UF25V

0.1uF 50V

VCCLV

C469

C468

1uF/25V

0.1uF 50V

2009/01/15

C478

0.1uF 50V

GPIO_18/GVON

GPIO_19/GVOFF

GPIO_23/POL
GPIO_24/FTP

GPIO_26/BSTH1

AVSS3V_LV(0V)
AVSS3V_LV(0V)

GNDK(0V)
GNDK(0V)

EDID _WP#

MCU_WP#

91
92
93
94
95
96
97
98
99
132

PI

103
126
101
165

NC

4.7K OHM 1/16W

AU_S0#

4.7K OHM 1/16W

AU_S1#

4.7K OHM 1/16W

PI

R489 13K OHM 1/10W

GND

R439

R410

R411

R437

GND

GND

GND

GND

C431
NC

EDID_WP#

MCU _WP #

Q415
NC

Q410
PMBS3904

Q411
PMBS3904

Q412
PMBS3904

AU_S1#
AU_S0#

111

112

115

113

FRSCLKN/ LVB1N

FRSG0P/LVB0P/EG7

FRSG1P/LVA3P/EG5

FRSG0N/LVB0N /EG6

BRSCLKN

BRSG0N/GPO_13

BRSG0P/GPO_12

BRSG1P/GPO_14

136

138

137

139

0.1uF 50 V

C465

1uF/25V

VCC3

C477
10uF/16V

GND

VCC3

C451

10uF/16V

2008-9-4

VCC18_CORE

C460

10uF/16V

V33LV

VCC3IO

VCCLV

GND

GND

102
125
164
143

114

100
127
166

1 2

FB417
300 OHM

1 2

FB419
300 OHM

U405C

AVDD3V_LV(3.3V)
AVDD3V_LV(3.3V)
VCC3IO(3.3V)
VCCLV(3. 3V)

PVDD_LV(1.8V)

72

VCCK(1.8V)
VCCK(1.8V)
VCCK(1.8V)
VCCK(1.8V)

HX6201

GNDLV

V33LV

C452

1UF25V

C461

1uF/25V

TX1BN

TX3BP

TX2BP

TXCKBP

TX1BP

TX2BN

TX3BN

TXCKBN

105

109

106

104

108

110

107

FRSCLKP/LVB1P

FRSR0P/ LVB3P/EB7

FRSR2P/ LVB2P/EB3

FRSR0N/ LVB3N/EB6

FRSR2N/ LVB2N/EB2

FRSR1P/LVBC KP/EB5

FRSR 1N/LVBC KN/EB4

TTL/RSDS/LVDS

BRSCLKP

BRSR0N/GPO_07

BRSR0P/GPO_06

BRSR1N/GPO_09

BRSR1P/GPO_08

BRSR2N/GPO_11

BRSR2P/GPO_10

135

129

128

131

130

134

133

FB416

1 2

300 OHM

C453

C454

C455

1UF25V

0.1uF 50 V

0.1uF 50V

C464

C462

C463

1uF/25V

0.1uF 50V

0.1uF 50 V

Pr_SCALER

Pb_SCALER

PB_IN0

PR2_IN

Y_IN0

PB2_IN

R273

0R05 1/10W 5%

PR_IN0

R263
NC

C263

NC

R274

0R05 1/10W 5%

Y2_IN

R276

C260

NC

C261

NC

C258

NC

0R05 1/10W 5%

C259

NC

R271
NC

R266

NC

NC

R270
NC

R272
NC

NC

Q211
NC

R258

R268
NC

Q212
NC

R259

R264
NC

Q215
NC

R261

R277
NC

NC

NC

R279
NC

Q213
NC

R283
R278
NC

NC

R262
NC

Q214

NC

R260
R282
NC

NC

NC

C257
NC

C256
NC

C253
NC

R280

C249
NC

R275
NC

C254

R281

NC

C255
NC

V_SEL

Low: Channel 2 /YPbPr2
High:Channel 1 /USB

Video_SEL

FB222

1 2

NC

2
3

5
6

11
10

14
13

1

15

NC

VCC5

VCC5

FB221
NC

1 2

C251

PR_IN0

Y_IN0

PB_IN0

NC

USB_AUR

<IREF >

USB_AUL

IRDAT

IR_EN

VCC5

Pr_SCALER

Y_SCALER

Pb_SCALER

U107

16

S1A
S2A

VCC

4

DA
S1B
S2B

7

DB
S1C
S2C

12

DD
S1D
S2D

9

DC
IN
/EN

GND

NC

8

VCC5

NC

R288

V_SEL

R289

Q216
NC

GND

Y_IN0

PB_IN0

PR_IN0

USB_DM

USB_DP

R130
NC

R134
NC

R137
NC

Near to IC

R209

NC

L209

3 2

4 1

R211

NC

NC

ZD201

NC

R129
100 OHM 1/10W

R131
100 OHM 1/10W

R133
100 OHM 1/10W

R136
100 OHM 1/10W

NC

10

9
8
7
6
5
4
3
2
1

CN208

12

ZD202

C123 1000pF

12

USB_GND

C120

0.047uF

C126

0.047uF

C129

0.047uF

C265 NCVBUS

1234

1
2
3
4

6 5

Y1 9

SOY1 9

GND

PB1 9

GND

PR1 9

GND

USB_DP
USB_DM

USB_GND

GND

VBUS

CN703
NC

R294

NC
C264
NC

NC

1
2
3
4

CN206

USB_GND

R265
NC

C262

Y_SCALER

NC

Q210
NC

R257

R267
NC

NC

NC

C252

R269

NC

C250
NC

1 2

FB220

NC

VCC5

34

VBUS,5V
USB HOST,500mA,2.5W

R291

Active low

POWER_ON

NC

R292

NC

T P V ( Top Victory Electronics Co . , Ltd. )

G3365-F-X-X-3-090722

絬 隔 瓜 絪 腹

Key Component

Date

5VSB

VBUS

FB223

5VSB

NC

R287

U711

5

OUT

IN

GND

4

R290

NC

Q217
NC

GND

NC

EN

R293

NC

OEM MODEL

TPV MODEL

PCB NAME

Sheet

FAULT

715T336511.M2D LVDS

12 13Tuesday, Augus t 11, 2009

1 2

5VSB

NC

1
2
3

of

USB_GND

C267
NC

C266
NC

R286
NC

C

Size

Rev

F

称爹

6.2 电源板

L19DH93& L22DH93 715G3465P020HV001M

BD901

1

GBU408

2

FB904
BEAD

1 2

C901

0.001uF/250V

!

30mH

L902

R900

680K OHM 1/4W

12

FB902
BEAD

NR901
NTCR

4.0A/250V

CN901

SOCKET

CN901A

NC

+

-

4

FB903
BEAD

1 2

C902

0.001uF/250V

!

1

4

2

3

C903

0.47uF/275V

R902

R901

!

680KOHM +- 5% 1/4W

680K OHM 1/4W

VAR901

NC

!

12

12

3

3

!

C925

0.1UF/ 25V

!

12

FB901
BEAD

F901

!!

FUSE

+

R941
NC

C923
470pF/25V

C905
120uF 450V

1
2
3

IC901

RT
COMP
CS

VCC

GND4OUT

LD7576A

C924
220pF

1
2

8

HV

7

NC

6
5

HS1
HEAT SINK(Q901)

R904

8.2K OHM 1/4W

R905

8.2K OHM 1/4W

ZD901
NC

1 2

FB905
BEAD

1 2

C919

100N 50V

D909

LL4148

R907

10 OHM 1/8W

+

R912

22 OHM 1/8W

R922

200 OHM 1/4W

HS2
HEAT SINK (D904)

1
2

HS3
HEAT SINK(D906)

1
2

C908
22uF/50V

C906
2200pF

D902

FR103

R938
10K 1/8W

R908
100K OHM 2W

D901
FR107

Q901
STP10NK70ZFP

R914

0.39 OHM +-5% 2W S

C931

0.001uF/250V

R909

3.3 OHM 1/4W

!

0R05 1/4W 5%

!

T901

80TL19T 33 S

4

5

6
2

3

POWER X'FMR

0R05 1/4W 5%

0R05 1/4W 5%

0R05 1/4W 5%

IC903

PC123X2YFZOF

R918

R919

0R05 1/4W 5%

R920

0R05 1/4W 5%

8

9
10

7

11
12

R935

R903

R934

43

FB906

C921

0.001uF

D906

1

SP20150R

2

3

D904

1

SP10100

2

3

1000uF 16V

C929

0.001uF

12

+

C917
1000uF 25V

C914

+

+

C930
1000uF 16V

IC902

KIA431

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

G3465-1-X-X-1-090402

02.POWER

+

C918
1000uF 25V

L903

3.5uH

R925
150R 1/8W

R924
1K 1/4W

C912

0.022uF/25V

L904

3.5uH

C920

0.1uF

R927

3.6K OHM 1% 1/8W

R928

0OHM 1/8W

C922

+

470uF 25V

Q903

KTD1028

+

C915

470uF 16V

R929
33K OHM 1% 1/8W

R930

2.43KOHM +- 1% 1/8W

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

R940

150 OHM 2W

C916

0.1uF

PWTV8C41MYD1

715G3465-1

of

23Thursday, April 02, 2009

+12V

BEAD

1 2

ZD920
RLZ13B

R943
470 OHM +-5% 1/4W

R936

C932

0.001uF

1K 1/4W

FB907
BEAD

1 2

DIM

ON/OFF

+5V

JUMP

C927

0.1uF

F903

+12V

+5V

CN902

1
2
3
4
5
6
7
8

9
10
11

CONN

A3

Size

Rev

1

称爹

35

+12V

+5V

ON/OF F

DIM

R813
470K 1/8W 5%

C803
NC

R815
NC

C804

1UF 16V

R814
NC

1UF16V

R816
10K 1/10W 1%

C805

0.01uF

R802
22R 1/8W

C806

R817
1M 1/10W 5%

ZD802
RLZ5.6B

1 2

R818

75K 1/10W 5%

R819

100K 1/10W 5 %

33NF 50V

5K1 1/10W

1
2
3
4
5
6
7

C813

C801

0.047uF

IC801

DRV1

PGND

VDDA

DRV2

TIME R

GNDA

DIM

CT

ISEN

SSTCMP

VSEN

LCT

OVPT

ENA

NC18NC2

OZ9938GN

R823

390R 1/1 0W 1%

SST

16
15
14
13
12
11
10
9

R824

6.2K 1/10W

Q802

RK7002

ZD803
RLZ5.6B

1 2

C802

0.047uF

R820
10K 1/8W 5 %

C807

0.01uF

R825
510R 1/1 0W

CT

C814
390P 50V

R805

100R 1/ 10W 5%

D801

R806 100R 1/10W 5%

R804 5K1 1/10WR803

R807 100R 1/10W 5%

D803

R808 100R 1/10W 5%

D804

R822

R821

20K OHM 1% 1/8W

1M 1/8W 5%

C808
180K 1/10W

C809
560pF50V

D805

Q803

RK7002

C815

0.047uF

R826

1M 1/10W 5%

D802

CT
SST

C810

0.047uF

C811

0.1uF

+

C812

1000uF 25V

3

3

3

4
3
2
1

4
3
2
1

D806

D807

D808

10K 1/10W 5%

Q805

G
S
G
S

AM4502C-T1-PF

Q806

G
S
G
S

AM4502C-T1-PF

BAV70

1

2

BAV70

1

2

BAV70

1

2

10K 1/10W 5%

R842

5

20".22W

D

6

D

7

D

8

D

5

D

6

D

7

D

8

D

10K 1/10W 5%

R843

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

PT802

6

POWER X'FMR

2
5

1

R844

G3465-1-X-X-1-090402

03.INVERTER

ㄏノ

7

8

R838 1M 1/10W 5%

R839 1M 1/10W 5%

R840 1M 1/10W 5%

R841 1M 1/10W 5%

R845

10K 1/10W 5%

C823

0.01uF

C825

0.01uF

LV2

LV1

LV3

LV4

R832

20K

R835

20K

C816
27PF 6KV

R827

20K

R831

24KOHM +-5% 1/10W

R834

15KOHM +-5% 1/10W

R833

20K

C824
27PF 6KV

C819
56pF3KV

C820
56pF3KV

C821
56pF3KV

C822

56pF3KV

OEM MODEL

TPV MODEL

PCB NAME

Sheet

L801

124

3

L802

L

124

3

L

2

PWTV8C41MY D1

715G3465-1

of

13Wednesda y, April 01, 2009

1

CN801

2

CONN

LV1

1

CN802

2

CONN

LV2

1

CN803

2

CONN

LV3

1

CN804

2

CONN

LV4

3

D809

1

BAV99

Size

Rev

称爹

B

1

36

L26DH93 715G3418P010HV003M

D904

IN5408

ER-28S

10

US1M

R904

R924

R925

R926

R927
NC

R928

100K OHM 1/8W

4.7K OHM 1/8W

2 6

R911

20K OHM 1/8W

C916
NC

B+_390V

R938

L903

!

300uH

1

R932

10R 1/8W 5%

6

5

8

ZCD

OUT7VCC

GND

INV1COMP2MOT3CS

4

R918 10K OH M 1/8W

C917

0.047uF

R905

1.5 MOHM +-5% 1/4W

VCC_1

R912
2K OHM 1/8W

C922
1uF

C923

0.1uF

C943

0.1uF

FB902
BEAD

1 2

R913

33 OHM 1/8W +-5%

C912
56pF

IC901
FAN7529MX

Q925
KTA1273

R935
20K OHM 1/8W +-5%

!

C928

0.001uF/25 0V

330K OHM 1/4W

!

!

+

!

2

CN903
NC

2

N

1

L

R901

330K OHM 1/4W

R902

!

!

3

RV902
NC

!

4

C904

0.22uF/275V

C902
680pF

!

!

3

!

4

C901

0.47uF

NR901

NTCR

F901

FUSE

!

CN901 SOCKET

1 2

C913

0.1uF

1

-

FB901

4
1 2

BEAD

RV901
NC

R903

330K OHM 1/4W

!

2

L902

13.0mH

1

C903
680pF

!

2

L901

13.0mH

1

!

BD901
KBJ608G

3

C910
1uF/450V

R910

300K OHM 1/8W

VCC_1

+

C914
47uF/50V

R917

56K OHM 1/8W

D901

1.5 MOHM +-5% 1/4W

RV903
NC

750KOHM +-5% 1/4W

750KOHM +-5% 1/4W

750KOHM +-5% 1/4W

C924

NC

D905
1N4148

R915
470 OHM 1/8W +-5%

C915
220pF

C918

0.47UF/25V

R909

1.5 MOHM +-5% 1/4W

R936
NC

R929
10K OHM 1/8W

Q924
DTC144WKA

FB

C920

0.01uF

D902
FMN-1106S

Q901
2SK4087LS

R914
10K OHM 1/8W

0.15 OHM 2W

C919
NC

C921

0.1uF

R942
51KOHM +-5% 1/8W

C944
220pF

C911

!

R916

R941
10K OHM 1/8W

1

BNO

2

COMP

3

(-)LATCH
CS4GND

R919
NC

R906
510KOHM +-5% 1/8W

IC903

OVP
VCC
OUT

LD7523A

R920
680K OHM +-1% 1/4W

R921
680K OHM +-1% 1/4W

R922
680K OHM +-1% 1/4W

R923
13K OHM 1% 1/8W

B+

R934
1K OHM 1/8W +-5%

8
7
6
5

+

R945

1KOHM +-5% 1/4W

RV904
NC

1R 1/8W 5 %

C941

10uF/50V

!

R933

+

C942

0.1uF

C925
82uF/450V

C939

1500pF2KV

D940
SARS01-V1

R948

0.47 ohm

C907

0.1uF

R9211
100K OHM 1/4W

100K OHM 1/4W

R9212

100K OHM 1/4W

D906
1N4148

R943

22 OHM 1/8W +-5%

R944

10K OHM 1/8W

0.43 OHM +-5% 2WS

B+_390V

B+

FB_1

C909

0.1uF

R9213

R9214

100K OHM 1/4W

R946

R908

2.7 OHM 1/4W

R947 R949

4

3

2

!

Q903
STP10NK70ZFP

B+

4.7M OHM 1/4W

!

T902

POWER X'FMR

ER28S

!

C927

470pF/250V

!

R937

Vcc_1

6

7
10

9

FB

43

FB/OLP4VCC

3

GND

2

BR

1

S/OCP

R907

2.7 OHM 1/4W

+

C937
10uF/50V

FB903
BEAD

1 2

D930

SARS01-V1

IC902
A6069H

D/ST
D/ST

Q921

KTD1028

10K OHM 1/8W

MTZJ T-72 16B

1 2

NC

NC

100 OHM 1/4W

R974
1K OHM 1/4W

12

IC970

PC123X2YFZ OF

10K OHM 1/8W

IC971
AZ431AZ-AE1

R939

ZD901

R970

R971

R952

R976

1500pF2KV

5

7
8

Vcc

!

D952

3

FMEN-230A

2

1

R953

100 OHM 1/4W

R975

3.9KOHM +-5% 1/8W

R9401
100K OHM 1/4W

C929

100K OHM 1/4W

+

C933
22uF/50V

+5VS

12

43

C960

0.001uF

C976

0.33uF

R9402

D903
1N4148

C908

0.1uF

R960
1K OHM 1/8W +-5%

IC951

PC123X2YFZ OF

Q950
PMBS3904

C970
NC

D951
NC

C961

0.001uF

+12V

R9403

100K OHM 1/4W

R9404

100K OHM 1/4W

2.2 OHM 1/4W

Vcc

+

C931
100uF/50V

R961

1K OHM 1/8W +-5%

C956

0.1uF

C971
NC

R978
24KOHM +-1% 1/8W

R980
6K2 1/8W 5%

+

+

R931

D935
AU02Z

C973

NC

C958
1000uF 35V

+24V

R963
10K OHM 1/8W

L980
NC

L951
L

R987
NC

R979
NC

1

2

3
4

5

PS_ON

T901
POWER X'FMR

EE22

!

+

C975
NC

+

C959
470uF/25V

R950

100 OHM 1/4W

R951

100 OHM 1/4W

6

3

7

9
10

D950
SBT15006JST

2

1

FB_1

12

43

!

R968
NC

R972

R973

2K2 1/4W 5%

2K2 1/4W 5%

T P V ( Top Victory Elect ronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

R954
100 OHM 1/8W

IC950

PC123X2YFZ OF

C955

0.22uF/50V

IC952

AZ431AZ-AE1

R969
NC

03.Power

+

C953
330uF 16V

A5V

R956

1K OHM 1/8W +-5%

+12V

C950

0.001uF

C951

0.001uF

R955
1K OHM 1/8W +-5%

R959
NC

1.0A

C977

0.1uF

A5V

Q970
PMBS3904

+5VS

+5V

R966
NC

L950
L

R957
10K 1/8W 1%

R958
10K 1/8W 1%

R983

1K OHM 1/8W +-5%

C978

0.1uF

OEM MODEL

TPV MODE L

PCB NAME

Sheet

+

C954

470uF/16V

R967
NC

+12V

ZD951
MTZJ T-7 2 15B

1 2

D954

1N4148

R981

1K OHM 1/8W +-5%

R982

10K OHM 1/8W

715G3418-P01-0HV-003M

33Tuesday, March 31, 2009

of

ON/OFF

+24V

1 2

ZD952
NC

2.5A

+5V

C974

0.1uF

CN902

PDIM

+24V

PS_ON

+5V

+24V

1
2

+12V

3
4
5
6
7
8

9
10
11
12

CONN

1.0A

C979
NC

D955

NC

Custom

Size

Rev

A

CHH MODEL

称爹

37

PDIM

10K OHM

NC

R807

R812

ON/O FF

DR1

D802

SCS0520P

R808

NC

C802

2.2uF 25V X7R

1 2

SCS0520P

R805

100K OHM 1/8W

C808
NC

D804

DR2

1 2

R806

10K OHM

C807
330PF/50V

R813

2.7K OHM

B+_390V

1

4

T801

50:50:50

!

C810
NC

+12V

10

9
7

6

5

R801 0.1 ohm

D801 S CS0520P

12

R802

100 OHM 1/8W

D803

12

SCS 0520P

R803

100 OHM 1/8W

10K OHM 1/4W +-5%

C805

470uF/25V

R809

47K OHM 1/8W +-1%

STP9NK60ZFP

R833

STP9NK60ZFP

+

R816
100 OHM 1/4W

Q801

R832
10K OHM 1/4W +-5%

!

Q802

1 2

FB904 BEAD

C806

0.1uF/ 50V

IC801

1

DRV1

DRV2

2

GND

3

ZCS

VREF

4

RT1

5

CT

ADIM

6

LCT

TIME R

7

PDIM

SSTCMP

VSEN8ISEN

OZ9976GN

!

C803
1000pF

470pF/250V

VIN

ENA

ISEN

C906

16
15
14
13
12
11
10
9

C801

1uF/450V

C822
1000pF

1uF/450V

!

1 2

FB905 BEAD

C812

0.047uF

C804

DR2DR1

ENA

C821
10nF

VREF

R811
2M OHM 1/8W

C809

1U 25V

51K OHM 1/8W +-5%

R814

T802

P:S=10:8

5

6
3

2

1

!

10K OHM 1/4W +-5%

100K OHM 1/4W

C811

0.01uF/ 25V

R810

12

TA

11
10

9
8
7

R804

R815
51K 1/8W 5%

CN801

1

TB

C813

4N7 50V

C814

2.2uF 25V X7R

CONN

CN802

WEAFER

L
N

TA

2

5
4
3
2
1

TB

VS
IS1

IS2

R824

23Tuesday, March 31, 2009

C820
680PF/50V

of

100 OHM 1/8W

R827

100 OHM 1/8W

IS1

IS2

Size

Rev

称爹

B

A

CHH MODEL

R817

ISEN

Q804
PMBS3904

Q805
PMBS3904

1K OHM 1/4W

510KOHM +-5% 1/8W

Q803
RK7002

R819

C815

220pF

C816

0.001uF

38

VS

VREF

R820

100K OHM 1/8W

IS1

D806
1N4148

IS2

D807
1N4148

R828

10K OHM 1/8W

R830

10K OHM 1/8W

C817
1N 50V

C818
1N 50V

R829

1M OHM

R831

1M OHM

R818
330 OHM 1/8W +-5%

R821
10K OHM 1/8W

3

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

D805
BAV70

240 1/8W 1%

02.Inv erter

1

2

R822

R823
3K OHM

C819
680PF/50V

R825
240 1/8W 1%

OEM MO DEL

TPV MODEL

PCB NAME

Sheet

R826
3K OHM

715G3418-P01-0HV-003M

L26DH93 715G3335 1 2

CN801

5
4
3
2
1

CONN

CN802

1

L

2

N

CONN

TA

P1

VS
IS1

IS2

TB

TA

P2

P4

P5

R801
100 OHM +- 5% 1/8W

R802
100 OHM +- 5% 1/8W

R806
100 OHM +- 5% 1/8W

R807

100 OHM +- 5% 1/8W

510 OHM +- 5% 1/8W

R811

R812

510 OHM +-5% 1/ 8W

R814

510 OHM +- 5% 1/8W

R815
510 OHM +-5% 1/ 8W

D801
1N4148

D802
1N4148

D804
1N4148

D805
1N4148

R804
10KOHM + -5% 1/8W

C801

0.01uF

D822
1N4148

D806

R808

MTZJ T-72 5.1B

100KOHM + -5% 1/8W

R805

100K OHM 1/8W

VS

3

2

D808

D-BAV99-7-F

4

T801

POWER X'FMR

TP1TP

TP2TP TP4TP

C802
5pF/3KV

3

1

2

D814
D-BAV99-7-F

1

1 2

6

1 2

P1 P4

C803
5pF/3KV

C815

C814

0.0056uF

0.0056uF

R818
1K OHM 1/8W +-5%

4

T802
POWER X'FMR

6

3

1

2

D809
D-BAV99-7-F

T803

POWER X'FMR

TP3TP

C804
5pF/3KV

3

1

2

D815
D-BAV99-7-F

4

1 2

6

1 2

P2

C805
5pF/3KV

C817

C816

0.0056uF

0.0056uF

R819

1K OHM 1/8W +-5%

4

T804
POWER X'FMR

6

2

D-BAV99-7-F

POWER X'FMR

3

1

D812

4

T805

TP5TP

6

TP6TP

C810
5pF/3KV

3

2

D818 D-BAV99-7-F

1 2

1 2

P5

C822

C823

0.0056uF

0.0056uF

1

R820
1K OHM 1/8W +-5%

4

T806
POWER X'FMR

6

C811
5pF/3KV

2

D-BAV99-7-F

3

D811

POWER X'FMR

TP7TP

TP8TP

1

2

4

T807

6

C808
5pF/3KV

3

C820

0.0056uF

1

D817 D-BAV99-7-F

1 2

1 2

C809
5pF/3KV

C821

0.0056uF

R821

1K OHM 1/8W +-5%

4

T808
POWER X'FMR

6

T809

POWER X'FMR

TP9TP

C806
5pF/3KV

39K OHM 1/8W

39K OHM 1/8W

4

6

R803

R813

1 2

1 2

IS1 IS2

C818

C819

820pF

820pF

D820
1N4148

TB

4

T810
POWER X'FMR

6

C807

5pF/3KV

R816
39K OHM 1/8W

R817
39K OHM 1/8W

TP10

TP

D821
1N4148

R822

0 OHM 1/8W

39

6.3 按键板

715G3400 1

R01
20K OHM 1% 1/ 10W

SW01

VOL+

C01

NC

CN01

1
2
3
4

CONN

33T3802 4H

3V3_STB

C08

NC

JR02

0 OHM 1/4W

PWR-SW
FUN C_KEY

FUN C_KEY

3V3_STB

R09

NC

R10

NC

R07

100 OHM 1% 1/10W

R02

8.2K1/10W 1%

R03

4.32K 1% 1/10W

R04

2.74K 1% 1/10W

R05

1.8K OHM 1% 1/10W

SW02

VOL-

C02

NC

SW03

CH+

C03

NC

SW04

CH-

C04

NC

SW05

MENU

C05

NC

SW06

Source Select

C06

NC

SW07

Power ON/OFF

PWR-SW

JR01

0 OHM 1/8W

R08

100 OHM 1% 1/10W

C07

NC

77T 600 1GCJ

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

G3400-D-X-X-4-090305

Keyp ad

40

OEM MO DEL

TPV MODEL

PCB NAME

Sheet

715G3400-1

11Tuesday , March 17, 2009

of

Size

Rev

称爹

Custom

B

6.4 IR 板

715G3304R01001004M

LED001 LED

CN001

CONN

Green

Red

4

23

1

RED

81T 14 25 EL

VCC

LED_R

1

LED_B

2

IRRV

3
4
5

C001

0.1uF 50V

R001 15K OHM 1/10W

C002

NC/4.7uF/16V

U001

1

VOUT

2

GND

3

VCC

KSM-603TM2E

56T 627 33 1

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

G3304-1-1-X-2-090421

IR&LED

OE M MOD EL

TPV MOD EL

PCB NAME

Sheet

41

715T3304-1-1

of

11Thursday , March 05, 2009

Size

Rev

称爹

A

7. BOM

7.1 L19DH93 E1992AND4WA1NN

点位 组件 对象描述 备注

040G 581689 4A BARCODE LABEL FOR 1
041G 68508 A CONTROL CARD
050G 600 2 HANDLE1
050G 600 3 HANDLE2
052G 1150 C INSULATING TAPE
052G 1186 SMALL TAPE
052G 2191 A PAPER TAPE
078G0060 1 Y SPEAKER 8 OHM 6W 128X30MM
089G214A18N YH POWER CORD

E09501 095G8018 3DH67 LVDS CABLE 30P-30P 120MM 2nd source
E09501 095G8018 3XH67 LVDS CABLE 30P-30P 120MM

098GRABD1NCACR RC2444201/01
0D1G1730 8120 SCREW
0Q1G 930 8 47 CR3 SCREW
0Q1G 930 10 47 CR3 SCREW
0Q1G 940 8120 SCREW
0Q1G1830 8120 SCREW(3X8) 42A9230001
705TQ934916 STAND ASS'Y
A37T010401A HINGE ASS'Y
AM1G1740 12 47 CR3 SCREW
P34E0285ADT 1L0133 BASE
P34E0286ADT 1L0100 STAND
Q12G6082 3 FOOT PAD
705TQ934927 BEZEL TV19W-9C1-9C1 ASS`Y
036T 600 18110 NONWOVEN FABRTC
036T 600 18111 NONWOVEN FABRTC
P33E0132ADT 1L0100 KEY_FUNCTION
P33E0137AFT 1C0100 LENS_IR
P34E0308ADT 1L0130 BEZEL TV19W-9C1-9C1
P34E0309ADTA1L0100 PLASTIC DECO
Q36T 600 36 2 GP NONWOVEN FABRIC
Q52G 3 79 DOUBLE COATED TAPE 55258
705TQ934928 REAR COVER 19'
P15T8299 1 BKT-VESA
P34E0287ADT 1L0100 COVER-REAR-IO
P34E0310ADT 1L0130 REAR COVER 19"
750TVV185B1111N000 PANEL TPM185B1-L01 C1A FQ TPV
756TQ9CB AD008 MAIN BOARD-CBPF9A3CQ1

U402 056G1133923 IC MX25L4005AM2C-12G SOP-8

SMTF-U402 100TAHM9001D31 MCU ASS'Y-056G1133923

AM1G1740 12 47 CR3 SCREW
040G 45762412B CBPC LABEL

CN603 033G3802 4B Y W WAFER
CN402 033G3802 8B Y W CONNECTOR

42

CN701 033G380212B Y WAFER
CN404 033G8027 30 WAFER 30P 2.0MM DIP DUAL ROW

R203 061G 208470 64 RST MOFR 47OHM +-5% 1W
R205 061G 208470 64 RST MOFR 47OHM +-5% 1W
R617 061G153M399 59 3.9 OHM+-5% 3W
R618 061G153M399 59 3.9 OHM+-5% 3W
R619 061G153M399 59 3.9 OHM+-5% 3W
R620 061G153M399 59 3.9 OHM+-5% 3W

C640 067G 305102 4 105C 1000UF +-20% 25V
CN104 088G 78 13942 C RCA JACK 1*5 G/B/R/W/R AV5-8.4-02-01
CN104 088G 78 13942 YG RCA JACK 1*5 G/B/R/W/R RCA-512DF
CN101 088G 7813A38C RCA JACK 1*3 Y/W/R V/A
CN106 088G 7813A38C RCA JACK 1*3 Y/W/R V/A
CN107 088G 7813A39C S JACK + RCA JACK 1*3 Y/W/R
CN601 088G 30211K PHONE JACK 5PIN
CN107 088T 78 13A39 YG S JACK + RCA JACK 1*3 Y/W/R RCA-333S-010
CN103 088T 30252C PHONE JACK 3.5MM 3P V/A GREEN
CN103 088T 302A17 YG PHONE JACK 3.5MM 3P V/T GREEN
CN102 088T 35315F VC D-SUB 15PIN VERTICAL CONNECTOR

090T 372 2 HEAT SINK

X401 093G 2270B H XAT024576FK1H-3OHX AT-49 24.576MHZ

TU201 094T PALALL 3L TCL TUNER M15WPP-2PN-E

705TQ956001 U603 ASS'Y

U603 056T 616511 ST IC TDA7297SA ST

0M1G1730 10120 SCREW 42A9930016
Q90T0155 1 HEAT SINK

C701 067G 305100 3T 10UF 16V

C702 067G 305100 3T 10UF 16V

C722 067G 305101 3T 100UF 16V 105C

C708 067G 305101 3T 100UF 16V 105C

C704 067G 305101 3T 100UF 16V 105C

C204 067G 305101 3T 100UF 16V 105C

C203 067G 305101 3T 100UF 16V 105C

C718 067G 305221 3T 220UF/16V

C716 067G 305221 3T 220UF/16V

C742 067G 305221 3T 220UF/16V

C740 067G 305221 3T 220UF/16V

C741 067G 305221 3T 220UF/16V

C715 067G 305471 3T 105 摄氏度 470UF +-20% 16V

C727 067G 305471 3T 105 摄氏度 470UF +-20% 16V

U701 056G 563 7 IC AIC1084-33PMTR-R AIC

U703 056G 563 31 IC AZ1117D-1.8-E1

U708 056G 563 34 IC AIC1084-18PMTR-R AIC

U707 056G 563 75 G1084-33T43UF TO-252

U202 056G 585 11 IC AZ1117D-5.0-E1 AAC

U601 056G 614 1 74HC4052D S016 PHLIPS

U404 056G113353A IC M24C32-WMN6T SO-8 ST

43

U402 056G1133923 IC MX25L4005AM2C-12G SOP-8

U405 056T 562581 IC HX6201-A06MLAG QFP-176

U604 056T 616516 IC APA2176AQBITRL TQFN3X3-16

Q104 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q105 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q108 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q404 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q711 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q710 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q709 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q708 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q707 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q705 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q704 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q407 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q408 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q602 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q605 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q604 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q603 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q403 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q402 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q107 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q702 057G 763 5 FET AO3407 -4.1A/-30V SOT-23

Q406 057G 763 79 FET AO4449 -7A/-30V SOIC-8

Q706 057G 763 79 FET AO4449 -7A/-30V SOIC-8
RP601 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W
RP602 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W
RP603 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W
RP604 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W

R238 061G0402000 RST CHIP MAX 0R05 1/16W

R237 061G0402000 RST CHIP MAX 0R05 1/16W

R642 061G0402000 RST CHIP MAX 0R05 1/16W

R602 061G0402000 RST CHIP MAX 0R05 1/16W

R430 061G0402000 RST CHIP MAX 0R05 1/16W

R429 061G0402000 RST CHIP MAX 0R05 1/16W

R401 061G0402000 RST CHIP MAX 0R05 1/16W

R319 061G0402000 RST CHIP MAX 0R05 1/16W

R315 061G0402000 RST CHIP MAX 0R05 1/16W

R301 061G0402000 RST CHIP MAX 0R05 1/16W

R734 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R731 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R729 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R727 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R720 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R713 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R712 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

44

R710 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R726 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R565 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R567 061G0402124 RST CHIP 120K 1/16W 5%

R207 061G0402180 RST CHIP 18R 1/16W 5%

R187 061G0402180 RST CHIP 18R 1/16W 5%

R183 061G0402180 RST CHIP 18R 1/16W 5%

R174 061G0402180 RST CHIP 18R 1/16W 5%

R139 061G0402180 RST CHIP 18R 1/16W 5%

R704 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W

R716 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W

R141 061G0402273 RST CHIP 27K 1/16W 5%

R143 061G0402273 RST CHIP 27K 1/16W 5%

R162 061G0402273 RST CHIP 27K 1/16W 5%

R165 061G0402273 RST CHIP 27K 1/16W 5%

R172 061G0402471 RST CHIPR 470 OHM +-5% 1/16W

R178 061G0402471 RST CHIPR 470 OHM +-5% 1/16W

R402 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R403 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R566 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R568 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R569 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R621 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R631 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R630 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R623 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R622 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R158 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R152 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R142 061G0402560 RST CHIP 56R 1/16W 5%

R179 061G0402560 RST CHIP 56R 1/16W 5%

R185 061G0402560 RST CHIP 56R 1/16W 5%

R189 061G0402560 RST CHIP 56R 1/16W 5%

R210 061G0402560 RST CHIP 56R 1/16W 5%

R117 061G0402683 JF RST CHIPR 68KOHM 55 1/16W FENGHUA

R118 061G0402683 JF RST CHIPR 68KOHM 55 1/16W FENGHUA

R177 061G0402750 RST CHIPR 75 OHM +-5% 1/16W

R702 061G0603000 RST CHIP MAX 0R05 1/10W

R608 061G0603000 RST CHIP MAX 0R05 1/10W

R606 061G0603000 RST CHIP MAX 0R05 1/10W

R204 061G0603000 RST CHIP MAX 0R05 1/10W

R135 061G0603000 RST CHIP MAX 0R05 1/10W

R132 061G0603000 RST CHIP MAX 0R05 1/10W

R128 061G0603000 RST CHIP MAX 0R05 1/10W

R176 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R140 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R432 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

45

R616 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R615 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R428 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R427 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R208 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R188 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R184 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R136 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R133 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R131 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R129 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

FB604 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
FB605 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R436 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R405 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R407 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R625 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R624 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R603 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R526 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R523 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R522 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R519 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R518 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R632 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R633 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R709 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R717 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R719 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R725 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R728 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R733 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R153 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R159 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R181 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R404 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R406 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R416 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R417 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R418 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R510 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R454 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R426 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R425 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R422 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R421 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R420 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

46

R419 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R627 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W

R441 061G0603105 RST CHIPR 1M OHM +-5% 1/10W

R489 061G0603133 RST CHIPR 13 KOHM +-5% 1/10W

R314 061G0603162 1F RST CHIPR 1.62 KOHM +-1% 1/10W

R173 061G0603183 RST CHIPR 18 KOHM +-5% 1/10W

R195 061G0603203 RST CHIPR 20 KOHM +-5% 1/10W

R196 061G0603203 RST CHIPR 20 KOHM +-5% 1/10W

R180 061G0603221 RST CHIPR 220 OHM +-5% 1/10W

R106 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W

R112 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W

R103 061G0603330 RST CHIPR 33 OHM +-5% 1/10W

R111 061G0603330 RST CHIPR 33 OHM +-5% 1/10W

R318 061G0603391 RST CHIPR 390 OHM +-5% 1/10W

R102 061G0603391 RST CHIPR 390 OHM +-5% 1/10W

R105 061G0603391 RST CHIPR 390 OHM +-5% 1/10W

R109 061G0603391 RST CHIPR 390 OHM +-5% 1/10W

R113 061G0603391 RST CHIPR 390 OHM +-5% 1/10W

R424 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R423 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R634 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W

R456 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W

R114 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R110 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R107 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R629 061G0603753 RST CHIPR 75 KOHM +-5% 1/10W

R628 061G0603753 RST CHIPR 75 KOHM +-5% 1/10W

R409 061T0603102 2F RST CHIPR 10.2 KOHM +-1% 1/10W

R408 061T0603102 2F RST CHIPR 10.2 KOHM +-1% 1/10W

C102 065G0402101 32 100PF +-10% 50V X7R

C330 065G0402101 32 100PF +-10% 50V X7R

C404 065G0402101 32 100PF +-10% 50V X7R

C405 065G0402101 32 100PF +-10% 50V X7R

C406 065G0402101 32 100PF +-10% 50V X7R

C407 065G0402101 32 100PF +-10% 50V X7R

C408 065G0402101 32 100PF +-10% 50V X7R

C409 065G0402101 32 100PF +-10% 50V X7R

C420 065G0402101 32 100PF +-10% 50V X7R

C646 065G0402102 32 1000PF +-10% 50V X7R

C601 065G0402102 32 1000PF +-10% 50V X7R

C123 065G0402102 32 1000PF +-10% 50V X7R

C301 065G0402103 22 CHIP 0.01UF 25V X7R

C311 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C315 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C320 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C639 065G0402104 27 CAP CHIP 0402 100NF Z 25V Y5V

C161 065G0402221 32 MLCC 0402 CAP 220PF J 50V X7R

47

C207 065G0402221 32 MLCC 0402 CAP 220PF J 50V X7R

C208 065G0402221 32 MLCC 0402 CAP 220PF J 50V X7R

C421 065G0402330 31 CHIP CAP 0402 33PF J 50V NPO

C422 065G0402330 31 CHIP CAP 0402 33PF J 50V NPO

C651 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C652 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C653 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C654 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C162 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C329 065G0603104 32 CHIP 0.1UF 50V X7R

C328 065G0603104 32 CHIP 0.1UF 50V X7R

C327 065G0603104 32 CHIP 0.1UF 50V X7R

C326 065G0603104 32 CHIP 0.1UF 50V X7R

C323 065G0603104 32 CHIP 0.1UF 50V X7R

C321 065G0603104 32 CHIP 0.1UF 50V X7R

C318 065G0603104 32 CHIP 0.1UF 50V X7R

C419 065G0603104 32 CHIP 0.1UF 50V X7R

C433 065G0603104 32 CHIP 0.1UF 50V X7R

C454 065G0603104 32 CHIP 0.1UF 50V X7R

C455 065G0603104 32 CHIP 0.1UF 50V X7R

C456 065G0603104 32 CHIP 0.1UF 50V X7R

C458 065G0603104 32 CHIP 0.1UF 50V X7R

C462 065G0603104 32 CHIP 0.1UF 50V X7R

C638 065G0603104 32 CHIP 0.1UF 50V X7R

C613 065G0603104 32 CHIP 0.1UF 50V X7R

C743 065G0603104 32 CHIP 0.1UF 50V X7R

C739 065G0603104 32 CHIP 0.1UF 50V X7R

C738 065G0603104 32 CHIP 0.1UF 50V X7R

C730 065G0603104 32 CHIP 0.1UF 50V X7R

C728 065G0603104 32 CHIP 0.1UF 50V X7R

C726 065G0603104 32 CHIP 0.1UF 50V X7R

C724 065G0603104 32 CHIP 0.1UF 50V X7R

C721 065G0603104 32 CHIP 0.1UF 50V X7R

C720 065G0603104 32 CHIP 0.1UF 50V X7R

C719 065G0603104 32 CHIP 0.1UF 50V X7R

C717 065G0603104 32 CHIP 0.1UF 50V X7R

C714 065G0603104 32 CHIP 0.1UF 50V X7R

C707 065G0603104 32 CHIP 0.1UF 50V X7R

C663 065G0603104 32 CHIP 0.1UF 50V X7R

C661 065G0603104 32 CHIP 0.1UF 50V X7R

C659 065G0603104 32 CHIP 0.1UF 50V X7R

C658 065G0603104 32 CHIP 0.1UF 50V X7R

C656 065G0603104 32 CHIP 0.1UF 50V X7R

C648 065G0603104 32 CHIP 0.1UF 50V X7R

C611 065G0603104 32 CHIP 0.1UF 50V X7R

C641 065G0603104 32 CHIP 0.1UF 50V X7R

C631 065G0603104 32 CHIP 0.1UF 50V X7R

48

C634 065G0603104 32 CHIP 0.1UF 50V X7R

C617 065G0603104 32 CHIP 0.1UF 50V X7R

C620 065G0603104 32 CHIP 0.1UF 50V X7R

C621 065G0603104 32 CHIP 0.1UF 50V X7R

C623 065G0603104 32 CHIP 0.1UF 50V X7R

C625 065G0603104 32 CHIP 0.1UF 50V X7R

C627 065G0603104 32 CHIP 0.1UF 50V X7R

C629 065G0603104 32 CHIP 0.1UF 50V X7R

C464 065G0603104 32 CHIP 0.1UF 50V X7R

C466 065G0603104 32 CHIP 0.1UF 50V X7R

C467 065G0603104 32 CHIP 0.1UF 50V X7R

C469 065G0603104 32 CHIP 0.1UF 50V X7R

C470 065G0603104 32 CHIP 0.1UF 50V X7R

C478 065G0603104 32 CHIP 0.1UF 50V X7R

C602 065G0603104 32 CHIP 0.1UF 50V X7R

C603 065G0603104 32 CHIP 0.1UF 50V X7R

C605 065G0603104 32 CHIP 0.1UF 50V X7R

C606 065G0603104 32 CHIP 0.1UF 50V X7R

C132 065G0603104 32 CHIP 0.1UF 50V X7R

C156 065G0603104 32 CHIP 0.1UF 50V X7R

C158 065G0603104 32 CHIP 0.1UF 50V X7R

C163 065G0603104 32 CHIP 0.1UF 50V X7R

C166 065G0603104 32 CHIP 0.1UF 50V X7R

C202 065G0603104 32 CHIP 0.1UF 50V X7R

C205 065G0603104 32 CHIP 0.1UF 50V X7R

C317 065G0603104 32 CHIP 0.1UF 50V X7R

C314 065G0603104 32 CHIP 0.1UF 50V X7R

C313 065G0603104 32 CHIP 0.1UF 50V X7R

C312 065G0603104 32 CHIP 0.1UF 50V X7R

C307 065G0603104 32 CHIP 0.1UF 50V X7R

C306 065G0603104 32 CHIP 0.1UF 50V X7R

C206 065G0603104 32 CHIP 0.1UF 50V X7R

C452 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C657 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C655 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C650 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C647 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C645 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C644 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C643 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C642 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C453 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C459 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C457 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C402 065G0603224 32 CHIP 0.22UF 50V X7R

C403 065G0603224 32 CHIP 0.22UF 50V X7R

C609 065G060333412K A CAP CHIP 0603 0.33UF K 16V X7R

49

C101 065G0603473 32 CHIP 0.047UF 50V X7R

C106 065G0603473 32 CHIP 0.047UF 50V X7R

C110 065G0603473 32 CHIP 0.047UF 50V X7R

C120 065G0603473 32 CHIP 0.047UF 50V X7R

C126 065G0603473 32 CHIP 0.047UF 50V X7R

C129 065G0603473 32 CHIP 0.047UF 50V X7R

C461 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R

C463 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R

C465 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R

C468 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R

C649 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C637 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C622 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C460 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C451 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C424 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C418 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C325 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C324 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C322 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C316 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C305 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C157 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C116 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C115 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C477 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C604 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C124 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C125 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C133 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C136 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C140 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C145 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C149 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C151 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C635 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C636 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C713 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C725 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C615 065T0402152 22 MLCC 0402 CAP 1500PF K 25V X7R

C616 065T0402152 22 MLCC 0402 CAP 1500PF K 25V X7R

FB408 071G 56G151 B BEAD 0805 150 OHM
FB407 071G 56G151 B BEAD 0805 150 OHM
FB406 071G 56G151 B BEAD 0805 150 OHM
FB405 071G 56G151 B BEAD 0805 150 OHM
FB403 071G 56G151 B BEAD 0805 150 OHM
FB402 071G 56G151 B BEAD 0805 150 OHM

50

FB419 071G 56G301 EA BEAD 300
FB417 071G 56G301 EA BEAD 300
FB416 071G 56G301 EA BEAD 300
FB415 071G 56G301 EA BEAD 300
FB306 071G 56G301 EA BEAD 300
FB303 071G 56G301 EA BEAD 300
FB302 071G 56G301 EA BEAD 300
FB301 071G 56G301 EA BEAD 300
FB104 071G 56G301 EA BEAD 300
FB202 071G 56G301 EA BEAD 300
FB421 071G 56G301 EA BEAD 300
FB601 071G 56G301 EA BEAD 300
FB602 071G 56G301 EA BEAD 300
FB606 071G 56G301 EA BEAD 300
FB307 071G 56G301 EA BEAD 300
FB706 071G 57G301 EA CHIP BEAD

R101 071G 59C600 CHIP BEAD

R104 071G 59C600 CHIP BEAD

R108 071G 59C600 CHIP BEAD

FB102 071G 59C800 1HIP BEAD
FB101 071G 59C800 1HIP BEAD

R138 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

R175 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

R182 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

R186 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

R206 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

ZD601 093G 39S106 T DIODE RLZ6.8C TE-11 500MW/6.8V LL-34

715G3365M01000004K TV MAIN-PCB FR-4 225X193X1.6MM DS

FB305 071G 56G301 EA BEAD 300

R512 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R509 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

FB709 071G 57G301 EA CHIP BEAD

C415 065G0402101 32 100PF +-10% 50V X7R

C425 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

D401 093G 39S 24 T RLZ 5.6B LLDS

D402 093G 39S 24 T RLZ 5.6B LLDS

D403 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D404 093G 39S 24 T RLZ 5.6B LLDS

Q410 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q411 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q412 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q413 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q414 057G 417 6 PMBS3906/PHILIPS-SMT(06)

R411 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R437 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R438 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R460 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

51

R465 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R466 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R635 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R636 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R637 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R638 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R639 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R410 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

C331 065G0603104 32 CHIP 0.1UF 50V X7R

C332 065G0603104 32 CHIP 0.1UF 50V X7R

R609 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R610 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R611 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R612 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R613 061G0603000 RST CHIP MAX 0R05 1/10W

R614 061G0603000 RST CHIP MAX 0R05 1/10W

R273 061G0603000 RST CHIP MAX 0R05 1/10W

R274 061G0603000 RST CHIP MAX 0R05 1/10W

R276 061G0603000 RST CHIP MAX 0R05 1/10W

C705 065G0603104 12 CER2 0603 X7R 16V 100N P

Q703 057G 417 4 PMBS3904/PHILIPS-SMT(04)

R643 061G0402000 RST CHIP MAX 0R05 1/16W

R701 061G0603331 RST CHIP 330R 1/10W 5%

ZD701 093G 39S 9 T ZENER DIODE RLZ9.1B ROHM

C423 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C748 065G0603102 31 CHIP 1000PF 50V NPO

C749 065G0603102 31 CHIP 1000PF 50V NPO

D101 093G 60230 BAT54C(L43)

R119 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R120 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R125 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R127 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

C117 065G0603224 32 CHIP 0.22UF 50V X7R

C135 065G0603221 32 CHIP 220PF 50V X7R

C160 065G0603221 32 CHIP 220PF 50V X7R

C165 065G0603221 32 CHIP 220PF 50V X7R

C168 065G0603221 32 CHIP 220PF 50V X7R

FB701 071G 57G301 EA CHIP BEAD

C319 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C333 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C334 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

D102 093G 39S 24 T RLZ 5.6B LLDS

D105 093G 39S 24 T RLZ 5.6B LLDS

C121 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

C127 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

C130 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

C122 065G0603101 32 100PF +-10% 50V X7R

52

C609 065G060333412K F CAP CHIP 0603 0.33UF K 16V X7R

C642 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10%

C643 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10%

C645 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10%

C647 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10%

C650 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10%

C655 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10%

C657 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10%

C452 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10%

C453 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10%

C457 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10%

C459 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10%

C644 065G060310525K 3 MLCC 0603 1UF 25V X5R +/-10%

C410 067G 305470 3T 47UF +-20% 16V

C610 067G 305101 3T 100UF 16V 105C

C703 067G 305101 3T 100UF 16V 105C

PWTV8C41MYD1 POWER BOARD G3465-2-X-X-1-090710
040G 45762412B CBPC LABEL

GND 009G6005 1 GROUND TERMINAL
CN801 033G8021 2E U INVERT CONNECTOR
CN802 033G8021 2E U INVERT CONNECTOR
CN803 033G8021 2E U INVERT CONNECTOR
CN804 033G8021 2E U INVERT CONNECTOR
CN801 033G8021 2E XY CONNECTOR
CN802 033G8021 2E XY CONNECTOR
CN803 033G8021 2E XY CONNECTOR
CN804 033G8021 2E XY CONNECTOR

051G 6 4503 GLUE_RTV

IC903 056G 139 3A IC PC123Y22FZ0F

NR901 061G 5810T RST NTCR 8 OHM +-20% 4A 13MM THINKING

C903 063G107K474 6S CAP X2 0.47UF K 275VAC
C822 065G 3J5606ET CAP CER 56PF J 3KV
C821 065G 3J5606ET CAP CER 56PF J 3KV
C820 065G 3J5606ET CAP CER 56PF J 3KV
C819 065G 3J5606ET CAP CER 56PF J 3KV
C824 065G 6J2706ET CAP CER27PF 5% SL 6KV TDK
C816 065G 6J2706ET CAP CER27PF 5% SL 6KV TDK
C931 065G306M1022BM Y1.CAP.001UF 250VAC MURATA
C902 065G306M1022BP 1000PF Y1.CAP
C901 065G306M1022BP 1000PF Y1.CAP
C905 067G 40Z12115A CAP 105C 120UF M 450V
C905 067G 40Z12115L EC 120UF 450V M 20*40MM
C812 067G215C4714HV EC 470UF 25V 10*13
C922 067G215D4714LV LOW ESR EC 470UF 25V M 10*16MM
C914 067G215P1023AV CAP 105℃ 1000UF M 16V
C930 067G215P1023AV CAP 105℃ 1000UF M 16V
C918 067G215P1024AV CAP 105℃ 1000UF M 25V

53

C917 067G215P1024AV CAP 105℃ 1000UF M 25V
C915 067G215P4713AV CAP 105℃ 470UF M 16V
C922 067G215P4714AV CAP 105℃ 470UF M 25V
C930 067G215S1023LV LOW ESR EC 1000UF 16V M 10*20MM
C914 067G215S1023LV LOW ESR EC 1000UF 16V M 10*20MM
C917 067G215S1024LV LOW ESR EC 1000UF 25V M 12.5*20MM
C918 067G215S1024LV LOW ESR EC 1000UF 25V M 12.5*20MM

C915 067G215S4713LV LOW ESR EC 470UF 16V M 10*12.5MM
FB905 071G 55 21 FERRITE BEAD
FB902 071G 55 21 FERRITE BEAD
FB901 071G 55 21 FERRITE BEAD

L801 073G 174 35 HA IND FILTER 200MH+-25% DADON
L802 073G 174 35 HA IND FILTER 200MH+-25% DADON
L902 073G 174 65 S2 LINE FILTER 30MH MIN
L903 073G 253 91 H CHOKE COIL
L904 073G 253 91 H CHOKE COIL

T901 080GL19T 33 S1 X'FMR 530UH
PT802 080TL22T 4 H X'FMR INVERTER 775MH
PT802 080TL22T 4 DN X'FMR 775MH TK.2001Y.101

CN901 087G 501 47 S AC SOCKET 2PIN + 2 SCREW HOLE
CN901 087G 501 47 DL AC SOCKET 2PIN + 3 SCREW HOLE
BD901 093G 5046016A DIODE BRIDGE T4KB80 ZHONGHUAN
BD901 093G 50460900 BRIDGE 4A/800V GBU408 LITEON
CN902 095G 82011W513 HARNESS 11P(SAN)-12P(PLUG) 200MM
CN902 095G 82011X513 HARNESS 11P(SAN)-12P(PLUG) 200MM

0Q1G 340 8106 CR3 SCREW
705TQ757019 Q901 ASS'Y
051T 200 1 OIL FOR DISAPPEAR

Q901 057G 667 21 STP10NK70ZFP

0M1G1730 8120 SCREW

HS1 Q90T6064 5 GP HEATSINK

705TQ793050 D904 ASS'Y
051T 200 1 OIL FOR DISAPPEAR

HS2 090T6064 1 GP HEAT SINK

D904 093G 60218 SB10100FCT

0M1G1730 8120 SCREW
705TQ951005 OIL FOR DISAPPEAR
705TQ993018 D906 ASS'Y
051T 200 1 OIL FOR DISAPPEAR

D906 093G 60522 DIODE MBR10150FCT PANJIT

0M1G1730 8120 SCREW

HS3 Q90T0179 1 HEAT SINK

709T3465 QM001 CONSUMPTIVE ASS'Y
055G 2 ALCOHOL
Q55G 23525 WELDING FLUX WITHOUT PB
Q55G 100625 TIN STICK_LOW ARGENTUM
PW8C41MYD1SMT POWER BOARD FOR SMT

54

IC901 056G 379128 IC LD7576 GS SOP-8
IC801 056G 608900 IC OZ9938GN-B1 SOIC-16

Q803 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM
Q802 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM
Q805 057T 600517 AO4616 SOIC-8
Q806 057T 600517 AO4616 SOIC-8
R816 061G06031002FF RST CHIPR 10KOHM +-1% 1/10W FENGHUA
R808 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R807 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R806 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R805 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R842 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R843 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R844 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R845 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R819 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R817 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R826 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R838 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R839 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R840 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R841 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
C808 061G0603184 JY RST CHIPR 180KOHM 1/10W YAGEO
R823 061G06033900FF RST CHIPR 390 OHM +-1% 1/10W FENGHUA
R825 061G0603511 JY RST CHIPR 510OHM +-5% 1/10W YAGEO
R803 061G0603512 JT RST CHIPR 5.1KOHM +-5% 1/10W TZAI YUAN
R804 061G0603512 JT RST CHIPR 5.1KOHM +-5% 1/10W TZAI YUAN
R824 061G06036201FF RST CHIPR 6.2KOHM +-1% 1/10W FENGHUA
R818 061G0603753 JY RST CHIPR 75KOHM +-5% 1/10W YAGEO

R928 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
RJ802 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
RJ803 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

R907 061G0805100 JY RST CHIPR 10OHM +- 5% 1/8W YEGAO

R924 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN

R820 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN

R938 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN

R821 061G0805105 JT RST CHIP 1M 1/8W 5% TZAI YUAN

R925 061G0805151 JF RST CHIPR 150 OHM +-5% 1/8W FENGHUA

R834 061G0805153 JT RST CHIP 15K 1/8W 5% TZAI YUAN

R822 061G08052002FT RST CHIP 20K 1/8W 1%

R827 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN

R832 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN

R833 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN

R835 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN

R802 061G0805220 JF RST CHIPR 22 OHM +-5% 1/8W FENGHUA

R912 061G0805220 JF RST CHIPR 22 OHM +-5% 1/8W FENGHUA

R831 061G0805243 JW RST CHIPR 24K +-5% 1/8W WALSIN

55

R930 061G08052431FY RST CHIPR 2.43KOHM +-1% 1/8W YAGEO

R929 061G08053302FF RST CHIPR 33KOHM +-1% 1/8W FENGHUA

R927 061G08053601FT RST CHIP 3K6 1/8W 1%

R943 061G0805471 JY RST CHIPR 470OHM +-5% 1/8W YAGEO

R813 061G0805474 JY RST CHIPR 470K +-5% 1/8W YAGEO
RJ801 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
RJ901 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
RJ902 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R903 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R918 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R919 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R920 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R934 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R935 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R936 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN

R922 061G1206201 JW RST CHIPR 200 OHM +-5% 1/4W WALSIN

R909 061G1206339 JT RST CHIPR 3.3 OHM +-5% 1/4W TZAI YUAN

R900 061G1206684 JT RST CHIPR 680 KOHM 1/4W TZAI YUAN

R901 061G1206684 JT RST CHIPR 680 KOHM 1/4W TZAI YUAN

R902 061G1206684 JT RST CHIPR 680 KOHM 1/4W TZAI YUAN

R905 061G1206822 JF RST CHIPR 8.2KOHM +-5% 1/4W FENGHUA

R904 061G1206822 JF RST CHIPR 8.2KOHM +-5% 1/4W FENGHUA

C807 065G0603103 12 CHIP 0.01UF 16V X7R

C805 065G0603103 12 CHIP 0.01UF 16V X7R

C806 065G060310512K T CAP CHIP 0603 1UF K 16V X7R

C813 065G0603333 32 CHIP 0.033UF 50V X7R 0603

C815 065G0603473 32 CHIP 0.047UF 50V X7R

C810 065G0603473 32 CHIP 0.047UF 50V X7R

C932 065G0805102 31 CAP CHIP 0805 1000PF J 50V NPO

C825 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%

C823 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%

C925 065G0805104 22 0.1UF +-10% 25V X7R 080

C927 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C920 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C919 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C916 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C811 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C804 065G080510512K T CAP CHIP 0805 1UF K 16V X7R

C924 065G0805221 31 CAP CHIP 0805 220PF J 50V NPO

C912 065G0805223 22 CHIP 0.022UF 25V X7R 080

C814 065G0805391 31 CHIP 390PF 50V

C923 065G0805471 21 CAP CHIP 0805 470PF J 25V NPO

C802 065G0805473 32 CHIP 0.047UF 50V X7R

C801 065G0805473 32 CHIP 0.047UF 50V X7R

C809 065G080556131G MLCC 0805 560PF G 50V NPO

C929 065G1206102 72 CAP CHIP 1206 1000PF K 500V X7R

C921 065G1206102 72 CAP CHIP 1206 1000PF K 500V X7R

56

D809 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D807 093G 64 42 P BAV70 SOT23 BY PAN JIT

D806 093G 64 42 P BAV70 SOT23 BY PAN JIT

D808 093G 64 42 P BAV70 SOT23 BY PAN JIT

D804 093G 6432P LL4148

D805 093G 6432P LL4148

D909 093G 6432P LL4148

D802 093G 6432P LL4148

D803 093G 6432P LL4148

D801 093G 6432P LL4148
ZD802 093G 39S 24 T RLZ 5.6B LLDS
ZD803 093G 39S 24 T RLZ 5.6B LLDS
ZD920 093G 39S 40 T RLZ 13B LLDS

PW8C41MYD1AI POWER BOARD FOR AI

CN901 006G 31500 EYELET

IC902 056G 158 12 KIA431A-AT/P TO-92

R908 061G152M10452T RST MOFR 100KOHM +-5% 2WS

R940 061G152M15152T RST MOFR 150 OHM +-5% 2WS

R914 061G152M39852T RST MOFR 0.39 OHM +-5% 2WS

C906 065G 2K222 2T6921 CAP CER 2200PF K 2KV Y5P

C908 067G215Y2207KT CAP 105℃ 22UF M 50V KINGNICHI

F901 084G 56 4 B FUSE 4A 250V
D901 093G 6026T52T RECTIFIER DIODE FR107
D902 093G 6038T52T FR103

F903 095G 90 23 JUMPER WIRE

J801 095G 90 23 JUMPER WIRE

J802 095G 90 23 JUMPER WIRE

J803 095G 90 23 JUMPER WIRE

J804 095G 90 23 JUMPER WIRE

J805 095G 90 23 JUMPER WIRE

J908 095G 90 23 JUMPER WIRE

J906 095G 90 23 JUMPER WIRE

J905 095G 90 23 JUMPER WIRE

J904 095G 90 23 JUMPER WIRE

J903 095G 90 23 JUMPER WIRE

J902 095G 90 23 JUMPER WIRE

J812 095G 90 23 JUMPER WIRE

J811 095G 90 23 JUMPER WIRE

J810 095G 90 23 JUMPER WIRE

J809 095G 90 23 JUMPER WIRE

J808 095G 90 23 JUMPER WIRE

J807 095G 90 23 JUMPER WIRE

J806 095G 90 23 JUMPER WIRE
E715 715G3465P020HV001S TVPOWER FR-1 S/S 1.6X125X200MM LE99I

FB904 071G 55 9 T FERRITE BEAD
FB903 071G 55 9 T FERRITE BEAD

Q903 057G 761 16 TRA KTD1028 KEC

57

F901 084G 56 4W FUSE 4.0A 250V
D901 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41
D902 093G 6038P52T PS102R

IC902 056G 158 10 T IC AS431AZTR-E1 TO-92
FB906 071T 55 26 H FERRITE BEAD 3.5*6.0*0.8
FB907 071T 55 26 H FERRITE BEAD 3.5*6.0*0.8
FB906 071G 55 26 S FERRITE CORE
FB907 071G 55 26 S FERRITE CORE

709T3465 QA001 CONSUMPTIVE ASS'Y

E715 715G3465P020HV001M TVPOWER FR-1 S/S 1.6X125X200MM LE99I

J909 095G 90 23 JUMPER WIRE

J910 095G 90 23 JUMPER WIRE
RJ903 061G1206000 RST CHIP MAX 0R05 1/4W
ZD802 093G 39GA01 T RLZ5.6B
ZD803 093G 39GA01 T RLZ5.6B

D801 093G 64S522SEM LL4148
D802 093G 64S522SEM LL4148
D803 093G 64S522SEM LL4148
D804 093G 64S522SEM LL4148
D805 093G 64S522SEM LL4148
D909 093G 64S522SEM LL4148
D809 093G 6433S DIODE BAV99 SEMTECH
D806 093G 64 42 PP BAV70 SOT-23
D807 093G 64 42 PP BAV70 SOT-23
D808 093G 64 42 PP BAV70 SOT-23
Q802 057G 763 62 FET 2N7002K 300MA/60V SOT-23
Q803 057G 763 62 FET 2N7002K 300MA/60V SOT-23

709T3465 QS001 CONSUMPTIVE ASS'Y
052G 2191 A PAPER TAPE

C823 065G080510332K A CAP CHIP 0805 10NF K 50V X7R
C825 065G080510332K A CAP CHIP 0805 10NF K 50V X7R

T901 S80GL19T33V1 TRANSFORMER ASS'Y

034FP19T33V 1 线包
071FPC28201 11 磁芯 PC40 EER28L A234
052FP04M150 铜箔 0.1T*15MM
Q02G7022 2 SCREW-STOPPER
Q11G5052 1 STRING
Q11G5055 1 STAND
Q40G 19261540A RATING LABEL
Q40G0003615 5A HDMI LABEL
Q41G783061516A WARRANTY CARD
Q44G9162101 EPS CUSHION
Q44G9162201 EPS CUSHION
Q44G9162301EPE EPE
Q44G9162615 4A 19 TV AOC CARTON
Q45G 99626 35 PE BAG
Q45G2007M0101A PE BAG

58

Q45T 99609100 EPE COVER
Q50G 4 10 TIE
Q52G 1185 98 MIDDLE CARTON TAPE FOR AOC
Q52G 1185 99 BIG CARTON TAPE FOR AOC
041T780062415A CERTIFICATE CARD
092GB1JX1A3DGC BATTERY FOR LR03（KH）2S/G
AM1G1740 12 47 CR3 SCREW
Q41G220261536B MANUAL
Q45G 76 28 V3 R PE BAG
Q45G 76 28NV2 R PE BAG FOR CLAMP
026G 800700 1A BARCODE LABEL
040G 58162435A P/N LABEL FOR MANUAL PE BAG
0Q1G 930 8 47 CR3 SCREW
P15T0445301 BRACKET-SIDE-AV
Q40G000260024A SIDE LABEL

E09502 095G8014 8DH19 HARNESS 8P(PLUG)-5P(260MM)+4P(400MM) 2nd source
E09502 095G8014 8XH19 HARNESS 8P(PLUG)-5P(260MM)+4P(400MM)

705TQ949001 COMSUPTIVE ASS'Y-A4
A15T0513101 HINGE BKT
IRPF9QAC IR BOARD G3304-1-1-X-2-090421

CN001 033G3802 5B YH L CONNECTOR 5P 2.0

U001 056T 627 33 1 IR 37.9KHZ KSM-603TM2E
R001 061G0603153 RST CHIPR 15KOHM +-5% 1/10W
C001 065G0603104 32 CHIP 0.1UF 50V X7R

LED001 081G 14 24 EL CHIP LED BLUE/DARK RED

715G3304R01001004M TV IR-PCB 33X28X1.6MM FR4 1OZ DS
KEPF9QAC KEY BOARD G3400-1-X-X-5-090421

CN01 033G3802 4B YH L CONNECTOR 7P 2.0

R07 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W
R08 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W
R05 061G0603180 1F RST CHIPR 1.8 KOHM +-1% 1/10W
R01 061G0603200 2F RST CHIPR 20 KOHM +-1% 1/10W
R03 061G0603432 1F RST CHIP 4.32K 1/10W 1%

R02 061G0603820 1F RST CHIPR 8.2 KOHM +-1% 1/10W
JR01 061G0805000 RST CHIP MAX 0R05 1/8W
JR02 061G1206000 RST CHIP MAX 0R05 1/4W

R04 061T0603274 1F RST CHIPR 2.74 KOHM +-1% 1/10W

SW01 077G 603 AI HJ TACT SWITCH 2PIN
SW02 077G 603 AI HJ TACT SWITCH 2PIN
SW03 077G 603 AI HJ TACT SWITCH 2PIN
SW04 077G 603 AI HJ TACT SWITCH 2PIN
SW05 077G 603 AI HJ TACT SWITCH 2PIN
SW06 077G 603 AI HJ TACT SWITCH 2PIN
SW07 077G 603 AI HJ TACT SWITCH 2PIN

715G3400 1 TV KEY-PCB,FR-1,162*13.5MM,T1.6MM,SS

59

7.2 L22DH93 E2292AND4WA1NN

点位 组件 对象描述

040G 581689 4A BARCODE LABEL FOR 1
050G 600 2 HANDLE1
050G 600 3 HANDLE2
052G 1186 SMALL TAPE
052G 2191 A PAPER TAPE
089G176W30N507 FFC CABLE 30PIN P1.0 130MM
089G214A18N YH POWER CORD
098GRABD1NCACR RC2444201/01
0D1G1730 8120 SCREW
0D1G1730 8120 SCREW
0D1G1740 8120 SCREW
0M1G1730 10120 SCREW 42A9930016
0Q1G 930 8 47 CR3 SCREW
0Q1G 940 12 47 CR3 SCREW
0Q1G1840 10120 SCREW
705TQ934C18 STAND ASS'Y
A37T0104012 HINGE
AM1G1740 12 47 CR3 SCREW
P34E0285ADT 1L0133 BASE
P34E0286ADT 1L0100 STAND
Q12G6082 3 FOOT PAD
705TQ934C25 BEZEL ASS'Y
036T 600 18109 NONWOVEN FABRTC
IRPF9QAC IR BOARD G3304-1-1-X-2-090421

CN001 033G3802 5B YH L CONNECTOR 5P 2.0

U001 056T 627 33 1 IR 37.9KHZ KSM-603TM2E

R001 061G0603153 RST CHIPR 15KOHM +-5% 1/10W

C001 065G0603104 32 CHIP 0.1UF 50V X7R

LED001 081G 14 24 EL CHIP LED BLUE/DARK RED

715G3304R01001004M TV IR-PCB 33X28X1.6MM FR4 1OZ DS
KEPF9QAC KEY BOARD G3400-1-X-X-5-090421

CN01 033G3802 4B YH L CONNECTOR 7P 2.0

R07 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W

R08 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W

R05 061G0603180 1F RST CHIPR 1.8 KOHM +-1% 1/10W

R01 061G0603200 2F RST CHIPR 20 KOHM +-1% 1/10W

R03 061G0603432 1F RST CHIP 4.32K 1/10W 1%

R02 061G0603820 1F RST CHIPR 8.2 KOHM +-1% 1/10W

JR01 061G0805000 RST CHIP MAX 0R05 1/8W

JR02 061G1206000 RST CHIP MAX 0R05 1/4W

R04 061T0603274 1F RST CHIPR 2.74 KOHM +-1% 1/10W

SW06 077G 603 AI HJ TACT SWITCH 2PIN

SW07 077G 603 AI HJ TACT SWITCH 2PIN

SW01 077G 603 AI HJ TACT SWITCH 2PIN

SW02 077G 603 AI HJ TACT SWITCH 2PIN

60

SW03 077G 603 AI HJ TACT SWITCH 2PIN

SW04 077G 603 AI HJ TACT SWITCH 2PIN

SW05 077G 603 AI HJ TACT SWITCH 2PIN

715G3400 1 TV KEY-PCB,FR-1,162*13.5MM,T1.6MM,SS
P33E0130AFT 1C0100 LENS-IR
P33E0132ADT 1L0100 KEY_FUNCTION
P34E0282ADT 1L0130 BEZEL TV22W-9C1
P34E0283ADTA1L0100 DECO BEZEL-09 AOC
Q36T 600 35 2 GP NONWOVEN FABRIC
Q52G 3 79 DOUBLE COATED TAPE 55258
705TQ934C26 REAR COVER ASS'Y 22"
P15T8299 1 BKT-VESA
P34E0284ADT 1L0130 REAR COVER TV22W
P34E0287ADT 1L0100 COVER-REAR-IO
750TVV216B1121N000 PANEL TPT216B1-L01 C1B FQ TPV
756TQ9CB AD012 MAIN BOARD-CBPF9A3KQ3

U402 056G1133923 IC MX25L4005AM2C-12G SOP-8

SMTF-U402 100TAHVC001D41 MCU ASS'Y-056G1133923

AM1G1740 12 47 CR3 SCREW
AM1G1740 12 47 CR3 SCREW
040G 45762412B CBPC LABEL

CN603 033G3802 4B Y W WAFER

CN402 033G3802 8B Y W CONNECTOR

CN701 033G380212B Y WAFER

CN408 033T801930F CH JS CONNECTOR

R203 061G 208470 64 RST MOFR 47OHM +-5% 1W

R205 061G 208470 64 RST MOFR 47OHM +-5% 1W

R617 061G153M399 59 3.9 OHM+-5% 3W

R618 061G153M399 59 3.9 OHM+-5% 3W

R619 061G153M399 59 3.9 OHM+-5% 3W

R620 061G153M399 59 3.9 OHM+-5% 3W

C640 067G 305102 4 105C 1000UF +-20% 25V

CN104 088G 78 13942 C RCA JACK 1*5 G/B/R/W/R AV5-8.4-02-01

CN101 088G 7813A38C RCA JACK 1*3 Y/W/R V/A

CN106 088G 7813A38C RCA JACK 1*3 Y/W/R V/A

CN107 088G 7813A39C S JACK + RCA JACK 1*3 Y/W/R

CN601 088G 30211K PHONE JACK 5PIN

CN101 088T 78 13938 TN RCA JACK 1*3 Y/W/R V/A 5105-870-083-98

CN106 088T 78 13938 TN RCA JACK 1*3 Y/W/R V/A 5105-870-083-98

CN107 088T 78 13A39 YG S JACK + RCA JACK 1*3 Y/W/R RCA-333S-010

CN103 088T 30252C PHONE JACK 3.5MM 3P V/A GREEN

CN103 088T 302A17 YG PHONE JACK 3.5MM 3P V/T GREEN

CN102 088T 35315F VC D-SUB 15PIN VERTICAL CONNECTOR

090G 372 2 HEAT SINK

X401 093G 2270B H XAT024576FK1H-3OHX AT-49 24.576MHZ

TU201 094T PALALL 3L TCL TUNER M15WPP-2PN-E

705TQ956001 U603 ASS'Y

61

U603 056T 616511 ST IC TDA7297SA ST

0M1G1730 10120 SCREW 42A9930016
Q90T0155 1 HEAT SINK

C702 067G 305100 3T 10UF 16V

C701 067G 305100 3T 10UF 16V

C722 067G 305101 3T 100UF 16V 105C

C708 067G 305101 3T 100UF 16V 105C

C704 067G 305101 3T 100UF 16V 105C

C204 067G 305101 3T 100UF 16V 105C

C203 067G 305101 3T 100UF 16V 105C

C716 067G 305221 3T 220UF/16V

C742 067G 305221 3T 220UF/16V

C741 067G 305221 3T 220UF/16V

C718 067G 305221 3T 220UF/16V

C740 067G 305221 3T 220UF/16V
C715 067G 305471 3T 105 摄氏度 470UF +-20% 16V
C727 067G 305471 3T 105 摄氏度 470UF +-20% 16V

U701 056G 563 7 IC AIC1084-33PMTR-R AIC

U703 056G 563 31 IC AZ1117D-1.8-E1

U708 056G 563 34 IC AIC1084-18PMTR-R AIC

U707 056G 563 75 G1084-33T43UF TO-252

U202 056G 585 11 IC AZ1117D-5.0-E1 AAC

U601 056G 614 1 74HC4052D S016 PHLIPS

U404 056G113353A IC M24C32-WMN6T SO-8 ST

U402 056G1133923 IC MX25L4005AM2C-12G SOP-8

U405 056T 562581 IC HX6201-A06MLAG QFP-176

U604 056T 616516 IC APA2176AQBITRL TQFN3X3-16

Q104 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q105 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q108 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q404 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q407 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q408 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q602 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q603 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q711 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q710 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q709 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q708 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q707 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q604 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q605 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q705 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q704 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q403 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q402 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q107 057G 417 6 PMBS3906/PHILIPS-SMT(06)

62

Q702 057G 763 5 FET AO3407 -4.1A/-30V SOT-23

Q406 057G 763 79 FET AO4449 -7A/-30V SOIC-8

Q706 057G 763 79 FET AO4449 -7A/-30V SOIC-8

RP601 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W

RP602 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W

RP603 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W

RP604 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W

R301 061G0402000 RST CHIP MAX 0R05 1/16W

R238 061G0402000 RST CHIP MAX 0R05 1/16W

R237 061G0402000 RST CHIP MAX 0R05 1/16W

R642 061G0402000 RST CHIP MAX 0R05 1/16W

R602 061G0402000 RST CHIP MAX 0R05 1/16W

R430 061G0402000 RST CHIP MAX 0R05 1/16W

R429 061G0402000 RST CHIP MAX 0R05 1/16W

R415 061G0402000 RST CHIP MAX 0R05 1/16W

R414 061G0402000 RST CHIP MAX 0R05 1/16W

R413 061G0402000 RST CHIP MAX 0R05 1/16W

R412 061G0402000 RST CHIP MAX 0R05 1/16W

R401 061G0402000 RST CHIP MAX 0R05 1/16W

R319 061G0402000 RST CHIP MAX 0R05 1/16W

R315 061G0402000 RST CHIP MAX 0R05 1/16W

R734 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R731 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R729 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R727 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R720 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R713 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R712 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R710 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R726 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R567 061G0402124 RST CHIP 120K 1/16W 5%

R207 061G0402180 RST CHIP 18R 1/16W 5%

R187 061G0402180 RST CHIP 18R 1/16W 5%

R183 061G0402180 RST CHIP 18R 1/16W 5%

R174 061G0402180 RST CHIP 18R 1/16W 5%

R139 061G0402180 RST CHIP 18R 1/16W 5%

R704 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W

R716 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W

R165 061G0402273 RST CHIP 27K 1/16W 5%

R162 061G0402273 RST CHIP 27K 1/16W 5%

R143 061G0402273 RST CHIP 27K 1/16W 5%

R141 061G0402273 RST CHIP 27K 1/16W 5%

R172 061G0402471 RST CHIPR 470 OHM +-5% 1/16W

R178 061G0402471 RST CHIPR 470 OHM +-5% 1/16W

R402 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R403 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R565 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

63

R566 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R568 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R569 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R621 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R631 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R630 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R623 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R622 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R158 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R152 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R210 061G0402560 RST CHIP 56R 1/16W 5%

R189 061G0402560 RST CHIP 56R 1/16W 5%

R185 061G0402560 RST CHIP 56R 1/16W 5%

R179 061G0402560 RST CHIP 56R 1/16W 5%

R142 061G0402560 RST CHIP 56R 1/16W 5%

R117 061G0402683 JF RST CHIPR 68KOHM 55 1/16W FENGHUA

R118 061G0402683 JF RST CHIPR 68KOHM 55 1/16W FENGHUA

R177 061G0402750 RST CHIPR 75 OHM +-5% 1/16W

R702 061G0603000 RST CHIP MAX 0R05 1/10W

R608 061G0603000 RST CHIP MAX 0R05 1/10W

R606 061G0603000 RST CHIP MAX 0R05 1/10W

R204 061G0603000 RST CHIP MAX 0R05 1/10W

R135 061G0603000 RST CHIP MAX 0R05 1/10W

R132 061G0603000 RST CHIP MAX 0R05 1/10W

R128 061G0603000 RST CHIP MAX 0R05 1/10W

FB605 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

FB604 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R176 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R140 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R616 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R615 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R428 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R427 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R208 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R188 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R184 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R136 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R133 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R131 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R129 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R407 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R405 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R436 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R522 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R519 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R518 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R510 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

64

R454 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R426 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R425 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R422 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R421 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R420 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R419 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R418 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R417 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R416 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R406 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R404 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R181 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R159 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R153 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R523 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R733 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R728 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R725 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R719 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R717 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R709 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R633 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R632 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R625 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R624 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R603 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R526 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R627 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W

R441 061G0603105 RST CHIPR 1M OHM +-5% 1/10W

R489 061G0603133 RST CHIPR 13 KOHM +-5% 1/10W

R314 061G0603162 1F RST CHIPR 1.62 KOHM +-1% 1/10W

R173 061G0603183 RST CHIPR 18 KOHM +-5% 1/10W

R195 061G0603203 RST CHIPR 20 KOHM +-5% 1/10W

R196 061G0603203 RST CHIPR 20 KOHM +-5% 1/10W

R180 061G0603221 RST CHIPR 220 OHM +-5% 1/10W

R106 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W

R112 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W

R103 061G0603330 RST CHIPR 33 OHM +-5% 1/10W

R111 061G0603330 RST CHIPR 33 OHM +-5% 1/10W

R318 061G0603391 RST CHIPR 390 OHM +-5% 1/10W

R102 061G0603391 RST CHIPR 390 OHM +-5% 1/10W

R105 061G0603391 RST CHIPR 390 OHM +-5% 1/10W

R109 061G0603391 RST CHIPR 390 OHM +-5% 1/10W

R113 061G0603391 RST CHIPR 390 OHM +-5% 1/10W

R424 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R423 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

65

R456 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W

R634 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W

R107 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R110 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R114 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R628 061G0603753 RST CHIPR 75 KOHM +-5% 1/10W

R629 061G0603753 RST CHIPR 75 KOHM +-5% 1/10W

R408 061T0603102 2F RST CHIPR 10.2 KOHM +-1% 1/10W

R409 061T0603102 2F RST CHIPR 10.2 KOHM +-1% 1/10W

C102 065G0402101 32 100PF +-10% 50V X7R

C330 065G0402101 32 100PF +-10% 50V X7R

C404 065G0402101 32 100PF +-10% 50V X7R

C405 065G0402101 32 100PF +-10% 50V X7R

C406 065G0402101 32 100PF +-10% 50V X7R

C407 065G0402101 32 100PF +-10% 50V X7R

C408 065G0402101 32 100PF +-10% 50V X7R

C409 065G0402101 32 100PF +-10% 50V X7R

C420 065G0402101 32 100PF +-10% 50V X7R

C646 065G0402102 32 1000PF +-10% 50V X7R

C601 065G0402102 32 1000PF +-10% 50V X7R

C123 065G0402102 32 1000PF +-10% 50V X7R

C301 065G0402103 22 CHIP 0.01UF 25V X7R

C311 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C315 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C320 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C639 065G0402104 27 CAP CHIP 0402 100NF Z 25V Y5V

C161 065G0402221 32 MLCC 0402 CAP 220PF J 50V X7R

C207 065G0402221 32 MLCC 0402 CAP 220PF J 50V X7R

C208 065G0402221 32 MLCC 0402 CAP 220PF J 50V X7R

C421 065G0402330 31 CHIP CAP 0402 33PF J 50V NPO

C422 065G0402330 31 CHIP CAP 0402 33PF J 50V NPO

C651 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C652 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C653 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C654 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C162 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C323 065G0603104 32 CHIP 0.1UF 50V X7R

C321 065G0603104 32 CHIP 0.1UF 50V X7R

C466 065G0603104 32 CHIP 0.1UF 50V X7R

C467 065G0603104 32 CHIP 0.1UF 50V X7R

C469 065G0603104 32 CHIP 0.1UF 50V X7R

C470 065G0603104 32 CHIP 0.1UF 50V X7R

C478 065G0603104 32 CHIP 0.1UF 50V X7R

C602 065G0603104 32 CHIP 0.1UF 50V X7R

C603 065G0603104 32 CHIP 0.1UF 50V X7R

C605 065G0603104 32 CHIP 0.1UF 50V X7R

C606 065G0603104 32 CHIP 0.1UF 50V X7R

66

C611 065G0603104 32 CHIP 0.1UF 50V X7R

C433 065G0603104 32 CHIP 0.1UF 50V X7R

C454 065G0603104 32 CHIP 0.1UF 50V X7R

C455 065G0603104 32 CHIP 0.1UF 50V X7R

C456 065G0603104 32 CHIP 0.1UF 50V X7R

C458 065G0603104 32 CHIP 0.1UF 50V X7R

C462 065G0603104 32 CHIP 0.1UF 50V X7R

C464 065G0603104 32 CHIP 0.1UF 50V X7R

C419 065G0603104 32 CHIP 0.1UF 50V X7R

C329 065G0603104 32 CHIP 0.1UF 50V X7R

C328 065G0603104 32 CHIP 0.1UF 50V X7R

C327 065G0603104 32 CHIP 0.1UF 50V X7R

C326 065G0603104 32 CHIP 0.1UF 50V X7R

C661 065G0603104 32 CHIP 0.1UF 50V X7R

C663 065G0603104 32 CHIP 0.1UF 50V X7R

C707 065G0603104 32 CHIP 0.1UF 50V X7R

C714 065G0603104 32 CHIP 0.1UF 50V X7R

C717 065G0603104 32 CHIP 0.1UF 50V X7R

C719 065G0603104 32 CHIP 0.1UF 50V X7R

C720 065G0603104 32 CHIP 0.1UF 50V X7R

C721 065G0603104 32 CHIP 0.1UF 50V X7R

C724 065G0603104 32 CHIP 0.1UF 50V X7R

C726 065G0603104 32 CHIP 0.1UF 50V X7R

C728 065G0603104 32 CHIP 0.1UF 50V X7R

C730 065G0603104 32 CHIP 0.1UF 50V X7R

C738 065G0603104 32 CHIP 0.1UF 50V X7R

C739 065G0603104 32 CHIP 0.1UF 50V X7R

C743 065G0603104 32 CHIP 0.1UF 50V X7R

C659 065G0603104 32 CHIP 0.1UF 50V X7R

C613 065G0603104 32 CHIP 0.1UF 50V X7R

C617 065G0603104 32 CHIP 0.1UF 50V X7R

C620 065G0603104 32 CHIP 0.1UF 50V X7R

C621 065G0603104 32 CHIP 0.1UF 50V X7R

C623 065G0603104 32 CHIP 0.1UF 50V X7R

C625 065G0603104 32 CHIP 0.1UF 50V X7R

C627 065G0603104 32 CHIP 0.1UF 50V X7R

C629 065G0603104 32 CHIP 0.1UF 50V X7R

C631 065G0603104 32 CHIP 0.1UF 50V X7R

C634 065G0603104 32 CHIP 0.1UF 50V X7R

C638 065G0603104 32 CHIP 0.1UF 50V X7R

C641 065G0603104 32 CHIP 0.1UF 50V X7R

C648 065G0603104 32 CHIP 0.1UF 50V X7R

C656 065G0603104 32 CHIP 0.1UF 50V X7R

C658 065G0603104 32 CHIP 0.1UF 50V X7R

C318 065G0603104 32 CHIP 0.1UF 50V X7R

C132 065G0603104 32 CHIP 0.1UF 50V X7R

C156 065G0603104 32 CHIP 0.1UF 50V X7R

67

C158 065G0603104 32 CHIP 0.1UF 50V X7R

C163 065G0603104 32 CHIP 0.1UF 50V X7R

C166 065G0603104 32 CHIP 0.1UF 50V X7R

C202 065G0603104 32 CHIP 0.1UF 50V X7R

C205 065G0603104 32 CHIP 0.1UF 50V X7R

C317 065G0603104 32 CHIP 0.1UF 50V X7R

C314 065G0603104 32 CHIP 0.1UF 50V X7R

C313 065G0603104 32 CHIP 0.1UF 50V X7R

C312 065G0603104 32 CHIP 0.1UF 50V X7R

C307 065G0603104 32 CHIP 0.1UF 50V X7R

C306 065G0603104 32 CHIP 0.1UF 50V X7R

C206 065G0603104 32 CHIP 0.1UF 50V X7R

C459 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C457 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C453 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C452 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C657 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C655 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C650 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C647 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C645 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C644 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C643 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C642 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C402 065G0603224 32 CHIP 0.22UF 50V X7R

C403 065G0603224 32 CHIP 0.22UF 50V X7R

C120 065G0603473 32 CHIP 0.047UF 50V X7R

C126 065G0603473 32 CHIP 0.047UF 50V X7R

C129 065G0603473 32 CHIP 0.047UF 50V X7R

C110 065G0603473 32 CHIP 0.047UF 50V X7R

C106 065G0603473 32 CHIP 0.047UF 50V X7R

C101 065G0603473 32 CHIP 0.047UF 50V X7R

C468 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R

C465 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R

C463 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R

C461 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R

C649 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C637 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C622 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C604 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C477 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C460 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C451 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C424 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C418 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C325 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C324 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

68

C322 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C316 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C305 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C157 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C116 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C115 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C725 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C713 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C636 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C635 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C151 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C149 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C145 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C140 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C136 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C133 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C125 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C124 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C616 065T0402152 22 MLCC 0402 CAP 1500PF K 25V X7R

C615 065T0402152 22 MLCC 0402 CAP 1500PF K 25V X7R

C609 065T0603334 32 CHIP 0.33UF 50V X7R

FB402 071G 56G151 B BEAD 0805 150 OHM

FB403 071G 56G151 B BEAD 0805 150 OHM

FB405 071G 56G151 B BEAD 0805 150 OHM

FB406 071G 56G151 B BEAD 0805 150 OHM

FB407 071G 56G151 B BEAD 0805 150 OHM

FB408 071G 56G151 B BEAD 0805 150 OHM

FB606 071G 56G301 EA BEAD 300

FB602 071G 56G301 EA BEAD 300

FB601 071G 56G301 EA BEAD 300

FB421 071G 56G301 EA BEAD 300

FB419 071G 56G301 EA BEAD 300

FB417 071G 56G301 EA BEAD 300

FB416 071G 56G301 EA BEAD 300

FB415 071G 56G301 EA BEAD 300

FB307 071G 56G301 EA BEAD 300

FB306 071G 56G301 EA BEAD 300

FB303 071G 56G301 EA BEAD 300

FB302 071G 56G301 EA BEAD 300

FB301 071G 56G301 EA BEAD 300

FB104 071G 56G301 EA BEAD 300

FB202 071G 56G301 EA BEAD 300

FB706 071G 57G301 EA CHIP BEAD

R101 071G 59C600 CHIP BEAD

R104 071G 59C600 CHIP BEAD

R108 071G 59C600 CHIP BEAD

69

FB101 071G 59C800 1HIP BEAD

FB102 071G 59C800 1HIP BEAD

R138 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

R175 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

R182 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

R186 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

R206 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

ZD601 093G 39S106 T DIODE RLZ6.8C TE-11 500MW/6.8V LL-34

715G3365M01000004K TV MAIN-PCB FR-4 225X193X1.6MM DS

FB305 071G 56G301 EA BEAD 300

R512 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R509 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

FB709 071G 57G301 EA CHIP BEAD

C415 065G0402101 32 100PF +-10% 50V X7R

C425 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

D401 093G 39S 24 T RLZ 5.6B LLDS

D402 093G 39S 24 T RLZ 5.6B LLDS

D403 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D404 093G 39S 24 T RLZ 5.6B LLDS

Q410 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q411 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q412 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q413 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q414 057G 417 6 PMBS3906/PHILIPS-SMT(06)

R411 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R437 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R438 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R460 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R465 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R466 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R635 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R636 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R637 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R638 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R639 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R410 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

C331 065G0603104 32 CHIP 0.1UF 50V X7R

C332 065G0603104 32 CHIP 0.1UF 50V X7R

R609 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R610 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R611 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R612 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R613 061G0603000 RST CHIP MAX 0R05 1/10W

R614 061G0603000 RST CHIP MAX 0R05 1/10W

R273 061G0603000 RST CHIP MAX 0R05 1/10W

R274 061G0603000 RST CHIP MAX 0R05 1/10W

R276 061G0603000 RST CHIP MAX 0R05 1/10W

70

C705 065G0603104 12 CER2 0603 X7R 16V 100N P

Q703 057G 417 4 PMBS3904/PHILIPS-SMT(04)

R643 061G0402000 RST CHIP MAX 0R05 1/16W

R701 061G0603331 RST CHIP 330R 1/10W 5%

ZD701 093G 39S 9 T ZENER DIODE RLZ9.1B ROHM

C135 065G0603221 32 CHIP 220PF 50V X7R

C160 065G0603221 32 CHIP 220PF 50V X7R

C165 065G0603221 32 CHIP 220PF 50V X7R

C168 065G0603221 32 CHIP 220PF 50V X7R

R432 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

C423 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C748 065G0603102 31 CHIP 1000PF 50V NPO

C749 065G0603102 31 CHIP 1000PF 50V NPO

D101 093G 60230 BAT54C(L43)

R119 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R120 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R125 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R127 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

C117 065G0603224 32 CHIP 0.22UF 50V X7R

R121 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

FB701 071G 57G301 EA CHIP BEAD

C319 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C333 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C334 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

D102 093G 39S 24 T RLZ 5.6B LLDS

D105 093G 39S 24 T RLZ 5.6B LLDS

C121 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

C127 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

C130 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

C122 065G0603101 32 100PF +-10% 50V X7R

C609 065G060333412K A CAP CHIP 0603 0.33UF K 16V X7R

C609 065G060333412K F CAP CHIP 0603 0.33UF K 16V X7R

C410 067G 305470 3T 47UF +-20% 16V

C610 067G 305101 3T 100UF 16V 105C

C703 067G 305101 3T 100UF 16V 105C

PWTV8C41MYD1 POWER BOARD G3465-2-X-X-1-090710
040G 45762412B CBPC LABEL

GND 009G6005 1 GROUND TERMINAL

CN801 033G8021 2E U INVERT CONNECTOR

CN802 033G8021 2E U INVERT CONNECTOR

CN803 033G8021 2E U INVERT CONNECTOR

CN804 033G8021 2E U INVERT CONNECTOR

CN801 033G8021 2E XY CONNECTOR

CN802 033G8021 2E XY CONNECTOR

CN803 033G8021 2E XY CONNECTOR

CN804 033G8021 2E XY CONNECTOR

051G 6 4503 GLUE_RTV

71

IC903 056G 139 3A IC PC123Y22FZ0F

NR901 061G 5810T RST NTCR 8 OHM +-20% 4A 13MM THINKING

C903 063G107K474 6S CAP X2 0.47UF K 275VAC

C822 065G 3J5606ET CAP CER 56PF J 3KV

C821 065G 3J5606ET CAP CER 56PF J 3KV

C820 065G 3J5606ET CAP CER 56PF J 3KV

C819 065G 3J5606ET CAP CER 56PF J 3KV

C824 065G 6J2706ET CAP CER27PF 5% SL 6KV TDK

C816 065G 6J2706ET CAP CER27PF 5% SL 6KV TDK

C931 065G306M1022BM Y1.CAP.001UF 250VAC MURATA

C902 065G306M1022BP 1000PF Y1.CAP

C901 065G306M1022BP 1000PF Y1.CAP

C905 067G 40Z12115A CAP 105C 120UF M 450V

C905 067G 40Z12115L EC 120UF 450V M 20*40MM

C812 067G215C4714HV EC 470UF 25V 10*13

C922 067G215D4714LV LOW ESR EC 470UF 25V M 10*16MM
C914 067G215P1023AV CAP 105 1000UF M 16V℃
C930 067G215P1023AV CAP 105 1000UF M 16V℃
C918 067G215P1024AV CAP 105 1000UF M 25V℃
C917 067G215P1024AV CAP 105 1000UF M 25V℃
C915 067G215P4713AV CAP 105 470UF M 16V℃
C922 067G215P4714AV CAP 105 470UF M 25V℃

C930 067G215S1023LV LOW ESR EC 1000UF 16V M 10*20MM

C914 067G215S1023LV LOW ESR EC 1000UF 16V M 10*20MM

C917 067G215S1024LV LOW ESR EC 1000UF 25V M 12.5*20MM

C918 067G215S1024LV LOW ESR EC 1000UF 25V M 12.5*20MM

C915 067G215S4713LV LOW ESR EC 470UF 16V M 10*12.5MM

FB905 071G 55 21 FERRITE BEAD

FB902 071G 55 21 FERRITE BEAD

FB901 071G 55 21 FERRITE BEAD

L801 073G 174 35 HA IND FILTER 200MH+-25% DADON

L802 073G 174 35 HA IND FILTER 200MH+-25% DADON

L902 073G 174 65 S2 LINE FILTER 30MH MIN

L903 073G 253 91 H CHOKE COIL

L904 073G 253 91 H CHOKE COIL

T901 080GL19T 33 S1 X'FMR 530UH

PT802 080TL22T 4 H X'FMR INVERTER 775MH

PT802 080TL22T 4 DN X'FMR 775MH TK.2001Y.101

CN901 087G 501 47 S AC SOCKET 2PIN + 2 SCREW HOLE

CN901 087G 501 47 DL AC SOCKET 2PIN + 3 SCREW HOLE

BD901 093G 5046016A DIODE BRIDGE T4KB80 ZHONGHUAN

BD901 093G 50460900 BRIDGE 4A/800V GBU408 LITEON

CN902 095G 82011W513 HARNESS 11P(SAN)-12P(PLUG) 200MM

CN902 095G 82011X513 HARNESS 11P(SAN)-12P(PLUG) 200MM

0Q1G 340 8106 CR3 SCREW
705TQ757019 Q901 ASS'Y
051T 200 1 OIL FOR DISAPPEAR

72

Q901 057G 667 21 STP10NK70ZFP

0M1G1730 8120 SCREW

HS1 Q90T6064 5 GP HEATSINK

705TQ793050 D904 ASS'Y
051T 200 1 OIL FOR DISAPPEAR

HS2 090T6064 1 GP HEAT SINK

D904 093G 60218 SB10100FCT

0M1G1730 8120 SCREW
705TQ951005 OIL FOR DISAPPEAR
705TQ993018 D906 ASS'Y
051T 200 1 OIL FOR DISAPPEAR

D906 093G 60522 DIODE MBR10150FCT PANJIT

0M1G1730 8120 SCREW

HS3 Q90T0179 1 HEAT SINK

709T3465 QM001 CONSUMPTIVE ASS'Y
055G 2 ALCOHOL
Q55G 23525 WELDING FLUX WITHOUT PB
Q55G 100625 TIN STICK_LOW ARGENTUM
PW8C41MYD1SMT POWER BOARD FOR SMT

IC901 056G 379128 IC LD7576 GS SOP-8

IC801 056G 608900 IC OZ9938GN-B1 SOIC-16

Q803 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM

Q802 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM

Q806 057T 600517 AO4616 SOIC-8

Q805 057T 600517 AO4616 SOIC-8

R816 061G06031002FF RST CHIPR 10KOHM +-1% 1/10W FENGHUA

R808 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO

R807 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO

R806 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO

R805 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO

R842 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R843 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R844 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R845 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R819 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN

R817 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN

R826 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN

R838 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN

R839 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN

R840 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN

R841 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN

C808 061G0603184 JY RST CHIPR 180KOHM 1/10W YAGEO

R823 061G06033900FF RST CHIPR 390 OHM +-1% 1/10W FENGHUA

R825 061G0603511 JY RST CHIPR 510OHM +-5% 1/10W YAGEO

R803 061G0603512 JT RST CHIPR 5.1KOHM +-5% 1/10W TZAI YUAN

R804 061G0603512 JT RST CHIPR 5.1KOHM +-5% 1/10W TZAI YUAN

R824 061G06036201FF RST CHIPR 6.2KOHM +-1% 1/10W FENGHUA

73

R818 061G0603753 JY RST CHIPR 75KOHM +-5% 1/10W YAGEO

R928 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

RJ802 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

RJ803 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

R907 061G0805100 JY RST CHIPR 10OHM +- 5% 1/8W YEGAO

R924 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN

R820 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN

R938 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN

R821 061G0805105 JT RST CHIP 1M 1/8W 5% TZAI YUAN

R925 061G0805151 JF RST CHIPR 150 OHM +-5% 1/8W FENGHUA

R834 061G0805153 JT RST CHIP 15K 1/8W 5% TZAI YUAN

R822 061G08052002FT RST CHIP 20K 1/8W 1%

R827 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN

R832 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN

R833 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN

R835 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN

R802 061G0805220 JF RST CHIPR 22 OHM +-5% 1/8W FENGHUA

R912 061G0805220 JF RST CHIPR 22 OHM +-5% 1/8W FENGHUA

R831 061G0805243 JW RST CHIPR 24K +-5% 1/8W WALSIN

R930 061G08052431FY RST CHIPR 2.43KOHM +-1% 1/8W YAGEO

R929 061G08053302FF RST CHIPR 33KOHM +-1% 1/8W FENGHUA

R927 061G08053601FT RST CHIP 3K6 1/8W 1%

R943 061G0805471 JY RST CHIPR 470OHM +-5% 1/8W YAGEO

R813 061G0805474 JY RST CHIPR 470K +-5% 1/8W YAGEO

RJ801 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

RJ901 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

RJ902 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R903 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R918 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R919 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R920 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R934 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R935 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R936 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN

R922 061G1206201 JW RST CHIPR 200 OHM +-5% 1/4W WALSIN

R909 061G1206339 JT RST CHIPR 3.3 OHM +-5% 1/4W TZAI YUAN

R900 061G1206684 JT RST CHIPR 680 KOHM 1/4W TZAI YUAN

R901 061G1206684 JT RST CHIPR 680 KOHM 1/4W TZAI YUAN

R902 061G1206684 JT RST CHIPR 680 KOHM 1/4W TZAI YUAN

R905 061G1206822 JF RST CHIPR 8.2KOHM +-5% 1/4W FENGHUA

R904 061G1206822 JF RST CHIPR 8.2KOHM +-5% 1/4W FENGHUA

C807 065G0603103 12 CHIP 0.01UF 16V X7R

C805 065G0603103 12 CHIP 0.01UF 16V X7R

C806 065G060310512K T CAP CHIP 0603 1UF K 16V X7R

C813 065G0603333 32 CHIP 0.033UF 50V X7R 0603

C815 065G0603473 32 CHIP 0.047UF 50V X7R

C810 065G0603473 32 CHIP 0.047UF 50V X7R

74

C932 065G0805102 31 CAP CHIP 0805 1000PF J 50V NPO

C825 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%

C823 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10%

C925 065G0805104 22 0.1UF +-10% 25V X7R 080

C927 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C920 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C919 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C916 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C811 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C804 065G080510512K T CAP CHIP 0805 1UF K 16V X7R

C924 065G0805221 31 CAP CHIP 0805 220PF J 50V NPO

C912 065G0805223 22 CHIP 0.022UF 25V X7R 080

C814 065G0805391 31 CHIP 390PF 50V

C923 065G0805471 21 CAP CHIP 0805 470PF J 25V NPO

C801 065G0805473 32 CHIP 0.047UF 50V X7R

C802 065G0805473 32 CHIP 0.047UF 50V X7R

C809 065G080556131G MLCC 0805 560PF G 50V NPO

C921 065G1206102 72 CAP CHIP 1206 1000PF K 500V X7R

C929 065G1206102 72 CAP CHIP 1206 1000PF K 500V X7R

D809 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D808 093G 64 42 P BAV70 SOT23 BY PAN JIT

D807 093G 64 42 P BAV70 SOT23 BY PAN JIT

D806 093G 64 42 P BAV70 SOT23 BY PAN JIT

D801 093G 6432P LL4148

D804 093G 6432P LL4148

D805 093G 6432P LL4148

D909 093G 6432P LL4148

D803 093G 6432P LL4148

D802 093G 6432P LL4148

ZD802 093G 39S 24 T RLZ 5.6B LLDS

ZD803 093G 39S 24 T RLZ 5.6B LLDS

ZD920 093G 39S 40 T RLZ 13B LLDS

CN901 006G 31500 EYELET

IC902 056G 158 12 KIA431A-AT/P TO-92

R908 061G152M10452T RST MOFR 100KOHM +-5% 2WS

R940 061G152M15152T RST MOFR 150 OHM +-5% 2WS

R914 061G152M39852T RST MOFR 0.39 OHM +-5% 2WS

C906 065G 2K222 2T6921 CAP CER 2200PF K 2KV Y5P
C908 067G215Y2207KT CAP 105 22UF M 50V KINGNICHI℃

F901 084G 56 4 B FUSE 4A 250V

D901 093G 6026T52T RECTIFIER DIODE FR107

D902 093G 6038T52T FR103

F903 095G 90 23 JUMPER WIRE

J801 095G 90 23 JUMPER WIRE

J802 095G 90 23 JUMPER WIRE

J803 095G 90 23 JUMPER WIRE

J804 095G 90 23 JUMPER WIRE

75

J805 095G 90 23 JUMPER WIRE

J806 095G 90 23 JUMPER WIRE

J908 095G 90 23 JUMPER WIRE

J906 095G 90 23 JUMPER WIRE

J905 095G 90 23 JUMPER WIRE

J904 095G 90 23 JUMPER WIRE

J903 095G 90 23 JUMPER WIRE

J902 095G 90 23 JUMPER WIRE

J812 095G 90 23 JUMPER WIRE

J811 095G 90 23 JUMPER WIRE

J810 095G 90 23 JUMPER WIRE

J809 095G 90 23 JUMPER WIRE

J808 095G 90 23 JUMPER WIRE

J807 095G 90 23 JUMPER WIRE

E715 715G3465P020HV001S TVPOWER FR-1 S/S 1.6X125X200MM LE99I

FB904 071G 55 9 T FERRITE BEAD

FB903 071G 55 9 T FERRITE BEAD

Q903 057G 761 16 TRA KTD1028 KEC

F901 084G 56 4W FUSE 4.0A 250V

D901 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41

D902 093G 6038P52T PS102R

IC902 056G 158 10 T IC AS431AZTR-E1 TO-92

FB906 071T 55 26 H FERRITE BEAD 3.5*6.0*0.8

FB907 071T 55 26 H FERRITE BEAD 3.5*6.0*0.8

FB906 071G 55 26 S FERRITE CORE

FB907 071G 55 26 S FERRITE CORE

709T3465 QA001 CONSUMPTIVE ASS'Y

E715 715G3465P020HV001M TVPOWER FR-1 S/S 1.6X125X200MM LE99I

J909 095G 90 23 JUMPER WIRE

J910 095G 90 23 JUMPER WIRE

RJ903 061G1206000 RST CHIP MAX 0R05 1/4W

ZD802 093G 39GA01 T RLZ5.6B

ZD803 093G 39GA01 T RLZ5.6B

D801 093G 64S522SEM LL4148

D802 093G 64S522SEM LL4148

D803 093G 64S522SEM LL4148

D804 093G 64S522SEM LL4148

D805 093G 64S522SEM LL4148

D909 093G 64S522SEM LL4148

D809 093G 6433S DIODE BAV99 SEMTECH

D806 093G 64 42 PP BAV70 SOT-23

D807 093G 64 42 PP BAV70 SOT-23

D808 093G 64 42 PP BAV70 SOT-23

Q802 057G 763 62 FET 2N7002K 300MA/60V SOT-23

Q803 057G 763 62 FET 2N7002K 300MA/60V SOT-23

709T3465 QS001 CONSUMPTIVE ASS'Y
052G 2191 A PAPER TAPE

76

C823 065G080510332K A CAP CHIP 0805 10NF K 50V X7R

C825 065G080510332K A CAP CHIP 0805 10NF K 50V X7R

T901 S80GL19T33V1 TRANSFORMER ASS'Y

Q11G5052 1 STRING
Q11G5057 1 PCB SUPPORT
Q36T 600 46 1 NONWOVEN FABRIC
Q40G 22061528A RATING LABEL
Q40G0003615 5A HDMI LABEL
Q41G783061516A WARRANTY CARD
Q44GC095101 EPS CUSHION
Q44GC095201 EPS CUSHION
Q44GC095615 2A 22 TV AOC CARTON
Q45G 99626 35 PE BAG
Q45G2007M0101A PE BAG
Q45T 99609100 EPE COVER
Q50G 4 10 TIE
Q52G 1185 98 MIDDLE CARTON TAPE FOR AOC
Q52G 1185 99 BIG CARTON TAPE FOR AOC
Q52T 1150522 TAPE_INSULATING
041T780062415A CERTIFICATE CARD
092TB1JX1A3WGC BATTERY LR03(EA)2S/G AAA
AM1G1740 12 47 CR3 SCREW
Q41G220261536B MANUAL
Q45G 76 28 V3 R PE BAG
Q45G 76 28NV2 R PE BAG FOR CLAMP
026G 800700 1A BARCODE LABEL
040G 58162435A P/N LABEL FOR MANUAL PE BAG
0Q1G 930 8 47 CR3 SCREW
P15T0432201 BRACKET_SIDE IO
Q40G000260025A SIDE LABEL
078G0060 1 Y SPEAKER 8 OHM 6W 128X30MM
095G8014 8XH19 HARNESS 8P(PLUG)-5P(260MM)+4P(400MM)
0Q1G1830 8120 SCREW(3X8) 42A9230001
705TQ949001 COMSUPTIVE ASS'Y-A4
A15T0516201 HINGE BKT

77

7.3 L26DH93 E2692AND4WA1NN

点位 组件 对象描述

040G 581689 4A BARCODE LABEL FOR 1
041G 68508 A CONTROL CARD
052G 1150 C INSULATING TAPE
052G 1186 SMALL TAPE
052G 2191 A PAPER TAPE
078G0060 2 Y SPK 8 OHM 6W 138X45 SUNLINK
089G214A18N YH POWER CORD
089T176W30N503 FFC CABLE
095G8021 3D 52 HARNESS 3P-3P 300MM
098GRABD1NCACR RC2444201/01
0D1G1730 8120 SCREW
0M1G 330 6 47 CR3 SCREW 42-D005390
0M1G 940 16 47 CR3 SCREW
0M1G1140 6120 SCREW
0Q1G 930 8 47 CR3 SCREW
0Q1G 940 12 47 CR3 SCREW
0Q1G 940 16 47 CR3 SCREW
0Q1G1840 8120 SCREW
705TQ934E28 STAND ASS'Y
0Q1G 130 8120 SCREW 42A9930011
P15T0439301 BRACKET-BASE-PLATE
P34E0305ADT 1L0133 BASE
P37T0087011 HINGE
Q12G6300 25 3 RUBBER
705TQ934E38 BEZEL ASS`Y
0Q1G1030 8120 SCREW
IRPF9QAA IR BOARD G3304-A-1-X-1-090302

CN001 033G3802 5H WAFER 5P RIGHT ANELE PITCH

U001 056T 627 33 1 IR 37.9KHZ KSM-603TM2E

R001 061G0603153 RST CHIPR 15KOHM +-5% 1/10W

C001 065G0603104 32 CHIP 0.1UF 50V X7R

LED001 081G 14 24 EL CHIP LED BLUE/DARK RED

715G3304R01001004M TV IR-PCB 33X28X1.6MM FR4 1OZ DS
KEPF9QAB KEY BOARD

CN01 033G3802 4H WAFER 4P RIGHT ANGLE

R08 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W

R07 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W

R05 061G0603180 1F RST CHIPR 1.8 KOHM +-1% 1/10W

R01 061G0603200 2F RST CHIPR 20 KOHM +-1% 1/10W

R03 061G0603432 1F RST CHIP 4.32K 1/10W 1%

R02 061G0603820 1F RST CHIPR 8.2 KOHM +-1% 1/10W

JR01 061G0805000 RST CHIP MAX 0R05 1/8W

JR02 061G1206000 RST CHIP MAX 0R05 1/4W

R04 061T0603274 1F RST CHIPR 2.74 KOHM +-1% 1/10W

SW06 077G 603 AI HJ TACT SWITCH 2PIN

78

SW07 077G 603 AI HJ TACT SWITCH 2PIN

SW01 077G 603 AI HJ TACT SWITCH 2PIN

SW02 077G 603 AI HJ TACT SWITCH 2PIN

SW03 077G 603 AI HJ TACT SWITCH 2PIN

SW04 077G 603 AI HJ TACT SWITCH 2PIN

SW05 077G 603 AI HJ TACT SWITCH 2PIN

715G3400 1 TV KEY-PCB,FR-1,162*13.5MM,T1.6MM,SS
P33E0131AFT 1C0100 IR-LENS
P33E0132ADT 1L0100 KEY_FUNCTION
P34E0289ADT 1L0130 BEZEL TV26W-9C1-9C1
P34E0290ADTA1L0100 DECO-26
Q52G 31 7 3M DOUBLE FABE TYPE
705TQ934E39 REAR COVER ASS'Y
P34E0291ADT 1A0130 REAR COVER TV26W-9C1-9C1
P34E0355ADT 1L0130 COVER-REAR-IO
Q15T0257101 BKT-VESA-BTM
750TVV260B1111N000 PANEL TPT260B1L11A01 FQ TPV
756TQ9CB AC003 MAIN BOARD-CBPFRA3DY5

U402 056G1133923 IC MX25L4005AM2C-12G SOP-8

SMTF-U402 100TAHVF001C61 MCU ASS'Y-056G1133923

040G 45762412B CBPC LABEL

CN603 033G3802 4B Y W WAFER

CN402 033G3802 8B Y W CONNECTOR

CN701 033G380212B Y WAFER

CN407 033G801930F CH JS CONNECTOR

R203 061G 208470 64 RST MOFR 47OHM +-5% 1W

R205 061G 208470 64 RST MOFR 47OHM +-5% 1W

R617 061G153M399 59 3.9 OHM+-5% 3W

R618 061G153M399 59 3.9 OHM+-5% 3W

R619 061G153M399 59 3.9 OHM+-5% 3W

R620 061G153M399 59 3.9 OHM+-5% 3W

C640 067G 305102 4 105C 1000UF +-20% 25V

CN104 088G 78 13942 C RCA JACK 1*5 G/B/R/W/R AV5-8.4-02-01

CN104 088G 78 13942 YG RCA JACK 1*5 G/B/R/W/R RCA-512DF

CN106 088G 7813A38C RCA JACK 1*3 Y/W/R V/A

CN101 088G 7813A38C RCA JACK 1*3 Y/W/R V/A

CN107 088G 7813A39C S JACK + RCA JACK 1*3 Y/W/R

CN601 088G 30211K PHONE JACK 5PIN

CN107 088T 78 13A39 YG S JACK + RCA JACK 1*3 Y/W/R RCA-333S-010

CN103 088T 30252C PHONE JACK 3.5MM 3P V/A GREEN

CN103 088T 302A17 YG PHONE JACK 3.5MM 3P V/T GREEN

CN102 088T 35315F VC D-SUB 15PIN VERTICAL CONNECTOR

090T 372 2 HEAT SINK

X401 093G 2270B H XAT024576FK1H-3OHX AT-49 24.576MHZ

TU201 094T PALALL 3L TCL TUNER M15WPP-2PN-E

705TQ956001 U603 ASS'Y

U603 056T 616511 ST IC TDA7297SA ST

79

0M1G1730 10120 SCREW 42A9930016
Q90T0155 1 HEAT SINK

C701 067G 305100 3T 10UF 16V

C702 067G 305100 3T 10UF 16V

C704 067G 305101 3T 100UF 16V 105C

C722 067G 305101 3T 100UF 16V 105C

C708 067G 305101 3T 100UF 16V 105C

C204 067G 305101 3T 100UF 16V 105C

C203 067G 305101 3T 100UF 16V 105C

C718 067G 305221 3T 220UF/16V

C716 067G 305221 3T 220UF/16V

C742 067G 305221 3T 220UF/16V

C740 067G 305221 3T 220UF/16V

C741 067G 305221 3T 220UF/16V
C715 067G 305471 3T 105 摄氏度 470UF +-20% 16V
C727 067G 305471 3T 105 摄氏度 470UF +-20% 16V

U701 056G 563 7 IC AIC1084-33PMTR-R AIC

U703 056G 563 31 IC AZ1117D-1.8-E1

U708 056G 563 34 IC AIC1084-18PMTR-R AIC

U707 056G 563 75 G1084-33T43UF TO-252

U202 056G 585 11 IC AZ1117D-5.0-E1 AAC

U601 056G 614 1 74HC4052D S016 PHLIPS

U404 056G113353A IC M24C32-WMN6T SO-8 ST

U402 056G1133923 IC MX25L4005AM2C-12G SOP-8

U405 056T 562581 IC HX6201-A06MLAG QFP-176

U604 056T 616516 IC APA2176AQBITRL TQFN3X3-16

Q104 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q105 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q108 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q302 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q303 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q404 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q407 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q408 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q602 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q603 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q711 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q710 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q709 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q708 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q707 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q604 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q605 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q705 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q704 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q403 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q402 057G 417 6 PMBS3906/PHILIPS-SMT(06)

80

Q107 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q702 057G 763 5 FET AO3407 -4.1A/-30V SOT-23

Q406 057G 763 79 FET AO4449 -7A/-30V SOIC-8

Q706 057G 763 79 FET AO4449 -7A/-30V SOIC-8

Q301 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS

RP601 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W

RP602 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W

RP603 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W

RP604 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W

R301 061G0402000 RST CHIP MAX 0R05 1/16W

R238 061G0402000 RST CHIP MAX 0R05 1/16W

R237 061G0402000 RST CHIP MAX 0R05 1/16W

R642 061G0402000 RST CHIP MAX 0R05 1/16W

R602 061G0402000 RST CHIP MAX 0R05 1/16W

R430 061G0402000 RST CHIP MAX 0R05 1/16W

R429 061G0402000 RST CHIP MAX 0R05 1/16W

R415 061G0402000 RST CHIP MAX 0R05 1/16W

R414 061G0402000 RST CHIP MAX 0R05 1/16W

R413 061G0402000 RST CHIP MAX 0R05 1/16W

R412 061G0402000 RST CHIP MAX 0R05 1/16W

R401 061G0402000 RST CHIP MAX 0R05 1/16W

R319 061G0402000 RST CHIP MAX 0R05 1/16W

R315 061G0402000 RST CHIP MAX 0R05 1/16W

R734 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R731 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R729 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R727 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R720 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R713 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R712 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R306 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R303 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R710 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R726 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R565 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W

R567 061G0402124 RST CHIP 120K 1/16W 5%

R207 061G0402180 RST CHIP 18R 1/16W 5%

R187 061G0402180 RST CHIP 18R 1/16W 5%

R183 061G0402180 RST CHIP 18R 1/16W 5%

R174 061G0402180 RST CHIP 18R 1/16W 5%

R139 061G0402180 RST CHIP 18R 1/16W 5%

R704 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W

R716 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W

R165 061G0402273 RST CHIP 27K 1/16W 5%

R162 061G0402273 RST CHIP 27K 1/16W 5%

R143 061G0402273 RST CHIP 27K 1/16W 5%

R141 061G0402273 RST CHIP 27K 1/16W 5%

81

R307 061G0402273 RST CHIP 27K 1/16W 5%

R172 061G0402471 RST CHIPR 470 OHM +-5% 1/16W

R178 061G0402471 RST CHIPR 470 OHM +-5% 1/16W

R402 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R403 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R566 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R568 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R569 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R621 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R631 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R630 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R623 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R622 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R158 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R152 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

R210 061G0402560 RST CHIP 56R 1/16W 5%

R189 061G0402560 RST CHIP 56R 1/16W 5%

R185 061G0402560 RST CHIP 56R 1/16W 5%

R179 061G0402560 RST CHIP 56R 1/16W 5%

R142 061G0402560 RST CHIP 56R 1/16W 5%

R117 061G0402683 JF RST CHIPR 68KOHM 55 1/16W FENGHUA

R118 061G0402683 JF RST CHIPR 68KOHM 55 1/16W FENGHUA

R177 061G0402750 RST CHIPR 75 OHM +-5% 1/16W

R135 061G0603000 RST CHIP MAX 0R05 1/10W

R132 061G0603000 RST CHIP MAX 0R05 1/10W

R128 061G0603000 RST CHIP MAX 0R05 1/10W

R702 061G0603000 RST CHIP MAX 0R05 1/10W

R608 061G0603000 RST CHIP MAX 0R05 1/10W

R606 061G0603000 RST CHIP MAX 0R05 1/10W

R204 061G0603000 RST CHIP MAX 0R05 1/10W

FB605 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

FB604 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R176 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R140 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R616 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R615 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R428 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R427 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R313 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R312 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R208 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R188 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R184 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R136 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R133 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R131 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R129 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

82

R407 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R405 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R436 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R404 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R305 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R304 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R302 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R181 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R159 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R153 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R633 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R632 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R625 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R728 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R733 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R603 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R624 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R526 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R523 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R522 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R519 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R518 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R510 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R454 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R426 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R425 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R422 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R421 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R420 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R419 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R418 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R417 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R416 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R406 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R709 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R717 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R719 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R725 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R627 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W

R441 061G0603105 RST CHIPR 1M OHM +-5% 1/10W

R308 061G0603105 RST CHIPR 1M OHM +-5% 1/10W

R489 061G0603133 RST CHIPR 13 KOHM +-5% 1/10W

R314 061G0603162 1F RST CHIPR 1.62 KOHM +-1% 1/10W

R173 061G0603183 RST CHIPR 18 KOHM +-5% 1/10W

R196 061G0603203 RST CHIPR 20 KOHM +-5% 1/10W

R195 061G0603203 RST CHIPR 20 KOHM +-5% 1/10W

R180 061G0603221 RST CHIPR 220 OHM +-5% 1/10W

83

R106 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W

R112 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W

R103 061G0603330 RST CHIPR 33 OHM +-5% 1/10W

R111 061G0603330 RST CHIPR 33 OHM +-5% 1/10W

R318 061G0603391 RST CHIPR 390 OHM +-5% 1/10W

R102 061G0603391 RST CHIPR 390 OHM +-5% 1/10W

R113 061G0603391 RST CHIPR 390 OHM +-5% 1/10W

R109 061G0603391 RST CHIPR 390 OHM +-5% 1/10W

R105 061G0603391 RST CHIPR 390 OHM +-5% 1/10W

R423 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R424 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R456 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W

R634 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W

C130 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

C127 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

C121 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R114 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R110 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R107 061G0603750 RST CHIPR 75 OHM +-5% 1/10W

R628 061G0603753 RST CHIPR 75 KOHM +-5% 1/10W

R629 061G0603753 RST CHIPR 75 KOHM +-5% 1/10W

R408 061T0603102 2F RST CHIPR 10.2 KOHM +-1% 1/10W

R409 061T0603102 2F RST CHIPR 10.2 KOHM +-1% 1/10W

C420 065G0402101 32 100PF +-10% 50V X7R

C409 065G0402101 32 100PF +-10% 50V X7R

C408 065G0402101 32 100PF +-10% 50V X7R

C407 065G0402101 32 100PF +-10% 50V X7R

C406 065G0402101 32 100PF +-10% 50V X7R

C405 065G0402101 32 100PF +-10% 50V X7R

C404 065G0402101 32 100PF +-10% 50V X7R

C330 065G0402101 32 100PF +-10% 50V X7R

C102 065G0402101 32 100PF +-10% 50V X7R

C646 065G0402102 32 1000PF +-10% 50V X7R

C601 065G0402102 32 1000PF +-10% 50V X7R

C123 065G0402102 32 1000PF +-10% 50V X7R

C301 065G0402103 22 CHIP 0.01UF 25V X7R

C311 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C315 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C320 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C639 065G0402104 27 CAP CHIP 0402 100NF Z 25V Y5V

C161 065G0402221 32 MLCC 0402 CAP 220PF J 50V X7R

C207 065G0402221 32 MLCC 0402 CAP 220PF J 50V X7R

C208 065G0402221 32 MLCC 0402 CAP 220PF J 50V X7R

C421 065G0402330 31 CHIP CAP 0402 33PF J 50V NPO

C422 065G0402330 31 CHIP CAP 0402 33PF J 50V NPO

C162 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C654 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

84

C653 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C652 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C651 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%

C318 065G0603104 32 CHIP 0.1UF 50V X7R

C317 065G0603104 32 CHIP 0.1UF 50V X7R

C456 065G0603104 32 CHIP 0.1UF 50V X7R

C458 065G0603104 32 CHIP 0.1UF 50V X7R

C462 065G0603104 32 CHIP 0.1UF 50V X7R

C464 065G0603104 32 CHIP 0.1UF 50V X7R

C466 065G0603104 32 CHIP 0.1UF 50V X7R

C467 065G0603104 32 CHIP 0.1UF 50V X7R

C469 065G0603104 32 CHIP 0.1UF 50V X7R

C470 065G0603104 32 CHIP 0.1UF 50V X7R

C321 065G0603104 32 CHIP 0.1UF 50V X7R

C323 065G0603104 32 CHIP 0.1UF 50V X7R

C326 065G0603104 32 CHIP 0.1UF 50V X7R

C327 065G0603104 32 CHIP 0.1UF 50V X7R

C328 065G0603104 32 CHIP 0.1UF 50V X7R

C329 065G0603104 32 CHIP 0.1UF 50V X7R

C419 065G0603104 32 CHIP 0.1UF 50V X7R

C433 065G0603104 32 CHIP 0.1UF 50V X7R

C455 065G0603104 32 CHIP 0.1UF 50V X7R

C454 065G0603104 32 CHIP 0.1UF 50V X7R

C648 065G0603104 32 CHIP 0.1UF 50V X7R

C656 065G0603104 32 CHIP 0.1UF 50V X7R

C658 065G0603104 32 CHIP 0.1UF 50V X7R

C659 065G0603104 32 CHIP 0.1UF 50V X7R

C661 065G0603104 32 CHIP 0.1UF 50V X7R

C663 065G0603104 32 CHIP 0.1UF 50V X7R

C707 065G0603104 32 CHIP 0.1UF 50V X7R

C714 065G0603104 32 CHIP 0.1UF 50V X7R

C717 065G0603104 32 CHIP 0.1UF 50V X7R

C719 065G0603104 32 CHIP 0.1UF 50V X7R

C720 065G0603104 32 CHIP 0.1UF 50V X7R

C721 065G0603104 32 CHIP 0.1UF 50V X7R

C724 065G0603104 32 CHIP 0.1UF 50V X7R

C726 065G0603104 32 CHIP 0.1UF 50V X7R

C728 065G0603104 32 CHIP 0.1UF 50V X7R

C730 065G0603104 32 CHIP 0.1UF 50V X7R

C738 065G0603104 32 CHIP 0.1UF 50V X7R

C641 065G0603104 32 CHIP 0.1UF 50V X7R

C478 065G0603104 32 CHIP 0.1UF 50V X7R

C602 065G0603104 32 CHIP 0.1UF 50V X7R

C603 065G0603104 32 CHIP 0.1UF 50V X7R

C605 065G0603104 32 CHIP 0.1UF 50V X7R

C606 065G0603104 32 CHIP 0.1UF 50V X7R

C611 065G0603104 32 CHIP 0.1UF 50V X7R

85

C613 065G0603104 32 CHIP 0.1UF 50V X7R

C617 065G0603104 32 CHIP 0.1UF 50V X7R

C620 065G0603104 32 CHIP 0.1UF 50V X7R

C621 065G0603104 32 CHIP 0.1UF 50V X7R

C623 065G0603104 32 CHIP 0.1UF 50V X7R

C625 065G0603104 32 CHIP 0.1UF 50V X7R

C627 065G0603104 32 CHIP 0.1UF 50V X7R

C629 065G0603104 32 CHIP 0.1UF 50V X7R

C631 065G0603104 32 CHIP 0.1UF 50V X7R

C634 065G0603104 32 CHIP 0.1UF 50V X7R

C638 065G0603104 32 CHIP 0.1UF 50V X7R

C314 065G0603104 32 CHIP 0.1UF 50V X7R

C743 065G0603104 32 CHIP 0.1UF 50V X7R

C739 065G0603104 32 CHIP 0.1UF 50V X7R

C132 065G0603104 32 CHIP 0.1UF 50V X7R

C156 065G0603104 32 CHIP 0.1UF 50V X7R

C158 065G0603104 32 CHIP 0.1UF 50V X7R

C163 065G0603104 32 CHIP 0.1UF 50V X7R

C166 065G0603104 32 CHIP 0.1UF 50V X7R

C313 065G0603104 32 CHIP 0.1UF 50V X7R

C312 065G0603104 32 CHIP 0.1UF 50V X7R

C307 065G0603104 32 CHIP 0.1UF 50V X7R

C306 065G0603104 32 CHIP 0.1UF 50V X7R

C206 065G0603104 32 CHIP 0.1UF 50V X7R

C205 065G0603104 32 CHIP 0.1UF 50V X7R

C202 065G0603104 32 CHIP 0.1UF 50V X7R

C459 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C457 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C453 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C452 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C657 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C655 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C650 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C647 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C645 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C644 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C643 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C642 065G060310525K T CAP MLCC 0603 1UF K 25V X5R

C402 065G0603224 32 CHIP 0.22UF 50V X7R

C609 065G060333412K A CAP CHIP 0603 0.33UF K 16V X7R

C106 065G0603473 32 CHIP 0.047UF 50V X7R

C110 065G0603473 32 CHIP 0.047UF 50V X7R

C120 065G0603473 32 CHIP 0.047UF 50V X7R

C126 065G0603473 32 CHIP 0.047UF 50V X7R

C129 065G0603473 32 CHIP 0.047UF 50V X7R

C101 065G0603473 32 CHIP 0.047UF 50V X7R

C461 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R

86

C463 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R

C465 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R

C468 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R

C649 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C637 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C622 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C604 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C477 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C460 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C451 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C424 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C418 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C325 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C324 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C322 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C316 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C305 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C157 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C116 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C115 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C725 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C713 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C636 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C635 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C151 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C149 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C145 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C140 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C136 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C133 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C125 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C124 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R

C616 065T0402152 22 MLCC 0402 CAP 1500PF K 25V X7R

C615 065T0402152 22 MLCC 0402 CAP 1500PF K 25V X7R

FB402 071G 56G151 B BEAD 0805 150 OHM

FB403 071G 56G151 B BEAD 0805 150 OHM

FB405 071G 56G151 B BEAD 0805 150 OHM

FB406 071G 56G151 B BEAD 0805 150 OHM

FB407 071G 56G151 B BEAD 0805 150 OHM

FB408 071G 56G151 B BEAD 0805 150 OHM
FB307 071G 56G301 EA BEAD 300 欧
FB606 071G 56G301 EA BEAD 300 欧
FB602 071G 56G301 EA BEAD 300 欧
FB601 071G 56G301 EA BEAD 300 欧
FB420 071G 56G301 EA BEAD 300 欧
FB419 071G 56G301 EA BEAD 300 欧
FB417 071G 56G301 EA BEAD 300 欧

87

FB416 071G 56G301 EA BEAD 300 欧
FB415 071G 56G301 EA BEAD 300 欧
FB306 071G 56G301 EA BEAD 300 欧
FB303 071G 56G301 EA BEAD 300 欧
FB302 071G 56G301 EA BEAD 300 欧
FB301 071G 56G301 EA BEAD 300 欧
FB104 071G 56G301 EA BEAD 300 欧
FB202 071G 56G301 EA BEAD 300 欧

FB706 071G 57G301 EA CHIP BEAD

R101 071G 59C600 CHIP BEAD

R104 071G 59C600 CHIP BEAD

R108 071G 59C600 CHIP BEAD

FB101 071G 59C800 1HIP BEAD

FB102 071G 59C800 1HIP BEAD

R175 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

R182 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

R186 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

R206 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

CN301 088T 340 21 VA HDMI HEADER 21P V/T

ZD601 093G 39S106 T DIODE RLZ6.8C TE-11 500MW/6.8V LL-34

715G3365M01000004K TV MAIN-PCB FR-4 225X193X1.6MM DS

CN301 088G 340 21 VT HDMI HEADER 21P V/T
FB305 071G 56G301 EA BEAD 300 欧

R512 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R509 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

FB709 071G 57G301 EA CHIP BEAD

C415 065G0402101 32 100PF +-10% 50V X7R

C425 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

D401 093G 39S 24 T RLZ 5.6B LLDS

D402 093G 39S 24 T RLZ 5.6B LLDS

D403 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D404 093G 39S 24 T RLZ 5.6B LLDS

Q410 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q411 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q412 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q413 057G 417 6 PMBS3906/PHILIPS-SMT(06)

Q414 057G 417 6 PMBS3906/PHILIPS-SMT(06)

R411 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R437 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R438 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R460 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R465 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R466 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R635 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R636 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R637 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R638 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

88

R639 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

R410 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

C331 065G0603104 32 CHIP 0.1UF 50V X7R

C332 065G0603104 32 CHIP 0.1UF 50V X7R

R609 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R610 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

R611 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R612 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

R613 061G0603000 RST CHIP MAX 0R05 1/10W

R614 061G0603000 RST CHIP MAX 0R05 1/10W

R273 061G0603000 RST CHIP MAX 0R05 1/10W

R274 061G0603000 RST CHIP MAX 0R05 1/10W

R276 061G0603000 RST CHIP MAX 0R05 1/10W

C705 065G0603104 12 CER2 0603 X7R 16V 100N P

Q703 057G 417 4 PMBS3904/PHILIPS-SMT(04)

R643 061G0402000 RST CHIP MAX 0R05 1/16W

R701 061G0603331 RST CHIP 330R 1/10W 5%

ZD701 093G 39S 9 T ZENER DIODE RLZ9.1B ROHM

C135 065G0603221 32 CHIP 220PF 50V X7R

C160 065G0603221 32 CHIP 220PF 50V X7R

C165 065G0603221 32 CHIP 220PF 50V X7R

C168 065G0603221 32 CHIP 220PF 50V X7R

R138 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

R432 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

C423 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R

C748 065G0603102 31 CHIP 1000PF 50V NPO

C749 065G0603102 31 CHIP 1000PF 50V NPO

D101 093G 60230 BAT54C(L43)

D301 093G 60230 BAT54C(L43)

R309 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R310 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R119 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R120 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R125 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R127 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

R121 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

FB701 071G 57G301 EA CHIP BEAD

C403 065G0603224 32 CHIP 0.22UF 50V X7R

C117 065G0603224 32 CHIP 0.22UF 50V X7R

C319 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C333 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

C334 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R

R316 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W

D102 093G 39S 24 T RLZ 5.6B LLDS

D105 093G 39S 24 T RLZ 5.6B LLDS

C122 065G0603101 32 100PF +-10% 50V X7R

C609 065G060333412K F CAP CHIP 0603 0.33UF K 16V X7R

89

C410 067G 305470 3T 47UF +-20% 16V

C610 067G 305101 3T 100UF 16V 105C

C703 067G 305101 3T 100UF 16V 105C

INTV8GAAMAA4 INVERTER G3335-C-2-X-1-090206
040G 45762412B CBPC LABEL

CN8807 033G8020 7D U CONN.DIP R/A

CN8806 033G8020 7D U CONN.DIP R/A

CN8805 033G8020 7D U CONN.DIP R/A

CN8804 033G8020 7D U CONN.DIP R/A

CN8803 033G8020 7D U CONN.DIP R/A

CN8802 033G8029 3A H B2P3S-VH

C8811 065G 6J5096ET CAP CER 5PF J 6KV

C8810 065G 6J5096ET CAP CER 5PF J 6KV

C8809 065G 6J5096ET CAP CER 5PF J 6KV

C8808 065G 6J5096ET CAP CER 5PF J 6KV

C8807 065G 6J5096ET CAP CER 5PF J 6KV

C8806 065G 6J5096ET CAP CER 5PF J 6KV

C8805 065G 6J5096ET CAP CER 5PF J 6KV

C8804 065G 6J5096ET CAP CER 5PF J 6KV

C8803 065G 6J5096ET CAP CER 5PF J 6KV

C8802 065G 6J5096ET CAP CER 5PF J 6KV

T8801 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC

T8802 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC

T8803 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC

T8804 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC

T8805 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC

T8806 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC

T8807 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC

T8808 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC

T8809 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC

T8810 080GL26T 12 DN INVERTER X'FMR 230UH TK.6517A.101 VOC

CN8801 095G 825 6D504 HARNESS 6P(SCN)-5P(PLUG) 140MM

R8801 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W

R8802 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W

R8806 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W

R8807 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W

R8805 061G0805102 RST CHIPR 1K OHM +-5% 1/8W

R8804 061G0805103 RST CHIPR 10K OHM +-5% 1/8W

R8808 061G0805104 RST CHIPR 100K OHM +-5% 1/8W

R8817 061G0805243 RST CHIPR 24 KOHM +-5% 1/8W

R8813 061G0805243 RST CHIPR 24 KOHM +-5% 1/8W

R8803 061G0805393 RST CHIPR 39KOHM +-5% 1/8W

R8816 061G0805393 RST CHIPR 39KOHM +-5% 1/8W

R8811 061G0805511 RST CHIPR 510 OHM +-5% 1/8W

R8812 061G0805511 RST CHIPR 510 OHM +-5% 1/8W

R8814 061G0805511 RST CHIPR 510 OHM +-5% 1/8W

R8815 061G0805511 RST CHIPR 510 OHM +-5% 1/8W

90

JR801 061G1206000 RST CHIP MAX 0R05 1/4W

C8801 065G0805103 32 CAP CHIP 0805 10NF K 50V X7R

C8823 065G0805562 32 CHIP 5600PF 50V X7R 0805

C8822 065G0805562 32 CHIP 5600PF 50V X7R 0805

C8821 065G0805562 32 CHIP 5600PF 50V X7R 0805

C8820 065G0805562 32 CHIP 5600PF 50V X7R 0805

C8814 065G0805562 32 CHIP 5600PF 50V X7R 0805

C8815 065G0805562 32 CHIP 5600PF 50V X7R 0805

C8816 065G0805562 32 CHIP 5600PF 50V X7R 0805

C8817 065G0805562 32 CHIP 5600PF 50V X7R 0805

C8818 065G080582131G CAP CHIP 0805 820PF G 50V NPO

C8819 065G080582131G CAP CHIP 0805 820PF G 50V NPO

D8818 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D8817 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D8815 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D8814 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D8812 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D8811 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D8809 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D8808 093G 64 33 DIO SIG SM BAV99 (PHSE)R

D8812 093G 6433S DIODE BAV99 SEMTECH

D8815 093G 6433S DIODE BAV99 SEMTECH

D8814 093G 6433S DIODE BAV99 SEMTECH

D8818 093G 6433S DIODE BAV99 SEMTECH

D8817 093G 6433S DIODE BAV99 SEMTECH

D8811 093G 6433S DIODE BAV99 SEMTECH

D8809 093G 6433S DIODE BAV99 SEMTECH

D8808 093G 6433S DIODE BAV99 SEMTECH

IN8GAAMQA4AI INVERTER BOARD FOR AI

D8806 093G 3919552T DIODE MTZJ T-72 5.1B 500MW/5.1V DO-34

D8821 093G 64 1152T 1N4148

D8804 093G 64 1152T 1N4148

D8805 093G 64 1152T 1N4148

D8820 093G 64 1152T 1N4148

D8801 093G 64 1152T 1N4148

D8802 093G 64 1152T 1N4148

D8820 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

D8805 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

D8804 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

D8802 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

D8801 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

D8821 093G 64 1152T PH SWITCH DIODE 1N4148 BY PHILIPS

J801 095G 90 23 JUMPER WIRE

J802 095G 90 23 JUMPER WIRE

J803 095G 90 23 JUMPER WIRE

J804 095G 90 23 JUMPER WIRE

J805 095G 90 23 JUMPER WIRE

91

J806 095G 90 23 JUMPER WIRE

J807 095G 90 23 JUMPER WIRE

J808 095G 90 23 JUMPER WIRE

J809 095G 90 23 JUMPER WIRE

J810 095G 90 23 JUMPER WIRE

J811 095G 90 23 JUMPER WIRE

715G3335 1 2 INVERTER PCB CEM-1 70X297X1.6MM S/S

T8810 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
Q34FPE13P02P01 骨架 EEL13

T8805 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
Q34FPE13P02P01 骨架 EEL13

T8801 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
Q34FPE13P02P01 骨架 EEL13

T8804 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
Q34FPE13P02P01 骨架 EEL13

T8803 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
Q34FPE13P02P01 骨架 EEL13

T8806 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
Q34FPE13P02P01 骨架 EEL13

T8802 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
Q34FPE13P02P01 骨架 EEL13

T8808 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
Q34FPE13P02P01 骨架 EEL13

T8809 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
Q34FPE13P02P01 骨架 EEL13

T8807 S80GL26T12V TRANSFORMER ASS'Y

071FPE13101 05 FP2 EEL13
Q34FPE13P02P01 骨架 EEL13
PWTV9GAAMQAB POWER BOARD G3418-1-X-X-3-090423
040G 45762412B CBPC LABEL
009T6005 1 GROUND TERMINAL

CN802 033G3802 5B Y W WEAFER

CN801 033G8029 3A 3PIN (2PIN NC)

IC950 056G 139 3A IC PC123Y22FZ0F

IC951 056G 139 3A IC PC123Y22FZ0F

IC970 056G 139 3A IC PC123Y22FZ0F

IC902 056T 379121 IC STR- A6069H DIP-8

Q921 057G 761 7 KTD1691P

92

NR901 061G 58030 W NTCR 3 欧 5A

C904 063G 10722410M 0.22 UF 275VAC

C901 063G107K474 US 0.47UF +-10%

C801 063G213J105GFA MPF CAP

C804 063G213J105GFA MPF CAP

C910 063G213J105GFA MPF CAP

C804 063T213J105GCC CAP MPE 1UF J 450V

C801 063T213J105GCC CAP MPE 1UF J 450V

C911 065G 1K103 2E6213 CAP CER 10NF K 1KV

C821 065G 1K103 2E6213 CAP CER 10NF K 1KV

C911 065G 1K103 2E6921 CAP CER 10NF K 1KV Y5P

C821 065G 1K103 2E6921 CAP CER 10NF K 1KV Y5P

C927 065G306K4712B3 Y1 CAP 470PF +-10% 250VAC CD SERIES

C906 065G306K4712B3 Y1 CAP 470PF +-10% 250VAC CD SERIES

C927 065G306K4712BM Y1 CAP 470PF +-10% 250V AC KX

C906 065G306K4712BM Y1 CAP 470PF +-10% 250V AC KX

C903 065G306K6812BM Y1 CAP 680PF 10% 250VAC KX

C902 065G306K6812BM Y1 CAP 680PF 10% 250VAC KX

C928 065G306M1022B2 1000PF 400VAC/250VAC Y1

C928 065G306M1022BM Y1.CAP.001UF 250VAC MURATA

C902 065G306M6812B3 Y1 CAP 680PF +-20% 250VAC CD SERIES

C903 065G306M6812B3 Y1 CAP 680PF +-20% 250VAC CD SERIES

C925 067G 42Z82015K EC 82UF M 450V 18*36MM

C953 067G204V331 3K CS CAP 330UF 16V 10*12 MM

C958 067G215P1026KV LOW ESR EC 1000UF M 35V 12.5*25MM

C954 067G215P4713KV LOW ESR EC 471UF M 16V 10*12MM

C959 067G215P4714KV LOW ESR EC 470UF M 25V 10*16MM

C805 067G215P4714KV LOW ESR EC 470UF M 25V 10*16MM
C954 067G215V471 3N EC CAP 105 度 470UF M 16V NCC

L950 073G 253 91 L CHOKE BY LI TA

L951 073G 253 91 L CHOKE BY LI TA

L951 073G 253 91 V CHOKE COIL 3.5UH+-10%

L950 073G 253 91 V CHOKE COIL 3.5UH+-10%

L901 073T 174106 DN LINE FILTER 13MH LK.TF032.A20

L902 073T 174106 DN LINE FILTER 13MH LK.TF032.A20

L903 073T 174124 L PFC CHOKE 300UH PT-009584

T902 080GL26T 11 N X'FMR 680UH YUVA-1091

T802 080GL26T 14 L X'FMR 6MH CC-011223

T802 080GL26T 14 N X'FMR 6MH YUVA-1095

T801 080GL26T 15 N X'FMR 840UH MIN YUVA-1094

T901 080GL52T 5 L X'FMR 1.0MH PT-009817

T901 080GL52T 5 N X'FMR 1.0MH YUVA-1068

F901 084T 41 15 L FUSE 3.15A 250V

CN901 087G 501 47 S AC SOCKET 2PIN + 2 SCREW HOLE

D904 093G 52 70 1 1N5408-E(SHORT PIN) 3A/1000V DO-201AD

CN902 095G 82512W522 HARNESS 12P(SCN)-12P(PLUG) 160

0Q1G 340 8106 CR3 SCREW

93

705GQ993008 D952 ASS'Y

D952 093G 60303 DIODE YG868C10RSC 30A/100V TO-220F

D952 093G 60306 DIODE FMEN-230A 30A/100V TO-220

0M1G1730 8120 SCREW
Q90T0176 1 HEAT SINK
705TQ857038 Q901 ASS'Y

Q901 057G 667 55 FET 2SK4087LS 14A/600V TO-220FI(LS)

HS1 090G6064 1 HEAT SINK

0M1G1730 8120 SCREW
705TQ857039 Q801/Q802 ASS'Y

Q801 057G 667 49 FET 2SK4086LS 11.5A/600V TO-220FI(LS)

Q802 057G 667 49 FET 2SK4086LS 11.5A/600V TO-220FI(LS)

Q802 057G 724 4A STP9NK60ZFP TO-220FP BY ST

Q801 057G 724 4A STP9NK60ZFP TO-220FP BY ST

HS9 090G6064 1 HEAT SINK

0M1G1730 8120 SCREW
705TQ857040 Q903 ASS'Y

Q903 057G 667 21 STP10NK70ZFP

Q903 057G 667 54 1 TRA STF21NM60N 17A/650V TO-220FP

HS8 090G6084 1 HEAT SINK

0M1G1730 8120 SCREW
705TQ893037 BD901 ASS'Y

HS5 090G6064 1 HEAT SINK

BD901 093G 50460 34 BRIDGE KBJ608G 6A/800V KBJ

0M1G1730 8120 SCREW
705TQ893038 D902 ASS'Y

HS6 090G6084 1 HEAT SINK

D902 093G 52 56 DIODE FMN-1106S 10A/600V TO-220

0M1G1730 8120 SCREW
705TQ893039 D950 ASS'Y

HS4 090G6084 1 HEAT SINK

D950 093G 60298 DIODE SBT15006JST 15A/60V TO-220ML(LS)

0M1G1730 8120 SCREW

IC901 056G 368 12 IC FAN7529MX SOP-8

IC801 056T 379122 IC OZ9976GN-C-0-TR SOP-16

IC903 056T 379133 IC LD7523A GS SOP-8

Q970 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q950 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q805 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q804 057G 417 4 PMBS3904/PHILIPS-SMT(04)

Q803 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM

Q924 057G 760 5 DTC144WKA BY ROHM SMT

R932 061G0805100 Y RST CHIPR 10 OHM +-5% 1/8W YAGEO

R957 061G0805100 2F RST CHIPR 10KOHM +-1% 1/8W

R958 061G0805100 2F RST CHIPR 10KOHM +-1% 1/8W

R802 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W

R803 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W

94

R824 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W

R827 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W

R954 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W

R935 061G0805102 RST CHIPR 1K OHM +-5% 1/8W

R983 061G0805102 RST CHIPR 1K OHM +-5% 1/8W

R981 061G0805102 RST CHIPR 1K OHM +-5% 1/8W

R961 061G0805102 RST CHIPR 1K OHM +-5% 1/8W

R960 061G0805102 RST CHIPR 1K OHM +-5% 1/8W

R956 061G0805102 RST CHIPR 1K OHM +-5% 1/8W

R955 061G0805102 RST CHIPR 1K OHM +-5% 1/8W

R934 061G0805102 RST CHIPR 1K OHM +-5% 1/8W

R963 061G0805103 RST CHIPR 10K OHM +-5% 1/8W

R944 061G0805103 RST CHIPR 10K OHM +-5% 1/8W

R939 061G0805103 RST CHIPR 10K OHM +-5% 1/8W

R929 061G0805103 RST CHIPR 10K OHM +-5% 1/8W

R918 061G0805103 RST CHIPR 10K OHM +-5% 1/8W

R914 061G0805103 RST CHIPR 10K OHM +-5% 1/8W

R830 061G0805103 RST CHIPR 10K OHM +-5% 1/8W

R828 061G0805103 RST CHIPR 10K OHM +-5% 1/8W

R821 061G0805103 RST CHIPR 10K OHM +-5% 1/8W

R976 061G0805103 RST CHIPR 10K OHM +-5% 1/8W

R982 061G0805103 RST CHIPR 10K OHM +-5% 1/8W

R806 061G0805103 RST CHIPR 10K OHM +-5% 1/8W

R807 061G0805103 RST CHIPR 10K OHM +-5% 1/8W

R805 061G0805104 RST CHIPR 100K OHM +-5% 1/8W

R820 061G0805104 RST CHIPR 100K OHM +-5% 1/8W

R928 061G0805104 RST CHIPR 100K OHM +-5% 1/8W

R933 061G0805109 RST CHIPR 1 OHM +-5% 1/8W

R923 061G0805130 2F RST CHIP 13K 1/8W 1%

R912 061G0805202 RST CHIPR 2K OHM +-5% 1/8W

R911 061G0805203 CHIP 20KOHM 1/10W

R811 061G0805205 RST CHIPR 2 MOHM +-5% 1/8W

R943 061G0805220 RST CHIPR 22 OHM +-5% 1/8W

R822 061G0805240 0F RST CHIPR 240 OHM +-1% 1/8W

R825 061G0805240 0F RST CHIPR 240 OHM +-1% 1/8W

R978 061G0805240 2F RST CHIPR 24 KOHM +-1% 1/8W

R910 061G0805304 RST CHIPR 300K OHM +-5% 1/8W

R913 061G0805330 Y RST CHIPR 33 OHM +-5% 1/8W YAGEO

R818 061G0805331 RST CHIPR 330 OHM +-5% 1/8W

R938 061G0805360 1F RST CHIPR 3.6K OHM +-1% 1/8W

R975 061G0805392 3.9 KOHM 1/10W

R809 061G0805470 2F RST CHIP 47K 1/8W 1%

R915 061G0805471 RST CHIPR 470 OHM +-5% 1/8W

C942 061G0805472 RST CHIPR 4.7 KOHM +-5% 1/8W

R942 061G0805513 RST CHIPR 51K OHM +-5% 1/8W

R814 061G0805513 RST CHIPR 51K OHM +-5% 1/8W

R819 061G0805514 RST CHIPR 510 KOHM +-5% 1/8W

95

R906 061G0805514 RST CHIPR 510 KOHM +-5% 1/8W

R917 061G0805563 RST CHIPR 56K OHM +-5% 1/8W

JR901 061G1206000 RST CHIP MAX 0R05 1/4W

JR902 061G1206000 RST CHIP MAX 0R05 1/4W

JR904 061G1206000 RST CHIP MAX 0R05 1/4W

JR905 061G1206000 RST CHIP MAX 0R05 1/4W

JR906 061G1206000 RST CHIP MAX 0R05 1/4W

R950 061G1206101 RST CHIPR 100 OHM +-5% 1/4W

R951 061G1206101 RST CHIPR 100 OHM +-5% 1/4W

R952 061G1206101 RST CHIPR 100 OHM +-5% 1/4W

R953 061G1206101 RST CHIPR 100 OHM +-5% 1/4W

R816 061G1206101 RST CHIPR 100 OHM +-5% 1/4W

R974 061G1206102 RST CHIPR 1K OHM +-5% 1/4W

R945 061G1206102 RST CHIPR 1K OHM +-5% 1/4W

R817 061G1206102 RST CHIPR 1K OHM +-5% 1/4W

R804 061G1206103 RST CHIPR 10K OHM +-5% 1/4W

R832 061G1206103 RST CHIPR 10K OHM +-5% 1/4W

R833 061G1206103 RST CHIPR 10K OHM +-5% 1/4W

R941 061G1206103 RST CHIPR 10K OHM +-5% 1/4W

R810 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W

R9211 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W

R9212 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W

R9213 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W

R9214 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W

R9401 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W

R9402 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W

R9403 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W

R9404 061G1206104 RST CHIPR 100 KOHM +-5% 1/4W

R909 061G1206155 RST CHIPR 1.5 MOHM +-5% 1/4W

R905 061G1206155 RST CHIPR 1.5 MOHM +-5% 1/4W

R904 061G1206155 RST CHIPR 1.5 MOHM +-5% 1/4W

R972 061G1206222 RST CHIPR 2.2KOHM +-5% 1/4W

R973 061G1206222 RST CHIPR 2.2KOHM +-5% 1/4W

R931 061G1206229 RST CHIPR 2.2 OHM +-5% 1/4W

R937 061G1206475 RST CHIPR 4.7 MOHM +-5% 1/4W

R920 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W

R921 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W

R922 061G1206680 3F RST CHIPR 680KOHM +-1% 1/4W

R924 061G1206754 RST CHIPR 750 KOHM +-5% 1/4W

R925 061G1206754 RST CHIPR 750 KOHM +-5% 1/4W

R926 061G1206754 RST CHIPR 750 KOHM +-5% 1/4W

R907 061T1206279 RST CHIPR 2.7 OHM +-5% 1/4W

R908 061T1206279 RST CHIPR 2.7 OHM +-5% 1/4W

C961 065G0805102 32 CHIP 1000P 50VX7R 0805

C960 065G0805102 32 CHIP 1000P 50VX7R 0805

C951 065G0805102 32 CHIP 1000P 50VX7R 0805

C950 065G0805102 32 CHIP 1000P 50VX7R 0805

96

C816 065G0805102 32 CHIP 1000P 50VX7R 0805

C817 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

C818 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10%

C811 065G0805103 22 CHIP 0.01UF 25V X7R 0805

C920 065G0805103 32 CAP CHIP 0805 10NF K 50V X7R

C978 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C977 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C974 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C956 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C943 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C923 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C921 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C913 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C909 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C908 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C907 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R

C806 065G0805104 32 GP CHIP 0.1UF 50V X7R

C922 065G0805105 37 CHIP 1UF 50V Y5V

C809 065G080510522K Y CAP CHIP 0805 1UF K 25V X7R

C944 065G0805221 32 CHIP 220PF 50V X7R 0805

C915 065G0805221 32 CHIP 220PF 50V X7R 0805

C815 065G0805221 32 CHIP 220PF 50V X7R 0805

C955 065G0805224 32 0.22UF,K,50V,X7R

C814 065G0805225 22 CHIP 2.2UF 25V X7R 0805

C802 065G0805225 22 CHIP 2.2UF 25V X7R 0805

C807 065G080533131G MLCC 0805 330PF J 50V NPO

C976 065G0805334 32 GP CHIP 0805 0.33UF K 50V X7R

C813 065G080547232K Y CAP CHIP 0805 4700PF K 50V X7R

C812 065G0805473 32 CHIP 0.047UF 50V X7R

C917 065G0805473 32 CHIP 0.047UF 50V X7R

C918 065G0805474 32 0.47UF +-10% 50V X7R

C912 065G0805560 31 MLCC 0805 56PF J 50V NP0

C819 065G0805681 31 CHIP 680PF 50V NPO 0805

C820 065G0805681 31 CHIP 680PF 50V NPO 0805

D805 093G 64 42 PP BAV70 SOT-23

D801 093T 60S 5 T SCS0520P SOD-123

D802 093T 60S 5 T SCS0520P SOD-123

D803 093T 60S 5 T SCS0520P SOD-123

D804 093T 60S 5 T SCS0520P SOD-123

PW9GAAMQABAI POWER BOARD FOR AI

CN901 006G 31500 EYELET

IC971 056G 158 10 T IC AS431AZTR-E1 TO-92

IC952 056G 158 10 T IC AS431AZTR-E1 TO-92

R801 061G 30310852T GP FUSE RESISTOR

R948 061G 30347852T GP RST FUSER 0.47OHM +-5% 1W

C803 065G 1K102 5T6213 CER CAP 1000PF K 1KV TDK

C929 065G 2K152 1T6921 1.5NF/2KV Y5P +-10%

97

C939 065G 2K152 1T6921 1.5NF/2KV Y5P +-10%

C933 067G 2152207NT KY50VB22M-TP5 5*11

C941 067G215Y1007KT KY50VB10M-TP5 5*11.5

C937 067G215Y1007KT KY50VB10M-TP5 5*11.5

C931 067G215Y1017NT EC 100UF 50V 8*11.5MM

C914 067G215Y4707KT 47UF 50V

ZD951 093G 3916652T MTZJ15B (13.89-14.62)

ZD901 093G 3916752T MTZJ T-72 16B

D935 093G 5250S52T DIODE AU02Z-V1 SANKEN

D954 093G 64 1152T 1N4148

D906 093G 64 1152T 1N4148

D806 093G 64 1152T 1N4148

D807 093G 64 1152T 1N4148

D903 093G 64 1152T 1N4148

D905 093G 64 1152T 1N4148

D930 093T1080 252T DIODE SARSO1-V1 SANKEN

D940 093T1080 252T DIODE SARSO1-V1 SANKEN

J911 095G 90 23 JUMPER WIRE

J912 095G 90 23 JUMPER WIRE

J914 095G 90 23 JUMPER WIRE

J916 095G 90 23 JUMPER WIRE

J918 095G 90 23 JUMPER WIRE

J919 095G 90 23 JUMPER WIRE

J920 095G 90 23 JUMPER WIRE

J921 095G 90 23 JUMPER WIRE

J909 095G 90 23 JUMPER WIRE

J908 095G 90 23 JUMPER WIRE

J907 095G 90 23 JUMPER WIRE

J906 095G 90 23 JUMPER WIRE

J904 095G 90 23 JUMPER WIRE

J903 095G 90 23 JUMPER WIRE

J902 095G 90 23 JUMPER WIRE

J901 095G 90 23 JUMPER WIRE

J936 095G 90 23 JUMPER WIRE

J935 095G 90 23 JUMPER WIRE

J934 095G 90 23 JUMPER WIRE

J933 095G 90 23 JUMPER WIRE

J932 095G 90 23 JUMPER WIRE

J931 095G 90 23 JUMPER WIRE

J930 095G 90 23 JUMPER WIRE

J929 095G 90 23 JUMPER WIRE

J905 095G 90 23 JUMPER WIRE

J928 095G 90 23 JUMPER WIRE

J927 095G 90 23 JUMPER WIRE

J926 095G 90 23 JUMPER WIRE

J925 095G 90 23 JUMPER WIRE

J924 095G 90 23 JUMPER WIRE

98

J922 095G 90 23 JUMPER WIRE

715G3418P010HV003M TV POWER-PCB CEM-1 150X200X1.6MM

R916 061T152M15852T RST MOFR 0.15 OHM +-5% 2WS

R946 061G152M43852T RST MOF 0R43 5% 2W

J937 095G 90 23 JUMPER WIRE

J938 095G 90 23 JUMPER WIRE

J941 095G 90 23 JUMPER WIRE

J942 095G 90 23 JUMPER WIRE

Q925 057G 420 3 T TRA KTA1273-Y- AT/ P_TO-92L KEC

C822 065G 1K102 5T6213 CER CAP 1000PF K 1KV TDK

FB902 071G 55 29 FERRITE BEAD

FB903 071G 55 29 FERRITE BEAD

FB905 071G 55 29 FERRITE BEAD

FB904 071G 55 9 T FERRITE BEAD

FB901 071G 55 26 S FERRITE CORE

D901 093T 52S 12 T DIODE US1M 1A/1000V SMA

R813 061G0805272 RST CHIPR 2.7 KOHM +-5% 1/8W

R829 061G0805105 RST CHIPR 1M OHM +-5% 1/8W

R831 061G0805105 RST CHIPR 1M OHM +-5% 1/8W

R815 061G0805513 RST CHIPR 51K OHM +-5% 1/8W

JR907 061G1206000 4 RST CHIP MAX 0R05 1/4W

JR908 061G1206000 4 RST CHIP MAX 0R05 1/4W

R980 061G0805622 RST CHIPR 6.2 KOHM +-5% 1/8W

D901 093G 52S 10 T DIODE US1M-E3/61T 1A/1000V DO-214AC

Q804 057G 417 12 T KEC 2N3904S-RTK/PS

Q805 057G 417 12 T KEC 2N3904S-RTK/PS

Q950 057G 417 12 T KEC 2N3904S-RTK/PS

Q970 057G 417 12 T KEC 2N3904S-RTK/PS

Q803 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS

R901 061G1206334 RST CHIPR 330KOHM +-5% 1/4W

R902 061G1206334 RST CHIPR 330KOHM +-5% 1/4W

R903 061G1206334 RST CHIPR 330KOHM +-5% 1/4W

R947 061T1206512 Y RST CHIPR 5.1KOHM +-5% 1/4W YAGEO

R949 061T1206512 Y RST CHIPR 5.1KOHM +-5% 1/4W YAGEO

Q51G 6 4509 GLUE_RTV
Q02G7019 1 SPACE SUPPORT
Q02G7023 1 SCREW-STOPPER
Q11T5002 1 GP CABLE CLAMP
Q11T5043 3 SUPPORT CLIP
Q40G 26061526A RATING LABEL
Q41G783061516A WARRANTY CARD
Q44GE033101 EPS CUSHION
Q44GE033201 EPS CUSHION
Q44GE033301 EPS CUSHION
Q44GE033615 3A 26 TV AOC CARTON
Q45G 99609 78 EPE BAG FOR MONITOR
Q45G 99626 36 PE BAG

99

Q45G2007M0101A PE BAG
Q50G 4 10 TIE
Q50T 500523 CABLE TIE
Q52G 1185 99 BIG CARTON TAPE FOR AOC
041T780062415A CERTIFICATE CARD
092TB1JX1A3WGC BATTERY LR03(EA)2S/G AAA
0Q1G 940 16 47 CR3 SCREW
Q41G260161533C MANUAL
Q45G 76 28 V3 R PE BAG
Q45T 76 28NV2 R PE BAG FOR CLAMP
026G 800700 1A BARCODE LABEL
040G 58162435A P/N LABEL FOR MANUAL PE BAG
0Q1G 930 8 47 CR3 SCREW
P15T0533101 BRACKET_IO
Q40G000260023A SIDE LABEL

E09502 095G8014 8WH17 HARNESS 8P(PLUG)-5P(400MM)+4P(600MM)

E09502 095G8014 8XH17 HARNESS 8P(PLUG)-5P(400MM)+4P(600MM)

705TQ949001 COMSUPTIVE ASS'Y-A4
P15T0478101 BRACKET_BASE
P15T0479101 BRACKET_VESA

100
