AOC L19DH83 Schematic

维 修 手 册

品牌 机种

AOC

L19DH83
L22DH83

1

变更说明

版本 发布日期 变更说明 对外机种名 对内机种名

E1992ANDW1A7NN

L19DH83

E1992ANDW1A8NN

A00 2010-3-19

A01 2010-11-08

A02 2010-12-21

首次发布

新增机种名

新增机种名

E2292ANDW1A7NN

L22DH83

E1992ANDW1A8NN

E199CANDW1A1NN

E199CANDW1A8NN

L19DH83

E19ACANDW1A1NN

E19ACANDW1A8NN

E229CANDW1A8NN

L22DH83

E229CANDW1A1NN

E22AMANDW1A1NN

L22DH83

E22AMANDW1A8NN

A03 2011-5-4

新增机种名

L19DH83

E19ACANDW1A2NN

E19ACANDW1A9NN

2

目录

1.技术规格 ----------------------------------------------------------------------------------------------------------------- 04

1.1一般规格 ----------------------------------------------------------------------------------------------------------- 04

1.2预设显示模式 ----------------------------------------------------------------------------------------------------- 05

2.操作说明 ----------------------------------------------------------------------------------------------------------------- 06

2.1遥控器操作 -------------------------------------------------------------------------------------------------------- 06

2.2控制面板 ----------------------------------------------------------------------------------------------------------- 07

2.3背面信源接口 ----------------------------------------------------------------------------------------------------- 08

2.4侧边信源接口 ----------------------------------------------------------------------------------------------------- 09

2.5 菜单操作 ------------------------------------------------------------------------------------------------------------ 10

3.工厂模式调整 ----------------------------------------------------------------------------------------------------------- 14

4.故障处理流程 ----------------------------------------------------------------------------------------------------------- 15

5.软体升级 SOP ---------------------------------------------------------------------------------------------------------- 21

6.电气方框图 -------------------------------------------------------------------------------------------------------------- 22

6.1 主板功能框图 ------------------------------------------------------------------------------------------------------- 22

6.2 主板电源框图 ------------------------------------------------------------------------------------------------------- 23

7.线路图 -------------------------------------------------------------------------------------------------------------------- 24

7.1 主板 ------------------------------------------------------------------------------------------------------------------- 24

7.2 电源板 ---------------------------------------------------------------------------------------------------------------- 31

7.3 按键板 ---------------------------------------------------------------------------------------------------------------- 33

7.4 IR 板 ----------------------------------------------------------------------------------------------------------------- 34

8. BOM --------------------------------------------------------------------------------------------------------------------- 35

3

1.技术规格

1.1 一般规格

型号

面版尺寸(屏幕对角线尺寸) 470mm 548mm

物理分辨率

可视角

伴音输出

彩色制式 PAL/NTSC

声音制式 D/K， B/G,M

天线输入阻抗

可使用电压范围 AC100-240V 50/60Hz

L19DH83 L22DH83

1366×768 1366×768

水平 170°
垂直 160°(Typ.)

1.5W×2

75Ω

水平 170°
垂直 160°(Typ.)

整机消耗功率

待机消耗功率

重显率

尺寸(宽 x 高 x 深)(含脚座支架)(mm)

墙式安装配件 不包括

墙式安装尺寸

环境要求

操作温度
湿度
保存温度
湿度

≤65W ≤75W

≤1W

水平≥92％

垂直≥92％

456x338x145 526x380x144

100x100mm
M4x4 pcs (螺丝)

0ºC~35ºC
20~80%

-10ºC~50ºC
20~80%

100x100mm
M4x4 pcs (螺丝)

4

1.2 预设显示模式

电脑格式：

编号 分辨率 模式 垂直频率（Hz） 水平频率（KHz）

1 640 x 480 VGA 59.94 31.469

2 800 x 600 VESA 60.317 37.879

3 1024 x 768 VESA 60.004 48.363

*4 1360 x 768 VESA CVT 59.799 47.72

视频格式：

编号 分辨率 模式 垂直频率（Hz） 水平频率（KHz）

1 640 x 480 VESA 59.94 31.469

2 800 x 600 VESA 60.317 37.879

3 1024 x 768 VESA 60.004 48.363

4 1360 x 768 VESA 59.799 47.72

5 720 x 480 CVI 30 15.734

6 720 x 480 CVI 60 31.5

7 720 x 576 CVI 25 15.625

8 720 x 576 CVI 50 31.25

9 1280 x 720 VESA CVT 50 37.5

10 1280 x 720 VESA CVT 60 45

11 1920 x 1080 CVI 25 28.125

12 1920 x 1080 CVI 30 33.75

5

2.操作说明

2.1 遥控器操作

电源
按这个按钮可以打开/关闭电视。电
视不会完全断电，除非关闭交流电
源开关或者拔下电源插头。

视频/S 端子
按此按钮可以在视频与 S 端子输入
模式互切。

分量信号
按此按钮进入分量信号模式(无
HDMI 功能)。

电脑
按此按钮进入电脑模式。

电视
按此按钮进入电视模式

0~9/100 (数字按钮)
用来选择电视频道。

频道:
按节目“+”或“-”
（或 ∧ 或 ∨）
可以切换电视频道。

音量
按+或–(或◄或►键) 可以调整声音
音量大小。

丽音
用来选择声音效果。

睡眠
使用这个按键，您可以设置电视在
多长时间之后进入待机状态。(电脑
模式下此按钮无作用)

图片预览
此键无作用

音乐
此键无作用

电脑
按此键可切到电脑模式。

退出
按这个键可以退出主菜单。

OK

对所选项目进行确认。

回看
用来显示前一次选择的电视频道。

静音
暂时中断声音或恢复声音。

显示
(1) 当使用电视 RF 输入时显示频道

号码，声音效果等信息。

(2) 当使用电视 RF 输入之外的其它

输入时，显示输入源信息。

(3) 显示的信息会在3秒钟后自动消

失。

信源
选择信号源：按出可以选择电视、视
频-1、视频-2、S 端子、分量信号、
电脑。

音质
切换画面声音预设模式，有个人、音
乐、对白三种模式。

缩放
按此键可切换画面比例。

静止
此按钮无作用。

画质
切换画面图像预设模式，有个人、标
准、鲜明、电影、经济模式（省电模
式）五种模式。

6

2.2 控制面板

开/关液晶电视

按下电视侧面的电源按钮，将电视打开。

① 正常工作状态,电视机指示灯显示蓝色。

② 待机工作状态,电视机指示灯显示红色。

电源:

信号源: 按此键可以变换不同的输入信号源，按此键屏幕可以显示输出信号源菜单。

菜单: 按此键可以进入或退出菜单。

频道:

按此键可以打开电视或使电视进入待机状态。如果电视处在待机状态，则前面的指
示灯显示红色。

在屏幕出现菜单时，按此两键
为 TV 模式时可以换台。

或 可以选择所要执行选项；在屏幕无 OSD 菜单时，

音量:

在屏幕出现菜单时，按此两键+ 或 –可以确认所选择之选项；在屏幕无 OSD 菜单时，
为音量之调整。

7

2.3 背面信源接口

背面信源接口如下图：

天线输入:
将天线接头插入电视机的天线插孔，本接口为 75Ω 同轴电缆输入。

视频-1/S 端子输入：
将 DVD、激光影碟机、录像机或摄像机等设备的视频输出连接至本机视频输入端口。
音频输入：将音频信号源(计算机、DVD、激光影碟机、录像机或摄像机等)连接至音频输入端口。
友情提示：S 端子音频与视频-1 音频共享。

分量输入：
将分量信号源音频及视频（DVD、激光影碟机、录像机或摄像机等)连接至分量信号输入端口。

电脑信号与电脑音频输入：
将电脑信号线连接电脑主机和本机的电脑接口。
将音频信号线连接电脑主机和本机的电脑音频输入接口。

8

2.4 侧边信源接口

耳机插孔:
使用者可通过耳机插孔使用耳机。

视频-2 输入：
将 DVD、激光影碟机、录像机或摄像机等设备的视频输出连接至本机视频（VIDEO）输入上。

音频输入：
将音频信号源(计算机、DVD、激光影碟机、录像机或摄像机等)连接至音频输入端口。

9

2.5 菜单操作

使用菜单

1. 按菜单按钮可以显示主菜单。

2. 使用∧或∨光标可以选择所要调整之功能选项。

3. 使用＜或＞光标或“OK”按钮可以进入子菜单或启用或调整所选择之功能。

4. 按“退出”按钮可以退出菜单，按“菜单”按钮可以退出子菜单。

信源菜单

按“信源”按钮选择输入信源：包括电视、视频-1、视频-2、S 端子、分量信号、电脑。
按菜单按钮进入 OSD 主菜单。

电视模式时可调节项目包括：视频、音频、功能、频道。
视频 1、视频 2、S 端子、分量信号输入时可调节项目包括：视频、音频、功能。
电脑模式时可调节项目包括：视频、音频、功能、电脑。

一、图像设定

1. 预设：可提供个人、标准、鲜明、电影、经济模式（省电模式）五种图像设定模式选择。

2. 对比度：使图像黑色部分的暗色变丰富，而白色变亮。

3. 亮度：调节画面的背景亮度，一般与对比度配合使用，调整范围 是 0 到 100。

4. 色彩：调整范围为 0～100，通过调整此项可以改变画面颜色及画面彩色浓度。(电脑模式无该选项)

5. 锐利度：调整范围为 0～100，通过调整此项改变画面清晰锐利程度。（电脑模式无该选项）

6. 降噪：可以选择关闭、低、正常、高四种选项。请用户根据实际画面判定选项。建议在画面出现严重
噪点时选择高选项，轻微噪点时选择关闭选项。(电脑模式无该选项)

7. 色温：非电脑模式此选项为用户提供了三种色温选项：正常、暖色、冷色。电脑模式下则多出“用户”
选项，可调节红, 绿, 蓝三色。

8. 画面比例：非电脑模式可选择正常、缩放 1、缩放 2、宽屏四种选项。

当分量模式分辨率为 720P,1080I，时，图像比例还可以选择“1：1”模式。电脑模式下有正常、宽屏两
种选项。

10

二、音频设定

1. 预设：可选择个人、音乐、对白三种输出声音模式。其中对白、音乐两种声音模式无法调整高低音，而
个人模式则可以根据自己喜好调整低音、高音、平衡器来设定声音输出效果。

2. 低音、高音调整范围是从-10～10。

3. 平衡：调整范围是从-10～10。从 0~10 调整时，左声道声音 慢慢减小直至消失，从 0~-10 调整时，右
声道声音慢慢减小直至消失。

4. 虚拟环绕：环绕音效开关。默认值是关。

5. AVL：自动音量控制。

三、功能设定

1. 菜单语言：设定菜单语言功能，提供英文、简体中文、繁体中文、阿拉伯文、泰文、俄文 6种语言选择。

2. 菜单显示时间：有 10，20，30，40，50，60s 的时间可供选择，来设置菜单的显示时间。

3. 睡眠定时： 设定电视自动进入待机状态的时间间隔。(电脑模式无该项功能)当睡眠时间设定完成后，开

始计时；

4. 高级对比度：进一步加强电视图像的对比度。

5. 动态对比度：加强电视动态画面的对比度,使图像更加有层次感。

6. 系统重置：将各个调整项目设定内容恢复为出厂预设值。

11

四、电视设定（以下菜单只有在电视模式才出现）

1. 自动搜台：用于给用户自动搜索并存储节目,按“菜单”或“退出”键可以退出自动搜台模式。

2. 更新搜台：保存已存储节目并重新开始搜台，按“菜单”或“退出”键可以退出更新搜 台模式。

3. 手动搜台： 按左右按钮进入子菜单，见下图：

(1) 频道号：显示当前电视频道号。
(2) 节目名称：可编辑当前电视频道名。
(3) 频率：显示当前电视频道频率。
(4) 彩色制式：显示当前电视信号彩色制式。
(5) 声音制式：显示当前电视信号声音制式。
(6) AFC：可以被设定为开和关，当设定为开时，电视会对电视信号自动侦测，在一定频率范围内当信号

有偏移时会自动调整频道到正确位置。

4. 频道列表：按右按钮进入子菜单，见下图

可以按照菜单最下方的指示，对频道列表进行编辑。

12

五、电脑设定（以下菜单只有在电脑模式才出现）

1. 自动调整：将电脑画面调整到最佳位置。

2. 水平位置：调整范围-50～50，调整画面水平位置。

3. 垂直位置：调整范围-50～50，调整画面垂直位置。

4. 时钟，相位：调整范围-50～50，调整画面显示效果。

13

3.工厂模式调整

进入工厂模式的方法: 先按遥控器上的“菜单/退出”键，再按 1→9→9→9。
此机种无需调白平衡，只需做“ADC”，在 PC 和 Component 模式下选择“Autowhite 100%”。

PC 模式: TIM = 107; PAT = 42
COMPONENT 模式: TIM = 311; PAT = 185

如下图(以其他机种的工厂模式图片为例)：

14

4.故障处理流程

检测 IR 板及 LED 灯

更换 IR 板

无电（LED 不亮）

检测插座是否有电或硬开关是否打开

有

检测电源板 CN902 的 PIN6/7 是否有 5V 电压输出

无

无

重插电源插座或开启硬开关

更换电源板

无法启动（LED橙色）

检测电源板 CN902 的 PIN10/11 是否有 12V 电压输出

更换按键板

有

检测按键板的POWER键是否失灵

是

检测IR板的红外接收器U01是否失灵

是

无

否

更换电源板

否

更换IR板

15

更换主板

无画（LED蓝色）

检测TV是否受控，能否用遥控器或按键板开关机

是

否

检测是否有背光

是

否

检测LVDS线是否良好

是

否

检测主板CN700是否有BL信号

检测主板上CN200(For L19DH83)的

PIN23/24/25/26; CN408(For L22DH83)

的PIN26/27/28/29/30是否有5V供电

重插或更换LVDS线

是

是

否

检测电源板 CN902 的 PIN10/11 是否有 12V 电压输出

先更换主板

检测是否OK

更换主板

是

否

更换Panel

更换Panel

更换主板

否

更换主板

否

更换电源板

16

信

检测是否

有高频干扰源

彩条、水波纹、画抖、画闪、

鬼影、残影、拖影等干扰

检测附近是否有干扰源

是 否

排除干扰源

先更换主板

否

更换Panel

检测信号线

是否良好

是 否

OK

检测信号源出

号是否正常

是 否

更换信号线

重新设置

信号源

画异

TV画面雪花点、重

影、细线、条纹干扰

检测TV信号线

是否接触不良

是 否

重新连接

TV信号线

排除干扰源 用场强仪检测信号强度

检测附近是否

是 否

是否在45-100db之间，

65db左右为最佳值

是

更换主板

间歇性画异加温
画异冷开机画异

检测软体版本是
否需要更新
是 否

升级软体

检测是否OK

否

太弱：加装信号放大器
太强：减少信号放大器

或加装信号衰减器

先更换主板

否

取回站内
加温检测

17

无声或声音异常

更换连接线

检测信号源音频接口是否正确，或TV制式是否为DK制

是

检测TV是否被静音，调整音量大小，

或进入菜单进行复位看是否OK

否

检测主板到喇叭的连接线是否断路

是 否

检测喇叭阻抗是否变质
（喇叭阻抗值标在喇叭

是 否

更换喇叭 更换主板

收不到台或收台不全

否

重插音频接口或设置TV制式

建议客户重新

设置信号源

检测此频道是否发生频
偏，尤其是使用卫星信

是

升级软体

用别的TV测试是否能收到此

是

否

更换主板

检测软体版本是否需要更新

是 否

用场强仪检测信号强度是否在
45-100db之间，65db左右为最佳

是

否

和客户说明当地TV信号未转播此

否

太弱：加装信号放大器
太强：减少信号放大器或加装信号衰减

18

喇叭异响

（破音，滋滋声）

检测喇叭是否变质

是 否

更换喇叭 主板功放异常

更换主板

异响

电源板，PANEL异响

更换电源板/PANEL

遥控失灵

检查遥控器电池是否未安置好或没电

是 否

重新安置或更换电池 用别的遥控器测试是否可用

是 否

更换遥控器 检测IR板是否异常

是

否

更换IR板

19

更换主板

OSD 不稳定或无法正常工作

按键板连接正常吗？

是

按键正常吗？

是

按键板有无故障？

是

检查主板

否

否

否

接好按键板

更换按键

更换按键板

20

5. 软体升级 SOP

请登陆 ftp://cs.tpv.com.cn/
账号: TPVSQZ
密码: TPVZGDLSQZ20090707
到各相应的文件夹下载各相应平台的烧录 SOP。

注:该网址及登陆账号和密码后续都有可能变更，请以技术支持部最新发布的为准。

21

6.电气方框图

6.1 主板

CN104
YPbPr

CN105
AV

SIDE

CN102
S-VIDEO

BACKBACK

CN103
VGA

CN101
AV1

BACK BACK BACK

TU100
Tuner

BACK

IF

RS232

Y,Pb,Pr

CVBS

Y/C

R,B,G,H,V

CVBS

SIF

Himax M2E U400

AINA2,AINB2,AINC2,SOG2

AINA5

AINB4,AINC4

AINA1,AINB1,AINC1

HSYNC,VSYNC

Himax M2E
HDMI/ADC

AINA3

AINC3,AINB3,AIND1

AIN0_FAD,AIN1_FAD

AIND4

ADCINN,ADCINP

Himax M2e
TTL/LVDS/RSDS

Himax M2e U400

CN200
CN408
LVDS I/O

LVDS BUSLVDS BUS

PANEL

RF/IF Tuner Option

RS232

SCL,SDA

U402
EEPROM 24C32

RS232

Himax M2E
MCU

U401
SPI EEROM

Hotel Pin

IR

ADC KEY

Tuner

AV Audio(CN105)

SIF

SIDE

CN104

PC Audio Himax M2E

BACK

YPbPr
Audio(CN100)

SV Audio(CN101

MONO_AUD

COM1_AUL/R

U601
Switch 4052

MUX_AUL/R

P0,P1

RAIN0,LAIN0

RAIN2,LAIN2

RAIN1,LAIN1

Himax M2E U400

U600
APA2071JI-TUG 3.1W

Audio

Himax M2E U400

BACK

IR_DAT

22

Backlight
On/Off,Brightness

L

L

CN600

R

Connector

R

Speaker

CN601
Earphone

SIDE

6.2 主板电源

5VSB

U700

Vcc3sb

U600

U701

Vcc18sb

FB602

FB202

FB104

FB601

FB400

V18AUD

Vcclv

V33ADC

V33SIF

VCC3IO

V33LV

U402

FB200

M2E

HX6210

U601

VCC5

Q701

Power on

VPANEL_IN

Q201

Panel on

U401

U703

FB100

VCC3

V33AUD

FB600

+5VT

23

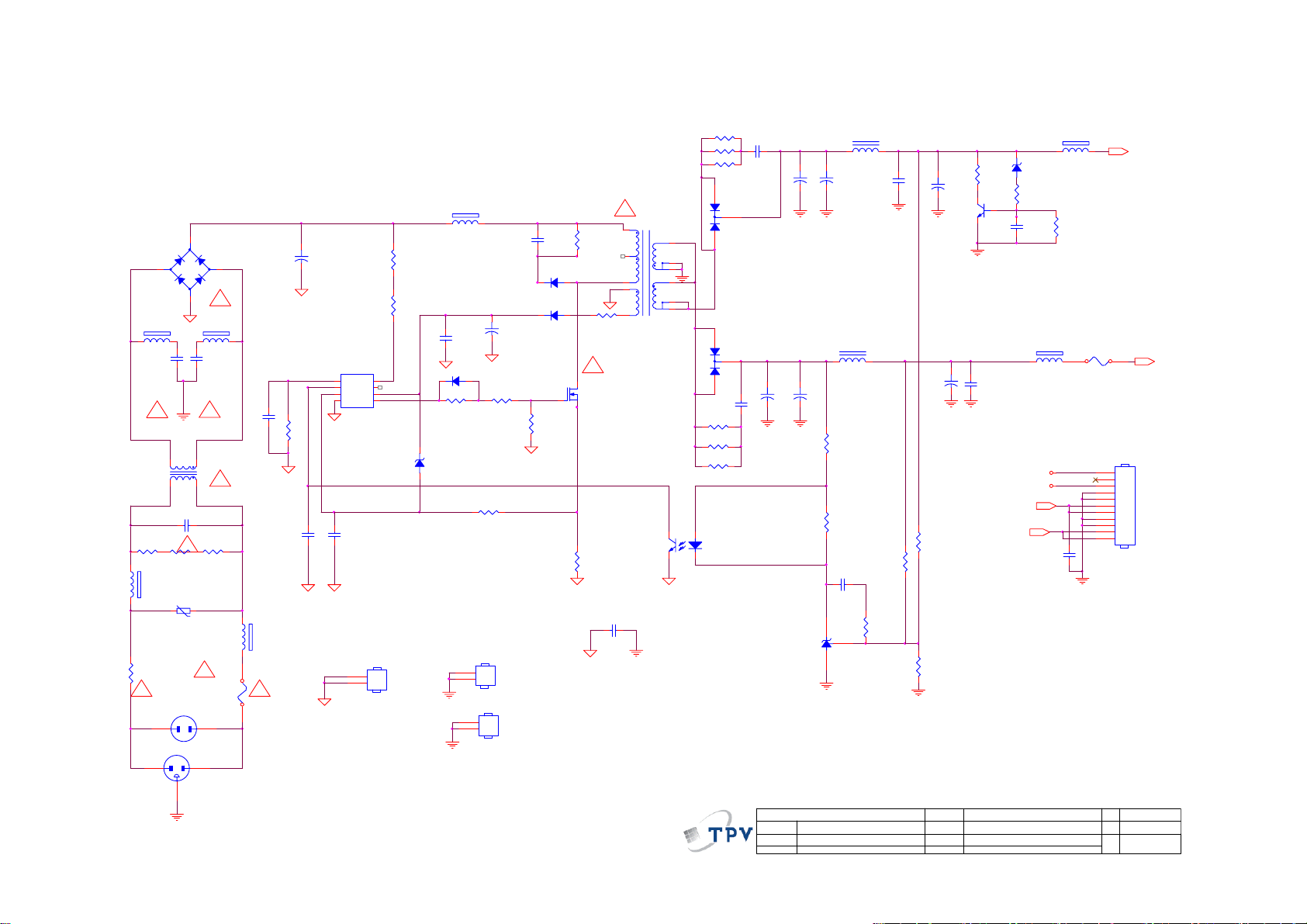

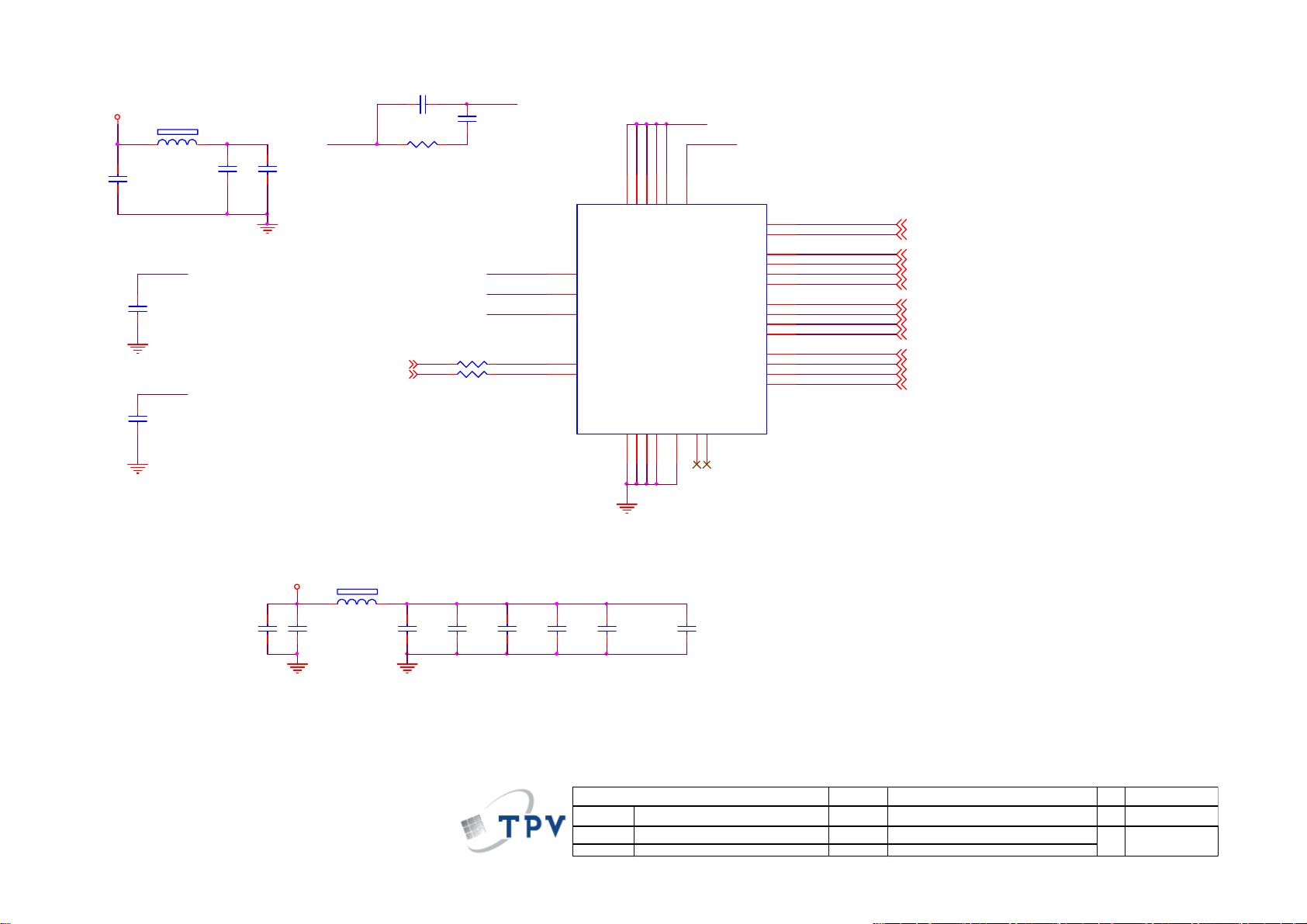

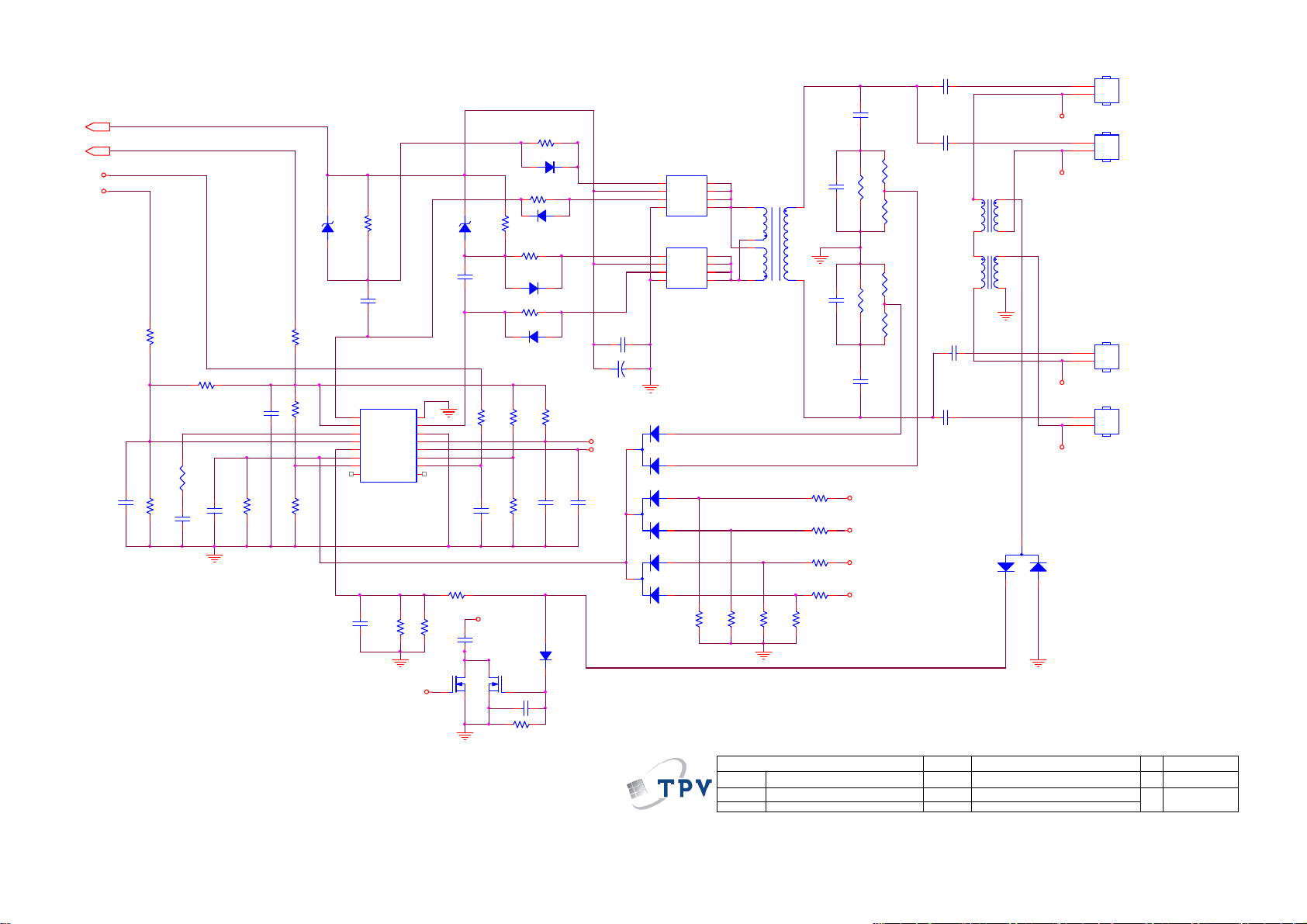

7.线路图

7.1 主板 715G3500M01000004L

VCC12

CN700

BL_ON1

BL-ADJ

H1

1
2
3
4
5
6
7
8
9
10
11
12

GND

GNDP

10K 1/10W 5%

C711

100NF25V

GNDP

Gnd1Gnd2Gnd3Gnd4Gnd5Gnd6Gnd7Gnd8Gnd

9

VCC12 8

CONN 33A3802-12B

BL_ON1

BL-ADJ

R706

C709

NC 0.1uF /16V

5VSB

R711

10K 1/10W 5%

Q704

PMBS3904

H2

Gnd1Gnd2Gnd3Gnd4Gnd5Gnd6Gnd7Gnd8Gnd

9

GND

C700

100NF25V

5VSB

R700

10K 1/10W 5%

R707 NC,

1K 1/16W 5%

Q700

PMBS3904

GNDP

R712

1K 1/16W 5%

H3

H4

Gnd1Gnd2Gnd3Gnd4Gnd5Gnd6Gnd7Gnd8Gnd

9

GND GND

+

GNDP

R708

BL_ON 8

100NF25V

Gnd1Gnd2Gnd3Gnd4Gnd5Gnd6Gnd7Gnd8Gnd

9

C701

470uF/16V

C714

H9

5VSB

100uF/16V

1

C718

+

BL_ADJ 7

VCC12

C713

+

470uF/16V

GNDP

H10

1

VCC3SB

5VSB

Add T he rmal Pa d Add T he rmal Pad

5VSB

C702

100NF25V

5VSB

U700

G1084-33T43Uf

3

VIN

2

VOUT

GND

1

3.3V StandBy

Add Thermal Pad

VCC5

C715

100NF25V

GND

3

+

C720

100uF/16V

AP1117-33

VIN

VCC5

R717

NC 1.8 OH M 3W

1 2

FB700

VCC3SB

300 OHM

1 2

NC 300 OHM

+

C704

C703

100NF25V

100uF/16V

GNDGND GND

FB701

u701

AIC1084-18PM

3

IN

+

C719

100uF/16V

VCC18SB

2

OUT

GND

1

+

100uF/16V

5V to 3.3V to 1.8V

V33_AUD

+

C716

10uF/50V

VCC3

100NF25V

GND

C717

U703

VOUT

VSS

4

1

4

2008-8-19

2

AUDIO 3.3V

C705

VCC18SB

C707

100NF25V

SYS_PW
Normal: Low
Stand_By: High

5V SW

POWER_ON7

SYS_PW
Normal: Low
Stand_By: High

12V SW

POWER_ON7

R710

1K 1/16W 5%

R715

1K 1/16W 5%

5VSB

R704

10K 1/10W 5%

Q703

PMBS3904

5VSB

R716

10K 1/10W 5%

Q707

PMBS3904

R709

1K 1/16W 5%

R714

1K 1/16W 5%

Q701

Q706

VCC5

8

D

7

D

6

D

5

D

GND

8

D

7

D

6

D

5

D

GND

5VSB

1

S

2

R701

22K 1/16W 5%

R705

22K 1/16W 5%

Q702

PMBS3904

GNDGND

VCC12 12VSW

R702

22K 1/16W 5%

R713

22K 1/16W 5%

Q705

PMBS3904

S

3

S

4

G

AO4449 -7A/-30V

C706

100NF25V

1

S

2

S

3

S

4

G

AO4449 -7A/-30V

C712

100NF25V

C708

+

100uF/16V

VCC5

C710

+

100uF/16V

GND

GND

GNDP

T P V ( Top Victory Electronics Co . , Ltd. )

G3500-I-X-X-3-091206

絬 隔 瓜 絪 腹

Key Component

Date

24

GND

OEM MODEL

TPV MOD EL

PCB NAME

Sheet

12V SW

A3

Size

Rev

715G3500M0A001004001)power

11Sunday, December 06, 2009

of

01

称爹

TSC L

TSC L

TSD A

TSD A

GND

TGND

C108
56PF50V

C109
56PF50V

TGND

TGND

RF_AGC

AS_IF

R109

0R05 1/16W

R113 NC

R111
NC

5V for Tuner

12VSW

R105

R128

AGC

TGND

47 OHM 1/2W

47 OHM 1/2W

+5VT

R114
10R 1/16W 5%

R115
10R 1/16W 5%

TGN D

+

C100
100uF/16V

GNDGND

C107

1uF16V

Add T he rmal Pad

U101

AZ1117D-5.0-E1

3

INPUT

C102

0.1uF 50V

R110

1K 1/16W 5%

SCL_A 7

SDA_A 7

IF+OUT

IF-OUT

2

OUTPUT

ADJ/ GND

1

TGN D TGND

+5VT VCC3

R107

1.2K

NC

C110

C113

R112

0.1uF 50V

0.1uF 50V

0.1uF 50V

0.1uF 50V

C103

+

100uF/16V

1

R108
NC

2N7002
Q100

Modify by Trevor Liu suggest
2009/04/21

L100

0OHM

L102

0OHM

FB100
300 OHM

C115

0.1uF 50V

+5VT

TGN D

RFAGC 6

L101
NC

+

C112 NC

C104
220UF16V

C111
0OHM

C114
0OHM

0R05 1/16W

TGND

+5VT

ADS

R101
NC

R104

ANT IN

ADCI NP 6

ADCI NN 6

TUN ER

1

RF_AGC

IF_AGC

RFAGC

TGND

VT

2

C106

1uF16V

TU1 00

VCC3SCL4SDA

+5VT

TSCL

R106

1K 1/16W 5%

AS

5

6

ADS

TSDA

TGND

DIF1

7

IF_TUNER-

C116

NC 1uF16V

DIF28IFAGC

IF_TUNER+

IFAGC 6

NC

9

10

IF_AGC

AS_IF

IF1

IF212NC

11

SIF

SIF 6

15

TH1

16

TH2

17

TH3

18

TH4

NC

13

14

TGND

R216

R195

R185

NC 200OHM

TGND

12VSW

R215

10.2K

L110

2.2uH

R182

NC 1.2K 1/16W

C177

1uF K 25V
Q104
NC

C176
NC 220pF 50V

絬 隔 瓜 絪 腹

Key Component

R197

301 OHM

R199

NC 0R05 1/16W

R183
2K7

T P V ( Top Victory Elec tronics Co . , Ltd. )

G3500-I-X-X-3-091206

02)TUNER

Date

L109

2.2uH

Q103
2SC4215-O

R184
200OHM

C181
10nF 50V

IF-OUT

OEM MODEL

TPV MOD EL

PCB NAME

Sheet

715G3500M0A0010040

22Sunday, December 06, 2009

of

GND

TGND

Size

Rev

称爹

A3

01

<

称爹

>

12VSW

25

R213

R186

301 OHM

0R05 1/16W

R196
0R05 1/16W

IF_TUNER+

C117

1000PF16V

R198

NC 10.2K 1/10W

R180

0R05 1/16W

R179

NC 2K7 1/16W 5%

R192

301 OHM

R191

0R05 1/16W

R190
0R05 1/16W

NC 200OHM

R178

TGND

L107

2.2uH

R181

NC 1.2K 1/16W

C144

1uF K 25V
Q101
NC

C118
NC 220pF 50V

R214

10.2K

301 OHM

R194

NC 0R05 1/16W

R176
2K7

R193

L108

2.2uH

IF+OUT

IF_TUNER-

Q102
2SC4215-O

R177

200OHM

C180
10nF 50V

BJT AMPLIFIER CIRCUIT

C178

1000PF16V

NC 2K7 1/16W 5%

10.2K 1/10W

R187

0R05 1/16W

CVBS_IN

COM1_AULO

COM1_AURO

CVBS & R/L

CN101

A

B

JACK

JACK

S-video

C160

4.7uF 16V

C161

4.7uF 16V

VGA_AUL6

5VSB

SP111

NU,PEAK

UART_TX 7

SP112

NU,PEAK

SP114

NU,PEAK

UART_RX 7

R/G/B : 75 Ohm Trace

GRN

12

GRN_GND

RED

12

RED_GND

BLU

12

BLU_GND

VGA_VIN

VGA_HIN

VGASDA_IN

SP118

NU,PEAK

VGASCL_IN

SP119

NU,PEAK

R144

0R05 1/16W

C156
NC

R160

0R05 1/16W

C157
NC

R161

0R05 1/16W

C158
NC

D102
NC

1 2

D105
NC

1 2

R171

4K7 1/16W 5%

12

R169

100R 1/16W 5%

R170

4K7 1/16W 5%

R168

12

100R 1/16W 5%

R159

100R 1/16W 5%

R152

R147

75R 1/16W 5%

R148

75R 1/16W 5%

R155

75R 1/16W 5%

100R 1/16W 5%

R158

100R 1/16W 5%

R150

100R 1/16W 5%

C159
NC

C162
NC

C166
NC

Near to IC

R149

33R 1/16W 5%

R153

2K2 1/10W 5%

R146

33R 1/16W 5%

R154

2K2 1/10W 5%

VGA_DDCSDA 5

VGA_DDCSCL 5

C164

SOGAIN 5

100pF

C101

GAIN 5

47NF16V

GND

C165

RAIN 5

47NF16V

GND

C163

BAIN 5

47NF16V

GND

VSYNC

VSYNC 5VGA_AUR6

C167
NC

HSYNC

HSYNC 5

C168
NC

JACK

JACK

32

1

65

4

98

7

CN100

SVAV_AUL

2

1

SVAV_AUR

4

3

DIN JACK

SY_GND

SY_IN

CN102

SP100

NC,PEAK

SP101

NC,PEAK

SP102

NC,PEAK

COM1_AULO

COM1_AURO

1

6

SP103

NC,PEAK

Y1_IN

12

Y_GND

PB1_IN

12

PB_GND

PR1_IN

12

PR_GND

12

SP104

NC,PEAK

SC_GND

23

SC_IN

45

R116

0R05 1/16W

C121

C120

NC

NC

R120

0R05 1/16W

C124

C125

NC

NC

R123

0R05 1/16W

C127

C128

NC

NC

COM1AUL

R126

27K 1/10W 5%

COM1AUR

R127

12

27K 1/10W 5%

SP105

NC,PEAK

SP106

NC,PEAK

SP107

NC,PEAK

SVAV_AUL

SVAV_AUR

SP108

NC,PEAK

CVBS_IN

12

CVBS_GND

CVBS_GND

SY_IN

SY_IN

12

SY_GND

SY_GND

SC_IN

SC_IN

12

SC_GND

SC_GND

12

SP109

NC,PEAK

12

R118

75R 1/16W 5%

R122

75R 1/16W 5%

R125

75R 1/16W 5%

Near to IC

L111

2.2uH

C132
NC

R117

100R 1/16W 5%

R119

100R 1/16W 5%

R121

100R 1/16W 5%

R124

100R 1/16W 5%

C129

4.7uF 16V

C130

4.7uF 16V

L103

2.2uH

C179

220pF

L104

2.2uH

C135
NC

C138
NC

R140

27K 1/16W 5%

R141

27K 1/16W 5%

L105

2.2uH

47NF16V

C122

1000pF

47NF16V

47NF16V

18R OHM 1/16W 5%

C133

220pF

18R OHM 1/16W 5%

C136

220pF

18R OHM 1/16W 5%

C139

220pF

Near to IC

C119

C123

C126

C140

4.7uF 16V

C141

4.7uF 16V

Y1 5

SOY1 5

GND

PB1 5

GND

PR1 5

GND

R129

R133

R137

COM1_AUL 6

COM1_AUR 6

R130

100R 1/16W 5%

R131

56 OHM 1/16W

100R 1/16W 5%

R135

56 OHM 1/16W

R138

100R 1/16W 5%

R139

56 OHM 1/16W

SV/AV_AUL 6

SV/AV_AUR 6

VGASDA_IN

VGA_HIN

VGA_VIN

VGASCL_IN

CN104

PHONEJ ACK

C131

C134

R134

C137

100NF25V

11

12

13

14

15

CN103

DSUB15-FEM

VGA PIN DEFIINITION

2 G_OUT
3 B_OUT
4 NC
5 GND

3

2
1

SP113

NU,PEAK

CVBS_1 5

100NF25V

GND

SV_Y 5

100NF25V

GND

SV_C 5

GND

1716

18 19

7 G_GND
8 B_GND
9 +5V(DDC)
10 GND

VGA_AUR_O

VGA_AUL_O

12

12

6
1
7
2
8
3
9
4
10
5

SP110

NU,PEAK

RED_GND
RED
GRN_GND
GRN
BLU_GND
BLU

11 NC6 R_GND1 R_OUT
12 DDC SDA
13 TTL H-S
14 TTL V-S
15 DDC SCL

68K 1/16W 5%

68K 1/16W 5%

ZD602

NC

1 2

08/20

ZD603

NC

1 2

R151

R145

R156

R157

NC

NC

L112

L106

R163

2.2uH

C182

220pF

R167

27K 1/16W 5%

R166

27K 1/16W 5%

18OHM1/16W

C171

220pF

R172
NC

R173
NC

100R 1/16W 5%

R162

56 OHM 1/16W

C172

4.7uF10V

C173

4.7uF10V

2.2uH

12

C170

R164

100NF25V

GND

CVBS_2 5

AU2_L 6

AU2_R 6

T P V ( Top Victory Electronics Co . , Ltd. )

G3500-I-X-X-3-091206

絬 隔 瓜 絪 腹

Key Component

03)VGA/YPbPr/AV/S_VIDEO

Date

OEM MOD EL

TPV MODEL

PCB NAME

Sheet

715G3500M0A0010040

33Wednesday, D ecember 16, 2009

of

A2

Size

Rev

01

<

称爹

>

称爹

26

CN105

AV2

JACK

CVBS2

9

8

CVBS_GND

7

AU2L

6

5

4

AU2R

3

2

1

SP115

NC,PEAK

CVBS2

12

CVBS_GND

AU2L

AU2R

SP116

NC,PEAK

12

NC,PEAK

C169
NC

SP117

VCCLV

C146

100NF25V

FB103

1 2

300 OHM

C147

NC 10uF 16V

ADC _VREF

GND

VMID

C148

100NF25V

GND

AVDD18

C149

NC 10uF 16V

GND

C145

100NF25V

FILT

VGA_DD CSDA4
VGA_DD CSCL4

C142

0.01uF /25V

V33ADC

R142

1K62 1/10W 1%

R102
R103

0R05 1/ 16W
0R05 1/ 16W

C143

100NF25V

FILT

VMID

ADC_VREF

V33ADC

122

108

112

127

103

U400A

107

FILT

109

VMIDS

111

VREF

93

GPIO_47/DSUBDDC_SDA/UART_TX1

94

GPIO_48/DSUBDDC_SCL/UART_RX1

PA6210

GND

VDDP_AD(3.3V)

VDDA_AD(3.3V)

VDDA_AD(3.3V)

VDDD_AD(3.3V)

VDD DP_AD (3.3V)

VSSDP_AD

VSSA_AD

VSSD_AD

VSSA_AD

106

99

110

123

128

AVDD18

100

VDDD(1.8V)

VSSD

101NC102

NC

HSYNC

VSY NC

AINA1
AINB1

SOG1

AINC1

SOG2
AINA2
AINB2
AINC2

AIND1
AINA5
AINB4
AINC4

104
105

113
114
115
116

117
118
119
120

121
124
125
126

CVBS_2

YPBPR_SOY

CVBS_1

SV_C
SV_Y

YPBPR_Y
YPBPR_PB
YPBPR_PR

HSYNC 4
VSYN C 4

BAIN 4
GAIN 4
SOGAIN 4
CVBS_2 4

SOY1 4
CVBS_1 4
SV_C 4
SV_Y 4

Y1 4
PB1 4
PR1 4
RAIN 4

ADC 3.3V POWER

VCC3SB

C174

NC 10uF 16V

Change the capacitor 10uF NC
2009/1/16

FB104

1 2

300 OHM

C150

10uF 16V

V33ADC

V33ADC

100NF25V

GNDGND

C151

C152

100NF25V

C153

100NF25V

C154

100NF25V

絬 隔 瓜 絪 腹

Key Component

C155

C175

NC 10uF 16V

100pF

T P V ( Top Victory Electronics Co . , Ltd. )

G3500-I-X-X-3-091206

04)M2E Analog I/O

Date

27

OE M MOD EL

TPV MO DE L

PCB N AME

Sheet

715G3500M0A0010040

of

44Sunday , Dec ember 06, 2009

Size

Rev

称爹

<

01

称爹

A4

>

R600

SIF3

NC 0R05 1/16W

VRN

C608

100NF25V

VCM_ADC

C618

100NF25V

GND GND

R720 NC 0OHM
R721 NC 0OHM

C607

VRP

C606

100NF25V

C616

100NF25V

VGA_AUR4

VGA_AUL4

AU2_R4

AU2_L4

10uF 16V

GND

AGSCRT

GND

SIF/PIF ADC reference
voltage capacitors

C601

NC 100NF 25V

R601

C600

NC 100NF 25V

NC,

VBG

C610

100NF25V

VREF_AD C

C620

100NF25V

GND

R622 470K 1/16W 5%
R621 470K 1/16W 5%
R624 470K 1/16W 5%
R623 470K 1/16W 5%

U601

12

1Y0

1

2Y0

14

1Y1

5

2Y1

15

1Y2

2

2Y2

11

1Y3

4

2Y3

74HC4052D

SIF1+

SIF1-

R625 470K 1/16W 5%
R626 470K 1/16W 5%

VCC

VEE

GND

1Z

2Z

S0

S1

/E

VCC3SB

GND

Remove 10uF
2009/1/16

Remove 10uF
2009/1/16

5VSB VCC5

R719

NC 0OHM

5VSB

C726

NC 22uF

16

7

8

13

3

10

9

6

Q602

GND

GND

AUDIO 3.3V POWER

FB600

1 2

300 OHM

C628

NC 10uF 16V

Change the capacitor 10uF NC
2009/1/16

VCC3SB

FB601

1 2

300 OHM

C635

10uF 16V

GND

VCC18SB

2.2K 1/16W

C725

NC 100NF 25V

GND

1 2

R718

0R05 1/10W

R628

C6501uF 16V

C652

10uF 16V

R630

10K 1/10W 5%

10K 1/10W 5%

PMBS3904

FB602

300 OHM

VCC5_AUD

GND

C651

10U 16V

R629

100NF25V

GND

GND

R627

2.2K 1/16W

VCC3

V33AUD

C629

V33SIF

C636

100NF25V

100NF25V

GND

AU_MUX_R

AU_MUX_L

S0 8

V18AUD

C646

STYAMP_MUT7

C630

100NF25V

C657

NC 10uF 16V

100NF25V

C647

100pF

10K 1/10W 5%

VCC5_AUD

10K 1/10W 5%

10K 1/10W 5%

V33AUD

V33SIF

V18AUD

C631

10K 1/10W 5%

R612

C656

NC 10uF 16V

R602

R607

4K7 1/16W 5%

Q601

PMBS3904

GND

C638

100uF/16V

SV/AV_AUR4

COM1_AUR4
COM1_AUL4

R604

SV/AV_AUL4

0R05 1/16W

0R05 1/16W

SW_AMP_LIN

NC 0.01uF /25V

SW_AMP_RIN

NC 0.01uF /25V

AU_MUX_R
AU_MUX_L

VREF_AD C
VCM_ADC
AGSCRT
VBG
VRN
VRP

R608

10K 1/10W 5%

C637

C642

GND

ADCI NN3 RFAGC 3
ADCI NP3

R609

R610

R611

1

Q600

2 3

PMBS3906

+

GND

SIF1­SIF1+

GND

U400B

25

ADCINN/PIF_AIN

26

ADCINP/PIF_AIP

4

RAIN0

5

LAIN0

6

RAIN1

7

LAIN1

8

RAIN2

9

LAIN2

11

VREF_AD C

12

VCM

13

AGSCRT

14

VBG

15

VRN

16

VRP

PA6210

GND

R613

10K 1/10W 5%

R614

10K 1/10W 5%

C632

1uF 16V

GND

C633

2.2uF/16V

C634

1uF 16V

C639

1uF 16V

GND

3

C624

33pF

VSS

30

10

17

AVDD_AU ADC(3.3V)

AVDD_AUDAC(3.3V)

AVSS_PL

27

VDDA_SI FADC/PI F_AVDD(3. 3V)

OSCO/PIF_OSCO28OSCI/PIF_OSCI

29

R606

XTAL_O

1M 1/16W 5%

X60 0

24.576MHz

1
2
3
4
5
6
7

SE

31

GPIO_03/PIF _AGC
GPIO_04/PI F_AMP

GPIO_02/SPDIF I

GPIO_40/SPDI FO

VDDD_PL (1.8V)

DAC_LSR

DAC_LSL

PIF_VR EFO

SIF_VC MG/PIF_VCM

SIF_VR EFN/PIF _VR
SIF_VR EFP/PIF_VR

NC1NC

2

XTAL_IN

12

C625

33pF

GNDGND

U600

SHUTDOWN

ROUTP
BYPASS
RINN
GND
GND
LINN
VOLUME
SE/BTL8LOUTP

VDD

ROUTN

GND
GND

LOUTN

VDD

APA2071JI-TUG 3.1W

32
33
34
92

18
19

4K7 1/10W 5%
4K7 1/10W 5%

21

22
23
24

SIF_VREFP

SIF_VREFN

VCC5_AUD

16
15
14
13
12
11
10
9

GND

680P 50V X7R +/-10%
680P 50V X7R +/-10%
680P 50V X7R +/-10%
680P 50V X7R +/-10%

R631
R632

VREFI _PIF

SIF_VCMG
SIF_VR EFN
SIF_VR EFP

100NF25V

C640

100NF25V

C626

C641

GND

C602

GND

R603
R605

GND

C643

SW_AMP_RIN

SW_AMP_LIN

C655
C654
1000pF
1000pF

GND

GND

C612

100NF25V

C623

100NF 25V

+

C627

220uF/16V

C644

0R05 1/16W
0R05 1/16W

C604

100NF25V

C648

+

GND

C614

10uF 16V

R
L

SE

750R 1/10W 5%
750R 1/10W 5%
100R 1/10W 5%
100K 1/10W 5%

5VSB

C649

R

R619

IFAGC 3

C615

100NF25V

R616
R615
R617

R618

4
3
2
1

+

220uF/16V

L

220uF/16V

R620

1K 1/10W 5%
1K 1/10W 5%

1 2

GND

CONN

CN601

5
4
3
2
6
7
1

PHONEJ ACK

SP600
NC

CN600

T P V ( Top Victory Electronics Co . , Ltd. )

G3500-I-X-X-3-091206

絬 隔 瓜 絪 腹

Key Component

Date

28

OEM MODEL

TPV MODEL

PCB NAME

Sheet

715G3500M0A001004005)M2E Audio

of

55Sunday , December 06, 2009

Size

Rev

称爹

A3

01

VCC3SB

CSN
SDO
WP

GND

Modify to VCC3SB
2008/12/22

U401

1

CS#

2

SO

3

W#

4

GND

MX25L4005AM2C-12G

VCC

HOLD#

SCK

SDO
CSN
SCK
SDI
WP

C400

0.22uF

0.22uF

GND
8
7

SCK

6

SDI

5

SI

MCU Code
Storage S PI
EEPROM

VCC3SB

R408

R419

R420
R421

PD0

R424

PD1

R425

System PLL 1.8V POWER

VCC3SB

C645

NC 10uF 16V

1 2

300 OHM

C653

NC 10uF 16V

FB400

VCC3IO

C408 100NF25V

GND

R400

4K7 1/16W 5%

R409

R416

R414

R411

0R05 1/16W

68R 1/16W 5%
0R05 1/16W

0R05 1/16W
0R05 1/16W

RST_N

IRDAT

C409

C410

10K 1/10W 5%

GND

10K 1/10W 5%
10K 1/10W 5%
10K 1/10W 5%
10K 1/10W 5%
10K 1/10W 5%

C411

100NF25V
100NF25V
100NF25V

R432

0.22uF

U402

1

VCC

E0

2

E1

WC

3

SCL

E2

4

VSS

SDA

M24C32-WMN6TP

USER DATA

U400C

79

GPIO_33/SPI_SD I

80

GPIO_34/SPI_C SN

81

GPIO_35/SPI_SC K

82

GPIO_36/SPI_SD O

75

GPIO_30/SPI_W P

85

AIN0_SAD

86

AIN1_SAD

87

AIN2_SAD

88

AIN3_SAD

38

RST_N

37

TSTMD

83

GPIO_39/IR_RX

PA6210

5VSB

1 2

1K 1/16W 5%

C413

10uF 16V

C401

8
7
6
5

VCC3IO

41

VCCIO(3. 3V)

VSS

VSS

40

68

GND

3

D400
BAV99

R434

10K 1/10W 5%

5VSB

R401

4K7 1/16W 5%

MCU_WP
SCL_A
SDA_A

84

78

89

GPIO_00/UA RT_TX0

GPIO_01/UA RT_RX0

GPIO_31/MSDA

VCCIO(3. 3V)

VCCIO(3. 3V)

GPIO_32/MSCL

VDDA_SAR(3.3V)

GPIO_27/PWM_B/D BLC

GPIO_29/PW M_D

GPIO_53/CE C

GPIO_54/H DMIDDC_SDA0

GPIO_55/HD MIDDC_SCL0

VSS

90

123Q400

PMBS3906

R435

100R 1/10W 5%

R436

10K 1/10W 5%

GPIO_52

+

R437

C412

47uF/16V

R412NC 10K 1/10W 5%

R415NC 10K 1/10W 5%

35
36

76
77

73
74

95
96
97
98

5VSB

Modify to VCC3SB
2008/12/22

C416

100pF

Modify for Standby Power ON

LEDG

5VSB

PD0

PD1

R410 4K7 1/10W 5%

R413 10K 1/10W 5%

R407 10K 1/10W 5%

R406 4K7 1/10W 5%

R426
R427
R428
R429

5
6
7
8

RP400

10 KOHM +-5% 1/16W

VCC3SB

R433

5K1 OHM 1/16W 5%

Q403

PMBS3904

C414

NC

IRDAT

R402

10K 1/10W 5%

R403

10K 1/10W 5%

POWER KEY

ADC KEY

UART_TX
UART_RX

R422
R423

BL_ADJ 2
STYAMP_MUT 6

0R05 1/16W
0R05 1/16W
0R05 1/16W

0R05 1/16W
4
3
2
1

RST_N

C415

10uF 16V

VCC3SB

Q401

PMBS3906

1

100R 1/10W 5%

1 2 F B405

1 2 F B406

100R 1/16W 5%
100R 1/16W 5%

MCU _WP

LEDG
LEDY

POWER_ON 2

23

1

R405

VCC3SB

23

Q402

PMBS3906

R404

SDA_A 3
SCL_A 3

5VSB

LED_G

100R 1/10W 5%

300 OHM

300 OHM

R417

10.2K1/10W

FB401
FB403
FB402

FB404

1 2
1 2

1 2
1 2

C402

100pF

100pF

GND

R418

10.2K1/10W

VCC3SB

Modify to VCC3SB
2008/12/22

300 OHM
300 OHM
300 OHM
300 OHM

C403
100pF

100pF

ZD402

GND

CONN

CN401

1
2
3

8
7
6
5
4
3
2
1

CN400

RS-232

IRVCC

IR_D

L_YLEDY LED_Y
L_G
PW

C405

SP402

100pF

100pF

NC

1 2

C406

100pF

UART_RX

UART_TX

ZD400

NC RLZ5.6B

ADC

GND

1 2

ZD404

C404

SP400

SP401

RLZ5.6B

NC

NC

1 2

1 2

1 2

ZD403

RLZ5.6B
RLZ5.6B

1 2

1 2

GND

UART_RX4

UART_TX4

C407

100pF

IRVCC
IR_D
L_G
L_Y

ADC
PW

R430

R431

NC 0R05 1/16W

ZD401

NC RLZ5.6B

1 2

NC 0R05 1/16W

A3

T P V ( Top Victory Electronics C o . , Ltd. )

G3500-I-X-X-3-091206

絬 隔 瓜 絪 腹

Key Component

Date

29

OEM MOD EL

TPV MOD EL

PCB NAME

Sheet

715G3500M0A001004006)M2 E MCU

66Sunday , December 06, 2009

of

Size

Rev

称爹

01

C200

NC 10uF 16V

VCC18SB

FB703

1 2

0_R/1206

FB202

1 2

0_R/1206

C202

NC 10 uF 16V

Change the capacitor 10u F NC
2009/1/16

C727

10uF 16V

GND

PANEL POWER
1>OFF ;
0>ON

PANEL_ON

4K7 1/16W 5%

VCC3SB

1 2

FB200

300 OHM

C208

NC 10uF 16V

Change the capacitor 10uF NC
2009/1/16

GND

VCCLV

C203

100NF 25V

VCCLV

10uF 16V

C728

R200

C204

100NF 25V

C729

10uF 16V

VCC122

100NF 25V

10uF 16V

V33LV

C201

100NF25V

VCCLV

C205

C730

1 2

5VSB

1 2

R205

4K7 1/16W 5%

4K7 1/16W 5%

Q200

PMBS3904

GND

PVDD_LV

C206

100NF 25V

FB702

NC/300 OHM

FB203

300 OHM

R207

PN swap for layout

FRSB2N

FRSB1N

FRSB0N

FRSB2P

FRSB1P

FRSB0P

60

62

64

U400D

C207

100NF 25V

VCC_PANEL_IN VPANEL_IN

R204

4K7 1/16W 5%

Q202

PMBS3904

GND

V33LV

VCCLV

R206

22K 1/16W 5%

FFC CONN

C209

100NF25V

65

LVDS_R SDS_AVDD (3.3V)

53

VDDD_LV(1.8V)

20

VDD(1. 8V)

39

VDD(1. 8V)

67

VDD(1. 8V)

91

VDD(1. 8V)

PA6210

Q201

1

S

2

S

3

S

4

G

AO4449 -7A/-30V

59

61

63

FR SB1P/LVA1P/ER 5

FR SB2P/LVA0P/ER 3

FR SB0N/LVA2N /ER6

FR SB1N/LVA1N /ER4

FR SB2N/LVA0N /ER2

8

D

7

D

6

D

5

D

Panel Power

FRSG2N

58

FR SB0P/LVA2P/ER 7

FRSG2N /LVACKN/EG2

FRSG1P

FRSG2P

FRSG1N

57

56

FRSG1N /LVA3N/EG4

FRSG2P/ LVACKP/EG3

FRSCKN

FRSG0P

FRSG0N

51

55

52

50

FRSG0P/ LVB0P/EG7

FRSG1P/ LVA3P/EG5

FRSG0N /LVB0N/EG6

LVDS_R SDS_AVSS

PVSS_LV

42

54

66

GND

+

GND

CN 408 (For 22")

FRSR1P

FRSR2P

FRSC KP

FRSR2N

FRSR1N

49

48

46

47

45

FR SCLKP/LVB1P

FR SCLKN/ LVB1N

FR SR2P/LVB2P/ EB3

FRSR 2N/LVB2N/ EB2

FRSR 1N/LVBCKN/ EB4

BRSG0P/GPO_12

BRSG0N/ GPO_13

BRSG1P/GPO_14

BRSG1N/ GPO_15

LVDS_R SDS_AVSS

C210

220uF/ 16V

101112131415161718192021222324252627282930

FRSR0P

FRSR0N

44

43

FR SR0P/LVB3P/ EB7

FRSR 0N/LVB3N/ EB6

FRSR 1P/LVBCKP/EB5

Modify to VCC3SB
2008/12/22

69
70
71
72

VCC3SB

123456789

GPO13PVDD_LV
GPO14

R201
R202
R211

R203
R210
R212

10K 1/16W 5%
10K 1/16W 5%
10K 1/16W 5%

0R05 1/16W
0R05 1/16W
0R05 1/16W

FRSB2PTX0AP1
FRSB1PTX1AP1
FRSB0PTX2AP1
FRSG2PTXCKAP1
FRSG1PTX3AP1
FRSG0P
FRSCKP
FRSR2P
FRSR1P
FRSR0P

TX0AP
TX1AP
TX2AP
TXCKAP
TX3AP
TX0BP
TX1BP
TX2BP
TXCKBP
TX3BP

BL_ON 2
PANEL_ON
S0 6

CN2 00 (For 19")

2
4
6

8
10
12
14
16
18
20
22
24
26
28
30

VPANEL_IN

1
3
5
7
9
11
13
15
17
19
21
23
25
27
29

FRSB1N TX1AN1

TX1AN

FRSB0N TX2AN1

TX2AN

FR SG2N TXCKAN1

TXCKAN

FR SG1N TX3AN1

TX3AN
TX0NN
TX1BN
TX2BN
TXCKBN
TX3BN

R208

FRSG0N
FRSCKN
FRSR2N
FRSR1N
FRSR0N

NC,

SELLVDS

R209

NC,

FRSB2N TX0AN1

TX0AN

CONN

GND

VPANEL_I N

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

SELLVDS

TX3AP1

TX3AN1

TXCKAP1

TXCKAN1

TX2AN1

TX2AP1

G3500-I-X-X-3-091206

Tuesday , Dec ember 15, 2009

30

TX0AN1

TX1AP1

TX1AN1

TX0AP1

OEM MODEL

TPV MO DE L

PCB NAME

Sheet

715G3500M0A001004007) M2E LVDS

7

7

of

GND

Size

Rev

称爹

A4

01

7.2 电源板

715G3465P020HV003M

BD901

1

GBU408

+

2

FB904
BEAD

1 2

C901

0.001uF/ 250V

!

30mH

L902

R900

680K OHM 1/4W

12

FB902
BEAD

NR901
NTCR

4.0A/250V

CN901

SOCKET

CN901A

NC

4

3

680K OHM 1/4W

VAR901

-

4

FB903
BEAD

1 2

0.001uF/ 250V

!

1

2

C903

0.47uF/ 275V

R902

!

680KOHM + -5% 1/4W

NC

!

12

12

3

3

!

C902

!

R901

12

C925

0.1UF /25V

FB901
BEAD

F901

!!

FUSE

+

R941
NC

C923
470pF/25V

C905
120uF 450V

1
2
3

IC901

RT
COMP
CS

VCC

GND4OUT

LD7576A

C924
220pF

1
2

8

HV

7

NC

6
5

HS1
HEAT SINK(Q9 01)

R904

8.2K OHM 1/4W

R905

8.2K OHM 1/4W

10 OHM 1/8W

ZD901
NC

1 2

FB905
BEAD

1 2

C919

100N 50V

D909

LL4148

R907

1
2

1
2

C908

+

22uF/50V

R912

22 OHM 1/8W

R922

200 OHM 1/4W

HS2
HEAT SINK (D 904)

HS3
HEAT SINK(D906)

C906
2200pF

D902

FR103

R938
10K 1/8W

R908
100K OHM 2W

D901
FR107

Q901
STP10NK70ZFP

R914

0.39 OHM +- 5% 2WS

C931

0.001uF/ 250V

R909

3.3 OHM 1/4W

!

0R05 1/4W 5%

!

T901

80TL19T 33 S

4

5

6
2

3

POWER X'FMR

0R05 1/4W 5%

0R05 1/4W 5%

0R05 1/4W 5%

IC903

PC123X2YFZ OF

31

R918

R919

0R05 1/4W 5%

R920

0R05 1/4W 5%

8

9
10

7

11
12

R935

R903

R934

43

FB906

C921

0.001uF

D906

1

SP20150R

2

3

D904

1

SP10100

2

3

1000uF 16V

C929

0.001uF

12

+

C917
1000uF 25V

C914

C930

+

+

1000uF 16V

IC902

KIA431

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

01.POWER

Date

+

C918
1000uF 25V

L903

3.5uH

R925
150R 1/8W

R924
1K 1/4W

C912

0.022uF/ 25V

L904

3.5uH

C920

0.1uF

R927

3.6K OHM 1% 1/8W

R928

0OHM 1/8W

C922

+

470uF 25V

Q903

KTD1028

+

C915

470uF 16V

R929
33K OHM 1% 1/ 8W

R930

2.43KOHM + -1% 1/8W

OEM MO DEL

TPV MO DEL

715G3465-1

PCB NAME

Sheet

12Thursday , April 02, 2009

R940

150 OHM 2W

C916

0.1uF

of

+12V

BEAD

1 2

ZD920
RLZ13B

R943
470 OHM +- 5% 1/4W

R936

C932

0.001uF

1K 1/4W

FB907
BEAD

1 2

DIM

ON/OFF

+5V

JUMP

C927

0.1uF

F903

10
11

Size

Rev

称爹

+12V

+5V

CN902

1
2
3
4
5
6
7
8
9

CONN

A3

1

称爹

>

<

+12V

+5V

ON/OF F

DIM

R813
470K 1/8W 5%

C803
NC

R815
NC

C804

1UF 16V

R814
NC

1UF16V

R816
10K 1/10W 1%

C805

0.01uF

R802
22R 1/8W

C806

R817
1M 1/10W 5%

ZD802
RLZ5.6B

1 2

R818

75K 1/10W 5%

R819

100K 1/10W 5 %

33NF 50V

5K1 1/10W

1
2
3
4
5
6
7

C813

C801

0.047uF

IC801

DRV1

PGND

VDDA

DRV2

TIME R

GNDA

DIM

CT

ISEN

SSTCMP

VSEN

LCT

OVPT

ENA

NC18NC2

OZ9938GN

R823

390R 1/10 W 1%

SST

16
15
14
13
12
11
10
9

R824

6.2K 1/1 0W

Q802

RK7002

ZD803
RLZ5.6B

1 2

C802

0.047uF

R820
10K 1/8W 5%

C807

0.01uF

R825
510R 1/1 0W

CT

C814
390P 50V

R805

100R 1/ 10W 5%

D801

R806 100R 1/10W 5%

R804 5K1 1/10WR803

R807 100R 1/10 W 5%

D803

R808 100R 1/ 10W 5%

D804

R822

R821

20K OHM 1% 1/8W

1M 1/8W 5%

C808
180K 1/10W

C809
560pF50V

D805

Q803

RK7002

C815

0.047uF

R826

1M 1/10W 5%

D802

CT
SST

C810

0.047uF

C811

0.1uF

+

C812

1000uF 25V

3

3

3

D806

D807

D808

10K 1/10W 5%

Q805

4

G

3

S

2

G

1

S

AM4502C-T1-PF

Q806

4

G

3

S

2

G

1

S

AM4502C-T1-PF

BAV70

1

2

BAV70

1

2

BAV70

1

2

R842

5

D

6

D

7

D

8

D

5

D

6

D

7

D

8

D

R843

10K 1/10W 5%

絬 隔 瓜 絪 腹

Key Component

PT802

6

2
5

1

R844

10K 1/10W 5%

T P V ( Top Victory Electronics Co . , Ltd. )

Date

7

POWER X'FMR

8

R838 1M 1/10W 5%

R839 1M 1/10W 5%

R840 1M 1/10W 5%

R841 1M 1/10W 5%

R845

10K 1/10W 5%

02.INVERTER

C823

0.01uF

C825

0.01uF

LV2

LV1

LV3

LV4

C816
27PF 6KV

R832

20K

R835

20K

C824
27PF 6KV

C819
56pF3KV

C820
56pF3KV

R827

20K

R831

24KOHM +-5% 1/10W

R834

15KOHM +-5% 1/10W

R833

20K

56pF3KV

OEM MO DEL

TPV MODEL

PCB NAME

Sheet

124

L

124

L

C821
56pF3KV

C822

L801

3

L802

3

2

715G3465-1

of

22Wednesda y, April 01, 2009

1

CN801

2

CONN

LV1

1

CN802

2

CONN

LV2

1

CN803

2

CONN

LV3

1

CN804

2

CONN

LV4

3

D809

1

BAV99

Size

Rev

称爹

B

1

<

称爹

>

32

7.3 按键板

715G3513K01000001S

R01

20K OHM 1% 1/10W

R02

8.2K1/10W 1%

C01

NC

C02

NC

SW01

SW

SW02

SW

VOL+

VOL-

~2.589V

~2.070V

CN01

1
2
3
4

CONN

33G3802 4H

3V3_STB

C08

NC

FUNC_KEY
PWR-SW

R09

NC 10.2K1/10W

FUNC_KEY

PWR-SW

3V3_STB

R10

NC

R07

100R 1/ 10W 1%

R08

100 OHM 1% 1/10W

R03

4.32K 1% 1/10W

R04

2.74K 1% 1/10W

R05

1.8K OHM 1% 1/ 10W

C03

NC

C04

NC

C05

NC

C06

NC

C07

NC

SW03

SW

SW04

SW

SW05

SW

SW06

SW07

SW

77G 603 AI HJ

CH+

CH-

MENU

Source Select

Power ON/OFF

~1.543V

~1.032V

~0.518V

~0.032V

称爹

<

Custom

B

>

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

02-Keypad

33

OEM MO DE L Size

TPV MOD EL

PCB NAME

Sheet

715G3513

of

22Thursday, May 07, 2009

Rev

称爹

7.4 IR 板

715T2995 1

CONN

5
4
3
2
1

CN01

LED_R
LED_G
IRRV

VCC

U01

VCC

GND

VOUT

KSM-2003TN2E

VCC

2

3
2
1

R01

15K OHM 1/10W

IRRV

C01

0.1uF

1

LED01

GREEN

4

3

LED

RED

LED_G

LED_R

34

8. BOM

注意: 以下料件信息仅供参考，如有变更，恕不另行通知，请到 http://cs.tpv.com.cn 获取最新信息。

L19DH83 E1992ANDW1A7NN

点位 组件

036T 600 18133 NONWOVEN FABRTC
041G 68508 A CONTROL CARD
044G6002120106 PAPER BOARD
045G 77501 BARCODE RIBBON
049G 51 1A ERADICATOR
050G 600 2 HANDLE1
050G 600 3 HANDLE2
052G 1150 C INSULATING TAPE
052G 1186 SMALL TAPE
052G 2191 A PAPER TAPE
089G 725GAA DB D-SUB CABLE

E08901 089G214A18N IS POWER CORD 1.8M FA37B201312180TP 2nd source
E08901 089G214A18N YH POWER CORD

E09502 095G8014 8WH44

E09501 095G8018 3DH67 LVDS CABLE 30P-30P 120MM

E09501 095G8018 3XH67 LVDS CABLE 30P-30P 120MM 2nd source

098TRABD2NCACC REMOTE CONTROL RL57C
0M1G 930 8 47 CR3 SCREW
0M1G1730 8120 SCREW
0M1G1730 8120 SCREW
0M1G1730 10120 SCREW 42A9930016
0M1G6090 1 SCREW
0Q1G 930 8 47 CR3 SCREW
0Q1G 940 10 47 CR3 SCREW
0Q1G1840 10120 SCREW
705TQ933907 PLASTIC ASS`Y
0Q1G 930 6120 SCREW 3X6MM
A33E0305 QV 1L0200 BUTTON_FUNC
A33E0688 GMA1L0100 KEY COVER
705TQ934947 REAR COVER ASS`Y
A34E1321 GM 1L0130 REAR COVER 19'
P15G8299 1 BKT-VESA
Q36T 600 37 6 GP NONWOVEN FABRIC
705TQ934948 STAND ASS`Y
0M1G1740 10225 CR3 SCREW
A34E0524 GM 1L0100 STAND
A34E0525 GM 1L0133 BASE_S1
A37T0056012 HINGE ASS'Y
Q12G6600 6 FOOT
705TQ934990 BEZEL ASS'Y
036T 600 18111 NONWOVEN FABRTC

HARNESS
8P(2008)-5P(A1253HA)+4P(2008)

35

对象描述

工程图号

2nd source

0Q1G1830 8120 SCREW(3X8) 42A9230001
A33E0306 1 1C0100 POWER LENS_A1
A33E0310 ED 1C0100 IR LENS
A34E1320 GME1L0130 BEZEL TV19W-09
Q36T 600 35 3 GP NONWOVEN FABRIC
705TQ949001 COMSUPTIVE ASS'Y-A4
049G 51 1A ERADICATOR
052G 2191 A PAPER TAPE
750TVV185B1111N000 PANEL TPM185B1-L01 C1A FQ TPV
756TQ9CB AD234 01 MAIN BOARD-CBPF9A5DQ1

U401 056G1133923 IC MX25L4005AM2C-12G SOP-8

SMTF-U401 100TAHV9001D21 MCU ASS'Y-056G1133923

A15T0797101 HINGE BKT-185
AM1G1740 12225 CR3 SCREW
040G 45762412B CBPC LABEL

CN600 033G3802 4B Y W WAFER
CN401 033G3802 8B Y W CONNECTOR
CN700 033G380212B Y WAFER
CN200 033G8027 30 WAFER 30P 2.0MM DIP DUAL ROW
CN600 033T3802 4B Y CONNECTOR

U600 056G 616 51 IC APA2071JI-TUG 3.1W DIP-16
R128 061G 208470 64 RST MOFR 47OHM +-5% 1W

R105 061G 208470 64 RST MOFR 47OHM +-5% 1W
CN101 088G 78 1357S RCA JACK 1*1 W+R V/A
CN100 088G 78 13930 S RCA JACK 2*3 G/B/R+Y/W/R V/A
CN601 088G 30211K PHONE JACK 5PIN
CN101 088T 78 1357C RCA JACK 1*1 W+R V/A
CN105 088T 7813C19C RCA JACK 1*3 R/W/Y
CN102 088T 100 15 ST MINI DIN JACK 4PIN V/A
CN104 088T 30252C PHONE JACK 3.5MM 3P V/A GREEN
CN104 088T 302A17 YG PHONE JACK 3.5MM 3P V/T GREEN
CN103 088T 35315F VC D-SUB 15PIN VERTICAL CONNECTOR

CN103 088T 35315F VD

X600 093G 2270B H XAT024576FK1H-3OHX AT-49 24.576MHZ

TU100 094G PALALL 4L TUNER TCL F18CPNK-2-E

C716 067G 305100 7T 105 摄氏度 10UF +-20% 50V

C100 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C103 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C638 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C703 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C705 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C708 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C710 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C718 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C719 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C720 067G 3051014CT EC 100UF 25V KM 6.3X11MM

D-SUB 15PIN FEMALE VERTICAL WITH
SCREW

36

C210 067G 305221 3T 220UF/16V

C627 067G 305221 3T 220UF/16V

C648 067G 305221 3T 220UF/16V

C649 067G 305221 3T 220UF/16V

C104 067G 3052213PT EC 220UF 16V 6.3¦µ*11MM

C412 067G 305470 3T 47UF +-20% 16V

C713 067G 305471 3T 105 摄氏度 470UF +-20% 16V

C701 067G 305471 3T 105 摄氏度 470UF +-20% 16V

040G 457624 1B LABEL-CPU
U400 056G 562590 IC HX6210-B00MQAG QFP128 1920*1080
U701 056G 563 34 IC AIC1084-18PMTR-R AIC
U700 056G 563 75 G1084-33T43UF TO-252
U101 056G 585 11 IC AZ1117D-5.0-E1 AAC
U703 056G 585 4A IC AP1117E33L-13
U601 056G 614 1 74HC4052D S016 PHLIPS
U402 056G113353A IC M24C32-WMN6T SO-8 ST
U401 056G1133923 IC MX25L4005AM2C-12G SOP-8
Q707 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q602 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q705 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q704 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q703 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q702 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q700 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q601 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q403 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q200 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q202 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q400 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q401 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q402 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q600 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q102 057G 761513 TRA 2SC4215-O 20MA/40V TOSHIBA
Q103 057G 761513 TRA 2SC4215-O 20MA/40V TOSHIBA
Q201 057G 763 79 FET AO4449 -7A/-30V SOIC-8
Q701 057G 763 79 FET AO4449 -7A/-30V SOIC-8
Q706 057G 763 79 FET AO4449 -7A/-30V SOIC-8

RP400 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W

R196 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R195 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R191 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R190 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R187 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R180 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R211 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R425 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R424 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO

37

R421 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R419 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R202 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R201 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R161 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R160 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R144 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R123 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R120 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R116 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R109 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R104 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R103 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R102 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R426 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R427 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R428 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R429 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R602 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R603 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R604 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R605 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R115 061G0402100 RST CHIPR 10 OHM +-5% 1/16W
R114 061G0402100 RST CHIPR 10 OHM +-5% 1/16W
R423 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R422 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R169 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R168 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R159 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R158 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R152 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R150 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R117 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R119 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R121 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R124 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R130 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R134 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R138 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R164 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R715 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R714 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R110 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R106 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R712 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R710 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R709 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W

38

R708 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R434 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R203 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R210 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R212 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R606 061G0402105 RST CHIPR 1MOHM +-5% 1/16W
R129 061G0402180 RST CHIP 18R 1/16W 5%
R133 061G0402180 RST CHIP 18R 1/16W 5%
R137 061G0402180 RST CHIP 18R 1/16W 5%
R163 061G0402180 JF RST CHIPR 18 OHM +-5% 1/16W FENGHUA

R177 061G0402201 JF

R184 061G0402201 JF

R627 061G0402222 JF

R628 061G0402222 JF

R206 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W
R701 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W
R705 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W
R702 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W
R713 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W
R183 061G0402272 JT RST CHIP 2K7 1/16W 5% TZAI YUAN
R176 061G0402272 JT RST CHIP 2K7 1/16W 5% TZAI YUAN
R192 061G04023010FF RST CHIP 301OHM 1% 1/16W FENGHUA
R193 061G04023010FF RST CHIP 301OHM 1% 1/16W FENGHUA
R197 061G04023010FF RST CHIP 301OHM 1% 1/16W FENGHUA
R216 061G04023010FF RST CHIP 301OHM 1% 1/16W FENGHUA
R146 061G0402330 RST CHIPR 33 OHM +-5% 1/16W
R149 061G0402330 RST CHIPR 33 OHM +-5% 1/16W
R170 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R171 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R200 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R204 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R205 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R207 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R400 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R401 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R607 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W

R626 061G0402474 JF

R625 061G0402474 JF

R624 061G0402474 JF

R623 061G0402474 JF RST CHIP 470KOHM 5% 1/16W

RST CHIPR 200 OHM +-5% 1/16W
FENGHUA

RST CHIPR 200 OHM +-5% 1/16W
FENGHUA

RST CHIPR 2.2KOHM +-5% 1/16W
FENGHUA

RST CHIPR 2.2KOHM +-5% 1/16W
FENGHUA

RST CHIP 470KOHM 5% 1/16W
FENGHUA

RST CHIP 470KOHM 5% 1/16W
FENGHUA

RST CHIP 470KOHM 5% 1/16W
FENGHUA

39

FENGHUA

R622 061G0402474 JF

R621 061G0402474 JF

R433 061G0402512 RST CHIP 5K1 1/16W 5%
R139 061G0402560 RST CHIP 56R 1/16W 5%
R135 061G0402560 RST CHIP 56R 1/16W 5%
R131 061G0402560 RST CHIP 56R 1/16W 5%
R162 061G0402560 JW RST CHIP 56R 1/16W 5% WALSIN
R162 061G04025609FT RST CHIP 56R 1/16W 1%
R420 061G0402680 RST CHIP 68R 1/16W 5%
R145 061G0402683 JF RST CHIPR 68KOHM 55 1/16W FENGHUA
R151 061G0402683 JF RST CHIPR 68KOHM 55 1/16W FENGHUA
R118 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R122 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R125 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R147 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R148 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R155 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
C111 061G0603000 RST CHIP MAX 0R05 1/10W
C114 061G0603000 RST CHIP MAX 0R05 1/10W
R112 061G0603000 RST CHIP MAX 0R05 1/10W
R718 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R617 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R435 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R405 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R404 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R619 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R620 061G0603102 RST CHIPR 1K OHM +-5% 1/10W

R213 061G06031022FF

R214 061G06031022FF

R215 061G06031022FF

R402 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R403 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R407 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R408 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R716 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R711 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R706 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R704 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R700 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R614 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R613 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W

RST CHIP 470KOHM 5% 1/16W
FENGHUA

RST CHIP 470KOHM 5% 1/16W
FENGHUA

RST CHIPR 10.2KOHM +-1% 1/10W
FENGHUA

RST CHIPR 10.2KOHM +-1% 1/10W
FENGHUA

RST CHIPR 10.2KOHM +-1% 1/10W
FENGHUA

40

R612 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R611 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R610 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R609 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R608 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R437 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R436 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R432 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R416 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R414 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R413 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R411 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R409 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R630 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R629 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R618 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W
R142 061G0603162 1F RST CHIPR 1.62 KOHM +-1% 1/10W
R154 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W
R153 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W
R127 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W
R126 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W
R141 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA
R140 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA
R166 061G0603273 JT RST CHIP 27K 1/10W 5% TZAI YUAN
R167 061G0603273 JT RST CHIP 27K 1/10W 5% TZAI YUAN
R406 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R410 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R631 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R632 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R615 061G0603751 RST CHIPR 750 OHM +-5% 1/10W
R616 061G0603751 RST CHIPR 750 OHM +-5% 1/10W

L100 061G0805000 RST CHIP MAX 0R05 1/8W

L102 061G0805000 RST CHIP MAX 0R05 1/8W
R418 061T0603102 2F RST CHIPR 10.2 KOHM +-1% 1/10W
R417 061T0603102 2F RST CHIPR 10.2 KOHM +-1% 1/10W
C155 065G040210131J A CAP 0402 100PF J 50V NPO
C164 065G040210131J A CAP 0402 100PF J 50V NPO
C402 065G040210131J A CAP 0402 100PF J 50V NPO
C403 065G040210131J A CAP 0402 100PF J 50V NPO
C404 065G040210131J A CAP 0402 100PF J 50V NPO
C405 065G040210131J A CAP 0402 100PF J 50V NPO
C406 065G040210131J A CAP 0402 100PF J 50V NPO
C407 065G040210131J A CAP 0402 100PF J 50V NPO
C416 065G040210131J A CAP 0402 100PF J 50V NPO
C647 065G040210131J A CAP 0402 100PF J 50V NPO
C122 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C654 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%

41

C655 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C142 065G040210322K Y CAP CHIP 0402 10N 25V X7R +/-10%
C152 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C153 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C154 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C170 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C201 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C203 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C204 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C205 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C151 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C148 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C146 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C145 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C143 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C137 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C134 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C131 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C712 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C711 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C707 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C706 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C704 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C702 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C700 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C646 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C636 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C631 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C630 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C629 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C626 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C623 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C620 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C618 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C616 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C615 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C612 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C610 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C608 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C209 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C408 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C409 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C410 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C207 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C206 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C602 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C411 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z

42

C606 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C604 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C717 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C715 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C714 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C625 065G040233031J A CAP 0402 33PF J 50V NPO
C624 065G040233031J A CAP 0402 33PF J 50V NPO
C165 065G040247312K Y CAP CHIP 0402 47NF 16V X7R
C163 065G040247312K Y CAP CHIP 0402 47NF 16V X7R
C126 065G040247312K Y CAP CHIP 0402 47NF 16V X7R
C123 065G040247312K Y CAP CHIP 0402 47NF 16V X7R
C119 065G040247312K Y CAP CHIP 0402 47NF 16V X7R
C101 065G040247312K Y CAP CHIP 0402 47NF 16V X7R
C108 065G040256031J Y CAP CHIP 0402 56PF 50V NPO +/-5%
C109 065G040256031J Y CAP CHIP 0402 56PF 50V NPO +/-5%
C640 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C641 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C643 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C644 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C178 065G060310231J A CAP 0603 1NF J 50V NPO
C117 065G060310231J A CAP 0603 1NF J 50V NPO
C180 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C181 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C102 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C110 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C113 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C115 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C177 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R
C144 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R
C650 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R
C639 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R
C634 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R
C632 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R
C107 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R
C106 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R
C106 065G060310512K M CAP 0603 1UF 10% 16V X7R
C107 065G060310512K M CAP 0603 1UF 10% 16V X7R
C632 065G060310512K M CAP 0603 1UF 10% 16V X7R
C634 065G060310512K M CAP 0603 1UF 10% 16V X7R
C639 065G060310512K M CAP 0603 1UF 10% 16V X7R
C650 065G060310512K M CAP 0603 1UF 10% 16V X7R
C144 065G060310512K M CAP 0603 1UF 10% 16V X7R
C177 065G060310512K M CAP 0603 1UF 10% 16V X7R
C106 065G060310512K T CAP CHIP 0603 1UF K 16V X7R
C107 065G060310512K T CAP CHIP 0603 1UF K 16V X7R
C632 065G060310512K T CAP CHIP 0603 1UF K 16V X7R
C634 065G060310512K T CAP CHIP 0603 1UF K 16V X7R

43

C639 065G060310512K T CAP CHIP 0603 1UF K 16V X7R
C650 065G060310512K T CAP CHIP 0603 1UF K 16V X7R
C144 065G060310512K T CAP CHIP 0603 1UF K 16V X7R
C177 065G060310512K T CAP CHIP 0603 1UF K 16V X7R
C133 065G0603221 32 CHIP 220PF 50V X7R
C136 065G0603221 32 CHIP 220PF 50V X7R
C139 065G0603221 32 CHIP 220PF 50V X7R
C179 065G0603221 32 CHIP 220PF 50V X7R
C182 065G0603221 32 CHIP 220PF 50V X7R
C171 065G060322131J Y CAP CHIP 0603 220P 50V NPO +/-5%
C400 065G0603224 32 CHIP 0.22UF 50V X7R
C401 065G0603224 32 CHIP 0.22UF 50V X7R
C172 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R
C173 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R
C200 065G080510615K T CHIP 10UF 16V X5R 0805
C202 065G080510615K T CHIP 10UF 16V X5R 0805
C413 065G080510615K T CHIP 10UF 16V X5R 0805
C415 065G080510615K T CHIP 10UF 16V X5R 0805
C607 065G080510615K T CHIP 10UF 16V X5R 0805
C614 065G080510615K T CHIP 10UF 16V X5R 0805
C635 065G080510615K T CHIP 10UF 16V X5R 0805
C727 065G080510615K T CHIP 10UF 16V X5R 0805
C728 065G080510615K T CHIP 10UF 16V X5R 0805
C729 065G080510615K T CHIP 10UF 16V X5R 0805
C730 065G080510615K T CHIP 10UF 16V X5R 0805
C150 065G080510615K T CHIP 10UF 16V X5R 0805
C652 065G080510615K T CHIP 10UF 16V X5R 0805
C651 065G080510615K T CHIP 10UF 16V X5R 0805
C633 065G0805225 12 CAP CHIP 0805 2.2UF K 16V X7R
C129 065G080547517Z T CAP CHIP 0805 4.7UF K 16V Y5V
C130 065G080547517Z T CAP CHIP 0805 4.7UF K 16V Y5V
C140 065G080547517Z T CAP CHIP 0805 4.7UF K 16V Y5V
C141 065G080547517Z T CAP CHIP 0805 4.7UF K 16V Y5V
C160 065G080547517Z T CAP CHIP 0805 4.7UF K 16V Y5V
C161 065G080547517Z T CAP CHIP 0805 4.7UF K 16V Y5V

FB406 071G 56G301 EA BEAD 300 欧
FB405 071G 56G301 EA BEAD 300 欧
FB404 071G 56G301 EA BEAD 300 欧
FB403 071G 56G301 EA BEAD 300 欧
FB402 071G 56G301 EA BEAD 300 欧
FB401 071G 56G301 EA BEAD 300 欧
FB100 071G 56G301 EA BEAD 300 欧
FB703 071G 57G301 EA CHIP BEAD
FB203 071G 57G301 EA CHIP BEAD
FB701 071G 57G301 EA CHIP BEAD
FB602 071G 57G301 EA CHIP BEAD
FB601 071G 57G301 EA CHIP BEAD

44

FB600 071G 57G301 EA CHIP BEAD
FB400 071G 57G301 EA CHIP BEAD
FB202 071G 57G301 EA CHIP BEAD
FB200 071G 57G301 EA CHIP BEAD
FB104 071G 57G301 EA CHIP BEAD
FB103 071G 57G301 EA CHIP BEAD

L103 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

L104 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

L105 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

L106 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

L107 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

L108 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

L109 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

L110 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

L111 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

L112 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE
D400 093G 64 33 DIO SIG SM BAV99 (PHSE)R

ZD402 093G 39S 24 T RLZ 5.6B LLDS
ZD403 093G 39S 24 T RLZ 5.6B LLDS
ZD404 093G 39S 24 T RLZ 5.6B LLDS

715G3500M01000004L TV MAIN-PCB FR-4 193X159X1.6MM DS
PWTV9C41MYK1 POWER BOARD G3465-2-X-X-11-090611
040G 45762412B CBPC LABEL

GND 009G6005 1 GP GROUND TERMINAL

CN804 033G8021 2E U INVERT CONNECTOR
CN803 033G8021 2E U INVERT CONNECTOR
CN802 033G8021 2E U INVERT CONNECTOR
CN801 033G8021 2E U INVERT CONNECTOR
CN804 033G8021 2E XY CONNECTOR
CN803 033G8021 2E XY CONNECTOR
CN802 033G8021 2E XY CONNECTOR
CN801 033G8021 2E XY CONNECTOR

051G 6 4503 GLUE_RTV

IC903 056G 139 3A IC PC123Y22FZ0F

NR901 061G 5810T

C903 063G107K474 6S CAP X2 0.47UF K 275VAC
C822 065G 3J5606ET CAP CER 56PF J 3KV
C821 065G 3J5606ET CAP CER 56PF J 3KV
C820 065G 3J5606ET CAP CER 56PF J 3KV
C819 065G 3J5606ET CAP CER 56PF J 3KV
C824 065G 6J2706ET CAP CER27PF 5% SL 6KV TDK
C816 065G 6J2706ET CAP CER27PF 5% SL 6KV TDK
C931 065G306M1022BM Y1.CAP.001UF 250VAC MURATA
C902 065G306M1022BP 1000PF Y1.CAP
C901 065G306M1022BP 1000PF Y1.CAP
C905 067G 40Z12115A CAP 105C 120UF M 450V

RST NTCR 8 OHM +-20% 4A 13MM
THINKING

45

C905 067G 40Z12115L EC 120UF 450V M 20*40MM
C812 067G215C4714HV EC 470UF 25V 10*13
C922 067G215D4714LV LOW ESR EC 470UF 25V M 10*16MM
C914 067G215P1023AV CAP 105℃ 1000UF M 16V
C930 067G215P1023AV CAP 105℃ 1000UF M 16V
C918 067G215P1024AV CAP 105℃ 1000UF M 25V
C917 067G215P1024AV CAP 105℃ 1000UF M 25V
C915 067G215P4713AV CAP 105℃ 470UF M 16V
C922 067G215P4714AV CAP 105℃ 470UF M 25V
C914 067G215S1023LV LOW ESR EC 1000UF 16V M 10*20MM
C930 067G215S1023LV LOW ESR EC 1000UF 16V M 10*20MM
C917 067G215S1024LV LOW ESR EC 1000UF 25V M 12.5*20MM
C918 067G215S1024LV LOW ESR EC 1000UF 25V M 12.5*20MM
C915 067G215S4713LV LOW ESR EC 470UF 16V M 10*12.5MM

FB901 071G 55 21 FERRITE BEAD
FB902 071G 55 21 FERRITE BEAD
FB905 071G 55 21 FERRITE BEAD

L801 073G 174 35 HA IND FILTER 200MH+-25% DADON

L802 073G 174 35 HA IND FILTER 200MH+-25% DADON

L902 073G 174 65 S2 LINE FILTER 30MH MIN

L903 073G 253 91 H CHOKE COIL

L904 073G 253 91 H CHOKE COIL

T901 080GL19T 33 S1 X'FMR 530UH

PT802 080TL22T 4 H X'FMR INVERTER 775MH

PT802 080TL22T 4 DN X'FMR 775MH TK.2001Y.101
CN901 087G 501 47 S AC SOCKET 2PIN + 2 SCREW HOLE
CN901 087G 501 47 DL AC SOCKET 2PIN + 3 SCREW HOLE
BD901 093G 5046016A DIODE BRIDGE T4KB80 ZHONGHUAN
BD901 093G 50460900 BRIDGE 4A/800V GBU408 LITEON
CN902 095G 82011W513 HARNESS 11P(SAN)-12P(PLUG) 200MM
CN902 095G 82011X513 HARNESS 11P(SAN)-12P(PLUG) 200MM

0Q1G 340 8106 CR3 SCREW
705GA793001 D904 ASS'Y
051G 200 1 OIL FOR DISAPPEAR

HS2 090G6064 1 HEAT SINK
D904 093G 60250 FCH10U10
D904 093G 60267 SP10100
D904 093G 60500 FMEN210A TO-220 SANKEN

0M1G1730 8120 SCREW
705TQ757019 Q901 ASS'Y
051T 200 1 OIL FOR DISAPPEAR

Q901 057G 667 21 STP10NK70ZFP

0M1G1730 8120 SCREW

HS1 Q90T6064 5 GP HEATSINK

705TQ951005 OIL FOR DISAPPEAR
051G 200 1 OIL FOR DISAPPEAR
705TQ993018 D906 ASS'Y

46

051T 200 1 OIL FOR DISAPPEAR

D906 093G 60522 DIODE MBR10150FCT PANJIT

0M1G1730 8120 SCREW

HS3 Q90T0179 1 HEAT SINK

709T3465 QM001 CONSUMPTIVE ASS'Y
052G 2191 A PAPER TAPE
055G 2 ALCOHOL
Q51G 6 4509 GLUE_RTV
Q55G 23525 WELDING FLUX WITHOUT PB
Q55G 100622 TIN STICK(SAC0507)
Q55G 100625 TIN STICK_LOW ARGENTUM

IC901 056G 379128 IC LD7576 GS SOP-8
IC801 056G 608900 IC OZ9938GN-B1 SOIC-16

Q802 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM
Q803 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM
Q805 057T 600517 AO4616 SOIC-8
Q806 057T 600517 AO4616 SOIC-8

R816 061G06031002FF

R808 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R807 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R806 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R805 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO

R845 061G0603103 JF

R844 061G0603103 JF

R843 061G0603103 JF

R842 061G0603103 JF

R819 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R817 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R826 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R838 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R839 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R840 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R841 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
C808 061G0603184 JY RST CHIPR 180KOHM 1/10W YAGEO

R823 061G06033900FF

R825 061G0603511 JY RST CHIPR 510OHM +-5% 1/10W YAGEO

R803 061G0603512 JT

R804 061G0603512 JT

R824 061G06036201FF RST CHIPR 6.2KOHM +-1% 1/10W

RST CHIPR 10KOHM +-1% 1/10W
FENGHUA

RST CHIPR 10K OHM +-5% 1/10W
FENGHUA

RST CHIPR 10K OHM +-5% 1/10W
FENGHUA

RST CHIPR 10K OHM +-5% 1/10W
FENGHUA

RST CHIPR 10K OHM +-5% 1/10W
FENGHUA

RST CHIPR 390 OHM +-1% 1/10W
FENGHUA

RST CHIPR 5.1KOHM +-5% 1/10W TZAI
YUAN

RST CHIPR 5.1KOHM +-5% 1/10W TZAI
YUAN

47

FENGHUA

R818 061G0603753 JY RST CHIPR 75KOHM +-5% 1/10W YAGEO
R928 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

RJ802 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
RJ803 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

R907 061G0805100 JY RST CHIPR 10OHM +- 5% 1/8W YEGAO

R924 061G0805102 JT

R820 061G0805103 JT

R938 061G0805103 JT

R821 061G0805105 JT RST CHIP 1M 1/8W 5% TZAI YUAN
R834 061G0805153 JT RST CHIP 15K 1/8W 5% TZAI YUAN
R822 061G08052002FT RST CHIP 20K 1/8W 1%
R827 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN
R832 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN
R833 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN
R835 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN
R802 061G0805220 JF RST CHIPR 22 OHM +-5% 1/8W FENGHUA
R912 061G0805220 JF RST CHIPR 22 OHM +-5% 1/8W FENGHUA
R831 061G0805243 JW RST CHIPR 24K +-5% 1/8W WALSIN
R930 061G08052431FY RST CHIPR 2.43KOHM +-1% 1/8W YAGEO
R929 061G08053302FF RST CHIPR 33KOHM +-1% 1/8W FENGHUA
R927 061G08053601FT RST CHIP 3K6 1/8W 1%
R943 061G0805471 JY RST CHIPR 470OHM +-5% 1/8W YAGEO
R813 061G0805474 JY RST CHIPR 470K +-5% 1/8W YAGEO
R903 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R918 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R919 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R920 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R934 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R935 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

RJ801 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
RJ901 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
RJ902 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R936 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN
R922 061G1206201 JW RST CHIPR 200 OHM +-5% 1/4W WALSIN

R909 061G1206339 JT

R900 061G1206684 JT RST CHIPR 680 KOHM 1/4W TZAI YUAN
R901 061G1206684 JT RST CHIPR 680 KOHM 1/4W TZAI YUAN
R902 061G1206684 JT RST CHIPR 680 KOHM 1/4W TZAI YUAN

R905 061G1206822 JF

R904 061G1206822 JF

RST CHIPR 1K OHM +- 5% 1/8W TZAI
YUAN

RST CHIPR 10K OHM +- 5% 1/8W TZAI
YUAN

RST CHIPR 10K OHM +- 5% 1/8W TZAI
YUAN

RST CHIPR 3.3 OHM +-5% 1/4W TZAI
YUAN

RST CHIPR 8.2KOHM +-5% 1/4W
FENGHUA

RST CHIPR 8.2KOHM +-5% 1/4W
FENGHUA

48

C806 065G060310512K T CAP CHIP 0603 1UF K 16V X7R
C927 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C920 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C919 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C916 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C811 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C804 065G080510512K T CAP CHIP 0805 1UF K 16V X7R
D809 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D808 093G 64 42 P BAV70 SOT23 BY PAN JIT
D807 093G 64 42 P BAV70 SOT23 BY PAN JIT
D806 093G 64 42 P BAV70 SOT23 BY PAN JIT
D909 093G 6432P LL4148
D805 093G 6432P LL4148
D804 093G 6432P LL4148
D803 093G 6432P LL4148
D802 093G 6432P LL4148
D801 093G 6432P LL4148

ZD920 093G 39S 40 T RLZ 13B LLDS

IC902 056G 158 12 KIA431A-AT/P TO-92

R908 061G152M10452T RST MOFR 100KOHM +-5% 2WS
R940 061G152M15152T RST MOFR 150 OHM +-5% 2WS
R914 061G152M39852T RST MOFR 0.39 OHM +-5% 2WS
C906 065G 2K222 2T6921 CAP CER 2200PF K 2KV Y5P
C908 067G215Y2207KT CAP 105℃ 22UF M 50V KINGNICHI

F901 084G 56 4 B FUSE 4A 250V
D901 093G 6026T52T RECTIFIER DIODE FR107
D902 093G 6038T52T FR103

J804 095G 90 23 JUMPER WIRE

J803 095G 90 23 JUMPER WIRE

J802 095G 90 23 JUMPER WIRE

J801 095G 90 23 JUMPER WIRE

F903 095G 90 23 JUMPER WIRE

J903 095G 90 23 JUMPER WIRE

J902 095G 90 23 JUMPER WIRE

J812 095G 90 23 JUMPER WIRE

J811 095G 90 23 JUMPER WIRE

J810 095G 90 23 JUMPER WIRE

J809 095G 90 23 JUMPER WIRE

J808 095G 90 23 JUMPER WIRE

J807 095G 90 23 JUMPER WIRE

J806 095G 90 23 JUMPER WIRE

J805 095G 90 23 JUMPER WIRE

J908 095G 90 23 JUMPER WIRE

J906 095G 90 23 JUMPER WIRE

J905 095G 90 23 JUMPER WIRE

J904 095G 90 23 JUMPER WIRE

FB904 071G 55 9 T FERRITE BEAD

49

FB903 071G 55 9 T FERRITE BEAD

Q903 057G 761 16 TRA KTD1028 KEC

F901 084G 56 4W FUSE 4.0A 250V
D901 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41
D902 093G 6038P52T PS102R

IC902 056G 158 10 T IC AS431AZTR-E1 TO-92
FB906 071T 55 26 H FERRITE BEAD 3.5*6.0*0.8
FB907 071T 55 26 H FERRITE BEAD 3.5*6.0*0.8
FB906 071G 55 26 S FERRITE CORE
FB907 071G 55 26 S FERRITE CORE

709T3465 QA001 CONSUMPTIVE ASS'Y
052G 2191 A PAPER TAPE

J909 095G 90 23 JUMPER WIRE
J910 095G 90 23 JUMPER WIRE

CN901 006G 31500 GP EYELET

715G3465P020HV003M POWER PCB FR-1 T:1.6MM 125X200MM

RJ903 061G1206000 RST CHIP MAX 0R05 1/4W

D801 093G 64S522SEM LL4148
D802 093G 64S522SEM LL4148
D803 093G 64S522SEM LL4148
D804 093G 64S522SEM LL4148
D805 093G 64S522SEM LL4148
D909 093G 64S522SEM LL4148
D809 093G 6433S DIODE BAV99 SEMTECH
D806 093G 64 42 PP BAV70 SOT-23
D807 093G 64 42 PP BAV70 SOT-23
D808 093G 64 42 PP BAV70 SOT-23
Q802 057G 763 62 FET 2N7002K 300MA/60V SOT-23
Q803 057G 763 62 FET 2N7002K 300MA/60V SOT-23

709T3465 QS001 CONSUMPTIVE ASS'Y
051G 100502 GLUE_MYLAR
Q05G6054 1 SHEET
Q09G6012 1 PIN
052G 2191 A PAPER TAPE

R925 061G08051500FF RST CHIPR 150OHM +-1% 1/8W FENGHUA
R925 061G08051500FT RST CHIPR 150 OHM +-5% 1/8W
C805 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C807 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C806 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R
C806 065G060310512K M CAP 0603 1UF 10% 16V X7R
C813 065G060333332K F CAP CHIP 0603 33NF K 50V X7R
C815 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C810 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C932 065G080510231J F CAP CHIP 0805 1NF J 50V NPO
C825 065G080510332K A CAP CHIP 0805 10NF K 50V X7R
C823 065G080510332K A CAP CHIP 0805 10NF K 50V X7R
C925 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%

50

C924 065G080522131J F CAP CHIP 0805 220PF J 50V NPO
C912 065G080522332K F CAP CHIP 0805 22NF K 50V X7R
C814 065G080539131J Y CAP CHIP 0805 390P 50V NPO +/-5%
C923 065G080547131J Y CAP CHIP 0805 470P 50V NPO +/-5%
C801 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%
C802 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%
C809 065G080556131G F CAP CHIP 0805 560PF G 50V NPO
C921 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R

C929 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R
ZD803 093G 39GA01 T RLZ5.6B
ZD802 093G 39GA01 T RLZ5.6B
ZD803 093G 39S 24 T RLZ 5.6B LLDS
ZD802 093G 39S 24 T RLZ 5.6B LLDS

T901 S80GL19T33V1 TRANSFORMER ASS'Y

049FP200 2 3300ZH
Q02G7022 2 SCREW-STOPPER
Q07G 2 L 48 WOODEN PALLET
Q07G 2 L 91 WOODEN PALLET
Q11G5052 1 STRING
Q12G7047 1 SILICA GEL
Q12T7037 1 GP RUBBER FOOT
Q36T 600 35 4 GP NONWOVEN FABRIC
Q40G 19261551A RATING LABEL
Q40G 58169022A QC PASS LABEL
Q40G0001624 4A PALLET LABEL
Q41T7830615 1A WARRANTY CARD
Q44G6002107107 PAPER BOARD
Q44G9003219 CORNER PAPER
Q44G9173101 EPS CUSHION
Q44G9173201 EPS CUSHION
Q44G9173615 1A 19" LCD TV AOC CARTON
Q45G 99626 35 PE BAG
Q45G2010M0102A PE BAG FOR MANUAL
Q45T 99609100 EPE COVER
Q50G 4 10 TIE (Y1900221)
Q50T 500523 CABLE TIE
Q52G 1150523 TAPE_INSULATING
Q52G 1150523 TAPE_INSULATING
Q52G 1185 98 MIDDLE CARTON TAPE FOR AOC
Q52G 1185 99 BIG CARTON TAPE FOR AOC
041T780062415A CERTIFICATE CARD
092GB1JX1A3DGC BATTERY FOR LR03（KH）2S/G
Q41G22MV615 1B MANUAL
Q45G2010M0101A PE BAG FOR MANUAL
026G 800700 1A BARCODE LABEL
040G 58162435A P/N LABEL FOR MANUAL PE BAG
040G 581689 4A BARCODE LABEL FOR 1

51

0Q1G 930 8 47 CR3 SCREW
A15T0817101 CITA-2K8-19-SIDE-BKT

078G 494505 KA

E09502 095G8014 8DH44

IRPF9QB4 IR BOARD T2995-1-X-X-4-080518

U01 056G 627 14 1 IC KSM-2003TN2ES1 37.9KHZ

CN01 033G8032 5F HR CONNECTOR

LED01 081T 14 24 EL CHIP LED BLUE/DARK RED

715T2995 1 IR PCB FR-4 T:1.6MM 30X24MM
KEPF9QAF KEY BOARD T3513-1-X-X-3-090721

CN01 033G3802 4B YH CONNECTOR 4PIN 2.0PITCH

R01 061G0603200 2F RST CHIPR 20 KOHM +-1% 1/10W
R02 061G0603820 1F RST CHIPR 8.2 KOHM +-1% 1/10W
R03 061G0603432 1F RST CHIP 4.32K 1/10W 1%
R04 061T0603274 1F RST CHIPR 2.74 KOHM +-1% 1/10W
R05 061G0603180 1F RST CHIPR 1.8 KOHM +-1% 1/10W
R07 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W
R08 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W

715G3513K01000001S TV KEY-PCB 111X15X1.6MM FR1 1OZ SS
SW01 077G 603 AI HJ TACT SWITCH 2PIN
SW02 077G 603 AI HJ TACT SWITCH 2PIN
SW03 077G 603 AI HJ TACT SWITCH 2PIN
SW04 077G 603 AI HJ TACT SWITCH 2PIN
SW05 077G 603 AI HJ TACT SWITCH 2PIN
SW06 077G 603 AI HJ TACT SWITCH 2PIN
SW07 077G 603 AI HJ TACT SWITCH 2PIN

C01 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C02 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C03 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C04 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C05 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C06 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C07 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

Q40G2010 19002 SIDE LABLE

Q40G2010 19101 SIDE LABLE

SPK 4 OHM 3.5W 25X80 180 180MM
KUAIDA

HARNESS
8P(2008)-5P(A1253HA)+4P(2008)

52

L22DH83 E2292ANDW1A7NN

点位 组件 对象描述 工程图号

007G 1 L 72 WOODEN PALLET
041G 68508 A CONTROL CARD
045G 77501 BARCODE RIBBON
049G 51 1A ERADICATOR
050G 600 2 HANDLE1
050G 600 3 HANDLE2
052G 1186 SMALL TAPE
052G 2191 A PAPER TAPE
089G 725GAA DB D-SUB CABLE

E08901 089G176J30N509 FFC CABLE 30PIN P1.0 155MM 2nd source
E08901 089G176W30N509 FFC CABLE 30PIN P1.0 155MM

E08902 089G214A18N IS POWER CORD 1.8M FA37B201312180TP 2nd source
E08902 089G214A18N YH POWER CORD

098TRABD2NCACC REMOTE CONTROL RL57C
0D1G1730 8120 SCREW
0D1G1730 10120 SCREW
0M1G 940 10 47 CR3 SCREW
0M1G1740 8120 SCREW FOR STD/MF 42-D020715/42-D000649()
0M1G6090 1 SCREW
0Q1G 930 8 47 CR3 SCREW
0Q1G 940 10 47 CR3 SCREW
0Q1G1840 10120 SCREW
705TQ934C62 BEZEL ASS'Y 22"
036T 600 18109 NONWOVEN FABRTC
0Q1G1830 6120 SCREW
A33E0306 1 1C0100 POWER LENS_A1
A33E0310 ED 1C0100 IR LENS
A34E1322 GMA1L0130 BEZEL 22"
Q36T 600 35 2 GP NONWOVEN FABRIC
705TQ934C63 REAR COVER ASS'Y 22"
A34E1323 GM 1L0130 REAR COVER 22"
P15G8299 1 BKT-VESA
Q36T 600 37 6 GP NONWOVEN FABRIC
705TQ934C64 STAND ASS"Y 22"
A34E0524 GM 1L0100 STAND
A34E0525 GM 1L0133 BASE_S1
A37T0056018 HINGE ASS'Y 22"
AM1G1740 10225 CR3 SCREW
Q12G6600 6 FOOT
750TVV216B1121N000 PANEL TPT216B1-L01 C1B FQ TPV
756TQ9CB AD245 01 MAIN BOARD-CBPF9A5DQ2

U401 056G1133923 IC MX25L4005AM2C-12G SOP-8

SMTF-U401 100TAHVC003D21 MCU ASS'Y-056G1133923

A15T0798101 HINGE BKT-2157
AM1G1740 12225 CR3 SCREW

53

040G 45762412B CBPC LABEL
CN600 033G3802 4B Y W WAFER
CN401 033G3802 8B Y W CONNECTOR
CN700 033G380212B Y WAFER
CN408 033G801930F CH JS CONNECTOR
CN600 033T3802 4B Y CONNECTOR

U600 056G 616 51 IC APA2071JI-TUG 3.1W DIP-16
R128 061G 208470 64 RST MOFR 47OHM +-5% 1W

R105 061G 208470 64 RST MOFR 47OHM +-5% 1W
CN101 088G 78 1357S RCA JACK 1*1 W+R V/A
CN100 088G 78 13930 S RCA JACK 2*3 G/B/R+Y/W/R V/A
CN601 088G 30211K PHONE JACK 5PIN
CN101 088T 78 1357C RCA JACK 1*1 W+R V/A
CN105 088T 7813C19C RCA JACK 1*3 R/W/Y
CN102 088T 100 15 ST MINI DIN JACK 4PIN V/A
CN104 088T 30252C PHONE JACK 3.5MM 3P V/A GREEN
CN104 088T 302A17 YG PHONE JACK 3.5MM 3P V/T GREEN
CN103 088T 35315F VC D-SUB 15PIN VERTICAL CONNECTOR
CN103 088T 35315F VD D-SUB 15PIN FEMALE VERTICAL WITH SCREW

X600 093G 2270B H XAT024576FK1H-3OHX AT-49 24.576MHZ

TU100 094G PALALL 4L TUNER TCL F18CPNK-2-E

C716 067G 305100 7T 105 摄氏度 10UF +-20% 50V

C720 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C710 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C718 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C719 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C708 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C705 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C703 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C638 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C103 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C100 067G 3051014CT EC 100UF 25V KM 6.3X11MM

C649 067G 305221 3T 220UF/16V

C648 067G 305221 3T 220UF/16V

C627 067G 305221 3T 220UF/16V

C210 067G 305221 3T 220UF/16V

C104 067G 3052213PT EC 220UF 16V 6.3¦µ*11MM

C412 067G 305470 3T 47UF +-20% 16V

C713 067G 305471 3T 105 摄氏度 470UF +-20% 16V

C701 067G 305471 3T 105 摄氏度 470UF +-20% 16V

040G 457624 1B LABEL-CPU
U400 056G 562590 IC HX6210-B00MQAG QFP128 1920*1080
U701 056G 563 34 IC AIC1084-18PMTR-R AIC
U700 056G 563 75 G1084-33T43UF TO-252
U101 056G 585 11 IC AZ1117D-5.0-E1 AAC
U703 056G 585 4A IC AP1117E33L-13
U601 056G 614 1 74HC4052D S016 PHLIPS

54

U402 056G113353A IC M24C32-WMN6T SO-8 ST
U401 056G1133923 IC MX25L4005AM2C-12G SOP-8
Q704 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q703 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q705 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q707 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q602 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q702 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q700 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q601 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q403 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q202 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q200 057G 417 4 PMBS3904/PHILIPS-SMT(04)
Q400 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q401 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q402 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q600 057G 417 6 PMBS3906/PHILIPS-SMT(06)
Q102 057G 761513 TRA 2SC4215-O 20MA/40V TOSHIBA
Q103 057G 761513 TRA 2SC4215-O 20MA/40V TOSHIBA
Q201 057G 763 79 FET AO4449 -7A/-30V SOIC-8
Q701 057G 763 79 FET AO4449 -7A/-30V SOIC-8
Q706 057G 763 79 FET AO4449 -7A/-30V SOIC-8

RP400 061G 125103 8 RST CHIP AR 8P4R 10 KOHM +-5% 1/16W

R196 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R195 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R191 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R190 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R187 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R180 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R211 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN
R201 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R161 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R160 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R144 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R123 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R120 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R116 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R109 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R104 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R103 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R102 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R605 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R604 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R603 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R602 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R429 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R428 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO

55

R427 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R426 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R425 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R424 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R421 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R419 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R202 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO
R115 061G0402100 RST CHIPR 10 OHM +-5% 1/16W
R114 061G0402100 RST CHIPR 10 OHM +-5% 1/16W
R423 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R422 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R169 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R168 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R159 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R158 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R152 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R150 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R117 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R119 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R121 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R124 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R130 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R134 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R138 061G0402101 RST CHIPR 100 OHM +-5% 1/16W
R164 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN
R715 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R714 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R110 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R106 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R712 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R710 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R709 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R708 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R434 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W
R203 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R210 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W
R212 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN
R606 061G0402105 RST CHIPR 1MOHM +-5% 1/16W
R129 061G0402180 RST CHIP 18R 1/16W 5%
R133 061G0402180 RST CHIP 18R 1/16W 5%
R137 061G0402180 RST CHIP 18R 1/16W 5%
R163 061G0402180 JF RST CHIPR 18 OHM +-5% 1/16W FENGHUA
R177 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA
R184 061G0402201 JF RST CHIPR 200 OHM +-5% 1/16W FENGHUA
R628 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA
R627 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA
R713 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W

56

R702 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W
R705 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W
R701 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W
R206 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W
R176 061G0402272 JT RST CHIP 2K7 1/16W 5% TZAI YUAN
R183 061G0402272 JT RST CHIP 2K7 1/16W 5% TZAI YUAN
R216 061G04023010FF RST CHIP 301OHM 1% 1/16W FENGHUA
R197 061G04023010FF RST CHIP 301OHM 1% 1/16W FENGHUA
R193 061G04023010FF RST CHIP 301OHM 1% 1/16W FENGHUA
R192 061G04023010FF RST CHIP 301OHM 1% 1/16W FENGHUA
R146 061G0402330 RST CHIPR 33 OHM +-5% 1/16W
R149 061G0402330 RST CHIPR 33 OHM +-5% 1/16W
R607 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R401 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R400 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R207 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R205 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R204 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R200 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R171 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R170 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W
R621 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA
R622 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA
R623 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA
R624 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA
R625 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA
R626 061G0402474 JF RST CHIP 470KOHM 5% 1/16W FENGHUA
R433 061G0402512 RST CHIP 5K1 1/16W 5%
R139 061G0402560 RST CHIP 56R 1/16W 5%
R135 061G0402560 RST CHIP 56R 1/16W 5%
R131 061G0402560 RST CHIP 56R 1/16W 5%
R162 061G0402560 JW RST CHIP 56R 1/16W 5% WALSIN
R162 061G04025609FT RST CHIP 56R 1/16W 1%
R420 061G0402680 RST CHIP 68R 1/16W 5%
R145 061G0402683 JF RST CHIPR 68KOHM 55 1/16W FENGHUA
R151 061G0402683 JF RST CHIPR 68KOHM 55 1/16W FENGHUA
R148 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R155 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R147 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R125 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R122 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R118 061G0402750 RST CHIPR 75 OHM +-5% 1/16W
R112 061G0603000 RST CHIP MAX 0R05 1/10W
C114 061G0603000 RST CHIP MAX 0R05 1/10W
C111 061G0603000 RST CHIP MAX 0R05 1/10W
R718 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA
R617 061G0603101 RST CHIPR 100 OHM +-5% 1/10W

57

R435 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R405 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R404 061G0603101 RST CHIPR 100 OHM +-5% 1/10W
R619 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R620 061G0603102 RST CHIPR 1K OHM +-5% 1/10W
R213 061G06031022FF RST CHIPR 10.2KOHM +-1% 1/10W FENGHUA
R214 061G06031022FF RST CHIPR 10.2KOHM +-1% 1/10W FENGHUA
R215 061G06031022FF RST CHIPR 10.2KOHM +-1% 1/10W FENGHUA
R437 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R436 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R432 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R416 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R414 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R413 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R411 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R409 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R408 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R407 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R403 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R402 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R716 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R711 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R706 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R704 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R700 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R614 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R613 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R612 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R611 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R610 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R609 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R608 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W
R629 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R630 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN
R618 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W
R142 061G0603162 1F RST CHIPR 1.62 KOHM +-1% 1/10W
R154 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W
R153 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W
R126 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W
R127 061G0603273 RST CHIPR 27 KOHM +-5% 1/10W
R140 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA
R141 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA
R166 061G0603273 JT RST CHIP 27K 1/10W 5% TZAI YUAN
R167 061G0603273 JT RST CHIP 27K 1/10W 5% TZAI YUAN
R406 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R410 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R631 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W

58

R632 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W
R616 061G0603751 RST CHIPR 750 OHM +-5% 1/10W
R615 061G0603751 RST CHIPR 750 OHM +-5% 1/10W

L100 061G0805000 RST CHIP MAX 0R05 1/8W

L102 061G0805000 RST CHIP MAX 0R05 1/8W
R417 061T0603102 2F RST CHIPR 10.2 KOHM +-1% 1/10W
R418 061T0603102 2F RST CHIPR 10.2 KOHM +-1% 1/10W
C155 065G040210131J A CAP 0402 100PF J 50V NPO
C164 065G040210131J A CAP 0402 100PF J 50V NPO
C402 065G040210131J A CAP 0402 100PF J 50V NPO
C403 065G040210131J A CAP 0402 100PF J 50V NPO
C404 065G040210131J A CAP 0402 100PF J 50V NPO
C405 065G040210131J A CAP 0402 100PF J 50V NPO
C406 065G040210131J A CAP 0402 100PF J 50V NPO
C407 065G040210131J A CAP 0402 100PF J 50V NPO
C416 065G040210131J A CAP 0402 100PF J 50V NPO
C647 065G040210131J A CAP 0402 100PF J 50V NPO
C122 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C654 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C655 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10%
C142 065G040210322K Y CAP CHIP 0402 10N 25V X7R +/-10%
C203 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C201 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C170 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C154 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C153 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C152 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C151 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C148 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C146 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C145 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C143 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C137 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C134 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C131 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C702 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C700 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C646 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C636 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C631 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C630 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C629 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C626 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C623 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C620 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C618 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C616 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z

59

C615 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C612 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C610 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C608 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C606 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C604 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C602 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C411 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C410 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C409 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C206 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C205 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C204 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C408 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C209 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C207 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C717 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C715 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C714 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C712 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C711 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C707 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C706 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C704 065G040210427Z Y CAP CHIP 0402 100NF 25V Y5V Z
C624 065G040233031J A CAP 0402 33PF J 50V NPO
C625 065G040233031J A CAP 0402 33PF J 50V NPO
C165 065G040247312K Y CAP CHIP 0402 47NF 16V X7R
C163 065G040247312K Y CAP CHIP 0402 47NF 16V X7R
C126 065G040247312K Y CAP CHIP 0402 47NF 16V X7R
C123 065G040247312K Y CAP CHIP 0402 47NF 16V X7R
C119 065G040247312K Y CAP CHIP 0402 47NF 16V X7R
C101 065G040247312K Y CAP CHIP 0402 47NF 16V X7R
C108 065G040256031J Y CAP CHIP 0402 56PF 50V NPO +/-5%
C109 065G040256031J Y CAP CHIP 0402 56PF 50V NPO +/-5%
C640 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C641 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C643 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C644 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10%
C178 065G060310231J A CAP 0603 1NF J 50V NPO
C117 065G060310231J A CAP 0603 1NF J 50V NPO
C180 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C181 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C102 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C110 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C113 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C115 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C177 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R

60

C144 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R
C650 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R
C639 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R
C634 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R
C632 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R
C107 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R
C106 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R
C106 065G060310512K M CAP 0603 1UF 10% 16V X7R
C107 065G060310512K M CAP 0603 1UF 10% 16V X7R
C632 065G060310512K M CAP 0603 1UF 10% 16V X7R
C634 065G060310512K M CAP 0603 1UF 10% 16V X7R
C639 065G060310512K M CAP 0603 1UF 10% 16V X7R
C650 065G060310512K M CAP 0603 1UF 10% 16V X7R
C144 065G060310512K M CAP 0603 1UF 10% 16V X7R
C177 065G060310512K M CAP 0603 1UF 10% 16V X7R
C106 065G060310512K T CAP CHIP 0603 1UF K 16V X7R
C107 065G060310512K T CAP CHIP 0603 1UF K 16V X7R
C632 065G060310512K T CAP CHIP 0603 1UF K 16V X7R
C634 065G060310512K T CAP CHIP 0603 1UF K 16V X7R
C639 065G060310512K T CAP CHIP 0603 1UF K 16V X7R
C650 065G060310512K T CAP CHIP 0603 1UF K 16V X7R
C144 065G060310512K T CAP CHIP 0603 1UF K 16V X7R
C177 065G060310512K T CAP CHIP 0603 1UF K 16V X7R
C133 065G0603221 32 CHIP 220PF 50V X7R
C136 065G0603221 32 CHIP 220PF 50V X7R
C139 065G0603221 32 CHIP 220PF 50V X7R
C179 065G0603221 32 CHIP 220PF 50V X7R
C182 065G0603221 32 CHIP 220PF 50V X7R
C171 065G060322131J Y CAP CHIP 0603 220P 50V NPO +/-5%
C400 065G0603224 32 CHIP 0.22UF 50V X7R
C401 065G0603224 32 CHIP 0.22UF 50V X7R
C172 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R
C173 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R
C200 065G080510615K T CHIP 10UF 16V X5R 0805
C202 065G080510615K T CHIP 10UF 16V X5R 0805
C413 065G080510615K T CHIP 10UF 16V X5R 0805
C415 065G080510615K T CHIP 10UF 16V X5R 0805
C607 065G080510615K T CHIP 10UF 16V X5R 0805
C614 065G080510615K T CHIP 10UF 16V X5R 0805
C635 065G080510615K T CHIP 10UF 16V X5R 0805
C727 065G080510615K T CHIP 10UF 16V X5R 0805
C728 065G080510615K T CHIP 10UF 16V X5R 0805
C729 065G080510615K T CHIP 10UF 16V X5R 0805
C730 065G080510615K T CHIP 10UF 16V X5R 0805
C150 065G080510615K T CHIP 10UF 16V X5R 0805
C652 065G080510615K T CHIP 10UF 16V X5R 0805
C651 065G080510615K T CHIP 10UF 16V X5R 0805

61

C633 065G0805225 12 CAP CHIP 0805 2.2UF K 16V X7R
C129 065G080547517Z T CAP CHIP 0805 4.7UF K 16V Y5V
C130 065G080547517Z T CAP CHIP 0805 4.7UF K 16V Y5V
C161 065G080547517Z T CAP CHIP 0805 4.7UF K 16V Y5V
C160 065G080547517Z T CAP CHIP 0805 4.7UF K 16V Y5V
C141 065G080547517Z T CAP CHIP 0805 4.7UF K 16V Y5V
C140 065G080547517Z T CAP CHIP 0805 4.7UF K 16V Y5V

FB406 071G 56G301 EA BEAD 300 欧
FB405 071G 56G301 EA BEAD 300 欧
FB100 071G 56G301 EA BEAD 300 欧
FB401 071G 56G301 EA BEAD 300 欧
FB402 071G 56G301 EA BEAD 300 欧
FB403 071G 56G301 EA BEAD 300 欧
FB404 071G 56G301 EA BEAD 300 欧
FB703 071G 57G301 EA CHIP BEAD
FB203 071G 57G301 EA CHIP BEAD
FB701 071G 57G301 EA CHIP BEAD
FB602 071G 57G301 EA CHIP BEAD
FB601 071G 57G301 EA CHIP BEAD
FB600 071G 57G301 EA CHIP BEAD
FB400 071G 57G301 EA CHIP BEAD
FB202 071G 57G301 EA CHIP BEAD
FB200 071G 57G301 EA CHIP BEAD
FB104 071G 57G301 EA CHIP BEAD
FB103 071G 57G301 EA CHIP BEAD

L103 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

L104 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

L106 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

L107 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

L108 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

L109 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

L110 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

L111 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

L112 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE

L105 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE
D400 093G 64 33 DIO SIG SM BAV99 (PHSE)R

ZD402 093G 39S 24 T RLZ 5.6B LLDS
ZD403 093G 39S 24 T RLZ 5.6B LLDS
ZD404 093G 39S 24 T RLZ 5.6B LLDS

715G3500M01000004L TV MAIN-PCB FR-4 193X159X1.6MM DS
PWTV9C41MYK1 POWER BOARD G3465-2-X-X-11-090611
040G 45762412B CBPC LABEL

GND 009G6005 1 GP GROUND TERMINAL

CN804 033G8021 2E U INVERT CONNECTOR
CN803 033G8021 2E U INVERT CONNECTOR
CN802 033G8021 2E U INVERT CONNECTOR
CN801 033G8021 2E U INVERT CONNECTOR

62

CN804 033G8021 2E XY CONNECTOR
CN803 033G8021 2E XY CONNECTOR
CN802 033G8021 2E XY CONNECTOR
CN801 033G8021 2E XY CONNECTOR

051G 6 4503 GLUE_RTV

IC903 056G 139 3A IC PC123Y22FZ0F

NR901 061G 5810T RST NTCR 8 OHM +-20% 4A 13MM THINKING

C903 063G107K474 6S CAP X2 0.47UF K 275VAC
C822 065G 3J5606ET CAP CER 56PF J 3KV
C821 065G 3J5606ET CAP CER 56PF J 3KV
C820 065G 3J5606ET CAP CER 56PF J 3KV
C819 065G 3J5606ET CAP CER 56PF J 3KV
C824 065G 6J2706ET CAP CER27PF 5% SL 6KV TDK
C816 065G 6J2706ET CAP CER27PF 5% SL 6KV TDK
C931 065G306M1022BM Y1.CAP.001UF 250VAC MURATA
C901 065G306M1022BP 1000PF Y1.CAP
C902 065G306M1022BP 1000PF Y1.CAP
C905 067G 40Z12115A CAP 105C 120UF M 450V
C905 067G 40Z12115L EC 120UF 450V M 20*40MM
C812 067G215C4714HV EC 470UF 25V 10*13
C922 067G215D4714LV LOW ESR EC 470UF 25V M 10*16MM
C930 067G215P1023AV CAP 105℃ 1000UF M 16V
C914 067G215P1023AV CAP 105℃ 1000UF M 16V
C917 067G215P1024AV CAP 105℃ 1000UF M 25V
C918 067G215P1024AV CAP 105℃ 1000UF M 25V
C915 067G215P4713AV CAP 105℃ 470UF M 16V
C922 067G215P4714AV CAP 105℃ 470UF M 25V
C914 067G215S1023LV LOW ESR EC 1000UF 16V M 10*20MM
C930 067G215S1023LV LOW ESR EC 1000UF 16V M 10*20MM
C917 067G215S1024LV LOW ESR EC 1000UF 25V M 12.5*20MM
C918 067G215S1024LV LOW ESR EC 1000UF 25V M 12.5*20MM
C915 067G215S4713LV LOW ESR EC 470UF 16V M 10*12.5MM

FB901 071G 55 21 FERRITE BEAD
FB902 071G 55 21 FERRITE BEAD
FB905 071G 55 21 FERRITE BEAD

L801 073G 174 35 HA IND FILTER 200MH+-25% DADON

L802 073G 174 35 HA IND FILTER 200MH+-25% DADON

L902 073G 174 65 S2 LINE FILTER 30MH MIN

L903 073G 253 91 H CHOKE COIL

L904 073G 253 91 H CHOKE COIL

T901 080GL19T 33 S1 X'FMR 530UH

PT802 080TL22T 4 H X'FMR INVERTER 775MH

PT802 080TL22T 4 DN X'FMR 775MH TK.2001Y.101
CN901 087G 501 47 S AC SOCKET 2PIN + 2 SCREW HOLE
CN901 087G 501 47 DL AC SOCKET 2PIN + 3 SCREW HOLE
BD901 093G 5046016A DIODE BRIDGE T4KB80 ZHONGHUAN
BD901 093G 50460900 BRIDGE 4A/800V GBU408 LITEON

63

CN902 095G 82011W513 HARNESS 11P(SAN)-12P(PLUG) 200MM
CN902 095G 82011X513 HARNESS 11P(SAN)-12P(PLUG) 200MM

0Q1G 340 8106 CR3 SCREW
705GA793001 D904 ASS'Y
051G 200 1 OIL FOR DISAPPEAR

HS2 090G6064 1 HEAT SINK
D904 093G 60250 FCH10U10
D904 093G 60267 SP10100
D904 093G 60500 FMEN210A TO-220 SANKEN

0M1G1730 8120 SCREW
705TQ757019 Q901 ASS'Y
051T 200 1 OIL FOR DISAPPEAR

Q901 057G 667 21 STP10NK70ZFP

0M1G1730 8120 SCREW

HS1 Q90T6064 5 GP HEATSINK

705TQ951005 OIL FOR DISAPPEAR
051G 200 1 OIL FOR DISAPPEAR
705TQ993018 D906 ASS'Y
051T 200 1 OIL FOR DISAPPEAR

D906 093G 60522 DIODE MBR10150FCT PANJIT

0M1G1730 8120 SCREW

HS3 Q90T0179 1 HEAT SINK

709T3465 QM001 CONSUMPTIVE ASS'Y
052G 2191 A PAPER TAPE
055G 2 ALCOHOL
Q51G 6 4509 GLUE_RTV
Q55G 23525 WELDING FLUX WITHOUT PB
Q55G 100622 TIN STICK(SAC0507)
Q55G 100625 TIN STICK_LOW ARGENTUM

IC901 056G 379128 IC LD7576 GS SOP-8
IC801 056G 608900 IC OZ9938GN-B1 SOIC-16

Q802 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM
Q803 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM
Q805 057T 600517 AO4616 SOIC-8
Q806 057T 600517 AO4616 SOIC-8
R816 061G06031002FF RST CHIPR 10KOHM +-1% 1/10W FENGHUA
R808 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R807 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R806 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R805 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO
R845 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R844 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R843 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R842 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R819 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN
R817 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R826 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN

64

R838 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R839 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R840 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
R841 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN
C808 061G0603184 JY RST CHIPR 180KOHM 1/10W YAGEO
R823 061G06033900FF RST CHIPR 390 OHM +-1% 1/10W FENGHUA
R825 061G0603511 JY RST CHIPR 510OHM +-5% 1/10W YAGEO
R803 061G0603512 JT RST CHIPR 5.1KOHM +-5% 1/10W TZAI YUAN
R804 061G0603512 JT RST CHIPR 5.1KOHM +-5% 1/10W TZAI YUAN
R824 061G06036201FF RST CHIPR 6.2KOHM +-1% 1/10W FENGHUA
R818 061G0603753 JY RST CHIPR 75KOHM +-5% 1/10W YAGEO
R928 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

RJ802 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA
RJ803 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA

R907 061G0805100 JY RST CHIPR 10OHM +- 5% 1/8W YEGAO
R924 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R820 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R938 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R821 061G0805105 JT RST CHIP 1M 1/8W 5% TZAI YUAN
R834 061G0805153 JT RST CHIP 15K 1/8W 5% TZAI YUAN
R822 061G08052002FT RST CHIP 20K 1/8W 1%
R827 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN
R832 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN
R833 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN
R835 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN
R802 061G0805220 JF RST CHIPR 22 OHM +-5% 1/8W FENGHUA
R912 061G0805220 JF RST CHIPR 22 OHM +-5% 1/8W FENGHUA
R831 061G0805243 JW RST CHIPR 24K +-5% 1/8W WALSIN
R930 061G08052431FY RST CHIPR 2.43KOHM +-1% 1/8W YAGEO
R929 061G08053302FF RST CHIPR 33KOHM +-1% 1/8W FENGHUA
R927 061G08053601FT RST CHIP 3K6 1/8W 1%
R943 061G0805471 JY RST CHIPR 470OHM +-5% 1/8W YAGEO
R813 061G0805474 JY RST CHIPR 470K +-5% 1/8W YAGEO
R903 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R918 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R919 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R920 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R934 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
R935 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

RJ801 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
RJ901 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA
RJ902 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA

R936 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN
R922 061G1206201 JW RST CHIPR 200 OHM +-5% 1/4W WALSIN
R909 061G1206339 JT RST CHIPR 3.3 OHM +-5% 1/4W TZAI YUAN
R902 061G1206684 JT RST CHIPR 680 KOHM 1/4W TZAI YUAN
R901 061G1206684 JT RST CHIPR 680 KOHM 1/4W TZAI YUAN

65

R900 061G1206684 JT RST CHIPR 680 KOHM 1/4W TZAI YUAN
R905 061G1206822 JF RST CHIPR 8.2KOHM +-5% 1/4W FENGHUA
R904 061G1206822 JF RST CHIPR 8.2KOHM +-5% 1/4W FENGHUA
C806 065G060310512K T CAP CHIP 0603 1UF K 16V X7R
C927 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C920 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C919 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C916 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C811 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R
C804 065G080510512K T CAP CHIP 0805 1UF K 16V X7R
D809 093G 64 33 DIO SIG SM BAV99 (PHSE)R
D808 093G 64 42 P BAV70 SOT23 BY PAN JIT
D807 093G 64 42 P BAV70 SOT23 BY PAN JIT
D806 093G 64 42 P BAV70 SOT23 BY PAN JIT
D909 093G 6432P LL4148
D805 093G 6432P LL4148
D804 093G 6432P LL4148
D803 093G 6432P LL4148
D802 093G 6432P LL4148
D801 093G 6432P LL4148

ZD920 093G 39S 40 T RLZ 13B LLDS

IC902 056G 158 12 KIA431A-AT/P TO-92

R908 061G152M10452T RST MOFR 100KOHM +-5% 2WS
R940 061G152M15152T RST MOFR 150 OHM +-5% 2WS
R914 061G152M39852T RST MOFR 0.39 OHM +-5% 2WS
C906 065G 2K222 2T6921 CAP CER 2200PF K 2KV Y5P
C908 067G215Y2207KT CAP 105℃ 22UF M 50V KINGNICHI

F901 084G 56 4 B FUSE 4A 250V
D901 093G 6026T52T RECTIFIER DIODE FR107
D902 093G 6038T52T FR103

J812 095G 90 23 JUMPER WIRE
J902 095G 90 23 JUMPER WIRE

F903 095G 90 23 JUMPER WIRE

J807 095G 90 23 JUMPER WIRE
J808 095G 90 23 JUMPER WIRE
J809 095G 90 23 JUMPER WIRE
J810 095G 90 23 JUMPER WIRE
J805 095G 90 23 JUMPER WIRE
J806 095G 90 23 JUMPER WIRE
J804 095G 90 23 JUMPER WIRE
J811 095G 90 23 JUMPER WIRE
J908 095G 90 23 JUMPER WIRE
J906 095G 90 23 JUMPER WIRE
J905 095G 90 23 JUMPER WIRE
J904 095G 90 23 JUMPER WIRE
J903 095G 90 23 JUMPER WIRE
J801 095G 90 23 JUMPER WIRE

66

J802 095G 90 23 JUMPER WIRE

J803 095G 90 23 JUMPER WIRE
FB904 071G 55 9 T FERRITE BEAD
FB903 071G 55 9 T FERRITE BEAD

Q903 057G 761 16 TRA KTD1028 KEC

F901 084G 56 4W FUSE 4.0A 250V
D901 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41
D902 093G 6038P52T PS102R

IC902 056G 158 10 T IC AS431AZTR-E1 TO-92
FB906 071T 55 26 H FERRITE BEAD 3.5*6.0*0.8
FB907 071T 55 26 H FERRITE BEAD 3.5*6.0*0.8
FB906 071G 55 26 S FERRITE CORE
FB907 071G 55 26 S FERRITE CORE

709T3465 QA001 CONSUMPTIVE ASS'Y
052G 2191 A PAPER TAPE

J909 095G 90 23 JUMPER WIRE
J910 095G 90 23 JUMPER WIRE

CN901 006G 31500 GP EYELET

715G3465P020HV003M POWER PCB FR-1 T:1.6MM 125X200MM

RJ903 061G1206000 RST CHIP MAX 0R05 1/4W

D801 093G 64S522SEM LL4148
D802 093G 64S522SEM LL4148
D803 093G 64S522SEM LL4148
D804 093G 64S522SEM LL4148
D805 093G 64S522SEM LL4148
D909 093G 64S522SEM LL4148
D809 093G 6433S DIODE BAV99 SEMTECH
D806 093G 64 42 PP BAV70 SOT-23
D807 093G 64 42 PP BAV70 SOT-23
D808 093G 64 42 PP BAV70 SOT-23
Q802 057G 763 62 FET 2N7002K 300MA/60V SOT-23
Q803 057G 763 62 FET 2N7002K 300MA/60V SOT-23

709T3465 QS001 CONSUMPTIVE ASS'Y
051G 100502 GLUE_MYLAR
Q05G6054 1 SHEET
Q09G6012 1 PIN
052G 2191 A PAPER TAPE

R925 061G08051500FF RST CHIPR 150OHM +-1% 1/8W FENGHUA
R925 061G08051500FT RST CHIPR 150 OHM +-5% 1/8W
C805 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C807 065G060310332K Y CAP CHIP 0603 10N 50V X7R +/-10%
C806 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R
C806 065G060310512K M CAP 0603 1UF 10% 16V X7R
C813 065G060333332K F CAP CHIP 0603 33NF K 50V X7R
C810 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C815 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C932 065G080510231J F CAP CHIP 0805 1NF J 50V NPO

67

C825 065G080510332K A CAP CHIP 0805 10NF K 50V X7R
C823 065G080510332K A CAP CHIP 0805 10NF K 50V X7R
C925 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10%
C924 065G080522131J F CAP CHIP 0805 220PF J 50V NPO
C912 065G080522332K F CAP CHIP 0805 22NF K 50V X7R
C814 065G080539131J Y CAP CHIP 0805 390P 50V NPO +/-5%
C923 065G080547131J Y CAP CHIP 0805 470P 50V NPO +/-5%
C802 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%
C801 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10%
C809 065G080556131G F CAP CHIP 0805 560PF G 50V NPO
C921 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R

C929 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R
ZD803 093G 39GA01 T RLZ5.6B
ZD802 093G 39GA01 T RLZ5.6B
ZD803 093G 39S 24 T RLZ 5.6B LLDS
ZD802 093G 39S 24 T RLZ 5.6B LLDS

T901 S80GL19T33V1 TRANSFORMER ASS'Y

049FP200 2 3300ZH
Q02G7022 2 SCREW-STOPPER
Q07G 2 L178 WOODEN PALLET
Q11G5052 1 STRING
Q12G7047 1 SILICA GEL
Q40G 22061542A RATING LABEL
Q40G 58169022A QC PASS LABEL
Q40G0001624 4A PALLET LABEL
Q41T7830615 1A WARRANTY CARD
Q44G6002121118 PAPER BOARD
Q44G9003 3 CORNER PAPER
Q44GC113101 EPS
Q44GC113201 EPS
Q44GC113615 3A 22 TV AOC CARTON
Q44T600283410A PAPER BOARD
Q45G 99626 35 PE BAG
Q45G2010M0102A PE BAG FOR MANUAL
Q45T 99609100 EPE COVER
Q50G 4 10 TIE (Y1900221)
Q50T 500523 CABLE TIE
Q52G 1150523 TAPE_INSULATING
Q52G 1150523 TAPE_INSULATING
Q52G 1185 98 MIDDLE CARTON TAPE FOR AOC
Q52G 1185 99 BIG CARTON TAPE FOR AOC
041T780062415A CERTIFICATE CARD
092GB1JX1A3DGC BATTERY FOR LR03（KH）2S/G
Q41G22MV615 1B MANUAL
Q45G2010M0101A PE BAG FOR MANUAL
026G 800700 1A BARCODE LABEL
040G 58162435A P/N LABEL FOR MANUAL PE BAG

68

040G 581689 4A BARCODE LABEL FOR 1
0Q1G 930 8 47 CR3 SCREW
A15T0817101 CITA-2K8-19-SIDE-BKT
078G 494505 KA SPK 4 OHM 3.5W 25X80 180 180MM KUAIDA

E09502 095G8014 8DH44 HARNESS 8P(2008)-5P(A1253HA)+4P(2008)

E09502 095G8014 8WH44 HARNESS 8P(2008)-5P(A1253HA)+4P(2008) 2nd source

705TQ934C65 PLASTIC ASS"Y 22"
0Q1G 930 6120 SCREW 3X6MM
A33E0305 QV 1L0200 BUTTON_FUNC
A33E0688 GMA1L0100 KEY COVER
705TQ949001 COMSUPTIVE ASS'Y-A4
049G 51 1A ERADICATOR
052G 2191 A PAPER TAPE
IRPF9QB4 IR BOARD T2995-1-X-X-4-080518

U01 056G 627 14 1 IC KSM-2003TN2ES1 37.9KHZ

CN01 033G8032 5F HR CONNECTOR

LED01 081T 14 24 EL CHIP LED BLUE/DARK RED

715T2995 1 IR PCB FR-4 T:1.6MM 30X24MM
KEPF9QAF KEY BOARD T3513-1-X-X-3-090721

CN01 033G3802 4B YH CONNECTOR 4PIN 2.0PITCH

R01 061G0603200 2F RST CHIPR 20 KOHM +-1% 1/10W
R02 061G0603820 1F RST CHIPR 8.2 KOHM +-1% 1/10W
R03 061G0603432 1F RST CHIP 4.32K 1/10W 1%
R04 061T0603274 1F RST CHIPR 2.74 KOHM +-1% 1/10W
R05 061G0603180 1F RST CHIPR 1.8 KOHM +-1% 1/10W
R07 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W
R08 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W

715G3513K01000001S TV KEY-PCB 111X15X1.6MM FR1 1OZ SS
SW01 077G 603 AI HJ TACT SWITCH 2PIN
SW02 077G 603 AI HJ TACT SWITCH 2PIN
SW03 077G 603 AI HJ TACT SWITCH 2PIN
SW04 077G 603 AI HJ TACT SWITCH 2PIN
SW05 077G 603 AI HJ TACT SWITCH 2PIN
SW06 077G 603 AI HJ TACT SWITCH 2PIN
SW07 077G 603 AI HJ TACT SWITCH 2PIN

C01 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C02 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C03 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C04 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C05 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C06 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R
C07 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R

Q12T7037 1 GP RUBBER FOOT

Q40G2010 19002 SIDE LABLE

Q40G2010 19101 SIDE LABLE

69
