AOC L19BH83 Schematic

19″&22″LCD TV AOC L19BH83&L22BH83

1

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

6.1.Main Board……….……..……………...……….......28

6.2.Power Board…………….…..………….……….......31

6.3.Key Board……………..………………..……….......32

6.4.IR Board……………….………………..……….......32

7.White-Balance, Luminance Adjustment....................33

8.Block Diagram.…..……............................................34

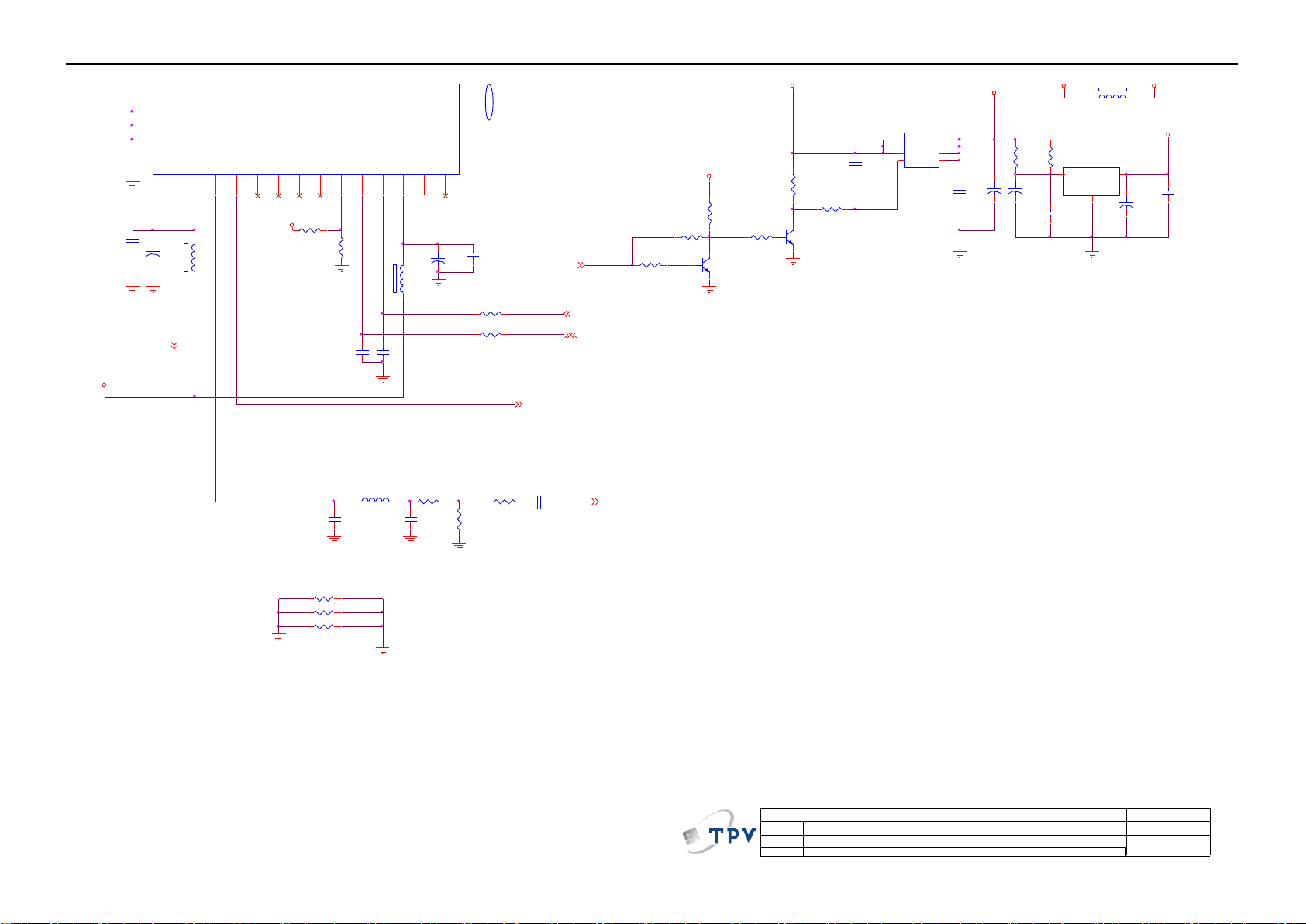

9.Schematic……………...…………..………………...35

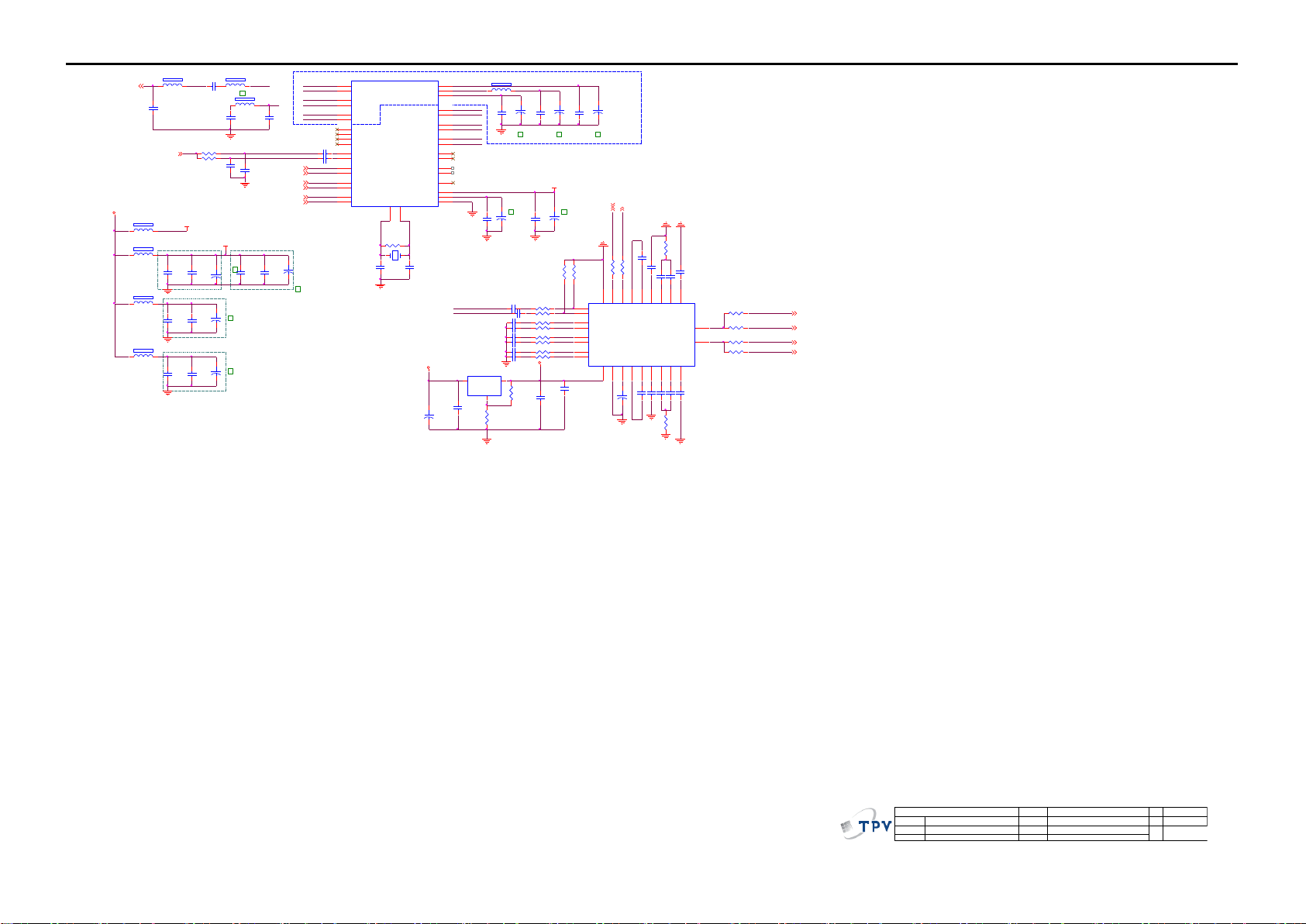

9.1 Main Board…………………………………...….......35

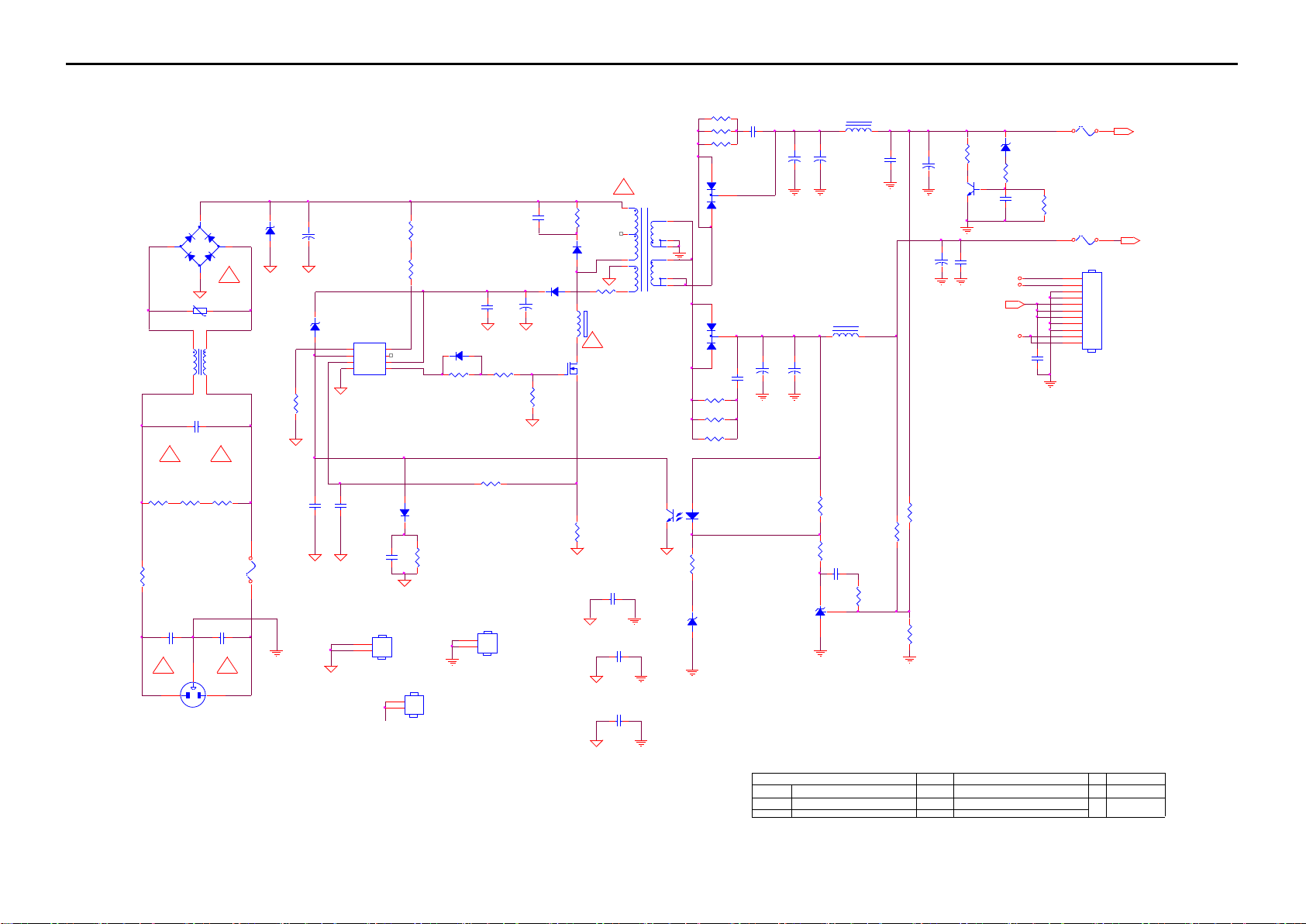

9.2.Power Board…………….…………...………….......46

9.3.Key Board…………..……….……….………….......48

10.Exploded View………………………………….…...49

11.BOM List……………….…………………………….5 1

12.Different Parts List……………………………………85

Table Of Contents.......……..............................…........1

Important Safety Notice.......................................……......2

Revision List…………………………………………………3

1. General Specification..............................………........4

2. Operating Instructions…………………….……….......5

2.1. The Use Of Remote Control…….………….…….......5

2.2. To Use The Menu…...…………………….……….......6

2.3. How To Connect…….…………………….……….....11

2.4. Front Panel Control Knobs……………….……….....13

3. Input/Output Specification…………....................…....14

4. Mechanical Instructions…………………….................17

5. Repair Flow Chart ……………………….…….…….....23

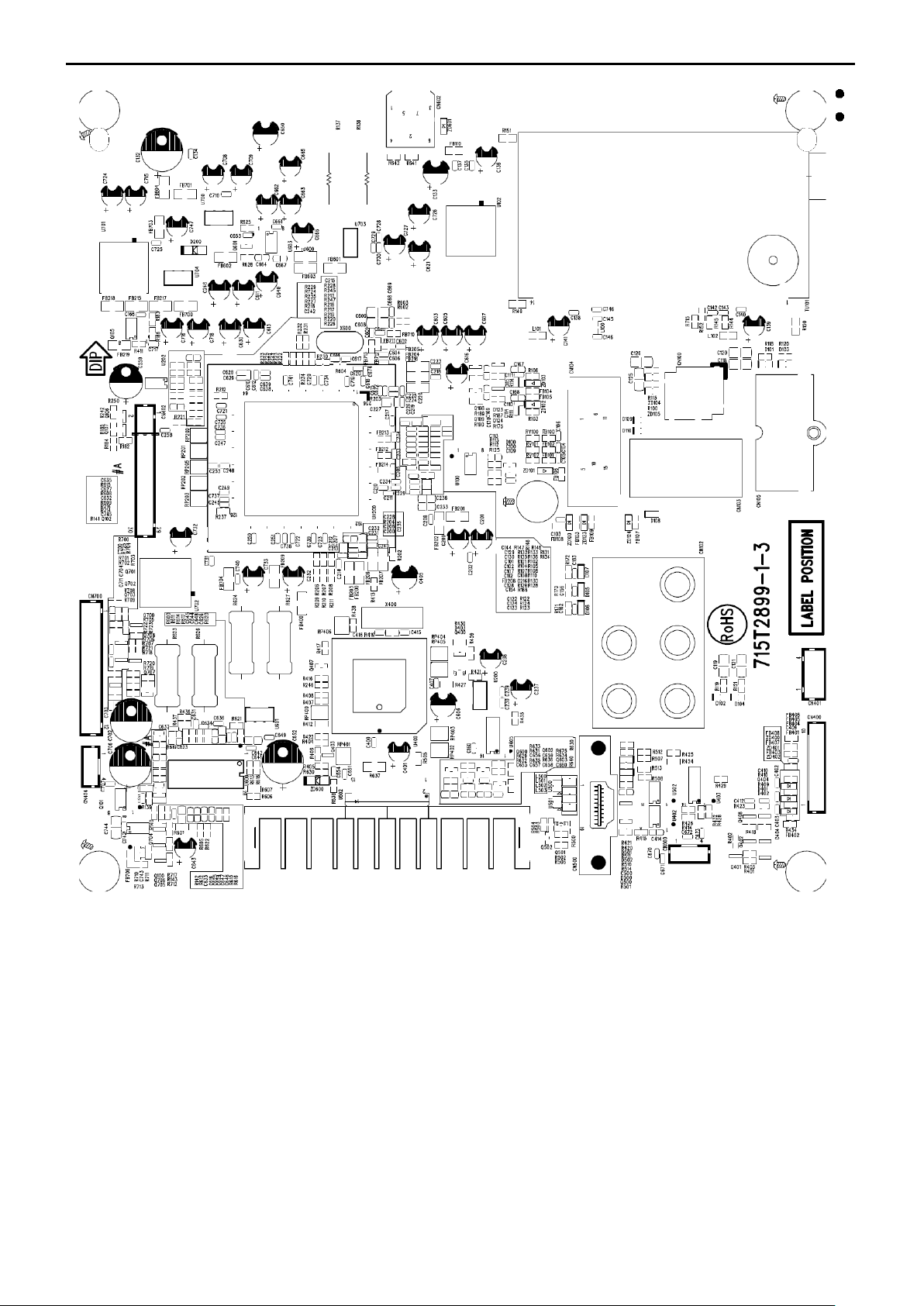

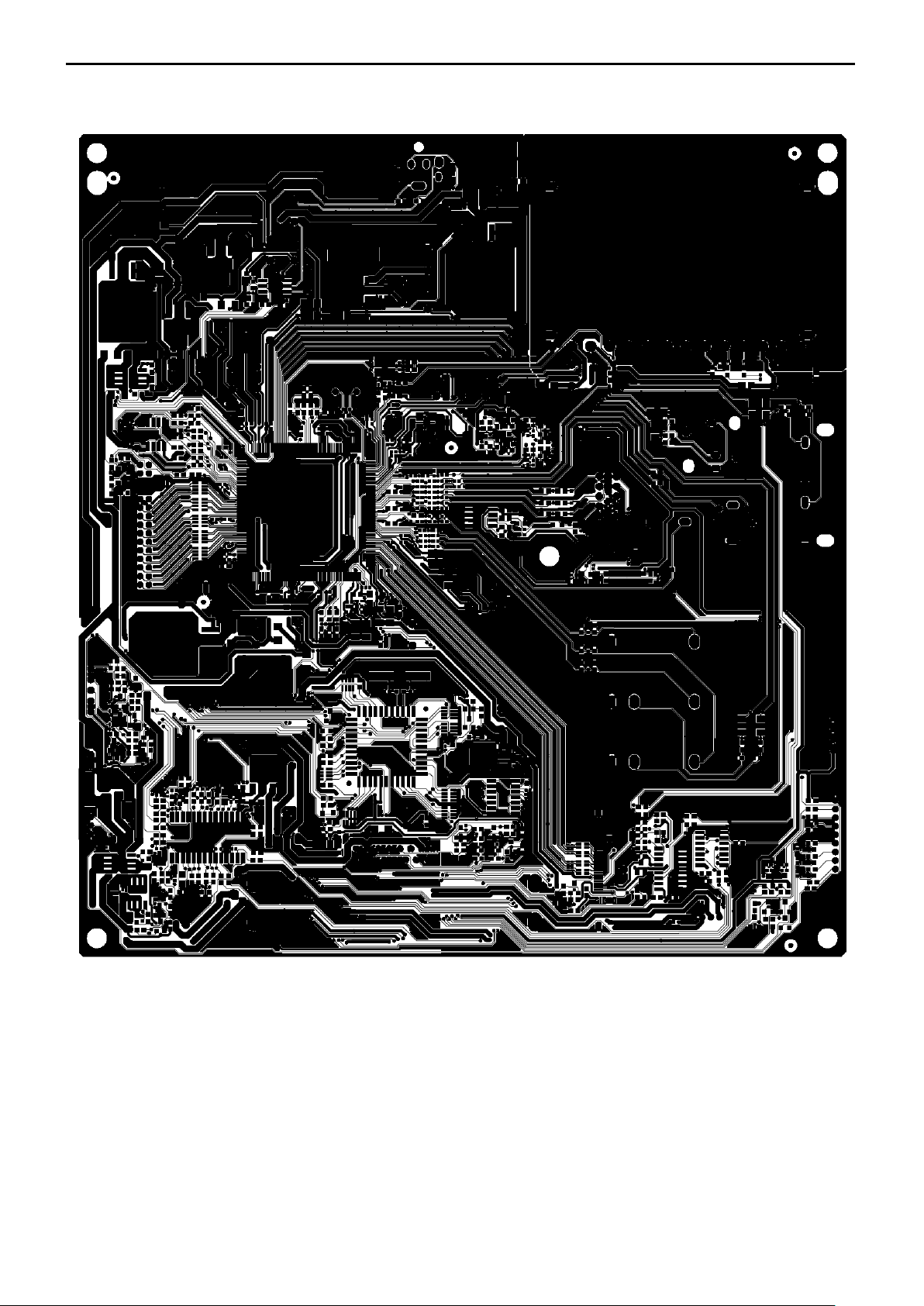

6. PCB Layout …………………..………………....….......28

Service

Service

Service

Horizontal Frequency

L19BH83:37kHz~67.5kHz

TABLE OF CONTENTS

Description Page Description Page

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE
CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

SAFETY NOTICE

L22BH83: 31.5kHz~80kHz

19″&22″LCD TV AOC L19BH83&L22BH83

2

Important Safety Notice

Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service
procedures recommended by AOC and described in this service manual are effective methods of performing service
operations. Some of these service operations require the use of tools specially designed for the purpose. The
special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in
order to minimize the risk of personal injury to service personnel. The possibility exists that improper service
methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE
NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in
which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not
recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
Hereafter throughout this manual, AOC Company will be referred to as AOC.

WARNING

Use of substitute replacement parts, which do not have the same, specified safety characteristics might create
shock, fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from AOC.
AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:
DANGER-Invisible laser radiations when open AVOID DIRECT EXPOSURE TO BEAM.
CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF
THIS SERVICE MANUAL.
Take care during handling the LCD module with backlight unit

-Must mount the module using mounting holes arranged in four corners.

-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to
the panel.

-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

-Make certain that treatment person’s body is grounded through wristband.

-Do not leave the module in high temperature and in areas of high humidity for a long time.

-Avoid contact with water as it may a short circuit within the module.

-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)

19″&22″LCD TV AOC L19BH83&L22BH83

3

Version

Release Date

Revision Instructions

Customer Model

TPV Model

A00

Nov-3-2008

Initial Release

L19BH83

E1983ANCW1A4NN

L22BH83

E228CANCW1A4NN

A01

Dec-16-2008

Add new BOM

L19BH83

E19R3ANMW1A4NN

Revision List

19″&22″LCD TV AOC L19BH83&L22BH83

4

Function

19"W/22"W Screen
PC Input
Support TV,VIDEO、HDMI Signal

ITEM

19"W

22"W

TV Function

TV Standard

PAL B/G、D/K、I、NTSC M

Sound System

NICAM、FM-MONO

Video Input

AV

RCA X 1

S-VIDEO

S-Video X 1

YPbPr/YCbCr

YPbPr X 1

HDMI

HDMI X 1

HDMI, component support Timing
480i、576i、480p、576p、720p、1080i

VGA Function

Input support definition

1440*900 /60Hz (19”W)
1680*1050 /60Hz (22”W)

Audio input

Mini jack for stereo headphones (3.5ø)

Audio output

Audio output: L / R
built-in Two speakers

Headphone Mini-jack for stereo (3.5ø))

OSD Language

chinese / English (default is English)

Table Stand

Yes

Wall Mount

VESA 100 x 100 mm

Power
Power

AC100V~240V, 50/60Hz

Power Consumption

≤65W

≤75W

Environment

Temperature

+ 5 °C ~ + 35 °C

storage

- 25 °C ~ + 60 °C

operating

10% ~ 85%

Dimension

W x H x D
(with
stand)

446x358x145(mm)

512x400x144(mm)

1. General Specification

19″&22″LCD TV AOC L19BH83&L22BH83

5

POWER

Press to power ON/OFF
(standby) TV. (Note:TV is never
completely power off unless
physically unplugged.)

VIDEO/S-VIDEO IN
Press repeatedly to toggle
between AV and S-VIDEO
source modes

COMP/HDMI

Press repeatedly to toggle
between COMPONENT and
HDMI source modes 。

pc

Press to choose PC source
mode directly.

TV

Press to choose TV source
mode directly.

0~9/100 number

Press to enter channel
numbers

CH + -:

Press to change TV channel up
or down

VOL- / VOL+

Press + or - to adjust the
volume.

NICAM

Press to activate the TV
sounds,

SLEEP

Press to set sleep timer,setting
a mount of time before your TV
turn off automatically

MENU

Press to open or exit menu.

PRE CH

Press to display the
previous channel .

MUTE

Press to mute the
sound.Press again to
restore sound.

DISPLAY

Press to show the
information about the input
source or TV channel.

SOURCE

Press to display source
menu。

SOUND

Press to switch the preset
of audio preset mode.

WIDE

Press to choose the
display aspect

FREEZE

No support for this product


Press to switch the preset
of video preset mode.

EXIT

Press to exit menu or OSD.

“∧”,“∨”,“ ＜”,“ ＞”,“ENT
ER”

Press to adjust the various
function items on the
menu.

2. Operating Instructions

2.1 The Use of Remote Control

19″&22″LCD TV AOC L19BH83&L22BH83

6

MAIN MENU

2.2 To Use the Menus

1. Press the MENU button to display the main menu

2. Use the cursor left/right to select a menu item.

3. Use the cursor Up/Down to enter a submenu.

4. Press the OK button to enable/disable the function.

5. Press the MENU or EXIT button to exit the menu.

Press the MENU button to enter the main OSD (On Screen Display). Adjust the items including Picture menu,
Sound menu, advanced menu, Installation menu, PC setup menu and System menu.
When the input source is TV mode, Picture menu, Sound menu, advanced menu, Installation menu and
System menu can be selected.

When the input source is AV, S-video, Component or HDMI mode, only the Picture menu, Sound menu, Advanced
menu and System menu can be selected.

When the input source is PC mode, Picture menu, Sound menu, PC setup menu and System menu can be
selected.

19″&22″LCD TV AOC L19BH83&L22BH83

7

Picture Menu

1. Preset: Designed for different types of video mode. Can select Personal, Vivid, Standard and Mild

2. Brightness: Video brightness adjustment, can adjust only when Preset is setted as Personal. The tuning range
is 0 ~ 100.

3. Contrast: Video contrast adjustment, can adjust only when Preset is setted as Personal. The tuning range is 0
~ 100.

4. Color: Video color chroma adjustment, can adjust only when Preset is setted as Personal. The tuning range is
0 ~ 100.

5. Tint: Video tint adjustment, Can only select with NTSC signal. The tuning range is -50 ~ +50.

6. Sharpness: Video sharpness adjustment, the tuning range is 0 ~ 100.

7. Color temp: There are three options of colour temperature provided for users - warm, normal and cool.

8. Reset: Restore the default video settings.

Sound Menu

The Sound menu shows as below. It provides audio adjustment for user to modify the audio setting.

1. Preset: Designed for different types of sound mode. Can select Personal, Voice, Music and Theatre.

2. Bass: Bass tone adjustment, can adjust only when Preset is setted as Personal. The tuning range is -50 ~50.

3. Treble: Treble tone adjustment, can adjust only when Preset is setted as Personal. The tuning range is -50~50.

4. Balance: Audio balance adjustment, the tuning range is -50~50.

5. Sound mode: Press to activate the TV sounds mode,

19″&22″LCD TV AOC L19BH83&L22BH83

8

PC Setup Menu

6. Reset: Restore the default audio settings.

Advanced Menu

1. Noise reduction：Designed for different noise reduces effect, user can select off, Low, Normal and High.

2.

Super contrast: Enhance the contrast of color.

3. Size: There are various functions provided for zoom in or zoom out. Can select Normal, Zoom, and Wide.

4. Reset: Restore the default video settings.

se

1. Auto adjust: Automatically adjust PC input to the optimal screen size.

2. H.Position: Adjust Horizontal position of picture from -50~50.

3. V.Position: Adjust Vertical position of picture from -50~50.

4. Clock: Adjust clock of signal. The tuning range is -50~50.

5. Phase: Adjust phase of signal. The tuning range is -50~50.

Installation Menu

19″&22″LCD TV AOC L19BH83&L22BH83

9

一.Auto search:
Select "Auto Search" to search all signaled channel; when the searching is complete, it stays at the first channel with

signal and all channels that have been located are stored. If you would like to stop "Auto Search" during the process,
simply by pressing the MENU button.

二.Manual setup:

1.Program.: Shows the current channel number.

2.Name: Shows the current channel name

3.Search: Shows the current channel frequency

4.Color system:Can set as NTSC, PAL or AUTO. Advise please do not change this item after auto search action.

5.Sound system: Can set as BG, DK ,M or I,. Advise please do not change this item after auto search action.

6.Fine tuning: Fine tune the frequency of current channel.

7.AFC: AFC can be set to ON or OFF. Set to ON, the TV will search signal automatically; when there is any offset in

the signal, will automatically adjust the channel to the correct frequency.

8.Save: to save user program seting.

三.Program editor:

Follow the instruct (lower of OSD) to edit the program.
Skip: Skip can be set to ON or OFF. When it is set to ON, a channel can be skipped by pressing the switching button on the
remote control or on the front panel.

19″&22″LCD TV AOC L19BH83&L22BH83

10

System Menu (

1. Menu language: There are two language options provided - English, Chinese,default is English.

2. Menu timeout: Adjust the time of menu display.

3. Sleep timer: Function with which you can set a time period after which the TV should turn itself off. You can set
it as 5, 10, and 15.30,45,60,90,120,180,240 and off.

4. Menu background: Adjust the background of OSD menu. The tuning range is 0 ~ 15.

5. Reset: Restore the default System settings.

6. Reset all: Reset all OSD setting to default value.

19″&22″LCD TV AOC L19BH83&L22BH83

11

2.3 How to Connect

VIDEO RECORDER

How to connect

1. Connect the supplied antenna cable to the RF IN port of your VCR.

2. Connect another FR cable from the port of your VCR to the antenna port of you TV set. If you have connected

the video/audio cable to the video AV port, you may have better sound and picture when playing the VCR .

If your VCR has an S-VHS video jack:

For improved picture quality, connect a S-Video cable with the S-VIDEO input on the TV.
S-Video does not provide audio, audio cables must still be connected to provide sound (AV and S terminal share one
audio input).

Watching VCR

1. If you use connection TV, select the TV channel auto search.

2. If you use connection AV, select video AV input.

3. Insert videotape in the VCR and press the PLAY button.

DVD PLAYER

How to connect

1. Connect 3 separate components signal cables to the Y, Pb and Pr ports of the component signal of the DVD

player, and the Y, Pb and Pr ports of the component signal of theTV set.

2. Connect the audio cable to the audio output port of the DVD player and the audio input port of the component

signal of the TV set.

How to use

1. Select YPbPr mode.

2. Turn on the DVD set.

CAMERA CAMCORDER VIDEO GAME SET…

How to connect

1. Connect the camera, camcorder and game set to the ports of the audio/video set.

2. The camcorder may get better picture by connecting a S-Video cable between the equipment and the TV set.

How to use it

1. Select the video AV or S-Video input.

2. Enable the exterior AV equipment.

Warning: In case you notice scrolling images, wrong colors or no color, no picture or even combinations of these, on
your screen, check if the connections are done in the right way. Check if the cable colors match with the Input
connector colors.

19″&22″LCD TV AOC L19BH83&L22BH83

12

DIGITAL SET TOP BOX

Connect the top box to the input port of the component signal.

How to connect

1. Connect 3 separate component signal cables to the Y, Pb and Pr ports of the component signal of the Digital

TV/ Top Box, and the Y, Pb and Pr ports of the component signal of theTV set.

2. Connect the audio cable with the audio port of the Digital TV/Top Box and the audio port of the TV set.

How to use

1. Select Component.

2. Turn on the DVD set-Top box set.

Warning: In case you notice scrolling images, wrong colors or no color, no picture or even combinations of these,
on your screen, check if the connections are done in the right way. Check if the cable colors match with the Input
connector colors.

PC

How to connect the TV set to your computer

Use D-sub signal cable (also called VGA cable) enclosed in the carton to connect the D-sub interface of the TV set
and your computer, now the TV set is used as a monitor and you need to switch the source to PC mode. Please see
the below picture for your reference.

How to connect audio cable

Use the audio cable enclosed in the carton to connect the PC audio output terminal to TV set audio input terminal.
Please see the below picture for your reference.

19″&22″LCD TV AOC L19BH83&L22BH83

13

1 VOL▲

VOL +: Press to increase the volume. In Menu mode, functions as right arrow to
go to a next menu or increase a setting.

2 VOL▼

VOL - : Press to decrease the sound volume level. In Menu mode, functions as
left arrow to go to a previous menu or decrease a setting.

3 CH ▲

CH +: Press to select the next higher Program number.

4 CH ▼

CH - : Press to select the next lower Program number.

5 MENU

Menu key: Press

to open or exit the OSD menu.

6 INPUT

Source key: Press to select the input source.

7 POWER

Power key: Press to turn on / off (standby) the TV set.

2.4 Front Panel Control Knobs

19″&22″LCD TV AOC L19BH83&L22BH83

14

Pin No.

Description

Pin No.

Description

1

Red Video 9 No Pin

2

Green Video

10

Sync Ground

3

Blue Video

11

RXD

4

TXD

12

Serial Data for DDC

5

Ground

13

H-Sync.

6

Red Video Ground

14

V-Sync.

7

Green Video Ground

15

Serial Clock for DDC

8

Blue Video Ground

Pin No.

Description

Pin No.

Description

1

TMDS Data2+

2

TMDS Data2 Shield

3

TMDS Data2-

4

TMDS Data1+

5

TMDS Data1 Shield

6

TMDS Data1-

7

TMDS Data0+

8

TMDS Data0 Shield

9

TMDS Data0-

10

TMDS Clock+

11

TMDS Clock Shield

12

TMDS Clock-

13

CEC

14

NC

15

SCL

16

SDA

17

DDC/CEC Ground

18

+5V Power

19

Hot Plug Detect

1611

15

5

10

3. Input/Output Specification

3.1 RGB Signal input

15 - Pin Color Display Signal Cable

3.2 HDMI Digital connector pin assignments

19″&22″LCD TV AOC L19BH83&L22BH83

15

AV

(Composite Video)

Video system

NTSC/PAL

Amplitude

1.0Vpp (including sync)

Impedance

75 ohm terminated

S-Video

Video system

NTSC/PAL

Y signal amplitude

1.0Vpp (including sync)

C signal amplitude

0.286Vpp

Impedance

75 ohm terminated

Component Video

Video System

DTV

NTSC/PAL

480i, 480p, 576i,576p,720p, 1080i

Y signal amplitude

1.0Vpp (including sync)

Pr/ Pb signal amplitude

0.7Vpp

Impedance

75 ohm terminated

Composite Video

Video system

NTSC/PAL

Amplitude

1.0Vpp (including sync )

Impedance

75 ohm terminated

S-Video

Video system

NTSC/PAL/SECAM

Y signal amplitude

1.0Vpp (including sync )

C signal amplitude

0.286Vpp

Impedance

75 ohm terminated

Video Mode

FH

(kHz)

FV

(Hz)

Dot

clock

(MHz)

Sync

polarity

Horizontal (dot)

Vertical (line)

H V H-total

H-wid

e

H

Bac

k

porc

h

H

Front

porch

V-total

V-wid

e

H

Back

porc

h

H
Front
porch

VESA

VGA 640x480

31.46

9

59.94

0

25.17

5

N N 800

96

48

16

526 2 33

11

SVGA 800x600

37.87

9

60.31

7

40.00

0

P P 1056

128

88

40

628 4 23

1

XGA 1024x768

48.36

3

60.00

4

65.00

0

N N 1344

136

160

24

806 6 29 3 1360x768

63.98

1

60.02

0

108.0

00

P P 1688

112

248

48

1066

3

38

1

VGA TEXT

720x400

31.46

9

70.08

7

28.32

2

N P 900

108

45

27

449 2 35

12

1680X1050

64.67

4

59.88

4

119.0

00

P P 1840

32

80

48

1080

6

21

3

3.3 AV/S-Video/Component Video Inputs

L19BH83

L22BH83

3.4 Compatible Mode Table

L22BH83

19″&22″LCD TV AOC L19BH83&L22BH83

16

Video Mode

FH

(kHz)

FV

(Hz)

Dot

clock

(MHz)

Sync

polarity

Horizontal (dot)

Vertical (line)

H V H-total

H-wid

e

H

Back

porc

h

H
Front
porch

V-total

V-wid

e

H

Back

porch

H

Front

porch

VESA

VGA 640x480

31.46

9

59.94

0

25.175

N N 800

96

48

16

526 2 33

11

37.86

1

72.80

9

31.500

N N 832

40

128

24

520 3 28

9

37.50

0

75.00

0

31.500

N N 840

64

120

16

500 3 16

1

SVGA 800x600

35.15

6

56.25

0

36.000

P P 1024

72

128

24

625 2 22

1

37.87

9

60.31

7

40.000

P P 1056

128

88

40

628 4 23

1

48.07

7

72.18

8

50.000

P P 1040

120

64

56

666 6 23

37

46.87

5

75.00

0

49.500

P P 1056

80

160

16

625 3 21

1

XGA 1024x768

48.36

3

60.00

4

65.000

N N 1344

136

160

24

806 6 29

3

56.47

6

70.06

9

75.000

N N 1328

136

144

24

806 6 29

3

60.02

3

75.02

9

78.750

P P 1312

96

176

16

800 3 28

1

SXG

A

1152x86

4

67.50

0

75.00

0

108.00
0

P P 1600

128

256

64

900 3 32

1

1280x10

24

63.98
1

60.02

0

108.00
0

P P 1688

112

248

48

1066

3

38

1

79.97
6

75.02

5

135.00
0

P P 1688

144

248

16

1066

3

38

1

VGA

TEXT

720x400

31.46
9

70.08

7

28.322

N P 900

108

45

27

449 2 35

12

Macintosh

640x480

35.00
0

66.66

7

30.240

N N 864

64

96

64

525 3 39 3 832x624

49.72
5

74.50

0

57.283

N N 1152

64

224

32

667 3 39

1

1024x768

60.15
0

74.72

0

80.000

N N 1330

96

168

42

805 3 31

3

1280x768

47.77
6

59.87

0

79.500

N P 1664

128

192

64

798 7 20 3

1280x960

60.00
0

60.00

0

108.00
0

P P 1800

112

312

96

1000

3

36 1

1440x900

55.93
5

59.88

7

106.5

N P 1904

152

232

80

934 6 25

3

L19BH83

19″&22″LCD TV AOC L19BH83&L22BH83

17

4. Mechanical Instructions

L19BH83

1. Remove the 3 screws to remove the stand base.

2. Remove 7 screws to remove the rear cover.

3. Release the connectors.

19″&22″LCD TV AOC L19BH83&L22BH83

18

4. Remove the screws to remove key board

5. Remove the speakers

6. Remove Power board and Main board.

19″&22″LCD TV AOC L19BH83&L22BH83

19

7.Remove the IR board

8. Remove the 4 screws to remove the main frame.

9. The panel.

19″&22″LCD TV AOC L19BH83&L22BH83

L22BH83

1. Remove the 3 screws to remove the stand base.

2. Remove 5 screws to remove the rear cover.

3. Release the connectors.

20

19″&22″LCD TV AOC L19BH83&L22BH83

4. Remove the screws to remove key board

5. Remove the speakers

6. Remove Power board and Main board.

21

19″&22″LCD TV AOC L19BH83&L22BH83

7. Remove the IR board

8. Remove the 4 screws to remove the main frame.

9. The panel.

22

19″&22″LCD TV AOC L19BH83&L22BH83

NG

Repair key board or remote control

OK

Check U701, U702, U703

NG

Replace U701, U702, U703

Check U400

NG

Replace U400

OK

OK

Check key board or remote control

Check I2C communication

Can not start

OK

NG

Check power cord and board interface

Plug in power cord and interface

OK

Check F901, BD901, C905

NG

Replace F901 or BD901 or C905

OK

Check IC901, Q901

Check D904, D906

NG

Replace IC901 or Q901

OK

Check T901

OK

Replace T901

Replace D904 or D906

OK

NG

NG

Check ZD920

NG

Replace ZD920

5. Repair Flow Chart

1. No Power (No LED indicator)

2. Can not start (LED indicator yellow)

23

19″&22″LCD TV AOC L19BH83&L22BH83

Check 12V

power supply

Check Panel

NG

Replace Panel

Check back light is OK

OK

Check LVDS cable

and connector

OK

Check UH200

NG

Replace

UH200

OK

Check U202

NG

Replace U202

NG

NG

OK

Check BL-ON/OFF signal

Check PS

signal

OK

OK

Check power

board

NG

NG

NG

Check Q705、Q706

Replace Q705、Q706

3. No display (LED indicator green)

24

19″&22″LCD TV AOC L19BH83&L22BH83

Check the source

OK

Reset source

NG

Check signal filter circuit

NG

Replace the filter or inductance

OK

NG

TV signal

Check TV system setup

OK

Check TU101

Replace TU101

OK

Check U400

NG

Replace U400

OK

Check LVDS cable

NG

Replace LVDS cable

OK

Check panel

NG

Replace panel

Check input signal

AV, S-video, Comp，PC，HDMI signal

4. Abnormal display

25

19″&22″LCD TV AOC L19BH83&L22BH83

Check the source

OK

Reset source

Check signal filter circuit

NG

Replace the filter or inductance

OK

NG

SIF signal

Check TV system setup

OK

Check TU101

Replace TU101

Check U602, U603

NG

Replace U602 or U603

Check Earphone jack

NG

Replace the Earphone jack

OK

Check speaker

NG

Replace speaker

Check U600

Replace U600

NG

Check input signal

OK

OK

5. No sound

26

19″&22″LCD TV AOC L19BH83&L22BH83

OSD is unstable or not working

Is Key Pad Board connecting normally?

Connect Key Pad Board

Is Button Switch normally?

Replace Button Switch

Y

Is Key Pad Board Normally?

Replace Key Pad Board

Check Main Board

N N Y

Y

N

6. Key Board

27

19″&22″LCD TV AOC L19BH83&L22BH83

6. PCB Layout

6.1 Main Board

28

19″&22″LCD TV AOC L19BH83&L22BH83

29

19″&22″LCD TV AOC L19BH83&L22BH83

30

19″&22″LCD TV AOC L19BH83&L22BH83

6.2 Power Board

31

19″&22″LCD TV AOC L19BH83&L22BH83

6.3 Key Board

6.4 IR Board

32

19″&22″LCD TV AOC L19BH83&L22BH83

7. Adjustment

It’s no need to adjust the white balance for this model .

1、Enter into the factory mode:

Turn on the TV, press MENU key with remote control, then press number key 1  9  9  9. It will achieve the
factory mode

2、Click on "Auto Color" in the PC and COMPONENT models:

PC mode: TIM = 137; PAT = 185
COMPONENT mode: TIM = 311; PAT = 185

33

19″&22″LCD TV AOC L19BH83&L22BH83

VIDEO

DECODER

&

AUDIO DECODER

&

SCALER

HX6203

UH200

PC

TUNER

COMPONENT

SV

AV1

AV2

JACK

PT2314

U600

TDA7297

U602

PT2309

U603

EEPROM

U402

CVBS

SIF

SV&AV1 –R/L

SV Y&C

AV 1 CVBS

AV 2 CVBS

AV 2 R/L

YPBP

RGB

VGA-SCL & VGA-SDA

S-SCL & M-SDA

Panel

HP R&L

Earphone

SPEAKER

MCU

W79E632

U400

VGA DDC

U100

M25P40

U202

HDMI

DDCSCL & DDCSDA

8. Block Diagram

34

1
2

3

CN100

PHONEJAC K

R103

2.2K OHM 1/10W

R189

220K OHM 1/10W

R125

4.7K OHM 1/10W

1 2

FB104 120 OHM

1

6

2

7

3

8

4

9

5

11

12

13

14

15

10

17 16

CN104 D B15

R106

2.2K OHM 1/10W

1 2

FB105 120 OHM

VGA INTERFACE

C125

10uF/25V

VGA_V

C126

10uF/25V

B_GND

1 2

FB106 120 OHM

1 2 FB100

60 OHM

1 2

FB107 120 OHM

1 2 FB101

60 OHM

VGA_H

1 2 FB102

60 OHM

G_GND

RS_RXD

7

RS_TXD 7

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL
PCB NAME

称爹

T P V ( Top Victory Electronics C o . , Ltd. )

Key Component

絬 隔 瓜 絪 腹 0.13

A3

1 11Monday, April 21, 2008

715T2899-1

<称爹>

01)VGA_INPUT

AGND

C100

33PF 50V

R102

75 OHM 1/16W

C114

33PF 50V

R104

100 OHM 1/16W

1 2

ZD101
UDZS5. 6B

C104

NC

3

1

2

D100

BAT54C

12

RV102

PESD0603-140

VGA_H

C103

NC

R105

75 OHM 1/16W

R101

100 OHM 1/16W

A0

1

A1

2

A2

3

VSS4SDA

5

SCL

6

WP

7

VCC

8

U100

M24C02-WMN6TP

R113

4.7K OHM 1/10W

1 2

FB109 120 OHM

C106

NC

R114

33 OHM 1/16W

C115

33PF 50V

1 2

ZD102
UDZS5. 6B

1 2

ZD100
UDZS5. 6B

C109

33PF 50V

1 2

ZD105

VPORT0603100KV05

C101

0.047UF 25V

12

RV100

PESD0603-140

12

RV101

PESD0603-140

C112

NC

C105

NC

C111

33PF 50V

R112

4.7K OHM 1/10W

R110

100 OHM 1/16W

C107

0.047UF 25V

1 2

C108

1000pF

R111

33 OHM 1/16W

C110

33PF 50V

1 2

ZD104

VPORT0603100KV05

R108

75 OHM 1/16W

C102

0.047UF 25V

R107

100 OHM 1/16W

1 2

ZD103
UDZS5. 6B

AGND

MCU5V

VGA_5V_S

AGNDAGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

R_GND

AGND

AGND

AGND

AGND

AGND

R_M2 3

VS_M2 3

HS_M2 3

SOG_VGA_M2 3

B_M2 3

G_M2 3

VGA_SCL

PC_R 4

PC_L 4

VGA_SCL

VGA_SDA

VGA_SDA

VGA_5V

VGA_RVGA_R

R100

33K OHM 1/10W

VGA_V

C168

0.0047uF

3

1

2

D124

BAT54S

R115

33K OHM 1/10W

VGA_V

Near to HX6203(UH1)

R175

100K OHM 1/10W

1 2

FB108 120 OHM

for EMI change 0Ohm
resistor to 60 OHM
bead 4/1'08

VGA_H

VGA_GVGA_G

VGA_BVGA_B

SYNC _DETECT 7

R_GND

VGA_G

1

23

Q108

PMBS3906

VGA_B

B_GND

VGA_R

1

23

Q109

PMBS3906

C167

0.47uF

MCU5V

12

ZD123

UDZS5. 6B

AUDIO_P_L

AUDIO_P_R

1 2

ZD124

UDZS5. 6B

FOR VGA DDC

MCU5V

R_GND

G_GND

B_GND

VGA_R

VGA_B

MCU5V

C170

0.47uF/25V

R190

180K OHM 1/10W

C169

0.47uF/25V

VGA_5V

C113
1uF/25V

AGND

R187

820K OHM 1/10W

3

1

2

D123

BAT54S

1 2

FB103 120 OHM

19″&22″LCD TV AOC L19BH83&L22BH83

9. Schematic Diagram

9.1 Main Board

35

19″&22″LCD TV AOC L19BH83&L22BH83

AV1/L

C154

1000PF 50V

AV1/R

R121

33K OHM 1/10W

R119

33K OHM 1/10W

R120

33K OHM 1/10W

1
2

3
4 5

6
7 8

CN102

JACK

R118

33K OHM 1/10W

HD/L

HD_SOY

3

R166

100 OHM 1/10W

Y

C118

10uF/25V

C120

10uF/25V

C119

10uF/25V

C121

10uF/25V

PB

1 3

4
2

8

5

6

7

CN103

JACK

2
1
4
3

CN105

JACK

PR

HD/R

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics C o . , Ltd. )

Key Component

絬

隔 瓜 絪 腹 0.1

A3

2 11Friday, April 18, 2008

715T2899-1

<称爹>

02)VIDEO_IO

12

D105

R129

100 OHM 1/16W

12

D108

R136

43 OHM +-5% 1/16W

12

D107

C130

0.047UF 25V

R135

100 OHM 1/16W

12

D110

R130

43 OHM +-5% 1/16W

R133

43 OHM +-5% 1/16W

12

D104

VPORT0603100KV05

R134

33 OHM 1/16W

C128

0.047UF 25V

R128

33 OHM 1/16W

12

D103

VPORT0603100KV05

R132

100 OHM 1/16W

12

D106

12

D101

VPORT0603100KV05

12

D109

R131

33 OHM 1/16W

C129

0.047UF 25V

12

D102

VPORT0603100KV05

AGND

AGND

AGND

AGND

AGND

AGNDAGND

AGND

AGND

AGND

AGNDAGND

AGND

Video1 3

S-Video_Y 3

S-Video_C 3

HD_R 4

HD_L 4

AV1_R4

AV1_L4

AGND

C163

33pF

C162

33pF

C156

33pF

HD_PR 3

HD_Y 3
HD_PB 3

AGND

R171

75 OHM 1/10W

R170

75 OHM 1/10W

R172

75 OHM 1/10W

C122

0.047UF 25V

R122

100 OHM 1/16W

SVIDEO_C

SVIDEO_Y

AV1

AV1

C124

0.047UF 25V

R124

100 OHM 1/16W

R123

100 OHM 1/16W

C123

0.047UF 25V

HD/R

HD/L

PB
PR

Y

36

19″&22″LCD TV AOC L19BH83&L22BH83

VSSA_DV

PLL POWER

DDCSCL_M2
DDCSDA_M2

C227,R203,C226

要靠近

UH200

+

C201

10uF/16V

C235,R204,C228

要靠近

UH200

VREF

KEY1 7

VMID

1 2

FB216

300 OHM

C217

0.1uF25V

PVCCG

VSSP_DV

VSSA_DV

VDDA_DV

GNDP_HDMI

VCCP_HD MI

PGNDG

VDDP_DV

AGND

+

C209

10uF/16V

B_M2 1

SOG_VGA_M2 1

R_M2 1

G_M2 1

CLOSE
PIN188

CLOSE
PIN190 PVCCG

VCCP_HD MI

PGNDG

GNDP_HDMI

VCCP_HD MI

1 2

FB208

300 OHM

AGND

VDDP_AD

PVCCG

EXTCAP

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL
PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬 隔 瓜 絪 腹 0.1

Custom

3

11Friday , April 18, 2008

715T2899-F

<称爹>

03)HX6203_AD_ INPU T

1 2

FB200

300 OHM

1 2

FB201

300 OHM

C235

4.7uF

C214

100pF

C207

100pF

R203

1.6KOHM +-5% 1/16W

C208

0.1uF25V

+

C236

10uF/16V

C210

0.1uF25V

C234

0.1uF25V

C233

4.7uF

C212

0.1uF25V

+

C237

10uF/16V

1 2

FB207

300 OHM

C227

0.01UF 50V

R204

3.3K OHM 1/16W

C232

0.1uF25V

VSS

1

VOUT

2

VIN

3

4

4

U200

AP1117E33LA

C211

100pF

1 2

FB203

300 OHM

C231

0.1uF25V

C202

1 2

FB206

300 OHM

C230

0.1uF25V

C218

0.1uF25V

VDDA_DV(3. 3V)

196

VDDA_DV(3. 3V)

202

VSSA_DV

199

VSSA_DV

205

VSSA_DV

208

VDDP_DV(3. 3V)

194

VSSP_DV

193

VCCP(1.8V)

188

GNDP

189

RX0P

201

RX0N

200

RX1P

204

RX1N

203

RX2P

207

RX2N

206

RXCKP

198

RXCKN

197

REXT

195

DDCSCL

187

DDCSDA

186

MSCL

184

MSDA

183

EXTCAP

191

VDDA_AD(3.3V)

220

VDDA_AD(3.3V)

231

VDDA_AD(3.3V)

225

VSSA_AD

226

VSSA_AD

236

VSSA_AD

215

BVDDA_VD(3.3V)

209

BVSSA_VD

212

PVCCG(1.8V)

190

PGND

192

VDDP_AD(3.3V)

241

VDDD_AD(3.3V)

237

VSSD_AD

240

VSSP_AD

243

VDDDP_AD(3.3V)

245

VSSDP_AD

244

VSYNC

239

HSYNC

238

AI11(RIN 1)

216

AI21(GIN1)

217

AI31(BIN1)

218

AI41(YI N1)

219

AI12(RIN 2)

221

AI22(GIN2)

222

AI32(BIN2)

223

AI42(YI N2)

224

AI13(RIN 3)

227

AI23(GIN3)

228

AI33(BIN3)

229

AI43(YI N3)

230

AI14(RIN 4)

232

AI24(GIN4)

233

AI34(BIN4)

234

AI44(YI N4)

235

FILT

242

VREF(1.25V)

214

VMIDS(0.5v )

213

AOUT1

211

AOUT2

210

HDMI/DVI

- RGB/YPbPr/Video -

Analog Input / Output

UH200A

HX6203-A

C229

0.1uF25V

C240

0.1uF25V

R202

390 OHM 1% 1/10W

C220

0.1uF25V

C200

0.1uF25V

C225

100pF

1 2

FB202

300 OHM

C213

0.1uF25V

C206

0.1uF25V

C216

0.1uF25V

1 2

FB204

300 OHM

AGND

C228

0.47uF

C223

0.1uF25V

C239

0.1uF25V

C224

0.1uF25V

C219

0.1uF25V

1 2

FB205

300 OHM

C238

4.7uF

C226

0.1uF25V

VDDA_DV

VDDP_DV

VDDA_DV

VCCP_HD MI

PVCCG

PVCCG

A_1.8

VDDA_AD

VDDDP

VDDP_AD

BVDDA

VCCP_HD MI

V3D3_M1_HDMI

VDDP_DV

V33ADC VDDA_AD

AGND

AGND

5VS

VDDP_AD

VDDA_DV

AGND

AGNDAGND

AGNDAGND

AGND AGND

AGND

AGND

AGND

DDCSDA_M29

RX1+9

AGND

AGND

RXC+9

RX0-9

RX2+9

VS_M2 1

RX0+9

RX1-9
RX2-9

DDCSCL_M29

HS_M2 1

RXC-9

VDDA_AD

HD_Y 2

VDDP_AD

Video1 2

VSSP_AD

VSSDP

VDDDP

BVDDA

BVSSA

C2030.1uF25V
C2040.1uF25V
C2050.1uF25V

AGND

VSSDP

BVSSA

HD_PB 2

CLOSE
PIN220,231,225,237

CLOSE PIN245

CLOSE PIN241,242

CLOSE PIN209

S-Video_C 2

S-Video_Y 2
TV_CVBS 11

VSSP_AD

HD_SOY 2

1 2

FB212 300 OHM

FILT

1 2

FB213 300 OHM

Change the sequency
of Component input
2/14'08

REXT

1 2

FB214 300 OHM

CLOSE PIN194

CLOSE
PIN196,202

HD_PR 2

VSSP_DV

37

19″&22″LCD TV AOC L19BH83&L22BH83

C6330.1uF25V

C6271uF /25V

R611

330 OHM 1/10W

C6321uF /25V

R612

330 OHM 1/10W

C608 10uF/25V
C609 10uF/25V

+

C611

10uF/16V

C674

0.1uF25V

SIF1-

C6460.1uF

C6470.1uF

+

C643

22uF/16V

+

C630

10uF/16V

1 2

FB710

300 OHM

C746

NC

C6230.1uF

AGND

C6240.1uF

C6250.1uF

+

C613

10uF/16V

C6450.1uF

C649

0.1uF25V

R610

100 OHM 1/10W

1 2

FB711

3000 OHM

R616

100 OHM 1/10W

R601NCR600

NC

+

C640

10uF/16V

+

C607

10uF/16V

+12VA

PC_L1
PC_R1

prepare for
adjusting
audio power
2/18'08

+

C621

10uF/16V

C642

10uF/16V

CLOSE PIN246 CLOSE PIN253

20mA

CLOSE PIN58

CLOSE PIN63

VDDD_AU

VDDA_AU

VSS_SIF

VSSD_AU

VSSA_AU

+

C603

10uF/16V

SIF1+

1 2

FB713

300 OHM

1 2

FB712

300 OHM

C626
2700pF50V

C648
2700pF50V

+

C616

10uF/16V

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL
PCB NAME

称爹

T P V ( Top Vict ory Elect ronics Co . , Ltd. )

Key Component

絬 隔 瓜 絪 腹 0.1

A2

4

11Friday, April 18, 2008

715T2899-F

<称爹>

04)HX6203_Audio

R608 2.4K OHM 1/ 10W

C612

0.1uF25V

C610

0.1uF25V

C606

0.1uF25V

C6350.1uF25V

R617330 OHM 1/10W

C639

0.1uF25V

C6192. 2uF/16V

R604

1M OHM 1/10W

VDDA_SIF

246

VDDD_SIF

253

VSSA_SIF

247

VSSD_SIF

256

SIFP

251

SIFN

252

I2SCKI

39

I2SDTI

41

AUIR1

45

AUIL1

44

AUIR2

47

AUIL2

46

AUIR3

49

AUIL3

48

AUIR4

51

AUIL4

50

VSSD_AU

64

VDDA_AU

58

VDDD_AU

63

VSSA_AU

59

AUOL3

57

AUOR3

56

AUOL2

55

AUOR2

54

AUOL1

53

AUOR1

52

SPDIF

65

VCM

62

VRN

61

VRP

60

VREFN

250

VCMG

249

VREFP

248

I2SREFCK

38

XTAL_IN

254

XTAL_OUT

255

I2SWSI

40

. Audio
Analog
I2S / SPDIF
SIF MUX
In / Out

24.576MHz

UH200C

HX6203-A

C644

2.2uF/16V

R602

27K OHM 1/10W

C620

0.1uF25V

R603

27K OHM 1/10W

C601

0.1uF25V

AGND

2

BIN_L

19

BIN_R

21

BOUT_L

20

BOUT_R

22

CLK

27

DATA

26

DGND

25

LIN

17

LIN1

16

LIN2

15

LIN3

14

LIN4

13

LOUT

18

LOUT_L

12

LOUT_R

7

OUT_L

24

OUT_R

23

REF28RIN

5

RIN1

11

RIN2

10

RIN3

9

RIN4

8

ROUT

6

TREB_L

3

TREB_R

4

VDD

1

U600

PT2314

+

C650

100uF/25V

C622

100pF

1 2

FB602

300 OHM

C636

0.1uF25V

R607

0 OHM 1/10W

R615

330 OHM 1/10W

C618

100pF

C637

0.1uF25V

C604

0.1uF25V

C628

100pF

C629

0.1uF25V

R609

2.4K OHM 1/10W

R614

330 OHM 1/10W

R618

1K OHM 1/10W

1 2

FB603

300 OHM

R620

220 OHM 1/10W

C638

100pF

R606

0 OHM 1/10W

C602

0.1uF25V

C641

0.1UF16V

1 2

FB600

300 OHM

R621

1.2K OHM 1/10W

R622

5.6K OHM 1/10W

1 2

FB601

300 OHM

C600

0.1uF25V

R613

1K OHM 1/10W

C6340.1uF25V

VIN

3

ADJ

1

VOUT

2

U601

AZ1117H-ADJ-E1

R619330 OHM 1/10W

C614

33PF 50V

+

C605

10uF/16V

C617

33PF 50VC615

0.1uF25V

R605

5.6K OHM 1/10W

X600

24.576MHz

VRP

VDD_AUD

VRP

AGND

AGND

AGND

VDD_SIF

AGND

AGND

AGNDAGND

AGND

AGND AGND

AGND

AGND AGND

9VDD

AGND

AGND

AGND

AGND

AGND

M_SDA7,11

S_SCL_PT2314 7

TUNER_SIF11

AUDIO_R 8

HP_R 8

AUDIO_L 8
HP_L 8

AV1_L2
AV1_R2

HD_L2
HD_R2

TUNER_MONO11

C669
470pF

9VDD

AUDIO_R

C668

470pF

AOUT1_L

AOUT1_R

HP_R

HP_L

TV_SIFR

XTAL_O

XTAL_IN

VCM

VREFN

VRN

VCMG

VSSA_AU

VDD_SIF

VSS_SIF

SIF1-

VSSD_AU

AOUT1_L

VREFPVDD_SIF

VDDD_AU

AOUT1_R

SIF1+

VDDA_AU

VSS_SIF

C6310.1uF25V

VRP

AUDIO_L

38

19″&22″LCD TV AOC L19BH83&L22BH83

DBUS7

BUSTYPE_R

TSTMD2

R724

4.7K OHM 1/10W

TSTMD1
TSTMD3

IRDAT

INTO_N

R213

4.7K OHM 1/10W

DBUS0

DBUS3_1
DBUS4_1
DBUS5_1
DBUS6_1

R245 22 OHM 1/10W

R247 22 OHM 1/10W

R216

4.7K OHM 1/10W

SPI_FLASHM_WE

R227

NC

2007-10-31

DBUS0

SPI_FLASHM_WE

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬

隔 瓜 絪 腹 0.1

A3

5

11Friday , April 18, 2008

715T2899-F

<称爹>

05)HX6203_CTRLBUS

R231

NC

R223

NC

R225

NC

R210

NC

R233

NC

CE#

1

SO

2

WP#

3

VSS4SI

5

SCK

6

HOLD#

7

VDD

8

U202
M25P40-VMN6TP/X

R212

4.7K OHM 1/10W

R220 68 OHM 1/10W

R207

4.7K OHM 1/10W

R224

NC

R228

NC

R219 68 OHM 1/10W

R230

1K OHM 1/10W

R218 0 OHM 1/10W

R234

1K OHM 1/10W

R226

0 OHM 1/10W

R229

22 OHM 1/10W

R235

4.7K OHM 1/10W

R211

NC

SI

SCK

SO

CE

PWMB

176

PWMC

177

PWMD

179

TSTMD1

180

TSTMD2

181

TSTMD3/PD

182

BUSTYP

67

ALE

71

RDZ

72

WRZ

73

DBUS0

76

DBUS1

77

DBUS2

78

DBUS3

79

DBUS4

80

DBUS5

82

DBUS6

83

DBUS7/SD A

84

SCL/CS

85

INTO_N

70

IRDAT

68

RST_N

66

VCC3IO(3. 3V)5VCC3IO(3. 3V)25VCC3IO(3. 3V)69VCC3IO(3. 3V)

160

VCC3IO(3. 3V)

178

VCCK(1.8V)20VCCK(1.8V)43VCCK(1.8V)87VCCK(1.8V)75VCCK(1.8V)

117

VCCK(1.8V)

149

VCCK(1.8V)

165

GNDIO

185

GNDIO

170

GNDIO81GNDIO34GNDIO14GNDK

166

GNDK

150

GNDK

116

GNDK86GNDK74GNDK42GNDK

19

P_A0

1

P_A1

2

P_A2

3

P_A3

4

P_A4

6

P_A5

7

P_A6

8

P_A7

9

P_B0

10

P_B1

11

P_B2

12

P_B3

13

P_B4

15

P_B5

16

P_B6

17

P_B7

18

P_C0

21

P_C1

22

P_C2

23

P_C3

24

P_C4

26

P_C5

27

P_C6

28

P_C7

29

SYNC 1

31

SYNC 2

32

SYNC 3

33

SYNC 5

36

CLK_B

37

CLK_A

30

SYNC 4

35

TTL Input

PWM Output, Direct Bus, I2C Control & MISC

UH200B

HX6203-A

R221

0 OHM 1/10W

R222

NC

R232

NC

R209

NC

R206

4.7K OHM 1/10W

R208

4.7K OHM 1/10W

R217 68 OHM 1/10W

3.3V

VCCK

VCC3IO

VCC3IO

AGND

AGNDAGND

AGND

5VS

IR_DATA7

AGND

VCC3IO

AGND AGND

S_SCL7

RESET#7

INTO_N7

SI7

BL_ADJ10

S_SDA7

SCK7

SO7

CE7

C215

1UF/25V

AGND

RST_N

C242
1uF/25V

39

19″&22″LCD TV AOC L19BH83&L22BH83

1

2

3

4

8

7

6

5

RP205

TX1AN

TX1AP

1

2

3

4

8

7

6

5

RP202

1

2

3

4

8

7

6

5

RP203

1 2

FB217

NC

FB218

0 OHM 1/4W

VCCLVP

GNDLVP

FB219

0 OHM 1/4W

TX0AN

CANCEL FB210,CA:C747 U704,D200

5VS

+

C246

10uF/16V

+

C747

10uF/16V

AGNDAGND

VSS

1

VOUT

2

VIN

3

4

4

U704

AP1117E25LA

D200

NC（ 1N4148）

VDD_AUD

AGND

2007-10-31

2

4

6

8

10

12

14

16

18

20

22

24

1

3

5

7

9

11

13

15

17

19

21

23

CN402

CONN

C166

0.1UF16V

R182

4.7K OHM 1/10W

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

Q105

AO4411

R183

22K OHM 1/10W

R185

4.7K OHM 1/10W

R184

4.7K OHM 1/10W

Q106

PMBS3904

Q107

PMBS3904

R186

4.7K OHM 1/10W

5Vstb

AGND

AGND

PANEL_VCC

TX2BN

TX2BP

TXCKBN

TXCKBP

PANEL_PW7

TX0BN

TX3BN

TX3AP

TX0AP

TXCKAP

TX2AP

TX1AP

TX3BP

TXCKBP

TX2BP

TX1BP

TX0BP

C258

0.1uF25V

+

C259

470uF/16V

AGND

R242

NC

PANEL_VCC

R250

NC

TX1AN

5VS

AGND

TX2BN

TX0BN

TXCKBN

TX1BN

TXCKAN

TX0AN

TX3AN

TX2AN

TX3BN

1 2

FB215

NC

TX3AN

TX2AN

TX2AP

TXCKAN

TXCKAP

TX3AP

TX3BP

TX1BN

TX1BP

TX0BP

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics C o . , Ltd. )

Key Component

絬

隔 瓜 絪 腹 0.1

A3

6

11Friday , April 18, 2008

715T2899-F

<称爹>

06)HX6203_PANEL INTERF ACE

+

C252

10uF/16V

1 2

FB209

300 OHM

C247

0.1uF25V

R237

13K OHM 1/10W

C249

0.1uF25V

C245

NC

C250

0.1uF25V

C253

0.1uF25V

VCCLVP(1.8V)

101

GNDLVP

102

VCCLV(3.3V)

148

VCCLV(3.3V)

114

VCCLV(3.3V)

132

VCCLV(3.3V)

100

VCCLV(3.3V)

88

GNDLV

131

GNDLV

147

GNDLV

115

GNDLV

103

GNDLV

89

FRSR0P/ LVB3P/EB7/F1POL20

90

FRSR0N /LVB3N/EB6/F1BITST

91

FRSR1P/ LVBCKP/EB5/F1CLK

92

FRSR1N /LVBCKN/EB4/F1RSR2

93

FRSR2P/ LVB2P/EB3/F1RSR1

94

FRSR2N /LVB2N/EB2/F1RSR0

95

FRSR3P/ LVB1P/EB1/F1RSG2

96

FRSR3N /LVB1N/EB0/F1RSG1

97

FRSCLKP/ LVB0P

98

FRSCLKN /LVB0N

99

FRSG0P/LVA3P/ EG7/F1RSG0

104

FRSG0N/ LVA3N/EG6/F2RSB2

105

FRSG1P/LVAC KP/EG5/F1RSB1

106

FRSG1N/ LVACKN/EG4/F1RSB0

107

FRSG2P/LVA2P/ EG3/F2RSB0

108

FRSG2N/ LVA2N/EG2/F2RSB1

109

FRSG3P/LVA1P/ EG1/F2RSB2

110

FRSG3N/ LVA1N/EG0/F2RSG0

111

FRSB0P/LVA0P/ ER7/F2RSG1

112

FRSB0N/ LVA0N/ER6/F2RSG2

113

FRSB1P/ER 5/F2RSR0

118

FRSB1N/ ER4/F2RSR1

119

FRSB2P/ER 3/F2RSR2

120

FRSB2N/ ER2/F2CLK

121

FRSB3P/ER 1/F2BITST

122

FRSB3N/ ER0/F2POL20

123

BRSB3N/OR 0/B2POL20

156

BRSB3P/OR1/ B2BITST

155

BRSB2N/OR 2/B2CLK

154

BRSB2P/OR3/ B2RSR2

153

BRSB1N/OR 4/B2RSR1

152

BRSB1P/OR5/ B2RSR0

151

BRSB0N/OR 6/B2RSG2

146

BRSB0P/OR7/ B2RSG1

145

BRSG3N/OG0/ B2RSG0

144

BRSG3P/OG1/B2R SB2

143

BRSG2N/OG2/ B2RSB1

142

BRSG2P/OG3/B2R SB0

141

BRSG1N/OG4/ B1RSB0

140

BRSG1P/OG5/B1R SB1

139

BRSG0N/OG6/ B1RSB2

138

BRSG0P/OG7/B1R SG0

137

BRSCLKN

136

BRSCLKP

135

BRSR3N/ OB0/B1RSG1

134

BRSR3P/OB1/ B1RSG2

133

BRSR2N/ OB2/B1RSR0

130

BRSR2P/OB3/ B1RSR1

129

BRSR1N/ OB4/B1RSR2

128

BRSR1P/OB5/ B1CLK

127

BRSR0N/ OB6/B1BITST

126

BRSR0P/OB7/ B1POL20

125

BSTH1

157

BSTH2

158

BTP

159

FSTH1

161

FSTH2

162

FTP

163

POL/CLK

164

STV1

167

CPV

168

STV2

169

OEV

171

UDC/VS

175

RLC

174

GVOF/HS

173

GVON/DEN

172

PI

124

RSDS/Turbo RSDS/TTL/

LVDS/CMDI MUX I/O

UH200D

HX6203-A

C251

0.1uF25V

C248

0.1uF25V

VCCLV

AGND

VCCLV

VCCK

AGNDAGND

AGND AGND

GNDLVP

VCCLVP

+5V

CLOSE
PIN101

+5V

GND

CLOSE
PIN88,100,114,132,148

Pin 1

Control Board

GND

Pin 1

22" panel RSDS
interface

TX0AP

3.3V

1

2

3

4

8

7

6

5

RP200

1

2

3

4

8

7

6

5

RP201

5Vstb

40

19″&22″LCD TV AOC L19BH83&L22BH83

R410

10K OHM 1/16W

C403

0.1UF16V

R401

10K OHM 1/10W

R406

NC

R402

10K OHM 1/10W

R420

NC

P1.5

7

P1.6

8

P1.7

9

RST

10

RXD,P3.0

11

P4.3

12

TXD,P3.1

13

INT0,P3.2

14

INT1,P3.3

15

T0,P3.4

16

T1,P3.5

17

P1.46P1.35P1.2

4

P1.1,T2EX

3

P1.0,T2

2

P4.2

1

VDD

44

P0.0,AD043P0.1,AD142P0.2,AD241P0.3,AD3

40

P0.4,AD4

39

P0.5,AD5

38

P0.6,AD6

37

P0.7,AD7

36

EA

35

P4.1

34

ALE

33

PSEN

32

P2.7,A15

31

P2.6,A14

30

P2.5,A13

29

P3.6,WR18P3.7,RD19XTAL220XTAL121VSS22P4.023P2.0,A824P2.1,A925P2.2,A1026P2.3,A1127P2.4,A12

28

U400

W79E632X40PX

C404

0.1UF16V

1

2 3

Q402

PMBS3904

VSS

4

VCC

8

SDA

5

SCL

6

E0

1

E1

2

E2

3

WC

7

U402

M24C32-WMN6TP

C400

0.1uF25V

123

4

876

5

RP400

10KOHM +-5% 1/16W

R403

10K OHM 1/10W

R404

1.8K OHM 1/10W

MCU5V

1 2

FB400

300 OHM

LED_GR

SPI_MUX

R419

1M OHM 1/10W

+

C401

100uF/16V 3

1

2

D401

BAT54C

R413

0 OHM 1/10W

R423

10K OHM 1/16W

R411

10K OHM 1/10W

1

2 3

Q401

PMBS3904

ISP_EN#

R407

10K OHM 1/10W

3

1

2

D402

BAT54C

R424

75 OHM 1/10W

1

2 3

Q403

PMBS3904

R421

NC 0 OHM 1/10W

C402

0.1UF16V

LED_OR

R425

75 OHM 1/10W

R412

NC

C409

100pFC 410

100pF

R405

10K OHM 1/10W

R408

NC

MCU5V

MCU5V

MCU5V

MCU5V

MCU5V

5Vstb

AGNDAGND

AGND AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

MCU5V

MCU5V

AGND

AGND

AGND

SPI_CS#

HDMI_5V9

S_SDA 5

K3

INTO_N5

ON_PBACK 10

HDMI_HOTPLUG9

RS_RXD

1

CEC 9

RESET# 5

R432

22 OHM 1/10W

R436

NC 0 OHM 1/10W

RS_TXD
1

S_SCL_PT23144

R437

NC 0 OHM 1/10W

AGND

S_SDA

1 2 FB404 300 OH M

IR_DATA5

S_SCL

TUNER_ON 10, 11

HEADPHONE 8
AMP_MUTE 8
MUTE_HPHONE 8

PS_ON/OFF10

AMP_STB 8

M_SDA4,11

Power
CH Up
CH Down

K3
K4

K7

1
2
3
4
5
6
7
8
9

10

CN400

CONN

SPI_SDI

S_SCL5

1 2 FB401 300 OH M

R415

4.7K OHM 1/10W

1

2 3

Q407

PMBS3904

R416

4.7K OHM 1/10W

AGND

SPI_MUX_1

MCU5V

IR_DATA

RS_TXD TXD

RXDRS_RXD

SPI_MUX

MCU_EPROM_WE

M_SCL
M_SDA

RESET#_R

RESET#_R

MCU5V

SYNC_D ETECT 1

SPI_MUX

M_SDA
M_SCL

2007-10-31

MCU5V

R435

10K OHM 1/10W

K7

C415
22pF

R438

10K OHM 1/10W

SPI_CS#

SPI_SDO

SPI_MUX

MCU5V

C416
22pF

MCU5V

SYS_RST

+

C405
47UF/16V

R427

100Ω 1/10W

+

C406
10uF/16V

C407
100pF

1

3 2

Q400
3906

R431

10KΩ 1/10W

R430

10KΩ 1/10W

Power sel

R459

1KΩ 1/10W

3

1 2

D403
BAV99

M_SCL1

1 2 FB403 300 OHM

R434

100 OHM 1/10W

CE 5

SO5

K4

CLOSE
PIN44

1
2
3
4

CN404

NC

KEY1

123

4

876

5

RP405

10KOHM +-5% 1/16W

1 2 FB406 300 OH M

2 3

1

U405A

74HC126D

R422

0 OHM 1/10W

M_SDA

SPI_SDI

MCU5V

R418

4.7K OHM 1/10W

5 6

4

U405B

74HC126D

LED_GR

1

23

Q408

PMBS3906

R417

4.7K OHM 1/10W

VCC3IO

9 8

10

U405C

74HC126D

R429

22 OHM 1/10W

S_SCL_tuner

11

SI 5

12 11

13

U405D

74HC126D

IR_DATA

SPI_MUX_1

7

INTO_N

LED_OR LED_ORANGE

A1

1

Y1

2

A2

3

Y2

4

A3

5

Y3

6

GND7Y4

8

A4

9

Y5

10

A5

11

Y6

12

A6

13

VCC

14

U403

MM74HC14MX

C160

0.1uF25V
AGND

RS-232

RS_TXD

1
2
3
4

CN401

NC

ISP_EN#

LED_GREEN

PANEL_PW
6

K4
K3

1 2 FB408 300 OHM

1 2 FB407 300 OHM

K7

123

4

876

5

RP401

10KOHM +-5% 1/16W

K7

SPI_MUX

R428

22 OHM 1/10W

M_SCL M_SCL1

R414

NC 3K OHM 1/10W

C414
1uF/25V

2007-10-31

123

4

876

5

RP402

10KOHM +-5% 1/16W

LED_GREEN

SPI_SCK

RS_RXD

2007-10-31

AGND

1 2

X400

22.1184MHz

1 2 FB402 300 OHM

2007-10-31

123

4

876

5

RP404

10KOHM +-5% 1/16W

K3

R426

22 OHM 1/10W

SPI_MUX_15

123

4

876

5

RP403

10KOHM +-5% 1/16W

123

4

876

5

RP406

10KOHM +-5% 1/16W

K4

SCK 5

R246 22 OHM 1/10W

1 2

ZD401UDZS5. 6B

HDMI_5V

AGND

2007-10-31

R409

4.7K OHM 1/10W

LED_ORANGE

SPI_SDO

1 2

ZD400UDZS5. 6B

AGND

MCU_EPROM_WE

1 2

ZD402UDZS5. 6B

Master IIC

1

23

Q404

PMBS3906

V33ADC

C412

100pF

AGND

1 2 FB405 300 OH M

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL
PCB NAME

称爹

T P V ( Top Vict ory Elect ronics Co . , Ltd. )

Key Component

絬

隔 瓜 絪 腹 0.1

A2

7

11Friday, April 18, 2008

715T2899-F

<称爹>

07)MCU

SPI_SCK

41

19″&22″LCD TV AOC L19BH83&L22BH83

AUDIO_L

AUDIO_R

MUTE_EAR

HP_LO

HP_RO

HP_R

HP_L

MUTE_EAR

R624

6.8 OHM 3W

R623

6.8 OHM 3W

R627

6.8 OHM 3W

R626

6.8 OHM 3W

2007-10-31

2007-11-02

C670
470pF

C671

470pF

C655

1uF/25V

C672

470pF

C673

470pF

AGND

1 2

ZD600

RLZ6.8C

C651

0.1uF25V

改善AC OFF PP声 1/18'08

+

C652
1000UF25V

the voltage of AMP standby
pin is too high, change from

5.1V to 6.8V 2/18'08

AGND

1 2

ZD601
UDZS5. 6B

IN1

4

IN2

12

ST_BY

7

S_GND

9

PW_GND

8

NC

5

NC

10

NC

11

OUT1+

1

OUT1-

2

OUT2+

15

OUT2-

14

VCC3VCC

13

MUTE

6

U602

TDA7297SA

1

2

3

4

CN600

CONN

1
7
6
2
3
4
5

CN602

PHONEJAC K

R675

NC

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL
PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Lt d. )

Key Component

絬

隔 瓜 絪 腹 0.1

A3

8

11Friday , April 18, 2008

715T2899-F

<称爹>

08)AudioAMP

R642

4.7K OHM 1/10W

C661

0.1UF16V

C657
1uF/16V

R628

10K OHM 1/10W

C664

1uF/25V

R633

10K OHM 1/10W

Q602

PMBS3904

+

C662 100uF/ 16V

R630

4.7K OHM 1/10W

R634

100K OHM 1/10W

R641

4.7K OHM 1/10W

R631

47K OHM 1/10W

R639

47K OHM 1/10W

R638

0 OHM 1/10W

Q600

PMBS3904

C667

1uF/25V

1 2

FB604

300 OHM

R637

0 OHM 1/4W

Q601

PMBS3904

+

C666

47uF/16V

C659

0.01uF

C653
1uF

+

C665 100uF/ 16V

Q603

PMBS3904

C660
1uF

R625

47K OHM 1/10W

R636

10K OHM 1/10W

C658
1uF/16V

+

C663

100uF/16V

C654

0.1UF16V

R635

10K OHM 1/10W

R640

10K OHM 1/10W

R632

10K OHM 1/10W

OUT1

1

MUTE

2

IN1

3

GND4IN2

5

BIAS

6

OUT2

7

VDD

8

U603

PT2309

C656

0.01uF

R629

47K OHM 1/10W

AGND

5VM

V_PHONE

V_PHONE

5VM

PW_GND

PW_GND

PW_GND

AGND

AGND

AGND

+12V

5VS

V_PHONE

AMP_MUTE7

AGND

AGND

AGND

AGND

HEADPHON E7

MUTE_HPHONE7

AMP_STB7

HP_L4

HP_R4

AUDIO_L4

AUDIO_R4

42

19″&22″LCD TV AOC L19BH83&L22BH83

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬

隔 瓜 絪 腹 0.1

A4

9

11Friday , April 18, 2008

715T2899-F

<称爹>

09)HDMI

R510

0 OHM 1/10W

1

2 3

Q502

PMBS3904

1 2

D502

VPORT0603100KV05

R513

0 OHM 1/10W

RX0-

R506

10K OHM 1/10W

A0

1

A1

2

A2

3

VSS4SDA

5

SCL

6

WP

7

VCC

8

U502

M24C02-WMN6TP

R505

10K OHM 1/10W

1 2

D501

VPORT0603100KV05

R504

NC

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U500

RClamp0524P.TCT

R502

NC

R501

10K OHM 1/10W

R511

0 OHM 1/10W

R503

NC

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

U501

RClamp0524P.TCT

3

1

2

D500

BAT54C

Q501

NC/2N7002 SOT-23

1

2 3

Q500

PMBS3904

HDMI_CEC

R507

4.7K OHM 1/10W

R512

0 OHM 1/10W

R508

4.7K OHM 1/10W

HMDI_5V

MCU5V

MCU5V

HMDI_5V

V3D3_M1_HDMI

AGND

AGND

AGND

HMDI_5V

AGND

AGND

AGND

HDMI_5V 7

HDMI_HOTPLUG 7

AGND

AGND

RXC+ 3
RXC- 3

RX2- 3

RX0+ 3

RX2+ 3

RX1- 3

DDCSDA_M2 3

DDCSCL_M2 3

RX0- 3

RX1+ 3

CEC 7

RX2+

RX1-_M2

MCU5V

RX2-

TMDSD0+

7

TMDSD0-

9

TMDSD1+

4

TMDSD1-

6

TMDSD2+

1

TMDSD2-

3

SCL

15

DSHLD1

5

VCC5

18

CSHLD0

11

HPD

19

NC

14

DSHLD0

2

CEC

13

SDA

16

DDC_GND

17

DSHLD2

8

TMDSC+

10

TMDSC-

12

SHLD1

20

SHLD2

21

SHLD3

22

SHLD4

23

SHLD5

24

CN500

HDMI

R500

1K OHM 1/10W

HPD

R514

4.7K OHM 1/10W

1

2

4

3

L500

90 ohm

RXC+

1

2

4

3

L501

90 ohm

1

2

4

3

L502

90 ohm

C500
1uF/25V

1

2

4

3L503

90 ohm

RX1+

RXC-

U500,U501靠近CN500

RX1-

RX2+_M2
RX2-_M2

AGND

HDMI_5VIN

RX0+

HPD

HDMI_SDA_I

HDMI_SCL_I

RX0+_M2
RX0-_M2

HDMI_SCL_I

HDMI_5VIN

HDMI_CEC

RX1+_M2

HDMI_SDA_I

RXC-_M2

RXC+_M2

43

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL
PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬 隔 瓜 絪 腹 0.1

A3

10

11Friday , April 18, 2008

715T2899-F

<称爹>

10)POWER

C717

0.1uF25V

VSS

1

VOUT

2

VIN

3

4

4

U703

AP1117E33LA

C734

0.1uF25V

+

C733

10uF/16V

R708

1K OHM 1/10W

R705

4.7K OHM 1/10W

C744
10uF/16V

C720

0.1uF25V

C730

0.1uF25V

C710

0.1uF25V

1

1

2

2

3

3

445

5

6

6

7

7

8

8

9

9

V5
JGK

1 2

FB700

300 OHM

+

C726

10uF/16V

+

C724

10uF/16V

C737

0.1uF25V

C725

0.1uF25V

R713

4.7K OHM 1/10W

1

1

2

2

3

3

445

5

6

6

7

7

8

8

9

9

V4
JGK

R706

1K OHM 1/10W NC

C721

0.1uF25V

+

C708

10uF/16V

C700

NC 2. 2UF 16V

C731

0.1uF25V

R703

4.7K OHM 1/10W

1

1

2

2

3

3

445

5

6

6

7

7

8

8

9

9

V167T 305102 4
JGK

R704
NC

C723

0.1uF25V

R722

4.7K OHM 1/10W NC

1

1

2

2

3

3

445

5

6

6

7

7

8

8

9

9

V2
JGK

R719

NC

R721

1K OHM 1/10W NC

R701

1K OHM 1/10W

R718

NC

VSS

1

VOUT

2

VIN

3

4

4

U700

AP1117E33LA

R716

NC

C711

0.1UF16V

+

C732

100uF/16V

C719

0.1uF25V

1

1

2

2

3

3

445

5

6

6

7

7

8

8

9

9

V3
JGK

R711

22K OHM 1/10W

Q701

PMBS3904

Photo point

PH1

R702

1K OHM 1/10W

C728

0.1uF25V

1 2

FB704

300 OHM

1 2

FB703

300 OHM

C736

0.1uF25V

C704

0.1UF16V NC

C741

0.1uF25V

C743

0.1UF16V

VIN

3

ADJ

1

VOUT

2

U701

AIC1084-33PM

R714

4.7K OHM 1/10W

Photo point

PH2

C729

0.1uF25V

1 2

FB701

300 OHM

Q700

PMBS3904

Q703

PMBS3904

Q702

PMBS3904 NC

C738

0.1uF25V

C745

0.1UF16V

C742

0.1UF16V

C703

0.1UF16V

Q706

PMBS3904

R712

10K OHM 1/10W

R700

1K OHM 1/10W

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

Q704
AO4411

R723
NC

+

C709

10uF/16V

C739

0.1uF25V

Q705

PMBS3904

Q708

PMBS3904 NC

+

C727

10uF/16V

Q707
NC

C722

0.1uF25V

Photo point

PH3

+

C715

10uF/16V

C740

0.1uF25V

R707

4.7K OHM 1/10W NC

R710

10K OHM 1/10W

R709

4.7K OHM 1/10W

C735

0.1uF25V

VDD_AUD

V33ADC

VCCK

A_1.8

VCC3IO

5Vstb

3.3V

+12V

5Vstb5Vstb

5Vstb

+12V

5Vstb

C707

0.1uF25V

5Vstb

AGND

5VS

5VS

5VS

AGND

AGNDAGND

AGND AGND AGND

AGND

AGND

AGNDAGND

AGND

AGND

AGND

AGND

AGND

AGND

5VS

5Vstb

5Vstb

3.3V

AGNDAGND

AGND

AGND

AGND

AGND

5Vstb

AGNDAGNDAGND

BL_ADJ 5

AGND

5Vstb

AGND

TUNER_ON 7,11

ON_PBACK 7

PS_ON/OFF7

1
2
3
4
5
6
7
8
9
10
11
12

CN700

CONN

5Vstb

VCC3IO

CLOSE
PIN5,25,69,160,178

VCCK

R725

NC

+

C702
470UF16V

+

C716

10uF/16V

1 2

FB706

120 OHM

+

C706
470UF25V

+12V

OUT

2

IN

3

GND

1

U702

AIC1084-18PM

+

C718

10uF/16V

如

PANEL-VCC为3.3V时，Q401改为AO4403

R720

0 OHM 1/10W

ADD 一 级回路

3.3V

19″&22″LCD TV AOC L19BH83&L22BH83

44

19″&22″LCD TV AOC L19BH83&L22BH83

5VS

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL
PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬 隔 瓜 絪 腹 0.1

A3

11 11Friday , April 18, 2008

715T2899-F

<称爹>

11)TUNER

+

C141

100uF/16V

C131

0.1uF25V

+

C139

100uF/16V

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

Q101

AO4411

R147

100 OHM 1/16W

R137

47Ω 1/2W

R152

1K OHM 1/10W

R143

4.7K OHM 1/10W

R141

22K OHM 1/10W

C145

NC

C143
10pF

L102
300 OHM

C140

0.1UF16V

R145
10 OHM 1/10W

R144

10 OHM 1/10W

R146

33 OHM 1/16W

R149
0 OHM 1/8W

L100
0R

R138

22Ω 1/2W

C138

0.1UF16V

R148

43 OHM +-5% 1/16W

R140

4.7K OHM 1/10W

+

C133

100uF/25V

C142
10pF

R142

4.7K OHM 1/10W

R715

NC

Q100

PMBS3904

Q102

PMBS3904

C144

0.047uF

C137

0.1UF16V

C146

NC

+

C132

470uF/25V

+

C136

100uF/16V

C135

0.1UF16V

R139

4.7K OHM 1/10W

R150
0 OHM 1/8W

1

ADJ/GN D

OUTPUT

2

INPUT

3

U102

AZ1117D-5.0-E1

R717

NC

R151
0 OHM 1/8W

L101
300 OHM

Tuner_GND

+12V

Tuner_GNDTuner_GND

Tuner_GND

TUNER_VCC

Tuner_GND

AGND

AGND

5Vstb

Tuner_GND

Tuner_GND

TUNER_VCC

+12VA

TUNER_VCC

AGND AGND

TUNER_SIF 4

AGNDAGND

AGND

AGND

TV_CVBS 3

M_SDA 4, 7

S_SCL_tuner 7

TUNER_MONO4

TUNER_ON7, 10

TUNER_VCC

2007-10-31

Vcc(Btu)3SCL4SDA

5

NC8NC

9

NC

2

2nd IF Sound

11

NC

1

NC

7

AS_IF

10

AS

6

CVBS

12

TH1

15

TH2

16

TH3

17

TH4

18

Vcc(Bif)13AUDIO Out

14

ANT IN

TU101

TUNER_ON

C134

0.1uF25V

1 2

FB110

NC

45

19″&22″LCD TV AOC L19BH83&L22BH83

CN901

SOCKET

12

3

D901
FR107

+5V

+12V

+

C914

1000uF M 16V

ZD901
NC

1 2

+

C917
1000uF25V

R908
100K OHM 2W

ZD920
RLZ13B

1B

A3

2 3Thursday, February 28, 2008

<称爹>

02.POWER

715T2783 1B 2

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL
PCB NAME

称爹

T P V ( Top Victory Elec tronics Co . , Ltd. )

Key Component

絬 隔 瓜 絪 腹

D909

LL4148

+

C915

470uF/16V

R907

10 OHM 1/8W

HS2
HEAT SINK (D904)

1
2

+5V

!

R903

100 OHM 1/4W

R934

100 OHM 1/4W

NR901
NTCR

*2

R902

680K OHM 1/4W

C919

100N 50V

IC903

PC123X2YFZOF

12

43

C921

0.001uF

F903

JUMP

R938
10K 1/8W

IC901

LD7575A

1
2
3
4 5

6

7

8

RT
COMP
CS
GNDOUT

VCC

NC

HV

!

R905

8.2K OHM 1/ 4W

R919

100 OHM 1/4W

D902

FR103

F902

JUMP

C903

0.47uF/275V

R943
470 OHM +-5% 1/4W

FG

D910

NC

D906

SP20150R

1

2

3

+

C905
120uF450V

FG

HS3
HEAT SINK(D 906)

1
2

R920

100 OHM 1/4W

CN902

CONN

1
2
3
4
5
6
7
8

9
10
11

-

+

BD901
GBU408

2

1

3

4

+12V

L902

L

1

4

2

3

D904

SP10100

1

2

3

C906
2200pF

R901

680KOHM +-5% 1/4W

!

R900

680K OHM 1/4W

C900

NC

R930

2.43KOHM +-1% 1/8W

!

R929
33K OHM 1% 1/ 8W

R940

150 OHM 2W

R909

3.3 OHM 1/ 4W

C920

0.1uF

R936
1K 1/4W

R904

8.2K OHM 1/ 4W

C923
470pF/25V

C932

0.001uF

C924
220pF

R937

NC

F901
FUSE

C912

0.022uF/25V

R922

200 OHM 1/8W

80TL19T 33 S

R928

0OHM 1/8W

L903

3.5uH

!

C916

0.1uF

IC902

KIA431

R924
NC

R935

100 OHM 1/4W

C925

NC

R914

0.39 OHM +-5% 2W S

C901

0.001uF/250V

ZD903

NC

1 2

+

C918
1000uF25V

4.0A/250V

VAR901

NC

Q903

PMBS3904

FB901
JUMP

12

R941
100K OHM 1% 1/ 8W

R931

NC

ON/OFF

+

C930
1000uF M 16V

C907

NC

R925
150R 1/8W

HS1
HEAT SINK(Q901)

1
2

R912

22 OHM 1/8W

!

C902

0.001uF/250V

T901

POWER X'FMR

4

8

5

6
2

3

11

10

12

9

7

DIM

!

C927

0.1uF

+

C922
470uF/25V

R927

3.6K OHM 1% 1/8W

C929

0.001uF

+

C908
22uF/50V

L904

3.5uH

FG

Q901
STP10NK70ZFP

ZD902

NC

R918

100 OHM 1/4W

C931

0.001uF/250V

9.2 Power Board

46

R815
NC

R839 1M 1/10W 5%

R847
NC

SST

LV1

+12V

SST

LV2

5V

Q806

AM4502C-T1-PF

1

2

3

4

8

7

6

5

S

G

S

G

D

D

D

D

R813
470K 1/10W 5%

C810

0.047uF

R816

10K 1/10W 5%

C816

27pF/6KV

C814
390P 50V

R825
510R 1/10W

ZD802
RLZ5.6B

1 2

C804

2.2uF/16V

L802

L

124

3

R821

1M 1/10W 5%

R823

390R 1/10W 1%

LV4

CT

R838 1M 1/10W 5%

C809
560pF50V

+

C812

1000uF 25V

R805
100R 1/10W 5%

R814
NC

R840 1M 1/10W 5%

R828

6.2M OHM 1/2W

D809
BAV99

3

1

2

IC801

OZ9938GN

1
2
3
4
5
6
7
8 9

10

11

12

13

14

15

16

DRV1
VDDA
TIMER
DIM
ISEN
VSEN
OVPT
NC1 NC2

ENA

LCT

SSTCMP

CT

GNDA

DRV2

PGND

R841 1M 1/10W 5%

ZD803
RLZ5.6B

1 2

20".22W

ㄏノ

D806

BAV70

3

1

2

Q805

AM4502C-T1-PF

1

2

3

4

8

7

6

5

S

G

S

G

D

D

D

D

D805

C822

56pF3KV

R846

0R05 1/10W 5%

D804

ON/OFF

C823
NC

R848
NC

C807

0.01uF

R822
20K OHM 1% 1/8W

R818

75K 1/10W 5%

C821
56pF3KV

C824

27pF/6KV

CN804

CONN

1
2

R844

10K 1/10W 5%

PT801

POWER X'FMR

5

91

8

2

6

1B

B

1 3Thursday, February 28, 2008

<称爹>

03.INVERTER

715T2783 1B 2

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬

隔 瓜 絪 腹

R830
NC

C808
180K 1/10W

R806 100R 1/10W 5%

PT802

NC

6

2

9

5

1

8

D801

R804 5K1 1/10W

R837
6K8 1/10W

R807 100R 1/10W 5%

Q804
NC

LV2

CT

DIM

LV1

R817
1M 1/10W 5%

D808

BAV70

3

1

2

CN801
CONN

1
2

R827
NC

C806

1uF/16V

CN802
CONN

1
2

R819

100K 1/10W 5%

C820
56pF3KV

LV3

R836

51K 1/10W 5%

C815

0.047uF

D802

C813

33NF 50V

R803

5K1 1/10W

R842

10K 1/10W 5%

C819
56pF3KV

Q802

RK7002

R843

10K 1/10W 5%

R849
0R05 1/10W 5%

D803

C801

0.047uF

C817
2pF/6KV

R824

6.2K 1/10W

D807

BAV70

3

1

2

C818
220pF

R829

6K8 1/8W

LV4

R820
10K 1/10W 5%

C811

0.1uF

L801

L

124

3

Q803
RK7002

R826

1M 1/10W 5%

LV3

CN803

CONN

1
2

C805

0.01uF

C803
NC

R808 100R 1/10W 5%

R845

10K 1/10W 5%

R802
22R 1/8W

C802

0.047uF

19″&22″LCD TV AOC L19BH83&L22BH83

47

R07

6.8K OHM 1% 1/10W

VOL_UP

ZD05

5.6V

1 2

PWR

POWER

SW01
SW

2

1 3

4

5

SW04

SW

2

1 3

4

5

SW06
SW

2

1 3

4

5

SW03

SW

2

1 3

4

5

CN01

CONN

1
2
3
4
5

CH_DOWN

SW02
SW

2

1 3

4

5

1.0

A4

2 2Wednesday , January 02, 2008

715T2927

<称爹>

2.Key

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬 隔 瓜 絪 腹

CH_UP

VOL_DOWNMODEL_SEL

R08

22K OHM 1% 1/10W

CH_DOWN

SW07
SW

2

1 3

4

5

ZD06

5.6V

1 2

MENU

ZD07

5.6V

1 2

ZD08

5.6V

1 2

KEY1

CH_UP

R05

0Ω 1/ 10W

R06

3.3K OHM 1% 1/10W

SW05
SW

2

1 3

4

5

19″&22″LCD TV AOC L19BH83&L22BH83

9.3 Key Board

48

19″&22″LCD TV AOC L19BH83&L22BH83

ITEM

PART NO.

PART NAME

Q’TY

1

A34T0522 GMA3L0130

BEZEL TV19W-A1

1 2 A34T0523 GM 3A0100

REAR COVER 19

1 3 A33T0309 GMA1L0100

COVER_FUNC

1 4 A33T0305 GM 1L0200

BUTTON_FUNC

1 5 A33T0310 ED 1C0100

IR LENS

1 6 A33T0306 1 1C0100

POWER LENS

1

7

A34T0524 GM 1L0100

STAND

1

8

A34T0525 GM 1L0133

BASE_S1

1 9 A15T0304101

MAIN FRAME

1

10

A15T0354201

SIDE BKT

1

11

A15T0315101

VESA BKT

2

12

NA

NA

NA

13

A37T0056012

HINGE ASS'Y

1

14

0M1G 930 4120

SCREW

4

15

0M1G1730 8120

SCREW

4

16

0M1G1730 10120

SCREW
42A9930016

2
17

NA

NA

NA

18

0M1G1730 8120

SCREW

4

19

0Q1G 930 6120

SCREW 3X6MM

2

20

0M1G 930 4120

SCREW

1

21

0Q1G 930 8 47 CR3

SCREW

2

22

0Q1G1830 6120

SCREW

4

23

0Q1G 930 8 47 CR3

SCREW

1

24

0M1G 930 6 47 CR3

SCREW

2

25

0M1G 940 6 47 CR3

SCREW

2

26

0Q1T 940 10 47 CR3

SCREW

2

27

AM1G1740 10225 CR3

SCREW

3

28

AM1G1740 10225 CR3

SCREW

3

29

Q12G6600 6

FOOT

4

10. Exploded View

L19BH83

49

19″&22″LCD TV AOC L19BH83&L22BH83

ITEM

PART NO.

PART NAME

Q’TY

1

A34T0526 GMA1L0130

BEZEL TV216-8A1

1 2 A34T0527 GM 3L0100

REAR COVER 22

1 3 A33T0309 GMA1L0100

COVER_FUNC

1 4 A33T0305 GM 1L0200

BUTTON_FUNC

1 5 A33T0310 ED 1C0100

IR LENS

1 6 A33T0306 1 1C0100

POWER LENS

1 7 A34T0524 GM 1L0100

STAND

1 8 A34T0525 GM 1L0133

BASE_S1

1

9

A15T0309101

MAINFRAME

1

10

A15T0354201

SIDE BKT

1

11

A15T0315101

VESA BKT

2

12

NA

NA 1 13

A37T0056013

HINGE ASS'Y

1

14

0M1G1730 6120

SCREW,42-D020523

4

15

0M1G1730 8120

SCREW

4

16

0M1G1730 8120

SCREW

2

17

NA

NA

NA

18

0M1G1730 8120

SCREW

5

19

0Q1G 930 6120

SCREW 3X6MM

2

20

0D1T 930 6120

SCREW

1

21

0Q1G 930 6120

SCREW 3X6MM

2

22

0Q1G1030 6120

SCREW

4

23

0Q1G 930 8 47 CR3

SCREW

1

24

NA

NA

NA

25

0D1G 930 8 47 CR3

SCREW

2

26

0Q1T 940 10 47 CR3

SCREW

2

27

AM1G1740 10225 CR3

SCREW

3

28

AM1G1740 10225 CR3

SCREW

3

29

Q12G6600 6

FOOT

4

L22BH83

50

19″&22″LCD TV AOC L19BH83&L22BH83

51

Location

Part No.

Description

040T 581 26704

SHIPPING LABEL

044G6002786 7A

PAPER CAP

049T 51 1A

ERADICATOR

050G 500 1

CABLE TIE

050G 600 2

HANDLE1

050G 600 3

HANDLE2

052G 1150 C

INSULATING TAPE

052G 1185

MIDDLE TAPE

052G 1186

SMALL TAPE

052G 1210 A

ALUMINIUM TAPE

052G 1211 B

CONDUCTIVE TAPE 85MM *40MM *0.09MM

052G 2191 A

PAPER TAPE

078T 494503 G

SPK 8 OHM 3W 25X80MM NEOSONICA

089G 725GAA DB

D-SUB CABLE

089G417A15N IS

POWER CORD

095T801410X592

WIRE HARNESS 10P(DF11)-5P+5P(1253HA)

095T8018 3DH03

LVDS CABLE

098TRABDBNEACC

REMOTE CONTROL FOR AOC

0M1G 930 4120

SCREW

0M1G 930 4120

SCREW

0M1G 930 6 47 CR3

SCREW

0M1G 940 6 47 CR3

SCREW

0M1G1730 8120

SCREW

0M1G1730 8120

SCREW

0M1G1730 10120

SCREW 42A9930016

0Q1G 930 8 47 CR3

SCREW

0Q1G1830 6120

SCREW

0Q1T 940 10 47 CR3

SCREW

705TQ833066

PLASTIC ASS'Y

0Q1G 930 6120

SCREW 3X6MM

A33T0305 GM 1L0200

BUTTON_FUNC

A33T0309 GMA1L0100

COVER_FUNC

KEPF8YA4

KEY BOARD

CN01

033G3802 5B YH W

WAFER

SW05

077G 600 1GCJ

TACT SWITCH TSPB-2 -NP

SW06

077G 600 1GCJ

TACT SWITCH TSPB-2 -NP

SW07

077G 600 1GCJ

TACT SWITCH TSPB-2 -NP

SW03

077G 600 1GCJ

TACT SWITCH TSPB-2 -NP

SW04

077G 600 1GCJ

TACT SWITCH TSPB-2 -NP

SW02

077G 600 1GCJ

TACT SWITCH TSPB-2 -NP

SW01

077G 600 1GCJ

TACT SWITCH TSPB-2 -NP

R05

061G0603000

RST CHIP MAX 0R05 1/10W

R09

061G0603204

RST CHIPR 200 KOHM +-5% 1/10W

R08

061G0603220 2F

RST CHIPR 22 KOHM +-1% 1/10W

R06

061G0603330 1F

BST CHIPR 3.3KOHM +-1% 1/10W

R07

061G0603680 1F

RST CHIPR 6.8 KOHM +-1% 1/10W

C01

065G0603104 12

CER2 0603 X7R 16V 100N P

ZD05

093G 39S 34 T

UDZSNP5.6B ROHM

11. BOM List

E1983ANCW1A4NN

19″&22″LCD TV AOC L19BH83&L22BH83

52

ZD06

093G 39S 34 T

UDZSNP5.6B ROHM

ZD07

093G 39S 34 T

UDZSNP5.6B ROHM

715T2927 2

KEY PCB

705TQ834159

BEZEL ASS'Y 19

A33T0306 1 1C0100

POWER LENS

A33T0310 ED 1C0100

IR LENS

A34T0522 GMA3L0130

BEZEL TV19W-A1

705TQ834161

STAND-BASE ASS'Y 19

A34T0524 GM 1L0100

STAND

A34T0525 GM 1L0133

BASE_S1

M037

A37T0056012

HINGE ASS'Y

AM1G1740 10225 CR3

SCREW

M037

SA37T0056012

HINGE ASS‘Y(2ND SOURCE)

705TQ834687

REAR COVER ASS'Y

A15T0315101

VESA BKT

A34T0523 GM 3A0100

REAR COVER 19

Q36T 600 30 1

NONWOVEN FABRIC

Q36T 600 37 1

NONWOVEN FABRIC

E750

750TVV902TB11N

PANEL TPM190A1(WX02TB) A2 FQ TPV

M015

A15T0304101

MAIN FRAME

A15T0354201

SIDE BKT

AM1G1740 10225 CR3

SCREW

CBPF8A1DYA

MAIN BOARD

040T 45762412B

CBPC LABEL

CN402

033G8027 24

CONN W TO B 12P*2 P*2.0 4504-2

CN700

033T327812D

WAFER 12P PLUG

CN600

033T3802 4B Y

CONNECTOR

CN400

033T380210B Y

CONNECTOR

R137

061G 20747052T

RST MOFR 47 OHM +-5% 1/2W

R138

061T 20722052T

RST MOFR 22 OHM +-5% 1/2W

R623

061T153M689 59

6.8 OHM 5% 3W

R624

061T153M689 59

6.8 OHM 5% 3W

R626

061T153M689 59

6.8 OHM 5% 3W

R627

061T153M689 59

6.8 OHM 5% 3W

C702

067G215P4713AV

CAP 105℃ 470UF M 16V

C706

067G215P4714AV

CAP 105℃ 470UF M 25V

C132

067T 305471 4

EC 105℃ 470UF M 25V

C652

067T305V102 4P

105℃ RADIAL E-CAPACTOR 1000UF 25V

CN105

088G 78 1357S

RCA JACK 1*1 W+R V/A

CN602

088G 30211K

PHONE JACK 5PIN

CN103

088T 78 13932 S

RCA JACK + S JACK Y/B

CN102

088T 78 V5 C

RCA JACK 3+2 G/BLU/R+W/R

CN100

088T 30252C

PHONE JACK 3.5MM 3P V/A GREEN

CN104

088T 35315F VC

D-SUB 15PIN VERTICAL CONNECTOR

UH200

090T 372 2

HEAT SINK

X600

093G 2270B H

XAT024576FK1H-3OHX AT-49 24.576MHZ

TU101

094T PALALL 3L

TCL TUNER M15WPP-2PN-E

705TQ856001

U602 ASS'Y

U602

056T 616511 ST

IC TDA7297SA ST

0M1G1730 10120

SCREW 42A9930016

Q90T0155 1

HEAT SINK

19″&22″LCD TV AOC L19BH83&L22BH83

53

C621

067G 305100 3T

10UF 16V

C616

067G 305100 3T

10UF 16V

C613

067G 305100 3T

10UF 16V

C611

067G 305100 3T

10UF 16V

C607

067G 305100 3T

10UF 16V

C605

067G 305100 3T

10UF 16V

C603

067G 305100 3T

10UF 16V

C252

067G 305100 3T

10UF 16V

C246

067G 305100 3T

10UF 16V

C237

067G 305100 3T

10UF 16V

C236

067G 305100 3T

10UF 16V

C209

067G 305100 3T

10UF 16V

C201

067G 305100 3T

10UF 16V

C747

067G 305100 3T

10UF 16V

C406

067G 305100 3T

10UF 16V

C733

067G 305100 3T

10UF 16V

C727

067G 305100 3T

10UF 16V

C726

067G 305100 3T

10UF 16V

C724

067G 305100 3T

10UF 16V

C718

067G 305100 3T

10UF 16V

C716

067G 305100 3T

10UF 16V

C715

067G 305100 3T

10UF 16V

C709

067G 305100 3T

10UF 16V

C708

067G 305100 3T

10UF 16V

C640

067G 305100 3T

10UF 16V

C630

067G 305100 3T

10UF 16V

C136

067G 305101 3T

100UF 16V 105C

C139

067G 305101 3T

100UF 16V 105C

C141

067G 305101 3T

100UF 16V 105C

C401

067G 305101 3T

100UF 16V 105C

C662

067G 305101 3T

100UF 16V 105C

C663

067G 305101 3T

100UF 16V 105C

C665

067G 305101 3T

100UF 16V 105C

C732

067G 305101 3T

100UF 16V 105C

C133

067G 305101 4T

100UF +-20% 25V

C650

067G 305101 4T

100UF +-20% 25V

C643

067G 305220 3T

22UF +-20% 16V

C666

067G 305470 3T

47UF +-20% 16V

C405

067G 305470 3T

47UF +-20% 16V

C259

067G 305471 3T

105℃ 470UF +-20% 16V

U601

056G 133 30AAC

AZ1117H-ADJ-E1

U701

056G 563 7

IC AIC1084-33PMTR-R AIC

U702

056G 563 34

IC AIC1084-18PMTR-R AIC

U102

056G 585 11

IC AZ1117D-5.0-E1 AAC

U200

056G 585 4A

IC AP1117E33L-13

U700

056G 585 4A

IC AP1117E33L-13

U703

056G 585 4A

IC AP1117E33L-13

U704

056G 585 5A

IC AP1117E25L-13

U500

056G 662 10

IC RCLAMP0524P.TCT

U501

056G 662 10

IC RCLAMP0524P.TCT

U400

056G1125170 X(AACDH1V19NQ1)

IC W79E632A40PL

19″&22″LCD TV AOC L19BH83&L22BH83

54

U100

056G1133 34

M24C02-WMN6TP

U502

056G1133 34

M24C02-WMN6TP

U402

056G113353A

IC M24C32-WMN6T SO-8 ST

U403

056G74HC 14 F

IC MM74HC14MX SOIC-14

U405

056G74HC126 P

IC 74HC126D SO-14 PHILIPS

UH200

056T 562566

IC HX6203-A010QBG

U600

056T 616 4

IC PT2314L SO28 PTC

U603

056T 616507

IC AUDIO PT2309 PTC

U202

056T1133527 ST(AACDH1V19FQ1)

IC M25P40-VMN6TP/X ST

Q701

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q703

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q705

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q100

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q102

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q106

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q107

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q401

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q402

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q403

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q407

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q500

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q706

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q700

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q603

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q602

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q601

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q600

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q502

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q108

057G 417 6

PMBS3906/PHILIPS-SMT(06)

Q109

057G 417 6

PMBS3906/PHILIPS-SMT(06)

Q404

057G 417 6

PMBS3906/PHILIPS-SMT(06)

Q408

057G 417 6

PMBS3906/PHILIPS-SMT(06)

Q400

057G 417 6

PMBS3906/PHILIPS-SMT(06)

Q704

057G 763 3

AO4411 SO-8

Q105

057G 763 3

AO4411 SO-8

Q101

057G 763 3

AO4411 SO-8

RP400

061G 125103 8

RST CHIP AR 8P4R 10 KOHM +-5% 1/16W

RP401

061G 125103 8

RST CHIP AR 8P4R 10 KOHM +-5% 1/16W

RP402

061G 125103 8

RST CHIP AR 8P4R 10 KOHM +-5% 1/16W

RP403

061G 125103 8

RST CHIP AR 8P4R 10 KOHM +-5% 1/16W

RP404

061G 125103 8

RST CHIP AR 8P4R 10 KOHM +-5% 1/16W

RP405

061G 125103 8

RST CHIP AR 8P4R 10 KOHM +-5% 1/16W

RP406

061G 125103 8

RST CHIP AR 8P4R 10 KOHM +-5% 1/16W

R101

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R104

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R107

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R110

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R122

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R123

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R124

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R129

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

19″&22″LCD TV AOC L19BH83&L22BH83

55

R132

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R135

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R147

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R203

061G0402162

RST CHIP 1K6 1/16W 5%

R111

061G0402330

RST CHIPR 33 OHM +-5% 1/16W

R114

061G0402330

RST CHIPR 33 OHM +-5% 1/16W

R128

061G0402330

RST CHIPR 33 OHM +-5% 1/16W

R131

061G0402330

RST CHIPR 33 OHM +-5% 1/16W

R134

061G0402330

RST CHIPR 33 OHM +-5% 1/16W

R146

061G0402330

RST CHIPR 33 OHM +-5% 1/16W

R204

061G0402332

RST CHIPR 3.3KOHM +-5% 1/16W

R410

061G0402332

RST CHIPR 3.3KOHM +-5% 1/16W

R423

061G0402332

RST CHIPR 3.3KOHM +-5% 1/16W

R148

061G0402430

RST CHIP 43R 1/16W 5%

R136

061G0402430

RST CHIP 43R 1/16W 5%

R133

061G0402430

RST CHIP 43R 1/16W 5%

R130

061G0402430

RST CHIP 43R 1/16W 5%

R102

061G0402750

RST CHIPR 75 OHM +-5% 1/16W

R105

061G0402750

RST CHIPR 75 OHM +-5% 1/16W

R108

061G0402750

RST CHIPR 75 OHM +-5% 1/16W

R437

061G0603000

RST CHIP MAX 0R05 1/10W

R510

061G0603000

RST CHIP MAX 0R05 1/10W

R511

061G0603000

RST CHIP MAX 0R05 1/10W

R512

061G0603000

RST CHIP MAX 0R05 1/10W

R513

061G0603000

RST CHIP MAX 0R05 1/10W

R606

061G0603000

RST CHIP MAX 0R05 1/10W

R607

061G0603000

RST CHIP MAX 0R05 1/10W

R638

061G0603000

RST CHIP MAX 0R05 1/10W

R720

061G0603000

RST CHIP MAX 0R05 1/10W

R436

061G0603000

RST CHIP MAX 0R05 1/10W

R422

061G0603000

RST CHIP MAX 0R05 1/10W

R421

061G0603000

RST CHIP MAX 0R05 1/10W

R420

061G0603000

RST CHIP MAX 0R05 1/10W

R413

061G0603000

RST CHIP MAX 0R05 1/10W

R226

061G0603000

RST CHIP MAX 0R05 1/10W

R221

061G0603000

RST CHIP MAX 0R05 1/10W

R218

061G0603000

RST CHIP MAX 0R05 1/10W

L100

061G0603000

RST CHIP MAX 0R05 1/10W

R144

061G0603100

RST CHIPR 10 OHM +-5% 1/10W

R145

061G0603100

RST CHIPR 10 OHM +-5% 1/10W

R610

061G0603101

RST CHIPR 100 OHM +-5% 1/10W

R427

061G0603101

RST CHIPR 100 OHM +-5% 1/10W

R434

061G0603101

RST CHIPR 100 OHM +-5% 1/10W

R616

061G0603101

RST CHIPR 100 OHM +-5% 1/10W

R166

061G0603101

RST CHIPR 100 OHM +-5% 1/10W

R613

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R700

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R708

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R459

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R702

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R230

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

19″&22″LCD TV AOC L19BH83&L22BH83

56

R500

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R618

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R701

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R234

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R152

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R407

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R405

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R501

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R505

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R506

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R628

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R632

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R633

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R635

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R636

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R640

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R710

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R411

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R402

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R403

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R435

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R438

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R712

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R430

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R431

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R401

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R634

061G0603104

RST CHIPR 100 KOHM +-5% 1/10W

R175

061G0603104

RST CHIPR 100 KOHM +-5% 1/10W

R419

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

R604

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

R621

061G0603122

RST CHIPR 1.2 KOHM +-5% 1/10W

R237

061G0603133

RST CHIPR 13 KOHM +-5% 1/10W

R404

061G0603182

RST CHIPR 1.8 KOHM +-5% 1/10W

R190

061G0603184

RST CHIPR 180 KOHM +-5% 1/10W

R189

061G0603184

RST CHIPR 180 KOHM +-5% 1/10W

R426

061G0603220

RST CHIPR 22 OHM +-5% 1/10W

R432

061G0603220

RST CHIPR 22 OHM +-5% 1/10W

R429

061G0603220

RST CHIPR 22 OHM +-5% 1/10W

R428

061G0603220

RST CHIPR 22 OHM +-5% 1/10W

R247

061G0603220

RST CHIPR 22 OHM +-5% 1/10W

R246

061G0603220

RST CHIPR 22 OHM +-5% 1/10W

R245

061G0603220

RST CHIPR 22 OHM +-5% 1/10W

R229

061G0603220

RST CHIPR 22 OHM +-5% 1/10W

R620

061G0603221

RST CHIPR 220 OHM +-5% 1/10W

R103

061G0603222

RST CHIPR 2.2 KOHM +-5% 1/10W

R106

061G0603222

RST CHIPR 2.2 KOHM +-5% 1/10W

R141

061G0603223

RST CHIPR 22 KOHM +-5% 1/10W

R183

061G0603223

RST CHIPR 22 KOHM +-5% 1/10W

R711

061G0603223

RST CHIPR 22 KOHM +-5% 1/10W

R608

061G0603242

RST CHIPR 2.4 KOHM +-5% 1/10W

R609

061G0603242

RST CHIPR 2.4 KOHM +-5% 1/10W

19″&22″LCD TV AOC L19BH83&L22BH83

57

R614

061G0603331

RST CHIP 330R 1/10W 5%

R615

061G0603331

RST CHIP 330R 1/10W 5%

R617

061G0603331

RST CHIP 330R 1/10W 5%

R619

061G0603331

RST CHIP 330R 1/10W 5%

R611

061G0603331

RST CHIP 330R 1/10W 5%

R612

061G0603331

RST CHIP 330R 1/10W 5%

R115

061G0603333

RST CHIPR 33KOHM +-5% 1/10W

R100

061G0603333

RST CHIPR 33KOHM +-5% 1/10W

R121

061G0603333

RST CHIPR 33KOHM +-5% 1/10W

R120

061G0603333

RST CHIPR 33KOHM +-5% 1/10W

R119

061G0603333

RST CHIPR 33KOHM +-5% 1/10W

R118

061G0603333

RST CHIPR 33KOHM +-5% 1/10W

R202

061G0603390 0F

RST CHIPR 390 OHM +-1% 1/10W

R216

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R213

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R212

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R208

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R207

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R206

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R186

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R185

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R184

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R182

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R143

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R142

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R140

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R139

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R125

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R113

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R235

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R724

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R714

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R713

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R709

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R705

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R703

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R642

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R641

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R630

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R514

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R508

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R507

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R418

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R417

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R416

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R415

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R409

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R112

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R603

061G0603473

RST CHIPR 47 KOHM +-5% 1/10W

R602

061G0603473

RST CHIPR 47 KOHM +-5% 1/10W

R639

061G0603473

RST CHIPR 47 KOHM +-5% 1/10W

19″&22″LCD TV AOC L19BH83&L22BH83

58

R629

061G0603473

RST CHIPR 47 KOHM +-5% 1/10W

R631

061G0603473

RST CHIPR 47 KOHM +-5% 1/10W

R625

061G0603473

RST CHIPR 47 KOHM +-5% 1/10W

R187

061G0603474

RST CHIPR 470 KOHM +-5% 1/10W

R605

061G0603562

RST CHIPR 5.6 KOHM +-5% 1/10W

R622

061G0603562

RST CHIPR 5.6 KOHM +-5% 1/10W

R217

061G0603680

RST CHIPR 68 OHM +-5% 1/10W

R219

061G0603680

RST CHIPR 68 OHM +-5% 1/10W

R220

061G0603680

RST CHIPR 68 OHM +-5% 1/10W

R171

061G0603750

RST CHIPR 75 OHM +-5% 1/10W

R425

061G0603750

RST CHIPR 75 OHM +-5% 1/10W

R170

061G0603750

RST CHIPR 75 OHM +-5% 1/10W

R172

061G0603750

RST CHIPR 75 OHM +-5% 1/10W

R424

061G0603750

RST CHIPR 75 OHM +-5% 1/10W

R151

061G0805000

RST CHIP MAX 0R05 1/8W

R150

061G0805000

RST CHIP MAX 0R05 1/8W

R149

061G0805000

RST CHIP MAX 0R05 1/8W

R637

061G1206000

RST CHIP MAX 0R05 1/4W

FB218

061G1206000

RST CHIP MAX 0R05 1/4W

FB219

061G1206000

RST CHIP MAX 0R05 1/4W

C142

065G0402100 31

CAP 0402 10PF J 50V NPO

C143

065G0402100 31

CAP 0402 10PF J 50V NPO

C207

065G0402101 32

100PF +-10% 50V X7R

C211

065G0402101 32

100PF +-10% 50V X7R

C214

065G0402101 32

100PF +-10% 50V X7R

C225

065G0402101 32

100PF +-10% 50V X7R

C409

065G0402101 32

100PF +-10% 50V X7R

C410

065G0402101 32

100PF +-10% 50V X7R

C412

065G0402101 32

100PF +-10% 50V X7R

C618

065G0402101 32

100PF +-10% 50V X7R

C622

065G0402101 32

100PF +-10% 50V X7R

C628

065G0402101 32

100PF +-10% 50V X7R

C638

065G0402101 32

100PF +-10% 50V X7R

C407

065G0402101 32

100PF +-10% 50V X7R

C108

065G0402102 32

1000PF +-10% 50V X7R

C154

065G040210232T

0402 MLCC 1000PF K 50V

C227

065G0402103 22

CHIP 0.01UF 25V X7R

C656

065G0402103 32

0.01UF +-10% 16V X7R

C659

065G0402103 32

0.01UF +-10% 16V X7R

C703

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C661

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C654

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C641

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C402

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C166

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C140

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C138

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C137

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C135

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C711

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C742

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

19″&22″LCD TV AOC L19BH83&L22BH83

59

C743

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C745

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C226

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C707

065G0402104 27

CAP CHIP 0402 100NF Z 25V Y5V

C651

065G0402104 27

CAP CHIP 0402 100NF Z 25V Y5V

C649

065G0402104 27

CAP CHIP 0402 100NF Z 25V Y5V

C134

065G0402104 27

CAP CHIP 0402 100NF Z 25V Y5V

C131

065G0402104 27

CAP CHIP 0402 100NF Z 25V Y5V

C653

065G0402105 A5

CAP 0402 1UF K 10V X5R

C660

065G0402105 A5

CAP 0402 1UF K 10V X5R

C415

065G0402200 31

CHIP 20PF 50V NPO

C416

065G0402200 31

CHIP 20PF 50V NPO

C626

065G040227232K T

CAP CHIP 0402 2700PF 50V X7R

C648

065G040227232K T

CAP CHIP 0402 2700PF 50V X7R

C156

065G0402330 31

CHIP CAP 0402 33PF J 50V NPO

C162

065G0402330 31

CHIP CAP 0402 33PF J 50V NPO

C163

065G0402330 31

CHIP CAP 0402 33PF J 50V NPO

C100

065G040233031T

CHIP 33PF 50V NPO

C109

065G040233031T

CHIP 33PF 50V NPO

C110

065G040233031T

CHIP 33PF 50V NPO

C111

065G040233031T

CHIP 33PF 50V NPO

C114

065G040233031T

CHIP 33PF 50V NPO

C115

065G040233031T

CHIP 33PF 50V NPO

C614

065G040233031T

CHIP 33PF 50V NPO

C617

065G040233031T

CHIP 33PF 50V NPO

C101

065G0402473 12

CHIP 0.047UF 16V X7R

C102

065G0402473 12

CHIP 0.047UF 16V X7R

C107

065G0402473 12

CHIP 0.047UF 16V X7R

C122

065G0402473 12

CHIP 0.047UF 16V X7R

C123

065G0402473 12

CHIP 0.047UF 16V X7R

C124

065G0402473 12

CHIP 0.047UF 16V X7R

C128

065G0402473 12

CHIP 0.047UF 16V X7R

C129

065G0402473 12

CHIP 0.047UF 16V X7R

C130

065G0402473 12

CHIP 0.047UF 16V X7R

C144

065G0402473 12

CHIP 0.047UF 16V X7R

C670

065G040268132K Y

CAP CHIP 0402 680P 50V X7R +/-10%

C672

065G040268132K Y

CAP CHIP 0402 680P 50V X7R +/-10%

C673

065G040268132K Y

CAP CHIP 0402 680P 50V X7R +/-10%

C671

065G040268132K Y

CAP CHIP 0402 680P 50V X7R +/-10%

C647

065G0603104 37

CHIP 0.1UF 50V/Y5V

C646

065G0603104 37

CHIP 0.1UF 50V/Y5V

C645

065G0603104 37

CHIP 0.1UF 50V/Y5V

C625

065G0603104 37

CHIP 0.1UF 50V/Y5V

C624

065G0603104 37

CHIP 0.1UF 50V/Y5V

C623

065G0603104 37

CHIP 0.1UF 50V/Y5V

C657

065G0603105 12

CHIP 1UF 16VX7R 0603

C658

065G0603105 12

CHIP 1UF 16VX7R 0603

C215

065G060310522Y

MLCC 0603 1UF K 25V X7R

C168

065G0603472 32

CHIP 4700PF 50V X7R

C228

065G0603474 27

CHIP 0.47UF 25V Y5V

C169

065G0603474 27 GP

0603 0.47UF -20%~+80% 25V Y5N

19″&22″LCD TV AOC L19BH83&L22BH83

60

C170

065G0603474 27 GP

0603 0.47UF -20%~+80% 25V Y5N

C167

065G0603474 27 GP

0603 0.47UF -20%~+80% 25V Y5N

C655

065G0805105 12

1UF +-10% 6V X7R

C642

065G0805106 15

CAP CHIP 0805 10UF K 16V X5R

C619

065G0805225 17

CHIP 2.2UF 16V Y5V

C644

065G0805225 17

CHIP 2.2UF 16V Y5V

C744

065G1206106 17

MLCC 10 UF Z 16V Y5V

C636

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C604

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C602

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C230

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C231

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C232

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C234

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C239

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C240

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C247

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C248

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C249

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C250

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C251

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C253

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C258

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C400

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C600

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C601

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C635

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C736

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C735

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C734

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C731

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C730

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C729

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C728

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C725

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C723

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C722

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C721

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C720

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C719

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C606

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C610

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C612

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C634

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C629

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C620

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C615

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C717

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C710

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C639

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C637

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

19″&22″LCD TV AOC L19BH83&L22BH83

61

C631

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C633

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C674

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C741

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C740

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C739

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C738

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C737

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C229

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C160

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C200

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C202

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C203

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C204

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C205

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C206

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C208

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C210

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C224

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C223

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C220

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C219

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C218

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C217

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C216

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C213

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C212

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C113

065T0603105 25

CHIP 1UF 25V X5R

C242

065T0603105 25

CHIP 1UF 25V X5R

C414

065T0603105 25

CHIP 1UF 25V X5R

C500

065T0603105 25

CHIP 1UF 25V X5R

C664

065T0603105 25

CHIP 1UF 25V X5R

C667

065T0603105 25

CHIP 1UF 25V X5R

C627

065T0603105 25

CHIP 1UF 25V X5R

C632

065T0603105 25

CHIP 1UF 25V X5R

C233

065T0805475 17 GP

MLCC 0805 4.7UF Z 16V Y5V

C235

065T0805475 17 GP

MLCC 0805 4.7UF Z 16V Y5V

C238

065T0805475 17 GP

MLCC 0805 4.7UF Z 16V Y5V

C121

065T1206106 25

CHIP 10UF 25V X5R 1206

C120

065T1206106 25

CHIP 10UF 25V X5R 1206

C119

065T1206106 25

CHIP 10UF 25V X5R 1206

C118

065T1206106 25

CHIP 10UF 25V X5R 1206

C609

065T1206106 25

CHIP 10UF 25V X5R 1206

C608

065T1206106 25

CHIP 10UF 25V X5R 1206

C126

065T1206106 25

CHIP 10UF 25V X5R 1206

C125

065T1206106 25

CHIP 10UF 25V X5R 1206

L101

071G 56G301 EA

BEAD 300 OHM

L102

071G 56G301 EA

BEAD 300 OHM

FB706

071G 56K121

CHIP BEAD

FB704

071G 57G301 EA

CHIP BEAD

FB703

071G 57G301 EA

CHIP BEAD

19″&22″LCD TV AOC L19BH83&L22BH83

62

FB701

071G 57G301 EA

CHIP BEAD

FB700

071G 57G301 EA

CHIP BEAD

FB604

071G 57G301 EA

CHIP BEAD

FB603

071G 57G301 EA

CHIP BEAD

FB602

071G 57G301 EA

CHIP BEAD

FB601

071G 57G301 EA

CHIP BEAD

FB600

071G 57G301 EA

CHIP BEAD

FB400

071G 57G301 EA

CHIP BEAD

FB216

071G 57G301 EA

CHIP BEAD

FB209

071G 57G301 EA

CHIP BEAD

FB207

071G 57G301 EA

CHIP BEAD

FB206

071G 57G301 EA

CHIP BEAD

FB205

071G 57G301 EA

CHIP BEAD

FB204

071G 57G301 EA

CHIP BEAD

FB203

071G 57G301 EA

CHIP BEAD

FB202

071G 57G301 EA

CHIP BEAD

FB201

071G 57G301 EA

CHIP BEAD

FB200

071G 57G301 EA

CHIP BEAD

RP200

071G 57U121 Y

CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

RP201

071G 57U121 Y

CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

RP202

071G 57U121 Y

CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

RP203

071G 57U121 Y

CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

RP205

071G 57U121 Y

CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

FB109

071G 59B121

TB160808B

FB108

071G 59B121

TB160808B

FB107

071G 59B121

TB160808B

FB106

071G 59B121

TB160808B

FB105

071G 59B121

TB160808B

FB104

071G 59B121

TB160808B

FB103

071G 59B121

TB160808B

FB100

071G 59C600

CHIP BEAD

FB101

071G 59C600

CHIP BEAD

FB102

071G 59C600

CHIP BEAD

FB208

071G 59G301

CHIP BEAD 300OHM

FB713

071G 59G301

CHIP BEAD 300OHM

FB712

071G 59G301

CHIP BEAD 300OHM

FB711

071G 59G301

CHIP BEAD 300OHM

FB710

071G 59G301

CHIP BEAD 300OHM

FB408

071G 59G301

CHIP BEAD 300OHM

FB407

071G 59G301

CHIP BEAD 300OHM

FB406

071G 59G301

CHIP BEAD 300OHM

FB405

071G 59G301

CHIP BEAD 300OHM

FB404

071G 59G301

CHIP BEAD 300OHM

FB403

071G 59G301

CHIP BEAD 300OHM

FB402

071G 59G301

CHIP BEAD 300OHM

FB401

071G 59G301

CHIP BEAD 300OHM

FB214

071G 59G301

CHIP BEAD 300OHM

FB213

071G 59G301

CHIP BEAD 300OHM

FB212

071G 59G301

CHIP BEAD 300OHM

L503

073G253S 6 T

IND SMD CHOKE 90 OHM TDK

L502

073G253S 6 T

IND SMD CHOKE 90 OHM TDK

19″&22″LCD TV AOC L19BH83&L22BH83

63

L501

073G253S 6 T

IND SMD CHOKE 90 OHM TDK

L500

073G253S 6 T

IND SMD CHOKE 90 OHM TDK

CN500

088T 340 19 VD

HDMI HEADER 19P V/A

D401

093G 60230

BAT54C(L43)

D402

093G 60230

BAT54C(L43)

D500

093G 60230

BAT54C(L43)

D100

093G 60230

BAT54C(L43)

D124

093G 60231

BAT54S

D123

093G 60231

BAT54S

D403

093G 64 33

DIO SIG SM BAV99 (PHSE)R

D106

093G 64 37 N

VPORT0603100KV05

D107

093G 64 37 N

VPORT0603100KV05

D108

093G 64 37 N

VPORT0603100KV05

D109

093G 64 37 N

VPORT0603100KV05

D110

093G 64 37 N

VPORT0603100KV05

D501

093G 64 37 N

VPORT0603100KV05

D502

093G 64 37 N

VPORT0603100KV05

D103

093G 64 37 N

VPORT0603100KV05

D101

093G 64 37 N

VPORT0603100KV05

D105

093G 64 37 N

VPORT0603100KV05

D104

093G 64 37 N

VPORT0603100KV05

ZD105

093G 64 37 N

VPORT0603100KV05

ZD104

093G 64 37 N

VPORT0603100KV05

D102

093G 64 37 N

VPORT0603100KV05

X400

093G 22S 78 J

XTL NXE22.1184AC18F HC-49/U-S SMD

ZD103

093G 39S 34 T

UDZSNP5.6B ROHM

ZD100

093G 39S 34 T

UDZSNP5.6B ROHM

ZD101

093G 39S 34 T

UDZSNP5.6B ROHM

ZD102

093G 39S 34 T

UDZSNP5.6B ROHM

ZD123

093G 39S 34 T

UDZSNP5.6B ROHM

ZD124

093G 39S 34 T

UDZSNP5.6B ROHM

ZD400

093G 39S 34 T

UDZSNP5.6B ROHM

ZD401

093G 39S 34 T

UDZSNP5.6B ROHM

ZD402

093G 39S 34 T

UDZSNP5.6B ROHM

ZD601

093G 39S 34 T

UDZSNP5.6B ROHM

ZD600

093G 39S106 T

DIODE RLZ6.8C TE-11 500MW/6.8V LL-34

RV100

093T 64 65 TY

SMD ESD PROTECTER PESD0603-240

RV101

093T 64 65 TY

SMD ESD PROTECTER PESD0603-240

RV102

093T 64 65 TY

SMD ESD PROTECTER PESD0603-240

715T2899 1 3

MAIN PCB

IRPF8YA6

IR BOARD

U01

056T 627 14 2

IC GP18C38BAE

CN01

033G8032 5F HR

CONNECTOR

LED01

081G 14 6 GP

LED GPTD1210RGC GUANGPU

715T2995 1

IR PCB

PWTV7941MYD1

POWER BOARD

040T 45762412B

CBPC LABEL

GND

009T6005 1

GROUND TERMINAL

CN802

033G8021 2E U

INVERT CONNECTOR

CN803

033G8021 2E U

INVERT CONNECTOR

CN804

033G8021 2E U

INVERT CONNECTOR

19″&22″LCD TV AOC L19BH83&L22BH83

64

CN801

033G8021 2E U

INVERT CONNECTOR

051T 6 4503

GLUE_RTV

IC903

056G 139 3A

IC PC123Y22FZ0F

NR901

061G 5810T

RST NTCR 8 OHM +-20% 4A 13MM THINKING

C903

063G107K474 6S

CAP X2 0.47UF K 275VAC

C822

065G 3J5606ET

CAP CER 56PF J 3KV

C821

065G 3J5606ET

CAP CER 56PF J 3KV

C820

065G 3J5606ET

CAP CER 56PF J 3KV

C819

065G 3J5606ET

CAP CER 56PF J 3KV

C817

065G 6J2096ET

2PF 5% SL 6KV

C901

065G305M1022BP

Y2 1000PF M 250VAC Y5P

C902

065G305M1022BP

Y2 1000PF M 250VAC Y5P

C931

065G306M1022BM

Y1.CAP.001UF 250VAC MURATA

C816

065T 6J2706ET

27PF 5% SL 6KV TDK

C824

065T 6J2706ET

27PF 5% SL 6KV TDK

C905

067G 40Z12115A

CAP 105C 120UF M 450V

C812

067G215H102 4K

LOW ESR EC 1000UF 25V EB1E102M

C914

067G215P1023AV

CAP 105℃ 1000UF M 16V

C930

067G215P1023AV

CAP 105℃ 1000UF M 16V

C917

067G215P1024AV

CAP 105℃ 1000UF M 25V

C918

067G215P1024AV

CAP 105℃ 1000UF M 25V

C915

067G215P4713AV

CAP 105℃ 470UF M 16V

C922

067G215P4714AV

CAP 105℃ 470UF M 25V

L802

073G 174 35 HA

IND FILTER 200MH+-25% DADON

L801

073G 174 35 HA

IND FILTER 200MH+-25% DADON

L903

073G 253 91 H

CHOKE COIL

L904

073G 253 91 H

CHOKE COIL

L902

073L 174 40 HG

GBQM4.778.391

PT801

080TL19T 28 H

X'FMR INVERTER 820MH

T901

080TL19T 33 S

X'FMR POWER 530UH

CN901

087T 501 44 DL

AC SOCKET 3PIN + 2 SCREW HOLE V/T

BD901

093G 50460900

BRIDEGE DIODE GBU408 LITEON

CN902

095T 82011W510

WIRE HARNESS 11P(SAN)-12P(PLUG)

705TQ757019

Q901 ASS'Y

051T 200 1

OIL FOR DISAPPEAR

Q901

057G 667 21

STP10NK70ZFP

0M1G1730 8120

SCREW

HS1

Q90T6064 5 GP

HEATSINK

705TQ793050

D904 ASS'Y

051T 200 1

OIL FOR DISAPPEAR

HS2

090T6064 1 GP

HEAT SINK

D904

093G 60218

SB10100FCT

0M1G1730 8120

SCREW

705TQ793061

D906 ASS'Y

051T 200 1

OIL FOR DISAPPEAR

HS3

090T6273 1

HEAT SINK

D906

093G 60522

DIODE MBR10150FCT PANJIT

0M1G1730 8120

SCREW

IC901

056G 379107

IC LD7575A PS SOP-8

IC801

056G 608 10

IC OZ9938GN-B SOIC-16

Q903

057G 417 4

PMBS3904/PHILIPS-SMT(04)

19″&22″LCD TV AOC L19BH83&L22BH83

65

Q802

057G 759 2

RK7002

Q803

057G 759 2

RK7002

R849

061G0603000

RST CHIP MAX 0R05 1/10W

R846

061G0603000

RST CHIP MAX 0R05 1/10W

R806

061G0603101

RST CHIPR 100 OHM +-5% 1/10W

R807

061G0603101

RST CHIPR 100 OHM +-5% 1/10W

R808

061G0603101

RST CHIPR 100 OHM +-5% 1/10W

R805

061G0603101

RST CHIPR 100 OHM +-5% 1/10W

R816

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R843

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R844

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R845

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R842

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R820

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R819

061G0603104

RST CHIPR 100 KOHM +-5% 1/10W

R821

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

R838

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

R841

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

R840

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

R839

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

R826

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

R817

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

C808

061G0603184

RST CHIPR 180 KOHM +-5% 1/10W

R823

061G0603390 0F

RST CHIPR 390 OHM +-1% 1/10W

R813

061G0603474

RST CHIPR 470 KOHM +-5% 1/10W

R825

061G0603511

RST CHIPR 510 OHM +-5% 1/10W

R804

061G0603512

RST CHIPR 5.1 KOHM +-5% 1/10W

R803

061G0603512

RST CHIPR 5.1 KOHM +-5% 1/10W

R836

061G0603513

RST CHIPR 51 KOHM +-5% 1/10W

R824

061G0603620 1F

RST CHIPR 6.2KOHM +-1% 1/10W

R818

061G0603753

RST CHIPR 75 KOHM +-5% 1/10W

R837

061G0603822

RST CHIPR 8.2 KOHM +-5% 1/10W

R928

061G0805000

RST CHIP MAX 0R05 1/8W

R907

061G0805100

RST CHIPR 10 OHM +-5% 1/8W

R941

061G0805100 3F

RST CHIPR 100KOHM +-1% 1/8W

R924

061G0805102

RST CHIPR 1K OHM +-5% 1/8W

R938

061G0805103

RST CHIPR 10K OHM +-5% 1/8W

R925

061G0805151

RST CHIPR 150 OHM +-5% 1/8W

R822

061G0805200 2F

RST CHIPR 20 KOHM +-1% 1/8W

R922

061G0805201

RST CHIPR 200 OHM +-5% 1/8W

R802

061G0805220

RST CHIPR 22 OHM +-5% 1/8W

R912

061G0805220

RST CHIPR 22 OHM +-5% 1/8W

R930

061G0805243 1F

RST CHIPR 2.43 KOHM +-1% 1/8W

R929

061G0805330 2F

RST CHIPR 33K OHM +-1% 1/8W

R927

061G0805360 1F

RST CHIPR 3.6K OHM +-1% 1/8W

R943

061G0805471

RST CHIPR 470 OHM +-5% 1/8W

R829

061G0805682

RST CHIPR 6.8 KOHM +-5% 1/8W

RJ905

061G1206000

RST CHIP MAX 0R05 1/4W

RJ904

061G1206000

RST CHIP MAX 0R05 1/4W

RJ903

061G1206000

RST CHIP MAX 0R05 1/4W

RJ902

061G1206000

RST CHIP MAX 0R05 1/4W

19″&22″LCD TV AOC L19BH83&L22BH83

66

RJ901

061G1206000

RST CHIP MAX 0R05 1/4W

RJ801

061G1206000

RST CHIP MAX 0R05 1/4W

R903

061G1206101

RST CHIPR 100 OHM +-5% 1/4W

R919

061G1206101

RST CHIPR 100 OHM +-5% 1/4W

R934

061G1206101

RST CHIPR 100 OHM +-5% 1/4W

R935

061G1206101

RST CHIPR 100 OHM +-5% 1/4W

R920

061G1206101

RST CHIPR 100 OHM +-5% 1/4W

R918

061G1206101

RST CHIPR 100 OHM +-5% 1/4W

R936

061G1206102

RST CHIPR 1K OHM +-5% 1/4W

R909

061G1206339

RST CHIPR 3.3 OHM +-5% 1/4W

R902

061G1206684

RST CHIPR 680K OHM +-5% 1/4W

R901

061G1206684

RST CHIPR 680K OHM +-5% 1/4W

R900

061G1206684

RST CHIPR 680K OHM +-5% 1/4W

R904

061G1206822

RST CHIPR 8.2 KOHM +-5% 1/4W

R905

061G1206822

RST CHIPR 8.2 KOHM +-5% 1/4W

C807

065G0603103 12

CHIP 0.01UF 16V X7R

C805

065G0603103 12

CHIP 0.01UF 16V X7R

C806

065G0603105 12

CHIP 1UF 16VX7R 0603

C818

065G0603221 31

CER1 0603 NP0 50V 220P P

C813

065G0603333 32

CHIP 0.033UF 50V X7R 0603

C815

065G0603473 32

CHIP 0.047UF 50V X7R

C810

065G0603473 32

CHIP 0.047UF 50V X7R

C932

065G0805102 31

CAP CHIP 0805 1000PF J 50V NPO

C920

065G0805104 32

CAP CHIP 0805 0.1UF K 50V X7R

C919

065G0805104 32

CAP CHIP 0805 0.1UF K 50V X7R

C916

065G0805104 32

CAP CHIP 0805 0.1UF K 50V X7R

C811

065G0805104 32

CAP CHIP 0805 0.1UF K 50V X7R

C927

065G0805104 32

CAP CHIP 0805 0.1UF K 50V X7R

C924

065G0805221 31

CAP CHIP 0805 220PF J 50V NPO

C912

065G0805223 22

CHIP 0.022UF 25V X7R 080

C804

065G0805225 12

CAP CHIP 0805 2.2UF K 16V X7R

C814

065G0805391 31

CHIP 390PF 50V

C923

065G0805471 21

CAP CHIP 0805 470PF J 25V NPO

C801

065G0805473 32

CHIP 0.047UF 50V X7R

C802

065G0805473 32

CHIP 0.047UF 50V X7R

C809

065G080556131G

MLCC 0805 560PF G 50V NPO

C921

065G1206102 72

CAP CHIP 1206 1000PF K 500V X7R

C929

065G1206102 72

CAP CHIP 1206 1000PF K 500V X7R

D809

093G 64 33

DIO SIG SM BAV99 (PHSE)R

D807

093G 64 42 P

BAV70 SOT23 BY PAN JIT

D808

093G 64 42 P

BAV70 SOT23 BY PAN JIT

D806

093G 64 42 P

BAV70 SOT23 BY PAN JIT

D802

093G 6432P

LL4148

D804

093G 6432P

LL4148

D909

093G 6432P

LL4148

D805

093G 6432P

LL4148

D803

093G 6432P

LL4148

D801

093G 6432P

LL4148

ZD803

093G 39S 24 T

RLZ 5.6B LLDS

ZD802

093G 39S 24 T

RLZ 5.6B LLDS

ZD920

093G 39S 40 T

RLZ 13B LLDS

19″&22″LCD TV AOC L19BH83&L22BH83

67

006G 31 4

1.7MM RIVET

CN901

006T 31501

EYELET

IC902

056G 158 12

KIA431A-AT/P TO-92

R908

061G152M10452T

RST MOFR 100KOHM +-5% 2WS

R940

061G152M15152T

RST MOFR 150 OHM +-5% 2WS

R914

061G152M39852T

RST MOFR 0.39 OHM +-5% 2WS

R828

061G212Y625 KT

MGFR 6.2MOHM +-5% 1/2W

C906

065G 2K222 2T6921

CAP CER 2200PF K 2KV Y5P

C908

067G215Y2207KT

CAP 105℃ 22UF M 50V KINGNICHI

F901

084G 56 4 B

FUSE 4A 250V

D901

093G 6026T52T

RECTIFIER DIODE FR107

D902

093G 6038T52T

FR103

715T2783 1 5

POWER PCB

Q805

057T 600517

AO4616 SOIC-8

Q806

057T 600517

AO4616 SOIC-8

Q07G 7 T151

COMPOUND PALLET

Q07G 7 T152

COMPOUND PALLET

Q11T5005 1

WIRE SADDLE

Q12G6300 26 1

RUBBER PAD

Q36G 600 31 7

NONWOVEN FABRIC

Q36T 600 31 1

NONWOVEN FABRIC

Q36T 600 37 9 GP

NONWOVEN FABRIC

Q36T 600 37 21 GP

NONWOVEN FABRIC

Q36T 600 38 3

NONWOVEN FABRIC

Q36T 600 38 4

NONWOVEN FABRIC

Q40G0001624 4A

PALLET LABEL

Q40T 19261532A

RATING LABEL

Q40T000297617A

SIDE LABEL

Q40T000297623A

SIDE LABEL

Q44G9003 1

CONNER PAPER

Q44T9099102

EPS CUSHION

Q44T9099202

EPS CUSHION

Q44T9099615 9A

19 TV AOC CARTON

Q45G 77 5

PE PACKING

Q45G 99609 92

EPE BAG FOR HEAD

Q45T 99609100

EPE COVER

Q50T 500523

CABLE TIE

Q52G6025 13 63

MYLAR

041G 68508 A

CONTROL CARD

089G 17356C553

AUDIO CABLE 1800MM

092TB1JX1A3WGM

BATTERY FOR ALL EXPORT MODE LR03

Q41T220261521A

MANUAL

Q45G 76 28 RN R

PE BAG MANUAL

026G 800504 3

BARCODE LABEL FOR 4

040T 58162435A

LABEL

19″&22″LCD TV AOC L19BH83&L22BH83

68

Location

Part No.

Description

Remark

036T 600 18109

NONWOVEN FABRTC

040T 581 26704

SHIPPING LABEL

041G 68508 A

CONTROL CARD

044G9003214

CORNER PAPER

044GH600 1

HANDLE 2

044T3121510509

GASKET

049T 51 1A

ERADICATOR

050G 600 4

HANDLE 1

052G 1150 C

INSULATING TAPE

052G 1185

MIDDLE TAPE

052G 1186

SMALL TAPE

052G 1210 A

ALUMINIUM TAPE

052G 1211 B

CONDUCTIVE TAPE 85MM *40MM *0.09MM

052G 2191 A

PAPER TAPE

E078

078T 494511 K

SPK 8 OHM 3.5W 25X80 150 150MM KUAIDA

2nd source

E078

078T 494511 Y

SPK 8 OHM 3.5W 25X80 150 150MM SUNLINK

089G 725GAA DB

D-SUB CABLE

089G417A15N IS

POWER CORD

092TB1JX1A3WGM

BATTERY FOR ALL EXPORT MODE LR03

E09502

095T801410D597

WIRE HARNESS 10P-5P+5P(A1253HA HR)

2nd source

E09502

095T801410W597

WIRE HARNESS 10P-5P+5P(A1253HA HR)

095T8018 3X698

LVDS CABLE

098TRABDBNEACC

REMOTE CONTROL FOR AOC

0D1G 930 8 47 CR3

SCREW

0D1T 930 6120

SCREW

0M1G1730 6120

SCREW,42-D020523

0M1G1730 8120

SCREW

0M1G1730 8120

SCREW

0M1G1730 10120

SCREW 42A9930016

0Q1G 930 6120

SCREW 3X6MM

0Q1G 930 8 47 CR3

SCREW

0Q1G1030 6120

SCREW

0Q1T 940 10 47 CR3

SCREW

705TQ833014

PLASTIC ASS`Y

0Q1G 930 6120

SCREW 3X6MM

A33T0305 GM 1L0200

BUTTON_FUNC

A33T0309 GMA1L0100

COVER_FUNC

KEPF8YA5

KEY BOARD

CN01

033G3802 5B YH W

WAFER

SW01

077G 600 1GCJ

TACT SWITCH TSPB-2 -NP

SW05

077G 600 1GCJ

TACT SWITCH TSPB-2 -NP

SW06

077G 600 1GCJ

TACT SWITCH TSPB-2 -NP

SW07

077G 600 1GCJ

TACT SWITCH TSPB-2 -NP

SW03

077G 600 1GCJ

TACT SWITCH TSPB-2 -NP

SW04

077G 600 1GCJ

TACT SWITCH TSPB-2 -NP

SW02

077G 600 1GCJ

TACT SWITCH TSPB-2 -NP

R05

061G0603000

RST CHIP MAX 0R05 1/10W

R09

061G0603204

RST CHIPR 200 KOHM +-5% 1/10W

R08

061G0603220 2F

RST CHIPR 22 KOHM +-1% 1/10W

E228CANCW1A4NN

19″&22″LCD TV AOC L19BH83&L22BH83

69

R06

061G0603330 1F

BST CHIPR 3.3KOHM +-1% 1/10W

R07

061G0603680 1F

RST CHIPR 6.8 KOHM +-1% 1/10W

ZD05

093G 39S 34 T

UDZSNP5.6B ROHM

ZD06

093G 39S 34 T

UDZSNP5.6B ROHM

ZD07

093G 39S 34 T

UDZSNP5.6B ROHM

715T2927 2

KEY PCB

705TQ834131

STAND ASS'Y

A34T0524 GM 1L0100

STAND

A34T0525 GM 1L0133

BASE_S1

M037

A37T0056013

HINGE ASS'Y

AM1G1740 10225 CR3

SCREW

M037

SA37T0056013

HINGE ASS’Y

2nd source

705TQ834666

REAR COVER ASS'Y

036T 600 18115

HIMELON

A15T0315101

VESA BKT

A34T0527 GM 3L0100

REAR COVER 22

Q36T 600 18120

.LOTH_GRIDDING

Q36T 600 30 1

NONWOVEN FABRIC

Q36T 600 37 1

NONWOVEN FABRIC

705TQ834667

BEZEL ASS'Y

A33T0306 1 1C0100

POWER LENS

A33T0310 ED 1C0100

IR LENS

A34T0526 GMA1L0130

BEZEL TV216-8A1

E750

750TVCB6WA133N

PANEL CLAA220WA01 032 FZ CPT

A15T0309101

MAINFRAME

A15T0354201

SIDE BKT

AM1G1740 10225 CR3

SCREW

CBPF8A1DQ2

CONVERSION BOARD

CN402

033G8027 30

WAFER 30P 2.0MM DIP DUAL ROW

CN700

033T327812D

WAFER 12P PLUG

CN600

033T3802 4B Y

CONNECTOR

CN400

033T380210B Y

CONNECTOR

040T 45762412B

CBPC LABEL

R623

061G153M399 59

3.9 OHM+-5% 3W

R624

061G153M399 59

3.9 OHM+-5% 3W

R626

061G153M399 59

3.9 OHM+-5% 3W

R627

061G153M399 59

3.9 OHM+-5% 3W

R138

061G175L22052T

RST CFR 22 OHM +-5% 1/2W

R137

061T175L39052T

39 OHM 5% 1/2W

C652

067G 305102 4

105C 1000UF +-20% 25V

C702

067G215P4713AV

CAP 105℃ 470UF M 16V

C706

067G215P4714AV

CAP 105℃ 470UF M 25V

C132

067T 305471 4

EC 105℃ 470UF M 25V

CN105

088G 78 1357S

RCA JACK 1*1 W+R V/A

CN602

088G 30211K

PHONE JACK 5PIN

CN100

088G 30252S

PHONE JACK 3.5MM 3P V/A GREEN

CN103

088T 78 13932 S

RCA JACK + S JACK Y/B

CN102

088T 78 V5 C

RCA JACK 3+2 G/BLU/R+W/R

CN104

088T 35315F VC

D-SUB 15PIN VERTICAL CONNECTOR

090T 372 2

HEAT SINK

X600

093G 2270B H

XAT024576FK1H-3OHX AT-49 24.576MHZ

19″&22″LCD TV AOC L19BH83&L22BH83

70

TU101

094T PALALL 3L

TCL TUNER M15WPP-2PN-E

705TQ856001

U602 ASS'Y

U602

056T 616511 ST

IC TDA7297SA ST

0M1G1730 10120

SCREW 42A9930016

Q90T0155 1

HEAT SINK

C747

067G 305100 3T

10UF 16V

C406

067G 305100 3T

10UF 16V

C733

067G 305100 3T

10UF 16V

C727

067G 305100 3T

10UF 16V

C726

067G 305100 3T

10UF 16V

C724

067G 305100 3T

10UF 16V

C715

067G 305100 3T

10UF 16V

C709

067G 305100 3T

10UF 16V

C708

067G 305100 3T

10UF 16V

C252

067G 305100 3T

10UF 16V

C246

067G 305100 3T

10UF 16V

C237

067G 305100 3T

10UF 16V

C236

067G 305100 3T

10UF 16V

C718

067G 305100 3T

10UF 16V

C716

067G 305100 3T

10UF 16V

C640

067G 305100 3T

10UF 16V

C630

067G 305100 3T

10UF 16V

C621

067G 305100 3T

10UF 16V

C616

067G 305100 3T

10UF 16V

C613

067G 305100 3T

10UF 16V

C611

067G 305100 3T

10UF 16V

C607

067G 305100 3T

10UF 16V

C605

067G 305100 3T

10UF 16V

C603

067G 305100 3T

10UF 16V

C209

067G 305100 3T

10UF 16V

C201

067G 305100 3T

10UF 16V

C136

067G 305101 3T

100UF 16V 105C

C139

067G 305101 3T

100UF 16V 105C

C141

067G 305101 3T

100UF 16V 105C

C401

067G 305101 3T

100UF 16V 105C

C662

067G 305101 3T

100UF 16V 105C

C663

067G 305101 3T

100UF 16V 105C

C665

067G 305101 3T

100UF 16V 105C

C732

067G 305101 3T

100UF 16V 105C

C133

067G 305101 4T

100UF +-20% 25V

C650

067G 305101 4T

100UF +-20% 25V

C643

067G 305220 3T

22UF +-20% 16V

C666

067G 305470 3T

47UF +-20% 16V

C405

067G 305470 3T

47UF +-20% 16V

C259

067G 305471 3T

105℃ 470UF +-20% 16V

U601

056G 133 30AAC

AZ1117H-ADJ-E1

U701

056G 563 7

IC AIC1084-33PMTR-R AIC

U702

056G 563 34

IC AIC1084-18PMTR-R AIC

U102

056G 585 11

IC AZ1117D-5.0-E1 AAC

U200

056G 585 4A

IC AP1117E33L-13

U700

056G 585 4A

IC AP1117E33L-13

19″&22″LCD TV AOC L19BH83&L22BH83

71

U703

056G 585 4A

IC AP1117E33L-13

U704

056G 585 5A

IC AP1117E25L-13

U501

056G 662 10

IC RCLAMP0524P.TCT

U500

056G 662 10

IC RCLAMP0524P.TCT

U400

056G1125170
X(AACCH1C22NQ1)

IC W79E632A40PL

U502

056G1133 34

M24C02-WMN6TP

U100

056G1133 34

M24C02-WMN6TP

U402

056G113353A

IC M24C32-WMN6T SO-8 ST

U403

056G74HC 14 F

IC MM74HC14MX SOIC-14

U405

056G74HC126 P

IC 74HC126D SO-14 PHILIPS

UH200

056T 562566

IC HX6203-A010QBG

U600

056T 616 4

IC PT2314L SO28 PTC

U603

056T 616507

IC AUDIO PT2309 PTC

U202

056T1133527
ST(AACCH1C22FQ1)

IC M25P40-VMN6TP/X ST

Q500

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q403

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q402

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q401

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q502

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q600

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q601

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q602

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q603

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q703

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q705

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q706

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q407

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q100

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q102

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q106

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q107

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q108

057G 417 6

PMBS3906/PHILIPS-SMT(06)

Q109

057G 417 6

PMBS3906/PHILIPS-SMT(06)

Q404

057G 417 6

PMBS3906/PHILIPS-SMT(06)

Q408

057G 417 6

PMBS3906/PHILIPS-SMT(06)

Q400

057G 417 6

PMBS3906/PHILIPS-SMT(06)

Q704

057G 763 3

AO4411 SO-8

Q105

057G 763 3

AO4411 SO-8

Q101

057G 763 3

AO4411 SO-8

RP404

061G 125103 8

RST CHIP AR 8P4R 10 KOHM +-5% 1/16W

RP403

061G 125103 8

RST CHIP AR 8P4R 10 KOHM +-5% 1/16W

RP402

061G 125103 8

RST CHIP AR 8P4R 10 KOHM +-5% 1/16W

RP401

061G 125103 8

RST CHIP AR 8P4R 10 KOHM +-5% 1/16W

RP400

061G 125103 8

RST CHIP AR 8P4R 10 KOHM +-5% 1/16W

RP406

061G 125103 8

RST CHIP AR 8P4R 10 KOHM +-5% 1/16W

RP405

061G 125103 8

RST CHIP AR 8P4R 10 KOHM +-5% 1/16W

R123

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R124

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R129

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R132

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

19″&22″LCD TV AOC L19BH83&L22BH83

72

R135

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R147

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R101

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R104

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R107

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R110

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R122

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R423

061G0402102

RST CHIPR 1 KOHM +-5% 1/16W

R410

061G0402102

RST CHIPR 1 KOHM +-5% 1/16W

R203

061G0402162

RST CHIP 1K6 1/16W 5%

R146

061G0402330

RST CHIPR 33 OHM +-5% 1/16W

R134

061G0402330

RST CHIPR 33 OHM +-5% 1/16W

R131

061G0402330

RST CHIPR 33 OHM +-5% 1/16W

R128

061G0402330

RST CHIPR 33 OHM +-5% 1/16W

R114

061G0402330

RST CHIPR 33 OHM +-5% 1/16W

R111

061G0402330

RST CHIPR 33 OHM +-5% 1/16W

R204

061G0402332

RST CHIPR 3.3KOHM +-5% 1/16W

R130

061G0402430

RST CHIP 43R 1/16W 5%

R133

061G0402430

RST CHIP 43R 1/16W 5%

R136

061G0402430

RST CHIP 43R 1/16W 5%

R148

061G0402430

RST CHIP 43R 1/16W 5%

R102

061G0402750

RST CHIPR 75 OHM +-5% 1/16W

R105

061G0402750

RST CHIPR 75 OHM +-5% 1/16W

R108

061G0402750

RST CHIPR 75 OHM +-5% 1/16W

R511

061G0603000

RST CHIP MAX 0R05 1/10W

R512

061G0603000

RST CHIP MAX 0R05 1/10W

R513

061G0603000

RST CHIP MAX 0R05 1/10W

R606

061G0603000

RST CHIP MAX 0R05 1/10W

R607

061G0603000

RST CHIP MAX 0R05 1/10W

R638

061G0603000

RST CHIP MAX 0R05 1/10W

R700

061G0603000

RST CHIP MAX 0R05 1/10W

R704

061G0603000

RST CHIP MAX 0R05 1/10W

R720

061G0603000

RST CHIP MAX 0R05 1/10W

R725

061G0603000

RST CHIP MAX 0R05 1/10W

R510

061G0603000

RST CHIP MAX 0R05 1/10W

L100

061G0603000

RST CHIP MAX 0R05 1/10W

R218

061G0603000

RST CHIP MAX 0R05 1/10W

R221

061G0603000

RST CHIP MAX 0R05 1/10W

R226

061G0603000

RST CHIP MAX 0R05 1/10W

R413

061G0603000

RST CHIP MAX 0R05 1/10W

R420

061G0603000

RST CHIP MAX 0R05 1/10W

R421

061G0603000

RST CHIP MAX 0R05 1/10W

R422

061G0603000

RST CHIP MAX 0R05 1/10W

R436

061G0603000

RST CHIP MAX 0R05 1/10W

R437

061G0603000

RST CHIP MAX 0R05 1/10W

R144

061G0603100

RST CHIPR 10 OHM +-5% 1/10W

R145

061G0603100

RST CHIPR 10 OHM +-5% 1/10W

R166

061G0603101

RST CHIPR 100 OHM +-5% 1/10W

R610

061G0603101

RST CHIPR 100 OHM +-5% 1/10W

R616

061G0603101

RST CHIPR 100 OHM +-5% 1/10W

R434

061G0603101

RST CHIPR 100 OHM +-5% 1/10W

19″&22″LCD TV AOC L19BH83&L22BH83

73

R427

061G0603101

RST CHIPR 100 OHM +-5% 1/10W

R459

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R708

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R618

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R613

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R500

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R234

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R230

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R152

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R401

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R402

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R403

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R405

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R407

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R435

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R501

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R505

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R506

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R628

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R632

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R633

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R635

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R636

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R640

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R710

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R712

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R438

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R411

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R430

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R431

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R634

061G0603104

RST CHIPR 100 KOHM +-5% 1/10W

R175

061G0603104

RST CHIPR 100 KOHM +-5% 1/10W

R604

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

R419

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

R621

061G0603122

RST CHIPR 1.2 KOHM +-5% 1/10W

R237

061G0603133

RST CHIPR 13 KOHM +-5% 1/10W

R404

061G0603182

RST CHIPR 1.8 KOHM +-5% 1/10W

R190

061G0603184

RST CHIPR 180 KOHM +-5% 1/10W

R189

061G0603184

RST CHIPR 180 KOHM +-5% 1/10W

R432

061G0603220

RST CHIPR 22 OHM +-5% 1/10W

R429

061G0603220

RST CHIPR 22 OHM +-5% 1/10W

R428

061G0603220

RST CHIPR 22 OHM +-5% 1/10W

R247

061G0603220

RST CHIPR 22 OHM +-5% 1/10W

R246

061G0603220

RST CHIPR 22 OHM +-5% 1/10W

R245

061G0603220

RST CHIPR 22 OHM +-5% 1/10W

R229

061G0603220

RST CHIPR 22 OHM +-5% 1/10W

R426

061G0603220

RST CHIPR 22 OHM +-5% 1/10W

R620

061G0603221

RST CHIPR 220 OHM +-5% 1/10W

R106

061G0603222

RST CHIPR 2.2 KOHM +-5% 1/10W

R103

061G0603222

RST CHIPR 2.2 KOHM +-5% 1/10W

R711

061G0603223

RST CHIPR 22 KOHM +-5% 1/10W

19″&22″LCD TV AOC L19BH83&L22BH83

74

R183

061G0603223

RST CHIPR 22 KOHM +-5% 1/10W

R141

061G0603224

RST CHIPR 220 KOHM +-5% 1/10W

R608

061G0603242

RST CHIPR 2.4 KOHM +-5% 1/10W

R609

061G0603242

RST CHIPR 2.4 KOHM +-5% 1/10W

R118

061G0603273

RST CHIPR 27 KOHM +-5% 1/10W

R119

061G0603273

RST CHIPR 27 KOHM +-5% 1/10W

R120

061G0603273

RST CHIPR 27 KOHM +-5% 1/10W

R121

061G0603273

RST CHIPR 27 KOHM +-5% 1/10W

R100

061G0603273

RST CHIPR 27 KOHM +-5% 1/10W

R115

061G0603273

RST CHIPR 27 KOHM +-5% 1/10W

R614

061G0603331

RST CHIP 330R 1/10W 5%

R615

061G0603331

RST CHIP 330R 1/10W 5%

R617

061G0603331

RST CHIP 330R 1/10W 5%

R619

061G0603331

RST CHIP 330R 1/10W 5%

R611

061G0603331

RST CHIP 330R 1/10W 5%

R612

061G0603331

RST CHIP 330R 1/10W 5%

R202

061G0603390 0F

RST CHIPR 390 OHM +-1% 1/10W

R603

061G0603393

RST CHIPR 39 KOHM +-5% 1/10W

R602

061G0603393

RST CHIPR 39 KOHM +-5% 1/10W

R216

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R212

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R208

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R207

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R206

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R186

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R185

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R184

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R182

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R143

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R142

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R140

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R139

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R235

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R418

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R213

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R724

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R417

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R416

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R714

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R713

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R709

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R642

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R641

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R630

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R514

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R508

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R507

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R415

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R409

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R125

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R113

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

19″&22″LCD TV AOC L19BH83&L22BH83

75

R112

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R625

061G0603473

RST CHIPR 47 KOHM +-5% 1/10W

R629

061G0603473

RST CHIPR 47 KOHM +-5% 1/10W

R631

061G0603473

RST CHIPR 47 KOHM +-5% 1/10W

R639

061G0603473

RST CHIPR 47 KOHM +-5% 1/10W

R187

061G0603474

RST CHIPR 470 KOHM +-5% 1/10W

R622

061G0603562

RST CHIPR 5.6 KOHM +-5% 1/10W

R605

061G0603562

RST CHIPR 5.6 KOHM +-5% 1/10W

R217

061G0603680

RST CHIPR 68 OHM +-5% 1/10W

R219

061G0603680

RST CHIPR 68 OHM +-5% 1/10W

R220

061G0603680

RST CHIPR 68 OHM +-5% 1/10W

R170

061G0603750

RST CHIPR 75 OHM +-5% 1/10W

R171

061G0603750

RST CHIPR 75 OHM +-5% 1/10W

R172

061G0603750

RST CHIPR 75 OHM +-5% 1/10W

R424

061G0603750

RST CHIPR 75 OHM +-5% 1/10W

R425

061G0603750

RST CHIPR 75 OHM +-5% 1/10W

R149

061G0805000

RST CHIP MAX 0R05 1/8W

R150

061G0805000

RST CHIP MAX 0R05 1/8W

R151

061G0805000

RST CHIP MAX 0R05 1/8W

R637

061G1206000

RST CHIP MAX 0R05 1/4W

C143

065G0402100 31

CAP 0402 10PF J 50V NPO

C142

065G0402100 31

CAP 0402 10PF J 50V NPO

C207

065G0402101 32

100PF +-10% 50V X7R

C211

065G0402101 32

100PF +-10% 50V X7R

C214

065G0402101 32

100PF +-10% 50V X7R

C225

065G0402101 32

100PF +-10% 50V X7R

C409

065G0402101 32

100PF +-10% 50V X7R

C410

065G0402101 32

100PF +-10% 50V X7R

C618

065G0402101 32

100PF +-10% 50V X7R

C622

065G0402101 32

100PF +-10% 50V X7R

C628

065G0402101 32

100PF +-10% 50V X7R

C638

065G0402101 32

100PF +-10% 50V X7R

C412

065G0402101 32

100PF +-10% 50V X7R

C407

065G0402101 32

100PF +-10% 50V X7R

C108

065G0402102 32

1000PF +-10% 50V X7R

C154

065G0402102 32

1000PF +-10% 50V X7R

C659

065G0402103 32

0.01UF +-10% 16V X7R

C656

065G0402103 32

0.01UF +-10% 16V X7R

C745

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C743

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C742

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C711

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C703

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C661

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C654

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C651

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C641

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C404

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C403

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C402

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C166

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

19″&22″LCD TV AOC L19BH83&L22BH83

76

C140

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C138

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C137

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C135

065G0402104 12

CAP CHIP 0402 0.1UF 16V X7R

C707

065G0402104 27

CAP CHIP 0402 100NF Z 25V Y5V

C649

065G0402104 27

CAP CHIP 0402 100NF Z 25V Y5V

C134

065G0402104 27

CAP CHIP 0402 100NF Z 25V Y5V

C653

065G0402105 A5

CAP 0402 1UF K 10V X5R

C660

065G0402105 A5

CAP 0402 1UF K 10V X5R

C415

065G0402200 31

CHIP 20PF 50V NPO

C416

065G0402200 31

CHIP 20PF 50V NPO

C131

065G0402224 17

CAP CER 0.22UF -20%-80%

C626

065G040227232K T

CAP CHIP 0402 2700PF 50V X7R

C648

065G040227232K T

CAP CHIP 0402 2700PF 50V X7R

C156

065G0402330 31

CHIP CAP 0402 33PF J 50V NPO

C162

065G0402330 31

CHIP CAP 0402 33PF J 50V NPO

C163

065G0402330 31

CHIP CAP 0402 33PF J 50V NPO

C100

065G040233031T

CHIP 33PF 50V NPO

C109

065G040233031T

CHIP 33PF 50V NPO

C110

065G040233031T

CHIP 33PF 50V NPO

C111

065G040233031T

CHIP 33PF 50V NPO

C114

065G040233031T

CHIP 33PF 50V NPO

C115

065G040233031T

CHIP 33PF 50V NPO

C614

065G040233031T

CHIP 33PF 50V NPO

C617

065G040233031T

CHIP 33PF 50V NPO

C144

065G0402473 12

CHIP 0.047UF 16V X7R

C101

065G040247312K T

CAP CHIP 0402 0.047UF 16V X7R

C102

065G040247312K T

CAP CHIP 0402 0.047UF 16V X7R

C107

065G040247312K T

CAP CHIP 0402 0.047UF 16V X7R

C122

065G040247312K T

CAP CHIP 0402 0.047UF 16V X7R

C123

065G040247312K T

CAP CHIP 0402 0.047UF 16V X7R

C124

065G040247312K T

CAP CHIP 0402 0.047UF 16V X7R

C128

065G040247312K T

CAP CHIP 0402 0.047UF 16V X7R

C129

065G040247312K T

CAP CHIP 0402 0.047UF 16V X7R

C130

065G040247312K T

CAP CHIP 0402 0.047UF 16V X7R

C669

065G040256132K Y

CAP CHIP 0402 560P 50V X7R +/-10%

C668

065G040256132K Y

CAP CHIP 0402 560P 50V X7R +/-10%

C673

065G040268132K Y

CAP CHIP 0402 680P 50V X7R +/-10%

C672

065G040268132K Y

CAP CHIP 0402 680P 50V X7R +/-10%

C671

065G040268132K Y

CAP CHIP 0402 680P 50V X7R +/-10%

C670

065G040268132K Y

CAP CHIP 0402 680P 50V X7R +/-10%

C623

065G0603104 37

CHIP 0.1UF 50V/Y5V

C624

065G0603104 37

CHIP 0.1UF 50V/Y5V

C625

065G0603104 37

CHIP 0.1UF 50V/Y5V

C645

065G0603104 37

CHIP 0.1UF 50V/Y5V

C646

065G0603104 37

CHIP 0.1UF 50V/Y5V

C647

065G0603104 37

CHIP 0.1UF 50V/Y5V

C658

065G0603105 12

CHIP 1UF 16VX7R 0603

C657

065G0603105 12

CHIP 1UF 16VX7R 0603

C215

065G060310522Y

MLCC 0603 1UF K 25V X7R

C167

065G0603474 27

CHIP 0.47UF 25V Y5V

19″&22″LCD TV AOC L19BH83&L22BH83

77

C228

065G0603474 27

CHIP 0.47UF 25V Y5V

C169

065G0603474 27 GP

0603 0.47UF -20%~+80% 25V Y5N

C170

065G0603474 27 GP

0603 0.47UF -20%~+80% 25V Y5N

C168

065G060347427Y

MLCC 0603 0.47UF Z 25V Y5V

C655

065G0805105 27

CHIP 1UF Y5V 0805

C642

065G0805106 15

CAP CHIP 0805 10UF K 16V X5R

C619

065G0805225 17

CHIP 2.2UF 16V Y5V

C644

065G0805225 17

CHIP 2.2UF 16V Y5V

C744

065G1206106 17

MLCC 10 UF Z 16V Y5V

C227

065T040210337T

CHIP 0402 10NF 50V Y5V

C604

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C606

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C610

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C612

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C615

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C620

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C629

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C634

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C234

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C239

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C240

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C247

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C248

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C249

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C250

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C251

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C253

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C258

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C400

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C600

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C601

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C602

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C739

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C738

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C737

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C736

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C735

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C734

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C635

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C636

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C637

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C639

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C710

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C717

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C719

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C720

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C721

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C723

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C722

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C731

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C730

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

19″&22″LCD TV AOC L19BH83&L22BH83

78

C729

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C728

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C725

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C674

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C633

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C631

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C217

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C741

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C740

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C160

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C200

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C202

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C203

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C204

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C205

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C206

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C208

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C210

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C212

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C213

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C232

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C231

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C230

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C229

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C226

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C224

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C223

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C220

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C219

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C218

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C216

065T040210427T

CAP 0402 0.1UF Z 25V Y5V TAIYO YUDEN

C632

065T0603105 25

CHIP 1UF 25V X5R

C627

065T0603105 25

CHIP 1UF 25V X5R

C500

065T0603105 25

CHIP 1UF 25V X5R

C414

065T0603105 25

CHIP 1UF 25V X5R

C242

065T0603105 25

CHIP 1UF 25V X5R

C113

065T0603105 25

CHIP 1UF 25V X5R

C667

065T0603105 25

CHIP 1UF 25V X5R

C664

065T0603105 25

CHIP 1UF 25V X5R

C233

065T0805475 17 GP

MLCC 0805 4.7UF Z 16V Y5V

C235

065T0805475 17 GP

MLCC 0805 4.7UF Z 16V Y5V

C238

065T0805475 17 GP

MLCC 0805 4.7UF Z 16V Y5V

C609

065T1206106 25

CHIP 10UF 25V X5R 1206

C608

065T1206106 25

CHIP 10UF 25V X5R 1206

C126

065T1206106 25

CHIP 10UF 25V X5R 1206

C125

065T1206106 25

CHIP 10UF 25V X5R 1206

C121

065T1206106 25

CHIP 10UF 25V X5R 1206

C120

065T1206106 25

CHIP 10UF 25V X5R 1206

C119

065T1206106 25

CHIP 10UF 25V X5R 1206

C118

065T1206106 25

CHIP 10UF 25V X5R 1206

L101

071G 56G301 EA

BEAD 300 OHM

19″&22″LCD TV AOC L19BH83&L22BH83

79

L102

071G 56G301 EA

BEAD 300 OHM

FB706

071G 56K121

CHIP BEAD

FB219

071G 57G301 EA

CHIP BEAD

FB218

071G 57G301 EA

CHIP BEAD

FB216

071G 57G301 EA

CHIP BEAD

FB704

071G 57G301 EA

CHIP BEAD

FB703

071G 57G301 EA

CHIP BEAD

FB701

071G 57G301 EA

CHIP BEAD

FB700

071G 57G301 EA

CHIP BEAD

FB604

071G 57G301 EA

CHIP BEAD

FB603

071G 57G301 EA

CHIP BEAD

FB602

071G 57G301 EA

CHIP BEAD

FB601

071G 57G301 EA

CHIP BEAD

FB600

071G 57G301 EA

CHIP BEAD

FB400

071G 57G301 EA

CHIP BEAD

FB209

071G 57G301 EA

CHIP BEAD

FB207

071G 57G301 EA

CHIP BEAD

FB206

071G 57G301 EA

CHIP BEAD

FB205

071G 57G301 EA

CHIP BEAD

FB204

071G 57G301 EA

CHIP BEAD

FB203

071G 57G301 EA

CHIP BEAD

FB202

071G 57G301 EA

CHIP BEAD

FB201

071G 57G301 EA

CHIP BEAD

FB200

071G 57G301 EA

CHIP BEAD

RP202

071G 57U121 Y

CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

RP201

071G 57U121 Y

CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

RP200

071G 57U121 Y

CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

RP203

071G 57U121 Y

CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

RP205

071G 57U121 Y

CHIP BEAD ARRAY 1206 120OHM+-25% 0.15A

FB109

071G 59B121

TB160808B

FB108

071G 59B121

TB160808B

FB107

071G 59B121

TB160808B

FB106

071G 59B121

TB160808B

FB105

071G 59B121

TB160808B

FB104

071G 59B121

TB160808B

FB103

071G 59B121

TB160808B

FB100

071G 59C600

CHIP BEAD

FB101

071G 59C600

CHIP BEAD

FB102

071G 59C600

CHIP BEAD

FB208

071G 59G301

CHIP BEAD 300OHM

FB713

071G 59G301

CHIP BEAD 300OHM

FB712

071G 59G301

CHIP BEAD 300OHM

FB711

071G 59G301

CHIP BEAD 300OHM

FB710

071G 59G301

CHIP BEAD 300OHM

FB408

071G 59G301

CHIP BEAD 300OHM

FB407

071G 59G301

CHIP BEAD 300OHM

FB406

071G 59G301

CHIP BEAD 300OHM

FB405

071G 59G301

CHIP BEAD 300OHM

FB404

071G 59G301

CHIP BEAD 300OHM

FB403

071G 59G301

CHIP BEAD 300OHM

FB402

071G 59G301

CHIP BEAD 300OHM

19″&22″LCD TV AOC L19BH83&L22BH83

80

FB401

071G 59G301

CHIP BEAD 300OHM

FB214

071G 59G301

CHIP BEAD 300OHM

FB213

071G 59G301

CHIP BEAD 300OHM

FB212

071G 59G301

CHIP BEAD 300OHM

L503

073G253S 6 T

IND SMD CHOKE 90 OHM TDK

L502

073G253S 6 T

IND SMD CHOKE 90 OHM TDK

L501

073G253S 6 T

IND SMD CHOKE 90 OHM TDK

L500

073G253S 6 T

IND SMD CHOKE 90 OHM TDK

CN500

088T 340 19 VD

HDMI HEADER 19P V/A

D402

093G 60230

BAT54C(L43)

D401

093G 60230

BAT54C(L43)

D500

093G 60230

BAT54C(L43)

D100

093G 60230

BAT54C(L43)

D123

093G 60231

BAT54S

D124

093G 60231

BAT54S

D403

093G 64 33

DIO SIG SM BAV99 (PHSE)R

D101

093G 64 37 N

VPORT0603100KV05

D103

093G 64 37 N

VPORT0603100KV05

ZD105

093G 64 37 N

VPORT0603100KV05

ZD104

093G 64 37 N

VPORT0603100KV05

D502

093G 64 37 N

VPORT0603100KV05

D501

093G 64 37 N

VPORT0603100KV05

D110

093G 64 37 N

VPORT0603100KV05

D109

093G 64 37 N

VPORT0603100KV05

D108

093G 64 37 N

VPORT0603100KV05

D107

093G 64 37 N

VPORT0603100KV05

D106

093G 64 37 N

VPORT0603100KV05

D105

093G 64 37 N

VPORT0603100KV05

D104

093G 64 37 N

VPORT0603100KV05

D102

093G 64 37 N

VPORT0603100KV05

RV102

093G 64 55 TY

DIODE SMD ESD PROTECTER PESD0603-140
TY

RV101

093G 64 55 TY

DIODE SMD ESD PROTECTER PESD0603-140
TY

RV100

093G 64 55 TY

DIODE SMD ESD PROTECTER PESD0603-140
TY

X400

093G 22S 78 J

XTL NXE22.1184AC18F HC-49/U-S SMD

ZD601

093G 39S 34 T

UDZSNP5.6B ROHM

ZD402

093G 39S 34 T

UDZSNP5.6B ROHM

ZD401

093G 39S 34 T

UDZSNP5.6B ROHM

ZD400

093G 39S 34 T

UDZSNP5.6B ROHM

ZD124

093G 39S 34 T

UDZSNP5.6B ROHM

ZD123

093G 39S 34 T

UDZSNP5.6B ROHM

ZD103

093G 39S 34 T

UDZSNP5.6B ROHM

ZD102

093G 39S 34 T

UDZSNP5.6B ROHM

ZD101

093G 39S 34 T

UDZSNP5.6B ROHM

ZD100

093G 39S 34 T

UDZSNP5.6B ROHM

ZD600

093G 39S106 T

DIODE RLZ6.8C TE-11 500MW/6.8V LL-34

715T2899 1 3

MAIN PCB

IRPF8YA7

IR BOARD

U01

056G 627 14 1

IC KSM-2003TN2E 37.9KHZ

CN01

033G8032 5F HR

CONNECTOR

19″&22″LCD TV AOC L19BH83&L22BH83

81

LED01

081G 14 6 GP

LED GPTD1210RGC GUANGPU

715T2995 1

IR PCB

PWTV7C41CYD1

POWER BOARD

040T 45762412B

CBPC LABEL

GND

009T6005 1

GROUND TERMINAL

CN803

033G8021 2E U

INVERT CONNECTOR

CN804

033G8021 2E U

INVERT CONNECTOR

CN802

033G8021 2E U

INVERT CONNECTOR

CN801

033G8021 2E U

INVERT CONNECTOR

051T 6 4503

GLUE_RTV

IC903

056G 139 3A

IC PC123Y22FZ0F

NR901

061G 5810T

RST NTCR 8 OHM +-20% 4A 13MM THINKING

C903

063G107K474 6S

CAP X2 0.47UF K 275VAC

C822

065G 3J5606ET

CAP CER 56PF J 3KV

C819

065G 3J5606ET

CAP CER 56PF J 3KV

C821

065G 3J5606ET

CAP CER 56PF J 3KV

C820

065G 3J5606ET

CAP CER 56PF J 3KV

C817

065G 6J2096ET

2PF 5% SL 6KV

C901

065G305M1022BP

Y2 1000PF M 250VAC Y5P

C902

065G305M1022BP

Y2 1000PF M 250VAC Y5P

C931

065G306M1022BM

Y1.CAP.001UF 250VAC MURATA

C824

065T 6J2706ET

27PF 5% SL 6KV TDK

C816

065T 6J2706ET

27PF 5% SL 6KV TDK

C905

067G 40Z12115A

CAP 105C 120UF M 450V

C812

067G215H102 4K

LOW ESR EC 1000UF 25V EB1E102M

C914

067G215P1023AV

CAP 105℃ 1000UF M 16V

C930

067G215P1023AV

CAP 105℃ 1000UF M 16V

C917

067G215P1024AV

CAP 105℃ 1000UF M 25V

C918

067G215P1024AV

CAP 105℃ 1000UF M 25V

C915

067G215P4713AV

CAP 105℃ 470UF M 16V

C922

067G215P4714AV

CAP 105℃ 470UF M 25V

L801

073G 174 35 HA

IND FILTER 200MH+-25% DADON

L802

073G 174 35 HA

IND FILTER 200MH+-25% DADON

L903

073G 253 91 H

CHOKE COIL

L904

073G 253 91 H

CHOKE COIL

L902

073L 174 40 HG

GBQM4.778.391

T901

080TL19T 33 S

X'FMR POWER 530UH

PT802

080TL22T 4 DN

X'FMR 775MH TK.2001Y.101

CN901

087T 501 44 DL

AC SOCKET 3PIN + 2 SCREW HOLE V/T

BD901

093G 50460900

BRIDEGE DIODE GBU408 LITEON

CN902

095T 82011W510

WIRE HARNESS 11P(SAN)-12P(PLUG)

705TQ757019

Q901 ASS'Y

051T 200 1

OIL FOR DISAPPEAR

Q901

057G 667 21

STP10NK70ZFP

0M1G1730 8120

SCREW

HS1

Q90T6064 5 GP

HEATSINK

705TQ793050

D904 ASS'Y

051T 200 1

OIL FOR DISAPPEAR

HS2

090T6064 1 GP

HEAT SINK

D904

093G 60218

SB10100FCT

0M1G1730 8120

SCREW

19″&22″LCD TV AOC L19BH83&L22BH83

82

705TQ793061

D906 ASS'Y

051T 200 1

OIL FOR DISAPPEAR

HS3

090T6273 1

HEAT SINK

D906

093G 60522

DIODE MBR10150FCT PANJIT

0M1G1730 8120

SCREW

IC901

056G 379107

IC LD7575A PS SOP-8

IC801

056G 608 10

IC OZ9938GN-B SOIC-16

Q903

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q803

057G 759 2

RK7002

Q802

057G 759 2

RK7002

Q806

057T 600517

AO4616 SOIC-8

Q805

057T 600517

AO4616 SOIC-8

R846

061G0603000

RST CHIP MAX 0R05 1/10W

R849

061G0603000

RST CHIP MAX 0R05 1/10W

R808

061G0603101

RST CHIPR 100 OHM +-5% 1/10W

R807

061G0603101

RST CHIPR 100 OHM +-5% 1/10W

R806

061G0603101

RST CHIPR 100 OHM +-5% 1/10W

R805

061G0603101

RST CHIPR 100 OHM +-5% 1/10W

R816

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R844

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R845

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R843

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R820

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R842

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R819

061G0603104

RST CHIPR 100 KOHM +-5% 1/10W

R817

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

R826

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

R839

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

R841

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

R840

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

R838

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

R821

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

C808

061G0603184

RST CHIPR 180 KOHM +-5% 1/10W

R823

061G0603390 0F

RST CHIPR 390 OHM +-1% 1/10W

R813

061G0603474

RST CHIPR 470 KOHM +-5% 1/10W

R825

061G0603511

RST CHIPR 510 OHM +-5% 1/10W

R804

061G0603512

RST CHIPR 5.1 KOHM +-5% 1/10W

R803

061G0603512

RST CHIPR 5.1 KOHM +-5% 1/10W

R836

061G0603513

RST CHIPR 51 KOHM +-5% 1/10W

R824

061G0603620 1F

RST CHIPR 6.2KOHM +-1% 1/10W

R818

061G0603753

RST CHIPR 75 KOHM +-5% 1/10W

R837

061G0603822

RST CHIPR 8.2 KOHM +-5% 1/10W

R928

061G0805000

RST CHIP MAX 0R05 1/8W

R907

061G0805100

RST CHIPR 10 OHM +-5% 1/8W

R941

061G0805100 3F

RST CHIPR 100KOHM +-1% 1/8W

R924

061G0805102

RST CHIPR 1K OHM +-5% 1/8W

R938

061G0805103

RST CHIPR 10K OHM +-5% 1/8W

R925

061G0805151

RST CHIPR 150 OHM +-5% 1/8W

R822

061G0805200 2F

RST CHIPR 20 KOHM +-1% 1/8W

R922

061G0805201

RST CHIPR 200 OHM +-5% 1/8W

R912

061G0805220

RST CHIPR 22 OHM +-5% 1/8W

19″&22″LCD TV AOC L19BH83&L22BH83

83

R802

061G0805220

RST CHIPR 22 OHM +-5% 1/8W

R930

061G0805243 1F

RST CHIPR 2.43 KOHM +-1% 1/8W

R929

061G0805330 2F

RST CHIPR 33K OHM +-1% 1/8W

R927

061G0805360 1F

RST CHIPR 3.6K OHM +-1% 1/8W

R943

061G0805471

RST CHIPR 470 OHM +-5% 1/8W

R829

061G0805682

RST CHIPR 6.8 KOHM +-5% 1/8W

RJ905

061G1206000

RST CHIP MAX 0R05 1/4W

RJ904

061G1206000

RST CHIP MAX 0R05 1/4W

RJ903

061G1206000

RST CHIP MAX 0R05 1/4W

RJ902

061G1206000

RST CHIP MAX 0R05 1/4W

RJ901

061G1206000

RST CHIP MAX 0R05 1/4W

RJ801

061G1206000

RST CHIP MAX 0R05 1/4W

R903

061G1206101

RST CHIPR 100 OHM +-5% 1/4W

R918

061G1206101

RST CHIPR 100 OHM +-5% 1/4W

R919

061G1206101

RST CHIPR 100 OHM +-5% 1/4W

R934

061G1206101

RST CHIPR 100 OHM +-5% 1/4W

R935

061G1206101

RST CHIPR 100 OHM +-5% 1/4W

R920

061G1206101

RST CHIPR 100 OHM +-5% 1/4W

R936

061G1206102

RST CHIPR 1K OHM +-5% 1/4W

R909

061G1206339

RST CHIPR 3.3 OHM +-5% 1/4W

R901

061G1206684

RST CHIPR 680K OHM +-5% 1/4W

R902

061G1206684

RST CHIPR 680K OHM +-5% 1/4W

R900

061G1206684

RST CHIPR 680K OHM +-5% 1/4W

R905

061G1206822

RST CHIPR 8.2 KOHM +-5% 1/4W

R904

061G1206822

RST CHIPR 8.2 KOHM +-5% 1/4W

C807

065G0603103 12

CHIP 0.01UF 16V X7R

C805

065G0603103 12

CHIP 0.01UF 16V X7R

C806

065G0603105 12

CHIP 1UF 16VX7R 0603

C818

065G0603221 31

CER1 0603 NP0 50V 220P P

C813

065G0603333 32

CHIP 0.033UF 50V X7R 0603

C815

065G0603473 32

CHIP 0.047UF 50V X7R

C810

065G0603473 32

CHIP 0.047UF 50V X7R

C932

065G0805102 31

CAP CHIP 0805 1000PF J 50V NPO

C927

065G0805104 32

CAP CHIP 0805 0.1UF K 50V X7R

C920

065G0805104 32

CAP CHIP 0805 0.1UF K 50V X7R

C919

065G0805104 32

CAP CHIP 0805 0.1UF K 50V X7R

C916

065G0805104 32

CAP CHIP 0805 0.1UF K 50V X7R

C811

065G0805104 32

CAP CHIP 0805 0.1UF K 50V X7R

C924

065G0805221 31

CAP CHIP 0805 220PF J 50V NPO

C912

065G0805223 22

CHIP 0.022UF 25V X7R 080

C804

065G0805225 12

CAP CHIP 0805 2.2UF K 16V X7R

C814

065G0805391 31

CHIP 390PF 50V

C923

065G0805471 21

CAP CHIP 0805 470PF J 25V NPO

C801

065G0805473 32

CHIP 0.047UF 50V X7R

C802

065G0805473 32

CHIP 0.047UF 50V X7R

C809

065G080556131G

MLCC 0805 560PF G 50V NPO

C921

065G1206102 72

CAP CHIP 1206 1000PF K 500V X7R

C929

065G1206102 72

CAP CHIP 1206 1000PF K 500V X7R

D809

093G 64 33

DIO SIG SM BAV99 (PHSE)R

D807

093G 64 42 P

BAV70 SOT23 BY PAN JIT

D806

093G 64 42 P

BAV70 SOT23 BY PAN JIT

19″&22″LCD TV AOC L19BH83&L22BH83

84

D808

093G 64 42 P

BAV70 SOT23 BY PAN JIT

D801

093G 6432P

LL4148

D803

093G 6432P

LL4148

D802

093G 6432P

LL4148

D804

093G 6432P

LL4148

D909

093G 6432P

LL4148

D805

093G 6432P

LL4148

ZD803

093G 39S 24 T

RLZ 5.6B LLDS

ZD802

093G 39S 24 T

RLZ 5.6B LLDS

ZD920

093G 39S 40 T

RLZ 13B LLDS

006G 31 4

1.7MM RIVET

CN901

006T 31501

EYELET

IC902

056G 158 12

KIA431A-AT/P TO-92

R908

061G152M10452T

RST MOFR 100KOHM +-5% 2WS

R940

061G152M15152T

RST MOFR 150 OHM +-5% 2WS

R914

061G152M36852T

RST MOF 0R36 5% 2W

R828

061G212Y625 KT

MGFR 6.2MOHM +-5% 1/2W

C906

065G 2K222 2T6921

CAP CER 2200PF K 2KV Y5P

C908

067G215Y2207KT

CAP 105℃ 22UF M 50V KINGNICHI

F901

084G 56 4 B

FUSE 4A 250V

D901

093G 6026T52T

RECTIFIER DIODE FR107

D902

093G 6038T52T

FR103

715T2783 1 5

POWER PCB

Q07G 7 T150

PALLET

Q07G 7 T173

COMPOUND PALLET

Q11T5005 1

WIRE SADDLE

Q36T 600 30 1

NONWOVEN FABRIC

Q36T 600 35 2 GP

NONWOVEN FABRIC

Q36T 600 35 10 GP

NONWOVEN FABRIC

Q36T 600 46 1

NONWOVEN FABRIC

Q40G0001624 4A

PALLET LABEL

Q40T 22061526A

RATING LABEL

Q40T000267348A

IO LABEL

Q40T000278641A

SIDE LABEL

Q44G6002121118

PAPER BOARD

Q44T600260811A

PAPER BOARD

Q44TC036102

EPS

Q44TC036202

EPS

Q44TC03661511A

22 TV AOC CARTON

Q45G 77 5

PE PACKING

Q45G 88609 28 R

BASE P.E BAG

Q45T 99609100

EPE COVER

Q50T 500523

CABLE TIE

089G 17356X553

AUDIO CABLE

Q41T220261521A

MANUAL

Q45G 76 28 RN R

PE BAG MANUAL

026G 800504 3

BARCODE LABEL FOR 4

040T 58162435A

LABEL

19″&22″LCD TV AOC L19BH83&L22BH83

85

Diversity of E19R3ANMW1A4NN compared with E1983ANCW1A4NN

Location

Part No.

Description

Remark

E017

017T DW RF501

TV RF BUFFER

E017

017T DW RF502

RF BUFFER

E017

017T DW RF503

RF BUFFER

2nd source

089G410A18N IS

POWER CORD 32E1818020

705TQ833076

PLASTIC ASS'Y

705TQ834568

BEZEL ASS'Y 19

705TQ834569

REAR COVER ASS'Y

A34T0523 GM 3L0100

REAR COVER 19

705TQ834570

STAND-BASE ASS'Y 19

750TVV1905TB31N000

PANEL TPM190A1-WX05TB C1 FQ TPV

756TQ8CBA1D003

MAIN BOARD-CBPFRA1DYA

U400

056G1125170 X

IC W79E632A40PL

U202

056T1133527 ST

IC M25P40-VMN6TP/X ST

SMTF-U400

100TAHV9003D11

MCU ASS'Y-056G1125170 X

SMTF-U202

100TAHV9004D11

MCU ASS'Y-056T1133527 ST

Q40G 19261535A

RATING LABEL

Q44G909961511A

19 TV AOC CARTON

Q52G 1185 98

MIDDLE CARTON TAPE FOR AOC

045G 76 28 C

PE BAG FOR MANUAL

Q41G900361543A

MANUAL

Q41T7800954 A

MANUAL

Q26G 800504 2

BARCODE LABEL FOR 3

12. Different Parts List
