AOC L1506 Service Manual

HP L1506 Service Manual
SERVICE MANUAL
15” LCD Monitor
L1506
THESE DOCUMENTS ARE FOR REPAIR SERVICE INFORMATION ONLY. EVERY REASONABLE EFFORT HAS BEEN MADE TO ENSURE THE ACCURACY OF THIS MANUAL; WE CANNOT GUARANTEE THE ACCURACY OF THIS INFORMATION AFTER THE DATE OF PUBLICATION AND DISCLAIMS RELIABILITY FOR CHANGES, ERRORS OR OMISSIONS.
HP L1506 Service Manual
Table of Contents
Table of Contents --------------------------------------------------------------------------------------------------------------------------------- 02
Revision List---------------------------------------------------------------------------------------------------------------------------------------- 04
1.Product Feature----------------------------------------------------------------------------------------------------------------------------------05
2.LCD Monitor Description --------------------------------------------------------------------------------------------------------------------05
3.Operation Instructions -------------------------------------------------------------------------------------------------------------------------06
3.1 General Instructions -----------------------------------------------------------------------------------------------------------------------06
3.2 Control Button ----------------------------------------------------------------------------------------------------------------------------07
3.3 Adjusting The Picture -------------------------------------------------------------------------------------------------------------------07
4. Input/Output Specification ----------------------------------------------------------------------------------------------------------------- 09
4.1 Input Signal Connector -----------------------------------------------------------------------------------------------------------------09
4.2 Factory Preset Display Modes ---------------------------- ---------------------------------------------------------------------------10
4.3 Power Supply Requirements ---------------------------------------------------------------------------------------------------------10
5.Panel Specification -------------------------------------------------------------------------------------------------------------------------11
5.1 General Feature --------------------------------------------------------------------------------------------------------------------------11
5.2 Optical Characteristics -----------------------------------------------------------------------------------------------------------------12
6. Block Diagram --------------------------------------------------------------------------------------------------------------------------------13
6.1 Monitor Exploded View--------------------------------------------------------------------------------------------------------------------13
6.2 Software Flow Chart-----------------------------------------------------------------------------------------------------------------------14
6.3 Electrical Block Diagram ---------------------------------------------------------------------------------------------------------------15
6.3.1 Scalar Board ------------------------------------------------------------------------------------------------------------------------15
6.3.2 Inverter/Power Board ----------------------------------------------------- -- -- -- -- ------------------------------------------------16
2
HP L1506 Service Manual
7. Schematic --------------------------------------------------------------------------------------------------------------------------------------18
7.1 Main Board -------------------------------------------------------------------------------------------------------------------------------18
7.2 Power Board -----------------------------------------------------------------------------------------------------------------------------24
8. PCB Layout ------------------------------------ ------------------------------ ------------------------------------------------------------------26
8.1 Main Board ---------------------------------- ---------------------------------------------------------- ------------------------------------26
8.2 Inverter/Power Board -------------------------------------------------------- ------------------------------ -----------------------------27
8.3 Key board ---------------------------------------------------------------------------------------------------------------------------------28
9. Maintainability ---------------------------------------------------------------------------------------------------------------------------------29
9.1 Equipments and Tools Requirements ----------------------------------------------------------------------------------------------29
9.2 Trouble Shooting ------------------------------------------------------------------------------------------------------------------------30
9.2.1 Main Board ---------------------------------------------------------------------------------------------------------------------------30
9.2.2 Power/Inverter Board --------------------------------------------------------------------------------------------------------------33
9.2.3 Key Pad Board --------------------------------------------------------------------------------------------------------------------35
10. White-Balance, Luminance Adjustment -------------------------------------------------------------------------------------------- 36
11. Check List after replacing LCD Main board -------------------------------------------------------------------------------------------37
12. EDID Content ---------------------- ------------------------------ ------------------------------ ------------------------------------------------41
13. BOM List ------------------------ ---------------------------------------------------------- ------------------------------------------------4266
3
HP L1506 Service Manual
Revision List
Revision Date Change Description TPV Model name
A00 Jun-21-05 Initial release T560KC4DKHHPNP
1. Product Feature
LCD Panel
Driving system TFT Color LCD
4
Panel CLAA150XP02 Size 38.1cm(15.0") Pixel pitch 0.297mm( H )x 0.297mm( V ) Viewable angle 130˚ (H) 100˚ (V) Response time (typ.) <16 ms Brightness(Min) 250 Contrast 400:1 Video Analog /Digital Sync. Type H/V TTL
Input
H-Frequency 30kHz – 63kHz V-Frequency 50-76Hz
Display Colors Over 16 million Colors
HP L1506 Service Manual
Dot Clock 80MHz Max. Resolution 1024 x768 Plug & Play VESA DDC2BTM
Power Consumption ON Mode OFF Mode
Screen Size
Environmental Considerations
MAIN DIMENSIONS
Weight (N. W.)
Horizontal : 306mm Vertical : 230 mm
Operating Temp: 5°C to 35°C Storage Temp.: -20°C to 60°C Operating Humidity : 20% to 80%
Packaged(W*H*D) 395mm*395mm*155mm Unpackaged(W*H*D) 340mm*355mm*203mm
Packaged Unpackaged
<23W <1W
4.6Kg Unit 3.5Kg Unit
2. LCD Monitor Description
The LCD Monitor will contain main board, power board, key board and which house the flat panel control logic,
brightness control logic and DDC.
5
HP L1506 Service Manual
The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips each
voltage.
Monitor Block Diagram
CCFT Drive.
Flat Panel and CCFL backlight
Power Board
Keyboard
Main Board
RS232 Connector For white balance adjustment in factory mode
DC-IN
12V
HOST Computer
Video signal, DDC
3. Operation Instructions
3.1 General Instructions
Press the power button to turn the monitor on or off. The other control buttons are located at front of the panel. By changing these settings, the picture can be adjusted to your personal performance.
The power cord should be connected and insert to adaptor.
-
Connect the video cable from the monitor to the computer VGA card.
-
- Press the power button to turn on the monitor , the power indicator will light up to Green.
3.2 Control Buttons
- Power Button:
6
HP L1506 Service Manual
When pressed, the monitor enters the off mode, and the LED turns blank. Press a gain to restore normal status.
- Left / Right Button:
When the OSD show on screen, Left/Right Button are used to control the monitor functions. Press to switch functions or adjust settings. And if the OSD off, Left buttons is used to automatically set the H Position, V Position, Clock and Phase.
- Power Indicator:
Green — Power On mode. Orange — Power Saving mode. Blank —Power Off Mode.
Manu Left / Down Right / Up Power
A. Menu button / Exit
B. Left/(Down) button / Auto button C. Up button D. Power button
3.3 Adjust the Picture
7
1.
Brightness
HP L1506 Service Manual
Adjust the brightness.
2.
3.
4.
5.
6.
7.
Contrast Adjust the contrast
Adjust the:
z Auto Adjustment: Adjusts the main settings and produces a stable, centered image. Image Control
Color
Language Shows the language of the OSD window.
Management
OSD Control
z H-Position: horizontal position of the screen image.
z V-Position: vertical position of the screen image.
z Clock: frequency of the pixel clock to minimize vertical bar.
z Phase: phase value to minimize horizontal jitters.
z 9300K: recall 9300K color
z 6500K: recall 6500K color
z SRGB: recall SRGB color
z Custom Color: adjusts the color tint of white, and the red, green, and blue (RGB) mix
for colors.
z Power Saver: enable/disable power saving
z Power On Recall: enable/disable power recall
z Mode Display: enable/disable mode display
z Sleep Timer: set sleep timer
z Basic Menu: set to basic menu
OSD (on Screen Display) settings: adjusts the H/V position, timeout, On Screen Display
window.
8.
9.
10.
Information Current setting, recommended setting, serial number, total hours, backlight hours, Exit. Factory
Reset Exit Exit the current OSD window.
Resets the display to original factory settings for color, brightness, phase, and clock.
4. Input/Output Specification
4.1 Input Signal Connector
PIN MNEMONIC SIGNAL PIN MNEMONIC SIGNAL
1 RV Red Video 9 +3.3/+5 V +3.3/+5 V (from PC) 2 GV Green Video 10 SG Sync Ground
3 BV Blue Video 11 NC
4 5 6 RG Red GND 14 VS Vertical Sync
NC
GND
No Connect
Ground (DDC
Return)&Cable Detect
12 SDA DDC Data 13 HS Horizontal Sync
None (Reserved for Factory
Use)
7 GG Green GND 15 SCL DDC Clock 8 BG Blue GND
8
VGA connector layout
HP L1506 Service Manual
PIN 1
PIN 11
PIN 5
4.2 Factory Preset Display Modes
9
Pixel
Horz Freq
Horz
Vert Freq
HP L1506 Service Manual
Vert
Pixel Clk
Preset
1 640 x 480 31.469 - 59.940 - 25.175 VGA 2 640 x 480 37.861 - 72.809 - 31.500 VESA 3 640 x 480 37.500 - 75.000 - 31.500 VESA 4 720 x 400 31.469 - 70.087 + 28.322 VGA 5 800 x 600 37.879 6 800 x 600 48.077 + 72.188 + 50.000 VESA 7 800 x 600 46.875 + 75.000 + 49.500 VESA 8 832 x 624 49.726 ± 74.551 ± 57.284 MAC
9 1024 x 768 48.363 - 60.004 - 65.000 VESA 10 1024 x 768 56.476 - 70.069 - 75.000 VESA 11 1024 x 768 60.023 + 75.029 + 78.750 VESA 12 1152 x 870 68.68 - 75.06 - 100.000 Mac 13 1152 x 900 71.71 - 76.05 - 105.561 Sun 14 1280 x 1024 63.98 + 60.02 + 108.000 VESA 15 1280 x 1024 79.97 + 75.02 + 135.000 VESA
Format
(KHz)
Polarity
+
(Hz)
60.317 + 40.000 VESA
Polarity
(MHz) Source
4.3 Power Supply Requirements
PARAMETER RANGE
AC Input Voltage 90 to 265V
AC Input Frequency 47 to 63 Hz
Inrush Current 50A MAX AT 220VAC and 30A AT 120VAC
Leakage Current 5 mA MAX at 120VAC
Power consumption ≤23W
10
HP L1506 Service Manual
5. PANEL SPECIFICATION
5.1 General Feature
11
5.2 Optical Characteristics
HP L1506 Service Manual
12
6. Block Diagram
6.1 Monitor Exploded View
HP L1506 Service Manual
13
6.2 Software Flow Chart
2
10
12
6 4 3
8
9
14
11
13
1
16
1
19
18
HP L1506 Service Manual
1
1) MCU initialize.
2) Is the eeprom blank?
3) Program the eeprom by default values.
4) Get the PWM value of brightness from
eeprom. Check the pin PANEL1 and PANEL2
to tell which panel to get with it.
5) Is the power key pressed?
5
Turn on the LED and set it to green color.
Scalar initializes.
any signals coming?
digital port?
7
6) Clear all global flags.
7) Are the AUTO and SELECT keys pressed?
8) Enter factory mode.
9) Saving the power key status into eeprom.
10) In standby mode?
11) Update the lifetime of back light.
12) Check the analog and digital port, are there
13) Does the scalar send out a interrupt request?
14) Wake up the scalar.
15) Are there any signals coming from analog or
16) Display " No Input Signal " message. And go into standby mode after the message disappear.
17) Program the scalar to be able to show the coming mode.
18) Process the OSD display.
19) Read the keyboard. Is the power key
pressed?
5
7
14
6.3 Electrical Block Diagram
(
Vsy
6.3.1 Scalar Board Block Diagram
HP L1506 Service Manual
Control Interface
MCU
U601)
OSD
(KEYPAD)
EPR_SDA EPR SCL
EEPROM
(U602)
Panel Interface
(CN503)
Scalar TSU17AK
(Include ADC, OSD)
(U401)
RXD TXD
D-Sub Connector
R G B
(CN301)
Hsync,
nc
DB15_SDA DB15 SCL
DDC_SDA DDC SCL
EEPROM
(U301)
15
6.3.2 Inverter / Power Board Block Diagram
HP L1506 Service Manual
Inverter Block Diagram
16
HP L1506 Service Manual
Power Block Diagram
17
7. Schematic
7.1 Main Board (715G1533-D-MS)
B1
TXD RXD
DDC_DAT ST_DET1 HSYNC
DDC_WP
3.INPUT
B3
DDC_WP ST_DET1 DDC_CLK
VCPU
DDC_DAT RXD
HWRESET
TXD VCPU
onPANEL_5V/3.3V onBACKLITE onPANEL_12V
GNDR
GNDG
SOGDDC_CLK
GNDB
VSYNC
HP L1506 Service Manual
SCHEMATIC
FOR
L1506/1706
RIN GIN
BIN
CSZ SCL SDA
INT
AD0 AD1 AD2 AD3
B2
RIN GNDR GIN GNDG SOG BIN GNDB HSYNC VSYNC
CSZ SCL SDA HWRESET INT
AD0
AD1 AD2 AD3
HPQ2005
VCC1.8 VCC3.3
VAA1 VAA2 VAA3 VAA4
VCC1.8
VCC3.3
VAA1
VAA2
VAA3
VAA4
VAA4
VAA3
VAA2
VCC3.3 VCC1.8 VAA1
VCPU
6.MCU
B4
onPanel_12V onBACKLITE onPanel_5V/3.3V VCPU
VCC3.3 VCC1.8 VAA1 VAA2 VAA3 VAA4
2.POWER
AdjBACKLITE
VLCD_12V
VLCD
VLCD_12V
VLCD
AdjBACKLITE
4.SCALER
18
B5
PA[0..9] PB[0..11] GA[0..3] BA[0..5] RB[0..5] GB[0..5]
VLCD
ESP
VLCD_12VOSP
GPO[0..4]
5.PANEL INTERFACE
Title
HPQ2005-L1506/1706
Size Document Number Rev
B
Date: Sheet
TOP
VLCD
VLCD_12V
17Wednesday, June 01, 2005
of
A
PA[0..9]
PB[0..11]
GA[0..3] BA[0..5] RB[0..5] GB[0..5]
GPO[0..4]
ESP OSP
PA[0..9] PB[0..11] GA[0..3] BA[0..5] RB[0..5] GB[0..5]
ESP OSP GPO[0..4]
HP L1506 Service Manual
+
C209 47uF/16V
C214
0.1uF
VCC5V+
+
D202
DIODE
C210
0.1uF
TO-263
U202
3 1
AIC1084-33M
VIN ADJ
TO-252
U201
AZ1117D-1.8
3 2
VI VO
2
VOUT
GND
1
C215
47uF/16V
+
C211 47uF/16V
C216
0.1uF
+
VCC3.3
VCC1.8
VAA1
VAA2
VAA3
VAA4
C212
0.1uF
FB202 600 OHM
VCC1.8 4
VCC3.3 4 VCPU 6
VAA1 4
VAA2 4
VAA3 4
VAA4 4
VCC5V
VCC12V
GND GND VCC12V GND VCC5V GND
Brightness
AdjBACKLITE4
onPanel_5V/3.3V6
R205 4.7K 1/16W
CN201
1 3 5 7 9
11
CONN
VCC5V
1
VCC3.3
VCC12V
R218 NC
R207 4.7K 1/16W
C207
0.1uF
2 4 6 8 10 12
R203 1K 1/16W
32
Q202
PMBS3904
R219 NC
1
ON_OFF DIM VCC12V GND VCC5V GND
VCC5V
32
10K 1/16W
R208 10K 1/16W
Q204
PMBS3904
R204
R217 51K 1/16W
C219
0.1uF
C202
220uF/25V
C206 1uF
R201 4.7K 1/16W D201 DIODE SCHOTTKY
FB201 600
C203
+
0.1uF
VLCD
Q203 AO3401
+
C208 10uF/16V
C204
+
220uF/25V
VLCD 5
VCC5V
C205
0.1uF
R209 for L1706
NC
R211 10K 1/16W
VCC5V+ VCC5V
VCPU
C201
0.1uF
VCPU 6
VCC3.3
R210 for L1506 0 1/16W
R202 10K 1/16W
32
R212 4.7K 1/16W
1
Q201 PMBS3904
VCC12V
R220 NC 0 1/16W
onBACKLITE 6
VCC5V+
C213 47uF/16V
VCC12V
R215 NC 10K 1/16W
C217 NC
0.1uF
1
32
Q205
PMBS3904 NC
onPanel_12V6
NC R214
4.7K 1/16W
VLCD_12V
VLCD_12V 5
Q206 NC
+
10uF/16V
C218 NC
VCC12V
R216 NC
4.7K 1/16W
H1
678
5
9
678
5
9
4
4
123
H8D3.5-2LX
123
H2
678
5
9
678
5
9
4
4
123
H8D3.5-2LX
123
H3
678
5
9
678
5
9
4
4
123
H8D3.5-2LX
123
H4
678
5
9
678
5
9
123
123
4
4
H8D3.5-2LX
Title
Size Document Number Rev
Date: Sheet
HPQ2005-L1506/1706
B
POWER
of
27Wednesday, June 01, 2005
A
19
D323
MLL5232B 5.6V
D322 MLL5232B 5.6V
11 12 13 14 15
HSI
VSI
D319 MLL5232B 5.6V
CN301
DB15
HP L1506 Service Manual
RXD 6
1 6 2 7 3 8 4 9 5 10
VGA_CON
TXD 6
PC5V
2
FB304 200 OHM
R312 100 1/16W
D320 MLL5232B 5.6V
D321 MLL5232B 5.6V
3
D301 BAV99
C315
0.1uF
D318 MLL5232B 5.6V
FB301 0 1/16W FB302 0 1/16W FB303 0 1/16W
R325
C301
C302
R326
NC
75 1/16W
R314
2.2K 1/16W
NC
75 1/16W
D302 BAV99
1
3
D303 BAV99
VCC5V
C317
1
2
0.1uF
DAT_DDC
C311 68pF
CLK_DDC
R313
2.2K 1/16W
3
C316
1
2
0.1uF
R327
C312 220pF
75 1/16W
NC
R301 33 1/16W R302 33 1/16W R303 33 1/16W R304 470 1/16W
C303
R305 68 1/16W R306 68 1/16W R307 68 1/16W
VCC5V
R308 10K 1/16W
R309 100 1/16W R310 1K 1/16W
R311 1K 1/16W
D317 MLL5232B 5.6V
C304 0.047uF C305 0.047uF C306 0.047uF C307 0.001uF
C308 0.047uF C309 0.047uF C310 0.047uF
RIN 4 GIN 4 BIN 4 SOG 4
GNDR 4 GNDG 4 GNDB 4
ST_DET1 6 HSYNC 4
VSYNC 4
R315 22 1/16W R316 22 1/16W
DDC_DAT6 DDC_CLK6
R317
4.7K 1/16W
R318
4. 7K 1/16W
VCC5V
2
4.7K 1/16W
R328
3
PC5V
1
BAV70
8 7 6
D304
U301
VCC WP SCL
GNDSDA
AT24C02N-10SC
C313
0.22uF
1
A0
2
A1
3
A2
45
20
modify ddc_wp circuit
DDC_WP6
R319
22K 1/16W
R329
10K 1/16W
CE
Q301
B
PMBS3904
C314
0.1uF/16V
Title
Size Document Number Rev
Date: Sheet
HPQ2005-L1506/1706
B
INPUT
37Wednesday, June 01, 2005
A
of
Direct Bus
3-WIRE
HP L1506 Service Manual
FB401
600 OHM
10uF/16V
C405
VPO
+
PA[0..9] 5 GA[0..3] 5
BA[0..5] 5
RB[0..5] 5
GB[0..5] 5
PB[0..11] 5
ESP 5 OSP 5
GPO[0..4] 5
C406
0.1uF
C407
0.1uF
C408
0.1uF
C409
0.1uF
C410
0.1uF
VCC1.8
FB402
VCC1.82
C412
C411
C413
0.1uF
0.1uF
0.1uF
VAA12
VAA22
VAA32
VAA42
Title
Size Document Number Rev
Date: Sheet
HPQ2005-L1506/1706
B
VAA1
VAA2
VAA3
VAA4
SCALER
600 OHM
10uF/16V
FB403
600 OHM
600 OHM
600 OHM
600 OHM
C414
C419
10uF/16V
FB404
C422
10uF/16V
FB405
C424
10uF/16V
FB406
C427
10uF/16V
VDD
+
VAD
VPLL
VDVI
VDPLL
47Wednesday, June 01, 2005
C418
C417
C416
C415
0.1uF
0.1uF
0.1uF
0.1uF
+
C421
C420
0.1uF
0.1uF
+
C423
0.1uF
+
C426
C425
0.1uF
0.1uF
+
C428
0.1uF
A
of
VCC3.3
VCC3.32
VAD
VPLL
VDPLL
AVDD_DVI
AVDD_DVI
AVSS_PLL
VPO
53
VDDP
VDDP
AVDD_PLL
AVSS_DVI
AVSS_DVI
AVSS_DVI
39
4210208595
48
VDDP
GNDP
VDVI
55354535111218494
65
U401
TSU17AK
AVDD
AVDD
RIN3
GNDR3
GIN3
GNDG3
SOG3
BIN3
GNDB3 HSYNC3 VSYNC3
VDVI
R402
4.7K 1/16W
R401
NC
R403 390 1/16W
CSZ6
SCL6
SDA6
HWRESET6
AdjBACKLITE2
C402 22pF
14.318MHz C403 22pF
C404 0.1uF
R402
R401
4.7K
NC
4.7K
NC
AD06 AD16 AD26 AD36
VCC3.3
63
RIN0
62
RIN0M
60 59 61 58 57 37 38 29 28
40 41 43 44 46 47 49 50 52
66
C401
0.1uF
67
69 71 70 32 72
INT6
30 77 78 31
73 74
33
X401
34
GIN0 GIN0M SOGIN0 BIN0 BIN0M HSYNC0 VSYNC0 DDC1_CLK/GPO8 DDC1_DAT/GPO7
R+ R­G+ G­B+ B­CK+ CK­REXT
REFP
REFM
6
BUS TYPE
CSZ SCL SDA HWRESETZ INT
AD0 AD1 AD2 AD3
PWM0 PWM1
XIN
XOUT
BYPASS AVSS_LPLL
AVSS
56
68
AVSS
64
AVSS
AVDD_MPLL
AVSS_MPLL
36254
104
114
126188797117
VDDP
VDDP
VDDP
VDDP
VDDC
LVA3M/GA3N
LVA2M/RA1N
LVA0M/RA3N
LVB3P/CLKAP LVB3M/CLKAN
LVBCKMP/NC/CLKBP
LVBCKP/NC/CLKBN
LVB1P/NC/BB1P
LVB1M/NC/BB1N
LVB0P/NC/BB2P
LVB0M/NC/BB2N
GNDP
GNDP
GNDP
GNDP
GNDP
GNDP
115
1271986
105
VDD
VDDC
VDDC
VDDC
LVA3p/GA3P
LVACKP/NC LVACKM/NC LVA2P/RA1P
LVA1P/RA2P LVA1MRA2N LVA0P/RA3P
GA1P
GA1N
GA2P
GA2N
BA1P BA1N BA2P BA2N BA3P BA3N
NC/RB1P NC/RB1N NC/RB2P NC/RB2N NC/RB3P NC/RB3N
NC/GB1P NC/GB1N NC/GB2P NC/GB2N NC/GB3P NC/GB3N
LVB2P/NC LVB2M/NC
NC/BB3P NC/BB3N
NC/ESP
OSP
GPO0 GPO1 GPO2 GPO3 GPO4
GNDC
GNDC
GNDC
96
116
GNDC
PA0
102
PA1
103
PA2
106
PA3
107
PA4
108
PA5
109
PA6
110
PA7
111
PA8
112
PA9
113
GA0
98
GA1
99
GA2
100
GA3
101
BA0
88
BA1
89
BA2
90
BA3
91
BA4
92
BA5
93
RB0
16
RB1
17
RB2
22
RB3
23
RB4
24
RB5
25
GB0
8
GB1
9
GB2
12
GB3
13
GB4
14
GB5
15
PB0
118
PB1
119
PB2
120
PB3
121
PB4
122
PB5
123
PB6
124
PB7
125
PB8
128
PB9
1
PB10
4
PB11
5
75 76
83 82 81 80 79
GPO0 GPO1 GPO2 GPO3 GPO4
PA[0..9] GA[0..3]
BA[0..5]
RB[0..5]
GB[0..5]
PB[0..11]
ESP OSP
GPO[0..4]
21
HP L1506 Service Manual
CN502
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
CONN
LVB0M LVB1M LVB2M LVBCKM LVB3M LVA0M LVA1M LVA2M LVACKM LVA3M
RXO0­RXO1­RXO2­RXOC­RXO3­RXE0­RXE1­RXE2­RXEC­RXE3-
C509
+
22uF/16V
CN503
2
1
4
3
6
5
8
7
10
9
12
11
14
13
16
15
18
17
20
19
22
21
24
23
CONN
VLCD
C510
0.1uF
RXO0+ RXO1+ RXO2+ RXOC+ RXO3+ RXE0+ RXE1+ RXE2+ RXEC+ RXE3+
VLCD 2
LVB0P LVB1P LVB2P LVBCKP LVB3P LVA0P LVA1P LVA2P LVACKP LVA3P
C511
0.1uF
R513
CN501
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
5V 0R
NC
NC
NC
NC
CONN
R514
RB3N RB3P
RB2N RB2P
RB1N RB1P
GB3N
BG0N
GB3P
BG0P
GB2N
BG1N
GB2P
BG1P BG2N
GB1N
BG2P
GB1P CLKBN
BCLKN
CLKBP
BCLKP
BB3N
BR0N BR0P
BB3P
BR1N
BB2N BB2P
BR1P
BB1N
BR2N BR2P
BB1P
NC 12V 0R
NC
NC
NC
PA[0..9]4
PB[0..11]4
RB[0..5]4
GB[0..5]4
PB[0..11]4
GPO[0..4]4
PA[0..9]
PB[0..11]
RB[0..5]
GB[0..5]
PB[0..11]
GPO[0..4]
RB0 RB1 RB2 RB3 RB4 RB5
GB0 GB1 GB2 GB3 GB4 GB5
PB6 PB7 PB8 PB9 PB10 PB11 PB3 PB2
PA0 PA1 PA2 PA3 PA4 PA5
PA6 PA7
PA8 PA9 PB0 PB1 PB2 PB3
PB4 PB5 PB6 PB7 PB8 PB9
GPO0 GPO1 GPO2 GPO3 GPO4
LVA3P LVA3M LVACKP LVACKM LVA2P LVA2M
LVA1P LVA1M
LVA0P LVA0M LVB3P LVB3M LVBCKP LVBCKM
LVB2P LVB2M LVB1P LVB1M LVB0P LVB0M
RB1P RB1N RB2P RB2N RB3P RB3N
GB1P GB1N GB2P GB2N GB3P GB3N
BB1P BB1N BB2P BB2N BB3P BB3N CLKBN CLKBP
R501 0 1/16W R502 0 1/16W R503 0 1/16W R504 0 1/16W R505 0 1/16W
FB0N
RA3N
FB0P
RA3P
FB1N
RA2N
FB1P
RA2P
FB2N
RA1N RA1P
FB2P
GA3N
FG0N
GA3P
FG0P FG1N
GA2N
FG1P
GA2P
FG2N
GA1N GA1P
FG2P FCLKN
CLKAN
FCLKP
CLKAP
FR0N
BA3N
FR0P
R508 0 1/16W
R510 0 1/16W R512 0 1/16W
R510
5V
NC
0R 12V 0R
NC
3.3V 0R
NC
3.3V 0R
NC
3.3V 0R
NC
BA3P BA2N
BA2P BA1N
BA1P
GPOO1 GPOO0
GPOO3 GPOO2 GPOO4
R511
FR1N FR1P
FR2N FR2P
STH LP POL HMS
CLKV STV OE
R509 NC R511 NC
R513 NC
R514 NC
R512
5V
NC
0R
12V 0R
NC
NC
NC
12V
NC
0R
NC
NC
PA[0..9]4
GA[0..3]4
PA[0..9]4
BA[0..5]4
PB[0..11]4
PA[0..9]
GA[0..3]
PA[0..9]
BA[0..5]
PB[0..11]
PA4 PA5 PA6 PA7 PA8 PA9
GA0 GA1 GA2 GA3 PA0 PA1
BA0 BA1 BA2 BA3 BA4 BA5 PB0 PB1
GPOO0 GPOO1 GPOO2 GPOO3 GPOO4
RA1P RA1N RA2P RA2N RA3P RA3N
GA1P GA1N GA2P GA2N GA3P GA3N
BA1P BA1N BA2P BA2N BA3P BA3N CLKAP CLKAN
OSP4
ESP4
VLCD2
VLCD_12V
VLCD_12V2
AU 17 QDI 17 CPT 17
INNOLUX 15 HannStar 15 CPT 15
LG 15
VLCD
C512
22uF/16V
R506 0 1/16W
OSP
R507 NC
ESP
C508
+
0.1uF
R508
NC
3.3V 0R
3.3V 0R
3.3V 0R
3.3V 0R
R509
22
Title
HPQ2005-L1506/1706
Size Document Number Rev
B
Date: Sheet
PANEL INTERFACE
57Wednesday, June 01, 2005
A
of
VCPU
Reset Circuit
U603 MAX810STR (NC)
23
RSTVCC
GND
1
C605
U602
1
0.22uF
A0
2
A1
3
A2
4 5
GND SDA
24C16
R643 NC
VCC
WP
SCL
8 7 6
VCPU2
D601 LL4148
VCPU
R605 10K 1/16W R655 10K 1/16W R604 10K 1/16W
R641 0 1/16W
R642 NC
10uF/16V
C603
+
R603
10K 1/16W
R601
10K 1/16W
C602
22pF
Y601 24MHz
C604
22pF
INT4
R609 100 1/16W R646 NC R608 100 1/16W
R602
C601
0.1uF
10K 1/16W
35 21
20 10
12 14 33 32
17
2 3 4 5 6 7 8 9
HP L1506 Service Manual
VCPU
123
4
123
U601
EA/VP XTAL1
XTAL2 RESET
P4.3 INT0/P3.2 ALE/P PSEN
T1/P3.5 P1.0 P1.1 P1.2 P1.3 P1.4 P1.5 P1.6 P1.7
W78E65P-40
VSS VCC
22 44
P0.0 P0.1 P0.2 P0.3 P0.4 P0.5 P0.6 P0.7
P2.0 P2.1 P2.2 P2.3 P2.4 P2.5 P2.6 P2.7
T0/P3.4
INT1/P3.3
P3.6/WR
P3.7/RD
P3.1/TXD
P3.0/RXD
RP601
10K 1/16W
43 42 41 40 39 38 37 36
24 25 26 27 28 29 30 31
16 15 18 19 13 11
4
5
RP602 10K 1/16W
876
5
876
10K 1/16W
R610 22 1/16W R611 22 1/16W R634 NC R635 NC
R606
10K 1/16W
R607 10K 1/16W
RP603
4
5
RP604
10K 1/16W
876
5
876
R644 10K 1/16W
LED_G
R636 100 1/16W
POWER MENU RIGHT
LEFT LED_O
R613 10K 1/16W
AD0 4 AD1 4 AD2 4 AD3 4 CSZ 4 SCL 4 SDA 4
HWRESET 4 onPANEL_5V/3.3V 2 onBACKLITE 2
DDC_WP 3
DDC_DAT 3 DDC_CLK 3 TXD 3 RXD 3
C613
0.1uF
123
4
123
LED_O
4.7K 1/16W R629
ST_DET13
onPANEL_12V2
VCPU
R628 470 1/16W
Q603
B
PMBS3906
C E
POWER
MENU LEFT RIGHT
R645 10K 1/16W
4.7K 1/16W
LED_G
R621 1K 1/16W
R623 1K 1/16W R624 1K 1/16W R620 1K 1/16W
R616
VCPU
VCPU
R617 470 1/16W
Q601
B
PMBS3906
C E
C607
C609
0.001uF
0.001uF
C610
0.001uF
LED_GREEN LED_ORANGE KEY_ONOFF
KEY_MENU KEY_LEFT/AUTO KEY_RIGHT
C606
0.001uF
CN402
1 2 3 4 5 6 7 8
CONN
Title
HPQ2005-L1506/1706
Size Document Number Rev
B
Date: Sheet
MPU
67Wednesday, June 01, 2005
A
of
23
7.2 Power Board (include inverter and power) 715G508-1
4
!
1
!
VAR901 470V
!
R901
!
680K/1206
!
NR901
61L58-050-WT
!
DB901
U4KB80R
3
-+
2
2 3
L902 LF-000783
1 4
!
2 3
L901 CC-001331
1 4
!
C903 0.47uF/275V
R903
680K/1206
!
680K/1206 R902
F901
2A/250V
3
12
CN901
C902
102PF/250V
C901
102PF/250V
!
R909
!
+
C905 100uF/450V
C923
C914
!
0.1uF/0805
22uF/50V
!
R930 100K 0805
!
R911 33 0805
IC904 AZ431
C912
1uF/0805
430K 1206
R910
430K 1206
R931
430K 1206
C933
C934
+
LD7552
10K 0805
NC
0.1uF/0805
4
LD7552
56
13
R917
C917
103/0805
R907
510K 1206
R908
510K 1206
R932
510K 1206
D905 NC
IC901
72
10 0805
8
R928
220 0805
10K 0805
C919 220PF/0805
R918
R919
C930 1500P/1KV
D906 PS102R
+
C922 NC
R912 75K 0805
R913 100K 0805
1
ZD905 18V
R905
100K 2W
D901 FR107
R914
5.1 1206
!
23
Q903 AP 2761-I
FB901 BEAD
R904
0.39 2W
HP L1506 Service Manual
R935
100 1206
!
O
3 5
O
6
C921
102PF/250V
43
IC903 AZ431
T9011
!
!
O
9
7
8
10
12
IC902
PC123FY82 4P
R934 R906
R936
100 1206
R937
100 1206
R916
100 1206
D904
SRF20100C
R925
0 0805
100 1206 100 1206
1
2
D902
3
SRF20150C
470uF/25V C932
0.001uF/500V/1206
1
2
3
R927 47 1206
R926 1K 0805
C918
1uF/0805
R924 1K 0805
C931
0.001uF/500V/1206
C904
+
+
C908 470uF/25V
+
470uF/25V
L904
R920 33K 0805
R922
2.4K 0805
L903
C909
C911
470uF/25V
R921
3.6K 0805
+12V
+
C906 470uF/25V
ZD903 SML4736
+
ZD902 HZ12B
R923 1K 0805
ZD904 HZ5.1
ONOF
DIM
0.1uF/0805
+5V
2 4 6
8 10 12
C907
C910
0.1uF/0805
CN902 33L8027-12
1 3
+12V 5 7 9 11
+5V
24
AOC (Top Victory) Electronics Co., Ltd.
MODEL:PWPC1521LPH3
Title
Size Document Number Rev
B
Date: Sheet of
1.POWER OUTPUT 12V & 5 V
HP 15"
Wednesday, June 01, 2005
12
B
HP L1506 Service Manual
+12V
R839
0 1206
DTA144WKA
Q807
C833
C848
0.1uF/0805
IC_DIM
DTC144WKA
R836
200K 0805 R830
75K 0805
R831 NC
C831
0.001uF/0805
1
C834
0.1uF/0805
R808
NC
ON/OFF PT801
DIM
R833
200K 0805
0.1uF/0805
Q806
1
32
C838
0.1uF/0805 C839
1uF/0805 C836
0.47uF/0805 C835
1uF/0805
C832 0.0047uF/25V
R837 1K 0805
3 2
ZD805 RLZ5.6B
10 1206
OVP
PMBS3904
1uF/25V C819
R829
R838 470 1206
Q812
32
1
VDD
R832
10K 0805
C837
0.1uF/0805
R834 NC
1
CTIMR
2
OVP
3
ENA
IC801
4
SST
5
VDDA
6
GNDA
7
REF
9
FB
10
CMP
R825 330K/0805
NDRV_B
PDRV_A
CT RT
PWRGND
LCT
OZ960G
DIM
LPWMRT1 PDRV_C NDRV_D
20 19 18 17 16 15 14 138 12 11
R819 22
4700PF/0805
R812 33K 0805
IC_DIM
+
C845
470uF/25V
C811 470PF/0805
R813 51K 0805
R814
51K 0805
C810
C809 0.1uF/0805
22 R820
R811
51K 0805
ZD802
RLZ5.6B
R809 NC
R828
C829
10K 0805
0.047uF/0805
NC
C804
ZD801
RLZ5.6B
C821
0.047uF/0805
R805
1K 0805
R824
10K 0805
C828
0.1UF/1206
4 5 3 2 1
4 5 3 2 1
C820
0.1UF/1206
Q808 SP8M3
G2P D2P S2P G1N
D1N
S1N
D1N
G2P D2P S2P G1N
D1N
S1N
D1N
Q809 SP8M3
OVP
R835
1M 0805
C805 2.2uF/1206
6
D2P
C806 2.2uF/1206
7 8
C807 2.2uF/1206
6
D2P
7 8
2
D806
BAV99
1
C823
0.1UF/1206
1
D802 BAV99
2
80LL17T-16-LC
3
R801
6.8K 0805
!
3
R823 6M 1/2W
3.9N/0805
R802 130K 0805
C802
C843
15pF/3KV
C818
15pF/3KV
470P/0805
C801
C826 5pF/3KV
C827
5pF/3KV
R804
680 0805
4.7K 0805
VDD
2
R843
100K 0805
470 0805
3
1
R806
680 0805
R840
R803
D801
BAV99
1
3 2
Q801
PMBS3904
33G8020-2D-U
D809 1N4148
R844
1M 0805
C803
0.1uF/25V
R842 100K 0805
R841
3.6K 0805
CN801
1
2
CN802
1
2
33G8020-2D-U
MODEL:PWPC1521LGH1
PWPC1521CPH1 PWPC1521HSH1
AOC (Top Victory) Electronics Co., Ltd.
Title
HP 15'' ( L1506 )
Size Document Number Rev
A3
Date: Sheet
Wednesday, June 01, 2005
22
of
B
25
8. PCB Layout
8.1 MAIN BOARD (715G1533-D-MS)
HP L1506 Service Manual
26
8.2 INVERTER / POWER BOARD (715G1508-1)
HP L1506 Service Manual
27
8.3 KEY BOARD
HP L1506 Service Manual
( 715G1532-D1-P)
(715G1532-E-K)
28
9. Maintainability
9.1 Equipments and Tools Requirement
1.) Multi-meter.
2.) Oscilloscope.
3.) Pattern Generator.

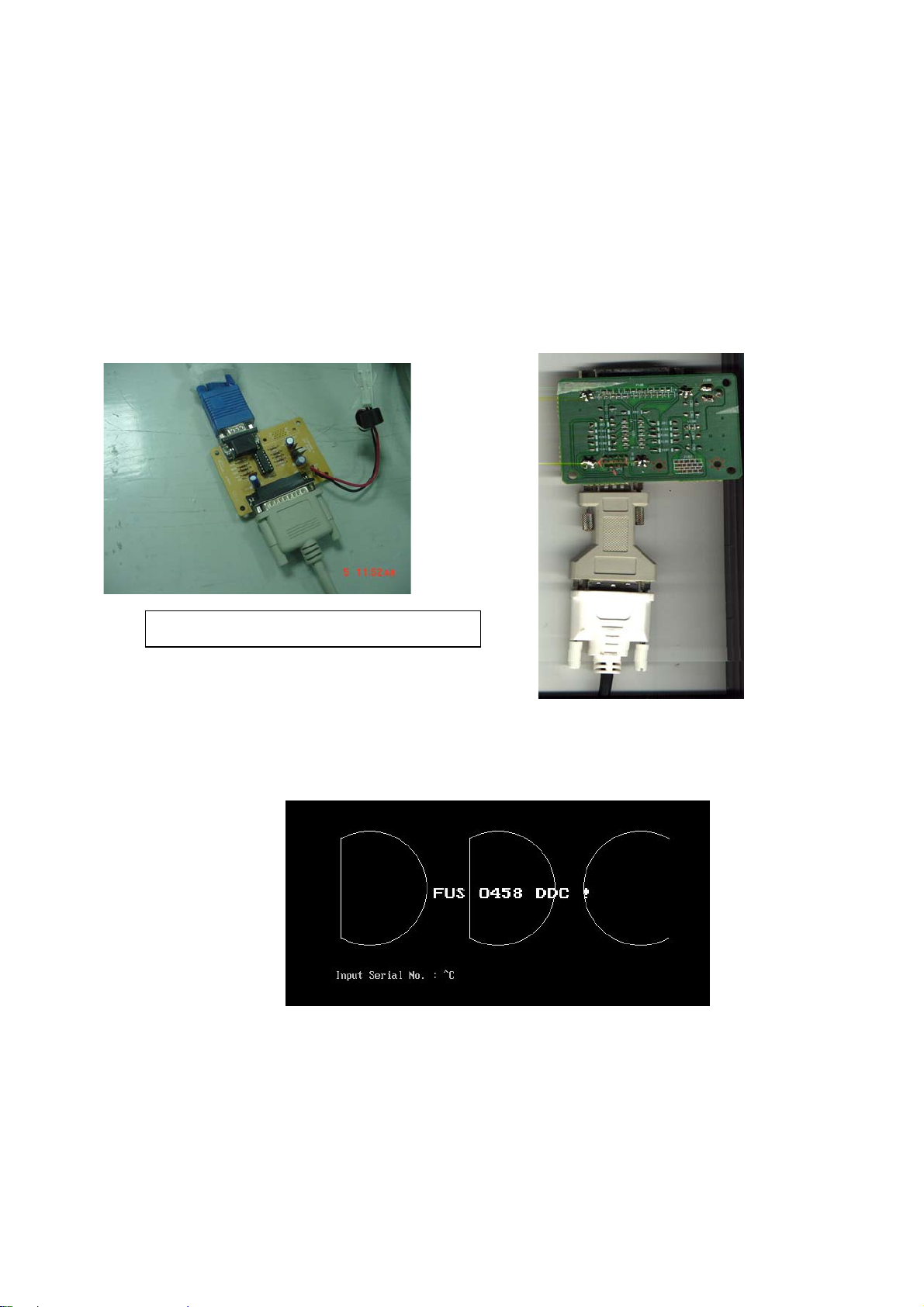

4.) DDC Tool with an IBM Compatible Computer.
5.) Alignment Tool.
6.) LCD Color Analyzer.
7.) Service Manual.
8.) User Manual.
HP L1506 Service Manual
29
9.2 Trouble Shooting
9.2.1 Main Board
No power
HP L1506 Service Manual
No power
Press power key and look if the picture is normal
NG
Please reinsert and make sure the AC of 100-240 is no rmal
OK
Measure U201 PIN2=1.8V U202 PIN2=3.3V
OK
X601 and X401 oscillate waveforms are normal
NG
NG
Reinsert or check the Adapter/Inverter
Check CN201 or replace U201, U202
30
NG
Replace X601, X401
OK
Replace U601
NG
Replace U401
No picture (LED orange)
HP L1506 Service Manual
No picture
The button if under control
OK
Measure U201 PIN2=1.8V U202 PIN2=3.3V
NG
X601 oscillate
waveform is normal
OK
Check reset circuit of U601 is normal
OK
NG
Replace X601
NG
Check Correspondent component
OK
Replace U601
X401 oscillate
NG
waveform is normal
Replace U201, U202
OK
NG
Replace X401
Check HS/VS from CN301is normal
OK
NG
Replace U401
Check Correspondent component
31
White screen
HP L1506 Service Manual
White screen
Check Correspondent component.
Measure Q204 base is high level?
OK
Check Q204,Q203 are broken or CN503 solder?
NG
OK
Replace PANEL
NG
X601 oscillate waveform is normal
OK
Check reset circuit of U601 is normal
OK
Replace U601
NG
NG
Replace X601
Check Correspondent component.
32
8.2.2 Inverter Board
No power
HP L1506 Service Manual
No power
Check AC line volt 110V or 220V
OK
NG
Check AC line
Check the voltage of C905(+)
OK
NG
Check F901, BD901
Check start voltage for the pin3 of IC901
OK
NG
Check R906, R907, IC901
The auxiliary voltage (pin 7) is between 10V-16V jumping
OK
NG (Stable)
Check D910, D911,
1) Check IC901,T901
2) Check D902, D903, ZD904
3) Check IC902, IC903
33
No backlight
HP L1506 Service Manual
Check C845 (+) =12V
OK
NG
Check R839 Check D808/Q809
Check ON/OFF signal
OK
NG
Check Interface board
Check IC801 pin5=12V voltage
NG
Check Q806/Q807/Q812
OK
Check the pin19/20 of IC801 if have waveforms
NG
Short Q808/Q809 S D ,if the picture normal
NG
OK
Change IC801
Connect PIN4 to PIN7of IC801 and check Q808/Q809 collector waveforms
OK
Check feedback circuit
NG
Change Q808/Q809/PT801
NG
Check connecter & lamp
34
8.2.3 Key Pad Board
OSD is unstable or not working
Is Key Pad Board connecting normally?
HP L1506 Service Manual
NG
Connect Key Pad Board
OK
Is Button Switch normally?
OK
Is Key Pad Board Normally?
OK
Check Main Board
NG
Replace Button Switch
NG
Replace Key Pad Board
35
HP L1506 Service Manual
10. WHITE- BALANCE, LUMINANCE ADJUSTMENT
Approximately 30 minutes should be allowed for warm up before proceeding White-Balance adjustment.
1. How to do the Chroma-7120 MEM .Channel setting A. Reference to chroma 7120 user guide B. Use “ SC” key and “ NEXT” key to modify xyY value and use “ID” key to modify the
TEXT description Following is the procedure to do white-balance adjust
2. Setting the color temp. You want
A. 9300 color: 9300 color temp. parameter is x = 283 ±20, y = 297 ±20, Y > 180 cd/m2 , B. sRGB color:
sRGB color temp. parameter is x = 313±20, y = 329 ±20, Y>200 cd/m2)
C. 6500K color: Don’t adjust, Custom requires.
3. Into factory mode of HP L1506
A. Press DOWN button during 2 seconds along with press Power button will activate the factory mode, then
MCU will do AUTO LEVEL automatically. Meanwhile press MENU the OSD screen will located at THE LEFT TOP OF PANEL.
4. Bias adjustment:
Set the Contrast
Adjust the Brightness
5. Gain adjustment :
Move cursor to “-F-” and press MENU key
to 80
to 90.
A. Adjus 9300k color-temperature
1. Switch the Chroma-7120 to 9300k channel.
2. The chroma 7120 will show x = 283±20, y = 297 ±20, Y>180 cd/m2
3. Switch the chroma-720 to RGB MODE (with press “MODE” button to change )
4. Adjust the RED of color 9300K on factory window until chroma 7120 indicator reached 36
HP L1506 Service Manual
the value R=100
5. Adjust the GREEN of color 9300K on factory window until chroma 7120 indicator reached
the value G=100
6. Adjust the BLUE of color 9300K on factory window until chroma 7120 indicator reached
the value B=100
7. Repeat above procedure ( item 4,5,6) until chroma 7120 RGB value meet the
tolerance =100±2
B. Adjust sRGB color-temperature
1. Switch the chroma-7120 to sRGB channel.
2. The chroma 7120 will show x = 313 ±20, y = 329 ±20, Y = 210 ±20 cd/m2
3. Switch the chroma 7120 l to RGB MODE ( with press “MODE” button to change )
4. Adjust the RED of color sRGB on fact ory window until chroma 7120 indicator reached
the value R=100
5. Adjust the GREEN of color sRGB on f actory window until chroma 7120 indicator reached
the value G=100
6. Adjust the BLUE of color sRGB on factory window until chroma 7120 indicator reached
the value B=100
7. Repeat above procedure ( item 4,5,6) until chroma 7120 RGB value meet the
tolerance =100±2
C. Press reset key and Turn the Powe r-button “off to on” to quit from factory mode.
11. Check List after replacing LCD Main board
Ⅰ.Check if white-balance is within the specs after replacing Main board and panel, then
re-writing DDC is necessary.
The white-balance value for each common color temperature:
9300 º K: x=283± 20 ; y = 297± 20;
sRGB: x = 313± 20 ; y = 329 ± 20;
The color temperature value above must be up to the situation of x<y. The value of Y should be confirmed according to different customers. 15 ”LCD is commonly 180±20cd/cm than 200cd/cm
2
(Center). The exact brightness values are confirmed by the checking-regulations of different customers
37
2
Centerand 17” LCD is required to be larger
HP L1506 Service Manual
and different models.
. Steps of white-balance adjustment for LCD:(Take 17 ”HP LCD for example)
1. Required instruments: Chroma7120Chroma2325BGA265A)
2. First connect the instruments together and turn on the LCD power, then warm up for 30 minutes under full white
screen mode. First press the “Reset” key in the menu to recover factory set as following.
3. Set Chroma2325 at round-windows mode and make the detecting-head of Chroma7120 aim at the cross in the middle, the distance between the detecting-head and the cros s is 20cm.
4. Set Chroma2325(BGA265A)to be T144(1280*1024/60HZ)and P105 of full white screen. Test if the white-balance value is within the specs. Please follow the steps below to adjust if it is beyond the specs.
5. Cut the power . Then press Down key and supply power at the same time to enter into the factory mode. See the following pictures.
6. Test white-balance again after Auto Level. Adjustment with hand is necessary if it is beyond the specs just the same.
38
HP L1506 Service Manual
7. Select 7x00 item to adjust cool color-temperature and select 6x00 to adjust warm color- temperature. It can reach to the best effect through adjusting R/G/B value if it inclines to green or blue.
8. Select Exit to the upper menu after completing the adjustment. The n press POWER OFF to exit and save it.
Steps for writing DDC
1. Employ PC, and connect the DDC-writing instrument and the instrument that is ready for writing into DDC to the power of 12v. Connect the signal cable of the latter to D-USB or DVI of DDC-writing instrument (The data-writing of monitor needs transfer-interface) and link the DDC-writing instrument with PC through printer interface. (See the schematic picture below)
Connection of DDC-writing instrument for VGA.
2. Seek the document with the expanded name of .BAT in DDC file of this model. It appears the indication of “Input
Serial No.:"after dual-click the document to be ready for DDC-writing.
3.Input the serial number of the product (For instance: AOC LM729 is 13 bits), then press ENTER to start writing
4.Check the indication of DDC-writing program at the end. When you see the picture as the schematic picture above,
the Data compare OK!” means bei ng written well and that’s the end. Please check if the Manufacturer Name,
Vendor Assigned Code, Monitor Name, Serial Number, Week of Manufacture, Year of Manufacture are right. It will
39
HP L1506 Service Manual
appear Data comp are error ” to indicate failure if the DDC-writing doesn’t perform well. Please check the
power resource and the connection of the signal cable, then return to step 3 by pressing ENTER and re-do it.
5.You can exit the program by pressing Ctrl plus C, then cut the signal cable and the powe r.
6.The following picture is taking Acer AL1721 EDID for example.
Notes: 1、Make sure the system time of PC is in accordance with the real time before writing.
2The schematic picture is just as an example for description, the exact content of the DDC is dependent on the
serial number of the BARCORD of this model.
3、Data DDC-writing needs a transfer interface.
InstructionDDC-writing needs 4 files:
1. Barcode.txt (Supply Barcode length and flow number)
2. *.EXE (DDC-writing program)
3. WR.bat (Group order file for cycling utilization of *EXE, and dual-click this file when perform DDC-writing)
4. w.dat The content with 128 bits of DDC
40
12. EDID
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15
0: 00 FF FF FF FF FF FF 00 22 F0 5B 26 01 01 01 01 16 : 0B 0F 01 03 68 1E 16 8C EE B4 60 A1 58 4E 97 26 32 : 16 50 54 AD EE 00 01 01 01 01 01 01 01 01 01 01 48 : 01 01 01 01 01 01 64 19 00 40 41 00 26 30 18 88 64 : 36 00 2C DC 10 00 00 18 00 00 00 FD 00 32 4C 1E 80 : 3F 08 00 0A 20 20 20 20 20 20 00 00 00 FC 00 48 96 : 50 20 4C 31 35 30 36 0A 20 20 20 20 00 00 00 FF 112: 00 43 4E 43 35 31 31 30 30 30 31 0A 20 20 00 EF
HP L1506 Service Manual
41
13. BOM List
T560KC4DKHHPNP
Location Part No. for TPV Description
CBPC560KC4HPNP CONVERSION BOARD KEPC560KHP5P KEY BOARD KEPC980KHP4P KEY BOARD PWPC1521CPH1P POWER BOARD 15G8159 3 MAIN FRAME 33G4856 EY L LOGO PLATE 33G4889 EY L STAND CAP 34G1563 EY B REAR COVER 44G3583 1 EPS 44G3583 2 EPS
HP L1506 Service Manual
44G3583 3EPE EPE 44G3583624 1A CARTON 45G 88606 H PE BAG FOR BASE 45G 88607 H PE BAG FOR MONITOR 45G 88609 1 EPE COVER 52G 1186 SMALL TAPE 52G6022 1500 SMALL TAPE 52G6025 11898 MYLAR 71L 100521 CORE 85G 692 1 SHIELD 89G1738GAA 21 D-SUB CABLE 89G176N 50 19 FFC 50PIN 180MM 89G402A19N IS AC POWER CABLE 95G8014 8 30 HARNESS 160MM 8P-8P M1G 130 5225 SCREW M1G 330 4120 SCREW M1G 340 8 47 SCREW M1G1730 6128 SCREW M3x6 M1G1730 6128 SCREW M3x6 M1G1740 6128 SCREW M1G3030 5 47 SCREW Q1G 330 6120 SCREW
42
HP L1506 Service Manual
Q1G 330 6120 SCREW 705G560KC87 02 AC SOCKET ASS'Y 705G560KF34002 15" LCD ASS'Y 705G560KP34005 15" LCD ASS'Y 750GLC50P021HZ CPT 15" 030 ZDB PANEL AIC560KC4HPNP MAIN BOARD 40G 457624 1B LABEL-CPU 40G 45762412B CBPC LABEL
C202 67G215B221 4H LOW E.S.R 220UF +-20% 2 C204 67G215B221 4H LOW E.S.R 220UF +-20% 2 C208 67G309V100 3 10uf =_20% 16v
C211 67G309V470 3 47UF 16V 85C C213 67G309V470 3 47UF 16V 85C C215 67G309V470 3 47UF 16V 85C C405 67G309V100 3 10uf =_20% 16v C414 67G309V100 3 10uf =_20% 16v C419 67G309V100 3 10uf =_20% 16v C422 67G309V100 3 10uf =_20% 16v C424 67G309V100 3 10uf =_20% 16v C427 67G309V100 3 10uf =_20% 16v C509 67G305S220 3H 22UF 16V MINI TYPE C603 67G309V100 3 10uf =_20% 16v
CN201 33G8027 12 WAFER 2*6P 2.0MM R/A CN301 88G 35315F H D-SUB 15PIN CN402 33G3802 8H WAFER 8P RIGHT ANGLE PI
X401 93G 22 53 CRYSTAL 14.318MHzHC-49U
Y601 93G 22 45 J 24MHZ/30PF/49US
715G1533 D MS MAIN BOARD PCB C201 65G0603104 32 CHIP 0.1UF 50V X7R C203 65G0603104 32 CHIP 0.1UF 50V X7R C205 65G0603104 32 CHIP 0.1UF 50V X7R C206 65G0805105 37 CHIP 1UF 50V Y5V C207 65G0603104 32 CHIP 0.1UF 50V X7R C210 65G0603104 32 CHIP 0.1UF 50V X7R C212 65G0603104 32 CHIP 0.1UF 50V X7R C214 65G0603104 32 CHIP 0.1UF 50V X7R C216 65G0603104 32 CHIP 0.1UF 50V X7R
43
HP L1506 Service Manual
C219 65G0603104 32 CHIP 0.1UF 50V X7R C304 65G0603473 32 CHIP 0.047UF 50V X7R C305 65G0603473 32 CHIP 0.047UF 50V X7R C306 65G0603473 32 CHIP 0.047UF 50V X7R C307 65G0603102 32 1000PF +-10% 50V X7R C308 65G0603473 32 CHIP 0.047UF 50V X7R C309 65G0603473 32 CHIP 0.047UF 50V X7R C310 65G0603473 32 CHIP 0.047UF 50V X7R
C311 65G0603680 31 CHIP 68PF 5 0V NPO C312 65G0603221 32 CHIP 220PF 50V NPO C313 65G0603224 32 CHIP 0.22UF 50V X7R C314 65G0603104 12 CER2 0603 X7R 16V 100N C315 65G0603104 32 CHIP 0.1UF 50V X7R C316 65G0603104 32 CHIP 0.1UF 50V X7R C317 65G0603104 32 CHIP 0.1UF 50V X7R C401 65G0603104 32 CHIP 0.1UF 50V X7R C402 65G0603220 31 CER1 0603 NP0 50V 22P P C403 65G0603220 31 CER1 0603 NP0 50V 22P P C404 65G0603104 32 CHIP 0.1UF 50V X7R C406 65G0603104 32 CHIP 0.1UF 50V X7R C407 65G0603104 32 CHIP 0.1UF 50V X7R C408 65G0603104 32 CHIP 0.1UF 50V X7R C409 65G0603104 32 CHIP 0.1UF 50V X7R C410 65G0603104 32 CHIP 0.1UF 50V X7R
C411 65G0603104 32 CHIP 0.1UF 50V X7R C412 65G0603104 32 CHIP 0.1UF 50V X7R C413 65G0603104 32 CHIP 0.1UF 50V X7R C415 65G0603104 32 CHIP 0.1UF 50V X7R C416 65G0603104 32 CHIP 0.1UF 50V X7R C417 65G0603104 32 CHIP 0.1UF 50V X7R C418 65G0603104 32 CHIP 0.1UF 50V X7R C420 65G0603104 32 CHIP 0.1UF 50V X7R C421 65G0603104 32 CHIP 0.1UF 50V X7R C423 65G0603104 32 CHIP 0.1UF 50V X7R C425 65G0603104 32 CHIP 0.1UF 50V X7R C426 65G0603104 32 CHIP 0.1UF 50V X7R C428 65G0603104 32 CHIP 0.1UF 50V X7R
44
HP L1506 Service Manual
C510 65G0603104 32 CHIP 0.1UF 50V X7R
C511 65G0603104 32 CHIP 0.1UF 50V X7R C601 65G0603104 32 CHIP 0.1UF 50V X7R C602 65G0603220 31 CER1 0603 NP0 50V 22P P C604 65G0603220 31 CER1 0603 NP0 50V 22P P C605 65G0603224 32 CHIP 0.22UF 50V X7R C606 65G0603102 32 1000PF +-10% 50V X7R C607 65G0603102 32 1000PF +-10% 50V X7R C609 65G0603102 32 1000PF +-10% 50V X7R C610 65G0603102 32 1000PF +-10% 50V X7R C613 65G0603104 32 CHIP 0.1UF 50V X7R
CN501 33G8019 50 CONNECTOR 50P
D201 93G1004 3 SS14 D202 93G1020 1 S GS1D D301 93G 6433P BAV99 D302 93G 6433P BAV99 D303 93G 6433P BAV99 D304 93G 64 42 P BAV70 SOT-23 D317 93G 39149 MLL5232B BY FULL POWER D318 93G 39149 MLL5232B BY FULL POWER D319 93G 39149 MLL5232B BY FULL POWER D320 93G 39149 MLL5232B BY FULL POWER D321 93G 39149 MLL5232B BY FULL POWER D322 93G 39149 MLL5232B BY FULL POWER D323 93G 39149 MLL5232B BY FULL POWER D601 93G 64 44 S LL4148WP
FB202 71G 56Z601 CHIP BEAD 600 OHM 0805 FB301 61L0603000 RST SM 0603 JUMP MAX 0R FB302 61L0603000 RST SM 0603 JUMP MAX 0R FB303 61L0603000 RST SM 0603 JUMP MAX 0R FB304 61L0805201 200 OHM 0805 1/8W FB401 71G 56Z601 CHIP BEAD 600 OHM 0805 FB402 71G 56Z601 CHIP BEAD 600 OHM 0805 FB403 71G 56Z601 CHIP BEAD 600 OHM 0805 FB404 71G 56Z601 CHIP BEAD 600 OHM 0805 FB405 71G 56Z601 CHIP BEAD 600 OHM 0805 FB406 71G 56Z601 CHIP BEAD 600 OHM 0805
45
HP L1506 Service Manual
Q201 57G 417 4 PMBS3904/PHILIPS-SMT(04 Q202 57G 417 4 PMBS3904/PHILIPS-SMT(04 Q203 57G 763 1 A03401 SOT23 BY AOS(A1) Q204 57G 417 4 PMBS3904/PHILIPS-SMT(04 Q301 57G 417 4 PMBS3904/PHILIPS-SMT(04 Q601 57G 417 6 PMBS3906/PHILIPS-SMT(06 Q603 57G 417 6 PMBS3906/PHILIPS-SMT(06 R201 61L0603472 RST SM 0603 RC0603 4K7 R202 61L0603103 RST SM 0603 RC0603 10K R203 61L0603102 RST SM 0603 RC0603 1K P R204 61L0603103 RST SM 0603 RC0603 10K R205 61L0603472 RST SM 0603 RC0603 4K7 R207 61L0603472 RST SM 0603 RC0603 4K7 R208 61L0603103 RST SM 0603 RC0603 10K R210 61L0603000 RST SM 0603 JUMP MAX 0R
R211 61L0603103 RST SM 0603 RC0603 10K R212 61L0603472 RST SM 0603 RC0603 4K7 R217 61L0603513 CHIP 51K OHM 1/10W R218 61L0603103 RST SM 0603 RC0603 10K R219 61L0603103 RST SM 0603 RC0603 10K R301 61L0603330 CHIPR 33 OHM +-5% 1/10W R302 61L0603330 CHIPR 33 OHM +-5% 1/10W R303 61L0603330 CHIPR 33 OHM +-5% 1/10W R304 61L0603471 CHIPR 470 OHM+-5% 1/10W R305 61L0603680 RST SM 0603 RC0603 68R R306 61L0603680 RST SM 0603 RC0603 68R R307 61L0603680 RST SM 0603 RC0603 68R R308 61L0603103 RST SM 0603 RC0603 10K R309 61L0603101 RST SM 0603 RC0603 100R R310 61L0603102 RST SM 0603 RC0603 1K P
R311 61L0603102 RST SM 0603 RC0603 1K P R312 61L0603101 RST SM 0603 RC0603 100R R313 61L0603222 RST SM 0603 RC0603 2K2 R314 61L0603222 RST SM 0603 RC0603 2K2 R315 61L0603220 RST SM 0603 RC0603 22R R316 61L0603220 RST SM 0603 RC0603 22R R317 61L0603472 RST SM 0603 RC0603 4K7
46
HP L1506 Service Manual
R318 61L0603472 RST SM 0603 RC0603 4K7 R319 61L0603223 CHIPR 22K OHM +-5% 1/10 R325 61L0603750 RST SM 0603 RC22H 75R P R326 61L0603750 RST SM 0603 RC22H 75R P R327 61L0603750 RST SM 0603 RC22H 75R P R328 61L0603472 RST SM 0603 RC0603 4K7 R329 61L0603103 RST SM 0603 RC0603 10K R402 61L0603472 RST SM 0603 RC0603 4K7 R403 61L0603390 0F CHIP 390 OHM 1/10W 1% R501 61L0603000 RST SM 0603 JUMP MAX 0R R502 61L0603000 RST SM 0603 JUMP MAX 0R R503 61L0603000 RST SM 0603 JUMP MAX 0R R504 61L0603000 RST SM 0603 JUMP MAX 0R R505 61L0603000 RST SM 0603 JUMP MAX 0R R506 61L0603000 RST SM 0603 JUMP MAX 0R R507 61L0603000 RST SM 0603 JUMP MAX 0R R508 61L0603000 RST SM 0603 JUMP MAX 0R R510 61L0603000 RST SM 0603 JUMP MAX 0R R601 61L0603103 RST SM 0603 RC0603 10K R602 61L0603103 RST SM 0603 RC0603 10K R603 61L0603103 RST SM 0603 RC0603 10K R604 61L0603103 RST SM 0603 RC0603 10K R605 61L0603103 RST SM 0603 RC0603 10K R606 61L0603103 RST SM 0603 RC0603 10K R607 61L0603103 RST SM 0603 RC0603 10K R608 61L0603101 RST SM 0603 RC0603 100R R609 61L0603101 RST SM 0603 RC0603 100R R610 61L0603101 RST SM 0603 RC0603 100R
R611 61L0603101 RST SM 0603 RC0603 100R R613 61L0603103 RST SM 0603 RC0603 10K R616 61L0603472 RST SM 0603 RC0603 4K7 R617 61L0603471 CHIPR 470 OHM+-5% 1/10W R620 61L0603102 RST SM 0603 RC0603 1K P R621 61L0603102 RST SM 0603 RC0603 1K P R623 61L0603102 RST SM 0603 RC0603 1K P R624 61L0603102 RST SM 0603 RC0603 1K P R628 61L0603471 CHIPR 470 OHM+-5% 1/10W
47
HP L1506 Service Manual
R629 61L0603472 RST SM 0603 RC0603 4K7 R636 61L0603101 RST SM 0603 RC0603 100R R641 61L0603000 RST SM 0603 JUMP MAX 0R R644 61L0603103 RST SM 0603 RC0603 10K R645 61L0603103 RST SM 0603 RC0603 10K R655 61L0603103 RST SM 0603 RC0603 10K
RP601 61L 125103 8 CHIP AR 8P4R 10KOHM +-5 RP602 61L 125103 8 CHIP AR 8P4R 10KOHM +-5 RP603 61L 125103 8 CHIP AR 8P4R 10KOHM +-5 RP604 61L 125103 8 CHIP AR 8P4R 10KOHM +-5
U201 56G 563 31 AI1117D-1.8-EI U202 56G 563 7 AIC1084-33PM U301 56G1133 34 M24C02-WMN6TP U401 56G 562511 TSU15AK-LF U601 56G1125543CH4 MTV512GMV U602 56G113356A 24LC16B/SNG SOIC-8PIN
715G1532 D1 P KEPC PCB
CN201 95G8014 4515 HARNESS
DP1 81G 12 1 GP GP32032ME
SW1 77G 600 1GCJ TACT SWITCH TSPB-2
715G1532 E K KEPC PCB CN101 33G8027 8 H WAFER 8P 2.0mm DIP DUAL CN102 33G3802 4H WAFER 4P RIGHT ANGLE
SW2 77G 600 1GCJ TACT SWITCH TSPB-2 SW3 77G 600 1GCJ TACT SWITCH TSPB-2 SW4 77G 600 1GCJ TACT SWITCH TSPB-2
40G 45762420A ID LABEL
705G 560 57 43 Q903 ASS'Y
705G 560 93 01 D902 ASS'Y
705G 560 93 02 D904 ASS'Y
705G 780 61 09 R905 ASS'Y
C818 65L 3J1506ET 15PF 3KV 5% C826 65L 3J5096ET 5PF 5% SL 3KV C827 65L 3J5096ET 5PF 5% SL 3KV C843 65L 3J1506ET 15PF 3KV 5% C845 67G215S102 3K ED1000UF 16V C901 65G305M2222BP 2200PF +-20%
48
HP L1506 Service Manual
C902 65G305M2222BP 2200PF +-20% C904 67G215S471 3K EC 470UF 16V C905 67G215S10115K 100UF 450V C906 67G215S471 3K EC 470UF 16V C908 67G215S471 3K EC 470UF 16V C909 67G215S471 3K EC 470UF 16V
C911 67G215S471 3K EC 470UF 16V
C921 65G306M4722BP 4700PF +-20% 400VAC CN801 33G8020 2D U WAFER CN802 33G8020 2D U WAFER CN901 33G8029 5A WAFER CN902 95G8014 12517 CONNECTOR
D901 93G 6026T52T RECTIFIER DIODE FR107
D906 93G 6038T52T FR103
DB901 93G 50460 13 BRKDGE KBP206G 2A 600V
FB901 71G 55 29 FERRITE BEAD
IC902 56G 139 3A PC123Y22
L901 73L 174 55 HG GP GBQM4.778.392 L902 73L 174 40LSG GP LINE FILTER L903 73G 253 91 LS CHOKE BY LI SHIN L904 73G 253 91 LS CHOKE BY LI SHIN
NR901 61G 58080 WT 8 OHM NCT
PT801 80GL15T 20 DN TRANSFORMER
R904 61G152M39858F 0.39 OHM 5% 2W
T901 80GL15T 19 N TRANSFORMER BY YUVA
PW1521CPH1AIP POWER BOARD FOR AI C801 65G0805471 31 CHIP 470PF 50V NPO C802 65G0805392 31 CHIP 3900PF 50V X7R 080 C803 65G0805104 22 0.1UF +-10% 25V X7R 080 C805 65G1206225 22 2.2UF 25V X7R 1206 C806 65G1206225 22 2.2UF 25V X7R 1206 C807 65G1206225 22 2.2UF 25V X7R 1206 C810 65G0805472 31 CHIP 4700PF 50V X7R 080
C811 65G0805471 21 CHIP 470PF 25V NPO C819 65G0805105 22 CHIP 1UF 25V X7R 0805 C820 65G0805104 22 0.1UF +-10% 25V X7R 080 C821 65G0805473 22 SMD 47nf +-10%25V XTR
49
HP L1506 Service Manual
C823 65G0805104 22 0.1UF +-10% 25V X7R 080 C828 65G0805104 22 0.1UF +-10% 25V X7R 080 C829 65G0805473 22 SMD 47nf +-10%25V XTR C832 65G0805472 31 CHIP 4700PF 50V X7R 080 C833 65G0805104 22 0.1UF +-10% 25V X7R 080 C834 65G0805104 22 0.1UF +-10% 25V X7R 080 C835 65G0805105 22 CHIP 1UF 25V X7R 0805 C836 65G0805474 22 CHIP 0.47UF 25V X7R 080 C837 65G0805104 22 0.1UF +-10% 25V X7R 080 C838 65G0805104 22 0.1UF +-10% 25V X7R 080 C839 65G0805105 22 CHIP 1UF 25V X7R 0805 C848 65G0805104 22 0.1UF +-10% 25V X7R 080 C907 65G0805104 22 0.1UF +-10% 25V X7R 080 C910 65G0805104 22 0.1UF +-10% 25V X7R 080 C912 65G0805334 22 0.33UF+-10% 25V X7R 080 C914 65G0805104 22 0.1UF +-10% 25V X7R 080 C917 65G0805103 22 CHIP 0.01uF 25V X7R 080 C918 65G0805104 22 0.1UF +-10% 25V X7R 080 C919 65G0805221 21 220PF 25V 5% C931 65G1206102 72 CHIP 1000PF 500V X7R C932 65G1206102 72 CHIP 1000PF 500V X7R C934 65G0805104 22 0.1UF +-10% 25V X7R 080 D801 93G 6433P BAV99 D802 93G 6433P BAV99 D806 93G 6433P BAV99 D809 93G 6432V LL4148-GS08
IC801 56G 608 7 OZT1060GN SOIC-20 IC901 56G 379 52 LD7552BS
J903 61L1206000 RST SM 1206 JUMP MAX 0R J926 61L1206000 RST SM 1206 JUMP MAX 0R
JR901 61L1206000 RST SM 1206 JUMP MAX 0R
Q801 57G 417 4 PMBS3904/PHILIPS-SMT(04 Q806 57G 760 4 DTA144WKA BY ROHM SMT Q807 57G 760 5 DTC144WKA BY ROHM SMT Q808 57G 60040A AM4512C-T1-PF SO-8 Q809 57G 60040A AM4512C-T1-PF SO-8 Q812 57G 417 4 PMBS3904/PHILIPS-SMT(04
50
HP L1506 Service Manual
R801 61L0805682 CHIP 6.8KOHM 5% 0805 1/ R802 61L0805134 CHIP 130KOHM+-5% 1/8W R803 61L0805471 CHIPR 470 OHM+-5% 1/8W R804 61L0805681 680 OHM 1/10W R805 61L0805102 CHIPR 1K OHM +-5% 1/8W R806 61L0805681 680 OHM 1/10W R808 61L0805393 SMD 39KOHM/0805/+-5% 1/
R811 61L0805513 CHIP 51KOHM 1/8W R812 61L0805333 CHIP 33KOHM 1% 1/8W R813 61L0805513 CHIP 51KOHM 1/8W R814 61L0805513 CHIP 51KOHM 1/8W R819 61L0805220 CHIP 22 OHM 5% 0805 1/8 R820 61L0805220 CHIP 22 OHM 5% 0805 1/8 R824 61L0805103 CHIPR 10K OHM +-5% 1/8W R825 61L0805683 CHIPR 68K OHM+-5% 1/8W R828 61L0805103 CHIPR 10K OHM +-5% 1/8W R829 61L1206100 CHIPR 10 OHM+-5% 1/4W R830 61L0805753 75K 1/8W R832 61L0805103 CHIPR 10K OHM +-5% 1/8W R833 61L0805204 200K OHM 1/8W R835 61L0805105 CHIP 1M OHM 5% 1/8W R836 61L0805204 200K OHM 1/8W R837 61L0805102 CHIPR 1K OHM +-5% 1/8W R838 61L1206471 CHIPR 470 OHM+-5% 1/4W R840 61L0805104 CHIPR 100K OHM+-5% 1/8W R841 61L0805362 CHIP 306KOHM 1/8W R842 61L0805104 CHIPR 100K OHM+-5% 1/8W R843 61L0805472 CHIRP 4.7K OHM +-5% 1/8 R844 61L0805105 CHIP 1M OHM 5% 1/8W R901 61L1206684 CHIPR 680K OHM+-5% 1/4W R902 61L1206684 CHIPR 680K OHM+-5% 1/4W R903 61L1206684 CHIPR 680K OHM+-5% 1/4W R906 61L1206101 CHIP 100 OHM 5% 1/4W R907 61L1206514 CHIPR 510KOHM +-5% 1/4W R908 61L1206514 CHIPR 510KOHM +-5% 1/4W R909 61L1206434 430K 1206 1/4W 5% R910 61L1206434 430K 1206 1/4W 5%
51
HP L1506 Service Manual
R911 61L0805151 CHIP ISO HM 5% 1/8W R912 61L0805750 2F cHIP 75KOHM 1% 1/8W R913 61L0805100 3F CHIP 100KOHM +-1% 1/8W R914 61L1206339 CHIP 3.3OHM 1/4W R916 61L1206101 CHIP 100 OHM 5% 1/4W R918 61L1206100 CHIPR 10 OHM+-5% 1/4W R919 61L0805103 CHIPR 10K OHM +-5% 1/8W R920 61L0805333 CHIP 33KOHM 1% 1/8W R921 61L0805362 CHIP 306KOHM 1/8W R922 61L0805242 CHIP 2.4KOHM 1% 1/8W R923 61L0805102 CHIPR 1K OHM +-5% 1/8W R924 61L0805102 CHIPR 1K OHM +-5% 1/8W R925 61L0805202 CHIP 2KOHM 1/8W R926 61L0805102 CHIPR 1K OHM +-5% 1/8W R927 61L1206470 CHIP 47OHM 5% 1/4W R928 61L0805331 CHIP 330 OHM 5% 1/10W R930 61L0805100 3F CHIP 100KOHM +-1% 1/8W R931 61L1206434 430K 1206 1/4W 5% R932 61L1206514 CHIPR 510KOHM +-5% 1/4W R934 61L1206101 CHIP 100 OHM 5% 1/4W R935 61L1206101 CHIP 100 OHM 5% 1/4W R936 61L1206101 CHIP 100 OHM 5% 1/4W R937 61L1206101 CHIP 100 OHM 5% 1/4W
ZD801 93G 39S 24 T RLZ 5.6B LLDS ZD802 93G 39S 24 T RLZ 5.6B LLDS ZD805 93G 39S 24 T RLZ 5.6B LLDS ZD902 93G 39S 17 T RLZ12B LLDS ZD903 93G 39S 19 T PTZ7.5B ZD904 93G 39S 25 T RLZ5.1B LLDS
715G1508 1 PWPC BOARD PCB C905 6G 31502 1.5MM RIVET C930 65G 1K152 1T6921 1.5nF/1K Y5P +-10%
CN901 6G 31500 EYELET
F901 84G 56 1 FUSE 2A 250V WICKMANN IC903 56G 158 10 T AZ431AZ-AE1 IC904 56G 158 10 T AZ431AZ-AE1
L901 6G 31502 1.5MM RIVET
52
HP L1506 Service Manual
NR901 6G 31502 1.5MM RIVET
PT801 6G 31502 1.5MM RIVET
R823 61L212Y625 KT 6.2M 3KV KAMAYA
T901 6G 31502 1.5MM RIVET
M1G1730 8128 SCREW M3x8
HS1 90G6064 1 HEAT SINK
Q903 57G 667 30 2SK2645
M1G1730 8128 SCREW M3x8
D902 93G 60252 SP20150
HS2 90G6084 1 GP HEAT SINK
M1G1730 8128 SCREW M3x8
D904 93G 60248 SP20100
ZD3 90G6084 1 GP HEAT SINK R905 61G152M10458F 100K OHM 5% 2W R905 96G 29 6 SHRINK TUBE UL/CSA
34FPE19P03 CASE EEL19 87G 501 14 RF AC SOCKET 95G8021 5500 HARNESS 96G 29 6 SHRINK TUBE UL/CSA 33G4857APM L CONTROL BUTTON 33G4858APM L POWER BUTTON 33G4859 1 C LENS 34G1562APC B BEZEL 15G8161 1 BASE BRACKET 34G1566 EY B BASE 34G1625 EY B STAND 37G 513 4 HINGE Q1G 130 6120 SCREW (T3X6) Q1G 140 8128 SCREW
53
Loading...
