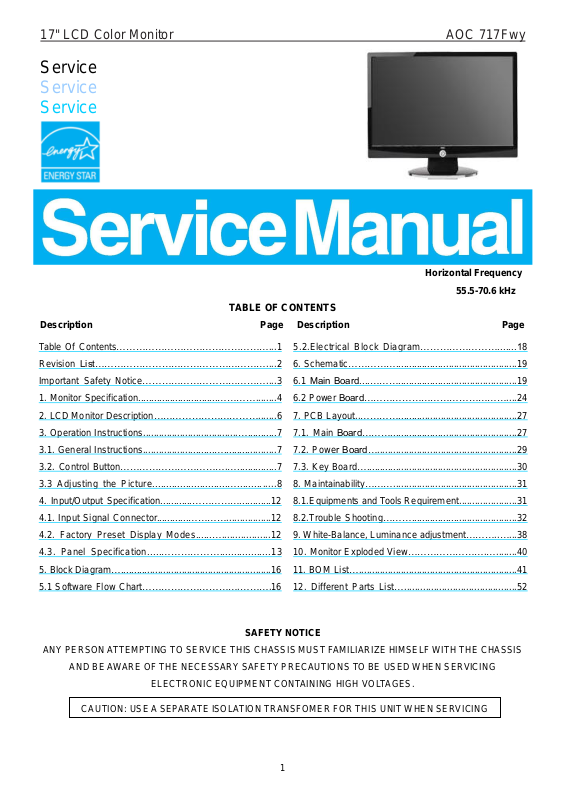

AOC 717Fwy Service Manual

17" LCD Color Monitor AOC 717Fwy

Table Of Contents…………………………………………...1

Revision List………………………………………………....2

Important Safety Notice…………………………………....3

1. Monitor Specification..............................…………........4

2. LCD Monitor Description…………………………….......6

3. Operation Instructions....................................…...........7

3.1. General Instructions...........................…....................7

3.2. Control Button…………………………….…...............7

3.3 Adjusting the Picture...........................…..............8

4. Input/Output Specification............……………............12

4.1. Input Signal Connector............………….................12

4.2. Factory Preset Display Modes......…..................12

4.3. Panel Specification.....………………..................13

5. Block Diagram….........................................................16

5.1 Software Flow Chart………………………….……….16

5.2.Electrical Block Diagram…………………….......18

6. Schematic……………..............................................19

6.1 Main Board....……….............................................19

6.2 Power Board………………………………………....24

7. PCB Layout..………….............................................27

7.1. Main Board………................................................27

7.2. Power Board….....................................................29

7.3. Key Board….........................................................30

8. Maintainability………...............................................31

8.1.Equipments and Tools Requirement......................31

8.2.Trouble Shooting………........................................32

9. White-Balance, Luminance adjustment………..…...38

10. Monitor Exploded View…………………….…........40

11. BOM List…............................................................41

12. Different Parts List…..........................................52

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

Service

Service

Service

Horizontal Frequency

55.5-70.6 kHz

TABLE OF CONTENTS

Description Page Description Page

SAFETY NOTICE

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS

AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING

ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

1

17" LCD Color Monitor AOC 717Fwy

Version

Date

Revision History

TPV Model Name

A00

Apr.-08-2008

Initial release

T77HRDNQBWA15N

T77HRDNQBWA16N

T77HRDNQBWA25N

T77HRDNQBWA26N

Revision List

2

17" LCD Color Monitor AOC 717Fwy

3

Important Safety Notice

Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service
procedures recommended by AOC and described in this service manual are effective methods of performing service
operations. Some of these service operations require the use of tools specially designed for the purpose. The
special tools should be used when and as recommended.
It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in
order to minimize the risk of personal injury to service personnel. The possibility exists that improper service
methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE
NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in
which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not
recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
Hereafter throughout this manual, AOC Company will be referred to as AOC.

WARNING

Use of substitute replacement parts, which do not have the same, specified safety characteristics, may create shock,
fire, or other hazards.

Under no circumstances should the original design be modified or altered without written permission from AOC.
AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.

FOR PRODUCTS CONTAINING LASER:
DANGER-Invisible laser radiation when open AVOID DIRECT EXPOSURE TO BEAM.
CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION -The use of optical instruments with this product will increase eye hazard.

TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF
THIS SERVICE MANUAL.
Take care during handling the LCD module with backlight unit

-Must mount the module using mounting holes arranged in four corners.

-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.

-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to
the panel.

-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).

-Make certain that treatment person’s body is grounded through wristband.

-Do not leave the module in high temperature and in areas of high humidity for a long time.

-Avoid contact with water as it may a short circuit within the module.

-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough
cloth may damage the panel.)

17" LCD Color Monitor AOC 717Fwy

4

LCD Panel

Model number

717Fwy

Driving system

TFT Color LCD

Viewable Image Size

432mm diagonal

Pixel pitch

0.255mm(H) x 0.255mm(V)

Video

R, G, B Analog interface

Separate Sync.

H/V TTL

Display Color

16.2M Colors

Dot Clock

53.25 MHz

Resolution

Horizontal scan range

55.5 kHz - 70.6 kHz

Horizontal scan Size(Maximum)

367.2mm

Vertical scan range

56 Hz - 75 Hz

Vertical scan Size(Maximum)

229.5mm

Optimal preset resolution

1440 x 900 (60 Hz)

Highest preset resolution

1440 x 900 (75 Hz)

Plug & Play

VESA DDC2B/CI

Input Connector

D-Sub 15pin

Input Video Signal

Analog: 0.7Vp-p(standard), 75 OHM, Positive

Power Source

100~240VAC, 50/60Hz

Power Consumption
Active < 37 W

Standby < 1 W

Speakers

2 x 1W

Physical

Characteristics

Connector Type

15-pin Mini D-Sub

Signal Cable Type

Detachable

Dimensions & Weight:

Height (with base)

337.5 mm

Width

400.3 mm

Depth

209.9 mm

Weight (monitor only)

3.2 kg

Weight (with packaging)

4.2kg

Environmental

Temperature:

Operating

0° to 50°

Non-Operating

-20°to 60°

Humidity:

1. Monitor Specification

17" LCD Color Monitor AOC 717Fwy

Operating

10% to 85% (non-condensing)

Non-Operating

5% to 80% (non-condensing)

Altitude:

Operating

0~ 3000m (0~ 10000 ft )

Non-Operating

0~ 5000m (0~ 15000 ft )

5

17" LCD Color Monitor AOC 717Fwy

Video signal, DDC

Power Board

(Include adapter and inverter)

Flat Panel and
CCFL backlight

Main Board

RS232 Connector
For white balance
adjustment in
factory mode

HOST Computer

CCFT Drive.

AC-IN

100V~240V

Monitor Block Diagram

Key board

2. LCD Monitor Description

The LCD Monitor will contain main board, power board, key board which house the flat panel control logic,
brightness control logic and DDC.
The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips
each voltage.

6

17" LCD Color Monitor AOC 717Fwy

3. Operation Instructions

3.1 General Instructions

Press the power button to turn the monitor on or off. The control buttons are located at front panel of the monitor.
By changing these settings, the picture can be adjusted to your personal preferences.

The power cord should be connected.

-

Connect the video cable from the monitor to the video card.

-

Press the power button to turn on the monitor, the power indicator will light up.

-

3.2 Control Buttons

1 Eco mode / Up
2 Auto / Down
3 Volume / Left
4 DCR / Right
5 Menu / Power

7

17" LCD Color Monitor AOC 717Fwy

3.3 Adjusting the Picture

OSD Settings

 Press the Menu (Power) button to activate the OSD window. Press left, right, up, down button to navigate

through the functions. Once the desired function is highlighted, press the Menu (Power) button to activate
sub-menu.

 In sub-menu, Press up, down button to navigate through the functions. Once the desired function is

highlighted, press , button to button to change the setting. Press Menu (Power) button to return to
superior menu.

 If you want to adjust any other function, repeat steps 1-2.
 To exit OSD windows, select “exit” icon on main OSD, then press the Menu (Power) button.
 OSD Lock Function: To lock the OSD, press and hold the Left button while the monitor is off and then press

power button to turn the monitor on. To un-lock the OSD - press and hold the Left button while the monitor is
off and then press power button to turn the monitor on.

 Eco Mode hot key ( ): Press the Eco key continuously to select the Eco mode of brightness when there is

no OSD (Eco mode hot key may not be available in all models).

 Volume adjustment hot key: When there is no OSD, press Volume ( ) to active volume adjustment bar,

press or to adjust volume (Only for the models with speakers).

 DCR hot key ( ): Press DCR key continuously to active or disable DCR function when there is no OSD.
 Auto configure hot key: When the OSD is closed, press Auto/Source button continuously about 3 second to

do auto configure.

 Press the Power button continuously about 2 second to turn off the monitor.

8

17" LCD Color Monitor AOC 717Fwy

Luminance

Adjust Range

Description

Brightness

0-100

Backlight Adjustment

Contrast

0-100

Contrast from Digital-register.

Eco mode

Standard

Standard Mode

Text

Text Mode

Internet

Internet Mode

Game

Game Mode

Movie

Movie Mode

Sports

Sports Mode

Gamma

Gamma1

Adjust to Gamma1

Gamma2

Adjust to Gamma 2

Gamma3

Adjust to Gamma 3

DCR

Off

Disable dynamic contrast ratio

On

Enable dynamic contrast ratio
Image Setup

Clock

0-100

Adjust picture Clock to reduce
Vertical-Line noise.

Phase

0-100

Adjust Picture Phase to reduce
Horizontal-Line noise

H. Position

0-100

Adjust the horizontal position of the

OSD functions

9

17" LCD Color Monitor AOC 717Fwy

picture.

V. Position

0-100

Adjust the vertical position of the
picture.

Color Temp.

Warm
6500K

Recall Warm Color Temperature
from EEPROM.

Normal
7300K

Recall Normal Color Temperature
from EEPROM.

Cool
9300K

Recall Cool Color Temperature from
EEPROM.

sRGB

Recall SRGB Color Temperature
from EEPROM.

User
Red

Red Gain from Digital-register

Green

Green Gain Digital-register.

Blue

Blue Gain from Digital-register

Color Boost

Full Enhance

on or off

Disable or Enable Full Enhance
Mode

Nature Skin

on or off

Disable or Enable Nature Skin Mode

Green Field

on or off

Disable or Enable Green Field Mode

Sky-blue

on or off

Disable or Enable Sky-blue Mode

AutoDetect

on or off

Disable or Enable AutoDetect Mode

Demo

on or off

Disable or Enable Demo

Picture Boost

Frame Size

14-100

Adjust Frame Size

Brightness

0-100

Adjust Frame Brightness

Contrast

0-100

Adjust Frame Contrast

Hue

0-100

Adjust Frame Hue

Saturation

0-100

Adjust Frame Saturation

Position
H. position

Adjust Frame horizontal Position

V. position

Adjust Frame vertical Position

Bright Frame

on or off

Disable or Enable Bright Frame

OSD Setup

H. Position

0-100

Adjust the horizontal position of
OSD

10

17" LCD Color Monitor AOC 717Fwy

V. Position

0-100

Adjust the vertical position of OSD

Timeout

5-120

Adjust the OSD Timeout

Transparence

0-100

Adjust the transparence of OSD

Language

Select the OSD language

Extra

Input Select

Auto

Select to Auto Detect input signal

Auto Config

yes or no

Auto adjust the picture to default

Image Ratio

wide or 4:3

Select wide or 4:3 format for display

DDC-CI

yes or no

Turn ON/OFF DDC-CI Support

Information

Show the information of the main
image and sub-image source

Reset

Reset

yes or no

Reset the menu to default
Exit

Exit

Exit the main OSD

11

17" LCD Color Monitor AOC 717Fwy

12

Stand

Resolution

Horizontal

Frequency(KHz)

Vertical

Frequency(Hz)

Dos-mode

720×400

31.47

70

VGA

640×480

31.47

60

VGA

640×480

37.5

75

SVGA

800×600

37.879

60

SVGA

800×600

46.875

75

XGA

1024×768

48.363

60

XGA

1024×768

56.476

70

XGA

1024×768

60.023

75

WSXGA

1440×900

55.9

60

WSXGA

1440×900

70.6

75

4. Input/Output Specification

4.1 Input Signal Connector

D-Sub mini 15pin Connector

4.2 Factory Preset Display Modes

17" LCD Color Monitor AOC 717Fwy

4.3. Panel Specification

4.3.1 General Feature

Hannstar Display model HSD170MGW1-B00 is a color active matrix thin film transistor (TFT) liquid crystal
display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel,
a driving circuit and a back light system. This TFT LCD has a 17.0 inch diagonally measured active display area with
XGA resolution (900 vertical by 1440 horizontal pixel array) and can display up to 16.2M(6 –bit + FRC )colors.

13

17" LCD Color Monitor AOC 717Fwy

4.3.2 Optical Characteristics

14

17" LCD Color Monitor AOC 717Fwy

4.3.3 Electrical Characteristics

TFT Module

Back-light

15

17" LCD Color Monitor AOC 717Fwy

1

2

N

Y

5

Y

N
10

Y

N
12

Y

N

7

Y

N

6

4

3

8

9

14

11

13

Y

N
15

Y

N
16

17

19

Y
N

18

5. Block Diagram

5.1 Software Flow Chart

16

17" LCD Color Monitor AOC 717Fwy

1) MCU initializes.

2) Is the EEprom blank?

3) Program the EEprom by default values.

4) Get the PWM value of brightness from EEprom.

5) Is the power key pressed?

6) Clear all global flags.

7) Are the AUTO and SELECT keys pressed?

8) Enter factory mode.

9) Save the power key status into EEprom.
Turn on the LED and set it to green color.
Scalar initializes.

10) In standby mode?

11) Update the lifetime of back light.

12) Check the analog port, are they’re any signals coming?

13) Does the scalar send out an interrupt request?

14) Wake up the scalar.

15) Are there any signals coming from analog port?

16) Display "No connection Check Signal Cable" message. And go into standby mode after the message

disappears.

17) Program the scalar to be able to show the coming mode.

18) Process the OSD display.

19) Read the keyboard. Is the power key pressed?

REMARK:

17

17" LCD Color Monitor AOC 717Fwy

Panel Interface

(CN601)

Crystal

24MHZ

(X401)

MCU RTD2120L

(U401)

Scalar RTD2025L

(Include ADC, OSD)

(U501)

D-Sub Connector

(CN301)

H sync
V sync

RGB

EEPROM

M24C16

(U403)

5.2 Electrical Block Diagram

Main Board

18

17" LCD Color Monitor AOC 717Fwy

INV_ON# {4}

CN201

CONN

1
2
3
4
5
6
7
8
9

CMVCC

Q202
PMBS3904

VCC3

Volume# {4}

+

C203

BKLT-VBRI

ZD201
NC

1 2

Q205

PMBS3906

FB202

NC

Mute {4}

LED_R

CN202

CONN

1
2
3
4
5
6

R201

200Ω 1/16W

BKLT-EN

POWER_KEY # {4}

LED_G

C209

0.1uF/16V

KEY1 {4}

C205

0.1uF/16V

R210 10K 1/16W

FB201

120Ω

C210

0.1uF/16V

LED_G

C201

0.1uF/16V

R207

120R 1/16W

VCC3

BKLT-EN

Mute

C206

0.1uF/16V

R213 10K 1/16W

CMVCC

KEY0 {4}

LED_R

ZD202
NC

1 2

CMVCC

+

C202

PANEL_ID# {4}

U201

AP1117E33LA

1

23

VSS

VOUTVIN

MVCC

CMVCC

Q204
PMBS3906

LED_G# {4}

KEY1

C_PANEL_INDEX

Volume#

A

B

2 6Thursday, June 14, 2007

715G2498-2-K02.POWER

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL
PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬 隔 瓜 絪 腹

ZD203
NC

1 2

DIM# {4}

POWER_KEY #

R208
120R 1/16W

C204

0.1uF/16V

LED_R# {4}

R202
4K7 1/16W

KEY0

VCC3

6. Schematic

6.1 Main Board

19

17" LCD Color Monitor AOC 717Fwy

ZD303
UDZS5.6B

1 2

R303 100R 1/16W

C307

0.047uF

C311

0.047uF

VGA_R+

DSUB_V

CN301

DB15

1

6

2

7

3

8

4

9

5

11

12

13

14

15

10

17 16

C303
22pF

ZD304

UDZS5.6B

1 2

C304

0.047uF

VGA_R+

ZD301
UDZS5.6B

1 2

DDC1_SCL

DSUB_V {4}

C310
5pF/50V

VGA_B+

VGA_B+

DSUB_5V

VGA_G+

RTD_R-

ZD302

UDZS5.6B

1 2

R308 100R 1/16W

DDC1_SDA

VGA_R-

VGA_B+

R301 100R 1/16W

R311 100R 1/16W

R313 100R 1/16W

C315

0.1uF/16V

RTD_R+ {5}

D303
BAV99

3

1

2

R305
2K2 1/16W

R314
75R 1/16W

DSUB_H

R309 100R 1/16W

CMVCC

R304
2K2 1/16W

RTD_G- {5}

RTD_V {5}

ZD305
UDZS5.6B

1 2

DDC1_SDA{4}

VGA_G-

FB303

BEAD

1 2

DSUB_5V

RTD_R+

RTD_B+

RTD_R- {5}

DDC1_SCL{4}

VGA_G+

C308
5pF/50V

RTD_H {5}

VGA_B-

R315 100R 1/16W

VGA_R+

C301

0.047uF

RTD_G-

C305
5pF/50V

RTD_G+ {5}

VGA_R-

R302 0R05 1/16W

RTD_B+ {5}

C309

0.047uF

VGA_G+

VGA_B-

C306

0.047uF

A

B

3 6Thursday, June 14, 2007

715G2498-2-K03.input

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL
PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬 隔 瓜 絪 腹

ZD307
UDZS5.6B

1 2

12/29 change
ZD302 ZD303
from NC to
insert

C302
22pF

DSUB_CONNECT {4}

VGA_CON

FB301

BEAD

1 2

R310
75R 1/16W

R306 100R 1/16W

D301
BAV99

3

1

2

FB302

BEAD

1 2

R307
75R 1/16W

R312 100R 1/16W

RTD_B- {5}

RTD_G+

D302
BAV99

3

1

2

RTD_B-

VGA_G-

20

R408 NC

R431

6K8 1/16W

R410 NC

POWER_KEY #

C412
1uF 10V

A

B

4 6Thursday, June 14, 2007

715G2498-2-K04.MCU/RTD2120L

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL
PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬 隔 瓜 絪 腹

R414

4K7 1/16W

R430 100R 1/16W

CRY STAR_OUT {5}

INV_ON#{2}

RTD_SD3/SDI {5}

R433 100R 1/16W

BAT54C

C402
1uF 10V

R439

6K8 1/16W

IICSCL

CRY STAR_OUT

MCU_VCC_S

R453

1K 1/16W

C406

0.1uF/16V

R429 0R05 1/16W

R432 100R 1/16W

Closed to MCU

KEY0

MCU_VCC_S

R420 NC

WP

KEY0 {2}

CMVCC

RTD_SCLK {5}

R424 1K 1/16W

Mute{2}

MCU_VCC

IICSCL

R451

4K7 1/16W

MVCC

IICSDA

DDC1_SCL{3}

PPWR_ON#{6}

DSUB_V

MCU_VCC

R403

3.9KΩ 1/ 16W

CMVCC

RTD_SD3/SDI

RTD2120L

U401

RTD2120L-LF

1
2
3

4

5

6

7

8

17

15

41

40393837363534

33

19

28

29

20

21

22

23

24

25

26

27

16

9
10
11
12
13
14

18

30

31

32

43

42

44
45
46
47
48

P5.5/PWM5
DSCL2/P5.6
DSDA2/P5.7

RST

ASCL1/P3.0/RXD

NC

NC

ASDA1/P3.1/TXD

VSS

XO

VCC

P1.0/T2

P1.1

P1.2

P1.3

P1.4

P1.5

P1.6

P1.7

NC

VSYNC

NC

P6.0/ADC0

P6.1/ADC1

P6.2/ADC2

P6.3/ADC3

P6.4

P6.5

P6.6/CLKO1

P6.7

XI

P3.2/INT0
P3.3/INT1
P3.4/T0
P3.5/T1
P7.6/CLKO2
P7.7

NC

NC

NC

NC

NC

NC

P5.0/PWM0
P5.1/PWM1
P5.2/PWM2
P5.3/PWM3
P5.4/PWM4

R404
10K 1/16W

R428 22R 1/16W

LED_R#{2}

DSUB_5V

R415

6K8 1/16W C403

0.1uF/16V

R413

4K7 1/16W

DDC1_SDA

R416

10K 1/16W

R406

NC

R436

10K 1/16W

R454

1K 1/16W

MCU_VCC

DIM#{2}

DSUB_CONNECT

RTD_SCLK

R423 1K 1/16W

LED_R#

DSUB_CONNECT {3}

R435 100R 1/16W

Mute

MCU_VCC

3

MCU_VCC

R407

NC/4K7 1/16W

DDC1_SCL

R401

3.9KΩ 1/ 16W

C401
10pF

PANEL_VCC

KEY1

X401

24mhz

1 2

R422 NC

INV_ON#

2

U402

AZ431AN-AE1

WP

D402
BAV70

R438
10K 1/16W

PANEL_ID#{2}

PPWR_ON#

VCC3

PANEL_ID#

C410

0.1uF/16V

R425
10K 1/16W

MCU_VCC

R411

4K7 1/16W

R409 NC

LED_G#

Volume#

R405

NC

R412
4K7 1/16W

+

C405

10uF/50V

Reserve for powerBoard
CMVCC=3V

R434 100R 1/16W

C411
10pF

C404

NC/0.22uF

R427 NC

Q401
PMBS3904

DSUB_V {3}

DDC1_SDA{3}

R437

3.9KΩ 1/ 16W

1

C409
NC

U403

NC

1
2
3
4 5

6

7

8

NC
NC
NC
VSS SDA

SCL

WC

VCC

LED_G#{2}

KEY1 {2}

D401
NC

1

3

2

R402
1K 1/16W

Volume#{2}

IICSDA

R426 22R 1/16W DSUB_V1

POWER_KEY # {2}

DIM#

17" LCD Color Monitor AOC 717Fwy

21

17" LCD Color Monitor AOC 717Fwy

R1.8DVCC

RXE1+

RXE2+

RXO2+

RXE2+

RTD_B+

RXE0+

TMDS_VDD

RXO3+

RXE3-

LVDS_E4

R1.8DVCC

RXO2-

RTD_H

LVDS_O5

RXO2+

C502

NC

LVDS_E6

RTD_B-

R1.8DVCC

A

B

5 6Thursday, June 14, 2007

715G2498-2-K05.RTD2525L

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL
PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬 隔 瓜 絪 腹

RXEC+

RXO3-

RXOC-

C507

0.1uF/16V

RXOC+

LVDS_E1

LVDS_O2

RXE3+

Q502
KN2907AS

RXE1+

C506

0.1uF/16V

BJT_B

LVDS_O8

RXOC+

VCC3

RTD_SCLK

RTD_R+{3}

RXO0+

LVDS_E7

FB502

120Ω

DGND

DGND

RXE1-

FB503

120Ω

RXE2-

+

C505

22uF50V

C501

0.1uF/16V

RTD_G+

RXO2-

LVDS_E5

FB501

0R05 1/10W 5%

RTD_G-

RXO1+

RTD_R+

RXO3+

1.8AVCC

LVDS_E2

RXO1-

CRYSTAR_OUT

LVDS_O9

VCC3

LVDS_O4

RXE0-

RTD_R-{3}

LVDS_E8

LVDS_O[0..9] {6}

DGND

RXO0+

RTD_G+{3}

R1.8DVCC

U501

RTD2025L QFN-48

1
2
3
4
5
6
7
8

9
10
11
12

1314151617181920212223

24

36
35
34
33
32
31
30
29
28
27
26
25

4847464544434241403938

37

V1/REXT
V2/RX1P
V3/RX1N
V4/RX0P
V5/RX0N
V6/RXCP
V7/RXCN
AVS
AHS
ADC_GND
B­B+

G-G+R-R+ADC_VDD

BJT_B

VCCK

PGND

TXE3+

TXE3-

TXE2+

TXE2-

TXO1-

TXO1+

TXO2­TXO2+
TXOC-

TXOC+

TXO3­TXO3+

TXE0­TXE0+

TXE1­TXE1+

V0/RX2N

VCLK/RX2P

TMDS_VDD

XIN

DDCSCL/PWM0

DDCSDA/PWM1/IRQ

SCL

SDA

VCCK

PGND

TXO0-

TXO0+

RTD_SCLK

{4}

RXE3-

RTD_SD3/SDI

RXOC+

LVDS_O6

RXO0-

C503

0.1uF/16V

LVDS_E9

R1.8DVCC

RTD_B+{3}

LVDS_E0

RTD_G-{3}

LVDS_O0

RXEC-

RXE3+

RXE2-

LVDS_E3

RXO1-

LVDS_O3

RXE0-

RTD_V{3}

RXO1+

BJT_B

R507 3.3 2W LVDS_O1

RXOC-

RTD_R-

RXE1-

RXOC-

RTD_V

R1.8DVCC1

RTD_B-{3}

RTD_SD3/SDI

{4}

RXO0-

LVDS_E[0..9] {6}

RXO3-

LVDS_O7

RTD_H{3}

DGND

Q501

MMBT2907AK

RXE0+

CRYSTAR_OUT

{4}

22

17" LCD Color Monitor AOC 717Fwy

RXEC-

CN601

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

PANEL_VCC

PPWR_ON#{4}

RXE2-

RXE3-

RXO3+

RXE1-

R606

NC

S

LVDS_E9

RXO3-

Q602

PMBS3906

RXO2-

RXE1-

RXO0+

RXO0-

RXE0+

RXO1-

RXOC-

RXE3+

RXE1+

LVDS_O5

RXE3-

R601

10K 1/16W

RXE2+

LVDS_E7

LVDS_O3

LVDS_O7

RXO0+

PANEL_VCC

LVDS_E8

2

LVDS_E6

RXO1-

PANEL_VCC

RXO2+

RXE2+

RXE0­RXO3+
RXE0-

PPWR_ON#

RXOC+

RXEC+

G

R604

47K 1/16W

LVDS_O6

RXE2-

LVDS_O4

R602

330R 1/8W 5%

RXE0+

RXEC+

LVDS_E1

RXOC+

C602

0.01uF/25V

LVDS_O9

Q601
AO3401

1

AO3401L

LVDS_E4

R605

4K7 1/16W

LVDS_E3

RXO3-

RXE1+

RXO1+

A

A

6 6Thursday, June 14, 2007

715G2498-2-K06.OUTPUT

OEM MODEL Size

Rev

Date

Sheet of

TPV MODEL

PCB NAME

称爹

T P V ( Top Victory Electronics Co . , Ltd. )

Key Component

絬 隔 瓜 絪 腹

LVDS_E0

RXO2+

LVDS_O8

LVDS_E2

LVDS_O[0..9]{5}

LVDS_O2

D3

LVDS Panel ( FFC Type )

LVDS_O0

RXE3+

RXO0-

RXEC-

+

C604

47uF/25V

CMVCC

RXO2-

FB601

120Ω

LVDS_O1

RXO1+

C603

0.1uF/16V

LVDS_E5

LVDS_E[0..9]{5}

RXOC-

PANEL_VCC

23

17" LCD Color Monitor AOC 717Fwy

L901

4.0mH

124

3

F901
FUSE

R924
150R 1/8W

C916

0.1uF

IC901

LD7552BPS

1

2

3

4 5

6
7
8

GND

COMP

VCC

RT NC

CS
VCC
OUT

C930

0.1uF

R920100 1/4W

+

C922

470uF/25V

!

+5V

R909

5.1 1/4W

C921
3300PF/250V

+12V

D906
SP10100

1

2

3

R945
1K 1/4W

N.C

R933
300K 1/4W

R902

680K 1/4W

!

C925

NC

D901

FR103

R939
NC

C902

0.001uF/250V

+

C918
680uF/25V

Q901

2SK2645-54MR

R912

220 1/4W

D915
LL4148WP

D916

LL4148WP

C928

10NF

C932

1000pF

R908
100K 2W

R962 100 1/4W

R943
1K 1/8W

!

ZD906
RLZ22B

1 2

R938
10K 1/8W

!

+

C907
100uF/450V

R930

2.43K 1% 1/10W

R935 100 1/4W

HS3
HEAT SINK(Q901)

1
2

!

C909
470pF/25V

ZD922
RLZ5.1B

1 2

C929

0.001uF

ZD921

RLZ13B

1 2

R946

1K 1/4W

FG

CN902

CONNEC TOR

1
2
3
4
5
6
7
8
9

10

DIM

GND1
GND

1
2

+

C915

470uF/16V

L902

7.0mH

142

3

HS4
HEAT SINK

1
2

R919100 1/4W

+

C939

1000uF/16V

R910

10 1/4W

MUTE

C938

1500pF/1KV

C924

0.1uF

VAR901
Varistor

!

SG902 NC

R927

3.6K 1% 1/10W

R918100 1/4W

-

+

BD901

KBP208G

2

1

3

4

R932
300K 1/4W

ZD901

NC

1 2

R944
1K 1/4W

R926
1K 1/10W 1%

!

D905
SP1060

1

2

3

D900

FR107

R925
1K 1/8W

T901

POWER X'FMR

4

7

9

5

6
4

6

11
10

8

12

1

3

R900

680K 1/4W

!

L904

1.1uH

C912

0.001uF

IC904
KIA431A-AT/P

R905
NC

t

NR901
NTCR

VOL

CN901
SOCKET

12

3

R906
NC

!

R940
33K 1/10W

R915

100K 1/8W

!

D903

LL4148WP

!

R904
300K 1/4W

ZD905
RLZ18B

1 2

C906

1500pF/1KV

IC903
PC123X2YFZOF

12

43

ON/OFF

!

!

+

C908
22uF/50V

!

G2545

1 2Tuesday, April 10, 2007

Title

Size Document Num ber Rev

Date: Sheet of

R942
1K 1/10W 1%

ZD902
RLZ13B

+

C917

680uF/25V

R941

1K 1/4W

Q903
PMBS3904

D907
NC

R914

0.47 2W

N.C

HS2
HEAT SINK(D 906)

1
2

C905

0.1uF

R961 100 1/4W

F903

FUSE

!

R901

680K 1/4W

FB901
BEAD

12

C903

0.47uF/275V

C901

0.001uF/250V
R907

NC

+5V

SG901 NC

+

C940
1000uF/16V

!

L903

1.1uH

!

6.2 Power Board

24

pin15

R802
91K 1/ 10W

D806
LL4148WP

C823

0.0022uF

R837
47K 1/10W

Q805

PDTC144WK

R804
100 1/ 8W

R818
1K 1/10W 1%

F801

0R05 1/4W

T801

POWER X'FMR

6

3

7

4

81

R832
10K 1/10W

C825

0.1uF/25V

C817
NC

ZD801
RLZ6.8B

1 2

D814
LL4148WP

Q810

RK7002

R831
1K 1/8W

C820
220pF

C822
1uF/25V

R826

1K 1/8W

R825
22R 1/8W

R855
33 1/ 4W

R810
47K 1% 1/8W

Q811

PMBS3904

R823
0 1/ 10W

R841

61G0603560 2F

56KΩ 1% 1/10W

R850
22R 1/8W

C821

0.1uF/25V

+12V

D802
BAV99

3

1

2

R822
1K 1/10W 1%

C842

0.01uF

R863

10K 1/10W

C839
1000pF

R856
33 1/ 4W

CN801

33G8020 2E F

CONN

1

2

R807
10K 1/10W

Q804

PMBS3906

1

23

R828
10K 1/10W

R820

10K 1/10W

DTC

C801
15pF/3KV

R811

4.7K 1/10W

R813
1K 1/ 10W

R829
22R 1/8W

R839
22R 1/8W

+

C802

470uF/25V

R851

4.3KΩ 1% 1/ 10W

R854
NC

R824

1K 1/10W 1%

Q806
PMBS3904

Q809
RK7002

Q813

NC

R803
10M 1/10W

R865
NC

Q812

PMBS3906

1

23

C824

0.1uF

R861
NC

Q801

PMBS3904

R830

NC

D811
NC

C807

0.1uF/25V

Q802
AM9945N-T1-PF

1
2
3
4

8
7
6
5

S
G
S
G

D
D
D
D

R808
1K 1/10W 1%

D801
BAV99

3

1

2

R862
1M 1/10W 5%

C845

2.2uF/16V

DIM

R817
10K 1/10W

C834

0.1uF/25V

Q808
PDTA144WK

C819

0.0022uF

R853
68K 1/ 10W

R827
1K 1/10W 1%

CN802

33G8020 2E F

CONN

1

2

R821
1K 1/10W 1%

D813
LL4148WP

Q807
NC

D810
NC

1.0

G2545

Custom

2 2Tuesday, April 10, 2007

Title

Size Document Number Rev

Date: Sheet of

R835
1M 1/10W 5%

C838
1000pF

D805

LL4148WP

IC801

KA7500CDTF

1
2
3
4
5
6
7
8 9

10

11

12

13

14

15

16

IN1+
IN1­FB
DTC
CT
RT
GND
C1 E1

E2

C2

VCC

CONT

VREF

IN2-

IN2+

C846
NC

ON/OFF

C835
NC

D812
LL4148WP

R801
1K 1/10W 1%

D817
LL4148WP

R814
1K 1/10W 1%

D807

LL4148WP

R864
NC

17" LCD Color Monitor AOC 717Fwy

25

17" LCD Color Monitor AOC 717Fwy

LOUT-

C103 NC

MUTE

U101

1

2

3

4
5

6

7

8

9

10

11

12

13

14 15

16

17

18

19

20

PGND

ROUT-

PVDD

RIN+
RIN-

VDD

LIN-

LIN+

PVDD

LOUT-

PGND

LOUT+

NC

SHUTDOWN# FADE#

BYPASS

AGND

VOLUME

SE/BTL#

ROUT+

R102
NC

C107 NC

+5V

LOUT+R104 NC

C110

NC

C106 NC

ROUT-

C101 NC

+5V

R107

NC

CN101

NC

1
2
3
4
5

R105 NC

C109

NC

CN102

NC

1

2

3

4

+5V

+

C108
NC

R103

NC

+

C104 NC

ROUT+

R101
NC

C105 NC

C111

NC

C102 NC

VOL

R106

NC

R108
NC

26

17" LCD Color Monitor AOC 717Fwy

7. PCB Layout

7.1 Main Board

27

17" LCD Color Monitor AOC 717Fwy

28

17" LCD Color Monitor AOC 717Fwy

7.2 Power Board

29

17" LCD Color Monitor AOC 717Fwy

7.3 Key Board

30

17" LCD Color Monitor AOC 717Fwy

8. Maintainability

8.1 Equipments and Tools Requirement

1. Multi-meter.

2. Oscilloscope.

3. Pattern Generator.

4. DDC Tool with and Compatible Computer.

5. Alignment Tool.

6. LCD Color Analyzer.

7. Service Manual.

8. User Manual.

31

17" LCD Color Monitor AOC 717Fwy

No power

Press power key and look
if the picture is normal

Please reinsert and make sure
the AC of 100-240 is normal

Measure CN201 PIN3, 4=5V,
U201 PIN2=3.3V

Reinsert or check the
Adapter/Inverter section

X401 oscillate waveforms are

Check CN201 or U201

Replace U501

Replace X401
OK

OK

OK

NG

NG

NG

NG
OK

Measures U401, U403 are
normal

NG

Replace U401, U403

8.2 Trouble Shooting

8.2.1 Main Board

No power

32

17" LCD Color Monitor AOC 717Fwy

No picture

The button if under control

Replace the key button

Measure CN201 PIN3, 4=5V,
U201 PIN2=3.3V

Replace U501

X401 oscillate waveform is
normal

Replace CN201 or U201

OK

OK

OK

OK

NG

NG

Check HS/VS from CN301 is
normal

Replace X401

Check Correspondent component

NG

NG

Measures U401, U403 are
normal

OK

NG

Replace U401, U403

No picture (LED orange)

33

17" LCD Color Monitor AOC 717Fwy

White screen

X401 oscillate
waveform is normal

Check Q601 is broken or
CN601 solder?

Check Correspondent
component.

Replace PANEL

Check Correspondent
component.

Replace U501

OK

OK

OK

Replace X401

NG

NG

NG

NG

Check reset circuit of
U401 is normal

Measure Q602 base
is low level?

OK

White screen

34

17" LCD Color Monitor AOC 717Fwy

Check C930 = 12V

Check AC line volt 110V or 220V

Check AC input

Check the voltage of C907 (+)

Check bridge rectified circuit and F901 circuit

Check start voltage for the pin3 of IC901

Check R904, R932, R933, Change IC901

NG

Check the auxiliary voltage is bigger than
10V and smaller than 20V

1) Check IC901

2) Check R909/D901 circuit

OK

OK

NG

Check D905/D906/Q903/IC903/IC904/ZD921/ZD922

OK

Check IC901 pin8 PWM wave

OK

Check D900, Q901, IC901

NG

NG

NG

OK

NG

8.2.2 Power Board

1) No power

35

17" LCD Color Monitor AOC 717Fwy

Check F801=12V

NG

OK

Check adapter and F801

Check ON/OFF signal

Check Interface board or main board

NG

OK

Check IC801 PIN12=10.5V

NG

OK

Change on/off circuit

Check IC801 PIN5 have triangle wave

NG

OK

Change IC801

Check IC801 PIN9/PIN10 PWM wave

NG

OK

Check IC801

Check Q802 Drain wave

NG

Check the output of T801

Check Q801/Q804/Q811/Q812

Check connecter & lamp, feedback and protect circuit

OK

NG

Change T801

OK

2.) No Backlight

36

17" LCD Color Monitor AOC 717Fwy

OSD is unstable or not working

Is Key Pad Board connecting normally?

Connect Key Pad Board

Is Button Switch normally?

Replace Button Switch

Y

N

N

Is Key Pad Board normally?

Replace Key Pad Board

Y

N

Y

Check Main Board

8.2.3 Key Board

37

17" LCD Color Monitor AOC 717Fwy

9. White- Balance, Luminance Adjustment

Approximately 30 minutes should be allowed for warm up before proceeding white balance adjustment.
Before started adjust white balance , please set the Chroma-7120 MEM Channel 3 to Warm (6500K) color, MEM
Channel 4 to Normal (7300K) color, MEM Channel 9 to Cool (9300K) color , and MEM Channel 10 to sRGB color
( our Warm color parameter is x = 313 ±20, y = 329 ±20, Y=180cd/m2; Normal color parameter is x = 301 ±20, y =
317 ±20, Y=180cd/m2; Cool color parameter is x = 283 ±20, y = 297 ±20, Y=180cd/m2; sRGB color parameter is
x = 313 ±20, y = 329 ±20, Y= 180cd/m2)
How to setting MEM channel you can reference to chroma 7120 user guide or simple use “ SC” key and
“ NEXT” Key to modify xyY value and use “ID” key to modify the TEXT description Following is the procedure
to do white-balance adjust .

2. Setting the color temp. you want
A. MEM.CHANNEL 3 (Warm color):

Warm color temp. parameter is x = 313 ±20, y = 329 ±20, Y=180cd/ m2

B. MEM.CHANNEL 4 (Normal color):

Normal color temp. parameter is x = 301 ±20, y = 317 ±20, Y=180cd/ m2

C. MEM.CHANNEL 9 (Cool color):

Cool color temp. parameter is x = 283 ±20, y = 297 ±20, Y=180cd/m

D. MEM.CHANNEL 10 (sRGB color):

2

sRGB color temp. parameter is x = 313 ±20, y = 329 ±20, Y= 180cd/m2

3. Into Factory mode of 717Fwy:

Press the MENU button, pull out the power cord, and then plug the power cord. Then the factory OSD will be at the
left top of the panel.

4. Bias adjustment:

Set the Contrast to 50; Adjust the Brightness to 90.

5. Gain adjustment:

Move cursor to “-F-” and press MENU key

A. Adjust Warm (6500K) color-temperature

1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)

2. Switch the MEM.channel to Channel 3 (with up or down arrow on chroma 7120)

3. The LCD-indicator on chroma 7120 will show x = 313 ±20, y = 329 ±20, Y=180cd/m2

4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100

5. Adjust the GREEN on factory window until chroma 7120 indicator reachedthe value G=100

6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100

7. Repeat above procedure (item 4, 5, 6) until chroma 7120 RGB value meet the tolerance =100±2

B. Adjust Normal (7300K) color-temperature

1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)

2. Switch the MEM.channel to Channel 4(with up or down arrow on chroma 7120)

3. The LCD-indicator on chroma 7120 will show x = 301 ±20, y = 317 ±20, Y=180cd/m

2

4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100

38

17" LCD Color Monitor AOC 717Fwy

5. Adjust the GREEN on factory window until chroma 7120 indicator reachedthe value G=100

6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100

7. Repeat above procedure (item 4, 5, 6) until chroma 7120 RGB value meet the tolerance =100±2

C. Adjust Cool (9300K) color-temperature

1. Switch the Chroma-7120 to RGB-Mode (with press “MODE” button)

2. Switch the MEM. Channel to Channel 9 (with up or down arrow on chroma 7120)

3. The LCD-indicator on chroma 7120 will show x = 283 ±20, y = 297 ±20, Y=180cd/m

4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100

5. Adjust the GREEN on factory window until chroma 7120 indicator reached the value G=100

6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100

7. Repeat above procedure (item 4, 5, 6) until chroma 7120 RGB value meet the tolerance =100±2

D. Adjust sRGB color-temperature

1. Switch the chroma-7120 to RGB-Mode (with press “MODE” button)

2. Switch the MEM.channel to Channel 10 (with up or down arrow on chroma 7120)

3. The LCD-indicator on chroma 7120 will show x = 313 ±20, y = 329 ±20, Y= 180cd/m2

2

4. Adjust the RED on factory window until chroma 7120 indicator reached the value R=100

5. Adjust the GREEN on factory window until chroma 7120 indicator reachedthe value G=100

6. Adjust the BLUE on factory window until chroma 7120 indicator reached the value B=100

7. Repeat above procedure (item 4, 5, 6) until chroma 7120 RGB value meet the tolerance =100±2

E. Turn the Power-button off to quit from factory mode.

39

17" LCD Color Monitor AOC 717Fwy

10. Monitor Exploded View

40

17" LCD Color Monitor AOC 717Fwy

Location

Part No.

Description

026G 800504 3

BARCODE LABEL

040G 154501 1

HI-POT GND LABEL

040G 581 26646

EANCODE LABEL

040G 58162461A

EPA LABEL

044G3231 15

EVA WASHER

044G6000 4E

CARTON

045G 77 3

PE PACKING

045G 77500

BARCODE RIBBON

045G 77501

BARCODE RIBBON

051G6001 2

DESICCANT

052G 1150 C

INSULATING TAPE

052G 1185

MIDDLE TAPE

052G 1185 1

BIG TAPE

052G 1186

SMALL TAPE

052G 1191

GLASS CLOTH

052G 1192

GLASS CLOTH

052G 1211 A

165MINIUM TAPE

052G 1211527

ALUMINUM FOIL TAPE

052G 2191 A

PAPER TAPE

052G6019 1

INSULATING TAPE

089G 17356C554

AUDIO CABLE

089G 725CAA DB

D-SUB

089G402A15NIS1

POWER CORD

095G8014 6D 41

HARNESS 6P-6P 170MM

0M1G 130 5120

SCREW

0M1G1730 6120

SCREW,42-D020523

0M1G1740 10 47 CR3

SCREW

0Q1G 330 8120

SCREW 3X8MM 42A9930017/ 42-D002093

705GQ834068

BEZEL ASS'Y(17")

705GQ834070

BASE/STAND ASS'Y(17")

A15G0207 K 6 CKD

MAINFRAME

A33G0173ABJ 1L

CABLE CLAMP

A34G0433ABJA7B

REAR COVER 17

CBPC7SRDA1Q4

MAIN BOARD

KEPC7QK7

KEY BOARD

PWPC721HE4

POWER BOARD

Q07G 8 2 2

COMPOUND PALLET

11. BOM List

T77HRDNQBWA15N

41

17" LCD Color Monitor AOC 717Fwy

Q20G6036 1 30

FUNCTION-KEY-COAT

Q20G6046 1 30

POWER_KEY

Q36G 600517

DUSTER CLOTH

Q40G 17N61586A

717FWY POP LABEL

Q40G000260811A

BASIC LABEL

Q40G000262448A

POP LABEL

Q40G000262452A

DEEVO STICK

Q41G7800615B55

SA SERVICE CENTER

Q41G780A61554A

717FWY QSG

Q45G 76 28CK2 R

PE BAG

Q45G 88606 16 R

PE BAG FOR CLAMP

Q45G 88606CK2 R

PE BAG FOR BASE

Q45G 88609122

EPE BAG FOR MONITOR

Q70G700661524A

CD MANUAL

750GLH70GWB12N

PANEL HSD170MGW1 B00 NJ HSD

E08907

S89G179T30N9A

FFC CABLE

040G 581 26646

EANCODE LABEL

Q44G600019S 2A GP

CARTON

040G 581 26646

EANCODE LABEL

045G 88525 B

PE BAG

Q44G600017L 2A

CARTON

040G 581 26646

EANCODE LABEL

Q44G600020L 1A

CARTON

E078

078G 322 7 Y

SPK 8 OHM 1.5W 260MM 43X18MM SUNLINK

0Q1G1030 8120

SCREW

Q34G0302AEVA1X

BEZEL L17WA-7KH12

A34G0289ABJ 1B

STAND

A37G0031 3CKD

HINGE

AM1G1740 10 47 CR3

SCREW

Q12G6600 8

PORON FOOT

Q34G0243AEV 1X

BASE 7S9

Q34G0244 X2 1B CKD

BASE-RING 7S10

040G 45762412B

CBPC LABEL

CN202

033G3802 6

WAFER

CN201

033G3802 9

WAFER 9P RIGHT ANELE PITCH

CN601

033G801930F CH JS

CONNECTOR

R507

061G152M339 64

CHIPR 3.3 OHM +-5% 2W

C405

067G 3151007KV

ELCAP 10UF M 50V 105℃ KINGNICHI

C202

067G 3151014KV

EC 105℃ CAP 100UF M 25V

C203

067G 3151014KV

EC 105℃ CAP 100UF M 25V

42

17" LCD Color Monitor AOC 717Fwy

C505

067G 3152207KV

ELCAP 22UF M 50V 105℃ KING NICHI

C604

067G 3154704KV

ELCAP 47UF M 25V 105℃ KINGNICHI

CN301

088G 35315F H

D-SUB 15PIN

X401

093G 22 45 H

24MHZ/30PF/49US

SMTC7SRDA1Q4

MAIN BOARD FOR SMT

CN001

033G3802 6H

WAFER 6P RIGHT ANGLE PITCH 2.0

SW005

077G610D 1 WB

TACT SW+LED

SMTKEPC7QK7

KEY BOARD FOR SMT

040G 45762412B

CBPC LABEL

GND1

009G6005 1

GROUND TERMINAL

CN102

033G3802 4 DH JF

WAFER

CN801

033G8020 2E F

CONNECTOR

CN802

033G8020 2E F

CONNECTOR

IC903

056G 139 7 1

IC EL817MA M-TYPE

U101

056G 616 37

IC TPA6021A4NE4 2W*2 PDIP-20

NR901

061G 58080 WT

8 OHM NCT

R914

061G152M47852T

RST MOFR 0.47 OHM +-5% 2WS

C903

063G 10747410V

0.47UF 275VAC ARCO

C938

065G 1K152 1T

1.5NF/1KV Z5F+-10%

C801

065G 6J1506ET

15PF 5% SL 6KV

C902

065G305M1022BP

Y2 1000PF M 250VAC Y5P

C901

065G305M1022BP

Y2 1000PF M 250VAC Y5P

C921

065G306M3322BP

3300PF 20%

C907

067G 40Z10115K

CAP 105℃ 100UF M 450V

C922

067G215D4714KV

E.C 105℃ CAP 470UF M 25V ED SERIES

C802

067G215D4714KV

E.C 105℃ CAP 470UF M 25V ED SERIES

C918

067G215D6814KV

CAP 105℃ 680UF M 25V

C917

067G215D6814KV

CAP 105℃ 680UF M 25V

C940

067G215S1023KV

105℃ 1000UF M 16V

C939

067G215S1023KV

105℃ 1000UF M 16V

C915

067G215S4713KV

EC 105℃ CAP 470UF M 16V

L902

073G 174 65 H

LINE FILTER

T801

080GL17T 40 H

XFMR INVERTER DADON

CN901

087G 501 32 S

AC SOCKET

CN101

088G 30214K DC

PHONE JACK 5PIN

BD901

093G 50460 28

BRIDGE DIODE KBP208G LITEON

CN902

095G801410E 51

WIRE HARNESS

705GQ7 57001

Q901 ASS'Y

705GQ7 93001

D905 ASS'Y

705GQ761006

R908 ASS'Y

43

17" LCD Color Monitor AOC 717Fwy

705GQ793040

D906 ASS'Y

PW721HE4SMT

POWER BOARD FOR SMT

HS6

Q90G6295 3

HEAT SINK

L901

S73G17476V

LINE FILTER ASS'Y

L903

S73G25391V1

CHOKE COIL ASS'Y

L904

S73G25391V1

CHOKE COIL ASS'Y

T901

S80GL17T33V

TRANSFORMER ASS'Y

089F80002053AG

1.0*30*3-205-3-0.65*0.05

033F303FH10BK3

F1010HA-30P-BK

033F303FJSHK30

1.0S-19-30A

U402

056G 158501

AZ431AN-A-E1

U501

056G 562701

SCALER IC RTD2025L QFN-48

U201

056G 585 4A

AP1117E33LA

U401

056G1125701 X(WA8RWR7HAQ1)

IC MCU RTD2120L-LF REALTEK

U403

056G1133 56

M24C16-WMN6TP

Q202

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q401

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q204

057G 417 6

PMBS3906/PHILIPS-SMT(06)

Q205

057G 417 6

PMBS3906/PHILIPS-SMT(06)

Q602

057G 417 6

PMBS3906/PHILIPS-SMT(06)

Q501

057G 417 22 T

TRA KN2907AS -60V/-0.6A SOT-23

Q502

057G 417 22 T

TRA KN2907AS -60V/-0.6A SOT-23

Q601

057G 763 1

A03401 SOT23 BY AOS(A1)

R302

061G0402000

RST CHIPR 0 OHM +-5% 1/16W

R429

061G0402000

RST CHIPR 0 OHM +-5% 1/16W

R315

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R313

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R312

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R311

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R309

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R308

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R306

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R303

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R301

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R408

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R409

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R410

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R420

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R422

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R430

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

44

17" LCD Color Monitor AOC 717Fwy

R432

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R433

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R434

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R435

061G0402101

RST CHIPR 100 OHM +-5% 1/16W

R454

061G0402102

RST CHIPR 1 KOHM +-5% 1/16W

R453

061G0402102

RST CHIPR 1 KOHM +-5% 1/16W

R424

061G0402102

RST CHIPR 1 KOHM +-5% 1/16W

R423

061G0402102

RST CHIPR 1 KOHM +-5% 1/16W

R402

061G0402102

RST CHIPR 1 KOHM +-5% 1/16W

R601

061G0402103

RST CHIPR 10 KOHM +-5% 1/16W

R438

061G0402103

RST CHIPR 10 KOHM +-5% 1/16W

R436

061G0402103

RST CHIPR 10 KOHM +-5% 1/16W

R425

061G0402103

RST CHIPR 10 KOHM +-5% 1/16W

R416

061G0402103

RST CHIPR 10 KOHM +-5% 1/16W

R404

061G0402103

RST CHIPR 10 KOHM +-5% 1/16W

R213

061G0402103

RST CHIPR 10 KOHM +-5% 1/16W

R210

061G0402103

RST CHIPR 10 KOHM +-5% 1/16W

R207

061G0402121

RST CHIP 120R 1/16W 5%

R208

061G0402121

RST CHIP 120R 1/16W 5%

R201

061G0402201

RST CHIP 200R 1/16W 5%

R426

061G0402220

RST CHIPR 22 OHM +-5% 1/16W

R428

061G0402220

RST CHIPR 22 OHM +-5% 1/16W

R304

061G0402222

RST CHIPR 2.2 KOHM +-5% 1/16W

R305

061G0402222

RST CHIPR 2.2 KOHM +-5% 1/16W

R437

061G0402392

RST CHIP 3.9K 1/16W 5%

R403

061G0402392

RST CHIP 3.9K 1/16W 5%

R401

061G0402392

RST CHIP 3.9K 1/16W 5%

R202

061G0402472

RST CHIPR 4.7 KOHM +-5% 1/16W

R405

061G0402472

RST CHIPR 4.7 KOHM +-5% 1/16W

R406

061G0402472

RST CHIPR 4.7 KOHM +-5% 1/16W

R407

061G0402472

RST CHIPR 4.7 KOHM +-5% 1/16W

R411

061G0402472

RST CHIPR 4.7 KOHM +-5% 1/16W

R412

061G0402472

RST CHIPR 4.7 KOHM +-5% 1/16W

R413

061G0402472

RST CHIPR 4.7 KOHM +-5% 1/16W

R414

061G0402472

RST CHIPR 4.7 KOHM +-5% 1/16W

R451

061G0402472

RST CHIPR 4.7 KOHM +-5% 1/16W

R605

061G0402472

RST CHIPR 4.7 KOHM +-5% 1/16W

R604

061G0402473

RST CHIPR 47 KOHM +-5% 1/16W

R415

061G0402682

RST CHIP 6K8 1/16W 5%

R431

061G0402682

RST CHIP 6K8 1/16W 5%

45

17" LCD Color Monitor AOC 717Fwy

R439

061G0402682

RST CHIP 6K8 1/16W 5%

R307

061G0402750

RST CHIPR 75 OHM +-5% 1/16W

R310

061G0402750

RST CHIPR 75 OHM +-5% 1/16W

R314

061G0402750

RST CHIPR 75 OHM +-5% 1/16W

FB501

061G0603000

RST CHIPR 0 OHM +-5% 1/10W

R602

061G0805331

RST CHIPR 330 OHM +-5% 1/8W

C401

065G0402100 31

CAP 0402 10PF J 50V NPO

C411

065G0402100 31

CAP 0402 10PF J 50V NPO

C602

065G0402103 22

CHIP 0.01UF 25V X7R

C201

065G0402104 15

MLCC 0402 0.1UF K 16V X5R

C204

065G0402104 15

MLCC 0402 0.1UF K 16V X5R

C205

065G0402104 15

MLCC 0402 0.1UF K 16V X5R

C206

065G0402104 15

MLCC 0402 0.1UF K 16V X5R

C209

065G0402104 15

MLCC 0402 0.1UF K 16V X5R

C210

065G0402104 15

MLCC 0402 0.1UF K 16V X5R

C315

065G0402104 15

MLCC 0402 0.1UF K 16V X5R

C403

065G0402104 15

MLCC 0402 0.1UF K 16V X5R

C406

065G0402104 15

MLCC 0402 0.1UF K 16V X5R

C410

065G0402104 15

MLCC 0402 0.1UF K 16V X5R

C501

065G0402104 15

MLCC 0402 0.1UF K 16V X5R

C503

065G0402104 15

MLCC 0402 0.1UF K 16V X5R

C506

065G0402104 15

MLCC 0402 0.1UF K 16V X5R

C507

065G0402104 15

MLCC 0402 0.1UF K 16V X5R

C603

065G0402104 15

MLCC 0402 0.1UF K 16V X5R

C412

065G0402105 A5

CAP 0402 1UF K 10V X5R

C402

065G0402105 A5

CAP 0402 1UF K 10V X5R

C404

065G0402224 17

CAP CER 0.22UF -20%-80%

C302

065G0402330 31

CHIP CAP 0402 33PF J 50V NPO

C303

065G0402330 31

CHIP CAP 0402 33PF J 50V NPO

C311

065G0402473 12

CHIP 0.047UF 16V X7R

C309

065G0402473 12

CHIP 0.047UF 16V X7R

C307

065G0402473 12

CHIP 0.047UF 16V X7R

C306

065G0402473 12

CHIP 0.047UF 16V X7R

C304

065G0402473 12

CHIP 0.047UF 16V X7R

C301

065G0402473 12

CHIP 0.047UF 16V X7R

C305

065G0402509 31

CHIP 5PF 50V NPO

C308

065G0402509 31

CHIP 5PF 50V NPO

C310

065G0402509 31

CHIP 5PF 50V NPO

FB201

071G 56K121 M

CHIP BEAD

FB502

071G 56K121 M

CHIP BEAD

46

17" LCD Color Monitor AOC 717Fwy

FB503

071G 56K121 M

CHIP BEAD

FB601

071G 56K121 M

CHIP BEAD

FB301

071G 59K190 B

19 OHM BEAD

FB302

071G 59K190 B

19 OHM BEAD

FB303

071G 59K190 B

19 OHM BEAD

D301

093G 64 33

DIO SIG SM BAV99 (PHSE)R

D302

093G 64 33

DIO SIG SM BAV99 (PHSE)R

D303

093G 64 33

DIO SIG SM BAV99 (PHSE)R

D402

093G 64 42 PP

BAV70 SOT-23

ZD307

093G 39S 34 T

UDZSNP5.6B ROHM

ZD305

093G 39S 34 T

UDZSNP5.6B ROHM

ZD304

093G 39S 34 T

UDZSNP5.6B ROHM

ZD303

093G 39S 34 T

UDZSNP5.6B ROHM

ZD302

093G 39S 34 T

UDZSNP5.6B ROHM

ZD301

093G 39S 34 T

UDZSNP5.6B ROHM

715G2498 2 K

MAIN BOARD PCB

Q002

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q001

057G 417 4

PMBS3904/PHILIPS-SMT(04)

R002

061G0603000

RST CHIPR 0 OHM +-5% 1/10W

R004

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R003

061G0603202

RST CHIPR 2 KOHM +-5% 1/10W

R001

061G0603202

RST CHIPR 2 KOHM +-5% 1/10W

R005

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R006

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

SW002

077G 605 1 AL GP

SMD SWITCH

SW003

077G 605 1 AL GP

SMD SWITCH

SW004

077G 605 1 AL GP

SMD SWITCH

SW001

077G 605 1 AL GP

SMD SWITCH

ZD006

093G 64 59 SU

ESD MLVS0603M04 0603

ZD007

093G 64 59 SU

ESD MLVS0603M04 0603

ZD008

093G 64 59 SU

ESD MLVS0603M04 0603

715G2834 1

KEY BOARD PCB

Q901

057G 724 11

STP9NK65ZFP

HS3

090G6263 1

HEAT SINK

0M1G1730 8120

SCREW

HS4

090G6084 1 GP

HEAT SINK

D905

093G 60257

DIODE SB1060FCT ITO-220AB BY PAN JIT

0M1G1730 8120

SCREW

R908

061G152M10458F

100K OHM 5% 2W

096G 29 8

TUBE

47

17" LCD Color Monitor AOC 717Fwy

D906

093G 60267

SP10100

0M1G1730 8120

SCREW

HS2

Q90G6263 2

HEAT SINK

IC801

056G 379 22

IC TL494IDR SOIC-16

IC901

056G 379 76

IC LD7552BPS SOP-8

Q801

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q806

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q811

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q903

057G 417 4

PMBS3904/PHILIPS-SMT(04)

Q804

057G 417 6

PMBS3906/PHILIPS-SMT(06)

Q812

057G 417 6

PMBS3906/PHILIPS-SMT(06)

Q809

057G 759 2

RK7002

Q810

057G 759 2

RK7002

Q808

057G 760 4B

PDTA144WK SOT346

Q805

057G 760 5B

PDTC144WK SOT346

Q802

057G 763 14

AM9945N

R823

061G0603000

RST CHIPR 0 OHM +-5% 1/10W

R801

061G0603100 1F

RST CHIPR 1 KOHM +-1% 1/10W

R808

061G0603100 1F

RST CHIPR 1 KOHM +-1% 1/10W

R814

061G0603100 1F

RST CHIPR 1 KOHM +-1% 1/10W

R818

061G0603100 1F

RST CHIPR 1 KOHM +-1% 1/10W

R824

061G0603100 1F

RST CHIPR 1 KOHM +-1% 1/10W

R827

061G0603100 1F

RST CHIPR 1 KOHM +-1% 1/10W

R926

061G0603100 1F

RST CHIPR 1 KOHM +-1% 1/10W

R942

061G0603100 1F

RST CHIPR 1 KOHM +-1% 1/10W

R807

061G0603100 2F

RST CHIPR 10K OHM +-1% 1/10W

R817

061G0603100 2F

RST CHIPR 10K OHM +-1% 1/10W

R820

061G0603100 2F

RST CHIPR 10K OHM +-1% 1/10W

R828

061G0603100 2F

RST CHIPR 10K OHM +-1% 1/10W

R832

061G0603100 2F

RST CHIPR 10K OHM +-1% 1/10W

R863

061G0603100 2F

RST CHIPR 10K OHM +-1% 1/10W

R813

061G0603102

RST CHIPR 1K OHM +-5% 1/10W

R105

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R104

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R103

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R102

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R101

061G0603103

RST CHIPR 10 KOHM +-5% 1/10W

R835

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

R862

061G0603105

RST CHIPR 1M OHM +-5% 1/10W

R803

061G0603106

RST CHIPR 10M OHM +-5% 1/10W

48

17" LCD Color Monitor AOC 717Fwy

R930

061G0603243 1F

RST CHIPR 2.43K OHM +-1% 1/10W

R940

061G0603330 2F

RST CHIPR 33K OHM +-1% 1/10W

R927

061G0603360 1F

RST CHIPR 3.6K OHM +-1% 1/10W

R811

061G0603472

RST CHIPR 4.7K OHM +-5% 1/10W

R851

061G0603510 1F

RST CHIPR 5.1K OHM +-1% 1/10W

R107

061G0603512

RST CHIPR 5.1 KOHM +-5% 1/10W

R106

061G0603512

RST CHIPR 5.1 KOHM +-5% 1/10W

R841

061G0603680 2F

RST CHIPR 68K OHM +-1% 1/10W

R853

061G0603683

RST CHIPR 68K OHM +-5% 1/10W

R802

061G0603910 2F

RST CHIPR 91K OHM +-1% 1/10W

R857

061G0805000

RST CHIPR 0 OHM +-5% 1/8W

R831

061G0805100 1F

RST CHIPR 1K OHM +-1% 1/8W

R915

061G0805100 3F

RST CHIPR 100KOHM +-1% 1/8W

R804

061G0805101

RST CHIPR 100 OHM +-5% 1/8W

R826

061G0805102

RST CHIPR 1K OHM +-5% 1/8W

R925

061G0805102

RST CHIPR 1K OHM +-5% 1/8W

R943

061G0805102

RST CHIPR 1K OHM +-5% 1/8W

R938

061G0805103

RST CHIPR 10K OHM +-5% 1/8W

R924

061G0805151

RST CHIPR 150 OHM +-5% 1/8W

R850

061G0805220

RST CHIPR 22 OHM +-1% 1/8W

R839

061G0805220

RST CHIPR 22 OHM +-1% 1/8W

R829

061G0805220

RST CHIPR 22 OHM +-1% 1/8W

R825

061G0805220

RST CHIPR 22 OHM +-1% 1/8W

R837

061G0805473

RST CHIPR 47K OHM +-5% 1/8W

R810

061G0805510 2F

RST CHIPR 51K OHM +-1% 1/8W

F801

061G1206000

RST CHIPR 0 OHM +-5% 1/4W

JR801

061G1206000

RST CHIPR 0 OHM +-5% 1/4W

JR901

061G1206000

RST CHIPR 0 OHM +-5% 1/4W

JR902

061G1206000

RST CHIPR 0 OHM +-5% 1/4W

R910

061G1206100

RST CHIPR 10 OHM +-5% 1/4W

R821

061G1206100 1F

RST CHIPR 1K OHM +-1% 1/4W

R822

061G1206100 1F

RST CHIPR 1K OHM +-1% 1/4W

R962

061G1206101

RST CHIPR 100 OHM +-5% 1/4W

R961

061G1206101

RST CHIPR 100 OHM +-5% 1/4W

R935

061G1206101

RST CHIPR 100 OHM +-5% 1/4W

R920

061G1206101

RST CHIPR 100 OHM +-5% 1/4W

R919

061G1206101

RST CHIPR 100 OHM +-5% 1/4W

R918

061G1206101

RST CHIPR 100 OHM +-5% 1/4W

R941

061G1206102

RST CHIPR 1K OHM +-5% 1/4W

R944

061G1206102

RST CHIPR 1K OHM +-5% 1/4W

49

17" LCD Color Monitor AOC 717Fwy

R945

061G1206102

RST CHIPR 1K OHM +-5% 1/4W

R946

061G1206102

RST CHIPR 1K OHM +-5% 1/4W

R108

061G1206109

RST CHIPR 1 OHM +-5% 1/4W

R912

061G1206221

RST CHIPR 220 OHM +-5% 1/4W

R904

061G1206304

RST CHIPR 300K OHM +-5% 1/4W

R932

061G1206304

RST CHIPR 300K OHM +-5% 1/4W

R933

061G1206304

RST CHIPR 300K OHM +-5% 1/4W

R855

061G1206330

RST CHIPR 33 OHM +-5% 1/4W

R856

061G1206330

RST CHIPR 33 OHM +-5% 1/4W

R909

061G1206519

RST CHIPR 5.1 OHM +-5% 1/4W

R900

061G1206684

RST CHIPR 680K OHM +-5% 1/4W

R901

061G1206684

RST CHIPR 680K OHM +-5% 1/4W

R902

061G1206684

RST CHIPR 680K OHM +-5% 1/4W

C110

065G0603101 31

CER1 0603 NP0 50V 100P PM5 R

C111

065G0603101 31

CER1 0603 NP0 50V 100P PM5 R

C842

065G0603103 32

CAP CHIP 0603 0.01UF K 50V X7R

C807

065G0603104 22

CAP CHIP 0603 0.1UF K 25V X7R

C821

065G0603104 22

CAP CHIP 0603 0.1UF K 25V X7R

C825

065G0603104 22

CAP CHIP 0603 0.1UF K 25V X7R

C834

065G0603104 22

CAP CHIP 0603 0.1UF K 25V X7R

C819

065G0603222 22

CHIP 2200PF 25V X7R

C823

065G0603222 22

CHIP 2200PF 25V X7R

C101

065G0603474 12

MLCC 0603 0.47UF K 16V X7R

C102

065G0603474 12

MLCC 0603 0.47UF K 16V X7R

C103

065G0603474 12

MLCC 0603 0.47UF K 16V X7R

C105

065G0603474 12

MLCC 0603 0.47UF K 16V X7R

C106

065G0603474 12

MLCC 0603 0.47UF K 16V X7R

C107

065G0603474 12

MLCC 0603 0.47UF K 16V X7R

C932

065G0805102 31

CAP CHIP 0805 1000PF J 50V NPO

C839

065G0805102 31

CAP CHIP 0805 1000PF J 50V NPO

C838

065G0805102 31

CAP CHIP 0805 1000PF J 50V NPO

C928

065G0805103 32

CAP CHIP 0805 10NF K 50V X7R

C824

065G0805104 32

CAP CHIP 0805 0.1UF K 50V X7R

C905

065G0805104 32

CAP CHIP 0805 0.1UF K 50V X7R

C916

065G0805104 32

CAP CHIP 0805 0.1UF K 50V X7R

C924

065G0805104 32

CAP CHIP 0805 0.1UF K 50V X7R

C930

065G0805104 32

CAP CHIP 0805 0.1UF K 50V X7R

C845

065G0805105 22

CAP CHIP 0805 1UF K 25V X7R

C109

065G0805105 22

CAP CHIP 0805 1UF K 25V X7R

C822

065G0805105 22

CAP CHIP 0805 1UF K 25V X7R

50

17" LCD Color Monitor AOC 717Fwy

C820

065G0805221 31

CAP CHIP 0805 220PF J 50V NPO

C909

065G0805471 21

CAP CHIP 0805 470PF J 25V NPO

C912

065G1206102 72

CAP CHIP 1206 1000PF K 500V X7R

C929

065G1206102 72

CAP CHIP 1206 1000PF K 500V X7R

D805

093G 6432S

IN4148W

D806

093G 6432S

IN4148W

D807

093G 6432S

IN4148W

D812

093G 6432S

IN4148W

D814

093G 6432S

IN4148W

D817

093G 6432S

IN4148W

D903

093G 6432S

IN4148W

D915

093G 6432S

IN4148W

D916

093G 6432S

IN4148W

D813

093G 6432S

IN4148W

D801

093G 6433P

BAV99

D802

093G 6433P

BAV99

ZD801

093G 39S 10 T

RLZ6.8B BY ROHM

ZD906

093G 39S 20 T

RLZ22B LLDS

ZD922

093G 39S 25 T

RLZ5.1B LLDS

ZD902

093G 39S 40 T

RLZ 13B LLDS

ZD921

093G 39S 40 T

RLZ 13B LLDS

ZD905

093G 39S 44 T

RLZ18B LLDS

CN901

006G 31500

EYELET

NR901

006G 31502

1.5MM RIVET

T901

006G 31502

1.5MM RIVET

IC904

056G 158 10 T

IC AZ431AZ-AE1 TO-92 BY AAC

C906

065G 2K152 1T GP

CERAMIC CAP

C104

067G215Y1014KT

EC CAP.105

C108

067G215Y1097NT

EC 1.0UF 50V KY50VB1M-TP5 5*11MM

C908

067G215Y2207KT

CAP 105℃ 22UF M 50V KINGNICHI

FB801

071G 55 9 T

FERRITE BEAD

FB102

071G 55 9 T

FERRITE BEAD

FB901

071G 55 29

FERRITE BEAD

F901

084G 55 7W

FUSE 3.15A 250V WICKMANN

F903

084G 56 4W

FUSE 4.0A 250V

D900

093G 6026T52T

RECTIFIER DIODE FR107

D901

093G 6038T52T

FR103

715G2545 2

POWER BOARD PCB

51

17" LCD Color Monitor AOC 717Fwy

Diversity of T77HRDNQBWA16N Compared with T77HRDNQBWA15N

Location

Location

Location

007G 5 1 A

COMPOUND PALLET

007G 5 10 1

COMPOUND PALLET

CBPC8SRDA1Q3

MAIN BOARD

KEPC8QK7

KEPC BOARD

Q44G 10 1

BIG CARTON FOR IC

Q44G 10 2

CORNER PAPER FOR CKD

Diversity of T77HRDNQBWA25N Compared with T77HRDNQBWA15N

Location

Location

Location

Q40G 17N61585A

RATING LABEL

Q41G780A61566A

WARRANTY CARD

Diversity of T77HRDNQBWA26N Compared with T77HRDNQBWA15N

Location

Location

Location

007G 5 1 A

COMPOUND PALLET

007G 5 10 1

COMPOUND PALLET

CBPC8SRDA1Q3

MAIN BOARD

KEPC8QK7

KEPC BOARD

Q40G 17N61585A

RATING LABEL

Q41G780A61566A

WARRANTY CARD

Q44G 10 1

BIG CARTON FOR IC

Q44G 10 2

CORNER PAPER FOR CKD

12. Different Parts List

52
