AOC 712Si Diagram
17” LCD Color Monitor AOC 712Si
Service
Service
Service
Horizontal Frequency
30kHz – 80kHz
TABLE OF CONTENTS
Description
Table Of Contents.......……..……..........................…........1
Revision List.….............……..........................……......2
Important Safety Notice.…………....................……......3
1. Monitor Specification..............................………........4
2. LCD Monitor Description…………………………….......5
3. Operation Instruction…………...............……...........6
3.1 General Instructions...........................…...........6
3.2 Control Button…………….…..............……...............6
3.3 Adjusting the Picture...........................…............7
4. Input/Output Specification............……………............8
4.1 Input Signal Connector............………….................8
4.2 Factory Preset Display Modes......................................9
4.3 Power Supply……..…………………...…….…………..10
N
4.4 Panel Specification.....……………………....................10
5. Block Diagram……...................…………................12
5.1 Soft Flow Chart….………………..……..……....….......12
SAFETY NOTICE
Page Description Page
5.2 Electrical Block Diagram….……………….......….….14
6. Schematic……………...........................................…15
6.1 Main Board.……...……..........................................15
6.2 Inverter Board..………..……..................................25
6.3 Power Board…....………..…….................................26
7. PCB Layout..…….………….......................................27
7.1 Main Board…………….............................................27
7.2 PWPC Board…..………..........................................27
7.3 Key Board………………...........................................28
8. Maintainability………..............................................28
8.1 Equipments and Tools Requirement………..............28
8.2 Trouble Shooting…….………...................................29
9. White-Balance, Luminance adjustment......................36

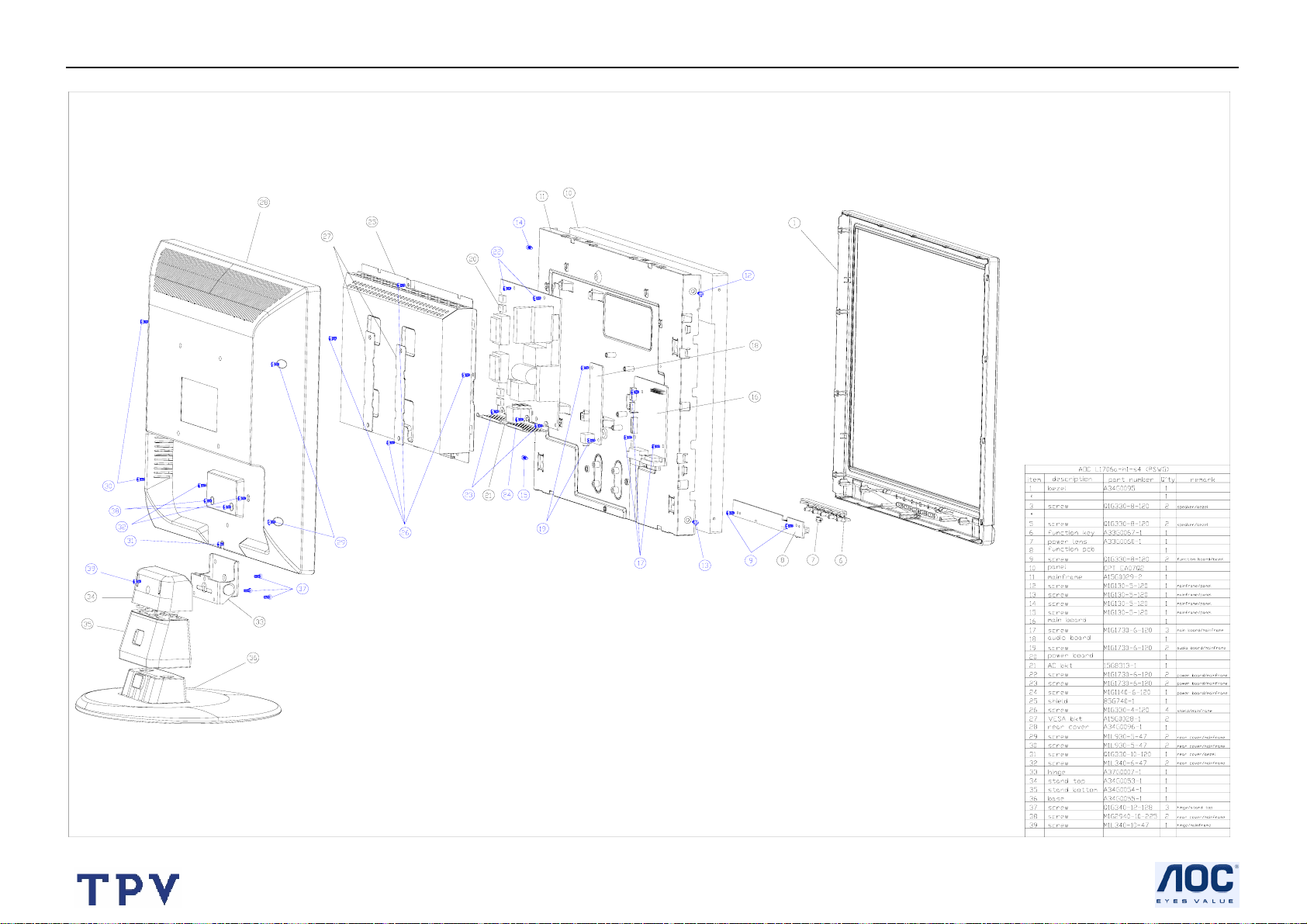

10. Monitor Exploded View……….……………...............37
11. BOM List………........................................................38
12.Different Part list…...........................................55
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE
CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING
ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.
CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING
1
17” LCD Color Monitor AOC 712Si
REVISION LIST
Revision Date Revision History TPV Model
A00 Feb-05-07 Initial Release T76CNNNQHAACNJ
A01 Mar-19-07 Add the Different Part List T76CNNNQHAA3FJ
T76CNNNQHAA4FJ
T76CNNNQHAA5FJ
2
17” LCD Color Monitor AOC 712Si
Important Safety Notice
Proper service and repair is important to the safe, reliable operation of all AOC Company Equipment. The service
procedures recommended by AOC and described in this service manual are effective methods of performing service
operations. Some of these service operations require the use of tools specially designed for the purpose. The
special tools should be used when and as recommended.
It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in
order to minimize the risk of personal injury to service personnel. The possibility exists that improper service
methods may damage the equipment. It is also important to understand that these CAUTIONS and NOTICES ARE
NOT EXHAUSTIVE. AOC could not possibly know, evaluate and advise the service trade of all conceivable ways in
which service might be done or of the possible hazardous consequences of each way. Consequently, AOC has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not
recommended by AOC must first satisfy himself thoroughly that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.
Hereafter throughout this manual, AOC Company will be referred to as AOC.
WARNING
Use of substitute replacement parts, which do not have the same, specified safety characteristics may create shock,
fire, or other hazards.
Under no circumstances should the original design be modified or altered without written permission from AOC.
AOC assumes no liability, express or implied, arising out of any unauthorized modification of design.
Servicer assumes all liability.
FOR PRODUCTS CONTAINING LASER:
DANGER-Invisible laser radiation when open AVOID DIRECT EXPOSURE TO BEAM.
CAUTION-Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION -The use of optical instruments with this product will increase eye hazard.
TO ENSURE THE CONTINUED RELIABILITY OF THIS PRODUCT, USE ONLY ORIGINAL MANUFACTURER'S
REPLACEMENT PARTS, WHICH ARE LISTED WITH THEIR PART NUMBERS IN THE PARTS LIST SECTION OF
THIS SERVICE MANUAL.
Take care during handling the LCD module with backlight unit
-Must mount the module using mounting holes arranged in four corners.
-Do not press on the panel, edge of the frame strongly or electric shock as this will result in damage to the screen.
-Do not scratch or press on the panel with any sharp objects, such as pencil or pen as this may result in damage to
the panel.
-Protect the module from the ESD as it may damage the electronic circuit (C-MOS).
-Make certain that treatment person’s body is grounded through wristband.
-Do not leave the module in high temperature and in areas of high humidity for a long time.
-Avoid contact with water as it may a short circuit within the module.
-If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)
3
17” LCD Color Monitor AOC 712Si
1. Monitor Specifications
Items Descriptions
Driving system TFT Color LCD
LCD Panel Size 43.2cm(17.0")
Pixel pitch 0.264mm( H ) × 0.264mm( V )
Video R,G,B Analog Interface
Input Separate Sync. H/V TTL
H-Frequency 30kHz – 80kHz
V-Frequency 55-75Hz
Display Colors 16.2M Colors
Dot Clock 135MHz
Max. Resolution 1280 × 1024 @75Hz
Plug & Play VESA DDC2B
ON Mode ≤37W
EPA ENERGY STAR®
OFF Mode ≤1W
Input Connector 15-pin D-Sub
Input Video Signal
Maximum Screen Size
Power Source 100~240VAC,47~63Hz
Environmental
Considerations
Dimension 399(W)×433(H)×133(D)mm
Analog:0.7Vp-p(standard),
75 OHM, Positive
Horizontal : 338mm
Vertical : 270mm
Operating Temp: 5° to 35°C
Storage Temp.: -20° to 60°C
Operating Humidity: 10% to 85%
TM
Weight (N. W.) 4.25kg Unit (net)
4
17” LCD Color Monitor AOC 712Si
(
2. LCD Monitor Description
The LCD MONITOR will contain a power board and key board.
The panel module will contain panel control logic, brightness control logic, CCFL backlight, signal processing, main
control and DDC etc.
The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips
each voltage.
Monitor Block Diagram
CCFL Drive.
Flat Panel and
CCFL backlight
PWPC board
Include: adapter, inverter)
(Include: main board)
Panel
Keyboard
RS232 Connector
For white balance
adjustment in factory
mode
AC-IN
100V-240V
HOST Computer
Video signal, DDC
5
17” LCD Color Monitor AOC 712Si
3. Operating Instructions
3.1 General Instructions
Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the
monitor. By changing these settings, the picture can be adjusted to your personal preferences.
• The power cord should be connected.
• Connect the video cable from the monitor to the video card.
• Press the power button to turn on the monitor position. The power indicator will light up.
3.2 Control Buttons
- Power Button:
Press this button to turn the monitor ON or OFF.
- Power Indicator:
Blue — Power On mode.
Orange — Off mode.
- MENU / ENTER :
Activate OSD menu when OSD is OFF or activate/de-activate adjustment function when OSD is ON or Exit OSD
menu when in Brightness /Contrast Adjust OSD status.
- Brightness :
Adjust brightness or function adjust.
- Contrast :
Adjust contrast or function adjust.
- Auto Adjust button / Exit:
1. When OSD menu is in active status, this button will act as EXIT-KEY (EXIT OSD menu).
2. When OSD menu is in off status, press this button for 2 seconds to activate the Auto Adjustment function.
The Auto Adjustment function is used to set the HPos, VPos, Clock and Focus.
OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press
power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor is off
and then press power button to turn the monitor on.
3 4 5
1 2
1. Auto Adjust button / Exit 2. / Contrast
3. Power Button/ LED 4. / Brightness
5. MENU / ENTER
6
17” LCD Color Monitor AOC 712Si
3.3 Adjusting the Picture
1. Press the MENU-button to activate the OSD window.
2. Press < or > to select the desired function.
activate it. If the function selected has a sub-menu, press
the desired function is highlighted, press MENU-button to activate it.
3. Press < or > to change the settings of the selected function.
4. To exit and save, select the exit function. If you want to adjust any other function, repeat steps 2-3.
Once the desired function is highlighted, press the MENU-button to
<
or > again to navigate through the sub-menu functions. Once
Main Menu Item
Luminance
Image Setup
Image Position
Main Menu
Icon
Sub Menu
Item
Contrast
Brightness
Focus
Clock
H. Position
V. Position
Sub Menu
Icon
Description
Contrast from Digital-register.
Backlight Adjustment
Adjust Picture Phase to reduce Horizontal-Line noise
Adjust picture Clock to reduce Vertical-Line noise.
Adjust the horizontal position of the picture.
Adjust the vertical position of the picture.
Color Temp.
User / Red
User / Green
User / Blue
Warm N/A
Cool N/A
Recall warm Color Temperature from EEPROM.
Recall cool Color Temperature from EEPROM.
Red Gain from Digital-register.
Green Gain Digital-register.
Blue Gain from Digital-register.
7
17” LCD Color Monitor AOC 712Si
Auto Config
OSD Setup
Language
Information
Reset
Yes N /A
Auto adjust the H/V Position,
Focus and clock of picture
No N/A
H. Position
Do not execute Auto config return to main menu.
Adjust the horizontal position of the OSD.
V. Position
OSD Timeout
Adjust the vertical position of the OSD.
Adjust the OSD timeout.
Language N/A
Set OSD language.
Information N/A
Yes N /A
No N/A
Show the resolution, H/V frequency and input port of
current input timing.
Clear each old status of Auto-configuration and set
the color temperature to Cool.
Do not execute reset, return to main menu.
Exit
4. Input/Output Specification
4.1 Input Signal Connector
D-SUB connector
Pin No. Description Pin No. Description
1. Red Video 9. +5V Supply
2. Green Video 10. Logic Ground
3. Blue Video 11. Monitor Ground
4. Monitor Ground 12. DDC-Serial Data
5. DDC-Return 13. H-Sync
6. Red Ground 14. V-Sync
7. Green Ground 15. DDC-Serial Clock
8. Blue ground
N/A N/A
Exit OSD
Analog Connector
15
6
11 15
10
8
17” LCD Color Monitor AOC 712Si
4.2 Factory Preset Display Modes
VESA MODES
Horizontal Vertical
Nominal
Mode Resolution Total
640x480@60Hz 800 x 525 31.469 N 59.940 N 25.175
VGA
SVGA
XGA
640x480@72Hz 832 x 520 37.861 N 72.809 N 31.500
640x480@75Hz 840 x 500 37.500 N 75.00 N 31.500
800x600@56Hz 1024 x 625 35.156 N/P 56.250 N/P 36.000
800x600@60Hz 1056 x 628 37.879 P 60.317 P 40.000
800x600@72Hz 1040 x 666 48.077 P 72.188 P 50.000
800x600@75Hz 1056x625 46.875 P 75.000 P 49.500
1024x768@60Hz 1344x806 48.363 N 60.004 N 65.000
1024x768@70Hz 1328x806 56.476 N 70.069 N 75.000
1024x768@75Hz 1312x800 60.023 P 75.029 P 78.750
Frequency
+/- 0.5kHz
Sync
Polarity
Nominal
Freq.
+/- 1 Hz
Sync
Polarity
Nominal
Pixel
Clock
(MHz)
SXGA
Horizontal Vertical
DOS 720x400@70Hz 900 x 449 31.469 N 70.087 P 28.322
DOS 640x350@70Hz 800 x 449 31.469 N 70.087 P 25.175
XGA 1024x768@72Hz 1304 x 798 57.515 P 72.1 P 75.000
VGA 640x480@67Hz 864 x 525 35.000 N 66.667 N 30.240
SVGA 832x624@75Hz 1152 x 667 49.725 N 74.551 N 57.2832
XGA 1024x768@60Hz 1312 x 813 48.780 N 60.001 N 64.000
1280x1024@60Hz 1688x1066 63.981 P 60.020 P 108.000
1280x1024@75Hz 1688x1066 79.976 P 75.025 P 135.000
IBM MODES
MAC MODES
9
17” LCD Color Monitor AOC 712Si
4.3 Power Supply
The power supply should be integrated to the monitor housing.
A/C Line voltage range : 100 V ~ 240 V
A/C Line frequency range
Current : 1.5A max at 100V; 0.8A max at 240 V
Peak surge current : < 55A peak at 240 VAC and cold starting
Leakage current : < 3.5mA
Power line surge : No advance effects (no loss of information or defect)
DC output Voltage
Current
4.4 Panel Specification
4.4.1 Display Characteristics
: 50 ± 3Hz, 60 ± 3Hz
With a maximum of 1 half-wave missing per second
: 5VDC ± 5％; 12VDC± 5％
1.5Amp (5V) ；2 Amp (12V)
10
17” LCD Color Monitor AOC 712Si
4.4.2 Optical Characteristics
4.4.3 Parameter guide line for CCFL Inverter
TFT LCD Module:
Back Light Unit:
11
17” LCD Color Monitor AOC 712Si
5. Block Diagram
5.1 Soft Flow Chart
1
2
N
4
5
Y
6
7
Y
N
N
3
18
9
10
Y
N
N
12
Y
14
19
N
11
13
15
17
N
Y
N
Y
16
Y
12
17” LCD Color Monitor AOC 712Si
1) MCU initializes.
2) Is the EPROM blank?
3) Program the EPROM by default values.
4) Get the PWM value of brightness from EPROM.
5) Is the power key pressed?
6) Clear all global flags.
7) Are the AUTO and SELECT keys pressed?
8) Enter factory mode.
9) Save the power key status into EPROM.
Turn on the LED and set it to green color.
Scalar initializes.
10) In standby mode?
11) Update the lifetime of back light.
12) Check the analog port, are there any signals coming?
13) Does the scalar send out an interrupt request?
14) Wake up the scalar.
15) Are there any signals coming from analog port?
16) Display "No connection Check Signal Cable" message. And go into standby mode after the message
disappears.
17) Program the scalar to be able to show the coming mode.
18) Process the OSD display.
19) Read the keyboard. Is the power key pressed?
13
17” LCD Color Monitor AOC 712Si
A
5.2 Electrical Block Diagram
5.2.1 Main Board
R
G
B
HS
VS
TXD
RXD
SD
Adapter 5V
DC/DC
U3
AIC108
12MH
U2
NEVETEK
U1
24C16
W/B
U4
RT9164
U6
24C02
DDC
Adapter 12V Inverter
PWB
Gray levels
Buffer
DC/DC
Converter
Vcom
Backlight
Data driver
Backlight
5.2.2 Inverter/Power Board
AC input
EMI filter
Start Circuit: R903, R926
Lamp
Output
Circuit
Feedback
Circuit
Bridge
Rectifier
and Filter
PWM
Control IC
Transformer
Transformer
Over
Voltage
Protect
MOSFET
Q802、Q803
PWM
Control IC
PWM
Rectifier
diodes
Feedback
Circuit
12V
CN902
12V
5V
ON/OFF
ON/OFF Control
DIM
14
17” LCD Color Monitor AOC 712Si
6. Schematic
6.1 Main Board
715G1783-D1-N
B_D17
B_D16
B_D15
B_D14
B_D13
B_D12
B_D11
BRSBP[3]
BRSBN[2]
BRSBP[2]
BRSBN[1]
BRSBP[1]
YUV_CLK
ADC_GND
ADC_VAA
HSYNCI
PLL_CVDD
VSYNCI
GPO5/HSO
TP87
IRQN
SDA
SCL
CVDD
DVDD
CGND
TOUTP
DVDD
DGND
B_D10
B_D9
B_D8
B_D7
B_D6
B_D5
B_D4
B_D3
B_D2
B_D1
B_D0
B_D19
B_D18
F_D19
F_D18
F_D17
F_D16
F_D15
F_D14
F_D13
F_D12
F_D11
F_D10
F_D9
F_D8
F_D7
F_D6
F_D5
F_D4
102
F_D3
101
F_D2
100
F_D1
99
F_D0
98
97
96
95
94
Y7
93
Y6
92
Y5
91
Y4
90
Y3
89
Y2
88
Y1
87
Y0
86
85
RINM
84
RIN
83
GINM
82
GIN
81
SOGI
80
79
78
BINM
77
BIN
76
75
74
73
72
OSCI
71
70
69
DVDD
68
GPO2
67
66
65
DDC_SDA
DDC_SCL
1.8V
3.3V
C12 0.01uF
C13 0.01uF
C14 0.01uF
C15 0.01uF
C16 0.01uF
C17 0.01uF
C20 0.01uF
3.3V
R16 22 1/16W
R17 22 1/16W
R18 22 1/16W
R19 22 1/16W
R20 22 1/16W
R21 22 1/16W
R22 22 1/16W
B_D[0..19]
F_D[0..19]
R_IN-
R_IN+
G_IN-
G_IN+
SOGI
B_IN-
B_IN+
R13 100 1/16W
12M_OSC
R14 100 1/16W
OE
POL
STV1
CLKV
LP
(NC)4PIN/2.0mm
C151
0.1uF
TP82
HSO
VSO
TP83
SCL
SDA
M_TXD
M_RXD
5V
CN2
1
2
3
4
5V
R183
4.7K 1/16W
DETECT
R184
6.8K 1/16W
GND
ADC_VAA
C19
0.1uF
TP78
HSI
VSI
C24
TP81
0.1uF
Title
Size Document Number Rev
Date: Sheet
1.8V
C1
10u
KEY2
KEY1
C8
0.1uF
10K 1/16W
C9
0.1uF
U1
1
A0
2
A1
3
A2
4 5
GND SDA
AT24C16N-10SC-2.7
MCU_VDD
R175
VCC
WP
SCL
8
7
6
R176
10K 1/16W
BL_EN
24C02_WP
AMP_STBY
VOLUME
BL_BRIGHT
MCU_VDD
VGA-VDD
3.3V
KEY2
KEY1
C3
0.1uF
C10
0.1uF
TP73
TP74
D25
1N4148
TP96
C4
C5
0.1uF
0.1uF
R7 100 1/16W
R8 100 1/16W
AMP_MUTE
R190
4.7 1/16W
D28
3.3V
TP84
TP85
C7
C6
0.1uF
0.1uF
R1 22 1/16W
R2 22 1/16W
WP
SCL
SDA
127
128
ARSRP[1]
1
3.3V
DVDD
2
ARSGN[3]
3
ARSGP[3]
4
ARSGN[2]
5
ARSGP[2]
6
ARSGN[1]
7
ARSGP[1]
8
DGND
9
ARSBN[3]
10
ARSBP[3]
11
ARSBN[2]
12
ARSBP[2]
13
ARSBN[1]
14
ARSBP[1]
15
1.8V
CVDD
16
12M_OSC
DGND
17
PD5/RSTN
18
PD4
19
PD3
20
NC
21
NC
22
PD2
23
PD1
24
PC7
25
PC6
26
PC5
27
PC4/PWM1
28
PC3/PWM0
29
PC2
30
PC1*
31
PC0*
32
VCC
33
PD0
34
PA0/PWM2
35
PA1/PWM3
36
PA2/PWM4
37
PA3/PWM5
38
PA4*/PWM6*
R28 1k 1/16W
TP71
RSTN
VGA_DET
R15
4.7K 1/16W
PWR_EN
PWR_LEDB
PWR_LEDO
TP75
WP
TP76
HSO
VSO
TP79
PWR
5V
R11
R12
4.7K 1/16W
TP77
TP80
MCU_VDD
+
C21
47uF/6.3V
1 2
TP86
C25
1u
15K 1/16W
C26
1u
C69
NC
R25
R26
15K 1/16W
5V
R23
1K 1/16W
NC/RN5VD45AA-TR-FA
R24
5
4.7K 1/16W
C22
0.1uF
R173
4.7K 1/16W
4.7K 1/16W
5V
U7
34
GNDNC
2
VDD
1
CD
OUT
ARSRN[1]
PA5*/PWM7*
PA6*/PWM8*
3940414243444546474849
C28
22pF-->NC
C29 22pF
126
ARSRP[2]
PA7*/PWM9*
C27
125
ARSRN[2]
RSTB
100pF-->22pF
122
124
123
ARSRP[3]
ARSRN[3]
ARSCLK_P
P30/RXD
PD6
P31/TXD
TXD
RXD
R29
Y1
1M 1/16W
12MHz
117
118
119
120
121
BRSRN[3]
DISP_SPA
BRSCLK_P
BRSCLK_N
ARSCLK_N
NT68621-64/128
QFP128
OSCO
PB2/ADC2/INTE0
PB3/ADC3/INTE1
P34/T0
P35/T1
50
IRQN
DETECT
MCU_VDD
R30 4.7K 1/16W
R32 4.7K 1/16W
R34 4.7K 1/16W-->NC
R36 4.7K 1/16W-->NC
Cancel R34,R36 due to
SCL/SDA already pulled up
by R178,R179 Klause 060307
116
BRSRP[3]
OSCI
51
115
BRSRN[2]
U2
GND
52
114
113
112
BRSRP[2]
BRSRN[1]
PB1/ADC1
PB0/ADC0
5455565758
53
KEY2
KEY1
3.3V
111
110
109
108
DVDD
BRSGP[3]
BRSRP[1]
BRSGN[3]
BRSGN[2]
PB4*/SCL0*
PB5*/SDA0*
PB6*/SCL1*
PB7*/SDA1*
SCL
59
104
107
106
105
DGND
BRSGP[2]
BRSGP[1]
BRSGN[1]
IRQN
GPO9/MD1
GPO8/MD0
GPO7
60
616263
R27
2.2K 1/16W
R31 100 1/16W
R33 100 1/16W
R35 100 1/16W
R37 100 1/16W
STH_B
STH_F
103
BRSBN[3]
GPO3/PWM0
GPO4/PWM1
GPO6/VSO
64
TO DEBUG
TO RS232
C18
10u
+
R5
100
R6
100
FB1
1 2
600 OHM
FB2
1 2
1000 OHM
C23
47uF/6.3V-->100uF/6.3V
I-MODEL
SCALER
CN1
1
2
3
(NC)3PIN/2.0mm
TXD
RXD
3.3V
1.8V
110Thursday, March 09, 2006
0.1
of
15
17” LCD Color Monitor AOC 712Si
0 OHM
C41
0.1uF
FB10
5V
C35
C34
C33
0.1uF
0.1uF
C40
+
100uF/16V
AMP_STBY
AMP_MUTE
FB6
0 OHM
H4
9
9
123
123
H3
678
5
9
678
9
5
4
4
123
TP
123
FB11
120 OHM/NC
1 2
1 2
0.1uF
678
1 2
C36
0.1uF
5
678
5
4
4
TP
FB7
120 OHM/NC
1 2
C37
0.1uF
STBY
1uF/16V
MUTE
1uF/16V
C39
C38
0.1uF
0.1uF
R185
100 1/16W
C153
R186
100 1/16W
C152
AOC Sam request Audio control method
R38 100-->15K
R39 22
R40 47
R41 22
R42 1K
R43 1K
R44 1K
D27
1N4148
R188
10K 1/16W
D26
1N4148
5V
BL_EN
PWR_LEDB
BL_BRIGHT
PWR_LEDO
KEY1
KEY2
PWR
R187
10K 1/16W
AMP_STBY
PWR_EN
R54
NC
R174
NC-->10K
R58,R51,R174,C49
changed for power
sequence
Klause 060109
5V
R51
10K-->47K 1/16W
R58
4.7K-->100K 1/16W
C49
0.1uF-->1uF,X7R
5V
C44
0.1uF
51K 1/16W
Q4
PMBS3904
U3
3
VIN
1
GND
C30
0.1uF
R57
AIC1084-33PM
U4 RT9164A18PG
ADJ/GND
VOUT(TAB)
VIN
123
PANEL_VDD
D
G
C47
0.1uF
S
+
Q3
AO3401
VOUT
C48
10uF/16V
R189
330 1/16W
2
+
C31
100uF/16V
+
C42
100uF/16V
5V
3.3V
C32
0.1uF
1.8V
C43
0.1uF
R55
0 1/16W
R59
10K 1/16W
CN3
CONN
STBY
0.1u-->NC
MUTE
BK_EN
1
2
3
BK_PWM
4
5
6
7
8
9
10
11
12
MUTE
13
STBY
14
VOLUME
15
R9
3K 1/16W
CPT request to add R9 for CTOC
to monitor VCOM Klause 060307
R48
NC/1K 1/16W
C46
R45
NC/10K 1/16W
C45
0.1uF-->NC
9
FB8
0 OHM
H1
9
123
5V
Q2
NC/PMBS3904
5V
678
5
4
123
1 2
VOLUME
VCOM
Q1
NC/PMBS3904
5
678
4
TP
FB9
120 OHM/NC
1 2
R49
NC
R50
NC/4.7K 1/16W
R46
NC
R47
NC/4.7K 1/16W
Add beads among ground wires for
EMI Klause 060307
16
Title
Size Document Number Rev
Date: Sheet
I-MODEL
POWER
210Thursday, March 09, 2006
of
0.1
17” LCD Color Monitor AOC 712Si
C50
1
2
0.22uF
D6
BAV99
DDC_SCL
DDC_SDA
2.2K 1/16W
D8
UDZS5.6B
1 2
D12UDZS5.6B-->NC
1 2
R75
2.2K 1/16W
R63
1K 1/16W
D9
UDZS5.6B
1 2
D13UDZS5.6B-->NC
C53
NC
1 2
R70 100 1/16W
R73 100 1/16W
C55
22pF
D7
UDZS5.6B
1 2
CN4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
CONN
DB_RDB_R+
DB_GDB_G+
DB_BDB_B+
DDC_VDD
VGA_CONN
VGA_HS
VGA_VS
DDC_SCL
M_TXD
M_RXD
DDC_VDD
D11
1 2
UDZS5.6B
VGA_CONN
DB_B+
DB_G+DDC_SDA
DB_R+
M_TXD
M_RXD
D15UDZS5.6B
1 2
VGA_HS
VGA_VS
D16UDZS5.6B
R74
1 2
C56
22pF
VGA_DET
C54
NC
GHS
GVS
DDC_SCL
DDC_SDA
M_TXD
M_RXD
R71
ADC_VAA
4.7K 1/16W
R60 100 1/16W-->0 ohm
C146
NC
R62 100 1/16W
R64 100 1/16
R65 100 1/16W-->0 ohm
C147
NC
R67 100 1/16W
R68 100 1/16-->0 ohm
C148
NC
R72 100 1/16W
B_IN+
B_IN-
SOGI
G_IN+
G_IN-
R_IN+
R_IN-
75 1/16W
75 1/16W
DB_R-
R61
R66
R69
75 1/16W
FB3
30 OHM BEAD
FB4
30 OHM BEAD
FB5
30 OHM BEAD
3
DB_B-
C51
1
2
0.22uF
D10
BAV99
3
DB_G-
C52
1
2
0.22uF
D14
BAV99
3
D17
UDZS5.6B
1 2
U6
AT24C02
1
A0
VCC
2
A1
WP
3
A2
SCLK
4 5
GND SDA
C149
0.1UF
8
7
6
VGA-VDD
R178
R179
4.7k
4.7k
R180 100 1/16W
R181 100 1/16W
R177
D24
BAV70
4.7K 1/16W
DDC_VDD
24C02_WP
DDC_SCL
DDC_SDA
U5
74LCX14
5V
24C02_WP
GHS
1
A1
2
B1
3
R76
NC
A2
4
B2
5
A3
6
B3
7 8
GND B4
VCC
3.3V
C57
14
13
A6
B6
A5
B5
A4
0.1uF
12
11
10
9
R77
NC
HSI
GVS
VSI
Title
Size Document Number Rev
Date: Sheet of
I-MODEL
VGA INPUT
310Thursday, March 09, 2006
0.1
17
Loading...
