RING HANGERS

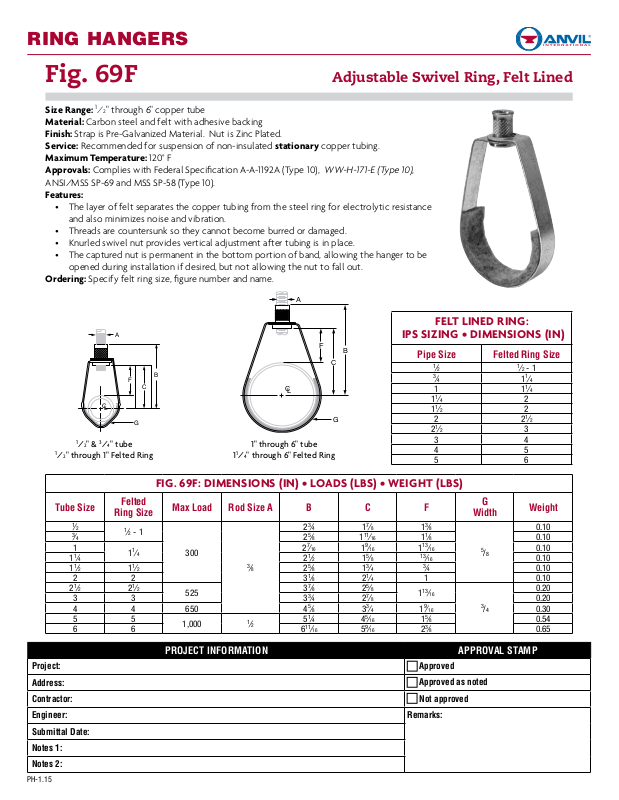

Fig. 69F Adjustable Swivel Ring, Felt Lined
Size Range: 1⁄2" through 6" copper tube
Material: Carbon steel and felt with adhesive backing
Finish: Strap is Pre-Galvanized Material. Nut is Zinc Plated.
Service: Recommended for suspension of non-insulated stationary copper tubing.
Maximum Temperature: 120° F
Approvals: Complies with Federal Specification A-A-1192A (Type 10),
ANSI/MSS SP-69 and MSS SP-58 (Type 10).
Features:
• The layer of felt separates the copper tubing from the steel ring for electrolytic resistance
and also minimizes noise and vibration.
• Threads are countersunk so they cannot become burred or damaged.
• Knurled swivel nut provides vertical adjustment after tubing is in place.
• The captured nut is permanent in the bottom portion of band, allowing the hanger to be
opened during installation if desired, but not allowing the nut to fall out.
Ordering: Specify felt ring size, figure number and name.
A
B
F
C
L
G
1
/2" & 3/4" tube
1
/2" through 1" Felted Ring
C
1" through 6" tube
1
/4" through 6" Felted Ring
1
C
L
WW-H-171-E (Type 10)
A
F
B
C
G
,
FELT LINED RING:
IPS SIZING • DIMENSIONS (IN)
Pipe Size Felted Ring Size
1
⁄2
3
⁄4 11⁄4
1 11⁄4
11⁄4 2
11⁄2 2
2 21⁄2
21⁄2 3
3 4
4 5
5 6
1
⁄2 - 1
FIG. 69F: DIMENSIONS (IN) • LOADS (LBS) • WEIGHT (LBS)
Tube Size
1
⁄2
3
⁄4 25⁄8 111⁄16 11⁄8 0.10
1
11⁄4 21⁄2 15⁄8
11⁄2 11⁄2 25⁄8 13⁄4
2 2 31⁄8 21⁄4 1 0.10
21⁄2 21⁄2
3 3 33⁄4 27⁄8 0.20
4 4 650 45⁄8 33⁄4 19⁄16 0.30
5 5
6 6 611⁄16 59⁄16 23⁄8 0.65
Project:
Address:
Contractor:
Engineer: Remarks:
Submittal Date:
Notes 1:
Notes 2:
PH-1.15
Felted
Ring Size
1
⁄2 - 1
11⁄4
Max Load Rod Size A B C F
23⁄4 17⁄8 13⁄8
300
525
1,000
3
⁄8
1
⁄2
27⁄16 19⁄16 113⁄16 0.10
37⁄8 25⁄8
13
3
⁄4 0.10
113⁄16
51⁄4 45⁄16 15⁄8 0.54
PROJECT INFORMATION APPROVAL STAMP
Approved
q
Approved as noted
q
Not approved
q
G
Width
Weight
0.10
5
⁄16 0.10
/8
0.20
3
/4
