CLEVIS HANGERS AND SHIELDS
A
C

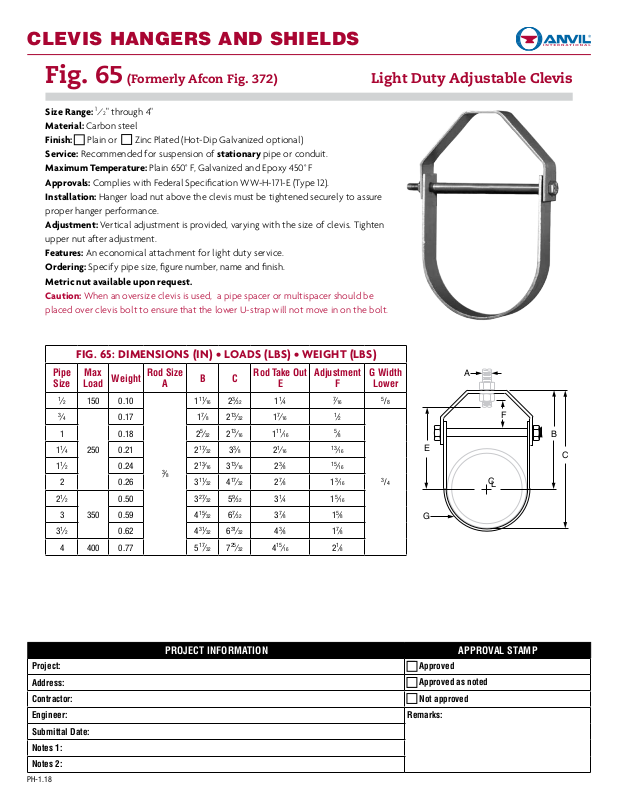

Fig. 65 (Formerly Afcon Fig. 372) Light Duty Adjustable Clevis
Size Range: 1⁄2" through 4"
Material: Carbon steel
Finish: q Plain or q Zinc Plated (Hot-Dip Galvanized optional)
Service: Recommended for suspension of stationary pipe or conduit.
Maximum Temperature: Plain 650° F, Galvanized and Epoxy 450° F
Approvals: Complies with Federal Specification WW-H-171-E (Type 12).
Installation: Hanger load nut above the clevis must be tightened securely to assure
proper hanger performance.
Adjustment: Vertical adjustment is provided, varying with the size of clevis. Tighten
upper nut after adjustment.
Features: An economical attachment for light duty service.
Ordering: Specify pipe size, figure number, name and finish.
Metric nut available upon request.
Caution: When an oversize clevis is used, a pipe spacer or multispacer should be
placed over clevis bolt to ensure that the lower U-strap will not move in on the bolt.
FIG. 65: DIMENSIONS (IN) • LOADS (LBS) • WEIGHT (LBS)
Pipe
Size
Project:
Address:
Contractor:
Engineer: Remarks:
Submittal Date:
Notes 1:
Notes 2:
PH-1.18
Max
Weight
Load
1
⁄2 150 0.10
3
⁄4
1 0.18 25⁄32 213⁄16 111⁄16
11⁄4 0.21 217⁄32 33⁄8 21⁄16
11⁄2 0.24 213⁄16 313⁄16 23⁄8
21⁄2
31⁄2 0.62 431⁄32 631⁄32 43⁄8 17⁄8
250
2 0.26 311⁄32 417⁄32 27⁄8 13⁄16
350
3 0.59 415⁄32 67⁄32 37⁄8 15⁄8
4 400 0.77 517⁄32 725⁄32 415⁄16 21⁄8
Rod Size
A
0.17 1
3
⁄8
0.50 3
B C
111⁄16 23⁄32 11⁄4
7
⁄8 213⁄32 17⁄16
27
⁄32 59⁄32 31⁄4 15⁄16
Rod Take Out EAdjustment FG Width
7
⁄16
1
5
13
15
