W-715 Fog Jet

USER MANUAL

 2013 Antari Lighting and Effects Ltd.

English

2

3

Safety Information

Please read the following safety information carefully before operating the
machine. Information includes important safety information about installation,
usage, and maintenance. Pay attention to all warning labels and instructions in
this manual and printed on the machine.

If you have questions about how to operate the machine safely, please contact your local
Antari dealer for help.

 Keep this device dry.
 Always connect to a grounded circuit to avoid risk of electrocution.
 Before connecting machine to power, always check voltage indicate on machine match

to your local AC voltage. Do not use the machine if AC power voltage does not match.

 Disconnect the machine from AC power before servicing and when not in use.
 This product is for indoor use only! Do not expose to rain or moisture. If fluid is spilled,

disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic parts,
immediately unplug the machine and contact your local Antari dealer for advice.

 No user serviceable and modifiable parts inside. Never try to repair this product,

unauthorized technician may lead machine to damage or malfunction.

 For adult use only. Never leave the machine running unattended.
 Installed in well ventilated area. Provide at least 50 cm space around the machine.
 Never add flammable liquid of any kind to the machine.
 Make sure there are no flammable materials close to the machine while operating.
 Only use Antari fluid. Other fluid may lead to heater clog and malfunction.
 If the machine fails to work, unplug the machine and stop operation immediately.

Contact your local Antari dealer for advise.

 Before transporting the machine, make sure the fluid tank is completely drained.
 Smoke fluid may present health risks if swallowed. Do not drink smoke fluid. Store it

securely. In case of eye contact or if fluid is swallowed immediately look for medical
advice.

4

Unpacking and Inspection

Immediately upon receiving the machine, carefully unpack the carton, check all content to
ensure that all parts are present and have been received in good condition. If any parts
appear damaged or mishandled from shipping, notify the shipper immediately and retain the
packing material for inspection.

What is included: 1 x W-715 Fogger

1 x Power Cord
1 x User Manual

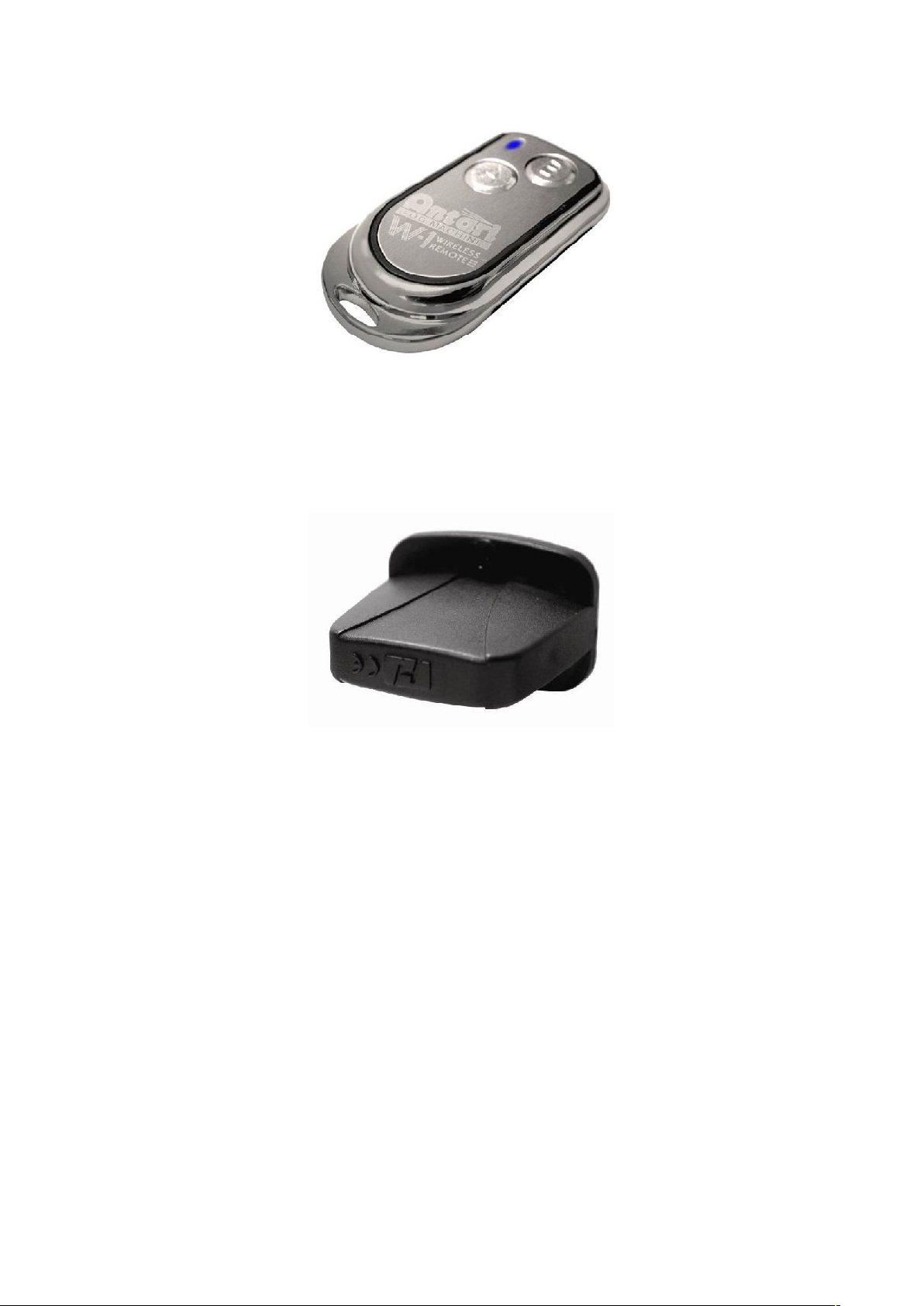

1 x W-1 Wireless Transmitter (excluded in W-715X)

Product Overview

Setting Up

Step 1: Place the machine on a flat surface and in a suitable large area with at least 50 cm
open space at each side of the machine and 5 meters for the output direction of the
machine.

Step 2: Fill the fluid tank with Antari FLC fog fluid.
Step 3: Connect the machine to suitable rated power supply. To determine the power

Wireless Receiver

DMX 3Pin

DMX 5Pin

Power Inlet

Breaker

LCD Control Panel

Handle

Tank Cap

（Group）

Smoke Output Nozzle
