Analog Devices AD13465AZ, AD13465AF, AD13465-PCB, 5962-0150601HXA Datasheet

Dual Channel, 14-Bit, 65 MSPS A/D Converter

a

with Analog Input Signal Conditioning

FEATURES
Dual, 65 MSPS Minimum Sample Rate

Channel-to-Channel Matching, ⴞ1% Gain Error
90 dB Channel-to-Channel Isolation

DC-Coupled Signal Conditioning
85 dB Spurious-Free Dynamic Range
Selectable Bipolar Inputs

(ⴞ1 V and ⴞ0.5 V Ranges)
Integral Two-Pole Low-Pass Nyquist Filter
Two’s Complement Output Format

3.3 V Compatible Outputs

1.8 W per Channel
Industrial and Military Grade

APPLICATIONS
Radar Processing

Optimized for I/Q Baseband Operation
Phased Array Receivers
Multichannel, Multimode Receivers
GPS Antijamming Receivers
Communications Receivers

PRODUCT DESCRIPTION

The AD13465 is a complete dual channel signal processing
solution including on-board amplifiers, references, ADCs,
and output termination components to provide optimized
system performance. The AD13465 has on-chip track-and-hold
circuitry and utilizes an innovative multipass architecture to
achieve 14-bit, 65 MSPS performance. The AD13465 uses

FUNCTIONAL BLOCK DIAGRAM

AMP-IN-A-2

AMP-IN-A-1

AD13465

state-of-the-art high-density circuit design and laser-trimmed
thin-film resistor networks to achieve exceptional channel
matching and impedance control, and provide for significant
board area savings.

Multiple options are provided for driving the analog input, includ­ing single-ended, differential, and optional series filtering. The
AD13465 also offers the user a choice of analog input signal
ranges to further minimize additional external signal condition­ing, while remaining general-purpose. The AD13465 operates
with ±5.0 V for the analog signal conditioning, 5.0 V supply for
the analog-to-digital conversion, and 3.3 V digital supply for
the output stage. Each channel is completely independent, allow­ing operation with independent Encode and Analog Inputs, while
maintaining minimal crosstalk and interference.

The AD13465 is packaged in a 68-lead ceramic gull wing
package. Manufacturing is done on Analog Devices’ MIL­38534 Qualified Manufacturers Line (QML) and components
are available up to Class-H (–40°C to +85°C). The components
are manufactured using Analog Devices’ high-speed comple­mentary bipolar process (XFCB).

PRODUCT HIGHLIGHTS

1. Guaranteed sample rate of 65 MSPS.

2. Input signal conditioning included; gain and impedance
matching.

3. Single-ended, differential, or off-module filter options.

4. Fully tested/characterized full channel performance

5. Pin compatible with 12-bit AD13280 product family.

AMP-IN-B-2

AMP-IN-B-1

AMP-OUT-A

A–IN

A+IN

DROUTA

(LSB) D0A

D1A

D2A

D3A

D4A

D5A

D6A

D7A

D8A

D9A

D10A

REV. 0

Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties that
may result from its use. No license is granted by implication or otherwise
under any patent or patent rights of Analog Devices.

11

100⍀ OUTPUT TERMINATORS

TIMING

ENC

ENC

D11A

VREF

DROUT

D12A

14

3

(MSB)

AD13465

D13A

AMP-OUT-B

B+IN

B–IN

DROUTB

TIMING

VREF
DROUT

14

100⍀ OUTPUT TERMINATORS

9

D0B

D1B D3BD2B D4B D5B D6B

(LSB)

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: [phone] www.analog.com
Fax: [phone] © Analog Devices, Inc., 2001

D7B

5

D8B

ENC

ENC

D13B (MSB)

D12B

D11B

D10B

D9B

(AVCC = 5 V; AVEE = –5 V; DVCC = 3.3 V applies to each ADC with Front

AD13465–TARGET SPECIFICATIONS

Test Mil Sub- AD13465AZ/BZ

Parameter Temp Level Group Min Typ Max Unit

RESOLUTION 14 Bits

End Amplifier unless otherwise noted.)

DC ACCURACY

No Missing Codes Full IV 12 Guaranteed
Offset Error 25°C I 1 –2.2 ± 0.2 +2.2 % FS

Full VI 2, 3 –2.2 ± 1.0 +2.2 % FS

Offset Error Channel Match Full VI 1, 2, 3 –1.0 ±0.1 +1.0 % FS
Gain Error

1

25°C I 1 –3.0 –1.0 +1.0 % FS
Full VI 2, 3 –5.0 ± 2.0 +5.0 % FS

Gain Error Channel Match 25°C I 1 +1.5 ± 0.5 +1.5 % FS

Max VI 2 –3.0 ±1.0 +3.0 % FS
Min VI 3 –5.0 ± 1.0 +5.0 % FS

SINGLE-ENDED ANALOG INPUT

Input Voltage Range

AMP-IN-X-1 Full V ±0.5 V
AMP-IN-X-2 Full V ±1.0 V

Input Resistance

AMP-IN-X-1 Full IV 12 99 100 101 Ω
AMP-IN-X-2 Full IV 12 198 200 202 Ω

Input Capacitance
Analog Input Bandwidth

2

3

Full V 100 MHz

4.0 7.0 pF

DIFFERENTIAL ANALOG INPUT

Analog Signal Input Range
A+IN to A–IN and B+IN to B–IN
Input Impedance Full V 618 Ω
Analog Input Bandwidth

3

ENCODE INPUT (ENC, ENC)

4

Full V ±1.0 V

Full V 50 MHz

5

Differential Input Voltage Full IV 12 0.4 V p-p
Differential Input Resistance 25°CV 10 kΩ
Differential Input Capacitance 25°C V 2.5 pF

SWITCHING PERFORMANCE

Maximum Conversion Rate
Minimum Conversion Rate
Aperture Delay (t

)25°C V 1.5 ns

A

6

6

Full VI 4, 5, 6 65 MSPS
Full IV 12 20 MSPS

Aperture Delay Matching 25°C IV 12 250 500 ps
Aperture Uncertainty (Jitter) 25°C V 0.3 ps rms
ENCODE Pulse with High 25°C IV 12 5.0 7.7 9.5 ns
ENCODE Pulse with Low 25°C IV 12 5.0 7.7 9.5 ns

Output Delay (t

) Full IV 12 7.5 ns

OD

Encode, Rising to Data Ready, Full V 11.5 ns

Rising Delay

7

SNR

Analog Input @ 4.98 MHz 25°C V 72 dBFS
Analog Input @ 9.9 MHz 25°C I 4 70 72 dBFS

Full II 5, 6 69 71 dBFS

Analog Input @ 21 MHz 25°C I 4 69 71 dBFS

Full II 5, 6 68 70 dBFS

Analog Input @ 32 MHz 25°C V 70 dBFS

Full V 69 dBFS

8

SINAD

Analog Input @ 4.98 MHz 25°C V 72 dBFS
Analog Input @ 9.9 MHz 25°C I 4 69 72 dBFS

Full II 5, 6 68.5 70.5 dBFS

Analog Input @ 21 MHz 25°C I 4 66.5 70 dBFS

Full II 5, 6 66 69 dBFS

Analog Input @ 32 MHz 25°C V 63 dBFS

Full V 61 dBFS

–2–

REV. 0

AD13465

Test Mil Sub- AD13465AZ/BZ

Parameter Temp Level Group Min Typ Max Unit

SPURIOUS-FREE DYNAMIC RANGE

Analog Input @ 4.98 MHz 25°C V 85 dBFS
Analog Input @ 9.9 MHz 25°C I 4 80 86 dBFS

Analog Input @ 21 MHz 25°C I 4 70 76 dBFS

Analog Input @ 32 MHz 25°C V 63 dBFS

SINGLE-ENDED ANALOG INPUT

Pass Band Ripple to 10 MHz 25°C V 0.05 dB
Pass Band Ripple to 25 MHz 25°C V 0.1 dB

DIFFERENTIAL ANALOG INPUT

Pass Band Ripple to 10 MHz 25°C V 0.3 dB
Pass Band Ripple to 25 MHz 25°C V 0.82 dB

TWO-TONE IMD REJECTION

fIN = 9.1 MHz and 10.1 MHz 25°C I 4 77.5 82 dBc
f

and f2 are –7 dB Full II 5, 6 76.5 80

1

= 19.1 MHz and 20.7 MHz 25°C V 72 dBc

f

IN

f1 and f2 are –7 dB

CHANNEL-TO-CHANNEL ISOLATION1125°CIV 12 90 dB
TRANSIENT RESPONSE 25°C V 15.3 ns

DIGITAL OUTPUTS

12

Logic Compatibility CMOS

= 3.3 V

DV

CC

Logic 1 Voltage Full I 1, 2, 3 2.5 DVCC – 0.2 V
Logic 0 Voltage Full I 1, 2, 3 0.2 0.5 V

= 5 V

DV

CC

Logic 1 Voltage Full V DVCC – 0.3 V
Logic 0 Voltage Full V 0.35 V
Output Coding Two’s Complement

POWER SUPPLY

AV

Supply Voltage

CC

) Current Full V 270 308 mA

I (AV

CC

Supply Voltage

AV

EE

I (AV

) Current Full V 38 49 mA

EE

Supply Voltage

DV

CC

I (DV

) Current Full V 34 46 mA

CC

13

13

13

(Total) Supply Current per Channel Full I 1, 2, 3 369 403 mA
Power Dissipation (Total) Full I 1, 2, 3 3.57 3.9 W
Power Supply Rejection Ratio (PSRR) Full V 0.02 % FSR/

NOTES

1

Gain tests are performed on AMP-IN-X-1 input voltage range.

2

Input capacitance spec. combines AD8037 capacitance and ceramic package capacitance.

3

Full Power Bandwidth is the frequency at which the spectral power of the fundamental frequency (as determined by FFT analysis) is reduced by 3 dB.

4

For differential input: +IN = 1 V p-p and –IN = 1 V p-p (signals are 180° out of phase). For single ended input: +IN = 2 V p-p and –IN = GND.

5

All AC specifications tested by driving ENCODE and ENCODE differentially. AMP-IN-X-1 = 1 V p-p, AMP-IN-X-2 = GND.

6

Minimum and Maximum conversion rates allow for variation in Encode Duty Cycle of 50% ± 5%.

7

Analog Input signal power at –1 dBFS; signal-to-noise ratio (SNR) is the ratio of signal level to total noise (first five harmonics removed).
Encode = 65 MSPS. SNR is reported in dBFS, related back to converter full scale.

8

Analog Input signal power at –1 dBFS; signal-to-noise and distortion (SINAD) is the ratio of signal level to total noise + harmonics.
Encode = 65 MSPS. SINAD is reported in dBFS, related back to converter full scale.

9

Analog Input signal power at –1 dBFS; SFDR is ratio of converter full scale to worst spur.

10

Both input tones at –7 dBFS; two tone intermodulation distortion (IMD) rejection is the ratio of either tone to the worst third order intermod product.

11

Channel-to-channel isolation tested with A Channel grounded and a full-scale signal applied to B Channel.

12

Digital output logic levels: DVCC = 3.3 V, C

13

Supply voltage recommended operating range. AVCC may be varied from 4.85 V to 5.25 V. However, rated ac (harmonics) performance is valid only over the range
AVCC = 5.0 V to 5.25 V.

Specifications subject to change without notice.

9

Full II 5, 6 78 84 dBFS

Full II 5, 6 69 74 dBFS

Full V 62 dBFS

10

Full VI 4.85 5.0 5.25 V

Full VI –5.25 –5.0 –4.75 V

Full VI 3.135 3.3 3.465 V

% V

S

= 10 pF. Capacitive loads > 10 pF will degrade performance.

LOAD

REV. 0

–3–

AD13465

WARNING!

ESD SENSITIVE DEVICE

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL

AV

Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 V to 7 V

CC

Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . –7 V to 0 V

AV

EE

DV

Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 V to 7 V

CC

Analog Input Voltage . . . . . . . . . . . . . . . . . . . . . V

Analog Input Current . . . . . . . . . . . . . . –10 mA to +10 mA

Digital Input Voltage (ENCODE) . . . . . . . . . . . . . 0 to V

ENCODE, ENCODE Differential Voltage . . . . . . . . . . 4 V

Digital Output Current . . . . . . . . . . . . –10 mA to +10 mA

ENVIRONMENTAL

2

Operating Temperature (Case) . . . . . . . . . –40°C to +85°C

1

TEST LEVEL

I 100% Production Tested.
II 100% Production Tested at 25°C, and sample tested at

specified temperatures. AC testing done on sample basis.

EE

to V

CC

III Sample Tested Only.

IV Parameter is guaranteed by design and characteriza-

CC

tion testing.

V Parameter is a typical value only.
VI 100% production tested at temperature at 25°C: sample

tested at temperature extremes.

Maximum Junction Temperature . . . . . . . . . . . . . . . 175°C

Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . 300°C

Storage Temperature Range (Ambient) . . –65°C to +150°C

NOTES

1

Absolute maximum ratings are limiting values applied individually, and beyond
which the serviceability of the circuit may be impaired. Functional operability is not
necessarily implied. Exposure to absolute maximum rating conditions for an
extended period of time may affect device reliability.

2

Typical thermal impedance for “ES” package: θJC, 2.2°C/W; θJA, 24.3°C/W.

CAUTION

ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection. Although
the AD13465 features proprietary ESD protection circuitry, permanent damage may occur on
devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are
recommended to avoid performance degradation or loss of functionality.

ORDERING GUIDE

Model Temperature Range (Case) Package Description Package Option

AD13465AZ –25°C to +85°C 68-Lead Ceramic Leaded Chip Carrier ES-68C
AD13465AF –25°C to +85°C 68-Lead Ceramic Leaded Chip Carrier ES-68C

with Nonconductive Tie-Bar

5962-0150601HXA –40°C to +85°C 68-Lead Ceramic Leaded Chip Carrier ES-68C
AD13465/PCB 25°C Evaluation Board with AD13465AZ

–4–

REV. 0

AD13465

PIN FUNCTION DESCRIPTIONS

Pin No. Mnemonic Function

1, 35 SHIELD Internal Ground Shield Between Channels.
2, 3, 9, 10, 13, 16 AGNDA A Channel Analog Ground. A and B grounds should be connected as close to the

device as possible.
4 A–IN Inverting Differential Input (Gain = 1).
5 A+IN Noninverting Differential Input (Gain = 1).
6 AMP-OUT-A Single-Ended Amplifier Output (Gain = 2).
7 AMP-IN-A-1 Analog Input for A Side ADC (Nominally ±0.5 V).
8 AMP-IN-A-2 Analog Input for A Side ADC (Nominally ±1.0 V).
11 AV
12 AV
14 ENCA Complement of Encode; Differential Input.
15 ENCA Encode Input; Conversion Initiated on Rising Edge.
17 DV
18–25, 28–33 D0A–D13A Digital Outputs for ADC A. D0 (LSB).
26, 27 DGNDA A Channel Digital Ground.
34 DROUTA Data Ready A Output.
36 DROUTB Data Ready B Output.
37–42, 45–52 D0B–D13B Digital Outputs for ADC B. D0 (LSB).
43, 44 DGNDB B Channel Digital Ground.
53 DV
54, 57, 60, 61, 67, 68 AGNDB B Channel Analog Ground.
55 ENCB Encode Input; Conversion Initiated on Rising Edge.
56 ENCB Complement of Encode; Differential Input.
58 AV
59 AV
62 AMP-IN-B-2 Analog Input for B Side ADC (Nominally ±1.0 V).
63 AMP-IN-B-1 Analog Input for B Side ADC (Nominally ±0.5 V).
64 AMP-OUT-B Single-Ended Amplifier Output (Gain = 2).
65 B+IN Noninverting Differential Input (Gain = 1).
66 B–IN Inverting Differential Input (Gain = 1).

A A Channel Analog Negative Supply Voltage (Nominally –5.0 V or –5.2 V).

EE

A A Channel Analog Positive Supply Voltage (Nominally 5.0 V).

CC

A A Channel Digital Positive Supply Voltage (Nominally 5.0 V/3.3 V).

CC

B B Channel Digital Positive Supply Voltage (Nominally 5.0 V/3.3 V).

CC

B B Channel Analog Positive Supply Voltage (Nominally 5.0 V).

CC

B B Channel Analog Negative Supply Voltage (Nominally –5.0 V or –5.2 V).

EE

REV. 0

AGNDA

AVEEA

AV

CC

AGNDA

ENCA

ENCA

AGNDA

DV

CC

D0A(LSB)

D1A

D2A

D3A

D4A

D5A

D6A

D7A

DGNDA

PIN CONFIGURATION

AGNDA

AMP-OUT-A

AMP-IN-A-2

AMP-IN-A-1

9618765 686766656463624321

10

11

12

A

13

14

15

16

A

17

18

19

20

21

22

23

24

25

26

27 4328 29 30 31 32 33 34 35 36 37 38 39 40 41 42

D9A

D8A

D10A

DGNDA

AGNDA

A+IN

A–IN

AGNDA

AD13465

TOP VIEW

(Not to Scale)

D11A

D12A

DROUTA

D13A(MSB)

AGNDB

SHIELD

PIN 1
IDENTIFIER

SHIELD

DROUTB

–5–

AGNDB

B–IN

B+IN

AMP-OUT-B

D0B(LSB)

D1B

D2B

D3B

AGNDB

AMP-IN-B-2

AMP-IN-B-1

60

59

58

57

56

55

54

53

52

51

50

49

48

47

46

45

44

D4B

D5B

DGNDB

AGNDB
AV

B

EE

B

AV

CC

AGNDB

ENCB

ENCB

AGNDB

B

DV

CC

D13B(MSB)

D12B
D11B

D10B

D9B

D8B

D7B

D6B
DGNDB

AD13465

–Typical Performance Characteristics

dB

–100

–110

–120

–130

dB

–100

–110

–120

–130

0

–10

–20

–30

–40

–50

–60

–70

–80

–90

0 32.530.027.5 25.022.520.017.515.012.510.07.5 5.0 2.5

0

–10

–20

–30

–40

–50

–60

–70

–80

–90

0 32.530.027.5 25.022.520.017.515.012.510.07.5 5.0 2.5

ENCODE = 65MSPS
A

IN

SNR = 72.12dBFS
SFDR = 86.05dBc

FREQUENCY – MHz

TPC 1. Single Tone @ 5 MHz

ENCODE = 65MSPS

= 21MHz(–1dBFS)

A

IN

SNR = 71.74dBFS
SFDR = 73.07dBc

FREQUENCY – MHz

= 5MHz(–1dBFS)

dB

–100

–110

–120

–130

dB

–100

–110

–120

–130

0

–10

–20

–30

–40

–50

–60

–70

–80

–90

0 32.530.027.5 25.022.520.017.515.012.510.07.5 5.0 2.5

0

–10

–20

–30

–40

–50

–60

–70

–80

–90

0 32.530.027.5 25.022.520.017.515.012.510.07.5 5.0 2.5

ENCODE = 65MSPS

= 9.9MHz(–1dBFS)

A

IN

SNR = 72.09dBFS
SFDR = 84.04dBc

FREQUENCY – MHz

TPC 4. Single Tone @ 9.9 MHz

ENCODE = 65MSPS
A

= 32MHz(–1dBFS)

IN

SNR = 70.8dBFS
SFDR = 62.57dBc

FREQUENCY – MHz

TPC 2. Single Tone @ 21 MHz

dB

–100

–110

–120

–130

0

–10

–20

–30

–40

–50

–60

–70

–80

–90

0 32.530.027.5 25.022.520.017.515.012.510.07.5 5.0 2.5

ENCODE = 65MSPS
AIN = 9.1MHz AND 10.1MHz(–1dBFS)

SFDR = 85.01dBc

FREQUENCY – MHz

TPC 3. Two-Tone @ 9.1 MHz/10.1 MHz

TPC 5. Single Tone @ 32 MHz

0

ENCODE = 65MSPS

–10

= 19MHz AND

A

IN

–20

20.7MHz(–1dBFS)
SNR = 70.8dBFS

–30

SFDR = 75.40dBc

–40

–50

–60

dB

–70

–80

–90

–100

–110

–120

–130

0 32.530.027.5 25.022.520.017.515.012.510.07.5 5.0 2.5

FREQUENCY – MHz

TPC 6. Two-Tone @ 19 MHz/20.7 MHz

–6–

REV. 0

3.0

3.0

2.0

1.0

0

–1.0

–2.0

–3.0

0 1433612288 10240819261444096 2048

ENCODE = 65MSPS
INL MAX = 1.18 CODES
INL MIN = –1.06 CODES

16384

LSB

ENCODE = 65MSPS
DNL MAX = 0.632 CODES

2.5
DNL MIN = –0.52 CODES

2.0

1.5

1.0

LSB

0.5

0

–0.5

AD13465

–1.0

0 1433612288 10240819261444096 2048

TPC 7. Differential Nonlinearity

0

–1

–2

ENCODE = 65MSPS
ROLLOFF = –0.18dB

–3

–4

–5

dBFS

–6

–7

–8

–9

–10

1.0 3.5 6.0 8.5 11.0 13.5 16.0 18.5 21.0 23.5 26.0

FREQUENCY – MHz

TPC 8. Passband Ripple to 25 MHz

–10

–20

–30

–40

–50

–60

dB

–70

–80

–90

–100

–110

–120

–130

0

0 20.017.515.012.510.07.5 5.0 2.5

FREQUENCY – MHz

ENCODE = 40MSPS
A

IN

10.1MHz(–1dBFS)
SFDR = 84.16dBc

TPC 9. Two-Tone @ 9.1 MHz/10.1 MHz

= 9.1MHz AND

16384

dB

–100

–110

–120

–130

dB

–100

–110

–120

–130

0

–10

–20

–30

–40

–50

–60

–70

–80

–90

0 20.017.515.012.510.07.5 5.0 2.5

0

–10

–20

–30

–40

–50

–60

–70

–80

–90

0 20.017.515.012.510.07.5 5.0 2.5

TPC 10. Integral Nonlinearity

ENCODE = 40MSPS

= 5MHz(–1dBFS)

A

IN

SNR = 72dBFS
SFDR = 87.57dBc

FREQUENCY – MHz

TPC 11. Single Tone @ 5 MHz

ENCODE = 40MSPS

= 18MHz(–1dBFS)

A

IN

SNR = 71.5dBFS
SFDR = 78.7dBc

FREQUENCY – MHz

TPC 12. Single Tone @ 18 MHz

REV. 0

–7–

AD13465

DEFINITION OF SPECIFICATIONS
Analog Bandwidth

The analog input frequency at which the spectral power of the
fundamental frequency (as determined by the FFT analysis) is
reduced by 3 dB.

Aperture Delay

The delay between a differential crossing of ENCODE and
ENCODE command and the instant at which the analog input
is sampled.

Aperture Uncertainty (Jitter)

The sample-to-sample variation in aperture delay.

Differential Analog Input Resistance, Differential Analog
Input Capacitance, and Differential Analog Input Impedance

The real and complex impedances measured at each analog
input port. The resistance is measured statically and the capaci­tance and differential input impedances are measured with a
network analyzer.

Differential Analog Input Voltage Range

The peak-to-peak differential voltage that must be applied to
the converter to generate a full-scale response. Peak differential
voltage is computed by observing the voltage from the other pin,
which is 180 degrees out of phase. Peak-to-peak differential is
computed by rotating the inputs phase 180 degrees and taking
the peak measurement again. The difference is then computed
between both peak measurements.

Differential Nonlinearity

The deviation of any code from an ideal 1 LSB step.

Encode Pulsewidth/Duty Cycle

Pulsewidth high is the minimum amount of time that the
ENCODE pulse should be left in Logic 1 state to achieve rated
performance; pulsewidth low is the minimum time ENCODE
pulse should be left in low state. At a given clock rate, these
specs define an acceptable encode duty cycle.

Harmonic Distortion

The ratio of the rms signal amplitude to the rms value of the
worst harmonic component.

Integral Nonlinearity

The deviation of the transfer function from a reference line
measured in fractions of 1 LSB using a “best straight line”
determined by a least square curve fit.

Minimum Conversion Rate

The encode rate at which the SNR of the lowest analog signal
frequency drops by no more than 3 dB below the guaranteed limit.

Maximum Conversion Rate

The encode rate at which parametric testing is performed.

Output Propagation Delay

The delay between a differential crossing of ENCODE and
ENCODE command and the time when all output data bits are
within valid logic levels.

Overvoltage Recovery Time

The amount of time required for the converter to recover to

0.02% accuracy after an analog input signal of the specified
percentage of full scale is reduced to midscale.

Power Supply Rejection Ratio

The ratio of a change in input offset voltage to a change in
power supply voltage.

Signal-to-Noise-and-Distortion (SINAD)

The ratio of the rms signal amplitude (set at 1 dB below full
scale) to the rms value of the sum of all other spectral compo­nents, including harmonics but excluding dc. May be reported
in dB (i.e., degrades as signal level is lowered) or in dBFS
(always related back to converter full scale).

Signal-to-Noise Ratio (without Harmonics)

The ratio of the rms signal amplitude (set at 1 dB below full scale)
to the rms value of the sum of all other spectral components,
excluding the first five harmonics and dc. May be reported in
dB (i.e., degrades as signal level is lowered) or in dBFS (always
related back to converter full scale).

Spurious-Free Dynamic Range

The ratio of the rms signal amplitude to the rms value of the
peak spurious spectral component. The peak spurious compo­nent may or may not be a harmonic.

Transient Response

The time required for the converter to achieve 0.02% accu­racy when a one-half full-scale step function is applied to the
analog input.

Two-Tone Intermodulation Distortion Rejection

The ratio of the rms value of either input tone to the rms value
of the worst third order intermodulation product; reported in dBc.

A

ENC, ENC

D[13:0]

DRY

t

A

N

IN

t

ENC

N

N+1

N+2

ENCH

N+1

t

ENCL

N+2 N+3 N+4

t

E_DR

t

N–3N–2N–1N

N+3

N+4

t

OD

Figure 1. Timing Diagram

–8–

REV. 0

AD13465

ENCODE

AMP-IN-X-1

AMP-IN-X-2

100⍀

TO AD8037

100⍀

Figure 2. Single-Ended Input Stage

AV

CC

AV

CC

10k⍀

10k⍀

LOADS

LOADS

10k⍀

10k⍀

AV

CC

AV

CC

Figure 3. ENCODE Inputs

DV

CC

CURRENT MIRROR

DV

CC

V

REF

DR OUT

CURRENT MIRROR

Figure 4. Digital Output Stage

DV

CC

CURRENT MIRROR

ENCODE

THEORY OF OPERATION

The AD13465 is a high-dynamic range, 14-bit, 65 MHz pipe­line delay (three pipelines) analog-to-digital converter. The
custom analog input section provides input ranges of 1 V p-p and
2 V p-p, and input impedance configurations of 50 Ω, 100 Ω,
and 200 Ω.

The AD13465 employs four monolithic ADI components per
channel (AD8037, AD8138, AD8031, and AD6644), along
with multiple passive resistor networks and decoupling capacitors
to fully integrate a complete 14-bit analog-to-digital converter.

In the single-ended input configuration, the input signal is
passed through a precision laser trimmed resistor divider allowing
the user to externally select operation with a full-scale signal of
±0.5 V or ±1.0 V by choosing the proper input terminal for the
application. The result of the resistor divider is to apply a full-scale
input approximately 0.4 V to the noninverting input of the
internal AD8037 amplifier.

The AD13465 analog input includes an AD8037 amplifier
featuring an innovative architecture that maximizes the dynamic
range capability on the amplifier’s inputs and outputs. The
AD8037 amplifier provides a high-input impedance and gain for
driving the AD8138 in a single-ended-to-differential amplifier
configuration. The AD8138 has a –3 dB bandwidth at 300 MHz
and delivers a differential signal with the lowest harmonic
distortion available in a differential amplifier. The AD8138
differential outputs help balance the differential inputs to the
AD6644 maximizing the performance of the device.

The AD8031 provides the buffer for the internal reference
analog-to-digital converter. The internal reference voltage of the
AD6644 is designed to track the offsets and drifts and is used to
ensure matching over an extended temperature range of opera­tion. The reference voltage is connected to the output common
mode input on the AD8138. This reference voltage sets the
output common mode on the AD8138 at 2.4 V, which is the
midsupply level for the ADC.

The AD6644 has complementary analog input pins, AIN and
AIN. Each analog input is centered at 2.4 V and should swing
±0.55 V around this reference. Since AIN and AIN are 180
degrees out of phase, the differential analog input signal is 2.2 V
peak-to-peak. Both analog inputs are buffered prior to the first
track-and-hold.

The AD6644 digital outputs drive 100 Ω series resistors (Figure

5.) The result is a 14-bit parallel digital CMOS-compatible
word, coded as two’s complement.

REV. 0

DV

CC

V

REF

CURRENT MIRROR

100⍀

Figure 5. Digital Output Stage

D0–D13

USING THE SINGLE-ENDED INPUT

The AD13465 has been designed with the user’s ease of opera­tion in mind. Multiple input configurations have been included
on board to allow the user a choice of input signal levels and
input impedance. The standard inputs are ±0.5 V and ±1.0 V.
The user can select the input impedance of the AD13465 on
any input by using the other inputs as alternate locations for the
GND. The following chart summarizes the impedance options
available at each input location.

AMP-IN-X-1 = 100 Ω when AMP-IN-X-2 is open.
AMP-IN-X-1 = 50 Ω when AMP-IN-X-2 is shorted to GND.
AMP-IN-X-2 = 200 Ω when AMP-IN-X-1 is open.

Each channel has two analog inputs AMP-IN-A-1 and AMP­IN-A-2 or AMP-IN-B-1 and AMP-IN-B-2. Use AMP-IN-A-1

–9–

AD13465

or AMP-IN-B-1 when an input of ±5 V full scale is desired. Use
AMP-IN-A-2 or AMP-IN-B-2 when ±1 V full scale is desired.
Each channel has an AMP-OUT that must be tied to either a
noninverting or inverting input of a differential amplifier with
the remaining input grounded. For example, Side A, AMP­OUT-A (Pin 6) must be tied to A+IN (Pin 5) with A–IN (Pin 4)
tied to ground for noninverting operation or AMP-OUT-A (Pin 6)
tied to A–IN (Pin 4) with A+IN (Pin 5) tied to ground for
inverting operation.

USING THE DIFFERENTIAL INPUT

Each channel of the AD13465 was designed with two optional
differential inputs, A+IN, A–IN and B+IN, B–IN. The inputs
provide system designers with the ability to bypass the AD8037
amplifier and drive the AD8138 directly. The AD8138 differen­tial ADC driver can be deployed in either a single-ended or
differential input configuration. The differential analog inputs
have a nominal input impedance of 620 Ω and nominal full­scale input range of 1.2 V p-p. The AD8138 amplifier drives a
differential filter and the custom analog-to-digital converter. The
differential input configuration provides the lowest even-order
harmonics and signal-to-noise (SNR) performance improve­ment of up to 3 dB (SNR = 73 dBFS). Exceptional care was taken
in the layout of the differential input signal paths. The differen­tial input transmission line characteristics are matched and
balanced. Equal attention to system level signal paths must be
provided in order to realize significant performance improvements.

APPLYING THE AD13465
Encoding the AD13465

The AD13465 encode signal must be a high quality, extremely
low phase noise source, to prevent degradation of performance.
Maintaining 14-bit accuracy at 65 MSPS places a premium on
encode clock phase noise. SNR performance can easily degrade
3 dB to 4 dB with 32 MHz input signals when using a high-jitter
clock source. See Analog Devices’ Application Note AN-501,
“Aperture Uncertainty and ADC System Performance,” for
complete details. For optimum performance, the AD13465
must be clocked differentially. The encode signal is usually
ac-coupled into the ENCODE and ENCODE pins via a trans­former or capacitors. These pins are biased internally and require
no additional bias.

Shown below is one preferred method for clocking the AD13465.
The clock source (low jitter) is converted from single-ended to
differential using an RF transformer. The back-to-back Schottky
diodes across the transformer secondary limit clock excursions
into the AD13465 to approximately 0.8 V p-p differential. This
helps prevent the large voltage swings of the clock from feeding
through to the other portions of the AD13465, and limits the
noise presented to the ENCODE inputs. A crystal clock oscillator
can also be used to drive the RF transformer if an appropriate
limited resistor (typically 100 Ω) is placed in the series with
the primary.

CLOCK

SOURCE

0.1mF
100

⍀

T1-4T

HSMS2812

DIODES

ENCODE

AD13465

ENCODE

If a low jitter ECL/PECL clock is available, another option is to
ac-couple a differential ECL/PECL signal to the encode input
pins as shown below. A device that offers excellent jitter perfor­mance is the MC100LVEL16 (or same family) from Motorola.

VT

ECL/

PECL

0.1␮F

0.1␮F

VT

ENCODE

AD13465

ENCODE

Figure 7. Differential ECL for Encode

Jitter Consideration

The signal-to-noise ratio (SNR) for any ADC can be predicted.
When normalized to ADC codes, the equation below, accurately
predicts the SNR based on three terms. These are jitter, average
DNL error, and thermal noise. Each of these terms contributes
to the noise within the converter.

/

12







(

+

1

ε

20











()

+×× × +

2

π



N

2



ANALOG RMS

= analog input frequency

= rms jitter of the encode (rms sum of encode

– log

SNR f t

=×

f

ANALOG

t

J RMS



V

NOISE RMS

2

J




2









N

2







source and internal encode circuitry)

ε = average DNL of the ADC (typically 0.50 LSB)

N = Number of bits in the ADC

V

NOISE RMS

= V rms noise referred to the analog input of the

ADC (typically 5 LSB)

For a 14-bit analog-to-digital converter like the AD13465, aper­ture jitter can greatly affect the SNR performance as the analog
frequency is increased. The chart below shows a family of curves
that demonstrates the expected SNR performance of the AD13465
as jitter increases. The chart is derived from the above equation.

For a complete discussion of aperture jitter, please consult Ana­log Devices’ Application Note AN-501, “Aperture Uncertainty
and ADC System Performance.”

71

70

69

68

67

66

65

64

SNR – –dBFS

63

62

61

60

59

58

0.0 0.4 0.8 1.2 1.6 2.0 2.4 2.8 3.2 3.6

CLOCK JITTER – ps

AIN = 32MHz

AIN = 5MHz

AIN = 9.9MHz

AIN = 21MHz

4.0 4.4 4.8 5.0

Figure 8. SNR vs. Jitter

Figure 6. Crystal Clock Oscillator—Differential Encode

–10–

REV. 0

AD13465

Power Supplies

Care should be taken when selecting a power source. Linear
supplies are strongly recommended. Switching supplies tend to
have radiated components that may be received by the AD13465.
Each of the power supply pins should be decoupled as closely to
the package as possible, using 0.1 µF chip capacitors.

The AD13465 has separate digital and analog power supply pins.
The analog supplies are denoted AVCC and the digital supply
pins are denoted DV

. AVCC and DVCC should be separate

CC

power supplies. This is because the fast digital output swings
can couple switching current back into the analog supplies.
Note that AV
AD13465 is specified for DV

must be held within +5% and –3% of 5 V. The

CC

= 3.3 V as this is a common

CC

supply for digital ASICs.

Output Loading

Care must be taken when designing the data receivers for the
AD13465. The digital outputs drive an internal series resistor
(e.g., 100 Ω) followed by a gate like 75LCX574. To minimize
capacitive loading, there should be only one gate on each output
pin. An example of this is shown in the evaluation board sche­matic shown in Figure 10. The digital outputs of the AD13465
have a constant output slew rate of 1 V/ns. A typical CMOS
gate combined with a PCB trace will have a load of approximately
10 pF. Therefore, as each bit switches, 10 mA (10 pF × 1 V ÷ 1 ns)
of dynamic current per bit will flow in or out of the device. A full­scale transition can cause up to 140 mA (14 bits × 10 mA/bit)
of transient current through the output stages. These switch­ing currents are confined between ground and the DV

CC

pin.
Standard TTL gates should be avoided since they can apprecia­bly add to the dynamic switching currents of the AD13465. It
should also be noted that extra capacitive loading will increase
output timing and invalidate timing specifications. Digital out­put timing is guaranteed with 10 pF loads.

LAYOUT INFORMATION

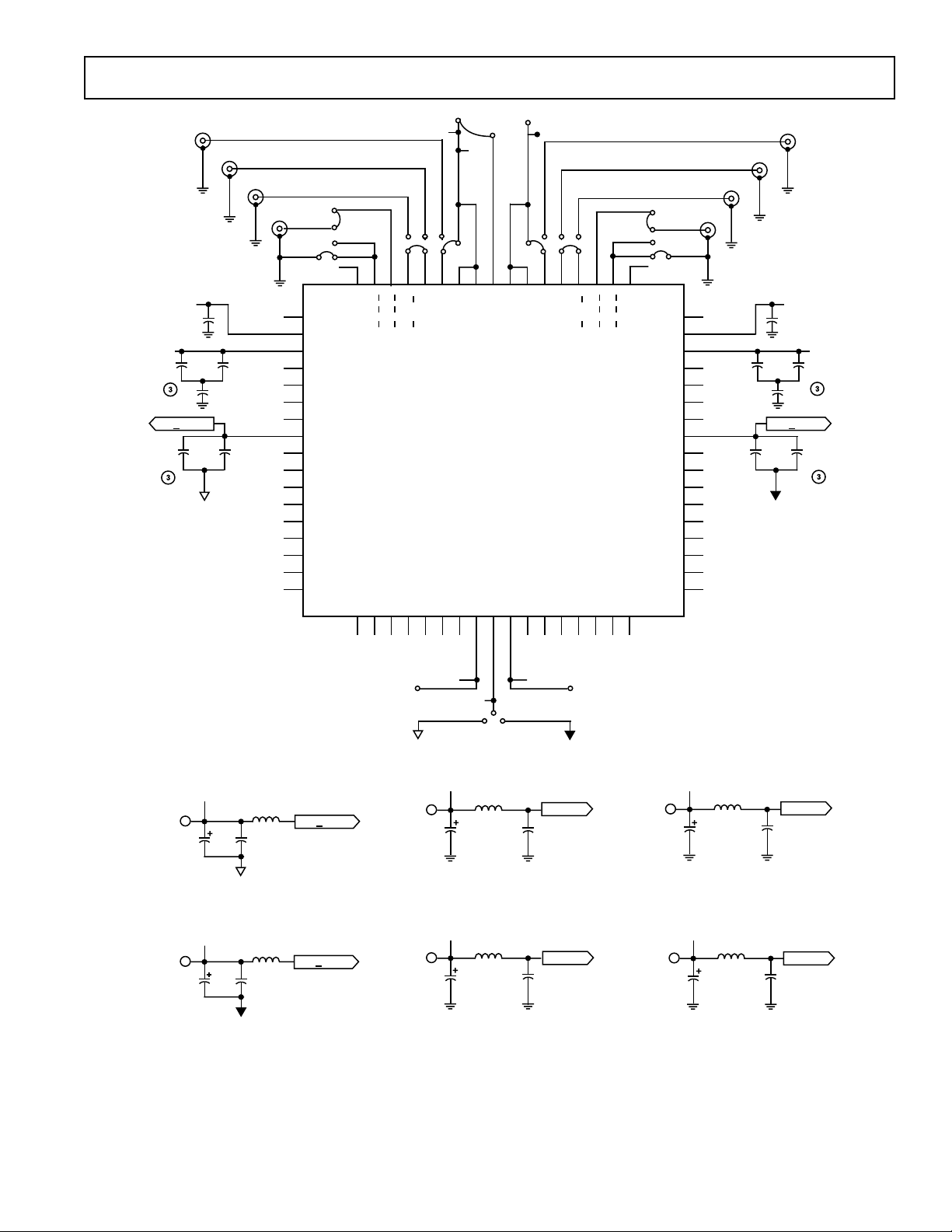

The schematic of the evaluation board (Figure 10) represents a
typical implementation of the AD13465. The pinout of the
AD13465 is very straightforward and facilitates ease of use and
the implementation of high frequency/high resolution design
practices. It is recommended that high quality ceramic chip
capacitors be used to decouple each supply pin to ground directly
at the device. All capacitors can be standard high quality ceramic
chip capacitors.

Care should be taken when placing the digital output runs.
Because the digital outputs have such a high slew rate, the
capacitive loading on the digital outputs should be minimized.
Circuit traces for the digital outputs should be kept short and
connect directly to the receiving gate. Internal circuitry buffers
the outputs of the ADC through a resistor network to eliminate
the need to externally isolate the device from the receiving gate.

EVALUATION BOARD

The AD13465 evaluation board (Figure 9) is designed to
provide optimal performance for evaluation of the AD13465
analog-to-digital converter. The board encompasses everything
needed to ensure the highest level of performance for evaluating
the AD13465. The board requires an analog input signal, encode
clock, and power supply inputs. The clock is buffered on-board
to provide clocks for the latches. The digital outputs and out
clocks are available at the standard 40-pin connectors J1 and J2.

Power to the analog supply pins is connected via banana jacks.
The analog supply powers the associated components and
the analog section of the AD13465. The digital outputs of the
AD13465 are powered via banana jacks with 3.3 V. Contact the
factory if additional layout or applications assistance is required.

REV. 0

Figure 9. Evaluation Board Mechanical Layout

–11–

AD13465

Bill of Materials List for Evaluation Board

Qty Component Name Ref/Des Value Description Manufacturing Part No.

2 74CLX16373MTD U7, U8 Latch 74LCX1673MTD (Fairchild)
1 AD13465AZ U1 AD13465AZ AD13465AZ
2 ADP3330 U5, U6 Regulator ADP3330ART-3.3RL7
10 BJACK BJ1-BJ10 Banana Jacks 108-0740-001 (Johnson Components)
2 BRES0805 R41, R53 25 Ω 0805 SM Resistor EFJ-6GEYJ240V
4 BRES0805 R38, R39, R55, R56 33 kΩ 0805 SM Resistor EFJ-6GEYJ333V
6 RES2 R1, R2, R5, R7, R8 50 Ω 0805 SM Resistor EFJ-6GEYJ333V

R54

36 RES2 R3, R4, R6, R9 100 Ω 0805 SM Resistor EFJ-6GEYJ333V

R12–R15, R19–R28,
R31–R36, R37,
R42–R46, R51, R52

28 CAP2 C1, C2, C5–C10, 0.1 µF 0805 SM Resistor GRM 40X7R104K025BL

C12, C16–C18
C20–C26, C28
C30–C38

2 CAP2 C13, C27 0.47 µF 0805 SM Resistor VJ1206U474MFXMB
2 H40DM J1, J2 2 × 20 40-Pin Male Connector TSW-120-08-G-D
6 IND2 L1–L6 47 Ω SM Inductor 2743019447
4 MC10EL16 U2, U3, U9, U11 Clock Drivers MC1016EP16D
2 MC100ELT23 U4, U10 ECL/TTL Clock Drivers SY100ELT23L
8 POLCAP2 C3, C4, C11, C14, 10 µF Tantalum Polar Caps T491C106M016A57280

C15, C19, C29, C30

4 RES2 R47–R50 0 Ω 0805 SM Resistor ERJ-6GEY OR 00V
12 SMA J3–J14 SMA Connectors 142-0701-201
4 Stand-Off Stand-Off 313-2477-016 (Johnson Components)
4 Screws Screws (Stand-Off) MPMS 004 0005 PH (Building Fasteners)
1 PCB AD13465 Eval Board (Rev B) GS03361

–12–

REV. 0

AD13465

–5VAA

0.1␮F

AGNDA

+5VAA

C35

0.1␮F

AGNDA

OUT 3.3VDA

C36

0.1␮F

DGNDA

J13

SMA

AGNDA

C9

C34

0.1␮F

C10

0.1␮F

J9

SMA

AGNDA

J3

SMA

AGNDA

AGNDA

AGNDA

ENCA

ENCA

AGNDA

DGNDA

J4

SMA

AGNDA

D0A

D1A

D2A

D3A

D4A

D5A

D6A

D7A

E51

E69 E70

AGNDA

10

AGNDA

11

–5VAA

12

+5VAA

13

AGNDA

14

ENCAB

15

ENCA

16

AGNDA

17

+3VDA

18

D0A(LSB)

19

D1A

20

D2A

21

D3A

22

D4A

23

D5A

24

D6A

25

D7A

26

DGNDA

E68

AGNDA

E50

E75

E73

E49

987654321

E71

E72

E74

E77

A–IN

A+IN

OUT A

IN A 2

AGNDA

AMP

AMP

AMP IN A 1

AGNDA

E66

LIDA

E76

AGNDA

E67

AGNDB

E83

E81

E79

E78

E80

E82

AGNDB

E84

B–IN

B+IN

OUT B

AMP

68676665646362

AGNDB

SHIELD

U1

AD13465

D12A

D12A

D13A(MSBA)

D13A

LIDB

E48

DRAOUT

D11A

D10A

D9A

D8A

DGNDA

2728293031323334353637383940414243

D9A

D8A

DGNDA

DGNDA

D11A

D10A

DRAOUT

E56 E55

SHIELD

DRBOUT

E65

E40

D0B(LSBB)

D1BD1B

D2BD2B

D0B

DRBOUT

D3B

D3B

DGNDB

IN B 1

AMP

D4B

D4B

E53

E52

61

IN B 2

AGNDB

AMP

D13B(MSB)

D5B

DGNDB

D5B

DGNDB

E54

AGNDB

AGNDB

–5.2VAB

+5VAB

AGNDB

ENCBB

ENCB

AGNDB

+3.3VDB

D12B

D11B

D10B

D9B

D8B

D7B

D6B

DGNDB

E86E85

J7

SMA

AGNDB

60

AGNDB

59

58

57

AGNDB

56

ENCB

55

ENCB

54

AGNDB

53

52

D13B

51

D12B

50

D11B

49

D10B

48

D9B

47

D8B

46

D7B

45

D6B

44

DGNDB

J14

SMA

AGNDB

J8

SMA

AGNDB

J6

SMA

AGNDB

–5VAB

C33

0.1␮F

AGNDB

C17

0.1␮F

AGNDB

OUT 3.3VDB

C18

0.1␮F

DGNDB

+5VAB

C38

0.1␮F

C37

0.1␮F

REV. 0

BJ10

C29

10␮F

BJ9

C30

10␮F

+3VDA

1

+3VD B

1

U7

C62

0.1␮F

U8

C16

0.1␮F

@100MHz

DGNDA

@100MHz

DGNDB

47⍀

ⴞ20%

L1

47⍀

ⴞ20%

L2

DUT 3.3VDA

DUT 3.3VDB

BJ6

C3

10␮F

BJ5

C4

10␮F

AGNDB

+3VAA

1

AGNDA

+5VAB

1

47⍀

ⴞ20% @100MHz

L3

U1

C20

0.1␮F

AGNDA

47⍀

ⴞ20%@100MHz

U1

L4

C21

0.1␮F

AGNDB

+5VAA

+5VAB

Figure 10a. Evaluation Board

–13–

BJ2

C11

10␮F

BJ1

C19

10␮F

–5VAA

1

AGNDA

–5VAB

1

AGNDB

47⍀

ⴞ20%@100MHz

U1

L5

C32

0.1␮F

AGNDA

47⍀

ⴞ20%@100MHz

U1

L6

C31

0.1␮F

–5VAA

–5VAB

AGNDB

AD13465

DGNDA

R47

0⍀

R48

0⍀

DGNDA

(LSB) D0A

D1A

DUT 3.3VDA

D2A

D3A

DGNDA

D4A

D5A

D6A

D7A

DGNDA

D8A

D9A

DUT 3.3VDA

D10A

D11A

DGNDA

D12A

(MSB) D13A

R7

50⍀

LATCHA

E58

LE2

25

115

26

114

27

GND

28

113

29

112

30

VCC

31

111

32

110

33

GND

34

19

35

18

36

17

37

16

38

GND

39

15

40

14

41

VCC

42

13

43

12

44

GND

45

11

46

10

47

LE1 OE1

48

74LCX16374

U8

B12A
B11A
B10A

B9A
B8A
B7A

R5

B6A

B5A
B4A
B3A
B2A
B1A

DGNDA

F1A
F0A

H40DM

1
2
3
4

5
6

7
8
9

10
11

12

13
14
15
16
17

18
19

20

J1

40
39
38
37

36
35

34
33
32
31

30
29

28
27
26
25
24

23
22

21

DGNDA

OE2

O15

O14

GND

O13

O12

VCC

O11

O10

GND

O9

O8

O7
O6

GND

O5

O4

VCC

O3

O2

GND

O1

O0

DGNDA

24

23

22

DGNDA

21

20

19

DUT 3.3VDA

18

17

16

DGNDA

15

14

13

12
11

DGNDA

10

9

8

DUT 3.3VDA

7

6

5

DGNDA

4

3

2

DGNDA

1

R18, DNI

R17, DNI

R40, DNI

R44, DNI

R45, 100⍀

R46, 100⍀

R15, 100⍀

R14, 100⍀

R13, 100⍀

R12, 100⍀

R24, 100⍀

R23, 100⍀

R22, 100⍀

R21, 100⍀

R20, 100⍀

R19, 100⍀

F0A

F1A

B0A (LSB)

B1A

B2A

B3A

B4A

B5A

B6A

B7A

B8A

B9A

B10A

B11A

B12A

B13A (MSB)

3.3VDA

C15

10␮F

DGNDA

E61

E60

(MSB) B13A

50⍀

E59

DRAOUT

BUFLATA

(LSB) B0A

DGNDB

R49

R50

0⍀

0⍀

DGNDB

(LSB) D0B

D1B

DUT 3.3VDB

D2B

D3B

DGNDB

D4B

D5B

D6B

D7B

DGNDB

D8B

D9B

DUT 3.3VDB

D10B

D11B

DGNDB

D12B

(MSB) D13B

R8

50⍀

LATCHB

E57

LE2

25

115

26

114

27

GND

28

113

29

112

30

VCC

31

111

32

110

33

GND

34

19

35

18

36

17

37

16

38

GND

39

15

40

14

41

VCC

42

13

43

12

44

GND

45

11

46

10

47

LE1 OE1

48

74LCX16374

U7

DGNDB

OE2

O15

O14

GND

O13

O12

VCC

O11

O10

GND

O9

O8

O7
O6

GND

O5

O4

VCC

O3

O2

GND

O1

O0

24

23

22

21

20

19

18

17

16

15

14

13

12
11

10

9

8

7

6

5

4

3

2

1

DGNDB

DUT 3.3VDB

R28, 100⍀

R27, 100⍀

DGNDB

R26, 100⍀

R12, 100⍀

R25, 100⍀

DGNDB

R36, 100⍀

R35, 100⍀

DUT 3.3VDB

R34, 100⍀

R33, 100⍀

DGNDB

R32, 100⍀

R31, 100⍀

DGNDB

R11, DNI

R10, DNI

R30, DNI

R29, DNI

R9, 100⍀

F0B

F1B

B0B (LSB)

B1B

B2B

B3B

B4B

B5B

B6B

B7B

B8B

B9B

B10B

B11B

B12B

B13B (MSB)

Figure 10b. Evaluation Board

3.3VDB

C14

10␮F

(MSB) B13B

DGNDB

E64

E63 E62

DRAOUT

BUFLATB

(LSB) B0B

B12B
B11B
B10B

B9B

B8B
B7B

R2

B6B

50⍀

B5B
B4B
B3B
B2B
B1B

F1B

DGNDB

F0B

H40DN

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20

J2

40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21

DGNDB

–14–

REV. 0

J5

ENCODE

SMA

AGNDA

AGNDA

0.1␮F

R1
50⍀

AD13465

5

NR

3

ERR

+5VAA

NC = NO CONNECT

DGNDA

VCC

Q

U3

QB

VEE

1

2

3

4

8

7

6

5

C1

J12

C2

SMA

0.1␮F

R41
25⍀

AGNDA

R55

33k⍀

1

NC

2

D

3

DB

4

VBB

MC10EL16

NC = NO CONNECT

5

NC

D

U2

DB

VBB

MC10EL16

C6

0.47␮F

3.3VDA

DGNDA

IN

ADP3330

SD

VCC

Q

QB

VEE

R56

33k⍀

AGNDA

U5

AGNDA

8

7

6

5

100⍀

OUT

GND

4

0.47␮F

AGNDA

R4

DGNDA

C13

1

R3
100⍀

AGNDA

3.3VA

1

NC

2

D

3

DB

4

VBB

MC100EPT23

NC = NO CONNECT

R43
100⍀

U4

AGNDA

0.47␮F

VCC

Q0

Q1

VEE

R42
100⍀

0.1␮F

0.1␮F

C5

8

7

6

5

C7

C8

DGNDA

ENCA

ENCA

DGND

+3.3VDA

LATCHA
E23

E19
BUFLATA

BJ3

1

BJ4

1

BJ7

1

DGNDB

BJ8

1

DGNDA

DGNDA DGNDB

DGNDA DGNDB

AGNDB

AGNDA

DGNDB

DGNDA

E15E7E16

E12

E11
E39E8E47

J10

ENCODE

SMA

AGNDB

AGNDB

C22

0.1␮F

R54
50⍀

J11

SMA

AGNDB

C23

0.1␮F

R53
25⍀

+5VAB

NC = NO CONNECT

DGNDB

R39

33k⍀

1

2

3

4

NC = NO CONNECT

NC

D

U9

DB

VBB

MC10EL16

VCC

Q

QB

VEE

1

NC

2

D

3

DB

4

VBB

8

7

6

5

3

ERR

5

SD

VCC

U11

VEE

MC10EL16

R38

33k⍀

C25

0.47␮F

3.3VDB

DGNDB

NR

ADP3330

IN

U6

AGNDB

8

7

Q

6

QB

5

DGNDB

100⍀

5

OUT

GND

4

0.47␮F

AGNDB

R6

DGNDB

C27

1

R37
100⍀

AGNDB

3.3VB

1

NC

2

D

3

DB

4

VBB

MC100EPT23

NC = NO CONNECT

R51
100⍀

U10

AGNDA

VCC

Q0

Q1

VEE

R52
100⍀

0.1␮F

C26

8

7

6

5

C24

0.1␮F

C28

0.1␮F

DGNDB

ENCB

ENCB

DGNDB

3.3VDA
LATCHB
E24

E22

BUFLATB

E17

E18

E27

E28

E25

E26

E21

E20

E32

E31

E44

E43

E42

E41

E10

E9

E33

E34

E6

E5

DGNDA AGNDA

E38

E37

E29

E30

E1

E2

E36

E35

E14

E13

E45E3E46

E4

DGNDB AGNDB

SO1

SO4

SO2

SO5

SO3

SO6

REV. 0

Figure 10c. Evaluation Board

–15–

AD13465

Figure 11a. Top Silk

Figure 11b. Top Layer

–16–

REV. 0

AD13465

Figure 11c. GND1

REV. 0

Figure 11d. GND2

–17–

AD13465

Figure 11e. Bottom Silk

Figure 11f. Bottom Layer

–18–

REV. 0

OUTLINE DIMENSIONS

Dimensions shown in inches and (mm).

68-Lead Ceramic Leaded Chip Carrier

(ES-68C)

AD13465

0.010 (0.25)

0.008 (0.20)

0.007 (0.18)

1.070

(27.18)

MIN

0.060 (1.52)

0.050 (1.27)

0.040 (1.02)

0.235 (5.97)
MAX

0.175 (4.45)
MAX

0.050 (1.27)

61

0.800

(20.32)

BSC

DETAIL A

0.020 (0.508)

DETAIL A

ROTATED 90ⴗ CCW

60

9

10

0.960 (24.38)

0.950 (24.13) SQ

0.940 (23.88)

PIN 1

0.055 (1.40)

0.050 (1.27)

0.045 (1.14)

0.010 (0.254)

30ⴗ

TOP VIEW

(PINS DOWN)

0.020 (0.508)

0.017 (0.432)

0.014 (0.356)

TOE DOWN

ANGLE

0–8 DEGREES

44

43

27

26

1.190 (30.23)

1.180 (29.97) SQ

1.170 (29.72)

REV. 0

–19–

AD13465

OUTLINE DIMENSIONS

Dimensions shown in inches and (mm).

68-Lead Ceramic Leaded Chip Carrier with Nonconductive Tie-Bar

(ES-68C)

0.960 (24.38)

0.950 (24.13) SQ

0.940 (23.88)

2.000

(8.89)

TYP

0.235 (5.97)
MAX

0.350
(8.89)

TYP

0.040 (1.02)
ⴛ 45ⴗ

PIN 1

TOP VIEW

(PINS DOWN)

0.800 (20.32)
BSC

DETAIL A

0.010 (0.254)

0.015 (0.3)
ⴛ 45ⴗ

3 PLS

0.040 (1.02) R
TYP

0.010 (0.25)

0.008 (0.20)

0.007 (0.18)

0.055 (1.40)

0.050 (1.27)

0.045 (1.14)

0.020 (0.508)

0.017 (0.432)

0.014 (0.356)

0.175 (4.45)
MAX

C01973–2.5–4/01(0)

0.050 (1.27)

0.020 (0.508)

DETAIL A

–20–

30ⴗ

PRINTED IN U.S.A.

REV. 0
