AMETEK Compact IX 2253 User Manual
Revision G
January 2010
AMETEK Programmable Power Division
All rights reserved.
Copyright 2006-2009
P/N 6005-962
2253i / 2253iX
AC and DC Power Source
User Manual
TEL: +1 (858) 450-0085
FAX: +1 (858) 458-0267
Email: sales@programmablepower.com
Web Site: http://www.programmablepower.com
User Manual 2253i / 2253iX
Refers to:
Models:
2253i AC and DC Power Source
2253iX AC and DC Power Source/Analyzer
AMETEK California Instruments 2
User Manual 2253i / 2253iX
About AMETEK
AMETEK Programmable Power, Inc., a Division of AMETEK, Inc., is a global leader in the design
and manufacture of precision, programmable power supplies for R&D, test and measurement,
process control, power bus simulation and power conditioning applications across diverse industrial
segments. From bench top supplies to rack-mounted industrial power subsystems, AMETEK
Programmable Power is the proud manufacturer of Elgar, Sorensen, California Instruments and
Power Ten brand power supplies.
AMETEK, Inc. is a leading global manufacturer of electronic instruments and electromechanical
devices with annualized sales of $2.5 billion. The Company has over 11,000 colleagues working at
more than 80 manufacturing facilities and more than 80 sales and service centers in the United States
and around the world.
Trademarks
AMETEK is a registered trademark of AMETEK, Inc. California Instruments is a trademark owned by AMETEK,
Inc. Other trademarks, registered trademarks, and product names are the property of their respective owners
and are used herein for identification purposes only.
Notice of Copyright
2253i/iX Series User Manual
© 2006-2010 AMETEK Programmable Power, Inc. All rights reserved.
Exclusion for Documentation
UNLESS SPECIFICALLY AGREED TO IN WRITING, AMETEK PROGRAMMABLE POWER, INC.
(“AMETEK”):
(a) MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR SUITABILITY OF ANY TECHNICAL OR
OTHER INFORMATION PROVIDED IN ITS MANUALS OR OTHER DOCUMENTATION.
(b) ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSSES, DAMAGES, COSTS OR EXPENSES, WHETHER
SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR INCIDENTAL, WHICH MIGHT ARISE OUT OF THE USE
OF SUCH INFORMATION. THE USE OF ANY SUCH INFORMATION WILL BE ENTIRELY AT THE USER’S
RISK, AND
(c) REMINDS YOU THAT IF THIS MANUAL IS IN ANY LANGUAGE OTHER THAN ENGLISH, ALTHOUGH STEPS
HAVE BEEN TAKEN TO MAINTAIN THE ACCURACY OF THE TRANSLATION, THE ACCURACY CANNOT BE
GUARANTEED. APPROVED AMETEK CONTENT IS CONTAINED WITH THE ENGLISH LANGUAGE VERSION,
WHICH IS POSTED AT WWW.PROGRAMMABLEPOWER.COM.
Date and Revision
January 2010, Revision G
Part Number
6005-962
Contact Information
Telephone: 800 733 5427 (toll free in North America)
858 450 0085 (direct)
Fax: 858 458 0267
Email: sales@programmablepower.com
service@programmablepower.com
Web: www.programmablepower.com
AMETEK California Instruments 3
User Manual 2253i / 2253iX
Important Safety Instructions
Before applying power to the system, verify that your product is configured properly for your
particular application.
WARNING
WARNING
Hazardous voltages may be present when covers are removed. Qualified
personnel must use extreme caution when servicing this equipment.
Circuit boards, test points, and output voltages also may be floating above
(below) chassis ground.
The equipment used contains ESD sensitive parts. When installing
equipment, follow ESD Safety Procedures. Electrostatic discharges might
cause damage to the equipment.
Only qualified personnel who deal with attendant hazards in power supplies, are allowed to perform
installation and servicing.
Ensure that the AC power line ground is connected properly to the Power Rack input connector or
chassis. Similarly, other power ground lines including those to application and maintenance equipment
must be grounded properly for both personnel and equipment safety.
Always ensure that facility AC input power is de-energized prior to connecting or disconnecting any
cable.
In normal operation, the operator does not have access to hazardous voltages within the chassis.
However, depending on the user’s application configuration, HIGH VOLTAGES HAZARDOUS TO
HUMAN SAFETY may be normally generated on the output terminals. The customer/user must
ensure that the output power lines are labeled properly as to the safety hazards and that any inadvertent
contact with hazardous voltages is eliminated.
Guard against risks of electrical shock during open cover checks by not touching any portion of the
electrical circuits. Even when power is off, capacitors may retain an electrical charge. Use safety
glasses during open cover checks to avoid personal injury by any sudden component failure.
Neither AMETEK Programmable Power Inc., San Diego, California, USA, nor any of the subsidiary
sales organizations can accept any responsibility for personnel, material or inconsequential injury, loss
or damage that results from improper use of the equipment and accessories.
AMETEK California Instruments 4
User Manual 2253i / 2253iX
SAFETY SYMBOLS
AMETEK California Instruments 5
User Manual 2253i / 2253iX
WARRANTY TERMS
AMETEK Programmable Power, Inc. (“AMETEK”), provides this written warranty covering the
Product stated above, and if the Buyer discovers and notifies AMETEK in writing of any defect in
material or workmanship within the applicable warranty period stated above, then AMETEK may, at
its option: repair or replace the Product; or issue a credit note for the defective Product; or provide
the Buyer with replacement parts for the Product.
The Buyer will, at its expense, return the defective Product or parts thereof to AMETEK in
accordance with the return procedure specified below. AMETEK will, at its expense, deliver the
repaired or replaced Product or parts to the Buyer. Any warranty of AMETEK will not apply if the
Buyer is in default under the Purchase Order Agreement or where the Product or any part thereof:
is damaged by misuse, accident, negligence or failure to maintain the same as specified or
required by AMETEK;
is damaged by modifications, alterations or attachments thereto which are not authorized by
AMETEK;
is installed or operated contrary to the instructions of AMETEK;
is opened, modified or disassembled in any way without AMETEK’s consent; or
is used in combination with items, articles or materials not authorized by AMETEK.
The Buyer may not assert any claim that the Products are not in conformity with any warranty until
the Buyer has made all payments to AMETEK provided for in the Purchase Order Agreement.
PRODUCT RETURN PROCEDURE
Request a Return Material Authorization (RMA) number from the repair facility (must be done in the
country in which it was purchased):
In the USA, contact the AMETEK Repair Department prior to the return of the product to
AMETEK for repair:
Telephone: 800-733-5427, ext. 2295 or ext. 2463 (toll free North America)
858-450-0085, ext. 2295 or ext. 2463 (direct)
Outside the United States, contact the nearest Authorized Service Center (ASC). A full listing
can be found either through your local distributor or our website,
www.programmablepower.com, by clicking Support and going to the Service Centers tab.
When requesting an RMA, have the following information ready:
Model number
Serial number
Description of the problem
NOTE: Unauthorized returns will not be accepted and will be returned at the shipper’s
expense.
NOTE: A returned product found upon inspection by AMETEK, to be in specification is
subject to an evaluation fee and applicable freight charges.
AMETEK California Instruments 6
User Manual 2253i / 2253iX
Table of Contents
Introduction ................................................................................................................................................... 11
1.
1.1 General Description ........................................................................................................................................... 11
1.2 iX and i Model Differences ................................................................................................................................. 12
1.3 Manual organization and format ........................................................................................................................ 12
2. Specifications ............................................................................................................................................... 13
2.1 Electrical ............................................................................................................................................................ 13
2.2 Mechanical ........................................................................................................................................................ 23
2.3 Environmental ................................................................................................................................................... 24
2.4 Regulatory ......................................................................................................................................................... 24
2.5 Front Panel Controls, Indicators and Display .................................................................................................... 25
2.6 Special Features ............................................................................................................................................... 26
2.7 Available Options – i Series ............................................................................................................................... 27
2.8 Available Options – iX Series ............................................................................................................................ 28
2.9 EXT Option - Supplemental Specifications ........................................................................................................ 29
2.10 LKM / LKS Options - Supplemental Specifications ............................................................................................ 31
2.11 RPF Option - Supplemental Specifications ........................................................................................................ 31
2.12 WHM Option - Supplemental Specification ........................................................................................................ 31
2.13 Supplemental Specifications ............................................................................................................................. 32
3. Unpacking and Installation ........................................................................................................................... 34
3.1 Unpacking ......................................................................................................................................................... 34
3.2 AC Input Power Requirements .......................................................................................................................... 34

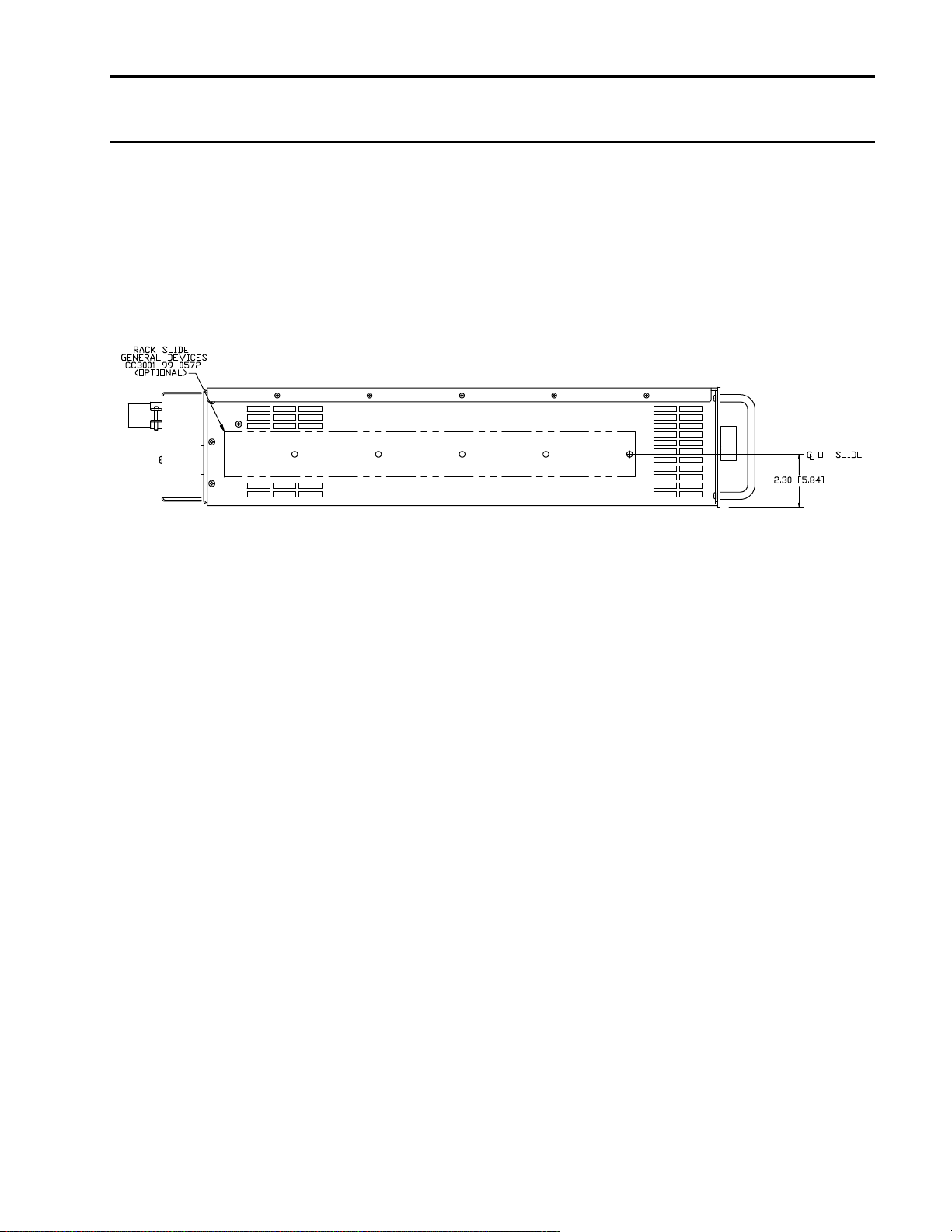

3.3 Mechanical Installation ...................................................................................................................................... 34

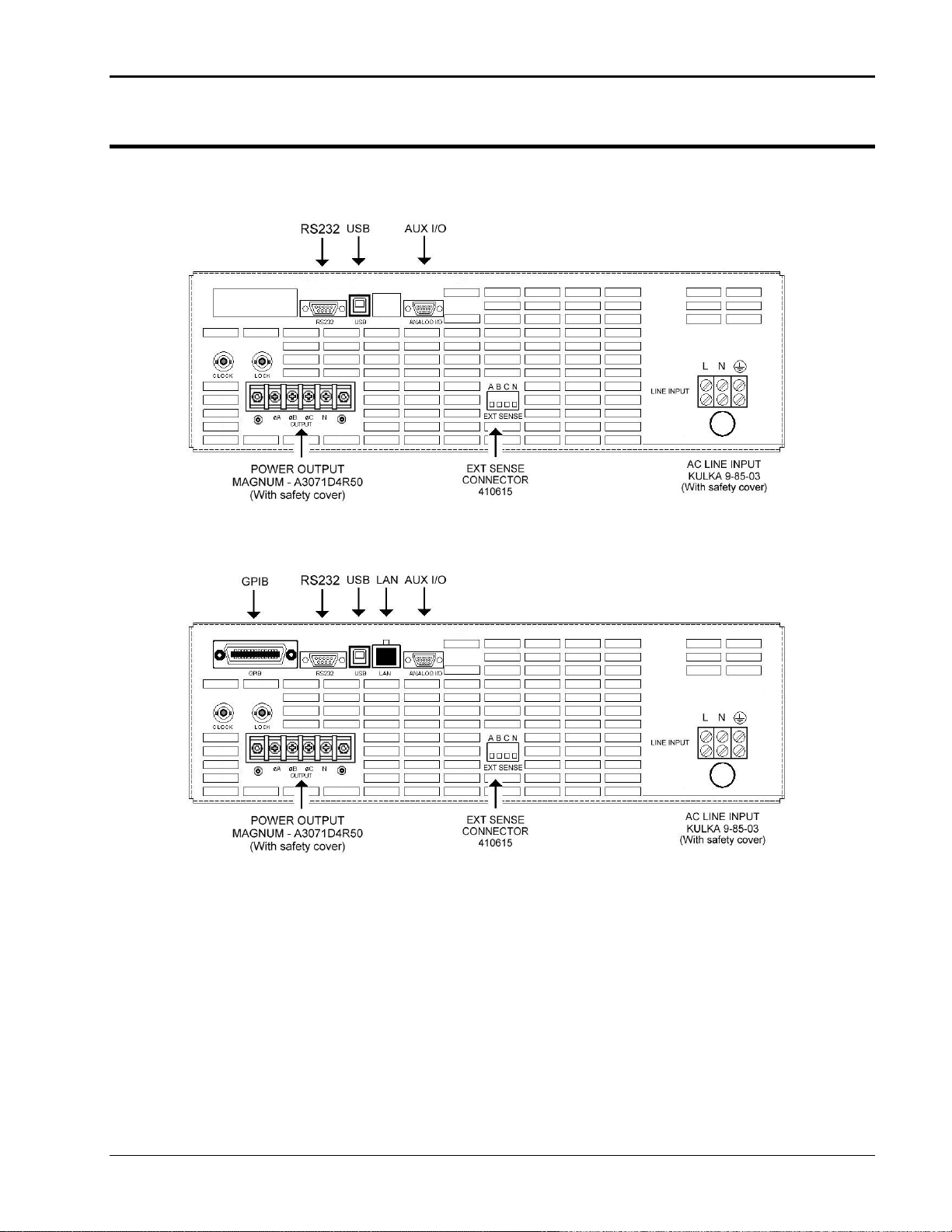

3.4 Rear Panel Connectors ..................................................................................................................................... 36
3.5 AC Input Wiring - INPUT ................................................................................................................................... 37
3.6 Output Connections ........................................................................................................................................... 38
3.7 Connectors - Rear Panel ................................................................................................................................... 40
3.8 Basic Initial Functional Test ............................................................................................................................... 46
3.9 Clock and Lock Mode (-LKM/-LKS Option)........................................................................................................ 48
3.10 Remote Control Interfaces ................................................................................................................................ 49
4. Front Panel Operation .................................................................................................................................. 50
4.1 Tour of the Front Panel ..................................................................................................................................... 50
4.2 Menu Structure .................................................................................................................................................. 55
4.3 Output Programming ......................................................................................................................................... 79
4.4 Waveform Management .................................................................................................................................... 81
4.5 Measurements ................................................................................................................................................... 84
4.6 Harmonic Analysis ............................................................................................................................................. 85

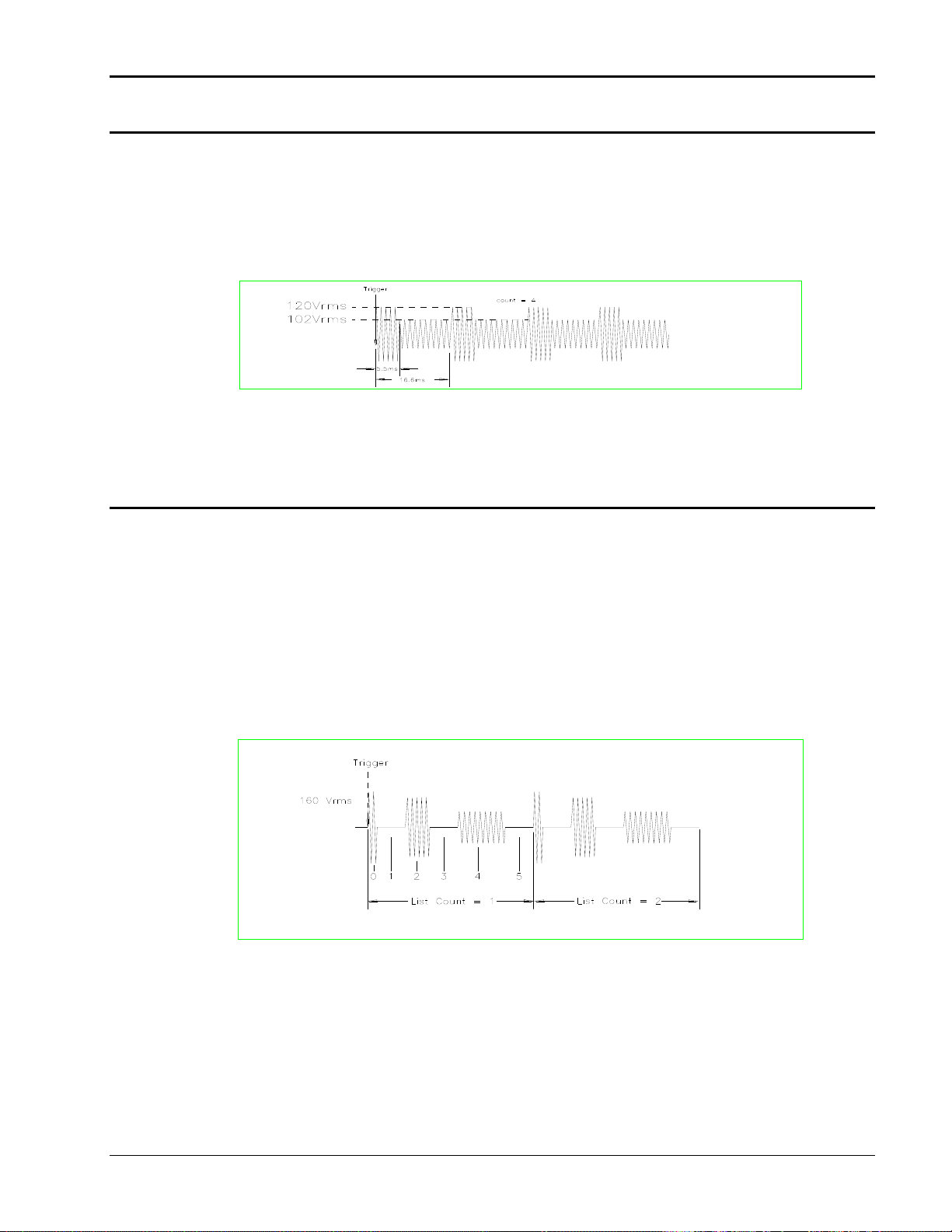

4.7 Transient Programming ..................................................................................................................................... 85
4.8 Setting the Power-on Initialization Values ......................................................................................................... 90
4.9 Remote Inhibit Function .................................................................................................................................... 91
5. Principle of Operation ................................................................................................................................... 92
5.1 Overall Description ............................................................................................................................................ 92
5.2 Amplifier Assemblies ......................................................................................................................................... 92
5.3 PFC and Rectifier Assembly .............................................................................................................................. 92
5.4 EMI Filter Assembly .......................................................................................................................................... 92
5.5 Auxiliary DC bias Supply ................................................................................................................................... 92
5.6 Range/Relay Assembly ..................................................................................................................................... 93
5.7 Interface Assembly ............................................................................................................................................ 93
5.8 Front Panel Assembly ....................................................................................................................................... 93
AMETEK California Instruments 7
User Manual 2253i / 2253iX
6. Calibration ..................................................................................................................................................... 95
6.1 Recommended Calibration Equipment .............................................................................................................. 95
6.2 Calibration Screens ........................................................................................................................................... 95
6.3 Measurement Calibration .................................................................................................................................. 95
6.4 Non-Routine Output Calibration ........................................................................................................................ 97
6.5 Non-Routine Output Offset and Gain Calibration .............................................................................................. 98
7. Service ........................................................................................................................................................ 100
7.1 Cleaning .......................................................................................................................................................... 100
7.2 General ........................................................................................................................................................... 100
7.3 Basic operation ................................................................................................................................................ 100
7.4 Self test ........................................................................................................................................................... 102
7.5 Advanced Troubleshooting. ............................................................................................................................. 102
7.6 Amplifier Module Data ..................................................................................................................................... 103
7.7 Factory Assistance .......................................................................................................................................... 105
7.8 Fuses .............................................................................................................................................................. 105
7.9 Replaceable Parts ........................................................................................................................................... 106
8. Miscellaneous Options ............................................................................................................................... 108
8.1 IEEE488 Interface (-GPIB) .............................................................................................................................. 108
8.2 Atlas Based Language Extensions (-ABL) ....................................................................................................... 108
8.3 External Sync (-EXS) ...................................................................................................................................... 108
8.4 External Input (-EXT) ....................................................................................................................................... 109
8.5 RPV Input (-RPV) ............................................................................................................................................ 110
8.6 Ethernet Interface (-LAN) ................................................................................................................................ 110
8.7 Clock and Lock (–LKM / -LKS) ........................................................................................................................ 110
8.8 Rack Mount Slides (-RMS) .............................................................................................................................. 111
9. Option -160: RTCA / DO-160 Rev D, E ...................................................................................................... 112
9.1 General ........................................................................................................................................................... 112
9.2 Initial Setup ..................................................................................................................................................... 112
9.3 Available DO160 Tests .................................................................................................................................... 113
9.4 Front Panel Operation -160 ............................................................................................................................. 114
9.5 AC Test Mode ................................................................................................................................................. 115
9.6 DC Test Mode ................................................................................................................................................. 128
10. Option -704: MIL-STD 704 Rev D & E (MIL704 Mode) .............................................................................. 132
10.1 General ........................................................................................................................................................... 132
10.2 Initial Setup ..................................................................................................................................................... 132
10.3 Test Revision .................................................................................................................................................. 132
10.4 Available MIL-STD 704 Tests .......................................................................................................................... 133
10.5 Front Panel Operation MIL704 ........................................................................................................................ 134
10.6 AC Test Mode ................................................................................................................................................. 135
10.7 DC Test Mode ................................................................................................................................................. 142
11. Option –ABD: Airbus ABD0100.1.8 Test .................................................................................................... 146
12. Option –A350: Airbus ABD0100.1.8.1 Test ................................................................................................ 147
13. Option –AMD: Airbus AMD24 Test ............................................................................................................. 148
14. Option –B787: Boeing B787-0147 Test ...................................................................................................... 149
15. Option –WHM: Watt Hour Meter measurements ....................................................................................... 150
16. Error Messages .......................................................................................................................................... 151
17. Index ........................................................................................................................................................... 156
AMETEK California Instruments 8
User Manual 2253i / 2253iX
List of Figures
Figure 1-1: Model 2253iX AC Source. ................................................................................................................................... 11
Figure 2-1: 2253i / iX Voltage / Current Rating Chart for 150V AC Range per phase – 230Vac in. ...................................... 17
Figure 2-2: 2253i / iX Voltage / Current Rating Chart for 300V AC Range per phase – 230Vac in. ...................................... 17
Figure 2-3: 2253i / iX Voltage / Current Rating Chart for 150V AC Range per phase – 115Vac in ....................................... 18
Figure 2-4: 2253i / iX Voltage / Current Rating Chart for 300V AC Range per phase – 115Vac in ....................................... 18
Figure 2-5: 2253i / iX Voltage / Current Rating Chart for 200V DC Range per phase. .......................................................... 19
Figure 2-6: 2253i / iX Voltage / Current Rating Chart for 400V DC Range per phase. .......................................................... 19
Figure 2-7: EXT Option Frequency response 300VAC Range. ............................................................................................. 30

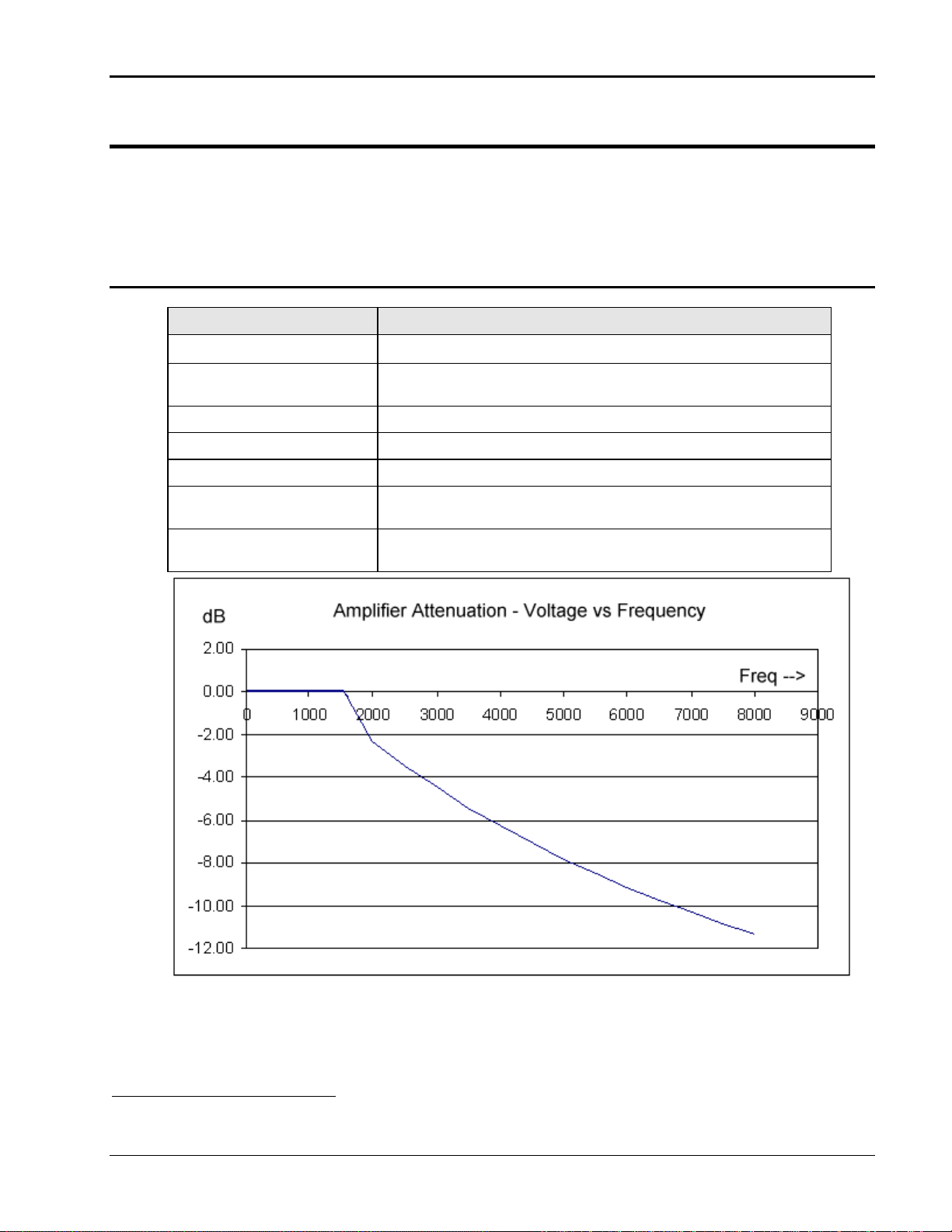

Figure 2-8: Typical frequency response, low Vrange, ALC off. .............................................................................................. 32
Figure 3-1: Rack Mount Slides (-RMS option) position .......................................................................................................... 35
Figure 3-2: Rear Panel Connector Locations – i Models ....................................................................................................... 36
Figure 3-3: Rear Panel Connector Locations – iX Models (Shown with –LAN option) ........................................................... 36
Figure 3-4: USB Connector pin orientation. ........................................................................................................................... 43
Figure 3-5: Functional Test Setup ......................................................................................................................................... 47
Figure 3-6: Clock and Lock Connections ............................................................................................................................... 48

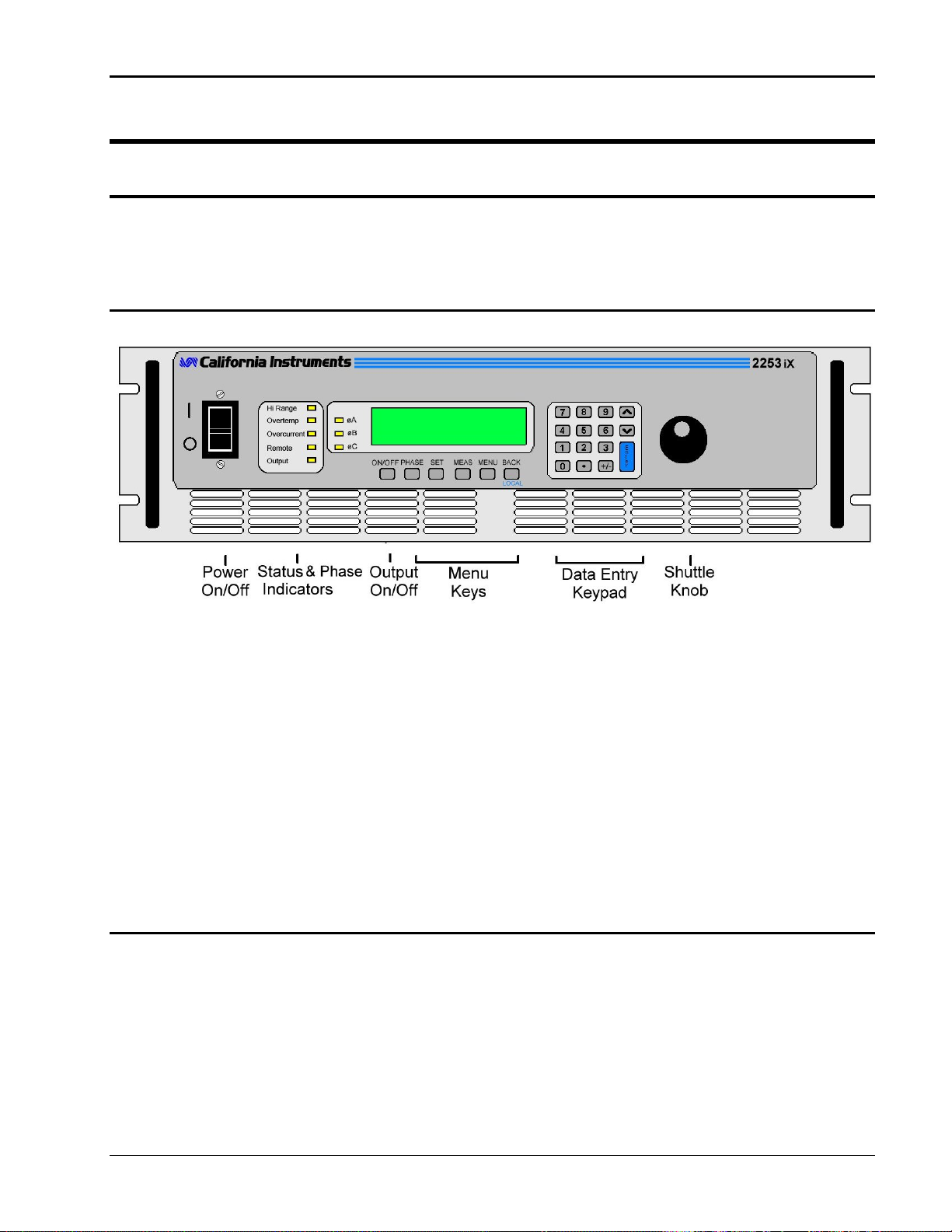

Figure 4-1: Front Panel controls and indicators. .................................................................................................................... 50

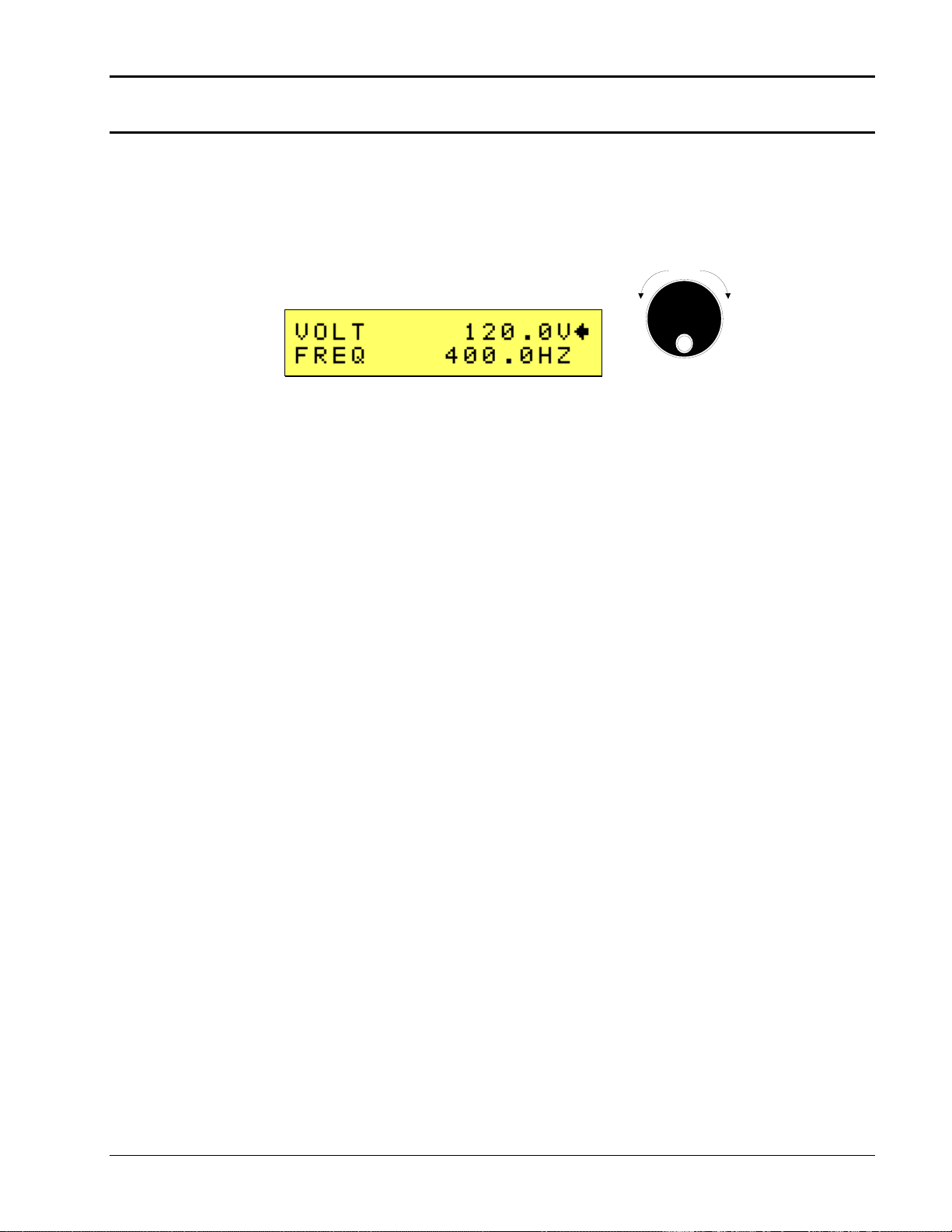

Figure 4-2: Shuttle Knob ....................................................................................................................................................... 52
Figure 4-3: Menu Keys .......................................................................................................................................................... 53

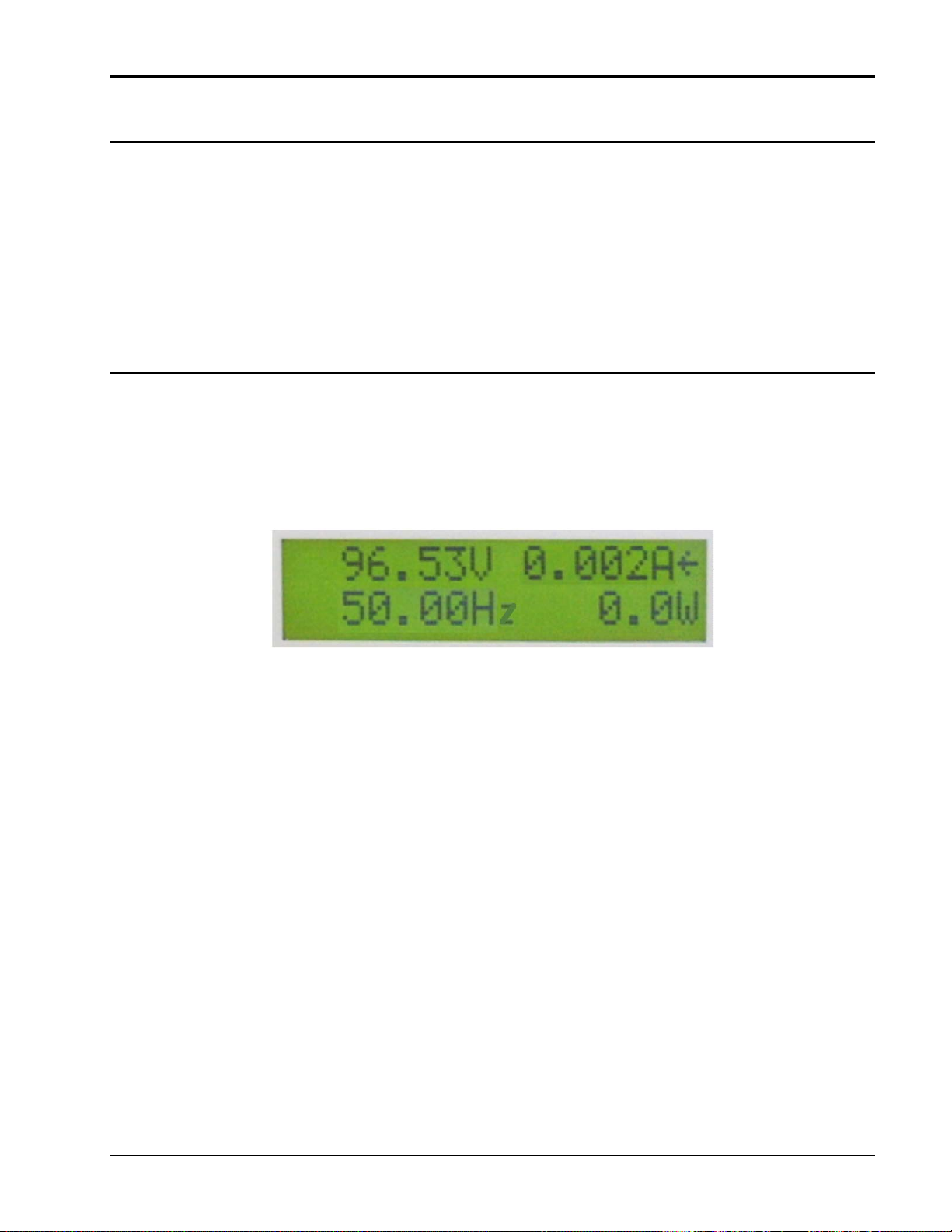

Figure 4-4: Measurement Screen .......................................................................................................................................... 54
Figure 4-5: PROGRAM Menu ............................................................................................................................................... 60
Figure 4-6: CONTROL Menus ............................................................................................................................................... 62
Figure 4-7: MEASUREMENT Screen .................................................................................................................................... 65

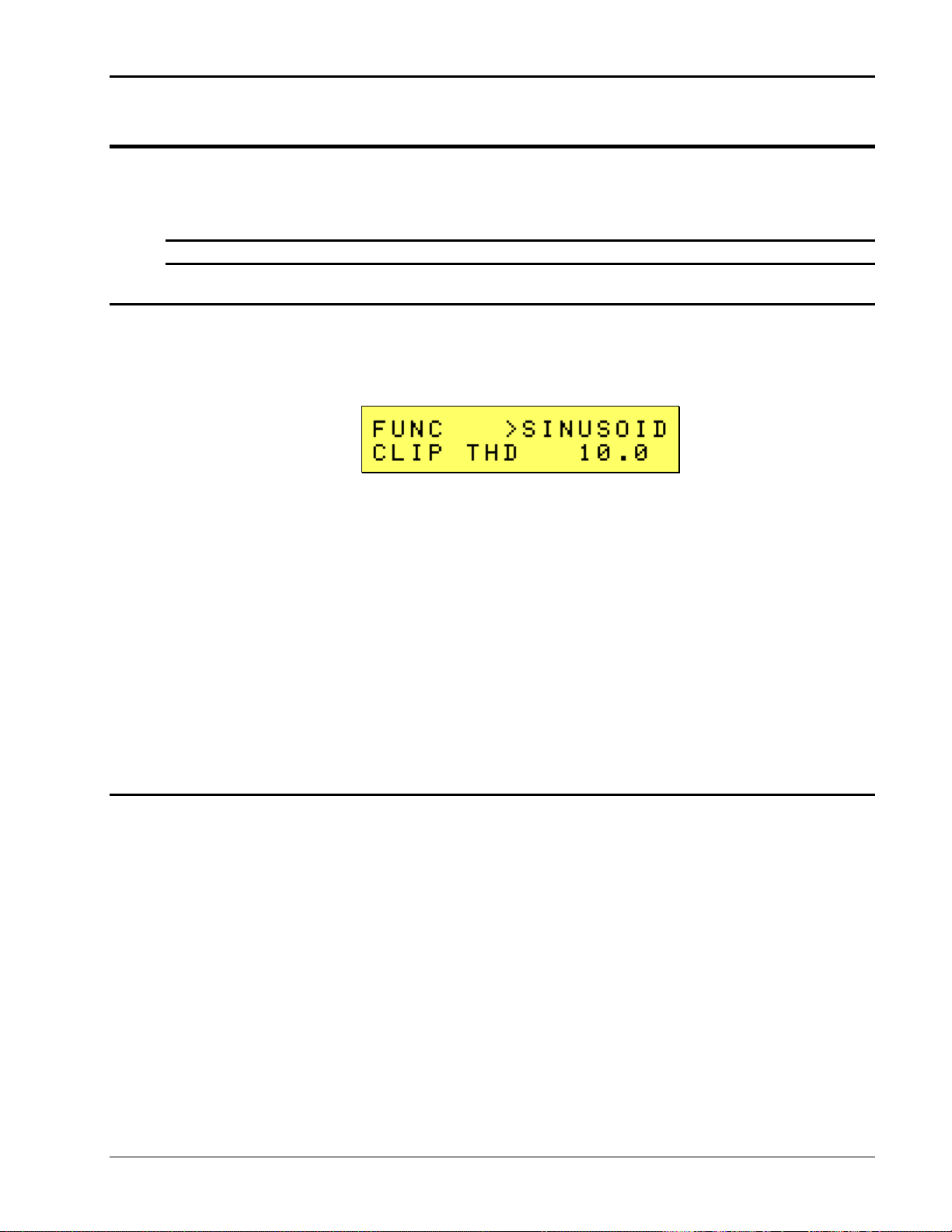

Figure 4-8: Selecting a Waveform ......................................................................................................................................... 81

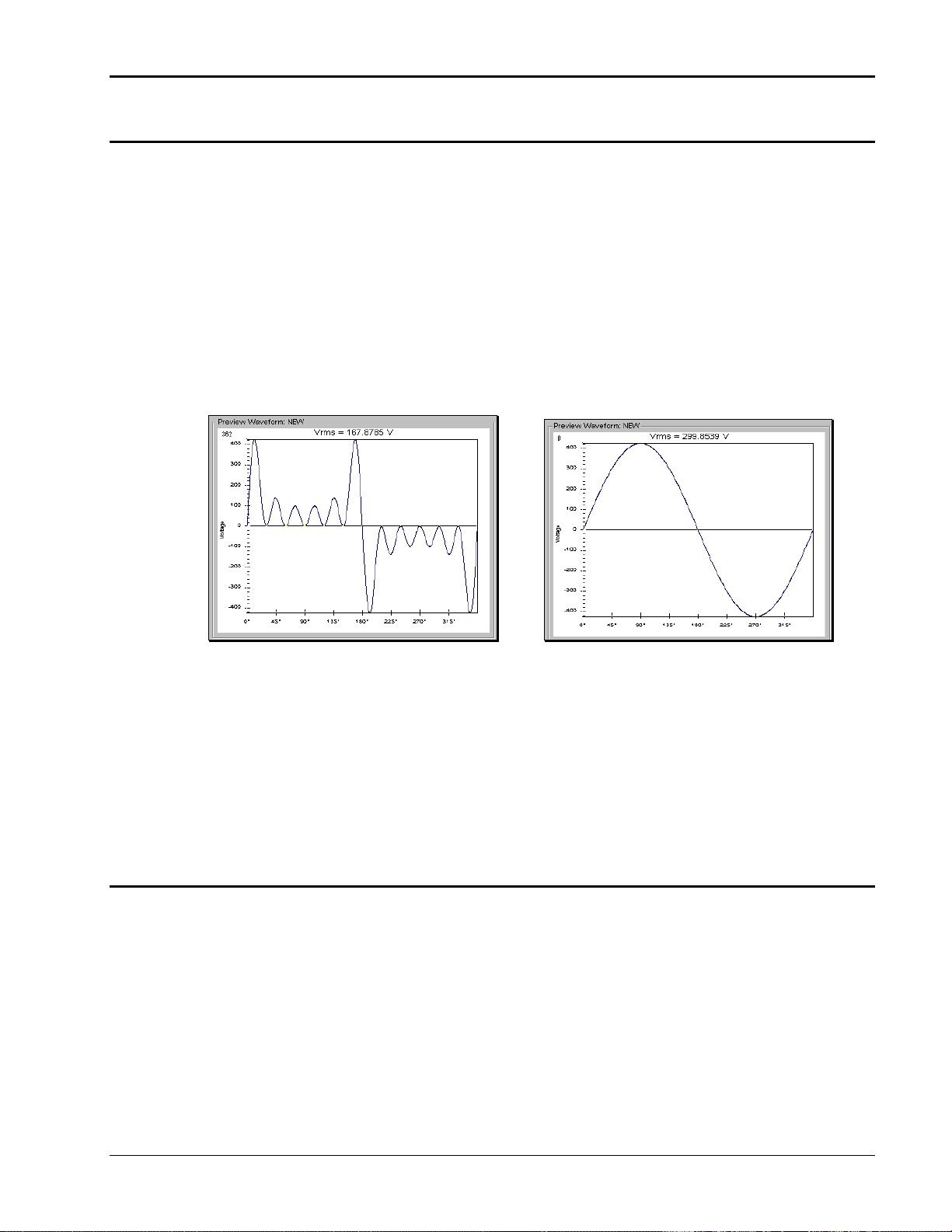

Figure 4-9: Waveform Crest Factor Affects Max. rms Voltage .............................................................................................. 82
Figure 4-10: Pulse Transients ............................................................................................................................................... 86
Figure 4-11: List Transients................................................................................................................................................... 86

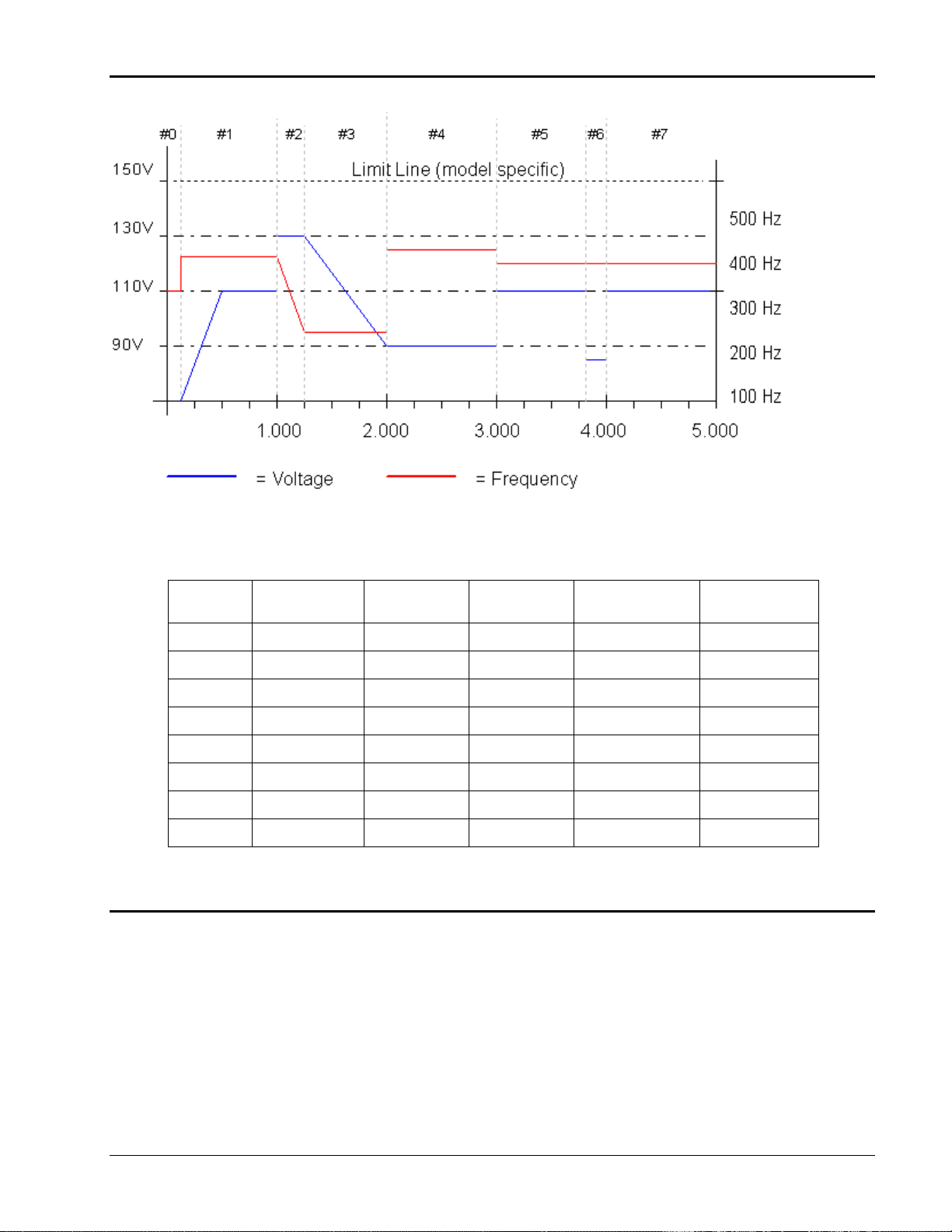

Figure 4-12: Sample Transient Output Sequence ................................................................................................................. 88

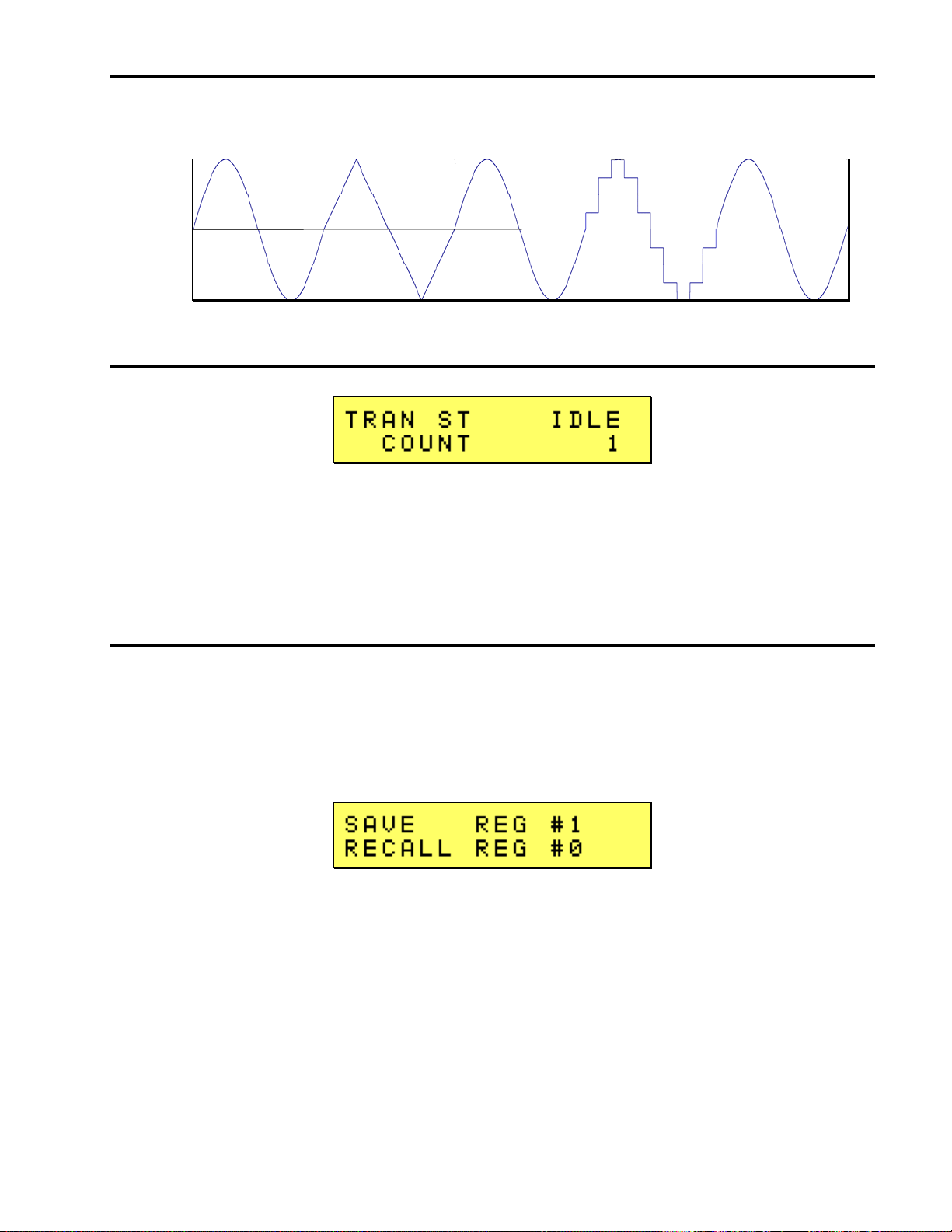

Figure 4-13: Switching Waveforms in a Transient List .......................................................................................................... 89

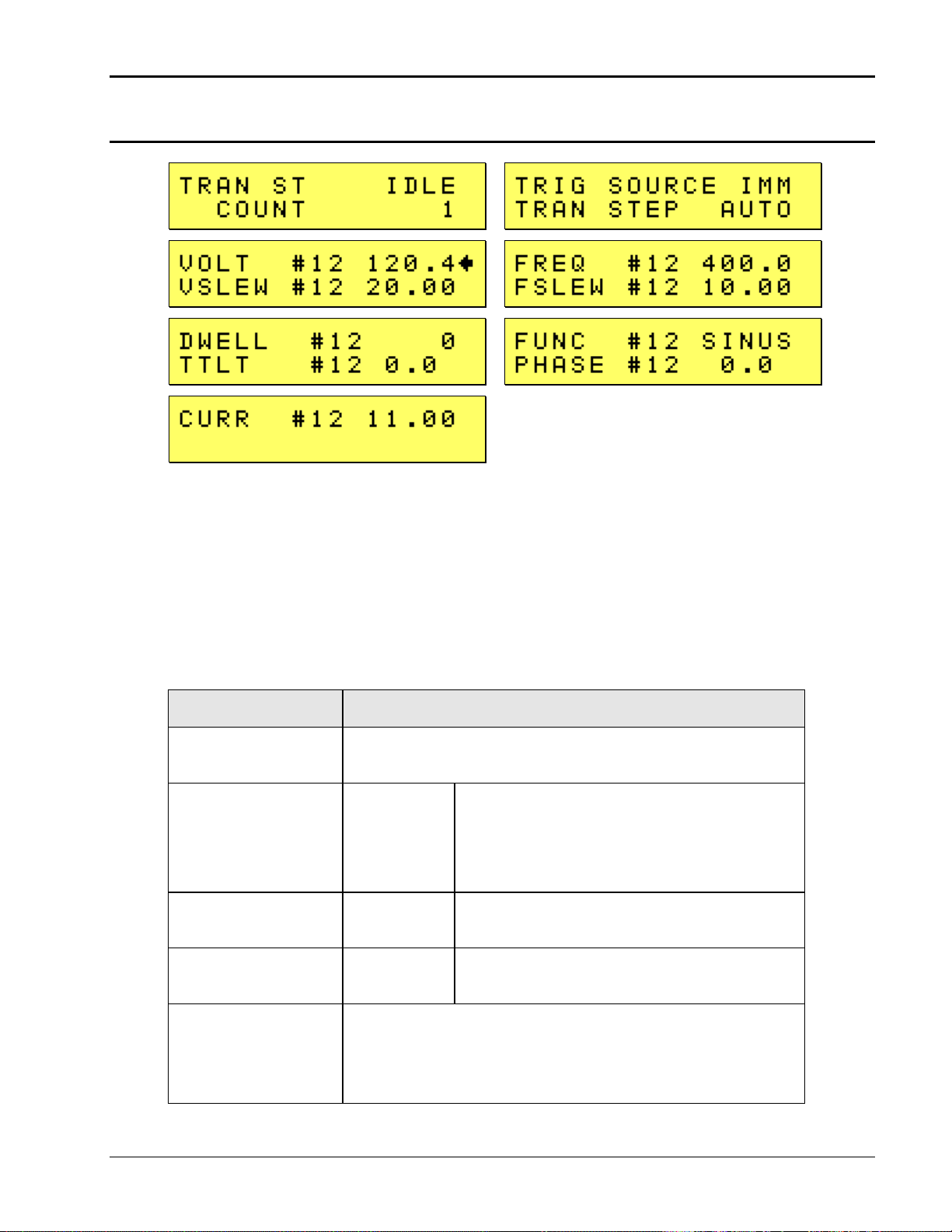

Figure 4-14: TRANSIENT Menu ............................................................................................................................................ 89
Figure 6-1: Internal adjustment locations. ............................................................................................................................. 99
Figure 8-1: Rack Mount Slides (-RMS option) position ........................................................................................................ 111
Figure 9-1: Application Menu .............................................................................................................................................. 114
Figure 9-2: DO160 Main Menus .......................................................................................................................................... 114
Figure 9-3: Normal state screens ........................................................................................................................................ 115
Figure 9-4: Voltage Modulation - Frequency characteristics ............................................................................................... 118
Figure 9-5: Frequency Modulation....................................................................................................................................... 119
Figure 9-6: Power Interrupt ................................................................................................................................................. 120
Figure 9-7: Power Interrupt for Group2/A (NF) and Group3/A(WF) ..................................................................................... 121
Figure 9-8: Emergency Screens .......................................................................................................................................... 123
Figure 9-9: Abnormal Screen .............................................................................................................................................. 125
Figure 9-10: Normal State screens ..................................................................................................................................... 128
Figure 9-11: Abnormal State screens .................................................................................................................................. 130
Figure 10-1: Applications Menu ........................................................................................................................................... 134
Figure 10-2: MIL704 Menu .................................................................................................................................................. 134
Figure 10-3: Steady State Menu ......................................................................................................................................... 135
Figure 10-4: Emergency Menu ............................................................................................................................................ 139
Figure 10-5: Abnormal Screens .......................................................................................................................................... 140
Figure 10-6: Emergency Test .............................................................................................................................................. 145
AMETEK California Instruments 9
User Manual 2253i / 2253iX
List of Tables
Table 3-1: Output Terminal connections. .............................................................................................................................. 39
Table 3-2: Rear Panel Connectors ........................................................................................................................................ 40
Table 3-3: AC Line Input Terminal block. .............................................................................................................................. 41
Table 3-4: Output Terminal connections. .............................................................................................................................. 41
Table 3-5: External Sense connector .................................................................................................................................... 41
Table 3-6: DB15 Auxiliary I/O Connector .............................................................................................................................. 42
Table 3-7: BNC Connectors .................................................................................................................................................. 42
Table 3-8: USB Connector pin out. ....................................................................................................................................... 43
Table 3-9: RS232 Connector pin out. .................................................................................................................................... 43
Table 3-10: GPIB Interface Connector pin out. ..................................................................................................................... 44
Table 3-11: RJ45 LAN Connector pin out. ............................................................................................................................. 45
Table 3-12: Load Resistance ................................................................................................................................................ 47
Table 4-1: Menu Tree ............................................................................................................................................................ 59
Table 4-2: Sample Transient List .......................................................................................................................................... 88
Table 4-3: Factory Default Power on Settings ....................................................................................................................... 90
Table 4-4: Remote Inhibit Modes. ......................................................................................................................................... 91
Table 6-1: Calibration Load Values ....................................................................................................................................... 96
Table 6-2: Output Calibration Coefficients - Factory Defaults. .............................................................................................. 97
Table 6-3: Adjustment pot reference by phase. ..................................................................................................................... 98
Table 7-1: Replaceable Parts and Assemblies .................................................................................................................... 107
Table 9-1: Normal Voltage and Frequency minimum .......................................................................................................... 116
Table 9-2: Normal Voltage and Frequency Maximum .......................................................................................................... 116
Table 9-3: Normal Voltage Unbalance ................................................................................................................................ 117
Table 9-4: Airbus mode voltage modulation. ....................................................................................................................... 117
Table 9-5: Normal VoltageSurge Sequence ........................................................................................................................ 121
Table 9-6: Normal Frequency Transient Sequence ............................................................................................................. 122
Table 9-7: Normal Frequency Variation Sequence .............................................................................................................. 122
Table 9-8: Emergency Voltage and Frequency Minimum .................................................................................................... 123
Table 9-9: Emergency Voltage and Frequency Maximum ................................................................................................... 123
Table 9-10: Emergency Voltage Unbalance ........................................................................................................................ 124
Table 9-11: Abnormal Voltage Minimum ............................................................................................................................. 125
Table 9-12: Abnormal Voltage Maximum ............................................................................................................................ 125
Table 9-13: Abnormal Voltage Unbalance ........................................................................................................................... 126
Table 9-14: Abnormal Frequency Transient ........................................................................................................................ 127
Table 9-15: Normal Voltage Minimum ................................................................................................................................. 128
Table 9-16: Normal Voltage Maximum ................................................................................................................................ 129
Table 9-17: Voltage Surge .................................................................................................................................................. 129
Table 9-18: Abnormal Voltage Surge .................................................................................................................................. 131
Table 10-1: Steady state voltage ......................................................................................................................................... 135
Table 10-2: Steady state frequency..................................................................................................................................... 136
Table 10-3: Frequency Modulation ...................................................................................................................................... 136
Table 10-4: Abnormal Over Frequency ............................................................................................................................... 141
Table 10-5: Abnormal Under Frequency ............................................................................................................................. 141
Table 16-1: Error Messages ................................................................................................................................................ 155
AMETEK California Instruments 10
User Manual 2253i / 2253iX
1. Introduction
This instruction manual (P/N 6005-962) contains information on the installation, operation, calibration
and maintenance of the model 2253i and model 2253iX AC power sources.
1.1 General Description
The Compact i/iX Series of AC Power Source is a family of high efficiency, rack mountable, AC Power
Sources that provide a precisely controlled output voltage with low distortion and measurements. In
addition, the unit provides measurements of voltage and current, and the iX models offer extensive
power analyzer capabilities with easy to use interface software. Standard output voltage ranges are
150 Vac and 300 Vac RMS. The 2253i/iX models operate in three-phase mode and provide a
maximum output power of 750VA per phase. A –MODE option is available which parallels all three
outputs in a single-phase mode of operation. A unique constant power mode allows for higher output
current at less than full-scale voltage effectively increasing the usability for many applications where
otherwise a higher power level AC source may be needed.
Read the installation instructions carefully before attempting to install and operate the Compact i/iX
Series power source.
Figure 1-1: Model 2253iX AC Source.
AMETEK California Instruments 11
User Manual 2253i / 2253iX
1.2 iX and i Model Differences
The 2253iX offers additional features and functions over the 2253i model. Some of the features
available on the 2253iX such as the GPIB interface may be added as an option to the 2253i at the
time of order. Other features are exclusive to the 2253iX models.
Both models are based on the same AC power source hardware platform and share many common
components. The differences are primarily in configuration and options. This manual covers both
models. Some menus and screen shown in this manual may not apply to i model AC sources.
All 2253i/iX models are equipped with a USB and RS232 interface. The 2253iX also includes a GPIB
interface. The GPIB interface can be specified as an option on the 2253i models at the time of order.
An optional Ethernet interface (-LAN) is available on the 2253iX model only.
1.3 Manual organization and format
All user documentation for California Instruments power sources is provided on CDROM in electronic
format. (Adobe Portable Document Format) The required Adobe PDF viewer is supplied on the same
CDROM. This manual may be printed for personal use if a hardcopy is desired. To request a
hardcopy from AMETEK Programmable Power, contact customer service at
support@programmablepower.com. There will be an additional charge for printed manuals.
This manual contains sections on installation, normal use, maintenance and calibration.
Refer to the iX Compact Series Programming manual for information on using the remote control
interface and command syntax. The programming manual (P/N 6005-961) is provided on the same
CDROM as this user manual.
AMETEK Programmable Power may make updated versions of this manual available from time to time
in electronic format through it’s website. To obtain an updated manual revision if available, check the
the AMETEK Programmable Power Manual download page at
register as a customer to obtain free access to manual and software downloads.
programmablepower.com. You need to
AMETEK California Instruments 12
User Manual 2253i / 2253iX
2. Specifications
Specifications shown are valid over an ambient temperature range of 25 5 C and apply after a 30
minute warm-up time. Unless otherwise noted, all specifications are per phase for sine wave output
into a resistive load. For three phase configurations or mode of operation, all specifications are for
Line to Neutral (L-N) and phase angle specifications are valid under balanced load conditions only.
Specifications for 2253i models are identical to those for the 2253iX except where noted.
2.1 Electrical
2.1.1 Input
Parameter Specification
Line Voltage:
(single phase, 2 wire +
ground (PE))
Line VA: 2940 VA / 2850 W
Line Current at nominal
input voltage:
Line Current at low line
input voltage, full power:
Line Frequency: 47-63 Hz
Efficiency: 77 % (typical @ full load)
Power Factor: 0.98 (typical @ full load)
Inrush Current: < 160 Apk for less than 2 ms at 230V + 10% AC input
Hold-Up Time: > 10 ms
Isolation Voltage: 1350 VAC input to output
< 20 Arms @ 115V and 1500 VA output
(Note: Max. AC input current limited to 20 Arms.
Breaker may trip above 1500 VA output power)
< 15 Arms @ 230V and 2250 VA output
< 20 Arms @ 103.5V (Derated output power)
< 17 Arms @ 207V (Full output power)
< 80 Apk for less than 2 ms at 115V + 10% AC input
115 to 230 VAC ± 10 %
1350 VAC input to chassis
AMETEK California Instruments 13
User Manual 2253i / 2253iX
1
2.1.2 Output
Output Parameter Specification
Model 2253i 2253iX
Modes
No of Outputs
AC, DC AC, DC, AC+DC
3 standard
1 or 3 with –MODE option
Voltage
Ranges (L-N):
AC, AC+DC Mode
Low Vrange: 0 - 150 Vrms
High Vrange: 0 - 300 Vrms
DC Mode
Low Vrange: 0 - 200 Vdc
High Vrange: 0 - 400 Vdc
Programming Resolution: 0.1 V
Accuracy:
0.1% FS1 (from 5V to FS1)
(ALC mode ON)
Distortion THD2:
Load Regulation:
(ALC mode ON)
(At external sense connection with ext sense mode programmed.)
< 1 % 16 - 1000 Hz
(harmonics and noise to 300 kHz)
0.1 % FS
Voltage Sense modes: Internal
External
External Sense Up to 3 % of set voltage can be dropped across each load lead.
Line Regulation: 0.02% for 10% input line change
DC Offset Voltage:
(In AC mode)
Output Noise:
(20 kHz to 1 MHz, full R load)
< 100 mV
< 200 mV
< 20.0 mV
150V / 200V Range
RMS –
300V / 400V Range
RMS –
Output Coupling Direct coupled
Output Impedance (Z) (@
Z = Vrange * 0.001 / I_load
max current)
Current (with 200 – 230 VAC line input)
Output Mode 3 Phase 1 Phase (-Mode)
AC Mode
High Voltage range 2.5 Arms @ 300 V
3.25 Arms @ 230 V
7.5 Arms @ 300 V
9.74 Arms @ 230 V
Low Voltage range 5.0 Arms @ 150 V 15.0 Arms @ 150 V
1
FS (Full Scale) refers to highest available range, e.g. 300Vac in AC mode, 400Vdc in DC mode.
2
The distortion specification applies at 77% voltage range, max current and resistive load conditions.
AMETEK California Instruments 14
User Manual 2253i / 2253iX
Output Parameter Specification
6.5 Arms @ 115 V 19.5 Arms @ 115 V
DC Mode
High Voltage range 1.25 Adc @ 400 V
1.63 Adc @ 300 V
Low Voltage range 2.5 Adc @ 200 V
3.25 Adc @ 150 V
3.75 Adc @ 400 V
4.88 Adc @ 300 V
7.5 Adc @ 200 V
9.74 Adc @ 150 V
AC+DC Mode
High Voltage range 1.25 Arms @ 300 V
1.63 Arms @ 230 V
Low Voltage range 2.5 Arms @ 150 V
3.25 Arms @ 115 V
3.75 Arms @ 300 V
4.88 Arms @ 230 V
7.5 Arms @ 150 V
9.74 Arms @ 115 V
Current Limit mode Programmable, CC or CV mode
Note: Constant power mode allows higher current at reduced voltage. Maximum current available at 77% of
voltage range. See Figure 2-1 through Figure 2-6 for voltage versus current profiles by model and
voltage range.
Note: Full power output available only when using 208-230 AC nominal input line. For 100-115V AC input
operation, maximum output power and current are limited by maximum input current of 20 A.
Maximum AC Peak Current
Model
AC mode, High Vrange
AC mode, Low Vrange
3 Phase 1 Phase (-Mode)
10 Apk
20 Apk
30 Apk
60 Apk
Crest Factor AC Current
Maximum CF at full scale
4:1
voltage rms current
Power
Model
AC Mode (208 – 230V
3 Phase 1 Phase (-Mode)
750 VA 2250 VA
nominal AC input)
AC Mode (100-115V nominal
500 VA 1500 VA
AC input)
DC Mode 500 W 1500 W
AC+DC Mode 375 VA 1125 VA
Frequency
Range: 16 Hz - 1000 Hz
Resolution1: 0.01 Hz [< 81.91 Hz]
0.1 Hz [> 82.0 to 819.1 Hz]
1 Hz [> 819 Hz]
Accuracy: ± 0.025 %
Temp. Coefficient ± 5 ppm of value / °C
Stability: ± 15 ppm of value
1
Programming resolution reduced if –LKM/-LKS option is installed. See paragraph 2.9.
AMETEK California Instruments 15
User Manual 2253i / 2253iX
Note: All output specifications apply below the Current / Voltage rating line shown in the V/I
rating charts of section 2.1.2.1 through 2.1.2.3. Data is shown for three-phase mode.
For –MODE option, multiply current by 3.
AMETEK California Instruments 16
User Manual 2253i / 2253iX
2.1.2.1 Voltage versus Current Rating Charts – AC Mode – 230V AC input
Figure 2-1: 2253i / iX Voltage / Current Rating Chart for 150V AC Range per phase – 230Vac in.
Figure 2-2: 2253i / iX Voltage / Current Rating Chart for 300V AC Range per phase – 230Vac in.
AMETEK California Instruments 17
User Manual 2253i / 2253iX
2.1.2.2 Voltage versus Current Rating Charts – AC Mode – 115V AC input
2253i/iX Voltage Current Profile - AC Low Vrange - 115V AC input
7.00
6.00
5.00
4.00
Irms
3.00
2.00
1.00
0.00
0 25 50 75 100 125 150
Vrms
Figure 2-3: 2253i / iX Voltage / Current Rating Chart for 150V AC Range per phase – 115Vac in
2253i/iX Voltage Current Profile - AC High Vrange - 115V AC input
3.50
3.00
2.50
2.00
Irms
1.50
1.00
0.50
0.00
0 50 100 150 200 250 300
Vrms
Figure 2-4: 2253i / iX Voltage / Current Rating Chart for 300V AC Range per phase – 115Vac in
AMETEK California Instruments 18
User Manual 2253i / 2253iX
2.1.2.3 Voltage versus Current Rating Charts – DC Mode
2253i/iX Voltage Current Profile - DC Low Vrange
3.50
3.00
2.50
2.00
Idc
1.50
1.00
0.50
0.00
0 25 50 75 100 125 150 175 200
Vdc
Figure 2-5: 2253i / iX Voltage / Current Rating Chart for 200V DC Range per phase.
2253i/iX Voltage Current Profile - DC High Vrange
2.00
1.75
1.50
1.25
1.00
Idc
0.75
0.50
0.25
0.00
0 50 100 150 200 250 300 350 400
Vdc
Figure 2-6: 2253i / iX Voltage / Current Rating Chart for 400V DC Range per phase.
AMETEK California Instruments 19
User Manual 2253i / 2253iX
2.1.3 Measurements
Measurement specifications apply to single chassis AC sources. See notes for other models and
configurations.
Parameter Range
Frequency1 16.00-1000.0 Hz 0.1 % 0.01 Hz to 81.91 Hz
Voltage 0 - 400 Volts 0.1 % 0.01 Volt
Phase angle 0 – 360° 0.5° 0.1°
Current 0 – 15 Amps 0.5 % 0.001 Amp
Peak Current 0 - 60 Amps 0.5 % 0.001 Amp
Crest Factor 1.00 –10.00 1.5 % 0.01
VA Power 0 - 4 KVA 0.5 % 1 VA
Real Power 0 - 4 KW 0.5 % 1 W
Power Factor 0.00 - 1.00 1 % 0.01
Note: Accuracy specifications are valid above 100 counts. For multi-chassis configurations, Current
and Power range and accuracy specifications are times the number of chassis.
Note: Frequency measurement specification valid for output > 20 Vrms.
Note: Crest Factor accuracy applies for Irms > 50% of max.
Note: Power Factor accuracy applies for PF > 0.5 and VA > 50% of max.
2.1.4 Harmonic Measurements
Harmonic measurement specifications apply to 2253iX model AC sources only.
Accuracy ( % FS)
Resolution
0.1 Hz to 819.1 Hz
1 Hz > 819.1 Hz
Parameter Range
Frequency fundamental 16.00 - 81.91 Hz
82.0 - 819.1 Hz
> 819.1 Hz
Frequency harmonics 16.00 Hz – 48 kHz 0.5% 0.1 Hz
Phase -180° – 180° 2° + 5°/kHz 0.1°
Voltage
Fundamental 0 - 400 Volts 0.5% 0.01V
Harmonic 2 - 50 0.5% + 0.5%/kHz 0.01V
Current2
Fundamental 0 - 15 Amps 0.5% 0.01A
Harmonic 3 - 50 0.5% + 0.5%/kHz 0.01A
Note: For multi-chassis configurations, current accuracy specifications are times the number of
chassis.
Accuracy ( % FS)
0.1% 0.01 Hz
Resolution
0.1 Hz
1 Hz
1
Frequency measurement specifications valid with output voltage of 20Vrms or higher. If output relay is open, frequency
measurement will return 0.0 Hz.
2
Second current harmonic measurement value not included.
AMETEK California Instruments 20
User Manual 2253i / 2253iX
2.1.5 System Specification
Controller Features Specification
Trigger Input: External trigger source input. Requires TTL level input signal. Triggers
on negative edge. Response time 80 - 100 s.
Function Strobe:
Trigger Out:
Non volatile memory
storage:
Waveforms i Series: Sine.
Transients Voltage: drop, step, sag, surge, sweep
Current Limit Modes: Two selectable modes of operation:
Control Interfaces
USB Standard USB 2.0 peripheral.
Logic output, active low. Pulse width > 400 s. Function strobe is
generated on any voltage or frequency program change or output relay
open/close. (Mutually exclusive with Trigger Out.)
Logic output, active low. Pulse width > 400 s. Trigger out is generated
based on user programmed transient trigger list. (Mutually exclusive with
Function Strobe.)
16 complete instrument setups and transient lists, 100 events per list.
50 User defined waveforms.
iX Series: Sine, square, clipped, user defined (50 waveforms)
Frequency: step, sag, surge, sweep
Voltage and Frequency: step, sweep
1. Constant current mode (voltage folds back with automatic recovery)
2. Constant voltage mode with output relay trip-off (Output relay
opens).
Note: Only one of the serial interfaces (USB, RS232 or LAN) can be
active at the same time. (Mutually exclusive).
Data transfer rate: 460,800 bps
Syntax: SCPI
Note: Use of the USB port to control more than one power
source from a single PC is not recommended, as communication
may not be reliable. Use GPIB interface for multiple power source
control.
RS232 Standard RS232 interface.
Data transfer rate: 9600 to 115,200 bps
Format: 8 data, 1 start, 1 stop, no parity.
Syntax: SCPI
IEEE-488 AH1, DC1, DT1, L3, RL2, SH1, SR1, T6
IEEE 488.2 and SCPI
Response time is 10 ms (typical)
(Requires –GPIB option on 2253i)
LAN / Ethernet RJ45 Connector, 10BaseT, 100BaseT or 1000BaseT,
Data transfer rate: 460,800 bps
Protocol: TCP/IP.
(-LAN Option on 2253iX only. RS232 interface is disabled with –LAN
option)
AMETEK California Instruments 21
User Manual 2253i / 2253iX
2.1.6 Unit Protection
Parameter Specification
Input Over current: Input Circuit Breaker. This breaker protects the equipment and is also
used to turn the unit on or off.. AC input connection should be made per
local electrical code.
Input Over voltage
Transients:
Output Over current: Adjustable level constant current mode with programmable set point.
Output Short Circuit: Peak and RMS current limit.
Over temperature: Automatic shutdown.
Surge protection to withstand EN50082-1 (IEC 801-4, 5) levels.
AMETEK California Instruments 22
User Manual 2253i / 2253iX
2.2 Mechanical
Parameter Specification
Dimensions: Height: 5.25 inches (13.3 cm)
Depth: 23 inches (58.4 cm)
Width: 19 inches (48.3 cm)
All dimensions are per chassis. For /2 model configurations, multiply
height by 2 for total height. Width includes integrated front panel rack
mount ears.
Equipment Rack depth
requirement
Rack slide mount The rack mount slide (-RMS option) mounting holes centerlines on the
Unit Weight:
Material: Steel chassis with aluminum top cover
Finish: Powder coated external surfaces, color medium gray.
Cooling: Fan cooled with air intake on the sides and front, and exhaust to the rear.
Acoustic Noise
(Supplemental
specification)
Internal Construction: Modular sub assemblies.
Rear Panel
Connections:
25 inches (63.5 cm)
side of the power source are 2.30 inches / 58.4 mm above the bottom
edge of the front panel.
Net: 58 lbs / 26 Kg approximately
Shipping: 76 lbs / 35 Kg
Variable speed fan control.
Measured at 1 m distance:
Fan speed: Low power mode Full power mode
Front of unit: 41 dBA 51 dBA
Rear of unit: 43 dBA 56 dBA
(See section 3 for description of connections)
AC input screw terminal block.
AC output screw terminal strip.
External sense connector.
approximately
USB, RS232, GPIB (option on i), LAN (option on iX)
Auxiliary I/O
AMETEK California Instruments 23
User Manual 2253i / 2253iX
2.3 Environmental
Parameter Specification
Operating Temp:
Storage Temp:
Altitude: < 2000 meters
Relative Humidity:
Operating Environment Indoors Use Only. Ground benign.
Vibration: Designed to meet NSTA project 1A transportation levels.
Shock: Designed to meet NSTA project 1A transportation levels.
2.4 Regulatory
Electromagnetic Emissions
and Immunity:
Safety: Designed EN61010-1 European safety standards as required for the “CE”
0° to +40 C, full power.
+32° to +104° F, full power.
-40° to +85 C.
-40° to +185° F.
< 6000 feet
0-80 % RAH, non-condensing maximum for temperatures up to 31C
decreasing linearly to 50% at 40C.
Designed to meet EN50081-2 and EN50082-2 European Emissions and
Immunity standards as required for the “CE” mark.
mark.
AMETEK California Instruments 24
User Manual 2253i / 2253iX
2.5 Front Panel Controls, Indicators and Display
Controls:
Shuttle knob: The rotating knob may be used to adjust settings while in the SET menu.
Up/down arrow keys: A set of up and down arrow keys is used to move the cursor position in
Function keys:
Keypad: A numeric keypad contains numbers 0 through 9 as well as up and down
Indicators and Display:
Status indicators: Status indicators inform the user of important power source conditions:
LCD character display: High contrast backlit LCD display. An adjustable viewing angle makes it
In all other menus, the shuttle may be used to change parameter values
and settings.
all menus. This allows quick selection of the desired function or
parameter.
ON/OFF key for output relay control.
PHASE This key allows selection of an individual phase or all three
phases.
SET key will show output voltage and frequency setting.
MEAS key displays the measurement screens. Measure key will display
measurement values for selected phase or phase A if all three phases
are selected.
MENU key selects main menu.
BACK key is used to back up to previous screen or erase the last digit
entered. This key also serves as a “GOTO LOCAL” key when the unit is
in remote.
arrow keys, an Enter key, decimal point and polarity change (+/-) key.
The up and down arrow keys are used to move the cursor position in all
menus. This allows quick selection of the desired function or parameter.
The Hi Range indicator is lit any time the unit is switched to the high
voltage range.
The Overtemp LED illuminates when internal heat sink temperatures are
too high.
The Overcurrent LED indicates that maximum programmed current limit
is being drawn at the output.
The Remote/LAN LED informs the user that the unit is under remote
control. During LAN operation it indicate that the unit has a valid IP. The
LAN LED will turn off if the LAN connection is broken, duplicate IP or
DHCP lease expires.
The Output indicator is on when the power source output relays are
closed.
The Phase A, B, C indicators illuminate when either phase A, B, C or all
3 phases are selected using the PHASE button.
easy to read from all practical locations.
AMETEK California Instruments 25
User Manual 2253i / 2253iX
2.6 Special Features
Controller Features
Controller: Programmable controller front panel assembly.
Mode Available single-phase mode option (-MODE) allows the output of all
three amplifiers to be combined on phase A output terminal. No external
switching or reconnection to the load is required.
Output Relay: Standard output relay feature to isolate power source from the load. Each
phase and the neutral (common) output is disconnected when the output
relay opens.
Output On/Off: The output relay can be used to quickly disconnect the load. A yellow
status indicator displays the status of the output relay.
External Trigger Output
or Function Strobe
Clock and Lock Mode Enables two or more independent iX power systems to be phase
Trigger Input A TTL input signal may be used as a trigger source for output changes
An external TTL output is available which may be used to trigger other
equipment. The TTL output can be controlled by the transient
programming system. This requires the trigger mode to be set to EXT
(factory default). This can only be done over the computer interface using
the OUTP:TTLT:MODE TRIG command.
It can also be configured to generate an output pulse any time the
voltage, frequency, current limit or phase programming is updated. This
requires the trigger mode to be set to FSTR. This can only be done over
the computer interface using the OUTP:TTLT:MODE FSTR command.
This mode is compatible with the CI Lx/Ls Series.
The Trigger Output (Trig Out) / Function Strobe is an active low TTL
signal with a duration of no less than 400 us.
synchronized to each other. One system (-LKM) acts as the master, the
other(s) (-LKS) as auxiliaries. The –LKS units are synced to the –LKM
unit. Refer to section 3.9 for details on Clock and Lock mode.
programmed on the AC power source transient system. This requires the
trigger source to be set to EXT. This can only be done via one of the
computer interfaces. An external trigger source may be used to control
the execution of output sequences that have been pre-programmed into
the power source transient system. Refer to i/iX Series Programming
Manual (6005-961) for details.
AMETEK California Instruments 26
User Manual 2253i / 2253iX
2.7 Available Options – i Series
Interface Options
-GPIB GPIB Remote control interface. This option is not field installable and
must be specified at the time of original unit order.
Misc. Options
-ABL Atlas Based Language Extension. The ABLE command language
provides bus compatibility with 9012 PIP controllers.
-EXT External Signal Input. This option allows a 0-5Vrms AC signal to be used
as the oscillator signal. In this mode, the AC power source acts as an AC
amplifier. No programmable current limit is available and the output
frequency of 1000 Hz should not be exceeded. Mutually exclusive with –
RPF and –RPV options.
-MODE Mode option allows all three amplifier outputs to be combined on phase A
output terminal. No external switching or reconnection to the load is
required.
-RMS Set of 2 Rack mount slides. (Left and Right) Recommended to mount
chassis in 19-inch instrument cabinet.
-RPV Remote programming voltage. DC voltage input 0 to 10 VDC for 0 to fullscale output voltage programming.
-RPF Remote programming frequency. DC voltage input 0 to 10 VDC or 0 to 5
VDC for 0 to 800 Hz output frequency programming. Input impedance is
20 Kohm (RPF10) or 10 Kohm (RPF5).
This option is mutually exclusive with the –LKS option.
-WHM Watt-hour measurement option.
AMETEK California Instruments 27
User Manual 2253i / 2253iX
2.8 Available Options – iX Series
Interface Options
-LAN Ethernet LAN interface connection. RJ45 connector. This option is not
field installable and must be specified at the time of original unit order.
Note: The RS232 interface is disabled if –LAN option is specified.
Test Options
-160 RTCA/DO-160 Revision D and E, EuroCAE test firmware. Revision E
requires use of iXCGui software (included).
-704 Mil-Std 704 Revision D and E test firmware. Revision A, B, C and F
requires use of iXCGui software (included).
-704F Mil-Std 704 Revisions A through F test firmware.
-A350 Airbus A350 / ABD0100.1.8.1 test software. Requires use of iXCGui
software (included).
-ABD Airbus ABD0100.1.8 test software. Requires use of iXCGui software
(included).
-AMD Airbus A400M Directive AMD24 test software. Requires use of iXCGui
software (included).
Misc. Options
-B787 Boeing B787-0147 test software. Requires use of iXCGui software
(included).
-ABL Atlas Based Language Extension. The ABLE command language
provides bus compatibility with 9012 PIP controllers.
-EXS External Sync Input. This option changes the external trigger input to an
external sync input. The output frequency will be synced to the square
wave TTL level sync signal provided.
-EXT External Signal Input. This option allows a 0-5Vrms AC signal to be used
as the oscillator signal. In this mode, the AC power source acts as an AC
amplifier. No programmable current limit is available and the output
frequency of 1000 Hz should not be exceeded. Mutually exclusive with –
RPF and –RPV options.
-LKM Clock and Lock Master. Enables synchronizing outputs of two iX AC
sources. This mode supports a frequency range of 16 to 819 Hz.
The –LKM applies to the master unit. This option is not field installable
and must be specified at the time of original unit order.
-LKS Clock and Lock Auxiliary. See -LKM for details. The –LKS applies to the
auxiliary unit. (See Notes, see section 3.9.) This option is not field
installable and must be specified at the time of original unit order.
This option is mutually exclusive with the –RPF option.
-MODE Mode option allows all three amplifier phase outputs to be combined on
phase A output terminal. No external switching or reconnection to the
load is required.
-RMS Set of 2 Rack mount slides. (Left and Right) Recommended to mount
chassis in 19-inch instrument cabinet.
-RPV Remote programming voltage. DC voltage input 0 to 10 VDC for 0 to fullscale output voltage programming. Mutually exclusive with –EXT option.
-RPF Remote programming frequency. DC voltage input 0 to 10 VDC or 0 to 5
VDC for 0 to 800 Hz output frequency programming. Input impedance is
AMETEK California Instruments 28
User Manual 2253i / 2253iX
20 KOhm.
This option is mutually exclusive with the –LKS and –EXT option.
-WHM Watt-hour measurement option.
2.9 EXT Option - Supplemental Specifications
When the EXT option is installed, the amplifier is used in an open loop mode and none of the regular compact iX
Series output specifications apply. This option also precludes the presence of the –RPV and –RPF option.
An external signal input is provided for each phase. The phase A EXT input pins is also used on the Auxiliary I/O
connector for the RPVA option so the RPV and EXT options are mutually exclusive. The voltage reference (VOLT
REF) on the CONTROL screen of the power source controller must be set to EXT to use this feature. See section
8.4 for EXT option operating instructions.
Parameter Supplemental Specification
Input:
Level 0 – 5 Vrms / -7.5 Vpk to +7.5 Vpk max. for 0 to 300Vrms. (Gain = 35.6 dB)
Impedance < 4 KOhm
Output:
Allowable Frequency:
Range 16 – 1000 Hz
Freqeuncy Response
Phase Phase offsets determined by provided external signal inputs A, B, C.
Isolated inputs, RPVA, EXTB, EXTC to analog common inputs on DB15
Auxiliary I/O (J18)
Voltage range is fixed to 300V AC range.
0 – 300 Vac RMS
See Figure 2-7.
AMETEK California Instruments 29
User Manual 2253i / 2253iX
2.9.1 Typical Frequency Response – EXT Option
Typical performance for EXT option models in the 300VAC range operating at 230Vrms. EXT is
calibrated at 60 Hz.
230V Frequency Response
240.00
235.00
230.00
225.00
220.00
Voltage (V)
215.00
210.00
205.00
200.00
No Load
Full Load
0 200 400 600 800 1000 1200
Frequency (Hz)
Figure 2-7: EXT Option Frequency response 300VAC Range.
AMETEK California Instruments 30
