American Standard DAZZLE T028.50X User Manual
Installation
Instructions
DAZZLE
BATH AND SHOWER TRIM KITS
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly-please read these instructions carefully before
you begin.
Required Tools
T028.50X
Off
t
Ho
Certified to comply with ANSI A112.18.1
M968834 REV 1.4
Phillips Screwdriver
Flat Blade Screwdriver
ROUGHING-IN DIMENSIONS
To assure proper positioning in relation to wall, note
roughing-in dimensions.
FINISHED WALL
5-1/8" REF.
7-7/8" REF.
74" FOR HEAD
CLEARANCE
18" OPTIONAL
Plumbers' Putty or Caulking
1/2" NPT
1-5/8"
to
3-1/4"
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 65'' AND 80''
7-1/8"
Channel Locks
SHR. 1/2" NOM.
COPPER SWEAT
SWEAT
INLETS
TUB 1/2" NOM.
COPPER SWEAT
SHR. 1/2" NOM.
COPPER SWEAT
TUB 1/2" NOM.
COPPER SWEAT
3-3/8"
3-3/8"
OUTLETS
1/2" NPT
INLETS
1/2" NOM.
COPPER
INLETS
SWEAT
4-1/16"
SWEAT
INLETS (STOPS)
5-7/8"
INLETS 1/2" NPT
Teflon Tape
2"
4-1/16"
4-1/16"
INLETS
1/2" NOM.
COPPER
SWEAT
TOP OF TUB RIM
1-1/2"
REF.
5" REF.
BOTTOM OF TUB
1/2" NPT
THREADED INLETS
OUTLETS
1/2" NPT
4"
3-3/8"
THREADED INLETS (STOPS)
5-7/8"
INLETS
1/2" NPT

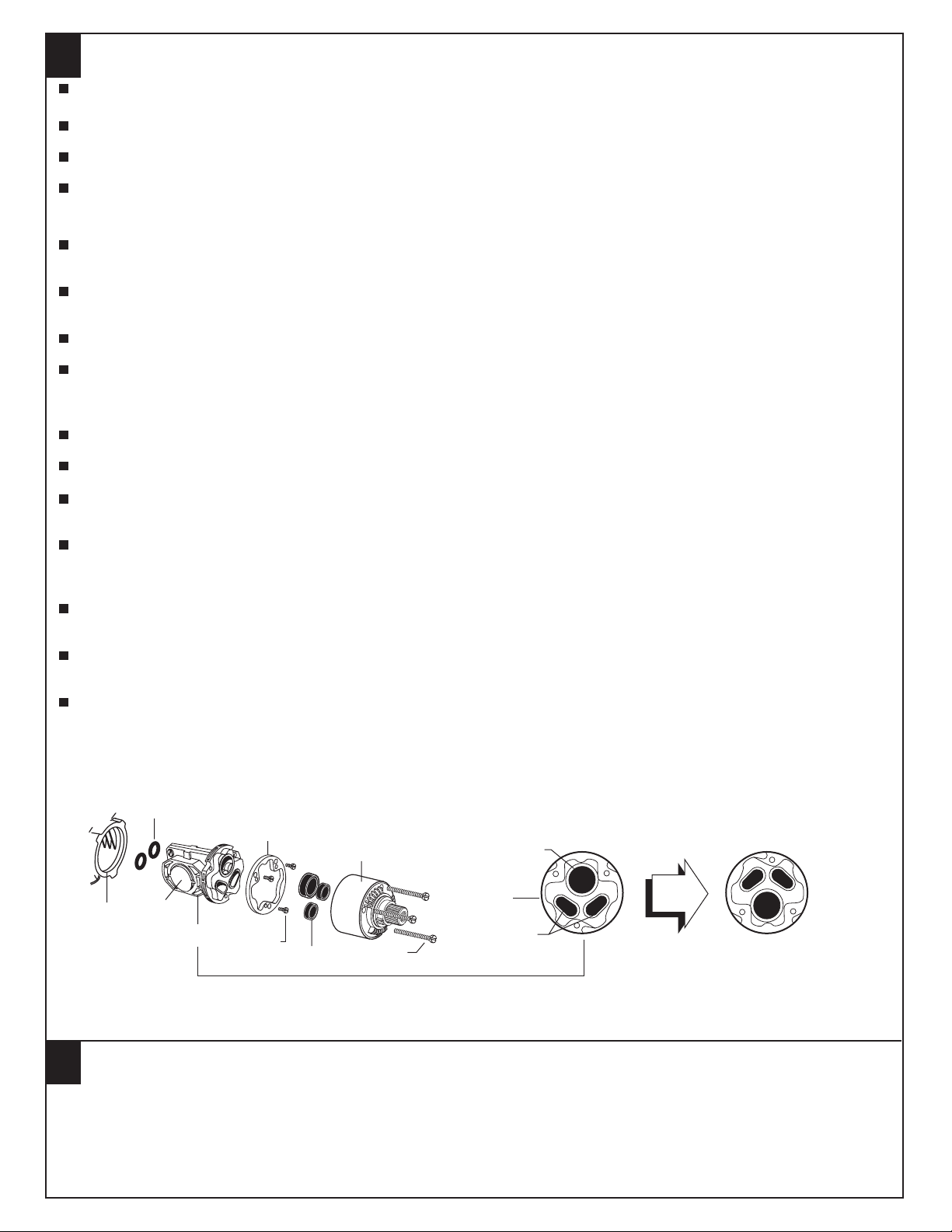

INSTALL TRIM
1
CAUTION: Protect finish on SHOWER ARM,
SHOWER HEAD and TUB SPOUT when installing.
When finished tiling the wall, remove PLASTER GUARD (A)
and turn off water supply.
Push CAP (1) over VALVE CARTRIDGE (2).
INSTALL HANDLE
2
Find correct position of HANDLE (1) and push
HANDLE (1) onto VALVE STEM (4).
Install HANDLE SCREW (2) and push in INDEX
CAP (3).
Mount ESCUTCHEON (3) and gasket to valve body with SCREWS (4).
Remove PIPE CAPS (5) from shower pipe and tub filler pipe.
Install SHOWER ARM with FLANGE (6) and SHOWER HEAD (7).
Install SLIP-ON SPOUT with FLANGE (8) and tighten with a
4mm (5/32") HEX WRENCH.
SHOWER ARM
FLANGE
6
A
5
2
1
7
4
Off
3
Check proper operation of HANDLE (1).
Turn on water supply on and test installed fitting.
Operate valve and diverter spout.
Off
4
1
2
3
Hot
Hot
8
5
SPOUT FLANGE
ADJUST HOT LIMIT STOP
3
By restricting HANDLE rotation and limiting the amount of hot
water allowed to mix with the cold, the HOT LIMIT SAFETY
STOP (1) reduces risk of accidental scalding. To set the maximum
hot water temperature of your faucet, all you need to do
is adjust the setting on the HOT LIMIT SAFETY STOP (1).
Turn CARTRIDGE STEM (2) to the OFF position (coldest setting)
before making adjustment to HOT LIMIT STOP (1). Use a
flat blade screwdriver to pry free the HOT LIMIT SAFETY STOP (1).
Pull forward and rotate counterclockwise one number to limit hot
water temperature. Use ARROW (3) on CARTRIDGE (4) and
NUMBERS (5) on HOT LIMIT STOP (1) for indication.
4mm (5/32")
HEX WRENCH.
4
(Larger Numbers)
0 1 3 5 7 9 11 13 15
1
0
1
5
1
3
1
1
9
7
5
3
1
COLDER
3
7
9
5
1
3
1
3
1
5
1
5
1
4
2
3
2
HOTTER
(Smaller Numbers)
0 1 3 5 7 9 11 13 15
5
1
5
1
3
1
1
9
7
5
3
1
1
M968834 REV 1.4
