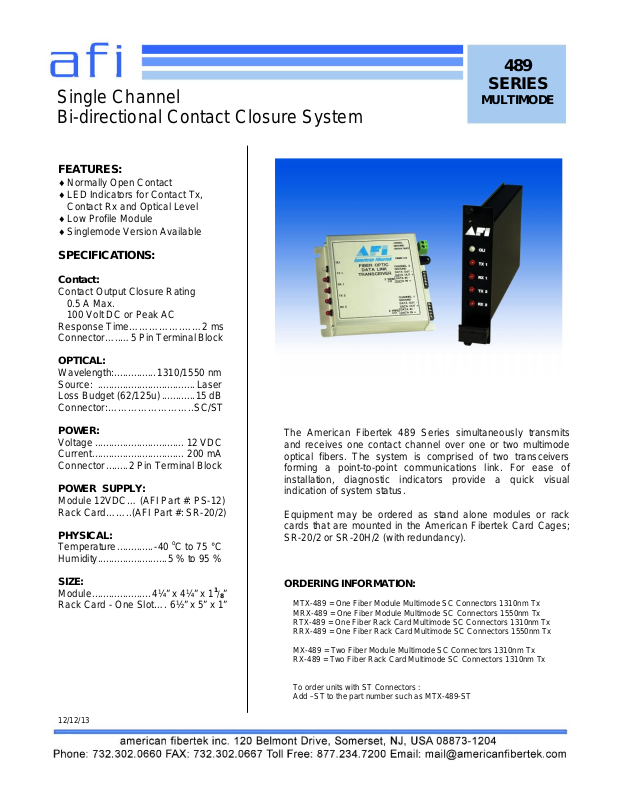

American Fibertek MX-489-ST, MX-489, MTX-489-ST, MTX-489, MRX-489-ST Specsheet
...
489
SERIES
MULTIMODE
FEATURES:
Normally Open Contact
LED Indicators for Contact Tx,
Contact Rx and Optical Level
Low Profile Module
Singlemode Version Available
SPECIFICATIONS:
Contact:
Contact Output Closure Rating
0.5 A Max.
100 Volt DC or Peak AC
Response Time…………….……2 ms
Connector…..…5 Pin Terminal Block
OPTICAL:
Wavelength:...............1310/1550 nm
Source: ...................................Laser
Loss Budget (62/125u) ............15 dB
Connector:……………………..SC/ST
POWER:
Voltage ................................ 12 VDC
Current................................. 200 mA
Connector........2 Pin Terminal Block
POWER SUPPLY:
Module 12VDC… (AFI Part #: PS-12)
Rack Card……..(AFI Part #: SR-20/2)
PHYSICAL:
Temperature.............-40oC to 75 °C
Humidity.........................5 % to 95 %
SIZE:
Module.....................4¼” x 4¼” x 1
1
/
8
”
Rack Card - One Slot…. 6½” x 5” x 1”
12/12/13
Single Channel
Bi-directional Contact Closure System
The American Fibertek 489 Series simultaneously transmits
and receives one contact channel over one or two multimode
optical fibers. The system is comprised of two transceivers
forming a point-to-point communications link. For ease of
installation, diagnostic indicators provide a quick visual
indication of system status.
Equipment may be ordered as stand alone modules or rack
cards that are mounted in the American Fibertek Card Cages;
SR-20/2 or SR-20H/2 (with redundancy).
ORDERING INFORMATION:
MTX-489 = One Fiber Module Multimode SC Connectors 1310nm Tx
MRX-489 = One Fiber Module Multimode SC Connectors 1550nm Tx
RTX-489 = One Fiber Rack Card Multimode SC Connectors 1310nm Tx
RRX-489 = One Fiber Rack Card Multimode SC Connectors 1550nm Tx
MX-489 = Two Fiber Module Multimode SC Connectors 1310nm Tx
RX-489 = Two Fiber Rack Card Multimode SC Connectors 1310nm Tx
To order units with ST Connectors :
Add –ST to the part number such as MTX-489-ST
