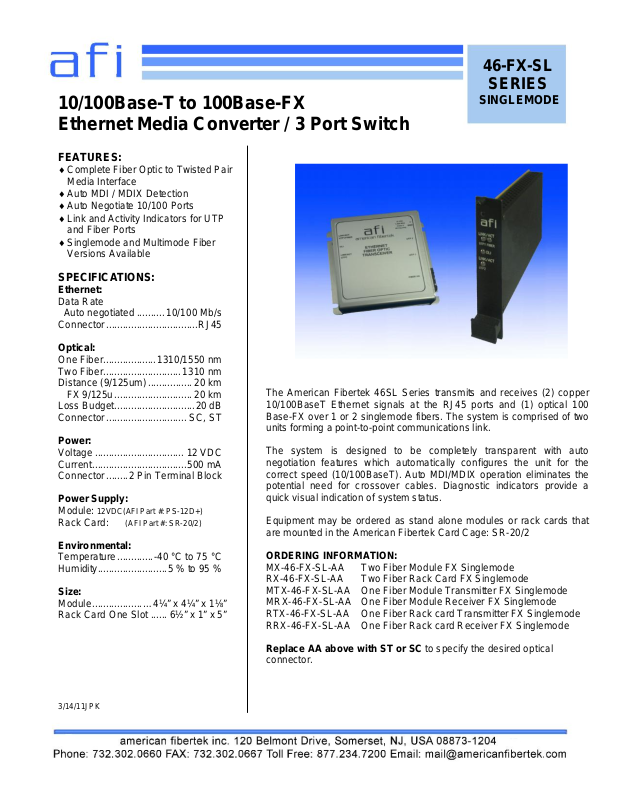

American Fibertek MX-46-FX-SL-SC, MRX-46-FX-SL-SC, MX-46-FX-SL-ST, MTX-46-FX-SL-ST, MTX-46-FX-SL-SC Specsheet

10/100Base-T to 100Base-FX

Ethernet Media Converter / 3 Port Switch

46-FX-SL

SERIES

SINGLEMODE

FEATURES:

Complete Fiber Optic to Twisted Pair Media Interface

Auto MDI / MDIX Detection

Auto Negotiate 10/100 Ports

Link and Activity Indicators for UTP and Fiber Ports

Singlemode and Multimode Fiber Versions Available

SPECIFICATIONS:

Ethernet:
Data Rate
Auto negotiated ..........		10/100 Mb/s
Connector .................................		RJ45
Optical:
One Fiber...................		1310/1550 nm
Two Fiber............................		1310 nm
Distance (9/125um) ................		20 km
FX 9/125u ............................		20 km
Loss Budget.............................		20 dB
Connector .............................		SC, ST
Power:
Voltage ................................		12 VDC
Current..................................		500 mA
Connector ........	2 Pin Terminal Block

Power Supply:

Module: 12VDC(AFI Part #: PS-12D+) Rack Card: (AFI Part #: SR-20/2)

Environmental:
Temperature.............	-40 °C to 75 °C
Humidity.........................	5 % to 95 %

Size:

Module..................…4¼” x 4¼” x 1⅛” Rack Card One Slot ...... 6½” x 1” x 5”

The American Fibertek 46SL Series transmits and receives (2) copper

10/100BaseT Ethernet signals at the RJ45 ports and (1) optical 100 Base-FX over 1 or 2 singlemode fibers. The system is comprised of two units forming a point-to-point communications link.

The system is designed to be completely transparent with auto negotiation features which automatically configures the unit for the correct speed (10/100BaseT). Auto MDI/MDIX operation eliminates the potential need for crossover cables. Diagnostic indicators provide a quick visual indication of system status.

Equipment may be ordered as stand alone modules or rack cards that are mounted in the American Fibertek Card Cage: SR-20/2

ORDERING INFORMATION:

MX-46-FX-SL-AA Two Fiber Module FX Singlemode RX-46-FX-SL-AA Two Fiber Rack Card FX Singlemode MTX-46-FX-SL-AA One Fiber Module Transmitter FX Singlemode MRX-46-FX-SL-AA One Fiber Module Receiver FX Singlemode RTX-46-FX-SL-AA One Fiber Rack card Transmitter FX Singlemode RRX-46-FX-SL-AA One Fiber Rack card Receiver FX Singlemode

Replace AA above with ST or SC to specify the desired optical connector.

3/14/11JPK
