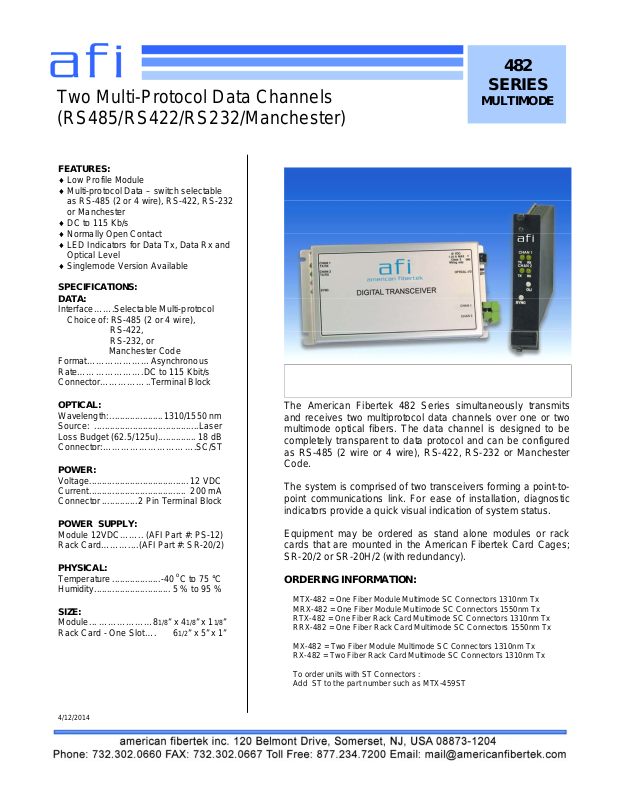

American Fibertek MX-482-ST, MTX-482-ST, MRX-482-ST, RX-482-ST, RRX-482-ST Specsheet
...
482
SERIES
Two Multi-Protocol Data Channels
MULTIMODE
(RS485/RS422/RS232/Manchester)
FEATURES:
Low Profile Module
Multi-protocol Data – switch selectable
as RS-485 (2 or 4 wire), RS-422, RS-232
or Manchester
DC to 115 Kb/s
Normally Open Contact
LED Indicators for Data Tx, Data Rx and
Optical Level
Singlemode Version Available
SPECIFICATIONS:
DATA:
Interface…….Selectable Multi-protocol
Choice of: RS-485 (2 or 4 wire),
RS-422,
RS-232, or
Manchester Code
Format…………………Asynchronous
Rate………………….DC to 115 Kbit/s
Connector……………..Terminal Block
OPTICAL:
Wavelength:.....................1310/1550 nm
Source: .........................................Laser
Loss Budget (62.5/125u)............... 18 dB
Connector:………………………….SC/ST
POWER:
Voltage.......................................12 VDC
Current...................................... 200 mA
Connector..............2 Pin Terminal Block
POWER SUPPLY:
Module 12VDC…….. (AFI Part #: PS-12)
Rack Card………....(AFI Part #: SR-20/2)
PHYSICAL:
Temperature...................-40
Humidity.............................. 5 % to 95 %
SIZE:
Module... ………………8
Rack Card - One Slot…. 6
4/12/2014
o
C to 75 °C
1/8” x 41/8” x 11/8”
1/2” x 5” x 1”
The American Fibertek 482 Series simultaneously transmits
and receives two multiprotocol data channels over one or two
multimode optical fibers. The data channel is designed to be
completely transparent to data protocol and can be configured
as RS-485 (2 wire or 4 wire), RS-422, RS-232 or Manchester
Code.
The system is comprised of two transceivers forming a point-topoint communications link. For ease of installation, diagnostic
indicators provide a quick visual indication of system status.
Equipment may be ordered as stand alone modules or rack
cards that are mounted in the American Fibertek Card Cages;
SR-20/2 or SR-20H/2 (with redundancy).
ORDERING INFORMATION:
MTX-482 = One Fiber Module Multimode SC Connectors 1310nm Tx
MRX-482 = One Fiber Module Multimode SC Connectors 1550nm Tx
RTX-482 = One Fiber Rack Card Multimode SC Connectors 1310nm Tx
RRX-482 = One Fiber Rack Card Multimode SC Connectors 1550nm Tx
MX-482 = Two Fiber Module Multimode SC Connectors 1310nm Tx
RX-482 = Two Fiber Rack Card Multimode SC Connectors 1310nm Tx
To order units with ST Connectors :
Add ST to the part number such as MTX-459ST
