American Fibertek FT010DB-SSTRL, FT010DB-SSTR, FT010DB-SMTR, FT010DB-SMRT, FT010DB-SSRTL Specsheet

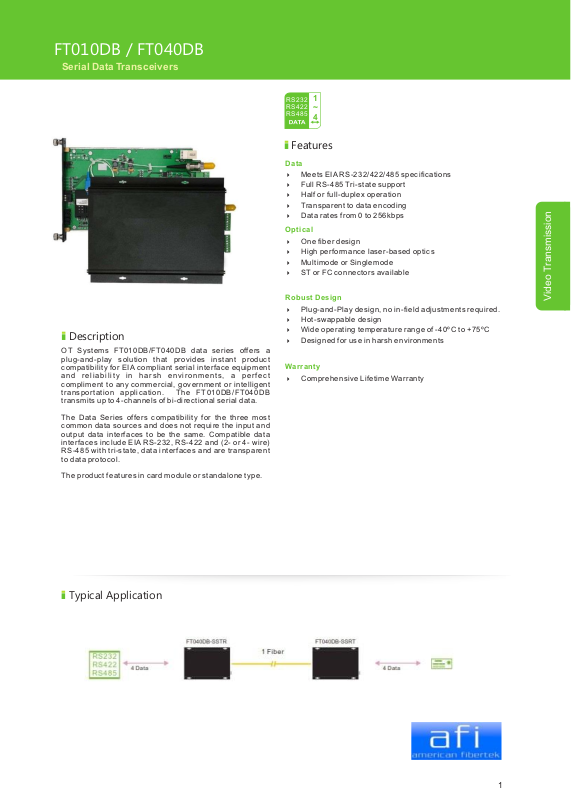

FT010DB / FT040DB

Serial Data Transceivers

RS232 1

RS422 ~

RS485 4

Description

OT Systems FT010DB/FT040DB data series offers a plug-and-play solution that provides instant product compatibility for EIA compliant serial interface equipment a n d r e l i a b i l i t y i n h a r s h e n v i r o n m e n t s , a p e r f e c t compliment to any commercial, government or intelligent transportation application. The FT010DB/FT040DB transmits up to 4-channels of bi-directional serial data.

The Data Series offers compatibility for the three most common data sources and does not require the input and output data interfaces to be the same. Compatible data interfaces include EIA RS-232, RS-422 and (2- or 4- wire) RS-485 with tri-state, data interfaces and are transparent to data protocol.

The product features in card module or standalone type.

Features

Data

Meets EIA RS-232/422/485 specifications

Full RS-485 Tri-state support

Half or full-duplex operation

Transparent to data encoding

Data rates from 0 to 256kbps

Optical

One fiber design

High performance laser-based optics

Multimode or Singlemode

ST or FC connectors available

Robust Design

Plug-and-Play design, no in-field adjustments required.

Hot-swappable design

Wide operating temperature range of -40ºC to +75ºC

Designed for use in harsh environments

Warranty

Comprehensive Lifetime Warranty

Video Transmission

Typical Application

1
