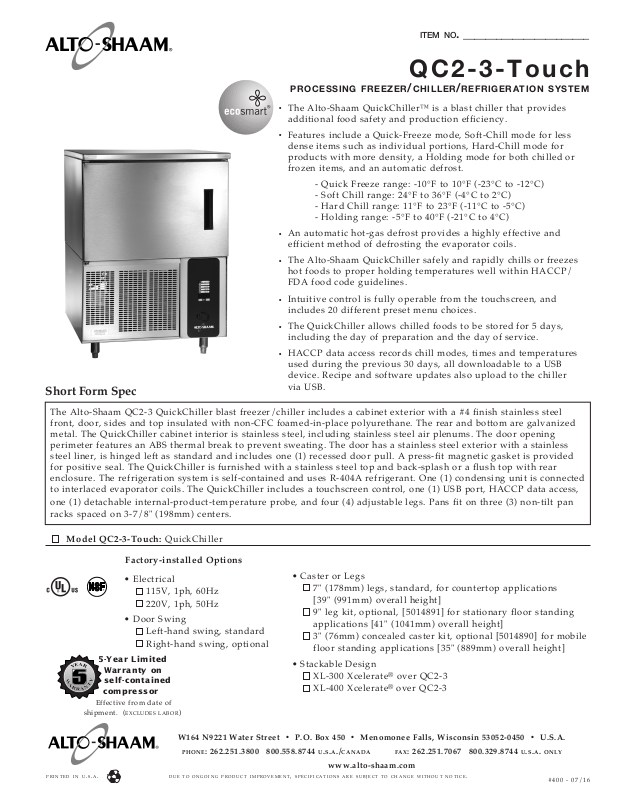

Alto Shaam QC2-3-Touch User Manual
PH ONE
U.S.A ./CA NAD A
FA X
U.S.A . ON LY
D UE TO ON GO I NG PR O DU C T IM P R OV E ME N T, S P EC I F IC A TI O NS AR E S UB J EC T T O CH AN G E WI T H OU T N O TI C E .P RI N TE D I N U. S. A.
ITEM NO. _______________________
The Alto-Shaam QuickChiller™ is a blast chiller that provides
Short Form Spec
QC2-3-Touch
pr oc es si ng fr ee ze r/ch il le r/re fr ig er at io n system
●
additional food safety and production efficiency.
●
Features include a Quick-Freeze mode, Soft-Chill mode for less
dense items such as individual portions, Hard-Chill mode for
products with more density, a Holding mode for both chilled or
frozen items, and an automatic defrost.
- Quick Freeze range: -10°F to 10°F (-23°C to -12°C)
- Soft Chill range: 24°F to 36°F (-4°C to 2°C)
- Hard Chill range: 11°F to 23°F (-11°C to -5°C)
- Holding range: -5°F to 40°F (-21°C to 4°C)
●
An automatic hot-gas defrost provides a highly effective and
efficient method of defrosting the evaporator coils.
●
The Alto-Shaam QuickChiller safely and rapidly chills or freezes
hot foods to proper holding temperatures well within HACCP/
FDA food code guidelines.
●
Intuitive control is fully operable from the touchscreen, and
includes 20 different preset menu choices.
●
The QuickChiller allows chilled foods to be stored for 5 days,
including the day of preparation and the day of service.
●
HACCP data access records chill modes, times and temperatures
used during the previous 30 days, all downloadable to a USB
device. Recipe and software updates also upload to the chiller
via USB.
The Alto-Shaam QC2-3 QuickChiller blast freezer/chiller includes a cabinet exterior with a #4 finish stainless steel
front, door, sides and top insulated with non-CFC foamed-in-place polyurethane. The rear and bottom are galvanized
metal. The QuickChiller cabinet interior is stainless steel, including stainless steel air plenums. The door opening
perimeter features an ABS thermal break to prevent sweating. The door has a stainless steel exterior with a stainless
steel liner, is hinged left as standard and includes one (1) recessed door pull. A press-fit magnetic gasket is provided
for positive seal. The QuickChiller is furnished with a stainless steel top and back-splash or a flush top with rear
enclosure. The refrigeration system is self-contained and uses R-404A refrigerant. One (1) condensing unit is connected
to interlaced evaporator coils. The QuickChiller includes a touchscreen control, one (1) USB port, HACCP data access,
one (1) detachable internal-product-temperature probe, and four (4) adjustable legs. Pans fit on three (3) non-tilt pan
racks spaced on 3-7/8" (198mm) centers.
Model QC2-3-Touch: QuickChiller
Factory-installed Options
• Electrical
115V, 1ph, 60Hz
220V, 1ph, 50Hz
• Door Swing
Left-hand swing, standard
Right-hand swing, optional
5-Year Limited
Warranty on
self-contained
compressor
Effective from date of
shipment. (e xclu des lab or)
• Caster or Legs
7" (178mm) legs, standard, for countertop applications
[39" (991mm) overall height]
9" leg kit, optional, [5014891] for stationary floor standing
applications [41" (1041mm) overall height]
3" (76mm) concealed caster kit, optional [5014890] for mobile
floor standing applications [35" (889mm) overall height]
• Stackable Design
XL-300 Xcelerate® over QC2-3
XL-400 Xcelerate® over QC2-3
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
www.alto-shaam.com
: 262.251.3800 800.558.8744
: 262.251.7067 800.329.8744
# 40 0 - 07 /1 6
PH ONE
U.S.A ./CA NAD A
FA X
U.S.A . ON LY
D UE TO ON GO I NG PR O DU C T IM P R OV E ME N T, S P EC I F IC A TI O NS AR E S UB J EC T T O CH AN G E WI T H OU T N O TI C E .
P RI N TE D I N U. S. A.
5" (127mm)
55-3/4" (1416mm)
Electrical Connection
Cord Length: 9'(2743mm)
n.t.s.
QC2-3-Touch
pr oc es si ng fr ee ze r/ch il le r/re fr ig er at io n system
dimensions (h x w x d)
Exterior: 38" x 27" x 30"
(965mm x 686mm x 762mm)
Interior: 13-1/2" x 22-9/16" x 12-13/16"
(342mm x 573mm x 324mm)
electrical
V/PH/Hz A HP kW Cord & Plug
115V ne ma 5-2 0p
1ph/60h z 16 1/2 1.84 20a-125v pl ug
22 0v n ema 5-15p
1ph/50hz 8 1/2 1.84 15a-125v plug
Recommended circuit amperage: 20
38" (965mm)
4" (102mm)
27" (686mm)
clearance reQuirements
Rear 1" (25mm)
Top 0" (0mm)
Left and Right Side 1" (25mm)
18" (457mm) minimum
from heat producing equipment
30" (762mm)
refrigeration
40 oz. R-404a Refrigerant
One (1) 1/2 hp Condensing Unit:
Freeze mode: 2,800 BTU's per hour at -5°F (-21°C)
Chill mode: 4,750 BTU's per hour at +20°F (-7°C)
Air circulation: 875
cf m
product/pan capacity
Approximately 36 lb (16 kg) maximum
Volume maximum: 22-1/ 2 quarts (28,5 liters)
Full-size pans: Gastronorm 1/1:
Three (3) 20" x 12" x 2-1/2" (530 x 325 x 65mm)
installation reQuirements
— Appliance must be installed level.
— The appliance must not be installed in any area where it
may be affected by steam, grease, dripping water, extreme
temperatures, or any other severely adverse conditions.
— Appliances with casters and no cord or plug must
be secured to the building structure with a flexible
connector. Not factory supplied.
weight
Net: 262 lb (119 kg) Ship: 330 lb (150 kg)
Carton dimensions:
(l x w x h)
35" x 35" x 42" (889 x 889 x 1067mm)
accessories
Wire Shelves, Coated sh-35114
Stacking Kit - XL-300 Xcelerate® over QC2-3 5019677
Stacking Kit - XL-400 Xcelerate® over QC2-3 5019678
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
www.alto-shaam.com
# 40 0 - 07 /1 6
: 262.251.3800 800.558.8744
: 262.251.7067 800.329.8744
