Alpine IVA-D310 User Manual
Mobile Multimedia Station
R
IVA-D310
TM
R
EN
FR
ALPINE ELECTRONICS MARKETING, INC.
1-1-8 Nishi Gotanda,
Shinagawa-ku,
Tokyo 141-0031, Japan
Phone 03-5496-8231
ALPINE ELECTRONICS OF AMERICA, INC.
19145 Gramercy Place, Torrance,
California 90501, U.S.A.
Phone 1-800-ALPINE-1 (1-800-257-4631)
ALPINE ELECTRONICS OF CANADA, INC.
777 Supertest Road, Toronto,
Ontario M3J 2M9, Canada
Phone 1-800-ALPINE-1 (1-800-257-4631)
DIGITAL VIDEO
• OWNER'S MANUAL
Please read before using this equipment.
• MODE D'EMPLOI
Veuillez lire avant d’utiliser cet appareil.
• MANUAL DE OPERACIÓN
Léalo antes de utilizar este equipo.
ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.
6-8 Fiveways Boulevarde Keysborough,
Victoria 3173, Australia
Phone 03-9769-0000
ALPINE ELECTRONICS GmbH
Frankfurter Ring 117,
80807 München, Germa ny
Phone 089-32 42 640
ALPINE ELECTRONICS OF U.K. LTD.
Fletchamstead Highway, Coventry CV4 9TW, U.K.
Alpine House
Phone 0870-33 33 763
ALPINE ELECTRONICS FRANCE S.A.R.L.
(RCS PONTOISE B 338 101 280)
98, Rue de la Belle Etoile, Z.I. Paris Nord Il,
B.P. 50016, 95945 Roissy Charles de Gaulle
ALPINE ELECTRONICS DE ESPAÑA, S.A.
01013 Vitoria (Alava)-APDO 133, Spain
Cedex, France
Phone 01-48638989
ALPINE ITALIA S.p.A.
Viale C. Colombo 8, 20090 Trezzano
Sul Naviglio (MI), Italy
Phone 02-484781
Portal de Gamarra 36, Pabellón, 32
Phone 945-283588
ES
Dalian Dongtai Colour Printing Technology Co., Ltd.
No. 24 Liaohexisan Road Dalian Economic&Technical
Development Zone, China
Designed by ALPINE Japan
Printed in China (Y)
68-02278Z28-A
CHA-S634
• CD changer for IVA-D310.
• Changeur CD pour IVA-D310.
• Cambiador de CD para IVA-D310.
CHA-1214
• CD changer for IVA-D310.
• Changeur CD pour IVA-D310.
• Cambiador de CD para IVA-D310.
CHM-S630
Alpine CD Changers Give You More!
More musical selections, more versatility, more convenience.
The CHA-S634 is a high-performance 6-disc changer with a new M DAC, CD-R/RW PLAY BACK, MP3 PLAY BACK and CD TEXT.
The CHA-1214 Ai-NET model holds 12 discs, and the CHM-S630 M-Bus model is a super-compact 6-disc changer with a CD-R/RW
PLAY BACK.
Changeurs de CD Alpine : vous avez le choix!
Plus de sélections musicales, plus de souplesse, plus de confort.
Le modèle CHA-S634 est un changeur 6 disques ultra performant équipé des nouvelles fonctions M DAC, CD-R/RW PLAY BACK, MP3
PLAY BACK et CD TEXT. Le modèle CHA-1214 Ai-NET contient 12 disques. Le modèle CHM-S630 M-Bus est un changeur 6 disques
super compact doté de la fonction CD-R/RW PLAY BACK.
¡Los cambiadores Alpine de CD le ofrecen más!
Más selecciones musicales, más versatilidad y más ventajas.
CHA-S634 es un cambiador de seis discos de alto rendimiento con nuevo M DAC, CD-R/RW PLAY BACK, MP3 PLAY BACK y CD
TEXT. El modelo CHA-1214 Ai-NET alberga 12 discos y el modelo CHM-S630 M-Bus es un cambiador de seis discos de tamaño
reducido con un CD-R/RW PLAY BACK.
ENGLISH
Contents
Operating Instructions
WARNING
WARNING ................................................. 5
CAUTION .................................................. 5
PRECAUTIONS ........................................ 5
Discs Playable on This Unit ................... 7
Getting Started
Location of Controls ...................................... 10
Detaching and Attaching the Front Panel ...... 10
Initial System Start-Up ................................... 11
Turning Power On or Off ............................... 11
Opening/Closing the Monitor ........................ 11
Adjusting the Monitor Viewing Angle ........... 11
Moving the Monitor to be Flat ....................... 12
Adjusting the Volume ..................................... 12
Lowering Volume Quickly ............................. 12
How to view the Display ................................ 12
Touch button operation ............................... 12
Recalling the Source ................................... 12
Shortcut Screen ........................................... 13
Displaying the Numeric Keypad
Input Screen ............................................. 13
Dual-Screen Display ................................... 14
Radio
Listening to the Radio .................................... 14
Manual Storing of Station Presets .................. 15
Automatic Memory of Station Presets ........... 15
Tuning to Preset Stations ................................ 15
CD/MP3/WMA
Playback ......................................................... 16
Repeat Play ..................................................... 16
M.I.X. (Random Play) .................................... 16
Selecting Folders
(concerning MP3/WMA) ............................ 16
About MP3/WMA .......................................... 17
DVD/Video CD
Playing DVD/Video CD ..................................18
To display the DVD mode screen ................19
If a menu screen appears .............................19
Displaying the Top Menu Screen
(DVD only) ..............................................20
Displaying the Menu Screen (DVD only) ... 20
Displaying the Menu Operation Mode Screen
(DVD only) ..............................................20
Turning the PBC Function ON or OFF
(Video CD only) ..........................................20
Stopping Playback (PRE STOP) .....................20
Stopping Playback ..........................................20
Fast-forwarding/Fast-reversing .......................20
Finding the Beginnings of Chapters or
Tracks ..........................................................21
Playing Still Frames (Pausing) ........................21
Forward/reverse frame-by-frame Playback .....21
Slow Motion Playback ....................................21
Chapter/Track/Title Repeat Playback .............21
Searching by Title Number (DVD only) .........21
Searching Directly by Chapter or
Track Number ..............................................22
Switching the Angle (DVD only) ...................22
Switching the Audio Tracks ............................22
Switching the Subtitles (Subtitle Language)
(DVD only) ..................................................22
Switching from the disc menu .....................23
Displaying the Disc Status for
DVD/Video CD ...........................................23
Other Useful Features
Adjusting the Audio ........................................23
Search Function ..............................................24
Rear Entertainment Function ..........................25
Switching the function of
the remote sensor .....................................25
Switching Display Modes ...............................25
Switching the Visual Source Only
(Simultaneous Function) .............................26
Cancelling the Simultaneous Function ........ 26
Blackout Mode On and Off .............................26
Setting VISUALIZER .....................................26
Setting the Visual Effect .................................26
1-EN
Monitor Setting
Monitor Setting Operation .............................. 27
Selecting the Monitor Position .................... 27
Setting Automatic Opening/Closing of the
Monitor ....................................................27
Setup
DVD Setup
DVD Setup Operation ..................................... 27
Setting of the Menu Language .................... 28
Setting of the Audio Language ...................28
Setting of the Subtitle Language ................. 28
Changing the Country Code Setting ........... 28
Setting the Rating Level (Parental Lock) .... 29
Changing the Digital Output Setting ........... 29
Setting the Downmix Mode ........................ 31
Setting the TV Screen Setting .....................31
Setting the Digital Output ........................... 35
DISPLAY Setup
Display Setup Operation ................................ 35
Setting the Brightness of the
Backlighting ............................................ 35
Adjusting the Minimum Level of
Backlight .................................................. 36
Switching Background Textures ................. 36
Setting Automatic Background Textures .... 36
Setting the Font Type .................................. 36
Switching the Font Back Display Color ..... 36
Turning the Touch Panel Vibration
ON or OFF ............................................... 36
Adjusting the Touch Panel .......................... 36
i-Personalize™
Media Xpander Function
GENERAL Setup
General Setup Operation ................................ 31
Displaying the Time ....................................32
Setting the Time ..........................................32
Setting Daylight Saving Time ..................... 32
Demonstration Function ..............................32
Sound (Beep) Guide Function ..................... 32
Setting the Scroll ......................................... 32
Setting the Sound Quality of the Tuner ....... 32
Setting the Auxiliary Data Field Display .... 32
Playing MP3/WMA Data ............................ 32
Adjusting the Dimmer of
Button Lighting at Night .......................... 32
SYSTEM Setup
System Setup Operation .................................33
Setting the External Device
Interrupt Mode ......................................... 33
Setting the Interrupt Icon Display ............... 33
Setting the Navigation Mode .......................33
Setting the Navigation Interruption ............. 33
Setting the VISUALIZER Mode Display ... 34
Setting the AUX Mode ................................34
Naming External Devices ............................34
Adjusting the External Input Audio
Level ........................................................ 34
Setting of the External Monitor Output ...... 34
Setting of the Rear Camera ......................... 34
Setting the VISUAL Touch Button ............. 34
Optical Digital Input Selection for an External
Audio Processor ....................................... 35
Setting the MX mode ..................................... 37
Bass Engine Function
Setting the Bass Engine .................................. 37
Selecting Bass Max EQ mode
(Maker’s setting) ...................................... 38
Adjusting and Storing/Recalling the
Parametric EQ ......................................... 38
About the Time Correction ......................... 39
Adjustment and Storing/Recalling of Time
Correction ................................................ 39
Adjusting and Storing/Recalling the Bass
Focus ........................................................ 40
Adjustment and Storing/Recalling of the
Built-in Crossover .................................... 41
Subwoofer On and Off ................................... 42
VISUAL EQ™
Visual EQ Setting Operation .......................... 42
Selecting the VISUAL EQ Mode
(Maker’s setting) ...................................... 42
Adjusting Brightness ................................... 42
Adjusting Color of Picture .......................... 42
Adjusting Tint of Picture ............................. 42
Adjusting Image Contrast ........................... 42
Adjusting Picture Quality ........................... 43
Storing VISUAL EQ ................................... 43
2-EN
ENGLISH
Data Download
About SOUND SETUP/BACKGROUND
Download .................................................... 43
Data Downloading .......................................... 43
Downloading the
MY BACKGROUND data .......................... 44
Setting AMP Link (Optional)
Recalling the Display of the External Amplifier
Setting and Status (Option) ......................... 44
AMP Link Lock Function .............................. 44
External Audio Processor (Optional)
Adjustment Procedure for Dolby Surround ... 45
Setting the Speakers ....................................... 46
Set MX Mode of the External
Audio Processor .......................................... 46
X-OVER Adjustment ..................................... 46
Performing Time Correction Manually
(TCR) .......................................................... 47
Phase Switching ............................................. 48
Graphic Equalizer Adjustments ..................... 48
Parametric Equalizer Adjustments ................. 49
Setting Bass Sound Control ........................... 50
Setting Bass Compressor ............................ 50
Setting Bass Focus ...................................... 50
Speaker Setup ................................................. 50
Setting of Dolby 5.1ch ................................... 51
Adjusting the acoustic image ...................... 51
Mixing bass sound to the rear channel ........ 51
Achieving powerful high volume sound ..... 51
Adjusting the speaker levels ....................... 51
Adjusting the DVD Level ............................... 51
Storing Settings in the Memory ..................... 52
Getting out the Preset Memory ...................... 52
Using the Pro Logic II Mode ......................... 52
Linear PCM Setting ........................................ 53
Navigation System (Optional)
Switching the Navigation Screen
(Optional) .................................................... 53
Auxiliary Device (Optional)
Operating Auxiliary Devices (Optional) ........ 54
Changer (Optional)
Controlling CD Changer (Optional) ...............54
Multi-Changer Selection (Optional) ...............55
HDD Player Operation (Optional)
Listening to Music of HDD ............................55
SAT Radio Receiver (Optional)
Receiving Channels with the SAT Receiver
(Optional) ....................................................56
Tuning in to Categorized Programs ................56
Changing the Display ......................................56
Checking the SAT Radio ID Number .............56
Storing Channel Presets ..................................57
Receiving Stored Channels .............................57
Displaying the Category/Channel Name Title
List ...............................................................57
Selecting the Channel directly ........................57
iPod™ (Optional)
Playback ..........................................................58
Searching for a desired Song ..........................58
Searching by Playlist ...................................58
Searching by artist name .............................58
Searching by album name ............................58
Random Play Shuffle (M.I.X.) .....................59
Repeat Play .....................................................59
About Subdisplay Indications
About Subdisplay Indications .........................59
Remote Control
Controls on Remote Control ...........................60
When Using the Remote Control ....................61
Battery Replacement .......................................62
Information
About DVDs ...................................................62
Terminology ....................................................63
List of Language Codes ..................................64
List of Country Codes .....................................65
In Case of Difficulty .......................................67
Specifications ..................................................71
3-EN
Installation and
Connections
WARNING
Warning .................................................. 72
Caution ................................................... 72
Precautions ............................................ 72
Installation ......................................................73
Connections (IVA-D310 Wiring Diagram) ..... 76
System Example ............................................. 78
LIMITED WARRANTY
4-EN
Operating Instructions
DO NOT BLOCK VENTS OR RADIATOR PANELS.
WARNING
WARNING
Doing so may cause heat to build up inside and may result in fire.
USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.
Use for other than its designed application may result in fire,
electric shock or other injury.
This symbol means important instructions.
Failure to heed them can result in serious injury
or death.
INSTALL THE PRODUCT CORRECTLY SO THAT THE DRIVER
CANNOT WATCH TV/VIDEO UNLESS THE VEHICLE IS
STOPPED AND THE EMERGENCY BRAKE IS APPLIED.
It is dangerous (and illegal in many states) for the driver to watch
TV/Video while driving a vehicle. Installing this product
incorrectly enables the driver to watch TV/Video while driving.
This may cause a distraction, preventing the driver from looking
ahead, thus causing an accident. The driver or other people could be
severely injured.
DO NOT WATCH VIDEO WHILE DRIVING.
Watching the video may distract the driver from looking ahead of
the vehicle and cause an accident.
DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR
ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.
Any function that requires your prolonged attention should only be
performed after coming to a complete stop. Always stop the vehicle
in a safe location before performing these functions. Failure to do
so may result in an accident.
KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL
HEAR OUTSIDE NOISE WHILE DRIVING.
Failure to do so may result in an accident.
MINIMIZE DISPLAY VIEWING WHILE DRIVING.
Viewing the display may distract the driver from looking ahead of
the vehicle and cause an accident.
DO NOT DISASSEMBLE OR ALTER.
Doing so may result in an accident, fire or electric shock.
USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.
(Check with your dealer if you are not sure.) Failure to do so may
result in fire, etc.
KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE
REACH OF CHILDREN.
Swallowing them may result in serious injury. If swallowed,
consult a physician immediately.
USE THE CORRECT AMPERE RATING WHEN REPLACING
FUSES.
Failure to do so may result in fire or electric shock.
DO NOT PLACE HANDS, FINGERS OR FOREIGN OBJECTS IN
INSERTION SLOTS OR GAPS.
Doing so may result in personal injury or damage to the product.
CAUTION
This symbol means important instructions.
Failure to heed them can result in injury or
material property damage.
HALT USE IMMEDIATELY IF A PROBLEM APPEARS.
Failure to do so may cause personal injury or damage to the
product. Return it to your authorized Alpine dealer or the nearest
Alpine Service Center for repairing.
KEEP FINGERS AWAY WHILE THE MOTORIZED FRONT
PANEL OR MOVING MONITOR IS IN MOTION.
Failure to do so may result in personal injury or damage to the
product.
DO NOT MIX NEW BATTERIES WITH OLD BATTERIES.
INSERT WITH THE CORRECT BATTERY POLARITY.
When inserting the batteries, be sure to observe proper polarity (+
and -) as instructed. Rupture or chemical leakage from the battery
may cause fire or personal injury.
PRECAUTIONS
Product Cleaning
Use a soft dry cloth for periodic cleaning of the product. For more
severe stains, please dampen the cloth with water only. Anything
else has the chance of dissolving the paint or damaging the plastic.
Temperature
Be sure the temperature inside the vehicle is between +45°C
(+113°F) and 0°C (+32°F) before turning your unit on.
Moisture Condensation
You may notice the disc playback sound wavering due to
condensation. If this happens, remove the disc from the player and
wait about an hour for the moisture to evaporate.
Damaged Disc
Do not attempt to play cracked, warped, or damaged discs. Playing
a bad disc could severely damage the playback mechanism.
5-EN
Maintenance
CORRECT
If you have problems, do not attempt to repair the unit yourself.
Return it to your Alpine dealer or the nearest Alpine Service
Station for servicing.
Never Attempt the Following
Do not grip or pull out the disc while it is being pulled back into the
player by the automatic reloading mechanism.
Do not attempt to insert a disc into the unit when the unit power is
off.
Correct Handling
Do not drop the disc while handling. Hold the disc so you will not
leave fingerprints on the surface. Do not affix tape, paper, or
gummed labels to the disc. Do not write on the disc.
INCORRECT CORRECT
Inserting Discs
Your player accepts only one disc at a time for playback. Do not
attempt to load more than one disc.
Make sure the label side is facing up when you insert the disc. Your
player will automatically eject any disc that is inserted incorrectly.
If the player continues to eject a correctly inserted disc, push the
RESET switch with a pointed object such as a ballpoint pen.
Playing a disc while driving on a very bumpy road may result in
skips, but this will not scratch the disc or damage the player.
Irregular Shaped Discs
Be sure to use round shaped discs only for this unit and never use
any special shaped discs.
Use of special shaped discs may cause damage to the mechanism.
New Discs
As a protective measure to prevent the disc from jamming, the
DVD player will automatically eject discs with irregular surfaces or
inserted incorrectly. When a new disc is inserted into the player and
ejected after initial loading, using your finger, feel around the
inside of the center hole and outside edge of the disc. If you feel
any small bumps or irregularities, this could inhibit proper loading
of the disc. To remove the bumps, rub the inside edge of the hole
and outside edge of the disc with a ball-point pen or other such
instrument, then insert the disc again.
Center Hole
Center Hole
New Disc
Disc Cleaning
Fingerprints, dust, or soil on the surface of the disc could cause the
DVD player to skip. For routine cleaning, wipe the playing surface
with a clean, soft cloth from the center of the disc to the outer edge.
If the surface is heavily soiled, dampen a clean, soft cloth in a
solution of mild neutral detergent before cleaning the disc.
Bumps
Installation Location
Make sure the IVA-D310 will not be installed in a location
subjected to:
• Direct sun and heat
• High humidity and water
• Excessive dust
• Excessive vibrations
6-EN
Outside
(Bumps)
Disc Accessories
There are various accessories available on the market for protecting
the disc surface and improving sound quality. However, most of
them will influence the thickness and/or diameter of the disc. Using
such accessories can cause operational problems. We recommend
not using these accessories on discs played in Alpine DVD players.
Transparent Sheet Disc Stabilizer
Handling the Detachable Front Panel
• Do not expose to rain or water.
• Do not drop or subject to shock.
• After turning the system off, a slight ghost of the image will
remain temporarily. This is an effect peculiar to LCD technology
and is normal.
• In cold temperature conditions, the screen may lose contrast
temporarily. After a short warm-up period, it will return to
normal.
Alpine products equipped with the Ai-NET bus, connected to the
IVA-D310, can be operated from the IVA-D310. Depending on the
products connected, the functions and displays will vary. For
details, consult your Alpine dealer.
Operation of some of the functions of this unit is very complex.
Because of this, it was deemed necessary to place these functions
into a special screen. This will restrict operation of these functions
to times when the vehicle is parked. This ensures the focus of the
driver’s attention will be on the road and not on the IVA-D310. This
has been done for the safety of the driver and passengers.
Audio Processor Adjustments cannot be made if the car is moving.
The car must be parked and the parking brake must be engaged for
the procedure described in the Owner’s Manual to be valid. The
warning “CAN’T OPERATE WHILE DRIVING,” will be
displayed if any attempts are made to perform these operations
while driving.
Discs Playable on This Unit
Playable Discs
The discs listed below can be played on this unit.
Mark (logo)
DVD
Video
Video
CD
Music
CD
Recorded
content
Audio
+
Video
(Moving
pictures)
Audio
+
Video
(Moving
pictures)
Audio
Disc size
12 cm*
8 cm
12 cm
8 cm
12 cm
8 cm
(CD single)
playing time
One-sided
Approx.
4 hours
Two-sided
disc Approx.
8 hours
One-sided
Approx.
80 Minutes
Two-sided
Approx.
160 Minutes
Approx.
74 Minutes
Approx.
20 Minutes
Approx.
74 Minutes
Approx.
20 Minutes
Max.
disc
disc
disc
* Two-layer DVD disc compatible
7-EN
Discs that cannot be played
DVD-ROMs, DVD-RAMs, DVD + Rs, DVD + RWs, CD-ROMs
(excluding MP3/WMA files), photo CDs, etc.
DVD region number (playable region number)
This DVD player will play back any disc whose region number is 1
(or All). DVDs with a region number other than those listed below,
cannot be played on this DVD player.
1
ALL
Video CDs
This DVD head unit is compatible with playback control (PBC)
compatible video CDs (version 2.0).
“PBC” is a function by which you can use menu screens recorded
on the disc to find the scene you want to watch and view various
types of information in dialog style.
Using compact discs (CD/CD-R/CD-RW)
If you use unspecified compact discs, correct performance cannot
be guaranteed.
You can play CD-Rs (CD-Recordable)/CD-RWs (CD-ReWritable)
which have been recorded only on audio devices. You can also play
CD-Rs/CD-RWs containing MP3/WMA formatted audio files.
• Some of the following discs may not play on this unit:
Flawed discs, discs with fingerprints, discs exposed to extreme
temperatures or sunlight (e.g., left in the car or this unit), discs
recorded under unstable conditions, discs on which a recording
failed or a re-recording was attempted, copy-protected CDs
which do not conform to the audio CD industry standard.
• Use discs with MP3/WMA files written in a format compliant
with this unit. For details, see pages 17 and 18.
To customers using CD-R/CD-RW
• If a CD-R/CD-RW cannot be played back, make sure the last
recording session was closed (finalized).
• Finalize the CD-R/CD-RW if necessary, and attempt playback
again.
Tips for making your own CDs
The IVA-D310 plays DVD Video, Video CD, Audio CD and has a
built in MP3/WMA decoder.
The following information is designed to help you create your own
music CDs (either Audio CD or MP3/WMA encoded CD-R/RW
files).
What is the difference between an Audio and MP3/WMA CD?
An Audio CD is the same format as the commercial CDs you buy
in the store (also known as CD-DA). MP3 (MPEG-1 Audio Layer
3)/WMA (Windows Media Audio) is a data file that uses a
compression scheme to reduce the size of the music file.*
Hybrid Audio CD and Data (MP3/WMA) CD-R/RW discs:
The IVA-D310 can read either sector on the disc. Choose CD-DA
to play the CD audio section or MP3/WMA to play the MP3/WMA
section.*
Multisession CD-R/RW:
Once a recording has been stopped, this is considered one session.
If the disc is not closed (finalized), additional data may be added.
Once this additional data has been recorded, this becomes a
“multisession” CD. The IVA-D310 can only read multisession
DATA Formatted discs (MP3/WMA files - Not Audio CD files).
Properly formatted MP3/WMA Discs:
Use ISO9660 formatting to insure proper playback. You may use
standard ISO naming Level 1 (8.3 DOS standard), Level 2 (32
characters) or Joliet (Windows or Macintosh long filenames) file
naming conventions*.
*Please consult the Owner’s manual for additional information.
On handling compact discs (CD/CD-R/CD-RW)
• Do not touch the surface.
• Do not expose the disc to direct sunlight.
• Do not affix stickers or labels.
• Clean the disc when it is dusty.
• Make sure that the disc is smooth and flat.
• Do not use commercially available disc accessories.
Do not leave the disc in the car or the unit for a long time.
Never expose the disc to direct sunlight.
Heat and humidity may damage the disc and you may not be
able to play it again.
Using DVD-Rs/DVD-RWs
• This unit is compatible only with discs recorded in the DVDVideo mode.
Discs recorded in the DVD-VR mode cannot be played back.
• Note that discs not finalized (processed to enable to play on
playback-only DVD players) cannot be played on this DVD
player.
• Some discs may not play back, depending on the recording
device. (This unit has a copy protection function. Discs copied
illegally will not be played back. Some files recorded by a
software using an improper recording system may be recognized
as illegally copied.)
• In the following cases, the disc may not play on this unit:
discs recorded by certain DVD recorders, certain irregular discs,
flawed discs, dirty discs, when the pickup lens of this DVD
player is dirty, or when moisture condensation has occurred
inside the unit.
• Be sure to follow all cautions included with your DVD-Rs/DVDRWs discs.
• Do not put stickers, seals, or tape on the label side of DVD-Rs/
DVD-RWs.
• Compared to the regular discs, DVD-Rs/DVD-RWs are more
affected by heat, moisture, and direct sunlight. If left in a car,
etc., damage may occur and it might not play on this unit.
8-EN
Disc terminology
Title
If titles are programmed for the DVD, these are the largest units of
division of the information recorded on the disc.
Chapter
Each Title may also be divided into smaller divisions, called
chapters. These can be specific scenes or musical selections.
• This product incorporates copyright protection technology that
is protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation
and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
• Manufactured under license from Dolby Laboratories.
“Dolby,” “Pro Logic” and the double-D symbol are trademarks
of Dolby Laboratories.
• “DTS” and “DTS2.0 + Digital Out” are trademarks of Digital
Theater Systems, inc.
• Windows Media and the Windows logo are trademarks, or
registered trademarks of Microsoft Corporation in the United
States and/or other countries.
• Apple, the Apple logo and iPod are trademarks of Apple
Computer, Inc., registered in the U.S. and other countries.
9-EN
Getting Started
Compatibility with Factory Steering Wheel Radio
Controls
If your vehicle has steering wheel controls for the radio, an optional
steering wheel control interface may be available to connect to your
Alpine radio. For details, contact your Alpine dealer.
Subdisplay
Refer to “About Subdisplay Indications” (pages 59 and 60).
TILT DN/UP button
Monitor open: The angle of the raised monitor is adjustable
between 40° and 105°. If the button is pressed and held, the
angle continuously changes.
Monitor closed: Pressing the UP/DN button recalls the
radio’s presets. Pressing the UP/DOWN button changes the
track, file or chapter of a disc. Pressing and holding this
button advances or reverses the track, file or chapter of a
disc. (the same operation is possible for an optional
changer, if connected).
button
Ejects a disc.
button
Use this button to remove the front panel.
Remote Sensor
Point the supplied remote control transmitter towards the
remote sensor within a range of 2 meters.
Monitor
About the expression of buttons in this Owner’s
Manual
• The buttons on this unit are expressed in bold (e.g. SOURCE/
POWER). The touch buttons on the display are expressed in bold
with [ ] (e.g. [SOURCE]).
• This Owner’s Manual explains mainly the function of touch
buttons, when a touch button and a unit button have the same
function.
Location of Controls
BAND button
Radio mode: Changes the band.
Visual source (except navigation screen): Changes the
display mode.
MUTE button
Turns the MUTE mode ON or OFF.
FLAT/SUB DISP. button
Press to set the open monitor to the flat position. Press and
hold for at least 2 seconds to change the display to the
subdisplay (Clock Normal mode for each mode).
OPEN/CLOSE button
Opens and closes the monitor.
Action Indicator
The indicator is constantly lit, other than for the following
indications.
• The indicator blinks when closing the monitor.
• The indicator is turned off when the dimmer (monitor
display brightness) is set to ON, and is also turned off
according to the brightness of the car when the dimmer
is set to AUTO.
• The indicator slowly blinks when the backlighting (BLACK
OUT function) is set to OFF.
• The indicator blinks in the voice guidance mode when an
ALPINE navigation system is connected.
Rotary encoder
Adjust the volume by turning to the left or right.
If pressed, the audio adjusting screen is displayed.
SOURCE/POWER button
Turns the power on. Press and hold for at least 2 seconds to
turn the power off.
Recalls the source selection screen.
Detaching and Attaching the Front Panel
Detaching
1
Turn off the unit power.
2
Press (Release) at the lower right side until the
front panel pops out.
3
Grasp the right side of the front panel, lift it up
slightly then pull it out.
• The front panel may become hot in normal usage (especially the
connector terminals on the back of the front panel.) This is not a
malfunction.
• To protect the front panel, place it in the supplied carrying case.
Attaching
Attach the front panel squarely onto the main unit until it clicks.
• Before attaching the front panel, make sure that there is no dirt or
dust on the connector terminals and no foreign object between the
front panel and the main unit.
• Attach the front panel carefully, holding the sides of the front panel to
avoid pushing buttons by mistake.
10-EN
Initial System Start-Up
Opening/Closing the Monitor
Immediately after installing or applying power to the unit, it should be
initialized. To do this, first, remove the detachable front panel. Behind
the front panel, to the left of the connector, there is a small hole. Using a
pencil or other pointed object, press the reset switch mounted behind
this hole to complete the initialization procedure.
• Any of the buttons does not function while the monitor is closing by
rese t.
Turning Power On or Off
Some of this unit’s functions cannot be performed while the vehicle is in
motion. Be sure to stop your vehicle in a safe location and apply the
parking brake, before attempting these operations.
1
Press SOURCE/POWER to turn on the unit.
• The unit can be turned on by pressing any button on the unit except
OPEN/CLOSE, FLAT, TILT DN/UP (when monitor is opened) and
(Eject).
2
Press and hold SOURCE/POWER for at least 2
seconds to turn off the unit.
• The IVA-D310 draws minimal current even when its power switch is
turned off. If the switched power (ignition) lead of the IVA-D310 is
connected directly to the positive (+) post of the vehicle's battery, the
battery may be discharged. If this lead is unswitched, it must be
disconnected from the battery post should the vehicle be left unused
for an extended period of time.
An SPST (Single-Pole, Single-Throw) switch (sold separately) can be
added to simplify this procedure. Then, you can simply place it in the
OFF position when you leave the vehicle. Turn the SPST switch back
ON before using the IVA-D310. For connecting the SPST switch,
refer to the “Connection Diagram of SPST Switch (Sold Separately)”
(page 75).
• Some operation of the unit cannot be performed while the vehicle is
in motion. In this case, be sure to first stop your vehicle and apply the
parking brake, then perform the operation.
1
Press OPEN/CLOSE.
The unit beeps 3 times and opens the monitor automatically.
2
Press OPEN/CLOSE.
The unit beeps 3 times and closes the monitor
automatically.
• Opening/closing the monitor should never be performed manually. It
may cause a malfunction.
• The monitor’s angle is set to 90 degrees at the factory. Depending on
the car, the monitor may hit the dashboard when opened. The
monitor’s angle can be adjusted and stored in memory so that the
monitor will not hit the dashboard when opening. For adjusting the
monitor, refer to “Adjusting the Monitor Viewing Angle” (page 11).
Even when the vehicle’s battery power is removed, the adjusted
monitor angle remains stored in memory.
• The IVA-D310 is a precision device. With gentle handling, its unique
capabilities can be enjoyed for a long time.
• If the monitor touches anything while it is being opened (or closed),
the monitor will beep and stop opening (or closing) immediately.
Should this occur, remove the obstacle and press and hold OPEN/
CLOSE again to lower the monitor.
• When the movable monitor is opened, do not place any object on the
monitor and be careful not to bump or apply any pressure to the
monitor while it is open. This can cause damage to the mechanism.
• In low ambient temperature conditions, the display may be dark for a
short period of time immediately after the power is turned on. Once
the LCD has warmed up, the display returns to normal.
• For your safety, some operation of the unit cannot be performed
while the vehicle is in motion. In this case, first stop the vehicle and
engage the parking brake, then perform the operation.
Adjusting the Monitor Viewing Angle
Adjust the monitor’s angle for better visibility.
Press TILT DN and UP to adjust the monitor's angle so
the screen will be in the best viewing position.
Pressing the buttons produces a beep and changes the screen
angle between 40 and 105 degrees.
• By pressing TILT DN or UP and holding, the angle changes
continuously.
• If the monitor touches an obstacle while the angle is being adjusted
the unit stops the screen immediately.
• The screen color will vary when viewed at certain angles. Adjust the
screen angle for the best viewing position.
• If the voltage of the vehicle's battery power is low, the screen may
blink when the screen angle is changed. This is normal and not a
malfunction.
11-EN
Moving the Monitor to be Flat
When you want to operate some function on the car (air conditioner,
etc.) which is hidden by the raised monitor, use this function.
1
When the monitor is open, press FLAT.
The monitor moves to the flat position.
2
Press FLAT again.
The monitor returns to the previous angle.
• The monitor returns to the previous angle 10 seconds after being
moved to the flat position.
• If an excessive force is added to the monitor when the monitor is flat,
putting an object on the back of the monitor for example, it may
cause a malfunction.
Recalling the Source
Here is an example explanation for the Radio mode display on how to
recall a source.
1
Touch [SOURCE] on the main screen.
The source selection screen is displayed.
Display example for source selection screen
Adjusting the Volume
Adjust the volume by turning the Rotary encoder.
Volume: 0 - 35
Lowering Volume Quickly
Activating this function will instantly lower the volume level by 20 dB.
Press MUTE to activate the MUTE mode.
The audio level decreases by about 20 dB.
Pressing MUTE again brings the audio back to its previous level.
How to view the Display
Touch button operation
The display unit is equipped with tactile feedback (PULSETOUCH™).
What is the tactile feedback (PULSETOUCH™) ?
When you touch a button graphic in the display, you will feel a
mild vibration and click on the display panel surface. This
feedback enables you to easily identify action areas in the
display.
• Be sure to touch the button lightly with the pad of your finger on the
display to protect the display.
• If you touch a button and there is no reaction, remove your finger
from the display once, and try again.
About the expression of touch buttons in this Owner’s
Manual
• Display buttons in this manual are shown in bold with
[ ] (e.g. [SOURCE]).
• This Owner’s Manual explains mainly the function of touch
buttons, when a touch button and a unit button have the same
function.
Changes to main source screen
Displays source modes that can be selected
(The kind of source modes that are displayed varies
depending on connection and setting)
2
Touch [RADIO].
The screen changes to the Radio mode main display.
Main screen example for Radio mode
Displays the source name, such as radio band, etc.,
that is selected
Changes to VISUAL selection screen
Changes to SETUP selection screen
Displays time
Displays shortcut menu screen (see pages 13)
Function Guide:
The function guide display varies depending on each
source.
The contents of the function guide change by touching
[P1/2]* or [P1/3]* on the function guide, and many other
operations can be performed.
Displays volume level
Working state indicator
Changes to the source selection screen (to Step 1
screen)
* Display may vary depending on the connected devices.
• When an optional DVD player or DVD changer compatible with Ai-
NET is connected, AUX 1 appears as “EXT.DVD” or “DVD CHG”
on the display.
• When both the optional DVD player and DVD changer compatible
with Ai-NET are connected, AUX 1 appears as “DVD-1” and AUX 2
as “DVD-2” on the display (When the optional expansion box VPES431 is connected).
• When i-Personalize and OTHER SETUP are selected, these
operations may only be carried out after the car is parked.
12-EN
3
The screen changes to another source by touching
[SOURCE] on the main source screen.
• The screen can be changed to the VISUAL selection screen by
touching [VISUAL].
Set to VISUAL in “Setting the VISUAL Touch Button” (page 34).
• The screen can be changed to the SETUP selection screen by
touching [SETUP].
• After 5 seconds of each operation in the visual mode, the screen
changes to the visual screen only.
To display the source selection screen, touch the display panel, then
touch [CONTROL] on the screen. The source selection screen
appears by touching [SOURCE] on the changed main source screen.
Shortcut Screen
In the main source display, shortcuts for set up of Media Xpander, Bass
MAX EQ, Visual EQ, and DOLBY PLII can be shown and their settings
can be made directly.
1
Touch [] on the far right of the main source
screen.
The shortcut menu screen is displayed. (Displayed when
DEFEAT is set to OFF. However, visual EQ is displayed,
regardless of turning DEFEAT ON or OFF.)
2
Touch a desired setup menu.
MX (Media Xpander):
Selects the MX mode of the currently displayed audio source.
Visual EQ:
Selectable when the visual source mode is turned on.
DOLBY PLII:
Displayed when an external audio processor is connected.
Bass Max EQ:
Allows choosing any desired mode. (This function cannot be set
when an external audio processor is connected. The setting can
be carried out on the audio processor.)
Display example for shortcut menu screen
The shortcut menu
screen closes by
touching this area.
Display example for setup screen
Close the Shortcut menu screen by touching [].
The screen changes to the setup screen mode by
touching another mode.
Your desired setting can be made by using operation
buttons.
The shortcut menu screen closes by touching this area.
The setup screen is
displayed by touching
one of these modes.
Displaying the Numeric Keypad Input
Screen
The numeric keypad input screen is displayed when the DVD mode is
selected for searching a title or chapter, and for entering a country code
or password for the DVD setup item, and also when selecting a channel
number in the SAT Radio mode.
1
Touch [10KEY] on the main source screen.
2
Touch the desired numeric key.
13-EN
Display example for numeric keypad
Operation buttons of this area can be used while
displaying the numeric keypad input screen.
Input screen area
Closes numeric keypad input screen
All input numbers will be deleted
Previous number will be deleted
Input number is confirmed
Numeric keypad
The numeric keypad input screen closes when the area
is touched while displayed.
3
Touch [ENT] to confirm your entry.
Radio
Display example for Radio main screen
[SOURCE] button: Refer to page 12
[VISUAL] button: Displays the VISUAL selection screen
[SETUP] button: Displays the SETUP selection screen
[] button: Refer to page 13
Displays the preset number/frequency.
Dual-Screen Display
The connected AMP Link-compatible external amplifier can be
displayed in dual-screen on the main source screen.
1
Touch [VISUAL] on the main source screen.
The VISUAL selection screen appears.
To make the setting, set to “Setting the VISUAL Touch
Button” (page 34).
2
Touch [DUAL SCREEN].
The main source screen is restored showing the dualscreen display.

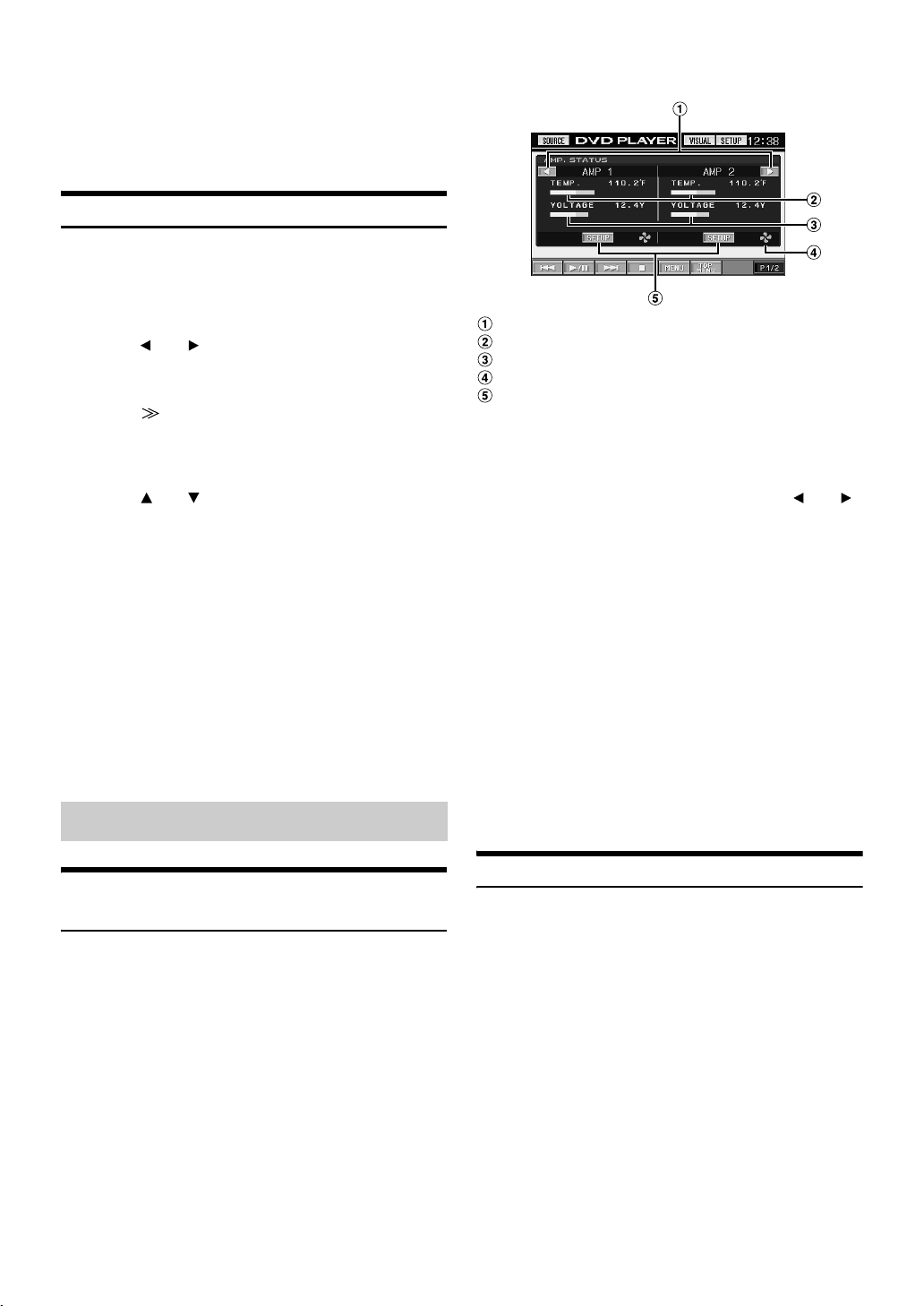

Display example for the dual-screen
Changes the AMP display
for the connected amplifier.
3
Touch [VISUAL] to cancel the dual-screen display.
The VISUAL selection screen appears.
4
Touch [NORMAL].
The normal screen will be restored.
Listening to the Radio
1
Touch [SOURCE] on the main source screen.
The source selection screen is displayed.
2
Touch [RADIO].
The radio mode is activated and the display changes to the
Radio Mode screen.
3
Touch [BAND] to select the desired radio band.
Each press changes the bands as follows:
FM-1 FM-2 AM FM-1
4
Touch [TUNE] to choose the tuning mode.
Each touch changes the tuning mode display.
Distance Local Manual Distance
• There are two modes you can select for auto tuning, DX and
Local:
- DX (Distance) mode (with DX SEEK indicator ON);
Both strong and weak stations will be tuned in.
- Local mode (with SEEK indicator ON);
Only strong stations will be tuned in.
The initial setting is DX.
5
Touch [], [] or [], [] to change the
radio frequency up or down respectively.
When the button is touched and held, the frequency
changes continuously until the button is released.
When a stereo FM station is tuned in, the STEREO indicator appears
in the display.
14-EN
Manual Storing of Station Presets
1
Tune in a desired radio station you wish to store in
the preset memory by manual or automatic seek
tuning.
2
Touch [P1/2] to change the function guide.
3
Touch [MEMORY].
4
Touch any one of the preset buttons [P.SET 1]
through [P.SET 6] within 5 seconds.
The selected station is stored.
5
Repeat the procedure to store up to 5 other stations
onto the same band.
To use this procedure for other bands, simply select the
band desired and repeat the procedure.
A total of 18 stations can be stored in the preset memory (6
stations for each band; FM1, FM2 or AM).
• If a preset memory has already been set in the same preset number, it
will be cleared and the new station will be memorized.
Automatic Memory of Station Presets
The tuner can automatically seek and store 6 strong stations in the
selected band in order of signal strength.
After selecting the desired band, touch [A.MEMO].
The tuner automatically seeks and stores 6 strong stations into
[P.SET 1] to [P.SET 6] in order of signal strength.
When the automatic storing has been completed, the tuner goes
to the station stored in [P.SET 1].
• If no stations are stored, the tuner will return to the original station
you were listening to before the automatic storing procedure began.
Tuning to Preset Stations
CD/MP3/WMA
Display example for MP3/WMA main screen
[SOURCE] button: Refer to page 12
[VISUAL] button: Displays the VISUAL selection screen
[SETUP] button: Displays the SETUP selection screen
[] button: Refer to page 13
[] button: Refer to page 24
CD:
Displays track text*1 in the upper line.
Displays Disc Text*1 in the lower line.
MP3/WMA:
After displaying the file name in the upper line, the track
name is displayed if there is ID3 tag information.
After displaying the folder name, the album name/artist
name are displayed if there is ID3 tag information.
CD:
Displays the track number/disc number*2/elapsed time.
MP3/WMA:
Displays the folder number/file number/disc number*3/
elapsed playback time
*1Displayed when a CD text disc is inserted.
*2Displayed when a CD changer is connected.
*3Displayed when an MP3 compatible CD changer is connected.
You can tune in the preset stations in memory on each band using the
preset number.
1
After selecting the desired band, touch [P1/2] to
change the function guide.
2
Touch any one of the preset buttons [P.SET 1]
through [P.SET 6] that has a station stored to it.
The preset station is received.
15-EN
Playback
Repeat Play
1
Touch [SOURCE] on the main source screen.
The source selection screen is displayed.
2
Touch [DVD PLAYER].
The display shows the DVD player mode screen.
When a CD/MP3/WMA is inserted into the DISC SLOT of the
IVA-D310, with the label side facing up, the unit starts to
play the CD/MP3/WMA.
3
Touch [] or [] to select the desired track
(file).
Returning to the beginning of the current track (file):
Touch [].
Fast backward :
Touch and hold [].
Advancing to the beginning of the next track (file) :
Touch [].
Fast forward :
Touch and hold [].
To pause playback
Touch [/].
Touching [/] again will resume playback.
To eject the disc
Press .
• The IVA-D310 models include a built-in MP3/WMA unit. You can
play CD-ROMs, CD-Rs, and CD-RWs containing MP3/WMA files on
this unit. Use the format compliant with this unit.
For further information about playing or storing MP3/WMA files,
refer to pages 17 and 18 before using the unit.
• A WMA format file that is protected by DRM (Digital Rights
Management) cannot be played back on this unit.
• The unit can play discs containing both audio data and MP3/WMA
data.
• The MP3/WMA indicator is lit during MP3/WMA playback.
• The track display for CD audio data playback is the track numbers
recorded on the disc.
• Three-inch (8cm) CD’s can be used.
• “Playing MP3/WMA Data” is mentioned on page 32 “GENERAL
Setup.”
• When an MP3/WMA disc is played, it sometimes takes a few moment
until it starts.
• Touch [] to activate the search mode. For operations, refer to
“Search Function” on page 24.
However, the search mode function does not work in the CD changer
mode.
• The playback time may not be correctly displayed when a VBR
(Variable Bit Rate) recorded file is played back.
• If about 15 seconds passes without removing the disc after pressing
, the disc is automatically inserted into the unit. In this case, start
playback by touching [ / ] since the unit has been paused.
Touch [] to play back repeatedly the track currently
being played.
The track (file) will be played repeatedly.
Touch [] again and select OFF to deactivate Repeat play.
<Monitor display>
CD: RPT RPT DISC*1 (off) RPT
MP3/WMA:
1 Touch [P1/2]*3 to change the function guide.
2 Touch [] and select the desired Repeat play.
<Monitor display>
RPT RPT FLDR*2 RPT DISC*1 (off) RPT
*1If a CD Changer or an MP3 compatible CD changer is connected
and the RPT DISC mode is selected, the unit repeatedly plays back
all tracks (files) on the disc selected.
*2Only files in a folder are repeatedly played back.
*3Display may vary depending on the connected devices.
M.I.X. (Random Play)
Touch [] during playback.
The tracks (files) on the disc will be played back in a random
sequence.
To cancel M.I.X. play, touch [ ].
<Monitor display>
CD: M.I.X. M.I.X. ALL*1 (off) M.I.X.
MP3/WMA:
1 Touch [P1/2]*4 to change the function guide.
2 Touch [] and select the desired M.I.X. play.
<Monitor display>
M.I.X. FLDR*3 M.I.X.*2 (off) M.I.X. FLDR*
*1If a CD Changer equipped with the M.I.X. ALL function is connected,
M.I.X. ALL will also be selectable.
In this mode, the tracks on all the CDs in the current magazine will
be included in the random playback sequence.
*2If an MP3 compatible CD changer is connected, all files in a disc are
played back in random sequence, and playback shifts to the next disc.
*3Only files in a folder are played back in random sequence in the
M.I.X. FLDR mode.
*4Display may vary depending on the connected devices.
3
Selecting Folders (concerning MP3/
WMA)
16-EN
Touch [F.DN] or [F.UP] to select the folder.
About MP3/WMA
CAUTION
Except for private use, duplicating audio data (including MP3/
WMA data) or distributing, transferring, or copying it, whether
for free or for a fee, without permission of the copyright holder is
strictly prohibited by the Copyright Act and by international
treaty.
What is MP3?
MP3, whose official name is “MPEG-1 Audio Layer 3,” is a
compression standard prescribed by the ISO, the International
Standardization Organization and MPEG which is a joint activity
institution of the IEC.
MP3 files contain compressed audio data. MP3 encoding is
capable of compressing audio data at extremely high ratios,
reducing the size of music files to as much as one-tenth their
original size. This is achieved while still maintaining near CD
quality. The MP3 format realizes such high compression ratios
by eliminating the sounds that are either inaudible to the human
ear or masked by other sounds.
What is WMA?
WMA, or “Windows Media™ Audio,” is compressed audio data.
WMA allows you to create music files and store them at higher
ratios of compression than MP3 audio data (approx. half original
size). This is achieved while still maintaining CD quality sound.
Method for creating MP3/WMA files
Audio data is compressed by using MP3/WMA specified
software. For details on creating MP3/WMA files, refer to the
user’s manual for that software.
MP3/WMA files that can be played back by this device have the
file extension “mp3” / “wma”. Files with no extension cannot be
played back. (WMA ver. 7.1 and 8 are supported)
Supported playback sampling rates and bit rates
Media supported
The media that this device can play back are CD-ROMs, CD-Rs
and CD-RWs.
Corresponding File Systems
This device supports discs formatted with ISO9660 Level 1 or
Level 2.
Under the ISO9660 standard, there are some restrictions to
remember.
The maximum nested folder depth is 8 (including the root
directory). The number of characters for a folder/file name is
limited.
Valid characters for folder/file names are letters A-Z (all caps),
numbers 0-9, and ‘_’ (underscore).
This device also can play back discs in Joliet, Romeo, etc., and
other standards that conform to ISO9660. However, sometimes
the file names, folder names, etc., are not displayed correctly.
Formats supported
This device supports CD-ROM, CD-ROM XA, Mixed Mode CD,
Enhanced CD (CD-Extra) and Multi-Session.
This device cannot correctly play back discs recorded with
Track At Once or packet writing.
Order of files
The unit plays the files in the order that the writing software
writes them. Therefore, the playing order may not be the same
as the order you input. The playback order of the folders and
files is as follows. However, the folder and file playback order
differs from the folder no. and file no. indicated on the display.
Root
Folder
MP3
Sampling rates: 32 kHz ~ 48 kHz
Bit rates: 32 - 320 kbps
WMA
Sampling rates: 32 kHz ~ 48 kHz
Bit rates: 32 - 320 kbps
This device may not play back correctly depending on sampling
rates or bit rates.
ID3 tags/WMA tags
If tag data is in an MP3/WMA file, this device can display the title
(track title), artist name, and album name ID3 tag/WMA tag data
(maximum 128 characters).
This device can only display single-byte alphanumeric
characters and the underscore. For non-supported characters,
“NO SUPPORT” is displayed.
The number of characters may be limited, or not correctly
displayed, depending on the tag information.
Producing MP3/WMA discs
MP3/WMA files are prepared, then written to a CD-R or CD-RW
using CD-R writing software. A disc can hold up to 1024 files/
256 folders (including Root Folders).
Depending on the structure of the folders or files, it may take
time to read a disc. In this case, it is recommended to decrease
the number of folders or files.
Folder MP3/WMA File
17-EN
Terminology
Bit rate
This is the “sound” compression rate specified for encoding. The
higher the bit rate, the higher the sound quality, but also the larger
the files.
Sampling rate
This value shows how many times per second the data is sampled
(recorded). For example, music CDs use a sampling rate of 44.1
kHz, so the sound is sampled (recorded) 44,100 times per second.
The higher the sampling rate, the higher the sound quality, but also
the larger the volume of data.
Encoding
Converting music CDs, WAVE (AIFF) files, and other sound files into
the specified audio compression format.
Tag
Song information such as track titles, artist names, album names,
etc., written into MP3/WMA files.
MP3: ID3 tag
WMA: WMA tag
Root folder
The root folder is found at the top of the file system. The root folder
contains all folders and files.
DVD/Video CD
Display example for DVD main screen
[SOURCE] button: Refer to page 12
[VISUAL] button: Displays the VISUAL selection screen
[SETUP] button: Displays the SETUP selection screen
[] button: Refer to page 13
Displays the disc (DVD VIDEO, VIDEO CD) being
played back.
Displays the title number/chapter number/elapsed
playback time for a DVD.
Displays the track number/elapsed playback time for a
video CD (When PBC is turned off).
• Some operations cannot be carried out depending on the disc or
playback screen.
• Displays of the function guide [P1/2], etc., may vary depending on
the connected device(s).
Playing DVD/Video CD
IVA-D310 has a built-in DVD player. When an optional Alpine DVD/
video CD/CD player (or DVD changer) is connected to the IVA-D310,
you can control it from the IVA-D310. (except some operations)
WARNING
It is dangerous (and illegal in many states) for the
driver to watch the DVD/TV/Video while driving the
vehicle. The driver may be distracted from looking
ahead and an accident could occur.
Install the IVA-D310 correctly so that the driver cannot
watch DVD/TV/Video unless the vehicle is stopped
and the emergency brake is applied.
If the IVA-D310 is not installed correctly, the driver will
be able to watch the DVD/TV/Video while driving the
vehicle and may be distracted from looking ahead
causing an accident. The driver or other people could
be severely injured.
18-EN
To display the DVD mode screen
To watch a video source, your vehicle must be parked with the ignition
key in the ACC or ON position. To do this, follow the procedure below.
1 Push the foot brake to bring your vehicle to a complete
stop at a safe location. Engage the parking brake.
2 Keep pushing the foot brake and release the parking
brake once then engage it again.
3 While the parking brake is being engaged the second
time, release the foot brake.
• For automatic transmission vehicles, place the transmission lever in
the Park position.
Now, the locking system for the DVD mode operation has been
released. Engaging the parking brake can reactivate the DVD mode, as
long as the car's ignition has not been turned off. It is not necessary to
repeat the above procedure (1 through 3), of “To display the DVD mode
screen.”
Each time the ignition is turned OFF, perform the procedure of “To
display the DVD mode screen.”
• If you try to activate the auxiliary device while driving, the display
will show the warning-PICTURE OFF FOR YOUR SAFETY.
Caution
• Not all functions will operate for every DVD. See the
individual DVD’s instructions for details on the
features supported.
• Fingerprints on a disc may adversely affect
playback. If a problem occurs, remove the disc and
check for fingerprints on the playback side. Clean
the disc if necessary.
• If you switch the power or Ignition Key OFF or
change sources during playback, playback will
continue where you left off when you resume
playback.
• If you try to perform an invalid operation (based on
the type of disc being played), the following mark is
displayed on the monitor screen:
To eject the disc
Press .
• The reverse side of a double-sided DVD will not be played
automatically.
Remove the disc, turn it over, and reinsert it.
• DO NOT insert discs containing maps for the navigation system.
Doing so could result in damage.
• Refer also to “DVD Setup” (pages 27 to 31).
• Be sure the remote input lead is connected to the remote output lead
of this unit when a DVD changer or DVD player is connected. If not
correctly connected, touch operation cannot be performed.
• To return to the previous screen during video CD playback, touch
[] after touching [P1/2] of the function guide. However, the
function may vary depending on the disc.
• If about 15 seconds passes without removing the disc after pressing
, the disc is automatically inserted into the unit. In this case, start
playback by touching [ / ] since the unit has stopped.
If a menu screen appears
On DVDs and Video CDs with playback control (PBC), menu screens
may appear automatically. If this happens, perform the operation
described below to start playback.
Direct Menu Operations (DVD only)
1 Touch the DVD menu directly.
• Some operations cannot be performed depending on the disc.
Menu Operations (DVD only)
1 Touch [KEY].
The menu operation mode will be displayed.
• Play Position Memory Function
Even if you turn power off or switch the Ignition Key
to OFF during playback or change the source,
playback will continue from the point where
playback stopped when the power is turned ON
again.
1
Touch [SOURCE] on the main source screen.
The source selection screen is displayed.
2
Touch [DVD PLAYER].
The display shows the DVD player mode screen.
Insert a disc with the label side facing up. The unit starts to
play the disc.
When an optional Alpine DVD player is connected:
Insert a disc into the DVD/video CD/CD player, the player
starts playing.
• The operation screen changes to the visual screen in the DVD or
video CD mode for 5 seconds after an operation has been performed.
Touch the display panel to display the operation screen again.
• The display mode can be changed by touching [WIDE].
For operation, see “Switching Display Modes” on page 25.
Touch [MENU RTN] to return
to the previous display.
2 Select a desired menu item by touching [], [], [] or
[].
3 Touch [ENTER] to confirm the selected item.
19-EN
Numeric Keypad Input Operations (DVD)
1 Touch [KEY].
The menu operation mode appears.
2 Touch [KEY] again.
The numeric keypad input mode screen appears.
The numeric
keypad input
screen closes
when the area
is touched
while
displayed.
3 Touch a desired number.
4 Touch [ENT] on the numeric keypad mode screen to
confirm your selection.
Numeric Keypad Input Operations (Video CD)
When PBC is turned OFF, the menu screen is not displayed. Turn it ON
to display the screen (See “Turning the PBC Function ON or OFF
(Video CD only)” on page 20).
1 Touch [P1/2] in the video CD mode to change the
function guide.
2 Touch [10KEY].
The numeric keypad is displayed.
3 Touch and input a desired number.
4 Touch [ENT] to confirm.
Touch [RTN] to close the numeric
keypad input screen.
Displaying the Top Menu Screen
(DVD only)
Displaying the Menu Operation Mode
Screen (DVD only)
1
Touch [P1/2] on the DVD mode main screen.
The function guide changes.
2
Touch [MENU CONT].
The menu operation mode screen appears.
• For further operation, see “If a menu screen appears” on pages 19
and 20.
Turning the PBC Function ON or OFF
(Video CD only)
The following describes how to turn a video CD equipped PBC
(playback control) on or off.
Touch [PBC] on the video CD mode main screen.
Touching [PBC] sequentially turns the PBC on and off.
Stopping Playback (PRE STOP)
Press the stop button during playback to stop playback. That position is
stored in the memory.
1
Touch [] once during playback.
“PRE STOP” is displayed.
2
Touch [/] in the PRE STOP mode.
Playback starts from the position at which it was stopped.
• For some discs, the position at which playback was stopped may not
be accurate.
Stopping Playback
Touch [] twice or touch and hold [] for at least 2
seconds during playback.
“STOP” is displayed, and playback stops.
• Playback starts from the beginning when [ / ] is touched while
playback is stopped.
When a DVD contains two or more titles, the top menu screen appears.
Touch [TOP MENU] on the DVD mode main screen.
The top menu screen appears.
• To perform necessary operations, see “If a menu screen appears” on
page 19 and 20.
Displaying the Menu Screen (DVD only)
With a DVD having two or more menus, a menu screen will appear for
the programs available, in addition to the main programs.
Touch [MENU] on the DVD mode main screen.
The menu screen appears.
• To perform necessary operations, see “If a menu screen appears” on
page 19 and 20.
20-EN
Fast-forwarding/Fast-reversing
1
During playback, touch [] (Fast-reverse) or
[] (fast-forward).
When touched and held for more than 1 second, the disc is
forwarded/reversed at double speed. When held for 5 more
seconds or longer, the disc is forwarded/reversed at 8 times
the normal speed.
2
Stop touching [] or [] to return to normal
playback.
• No sound is played back during 8 times fast-forwarding/fast-
reversing, or video CD fast-forwarding/fast-reversing.
• Subtitles are not usually displayed during 8 times fast-forwarding/
fast-reversing in the DVD mode. However, they may be displayed,
depending on the disc.
• For DVDs and video CDs with playback control (PBC), the menu
screen may reappear during fast-forwarding/fast-reversing.
Finding the Beginnings of Chapters or
Tracks
During playback, touch [] or [].
The chapter/track switches each time the button is touched, and
playback of the selected chapter/track starts.
:Touch this to start playback from the beginning of the
following chapter or track.
:Touch this to start playback from the beginning of the
current chapter or track.
• Some DVDs do not have chapters.
• Be sure to turn PBC off before starting the search (See “Turning the
PBC Function ON or OFF (Video CD only)” on page 20).
Supplementary explanation
“Chapters” are divisions of movies or musical selections on
DVDs.
“Tra cks ” are divisions of movies or musical selections on
video and music CDs.
Chapter/Track/Title Repeat Playback
Use this function to play the disc’s titles, chapters or tracks repeatedly.
DVD
1
During playback, touch [P1/2].
2
Touch [] on the main unit.
The repeat mode switches every time the button is touched.
<Monitor display>
The chapter is played repeatedly.
The title is played repeatedly.
The playback returns to normal mode.
• Display may vary depending on the connected devices.
• The REPEAT OFF mode is always turned off when [REPEAT] is
touched and held for at least 2 seconds.
Playing Still Frames (Pausing)
1
During playback, touch [/].
2
Touch [/] to resume playback.
• No sound is played during the still frame mode.
• The image or sound may stop temporarily when playback starts from
the pause mode. This is not a malfunction.
Forward/reverse frame-by-frame
Playback
1
In the pause mode, touch [] or [].
The picture advances or reverses by one frame each time
the button is touched.
2
Touch [/] to return to normal mode.
• No sound is output during forward/reverse frame-by-frame playback.
• Reverse frame-by-frame cannot be carried out on the video CD.
Slow Motion Playback
1
When [] or [] is touched and held while in
the pause mode, the 1/8th speed slow motion
playback mode is set.
When held in for 5 more seconds, the slow motion
speed switches to 1/2 the normal speed.
Video CD
1
During playback, touch [P1/2].
2
During playback, touch [] on the main unit.
The repeat mode switches every time the button is touched.
<Monitor display>
The track is played repeatedly.
The disc is played repeatedly.
*
Playback does not repeat.
* Displayed only in the changer mode.
• Display may vary depending on the connected devices.
• The track/disc repeat modes cannot be used on video CDs with
playback control (PBC). These modes can be carried out after
turning PBC off. See “Turning the PBC Function ON or OFF (Video
CD only)” on page 20.
• For some discs it is not possible to switch the repeat mode.
• Step 1 is not necessary when a DVD changer or DVD player is
connected.
Searching by Title Number (DVD only)
Use this function to easily find positions on the DVD using the DVD’s
titles.
1
Touch [P1/2] while playback is stopped.
The function guide appears.
2
Stop touching [] or [] to pause, and touch
[/] to playback.
• No sound is played during slow motion playback.
• Reverse slow motion playback is not available on the video CD.
• 1/2, 1/8 are approximate speeds. The actual speed differs from disc to
disc.
2
Touch [10KEY].
The numeric keypad input mode screen appears.
3
Enter a desired title by touching its title number.
See page 20 for operation of the numeric keypad.
21-EN
4
Confirm your selection by touching [ENT].
Playback will start from the title number selected.
• This function cannot be used on discs on which no title numbers are
reco rded.
• Playback starts from the beginning of the chapter/track number in the
state of PRE STOP.
• Some disc may not accept any operation.
Searching Directly by Chapter or Track
Number
Use this function to easily move to the beginnings of the chapters or
tracks on the disc.
1
Touch [P1/2] in any mode other than stop mode.
The function guide will appear.
2
Touch [10KEY].
The numeric keypad input mode screen will appear.
3
Touch and enter the chapter or track number you
want to play.
See page 20 for operation of the numeric keypad.
4
Touch [ENT] to confirm your selection.
Playback will start from the selected chapter or track.
• This function is not available for a disc on which chapters or tracks
are not stored.
Switching the Audio Tracks
DVDs can have up to 8 different audio tracks. These alternate tracks can
be switched during playback.
1
During playback, touch [P1/2].
2
Touch [AUDIO].
The sound switches between the alternate audio tracks
recorded on the disc every time the button is touched.
• The alternate track selected becomes the default setting every time
the power is turned on or the disc is replaced. If the disc does not
include that track, the disc’s default language is selected instead.
• Not all discs will allow changing the alternate audio tracks during
playback. In these cases, select audio tracks from the DVDs menu.
• There may be a delay before the selected alternate track begins to
play.
Video CDs with multiplex audio
1
During playback, touch [P1/2].
The function guide changes.
2
Touch [AUDIO].
The left and right channels will be output as shown in the
figure below, each time the button is touched.
<Monitor display>
AUDIO L/R AUDIO L/L AUDIO R/R AUDIO L/R
Switching the Angle (DVD only)
On DVDs in which scenes have been filmed from multiple angles, the
angle can be switched during playback.
1
During playback, touch [P1/2].
The function guide changes.
2
Touch [ANGLE].
The angle switches between the angles recorded on the
disc every time the button is touched.
• Some time may be required for the angle to change.
• Depending on the disc, the angle may switch in one of two ways.
- Seamless: The angle switches smoothly.
- Non-seamless: When the angle is switched, a still picture is
displayed first, after which the angle switches.
Switching the Subtitles (Subtitle
Language) (DVD only)
With DVDs on which multiple subtitle languages are recorded, the
subtitle language can be switched during playback; moreover, subtitles
can be hidden.
1
During playback, touch [P1/2].
The function guide changes.
2
Touch [SUBT.].
Touching this button repeatedly selects sequentially the
subtitle languages recorded on the disc, and then turns the
subtitles OFF.
• There may be a delay before the selected subtitle appears.
• Not all discs will allow changing the subtitles during playback. In
these cases, select subtitles from the DVDs menu.
• The subtitle language selected becomes the default setting every time
the power is turned on or the disc is replaced. If the disc does not
include that language, the disc’s default language is selected instead.
However, the subtitle language may differ depending on the disc.
• For some discs, the subtitles will be displayed even when this is set to
off. However, the subtitle language may differ depending on the disc.
22-EN
Switching from the disc menu
For some discs, the audio language, angle and subtitles can be switched
from the disc menu.
1
Touch [MENU] or [TOP MENU] to display the
menu.
2
Select an item to confirm it.
See “If a menu screen appears” on pages 19-20.
Displaying the Disc Status for DVD/Video
CD
Use the procedure described below to display the status (title number,
chapter number, etc.) of the currently playing DVD or of the currently
playing video CD (track number, etc.) on the monitor.
1
During playback, touch the display panel.
The operation menu screen is displayed.
2
Touch [CONTROL] within 5 seconds.
The display status is displayed for 5 seconds.
Other Useful
Features
Adjusting the Audio
Press the Rotary encoder on the unit.
The display changes to the Audio Adjustment screen.
Display Example for Audio Adjustment Screen
Adjust the volume of the front and rear speakers by
touching [F] or [R].
Adjust the volume of the left and right speakers by
touching [L] or [R].
Determine your desired setting value by touching and
moving [].
Touches [], [] or [ON], [OFF] to adjust to your
preference.
• Touch [AUDIO MODE] on the SETUP selection screen to change to
the Audio Adjustment screen.
• Touching [CONTROL] will change to the main source screen.
Adjusting the Balance
Touch [L] or [R] to adjust the sound volume of the left
and right speakers.
Setting range: L15 to R15
Adjusting the Fader
Touch [F] or [R] to adjust the volume of the front and
rear speakers.
Setting range: F15 to R15
Adjusting the Subwoofer Level
Touch [] or [] of SUBW. to adjust the subwoofer
output.
Setting range: 0 to 15
• The level adjustment becomes available when 0° or 180° is set in
“Subwoofer On and Off” (page 42).
Adjusting NAV. LEVEL
Touch [] or [] of NAV. to adjust the volume of
navigation interruption.
Setting range: 0 to 15
• This adjustment becomes available when NAV.MIX is turned on in
“Setting the Navigation Interruption” (page 33).
• The setting navigation interruption is not displayed if an external
audio processor not compatible with NAV.MIX is connected.
23-EN
Turning defeat ON or OFF
Touch [ON] or [OFF] of DEFEAT to set to ON or OFF.
If you set the defeat to ON, MX is turned OFF and EQ is returned
to the initial setting.
Adjusting the Balance/Fader Directly
Touch and move [] to a desired setting.
Or touch a desired setting range, and [ ] will move to that
location.
Touch [L] or [R] of Balance and [F] or [R] of Fader for fine-tuning.
Search Function
• The search function does not work on the DVD, video CD or CD
changer.
• A folder list is displayed only during MP3/WMA playback when the
DVD player (DVA-5210) or changer compatible with MP3 is
connected.
Internal CD player mode
1 The track list* screen appears.
* If the CD is text compatible only.
2 Touch [] of a desired track text*.
The selected track will be played back.
• “TRACK” is displayed in the track text list if there is no text
on the disc.
1
Touch [] on the function guide while in the CD or
MP3/WMA mode.
Search list screen is displayed.
Select a desired track or folder.
Touch [] for direct playback.
When a hierarchical list is prepared, [] will be
displayed. Touch [] to display the respective
hierarchy list screens.
Display Example for Search Screen
[] is displayed if there is a hierarchical list.
Select directly by touching [], and its Track (or folder/
file) is played back.
Scroll the list one paragraph at a time by touching []
or [].
Touch and slide up or down to scroll the list backwards
or forwards.
Touch [
RETURN] to return to the previous list screen.
Internal MP3/WMA Player/external MP3-compatible DVD
Player/Changer Mode
1 The folder list screen appears.
Select a desired folder and then touch [].
([] appears only when a file is present in the selected
folder.)
The file list screen is displayed.
• Touch [] to play back the folder directly.
2 Touch [] of a desired file name.
The selected file will be played back.
24-EN
