Contents
Operating Instructions
WARNING
WARNING ..................................................2
CAUTION...................................................3
PRECAUTIONS .........................................3
Getting Started
Feature .............................................................. 4
Rear Camera Operation
Turning the Rear Camera On and Off............... 5
Changing the Rear Image Configuration .......... 5
Front Camera Operation
Turning the Front Camera On and Off.............. 6
Changing the Front Image Configuration ......... 6
Installation and Connections
Mounting the Rear Camera (HCE-C200R) ...... 7
Mounting the Front Camera (HCE-C200F)
(If HCE-C200F is purchased)...................... 10
Connections .................................................... 11
System Example ............................................. 12
Confirmation ................................................... 14
ENGLISH
Information
Specifications .................................................. 15
1-EN
Operating Instructions
WARNING
WARNING
This symbol means important instructions.
Failure to heed them can result in serious
injury or death.
WHEN REVERSING THE CAR, CHECKING BEHIND AND
AROUND THE CAR MUST BE DONE VISUALLY BY THE
DRIVER.
The TOPVIEW FRONT/REAR CAMERA assists the driver in
checking behind and around by sending images to the screen
showing conditions behind and around the car. The camera uses a
wide-angle lens, therefore, there is a difference in distance
perspective between what is normally seen and what appears on
the screen. Also, the images shown by the rear camera are
reversed, so as to appear the same as what is seen through the
rearview mirror.
DO NOT DISASSEMBLE OR ALTER.
Doing so may result in an accident, fire or electric shock.
KEEP SMALL OBJECTS SUCH AS BOLTS OR SCREWS OUT
OF THE REACH OF CHILDREN.
Swallowing them may result in serious injury. If swallowed,
consult a physician immediately.
USE THE CORRECT AMPERE RATING WHEN REPLACING
FUSES.
Failure to do so may result in fire or electric shock.
USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.
(Check with your dealer if you are not sure.) Failure to do so may
result in fire, etc.
BEFORE WIRING, DISCONNECT THE CABLE FROM THE
NEGATIVE BATTERY TERMINAL.
Failure to do so may result in electric shock or injury due to
electrical shorts.
DO NOT SPLICE INTO ELECTRICAL CABLES.
Never cut away cable insulation to supply power to other
equipment. Doing so will exceed the current carrying capacity of
the wire and result in fire or electric shock.
DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER
VEHICLE OPERATION, SUCH AS THE STEERING WHEEL
OR SHIFT LEVER.
Doing so may obstruct forward vision or hamper movement etc.
and results in serious accident.
DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING HOLES.
When drilling holes in the chassis for installation, take
precautions so as not to contact, damage or obstruct pipes, fuel
lines, tanks or electrical wiring. Failure to take such precautions
may result in fire.
DO NOT USE BOLTS OR NUTS IN THE BRAKE OR
STEERING SYSTEMS TO MAKE GROUND CONNECTIONS.
Bolts or nuts used for the brake or steering systems (or any other
safety-related system), or tanks should NEVER be used for
installations or ground connections. Using such parts could
disable control of the vehicle and cause fire etc.
MINIMIZE DISPLAY VIEWING WHILE DRIVING.
Viewing the display may distract the driver from looking ahead of
the vehicle and cause an accident.
DO NOT ALLOW CABLES TO BECOME ENTANGLED IN
SURROUNDING OBJECTS.
Arrange wiring and cables in compliance with the manual to
prevent obstructions when driving. Cables or wiring that obstruct
or hang up on places such as the steering wheel, shift lever, brake
pedals, etc. can be extremely hazardous.
USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.
Use for other than its designed application may result in fire,
electric shock or other injury.
MAKE THE CORRECT CONNECTIONS.
Failure to make the proper connections may result in fire or
product damage.
CHECK THAT THE CAMERA MOUNTING IS ATTACHED
SECURELY, AND THAT THE SCREWS ARE TIGHT BEFORE
DRIVING.
Failure to do so may result in an accident.
WHEN INSTALLING THE CAMERA, OR WHEN CHECKING
IT IS INSTALLED SECURELY, DO SO AFTER PARKING THE
CAR IN A LEVEL, SAFE PLACE, TURNING OFF THE
ENGINE, AND APPLYING THE HAND BRAKE.
Failure to do so may result in an accident.
WHEN USING A DRILL TO MAKE A HOLE, TAKE
PRECAUTIONS SUCH AS WEARING GOGGLES SO
FRAGMENTS DO NOT GET INTO THE EYES.
Failure to do so may result in injury.
2-EN
CAUTION
This symbol means important instructions.
Failure to heed them can result in injury or
material property damage.
USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM
SECURELY.
Be sure to use only the specified accessory parts. Use of other
than designated parts may damage this unit internally or may not
securely install the unit in place. This may cause parts to become
loose resulting in hazards or product failure.
EXCEPT FOR THE CAMERA ITSELF, DO NOT ATTACH ANY
PARTS TO AREAS WHICH WILL GET WET, OR WHERE
THERE IS A LOT OF HUMIDITY OR DUST.
Failure to do so may result in fire or damage.
HAVE THE WIRING AND INSTALLATION DONE BY
EXPERTS.
The wiring and installation of this unit requires special technical
skill and experience. To ensure safety, always contact the dealer
where you purchased this product to have the work done.
ARRANGE THE WIRING SO IT IS NOT CRIMPED OR
PINCHED BY A SHARP METAL EDGE.
Route the cables and wiring away from moving parts (like the
seat rails) or sharp or pointed edges. This will prevent crimping
and damage to the wiring.
HALT USE IMMEDIATELY IF A PROBLEM APPEARS.
Failure to do so may cause personal injury or damage to the
product. Return it to your authorized Alpine dealer or the nearest
Alpine Service Centre for repairing.
DO NOT ATTACH THE CAMERA MOUNTING TO
FLUOROCARBON RESIN FINISHED CAR BODIES OR
GLASS.
Doing so could cause the strength of the camera mounting to
weaken, which could cause it to fall of and cause accidents,
injury, or damage to the car body.
DO NOT ATTACH THE CAMERA MOUNTING TO ANY
SURFACE WHERE THE ENTIRE ADHESIVE SURFACE
CANNOT BE APPLIED.
Doing so could cause the strength of the camera mounting to
weaken, which could cause it to fall of and cause accidents,
injury, or damage to the car body.
PRECAUTIONS
• Do not assert any excess pressure to the camera or the
mounting, as this could cause the camera direction to shift, or
the camera mounting to come off.
•To prevent the camera lens, mounting and cords from changing
colour or shape, or from deteriorating, wipe with a chemicalfree, damp cloth.
•When washing the car, do not using an automatic car washer,
or high-pressure washer. Doing so could cause the camera to
come off, damage to the camera cord, or may allow water to
enter the camera or the inside of the car.
• Be sure to disconnect the cable from the (–) battery post before
installing your HCE-C200R/HCE-C200F. This will reduce any
chance of damage to the unit in case of a short-circuit.
• Be sure to connect the colour coded leads according to the
diagram. Incorrect connections may cause the unit to
malfunction or damage to the vehicle's electrical system.
•When making connections to the vehicle's electrical system, be
aware of the factory installed components (e.g. on-board
computer). Do not tap into these leads to provide power for
this unit. When connecting the HCE-C200R/HCE-C200F to
the fuse box, make sure the fuse for the intended circuit of the
HCE-C200R/HCE-C200F has the appropriate amperage.
Failure to do so may result in damage to the unit and/or the
vehicle. When in doubt, consult your Alpine dealer.
• In some cases, to attach the camera, a hole must be drilled in
the car body, requiring use of touch-up paint (retail product)
for rust-prevention, and should be prepared beforehand.
• Route the cables and wiring away from hot or moving parts,
and fix them securely to avoid heat/mechanical damage to the
cable insulation, which may result in short-circuit, fire or
electric shock.
• About Images
Images of the rearview camera are the images of the rearview
mirror. The same images appear on the display as on the
rearview mirror. The camera uses a wide-angle lens, therefore,
there is a difference in distance perspective between what is
normally seen and what appears on the display.
• About Power Connection
Connect a reverse input cable (orange/white) to the power
cable of the rear lamp. For details, consult a dealer purchased
the camera, or car dealer.
• Connect this to a power cable of the rear lamp, but not
to the positive (+) of the rear lamp signal cable.
• Do not use a mobile phone or wireless device near the camera.
Doing so may result in noise on the screen or malfunction. It is
recommended to use a mobile phone or wireless device away
from the camera.
• If there is no reverse input on the monitor, this connection is
not possible.
• Before installing, make sure there is a enough space to be able
to install the camera.
• If possible, install the camera in the centre of the bumper or
other fitting. If the camera is installed at a distance left or right
of centre, the image may differ from the real view.
• The HCE-C200F cannot be used independently, the HCEC200R is also required.
• Confirming the Display Function
To connect the unit, confirm that the monitor will require a
compatible RCA pin jack.
3-EN
Getting Started
ON/OFF
MODE
Operation is carried out by pressing the switch, or shifting the
gear lever.
Feature
When reversing the car, you can check behind and around the
car with the assistance of the TOPVIEW REAR CAMERA
(HCE-C200R) and the equipped monitor. If the TOPVIEW
REAR CAMERA is connected to the optional TOPVIEW
FRONT CAMERA (HCE-C200F), you can also check
conditions ahead of you on the equipped monitor in the case
of a difficult-to-judge road or cross-roads.
4-EN
Rear Camera Operation
Turning the Rear Camera On and Off
1
Shift the gear lever to the reverse position
(reversing).
The image display of the car rear and surround
interruption depends on gear lever operation.
2
If you shift the gear lever to a position other
than reverse (reversing), the monitor returns
to the previous screen.
• Refer also to the Owner's Manual of the connected
monitor/navigation system.
• Be sure to also check behind and around the car visually.
Use the camera image to assist in showing conditions
behind and around the car.
• Depending on where the unit is installed, actual conditions
may differ from the displayed image.
• The ON/OFF switch is used to turn the front camera on/off.
How the rear camera turns on/off depends on the position
of the gear lever.
Rear View:
Displays what is behind the car. Use this when
reversing into a parking space, for example.
Top View:
Displays an image from above down to the lower
section of the car. Use this when to determine the
car's position in relation to the curb, etc.
Changing the Rear Image Configuration
1
Press MODE.
The image configuration changes every time
MODE is pressed.
↓
Panorama View
↓
Rear View
↓
Top View
↓
Corner View
Panorama View:
Displays a general perspective of what is behind
the car. Use this when you want to check mainly
behind the car.
Corner View:
Displays a divided image left and right of centre.
Use this mainly when checking the left and right
directional view.
5-EN
Front Camera Operation
Changing the Front Image
Configuration
Turning the Front Camera On and Off
1
Press ON/OFF.
Pressing ON/OFF will display an image of what is
ahead of the car, interrupting the display screen.
2
Pressing ON/OFF again will turn off image of
the car ahead, and return to the previous
screen to be interrupted.
• Be sure to also check behind and around the car visually.
Use the camera image to assist in showing conditions
behind and around the car.
• Depending on where the unit is installed, actual view may
differ from displayed image.
1
Press MODE.
The image configuration changes every time
MODE is pressed.
↓
Panorama View
↓
Corner View
↓
Top View
Panorama View:
Displays a general perspective of what is ahead of
the car. Use this when you want to check mainly
ahead of the car.
Corner View:
Displays a divided image left and right of centre.
Use this mainly when checking left and right
directional view.
6-EN
Top View:
Displays an image from above down to the lower
section of the car. Use this when to determine the
car's position in relation to the curb, etc.
Installation and
Connections
Mounting the Rear Camera
(HCE-C200R)
Preparation
1 Check accessory parts.
1 Rear camera (1m) 2 Power unit (ACC:2m,
GND:2m, Reverse In:6m,
Reverse out:2m)
% Cord clamp (Switch)
x 3
Installing the Power Unit
1
Attach the Velcro fastener (hard side) ! to
the bottom of the power unit 2.
Velcro fastener (hard side)
3 Camera mounting 4 Hex screw
x 2
5 Hexagonal wrench 6 RCA extension cable
7 Waterproofing pad 8 Waterproofing pad
9 Cord clamp ! Velcro fastener
x 5
" Tapping screw # Switch (3m)
x 4
(2m)
adhesive sheet
x 2
2
Attach the Velcro fastener (soft side) ! to the
floor, and secure the power unit 2.
• When attaching the Velcro fastener (hard side) ! to the
floor carpet, do so without the Velcro fastener (soft side)
! attached.
• It is recommended to install the power unit on the rear of
the instrument panel, or under a seat.
Installing the Switch
1
Attach the switch # according to the
following illustration.
Attach the supplied switch adhesive sheet #.
Peel off the seal paper, and apply it to the back of
the switch, then peel off the other seal paper and
install in the desired location. If necessary, secure
the cable with the supplied cord clamps %.
• Before attaching the switch, wipe off any dust, oil, etc., on
the attaching surface with a suitable cleaning cloth (sold
separately).
• Attach the switch in a location where driving is not
hindered.
# Switch adhesive sheet $ Camera extension
cable (7m)
Switch
7-EN
Install to the Rear Garnish
1
Attach the camera 1 to the camera mounting
3.
Pull the camera cable through to the camera
mounting 3, and secure with the hex screws
4.
3
1
Angle adjustment screw
Securing the Camera Cable
1
Secure the camera cable.
Attach the waterproof pad 7 with the
waterproof pad adhesive sheet 8, and
secure any slack cable around the waterproof
pad 7 using the cord clamp 9.
1
9
7
Reverse In
Camera cable
2
Use the hexagonal wrench 5 to loosen the
camera mounting 3 and angle adjustment
screw. Determine the attachment angle, and
carefully tighten the angle adjustment screw.
3
Make a 13 mm hole in the rear garnish
camera mounting.
*
2.5
13
30
21
* If the tapping screw ! is used, make a hole.
4
Pull the camera cable inside the car through
the hole made in step 3.
5
Remove the adhesive seal from the camera
mounting 3, and attach the camera
mounting while ensuring the camera cable
remains inside the grommet.
• Attach the camera in a position where it does not touch the
number plate.
• Use retail touch-up paint to paint the surface and
surrounding area when a hole has been made in a metal
surface.
• If necessary, use a tapping screw " to fix the camera
mounting (In the case of a plastic mount area).
• Install the camera facing up so that the serial label on the
rear of the camera is visible.
8-EN
• Ensure the cable does not get caught in the trunk, rear
door(s) or any hinges.
• The cable should go on the outside of car hinges and
harness covers.
• After completing wiring, open and close the trunk and the
rear doors several times to confirm the cable is not getting
caught or rubbing anywhere.
Installing to a Rear Window
1
Assemble the camera mounting 3.
Use the hexagonal wrench 5 to remove the
camera mounting 3 and angle adjustment
screw. Remove the mounting brackets, invert
them, and then secure by tightening the
angle adjustment screw.
3
Angle adjustment screw
2
Attach the camera to the camera mounting
3.
Pull the camera cable through to the camera
mounting 3, and secure with the hex screws
4.
3
1
Securing the Camera Cable
1
Secure the camera cable.
Attach the waterproof pad 7 with the
waterproof pad adhesive sheet 8, and
secure any slack cable around the waterproof
pad 7 using the cord clamp 9.
1
9
7
• Ensure the cable does not get caught in the trunk, rear
door(s) or any hinges.
• The cable should go on the outside of car hinges and
harness covers.
• After completing wiring, open and close the trunk and the
rear doors several times to confirm the cable is not getting
caught or rubbing anywhere.
Reverse In
Camera cable
3
Loosen the camera mounting 3 and angle
adjustment screw.
Determine the attachment angle, and
carefully tighten the angle adjustment screw.
4
Remove any dirt, dust, oil or chemicals from
the rear window using a commerciallyavailable cleaning cloth.
5
Remove the adhesive seal from the camera
mounting 3, and attach the camera
mounting.
• Attach the camera in a position where it does not obstruct
rear visibility, or touch wipers.
• Install the camera facing up so that the serial label on the
rear of the camera is visible.
9-EN

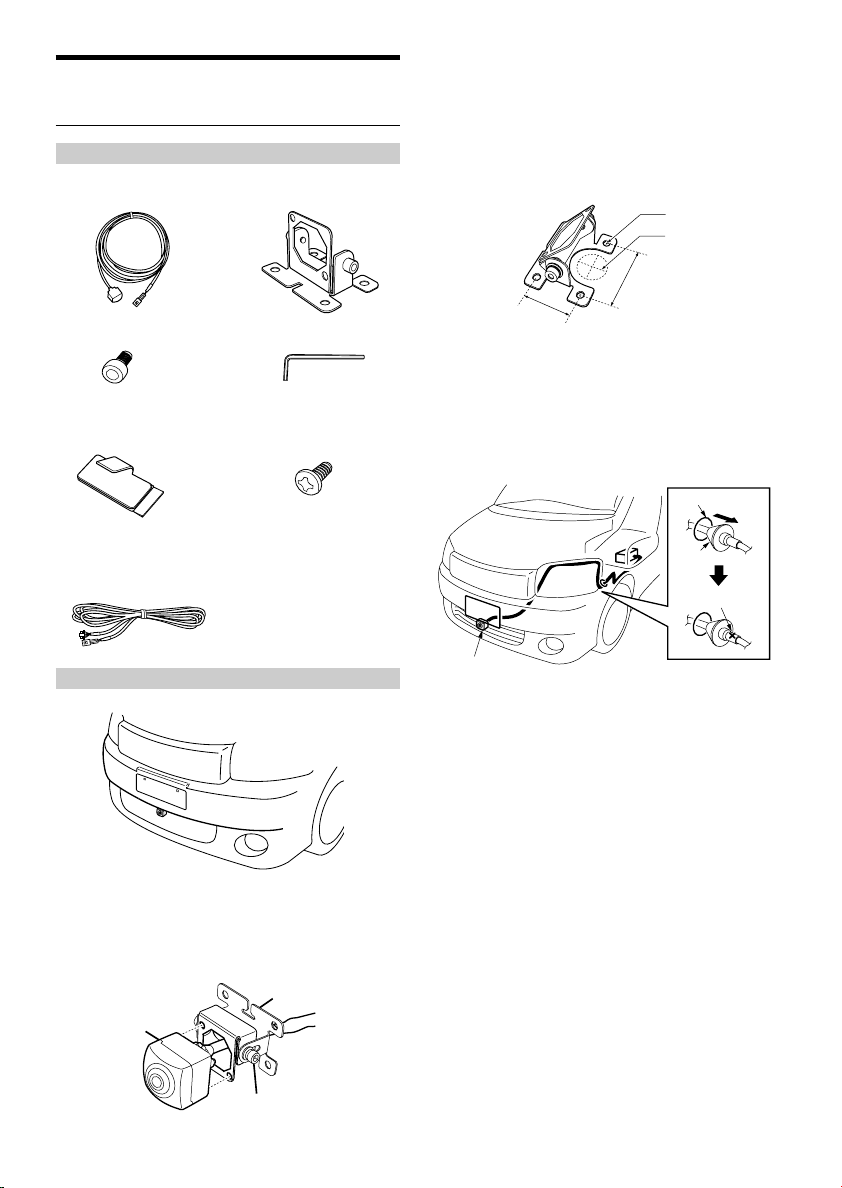

Mounting the Front Camera (HCEC200F) (If HCE-C200F is purchased)
Preparation
1 Check accessory parts.
1 Front camera (1m) 2 Camera mounting
3 Hex screw 4 Hexagonal wrench
x 2
5 Cord clamp 6 Tapping screw
x 5 x 4
7 Camera extension
cable (4m)
2
Use the hexagonal wrench 4 to loosen the
camera mounting 2 and angle adjustment
screw. Determine the attachment angle, and
carefully tighten the angle adjustment screw.
3
Make a 13mm hole in the front bumper
camera mounting.
*
2.5
13
30
21
* If the tapping screw 6 is used, make a hole.
4
Pull the camera cable inside the car through
the hole made in step 3.
5
Remove the adhesive seal from the camera
mounting 2, and attach the camera
mounting.
A
B
C
Install to the Front Bumper
1
Attach the camera to the camera 1 mounting
2.
Pull the camera cable through to the camera
mounting 2, and secure with the hex screws
3.
3
1
Angle adjustment screw
10-EN
1
A Service hole
BGrommet
C Make an incision in the grommet.
• If necessary, use a tapping screw 6 to fix the camera
mounting (In the case of a plastic mount area).
6
Connect the camera cable through the
service hole to the power box.
• Attach the camera in a position where it does not touch the
number plate.
• Use retail touch-up paint to paint the surface and
surrounding area when a hole has been made in a metal
surface.
• Route all cables away from hot areas/parts of the car.
Connections
12 3 4 5
REVERSE OUT
REVERSE IN
GND
IGNITION
Fuse (7.5A)
Cable Color
Orange/Black
Orange/White
Black
Red
Cable Specifications
Reverse Output Lead
This transmits to the monitor or navigation that
the car’s transmission is shifted into reverse.
Reverse Input Lead
Connect to the plus side of the car's reverse
lamp that lights when the transmission is
shifted into reverse (R).
Switches the video picture to the back-up
camera. This is linked with putting the car into
reverse (R).
Ground Lead
Connect this lead to a good chassis ground on
the vehicle. Make sure the connection is made
to bare metal and is securely fastened using
the sheet metal screw provided.
Switched Power Lead (Ignition)
Connect this lead to an open terminal on the
vehicle's fuse box or another unused power
source which provides (+)12V only when the
ignition is turned on or in the accessory
position.
---- To monitor or navigation reverse
---- To plus side of the back lamp
----
1 V.OUT Terminal
Connect this to the camera terminal of the monitor
or navigation.
2 OTHER CAMERA Terminal
Not used.
3 FRONT CAMERA Terminal
Connect this to the front camera (HCE-C200F)
4 REAR CAMERA Terminal
Connect this to the rear camera (HCE-C200R)
5 Switch Terminal
Connect this to the switch (HCE-C200R included)
input
signal lead of the car
Connect to a metal part of
chassis body with a screw
Ignition Key
11-EN
System Example
(1) Connecting an Alpine Monitor
Reverse Input Lead
(Orange/White)
Reverse Lead
(Orange/White)
CAMERA Input Terminal
V.out Terminal
---- To plus side of the back lamp signal
lead of the car
Reverse Output Lead
(Orange/Black)
Monitor (Sold Separately)
Switch
(HCE-C200R included)
etc.
TOPVIEW REAR
CAMERA (HCE-C200R)
RCA extension cable (2m)
(HCE-C200R included)
TOPVIEW FRONT
CAMERA (HCE-C200F)
Camera extension cable (7m)
(HCE-C200R included)
FRONT CAMERA
Terminal
REAR CAMERA
Terminal
SWITCH Terminal
Camera extension cable (4m)
(HCE-C200F included)
12-EN
(2) Connecting an Alpine Head Unit and an Alpine Navigation System
Reverse Lead
(Orange/White)
---- To plus side of the back lamp signal
lead of the car
Navigation System
(Sold Separately)
RGB cable
(Included with Navigation)
Head Unit (Sold Separately)
IVA-D310 series,
IVA-W200 series, etc.
TOPVIEW REAR
CAMERA (HCE-C200R)
Switch
(HCE-C200R included)
Reverse Input Lead
(Orange/White)
Reverse Lead
(Orange/White)
CAMERA Input Terminal
RCA extension cable (2m)
(HCE-C200R included)
TOPVIEW FRONT
CAMERA (HCE-C200F)
V.OUT Terminal
FRONT CAMERA
Terminal
REAR CAMERA
Terminal
SWITCH Terminal
Camera extension cable (4m)
(HCE-C200F included)
Reverse Output Lead
(Orange/Black)
Camera extension cable (7m)
(HCE-C200R included)
• When you route and arrange cables around the engine or car interior, do so as to avoid hot parts.
• The front view camera (HCE-C200F) and rear view camera (HCE-C200R) are designed to be connected separately.
The front camera and rear camera can be identified by their bottom labels.
• Connect the cameras by referring carefully to connection instructions or labels.
• The "OTHER CAMERA" terminal is not used, do not connect this.
• Connect the Reverse Output Lead (Orange/Black) of this unit to the Reverse Lead (Orange/White) of the Head Unit/Monitor.
• Connect the Reverse Lead (Orange/White) of the Navigation System to the plus side of the back lamp signal lead of the car.
• Connect the water-proof connector for the camera and camera extension cable securely. When disconnecting the water-proof
connector, use a minus screwdriver.
Water-proof connector
13-EN
Confirmation
1
Securing leads, etc.
Make sure leads are not pinched by moving parts
such as the seat rail, etc. Also check for damaged
from sharp edges or protrusion.
Refer to "Securing the Camera Cable." (page 8, 9)
2
Connect the battery (−) terminal.
3
Turn on the engine key. Make sure the unit is
operating correctly by referring to the
Owner’s Manual.
4
Adjust the camera angle.
Refer to "Adjusting the Camera Angle."
5
Make sure all factory components such as
the brake lamps, etc. work correctly.
Adjusting the Camera Angle
Angle adjustment screw
Caution
When adjusting the camera angle, do so after
turning off the engine and applying the hand
brake to avoid an accident.
1
Put the gear shift into reverse (R) or press
ON/OFF, and check the image from the
camera on the display.
When you set the corner view, adjust the angle so
that the road may be roughly viewed horizontally.
2
Loosen the camera mounting 3 and angle
adjustment screw. Determine the camera
angle, and carefully tighten the angle
adjustment screw.
14-EN
Information
Specifications
HCE-C200R (Rear camera)
Power Requirements ............ 14.4V DC
(11-16V allowable)
Ground Type .......................... Negative ground type
Power Consumption ............. 1.7W
Output Image ........................ Mirror image, VBCS
(NTSC Colour signal
system) 16 : 9 Image
output for wide-screen
Output Drive Capacity .......... 75 Ohm (Ω)
CCD ........................................ 1/3.8 Type Colour CMOS
Image sensor CCD
aspect ratio 4 : 3
Effective Number of Pixels .. 1280 (horizontal) x 960
(vertical) approximately
1.23 Mega pixels
Lens Section ......................... Focal length f=0.89mm,
brightness F=2.8
Angle of field ......................... Horizontal: 185˚,
Vertical: 144˚
Automatic Image Adjusting Function
Automatic metering
adjustment, Automatic
white balance
adjustment
Synchro-System ................... Internal synchronization
S/N .......................................... 40dB or more
Resolution (horizontal)......... 300 lines (centre area)
Illumination Range ............... 2 to 100,000 lx
Operating Temperature Range
Camera section .................... -22 to +176˚F
(-30 to +80˚C)
Power section ...................... -22 to +176˚F
(-30 to +80˚C)
External Dimensions (W x H x D)
Camera section .................... 23.4 x 23.4 x 21.3mm
(29/32" x 29/32" x 27/32")
(except projection on the
rear)
Power section ...................... 100 x 50 x 25mm
(3-15/16" x 1-31/32" x 31/32")
(except projection)
Switch section ...................... 29 x 38.5 x 13.6mm
(1-1/8" x 1-1/2" x 17/32")
Weight
Camera section .................... 80g (including cable)
Power section ...................... 270g (including cable)
Switch section ...................... 50g (including cable)
HCE-C200F (Front camera)
Power Requirements ............ 14.4V DC
Ground Type .......................... Negative ground type
Power Consumption ............. 1.7W
Output Image ........................ Positive image, VBCS
Output Drive Capacity .......... 75 Ohm (Ω)
CCD ........................................ 1/3.8 Type Colour CMOS
Effective Number of Pixels ...
Lens Section ......................... Focal length f=0.89mm,
Angle of field ......................... Horizontal: 185˚,
Automatic Image Adjusting Function
Synchro-System ................... Internal synchronization
S/N .......................................... 40dB or more
Resolution (horizontal)......... 300 lines (centre area)
Illumination Range ............... 2 to 100,000 lx
Operating Temperature Range
Camera section .................... -22 to +176˚F
External Dimensions (W x H x D)
Camera section .................... 23.4 x 23.4 x 21.3mm
Weight
Camera section .................... 80g (including cable)
(11-16V allowable)
(NTSC Colour signal
system) 16 : 9 Image
output for wide-screen
Image sensor CCD
aspect ratio 4 : 3
1280 (horizontal) x 960
(vertical) approximately
1.23 Mega pixels
brightness F=2.8
Vertical: 144˚
Automatic metering
adjustment, Automatic
white balance
adjustment
(-30 to +80˚C)
(29/32" x 29/32" x 27/32")
(except projection on the
rear)
15-EN
Loading...
