Contents

ENGLISH

Operating Instructions

WARNING

WARNING .................................................. 2

CAUTION ................................................... 2

PRECAUTIONS ......................................... 2

Getting Started

Turning Power On and Off ............................... 5

Detaching and Attaching the Front Panel ......... 5

Initial System Start-Up ..................................... 5

Adjusting Volume ............................................. 5

Radio

Listening to Radio ............................................. 6

Manual Storing of Station Presets .................... 6

Automatic Memory of Station Presets .............. 6

Tuning to Preset Stations .................................. 6

RDS

Setting RDS Reception Mode and Receiving

RDS Stations ................................................. 7

Recalling Preset RDS Stations .......................... 7

Receiving RDS Regional (Local) Stations ....... 7

PI SEEK Setting................................................ 8

Receiving Traffic Information .......................... 8

PTY (Programme Type) Tuning ....................... 8

Receiving Traffic Information While Playing

CD or Radio................................................... 9

Priority News .................................................... 9

Displaying Radio Text ...................................... 9

CD/MP3/WMA

Playback .......................................................... 10

Playing back a playlist .................................... 10

Repeat Play ..................................................... 11

M.I.X. (Random Play) .................................... 11

Scanning Programmes .................................... 11

Searching from CD Text ................................. 11

File/Folder Name Search

(concerning MP3/WMA) ..............................

Quick Search ................................................... 12

About MP3/WMA .......................................... 12

Sound Setting

Adjusting Balance (Between Left and Right)/

Fader (Between Front and Rear)/Defeat...... 14

Setting the Bass Control ................................. 14

Setting the Treble Control............................... 15

Setting the Bass Type ...................................... 15

Setting the MX Mode ..................................... 15

Other Functions

Displaying the Title/Text................................. 16

Titling Discs .................................................... 17

Erasing Disc Title............................................ 17

SETUP

Sound Customizing

Adjusting Source Signal Levels ...................... 18

Switching the Tuner Mode.............................. 18

Subwoofer On and Off .................................... 18

Visual Customizing

Scroll Setting................................................... 18

MP3/WMA

Playing MP3/WMA Data................................ 19

External Device

Connecting to an External Amplifier .............. 19

Information

In Case of Difficulty ....................................... 19

Specifications .................................................. 21

Installation and Connections

Warning ........................................................... 22

Caution ............................................................ 22

Precautions ...................................................... 22

Installation ...................................................... 23

Connections ......................................................

12

Windows Media and the Windows logo are trademarks, or
registered trademarks of Microsoft Corporation in the United
States and /or other countries.

24

1-EN

Operating Instructions

WARNING

WARNING

This symbol means important instructions. Failure
to heed them can result in serious injury or death.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR
ATTENTION AWAY FROM SAFELY DRIVING YOUR
VEHICLE.

Any function that requires your prolonged attention should only
be performed after coming to a complete stop. Always stop the
vehicle in a safe location before performing these functions.
Failure to do so may result in an accident.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL
HEAR OUTSIDE NOISE WHILE DRIVING.

Failure to do so may result in an accident.

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, fire or electric shock.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may
result in fire, etc.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE
REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed,
consult a physician immediately.

USE THE CORRECT AMPERE RATING WHEN REPLACING
FUSES.

Failure to do so may result in fire or electric shock.

DO NOT BLOCK VENTS OR RADIATOR PANELS.

Doing so may cause heat to build up inside and may result in fire.

USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.

Use for other than its designed application may result in fire,
electric shock or other injury.

CAUTION

This symbol means important instructions. Failure
to heed them can result in injury or material
property damage.

HALT USE IMMEDIATELY IF A PROBLEM APPEARS.

Failure to do so may cause personal injury or damage to the
product. Return it to your authorized Alpine dealer or the nearest
Alpine Service Centre for repairing.

PRECAUTIONS

Product Cleaning

Use a soft dry cloth for periodic cleaning of the product. For
more severe stains, please dampen the cloth with water only.
Anything else has the chance of dissolving the paint or damaging
the plastic.

Temperature

Be sure the temperature inside the vehicle is between +60°C
(+140°F) and –10°C (+14°F) before turning your unit on.

Moisture Condensation

You may notice the CD playback sound wavering due to
condensation. If this happens, remove the disc from the player
and wait about an hour for the moisture to evaporate.

Damaged Disc

Do not attempt to play cracked, warped, or damaged discs.
Playing a bad disc could severely damage the playback
mechanism.

Maintenance

If you have problems, do not attempt to repair the unit yourself.
Return it to your Alpine dealer or the nearest Alpine Service
Station for servicing.

DO NOT PLACE HANDS, FINGERS OR FOREIGN OBJECTS
IN INSERTION SLOTS OR GAPS.

Doing so may result in personal injury or damage to the product.

2-EN

PRECAUTIONS

Never Attempt the Following

Do not grip or pull out the disc while it is being pulled back into
the player by the automatic reloading mechanism.
Do not attempt to insert a disc into the unit when the unit power
is off.

Correct Handling

Do not drop the disc while handling. Hold the disc so you will
not leave fingerprints on the surface. Do not affix tape, paper, or
gummed labels to the disc. Do not write on the disc.

CORRECT

Inserting Discs

Yo ur player accepts only one disc at a time for playback. Do not
attempt to load more than one disc.
Make sure the label side is facing up when you insert the disc.
Yo ur player will automatically eject any disc that is inserted
incorrectly. If the player continues to eject a correctly inserted
disc, push the RESET switch with a pointed object such as a
ballpoint pen.
Playing a disc while driving on a very bumpy road may result in
skips, but this will not scratch the disc or damage the player.

New Discs

As a protective measure to prevent the CD from jamming, the CD
player will automatically eject discs with irregular surfaces or
inserted incorrectly. When a new disc is inserted into the player
and ejected after initial loading, using your finger, feel around the
inside of the centre hole and outside edge of the disc. If you feel
any small bumps or irregularities, this could inhibit proper
loading of the disc. To remove the bumps, rub the inside edge of
the hole and outside edge of the disc with a ballpoint pen or other
such instrument, then insert the disc again.

Centre Hole

Centre Hole

New
Disc

INCORRECT

CORRECT

Disc Cleaning

Fingerprints, dust, or soil on the surface of the disc could cause
the CD player to skip. For routine cleaning, wipe the playing
surface with a clean, soft cloth from the centre of the disc to the
outer edge. If the surface is heavily soiled, dampen a clean, soft
cloth in a solution of mild neutral detergent before cleaning the
disc.

Disc Accessories

There are various accessories available on the market for
protecting the disc surface and improving sound quality.
However, most of them will influence the thickness and/or
diameter of the disc. Using such accessories can cause the disc to
be out of standard specifications and may create operational
problems. We recommend not using these accessories on discs
played in Alpine CD players.

Bumps

Outside
(Bumps)

Irregular Shaped Discs

Be sure to use round shape discs only for this unit and never use
any special shape discs.
Use of special shape discs may cause damage to the mechanism.

Installation Location

Make sure the CDE-9828RB/CDE-9827R/CDE-9827RM/CDE­9827RR will not be installed in a location subjected to:

•Direct sun and heat

•High humidity and water

•Excessive dust

•Excessive vibrations

Disc StabilizerTransparent Sheet

Continued

3-EN

On handling Compact Discs (CD/CD-R/CD-RW)

• Do not touch the surface.

• Do not expose the disc to direct sunlight.

• Do not affix stickers or labels.

•Clean the disc when it is dusty.

•Make sure that there are no bumps around the disc.

• Do not use commercially available disc accessories.

Do not leave the disc in the car or the unit for a long
time. Never expose the disc to direct sunlight. Heat

and humidity may damage the CD and you may not be
able to play it again.

To customers using CD-R/CD-RW

• If a CD-R/CD-RW cannot be played back, make sure the last
recording session was closed (finalized).

•Finalize the CD-R/CD-RW if necessary, and attempt playback
again.

About media that can be played.

Use only compact discs with the label side showing the CD logo
marks below.

If you use unspecified compact discs, correct performance cannot
be guaranteed.
Yo u can play CD-Rs (CD-Recordable)/CD-RWs (CD­ReWritable) which have been recorded only on audio devices.
Yo u can also play CD-Rs/CD-RWs containing MP3/WMA
formatted audio files.

•Some of the following CDs may not play on this unit:
Flawed CDs, CDs with fingerprints, CDs exposed to extreme
temperatures or sunlight (e.g., left in the car or this unit), CDs
recorded under unstable conditions, CDs on which a
recording failed or a re-recording was attempted, copy­protected CDs which do not conform to the audio CD
industry standard.

•Use discs with MP3/WMA files written in a format
compatible with this unit. For details, see pages 12-13.

4-EN

Getting Started

1

SOURCE/
POWER

Rotary encoder

Initial System Start-Up

Be sure to press the RESET switch when using the unit for the first
time, after changing the car battery, etc.

Turn off the unit power.

1

Remove the detachable front panel.

2

Press RESET with a ballpoint pen or similar

3

pointed object.

1

Turning Power On and Off

Press SOURCE/POWER to turn on the unit.

• The unit can be turned on by pressing any other button except eject

c.

Press and hold SOURCE/POWER for at least 2
seconds to turn off the unit.

• The first time power is turned on, the volume will start from level 12.

Detaching and Attaching the Front Panel

Detaching

Turn off the unit power.

1
2

Press (Release) at the upper left side until the
front panel pops out.

Grasp the left side of the front panel and pull it out.

3

• The front panel may become hot in normal usage (especially the
connector terminals on the back of the front panel.) This is not a
malfunction.

•To protect the front panel, place it in the supplied carrying case.

RESET switch

Adjusting Volume

Turn the Rotary encoder until the desired sound is
obtained.

Connectable to Remote Control Interface Box

You can operate this unit from the vehicle's control unit when
an Alpine Remote Control Interface Box (optional) is
connected. For details, contact your Alpine dealer.

Attaching

Insert the right side of the front panel into the main

1

unit. Align the groove on the front panel with the
projections on the main unit.

Push the left side of the front panel until it locks

2

firmly into the main unit.

2

1

• Before attaching the front panel, make sure that there is no dirt or
dust on the connector terminals and no foreign object between the
front panel and the main unit.

•Attach the front panel carefully, holding the sides of the front panel
to avoid pushing buttons by mistake.

.

5-EN

Radio

SOURCE/
POWER

Listening to Radio

1

2

3

• The initial mode is Distance mode.

Distance mode:

Local mode:

Manual mode:

TUNE/

BAND

A.ME

g f

Press SOURCE/POWER until a radio frequency
appears in the display.

Press BAND repeatedly until the desired radio
band is displayed.

F1 (FM1) → F2 (FM2) → F3 (FM3) → M (MW) → L (LW) → F1 (FM1)

Press TUNE/A.ME to select the tuning mode.

DX SEEK (Distance mode) → SEEK (Local mode) →
OFF (Manual mode) → DX SEEK

Both strong and weak stations will be automatically tuned in
(Automatic Seek Tuning).

Only strong stations will be automatically tuned in (Automatic
Seek Tuning).

The frequency is manually tuned in steps (Manual tuning).

Rotary encoder SEARCH/Q.S.

F/SETUP

Preset buttons
(1 through 6)

Automatic Memory of Station Presets

Press BAND repeatedly until the desired radio

1

band is displayed.

Press and hold TUNE/A.ME for at least 2 seconds.

2

The frequency on the display continues to change while
the automatic memory is in progress. The tuner will
automatically seek and store 6 strong stations in the
selected band. They will be stored into buttons 1 to 6 in
order of signal strength.
When the automatic memory has been completed, the
tuner goes to the station stored in preset location no. 1.

• If no stations are stored, the tuner will return to the original station
you were listening to before the auto memory procedure began.

Tuning to Preset Stations

Press BAND repeatedly until the desired band is

1

displayed.

Press any one of the station preset buttons (1

2

through 6) that has your desired radio station in
memory.

The display shows the band, preset number and
frequency of the station selected.

• If the “FUNC” indicator is illuminated, turn off the indicator by
pressing F/SETUP, then you can perform the operation.

Press g or f to tune in the desired station.

4

Holding down g or f will change the frequency
continuously.

• The ST indicator appears on the display when a stereo FM station
is tuned in.

Manual Storing of Station Presets

Select the radio band and tune in a desired radio

1

station you wish to store in the preset memory.

Press and hold, for at least 2 seconds, any one of

2

the preset buttons (1 through 6) that you want
to store the station on.

The selected station is stored.
The display shows the band, preset no. and station
frequency memorized.

•A total of 30 stations can be stored in the preset memory (6 stations
for each band; FM1, FM2, FM3, MW and LW).

• If you store a station in a preset memory which already has a
station, the current station will be cleared and replaced with the
new station.

• If the “FUNC” indicator is illuminated, turn off the indicator by
pressing F/SETUP, then you can perform the operation.

6-EN

RDS

BAND

T.INFOg f 3/PTY

F/SETUP 1/AF DISP/

Setting RDS Reception Mode and Receiving
RDS Stations

The RDS (Radio Data System) is a radio information system using
the 57 kHz subcarrier of regular FM broadcast. The RDS allows you
to receive a variety of information such as traffic information, station
names, and to automatically re-tune to a stronger transmitter that is
broadcasting the same programme.

Press F/SETUP so that the “FUNC” indicator

1

lights up.

Press 1/AF to activate the RDS mode.

2

2/NEWS

TITLE

Recalling Preset RDS Stations

Press F/SETUP so that the “FUNC” indicator lights

1

up.

Press 1/AF to activate the RDS mode.

2

Press F/SETUP to activate the normal mode.

3

The “FUNC” indicator goes out.

Make sure that the “FUNC” indicator light goes out,

4

then press the preset button in which your desired
RDS station is preset.

If the preset station's signal is weak, the unit automatically
searches and tunes to a stronger station in the AF
(Alternative Frequencies) list.

If the preset station and the stations in the AF list

5

cannot be received:

When the PI SEEK setting is on (refer to “PI SEEK Setting”
on page 8), the unit searches again for a station in the PI
(Programme Identification) list.
If there are still no stations receivable in the area, the unit
displays the frequency of the preset station and the preset
no. disappears.
If the signal level of the Regional (Local) station being
tuned becomes too weak to receive, press the same
preset button to tune in a Regional station in other district.

•For presetting the RDS stations, refer to the Radio Operation
section. The RDS stations can be preset in the F1, F2 and F3 bands
only.

3 Press

4
5

g

or f to tune in the desired RDS

station.

Press 1/AF again to deactivate the RDS mode.

Press F/SETUP to activate the normal mode.
The “FUNC” indicator goes out.

The RDS digital data includes the following:

PI Programme Identification
PS Programme Service Name
AF List of Alternative Frequencies
TP Traffic Programme
TA Traffic Announcement
PTY Programme Type
EON Enhanced Other Networks

Receiving RDS Regional (Local) Stations

Press and hold F/SETUP for at least 2 seconds to /

1

activate the setting mode.

Press g or f to select the REG (Regional)

2

mode.

Press BAND to turn on or off the REG (Regional)

3

mode.

In the REG OFF mode, the unit automatically keeps
receiving the related local RDS station.

Press F/SETUP to deactivate the setting mode.

4

7-EN

PI SEEK Setting

PTY (Programme Type) Tuning

Press and hold F/SETUP for at least 2 seconds.

1

Press g or f to select “PISK.”

2

Press BAND to toggle the mode between

3

“PISK ON” and “PISK OFF.”

Press F/SETUP to set the selected mode.

4

Receiving Traffic Information

Press T.INFO so that the “T.INFO” indicator lights

1

up.

Press g or f to select your desired traffic

2

information station.

When a traffic information station is tuned in, the “TP”
indicator lights up.
Traffic information is heard only when it is being
broadcast. If traffic information is not being broadcast, the
unit is set in the standby mode. When a traffic information
broadcast begins, the unit automatically receives it and
the display shows “TRF-INFO” for a few seconds and
returns to the PS display.
When the traffic information broadcast is over, the unit will
automatically set in the standby mode.

• If the traffic information broadcast signal falls below a certain
level, the unit remains in the receiving mode for 1 minute. If the
signal remains below a certain level for over 1 minute, the
“T.INFO” indicator blinks.

• If you do not want to listen to the traffic information being
received, lightly press T.INFO to skip that traffic information
message. The T.INFO mode will remain in the ON position to
receive the next traffic information message.

• If the volume level is changed while receiving traffic information,
the changed volume level will be memorized. When traffic
information is received next time, the volume level will be
automatically adjusted to the level memorized.

•In the T.INFO mode, the SEEK tuning selects only the TP stations.

Press F/SETUP so that the “FUNC” indicator lights

1

up.

Press 3/PTY to activate the PTY mode, while the

2

unit is in Radio (FM receiving) mode.

The Programme Type of the station being currently received
will be displayed for 5 seconds.
If there is no receivable PTY broadcast, “NO PTY” will be
displayed for 5 seconds.
If no RDS station can be received, the display shows “NO
PTY.”

• If no operation is performed within 5 seconds after pressing 3/PTY,
the PTY mode will be automatically cancelled.

Press g and f within 5 seconds after

3

activating the PTY mode to choose the desired
programme type while the PTY (programme type)
is being displayed.

Each press scrolls the programme type by one.

LIGHT M ↔ CLASSICS ↔ OTHER M

Press 3/PTY within 5 seconds after selecting the

4

programme type to start searching for a station in
the selected programme type.

The chosen programme type display blinks during
searching and lights when a station is found.

If no PTY station is found, “NO PTY” will be displayed for 5
seconds.

Press F/SETUP to activate the normal mode.

5

The “FUNC” indicator goes out.

• Operate the unit while the “FUNC” indicator lights up. If no
operation is performed within 5 seconds, the “FUNC” indicator
goes out.

8-EN

Receiving Traffic Information While Playing
CD or Radio

Press T.INFO so that the “T.INFO” indicator lights

1

up.

Press g and f to select a traffic information

2

station if necessary.

When a traffic information broadcast starts, the unit
automatically mutes the CD player/changer or the regular
FM broadcast.
When the traffic information broadcast finishes, the unit
automatically returns to the original source play before the
traffic information broadcast began.

When traffic information stations cannot be received:

In the tuner mode:
When the TP signal can no longer be received for over 1
minute, the “T.INFO” indicator blinks.

In the CD mode:
When the TP signal can no longer be received, the traffic
information station of another frequency will be selected
automatically.

• The receiver is equipped with the EON (Enhanced Other
Networks) function in order to keep track of additional alternate
frequencies to the AF list. The “EON” indicator lights up while an
RDS EON station is being received. If the station being received
does not broadcast the traffic information, the receiver
automatically tunes in the related station that broadcasts the traffic
information when it occurs.

Press T.INFO to deactivate the Traffic Information

3

mode.

The “T.INFO” indicator goes out.

Priority News

This function allows you to preset to give priority to the News
programme. You will never miss the News programme as the unit
automatically gives priority to the News programme whenever it
begins broadcasting, and interrupts the programme you are currently
listening. This feature is functional when your unit is set to a mode
other than the LW and MW modes.

Press F/SETUP so that the “FUNC” indicator lights

1

up while the unit is in Radio (FM receiving) mode.

Press 2/NEWS to activate the PRIORITY NEWS

2

mode.
The “NEWS” indicator appears in the display.

To disable the PRIORITY NEWS function, press 2/NEWS.

•In the PRIORITY NEWS function, unlike in the T.INFO function,
the volume does not increase automatically.

Press F/SETUP to activate the normal mode, while

3

the unit is in Radio (FM receiving) mode.

The “FUNC” indicator light goes out.

Displaying Radio Text

Text messages from a radio station can be displayed.

Press DISP/TITLE while receiving FM in the radio

1

mode to select the Radio Text display.

The display will change every time the button is pressed.

PS (Programme Service Name) → Radio Text → FREQUENCY
→ PS (Programme Service Name)

The display shows “WAITING” for a few seconds, then starts
scrolling the text message.

• If there is no receivable text message or the unit cannot receive a
text message properly, the display shows “NO TEXT.”

9-EN

CD/MP3/WMA

Rotary
encoder

SEARCH/Q.S.

8

• “WMA” is displayed during WMA playback.

• The track display for MP3/WMA data playback is the file numbers
recorded on the disc.

MP3/WMA Play Display

The folder number and file number will be displayed as described

c-/J

below.

F01 T03

g f

9 4( )5( )

6( )

Playback

Insert a disc with the label side facing up.

1

The disc will be pulled into the unit automatically.

When a disc is already inserted, press SOURCE/POWER
to switch to the CD mode.

The mode will change every time the button is pressed.

TUNER → CD → TUNER

While playing back MP3/WMA, press 8 or 9 to

2

select the desired folder.

Pressing and holding 8 or 9 will change folders
continuously.

DISP
TITLE

Folder number
display

•Press DISP/TITLE to switch the display. Please see “Displaying
the Title/Text” (page 16) for information about display switching.

File number
display

Playing back a Playlist

You can play playlists you have prepared in advance on the computer.
Both MP3 and WMA playlists can be played.
Playlists that can be played back by this device have the file extension
“m3u”/“asx.”

Press 8 or 9 to select a playlist.

By pressing and holding 8 or 9, the playlists move up or
down continuously.

• If there is a playlist and folder on the disc, the playlist starts to
play back prior to the folder.

• Up to 5 playlist can be played back. Playlists from the 6th onwards
cannot be played back.

• Refer to the software instruction manual on how to create a
playlist.

•Playlist playback applies only to the selected playlist. To play the
next playlist or folder, perform the folder up/down operation.

Playlist Display

While playing back a playlist, the folder and file numbers that are
stored in the playlist are displayed.

Press g or f to select the desired track (file).

3

Returning to the beginning of the current track (file):

Press g.

Fast backward :

Press and hold g.

Advancing to the beginning of the next track (file) :

Press f.

Fast forward :

Press and hold f.

To pause playback, press -/J.

4

Pressing -/J again will resume playback.

To eject the disc, press c.

5

• Do not remove a CD during its eject cycle. Do not load more than
one disc at a time. A malfunction may result from doing either.

• If the CD does not eject, press and hold c for at least 2 seconds.

• The CD-player can play discs containing audio data, MP3 data
and WMA data.

•A WMA format file that is protected by DRM (Digital Rights
Management) cannot be played back on this unit.

• “MP3” is displayed during MP3 playback.

10-EN

P-L

F03 T05

Repeat Play

Scanning Programmes

Press 4 ( ) to play back repeatedly the track being
played.

The track (file) will be played repeatedly.

Press 4 ( ) again and select OFF to deactivate repeat play.

CD mode :

RPT : Only a track is repeatedly played back

↓

(off)

MP3/WMA mode :

RPT : Only a file is repeatedly played back

↓

RPT :

(off)

Only files in a folder are repeatedly
played back

↓

M.I.X. (Random Play)

Press 6 ( ) to activate the Scan mode.

The first 10 seconds of each track (file) will be played back in
succession.

To stop scanning, press 6 ( ) and deactivate the Scan
mode.

Searching from CD Text

Tracks can be searched and played using the CD text on the disc. In
the case of discs and changers that do not support text, searches can
be made using the track numbers.

Press SEARCH/Q.S. during play.

1

This will set the search mode.

Turn the Rotary encoder to select the desired

2

track, then press the Rotary encoder.

This will play the selected track.

•Press and hold SEARCH/Q.S. for at least 2 seconds in the
search mode to cancel. Or, the search mode will be cancelled when
an operation has not been performed in 10 seconds.

• CD text search cannot be made during M.I.X. play.

Press 5 ( ) in the play or pause mode.

The tracks (files) on the disc will be played back in random
sequence.

To cancel M.I.X. play, press 5 ( ) again.

CD mode :

↓

M.I.X. : Track are played back in

random sequence.

↓

(off)

MP3/WMA mode :

↓

M.I.X.: Only files in a folder are played back in

random sequence.

↓

M.I.X.: Files are played back in random sequence.

↓

(off)

• When playing back a playlist, M.I.X. cannot be played.

11-EN

File/Folder Name Search
(concerning MP3/WMA)

You can display and search for the folder and file name while
listening to the file currently being played back.

Press SEARCH/Q.S. to select File Name Search

1

mode or Folder Name Search mode in MP3/WMA
mode.

File Name Search mode

Press 8 or 9 to select another Folder.

2

Select the desired file by turning the Rotary

3

encoder within 10 seconds.

Press the Rotary encoder to play back the

4

selected file.

•File Name Search mode is cancelled by pressing and holding
SEARCH/Q.S. for at least 2 seconds.

• While in File Name Search mode, press SEARCH/Q.S. to
switch to Folder Name Search mode.

•File Name search cannot be made during M.I.X. play.

•File Name search cannot be made while playing back a playlist.

Folder Name Search mode

Turn the Rotary encoder within 10 seconds to

2

select the desired folder or playlist.

Press the Rotary encoder to play back the first

3

file in the selected folder or playlist.

• Search mode is cancelled by pressing and holding SEARCH/Q.S.

for at least 2 seconds in Folder Name Search mode.

• While in Folder Name Search mode, press SEARCH/Q.S. to
switch to File Name Search mode.

• “NO FILE” is displayed for 2 seconds if the folder or playlist that
is selected by the Folder Name Search mode contains no files.

• “0 (zero)” is displayed for the root folder.

•Folder Name search cannot be made during M.I.X. play.

Quick Search

You can search for tracks (files).

Press and hold SEARCH/Q.S. for at least 2

1

seconds in the CD/MP3/WMA mode to activate
Quick Search mode.

Turn the Rotary encoder within 10 seconds to

2

select a desired track (file).

The selected track is played back immediately.

• Search mode is cancelled by pressing and holding SEARCH/Q.S.

for at least 2 seconds in Quick Search mode.

About MP3/WMA

CAUTION

Except for private use, duplicating audio data (including MP3/
WMA data) or distributing, transferring, or copying it, whether for
free or for a fee, without permission of the copyright holder is
strictly prohibited by the Copyright Act and by international treaty.

What is MP3?

MP3, whose official name is “MPEG-1 Audio Layer 3,” is a
compression standard prescribed by the ISO, the International
Standardization Organization and MPEG which is a joint
activity institution of the IEC.

MP3 files contain compressed audio data. MP3 encoding is
capable of compressing audio data at extremely high ratios,
reducing the size of music files to as much as one-tenth their
original size. This is achieved while still maintaining near CD
quality. The MP3 format realizes such high compression ratios
by eliminating the sounds that are either inaudible to the
human ear or masked by other sounds.

What is WMA?

WMA, or “Windows Media™ Audio,” is compressed audio
data.
WMA allows you to create music files and store them at higher
ratios of compression than MP3 audio data (approx. half
original size). This is achieved while still maintaining CD
quality sound.

Method for creating MP3/WMA files

Audio data is compressed by using MP3/WMA specified
software. For details on creating MP3/WMA files, refer to the
user's manual for that software.
MP3/WMA files that can be played back by this device have
the file extension “mp3” / “wma”. Files with no extension
cannot be played back. (WMA ver. 7.1 and 8 are supported)

Supported playback sampling rates and bit rates

MP3

Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz,

16 kHz, 12 kHz, 11.025 kHz, 8 kHz

Bit rates: 8 - 320 kbps

WMA

Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz,

22.05 kHz
Bit rates: 48 - 192 kbps
Note that for sampling rates, this device’s frame display (Page

16) may not display correctly.
This device may not play back correctly depending on
sampling rates.

ID3 tags/WMA tags

This device supports ID3 tag v1 and v2, and WMA tag.
If tag data is in an MP3/WMA file, this device can display the
title (track title), artist name, and album name ID3 tag/WMA
tag data.

This device can only display single-byte alphanumeric
characters (up to 30 for ID3 tags and up to 15 for WMA tags)
and the underscore. For non-supported characters, “NO
SUPRT” is displayed.
The tag information may not be correctly displayed,
depending on the contents.

Producing MP3/WMA discs

MP3/WMA files are prepared, then written to a CD-R or CD­RW using CD-R writing software. A disc can hold up to 999
files/256 folders (including Root Folders).

Media supported

The media that this device can play back are CD-ROMs, CD­Rs, and CD-RWs.

12-EN

Corresponding File Systems

This device supports discs formatted with ISO9660 Level 1 or Level 2.

Under the ISO9660 standard, there are some restrictions to
remember.
The maximum nested folder depth is 8 (including the root
directory). File/folder names are limited to 30 characters
(including the extension).
Valid characters for folder/file names are letters A-Z (all
caps), numbers 0-9, and ‘_’ (underscore).

This device also can play back discs in Joliet, Romeo, etc.,
and other standards that conform to ISO9660. However,
sometimes the file names, folder names, etc., are not
displayed correctly.

Formats supported

This device supports CD-ROM XA, Mixed Mode CD,
Enhanced CD (CD-Extra) and Multi-Session.
This device cannot correctly play back discs recorded with
Track At Once or packet writing.

Order of files

The unit plays the files in the order that the writing software
writes them. Therefore, the playing order may not be the same
as the order you input. The playback order of the folders and
files is as follows. However, the folder and file playback order
differs from the folder no. and file no. indicated on the display.

10

Terminology

Bit rate

This is the “sound” compression rate specified for encoding. The higher
the bit rate, the higher the sound quality, but also the larger the files.

Sampling rate

This value shows how many times per second the data is sampled
(recorded). For example, music CDs use a sampling rate of 44.1
kHz, so the sound is sampled (recorded) 44,100 times per second.
The higher the sampling rate, the higher the sound quality, but also
the larger the volume of data.

Encoding

Converting music CDs, WAVE (AIFF) files, and other sound files
into the specified audio compression format.

Tag

Song information such as track titles, artist names, album names,
etc., written into MP3/WMA files.
MP3: ID3 tag
WMA: WMA tag

Root folder

The root folder is found at the top of the file system. The root folder
contains all folders and files.

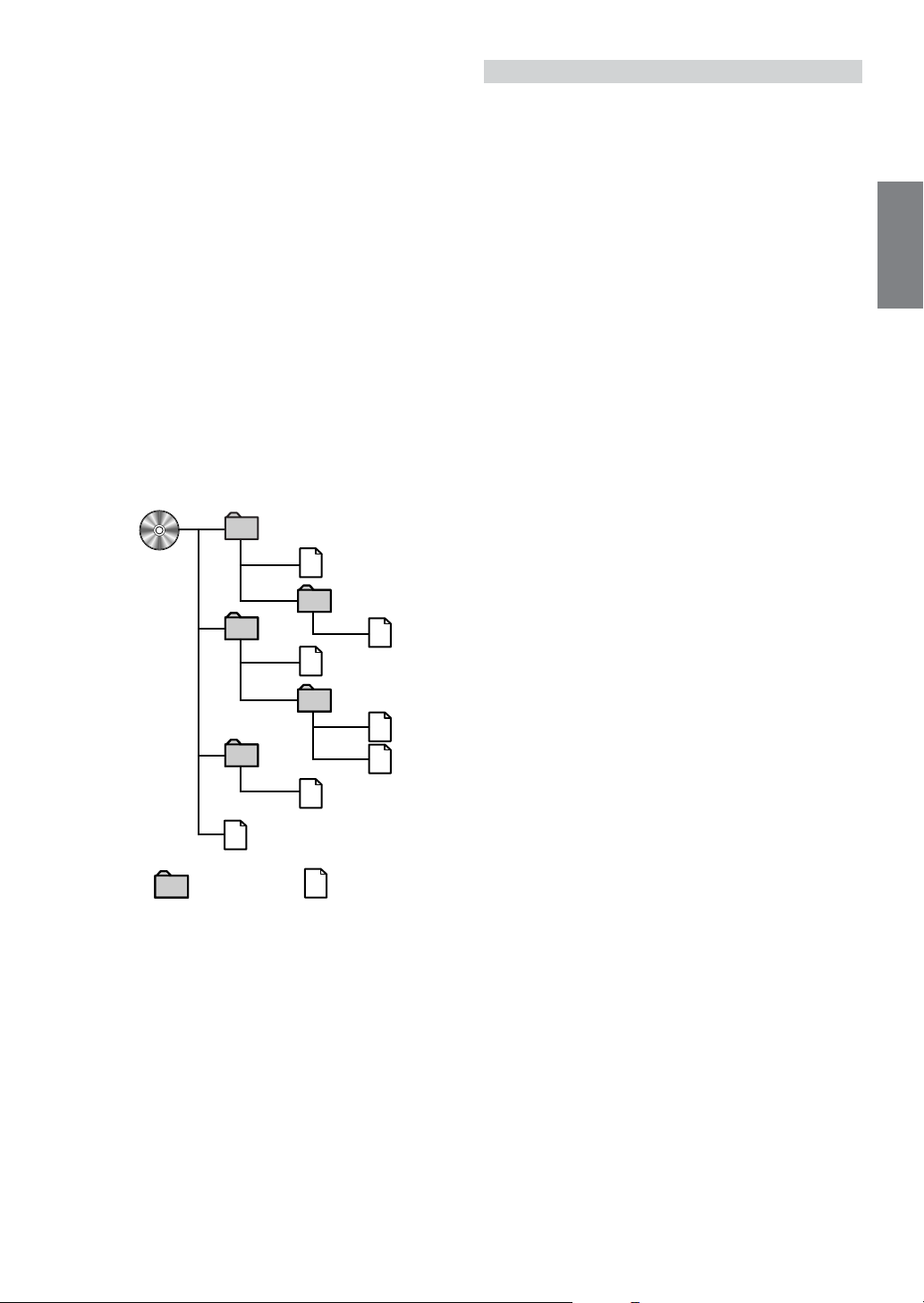

Root folder

1

3

5

2

2

3

4

4

5

6

7

MP3/WMA FileFolder

13-EN

Sound Setting

SOURCE/
POWER

g f

Adjusting Balance (Between Left and Right)/
Fader (Between Front and Rear)/Defeat

1

• If the Rotary encoder is not pressed within 5 seconds after

*1When the subwoofer mode is set to OFF, its level cannot be

2

BAND Rotary encoder

MX

CENTER f

Press Rotary encoder repeatedly to choose the
desired mode.

Each press changes the modes as follows:

SUBW*1 → BAL → FAD → DEFT → VOL → SUBW*

Subwoofer : 0 ~ +15
Balance : L15 ~ R15
Fader : R15 ~ F15
Defeat : ON/OFF
Volume : 0 ~ 35

selecting the BALANCE, FADER, DEFEAT or SUBWOOFER
mode, the unit automatically returns to normal mode.

adjusted.

Turn the Rotary encoder until the desired sound
is obtained in each mode.

By setting Defeat ON, previously adjusted settings of
BASS and TREBLE will return to the factory defaults and
MX is turned off.

1

Setting the Bass Control

You can change the bass frequency emphasis to create your own tonal
preference.

Press CENTER f to select the Bass (bass centre

1

frequency) Control mode.

BASS → TREBLE → normal mode → BASS

*2

2-1

2-2

2-3

• If no operation is performed within 15 seconds, the bass control

• The bass level settings will be individually memorized for each

• This function is inoperable when DEFEAT is set to ON.
*2Selecting any of the “Setting the Bass Type” (TYPE 1 through 3),

Indicators for sound setting

Setting the bass centre frequency:
Press g or f to select the desired bass centre
frequency.

60Hz ↔ 80Hz ↔ 100Hz ↔ 200Hz ↔ 60Hz

The displayed bass frequency is emphasized

*2

Setting the bass band width (Q-Factor):
Press BAND to select the desired bass band
width.

→ 1 → 2 → 3 → 4

(Narrow)←→(Wide)

Changes the boosted bass band width to wide or narrow.
A wide setting will boost a wide range of frequencies
above and below the centre frequency. A narrower setting
will boost only frequencies near the centre frequency.

Setting the bass level:
Turn the Rotary encoder to select the desired
bass level (–7~+7).

You can emphasize or weaken the bass frequency.

setting will be turned off automatically.

source (FM, MW (LW), CD, etc.) until the setting is changed. The
bass frequency and bass band width settings adjusted for one
source are effective for all other sources (FM, MW (LW), CD etc.).

temporarily replaces the custom settings you have made above.

......................................

14-EN

Lights when Bass Control, Treble Control and
Bass Type are adjusted.

Lights when MX is on.

Setting the Treble Control

You can change the Treble Frequency emphasis to create your own
tonal preference.

Press CENTER f to select the Treble (treble centre

1

frequency) Control mode.

BASS → TREBLE → normal mode → BASS

2-1

2-2

• If no operation is performed within 15 seconds, the treble control

• The treble level settings will be individually memorized for each

• This function is inoperable when DEFEAT is set to ON.

Setting the treble Centre frequency:
Press g or f to select the desired treble
centre frequency.

10.0kHz ↔ 12.5kHz ↔ 15.0kHz ↔ 17.5kHz ↔ 10.0kHz

The displayed Treble frequency is emphasized.

Setting the treble level:
Turn the Rotary encoder to select the desired
treble level (–7~+7).

You can emphasize the treble frequency.

setting will be turned off automatically.

source (FM, MW (LW), CD, etc.) until the setting is changed. The
Treble frequency settings adjusted for one source are effective for
all other sources (FM, MW (LW), CD, etc.).

Setting the Bass Type

This function allows for 3 different bass type settings. Select the one
that appeals to you the most.

Press and hold CENTER f for at least 2 seconds to

1

set the bass type.

Press g or f within 15 seconds to select the

2

desired type (1 through 3).

TYPE 1 will sound best if you have a subwoofer in your
system. Use TYPE 2 or 3 if you are using small diameter
speakers.

Press and hold CENTER f for at least 2 seconds to

3

return to normal mode.

• Bass centre frequency and bass band width previously set are
replaced when selecting TYPE 1 through 3. When bass type is set
to OFF, your previous settings are restored.

• Bass type is not selectable when connected to an external audio
processor.

Setting the MX Mode

MX (Media Xpander) makes vocals or instruments sound distinct
regardless of the music source. The FM radio, CD, and MP3, will be
able to reproduce the music clearly even in cars with a lot of road
noise.

Press MX to select MX ON.

1

Press SOURCE/POWER to select the source to

2

which you want to apply MX (Media Xpander).

Press and hold MX for at least 2 seconds to

3

activate the level setting mode.

Turn the Rotary encoder to select your preferred

4

level or OFF.

FM (MX level 1 to 3):

The medium to high frequencies become clearer, and
produces well balanced sound at all frequencies.

CD/WAV (MX level 1 to 3):

CD mode processes a large amount of data during playback.
MX takes advantage of this large data quantity to reproduce a
more clear, clean output.

MP3/WMA (MX level 1 to 3):

This corrects information that was lost at the time of
compression. This reproduces a well-balanced sound close to
the original.

Press Rotary encoder to return to normal mode.

5

•To cancel MX mode for all music sources, press MX to turn MX off.

• MX mode is automatically cancelled if no buttons are pressed
within 15 seconds.

• Each music source, such as FM radio, CD, and MP3/WMA can
have its own MX setting.

• On disks with both MP3/WMA and CD-DA, when the source
changes from “MP3/WMA to CD-DA” or “CD-DA to MP3/
WMA”, MX-mode switching may delay playback slightly.

• Setting to MX OFF sets MX mode of each music source to OFF.

• This function is inoperable when DEFEAT is set to ON.

• There is no MX mode for MW,LW radio.

•

When entering RDS signals, the MX operation cannot be performed.

15-EN

Other Functions

About the indicator display

When displaying Title/Text, the following indicators are lit
according to the mode.

Rotary encoder-/J

g DISP/TITLEf

Displaying the Title/Text

It is possible to display the CD title if the title has been previously
inputted (“Titling Discs” page 17). Text information, such as the disc
name and the track name, will be displayed if playing a CD text
compatible disc. It is also possible to display the folder name, the file
name, and the tag, etc., while playing MP3/WMA files.

Press DISP/TITLE.

The display will change every time the button is pressed.

The display in Radio mode:

PS (Programme Service Name) → Radio Text →
FREQUENCY → PS (Programme Service Name)

The display in CD mode:

TRACK NO./ELAPSED TIME → TEXT (DISC NAME)*1 → TEXT
(TRACK NAME)

The display in MP3/WMA mode:

FILE NO./ELAPSED TIME → FOLDER NO./FILE NO. →
FOLDER NAME*
ARTIST NAME*
ELAPSED TIME

*1Displayed during playback of a disc with CD Text.

“NO TEXT” will be displayed when the CD contains no Text data.

*2ID3 tag/WMA tag

If an MP3/WMA file contains ID3 tag/WMA tag information, all
the ID3 tag/WMA tag information is displayed (e.g., track name,
artist name, and album name). All other tag data is ignored.
“NO DATA” will be displayed when an MP3/WMA file contains no
ID3 tag/WMA tag information.

*3The recording sampling rate and bit rate of the MP3/WMA file are

displayed.

*4“0 (zero)” is displayed for the folder name of the root folder.

1

*

→ TITLE → TRACK NO./ELAPSED TIME

4

→ FILE NAME → TRACK NAME*2 →

2

→ ALBUM NAME*2 → FRAME*3 → FILE NO./

654321

These indicators are constantly lit.

Indicator/
Mode

1

2

3

4

5

6

CD Mode

While displaying Title

—

—

—

While displaying Text
(Disc Name)

While displaying Text
(Track Name)

MP3/WMA Mode

—

While displaying Folder
Name

While displaying File
Name

While displaying Artist

∗

Name

While displaying Album

∗

Name

While displaying Track

∗

Name

∗

Tag information

About “Title” and “Text”

Title:

With this device, it is possible to input the CD name (page 17).
This inputted name is referred to as a “title.”
You cannot input or display titles on radio station or MP3/WMA
discs.

Text:

Text compatible CDs contain text information such as the disc
name and track name. Such text information is referred to as
“text.”

• Some characters may not be displayed correctly with this device,
depending on the character type.

• When the Scroll Setting (page 18) is set to “SCR MANU,” press
and hold DISP/TITLE for at least 2 seconds to scroll the Text
information only once (TEXT DISPLAY, FOLDER NAME
DISPLAY, FILE NAME DISPLAY or TAG DISPLAY mode).

• “NO SUPRT” is displayed when the desired text information
cannot be displayed on this unit.

• If the title was not previously input, “NO TITLE” is displayed.

• The text or tag information may not be correctly displayed,
depending on the contents.

16-EN

Titling Discs

It is possible to title your favourite CD's.
You cannot input titles on radio station or MP3/WMA discs.

Press DISP/TITLE and select the Title Display.

1

For details, see “Displaying the Title/Text” (page 16).

Press and hold DISP/TITLE for at least 2 seconds.

2

The first character will blink.

Turn the Rotary encoder to select the desired

3

letter/numeral/symbol available for naming.

Press Rotary encoder to store the first character.

4

The first character will stop blinking and the display will
automatically advance to the next character. When that
character begins to blink, you may choose the next letter
or symbol of your title.

Repeat steps 3 and 4 above to complete the titling.

5

Pressing the Rotary encoder after entering the 8th
character automatically stores the title into memory.

When entering a title of less than 8 characters (for
example, 3 character title):
After entering 3 characters, the 4th character space will
be blinking. Go to step 6 to complete the title.

Press DISP/TITLE to record the title.

6

• If you cancel while entering a title, selected characters are not
written.

•You can enter 18 CD titles on this unit. If you try to store beyond
the limit, the display will show “FULL DATA.” At this point, no
more titles can be stored. To input a new title, one of the previously
inputted titles must first be deleted.

• When you want to erase a title, enter the “ ” symbol into all
spaces.

• The operations described in steps 3 to 5 must be made within 10
seconds. The input mode will be cancelled if no action is taken for
over 10 seconds.

Erasing Disc Title

Press DISP/TITLE to select the Title Display. Then,

1

press again and hold for at least 2 seconds.

Press and hold -/J for at least 2 seconds.

2

The title in the display will blink.

Press g or f repeatedly until the title you

3

want to erase is displayed.

Press and hold -/J for at least 2 seconds to erase

4

the title displayed.

Press DISP/TITLE to cancel the title erasing

5

mode.

•You cannot erase CD-TEXT.

• “NO DATA” is displayed for 2 seconds if the title is not input in
step 2, or if the title is erased in step 4.

17-EN

SETUP

You can flexibly customize the unit to suit your own preferences and
usage. Choose the SETUP menu from Sound Customizing, Visual
Customizing, etc., to select your desired setting.

BAND

f g

The common operation for SETUP is step 1 to 4 as
follows. You will find further information about each
SETUP menu on the page 18 and 19.

Press and hold F/SETUP for at least 2 seconds.

1

SETUP mode is activated.

Press g or f to select the desired SETUP

2

menu.

(e.g. Select SUBW)

FM-LV → REG*1 → PISK*2 → NORMAL / HI-FI / STABLE →
SUBW → CD-DA / CDDA / MP3 → SCR → PWR → FM-LV

*1Refer to “Receiving RDS Regional (Local) Stations” (page 7)
*2Refer to “PI SEEK Setting” (page 8)

Press BAND to change the setting.

3

(e.g. Select SUBW ON or SUBW OFF.)

F/SETUP

Switching the Tuner Mode

NORMAL (Initial setting) / HI-FI / STABLE

This unit incorporates the MAX TUNE PRO for the highest quality
tuner audio. Moreover, you can choose between three settings to suit
your own personal sound preferences and usage.

NORMAL: Standard setting
HI-FI: Sound quality priority setting
STABLE: Noiseless priority setting

• If you find the sound is very noisy while listening to the tuner in Hi­Fi mode, we recommend you change to Normal mode.

Subwoofer On and Off

SUBW ON (Initial setting) / SUBW OFF

When the subwoofer is on, perform the steps below to adjust the
subwoofer output level.

1Press the Rotary encoder repeatedly to select the

SUBW mode.

SUBW → BAL → FAD → DEFT → VOL → SUBW

2To adjust the level, turn the Rotary encoder.

Visual Customizing

Scroll Setting

SCR AUTO / SCR MANU (Initial setting)

This CD player can scroll the disc and track names recorded on CD­TEXT discs, as well as the text information of MP3/WMA files,
folder names, and tags.

SCR AUTO : The CD text information, the text information of

folder and file names, and the tags are scrolled
automatically.

SCR MANU : The display is scrolled only when a disc is

loaded or when a track is changed, etc.

• The unit scrolls CD text names, folder names, file names or tag
display. The disc titles input manually (page 17) cannot be scrolled.

• The display is scrolled only when the total number of characters
cannot be indicated at one time, regardless of setting.

Press F/SETUP again.

4

The display returns to normal mode.

Sound Customizing

Adjusting Source Signal Levels

FM-LV HI (Initial setting) / FM-LV LO

If the difference in volume level between the CD player and FM radio
is too great, adjust the FM signal level.

18-EN

MP3/WMA

Playing MP3/WMA Data

CD-DA (Initial setting) / CDDA/MP3

This product can playback CDs containing both CD and MP3/WMA
data. However, in some situations (some enhanced CDs), playback
may be difficult. For these special cases, you can select playback of
CD data only. When a disc contains both CD or the MP3/WMA data,
playback starts from the CD data portion of the disc.

CD-DA : Only CD data can be played back.
CDDA/MP3 : Both CD data and MP3/WMA file tracks can be

•Perform this setting before inserting a disc. If a disc has already
been inserted, perform the setting after you remove the disc.

played back.

External Device

Connecting to an External Amplifier

PWR ON (Initial setting) / PWR OFF

When an external amplifier is connected, sound quality can be
improved by stopping the power supply of the built-in amplifier.

PWR OFF : Use this mode when the front and rear pre­amplifier of the unit are used to drive an external amplifier
connected to the speakers. In this setting, the head unit’s
internal amplifier has no output to drive speakers.

Front

Amplifier

Amplifier

PWR ON : The speakers are driven by the built-in amplifier.

Speakers

SPEAKER
RIGHT FRONT

SPEAKER
RIGHT REAR

SPEAKER
LEFT REAR

SPEAKER
LEFT FRONT

• No sound is produced by the system when the power output is set to
OFF.

Front
right

Rear
right

Rear
left

Front
left

left

Front
right

Rear

left

Rear
right

Information

In Case of Difficulty

If you encounter a problem, please turn the power off, then on again.
If the unit is still not functioning normally, please review the items in
the following checklist. This guide will help you isolate the problem
if the unit is at fault. Otherwise, make sure the rest of your system is
properly connected or consult your authorized Alpine dealer.

Basic

No function or display.

•Vehicle's ignition is off.

- If connected following instructions, the unit will not
operate with the vehicle's ignition off.

•Improper power lead (Red) and battery lead (Yellow)
connections.

-Check power lead and battery lead connections.

•Blown fuse.

-Check the fuse on the battery lead of the unit; replace with

the proper value if necessary.

• Internal micro-computer malfunctioned due to interference
noise etc.

-Press the RESET switch with a ballpoint pen or other

pointed article.

Radio

Unable to receive stations.

•No antenna or open connection in cable.

-Make sure the antenna is properly connected;

replace the antenna or cable if necessary.

Unable to tune stations in the seek mode.

•You are in a weak signal area.

-Make sure the tuner is in the DX mode.

• If the area you are in is a primary signal area, the antenna may
not be grounded and connected properly.

-Check your antenna connections; make sure the antenna is

properly grounded at its mounting location.

•The antenna may not be the proper length.

-Make sure the antenna is fully extended; if broken, replace

the antenna with a new one.

Broadcast is noisy.

•The antenna is not the proper length.

-Extend the antenna fully; replace it if it is broken.

•The antenna is poorly grounded.

-Make sure the antenna is grounded properly at its mounting

location.

CD

CD Player not functioning.

•Out of operating temperature range +50˚C (+120˚F) for CD.

-Allow the vehicle's interior (or trunk) temperature to cool.

CD playback sound is wavering.

•Moisture condensation in the CD Module.

-Allow enough time for the condensation to evaporate (about

1 hour).

19-EN

CD insertion not possible.

•A CD is already in the CD player.

-Eject the CD and remove it.

• The CD is being improperly inserted.

-Make sure the CD is being inserted following instructions in
the CD Player Operation section.

Unable to fast forward or backward the CD.

• The CD has been damaged.

-Eject the CD and discard it; using a damaged CD in your unit
can cause damage to the mechanism.

CD playback sound skips due to vibration.

•Improper mounting of the unit.

-Securely re-mount the unit.

• The disc is very dirty.

-Clean the disc.

• The disc has scratches.

-Change the disc.

• The pick-up lens is dirty.

- Do not use a commercial available lens cleaner disc. Consult
your nearest ALPINE dealer.

CD playback sound skips without vibration.

• The disc is dirty or scratched.

-Clean the disc; damaged disc should be replaced.

Error displays (built-in CD player only)

•Mechanical error

-Press c. After the error indication disappears, insert the disc
again. If the above-mentioned solution does not solve the
problem, consult your nearest ALPINE dealer.

CD-R/CD-RW playback not possible

•Close session (finalization) has not been performed.

-Perform finalization and attempt playback again.

MP3/WMA

MP3 or WMA is not played back.

•Writing error occurred. The CD format is not compatible.

-Make sure the CD has been written in a supported format.
Refer to “About MP3/WMA” (pages 12-13), then rewrite in
the format supported by this device.

NO DISC

•No CD is inserted.

- Insert a CD.

•Although a disc is inserted, “NO DISC” is displayed and the
unit does not start to play or eject the disc.

-Remove the disc by following these steps:

Press the c button again for at least 2 seconds.
If the disc still does not eject, consult your Alpine dealer.

ERROR

•Mechanism error.

1) Press the c button and eject the CD.

If not ejecting, consult your Alpine dealer.

2) When the error indication remains after ejecting, press the

c button again.
If the error indication still does not turn off after pressing
the c button for a few times, consult your Alpine dealer.

• When “ERROR” is displayed:
If that the disc cannot be ejected by pressing c, press the RESET
switch (refer to page 5) and press c again.
If the disc still cannot be ejected, consult your Alpine dealer.

PROTECT

•A copy-protected WMA file was played back.

- You can only play back non-copy-protected files.

UNSUPORT

• The disc is not written in a MP3/WMA supported format.

- Use a disc written at the MP3/WMA supported format.

Audio

The sound is not output from the speakers.

• Unit has no output signal of the internal amplifier.

-POWER-IC is switched to “ON” (page 19).

Indication for CD Player

HI TEMP

•Protective circuit is activated due to high temperature.

- The indicator will disappear when the temperature returns to
within operation range.

20-EN

Specifications

FM TUNER SECTION

Tuning Range 87.5 – 108.0 MHz
Mono Usable Sensitivity 0.7 µV
Alternate Channel Selectivity 80 dB
Signal-to-Noise Ratio 65 dB
Stereo Separation 35 dB
Capture Ratio 2.0 dB

MW TUNER SECTION

Tuning Range 531 – 1,602 kHz
Sensitivity (IEC Standard) 25.1 µV/28 dB

LW TUNER SECTION

Tuning Range 153 – 281 kHz
Sensitivity (IEC Standard) 31.6 µV/30 dB

CD SECTION

Frequency Response 5 – 20,000 Hz (±1 dB)
Wow & Flutter (% WRMS) Below measurable limits
Total Harmonic Distortion 0.008% (at 1 kHz)
Dynamic Range 95 dB (at 1 kHz)
Signal-to-Noise Ratio 105 dB
Channel Separation 85 dB (at 1 kHz)

PICKUP

Wave length 795 nm
Laser power CLASS I

GENERAL

Power Requirement 14.4 V DC

(11–16 V allowable)

Maximum Power Output 50 W × 4 (CDE-9828RB)

45 W × 4 (CDE-9827R/CDE-

9827RM/CDE-9827RR)
Maximum Pre-Output Voltage 4 V/10k ohms
Bass ±14 dB at 60 Hz
Treble ±14 dB at 10 kHz
Weight 1.6 kg (3 lbs. 8 oz)

CHASSIS SIZE

Width 178 mm (7")
Height 50 mm (2")
Depth 152 mm (6")

NOSEPIECE SIZE

Width 170 mm (6-11/16")
Height 46 mm (1-13/16")
Depth 18 mm (11/16")

CAUTION

CLASS 1

LASER PRODUCT

(Bottom side of player)

• Due to continuous product improvement, specifications and design
are subject to change without notice.

21-EN

Installation and Connections

Before installing or connecting the unit, please read the
following and pages 2 to 4 of this manual thoroughly
for proper use.

Warning

MAKE THE CORRECT CONNECTIONS.

Failure to make the proper connections may result in fire or
product damage.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may
result in fire, etc.

BEFORE WIRING, DISCONNECT THE CABLE FROM THE
NEGATIVE BATTERY TERMINAL.

Failure to do so may result in electric shock or injury due to
electrical shorts.

DO NOT SPLICE INTO ELECTRICAL CABLES.

Never cut away cable insulation to supply power to other
equipment. Doing so will exceed the current carrying capacity of
the wire and result in fire or electric shock.

DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING
HOLES.

When drilling holes in the chassis for installation, take
precautions so as not to contact, damage or obstruct pipes, fuel
lines, tanks or electrical wiring. Failure to take such precautions
may result in fire.

DO NOT USE BOLTS OR NUTS IN THE BRAKE OR
STEERING SYSTEMS TO MAKE GROUND CONNECTIONS.

Bolts or nuts used for the brake or steering systems (or any other
safety-related system), or tanks should NEVER be used for
installations or ground connections. Using such parts could
disable control of the vehicle and cause fire etc.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE
REACH OF CHILDREN.

Swallowing them may result in serious injury.
If swallowed, consult a physician immediately.

DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER
VEHICLE OPERATION, SUCH AS THE STEERING WHEEL
OR GEARSHIFT.

Doing so may obstruct forward vision or hamper movement etc.
and results in serious accident.

Caution

HAVE THE WIRING AND INSTALLATION DONE BY
EXPERTS.

The wiring and installation of this unit requires special technical
skill and experience. To ensure safety, always contact the dealer
where you purchased this product to have the work done.

USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM
SECURELY.

Be sure to use only the specified accessory parts. Use of other
than designated parts may damage this unit internally or may not
securely install the unit in place. This may cause parts to become
loose resulting in hazards or product failure.

ARRANGE THE WIRING SO IT IS NOT CRIMPED OR
PINCHED BY A SHARP METAL EDGE.

Route the cables and wiring away from moving parts (like the
seat rails) or sharp or pointed edges. This will prevent crimping
and damage to the wiring. If wiring passes through a hole in
metal, use a rubber grommet to prevent the wire’s insulation from
being cut by the metal edge of the hole.

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE
OR DUST.

Avoid installing the unit in locations with high incidence of
moisture or dust. Moisture or dust that penetrates into this unit
may result in product failure.

Precautions

•Be sure to disconnect the cable from the (–) battery post before
installing your CDE-9828RB/CDE-9827R/CDE-9827RM/
CDE-9827RR. This will reduce any chance of damage to the
unit in case of a short-circuit.

•Be sure to connect the colour coded leads according to the
diagram. Incorrect connections may cause the unit to
malfunction or damage to the vehicle's electrical system.

•When making connections to the vehicle's electrical system, be
aware of the factory installed components (e.g. on-board
computer). Do not tap into these leads to provide power for
this unit. When connecting the CDE-9828RB/CDE-9827R/
CDE-9827RM/CDE-9827RR to the fuse box, make sure the
fuse for the intended circuit of the CDE-9828RB/CDE-9827R/
CDE-9827RM/CDE-9827RR has the appropriate amperage.
Failure to do so may result in damage to the unit and/or the
vehicle. When in doubt, consult your ALPINE dealer.

•The CDE-9828RB/CDE-9827R/CDE-9827RM/CDE-9827RR
uses female RCA-type jacks for connection to other units (e.g.
amplifier) having RCA connectors. You may need an adaptor
to connect other units. If so, please contact your authorized
ALPINE dealer for assistance.

•Be sure to connect the speaker (–) leads to the speaker (–)
terminal. Never connect left and right channel speaker cables
to each other or to the vehicle body.

IMPORTANT

Please record the serial number of your unit in the space provided
below and keep it as a permanent record. The serial number or the
engraved serial number is located on the bottom of the unit.

22-EN

SERIAL NUMBER:
INSTALLATION DATE:
INSTALLATION TECHNICIAN:
PLACE OF PURCHASE:

Installation

Caution

Do not block the unit’s fan or heat sink, thus preventing air
circulation. If blocked, heat will accumulate inside the unit and
may cause a fire.

Air ventilation hole

(Rear side)

•For the screw *, provide a proper screw to the chassis installing

location.

Slide the CDE-9828RB/CDE-9827R/CDE-9827RM/

3

CDE-9827RR into the dashboard. When the unit is
in place, make sure the locking pins are fully
seated in the down position. This can be done by
pressing firmly in on the unit while pushing the
locking pin down with a small screwdriver. This
ensures that the unit is properly locked and will not
accidentally come out from the dashboard. Install
the Detachable Front Panel.

1

Bracket

Dashboard

Mounting sleeve
(Included)

No Pressure Here

No Pressure Here

Slide mounting sleeve from main unit (see
“Removal” on this page). Slide the mounting sleeve
into the dashboard and fix it with the metal
shackles.

2

Metal Mounting Strap

Rubber Cap
(Included)

Hex Bolt
(Included)

this unit

Screw

Lock pin

Removal

1 Remove the detachable front panel.

2 Use a small screwdriver (or similar tool) to push the

locking pins to the “up” position (see above drawing).
As each pin is unlocked, gently pull out on the unit to
make sure it does not re-lock before unlocking the
second pin.

3 Pull the unit out, keeping it unlocked as you do so.

<JAPANESE CAR>

Front frame

Bolt Stud

∗

Hex Nut (M5)

this unit

When your vehicle has the Bracket, mount the long
hex bolt onto the rear panel of the CDE-9828RB/
CDE-9827R/CDE-9827RM/CDE-9827RR and put the
Rubber Cap on the hex bolt. If your vehicle does
not have the Mounting Support, reinforce the head
unit with the metal mounting strap (not supplied).
Connect all the leads of the CDE-9828RB/CDE­9827R/CDE-9827RM/CDE-9827RR according to
details described in the CONNECTION section.

Screws (M5 × 8)
(Included)

this unit

Mounting Bracket

23-EN

Connections

(Pink/Black) AUDIO INTERRUPT IN

(Blue/White) REMOTE TURN-ON

(Orange) DIMMER

(CDE-9828RB only)

(Red) IGNITION

(Black) GND

(Blue) POWER ANT

8

(Yellow) BATTERY

5

6

7

9

"

1

#

!

$

<

2

3

4

Antenna

JASO Antenna Plug

To vehicle phone

To amplifier or equalizer

To the instrument cluster illumination lead

To power antenna

ISO Antenna Plug

Ignition Key

Battery

:

/

;

;

;

%

&

(
)

~
+

,

-

.

(Green)

(Green/Black)

(White)

(White/Black)

(Grey/Black)

(Grey)

(Violet/Black)

(Violet)

Amplifier

Amplifier

Amplifier

Speakers

Rear Left

Front Left

Front Right

Rear Right

Subwoofers

Speakers

Rear Left

Rear Right

Front Left

Front Right

24-EN

1 Antenna Receptacle
2 Audio Interrupt In Lead (Pink/Black)

Connect this lead to the Audio Interface output of a cellular
phone which provides ground shorting when a call is
received.

3 Remote Turn-On Lead (Blue/White)

Connect this lead to the remote turn-on lead of your
amplifier or signal processor.

4 Dimmer Lead (Orange) (CDE-9828RB only)

This lead may be connected to the vehicle’s instrument
cluster illumination lead. This will enable the vehicle’s
dimmer control to dim the backlighting of the unit.

5 Switched Power Lead (Ignition) (Red)

Connect this lead to an open terminal on the vehicle’s fuse
box or another unused power source which provides (+) 12V
only when the ignition is turned on or in the accessory
position.

6 Ground Lead (Black)

Connect this lead to a good chassis ground on the vehicle.
Make sure the connection is made to bare metal and is
securely fastened using the sheet metal screw provided.

7 Power Antenna Lead (Blue)

Connect this lead to the +B terminal of your power antenna,
if applicable.

• This lead should be used only for controlling the vehicle's power
antenna. Do not use this lead to turn on an amplifier or a signal
processor, etc.

# Front Output RCA Connectors

RED is right and WHITE is left.

$ Rear Output RCA Connectors

RED is right and WHITE is left.

% Power Supply Connector
& Left Rear (+) Speaker Output Lead (Green)
( Left Rear (–) Speaker Output Lead (Green/Black)
) Left Front (+) Speaker Output Lead (White)
~ Left Front (–) Speaker Output Lead (White/Black)
+ Right Front (–) Speaker Output Lead (Grey/Black)
, Right Front (+) Speaker Output Lead (Grey)

- Right Rear (–) Speaker Output Lead (Violet/Black)
. Right Rear (+) Speaker Output Lead (Violet)
/ ISO Connector (Speaker Output)
: Subwoofer Output RCA Connectors

RED is right and WHITE is left.

; RCA Extension Cable (sold separately)
< JASO/ISO Antenna Adaptor (Included)

8 Fuse Holder (10A)
9 Battery Lead (Yellow)

Connect this lead to the positive (+) post of the vehicle’s
battery.

! ISO Power Supply Connector
" Remote Control Interface Connector

To remote control interface box.

To prevent external noise from entering the audio system.

• Locate the unit and route the leads at least 10

cm away from the car harness.

• Keep the battery power leads as far away from other leads as possible.

• Connect the ground lead securely to a bare metal spot (remove any paint, dirt or grease if necessary) of the car chassis.

• If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various noise

suppressors, contact them for further information.

• Your Alpine dealer knows best about noise prevention measures so consult your dealer for further information.

25-EN

Appendix

Product Information Card

English

Filling in this Product Information Card is
voluntary. If you fill in this card and send
it to Alpine, your data will be tabulated
into reference data for future Alpine
product development. In addition, in the
future you may receive information about
new products or Survey Mail requesting
additional opinions about Alpine products
or services. If you agree to the above
term, please sign your name in the
indicated space and return the card. Any
additional comments or inquiries may be
sent to : Person in charge of Customer
Service department Alpine Electronics
(Europe) GmbH.
Frankfurter Ring 117, 80807 München, Germany
Phone: [phone]

Q1. PRODUCT PURCHASED

1. Cassette Player

2. CD Player

3. MD Player

4. DVD Player

5. CD Changer

6. Amplifier

7. Speaker

8. Subwoofer

9. Monitor Controller

10. Video Monitor

11. Navigation

12. Processor/Equalizer

13. CD/Video CD Changer

14. Other

Q2. MODEL NUMBER:
Q3. DATE OF PURCHASE:

Month: Year:

Q4. If navigation system, which

monitor?

1. Alpine → (Model No.)

2. Other → (Brand Name)

Q5. STORE TYPE WHERE

PURCHASED:

1. Car Audio Specialist

2. Audio/Video Store

3. Electronics/Appliance Store

4. Car Accessories Shop

5. Other

Q6. Type of vehicle in which this unit is

installed:

Make: Model:
Purchased Model
Year:

Q7. How was this vehicle purchased?

1. Purchase

2. Lease

Q8. Purpose of buying this unit?

1. Addition

2. Replacement

↓

•Previous brand replaced?

1. Factory installed

2. Alpine

3. Other → (Brand Name)

Q9. Have you purchased Alpine

products before?

1. First time

2. Two or More times

Q10.When you purchased this Alpine

unit, did you compare it with other
brand?

1. Yes → (Brand Name)

2. No.

Q11.GENDER

1. Male

2. Female

Q12.AGE
Q13.MARITAL STATUS

1. Single

2. Married

Q14.OCCUPATION

1. Company Owner/Self-employed/
Freelance

2. Manager

3. Company Employee

4. Civil Servant

5. Educator

6. Student

7. Other

Q15.Comments

Year:

Produkt-Informationskarte

Deutsch

Das Ausfüllen dieser Produktinformations-Karte
ist freiwillig. Sollten Sie diese Karte
vervollständigen, so werden die Daten für
zukünftige Produktentwicklungen von Alpine als
Referenzdaten herangezogen. Ebenso können Sie
in der Zukunft Informationen über neue Alpine
Produkte erhalten oder uns auch Ihre Meinung
über Alpine Produkte und Dienstleistungen im
Rahmen von Kunden-Befragungen mitteilen.
Stimmen Sie dem Kontakt durch Alpine zu, so
würden wir Sie bitten, in dem dafür vorgesehenen
Feld zu unterschreiben und die Karte kostenfrei
an uns zurückzuschicken. Zusätzliche
Kommentare und Meinungen können Sie gerne
an den zuständigen Kontakt im Kundendienst
Alpine Electronics (Europe) GmbH senden.
Frankfurter Ring 117, 80807 München, Germany
Phone: [phone]

Q1. gekauftes Gerät

1. Kassetten-Spieler

2. CD-Spieler

3. MD-Spieler

4. DVD-Spieler

5. CD-Wechsler

6. Verstärker

7. Lautsprecher

8. Subwoofer

9. Monitor-Controller

10. Video-Monitor

11. Navigationssystem

12. Prozessor/Equalizer

13. CD/Video-CD-Wechsler

14. andere

Q2. Modellnummer:
Q3. Kaufdatum:

Monat: Jahr:

Q4. Falls Navigationssystem:

Welcher Monitor?

1. Alpine → (Modellnr.)

2. Anderer Hersteller →
(Herstellername)

Q5. Art des Geschäfts, in dem Sie das

Gerät gekauft haben:

1. Spezialist für Auto-Audioanlagen

2. Audio/Video-Geschäft

3. Elektro-Geschäft

4. Autozubehör-Geschäft

5. Anderer Hersteller

Q6. Art des Fahrzeugs, in das das

Gerät installiert wurde:

Marke: Modell:
gekauft im
Jahr:

Q7. Wie haben Sie das Fahrzeug

gekauft?

1. Kauf

2. Leasing

Q8. Zweck des Kaufs dieses Geräts?

1. Zusätzlich

2. Austausch

↓

•Marke des ausgetauschten Geräts?

1. Serienmäßige Ausstattung

2. Alpine

3. Anderer Hersteller →
(Herstellername)

Q9. War dies das erste Mal, dass Sie

ein Alpine-Gerät gekauft haben?

1. Erstes Mal

2. Zweites Mal oder öfter

Q10.Haben Sie dieses Alpine-Gerät vor

dem Kauf mit Geräten anderer
Hersteller verglichen?

1. Ja → (Herstellername)

2. Nein

Q11.Geschlecht

1. Männlich

2. Weiblich

Q12.Alter
Q13.Familienstand

1. Ledig

2. Verheiratet

Q14.Beruf

1. Selbständige/Firmeninhaber/freiberuflich
Tätige

2. Leitende Angestellte

3. Sonstige Angestellte

4. Beamte

5. Schulbildung

6. Studium

7. Sonstige

Q15.Kommentar:

Baujahr:

Carte d’informations sur
le produit

Français

En remplissant volontairement cette fiche,
et en l’envoyant à Alpine, vous acceptez
que ces informations soient utilisées par
Alpine, dans le cadre de développement
de nouveaux produits. Par ailleurs, vous
autorisez Alpine à solliciter votre opinion
par mailing sur de nouveaux produits ou
services. Si vous acceptez les termes ci­dessus, veuillez signer cette carte à
l’endroit indiqué, et nous la retourner.
Tout autre commentaire ou demande doit
être adressé à l’attention de: Responsable
du service consommateur Alpine
Electronics (Europe) GmbH.
Frankfurter Ring 117, 80807 München, Germany
Phone: [phone]

Q1. PRODUIT ACHETE

1. Lecteur de cassette

2. Lecteur de CD

3. Lecteur MD

4. Lecteur DVD

5. Changeur de CD

6. Amplificateur

7. Haut-parleur

8. Haut-parleur de graves

9. Station Multimedia

10. Moniteur Vidéo

11. Navigation

12. Processeur/Egaliseur

13. Changeur de CD/CD Vidéo

14. Autre

Q2. NUMERO DU MODELE:
Q3. DATE D’ACHAT:

Mois: Année:

Q4. Si c’est un système de navigation,

quel moniteur?

1. Alpine → (N° du modèle)

2. Autre → (Marque)

Q5. TYPE DE MAGASIN OU VOUS

AVEZ ACHETE LE PRODUIT:

1. Spécialiste autoradio

2. Magasin audio/vidéo

3. Magasin d’électronique/appareils

4. Magasin d’accessoires automobiles

5. Autre

Q6. Type de véhicule dans lequel cet

appareil est installé:

Marque: Modèle:
Année Année du
d’achat:

Q7. Comment avez-vous acheté ce

véhicule?

1. Achat

2. Location-bail

Q8.

Pourquoi avez-vous acheté cet
appareil?

1. Addition

2. Remplacement

↓

•Marque précédente remplacée?

1. Installée en usine

2. Alpine

3. Autre → (Marque)

Q9. Aviez-vous déjà acheté des

produits Alpine?

1. Première fois

2. Deux fois ou plus

Q10.Lorsque vous avez acheté ce

produit Alpine, l’avez-vous
comparé à une autre marque?

1. Oui → (Marque)

2. Non

Q11.SEXE

1. Masculin

2. Féminin

Q12.AGE
Q13.SITUATION DE FAMILLE

1. Célibataire

2. Marié

Q14.PROFESSION

1. Entrepreneur/Travailleur indépendant/
Free-lance

2. Directeur

3. Employé de bureau

4. Fonctionnaire

5. Educateur

6. Etudiant

7. Autre

Q15.Commentaires

modèle:

Tarjeta de información del
producto

Español

El envío de la información solicitada es
voluntario. Si Vd. nos la remite, será
utilizada de modo confidencial para el
desarrollo de futuros productos Alpine. Si
Vd. desea recibir información sobre
nuevos productos de nuestra gama,
indique su nombre en el espacio
designado y remítanos la tarjeta.
Cualquier solicitud adicional puede ser
enviada a : Persona responsable del
Servicio de Atención al Cliente de Alpine
Electronics (Europe) GmbH.
Frankfurter Ring 117, 80807 München, Germany
Phone: [phone]

Q1. Producto Comprado

1. Radio/Cassette

2. Radio/CD

3. Reproductor de MD

4. Reproductor de DVD

5. Cambiador de CD

6. Amplificador

7. Altavoz

8. Subwoofer

9. Monitor de control

10. Monitor de video

11. Sistema de navegación

12. Procesador/Ecualizador

13. Cambiador de CD/Video CD

14. Otros

Q2. Número de modelo:
Q3. Fecha de compra:

Mes: Año:

Q4. En caso de sistema de

navegación, ¿qué monitor?

1. Alpine → (N° de modelo)

2. Otros

→

Q5. TIPO DE TIENDA DONDE

Q6. Tipo de vehiculo en que la unidad

Q7. ¿Cómo fue comprado este

Q8.

Q9. ¿Ha comprado Vd. productos

Q10.Cuando usted compró esta unidad

Q11.SEXO

Q12.Edad
Q13.Estado civil

Q14.Ocupación

Q15.Comentarios

(Nombre de marca)

COMPRÓ:

1. Especialista en audio de automóviles

2. Tienda de audio/video

3. Tienda de electrónica/electrodomésticos

4. Tienda de accesorios automovilísticos

5. Otros

está instalada:

Marca: Modelo:
Año de Año del
compra:

vehiculo?

1. compra

2. Leasing

¿Propósito de comprar esta
unidad?

1. Mejora del sistema

2. Sustitución

↓

• ¿Sustitución de marca anterior?

1. Instalado en la fábrica

2. Alpine
Otros

→

3.

Alpine anteriormente?

1. Primera vez

2. Dos o más veces

Alpine, ¿la comparó con otros
fabricantes?

1. Si → (Nombre de marca)

2. No

1. Masculino

2. Femenino

1. Soltero

2. Casado

1. Propietario de empresa/Autónomo/
Profesional independiente

2. Gerente

3. Empleado de compañia

4. Empleado público

5. Profesor

6. Estudiante

7. Otros

modelo:

(Nombre de marca)

Scheda informazioni
prodotto

Italiano

La compilazione di questa formulario è
volontaria. Se compilate questo formulario,
ritornandolo ad Alpine, i Vostri dati saranno
raccolti in un file di riferimento per lo sviluppo
dei nuovi prodotti Alpine. In aggiunta Voi potrete
ricevere in futuro informazioni riguardanti i nuovi
prodotti o la richiesta di una Vostra opinione
circa i prodotti o i servizi forniti da Alpine. Se
siete d’accordo, Vi preghiamo di ritornarci il
formulario completato negli appositi spazi con i
Vostri dati. In caso desideriate fornire altri
commenti o richiedere informazioni aggiuntive,
potete indirizzare il tutto a : Responsabile
dipartimento Servizio Clienti Alpine Electronics
(Europe) GmbH.
Frankfurter Ring 117, 80807 München, Germany
Phone: [phone]

Q1. PRODOTTO ACQUISTATO

1. Lettore di cassette

2. Lettore CD

3. Lettore MD

4. Lettore DVD

5. CD Changer

6. Amplificatore

7. Altoparlante

8. Subwoofer

9. Radio Monitor

10. Monitor video

11. Sistema di navigazione

12. Processore/equalizzatore

13. Cambia CD/Video CD

14. Altro

Q2. NUMERO MODELLO:
Q3. DATA DI ACQUISTO:

Mese: Anno:

Q4. In caso di acquisto di un sistema di

navigazione, quale monitor
possiede?

1. Alpine → (No. Modello)

2. Altro → Nome marca

Q5. NEGOZIO DI ACQUISTO:

1. Specialista Car Stereo

2. Negozio di audio/video

3. Negozio di elettronica/elettrodomestici

4. Negozio accessori automobile

5. Altro

Q6. Tipo di veicolo posseduto:

Marca: Modello:
Anno Anno
acquisto:

Q7. Modalità acquisto

1. Acquisto

2. Leasing

Q8. Scopo acquisto

1. Aggiunta

2. Sostituzione

↓

•Marca sostituita

1. Installato di fabbrica

2. Alpine

3. Altro → (Nome marca)

Q9. Avevate già acquistato prodotti

Alpine?

1. No

2. Due o tre volte

Q10.Nell’acquistarlo, avete paragonato

questo prodotto ad un’altra marca?

1. Si → (Nome marca)

2. No

Q11.SESSO

1. Maschile

2. Femminile

Q12.ETÀ
Q13.STATO CIVILE

1. Celibe/nubile

2. Coniugato/coniugata

Q14.LAVORO

1. Proprietario di azienda/artigiano/libero
professionista

2. Manager

3. Impiegato

4. Impiegato statale

5. Insegnante

6. Studente

7. Altro

Q15.Commenti

modello:

I agree to the above stated terms of the Alpine Product Information Card.
Ich stimme dem Kontakt durch Alpine für Informations- und Befragungszwecke zu.
J’accepte les termes de cette carte d’information produit Alpine.
Estoy conforme con los términos de la tarjeta de información sobre producto de Alpine.
Accetto i termini della scheda informazioni prodotti Alpine.

(Date/Datum/Date/Fecha/Data)

(Signature/Unterschrift/Signature/Firma)

Name/Nom/Nombre/Nome

(First Name/Vorname/Prénom/Primer nomble/Nome)

(Surname/Familienname/Nom de famille/Apellido/Cognome)

Home Address/Privatanschrift/Adresse/Dirección/Indirizzo

(Street/Straße/Rue/Calle/Via) (Post Code/Postleitzahl/Code postal/Código postal/Codice postale)

(Town/City/Stadt/Ville/Ciudad/Città) (Country/Land/Pays/País/Paese)

Telephone Number:
E-Mail/Correo electrónico:

NO.

Q1

Other

Month Year

Q3

NO.

Q5

Other

Q7

NO.

NO.

Q9

Q12

Q15

Q8

Comments

Q2

NO.1. Model No.

Q4

NO.2. Brand Name

Make:

Q6

Purchased Year: ModelYear:

NO. Previous brand replaced. Brand Name

years old

1
2

Q10

NO.

Q13

1
2

NO.

1. 2. 3.

Brand Name

Model:

Q11

NO.

Q14

NO.
Other

LUFTPORT

PAR AVION

PRIORITAIRE
