Alpine CDA-9885R User Manual

FOR CAR USE ONLY/NUR FÜR AUTOMOBIL GEBRAUCH/POUR APPLICATION AUTOMOBILE UNIQUEMENT/ PARA USO EN AUTOMÓVILES/SOLO PER L’UTILIZZO IN AUTOMOBILE/ENDAST FÖR BILBRUK

RDS MP3/WMA/AAC CD Receiver

CDA-9885R

• OWNER’S MANUAL Please read before using this equipment.

• BEDIENUNGSANLEITUNG Lesen Sie diese Bedienungsanleitung bitte vor Gebrauch des Gerätes.

• MODE D’EMPLOI Veuillez lire avant d’utiliser cet appareil.

• MANUAL DE OPERACIÓN Léalo antes de utilizar este equipo.

• ISTRUZIONI PER L’USO Si prega di leggere prima di utilizzare il attrezzatura.

• ANVÄNDARHANDLEDNING Innan du använder utrustningen bör du läsa igenom denna användarhandledning.

ALPINE ELECTRONICS MARKETING, INC.

1-1-8 Nishi Gotanda,

Shinagawa-ku,

Tokyo 141-0031, Japan

Phone 03-5496-8231

ALPINE ELECTRONICS OF AMERICA, INC.

19145 Gramercy Place, Torrance,

California 90501, U.S.A.

Phone 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF CANADA, INC.

777 Supertest Road, Toronto,

Ontario M3J 2M9, Canada

Phone 1-800-ALPINE-1 (1-800-257-4631)

YAMAGATA (Wuxi) Co., Ltd. Block 28-25, Changjiang Nanlu, WND, jiangsu, China

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

161-165 Princes Highway, Hallam

Victoria 3803, Australia

Phone 03-8787-1200

ALPINE ELECTRONICS GmbH

Frankfurter Ring 117, 80807 München, Germany

Fletchamstead Highway, Coventry CV4 9TW, U.K.

B.P. 50016, 95945 Roissy Charles de Gaulle

Phone 089-32 42 640

ALPINE ELECTRONICS OF U.K. LTD.

Alpine House

Phone 0870-33 33 763

ALPINE ELECTRONICS FRANCE S.A.R.L.

(RCS PONTOISE B 338 101 280)

98, Rue de la Belle Etoile, Z.I. Paris Nord Il,

Cedex, France

Phone 01-48638989

ALPINE ITALIA S.p.A.

Viale C. Colombo 8, 20090 Trezzano

Sul Naviglio (MI), Italy

Phone 02-484781

ALPINE ELECTRONICS DE ESPAÑA, S.A.

Portal de Gamarra 36, Pabellón, 32

01013 Vitoria (Alava)-APDO 133, Spain

Phone 945-283588

ALPINE ELECTRONICS (BENELUX) GmbH

Leuvensesteenweg 510-B6,

1930 Zaventem, Belgium

Phone 02-725-13 15

Printed in China (Y)

68-08564Z15-A

ENGLISH

Contents Operating Instructions

WARNING

WARNING ................................................. 3

CAUTION .................................................. 3

PRECAUTIONS ........................................ 3

Getting Started

Accessory List .................................................. 6

Turning Power On and Off ............................... 6

Detaching and Attaching the Front Panel ........ 6

Initial System Start-Up ..................................... 7

Adjusting Volume ............................................. 7

Setting the Time and Calendar ......................... 7

Radio

Listening to Radio ............................................ 8

Presetting Stations Manually ............................ 8

Presetting Stations Automatically .................... 8

Tuning to Preset Stations .................................. 8

Frequency Search Function .............................. 8

RDS

Setting RDS Reception Mode and Receiving

RDS Stations ................................................. 9

Recalling Preset RDS Stations ......................... 9

Receiving RDS Regional (Local) Stations ....... 9

PI SEEK Setting ............................................. 10

Setting PTY31 (Emergency Broadcast)

reception ...................................................... 10

Setting the Time to automatically Adjust ....... 10

Receiving Traffic Information ........................ 10

PTY (Programme Type) Tuning ..................... 11

Receiving Traffic Information While Playing

CD or Radio ................................................ 11

Priority News .................................................. 11

Displaying Radio Text .................................... 12

CD/MP3/WMA/AAC

Playback ..........................................................12

Repeat Play .....................................................13

M.I.X. (Random Play) ....................................13

Searching from CD Text .................................13

File/Folder Name Search

(concerning MP3/WMA/AAC) ...................14

Quick Search ...................................................14

About MP3/WMA/AAC ................................. 14

Sound Setting

Adjusting Bass/Treble/Balance (Between Left

and Right)/Fader (Between Front and Rear)/

Defeat ..........................................................16

Setting the Bass Control .................................16

Setting the Treble Control ...............................17

Adjusting the High Pass Filter ........................17

Turning Loudness On/Off ...............................17

Other Functions

Displaying the Text .........................................18

Displaying Time .............................................19

Blackout Mode On and Off ............................19

SETUP

Bluetooth Setting

Setting the Bluetooth IN Connection ...............20

General Setting

Birthday Opening Message Setting

(Birthday Set) ...............................................20

Setting the Clock Display (Clock Mode) .........20

Turning the Clock Display ON/OFF ................20

Playing MP3/WMA/AAC Data

(Play Mode) ..................................................20

Sound (Beep) Guide Function ..........................20

Turning Mute Mode On/Off (INT Mute) .........20

Setting the AUX+ Mode ...................................20

Setting the AUX Mode (V-Link) ......................20

Setting the External Digital Input

(Digital AUX) ..............................................20

Connecting to an External Amplifier ...............21

Setting Adaptive Steering Remote Control ......21

Setting the Language Font ................................21

Demonstration ..................................................21

1-EN

Audio Setting

Subwoofer On and Off .....................................22

Setting the Subwoofer System ......................... 22

Display Setting

Changing Lighting Colour ............................... 22

Dimmer Control ............................................... 22

Scroll Type Setting ........................................... 22

Scroll Setting (Text Scroll) .............................. 22

Switching the Character Font (Font Select) .....22

Switching the Animation Display Type

(BGV Select) ................................................ 22

Opening Message ON/OFF Setting ................. 22

Setting of Calendar Display Pattern Switching

(Calendar)..................................................... 22

Tuner Setting

Adjusting Source Signal Levels ....................... 22

iPod® (Optional)

Playback ..........................................................23

Searching for a desired Song .......................... 23

Quick Search ...................................................24

Direct Search Function ...................................24

Select Playlist/Artist/Album/Podcast/Genre/

Composer ....................................................24

Random Play Shuffle (M.I.X.) .....................25

Repeat Play .....................................................25

Displaying the Text .........................................25

Installation and Connections

Warning ..................................................30

Caution ...................................................30

Precautions ............................................30

Installation .......................................................31

Connections .....................................................32

Changer (Optional)

Controlling CD Changer (Optional) ...............26

Playing MP3 Files with the CD Changer

(Optional) ....................................................26

Multi-Changer Selection (Optional) ............... 26

Information

In Case of Difficulty .......................................27

Specifications ..................................................29

2-EN

Operating Instructions

WARNING

This symbol means important instructions. Failure to heed them can result in serious injury or death.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result in an accident.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISES WHILE DRIVING.

Excessive volume levels that obscure sounds such as emergency vehicle sirens or road warning signals (train crossings, etc.) can be dangerous and may result in an accident. LISTENING AT LOUD VOLUME LEVELS IN A CAR MAY ALSO CAUSE HEARING DAMAGE.

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, fire or electric shock.

CAUTION

This symbol means important instructions. Failure to heed them can result in injury or material property damage.

HALT USE IMMEDIATELY IF A PROBLEM APPEARS.

Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Centre for repairing.

PRECAUTIONS

Product Cleaning

Use a soft dry cloth for periodic cleaning of the product. For more severe stains, please dampen the cloth with water only. Anything else has the chance of dissolving the paint or damaging the plastic.

Temperature

Be sure the temperature inside the vehicle is between +60°C (+140°F) and –10°C (+14°F) before turning your unit on.

Moisture Condensation

You may notice the CD playback sound wavering due to condensation. If this happens, remove the disc from the player and wait about an hour for the moisture to evaporate.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may result in fire, etc.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician immediately.

USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES.

Failure to do so may result in fire or electric shock.

DO NOT BLOCK VENTS OR RADIATOR PANELS.

Doing so may cause heat to build up inside and may result in fire.

USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.

Use for other than its designed application may result in fire, electric shock or other injury.

DO NOT PLACE HANDS, FINGERS OR FOREIGN OBJECTS IN INSERTION SLOTS OR GAPS.

Doing so may result in personal injury or damage to the product.

Damaged Disc

Do not attempt to play cracked, warped, or damaged discs. Playing a bad disc could severely damage the playback mechanism.

Maintenance

If you have problems, do not attempt to repair the unit yourself. Return it to your Alpine dealer or the nearest Alpine Service Station for servicing.

3-EN

Never Attempt the Following

Do not grip or pull out the disc while it is being pulled back into the player by the automatic reloading mechanism. Do not attempt to insert a disc into the unit when the unit power is off.

Inserting Discs

Your player accepts only one disc at a time for playback. Do not attempt to load more than one disc. Make sure the label side is facing up when you insert the disc. “Error” will be displayed on your player if you insert a disc incorrectly. If “Error” continues to be displayed even though the disc has been inserted correctly, push the RESET switch with a pointed object such as a ballpoint pen. Playing a disc while driving on a very bumpy road may result in skips, but this will not scratch the disc or damage the player.

New Discs

To prevent the CD from jamming, “Error” is displayed if discs with irregular surfaces are inserted or if discs are inserted incorrectly. When a new disc is ejected immediately after initial loading, use your finger to feel around the inside of the centre hole and outside edge of the disc. If you feel any small bumps or irregularities, this could inhibit proper loading of the disc. To remove the bumps, rub the inside edge of the hole and outside edge of the disc with a ballpoint pen or other such instrument, then insert the disc again.

Centre Hole

New Disc

Correct Handling

Do not drop the disc while handling. Hold the disc so you will not leave fingerprints on the surface. Do not affix tape, paper, or gummed labels to the disc. Do not write on the disc.

CORRECT

INCORRECT CORRECT

Disc Cleaning

Fingerprints, dust, or soil on the surface of the disc could cause the CD player to skip. For routine cleaning, wipe the playing surface with a clean, soft cloth from the centre of the disc to the outer edge. If the surface is heavily soiled, dampen a clean, soft cloth in a solution of mild neutral detergent before cleaning the disc.

Disc Accessories

There are various accessories available on the market for protecting the disc surface and improving sound quality. However, most of them will influence the thickness and/or diameter of the disc. Using such accessories can cause the disc to be out of standard specifications and may create operational problems. We recommend not using these accessories on discs played in Alpine CD players.

Bumps

Outside (Bumps)

Irregular Shaped Discs

Be sure to use round shape discs only for this unit and never use any special shape discs. Use of special shape discs may cause damage to the mechanism.

Installation Location

Make sure this unit will not be installed in a location subjected to:

• Direct sun and heat

• High humidity and water

• Excessive dust

• Excessive vibrations

4-EN

Transparent Sheet Disc Stabilizer

On handling Compact Discs (CD/CD-R/CD-RW)

• Do not touch the surface.

• Do not expose the disc to direct sunlight.

• Do not affix stickers or labels.

• Clean the disc when it is dusty.

• Make sure that there are no bumps around the disc.

• Do not use commercially available disc accessories.

Do not leave the disc in the car or the unit for a long time. Never expose the disc to direct sunlight. Heat and humidity may

damage the CD and you may not be able to play it again.

To customers using CD-R/CD-RW

• If a CD-R/CD-RW cannot be played back, make sure the last recording session was closed (finalized).

• Finalize the CD-R/CD-RW if necessary, and attempt playback again.

About media that can be played

Use only compact discs with the label side showing the CD logo marks below.

If you use unspecified compact discs, correct performance cannot be guaranteed. You can play CD-Rs (CD-Recordables)/CD-RWs (CDReWritables) which have been recorded only on audio devices. You can also play CD-Rs/CD-RWs containing MP3/WMA/AAC formatted audio files.

• Some of the following CDs may not play on this unit: Flawed CDs, CDs with fingerprints, CDs exposed to extreme temperatures or sunlight (e.g., left in the car or this unit), CDs recorded under unstable conditions, CDs on which a recording failed or a re-recording was attempted, copy-protected CDs which do not conform to the audio CD industry standard.

• Use discs with MP3/WMA/AAC files written in a format compatible with this unit. For details, see pages 14-15.

• ROM data other than audio files contained in a disc will not produce sound when played back.

• Windows Media and the Windows logo are trademarks, or

registered trademarks of Microsoft Corporation in the United States and/or other countries.

• Apple, the Apple logo, iPod and iTunes are trademarks of Apple

Computer, Inc., registered in the U.S. and other countries.

• “MPEG Layer-3 audio coding technology licensed from

Fraunhofer IIS and Thomson.”

• “Supply of this product only conveys a license for private, non-

commercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenuegeneration) real time broadcasting (terrestrial, satellite, cable and/or any other media), broadcasting/streaming via internet, intranets and/or other networks or in other electronic content distribution systems, such as pay-audio or audio-on-demand applications. An independent license for such use is required. For details, please visit http://www. mp3licensing.com”

5-EN

Getting Started

Rotary encoder

(OPEN)

SOURCE/

Detaching

Turn off the unit power.

Press (OPEN) to open the front panel.

To close the front panel, press the left side until it locks as shown in the figure below.

//ENT

AUDIO/RTN FUNC./SETUP

Accessory List

• Head unit ............................................................................1

• Power cable........................................................................1

• Mounting sleeve.................................................................1

• Carrying case.....................................................................1

• Rubber Cap ........................................................................1

• Hex Bolt ..............................................................................1

• Screw (M5 × 8)....................................................................4

• Owner’s Manual .......................................................... 1 set

Turning Power On and Off

Press SOURCE/ to turn on the unit.

• The unit can be turned on by pressing any other button except

(OPEN) and Rotary encoder.

Press and hold SOURCE/ for at least 2 seconds to turn off the unit.

• The first time power is turned on, the volume will start from level 12.

Detaching and Attaching the Front Panel

Be sure to push the Rotary encoder inside the unit before opening the front panel so that the front panel will open completely, otherwise it may be damaged.

Grasp the front panel firmly, slide to the left , and then pull to remove.

• The front panel may become hot in normal usage (especially the

connector terminals on the back of the front panel). This is not a malfunction.

• To protect the front panel, place it in the supplied carrying case.

• When detaching the front panel, do not apply excessive force as it

may result in malfunction and damages.

• Do not leave the front panel open, or drive the car with the panel

open as it may result in an accident or malfunction.

Attaching

Insert the right side of the front panel into the main unit. Align the groove on the front panel with the projections on the main unit.

Push the left side of the front panel until it locks firmly into the main unit.

Push the Rotary encoder inside

When you push the Rotary encoder again, it pops back out.

The Rotary encoder pops out

6-EN

• Before attaching the front panel, make sure that there is no dirt or

dust on the connector terminals and no foreign object between the front panel and the main unit.

• Attach the front panel carefully, holding the sides of the front panel to

avoid pushing buttons by mistake.

Initial System Start-Up

Be sure to press the RESET switch when using the unit for the first time, after changing the car battery, etc.

Turn off the unit power.

Press (OPEN) to open the front panel, and then remove it.

Press RESET with a ballpoint pen or similar pointed object.

RESET switch

Adjusting Volume

Turn the Rotary encoder until the desired sound is obtained.

Setting the Time and Calendar

Controllable With Remote Control

This unit can be controlled with an optional Alpine remote control. For details, consult your Alpine dealer. Point the optional remote control transmitter at the remote control sensor.

Remote control sensor

Connectable to Remote Control Interface Box

This unit may be controlled from the vehicle’s audio controls. An optional Alpine Remote Control Interface Box must be used. For details, contact your Alpine dealer.

Press and hold FUNC./SETUP for at least 2 seconds to activate the SETUP selection mode.

Turn the Rotary encoder to select the GENERAL mode, and then press //ENT.

Bluetooth GENERAL AUDIO DISPLAY TUNER

Bluetooth

Turn the Rotary encoder to select Clock Adjust, and then press //ENT.

Turn the Rotary encoder to set year.

Press //ENT.

Repeat steps 4 and 5 above to set month, day, hour and minute.

Press and hold FUNC./SETUP for at least 2 seconds to return to normal mode.

• Pressing AUDIO/RTN returns to the previous SETUP mode.

• If no operation is performed for 60 seconds, SETUP is cancelled.

• To synchronize the clock to another clock/watch or radio time

announcement, press and hold //ENT for at least 2 seconds after setting the “hour”. Minutes will reset to 00. If the display shows over “30” minutes when you do this, the time will advance one hour.

7-EN

Radio

//ENT

TUNE/A.ME

Rotary encoder

/ESC

SOURCE/

BAND/TA

FUNC./ SETUP

Preset buttons

(1 through 6)

Presetting Stations Automatically

Press BAND/TA repeatedly until the desired radio band is displayed.

Press and hold TUNE/A.ME for at least 2 seconds.

The frequency on the display continues to change while the automatic memory is in progress. The tuner will automatically seek and store 6 strong stations in the selected band. They will be stored into preset buttons 1 to 6 in order of signal strength. When the automatic memory has been completed, the tuner goes to the station stored in preset location No. 1.

• If no stations are stored, the tuner will return to the original station

you were listening to before the auto memory procedure began.

Listening to Radio

Press SOURCE/ to select the TUNER mode.

Press BAND/TA repeatedly until the desired radio band is displayed.

FM1 FM2 FM3 MW LW FM1

Press TUNE/A.ME to select the tuning mode.

DX (Distance mode) LOCAL (Local mode) MANUAL (Manual mode) DX

• The initial mode is Distance mode.

Distance mode:

Both strong and weak stations will be automatically tuned in (Automatic Seek Tuning).

Local mode:

Only strong stations will be automatically tuned in (Automatic Seek Tuning).

Manual mode:

The frequency is manually tuned in steps (Manual tuning).

Press or to tune in the desired station.

Holding down or will change the frequency continuously.

Presetting Stations Manually

Tuning to Preset Stations

Press BAND/TA repeatedly until the desired band is displayed.

Press any one of the station preset buttons (1 through 6) that has your desired radio station in

memory.

The display shows the band, preset number and frequency of the station selected.

• If the function mode is activated, press FUNC./SETUP to return to

preset mode.

Frequency Search Function

You can search for a radio station by its frequency.

Press and hold /ESC for at least 2 seconds in Radio mode to activate Frequency search mode.

Turn the Rotary encoder to select the desired frequency.

Press //ENT to receive the selected frequency.

• Press and hold /ESC for at least 2 seconds in the search mode to

cancel. Or, the search mode will be cancelled if no operation is performed for 10 seconds.

Select the radio band and tune in a desired radio station you wish to store in the preset memory.

Press and hold, for at least 2 seconds, any one of the preset buttons (1 through 6) into which you wish to store the station.

The selected station is stored. The display shows the band, preset number and station frequency memorized.

• A total of 30 stations can be stored in the preset memory (6 stations for each band; FM1, FM2, FM3, MW and LW).

• If you store a station in a preset memory which already has a station, the current station will be cleared and replaced with the new station.

• If the function mode is activated, press FUNC./SETUP to return to preset mode.

8-EN

RDS

BAND/TARotary encoder

//ENT

AUDIO/RTN

Setting RDS Reception Mode and Receiving RDS Stations

The RDS (Radio Data System) is a radio information system using the 57 kHz subcarrier of regular FM broadcast. The RDS allows you to receive a variety of information such as traffic information, station names, and to automatically re-tune to a stronger transmitter that is broadcasting the same programme.

Press FUNC./SETUP to activate the function mode.

Press 1 AF to activate the RDS mode.

Press or to tune in the desired RDS station.

Press 1 AF again to deactivate the RDS mode.

Press FUNC./SETUP to activate the preset mode.

• When the “Setting PTY31 (Emergency Broadcast) reception” (refer to page 10) is set to on, if the unit receives the PTY31 (Emergency Broadcast) signal, the unit will show “ALARM” in the display automatically.

• Operate the unit while the function mode is activated. If no operation is performed for 10 seconds, the function mode is cancelled.

The RDS digital data includes the following:

PI Programme Identification PS Programme Service Name AF List of Alternative Frequencies TP Traffic Programme TA Traffic Announcement PTY Programme Type EON Enhanced Other Networks

FUNC./SETUP

1 AF NEWS 2

3 PTY

TITLE

Recalling Preset RDS Stations

Press FUNC./SETUP to activate the function mode.

Press 1 AF to activate the RDS mode.

Press FUNC./SETUP to activate the preset mode.

Make sure that the function mode returns to preset mode, and then press the preset button in which your desired RDS station is preset.

If the preset station’s signal is weak, the unit automatically searches and tunes to a stronger station in the AF (Alternative Frequencies) list.

If the preset station and the stations in the AF list cannot be received:

When the PI SEEK setting is on (refer to “PI SEEK Setting” on page 10), the unit searches again for a station in the PI (Programme Identification) list. If there are still no stations receivable in the area, the unit displays the frequency of the preset station and the preset No. disappears. If the signal level of the Regional (Local) station being tuned becomes too weak to receive, press the same preset button to tune in a Regional station in other district.

• For presetting the RDS stations, refer to the Radio Operation section.

The RDS stations can be preset in the FM1, FM2 and FM3 bands only.

• Operate the unit while the function mode is activated. If no operation

is performed for 10 seconds, the function mode is cancelled.

Receiving RDS Regional (Local) Stations

Press and hold FUNC./SETUP for at least 2 seconds to activate the SETUP mode.

Turn the Rotary encoder to select the TUNER mode, and then press //ENT.

Bluetooth GENERAL AUDIO DISPLAY TUNER

Bluetooth

Turn the Rotary encoder to select RDS Regional, and then press //ENT.

Turn the Rotary encoder to select ON or OFF.

In the OFF mode, the unit automatically keeps receiving the related local RDS station.

Press and hold FUNC./SETUP for at least 2 seconds to return to normal mode.

• Pressing AUD IO/RTN during the procedure will return to the

previous mode.

• If no operation is performed for 60 seconds in the SETUP mode, the

setting mode is cancelled.

9-EN

PI SEEK Setting

Setting the Time to automatically Adjust

Press and hold FUNC./SETUP for at least 2 seconds to activate the SETUP mode.

Turn the Rotary encoder to select the TUNER mode, and then press //ENT.

Bluetooth GENERAL AUDIO DISPLAY TUNER

Bluetooth

Turn the Rotary encoder to select PI Seek, and then press //ENT.

Turn the Rotary encoder to select ON or OFF.

Press and hold FUNC./SETUP for at least 2 seconds to return to normal mode.

• Pressing AUDIO/RTN during the procedure will return to the previous mode.

• If no operation is performed for 60 seconds in the SETUP mode, the setting mode is cancelled.

Setting PTY31 (Emergency Broadcast) reception

Turn PTY31 (Emergency Broadcast) reception ON/OFF.

Press and hold FUNC./SETUP for at least 2 seconds to activate the SETUP mode.

Turn the Rotary encoder to select the TUNER mode, and then press //ENT.

Bluetooth GENERAL AUDIO DISPLAY TUNER

Bluetooth

Turn the Rotary encoder to select Alert PTY31, and then press //ENT.

Turn the Rotary encoder to select ON or OFF.

If you set to ON, emergency broadcasts are received regardless of source. “ALARM” is displayed during reception.

Press and hold FUNC./SETUP for at least 2 seconds to return to normal mode.

When an emergency broadcast is received, the volume level will be automatically changed to the memorized level in the traffic information mode. For details, refer to “Receiving Traffic Information” on page 10.

• Pressing AUDIO/RTN during the procedure will return to the previous mode.

• If no operation is performed for 60 seconds in the SETUP mode, the setting mode is cancelled.

When you set to ON, the time is automatically adjusted by RDS data.

Press and hold FUNC./SETUP for at least 2 seconds to activate the SETUP mode.

Turn the Rotary encoder to select the TUNER mode, and then press //ENT.

Bluetooth GENERAL AUDIO DISPLAY TUNER

Bluetooth

Turn the Rotary encoder to select Auto Clock, and then press //ENT.

Turn the Rotary encoder to select ON or OFF.

Press and hold FUNC./SETUP for at least 2 seconds to return to normal mode.

• Pressing AUD IO/RTN during the procedure will return to the

previous mode.

• If no operation is performed for 60 seconds in the SETUP mode, the

setting mode is cancelled.

Receiving Traffic Information

Press and hold BAND/TA for at least 2 seconds so that the “TA” indicator lights up.

Press or to select your desired traffic information station.

When a traffic information station is tuned in, the “TP” indicator lights up. Traffic information is heard only when it is being broadcast. If traffic information is not being broadcast, the unit is set in the standby mode. When a traffic information broadcast begins, the unit automatically receives it and the display shows “T. INFO”. When the traffic information broadcast is over, the unit will automatically set in the standby mode.

• If the traffic information broadcast signal falls below a certain level,

the unit remains in the receiving mode for 1 minute. If the signal remains below a certain level for over 1 minute, the “TA” indicator blinks.

• If you do not want to listen to the traffic information being received,

lightly press BAND/TA to skip that traffic information message. The TA mode will remain in the ON position to receive the next traffic information message.

• If the volume level is changed while receiving traffic information, the

changed volume level will be memorized. When traffic information is received next time, the volume level will be automatically adjusted to the level memorized.

• In the TA mode, the SEEK tuning selects only the TP stations.

10-EN

PTY (Programme Type) Tuning

Press FUNC./SETUP to activate the function mode.

Press 3 PTY to activate the PTY mode, while the unit is in Radio (FM receiving) mode.

The Programme Type of the station being currently received will be displayed for 10 seconds. If there is no receivable PTY broadcast, “NO PTY” will be displayed for 10 seconds. If no RDS station can be received, the display shows “NO PTY”.

• If no operation is performed for 10 seconds after pressing 3 PTY, the PTY mode will be automatically cancelled.

Press or within 10 seconds after activating the PTY mode to choose the desired programme type while the PTY (programme type) is being displayed.

Each press scrolls the programme type by one.

Press 3 PTY within 10 seconds after selecting the programme type to start searching for a station in the selected programme type.

The chosen programme type display blinks during searching and lights when a station is found.

If no PTY station is found, “NO PTY” will be displayed for 10 seconds.

Press FUNC./SETUP to activate the preset mode.

• Operate the unit while the function mode is activated. If no operation is performed for 10 seconds, the function mode is cancelled.

Receiving Traffic Information While Playing CD or Radio

When traffic information stations cannot be received:

In the tuner mode: When the TP signal can no longer be received for over 1 minute, the “TA” indicator blinks.

In the CD mode: When the TP signal can no longer be received, the traffic information station of another frequency will be selected automatically.

• The receiver is equipped with the EON (Enhanced Other Networks)

function in order to keep track of additional alternate frequencies to the AF list. The “EON” indicator lights up while an RDS EON station is being received. If the station being received does not broadcast the traffic information, the receiver automatically tunes in the related station that broadcasts the traffic information when it occurs.

Press and hold BAND/TA for at least 2 seconds to deactivate the Traffic Information mode.

The “TA” indicator goes out.

Priority News

This function allows you to preset to give priority to the News programme. You will never miss the News programme as the unit automatically gives priority to the News programme whenever it begins broadcasting, and interrupts the programme you are currently listening. This feature is functional when your unit is set to a mode other than the LW and MW modes.

Press FUNC./SETUP to activate the function mode while the unit is in Radio (FM receiving) mode.

Press NEWS 2 to activate the PRIORITY NEWS mode.

The “NEWS” indicator appears in the display. To disable the PRIORITY NEWS function, press NEWS 2.

• In the PRIORITY NEWS function, unlike in the TA function, the

volume does not increase automatically.

Press and hold BAND/TA for at least 2 seconds so that the “TA” indicator lights up.

Press or to select a traffic information station if necessary.

When a traffic information broadcast starts, the unit automatically mutes the CD player/changer or the regular FM broadcast. When the traffic information broadcast finishes, the unit automatically returns to the original source play before the traffic information broadcast began.

Press FUNC./SETUP to activate the preset mode, while the unit is in Radio (FM receiving) mode.

• Operate the unit while the function mode is activated. If no operation

is performed for 10 seconds, the function mode is cancelled.

11-EN

Displaying Radio Text

Text messages from a radio station can be displayed.

Press TITLE while receiving FM in the radio mode to select the Radio Text display.

The display will change every time the button is pressed.

If there is PS (Programme Service Name)

CD/MP3/WMA/AAC

Rotary encoder

//ENT

(OPEN)

SOURCE/

PS (Programme Service Name)

(Blank)

PS (Programme Service Name)

CALENDAR/CLOCK

PS (Programme Service Name)

PTY (Programme Type)

Radio Text

PS (Programme Service Name)

(Blank)

* Press and hold TITLE for at least 2 seconds if PS is displayed in the

radio mode, frequency will be displayed for 5 seconds.

If there is no PS (Programme Service Name)

FREQUENCY

(Blank)

FREQUENCY

PTY (Programme Type)

(Blank)

• If there is no receivable text information or the unit cannot receive text information properly, nothing will be displayed.

(Blank)

FREQUENCY

CALENDAR/CLOCK

Radio Text

FREQUENCY

(Blank)

AUDIO/RTN

/ESC

FUNC./ SETUP

Playback

Press (OPEN).

The front panel will open.

Insert a disc with the label side facing up.

The disc will be pulled into the unit automatically.

Close the front panel manually. When a disc is already inserted, press SOURCE/ switch to the DISC mode.

The mode will change every time the button is pressed.

TUNER DISC iPod*1 CHANGER*2 TUNER

*1Only when the iPod is connected. *2Only when the CD changer is connected.

While playing back MP3/WMA/AAC, press or to select the desired folder.

Pressing and holding or will change folders continuously.

TITLE

12-EN

Press or to select the desired track (file).

Returning to the beginning of the current track (file):

Press .

Fast backward:

Press and hold .

Advancing to the beginning of the next track (file):

Press .

Fast forward:

Press and hold .

To pause playback, press / /ENT.

Pressing / /ENT again will resume playback.

After pressing (OPEN) to open the front panel, press to eject the disc.

• Do not remove a CD during its eject cycle. Do not load more than

one disc at a time. A malfunction may result from doing either.

• If the CD does not eject, press and hold for at least 2 seconds.

• The CD-player can play discs containing audio data, MP3 data,

WMA data and AAC data.

• WMA format files that are protected by DRM (Digital Rights Management), AAC format files that have been purchased from iTunes Music Store and files that are copy-protected (copyright protection) cannot be played back on this unit.

• The track display for MP3/WMA/AAC data playback is the file numbers recorded on the disc.

• The playback time may not be correctly displayed when a VBR (Variable Bit Rate) recorded file is played back.

MP3/WMA/AAC Play Display

The folder number and file number will be displayed as described below.

Folder number display

* Displayed when “Turning the Clock Display ON/OFF” (page 20) is

set to ON.

• Press TITLE to switch the display. See “Displaying the Text” (page 18) for information about display switching.

File number display

00:00

Clock display*

Elapsed time

0:53

• If a CD changer or an MP3 compatible CD changer is connected:

After pressing FUNC./SETUP to select the function mode (RPT/ M.I.X.), perform the operation within 10 seconds.

M.I.X. (Random Play)

Press 5 in the play or pause mode.

The tracks (files) on the disc will be played back in random sequence.

To cancel M.I.X. play, press 5 again.

CD mode :

: The tracks are played back in random

sequence.

: The tracks on all the CDs in the current

magazine will be played back in the random sequence.

When a CD changer equipped with the ALL M.I.X. function is

connected.

• If M.I.X. is set to ON during RPT (REPEAT ALL) play in CD

changer mode, M.I.X. will apply to the current disc only.

MP3/WMA/AAC mode :

Repeat Play

Press 4 to play back repeatedly the track being played.

The track (file) will be played repeatedly.

Press 4 again and select off to deactivate repeat play.

CD mode :

: Only a track is repeatedly played back.

: A disc is repeatedly played back.

When a CD changer is connected.

• If RPT is set to ON during M.I.X. play in CD changer mode, M.I.X. will apply to the current disc only.

MP3/WMA/AAC mode :

: Only a file is repeatedly played back.

Only files in a folder are repeatedly played back

: A disc is repeatedly played back.

When an MP3 compatible CD changer is connected.

: Only files in a folder are played back in

random sequence.

: The files are played back in random

sequence. If an MP3 compatible CD changer is connected, all files in a disc are played back in random sequence, and playback shifts to the next disc.

• If a CD changer or an MP3 compatible CD changer is connected:

After pressing FUNC./SETUP to select the function mode (RPT/ M.I.X.), perform the operation within 10 seconds.

Searching from CD Text

Tracks can be searched and played by using the CD text on the disc. If a disc is not compatible with text, or a disc is in the changer, searches can be made by track number.

Press /ESC during play.

This will set the search mode.

Turn the Rotary encoder to select the desired track, and then press //ENT.

This will play the selected track.

• Press and hold /ESC for at least 2 seconds in the search mode to

cancel. Or, the search mode is cancelled if no operation is performed for 10 seconds.

• CD text search cannot be made during M.I.X. play.

13-EN

File/Folder Name Search (concerning MP3/WMA/AAC)

About MP3/WMA/AAC

Folder and file names may be searched and displayed during playback.

Press /ESC to activate Search selection mode during MP3/WMA/AAC playback.

Turn the Rotary encoder to select Folder Name Search mode or File Name Search mode, and then press //ENT.

Folder Name Search mode

Turn the Rotary encoder to select the desired folder.

Press and hold //ENT for at least 2 seconds to play back the first file in the selected folder.

• Press and hold /ESC for at least 2 seconds in the search mode to cancel. Or, the search mode is cancelled if no operation is performed for 10 seconds.

• To search for files in the Folder Name Search mode, press

ENT

• Press AUDIO/RTN to exit Folder Name Search mode in step 3 in order to select File Name Search mode.

• The root folder is displayed as “ROOT”.

• Folder Name Search cannot be made during M.I.X. play.

File Name Search mode

3 4

• Press and hold /ESC for at least 2 seconds in the search mode to cancel. Or, the search mode is cancelled if no operation is performed for 10 seconds.

• Press AUDIO/RTN in the search mode to return to the previous mode.

• File Name Search cannot be made during M.I.X. play.

. Files in the folder may be searched.

Press or to select another Folder.

Select the desired file by turning the Rotary encoder.

Press //ENT to play back the selected file.

CAUTION

Except for private use, duplicating audio data (including MP3/ WMA/AAC data) or distributing, transferring, or copying it, whether for free or for a fee, without permission of the copyright holder is strictly prohibited by the Copyright Act and by international treaty.

What is MP3?

MP3, whose official name is “MPEG-1 Audio Layer 3,” is a compression standard prescribed by the ISO, the International Standardization Organization and MPEG which is a joint activity institution of the IEC.

MP3 files contain compressed audio data. MP3 encoding is capable of compressing audio data at extremely high ratios, reducing the size of music files to as much as one-tenth their original size. This is achieved while still maintaining near CD quality. The MP3 format realises such high compression ratios by eliminating the sounds that are either inaudible to the human ear or masked by other sounds.

What is AAC?

AAC is the abbreviation for “Advanced Audio Coding”, and is a basic format of audio compression used by MPEG2 or MPEG4.

What is WMA?

WMA, or “Windows Media™ Audio,” is compressed audio data. WMA is similar to MP3 audio data and can achieve CD quality sound with small file sizes.

Method for creating MP3/WMA/AAC files

Audio data is compressed using software with MP3/WMA/AAC codecs. For details on creating MP3/WMA/AAC files, refer to the user’s manual for that software. MP3/WMA/AAC files that can be played back by this device have the following file extensions: MP3: “mp3” WMA: “wma” (ver. 7.1, 8 and 9 are supported) AAC: “m4a”

There are many different versions of the AAC format. Confirm that the software being used conforms to the acceptable formats listed above. It’s possible that the format may be unplayable even though the extension is valid. Playback of AAC files encoded by iTunes version 7.0 or earlier is supported.

Quick Search

You can search for tracks (files).

Press and hold /ESC for at least 2 seconds in the CD/Changer/MP3/WMA/AAC mode to activate Quick Search mode.

Turn the Rotary encoder to select a desired track (file).

The selected track is played back immediately.

• Press and hold /ESC for at least 2 seconds in the search mode to cancel. Or, the search mode is cancelled if no operation is performed for 10 seconds.

14-EN

Supported playback sampling rates and bit rates

MP3

Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz,

16 kHz, 12 kHz, 11.025 kHz, 8 kHz

Bit rates: 8 - 320 kbps

WMA

Sampling rates: 48 kHz, 44.1 kHz, 32 kHz Bit rates: 48 - 192 kbps

AAC

Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz,

16 kHz, 12 kHz, 11.025 kHz, 8 kHz

Bit rates: 16 - 320 kbps

This device may not play back correctly depending on sampling rates.

ID3 tags/WMA tags

This device supports ID3 tag v1 and v2, and WMA tag. If tag data is in an MP3/WMA/AAC file, this device can display the title (track title), artist name, and album name ID3 tag/WMA tag data.

This device can only display single-byte alphanumeric characters (up to 30 for ID3 tags and up to 15 for WMA tags) and the underscore. For non-supported characters, the display is blank. The tag information may not be correctly displayed, depending on the contents.

Producing MP3/WMA/AAC discs

MP3/WMA/AAC files are prepared, then written to a CD-R or CD-RW using CD-R writing software. A disc can hold up to 510 files/folders (including Root Folders), and the maximum number of folders is 255. Playback may not be performed if a disc exceeds the limitations described above.

Media supported

The media that this device can play back are CD-ROMs, CD-Rs, and CD-RWs.

Corresponding File Systems

This device supports discs formatted with ISO9660 Level 1 or Level 2.

Under the ISO9660 standard, there are some restrictions to remember.

The maximum nested folder depth is 8 (including the root directory). The number of characters for a folder/file name is limited.

Valid characters for folder/file names are letters A-Z (all caps), numbers 0-9, and ‘_’ (underscore).

This device also can play back discs in Joliet, Romeo, etc., and other standards that conform to ISO9660. However, sometimes the file names, folder names, etc., are not displayed correctly.

Formats supported

This device supports CD-ROM XA, Mixed Mode CD, Enhanced CD (CD-Extra) and Multi-Session. This device cannot correctly play back discs recorded with Track At Once or packet writing.

Order of files

Files are played back in the order that the writing software writes them to the disc. Therefore, the playback order may not be what is expected. Verify the writing order in the software’s documentation. The playback order of the folders and files is as follows.

Root folder

Folder MP3/WMA/AAC File

* The folder No./folder Name will not be displayed if no file is contained

in the folder.

Terminology

Bit rate

This is the “sound” compression rate specified for encoding. The higher the bit rate, the higher the sound quality, but also the larger the files.

Sampling rate

This value shows how many times per second the data is sampled (recorded). For example, music CDs use a sampling rate of 44.1 kHz, so the sound is sampled (recorded) 44,100 times per second. The higher the sampling rate, the higher the sound quality, but also the larger the volume of data.

Encoding

Converting music CDs, WAVE (AIFF) files, and other sound files into the specified audio compression format.

Tag

Song information such as track titles, artist names, album names, etc., written into MP3/WMA/AAC files.

Root folder

The root folder (or root directory) is found at the top of the file system. The root folder contains all folders and files. It is created automatically for all burned discs.

15-EN

Sound Setting

Rotary encoder

/ESC

AUDIO/RTN (LOUD)

SOURCE

Adjusting Bass/Treble/Balance (Between Left and Right)/Fader (Between Front and Rear)/Defeat

Press AUDIO/RTN repeatedly to choose the desired mode.

Each press changes the mode as follows:

SUBWOOFER* BASS TREBLE BALANCE FADER

DEFEAT VOLUME SUBWOOFER

Subwoofer: 0 ~ +15 Bass level: –7 ~ +7 Treble level: –7 ~ +7 Balance: L15 ~ R15 Fader: R15 ~ F15 Defeat: ON/OFF Volum e: 0 ~ 35

• If no operation is performed for 5 seconds after selecting the SUBWOOFER, BASS, TREBLE, BALANCE, FADER or DEFEAT mode, the unit automatically returns to normal mode.

* When the subwoofer mode is set to OFF, its level cannot be adjusted.

Turn the Rotary encoder until the desired sound is obtained in each mode.

By setting Defeat ON, previously adjusted settings of BASS and TREBLE will return to the factory defaults.

• If the Rotary encoder is not turned for 5 seconds after selecting the SUBWOOFER, BASS, TREBLE, BALANCE, FADER or DEFEAT mode, the unit automatically returns to normal mode.

• Depending on the connected devices, some functions and display indications do not work.

A.SEL

BAND/TA

Setting the Bass Control

You can change the Bass Frequency emphasis to create your own tonal preference.

Press A.SEL to select the BASS (bass Centre frequency) control mode.

Bass Treble HPF Bass

Setting the Bass Centre Frequency

-1 Press BAND/TA to select the desired bass centre frequency.

80 Hz 100 Hz 200 Hz 60 Hz 80 Hz

Emphasizes the displayed bass frequency ranges.

Setting the Bass Bandwidth

-2 Press SOURCE/ to select the desired bass bandwidth.

Q1 Q2 Q3 Q4

(Narrow)

Changes the boosted bass bandwidth to wide or narrow. A wider setting will boost a wide range of frequencies above and below the centre frequency. A narrower setting will boost only frequencies near the centre frequency.

Setting the Bass Level

-3*1Turn the Rotary encoder to select the desired bass level (–7~+7).

You can emphasize or weaken the bass level.

Press and hold /ESC for at least 2 seconds to return to normal mode.

• If no operation is performed for 15 seconds, the unit will return to

normal mode automatically.

• The bass level settings will be individually memorized for each

source (FM, MW (LW), CD, etc.) until the setting is changed. The bass frequency and bass bandwidth settings adjusted for one source are effective for all other sources (FM, MW (LW), CD etc.).

• Depending on the connected devices, some functions and display

indications do not work. However, Bass Level is still adjustable if an audio processor with the Bass function is connected.

• The function is inoperable when DEFEAT is set to ON.

The adjustment can also be made by pressing AUDIO/RTN. Refer to

“Adjusting Bass/Treble/Balance (Between Left and Right)/Fader (Between Front and Rear)/Defeat” (page 16).

(Wide)

16-EN

Setting the Treble Control

Turning Loudness On/Off

You can change the Treble Frequency emphasis to create your own tonal preference.

Press A.SEL to select the TREBLE (treble Centre frequency) control mode.

Bass Treble HPF Bass

Setting the Treble Centre Frequency

-1 Press BAND/TA to select the desired treble Centre frequency.

10 kHz 12.5 kHz 15 kHz 17.5 kHz 10 kHz

Emphasizes the displayed Treble frequency ranges.

Setting the Treble Level

-2*2Turn the Rotary encoder to select the desired treble level (–7~+7).

You can emphasize the treble level.

Press and hold /ESC for at least 2 seconds to return to normal mode.

• If no operation is performed for 15 seconds, the unit will return to

normal mode automatically.

• The treble level settings will be individually memorized for each

source (FM, MW (LW), CD, etc.) until the setting is changed. The Treble frequency settings adjusted for one source are effective for all other sources (FM, MW (LW), CD, etc.).

• Depending on the connected devices, some functions and display

indications do not work. However, Treble Level is still adjustable if an audio processor with the Treble function is connected.

• The function is inoperable when DEFEAT is set to ON.

The adjustment can also be made by pressing AUD IO/RT N. Refer to

“Adjusting Bass/Treble/Balance (Between Left and Right)/Fader (Between Front and Rear)/Defeat” (page 16).

Loudness introduces a special low- and high-frequency emphasis at low listening levels. This compensates for the ear’s decreased sensitivity to bass and treble sound.

Press and hold AUDIO/RTN (LOUD) for at least 2 seconds to activate or deactivate the loudness mode.

“(LD)” indicator lights.

• When an external audio processor is connected, this setting cannot

be made.

• The function is inoperable when DEFEAT is set to ON.

Adjusting the High Pass Filter

The High Pass Filter on this unit can be adjusted to suit your personal taste.

Press A.SEL to select the HPF (High Pass Filter) mode.

Bass Treble HPF Bass

Turn the Rotary encoder to select the HPF frequency.

OFF 80 Hz 120 Hz 160 Hz

After setting, press and hold /ESC for at least 2 seconds to return to normal mode.

• If no operation is performed for 15 seconds, the unit will return to

normal mode automatically.

• The function is inoperable when DEFEAT is set to ON.

• When an external audio processor is connected, this setting cannot

be made.

17-EN

Other Functions

The display in CD mode:

TEXT (TRACK NAME)

TRACK NO./ELAPSED TIME

TITLE

Displaying the Text

Text information, such as the disc name and the track name, will be displayed if playing a CD text compatible disc. It is also possible to display the folder name, the file name and the tag, etc., while playing MP3/WMA/AAC files.

Press TITLE.

The display will change every time the button is pressed.

• If you want to change the display when the text scroll is set to

Manual, press TITLE while the text is scrolling. If the scroll has been completed, press TITLE to scroll the text again.

The display in Radio mode:

If there is PS (Programme Service Name)

PS (Programme Service Name)

(Blank)

PS (Programme Service Name)

CALENDAR/CLOCK

PS (Programme Service Name)

PTY (Programme Type)

Radio Text

PS (Programme Service Name)

(Blank)

TEXT (DISC NAME)

TEXT (TRACK NAME)

CALENDAR/CLOCK

(Blank)

TEXT (TRACK NAME)

TRACK NO./ELAPSED TIME

The display in MP3/WMA/AAC mode:

FILE NAME

FOLDER NO./FILE NO./ELAPSED TIME

ARTIST NAME

SONG NAME

CALENDAR/CLOCK

FOLDER NO./FILE NO./ELAPSED TIME

SONG NAME

FILE NAME

ALBUM NAME

SONG NAME

(Blank)

FOLDER NAME

FILE NAME

*1Press and hold TITLE for at least 2 seconds if PS is displayed in the

radio mode, frequency will be displayed for 5 seconds. *2Displayed during playback of a disc with CD Text. *3The root folder is displayed as blank. *4ID3 tag/WMA tag

If an MP3/WMA/AAC file contains ID3 tag/WMA tag information,

the ID3 tag/WMA tag information is displayed (song name, artist

name, and album name). All other tag data is ignored.

2~4

If there is no text information, nothing will be displayed.

*5If “Text Scroll Auto” is set in “Scroll Setting (Text Scroll)” (page 22),

the display cannot be switched by pressing TITLE. The display

contents switch alternately.

If there is no PS (Programme Service Name)

FREQUENCY

(Blank)

FREQUENCY

PTY (Programme Type)

(Blank)

FREQUENCY

CALENDAR/CLOCK

Radio Text

(Blank)

18-EN

About the indication display

When displaying Text, the following indicators are lit according to the mode.

Indicator/Mode CD Mode

—

Text (Disc Name) being displayed

Text (Track Name) being displayed

MP3/WMA/AAC

Mode

Folder Name being displayed

Song Name being displayed

Artist Name being displayed

Album Name being displayed

File Name being displayed

——

iPod Mode

—

Song Name being displayed

Artist Name being displayed

Album Name being displayed

—

About “Text”

Text:

Text compatible CDs contain text information such as the disc name and track name. Such text information is referred to as “text.”

• Some characters may not be displayed correctly with this device,

depending on the character type.

• The CD changer must also be CD Text compatible for the Text

information to be displayed.

• If there is no TEXT information, the display is blank.

• The text or tag information may not be correctly displayed,

depending on the contents.

SETUP

You can flexibly customize the unit to suit your own preferences and usage. From the SETUP menu, Audio Setting, Display Setting, etc., can be modified.

Rotary encoder

//ENT

AUDIO/RTN FUNC./SETUP

Use steps 1 to 5 to select one of the SETUP modes to modify. See the applicable section below for details about the selected SETUP item.

Press and hold FUNC./SETUP for at least 2 seconds to activate the SETUP selection mode.

Turn the Rotary encoder to select the desired item, and then press //ENT.

Bluetooth*1 GENERAL AUDIO DISPLAY TUNER Bluetooth

(e.g. Select AUDIO)

SOURCE/

BAND/TA

Displaying Time

Press TITLE repeatedly until the time is displayed.

Each press changes the display. For details, see “Displaying the Text” (page 18).

•

Selecting any tuner or CD function while in the clock priority mode will interrupt the time display momentarily. The function selected will be displayed for about 5 seconds before the time returns to the display.

Blackout Mode On and Off

When Blackout mode is turned on (except Radio Mode), all display indications on this unit will turn off to reduce power consumption. This additional power enhances the sound quality.

Press and hold TITLE for at least 2 seconds to activate the blackout mode.

All display indications on this unit will turn off. The “B.OUT” indicator lights up.

• If any button on the unit is pressed during the blackout mode, the

function will be displayed for 5 seconds to show the operation before returning to Blackout mode.

To cancel Blackout mode, press and hold TITLE for at least 2 seconds.

Turn the Rotary encoder to select a setting item, and then press //ENT.

(e.g. Select Subwoofer)

Bluetooth*1:

Bluetooth IN

GENERAL:

Birthday Set Clock Mode Clock Clock Adjust Play Mode Beep INT Mute

AUX Name

Language Set Demo Birthday Set

AUDIO:

Subwoofer SUBW. System*

DISPLAY:

Illumination Dimmer Scroll Type Text Scroll Font Select BGV Select Calendar Opening MSG Illumination

TUNER:

FM Level RDS Regional

Auto Clock

Digital AUX Power IC Steering

FM Level

AUX+ Setup AUX IN

Alert PTY31*7 PI Seek*8

*1Displayed only when INT Mute is OFF. *2Refer to “Setting the Time and Calendar” (page 7). *3Displayed only when Bluetooth IN is OFF. *4Displayed only when AUX IN is ON. *5Displayed only when Subwoofer is ON. *6Refer to “Receiving RDS Regional (Local) Stations” (page 9). *7Refer to “Setting PTY31 (Emergency Broadcast) reception”

(page 10). *8Refer to “PI SEEK Setting” (page 10). *9Refer to “Setting the Time to automatically Adjust” (page 10).

19-EN

Turn the Rotary encoder to change the setting, and then press //ENT.

(e.g. Select Subwoofer ON or Subwoofer OFF)

Press and hold FUNC./SETUP for at least 2 seconds to return to normal mode.

• Pressing AUDIO/RTN returns to the previous SETUP mode.

• If no operation is performed for 60 seconds, SETUP is cancelled.

Bluetooth Setting

Select Bluetooth from the setup main menu in step 2 above. If an optional Bluetooth Box is connected, you can place a hands-free call by a Bluetooth- equipped mobile phone. Make this setting when the Bluetooth Box is connected and the Bluetooth function is used. For details, refer to the Owner's Manual of the optional Bluetooth Box.

Setting the Bluetooth IN Connection

Bluetooth IN ADAPTER / Bluetooth IN OFF (Initial Setting)

Set ADAPTER when the Bluetooth Box is connected.

General Setting

GENERAL is selected on the setup main menu in step 2.

Birthday Opening Message Setting (Birthday Set)

mm/dd

While opening MSG is set to ON (refer to “Opening Message ON/OFF

”

on page 22), then input your birthday details, a message can be

Setting displayed on that day. Turn the

Rotary encoder

Turn the

Setting the Clock Display (Clock Mode)

AM (Before noon) 12:00 (12HOUR) / 00:00 (24HOUR) (Initial setting)

You can select the clock display type, 12-hour or 24-hour, depending on your preference.

Turning the Clock Display ON/OFF

Clock ON (Initial Setting) / Clock OFF

When ON is set, the time always appears in the lower left of the display.

Playing MP3/WMA/AAC Data (Play Mode)

CD-DA (Initial setting) / CDDA&MP3/WMA

This unit can play back CDs containing both CD and MP3/WMA/AAC data (created in Enhanced CD (CD Extra) format). However, in some situations, playback of an enhanced CD may be difficult. In this case, you can select playback of a single session only, containing the CD data. When a disc contains both CD and the MP3/WMA/AAC data, playback starts from the CD data portion of the disc.

CD-DA : Only the CD data in Session 1 can be

CDDA&MP3/WMA: CD data, MP3/WMA/AAC files in mixed

• Perform this setting before inserting a disc. If a disc has already been

inserted, remove it first. (If you use an MP3 changer, you have to change discs.)

to set “mm” (Month), then press

again to set “dd” (Date).

played back.

mode, and multi-session discs can be played back.

//ENT

Sound (Beep) Guide Function

Beep ON (Initial setting) / Beep OFF

This function will give audible feedback with varying tones depending upon the button pressed.

Turning Mute Mode On/Off (INT Mute)

INT Mute ON / INT Mute OFF (Initial setting)

If a device having the interrupt feature is connected, audio will be automatically muted whenever the interrupt signal is received from the device.

Setting the AUX+ Mode

AUX+ Setup ON / AUX+ Setup OFF (Initial Setting)

Audio of devices that are connected to the unit using the FULL SPEED™ Connection Cable (KCE-422i) is input to the unit.

• Press SOURCE/ , and select the AUX+ mode, and adjust the

volume, etc.

Setting the AUX Mode (V-Link)

AUX IN ON / AUX IN OFF (Initial setting)

You can input TV/video sound by connecting an optional Ai-NET/RCA Interface cable (KCA-121B) or Versatile Link Terminal (KCA-410C) to this component. You can change the AUX name display when AUX IN is set to ON.

//ENT

Press by turning the Rotary encoder, then press After that, turn the Rotary encoder to select the desired AUX name. If the KCA-410C is connected, it is possible to select two AUX names.

• Via KCA-410C, up to 2 external devices with RCA output can be

connected. In this case, press SOURCE/ to select AUX mode and

then press BAND/TA to select your desired device.

when AUX IN is set to ON, and select AUX Name

//ENT

Setting the External Digital Input (Digital AUX)

Digital AUX ON / Digital AUX OFF (Initial setting)

When an ALPINE Ai-NET compatible digital audio processor (PXA-H701) and a DVD player (DVE-5207) not compatible with Ai-NET are connected, set Digital AUX to ON to enjoy 5.1-channel surround sound.

• Press SOURCE/ , and select the D. AUX mode, and adjust the

volume, etc.

• After input selection is completed, turn the ignition off and back on

again. Setting of the optical digital input switch is completed.

• Depending on the connected audio processor, DVD player sound

may continue to be output, even though the source is changed to

another one. If this occurs, set the DVD player’s power to OFF.

20-EN

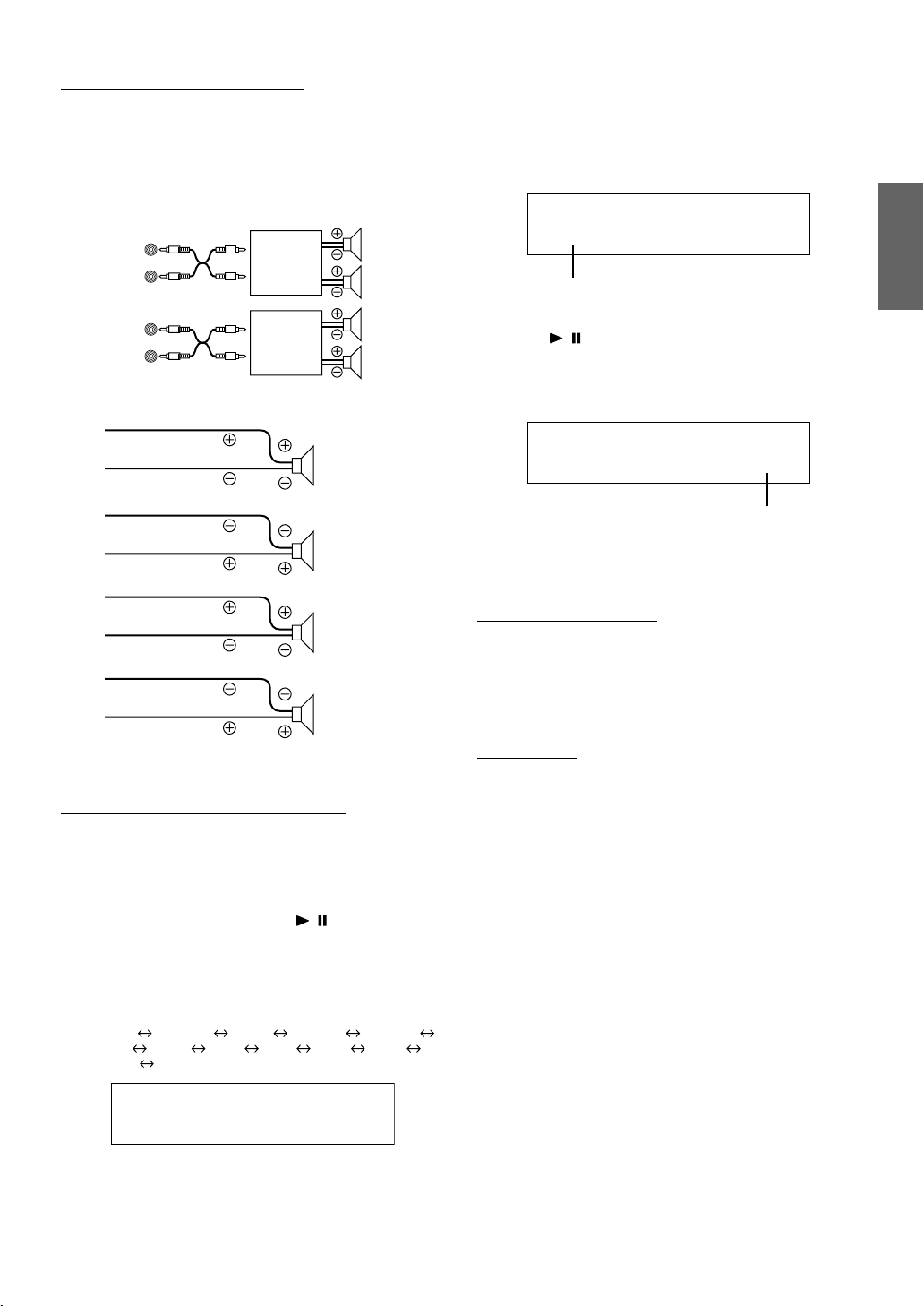

Connecting to an External Amplifier

Power IC ON (Initial setting) / Power IC OFF

When an external amplifier is connected, sound quality can be improved by stopping the power supply of the built-in amplifier.

Power IC OFF: Use this mode when the line output of this unit

Power IC ON: The speakers are driven by the built-in amplifier.

is used to drive an external amplifier. In this setting, the head unit’s internal amplifier is turned OFF and cannot drive speakers.

Front

Amplifier

left Front

right

Rear left

Rear right

Speakers

SPEAKER RIGHT FRONT

Front right

Press the steering remote control button until the changed signal value of steering remote control appears in the left of the display.

(e.g. Press SOURCE of the steering remote control button.)

The changed steering remote control signal appears in the left of the display.

DE SOURCE FF

The changed signal value of steering remote control

Press //ENT to execute the setting value.

The confirmed signal value of steering remote control appears in the right of the display. With doing so, the function of the unit is assigned to the steering remote control button.

DE SOURCE DE

SPEAKER RIGHT REAR

SPEAKER LEFT REAR

SPEAKER LEFT FRONT

• No sound is produced by the system when the power output is set to

OFF.

Rear right

Rear left

Front left

Setting Adaptive Steering Remote Control

Steering ON / Steering OFF (Initial Setting)

This unit is compatible with the adaptive steering remote control. This function allows operation by sending the steering remote control signal to the unit. To use the steering remote control, perform the following button operations after setting to ON and pressing For details, consult your nearest Alpine dealer.

Select the assigned function by turning the Rotary

//ENT

encoder.

(e.g. Select SOURCE)

POWER SOURCE BAND VOL. UP VOL. DN PAUSE MUTE BWD FWD P. UP P. DN A.PROC POWER

The confirmed signal value of steering remote control

Repeat steps 1 to 3, and set each button.

When settings have been completed, press AUDIO/RTN to return to the previous mode.

Setting the Language Font

Language 1 (Initial Setting) / Language 2 / Language 3

Three types of font can be selected.

Language Language Language

1: Normal font 2: European font 3: Russian font

Demonstration

Demo ON / Demo OFF (Initial setting)

This unit has a demonstration feature for the display.

• To quit Demo mode, set to Demo OFF.

FF SOURCE FF

21-EN

Audio Setting

AUDIO is selected on the setup main menu in step 2.

Subwoofer On and Off

Subwoofer ON (Initial setting) / Subwoofer OFF

When the subwoofer is on, perform the steps below to adjust the subwoofer output level.

1 In the normal mode, press AUDIO/RTN repeatedly to

select the SUBWOOFER mode.

SUBWOOFER BASS TREBLE BALANCE FADER DEFEAT VOLUME SUBWOOFER

2 Adjust the level by turning the Rotary encoder.

Setting the Subwoofer System

System1 (Initial setting) / System2

Select either System1 or System2 for the desired subwoofer effect.

System1: Subwoofer level changes according the main

volume setting.

System2: Subwoofer level change is different from the main

volume setting. For example, even at low volume settings, the subwoofer is still audible.

Scroll Setting (Text Scroll)

Text Scroll Auto / Text Scroll Manual (Initial setting)

This CD player can scroll the disc and track names recorded on CD-TEXT discs, as well as the text information of MP3/WMA/AAC files, folder names, and tags.

Text Scroll Auto: CD text information, folder and file names,

and the tag information are scrolled continuously.

Text Scroll Manual:The above information is scrolled only when

a disc is loaded, a channel or track is changed, etc.

• In parts of the display, scrolling may not occur, or scroll content may

differ.

Switching the Character Font (Font Select)

TYPE 1 (Initial setting) / TYPE 2

Two types of font can be selected. You can select the font type you like.

Switching the Animation Display Type (BGV Select)

OFF (Initial setting) / TYPE 1 / TYPE 2 / TYPE 3 / TYPE 4

You can select from 4 types of animation display for the display background.

Display Setting

DISPLAY is selected on the setup main menu in step 2.

Changing Lighting Colour

Illumination TYPE 1 (Initial setting) / TYPE 2 / TYPE 3

You can change the lighting colour of the following six buttons. SOURCE/ , BAND/TA, , , , .

TYPE 1 : When the colour of the six buttons is blue,

the colour of the other is blue.

TYPE 2 : When the colour of the six buttons is blue,

the colour of the other is red.

TYPE 3 : When the colour of the six buttons is red, the

colour of the other is red.

Dimmer Control

Dimmer Auto (Initial setting) / Dimmer Manual

Set the Dimmer control to Auto to decrease the illumination brightness of the unit with the head lights of the vehicle ON. This mode is useful if you feel the unit’s backlighting is too bright at night.

• If your vehicle should have a dimmer control for the dashboard

lights, never connect the DIMMER cable (orange) of the radio to this dimmer control.

Scroll Type Setting

Scroll Type 1 / Scroll Type 2 (Initial setting)

Choose from two scrolling methods. Select the type you prefer.

Scroll Type 1: The characters scroll from right to left, a

single character at a time, until the entire title has scrolled.

Scroll Type 2: Words are built up from left to right, a single

character at a time. When the display is filled, it is cleared and the remaining words are displayed the same way until all words of the title have been shown.

Opening Message ON/OFF Setting

Opening MSG ON / Opening MSG OFF (Initial setting)

This unit includes a special message feature with various patterns, which when enabled displays opening messages for certain occasions. For example, when you turn this unit on December 25th (according to the unit’s date setting), a Christmas greeting is displayed if the Opening Message is set to ON.

Setting of Calendar Display Pattern Switching (Calendar)

dd/mm/yyyy (Initial setting) / yyyy/mm/dd / mm/dd/yyyy

You can switch the calendar display pattern to be shown when the time is displayed.

yyyy: shows the year mm: shows the month dd: shows the day

ex. dd/mm/yyyy 25/12/2006

Tuner Setting

TUNER is selected on the setup main menu in step 2.

Adjusting Source Signal Levels

FM Level High (Initial setting) / FM Level Low

If the difference in volume level between the CD player and FM radio is too great, adjust the FM signal level.

22-EN

iPod® (Optional)

Rot

ary encoder

//ENT

/ESC

An iPod® can be connected to this unit by using the proprietary ALPINE FULL SPEED™ Connection Cable (KCE-422i) (sold separately). When this unit is connected by using the cable, the controls on the iPod are not functional.

• Set AUX+ Setup to OFF when an iPod is connected (refer to “Setting

the AUX+ Mode” on page 20).

iPods usable with this unit

• The unit can be used with the fourth generation and above

iPod, iPod photo, iPod minis or iPod nano. iPod Shuffle cannot be used, however.

• Touch wheel or scroll wheel type iPods without the dock

connector cannot be connected to the unit.

• The unit can be used with the following iPod versions.

Correct function of earlier versions cannot be guaranteed.

Fourth generation iPod: Ver. 3.1.1 Fifth generation iPod: Ver. 1.1.2 iPod photo: Ver. 1.2.1 iPod mini: Ver. 1.4.1 iPod nano: Ver. 1.1 Video iPod: Ver. 1.2

• The unit cannot be used with software versions earlier than

“2006-06-28”. For details about “iPod Software Update,” refer to the iPod Instruction Manual.

SOURCE/

AUDIO/RTN

4 5 6

Preset buttons

(1 through 6)

TITLE

To pause playback, press //ENT.

Pressing //ENT again will resume playback.

• A song playing on the iPod while it is connected to this unit will

continue to play from where it was paused after disconnection.

Searching for a desired Song

An iPod can contain hundreds of songs. By using file tag information and keeping these songs organised in playlists, this unit’s search functions will ease song searches. Each music category has its own individual hierarchy. Use the Playlist/ Artist/Album/Song/Podcsat/Genre/Composer search mode to narrow searches based on the table below.

Hierarchy 1 Hierarchy 2 Hierarchy 3 Hierarchy 4

Playlist Song — —

Artist* Album* Song —

Album* Song — —

Song — — —

Podcast Episode — —

Genre* Artist* Album* Song

Composer* Album* Song —

For example: Searching by Artist name The following example explains how an ARTIST search is performed. Another search mode can be used for the same operation, although the hierarchy differs.

Press /ESC to activate the search selection mode.

Turn the Rotary encoder to select the Artist search mode, and then press //ENT.

Playlist Artist Album Song Podcast Genre Composer Playlist

Turn the Rotary encoder to select the desired Artist, and then press //ENT.

Turn the Rotary encoder to select an album, and then press //ENT.

Playback

Press SOURCE/ to switch to the iPod mode.

TUNER DISC iPod*1 CHANGER*2 TUNER

*1Only when the iPod is connected. *2Only when the CD changer is connected.

Press or to select the desired song.

Return to the beginning of the current song:

Press .

Fast backward:

Press and hold .

Advance to the beginning of the next song:

Press .

Fast forward:

Press and hold .

23-EN

Turn the Rotary encoder to select a song and press //ENT.

The selected song is played back.

• After pressing and holding //ENT for at least 2 seconds while

in each hierarchy (except SONG hierarchy), all songs of the selected hierarchy are played back.

• After selecting [ALL] in the search mode with “*”, press and hold

ENT for at least 2 seconds to play back all songs in the iPod

or selected search mode.

• While in the search mode, if you press and hold /ESC for at least

2 seconds, or no operation is performed for 10 seconds, the search mode is cancelled.

• In the search mode, pressing AUDIO/RTN will return to the previous

mode.

• The search cannot be made during M.I.X. play.

• “NO SONG” will be displayed if there is no song in the selected

playlist in the Playlist search mode.

• “NO PODCAST” will be displayed if there is no podcast data in the

iPod in the PODCAST search mode.

• If “iPod name” stored in the iPod is selected in the desired Playlist

search mode and //ENT is pressed, you can search for all songs in the iPod. Also, if you press and hold //ENT for at least 2 seconds, all songs in the iPod are played back.

• Depending on the iPod, podcast search is not supported.

• If any one of the preset buttons (1 through 6) is pressed in the search

mode, a search can be made quickly by skipping to the specified location. For details, refer to “Direct Search Function” on page 24.

Quick Search

You can search a song from all songs in the iPod without selecting an album, artist, etc.

Direct Search Function

The unit’s direct search function can be used to search for an album, song, etc., more efficiently. In Playlist/Artist/Album/Song/Podcast/ Genre/Composer mode, you can quickly target any song.

In the search mode, press any one of the preset buttons (1 through 6) to quickly skip over a

designated percent of your song content.

Song search example: If there are 100 songs in your iPod, they are divided into 6 groups using percentages (shown below). These groups are assigned to the preset buttons (1 through 6).

Example 1: Suppose the song you are searching for is located at around

the middle (50%) of your library: press button 4 to jump to the

50th song and turn the Rotary encoder to find the desired

song.

Example 2: Suppose the song you are searching for is located near the

end (83%) of your library: press button 6 to jump to the 83rd

song and turn the Rotary encoder to find the desired song.

All 100 songs (100%)

0% 17% 33% 50% 67% 83%

Preset

buttons

Songs

123456

First

17th

33rd

50th

67th

83rd

song

Press and hold /ESC for at least 2 seconds to activate the Quick Search mode.

Turn the Rotary encoder to select a desired song.

The selected song is played back immediately.

• Press and hold /ESC for at least 2 seconds in the search mode to

cancel. Or, the search mode is cancelled if no operation is performed for 10 seconds.

• If many songs are in iPod, it takes time to search for songs.

• If any one of the preset buttons (1 through 6) is pressed in the search

mode, a search can be made quickly by skipping to the specified location. For details, refer to “Direct Search Function” on page 24.

Select Playlist/Artist/Album/Podcast/ Genre/Composer

Playlist/Artist/Album/Podcast/Genre/Composer can be easily changed. For example, if you listen to a song from a selected album, the album can be changed.

Press or to select the desired Playlist/Artist/Album/ Podcast/Genre/Composer.

• If the song search mode was used to select a song, this function is

inactive.

• If an album is selected during an artist search, other albums by that

artist are searchable.

• This function is inactive during shuffle (M.I.X.) playback.

24-EN

Random Play Shuffle (M.I.X.)

Repeat Play

The Shuffle function of the iPod is displayed as M.I.X. on this unit.

Shuffle Albums:

The songs on each album are played back in proper order. Upon completion of all the songs on the album, the next album is selected randomly. This continues until all albums have been played.

Shuffle Songs:

Song shuffle randomly plays back songs within a selected category (playlist, album, etc.). The songs within the category are played just once until all songs have been played.

Press 5 .

The songs are played back in random sequence. M.I.X. M.I.X. (off) M.I.X.

(Shuffle Albums)

To cancel M.I.X. play, select (off) with the above

(Shuffle Songs)

procedure.

• If a song is selected in the album search mode before selecting

M.I.X., the songs will not play back randomly even when Shuffle Albums is selected.

Shuffle ALL:

Shuffle ALL plays all songs in the iPod randomly. Any one song does not play back again until all songs have been played back.

Press 6.

The songs are played back in random sequence. M.I.X. (off) M.I.X.

(Shuffle ALL)

To cancel M.I.X. play, select (off) with the above procedure.

• If Shuffle ALL is selected, the selected songs being played back in the

search mode are cancelled.

Only Repeat One is available for the iPod.

Repeat One:

A single song is repeatedly played back.

Press 4.

The song is played back repeatedly. RPT (off) RPT

(Repeat One)

To cancel repeat play, select (off) with the above procedure.

• During repeat playback, no other songs are selectable by pressing

or .

Displaying the Text

You can display the tag information of a song in the iPod.

Press TITLE.

Each press changes the display.

• If you want to change the display when the text scroll is set to

Manual, press TITLE while the text is scrolling. If the scroll has been

completed, press TITLE to scroll the text again.

Song Name

Track No./All Songs No. /Elapsed Time

Album Name

Song Name

Track No./All Songs No. /Elapsed Time

TAG information

If the Scroll Setting (page 22) is set to “Auto”, the tag information

will scroll automatically.

If there is no text information, nothing will be displayed. *2The numbers of all songs displayed vary depending on the songs

selected by the search. *3When the Scroll Setting (page 22) is set to “Auto”, the display cannot

be switched by pressing TITLE. The display contents switch

alternately.

• Only alphanumeric characters (ASCII) can be displayed.

• If the artist, album or song name, created in iTunes, has too many

characters, songs may not be played back when connected to the

adapter. Therefore, a maximum of 250 characters is recommended.

The maximum number of characters for the head unit is 128

(128 byte).

• Some characters may not be correctly displayed.

• The display is blank if text information is not supported by the unit.

Song Name

Calendar/Clock

Artist Name

Song Name

(Blank) (Blank)

25-EN

Changer (Optional)

Playing MP3 Files with the CD Changer (Optional)

//ENT

SOURCE

BAND/TA

FUNC./SETUP

Select buttons

(1 through 6)

Controlling CD Changer (Optional)

An optional 6-disc or 12-disc CD Changer may be connected to this unit if it is Ai-NET compatible. With a CD Changer connected to the AiNET input of this unit, the CD Changer will be controllable from this unit. Using the KCA-400C (Multi-Changer Switching device) or the KCA410C (Versatile Link Terminal) multiple changers can be controlled by this unit. See “Multi-Changer Selection (Optional)” on page 26 for selecting the CD Changers.

• The controls on this unit for CD Changer operation are operative

only when a CD Changer is connected.

• The DVD changer (optional) is controllable from this unit as well as

the CD changer.

Press SOURCE/ to activate the CHANGER mode.

The display shows the disc number and track number.

• The source indicator varies depending on the connected source.

• Press BAND/TA to switch the Disc mode in the Changer mode.

Press FUNC./SETUP to activate the disc selection mode.

Disc Select Mode

(Disc No.1~6)

Disc Select Mode*

(Disc No.7~12)

If you connect a changer compatible with MP3, you can play CDROMs, CD-Rs, and CD-RWs containing MP3 files on this unit.

Press SOURCE/ to switch to the MP3 Changer mode.

Press FUNC./SETUP to activate the disc selection mode.

M.I.X./REPEAT operation mode Disc selection mode M.I.X./REPEAT operation mode

Press any one of the disc select buttons (1 through 6) corresponding to one of the discs

loaded in the CD Changer.

To pause playback, press //ENT.

Pressing / /ENT again will resume playback.

• The unit can play discs containing both audio data and MP3 data.

• For operating MP3 with an MP3 compatible CD Changer, refer to

“CD/MP3/WMA/AAC” pages 12 to 15.

Multi-Changer Selection (Optional)

Alpine’s Ai-NET system will support up to 6 CD Changers. When operating two or more changers, the KCA-400C (Multi-Changer Switching device) must be used. If you use 1 Switching device, you can connect up to 4 CD Changers. If you use 2 Switching devices, you can connect up to 6 CD Changers. When using KCA-410C (Versatile Link Terminal), you can connect two changers and two external outputs (AUX).

Press SOURCE/ on this unit to activate the CD Changer mode.

Press BAND/TA to activate the CD Changer Selection mode.

The CD Changer Selection mode remains active for several seconds.

RPT/M.I.X. Mode

Press the disc select buttons (1 through 6) corresponding to one of the discs loaded in the CD Changer.

The selected disc number appears in the display and CD/MP3 playback starts.

• After selecting the desired disc, you can operate in the same way as

for the CD player of this unit. For details, please see the CD/MP3/WMA/AAC section.

* When a 12-disc CD changer is connected.

Disc Select Mode

(Disc No.1~6)

26-EN

Press BAND/TA until the desired CD Changer indicator appears on the display.

• If the selected CD Changer is not connected, the display will show

“NO CHANGER (No.)”.

• To operate the selected changer, see “CD/MP3/WMA/AAC”

(pages 12-15).

• For further details about the external input (AUX) when using

KCA-410C, see “Setting the AUX Mode (V-Link)” on page 20.

Information

In Case of Difficulty

If you encounter a problem, please turn the power off, then on again. If the unit is still not functioning normally, please review the items in the following checklist. This guide will help you isolate the problem if the unit is at fault. Otherwise, make sure the rest of your system is properly connected or consult your authorized Alpine dealer.

Basic

No function or display.

• Vehicle’s ignition is off.

- If connected following instructions, the unit will not operate with the vehicle’s ignition off.

• Improper power lead (Red) and battery lead (Yellow) connections.

- Check power lead and battery lead connections.

•Blown fuse.

- Check the fuse of the unit; replace with the proper value if

necessary.

• Internal micro-computer malfunctioned due to interference noise etc.

- Press the RESET switch with a ballpoint pen or other pointed

article.

Radio

Unable to receive stations.

• No antenna or open connection in cable.

- Make sure the antenna is properly connected; replace the

antenna or cable if necessary.

Unable to tune stations in the seek mode.

• You are in a weak signal area.

- Make sure the tuner is in the DX mode.

• If the area you are in is a primary signal area, the antenna may not be grounded and connected properly.

- Check your antenna connections; make sure the antenna is

properly grounded at its mounting location.

• The antenna may not be the proper length.

- Make sure the antenna is fully extended; if broken, replace the

antenna with a new one.

Broadcast is noisy.

• The antenna is not the proper length.

- Extend the antenna fully; replace it if it is broken.

• The antenna is poorly grounded.

- Make sure the antenna is grounded properly at its mounting

location.

CD Player/Changer not functioning.

• Out of operating temperature range +50°C (+120°F) for CD.

- Allow the vehicle’s interior (or trunk) temperature to cool.

CD playback sound is wavering.

• Moisture condensation in the CD Module.

- Allow enough time for the condensation to evaporate (about 1

hour).

CD insertion not possible.

• A CD is already in the CD player.

- Eject the CD and remove it.

• The CD is being improperly inserted.

- Make sure the CD is being inserted following instructions in the CD Player Operation section.

Unable to fast forward or backward the CD.

• The CD has been damaged.

- Eject the CD and discard it; using a damaged CD in your unit can cause damage to the mechanism.

CD playback sound skips due to vibration.

• Improper mounting of the unit.

- Securely re-mount the unit.

• The disc is very dirty.

- Clean the disc.

• The disc has scratches.

- Change the disc.

• The pick-up lens is dirty.

- Do not use a commercially available lens cleaner disc. Consult your nearest Alpine dealer.

CD playback sound skips without vibration.

• The disc is dirty or scratched.

- Clean the disc; damaged disc should be replaced.

Error displays (built-in CD player only).

• Mechanical error.

- Press . After the error indication disappears, insert the disc again. If the above-mentioned solution does not solve the problem, consult your nearest Alpine dealer.

CD-R/CD-RW playback not possible.

• Close session (finalization) has not been performed.

- Perform finalization and attempt playback again.

MP3/WMA/AAC

MP3, WMA or AAC is not played back.

• Writing error occurred. The CD format is not compatible.

- Make sure the CD has been written in a supported format. Refer to “About MP3/WMA/AAC” (pages 14-15), then rewrite in the format supported by this device.

Audio

The sound is not output from the speakers.

• Unit has no output signal of the internal amplifier.

- Power IC is switched to “ON” (page 21).

iPod

iPod does not play and no sound is output.

• The iPod has not been recognized.

- Reset this unit and the iPod. Refer to “Initial System Start-Up” (page 7). To reset the iPod, refer to the Owner’s Manual of the iPod.

Indication for CD Player

• Protective circuit is activated due to high temperature.

- The indication will disappear when the temperature returns to normal operating range.

27-EN

• No CD is inserted.

- Insert a CD.

• Although a disc is inserted, “No Disc” is displayed and the unit does not start to play or eject the disc.

- Remove the disc by following these steps:

Press the button again for at least 2 seconds. If the disc still does not eject, consult your Alpine dealer.

• Mechanism error.

1) Press the button and eject the CD.

If not ejecting, consult your Alpine dealer.

2) When the error indication remains after ejecting, press the

button again. If the error indication still does not turn off after pressing the

button for a few times, consult your Alpine dealer.

• When “Error” is displayed:

If the disc cannot be ejected by pressing , press the RESET switch (refer to page 7) and press again. If the disc still cannot be ejected, consult your Alpine dealer.

• A copy-protected WMA file was played back.

- You can only play back non-copy-protected files.

• A disc is left inside the CD Changer.

- Press the eject button to activate the eject function. When the CD Changer finishes the eject function, insert an empty CD magazine into the CD Changer to receive the disc left inside the CD Changer.

• No magazine is loaded into the CD Changer.

- Insert a magazine.

• No indicated disc.

- Choose another disc.

Indication for iPod Mode

• The iPod is not connected.

- Make sure the iPod is correctly connected (refer to “Connections”). Make sure the cable is not bent excessively.

• The iPod’s battery remains low.

- Refer to the iPod’s documentation and charge the battery.

• A sampling rate/bit rate not supported by the unit is used.

- Use a sampling rate/bit rate that is supported by the unit.

Indication for CD Changer

• Protective circuit is activated due to high temperature.

- The indication will disappear when the temperature returns to normal operating range.

• Malfunction in the CD Changer.

- Consult your Alpine dealer. Press the magazine eject button and pull out the magazine. Check the indication. Insert the magazine again. If the magazine cannot be pulled out, consult your Alpine dealer.

• Magazine ejection not possible.

- Press the magazine eject button. If the magazine does not eject, consult your Alpine dealer.

• There are no songs in the iPod.

- Download songs to the iPod and connect to the adapter.

• There is no podcast data in the iPod.

- Download podcast data to the iPod and connect to this unit.

• Communication error.

- Turn the ignition key off, and then set to ON again.

- Check the display by reconnecting between the iPod and the adapter, using the iPod cable.

• Caused by the iPod Software Version not being compatible with this unit.

- Update the iPod Software Version to be compatible with this

unit.

28-EN

Specifications

FM TUNER SECTION

Tuning Range 87.5-108.0 MHz Mono Usable Sensitivity 0.7 µV Alternate Channel Selectivity 80 dB Signal-to-Noise Ratio 65 dB Stereo Separation 35 dB Capture Ratio 2.0 dB

MW TUNER SECTION

Tuning Range 531-1,602 kHz Sensitivity (IEC Standard) 25.1 µV/28 dB

LW TUNER SECTION

Tuning Range 153-281 kHz Sensitivity (IEC Standard) 31.6 µV/30 dB

CD PLAYER SECTION

Frequency Response 5-20,000 Hz (±1 dB) Wow & Flutter (% WRMS) Below measurable limits Total Harmonic Distortion 0.008% (at 1 kHz) Dynamic Range 95 dB (at 1 kHz) Signal-to-Noise Ratio 105 dB Channel Separation 85 dB (at 1 kHz)

PICKUP

Wave length 795 nm Laser power CLASS I

GENERAL

Power Requirement 14.4 V DC

(11-16 V allowable) Maximum Power Output 50 W × 4 Maximum Pre-Output Voltage 4 V/10 k ohms Bass +20/–14 dB at 60 Hz Treble ±14 dB at 10 kHz Weight 1.7 kg (3 lbs. 11 oz)

CHASSIS SIZE

Width 178 mm (7") Height 50 mm (2") Depth 162 mm (6-3/8")

NOSEPIECE SIZE

Width 170 mm (6-3/4") Height 46 mm (1-13/16") Depth 24 mm (15/16")

• Due to continuous product improvement, specifications and design

are subject to change without notice.

CAUTION

CLASS 1

LASER PRODUCT

(Bottom side of player)

29-EN

Installation and Connections

Before installing or connecting the unit, please read the following and pages 3 to 5 of this manual thoroughly for proper use.

Warning

MAKE THE CORRECT CONNECTIONS.

Failure to make the proper connections may result in fire or product damage.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may result in fire, etc.

BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL.

Failure to do so may result in electric shock or injury due to electrical shorts.

DO NOT SPLICE INTO ELECTRICAL CABLES.

Never cut away cable insulation to supply power to other equipment. Doing so will exceed the current carrying capacity of the wire and result in fire or electric shock.

DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING HOLES.

When drilling holes in the chassis for installation, take precautions so as not to contact, damage or obstruct pipes, fuel lines, tanks or electrical wiring. Failure to take such precautions may result in fire.

DO NOT USE BOLTS OR NUTS IN THE BRAKE OR STEERING SYSTEMS TO MAKE GROUND CONNECTIONS.

Bolts or nuts used for the brake or steering systems (or any other safety-related system), or tanks should NEVER be used for installations or ground connections. Using such parts could disable control of the vehicle and cause fire etc.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician immediately.

DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER VEHICLE OPERATION, SUCH AS THE STEERING WHEEL OR SHIFT LEVER.

Doing so may obstruct forward vision or hamper movement etc. and results in serious accident.

Caution

HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS.

The wiring and installation of this unit requires special technical skill and experience. To ensure safety, always contact the dealer where you purchased this product to have the work done.

USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM SECURELY.

Be sure to use only the specified accessory parts. Use of other than designated parts may damage this unit internally or may not securely install the unit in place. This may cause parts to become loose resulting in hazards or product failure.

ARRANGE THE WIRING SO IT IS NOT CRIMPED OR PINCHED BY A SHARP METAL EDGE.

Route the cables and wiring away from moving parts (like the seat rails) or sharp or pointed edges. This will prevent crimping and damage to the wiring. If wiring passes through a hole in metal, use a rubber grommet to prevent the wire’s insulation from being cut by the metal edge of the hole.

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST.

Avoid installing the unit in locations with high incidence of moisture or dust. Moisture or dust that penetrates into this unit may result in product failure.

Precautions

•

Be sure to disconnect the cable from the (–) battery post before installing your CDA-9885R. This will reduce any chance of damage to the unit in case of a short-circuit.

•

Be sure to connect the colour coded leads according to the diagram. Incorrect connections may cause the unit to malfunction or damage to the vehicle

•

When making connections to the vehicle’s electrical system, be aware of the factory installed components (e.g. on-board computer). Do not tap into these leads to provide power for this unit. When connecting the CDA-9885R to the fuse box, make sure the fuse for the intended circuit of the CDA-9885R has the appropriate amperage. Failure to do so may result in damage to the unit and/or the vehicle. When in doubt, consult your Alpine dealer.

•

The CDA-9885R uses female RCA-type jacks for connection to other units (e.g. amplifier) having RCA connectors. You may need an adaptor to connect other units. If so, please contact your authorized Alpine dealer for assistance.

•

Be sure to connect the speaker (–) leads to the speaker (–) terminal. Never connect left and right channel speaker cables to each other or to the vehicle body.

’

s electrical system.

IMPORTANT

Please record the serial number of your unit in the space provided below and keep it as a permanent record. The serial number or the engraved serial number is located on the bottom of the unit.

30-EN

SERIAL NUMBER: INSTALLATION DATE: INSTALLATION TECHNICIAN: PLACE OF PURCHASE:

Installation

Detachable Front Panel

Caution

When you install this unit in your car, do not remove the detachable front panel. If the detachable front panel is removed during installation, you

might press too hard and warp the metal plate that holds it in

place.

• The main unit must be mounted within 35 degrees of the horizontal

plane, back to front.

Less than 35°

Bracket

Mounting Sleeve (Included)

Rubber Cap (Included)

Hex Bolt (Included)

Dashboard

When your vehicle has the Bracket, mount the long hex bolt onto the rear panel of the CDA-9885R and put the Rubber Cap on the hex bolt. If your vehicle does not have the Mounting Support, reinforce the head unit with the metal mounting strap (not supplied). Connect all the leads of the CDA-9885R according to details described in the CONNECTIONS section.

• For the screw *, provide a proper screw to the chassis installing

location.

Slide the CDA-9885R into the dashboard. When the

unit is in place, make sure the locking pins are fully seated in the down position. This can be done by pressing firmly in on the unit while pushing the locking pin down with a small screwdriver. This ensures that the unit is properly locked and will not accidentally come out from the dashboard.

Lock pin

Removal

1. Remove the detachable front panel.

2. Use a small screwdriver (or similar tool) to push the locking pins to the “up” position (see above drawing). As each pin is unlocked, gently pull out on the unit to make sure it does not re-lock before unlocking the second pin.

3. Pull the unit out, keeping it unlocked as you do so.

Pressure Plates*

This unit

* If the installed mounting sleeve is loose in the dashboard, the

pressure plates may be bent slightly to remedy the problem.

Remove the mounting sleeve from the main unit (see “Removal” on page 31). Slide the mounting sleeve into the dashboard and fix it with the metal shackles.

Metal Mounting Strap

Screw

Bolt Stud

Hex Nut (M5)

This unit

Front Frame

Screws (M5 × 8) (Included)

This unit

Mounting Bracket

31-EN

Connections

(Black) ADAPTIVE STEERING REMOTE G . GND

(Brown/Yellow) ADAPTIVE STEERING REMOTE CONTROL IN1

(Brown/Orange) ADAPTIVE STEERING REMOTE CONTROL IN2

(Blue)

(Pink/Black) AUDIO INTERRUPT IN

(Blue/White) REMOTE TURN-ON

(Orange) DIMMER

(Red) IGNITION

(Black) GND

(Blue) POWER ANT

BATTERY

(Yellow)

(Green)

(Green/Black)

(White)

(White/Black) (Grey/Black)

(Grey)

(Violet/Black)

(Violet )

(Black)

To adaptive steering remote control interface box

To iPod

To Vehicle Display Interface

Antenna

JASO Antenna Plug

To vehicle phone

To amplifier or equalizer

To the instrument cluster illumination lead

To power antenna

Ignition Key

Speakers

Rear Left

Front Left

Front Right

Rear Right

ISO Antenna Plug

Battery

32-EN

Ai-NET

NORMEQ/DIV

CD Changer

(Sold Separately)

Speakers

Amplifier

Rear Left

Rear Right

Amplifier

Front Left

Front Right

Amplifier

Subwoofers

*1The label is attached on the bottom of the unit.

Vehicle Display Interface Connector (Black)

Outputs Vehicle Display Interface control signals. Connect this to the optional Vehicle Display Interface box. For details about connections, consult your nearest Alpine dealer.

Antenna Receptacle Audio Interrupt In Lead (Pink/Black)

Connect this lead to the Audio Interface output of a cellular phone which provides ground shorting when a call is received.

Remote Turn-On Lead (Blue/White)

Connect this lead to the remote turn-on lead of your amplifier or signal processor.

Dimmer Lead (Orange)

This lead may be connected to the vehicle’s instrument cluster illumination lead. This will enable the vehicle’s dimmer control to dim the backlighting of the unit.

Switched Power Lead (Ignition) (Red)

Connect this lead to an open terminal on the vehicle’s fuse box or another unused power source which provides (+) 12V only when the ignition is turned on or in the accessory position.

Ground Lead (Black)

Connect this lead to a good chassis ground on the vehicle. Make sure the connection is made to bare metal and is securely fastened using the sheet metal screw provided.

Power Antenna Lead (Blue)

Connect this lead to the +B terminal of your power antenna, if applicable.

• This lead should be used only for controlling the vehicle’s power

antenna. Do not use this lead to turn on an amplifier or a signal processor, etc.

Battery Lead (Yellow)

Connect this lead to the positive (+) post of the vehicle’s battery.

ISO Power Supply Connector ISO Connector (Speaker Output) Left Rear (+) Speaker Output Lead (Green) Left Rear (–) Speaker Output Lead (Green/Black) Left Front (+) Speaker Output Lead (White) Left Front (–) Speaker Output Lead (White/Black) Right Front (–) Speaker Output Lead (Grey/Black) Right Front (+) Speaker Output Lead (Grey) Right Rear (–) Speaker Output Lead (Violet/Black) Right Rear (+) Speaker Output Lead (Violet) Ai-NET Connector

Connect this to the output or input connector of other product (CD changer, Equalizer, etc.) equipped with Ai-NET.

Steering Remote Control Interface Connector

To steering remote control interface box. For details about connections, consult your nearest Alpine dealer.

Fuse Holder (10A) Rear Output RCA Connectors

RED is right and WHITE is left.

Front Output RCA Connectors

RED is right and WHITE is left.

Subwoofer Output RCA Connectors

RED is right and WHITE is left.

System Switch

When connecting a processor using Ai-NET, place this switch in the EQ/DIV position. When no device is connected, leave the switch in the NORM position.

• Be sure to turn the power off to the unit before changing the switch

position.

Power Supply Connector Ai-NET Cable (Included with CD Changer) RCA Extension Cable (sold separately) ISO/JASO Antenna Adaptor (sold separately)

An ISO/JASO antenna adapter may be required, depending on the vehicle.

Adaptive Steering Remote Control In 1 Lead (Brown/ Yellow)

To adaptive steering remote control interface box. For details about connections, consult your nearest Alpine dealer.

Adaptive Steering Remote Control In 2 Lead (Brown/ Orange)

To adaptive steering remote control interface box. For details about connections, consult your nearest Alpine dealer.

Adaptive Steering Remote G.GND

To adaptive steering remote control interface box. For details about connections, consult your nearest Alpine dealer.

iPod Direct Connector (Blue)

Control iPod signals. Connect this to an iPod or to an optional Bluetooth Box. To use a hands-free mobile phone, an optional Bluetooth Box connection is required. For details on connection, refer to the Owner’s Manual of the Bluetooth Box. You can also connect this to an external device (such as a portable player) by using iPod Direct/RCA Interface cable (sold separately).

* Refer to “Setting the AUX+ Mode” (page 20).

AUX+ ON : When the external device is connected. AUX+ OFF : When an iPod is connected.

FULL SPEED™ Connection Cable (KCE-422i) (sold separately)

To prevent external noise from entering the audio system.

• Locate the unit and route the leads at least 10 cm away from the car harness.

• Keep the battery power leads as far away from other leads as possible.

• Connect the ground lead securely to a bare metal spot (remove any paint, dirt or grease if necessary) of the car chassis.

• If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various noise suppressors, contact them for further information.

• Your Alpine dealer knows best about noise prevention measures so consult your dealer for further information.

33-EN

34-EN

Appendix

Product Information Card

English

Filling in this Product Information Card is voluntary. If you fill in this card and send it to Alpine, your data will be tabulated into reference data for future Alpine product development. In addition, in the future you may receive information about new products or Survey Mail requesting additional opinions about Alpine products or services. If you agree to the above term, please sign your name in the indicated space and return the card. Any additional comments or inquiries may be sent to : Person in charge of Customer Service department Alpine Electronics (Europe) GmbH. Frankfurter Ring 117, 80807 München, Germany Phone: +49-(0)89-32 42 640

Q1. PRODUCT PURCHASED

1. Cassette Player

2. CD Player

3. MD Player

4. DVD Player

5. CD Changer

6. Amplifier

7. Speaker

8. Subwoofer

9. Monitor Controller

10. Video Monitor

11. Navigation

12. Processor/Equalizer

13. CD/Video CD Changer

14. Other

Q2. MODEL NUMBER: Q3. DATE OF PURCHASE:

Month: Year:

Q4. If navigation system, which monitor?

1. Alpine → (Model No.)

2. Other → (Brand Name)

Q5. STORE TYPE WHERE PURCHASED:

1. Car Audio Specialist

2. Audio/Video Store

3. Electronics/Applia nce Store

4. Car Accessories Shop

5. Other

Q6. Type of vehicle in which this unit is

installed:

Make: Model: Purchased Model Year: Year:

Q7. How was this vehicle purchased?

1. Purchase

2. Lease

Q8. Purpose of buying this unit?

1. Addition

Replacement

↓

• Previous brand replaced?

1. Factory installed

2. Alpine

3. Other → (Brand Name)

Q9. Have you purchased Alpine products

before?

1. First time

2. Two or More times

Q10.When you purchased this Alpine unit,

did you compare it with other brand?

1. Yes → (Brand Name)

2. No.

Q11.GENDER

1. Male

2. Female

Q12.AGE Q13.MARITAL STATUS

1. Single

2. Married

Q14.OCCUPATION

1. Company Owner/Self-employed/Freelance

2. Manager

3. Company Employee

4. Civil Servant

5. Educator

6. Student

7. Other

Q15.Comments

Produkt-Informationskarte

Deutsch

Das Ausfüllen dieser Produktinformations-Karte ist freiwillig. Sollten Sie diese Karte vervollständigen, so werden die Daten für zukünftige Produktentwicklungen von Alpine als Referenzdaten herangezogen. Ebenso können Sie in der Zukunft Informationen über neue Alpine Produkte erhalten oder uns auch Ihre Meinung über Alpine Produkte und Dienstleistungen im Rahmen von Kunden-Befragungen mitteilen. Stimmen Sie dem Kontakt durch Alpine zu, so würden wir Sie bitten, in dem dafür vorgesehenen Feld zu unterschreiben und die Karte kostenfrei an uns zurückzuschicken. Zusätzliche Kommentare und Meinungen können Sie gerne an den zuständigen Kontakt im Kundendienst Alpine Electronics (Europe) GmbH senden. Frankfurter Ring 117, 80807 München, Germany Phone: 089-32 42 640

Q1. gekauftes Gerät

1. Kassetten-Spieler

2. CD-Spieler

3. MD-Spieler

4. DVD-Spieler

5. CD-Wechsler

6. Verstärker

7. Lautsprecher

8. Subwoofer

9. Monitor-Controller

10. Video-Monitor

11. Navigationssystem

12. Prozessor/Equalizer

13. CD/Video-CD-Wechsler

14. andere

Q2. Modellnummer: Q3. Kaufdatum:

Monat: Jahr:

Q4. Falls Navigationssystem:

Welcher Monitor?

1. Alpine → (Modellnr.)

2. Anderer Hersteller → (Herstellername)

Q5. Art des Geschäfts, in dem Sie das

Gerät gekauft haben:

1. Spezialist für Auto-Audioanlagen

2. Audio/Video-Geschäft

3. Elektro-Geschäft

4. Autozubehör-Geschäft

5. Anderer Hersteller

Q6. Art des Fahrzeugs, in das das Gerät

installiert wurde:

Marke: Modell: gekauft im Jahr: Baujahr:

Q7. Wie haben Sie das Fahrzeug gekauft?

1. Kauf

2. Leasing

Q8. Zweck des Kaufs dieses Geräts?

1. Zusätzlich

Austausch

↓

• Marke des ausgetauschten Geräts?

1. Serienmäßige Ausstattun g

2. Alpine

3. Anderer Hersteller → (Herstellername)

Q9. War dies das erste Mal, dass Sie ein

Alpine-Gerät gekauft haben?

1. Erstes Mal

2. Zweites Mal oder öfter

Q10.Haben Sie dieses Alpine-Gerät vor

dem Kauf mit Geräten anderer Hersteller verglichen?

1. Ja → (Herstellername)

2. Nein

Q11.Geschlecht

1. Männlich

2. Weiblich

Q12.Alter Q13.Familienstand

1. Ledig

2. Verheiratet

Q14.Beruf

1. Selbständige/Firmen inhaber/freiberuflich Tätige

2. Leitende Angestellte

3. Sonstige Angestellte

4. Beamte

5. Schulbildung

6. Studium

7. Sonstige

Q15.Kommentar:

Carte d’informations sur le produit

Français

En remplissant volontairement cette fiche, et en l’envoyant à Alpine, vous acceptez que ces informations soient utilisées par Alpine, dans le cadre de développement de nouveaux produits. Par ailleurs, vous autorisez Alpine à solliciter votre opinion par mailing sur de nouveaux produits ou services. Si vous acceptez les termes cidessus, veuillez signer cette carte à l’endroit indiqué, et nous la retourner. Tout autre commentaire ou demande doit être adressé à l’attention de: Responsable du service consommateur Alpine Electronics (Europe) GmbH. Frankfurter Ring 117, 80807 München, Germany Phone: +49-(0)89-32 42 640

Q1. PRODUIT ACHETE

1. Lecteur de cassette

2. Lecteur de CD

3. Lecteur MD

4. Lecteur DVD

5. Changeur de CD

6. Amplificateur

7. Haut-parleur

8. Haut-parleur de graves

9. Station Multimedia

10. Moniteur Vidéo

11. Navigation

12. Processeur/Egaliseur

13. Changeur de CD/CD Vidéo

14. Autre

Q2. NUMERO DU MODELE: Q3. DATE D’ACHAT:

Mois: Année:

Q4. Si c’est un système de navigation, quel

moniteur?

1. Alpine → (N° du modèle)

2. Autre → (Marque)

Q5. TYPE DE MAGASIN OU VOUS AVEZ

ACHETE LE PRODUIT:

1. Spécialiste autoradio

2. Magasin audio/vidéo

3. Magasin d’électronique/appareils

4. Magasin d’accessoires automobiles

5. Autre

Q6. Type de véhicule dans lequel cet

appareil est installé:

Marque: Modèle: Année Année du d’achat: modèle:

Q7. Comment avez-vous acheté ce

véhicule?

1. Achat

2. Location-bail

Q8. Pourquoi avez-vous acheté cet

appareil?

1. Addition

Remplacement

↓

• Marque précédente remplacée?

1. Installée en usine

2. Alpine

3. Autre → (Marque)

Q9. Aviez-vous déjà acheté des produits

Alpine?

1. Première fois

2. Deux fois ou plus

Q10.Lorsque vous avez acheté ce produit

Alpine, l’avez-vous comparé à une autre marque?

1. Oui → (Marque)

2. Non

Q11.SEXE

1. Masculin

2. Féminin

Q12.AGE Q13.SITUATION DE FAMILLE

1. Célibataire

2. Marié

Q14.PROFESSION

1. Entrepreneur/Travailleur indépendant/Freelance

2. Directeur

3. Employé de bureau

4. Fonctionnaire

5. Educateur

6. Etudiant

7. Autre

Q15.Commentaires

Tarjeta de información del producto

Español

El envío de la información solicitada es voluntario. Si Vd. nos la remite, será utilizada de modo confidencial para el desarrollo de futuros productos Alpine. Si Vd. desea recibir información sobre nuevos productos de nuestra gama, indique su nombre en el espacio designado y remítanos la tarjeta. Cualquier solicitud adicional puede ser enviada a : Persona responsable del Servicio de Atención al Cliente de Alpine Electronics (Europe) GmbH. Frankfurter Ring 117, 80807 München, Germany Phone: +49-(0)89-32 42 640

Q1. Producto Comprado

1. Radio/Cassette

2. Radio/CD

3. Reproductor de MD

4. Reproductor de DVD

5. Cambiador de CD

6. Amplificador

7. Altavoz

8. Subwoofer

9. Monitor de control

10. Monitor de video

11. Sistema de navegación

12. Procesador/Ecualizador

13. Cambiador de CD/Video CD

14. Otros

Q2. Número de modelo: Q3. Fecha de compra:

Mes: Año:

Q4. En caso de sistema de navegación,

¿qué monitor?

1. Alpine → (N° de modelo)

2. Otros → (Nombre de marca)

Q5. TIPO DE TIENDA DONDE COMPRÓ:

1. Especialista en audio de automóviles

2. Tienda de audio/video

3. Tienda de electrónica/electrodomésticos

4. Tienda de accesorios automovilísticos

5. Otros

Q6. Tipo de vehiculo en que la unidad está

instalada:

Marca: Modelo: Año de Año del compra: modelo:

Q7. ¿Cómo fue comprado este vehiculo?

1. compra

2. Leasing

Q8. ¿Propósito de comprar esta unidad?

1. Mejora del sistema

Sustitución

↓

• ¿Sustitución de marca anterior?

1. Instalado en la fábrica

2. Alpine

3. Otros → (Nombre de marca)

Q9. ¿Ha comprado Vd. productos Alpine

anteriormente?

1. Primera vez

2. Dos o más veces

Q10.Cuando usted compró esta unidad

Alpine, ¿la comparó con otros fabricantes?

1. Si → (Nombre de marca)

2. No

Q11.SEXO

1. Masculino

2. Femenino

Q12.Edad Q13.Estado civil

1. Soltero

2. Casado

Q14.Ocupación

1. Propietario de empresa/Autónomo/ Profesional independiente

2. Gerente

3. Empleado de compañia

4. Empleado público

5. Profesor

6. Estudiante

7. Otros

Q15.Comentarios

Scheda informazioni prodotto

Italiano

La compilazione di questa formulario è volontaria. Se compilate questo formulario, ritornandolo ad Alpine, i Vostri dati saranno raccolti in un file di riferimento per lo sviluppo dei nuovi prodotti Alpine. In aggiunta Voi potrete ricevere in futuro informazioni riguardanti i nuovi prodotti o la richiesta di una Vostra opinione circa i prodotti o i servizi forniti da Alpine. Se siete d’accordo, Vi preghiamo di ritornarci il formulario completato negli appositi spazi con i Vostri dati. In caso desideriate fornire altri commenti o richiedere informazioni aggiuntive, potete indirizzare il tutto a : Responsabile dipartimento Servizio Clienti Alpine Electronics (Europe) GmbH. Frankfurter Ring 117, 80807 München, Germany Phone: +49-(0)89-32 42 640

Q1. PRODOTTO ACQUISTATO

1. Lettore di cassette

2. Lettore CD

3. Lettore MD

4. Lettore DVD

5. CD Changer

6. Amplificatore

7. Altoparlante

8. Subwoofer

9. Radio Monitor

10. Monitor video

11. Sistema di navigazione

12. Processore/equalizzatore

13. Cambia CD/Video CD

14. Altro

Q2. NUMERO MODELLO: Q3. DATA DI ACQUISTO:

Mese: Anno:

Q4. In caso di acquisto di un sistema di

navigazione, quale monitor possiede?

1. Alpine → (No. Modello)

2. Altro → Nome marca

Q5. NEGOZIO DI ACQUISTO:

1. Specialista Car Stereo

2. Negozio di audio/video

3. Negozio di elettronica/elettrodomestici

4. Negozio accessori automobile

5. Altro

Q6. Tipo di veicolo posseduto:

Marca: Modello: Anno Anno acquisto: modello :

Q7. Modalità acquisto

1. Acquisto

2. Leasing

Q8. Scopo acquisto

1. Aggiunta

Sostituzione

↓

• Marca sostituita

1. Installato di fabbrica

2. Alpine

3. Altro → (Nome marca)

Q9. Avevate già acquistato prodotti Alpine?

1. No

2. Due o tre volte

Q10.Nell’acquistarlo, avete paragonato

questo prodotto ad un’altra marca?

1. Si → (Nome marca)

2. No

Q11.SESSO

1. Maschile

2. Femminile

Q12.ETÀ Q13.STATO CIVILE

1. Celibe/nubile

2. Coniugato/coniugata

Q14.LAVORO

1. Proprietario di azienda/artigiano/libero professionista

2. Manager

3. Impiegato

4. Impiegato statale

5. Insegnante

6. Studente

7. Altro

Q15.Commenti

S/NO. LABEL

Alpine CDA-9885R User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
