• CD changer for CDA-9856

• Changeur CD pour CDA-9856

• Cambiador de CD para CDA-9856

CHA-1214

• CD changer for CDA-9856

• Changeur CD pour CDA-9856

• Cambiador de CD para CDA-9856

Alpine CD Changers Give You More!

More musical selections, more versatility, more convenience.

The CHA-S634 is a high-performance 6-disc changer with a new M DAC, CD-R/RW PLAY BACK, MP3 PLAY BACK and CD TEXT. The CHA-1214 Ai-NET model holds 12 discs, and the CHM-S630 M-Bus model is a super-compact 6-disc changer with a CD-R/RW PLAY BACK.

Changeurs de CD Alpine : vous avez le choix!

Plus de sélections musicales, plus de souplesse, plus de confort.

Le modèle CHA-S634 est un changeur 6 disques ultra performant équipé des nouvelles fonctions M DAC, CD-R/RW PLAY BACK, MP3 PLAY BACK et CD TEXT. Le modèle CHA-1214 Ai-NET contient 12 disques. Le modèle CHM-S630 M-Bus est un changeur 6 disques super compact doté de la fonction CD-R/RW PLAY BACK.

¡Los cambiadores Alpine de CD le ofrecen más!

Más selecciones musicales, más versatilidad y más ventajas.

CHA-S634 es un cambiador de seis discos de alto rendimiento con nuevo M DAC, CD-R/RW PLAY BACK, MP3 PLAY BACK y CD TEXT. El modelo CHA-1214 Ai-NET alberga 12 discos y el modelo CHM-S630 M-Bus es un cambiador de seis discos de tamaño reducido con un CD-R/RW PLAY BACK.

ENGLISH

Contents Operating Instructions

WARNING

WARNING ................................................. 3

CAUTION .................................................. 3

PRECAUTIONS ........................................ 3

Getting Started

Turning Power On and Off ............................... 6

Detaching and Attaching the Front Panel ........ 6

Initial System Start-Up ..................................... 7

Adjusting Volume ............................................. 7

Lowering Volume Quickly ............................... 7

Setting Time ..................................................... 7

Radio

Listening to Radio ............................................ 8

Manual Storing of Station Presets .................... 8

Automatic Memory of Station Presets ............. 8

Tuning to Preset Stations .................................. 8

Frequency Search Function .............................. 9

Switching the HD Radio™ signal .................... 9

CD/MP3/WMA

Playback ........................................................... 9

Repeat Play ..................................................... 10

M.I.X. (Random Play) .................................... 10

Searching from CD Text ................................ 11

File/Folder Name Search

(concerning MP3/WMA) ............................ 11

Quick Search .................................................. 11

About MP3/WMA .......................................... 11

Other Functions

Displaying the Text .........................................15

Displaying Time .............................................16

SETUP

Sound Customizing

Subwoofer On and Off .....................................17

Setting the Subwoofer System .........................17

Visual Customizing

Dimmer Control ...............................................17

Scroll Type Setting ...........................................17

Scroll Setting (TEXT SCROLL) ......................17

HD Radio Station Call Setting .........................17

Demonstration ..................................................17

MP3/WMA

Playing MP3/WMA Data (PLAY MODE) .......18

External Device

Turning Mute Mode On/Off (INT MUTE) ......18

Setting the AUX Mode (V-Link) ......................18

Setting the External Digital Input

(DIGITAL AUX) ..........................................18

Connecting to an External Amplifier ...............18

SAT Radio Receiver (Optional)

Receiving Channels with the SAT Radio

Receiver (Optional) ..................................... 19

Checking the SAT Radio ID Number .............19

Setting the Tuning Method .............................19

Storing Channel Presets ..................................20

Receiving Stored Channels .............................20

Category/Channel Search Function ................20

Quick Search Function ...................................20

Receiving Weather or Traffic information from

SAT Radio ...................................................20

Changing the Display .....................................21

Setting the Auxiliary Data Field Display ........ 21

Sound Setting

Adjusting Bass/Treble/Balance (Between Left

and Right)/Fader (Between Front and Rear)/

Defeat .......................................................... 13

Setting the Bass Control ................................. 13

Setting the Treble Control .............................. 14

Setting the BBE Mode ................................... 14

1-EN

iPod™ (Optional)

Playback ..........................................................22

Searching for a desired Song .......................... 22

Searching by Playlist ...................................22

Searching by artist name .............................22

Searching by album name ...........................23

Searching by song name ..............................23

Select Playlist/Artist/Album ........................... 23

Quick Search ...................................................23

Random Play Shuffle (M.I.X.) .......................24

Repeat Play .....................................................24

Displaying the Text .........................................24

Changer (Optional)

Controlling CD Changer (Optional) ...............25

Playing MP3 Files with the CD Changer

(Optional) ....................................................25

Multi-Changer Selection (Optional) ...............25

Information

In Case of Difficulty .......................................26

Specifications .................................................. 28

Installation and Connections

Warning .................................................. 29

Caution ................................................... 29

Precautions ............................................ 29

Installation ......................................................30

Connections ....................................................32

LIMITED WARRANTY

2-EN

Operating Instructions

WARNING

This symbol means important instructions. Failure to heed them can result in serious injury or death.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result in an accident.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISE WHILE DRIVING.

Failure to do so may result in an accident.

MINIMIZE DISPLAY VIEWING WHILE DRIVING.

Viewing the display may distract the driver from looking ahead of the vehicle and cause an accident.

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, fire or electric shock.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may result in fire, etc.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician immediately.

USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES.

Failure to do so may result in fire or electric shock.

CAUTION

This symbol means important instructions. Failure to heed them can result in injury or material property damage.

HALT USE IMMEDIATELY IF A PROBLEM APPEARS.

Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for repairing.

PRECAUTIONS

Product Cleaning

Use a soft dry cloth for periodic cleaning of the product. For more severe stains, please dampen the cloth with water only. Anything else has the chance of dissolving the paint or damaging the plastic.

Temperature

Be sure the temperature inside the vehicle is between +60°C (+140°F) and –10°C (+14°F) before turning your unit on.

Moisture Condensation

You may notice the CD playback sound wavering due to condensation. If this happens, remove the disc from the player and wait about an hour for the moisture to evaporate.

Damaged Disc

Do not attempt to play cracked, warped, or damaged discs. Playing a bad disc could severely damage the playback mechanism.

Maintenance

If you have problems, do not attempt to repair the unit yourself. Return it to your Alpine dealer or the nearest Alpine Service Station for servicing.

DO NOT BLOCK VENTS OR RADIATOR PANELS.

Doing so may cause heat to build up inside and may result in fire.

USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.

Use for other than its designed application may result in fire, electric shock or other injury.

DO NOT PLACE HANDS, FINGERS OR FOREIGN OBJECTS IN INSERTION SLOTS OR GAPS.

Doing so may result in personal injury or damage to the product.

3-EN

Never Attempt the Following

Do not grip or pull out the disc while it is being pulled back into the player by the automatic reloading mechanism. Do not attempt to insert a disc into the unit when the unit power is off.

Inserting Discs

Your player accepts only one disc at a time for playback. Do not attempt to load more than one disc. Make sure the label side is facing up when you insert the disc. “ERROR” will be displayed on your player if you insert a disc incorrectly. If “ERROR” continues to be displayed even though the disc has been inserted correctly, push the RESET switch with a pointed object such as a ballpoint pen. Playing a disc while driving on a very bumpy road may result in skips, but this will not scratch the disc or damage the player.

New Discs

To prevent the CD from jamming, “ERROR” is displayed if discs with irregular surfaces are inserted or if discs are inserted incorrectly. When a new disc is ejected immediately after initial loading, use your finger to feel around the inside of the center hole and outside edge of the disc. If you feel any small bumps or irregularities, this could inhibit proper loading of the disc. To remove the bumps, rub the inside edge of the hole and outside edge of the disc with a ballpoint pen or other such instrument, then insert the disc again.

Center Hole

New Disc

Correct Handling

Do not drop the disc while handling. Hold the disc so you will not leave fingerprints on the surface. Do not affix tape, paper, or gummed labels to the disc. Do not write on the disc.

CORRECT

INCORRECT CORRECT

Disc Cleaning

Fingerprints, dust, or soil on the surface of the disc could cause the CD player to skip. For routine cleaning, wipe the playing surface with a clean, soft cloth from the centre of the disc to the outer edge. If the surface is heavily soiled, dampen a clean, soft cloth in a solution of mild neutral detergent before cleaning the disc.

Disc Accessories

There are various accessories available on the market for protecting the disc surface and improving sound quality. However, most of them will influence the thickness and/or diameter of the disc. Using such accessories can cause the disc to be out of standard specifications and may create operational problems. We recommend not using these accessories on discs played in Alpine CD players.

Bumps

Outside (Bumps)

Irregular Shaped Discs

Be sure to use round shape discs only for this unit and never use any special shape discs. Use of special shape discs may cause damage to the mechanism.

Installation Location

Make sure the CDA-9856 will not be installed in a location subjected to:

• Direct sun and heat

• High humidity and water

• Excessive dust

• Excessive vibrations

4-EN

Transparent Sheet Disc Stabilizer

On handling Compact Discs (CD/CD-R/CD-RW)

• Do not touch the surface.

• Do not expose the disc to direct sunlight.

• Do not affix stickers or labels.

• Clean the disc when it is dusty.

• Make sure that there are no bumps around the disc.

• Do not use commercially available disc accessories.

Do not leave the disc in the car or the unit for a long time. Never expose the disc to direct sunlight. Heat and humidity may damage

the CD and you may not be able to play it again.

To customers using CD-R/CD-RW

• If a CD-R/CD-RW cannot be played back, make sure the last recording session was closed (finalized).

• Finalize the CD-R/CD-RW if necessary, and attempt playback again.

About media that can be played

Use only compact discs with the label side showing the CD logo marks below.

If you use unspecified compact discs, correct performance cannot be guaranteed. You can play CD-Rs (CD-Recordable)/CD-RWs (CD-ReWritable) which have been recorded only on audio devices. You can also play CD-Rs/CD-RWs containing MP3/WMA formatted audio files.

• Some of the following CDs may not play on this unit: Flawed CDs, CDs with fingerprints, CDs exposed to extreme temperatures or sunlight (e.g., left in the car or this unit), CDs recorded under unstable conditions, CDs on which a recording failed or a re-recording was attempted, copy-protected CDs which do not conform to the audio CD industry standard.

• Use discs with MP3/WMA files written in a format compatible with this unit. For details, see pages 11-12.

• ROM data other than audio files contained in a disc will not produce sound when played back.

• Windows Media and the Windows logo are trademarks, or

registered trademarks of Microsoft Corporation in the United States and/or other countries.

• Apple and the Apple logo are trademarks of Apple Computer, Inc., registered in the U.S. and other countries. iPod and iPod mini are trademarks of Apple Computer, Inc.

• “MPEG Layer-3 audio coding technology licensed from Fraunhofer llS and Thomson.”

• “Supply of this product only conveys a license for private, noncommercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenuegeneration) real time broadcasting (terrestrial, satellite, cable and/or any other media), broadcasting/streaming via internet, intranets and/or other networks or in other electronic content distribution systems, such as pay-audio or audio-on-demand applications. An independent license for such use is required. For details, please visit http://www.mp3licensing.com.”

5-EN

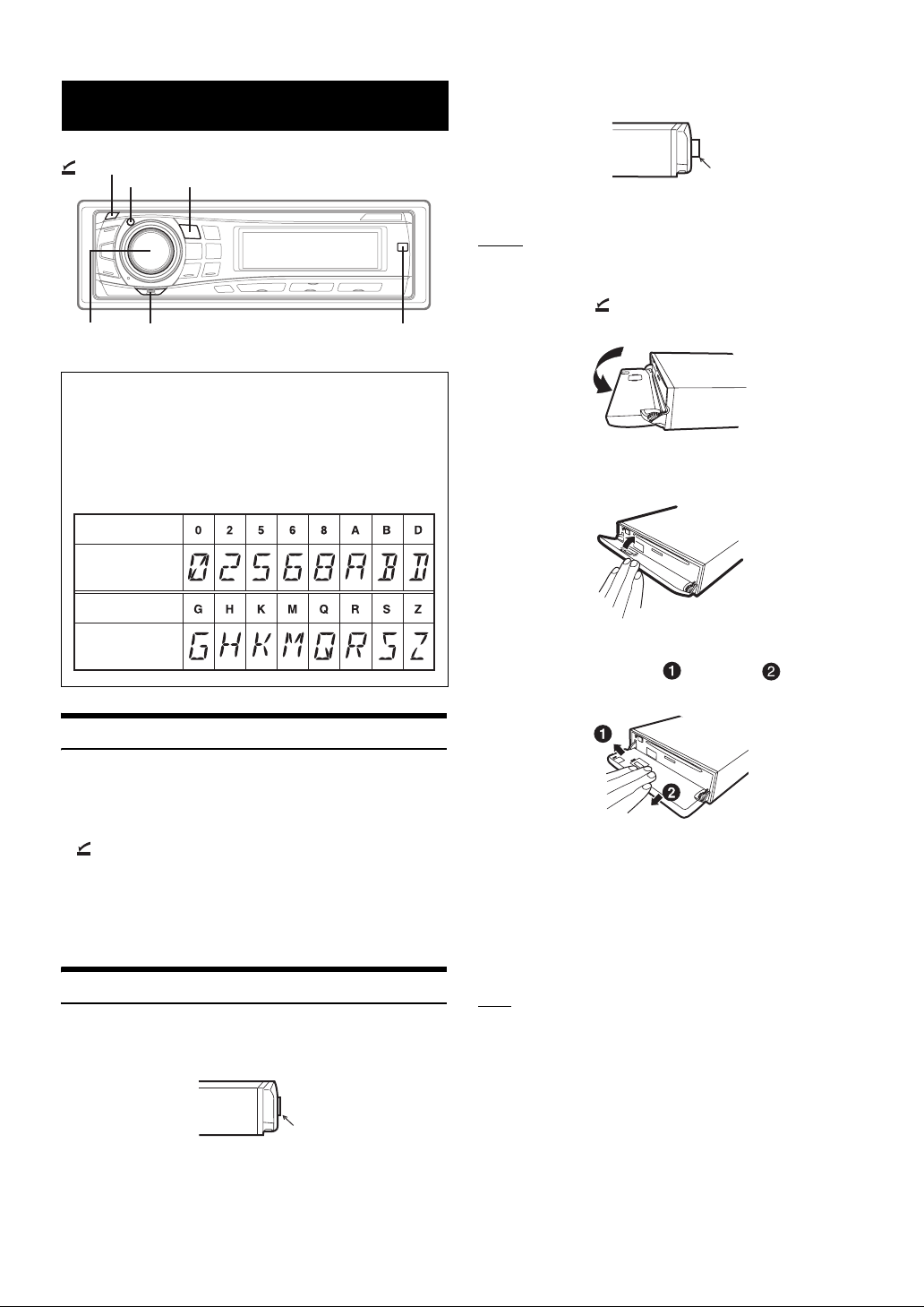

Detaching

Getting Started

(OPEN)

Rotary encoder

About the alphanumeric display of this unit

• All English lower case characters are displayed as upper case on this unit.

• The alphanumeric display in the following table shows alphanumeric characters/numbers that may be difficult to distinguish.

Alphanumeric

Display

Alphanumeric

Display

Turning Power On and Off

Press SOURCE/POWER to turn on the unit.

• The unit can be turned on by pressing any other button except TITLE,

Rotary encoder and (OPEN).

Press and hold SOURCE/POWER for at least 2 seconds to turn off the unit.

• The first time power is turned on, the volume will start from level 12.

SOURCE/POWER

MUTE

MODE TITLE

Turn off the unit power.

Press (OPEN) to open the front panel.

To close the front panel, press the left side until it locks as shown in the figure below.

Grasp the front panel firmly, slide to the left , then pull to remove.

• The front panel may become hot in normal usage (especially the

connector terminals on the back of the front panel.) This is not a malfunction.

• To protect the front panel, place it in the supplied carrying case.

• When detaching the front panel, do not apply excessive force as it

may result in malfunction.

• Do not leave the front panel open, or drive the car with the panel

open as it may result in accident or malfunction.

Attaching

Insert the right side of the front panel into the main unit. Align the groove on the front panel with the projections on the main unit.

Push the left side of the front panel until it locks firmly into the main unit.

Detaching and Attaching the Front Panel

Be sure to push the Rotary encoder inside the unit before opening the front panel so that the front panel will open completely, otherwise it may be damaged.

Push the Rotary encoder inside

When you push the Rotary encoder again, it pops back out.

The Rotary encoder pops out

6-EN

• Before attaching the front panel, make sure that there is no dirt or

dust on the connector terminals and no foreign object between the front panel and the main unit.

• Attach the front panel carefully, holding the sides of the front panel to

avoid pushing buttons by mistake.

Initial System Start-Up

Be sure to press the RESET switch when using the unit for the first time, after changing the car battery, etc.

Turn off the unit power.

Press (OPEN) to open the front panel, then remove it.

Press RESET with a ballpoint pen or similar pointed object.

RESET switch

Adjusting Volume

Turn the Rotary encoder until the desired sound is obtained.

• Controllable with Remote Control

This unit can be controlled with an optional Alpine remote control. For details, consult your Alpine dealer.

• Point the optional remote control transmitter at the remote control sensor

Remote control sensor

Lowering Volume Quickly

Activating the Audio Mute function will instantly lower the volume level by 20 dB.

Press MUTE to activate the MUTE mode.

The audio level will decrease by about 20 dB.

Pressing MUTE again will bring the audio back to its previous level.

Setting Time

Press TITLE repeatedly until the time is displayed.

For details, see “Displaying the Text” (page 15)

Press and hold TITLE for at least 2 seconds while the time is displayed.

The time indication will blink.

Turn the Rotary encoder to adjust the hours while the time indication is blinking.

When the hour has been adjusted, press MODE.

Turn the Rotary encoder to adjust the minutes while the time indication is blinking.

The time is automatically set 5 seconds after the minute adjustment. The time can also be manually set by pressing TITLE.

• To synchronize the clock to another clock/watch or radio time

announcement, press and hold MODE for at least 2 seconds after setting the “hour.” Minutes will reset to 00. If the display shows over “30” minutes when you do this, the time will advance one hour.

7-EN

Radio

Rotary encoder

MODE

This unit cannot receive HD Radio™ signals (digital terrestrial radio). In order to activate the digital radio functions described below, an optional HD Radio Tuner module must be connected through the Ai-Net bus. HD Radio™ Technology Manufactured Under License From iBiquity Digital Corporation. iBiquity Digital and the HD Radio and HD Symbols are trademarks of iBiquity Digital Corporation. U.S. and Foreign Patents.

Listening to Radio

Press SOURCE/POWER until a radio frequency appears on the display.

Press BAND repeatedly until the desired radio band is displayed.

F1 (FM1) F2 (FM2) AM F1 (FM1)

Press TUNE/A.ME to select the tuning mode.

DX SEEK (Distance mode) SEEK (Local mode) OFF (Manual mode) DX SEEK

• The initial mode is Distance mode.

Distance mode:

Both strong and weak stations will be automatically tuned in (Automatic Seek Tuning).

Local mode:

Only strong stations will be automatically tuned in (Automatic Seek Tuning).

Manual mode:

The frequency is manually tuned in steps (Manual tuning).

SOURCE/ POWER

BAND

FUNC.

TUNE/A.ME

Preset buttons (1 through 6)

Manual Storing of Station Presets

Select the radio band and tune in a desired radio station you wish to store in the preset memory.

Press and hold, for at least 2 seconds, any one of the preset buttons (1 through 6) into which you wish to store the station.

The selected station is stored. The display shows the band, preset number and station frequency memorized.

• A total of 18 stations can be stored in the preset memory (6 stations

for each band; FM1, FM2 and AM).

• If you store a station in a preset memory which already has a station,

the current station will be cleared and replaced with the new station.

Automatic Memory of Station Presets

Press BAND repeatedly until the desired radio band is displayed.

Press and hold TUNE/A.ME for at least 2 seconds.

The frequency on the display continues to change while the automatic memory is in progress. The tuner will automatically seek and store 6 strong stations in the selected band. They will be stored into buttons 1 to 6 in order of signal strength. When the automatic memory has been completed, the tuner goes to the station stored in preset location No. 1.

• If no stations are stored, the tuner will return to the original station

you were listening to before the auto memory procedure began.

Tuning to Preset Stations

Press BAND repeatedly until the desired band is displayed.

Press any one of the station preset buttons (1 through 6) that has your desired radio station in

memory.

The display shows the band, preset number and frequency of the station selected.

Press or to tune in the desired station.

Holding down or will change the frequency continuously.

• The “DIGITAL” indicator appears on the display when a digital

radio station which contains both audio and text information, is received.

8-EN

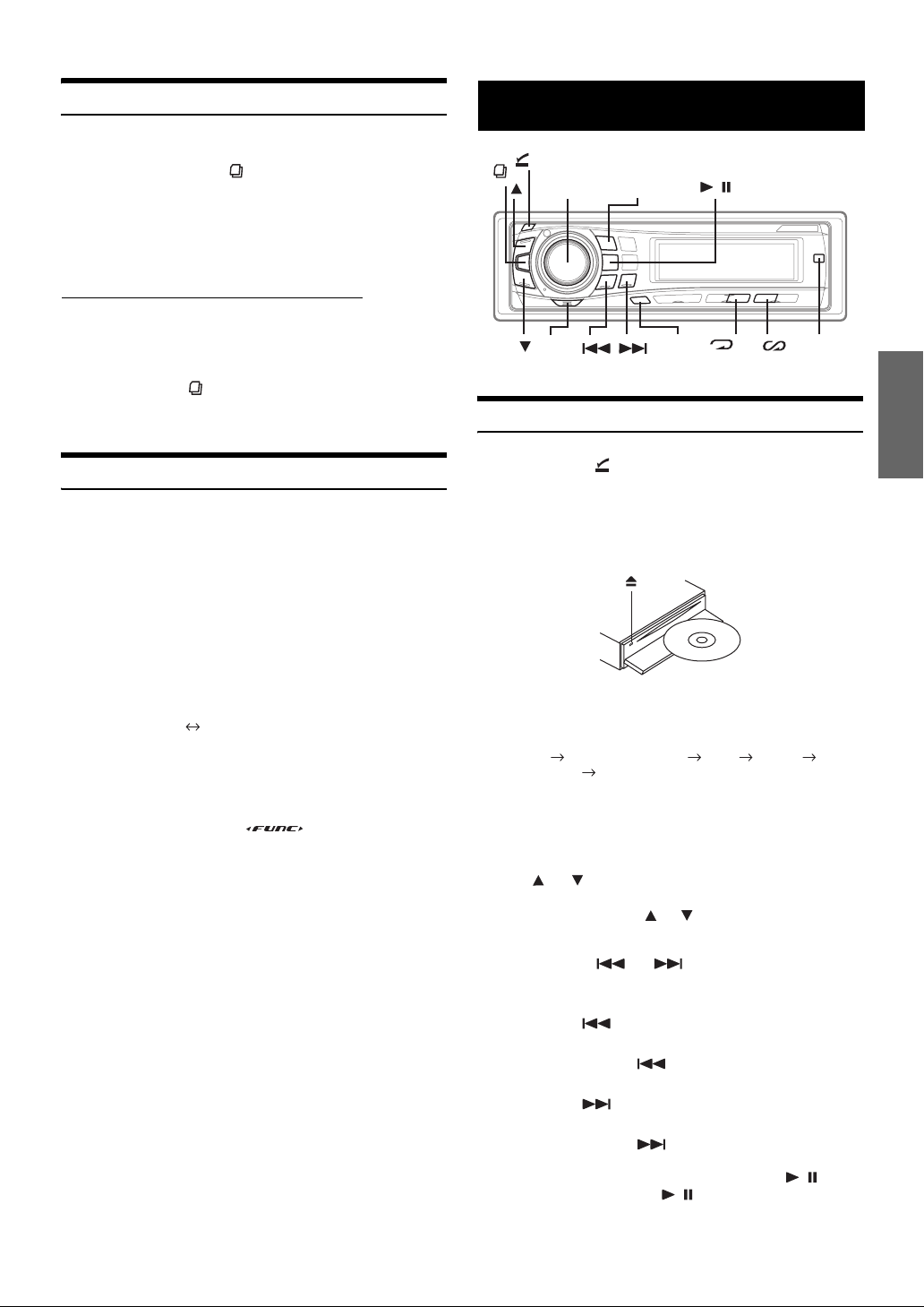

Frequency Search Function

You can search for a radio station by its frequency.

Press and hold for at least 2 seconds in Radio mode to activate Frequency Search mode.

Turn the Rotary encoder to select the desired frequency.

CD/MP3/WMA

(OPEN)

Rotary encoder

SOURCE/ POWER

Only when the Radio mode is active

* Operation is not required during HD Radio reception.

Press MODE to receive the selected frequency.

• Press and hold for at least 2 seconds in the search mode to

cancel. Or the search mode will be canceled when an operation has not been performed in 10 seconds.

Switching the HD Radio™ signal

HD Radio™ can be received if the HD Radio TUNER MODULE (TUA-T500HD) is connected. While receiving HD Radio, the unit can automatically switch between the analog and digital signal. You can also switch to the analog signal exclusively.

When receiving HD Radio, press FUNC. to select on.

The currently received status is displayed.

Press preset 1 to switch the receiving signal.

DIG/ANA MODE ANALOG ONLY

DIG/ANA MODE:Automatically switches between digital and

ANALOG ONLY: Receives analog signal only

Turn off the “ ” indicator by pressing FUNC.

• Select mode will be canceled when an operation has not been

performed in 10 seconds.

analog signal

MODE

FUNC.

5 TITLE

Playback

Press (OPEN).

The front panel will open.

Insert a disc with the label side facing up.

The disc will be pulled into the unit automatically.

Close the front panel manually. When a disc is already inserted, press SOURCE/POWER to switch to the CD mode.

TUNER XM RADIO/SIRIUS*1 DISC IPOD*2 CHANGER*

*1Only when XM Radio or Sirius Radio is connected. *2Only when the iPod is connected. *3Only when the CD changer is connected.

TUNER

While playing back MP3/WMA, press or to select the desired folder.

Pressing and holding or will change folders continuously.

Press or to select the desired track (file).

Returning to the beginning of the current track (file):

Press .

Fast backward:

Press and hold .

Advancing to the beginning of the next track (file):

Press .

Fast forward:

Press and hold .

To pause playback, press / .

Pressing / again will resume playback.

After pressing (OPEN) to open the front panel, press to eject the disc.

• Do not remove a CD during its eject cycle. Do not load more than

one disc at a time. A malfunction may result from doing either.

9-EN

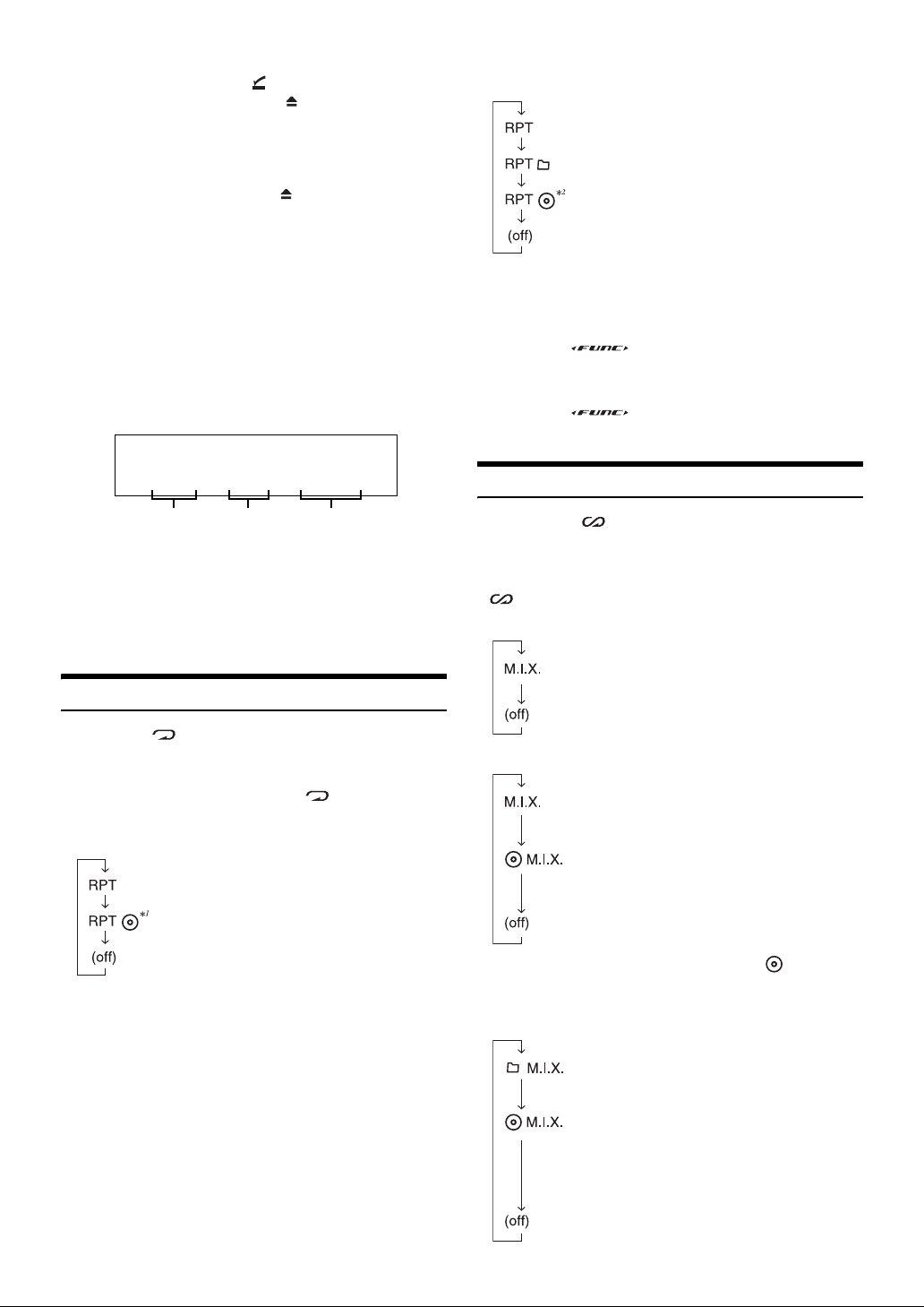

• If the CD does not eject, press and hold for at least 2 seconds.

• The CD-player can play discs containing audio data, MP3 data and

WMA data.

• A WMA format file that is protected by DRM (Digital Rights

Management) cannot be played back on this unit.

• The track display for MP3/WMA data playback is the file numbers

recorded on the disc.

• The playback time may not be correctly displayed when a VBR

(Variable Bit Rate) recorded file is played back.

MP3/WMA Play Display

The folder number and file number will be displayed as described below.

M.I.X. (Random Play)

Press 5 in the play or pause mode.

The tracks (files) on the disc will be played back in random sequence.

To cancel M.I.X. play, press 5 again.

Internal CD mode :

: Tracks are played back in random sequence.

F01 T03 10'15

Folder number display

• Press TITLE to switch the display. Please see “Displaying the Text”

(page 15) for information about display switching.

• If the folder or file number is three digits, “F” or “T” is not

displayed.

File number display

Repeat Play

Press 4 to play back repeatedly the track being played.

The track (file) will be played repeatedly.

Press 4 again and select off to deactivate repeat play.

CD mode :

: Only a track is repeatedly played back

: A disc is repeatedly played back

*1When a CD changer is connected

• If REPEAT is set to ON during M.I.X. (M.I.X. ONE) play in CD

changer mode, M.I.X. will apply to the current disc only.

MP3/WMA mode :

: Only a file is repeatedly played back

: Only files in a folder are repeatedly played back

Elapsed time

CD Changer mode :

: Tracks are played back in random sequence.

: The tracks on all the CDs in the current

magazine will be included in the random playback sequence.

• If M.I.X. is set to ON during RPT (REPEAT ALL) play in CD

changer mode, M.I.X. will apply to the current disc only.

MP3/WMA mode :

: Only files in a folder are played back in

random sequence.

: Files are played back in random sequence.

If an MP3 compatible CD changer is connected, all files in a disc are played back in random sequence, and playback shifts to the next disc.

• If a 6-disc CD changer or an MP3 compatible CD changer is

connected: In CD changer mode, press FUNC. to illuminate the “ ” indicator, and go to the step above within 10 seconds.

• If a 12-disc CD changer is connected:

In CD changer mode, press FUNC. twice to illuminate the “ ” indicator, and go to the step above within 10 seconds.

: A disc is repeatedly played back

*2When an MP3 compatible CD changer is connected

• If a 6-disc CD changer or an MP3 compatible CD changer is

connected: In CD changer mode, press FUNC. to illuminate the “ ” indicator, and go to the step above within 10 seconds.

• If a 12-disc CD changer is connected:

In CD changer mode, press FUNC. twice to illuminate the “ ” indicator, and go to the step above within 10 seconds.

10-EN

Searching from CD Text

Tracks can be searched and played using the CD text on the disc. If a disc is not compatible with text, or a disc is in the changer, searches can be made by track number.

Press during play.

This will set the search mode.

Turn the Rotary encoder to select the desired track, then press MODE.

This will play the selected track.

• Press and hold for at least 2 seconds in the search mode to

cancel. Or, the search mode will be canceled when an operation has not been performed in 10 seconds.

• CD text search cannot be made during M.I.X. play.

File/Folder Name Search (concerning MP3/WMA)

You can display and search for the folder and file name while listening to the file currently being played back.

During MP3/WMA playback, press to activate the search mode

Turn the Rotary encoder to select Folder Name Search mode or File Name Search mode, then press

• Press and hold for at least 2 seconds in the search mode to

cancel. Or, the search mode will be canceled when an operation has not been performed in 10 seconds.

• While in the File Name Search mode, press FUNC. to switch to the

previous mode (Folder Search mode or the selecting search mode.)

• File Name search cannot be made during M.I.X. play.

Quick Search

You can search for tracks (files).

Press and hold for at least 2 seconds in the CD/ Changer/MP3/WMA mode to activate Quick Search mode.

Turn the Rotary encoder to select a desired track (file).

The selected track is played back immediately.

• Press and hold for at least 2 seconds in the search mode to

cancel. Or, the search mode will be canceled when an operation has not been performed in 10 seconds.

About MP3/WMA

CAUTION

Except for private use, duplicating audio data (including MP3/ WMA data) or distributing, transferring, or copying it, whether for free or for a fee, without permission of the copyright holder is strictly prohibited by the Copyright Act and by international treaty.

Folder Name Search mode

Turn the Rotary encoder to select the desired folder.

Press / to play back the first file in the selected folder.

• Press and hold for at least 2 seconds in the search mode to

cancel. Or, the search mode will be canceled when an operation has not been performed in 10 seconds.

• While in Folder Name Search mode, press to switch to File Name

Search mode.

• While in Folder Name Search mode, press FUNC. to return to the

selecting search mode.

• If a disc contains only the root folder, Folder Name Search cannot be

made.

• “NO FILE” is displayed for 2 seconds if the folder that is selected by

the Folder Name Search mode contains no files.

• “ROOT” is displayed for the root folder which does not have folder

name.

• Folder Name search cannot be made during M.I.X. play.

File Name Search mode

Press or to select another Folder.

Select the desired file by turning the Rotary encoder.

Press MODE to play back the selected file.

What is MP3?

MP3, whose official name is “MPEG-1 Audio Layer 3,” is a compression standard prescribed by the ISO, the International Standardization Organization and MPEG which is a joint activity institution of the IEC.

MP3 files contain compressed audio data. MP3 encoding is capable of compressing audio data at extremely high ratios, reducing the size of music files to as much as one-tenth their original size. This is achieved while still maintaining near CD quality. The MP3 format realizes such high compression ratios by eliminating the sounds that are either inaudible to the human ear or masked by other sounds.

What is WMA?

WMA, or “Windows media™ Audio,” is compressed audio data. WMA is similar to MP3 audio data and can achieve CD quality sound with small file sizes.

Method for creating MP3/WMA files

Audio data is compressed by using MP3/WMA specified software. For details on creating MP3/WMA files, refer to the user's manual for that software. MP3/WMA files that can be played back by this device have the file extension “mp3” / “wma”. Files with no extension cannot be played back. (WMA ver. 7.1, 8 and 9 are supported)

11-EN

Supported playback sampling rates and bit rates

MP3

Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz,

16 kHz, 12 kHz, 11.025 kHz, 8 kHz

Bit rates: 8 - 320 kbps

WMA

Sampling rates: 48 kHz, 44.1 kHz, 32 kHz Bit rates: 48 - 192 kbps

Note that for sampling rates, this device’s frame display (Page

15) may not display correctly. This device may not play back correctly depending on sampling rates.

ID3 tags/WMA tags

This device supports ID3 tag v1 and v2, and WMA tag. If tag data is in an MP3/WMA file, this device can display the title (track title), artist name, and album name ID3 tag/WMA tag data.

This device can only display single-byte alphanumeric characters (up to 30 for ID3 tags and up to 15 for WMA tags) and the underscore. For non-supported characters, “NO SUPPORT” is displayed. The tag information may not be correctly displayed, depending on the contents.

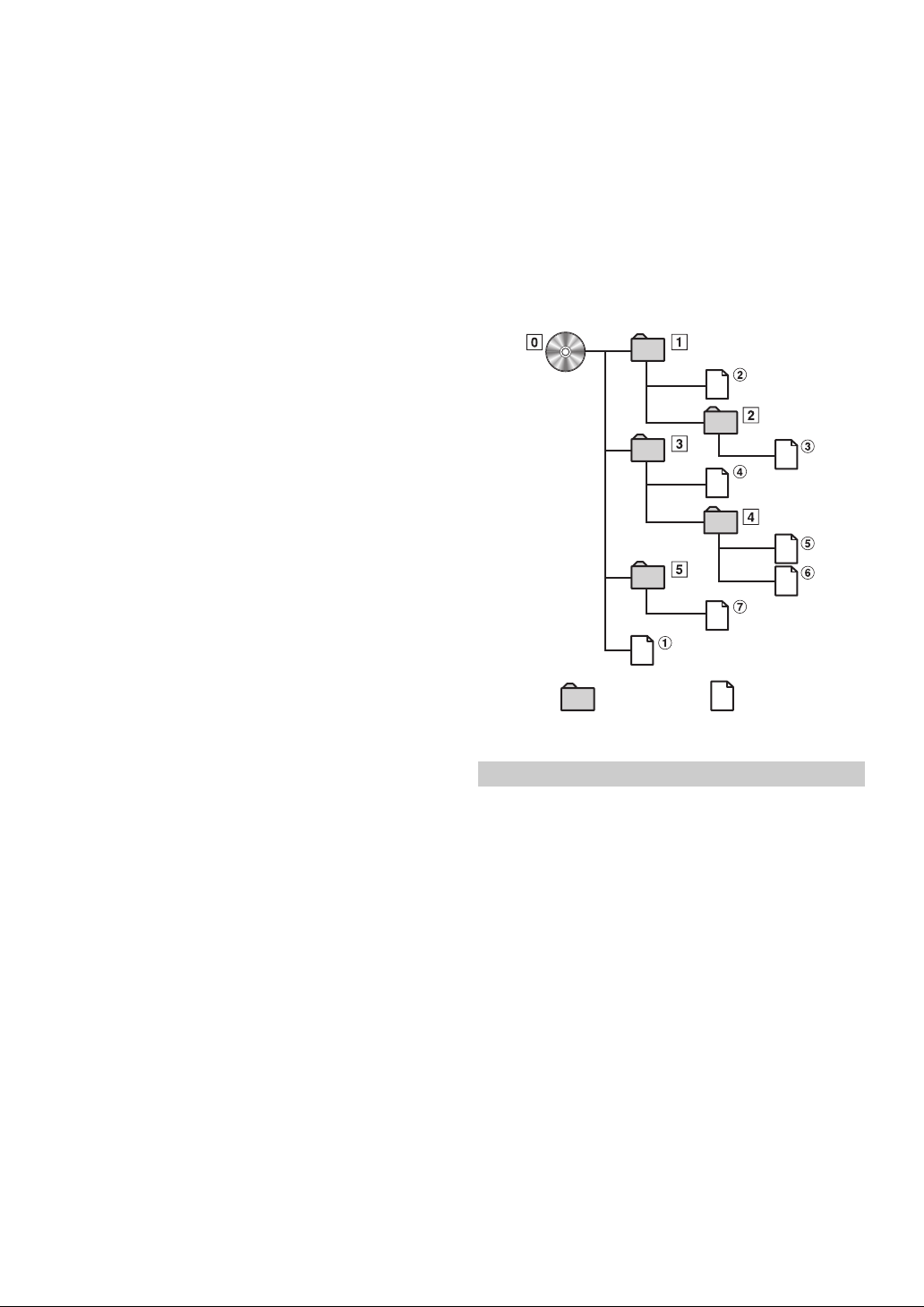

Root folder

Folder

MP3/WMA File

Producing MP3/WMA discs

MP3/WMA files are prepared, then written to a CD-R or CD-RW using CD-R writing software. A disc can hold up to 510 files/ folders (including Root Folders). However, the maximum number of folders is 255.

Media supported

The media that this device can play back are CD-ROMs, CD-Rs, and CD-RWs.

Corresponding File Systems

This device supports discs formatted with ISO9660 Level 1 or Level 2.

Under the ISO9660 standard, there are some restrictions to remember.

The maximum nested folder depth is 8 (including the root directory). The number of folder/file name characters is limited.

Valid characters for folder/file names are letters A-Z (all caps), numbers 0-9, and ‘_’ (underscore).

This device also can play back discs in Joliet, Romeo, etc., and other standards that conform to ISO9660. However, sometimes the file names, folder names, etc., are not displayed correctly.

Formats supported

This device supports CD-ROM XA, Mixed Mode CD, Enhanced CD (CD-Extra) and Multi-Session. This device cannot correctly play back discs recorded with Track At Once or packet writing.

Order of tracks

The unit plays the files in the order that the writing software writes them. Therefore, the playing order may not be the same as the order you input. The playback order of the folders and files is as follows. However, the folder and file playback order differs from the folder no. and file no. indicated on the display.

Terminology

Bit rate

This is the “sound” compression rate specified for encoding. The higher the bit rate, the higher the sound quality, but also the larger the files.

Sampling rate

This value shows how many times per second the data is sampled (recorded). For example, music CDs use a sampling rate of 44.1 kHz, so the sound is sampled (recorded) 44,100 times per second. The higher the sampling rate, the higher the sound quality, but also the larger the volume of data.

Encoding

Converting music CDs, WAVE (AIFF) files, and other sound files into the specified audio compression format.

Tag

Song information such as track titles, artist names, album names, etc., written into MP3/WMA files. MP3: ID3 tag WMA: WMA tag

Root folder

The root folder is found at the top of the file system. The root folder contains all folders and files.

12-EN

Sound Setting

SOURCE/POWER

MODE

Adjusting Bass/Treble/Balance (Between Left and Right)/Fader (Between Front and Rear)/Defeat

BANDRotary encoder

Setting the Bass Control

You can change the Bass Frequency emphasis to create your own tonal preference.

Press MENU to select the BASS ENGINE mode, then press MODE.

BBE BASS ENGINE SETUP RETURN (OFF) BBE

Press or to select the BASS (Bass Center Frequency) control mode.

BASS TREBLE

Setting the Bass Center Frequency

-1 Press SOURCE/POWER to select the desired bass center frequency.

80Hz 100Hz 120Hz 60Hz 80Hz

Emphasizes the displayed bass frequency ranges.

Press MODE repeatedly to choose the desired mode.

Each press changes the modes as follows:

BASS TREBLE SUBW* BALANCE FADER DEFEAT VOLUME BASS

Bass level: –7 ~ +10 Treble level: –7 ~ +7 Subwoofer : 0 ~ +15 Balance : L15 ~ R15 Fader : R15 ~ F15 Defeat : ON/OFF Volum e : 0 ~ 3 5

• If MODE is not pressed within 5 seconds after selecting the BASS,

TREBLE, BALANCE, FADER, DEFEAT or SUBW mode, the unit automatically returns to normal mode.

* When the subwoofer mode is set to OFF, its level cannot be adjusted.

Turn the Rotary encoder until the desired sound is obtained in each mode.

By setting Defeat ON, previously adjusted settings of BASS and TREBLE will return to the factory defaults.

• Depending on the connected devices, some functions and display

indications do not work.

Setting the Bass Bandwidth

-2 Press BAND to select the desired bass bandwidth.

Changes the boosted bass bandwidth to wide or narrow. A wide setting will boost a wide range of frequencies above and below the center frequency. A narrower setting will boost only frequencies near the center frequency.

Setting the Bass Level

-3*1Tur n t h e Rotary encoder to select the desired bass level (–7~+10).

You can emphasize or weaken the bass frequency.

Press MENU to select RETURN.

After 2 seconds, the unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

• If no operation is performed within 60 seconds, the bass control

setting will be turned off automatically.

• The bass level settings will be individually memorized for each

source (FM, AM, CD, etc.) until the setting is changed. The bass frequency and bass band width settings adjusted for one source are effective for all other sources (FM, AM, CD, etc.).

• Depending on the connected devices, some functions and display

indications do not work. However, Bass Level is still adjustable if an audio processor with the Bass function is connected.

• This function is inoperable when DEFEAT is set to ON.

• While in the bass adjusting mode, TREBLE CONTROL adjusting

mode can be recalled by pressing or .

*1The adjustment can also be made by pressing MODE. Refer to

“Adjusting Bass/Treble/Balance (Between Left and Right)/Fader (Between Front and Rear)/Defeat” (page 13).

13-EN

Bass level indicator’s display

Bass Level is usually displayed. When BBE is activated, the display changes according to the BBE setting.

Setting the Treble Control

You can change the Treble Frequency emphasis to create your own tonal preference.

Press MENU to select the BASS ENGINE mode, then press MODE.

BBE BASS ENGINE SETUP RETURN (OFF) BBE

Press or to select the TREBLE (Treble Center Frequency) control mode.

BASS TREBLE

Setting the Treble Center Frequency

-1 Press SOURCE/POWER to select the desired treble center frequency.

10.0kHz 12.5kHz 15.0kHz 7.5kHz 10.0kHz

Emphasizes the displayed treble frequency ranges.

Setting the Treble Level

Setting the BBE Mode

BBE makes vocals or instruments sound distinct regardless of the music source. The FM radio, CD, and MP3, will be able to reproduce the music clearly even in cars with a lot of road noise.

Press SOURCE/POWER to select the source to which you want to apply BBE.

Press MENU to select BBE mode, then press MODE.

BBE BASS ENGINE SETUP RETURN (OFF) BBE

Press to set the BBE mode ON.

BBE OFF* BBE ON

(BBE 1 to 3, EFFECT OFF)

Turn the Rotary encoder to select your preferred BBE level (1 to 3) or EFFECT OFF.

Press MENU to select RETURN.

After 2 seconds, the unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

* To cancel BBE mode for all music sources, press to select BBE

OFF in step 3.

• Each music source, such as FM radio, CD (included MP3/WMA) can

have its own BBE setting.

• This function is inoperable when DEFEAT is set to ON.

• There is no BBE mode for AM radio.

• When an external audio processor is connected, this setting cannot

be made.

• If no operation is performed in 60 seconds, the unit returns to normal

mode.

-2*2Turn the Rotary encoder to select the desired treble level (–7~+7).

You can emphasize the treble frequency.

Press MENU to select RETURN.

After 2 seconds, the unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

• If no operation is performed within 60 seconds, the treble control

setting will be turned off automatically.

• The treble level settings will be individually memorized for each

source (FM, AM, CD, etc.) until the setting is changed. The Treble frequency settings adjusted for one source are effective for all other sources (FM, AM, CD, etc.).

• Depending on the connected devices, some functions and display

indications do not work. However, Treble Level is still adjustable if an audio processor with the Treble function is connected.

• This function is inoperable when DEFEAT is set to ON.

• While in the treble adjusting mode, BASS CONTROL adjusting mode

can be recalled by pressing or .

*2The adjustment can also be made by pressing MODE. Refer to

“Adjusting Bass/Treble/Balance (Between Left and Right)/Fader (Between Front and Rear)/Defeat” (page 13).

14-EN

Other Functions

TITLE

Displaying the Text

Text information, such as the disc name and the track name, will be displayed if playing a CD text compatible disc. It is also possible to display the folder name, the file name, and the tag, etc., while playing MP3/WMA files.

About the indication display

When displaying Text, the following indicators are lit according to the mode.

The position of a song being played back is shown lit in the total number of songs shown. The display example is as shown below. Also lights when operation, such as fast forward, etc., is performed.

Lights up when a disc is inserted

Song position display example

Press TITLE.

The display will change every time the button is pressed.

The display in Radio mode:

FREQUENCY CLOCK RADIO STATION NAME* ARTIST NAME*

ALBUM NAME*5 SONG NAME*5

5/6

FREQUENCY

The display in CD mode:

TRACK NO./ELAPSED TIME TRACK NO./CLOCK TEXT (DISC NAME)*

TEXT (TRACK NAME)*1

TRACK NO./ELAPSED TIME

The display in MP3/WMA mode:

FOLDER NO./FILE NO./ELAPSED TIME FOLDER NO./ FILE NO./CLOCK FOLDER NAME* ARTIST NAME* FRAME*

ALBUM NAME*2 TRACK NAME*2

FOLDER NO./FILE NO./ELAPSED TIME

FILE NAME

*1Displayed during playback of a disc with CD Text.

If there is no Text (Disc Name or Track Name), “DISC TEXT”/ “TRACK TEXT” is displayed. “D TEXT”/“T TEXT” is displayed for changer.

*2ID3 tag/WMA tag

If an MP3/WMA file contains ID3 tag/WMA tag information, the ID3 tag/WMA tag information is displayed (e.g., track name, artist name, and album name). All other tag data is ignored. If the Scroll Setting (page 17) is set to “SCROLL AUTO,” the tag information will scroll automatically. If there is no tag information, “ARTIST’/“ALBUM”/“SONG” is displayed.

*3“ROOT” is displayed for the root folder which doesn’t have folder

name. If there is no folder name or file name, “FOLDER”/“FILE” is displayed.

*4The recording sampling rate and bit rate of the MP3/WMA file are

displayed. A WMA file of variable bit rate displays the average bit rate.

*5When an HD radio signal is received, text information such as

“RADIO STATION”, “ARTIST”, etc., is displayed. If there is no text information, “ARTIST”/“ALBUM”/“SONG”/ “STATION” will be displayed.

*6RADIO STATION NAME can be switched between “LONG” and

“SHORT” in “HD Radio Station Call Setting” (page 17).

• For example, when the 5th of 10 songs in the disc is played back,

“ ” is displayed.

Indicator/

Mode

CD Mode

—

Text (Disc Name) being displayed

Text (Track Name) being displayed

MP3/WMA

Mode

Folder Name being displyed

File Name being displayed

Artist Name being displayed

Album Name being displayed

Track Name being displayed

SAT RADIO/

HD RADIO

Mode

——

Artist Name being displayed

Album Name being displayed (HD Radio only)

Song Title/ Channel Name being displayed

iPod Mode

Artist Name being displayed

Album Name being displayed

Track Name being displayed

15-EN

About “Text”

Text:

Text compatible CDs contain text information such as the disc name and track name. Such text information is referred to as “text.”

• Some characters may not be displayed correctly with this device,

depending on the character type.

• The CD changer must also be CD Text compatible for the Text

information to be displayed.

• When the Scroll Setting (page 17) is set to “SCROLL MANU,” press

and hold TITLE for at least 2 seconds to scroll the Text information only once (TEXT DISPLAY, FOLDER NAME DISPLAY, FILE NAME DISPLAY or TAG DISPLAY mode).

• “NO SUPPORT” is displayed when the desired text information

cannot be displayed on this unit.

• The text or tag information may not be correctly displayed,

depending on the contents.

Displaying Time

Press TITLE repeatedly until the time is displayed.

Each press changes the display. For details, see “Displaying the Text” (page 15).

• Selecting any tuner or CD function while in the clock priority mode

will interrupt the time display momentarily. The function selected will be displayed for about 5 seconds before the time returns to the display.

• When the power is off but the ignition key is on, press TITLE to

display the time.

16-EN

SETUP

You can flexibly customize the unit to suit your own preferences and usage. Choose the SETUP menu from Sound Customizing, Visual Customizing, etc., to select your desired setting.

Rotary encoder

SOURCE/POWER

BAND

Setting the Subwoofer System

SUBW SYS1 (Initial setting) / SUBW SYS2

Select either SYS1 or SYS2 for the desired subwoofer effect.

SUBW SYS1: Subwoofer level changes according to the main

volume setting.

SUBW SYS2: Subwoofer level change is different from the main

volume setting. For example, even at low volume settings, the subwoofer is still audible.

Visual Customizing

Dimmer Control

DIMMER AUTO (Initial setting) / DIMMER MANU

Set the DIMMER control to AUTO to decrease the illumination brightness of the unit with the head lights of the vehicle ON. This mode is useful if you feel the unit’s backlighting is too bright at night.

MODE

A typical SETUP procedure is shown in steps 1 to 4 as follows. See below for further information about each SETUP menu.

Press MENU to select the SETUP mode, then press MODE.

BBE BASS ENGINE SETUP RETURN (OFF) BBE

Press or to select the desired SETUP menu, then press MODE.

(e.g. Select SUBWOOFER)

DIMMER SUBWOOFER (SUBW SYSTEM)*1 PLAY MODE SCROLL TYPE TEXT SCROLL INT MUTE AUX IN (AUX NAME)* POWER IC (CH SELECT)* STATION CALL DEMO DIMMER

*1Displayed only when SUBW is ON. *2Displayed only when AUX is ON. *3When SAT is connected.

For the SAT Radio Setting, refer to “SAT Radio Receiver (Optional)” (page 19).

Turn the Rotary encoder to change the setting.

(e.g. Select SUBW ON or SUBW OFF.)

Press MENU to select RETURN.

After 2 seconds, the unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

(XM ADF)*3

DIGITAL AUX

Sound Customizing

Scroll Type Setting

SCROLL TYPE1 / SCROLL TYPE2 (Initial setting)

Choose from two scrolling methods. Select the type you prefer.

SCROLL TYPE1: The characters scroll sequentially, appearing

from the right side of the display.

SCROLL TYPE2: The characters are displayed one by one, and

disappear one by one from the left side of the display after the screen is filled up with the characters.

Scroll Setting (TEXT SCROLL)

SCROLL AUTO / SCROLL MANU (Initial setting)

This CD player can scroll the disc and track names recorded on CDTEXT discs, as well as text information of MP3/WMA files, folder names, tags, HD Radio and SAT Radio.

SCROLL AUTO: Text information of CD, folder and file names,

HD Radio and SAT Radio are scrolled automatically. Also, tag information is automatically scrolled without pressing TITLE in the tag information display mode.

SCROLL MANU: The display is scrolled when a disc is loaded

or when a track is changed, etc.

• The unit scrolls CD text names, folder names, file names or tag

display.

HD Radio Station Call Setting

SHORT (Initial setting) / LONG

In the HD radio mode, the number of display characters for the HD radio station name can be selected.

SHORT: 7 characters (FM)

4 characters (AM)

LONG: 56 characters

Subwoofer On and Off

SUBW ON (Initial setting) / SUBW OFF

When the subwoofer is on, perform the steps below to adjust the subwoofer output level.

1 In the normal mode, press MODE repeatedly to select the

SUBW mode.

BASS TREBLE SUBW BALANCE FADER DEFEAT VOLUME BASS

2 Adjust the level by turning the Rotary encoder.

Demonstration

DEMO ON / DEMO OFF (Initial setting)

This unit has a demonstration feature for the display.

• To quit Demo mode, set to DEMO OFF.

17-EN

MP3/WMA

Playing MP3/WMA Data (PLAY MODE)

CDDA (Initial setting) / CDDA/MP3

This product can playback CDs containing both CD and MP3/WMA data. However, in some situations (some enhanced CDs), playback may be difficult. For these special cases, you can select playback of CD data only. When a disc contains both CD or the MP3/WMA data, playback starts from the CD data portion of the disc.

CDDA: Only CD data can be played back. CDDA/MP3: Both CD data and MP3/WMA file tracks can

be played back.

• Perform this setting before inserting a disc. If a disc has already been

inserted, perform the setting after you remove the disc. (If you use an MP3 changer, you have to change discs.)

External Device

Turning Mute Mode On/Off (INT MUTE)

MUTE ON (Initial setting) / MUTE OFF

If a device having the interrupt feature is connected, audio will be automatically muted whenever the interrupt signal is received from the device.

Setting the AUX Mode (V-Link)

AUX IN ON / AUX IN OFF (Initial setting)

You can input TV/video sound by connecting an optional Ai-NET/RCA Interface cable (KCA-121B) or Versatile Link Terminal (KCA-410C) to this component. You can change the AUX name display when AUX IN ON is set. Select the AUX name by pressing or . Then press MODE. If the KCA-410C is connected, it is possible to select two AUX names.

• Via KCA-410C, up to 2 external devices with RCA output can be

connected. In this case, press SOURCE/POWER to select AUX mode and then press BAND to select your desired device.

Connecting to an External Amplifier

POWER IC ON (Initial setting) / POWER IC OFF

When an external amplifier is connected, sound quality can be improved by stopping the power supply of the built-in amplifier.

POWER IC OFF : Use this mode when the front and rear pre-

POWER IC ON : The speakers are driven by the built-in

amplifier of the unit are used to drive an external amplifier connected to the speakers. In this setting, the head unit’s internal amplifier has no output to drive speakers.

Front

Amplifier

amplifier.

left Front

right

Rear left

Rear right

Speakers

SPEAKER RIGHT FRONT

SPEAKER RIGHT REAR

SPEAKER LEFT REAR

Front right

Rear right

Rear left

Setting the External Digital Input (DIGITAL AUX)

D-AUX ON / D-AUX OFF (Initial setting)

When an ALPINE Ai-NET compatible digital audio processor and a DVD player (DVE-5207) not compatible with Ai-NET are connected, set D-AUX to ON to enjoy 5.1-channel surround sound.

• After setting D-AUX to ON, make the setting in “Connecting an

Optical Digital Compatible Audio Processor and an Ai-NET NonCompatible DVD Player.”

• Press SOURCE/POWER, and select the D-AUX mode, and adjust

the volume, etc.

• Depending on the connected audio processor, DVD player sound

may continue to be output, even though the source is changed to another one. If this occurs, set the DVD player’s power to OFF.

18-EN

SPEAKER LEFT FRONT

Front left

• No sound is produced by the system when the power output is set to

OFF.

SAT Radio Receiver (Optional)

Rotary encoder

MODE

SAT Receiver: XM or SIRIUS Receiver

Receiving Channels with the SAT Radio Receiver (Optional)

About SAT Radio

Satellite Radio* is the next generation of audio entertainment, with over 100 digital audio channels. For a small monthly fee, subscribers can hear crystal-clear music, sports, news and talk, coast-to-coast via satellite. For more information, visit XM’s website at www.xmradio.com., or SIRIUS’ website at www.sirius.com.

To receive SAT Radio, the separately sold XMDirect™ or SIRIUS Satellite Radio Tuner and an appropriate Ai-NET Interface Adapter will be required. For details, consult you nearest Alpine dealer.

* XM and its corresponding logos are trademarks of XM Satellite

Radio Inc.

* SIRIUS and its corresponding logos are trademarks of SIRIUS

Satellite Radio Inc.

• The SAT Receiver controls on the CDA-9856 are operative only when

a SAT Receiver is connected.

Press SOURCE/POWER to select SAT Radio mode.

SOURCE/ POWER

When an optional XM or SIRIUS Receiver Box is connected via the Ai-NET bus, the following operations may be performed. However, the XM Receiver and SIRIUS Receiver cannot be connected at the same time.

BAND MENU

Preset buttons

FUNC.

(1 through 6)

TITLE

• When using the optional remote control (RUE-4190, etc.), an SAT

Radio Channel can be directly called up with the numeric keypad of the remote control.

1 While in XM or SIRIUS Radio mode, enter the Channel

number you want to call up with the numeric keypad on the remote control.

2 Press ENTER on the remote control within 5 seconds to

receive the Channel. If the channel number is 3 digits, the Channel is automatically received after the channel number is input.

Checking the SAT Radio ID Number

A unique Radio ID number is required to subscribe to SAT Radio programming. Each third party XM or SIRIUS radio comes with this number.

This number is an 8 character (for XM Radio) or 12 character (for SIRIUS Radio) alphanumeric number. It is printed on a label found on the SAT Receiver. It can also be displayed on the screen of the CDA-9856 in the following way.

XM:

While receiving a SAT Radio band, press or

to select channel “0” for XM.

The unit alternately displays “CH 00” or “RADIO ID” for 2 seconds, then the ID number for 10 seconds. While displaying “RADIO ID” as shown above, Demonstration (page 17) become nonfunctional.

To cancel the ID number display, set the channel to other than “0.”

SIRIUS:

While receving a SAT Radio band, press or

to select channel “255” for SIRIUS.

Press TITLE until the ID No. appears in the display.

CHANNEL No. CATEGORY NAME CHANNEL NAME ID No. ID No. COMP NAME CLOCK CHANNEL No.

To cancel the ID number display, set the channel to other than “255”.

• You cannot use “O,” “S,” “I,” or “F” for the ID Number (XM radio

Receiver only).

• You can check the ID number printed on a label on your third party,

SAT Radio Receiver package.

Press BAND to select between one of the three SAT Radio Preset Bands.

Each press changes the band:

XM mode: XM1 XM2 XM3 XM1

SIRIUS mode: SR1 SR2 SR3 SR1

Press or to select desired category.

Press or to select the desired channel.

Holding down or will change channels continuously.

Setting the Tuning Method

You can set the tuning method. You can select the received stations in channel No. order or in channel name order (alphabetic order).

To customers using the SIRIUS Tuner Box: For details about functions, refer to the SIRIUS Tuner Box Owner’s Manual.

Press MENU to select the SETUP mode, then press MODE.

Press or to select “CH SELECT,” then press MODE.

19-EN

Turn the Rotary encoder to set the tuning method.

CH NO: Set in order of channel No. ALPHABET: Set in alphabetic order.

Press MENU to select RETURN.

After 2 seconds, the unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

• When the setting is completed, switch the channel DOWN/UP by

pressing the or .

Turn the Rotary encoder to select the desired Channel No. or Channel Name, then press MODE.

• Search items vary depending on the setting in “Setting the Tuning

Method” (page 19).

When “CH NO” is selected: Channel No. Search When “ALPHABET” is selected: Channel Name Search

• While in Category Search mode, press FUNC. to return to the

selecting search mode.

• The Search mode is canceled if you press and hold for at least 2

seconds, or no operation is performed for 10 seconds in Category Search mode.

Storing Channel Presets

Press BAND to select the desired band you want to store.

After tuning in the desired channel, press and hold, for at least 2 seconds, any one of the preset buttons (1 through 6) into which you wish to store the channel.

The selected station is stored.

Repeat the procedure to store up to 5 other channels onto the same band.

• To use this procedure for other bands, simply select the band desired

and repeat the procedure.

• A total of 18 channels can be stored in the preset memory (6 channels

for each band; XM1, XM2 and XM3 or SR1, SR2 and SR3).

• If you store a channel in a preset memory which already has a

station, the current channel will be cleared and replaced with the new one.

Receiving Stored Channels

Press BAND to select the desired band.

Press the channel preset button that has your desired satellite channel in memory.

Channel Search mode:

Turn the Rotary encoder to select the desired Channel No. or Channel Name, then press MODE.

• Search items vary depending on the setting in “Setting the Tuning

Method” (page 19).

When “CH NO” is selected: Channel No. Search When “ALPHABET” is selected: Channel Name Search

• While in Channel Search mode, press or to select another

Category.

• While in Channel Search mode, press FUNC. to return to the

selecting search mode.

• The Search mode is canceled if you press and hold for at least 2

seconds, or no operation is performed for 10 seconds in Channel Search mode,

Quick Search Function

You can search for all Channels.

Press and hold for at least 2 seconds in XM or SIRIUS mode to activate Quick Search mode.

Turn the Rotary encoder to select the desired Channel within 10 seconds.

The selected Channel is received.

Category/Channel Search Function

You can search for programs by Category or Channel No.

Press in the XM or SIRIUS mode.

Turn the Rotary encoder to select Category Search mode or Channel Search mode, then press .

Category Search mode:

Turn the Rotary encoder to select the desired Category, then press .

20-EN

Receiving Weather or Traffic information from SAT Radio

Press and hold / for at least 2 seconds in the XM or SIRIUS mode.

The received weather or traffic channel is stored.

Press and hold BAND for at least 2 seconds.

The stored Weather or Traffic channel will be recalled.

Press and hold BAND for at least 2 seconds.

Returns to normal mode.

• Stored channels can also be recalled by pressing and holding BAND

for at least 2 seconds, except when in XM or SIRIUS mode.

• The channel excluding the Weather or Traffic information can be

stored and recalled.

Changing the Display

Text information, such as the channel name, artist name/feature, and song/program title, is available with each XM or Sirius channel. The unit can display this text information as explained below.

In XM or SIRIUS mode, press TITLE.

Each time you press this button, the display changes as shown below.

CHANNEL No. CATEGORY NAME CHANNEL NAME ARTIST NAME SONG TITLE COMPOSER NAME* AUXILIARY DATA FIELD*

*1SIRIUS mode only. *2XM mode only:

When ADF is turned OFF, this information is not displayed (see “Setting the Auxiliary Data Field Display” on page 21).

• When the “Scroll Setting (TEXT SCROLL)” (page 17) is set to

“SCROLL AUTO,” the display scrolls continuously. When the Scroll Setting is set to “SCROLL MANUAL,” the display scrolls only once after any function is performed (PRESET, BAND, SEARCH, etc.). Press and hold TITLE for more than 2 seconds to scroll the display manually.

• “CHANNEL No.” and “CLOCK” displays do not scroll.

• Depending on the model, the display may differ from the one shown

above.

CLOCK CHANNEL No.

Setting the Auxiliary Data Field Display

The XM Auxiliary Data Field (ADF) display can be switched on or off. There is no ADF function for the SIRIUS receiver.

Press MENU to select the SETUP mode, then press MODE.

Select “XMADF” by pressing or , then press MODE.

Select ON/OFF by turning the Rotary encoder.

When setting to ON, Auxiliary Data Field is displayed by pressing TITLE. (Refer to the “Changing the Display” section page 21.)

Press MENU to select RETURN.

After 2 seconds, the unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

21-EN

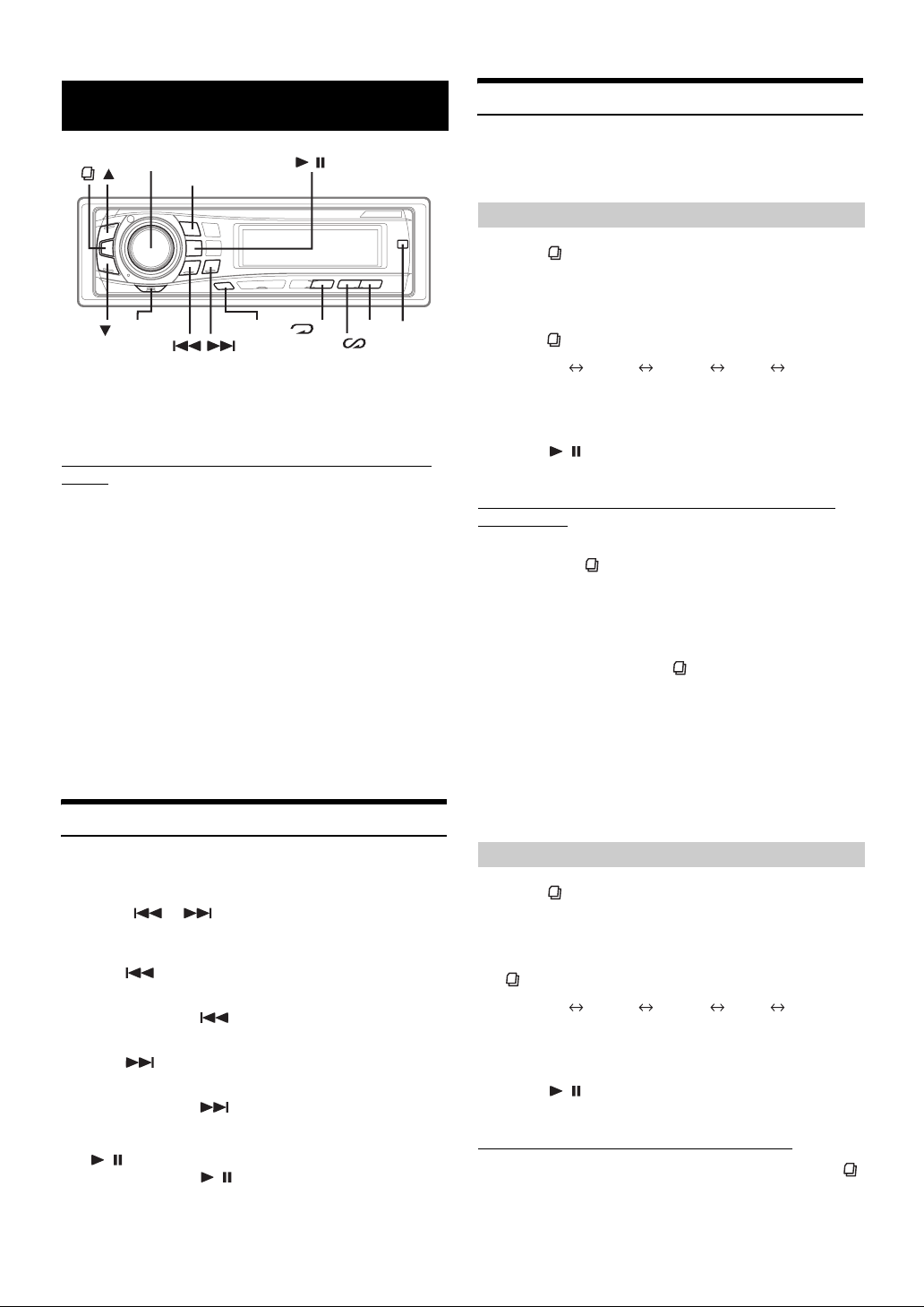

iPod™ (Optional)

Rotary encoder

MODE

An iPod™, iPod™ mini or iPod™ nano can be connected to the CDA-9856 by using the proprietary ALPINE FULL SPEED™ Connection Cable (KCE-422i). When the CDA-9856 is connected by using the cable, the controls on the iPod™ are not functional.

About iPods™ usable with this unit

The unit can be used with third generation and above iPod™ photo, iPod™ minis or iPod™ nano. iPod™ Shuffle cannot be used, however.

• Touch wheel or scroll wheel type iPods without the dock connector

cannot be connected to the unit.

• The unit can be used with the following iPod versions. Correct

function of earlier versions cannot be guranteed.

Third generation iPod: Ver. 2.3 Forth generation iPod: Ver. 3.0.2 iPod photo: Ver. 1.0 iPod mini: Ver. 1.3 iPod nano: Ver. 1.0

• The unit cannot be used with the software versions earlier than 22nd

Feb.2005. For details about “iPod Software Update,” refer to the iPod Instruction Manual.

SOURCE/POWER

FUNC.

TITLE

Searching for a desired Song

An iPod can contain hundreds of songs. By keeping these songs organized in playlists, the CDA-9856 can use these to ease song searches.

Searching by Playlist

Press to activate the search selection mode.

Turn the Rotary encoder to select the PLAYLIST search mode, then press .

PLAYLIST ARTIST ALBUM SONG PLAYLIST

*1Turn the Rotary encoder to select the desired

Playlist.

Press / .

The selected Playlist is played back.

To search for a song in the selected playlist

1 After selecting the playlist in step 3*1, press to change

to the song search mode of the selected playlist.

2 Turn the Rotary encoder to select a song and press

MODE. The selected song is played back.

• While in the search mode, if you press and hold for at least 2

seconds, or no operation is performed for 10 seconds, the search mode is canceled.

• In the search mode, pressing FUNC. will return to the previous

mode.

• All songs in the iPod are played back by selecting the stored “iPod

name” in step 3*1.

• Playlist search cannot be made during M.I.X. play.

• “NO SONG” will be displayed if there are no songs in the selected

playlist in the PLAYLIST search mode.

Playback

Press SOURCE/POWER to switch to the iPod mode.

Press or to select the desired song.

Return to the beginning of the current song:

Press .

Fast backward:

Press and hold .

Advance to the beginning of the next song:

Press .

Fast forward:

Press and hold .

To pause playback, press / .

Pressing / again will resume playback.

• If a song is playing on the iPod when it is connected to the

CDA-9856, it will continue playing after the connection.

22-EN

Searching by artist name

Press to activate the search selection mode.

Turn the Rotary encoder to select the ARTIST search mode, then press .

PLAYLIST ARTIST ALBUM SONG PLAYLIST

Turn the Rotary encoder to select the desired Artist.

Press / .

The selected Artist song is played back.

To search for an album of the selected artist

1 After selecting the artist in step 3*2, press to change

to the album search mode of the selected artist.

2*1Turn the Rotary encoder to select an album.

3 Press the / to play back all songs of the selected

album.

To search for a song of the selected album

1 After selecting the album in step 2*1, press to change

to the song search mode of the selected album.

2 Turn the Rotary encoder to select a song and press

MODE. The selected song is played back.

• While in the search mode, if you press and hold for at least 2

seconds, or no operation is performed for 10 seconds, the search mode is canceled.

• In the search mode, pressing FUNC. will return to the previous

mode.

• If you choose ALL in step 3*2, and you press / , all songs in

iPod are played back. If you choose ALL, and you press , the ALBUM search mode for all artists is activated.

• If you choose ALL in step 2*1, and you press / , all songs of the

selected artist are played back. If you choose ALL, and you press , the SONG search mode for the selected artist is activated.

• Artist name search cannot be made during M.I.X. play.

Searching by album name

Press to activate the search selection mode.

Turn the Rotary encoder to select the ALBUM search mode, then press .

PLAYLIST ARTIST ALBUM SONG PLAYLIST

Turn the Rotary encoder to select the desired Album.

Press / .

The selected Album is played back.

To search for a song of the selected album

1 After selecting the album in step 3*3, press to change

to the song search mode of the selected album.

2 Turn the Rotary encoder to select a song and press

MODE. The selected song is played back.

• While in the search mode, if you press and hold for at least 2

seconds, or no operation is performed for 10 seconds, the search mode is canceled.

• In the search mode, pressing FUNC. will return to the previous

mode.

• If you choose ALL in step 3*3, and you press / , all songs in the

iPod will be played back. If you choose ALL, and you press , the SONG search mode for all albums is activated.

• Album name search cannot be made during M.I.X. play.

Press MODE.

The selected song is played back.

• While in the search mode, if you press and hold for at least 2

seconds, or no operation is performed for 10 seconds, the search mode is canceled.

• In the search mode, pressing FUNC. will return to the previous

mode.

• Song name search cannot be made during M.I.X. play.

Select Playlist/Artist/Album

Playlist/Artist/Album can be easily changed. For example, if you listen to a song from a selected album, the album can be changed.

Press or to select the desired Playlist/Artist/ Album.

• If search selection mode is not activated, only SONG is searched, this

operation is not possible.

• If an album is selected from an artist search, the album can be

searched.

• During shuffle (M.I.X.) playback, this operation is not possible.

Quick Search

You can search for songs.

Press and hold for at least 2 seconds to activate Quick Search mode.

Turn the Rotary encoder to select a desired song.

The selected song is played back immediately.

• While in the search mode, if you press and hold for at least 2

seconds, or no operation is performed for 10 seconds, the search mode is canceled.

• If many songs are in iPod, it takes time to search for songs.

Searching by song name

Press to activate the search selection mode.

Turn the Rotary encoder to select the SONG search mode, then press .

PLAYLIST ARTIST ALBUM SONG PLAYLIST

Turn the Rotary encoder to select the desired Song.

23-EN

Random Play Shuffle (M.I.X.)

Displaying the Text

The Shuffle function of the iPod is displayed as M.I.X. on the CDA-9856.

Shuffle Albums:

Album shuffle playback plays back all songs in order, then randomly selects the next album. All songs of that album are played back in order, and so on. Any one album is played just once.

Shuffle Songs:

Song shuffle randomly plays back certain selected songs. Any one song plays back just once until all songs have been played back.

Press 5 .

The songs will be played back in random sequence.

M.I.X. M.I.X. (off) M.I.X.

(Shuffle Albums) (Shuffle Songs)

To cancel M.I.X. play, select (off) with the above procedure.

• For details of the search mode, refer to “Searching for a desired

Song” (page 22).

• If a song is selected in the album search mode before selecting

Shuffle (M.I.X.), the songs will not play back randomly even when Shuffle album is selected.

Shuffle Songs:

Shuffle ALL plays all songs in the iPod randomly. Any one song does not play back again until all songs have been played back.

You can display the tag information of a song in the iPod.

Press TITLE.

Each press changes the display.

TRACK NO./ELAPSED TIME TRACK NO./CLOCK ARTIST NAME* ALBUM NAME* SONG TITLE* TRACK NO./ELAPSED TIME

* TAG information

If the Scroll Setting (page 17) is set to “SCROLL AUTO,” the tag information will scroll automatically. “ARTIST”/“ALBUM”/“SONG” is displayed if there is no tag information.

• When the Scroll Setting (page 17) is set to “SCROLL MANU,”

press and hold TITLE for at least 2 seconds to scroll the tag information only once.

• Only alphanumeric characters (ASCII) can be displayed.

• If the artist, album or song name, created in iTunes, has too many

characters, songs may not be played back when connected to the adapter. Therefore, a maximum of 250 characters is recommended. The maximum number of characters for the head unit is 128 (128 byte).

• Some characters may not be correctly displayed.

• “NO SUPPORT” is displayed when text information is not

compatible with the CDA-9856.

Press 6.

The songs will be played back in random sequence. M.I.X. (off) M.I.X.

(Shuffle ALL)

To cancel M.I.X. play, select (off) with the above procedure.

• If Shuffle ALL is selected, the selected ones which played back in the

search mode are canceled.

Repeat Play

Only Repeat One is available for the iPod. Repeat One: A single song is repeatedly played back.

Press 4.

The file will be played repeatedly. RPT (off) RPT

(Repeat One)

To cancel repeat play, select (off) with the above procedure.

• During repeat playback, no other songs are selectable by pressing

or .

24-EN

Changer

Playing MP3 Files with the CD Changer (Optional)

(Optional)

SOURCE/POWER

Controlling CD Changer (Optional)

An optional 6-disc or 12-disc CD Changer may be connected to this unit if it is Ai-NET compatible. With a CD Changer connected to the Ai-NET input of this unit, the CD Changer will be controllable from this unit. Using the KCA-400C (Multi-Changer Switching device) or the KCA-410C (Versatile Link Terminal) multiple changers can be controlled by this unit. See “Multi-Changer Selection” on page 25 for selecting the CD Changers.

• The controls on this unit for CD Changer operation are operative

only when a CD Changer is connected.

• The DVD changer (optional) is controllable from this unit as well as

the CD changer.

Press SOURCE/POWER to activate the CHANGER mode.

The display shows the disc number and track number.

• The source indicator varies depending on the connected source.

• Press BAND to switch the Disc mode in the Changer mode.

Press the disc select buttons (1 through 6) corresponding to one of the discs loaded in the CD Changer.

The selected disc number appears in the display and CD playback starts.

• After selecting the desired disc, you can operate in the same way as

for the CD player of this unit. For details, please see the CD/MP3/WMA section.

• If the “ ” indicator is illuminated, the disc select buttons

become nonfunctional.

When a 12-disc CD Changer is connected:

To select discs numbered from 1 to 6, the procedure is the same as for the 6-disc CD Changer. To select discs numbered from 7 to 12, first press FUNC. to choose the disc select mode (7 to 12). This changes the “D” indicator to “d”. Then press the desired select button. The select buttons 1 to 6 will represent discs 7 to 12 respectively.

BAND

FUNC. Select buttons

(1 through 6)

If you connect a changer compatible with MP3, you can play CD-ROMs, CD-Rs, and CD-RWs containing MP3 files on this unit.

Press SOURCE/POWER to switch to the MP3 Changer mode.

Press any one of the disc select buttons (1 through 6) corresponding to one of the discs

loaded in the CD Changer.

To pause playback, press / .

Pressing / again will resume playback.

• The unit can play discs containing both audio data and MP3 data.

• For operating MP3 with an MP3 compatible CD Changer, refer to

“CD/MP3/WMA” pages 9 to 12.

Multi-Changer Selection (Optional)

Alpine's Ai-NET system will support up to 6 CD Changers. When operating two or more changers, the KCA-400C (Multi-Changer Switching device) must be used. If you use 1 Switching device, you can connect up to 4 CD Changers. If you use 2 Switching devices, you can connect up to 6 CD Changers. When using KCA-410C (Versatile Link Terminal), you can connect two changers and two external outputs (AUX).

Press SOURCE/POWER on this unit to activate the CD Changer mode.

Press BAND to activate the CD Changer Selection mode.

The CD Changer Selection mode remains active for several seconds.

Press BAND until the desired CD Changer indicator appears on the display.

• If the selected CD Changer is not connected, the display will show

“NO CHGR-No.”

• To operate the selected changer, see “CD/MP3/WMA” (pages 9 to

12).

• For further details about the external input (AUX) when using KCA-

410C, see “Setting the AUX Mode (V-Link)” on page 18.

25-EN

Information

In Case of Difficulty

If you encounter a problem, please turn the power off, then on again. If the unit is still not functioning normally, please review the items in the following checklist. This guide will help you isolate the problem if the unit is at fault. Otherwise, make sure the rest of your system is properly connected or consult your authorized Alpine dealer.

Basic

No function or display.

• Vehicle's ignition is off.

- If connected following instructions, the unit will not operate with the vehicle's ignition off.

• Improper power lead (Red) and battery lead (Yellow) connections.

- Check power lead and battery lead connections.

•Blown fuse.

- Check the fuse of the unit; replace with the proper value if

necessary.

• Internal micro-computer malfunctioned due to interference noise etc.

- Press the RESET switch with a ballpoint pen or other pointed

article.

Radio

Unable to receive stations.

• No antenna or open connection in cable.

- Make sure the antenna is properly connected;

replace the antenna or cable if necessary.

Unable to tune stations in the seek mode.

• You are in a weak signal area.

- Make sure the tuner is in the DX mode.

• If the area you are in is a primary signal area, the antenna may not be grounded and connected properly.

- Check your antenna connections; make sure the antenna is

properly grounded at its mounting location.

• The antenna may not be the proper length.

- Make sure the antenna is fully extended; if broken, replace the

antenna with a new one.

Broadcast is noisy.

• The antenna is not the proper length.

- Extend the antenna fully; replace it if it is broken.

• The antenna is poorly grounded.

- Make sure the antenna is grounded properly at its mounting

location.

CD insertion not possible.

• A CD is already in the CD player.

- Eject the CD and remove it.

• The CD is being improperly inserted.

- Make sure the CD is being inserted following instructions in the CD Player Operation section.

Unable to fast forward or backward the CD.

• The CD has been damaged.

- Eject the CD and discard it; using a damaged CD in your unit can cause damage to the mechanism.

CD playback sound skips due to vibration.

• Improper mounting of the unit.

- Securely re-mount the unit.

• The disc is very dirty.

- Clean the disc.

• The disc has scratches.

- Change the disc.

• The pick-up lens is dirty.

- Do not use a Commercial available lens cleaner disc. Consult your nearest Alpine dealer.

CD playback sound skips without vibration.

• The disc is dirty or scratched.

- Clean the disc; damaged disc should be replaced.

Error displays (built-in CD player only)

• Mechanical error

- Press . After the error indication disappears, insert the disc again. If the above-mentioned solution does not solve the problem, consult your nearest Alpine dealer.

CD-R/CD-RW playback not possible

• Close session (finalization) has not been performed.

- Perform finalization and attempt playback again.

MP3/WMA

MP3 or WMA is not played back.

• Writing error occurred. The CD format is not compatible.

- Make sure the CD has been written in a supported format. Refer to “About MP3/WMA” (pages 11-12), then rewrite in the format supported by this device.

Audio

The sound is not output from the speakers.

• Unit has no output signal of the internal amplifier.

- POWER IC is switched to “ON” (page 18).

Indication for CD Player

• Protective circuit is activated due to high temperature.

- The indicator will disappear when the temperature returns to within operation range.

CD Player/Changer not functioning.

• Out of operating temperature range +50°C (+120°F) for CD.

- Allow the vehicle's interior (or trunk) temperature to cool.

CD playback sound is wavering.

• Moisture condensation in the CD Module.

- Allow enough time for the condensation to evaporate (about 1 hour).

26-EN

• No CD is inserted.

- Insert a CD.

• Although a disc is inserted, “NO DISC” is displayed and the unit does not start to play or eject the disc.

- Remove the disc by following these steps:

Press the button again for at least 2 seconds. If the disc still does not eject, consult your Alpine dealer.

• Mechanism error.

1) Press the button and eject the CD. If not ejecting, consult your Alpine dealer.

2) When the error indication remains after ejecting, press the button again. If the error indication still does not turn off after pressing the

button for a few times, consult your Alpine dealer.

• When “ERROR” is displayed:

If that the disc cannot be ejected by pressing , press the RESET switch (refer to page 7) and press again. If the disc still cannot be ejected, consult your Alpine dealer.

• No indicated disc.

- Choose another disc.

Indication for SAT Receiver Mode

• The XM or SIRIUS antenna is not connected to the XM or SIRIUS radio module.

- Check whether the XM or SIRIUS antenna cable is attached

securely to the XM or SIRIUS radio module.

• A copy-protected WMA file was played back.

- You can only play back non-copy-protected files.

• The disc is not written in a MP3/WMA supported format.

- Use a disc written at the MP3/WMA supported format.

Indication for CD Changer

• Protective circuit is activated due to high temperature.

- The indicator will disappear when the temperature returns to within operation range.

• Malfunction in the CD Changer.

- Consult your Alpine dealer. Press the magazine eject button and pull out the magazine. Check the indication. Insert the magazine again. If the magazine cannot be pulled out, consult your Alpine dealer.

• Magazine ejection not possible.

- Press the magazine eject button. If the magazine does not eject, consult your Alpine dealer.

• A disc is left inside the CD Changer.

- Press the eject button to activate the eject function. When the CD Changer finishes the eject function, insert an empty CD magazine into the CD Changer to receive the disc left inside the CD Changer.

• Radio is being updated with latest encryption code.

- Wait until encryption code is being updated. Channels 0 and 1 should function normally.

(XM mode)

(SIRIUS mode) Scrolling display only once

• XM or SIRIUS signal is too weak at the current location.

- Wait until the car reaches a location with a stronger signal.

• Radio is acquiring audio or program information.

- Wait until the radio has received the information.

(XM mode)

(SIRIUS mode) Scrolling display only once

• The channel currently selected has stopped broadcasting.

- Select another channel.

• The user has selected a channel number that does not exist or is not subscribed to.

- The unit will revert back to the previously selected channel.

• There is no artist name/feature, song/program title, or additional information associated with the channel at that time.

- No action needed.

• No magazine is loaded into the CD Changer.

- Insert a magazine.

27-EN

Indication for iPod Mode

• The iPod is not connected.

- Make sure the iPod is correctly connected (refer to “Connections”). Make sure the cable is not bent excessively.

• The iPod’s battery remains low.

- Refer to the iPod’s documentation and charge the battery.

• There are no songs in the iPod.

- Download songs to the iPod and connect to the adapter.

• Communication error

- Turn the ignition key off, and then set to ON again.

- Check the display by reconnecting between the iPod and the adapter, using the iPod cable.

• Caused by the iPod Software Version not being compatible with this unit.

- Update the iPod Software Version to be compatible with this

unit.

Specifications

FM TUNER SECTION

Tuning Range 87.7-107.9 MHz Mono Usable Sensitivity 9.3 dBf (0.8 µV/75 ohms) 50 dB Quieting Sensitivity 13.5 dBf (1.3 µV/75 ohms) Alternate Channel Selectivity 80 dB Signal-to-Noise Ratio 65 dB Stereo Separation 35 dB Capture Ratio 2.0 dB

AM TUNER SECTION

Tuning Range 530-1,710 kHz Sensitivity (IEC Standard) 22.5 µV/27 dB

CD PLAYER SECTION

Frequency Response 5 - 20,000 Hz (±1 dB) Wow & Flutter (% WRMS) Below measurable limits Total Harmonic Distortion 0.008% (at 1 kHz) Dynamic Range 95 dB (at 1 kHz) Signal-to-Noise Ratio 105 dB Channel Separation 85 dB (at 1 kHz)

PICKUP

Wave length 795 nm Laser power CLASS I

GENERAL

Power Requirement 14.4 V DC

(11-16 V allowable)

Power Output 18 W RMS × 4*

*Primary amplifier ratings per CEA-2006 Standard

• Power output: measured at 4 Ohms and 1% THD+N

• S/N: 80 dBA (reference: 1 W into 4 Ohms) Maximum Pre-Output Voltage 2 V/10 k ohms Bass +20/-14 dB at 100 Hz Treble ±14 dB at 10 kHz Weight 1.6 kg (3 lbs. 8 oz)

28-EN

CHASSIS SIZE

Width 178 mm (7") Height 50 mm (2") Depth 162 mm (6-3/8")

NOSEPIECE SIZE

Width 170 mm (6-11/16") Height 46 mm (1-13/16") Depth 24 mm (15/16")

• Due to continuous product improvement, specifications and design

are subject to change without notice.

+ 73 hidden pages
