Alpine CDA-9830, CDA-9831 User Manual

Download

FM/AM CD Receiver

CDA-9831 CDA-9830

• OWNER'S MANUAL Please read before using this equipment.

• MODE D'EMPLOI Veuillez lire avant d'utiliser cet appareil.

• MANUAL DE OPERACIÓN Léalo antes de utilizar este equipo.

ALPINE ELECTRONICS MARKETING, INC.

1-1-8 Nishi Gotanda,

Shinagawa-ku,

Tokyo 141-0031, Japan

Phone 03-5496-8231

ALPINE ELECTRONICS OF AMERICA, INC.

19145 Gramercy Place, Torrance,

California 90501, U.S.A.

Phone 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF CANADA, INC.

7300 Warden Ave., Suite 203, Markham,

Ontario L3R 9Z6, Canada

Phone 1-800-ALPINE-1 (1-800-257-4631)

Melyi Printing Factory, Dalian, China No. 28 Chang Qing Street, Xl Gang District, Dalian, China

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

6-8 Fiveways Boulevarde Keysborough,

Victoria 3173, Australia

Phone 03-9769-0000

ALPINE ELECTRONICS GmbH

Frankfurter Ring 117, 80807 München, Germany

Fletchamstead Highway, Coventry CV4 9TW, U.K.

Phone 089-32 42 640

ALPINE ELECTRONICS OF U.K. LTD.

Alpine House

Phone 0870-33 33 763

ALPINE ELECTRONICS FRANCE S.A.R.L.

(RCS PONTOISE B 338 101 280)

98, Rue de la Belle Etoile, Z.I. Paris Nord Il,

B.P. 50016, 95945 Roissy Charles de Gaulle

ALPINE ELECTRONICS DE ESPAÑA, S.A.

01013 Vitoria (Alava)-APDO 133, Spain

Cedex, France

Phone 01-48638989

ALPINE ITALIA S.p.A.

Viale C. Colombo 8, 20090 Trezzano

Sul Naviglio (MI), Italy

Phone 02-484781

Portal de Gamarra 36, Pabellón, 32

Phone 945-283588

Printed in China (Y)

68P02294K99-O

CHM-S630CHA-S634

• CD changer for CDA-9831/CDA-9830.

• Changeur CD pour CDA-9831/CDA-

9830.

• Cambiador de CD para CDA-9831/

CDA-9830.

CHA-1214

• CD changer for CDA-9831/CDA-9830.

• Changeur CD pour CDA-9831/CDA-

9830.

• Cambiador de CD para CDA-9831/

CDA-9830.

Alpine CD Changers Give You More!

More musical selections, more versatility, more convenience.

The CHA-S634 is a high-performance 6-disc changer with a new M DAC, CD-R/RW PLAY BACK, MP3 PLAY BACK and CD TEXT. The CHA-1214 Ai-NET model holds 12 discs, and the CHM-S630 M-Bus model is a super-compact 6-disc changer with a CD-R/RW PLAY BACK.

Changeurs de CD Alpine : vous avez le choix!

Plus de sélections musicales, plus de souplesse, plus de confort.

Le modèle CHA-S634 est un changeur 6 disques ultra performant équipé des nouvelles fonctions M DAC, CD-R/RW PLAY BACK, MP3 PLAY BACK et CD TEXT. Le modèle CHA-1214 Ai-NET contient 12 disques. Le modèle CHM-S630 M-Bus est un changeur 6 disques super compact doté de la fonction CD-R/ RW PLAY BACK.

¡Los cambiadores Alpine de CD le ofrecen más!

Más selecciones musicales, más versatilidad y más ventajas.

CHA-S634 es un cambiador de seis discos de alto rendimiento con nuevo M DAC, CD-R/RW PLAY BACK, MP3 PLAY BACK y CD TEXT. El modelo CHA-1214 Ai-NET alberga 12 discos y el modelo CHM-S630 M-Bus es un cambiador de seis discos de tamaño reducido con un CD-R/RW PLAY BACK.

Contents

ENGLISH

Operating Instructions

WARNING

WARNING .................................................. 3

CAUTION ................................................... 3

PRECAUTIONS ......................................... 3

Getting Started

Turning Power On and Off ............................... 6

Initial System Start-Up ..................................... 6

Setting Time ...................................................... 6

Opening and Closing the Movable Display ...... 6

Display Tilt Adjustment .................................... 6

Adjusting Volume ............................................. 7

Lowering Volume Quickly ................................ 7

Changing the Display Type ............................... 7

Detaching and Attaching the Front Panel ......... 7

Radio

Changing the Radio Frequencies for each

Country .......................................................... 8

Listening to Radio ............................................. 8

Manual Storing of Station Presets .................... 8

Automatic Memory of Station Presets .............. 8

Tuning to Preset Stations .................................. 8

Station Title Search Function............................ 9

Frequency Search Function............................... 9

CD/MP3/WMA

Playback ............................................................ 9

Playing back a Playlist .................................... 10

Repeat Play ..................................................... 11

M.I.X. (Random Play) .................................... 11

Scanning Programs ......................................... 12

Searching from CD Text ................................. 12

File/Folder Name Search

(concerning MP3/WMA) ............................ 12

Quick Search ................................................... 12

About MP3/WMA .......................................... 12

Sound Setting

Adjusting Balance (Between Left and Right)/

Fader (Between Front and Rear)/Defeat...... 14

Adjusting and Storing the built-in

Crossover ..................................................... 14

Recalling the Stored built-in

Crossover Settings ....................................... 14

Equalizer Presets ............................................. 15

Adjusting and Storing the Equalizer Curve .... 15

Recalling the Stored Equalizer Curve ............. 15

About Time Correction ................................... 16

Bass Focus ...................................................... 16

Adjusting and Storing the Time Correction .... 18

Recalling the Stored Time Correction

Settings ........................................................ 18

Setting the MX Mode ..................................... 18

Other Functions

Displaying the Title/Text ................................. 19

Titling Discs/Stations ...................................... 20

Erasing Disc Title/Station Title ....................... 20

Displaying Time.............................................. 20

Blackout Mode On and Off............................. 20

Setting an Amplifier Link

(CDA-9831 only)......................................... 21

Displaying the External Amplifier Information

(CDA-9831 only)......................................... 21

Setting the Multicolor Illumination

(CDA-9831 only)......................................... 22

Changing the Lighting Color of

All the Buttons (CDA-9831 only) ............... 22

Verifying the Software Version ....................... 22

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and /or other countries.

1-EN

i-Personalize™ Operation

(CDA-9831 only)

About i-Personalize™ ..................................... 23

Data Downloading .......................................... 23

SETUP

Sound Customizing

Switching the Tuner Mode.............................. 24

Subwoofer On and Off .................................... 24

Sound (Beep) Guide Function ........................ 24

Visual Customizing

Dimmer Control

(CDA-9831 only)......................................... 24

Scroll Setting ................................................... 24

Adjusting Display Contrast

(CDA-9831 only)......................................... 25

Demonstration ................................................. 25

MP3/WMA

Playing MP3/WMA Data ................................ 25

External Device

Turning Mute Mode On/Off ............................ 25

Setting the AUX Mode (V-Link)..................... 25

Connecting to an External Amplifier .............. 25

Setting the Temperature Display for the External

Amplifier (CDA-9831 only) ........................ 25

Setting the Tone Defeat for External Devices... 25

XM Radio (Optional)

Receiving XM Channels with the

XM Receiver (Optional) .............................. 26

Checking the XM Radio ID Number .............. 26

Storing XM Channel Presets ........................... 26

Receiving Stored XM Channels...................... 26

Channel/Category Search Function ................ 27

Quick Search Function .................................... 27

Changing the Display ...................................... 27

Setting the Tuning Method ............................. 27

Setting the Auxiliary Data Field Display ........ 27

MobileHub™ Link Operation

(Optional)

About MobileHub™ Link............................... 28

Telephone Mode ON/OFF .............................. 28

Incoming Calls ................................................ 28

Setting the Automatic Calling......................... 28

Calling ............................................................. 29

SMS (Short Message Service) Operation ....... 29

Changer (Optional)

Controlling CD Changer (Optional) ............... 30

Playing MP3 Files with the CD Changer

(Optional) .................................................... 30

Multi-Changer Selection (Optional) ............... 30

Remote Control

Controls on Remote Control ........................... 31

Operating the Audio Processor ....................... 31

Battery Replacement ....................................... 32

Information

In Case of Difficulty ....................................... 32

Specifications .................................................. 35

Installation and Connections

Warning ........................................................... 36

Caution ............................................................ 36

Precautions ...................................................... 36

Installation ...................................................... 37

Connections .................................................... 38

LIMITED WARRANTY

2-EN

Operating Instructions

WARNING

This symbol means important instructions. Failure to heed them can result in serious injury or death.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result in an accident.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISE WHILE DRIVING.

Failure to do so may result in an accident.

MINIMIZE DISPLAY VIEWING WHILE DRIVING.

Viewing the display may distract the driver from looking ahead of the vehicle and cause an accident.

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, fire or electric shock.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may result in fire, etc.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician immediately.

USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES.

Failure to do so may result in fire or electric shock.

DO NOT BLOCK VENTS OR RADIATOR PANELS.

Doing so may cause heat to build up inside and may result in fire.

USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.

Use for other than its designed application may result in fire, electric shock or other injury.

CAUTION

This symbol means important instructions. Failure to heed them can result in injury or material property damage.

HALT USE IMMEDIATELY IF A PROBLEM APPEARS.

Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for repairing.

DO NOT MIX NEW BATTERIES WITH OLD BATTERIES. INSERT WITH THE CORRECT BATTERY POLARITY.

When inserting the batteries, be sure to observe proper polarity (+ and –) as instructed. Rupture or chemical leakage from the battery may cause fire or personal injury.

KEEP FINGERS AWAY WHILE THE MOTORIZED FRONT PANEL OR MOVING MONITOR IS IN MOTION.

Failure to do so may result in personal injury or damage to the product.

PRECAUTIONS

Temperature

Be sure the temperature inside the vehicle is between +60°C (+140°F) and –10°C (+14°F) before turning your unit on.

Moisture Condensation

You may notice the CD playback sound wavering due to condensation. If this happens, remove the disc from the player and wait about an hour for the moisture to evaporate.

Damaged Disc

Do not attempt to play cracked, warped, or damaged discs. Playing a bad disc could severely damage the playback mechanism.

Maintenance

If you have problems, do not attempt to repair the unit yourself. Return it to your Alpine dealer or the nearest Alpine Service Station for servicing.

DO NOT PLACE HANDS, FINGERS OR FOREIGN OBJECTS IN INSERTION SLOTS OR GAPS.

Doing so may result in personal injury or damage to the product.

3-EN

PRECAUTIONS

Product Cleaning

Use a soft dry cloth for periodic cleaning of the product. For more severe stains, please dampen the cloth with water only. Anything else has the chance of dissolving the paint or damaging the plastic.

Installation Location

Make sure the CDA-9831/CDA-9830 will not be installed in a location subjected to:

•Direct sun and heat

•High humidity and water

•Excessive dust

•Excessive vibrations

Never Attempt the Following

Do not grip or pull out the disc while it is being pulled back into the player by the automatic reloading mechanism. Do not attempt to insert a disc into the unit when the unit power is off.

Inserting Discs

Yo ur player accepts only one disc at a time for playback. Do not attempt to load more than one disc. Make sure the label side is facing up when you insert the disc. Yo ur player will automatically eject any disc that is inserted incorrectly. If the player continues to eject a correctly inserted disc, push the RESET switch with a pointed object such as a ballpoint pen. Playing a disc while driving on a very bumpy road may result in skips, but this will not scratch the disc or damage the player.

New Discs

As a protective measure to prevent the CD from jamming, the CD player will automatically eject discs with irregular surfaces or inserted incorrectly. When a new disc is inserted into the player and ejected after initial loading, using your finger, feel around the inside of the center hole and outside edge of the disc. If you feel any small bumps or irregularities, this could inhibit proper loading of the disc. To remove the bumps, rub the inside edge of the hole and outside edge of the disc with a ballpoint pen or other such instrument, then insert the disc again.

Center Hole

New Disc

Correct Handling

Do not drop the disc while handling. Hold the disc so you will not leave fingerprints on the surface. Do not affix tape, paper, or gummed labels to the disc. Do not write on the disc.

CORRECT

INCORRECT

CORRECT

Disc Cleaning

Fingerprints, dust, or soil on the surface of the disc could cause the CD player to skip. For routine cleaning, wipe the playing surface with a clean, soft cloth from the center of the disc to the outer edge. If the surface is heavily soiled, dampen a clean, soft cloth in a solution of mild neutral detergent before cleaning the disc.

Disc Accessories

There are various accessories available on the market for protecting the disc surface and improving sound quality. However, most of them will influence the thickness and/or diameter of the disc. Using such accessories can cause the disc to be out of standard specifications and may create operational problems. We recommend not using these accessories on discs played in Alpine CD players.

Bumps

Outside (Bumps)

Irregular Shaped Discs

Be sure to use round shape discs only for this unit and never use any special shape discs. Use of special shape discs may cause damage to the mechanism.

4-EN

Disc StabilizerTransparent Sheet

On handling Compact Discs (CD/CD-R/CD-RW)

• Do not touch the surface.

• Do not expose the disc to direct sunlight.

• Do not affix stickers or labels.

•Clean the disc when it is dusty.

•Make sure that there are no bumps around the disc.

• Do not use commercially available disc accessories.

Do not leave the disc in the car or the unit for a long time. Never expose the disc to direct sunlight. Heat

and humidity may damage the CD and you may not be able to play it again.

To customers using CD-R/CD-RW

• If a CD-R/CD-RW cannot be played back, make sure the last recording session was closed (finalized).

•Finalize the CD-R/CD-RW if necessary, and attempt playback again.

About media that can be played.

Use only compact discs with the label side showing the CD logo marks below.

If you use unspecified compact discs, correct performance cannot be guaranteed. Yo u can play CD-Rs (CD-Recordable)/CD-RWs (CDReWritable) which have been recorded only on audio devices. Yo u can also play CD-Rs/CD-RWs containing MP3/WMA formatted audio files.

•Some of the following CDs may not play on this unit: Flawed CDs, CDs with fingerprints, CDs exposed to extreme temperatures or sunlight (e.g., left in the car or this unit), CDs recorded under unstable conditions, CDs on which a recording failed or a re-recording was attempted, copyprotected CDs which do not conform to the audio CD industry standard.

•Use discs with MP3/WMA files written in a format compatible with this unit. For details, see page 12-13.

About the alphanumeric display of CDA-9830.

• All English lower case characters are displayed as upper case

on this unit.

• The alphanumeric display in the following table shows alphanumeric characters/numbers that may be difficult to distinguish.

Alphanumeric

Display

Alphanumeric

Display

02568ABD

GHKMQRSZ

5-EN

Getting Started

SOURCE/ POWER

Turning Power On and Off

Press SOURCE/POWER to turn on the unit.

• The unit can be turned on by pressing any other button except eject

c and TITLE .

DISP/ B.OUT

MUTE

TITLE

RESETMENUg f

Rotary encoder

TILT 98

Opening and Closing the Movable Display

Press c.

The movable display will open.

To close the movable display, press c again.

The movable display will close.

• Do not apply shock to the movable display when it is open as it may result in malfunction of the unit.

• The display may be dim during low temperatures and immediately after turning on the power. The brightness will return to normal as time elapses.

• The display will stop at the set tilt angle when closing.

Caution

Keep hands (or any other object) away from the display while it is opening or closing to avoid damage or injury. The back of the movable display will get very warm under normal operating conditions. This is not a malfunction. Do not touch.

Press and hold SOURCE/POWER for at least 2 seconds to turn off the unit.

• The first time power is turned on, the volume will start from level 12.

Initial System Start-Up

Be sure to press the RESET switch when using the unit for the first time, after installing the CD changer, after changing the car battery, etc.

Turn off the unit power.

Press RESET with a ball-point pen or similar

pointed object.

Setting Time

Press MENU to select SETUP.

Press g or f to select the CLOCK mode.

Turn the Rotary encoder to adjust the hours

within 15 seconds.

When the hour has been adjusted, press the

Rotary encoder.

Turn the Rotary encoder to adjust the minutes

within 15 seconds.

Display Tilt Adjustment

Movable display

The movable display may be adjusted to 3 different tilt angles depending upon user preference.

Press TILT 98 to adjust the tilt angle of the movable display.

• The display will close a half minute after the ignition key is turned to the OFF position.

• The adjusted tilt angle of the display is stored in memory. There is no need to re-adjust the tilt angle when the power is turned back on

Caution

When the setting has been completed, press

MENU to select RETURN.

The unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

•

To synchronize the clock to another clock/watch or radio time announcement, press and hold the Rotary encoder for at least 2 seconds after setting the "hour." Minutes will reset to 00. If the display shows over "30" minutes when you do this, the time will advance one hour.

6-EN

Adjusting Volume

Turn the Rotary encoder until the desired sound is obtained.

Lowering Volume Quickly

Activating the Audio Mute function will instantly lower the volume level by 20 dB.

Press MUTE to activate the MUTE mode.

The audio level will decrease by about 20 dB.

Pressing MUTE again will bring the audio back to its previous level.

Changing the Display Type

There are three selectable display types (only one for the CDA-9830). You can also deactivate the display.

Press DISP/B.OUT to switch the display type.

For CDA-9831:

Type1 → Type2 → Type3 → OFF → Type1

Type1 : The indicator on the left changes in a fixed sequence. Type2 : The indicator on the left changes according to the

setting (see "Setting the Multicolor Illumination" on page 22).

Type3 : The indicator on the left changes according to audio

level.

Detaching and Attaching the Front Panel

Detaching

Turn off the unit power.

Press (Release) at the upper left side until the

front panel pops out.

Grasp the left side of the front panel and pull it out.

• The front panel may become hot in normal usage (especially the

connector terminals on the back of the front panel.) This is not a malfunction.

•To protect the front panel, place it in the supplied carrying case.

Attaching

Insert the right side of the front panel into the main

unit. Align the groove on the front panel with the projections on the main unit.

Push the left side of the front panel until it locks

firmly into the main unit.

For CDA-9830:

VOLUME SETTING → LEVEL INDICATOR → OFF → VOLUME SETTING

Audio Level Display

• Before attaching the front panel, make sure that there is no dirt or

dust on the connector terminals and no foreign object between the front panel and the main unit.

•Attach the front panel carefully. Hold the panel by its sides to avoid

pushing any buttons by mistake.

7-EN

Radio

SOURCE/ POWER

g f

TUNE/ A.ME

Changing the Radio Frequencies for each Country

For customers not living in North America, change the radio frequencies as follows.

Press MENU to select the SETUP mode.

Select the "AREA" mode by pressing g or f.

Choose either AREA 1 or AREA 2 by turning the

Rotary encoder.

AREA 1: Radio frequencies for North America AREA 2: Other Radio frequencies

Press MENU to select RETURN.

The unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

• The stored radio stations will be cleared every time you change the setting.

BAND/ TEL.

Rotary encoder

Preset buttons (1 through 6)

Press g or f to tune in the desired station.

Holding down g or f will change the frequency continuously.

• The ST indicator appears on the display when a stereo FM station is tuned in.

Manual Storing of Station Presets

Select the radio band and tune in a desired radio

station you wish to store in the preset memory.

Press and hold, for at least 2 seconds, any one of

the preset buttons (1 through 6) that you want to store the station on .

The selected station is stored. The display shows the band, preset no. and station frequency memorized.

•A total of 18 stations can be stored in the preset memory (6 stations for each band; FM1, FM2 and AM).

• If you store a station in a preset memory which already has a station, the current station will be cleared and replaced with the new station.

Automatic Memory of Station Presets

Press BAND/TEL. repeatedly until the desired

radio band is displayed.

Press and hold TUNE/A.ME for at least 2 seconds.

The frequency on the display continues to change while the automatic memory is in progress. The tuner will automatically seek and store 6 strong stations in the selected band. They will be stored into buttons 1 to 6 in order of signal strength. When the automatic memory has been completed, the tuner goes to the station stored in preset location no. 1.

• If no stations are stored, the tuner will return to the original station you were listening to before the auto memory procedure began.

Listening to Radio

Press SOURCE/POWER until a radio frequency

appears in the display.

Press BAND/TEL. repeatedly until the desired

radio band is displayed.

FM1 → FM2 → AM → FM1

Press TUNE/A.ME to select the tuning mode.

SEEK DX (Distance mode) → SEEK LO (Local mode) → MANUAL (Manual mode) → SEEK DX

• The initial mode is DX SEEK (Distance mode).

Distance mode:

Both strong and weak stations will be automatically tuned in (Automatic Seek Tuning).

Local mode:

Only strong stations will be automatically tuned in (Automatic Seek Tuning).

Manual mode:

The frequency is manually tuned in steps (Manual tuning).

8-EN

Tuning to Preset Stations

Press BAND/TEL. repeatedly until the desired

band is displayed.

Press any one of the station preset buttons (1

through 6) that has your desired radio station in memory.

The display shows the band, preset number and frequency of the station selected.

Station Title Search Function

If the title of a radio station is entered, you can search for that radio station by its title while listening to the currently received radio station. .

Press SEARCH in Radio mode to switch to Title

Search mode.

The first title input blinks in the display.

Select the desired title by turning the Rotary

encoder within 10 seconds.

Press the Rotary encoder to receive the

frequency of the selected title.

• Search mode in Title Search mode is canceled by pressing and holding SEARCH for at least 2 seconds.

• If a station has no title, "NO TITLE" is displayed for 2 seconds.

Frequency Search Function

You can search for a radio station by its frequency.

Press and hold SEARCH for at least 2 seconds

in Radio mode to activate Frequency Search mode.

Turn the Rotary encoder within 10 seconds to

select the desired frequency.

CD / MP3 / WMA

SOURCE/ POWER

Playback

Press c.

The movable display will open.

Insert a disc with the label side facing up.

The disc will be pulled into the unit automatically.

-/J

Rotary encoder

TITLE

)5()

6( )

Press the Rotary encoder to receive the selected

frequency.

• Search mode in Frequency Search mode is canceled by pressing and holding SEARCH for at least 2 seconds.

The movable display will close and playback will begin. When a disc is already inserted, press SOURCE/POWER to switch to the CD mode.

The mode will change every time the button is pressed.

TUNER → CD → CD CHANGER* → TUNER

* Only when the CD changer is connected

While playing back MP3/WMA, press 8 or 9 to

select the desired folder.

Pressing and holding 8 or 9 will change folders continuously.

Press g or f to select the desired track (file).

Returning to the beginning of the current track (file):

Press g.

Fast backward :

Press and hold g.

Advancing to the beginning of the next track (file) :

Press f.

Fast forward :

Press and hold f.

To pause playback, press -/J.

Pressing -/J again will resume playback.

To eject the disc, press c.

• Do not remove a CD during its eject cycle. Do not load more than one disc at a time. A malfunction may result from doing either.

• If the CD does not eject, press and hold c for at least 2 seconds with the movable display open.

Continued

9-EN

• The CD-player can play discs containing audio data, MP3 data and WMA data.

•A WMA format file that is protected by DRM (Digital Rights Management) cannot be played back on this unit.

• "MP3" is displayed during MP3 playback.

• "WMA" is displayed during WMA playback.

• The track display for MP3/WMA data playback is the file numbers recorded on the disc.

• If the HDA-5460 model is connected to the unit, some operations (for example changing the source, selecting the file by holding buttons up or down, etc.), can be carried out on this unit.

MP3/WMA Play Display CDA-9831

The folder number, file number, sampling rate, and bit rate will be displayed as described below.

File number display

kHz

44.1

Sampling rate display

The sampling rate and the bit rate (frame display) are alternately displayed.*

01 03

Folder number display

Playing back a Playlist

You can play playlists you have prepared in advance on the computer. Both MP3 and WMA playlists can be played. Playlists that can be played back by this device have the file extension "m3u"/"asx."

Press 8 or 9 to select a playlist.

By pressing and holding 8 or 9, the playlists move up or down continuously.

• If there is a playlist and folder on the disc, the playlist starts to play back prior to the folder.

• Up to 5 playlist can be played back. Playlists from the 6th onwards cannot be played back.

• Refer to the software instruction manual on how to create a playlist.

Playlist Display

While playing back a playlist, the folder and file numbers that are stored in the playlist are displayed.

CDA-9831

P-LIST

03 05

CDA-9830

File number display

kbps

160

Bit rate display

*When the unit is connected to the Amplifier Link, the

temperature is automatically indicated.

Sampling rate → Bit rate → Temperature → Sampling rate

CDA-9830

The folder number and file number will be displayed as described below.

01 03

Folder number display

F01 T03

Folder number display

•Press TITLE to switch the display. Please see “Displaying the Title/Text” (page 19) for information about display switching.

File number display

P-L

F03 T05

10-EN

Repeat Play

M.I.X. (Random Play)

Press 4 ( ) to play back repeatedly the track being played.

The track (file) will be played repeatedly.

Press 4 ( ) again and select OFF to deactivate repeat play.

CD mode :

RPT : Only a track is repeatedly played back

↓ *1

RPT :A disc is repeatedly played back

↓

(off)

*1 When a CD changer is connected

• If REPEAT is set to ON during M.I.X. play in CD changer mode,

M.I.X. will apply to the current disc only.

MP3/WMA mode :

RPT : Only a file is repeatedly played back

↓

RPT :

RPT :A disc is repeatedly played back

(off)

*2 When an MP3 compatible CD changer is connected

• If a 6-disc CD changer or an MP3 compatible CD changer is

connected: In CD changer mode, press F to illuminate the "FUNC" indicator, and go to the step above within 5 seconds.

• If a 12-disc CD changer is connected:

In CD changer mode, press F twice to illuminate the "FUNC" indicator, and go to the step above within 5 seconds.

Only files in a folder or playlist are repeatedly played back

↓ *2

↓

Press 5 ( ) in the play or pause mode.

The tracks (files) on the disc will be played back in random sequence.

To cancel M.I.X. play, press 5 ( ) again.

CD mode :

↓

M.I.X.: Track are played back in

random sequence.

↓ *3

M.I.X.: The tracks on all the CDs in the current

magazine will be included in the random playback sequence.

↓

(off)

*3 When a CD changer equipped with the All M.I.X. function is

connected

• If M.I.X. is set to ON during RPT (REPEAT ALL) play in CD changer mode, M.I.X. will apply to the current disc only.

MP3/WMA mode :

↓

M.I.X.: Only files in a folder are played back in

random sequence.

↓

M.I.X.: Files are played back in random sequence.

If an MP3 compatible CD changer is connected, all files in a disc are played back in random sequence, and playback shifts to the next disc.

↓

(off)

• If a 6-disc CD changer or an MP3 compatible CD changer is connected: In CD changer mode, press F to illuminate the "FUNC" indicator, and go to the step above within 5 seconds.

• If a 12-disc CD changer is connected: In CD changer mode, press F twice to illuminate the "FUNC" indicator, and go to the step above within 5 seconds.

• When playing back a playlist, M.I.X. cannot be played.

11-EN

Scanning Programs

Press 6 ( ) to activate the Scan mode.

The first 10 seconds of each track (file) will be played back in succession.

To stop scanning, press 6 ( ) and deactivate the Scan mode.

• If a 6-disc CD changer or an MP3 compatible CD changer is connected: In CD changer mode, press F to illuminate the "FUNC" indicator, and go to the step above within 5 seconds.

• If a 12-disc CD changer is connected: In CD changer mode, press F twice to illuminate the "FUNC" indicator, and go to the step above within 5 seconds.

Folder Name Search mode

Turn the Rotary encoder within 10 seconds to

select the desired folder or playlist.

Press the Rotary encoder to play back the first

file in the selected folder or playlist.

• Search mode is canceled by pressing and holding SEARCH for at least 2 seconds in Folder Name Search mode.

• While in Folder Name Search mode, press SEARCH to switch to File Name Search mode.

• "NO FILE" is displayed for 2 seconds if the folder or playlist that is selected by the Folder Name Search mode contains no files.

•"0 (zero)" is displayed for the root folder.

•Folder Name Search cannot be made during M.I.X. play.

Searching from CD Text

Tracks can be searched and played using the CD text on the disk. In the case of discs and changers that do not support text, searches can be made using the track numbers.

Press SEARCH during play.

This will set the search mode.

Turn the Rotary encoder to select the desired

track, then press the Rotary encoder.

This will play the selected track.

•Pre ss and hold SEARCH for at least 2 seconds in the search mode to cancel. Or, the search mode will be canceled when an operation has not been performed in 10 seconds.

• CD text search cannot be made during M.I.X. play.

File/Folder Name Search (concerning MP3/WMA)

You can display and search for the folder and file name while listening to the file currently being played back.

Press SEARCH to select File Name Search

mode or Folder Name Search mode in MP3/WMA mode.

File Name Search mode

Press 8 or 9 to select another Folder or Playlist.

Select the desired file by turning the Rotary

encoder within 10 seconds.

Press the Rotary encoder to play back the

selected file.

•File Name Search mode is canceled by pressing and holding SEARCH for at least 2 seconds.

• While in File Name Search mode, press SEARCH to switch to Fo lder Name Search mode.

•File Name Search cannot be made during M.I.X. play.

•File Name Search cannot be made while playing back a playlist.

Quick Search

You can search for tracks(files).

Press and hold SEARCH for at least 2 seconds in the CD/Changer/MP3/WMA mode to activate Quick Search mode.

Turn the Rotary encoder within 10 seconds to

select a desired track(file).

The selected track is played back immediately.

• Search mode is canceled by pressing and holding SEARCH for at least 2 seconds in Quick Search mode.

About MP3/WMA

CAUTION

Except for private use, duplicating audio data (including MP3/ WMA data) or distributing, transferring, or copying it, whether for free or for a fee, without permission of the copyright holder is strictly prohibited by the Copyright Act and by international treaty.

What is MP3?

MP3, whose official name is “MPEG-1 Audio Layer 3,” is a compression standard prescribed by the ISO, the International Standardization Organization and MPEG which is a joint activity institution of the IEC.

MP3 files contain compressed audio data. MP3 encoding is capable of compressing audio data at extremely high ratios, reducing the size of music files to as much as one-tenth their original size. This is achieved while still maintaining near CD quality. The MP3 format realizes such high compression ratios by eliminating the sounds that are either inaudible to the human ear or masked by other sounds.

What is WMA?

WMA, or “Windows Media™ Audio,” is compressed audio data. WMA allows you to create music files and store them at higher ratios of compression than MP3 audio data (approx. half original size). This is achieved while still maintaining CD quality sound.

12-EN

Method for creating MP3/WMA files

Audio data is compressed by using MP3/WMA specified software. For details on creating MP3/WMA files, refer to the user's manual for that software. MP3/WMA files that can be played back by this device have the file extension “mp3” / “wma”. Files with no extension cannot be played back. (WMA ver. 7.1 and 8 are supported)

Supported playback sampling rates and bit rates

MP3

Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz,

Bit rates: 8 - 320 kbps

WMA

Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz,

Bit rates: 48 - 192 kbps Note that for sampling rates, this device’s frame display (Page

19) may not display correctly. This device may not play back correctly depending on sampling rates.

ID3 tags/WMA tags

This device supports ID3 tag v1 and v2, and WMA tag. If tag data is in an MP3/WMA file, this device can display the title (track title), artist name, and album name ID3 tag/WMA tag data.

This device can only display single-byte alphanumeric characters (up to 30 for ID3 tags and up to 15 for WMA tags) and the underscore. For non-supported characters, “NO SUPPORT” ("NO SUPRT" for CDA-9830) is displayed. The tag information may not be correctly displayed, depending on the contents.

Producing MP3/WMA discs

MP3/WMA files are prepared, then written to a CD-R or CDRW using CD-R writing software. A disc can hold up to 256 folders and 999 files (including Root Folders).

Media supported

The media that this device can play back are CD-ROMs, CDRs, and CD-RWs.

Corresponding File Systems

This device supports discs formatted with ISO9660 Level 1 or Level 2.

Under the ISO9660 standard, there are some restrictions to remember. The maximum nested folder depth is 8 (including the root directory). File/folder names are limited to 30 characters (including the extension). Valid characters for folder/file names are letters A-Z (all caps), numbers 0-9, and ‘_’ (underscore).

This device also can play back discs in Joliet, Romeo, etc., and other standards that conform to ISO9660. However, sometimes the file names, folder names, etc., are not displayed correctly.

Formats supported

This device supports CD-ROM XA, Mixed Mode CD, Enhanced CD (CD-Extra) and Multi-Session. This device cannot correctly play back discs recorded with Track At Once or packet writing.

16 kHz, 12 kHz, 11.025 kHz, 8 kHz

22.05 kHz

Order of tracks

The unit plays the files in the order that the writing software writes them. Therefore, the playing order may not be the same as the order you input. The playback order of the folders and files is as follows. However, the folder and file playback order differs from the folder no. and file no. indicated on the display.

Root folder

Folder

MP3/WMA File

Terminology

Bit rate

This is the “sound” compression rate specified for encoding. The higher the bit rate, the higher the sound quality, but also the larger the files.

Sampling rate

This value shows how many times per second the data is sampled (recorded). For example, music CDs use a sampling rate of 44.1 kHz, so the sound is sampled (recorded) 44,100 times per second. The higher the sampling rate, the higher the sound quality, but also the larger the volume of data.

Encoding

Converting music CDs, WAVE (AIFF) files, and other sound files into the specified audio compression format.

Tag

Song information such as track titles, artist names, album names, etc., written into MP3/WMA files. MP3: ID3 tag WMA: WMA tag

Root folder

The root folder is found at the top of the file system. The root folder contains all folders and files.

13-EN

Sound Setting

SOURCE/ POWER

Adjusting Balance (Between Left and Right)/ Fader (Between Front and Rear)/Defeat

• If the Rotary encoder is not pressed within 5 seconds after

*1When the subwoofer mode is set to OFF, its level and phase cannot

BAND/ TEL.

MXMENU

Press Rotary encoder repeatedly to choose the desired mode.

Each press changes the modes as follows:

SUBWOOFER*1 → BALANCE → FADER → DEFEAT → VOLUME → SUBWOOFER*

Subwoofer : 0 ~ +15 Balance : L15 ~ R15 Fader : R15 ~ F15 Defeat : ON/OFF Volume : 0 ~ 35

Press g or f after selecting the Subwoofer mode, and the subwoofer output phase is toggled NORMAL (PHASE 0°) or REVERS (PHASE 180°).

selecting the BALANCE, FADER, DEFEAT or SUBWOOFER mode, the unit automatically returns to normal mode.

be adjusted.

Rotary encoder

Preset button (1 or 2)

Turn the Rotary encoder to select the desired

setting.

HPF (Setting the High Pass Filter):

FLAT (OFF) ↔ 80Hz ↔ 120Hz ↔160Hz

All frequencies above the selected cutoff are output.

LPF (Setting the Low Pass Filter):

FLAT (OFF) ↔ 80Hz ↔ 120Hz ↔160Hz

All frequencies below the selected cutoff are output. (Only available when using the subwoofer output from this unit.)

To store the adjusted contents

1) Press and hold, for at least 2 seconds, the preset buttons (1 or 2) into which you wish to store the adjusted

contents.

Press the Rotary encoder to confirm the

adjusted contents.

The adjusted contents are not stored if the Rotary encoder is not pressed.

After setting, press MENU to select RETURN.

The unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

• The setting mode returns to normal mode if no buttons are pressed within 15 seconds.

• These functions are inoperative when an external, Ai-NET processor is connected.

• Except when the HPF and LPF is turned OFF, the subwoofer is in monaural mode.

• When the subwoofer is set to OFF, LPF mode and change of phase does not work.

Recalling the Stored built-in Crossover Settings

Press and hold MENU for at least 2 seconds.

Press MENU to select HPF/LPF.

Turn the Rotary encoder until the desired sound

is obtained in each mode.

By setting Defeat ON, previously adjusted settings of EQ will return to the factory defaults and MX is turned off.

• Depending on the connected devices, some functions and display indications do not work.

Adjusting and Storing the built-in Crossover

The High and Low Pass Filters on this unit can be adjusted to suit your personal taste.

Press and hold MENU for at least 2 seconds.

Press MENU to select HPF/LPF.

Press BAND/TEL. to change the setting mode.

HPF ↔ LPF*

* When the subwoofer output of this unit is turned off, LPF and

phase are deactivated.

14-EN

Press the preset button (1 or 2) to which your

desired built-in crossover settings are assigned.

Press MENU to select RETURN.

The unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

• The setting mode returns to normal mode if no buttons are pressed within 15 seconds.

Equalizer Presets

10 typical equalizer settings are preset at the factory for a variety of musical source material.

Press MENU to select Factory's EQ (P-EQ for

CDA-9830).

Press either g or f.

With each press of the button, the equalizer mode will display the selected equalizer characteristic.

FLAT(OFF) ↔ ROCK ↔ POPS ↔ JAZZ & BLUES (JAZZ) ↔ ELECTRICAL (ELECTRIC) ↔ HIPHOP & RAP (HIPHOP) ↔ EASY LISTEN (EASY) ↔ COUNTRY ↔ CLASSICAL (CLASSIC) ↔ NEWS ↔ USER'S EQ 1,2 (USERS 1,2) ↔ FLAT(OFF)

Press MENU to select RETURN.

The unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

• This function is inoperable when DEFEAT is set to ON (page 14).

• EQ mode is automatically canceled if no buttons are pressed within 15 seconds.

• By selecting USER'S EQ 1 or EQ 2 (USERS 1 or USERS 2 for CDA-9830), you can recall the stored preset number in "Adjusting and Storing the Equalizer Curve."

Press SOURCE/POWER to select your desired

band width (Q).

Adjustable band width: BAND1 : 1.0, 2.0, 3.0, BAND2 : 1.0, 1.5, 2.0 BAND3 : 1.0, 2.0, 3.0 BAND4 : 1.0 (fixed band width)

To store the adjusted curve

1) Press and hold, for at least 2 seconds, the preset buttons (1 or 2) into which you wish to store the adjusted

curve.

To set another channel, repeat steps 3 to 6.

Press the Rotary encoder to confirm the

adjusted contents.

The adjusted contents are not stored if the Rotary encoder is not pressed.

After setting, press MENU to select RETURN.

The unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

• EQ mode is automatically canceled if no buttons are pressed within 15 seconds.

• This function is inoperable when DEFEAT is set to ON (page 14).

Adjusting and Storing the Equalizer Curve

You can modify the Equalizer settings to create a response curve more appealing to your personal taste.

Press and hold MENU for at least 2 seconds.

Press MENU to select USER'S EQ (USERS for

CDA-9830).

Press BAND/TEL. to select your desired

frequency band.

BAND1 → BAND2 → BAND3 → BAND4 → BAND1

Press g or f to select your desired

frequency.

Adjustable frequency bands: BAND1 : 40Hz, 60Hz, 90Hz BAND2 : 100Hz, 150Hz, 200Hz BAND3 : 500Hz, 700Hz, 1kHz, 2kHz, 4kHz, 6kHz BAND4 : 10kHz, 12.5kHz, 15kHz

Turn the Rotary encoder to adjust the level.

Recalling the Stored Equalizer Curve

Press and hold MENU for at least 2 seconds.

Press MENU to select USER'S EQ (USERS for

CDA-9830).

Press either preset button (1 or 2) to activate

your desired curve.

Press MENU to select RETURN.

The unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

• EQ mode is automatically canceled if no operation is performed within 15 seconds.

• This function is inoperable when DEFEAT is set to ON (page 14).

•You can recall the adjusted equalizer curve from "Equalizer Presets" (this page).

15-EN

FL FR

RL RR

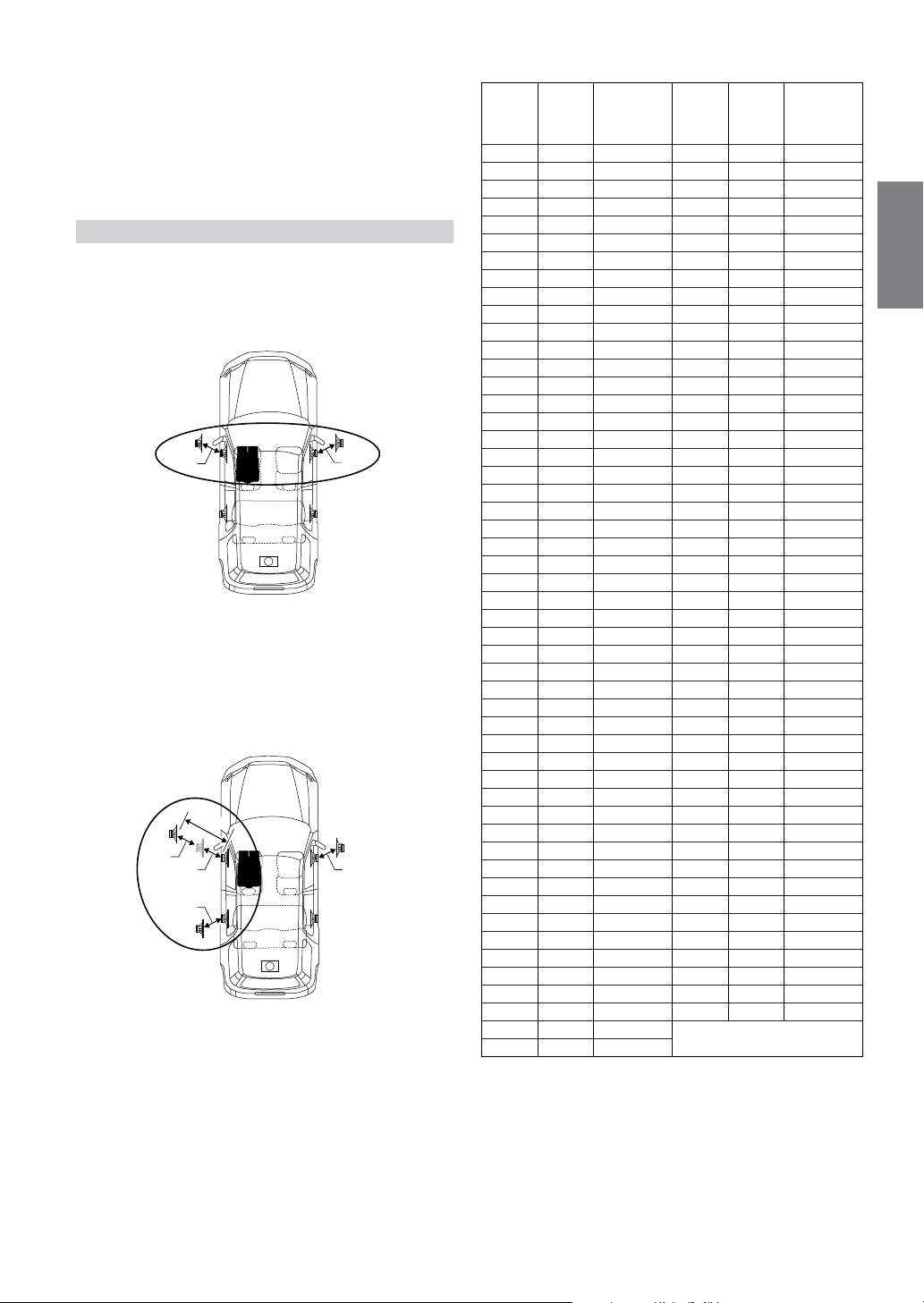

About Time Correction

The distance between the listener and the speakers in a car vary widely due to the complex speaker placement. This difference in the distances from the speakers to the listener creates a shift in the sounds image and frequency characteristics. This is caused by the time delay between the sound reaching the listener’s right versus the left ear. To correct this, the CDA-9831/CDA-9830 is able to delay the audio signal to the speakers closest to the listener. This effectively creates a perception of increased distance for those speakers. The listener can be placed at an equal distance between the left and right speakers for optimum staging. The adjustment will be made for each speaker in 0.1 ms steps.

Example 1. Listening Position: Front Left Seat

Adjust the time correction level of the front left speaker to a high value and the rear right to zero or a low value.

5.1ms

0.5m

2.25m

Example 2. Listening Position: All Seats

Adjust the time correction level of each speaker to almost the same level.

Sit in the listening position (driver’s seat, etc.) and

measure the distance (in meters) between your head and the various speakers.

Calculate the difference between the distance to

the farthest speaker and the other speakers.

L = (distance to farthest speaker) – (distance to other speakers)

Divide the distances calculated for the speakers by

the speed of sound (343 m/s (765 mph) at 20˚C).

These values are the time correction values for the different speakers.

Bass Focus

The time difference between the front-rear/left-right speakers, can be adjusted at the same time. With an initial delay of 0.1 ms for each of the 0 to 99 steps, audible time correction can be done.

Press and hold MENU for at least 2 seconds.

Press MENU to select T.CORR (T-CORR for

CDA-9830).

Press g or f to select the Bass Focus mode.

*1Subwoofer speaker.

You cannot change the Time Correction value for the subwoofer, but you can set the subwoofer's apparent position to the front by adjusting the Time Correction value of the front and rear speakers. Fo r details, refer to the “ *1 ” on page 17.

The sound is not balanced because the distance between the listening position and the various speakers is different. The difference in distance between the front left speaker and the rear right speaker is 1.75 m (68-7/8").

Here we calculate the time correction value for the front left speaker in the diagram on the above.

Conditions: Farthest Speaker – listening position : 2.25 m (88-9/16") Front left speaker – listening position : 0.5 m (19-11/16") Calculation: L = 2.25 m – 0.5 m = 1.75 m (68-7/8") Time correction = 1.75 ÷ 343*

*2Speed of sound: 343 m/s (765 mph) at 20˚C

In other words, giving the front left speaker a time correction value of 5.1 ms makes it seem as if its distance from the listener is the same as the distance to the farthest speaker.

Time correction eliminates the differences in the time required for the sound to reach the listening position. The time of the front left speaker is corrected by 5.1 ms so that its sound reaches the listening position at the same time as the sound of other speakers.

× 1000 = 5.1 (ms)

16-EN

Bass Focus mode ↔ Time Correction mode

Press BAND/TEL. to select the speakers to be

adjusted (see below).

FL FR

→

RL RR

Front (left-right) speakers

FL FR

RL RR

Rear (left-right) speakers

Turn the Rotary encoder to adjust the delay (see

Time Difference Table).

To set another channel (speakers), repeat steps 4

and 5.

Press the Rotary encoder to confirm the

adjusted contents.

The adjusted contents are not stored if the Rotary encoder is not pressed.

←←

→

Left (front-rear) speakers

FL FR

RL RR

Right (front-rear) speakers

After setting, press MENU to select RETURN.

The unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

• Any manual time correction adjustments will also affect corrections made in Bass Focus.

• Bass Focus mode is automatically canceled if no operation is performed within 15 seconds.

Example setting for steps 4 and 5

(1) Press BAND/TEL. to select the front (left and

right) speakers. Then turn the Rotary encoder to select 1.5 ms (Delay no. 15 in the table). The time difference is 1.5 ms for both front (left and right speakers.

1.5ms

(2) Press BAND/TEL. to select the left (front and rear)

speakers. Then turn the Rotary encoder to select

1.5 ms (Delay no. 15 in the table). The time difference is 3.0 ms*2 for the front left speaker, and

1.5ms for the left rear speaker, creating the impression of an equal listening between the front left speaker and the other speakers.

3.0ms

1.5ms

*1Subwoofer speaker.

Delay (turn the rotary encoder) the audio signal to the front (left and right) speakers to make the apparent position of the subwoofer to be at the front. In doing this, the apparent position between the front (left and right) speakers and subwoofer will appear equal to the driver. After performing the above, you can change the positions of the left and right speakers by delaying the time .

*2Because the time difference was already set to 1.5 ms for the front

left speaker to begin with, the additional correction of 1.5 ms makes the total time difference of the front left speaker 3.0 ms.

1.5ms

Time Difference Table

Delay

Number

Time

Difference

(ms)

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

1.1

1.2

1.3

1.4

1.5

1.6

1.7

1.8

1.9

2.0

2.1

2.2

2.3

2.4

2.5

2.6

2.7

2.8

2.9

3.0

3.1

3.2

3.3

3.4

3.5

3.6

3.7

3.8

3.9

4.0

4.1

4.2

4.3

4.4

4.5

4.6

4.7

4.8

4.9

5.0

Distance

cm (inch)

0.0

3.4 (1-3/8")

6.9 (2-3/4")

10.3 (4-1/16")

13.7 (5-3/8")

17.2 (6-13/16")

20.6 (8-1/8")

24.0 (9-7/16")

27.4 (10-13/16")

30.9 (12-3/16")

34.3 (13-1/2")

37.7 (14-13/16")

41.2 (16-1/4")

44.6 (17-9/16")

48.0 (18-7/8")

51.5 (20-1/4")

54.9 (21-5/8")

58.3 (22-15/16")

61.7 (24-1/4")

65.2 (25-5/8")

68.6 (27")

72.0 (28-3/8")

75.5 (29-11/16")

78.9 (31-1/16")

82.3 (32-3/8")

85.8 (33-3/4")

89.2 (35-1/8")

92.6 (36-7/16")

96.0 (37-3/4")

99.5 (39-13/16")

102.9 (40-1/2")

106.3 (41-7/8")

109.8 (43-1/4")

113.2 (44-9/16")

116.6 (45-7/8")

120.1 (47-5/16")

123.5 (48-5/8")

126.9 (49-15/16")

130.3 (51-5/16")

133.8 (52-11/16")

137.2 (54")

140.6 (55-3/8")

144.1 (56-3/4")

147.5 (58-1/16")

150.9 (59-3/8")

154.4 (60-3/4")

157.8 (62-1/8")

161.2 (63-7/16")

164.6 (64-3/4")

168.1 (66-3/16")

171.5 (67-1/2")

Delay

Number

Time

Difference

(ms)

5.1

5.2

5.3

5.4

5.5

5.6

5.7

5.8

5.9

6.0

6.1

6.2

6.3

6.4

6.5

6.6

6.7

6.8

6.9

7.0

7.1

7.2

7.3

7.4

7.5

7.6

7.7

7.8

7.9

8.0

8.1

8.2

8.3

8.4

8.5

8.6

8.7

8.8

8.9

9.0

9.1

9.2

9.3

9.4

9.5

9.6

9.7

9.8

9.9

Distance cm (inch)

174.9 (68-7/8")

178.4 (70-1/4")

181.8 (71-9/16")

185.2 (72-7/8")

188.7 (74-1/4")

192.1 (75-5/8")

195.5 (77")

198.9 (78-5/16")

202.4 (79-11/16")

205.8 (81")

209.2 (82-3/8")

212.7 (83-3/4")

216.1 (85-1/16")

219.5 (86-3/8")

223.0 (87-3/4")

226.4 (89-1/8")

229.8 (90-1/2")

233.2 (91-13/16")

236.7 (93-3/16")

240.1 (94-1/2")

243.5 (95-7/8")

247.0 (97-1/4")

250.4 (98-9/16")

253.8 (99-7/8")

257.3 (101-1/4")

260.7 (102-5/8")

264.1 (104")

267.5 (105-5/16")

271.0 (106-11/16")

274.4 (108-1/16")

277.8 (109-3/8")

281.3 (110-3/4")

284.7 (112-1/16")

288.1 (113-1/16")

291.6 (114-3/4")

295.0 (116-1/8")

298.4 (117-1/2")

301.8 (118-13/16")

305.3 (120-3/16")

308.7 (121-1/2")

312.1 (122-7/8")

315.6 (124-1/4")

319.0 (125-9/16")

322.4 (126-7/8")

325.9 (128-5/16")

329.3 (129-5/8")

332.7 (131")

336.1 (132-5/16")

339.6 (133-11/16")

17-EN

Adjusting and Storing the Time Correction

Before performing the following procedures, refer to "About Time Correction" (page 16).

Press and hold MENU for at least 2 seconds.

Setting the MX Mode

MX (Media Xpander) makes vocals or instruments sound distinct regardless of the music source. The FM radio, CD, and MP3, will be able to reproduce the music clearly even in cars with a lot of road noise.

Press MENU to select T.CORR (T-CORR for

CDA-9830).

Press g or f to make time corrections.

Each press changes the mode as follows:

Bass Focus mode ↔ Time Correction mode

Press BAND/TEL. to select a speaker to be

adjusted.

CDA-9831 Front – L → Front – R → Rear – L → Rear – R → Front – L

CDA-9830

F – L → F – R → R – L → R – R → F – L

Turn the Rotary encoder to adjust the desired

time correction value.

To store the adjusted contents

1) Press and hold, for at least 2 seconds, the preset

buttons (1 or 2) into which you wish to store the adjusted

contents.

Repeat step 4 and 5 to set another speaker.

Press the Rotary encoder to confirm the

adjusted contents.

The adjusted contents are not stored if the Rotary encoder is not pressed.

After setting, press MENU to select RETURN.

The unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

• If no operation is performed in 15 seconds, the unit returns to normal mode.

Recalling the Stored Time Correction Settings

Press and hold MENU for at least 2 seconds.

Press MENU to select T.CORR (T-CORR for

CDA-9830).

Press g or f to make time corrections.

Each press changes the mode as follows:

Bass Focus mode ↔ Time Correction mode

Press the preset button (1 or 2) to which your

desired time correction is assigned.

Press MX to select MX ON.

Press SOURCE/POWER to select the source to

which you want to apply MX (Media Xpander).

Press and hold MX for at least 2 seconds to

activate the level setting mode.

Turn the Rotary encoder to select your preferred

level or OFF.

FM (MX level 1 to 3):

The medium to high frequencies become clearer, and produces well balanced sound at all frequencies.

CD/WAV (MX level 1 to 3):

CD mode processes a large amount of data during playback. MX takes advantage of this large data quantity to reproduce a more clear, clean output.

MP3/WMA/XM (MX level 1 to 3):

This corrects information that was lost at the time of compression. This reproduces a well-balanced sound close to the original.

DVD (Video CD) (MOVIE MX level 1 to 2):

The dialog portion of a video is reproduced more clearly.

(MUSIC MX level 1):

A DVD or Video CD contains a large quantity of data such as music clip. MX uses this data to reproduce the sound accurately.

AUX (MX level 1):

Choose the MX mode (MP3, MUSIC, or MOVIE) that corresponds to the media connected. If two external devices are connected, a different MX mode for each media can be selected.

Press Rotary encoder to return to normal mode.

•To cancel MX mode for all music sources, press MX to turn MX off.

• MX mode is automatically canceled if no buttons are pressed within 15 seconds.

• Each music source, such as FM radio, CD, and MP3 can have its own MX setting.

• On disks with both MP3/WMA and CD-DA, when the source changes from “MP3/WMA to CD-DA” or “CD-DA to MP3/WMA,” MX-mode switching may delay playback slightly.

• Setting to MX OFF sets MX mode of each music source to OFF.

• This function is inoperable when DEFEAT is set to ON.

• There is no MX mode for AM radio.

• If an audio processor with the MX function (PXA-H700, etc.) is connected, its own MX processing is applied to the music source. Since the processor MX settings may not match the head unit, the audio processor needs to be adjusted. For details, refer to the Owner’s Manual of the audio processor.

Press MENU to select RETURN.

The unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

•Time Correction mode is automatically canceled if no operation is performed within 15 seconds.

18-EN

Other Functions

SOURCE/ POWER

-/J

MENU Preset buttons

Displaying the Title/Text

It is possible to display the CD/Station title if the title has been previously inputted (“Titling Discs/Stations” page 20). Text information, such as the disc name and the track name, will be displayed if playing a CD text compatible disc. It is also possible to display the folder name, the file name, and the tag, etc., while playing MP3/WMA files.

Press TITLE .

The display will change every time the button is pressed.

The display in Radio mode:

FREQUENCY → CLOCK → TITLE → EXTERNAL AMPLIFIER INFORMATION

The display in CD mode:

TRACK NO./ELAPSED TIME → TRACK NO./CLOCK → TEXT (DISC NAME) EXTERNAL AMPLIFIER INFORMATION ELAPSED TIME

The display in MP3/WMA mode:

FILE NO./ELAPSED TIME → FOLDER NO./FILE NO. → FILE NO./CLOCK → FOLDER NAME* NAME* → EXTERNAL AMPLIFIER INFORMATION*5 → FILE NO./ ELAPSED TIME

*1Displayed during playback of a disc with CD Text.

“NO TEXT” will be displayed when the CD contains no Text data.

*2ID3 tag/WMA tag

If an MP3/WMA file contains ID3 tag/WMA tag information, the ID3 tag/WMA tag information is displayed (e.g., track name, artist name, and album name). All other tag data is ignored. “NO DATA” will be displayed when an MP3/WMA file contains no ID3 tag/WMA tag information.

*3CDA-9830 only:

The recording sampling rate and bit rate of the MP3/WMA file are

displayed. *4"0 (zero)" is displayed for the folder name of the root folder. *5Only when CDA-9831 is connected to an external Amplifier Link

compatible amplifier. For details, refer to "Displaying the External

Amplifier Information" (page 21).

→ ARTIST NAME*2 → ALBUM NAME*2 → FRAME*

DISP/

BAND/ TEL.

→ FREQUENCY

→ TEXT (TRACK NAME)*2 → TITLE →

TITLE

B.OUT

Rotary encoder

(1 through 6)

→ FILE NAME → TRACK

→ TRACK NO./

About the indicator display

When displaying Title/Text, the following indicators are lit according to the mode.

CDA-9831

These indicators are constantly lit.

When selection is available by turning the Rotary encoder, an indicator is lit in the display.

CDA-9830

Indicator/ Mode

Title being

displayed

Text (Disc Name) being displayed

Text Name) displayed

2 3 4 5 61

This indicator shows the strength of the telephone signal.

When selection is available by pressing g indicators are lit in the display.

or f, the triangle

654321

These indicators are constantly lit.

CD Mode

—

(Track

being

MP3/WMA

Mode

—

Folder Name being displayed

File Name being displayed

Artist Name* being displayed

Album Name* being displayed

Track Name* being displayed

TUNER

Mode

Title being

displayed

—

Tag information

XM RADIO

Mode

—

Artist Name

being

displayed

—

Music Title/ Channel Name being displayed

Continued

19-EN

About “Title” and “Text”

Title:

With this device, it is possible to input the CD/Station name (this page). This inputted name is referred to as a “title.” You cannot input or display titles on MP3/WMA discs.

Text:

Text compatible CDs contain text information such as the disc name and track name. Such text information is referred to as “text.”

• Some characters may not be displayed correctly with this device, depending on the character type.

• The CD changer must also be CD Text compatible for the Text information to be displayed.

• When the Scroll Setting (page 24) is set to “SCROLL MANUAL,” press and hold TITLE for at least 3 seconds to scroll the Text information only once (TEXT DISPLAY, FOLDER NAME DISPLAY, FILE NAME DISPLAY or TAG DISPLAY mode).

• “NO SUPPORT” (“NO SUPRT” for CDA-9830) is displayed when the desired text information cannot be displayed on this unit.

• If the title was not previously input, “NO TITLE” is displayed.

• The text or tag information may not be correctly displayed, depending on the contents.

Titling Discs/Stations

It is possible to title your favorite CD's or radio stations. You cannot input titles on MP3/WMA discs.

Press TITLE and select the Title Display.

For details, see “Displaying the Title/Text” (page 19).

Press and hold TITLE for at least 2 seconds.

The first character will blink.

Erasing Disc Title/Station Title

Press TITLE to select the Title Display. Then,

press again and hold for at least 2 seconds.

Press and hold -/J for at least 2 seconds.

The title in the display will blink.

Press g or f repeatedly until the title you

want to erase is displayed.

Press and hold -/J for at least 2 seconds to erase

the title displayed.

Press TITLE to cancel the title erasing mode.

•You cannot erase CD-TEXT.

• "NO DATA" is displayed for 2 seconds if the title is not input in step 2, or if all titles are erased in step 4.

Displaying Time

Press TITLE repeatedly until the time is displayed.

Each press changes the display. For details, see “Displaying the Title/Text” (page 19).

• Selecting any tuner or CD function while in the clock priority mode will interrupt the time display momentarily. The function selected will be displayed for about 5 seconds before the time returns to the display.

• When the power is off but the ignition key is on, press TITLE to display the time.

Turn the Rotary encoder to select the desired

letter/numeral/symbol available for naming.

Press Rotary encoder to store the first character.

The first character will stop blinking and the display will automatically advance to the next character. When that character begins to blink, you may choose the next letter or symbol of your title.

Repeat steps 3 and 4 above to complete the titling.

Pressing the Rotary encoder after entering the 8th character automatically stores the title into memory.

When entering a title of less than 8 characters (for example, 3 character title): After entering 3 characters, the 4th character space will be blinking. Go to step 6 to complete the title.

Press TITLE to record the title.

• If you cancel while entering a title, selected characters are not written.

•You can enter 24 radio station titles and 18 CD titles on this unit. If you try to store beyond the limit, the display will show “FULL DATA.” At this point, no more titles can be stored. To input a new title, one of the previously inputted titles must first be deleted.

• The CD Changer title length or memory capacity varies depending upon the model being used.

• When you want to erase a title, enter the “ ” (“ ” for CDA-

9830) symbol into all spaces.

• The operations described in steps 3 to 5 must be made within 10 seconds. The input mode will be canceled if no action is taken for over 10 seconds.

Blackout Mode On and Off

When Blackout mode is turned on, the display will turn off to reduce power consumption. This additional power enhances the sound quality.

Press and hold DISP/B.OUT for at least 2 seconds to activate the blackout mode.

The display will turn off.

• If any button on the unit is pressed during the blackout mode, the function will be displayed for 5 seconds to show the operation before returning to Blackout mode.

To cancel Blackout mode, press and hold DISP/B.OUT for at least 2 seconds.

20-EN

Setting an Amplifier Link (CDA-9831 only)

With an external Amplifier Link compatible amplifier MRD-M501 or MRD-M301 is connected, the amplifier settings are adjustable from the head unit. A maximum of 8 external amplifiers can be adjusted.

Press and hold MENU for at least 2 seconds.

Press MENU to select A-Link.

To easily recall adjusted and stored contents

1) Press MENU to select A-Link.

2) Press g or f to select AMP 1 to 8.

3) Turn the Rotary encoder to select Preset 1 or Preset 2.

4) Press MENU to select RETURN. The unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

Press g or f to select AMP1 to 8, or BASS

VOLUME.

To set the BASS VOLUME

Turn the Rotary encoder to adjust the level, then

press the Rotary encoder.

When the adjustment has been completed, press

MENU to select RETURN.

The unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

To set the Amplifier

Press BAND/TEL. to select from the following

setting items to be adjusted.

INPUT → LOW PASS → SUBSONIC → P-EQ → BASS COMP → T. CORR → PHASE → TURN ON DELAY→ OUTPUT DISABLE (SAFE) → INPUT

Turn the Rotary encoder to change the settings.

Press the Rotary encoder.

Repeat steps 5 and 6 (above) if there are other items to set in step 4.

Repeat the steps 4 to 6 (above) if other settings will

be adjusted.

To set another amplifier, return to the step 3.

To store the adjusted contents

1) While adjusting the mode, press and hold either button (1 or 2) for at least 2 seconds.

The adjusted contents are stored.

To recall adjusted and stored contents

1) While adjusting the mode, press either button (1 or 2).

The adjusted and stored contents are recalled.

•For details of each of the settings, refer to the Owner's Manual of the external amplifier.

• If amplifier settings are made on the CDA-9831 model, do not then change the setting with the amplifier buttons as the amplifier display may not match the operations of the CDA-9831 model.

•"NO Link" is displayed if the amplifier is removed or its power cannot be turned on, etc.

Displaying the External Amplifier Information (CDA-9831 only)

When an external Amplifier Link compatible amplifier is connected, the external amplifier's information (voltage, electric current, temperature) can be shown in the display of the head unit.

Press TITLE in the Radio or CD mode to switch

the display of the external amplifier information.

•For switching the display, refer to the section "Displaying the Title/ Tex t" (page 19).

•For changing the XM display, refer to the section "Changing the Display (page 27).

Vol ta ge Display

AMP

Temperature Display

This indicator is lit when the Amplifier Link is set.

This indicator is lit when external amplifier information is displayed.

•To switch the display between Celsius and Fahrenheit, refer to page 25.

12.4V 25.6A

°F

75.0

Electric current Display

When adjustment has been completed, press

MENU to select RETURN.

The unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

21-EN

Setting the Multicolor Illumination (CDA-9831 only)

You can change the lighting color of the following four buttons: SOURCE/POWER, BAND/TEL, g and f.

Press MENU to select Illumination.

Press g or f to select your desired color.

BLUE ↔ GREEN ↔ AMBER ↔ RED ↔ (USER'S*) ↔ BLUE

*You can use your desired colors as shown below if you have

already registered to USER'S.

If you want to use colors other than the above

Turn the Rotary encoder to select colors (1

through 512).

Each press of BAND advances the color number by 30.

Verifying the Software Version

Current version software can be verified in the display.

Press and hold MENU for at least 2 seconds.

Press MENU to select Information (INFO for

CDA-9830).

The version is displayed.

Press MENU to select RETURN.

The unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

..............19..............

(Red) (Amber) (Green) (Blue)

To store the setting contents

1) While setting the mode, press and hold any one of the preset buttons (1 through 6) for at least 2 seconds. The setting contents are stored.

To recall the stored color setting

1) While setting the mode, press any one of the preset buttons (1 through 6).

The stored setting contents are recalled.

When the setting has been completed, press

MENU to select RETURN.

The unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

• "No Memory" is displayed if a preset that has not been stored is recalled.

184

..............

363

..............

512

Changing the Lighting Color of All the Buttons (CDA-9831 only)

You can change the lighting color of the unit.

Press MENU to select Illumination.

Press SOURCE/POWER.

The lighting color of all the buttons are changed. AMBER ON ↔ AMBER OFF(green)

When the setting has been completed, press

MENU to select RETURN.

The unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

• SOURCE/POWER, BAND/TEL, g and f buttons are

changed to that which you have set above in "Setting the Multicolor Illumination" (this page).

22-EN

i-Personalize™ Operation

SOURCE/ POWER

g f

About i-Personalize™

You can download data (from Alpine’s website) to a CD-R and download and store the data to the CDA-9831. To start i-Personalize, access the URL below and follow the on-screen instructions.

http://www.alpine.com or http://www.alpine-usa.com

The file name of download data shall be “A_W*****.MP3.”

Rotary encoder

Downloadable data

Parametric

equalizer

Time correction

Crossover

(CDA-9831 only)

Data is memorized in Preset 2 of the

Parametric EQ mode.

Data is memorized in Preset 2 of the

Time Correction mode.

Data is memorized in Preset 2 of the

crossover mode.

Data Downloading

Insert the CD-R disc containing the data.

If the source is not the CD mode, press SOURCE/ POWER to change to CD mode.

Press MENU to select the Download mode.

Press g or f to select “YES.”

Data search of the disc starts and the first file name is displayed.

• Selecting “NO” and pressing MENU will cancel the download mode.

• If a file is not found by the data search, “No File” is indicated.

• The “No File” display will automatically disappear if no operation is performed for 5 seconds.

Turn the Rotary encoder to select files that are

downloaded and then press the Rotary encoder to start.

Data downloading starts. If the MENU is pressed while downloading, download is canceled.

When data download is finished successfully, the

confirmation screen of each item is displayed for 2 seconds.

Successfully downloaded items are indicated as checked boxes on the confirmation screen.

PARAMETRIC EQ data

The data is memorized in Preset 2 of Parametric EQ mode. The memorized data settings in Preset 2 (Parametric EQ mode) are automatically applied.

HPF/LPF (Cross over) data

The data is memorized in Preset 2 of HPF/LPF mode. The memorized data settings in Preset 2 (HPF/LPF mode) are automatically applied.

TIME CORRECTION data

The data is memorized in Preset 2 of the Time correction mode. The memorized data settings in Preset 2 (Time Correction mode) are automatically applied.

A_W∗∗∗∗∗.MP3

Extender (fixed)

Identifier (alphabet or number 5 letters maximum)

Header (fixed)

You can create a file name via the website. Do not change a file name once it has been created. Malfunction may result.

•For details about procedures of download, see ALPINE’s Web site.

• If the HDA-5460 model is connected to this unit, the HDA-5460 hard disc can be used. Data that has been stored in the hard disc is downloaded by the “Data Downloading” operation to CDA-9831. Fo r details on how to download data to the hard disc, refer to the Owner’s Manual of the HDA-5460 model.

• If an external audio processor is connected, data that is downloaded cannot be used.

Press MENU to select RETURN.

The display returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

• When you download the data again, the data is overwritten in Preset.

23-EN

SETUP

You can flexibly customize the unit to suit your own preferences and usage. Choose the SETUP menu from Sound Customizing, Visual Customizing, etc., to select your desired setting.

SOURCE/ POWER

The common operation for SETUP is step 1 to 4 as follows. See down below for further information about each SETUP menu.

BAND/ TEL.

Rotary encoder

Press MENU to select the SETUP mode.

SETUP mode is activated.

Sound Customizing

Switching the Tuner Mode

TUNER MODE NORMAL (Initial setting) / HI-FI / STABLE

This unit incorporates the MAX TUNE SQ for the highest quality tuner audio. Moreover, you can choose between three settings to suit your own personal sound preferences and usage.

NORMAL: Standard setting HI-FI: Sound quality priority setting STABLE: Noiseless priority setting

• If you find the sound is very noisy while listening to the tuner in HiFi mode, we recommend you change to Normal mode.

Subwoofer On and Off

SUBWOOFER ON (Initial setting) / SUBWOOFER OFF

When the subwoofer is on, perform the steps below to adjust the subwoofer output phase and level.

1Press the Rotary encoder repeatedly to select the

SUBW mode.

SUBW → BALANCE → FADER → DEFEAT → VOLUME → SUBW

2Press g or f.

The subwoofer output phase is toggled SUBW NORMAL (0°) or SUBW REVERS (180°). To adjust the level, turn the Rotary encoder.

Press g or f to select the desired SETUP

menu.

(e.g. Select BEEP)

CDA-9831

CLOCK*1 ↔ TUNER MODE ↔ DIMMER ↔ SUBWOOFER ↔ PLAY MODE ↔ BEEP ↔ TEXT SCROLL ↔ INT MUTE ↔ INT AUDIO ↔ AUX IN ↔ (AUX NAME)* CONTRAST ↔ TUNER AREA* ↔ CLOCK*

CDA-9830

CLOCK*1 ↔ NORMAL/HI-FI/STABLE ↔ SUBW ↔ CD-DA/ CDDA/MP3 ↔ BEEP ↔ SCR ↔ MUTE ↔ INT ↔ AUX ↔ (AUX NAME)*

*1Refer to the “Setting Time” section (page 6). *2Displayed only when AUX is ON. *3Refer to the “Radio” section (page 8) *4Displayed only when an external amplifier is connected.

Turn the Rotary encoder to change the setting.

(e.g. Select BEEP ON or BEEP OFF.)

Press MENU to select RETURN.

The display returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

•For the XM Radio settings, refer to “XM Radio (Optional)” (page

26), and for the MobileHub™Link settings, refer to “MobileHub™Link Operation (Optional)” (page 28).

• If no operation is performed within 15 seconds, the display returns to normal mode.

↔ PWR ↔ AREA ↔ DEMO ↔ CLOCK*

↔ POWER-IC ↔ LCD

↔ A-LINK TEMP*4 ↔ DEMO

Sound (Beep) Guide Function

BEEP ON (Initial setting) / BEEP OFF

This function will give audible feedback with varying tones depending upon the button pressed.

Visual Customizing

Dimmer Control (CDA-9831 only)

DIMMER AUTO (Initial setting) / DIMMER MANUAL

Set the DIMMER control to AUTO to decrease the illumination brightness of the unit with the head lights of the vehicle ON.This mode is useful if you feel the unit's backlighting is too bright at night.

Scroll Setting

TEXT SCROLL AUTO / TEXT SCROLL MANUAL (Initial setting)

This CD player can scroll the disc and track names recorded on CDTEXT discs, as well as the text information of MP3/WMA files, folder names, and tags.

SCROLL AUTO : The CD text information, the text information of folder and file names, and the tags are scrolled automatically. SCROLL MANUAL : The display is scrolled when a disc is loaded or when a track is changed, etc.

• The unit scrolls CD text names, folder names, file names or tag display. The disc titles input manually (page 20) cannot be scrolled.

24-EN

Adjusting Display Contrast (CDA-9831 only)

LCD CONTRAST

You can adjust the display contrast for better visibility.

You can adjust in a range of - 5 and + 5.

• The initial setting at the factory is “0.”

Demonstration

DEMO ON / DEMO OFF (Initial setting)

This unit has a demonstration feature for the display and sound, and the CDA-9830 has a demonstration feature only for the sound.

•To quit Demo mode, set to DEMO OFF.

MP3/WMA

Playing MP3/WMA Data

PLAY MODE CD-DA (Initial setting) / PLAY MODE CD-DA & MP3

This product can playback CDs containing both CD and MP3/WMA data. However, in some situations (some enhanced CDs), playback may be difficult. For these special cases, you can select playback of CD data only. When a disc contains both CD or the MP3/WMA data, playback starts from the CD data portion of the disc.

CD-DA : Only CD data can be played back. CD-DA & MP3 : Both CD data and MP3/WMA file tracks can

be played back.

•Perform this setting before inserting a disc. If a disc has already been inserted, perform the setting after you remove the disc. (If you use an MP3 changer, you have to change discs.)

External Device

Turning Mute Mode On/Off

INT MUTE ON (Initial setting) / INT MUTE OFF

If a device having the interrupt feature is connected, audio will be automatically muted whenever the interrupt signal is received from the device.

Setting the AUX Mode (V-Link)

AUX IN ON / AUX IN OFF (Initial setting)

You can input TV/video sound by connecting an optional Ai-NET/ RCA Interface cable (KCA-121B) or Versatile Link Terminal (KCA410C) to this component. You can change the AUX name display when AUX ON is set. Select the AUX name by pressing g or f. Then turn the Rotary encoder. If the KCA-410C is connected, it is possible to select two AUX names.

•Via KCA-410C, up to 2 external devices with RCA output can be connected. In this case, press SOURCE/POWER to select AUX mode and then press BAND/TEL. to select your desired device.

Connecting to an External Amplifier

POWER-IC ON (Initial setting) / POWER-IC OFF

When an external amplifier is connected, sound quality can be improved by stopping the power supply of the built-in amplifier.

POWER-IC OFF : Use this mode when the front and rear preamplifier of the unit are used to drive an external amplifier connected to the speakers. In this setting, the head unit’s internal amplifier has no output to drive speakers.

Front

Amplifier

POWER-IC ON : The speakers are driven by the built-in amplifier.

left

Front

right

Rear

left

Rear right

Speakers

SPEAKER RIGHT FRONT

SPEAKER RIGHT REAR

SPEAKER LEFT REAR

SPEAKER LEFT FRONT

• No sound is produced by the system when the power output is set to OFF.

Front right

Rear right

Rear left

Front left

Setting the Temperature Display for the External Amplifier (CDA-9831 only)

A-LINK TEMP °F(Initial setting) / °C

When a separately sold Amplifier Link compatible amplifier is connected, you can set how to display its temperature. You can switch the setting between Fahrenheit and Celsius.

°F : The temperature is displayed in Fahrenheit. °C : The temperature is displayed in Celsius.

Setting the Tone Defeat for External Devices

INT AUDIO ON / INT AUDIO OFF (Initial setting)

When inputting external devices to this unit, turning tone defeat on will bypass EQ and MX, i.e., sound for external devices is output at the default setting.

25-EN

XM Radio (Optional)

SOURCE/ POWER

Receiving XM Channels with the XM Receiver (Optional)

XM Satellite Radio* is the next generation of audio entertainment, with up to 100 brand-new digital channels. For a small monthly fee, subscribers can hear crystal-clear music, sports, news and talk, coastto-coast via satellite. For more information, visit XM’s website at www.xmradio.com or call 1-800-852-9696.

An optional XM Satellite Radio Receiver (TUA-T020XM) and an optional XM antenna may be connected to the CDA-9831/CDA-9830. With an XM Receiver connected to the Ai-NET input of the CDA9831/CDA-9830, the XM Receiver will be controllable from the CDA-9831/CDA-9830.

* XM and its corresponding logos are trademarks of XM Satellite

Radio Inc.

• The controls on the CDA-9831/CDA-9830 for XM Receiver operation are operative only when an XM Receiver is connected.

• The XM1, XM2 or XM3 band illuminates when in XM mode.

1 2

BAND/

TITLE

TEL.

Rotary

f g MENU

encoder

Press SOURCE/POWER to select XM mode.

Press BAND/TEL. to select XM1, XM2 or XM3.

Each press changes the band:

XM1 → XM2 → XM3 → XM1

Preset buttons (1 through 6)

Checking the XM Radio ID Number

You need to provide XM with the unique XM Radio ID number for your XM Radio Receiver in order to subscribe to XM's programming.

This number is an 8 character alphanumeric number that is printed on a label directly on the XM Receiver. It can also be displayed on the screen of the CDA-9831/CDA-9830 in the following way.

While receiving XM1, XM2 or XM3, press g or

f to select channel “0.”

The unit alternately displays “RADIO ID” for 2 seconds, then the ID number for 10 seconds. While displaying "RADIO ID" as shown above, Blackout (page 20) and Demonstration (page 25) become nonfunctional.

To cancel the ID number display, set the channel to

other than “0.”

•You cannot use “O,” “S,”“ I,” or “F” for the ID Number.

•You can check your ID number printed on the label on the package of your XM Satellite Radio Receiver (TUA-T020XM).

Storing XM Channel Presets

Press BAND/TEL. to select the desired band (XM1,

XM2 or XM3) you want to store.

After tuning in the desired channel, press and hold,

for at least 2 seconds, any one of the preset buttons (1 through 6) into which you wish to

store the channel.

The selected station is stored.

Repeat the procedure to store up to 5 other

channels onto the same band.

•To use this procedure for other bands, simply select the band desired and repeat the procedure.

•A total of 18 channels can be stored in the preset memory (6 channels for each band; XM1, XM2 and XM3).

• If you store a channel in a preset memory which already has a station, the current channel will be cleared and replaced with the new one.

Press 8 or 9 to select desired category.

Holding down 8 or 9 will change categories continuously.

Press g or f to select the desired channel.

Holding down g or f will change channels continuously.

• When using the optional remote control (RUE-4190), an XM Channel can be directly called up with the numeric keypad of the remote control.

1 While in XM Radio mode, enter the Channel number you

want to call up with the numeric keypad on the remote control.

2Press ENTER or + 10/OK on the remote control within 5

seconds to receive the XM Channel. If the channel number is 3 digits, the XM Channel is automatically received after the channel number is input.

26-EN

Receiving Stored XM Channels

Press BAND/TEL. to select the desired band (XM1,

XM2 or XM3).

XM1 → XM2 → XM3 → XM1

Press the channel preset button that has your

desired satellite channel in memory.

Channel/Category Search Function

You can search for programs by Channel No. or Category.

Press SEARCH in the XM mode to select

Channel Search mode or Category Search mode.

Channel Search mode:

Turn the Rotary encoder to select the desired

Channel No.* within 10 seconds.

* The Channel No. is selected within the selected Category.

Press Rotary encoder to receive the selected

Channel No.

• Search mode is canceled by pressing and holding SEARCH for

at least 2 seconds in Channel Search mode.

• While in Channel Search mode, press 8 or 9 to select the another

Category.

• While in Channel Search mode, press SEARCH to switch to the

Category Search mode.

Category Search mode:

Turn the Rotary encoder to select the desired

Category within 10 seconds.

Press Rotary encoder to receive the selected

Category.

• Search mode is canceled by pressing and holding SEARCH for

at least 2 seconds in Category Search mode.

• While in Category Search mode, press SEARCH to switch to

Channel Search mode.

Quick Search Function

You can search for all Channels.

Press and hold SEARCH for at least 2 seconds in XM mode to activate Quick Search mode.

Turn the Rotary encoder to select the desired

Channel within 10 seconds.

The selected Channel is received.

• When the "Scroll Setting" (page 24) is set to "SCROLL AUTO," the display scrolls continuously. When the Scroll Setting is set to "SCROLL MANUAL," the display scrolls only once after any function is performed (PRESET, BAND, SEARCH, etc.). Press and hold TITLE for more than 2 seconds to scroll the display manually.

• “Channel Number” and “Clock” displays do not scroll.

• Depending on the model, the display may differ from the one shown above.

• When displaying the Music Title/Channel Name, the number 6, described in the section “About the indicator display” (page 19), is lit. When displaying the Artist Name, the number 4, described in the section “About the indicator display” (page 19), is lit.

Setting the Tuning Method

You can set the tuning method. You can select the received stations in channel no. order or in channel name order (alphabetic order).

Press MENU to select the SETUP mode.

Press g or f to select “CH SELECT”

(“CH NO” or “ALPHABET” for CDA-9830).

Turn the Rotary encoder to set the tuning

method.

CH NO : Set in order of channel no. ALPHABET : Set in alphabetic order.

Press MENU to select RETURN.

The unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

• When the setting is completed, switch the channel DOWN/UP by pressing the g or f.

Setting the Auxiliary Data Field Display

The XM Auxiliary Data Field (ADF) display can be switched on or off.

Press MENU to select the SETUP mode.

Select “XM ADF (ADF for CDA-9830)” by pressing

g or f.

Changing the Display

Text information, such as the channel name, artist name/feature, and song/program title, is available with each XM channel. The unit can display this text information as explained below.

In XM mode, press TITLE .

Each time you press this button, the display changes as shown below.

Channel Number*1 → Channel Name → Music Title → Artist Name → Auxiliary Data Field* Information*

*1The Channel Name display automatically changes after 2 seconds. *2When ADF is turned OFF, this information is not displayed (see

“Setting the Auxiliary Data Field Display” on this page).

*3CDA-9831 only

Refer to the “Displaying the External Amplifier Information” section (page 21).

→ Channel Number*

→ Clock → External Amplifier

Select ON/OFF by turning the Rotary encoder.

When setting to ON, Auxiliary Data Field is displayed by pressing TITLE . (Refer to the “Changing the Display” section on this page.)

Press MENU to select RETURN.

The unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

27-EN

MobileHub™ Link Operation(Optional)

SOURCE/ POWER

About MobileHub™ Link

Connect a separately sold junction box and a portable telephone (available from Nokia) to control the incoming and outgoing calls of the portable telephone.

Caution

Even with hands-free operation, a driver can be distracted during telephone operation or receiving a call. For the sake of safety, drivers are requested to refrain from operating the telephone while driving. Fo r the sake of safety, only incoming calls and Speed-Dial outgoing calls can be operated.

• If a portable telephone is connected, its address book, incoming and outgoing history are downloaded to the junction box.

•Please refer to the instruction manual of the junction box.

-/J

BAND/ TEL.

Rotary encoder

TITLE

Preset buttons

(1 through 6)

• An outgoing call from a portable telephone is also possible. However, you cannot perform different operations at the same time from a portable telephone and CDA-9831/CDA-9830 as malfunction can result.

•With a junction box connected outgoing, incoming, and sending history will also be recorded in the portable telephone.

• While telephoning, defeat is set to ON. When the call has finished, the unit returns to your previous setting.

• The telephone volume can be adjusted on the CDA-9831/CDA-

9830. The volume you set during the call is memorized, and is automatically applied again on the next call.

• While telephoning or receiving incoming calls, press TITLE show the Network Operator display for 5 seconds.

Incoming Calls

Press :/J to receive an incoming call.

Press BAND/TEL. to finish a call.

Te lephone mode will end and return to the original source mode.

• When the Automatic Calling mode is on, you can talk after 3 seconds of receiving the incoming call. (See “Setting the Automatic Calling” described below.)

Setting the Automatic Calling

The incoming call can be switched to Automatic Calling or Manual Calling.

Press MENU to select the SETUP mode.

Select the TELEPHONE (TEL for CDA-9830) mode

by pressing g or f.

Turn the Rotary encoder to change to AUTO or

MANUAL (MANU for CDA-9830).

Telephone Mode ON/OFF

Press and hold BAND/TEL. for at least 2 seconds to turn on the Telephone mode.

To turn off, press BAND/TEL. See relevant pages for each item.

• “NO PHONE” is displayed for about 2 seconds, if a portable telephone is not connected, before entering the telephone mode. Then the mode returns to the original source mode

• When the portable telephone is taken off the junction box during an incoming or outgoing call, or during a hands-free call, the call will be treated as an ordinary one by the portable telephone.

• When there is an incoming call while the power of CDA-9831/ CDA-9830 is off, the power of CDA-9831/CDA-9830 will turn on automatically for a hands-free call.

• Even if the power of the portable telephone is off, when CDA-9831/ CDA-9830 is set to Telephone mode, the power of the portable telephone will be turned on.

• Even if the ACC power of the vehicle is turned off (even if the engine is stopped) during a hands-free call, the call is not disconnected, and an ordinary call by the portable telephone is possible.

• If there is an incoming call during operation (except an outgoing call or talking), operation mode will end and switch to the incoming or talking mode.

Press MENU to select RETURN.

The unit returns to normal mode. Pressing and holding MENU for at least 2 seconds will return to normal mode.

•Press BAND/TEL. during an incoming call to disconnect it.

• The initial setting of the factory is MANUAL.

28-EN

Calling

Calling by the address book

You can call up the address book registered in the portable telephone to call from.

Press and hold BAND/TEL. for at least 2 seconds.

1 2

Press SEARCH to select Phone Book mode.

A list in alphabetic order is displayed.

Calling by the outgoing/incoming/absent incoming history

You can place a call to any of the last 999 calls by the outgoing/ incoming/absent incoming history.

Press SEARCH in Phone Book mode to select

the History mode.

Press 8 or 9 to select outgoing history (display

example: “DIALED”), incoming history (display example: “RECEIVE” ), absent incoming history (display example: “MISSED”).

Retrieving an addressee by Alphabetic Sort List

When displaying the Alphabetic Sort List, turn the

Rotary encoder or press g or f to select the addressee.

Press :/J or Rotary encoder to place a call.

Press BAND/TEL. to end the call.

Te lephone mode will end and return to the original source mode.

Retrieving an addressee by Selecting Search (A-Z search)

Press 8 or 9 to select an initial letter (A to Z) of the

addressee.

Turn the Rotary encoder to select the addressee.

Press the Rotary encoder to place a call.

Press BAND/TEL. to end the call.

Te lephone mode will end and return to the original source mode.

• If all telephone numbers and registered names cannot be displayed

at once, press TITLE to show undisplayed numbers and names.

• “NO MEMORY” (“NO MEM” for CDA-9830) is displayed if

nothing is registered in the Phone Book.

Calling by using the Speed Dial

You can place a call by retrieving one of the telephone numbers registered in No. 1 to 9 of the address book.

Turn the Rotary encoder, or press g or f to

select the addressee from the outgoing or incoming history.

Press :/J or the Rotary encoder to place a call.

Press BAND/TEL. to end the call.

Te lephone mode will end and return to the original source mode.

• If all telephone numbers and registered names cannot be displayed at once, press TITLE to show undisplayed numbers and names.

• “NO MEMORY” (“NO MEM” for CDA-9830) is displayed if there is no history.

SMS (Short Message Service) Operation

You can be informed when you receive a short message.

Receiving a short message

When a text message is received, “NEW

MESSAGE” for CDA-9831, or “NEW MSG” for CDA9830 is indicated on the display.

The contents of the received message can only be read from the portable phone's display.

Press any one of the buttons on the unit to cancel

the display. The buttons that are pressed will enter the mode or will be activated.

Press and hold BAND/TEL. for at least 2 seconds.

Within 5 seconds, place a call by pressing and

holding the desired preset button (1 through 6) for at least 2 seconds. By pressing F, and then pressing a preset button (1 through 3) for at least 2 seconds, you can place a call to the number registered in 7 to 9.

•You can place a call by pressing :/J after momentarily pressing

the preset button (1 through 6) of the number you wish to call.

•You can place a call by pressing the Rotary encoder, after selecting

a number which you wish to call, by pressing g or f , or by turning the Rotary encoder.

Press BAND/TEL. to end the call.

Te lephone mode will end and return to the original source mode.

• If there is no telephone number registered to a preset button, “NO PRESET” (“NO P-SET” for CDA-9830) is displayed when you try to place a call.

29-EN

Changer (Optional)

SOURCE/ POWER

Controlling CD Changer (Optional)

An optional 6-disc or 12-disc CD Changer may be connected to this unit if it is Ai-NET compatible. With a CD Changer connected to the Ai-NET input of this unit, the CD Changer will be controllable from this unit. Using the KCA-400C (Multi-Changer Switching device) or the KCA410C (Versatile Link Terminal) multiple changers can be controlled by this unit. See “Multi-Changer Selection” on this page for selecting the CD Changers.

• The controls on this unit for CD Changer operation are operative only when a CD Changer is connected.

• The DVD changer (optional) is controllable from this unit as well as the CD changer.

Press SOURCE/POWER to activate the CHANGER

mode.

The display shows the disc number and track number.

• The source indicator varies depending on the connected source.

•Press BAND/TEL. to switch the Disc mode in the CD/Changer mode.

-/J

BAND/TEL.

Select buttons (1 through 6)

Playing MP3 Files with the CD Changer (Optional)

If you connect a changer compatible with MP3, you can play CDROMs, CD-Rs, and CD-RWs containing MP3 files on this unit.

Press SOURCE/POWER to switch to the MP3

Changer mode.

Press any one of the disc select buttons (1

through 6) corresponding to one of the discs loaded in the CD Changer.

To pause playback, press -/J.

Pressing -/J again will resume playback.

• The unit can play discs containing both audio data and MP3 data.

•For operating MP3 with an MP3 compatible CD Changer, refer to “CD/MP3/WMA” pages 9 to 13.

Multi-Changer Selection (Optional)

Alpine's Ai-NET system will support up to 6 CD Changers. When operating two or more changers, the KCA-400C (Multi-Changer Switching device) must be used. If you use 1 Switching device, you can connect up to 4 CD Changers. If you use 2 Switching devices, you can connect up to 6 CD Changers. When using KCA-410C (Versatile Link Terminal), you can connect two changers and two external outputs (AUX).

Press SOURCE/POWER on this unit to activate

the CD Changer mode.

Alternatively, press SOURCE on the remote control (RUE-

4187) to activate the CD Changer mode.

SOURCE

BAND

Press the disc select buttons (1 through 6)

corresponding to one of the discs loaded in the CD Changer.

The selected disc number appears in the display and CD playback starts.

•After selecting the desired disc, you can operate in the same way as for the CD player of this unit. Fo r details, please see the CD/MP3/WMA section.

• If the “FUNC” indicator is illuminated, the disc select buttons become nonfunctional.

When a 12-disc CD Changer is connected:

To select discs numbered from 1 to 6, the procedure is the same as for the 6-disc CD Changer. To select discs numbered from 7 to 12, first press F. This changes the “D” indicator to “d.” Then press the desired preset button. With F activated, the preset buttons 1 to 6 will represent discs 7 to 12 respectively.

30-EN

Press BAND/TEL. on this unit or the RUE-4187 to

activate the CD Changer Selection mode.

The CD Changer Selection mode remains active for 8 seconds.

Press BAND/TEL. until the desired CD Changer

indicator appears on the display.

Alternatively press BAND/TEL. on the Remote Control until the desired changer indicator appears on the display.

• If the selected CD Changer is not connected, the display will show “NO CHANGER “ (“NO CHGR” for CDA-9830).

•To operate the selected changer, see “CD/MP3/WMA”(page 9).

•For further details about the external input (AUX) when using KCA-410C, see “Setting the AUX Mode (V-Link)” on page 25.

Remote Control

1 2

Controls on Remote Control

1 Power Button

Press this button to turn the power on/off.

2 Source Button

Press this button to select the audio source.

3 -/J Button

Press this button to switch between the Play and Pause modes for CD.

4 TILT 98 Buttons

Press this button to adjust the angle of the movable display.

5 Band/Program Button

Radio mode: BAND Button Press this button and the band will change.

CD/Changer mode: To switch the disc mode.

6 Volume Adjustment Buttons

To increase the volume level: Press the L button

To decrease the volume level: Press the K button

7 8 Button

Radio mode: Pressing this button will select, in ascending order, stations programmed into the radio's presets as shown below.

1 → 2 ... 6 → 1

CD Changer mode: DISC Select (UP) button Press this button to select a disc in ascending order.

MP3/WMA mode: Folder or Playlist Select (UP) button Press this button to select the folder or playlist.

8 g DN Button

Radio mode: SEEK (DN) Button CD mode: Press this button to go back to the beginning of the current track.

5 6

7 8 9 !

" #

9 f UP Button

Radio mode: SEEK (UP) button CD mode: Press this button to advance to the beginning of the next track.

! 9 Button

Radio mode: Pressing this button will select, in descending order, stations programmed into the radio's presets as shown below.

6 → 5 ... 1 → 6

CD Changer mode: DISC Select (DN) button Press this button to select a disc in descending order. MP3/WMA mode: Folder or Playlist Select (DN) button Press this button to select the folder or playlist.

" Mute Button

Press this button to lower the volume by 20 dB instantly. Press this button again to cancel.

# Audio Processor Button

Each press of the button changes the audio processor mode. For details, refer to "Operating the Audio Processor" as shown below. Press the button to call the external audio processor mode when the external audio processor is connected.*

*1Fo r the operation of external audio processor, refer to the Owner's

Manual of the external audio processor you purchased.

Operating the Audio Processor

Press A.PROC to select the mode.

Normal mode → EQ mode (Equalizer Presets) → Time Correction mode (Recalling the Stored Time Correction) → Crossover mode (Recalling the Stored built-in Crossover) → Normal mode

Press 8 or 9 to select the item.

EQ mode: Select from FLAT(OFF), ROCK, POPS, JAZZ & BLUES (JAZZ), ELECTRICAL (ELECTRIC), HIPHOP & RAP (HIPHOP), (CLASSIC), NEWS, USER'S EQ 1,2 (USERS 1,2). Time Correction mode/Built-in Crossover mode: Select from MEMORY 1 or 2.

EASY LISTEN (EASY), COUNTRY, CLASSICAL

31-EN

Battery Replacement

Applicable battery: Use two “AAA” sized dry batteries or equivalent.

Information

Opening the battery cover

Slide out the battery cover while firmly pressing in the direction of the arrow.

Replacing the battery

Insert the batteries, observing the polarities as illustrated.

Closing the cover

Slide the cover as illustrated until a click is heard.

Point the remote control transmitter at the remote control sensor.

Remote control sensor

In Case of Difficulty

If you encounter a problem, please turn the power off, then on again. If the unit is still not functioning normally, please review the items in the following checklist. This guide will help you isolate the problem if the unit is at fault. Otherwise, make sure the rest of your system is properly connected or consult your authorized Alpine dealer.

Basic

No function or display.

•Vehicle's ignition is off.

- If connected following instructions, the unit will not

operate with the vehicle's ignition off.

•Improper power lead connections.

-Check power lead connections.

•Blown fuse.

-Check the fuse on the battery lead of the unit; replace with

the proper value if necessary.

• Internal micro-computer malfunctioned due to interference noise etc.

-Press the RESET switch with a ballpoint pen or other

pointed article.

Radio

Unable to receive stations.

•No antenna or open connection in cable.

-Make sure the antenna is properly connected;

replace the antenna or cable if necessary.

Unable to tune stations in the seek mode.

•You are in a weak signal area.

-Make sure the tuner is in the DX mode.

• If the area you are in is a primary signal area, the antenna may not be grounded and connected properly.

-Check your antenna connections; make sure the antenna is

properly grounded at its mounting location.

•The antenna may not be the proper length.

-Make sure the antenna is fully extended; if broken, replace

the antenna with a new one.

Broadcast is noisy.

•The antenna is not the proper length.

-Extend the antenna fully; replace it if it is broken.

•The antenna is poorly grounded.

-Make sure the antenna is grounded properly at its mounting

location.

32-EN

CD Player/Changer not functioning.

•Out of operating temperature range +50˚C (+120˚F) for CD.

-Allow the vehicle's interior (or trunk) temperature to cool.

CD playback sound is wavering.

•Moisture condensation in the CD Module.

-Allow enough time for the condensation to evaporate (about 1 hour).

CD insertion not possible.

•A CD is already in the CD player.

-Eject the CD and remove it.

• The CD is being improperly inserted.

-Make sure the CD is being inserted following instructions in the CD Player Operation section.

Unable to fast forward or backward the CD.

• The CD has been damaged.

-Eject the CD and discard it; using a damaged CD in your unit can cause damage to the mechanism.

CD playback sound skips due to vibration.

•Improper mounting of the unit.

-Securely re-mount the unit.

• The disc is very dirty.

-Clean the disc.

• The disc has scratches.

- Change the disc.

• The pick-up lens is dirty.

- Do not use a commercial available lens cleaner disc. Consult your nearest ALPINE dealer.

CD playback sound skips without vibration.

• The disc is dirty or scratched.

-Clean the disc; damaged disc should be replaced.

Error displays (built-in CD player only)

•Mechanical error

-Press c. After the error indication disappears, insert the disc again. If the above-mentioned solution does not solve the problem, consult your nearest ALPINE dealer.

CD-R/CD-RW playback not possible

•Close session (finalization) has not been performed.

-Perform finalization and attempt playback again.

MP3/WMA

MP3 or WMA is not played back.

•Writing error occurred. The CD format is not compatible.

-Make sure the CD has been written in a supported format. Refer to “About MP3/WMA” (page 12-13), then rewrite in the format supported by this device.

Indication for CD Player

HIGH-TEMP HI TEMP

(CDA-9831) (CDA-9830)

•Protective circuit is activated due to high temperature.

-The indicator will disappear when the temperature returns to within operation range.

NO DISC

•No CD is inserted.

- Insert a CD.

•Although a disc is inserted, “NO DISC” is displayed and the unit does not start to play or eject the disc.

-Remove the disc by following these steps:

1) Press the c button.

The movable display will open.

2) Press the c button again for at least 2 seconds while the

movable display is open.

ERROR

•Mechanism error.

1) Press the c button and eject the CD.

If not ejecting, consult your Alpine dealer.

2) When the error indication remains after ejecting, press the

c button again. If the error indication still does not turn off after pressing the c button for a few times, consult your Alpine dealer.

• When “ERROR” is displayed: If the disc cannot be ejected by pressing c, press the RESET switch (refer to page 6) and press c again. If the disc still cannot be ejected, consult your Alpine dealer.

PROTECT

•A copy-protected WMA file was played back.

- You can only play back non-copy-protected files.

UNSUPPORT UNSUPORT

(CDA-9831) (CDA-9830)

•The disc is not written in a MP3/WMA supported format.

- Use a disc written at the MP3/WMA supported format.

33-EN

Indication for CD Changer

Indication for XM Radio Mode

HIGH-TEMP

(CDA-9831) (CDA-9830)

•Protective circuit is activated due to high temperature.

-The indicator will disappear when the temperature returns to within operation range.

HI TEMP

ERROR - 01

•Malfunction in the CD Changer.

-Consult your Alpine dealer. Press the magazine eject button and pull out the magazine. Check the indication. Insert the magazine again. If the magazine cannot be pulled out, consult your Alpine dealer.

•Magazine ejection not possible.

-Press the magazine eject button. If the magazine does not eject, consult your Alpine dealer.

ERROR - 02

•A disc is left inside the CD Changer.

-Press the eject button to activate the eject function. When the CD Changer finishes the eject function, insert an empty CD magazine into the CD Changer to receive the disc left inside the CD Changer.

NO MAGZINE NO MAGZN

(CDA-9831) (CDA-9830)

• No magazine is loaded into the CD Changer.

- Insert a magazine.

NO DISC

• No indicated disc.

-Choose another disc.

ANTENNA

• The XM antenna is not connected to the XM radio module.

-Check whether the XM antenna cable is attached securely to the XM radio module.

UPDATING

•Radio is being updated with latest encryption code.

-Wait until encryption code is being updated. Channels 0 and 1 should function normally.

NO SIGNAL NO SIGNL

(CDA-9831) (CDA-9830)

• XM signal is too weak at the current location.

-Wait until the car reaches a location with a stronger signal.

•Radio is acquiring audio or program information.

-Wait until the radio has received the information.

OFF AIR

• The channel currently selected has stopped broadcasting.

-Select another channel.

– – – – – – – – – –

(CDA-9831) (CDA-9830)

• The user has selected a channel number that does not exist or is not subscribed to.

-The unit will revert back to the previously selected channel.

• There is no artist name/feature, song/program title, or additional information associated with the channel at that time.

-No action needed.

34-EN

Specifications

FM TUNER SECTION

Tuning Range 87.7 – 107.9 MHz Mono Usable Sensitivity 9.3 dBf (0.8 µV/75 ohms) 50 dB Quieting Sensitivity 13.5 dBf (1.3 µV/75 ohms) Alternate Channel Selectivity 80 dB Signal-to-Noise Ratio 80 dB Stereo Separation 45 dB Capture Ratio 2.0 dB

AM TUNER SECTION

Tuning Range 530 – 1,710 kHz Sensitivity (IEC Standard) 22.5 µV/27 dB

CD PLAYER SECTION

Frequency Response 5 – 20,000 Hz (±1 dB) Wow & Flutter (% WRMS) Below measurable limits Total Harmonic Distortion 0.008% (at 1 kHz) Dynamic Range 95 dB (at 1 kHz) Signal-to-Noise Ratio 105 dB Channel Separation 85 dB (at 1 kHz)

PICKUP

Wave length 795 nm Laser power CLASS I

REMOTE CONTROL

Battery Type AAA batteries (2 pcs.) Width 42 mm (1-21/32") Height 121 mm (4-25/32") Depth 23 mm (29/32") Weight 50 g (1.8 oz)

GENERAL

Power Requirement 14.4 V DC

(11–16 V allowable)

Power Output 18 W RMS × 4*

*Primary amplifier ratings per CEA-2006 Standard

•Power output: measured at 4 Ohms and ≤ 1% THD+N

•S/N: 80 dBA (reference: 1 W into 4 Ohms) Maximum Pre-Output Voltage 4 V/10 k ohms Weight 1.6 kg (3 lbs. 8 oz)

CHASSIS SIZE

Width 178 mm (7") Height 50 mm (2") Depth 152 mm (6")

NOSEPIECE SIZE

Width 170 mm (6-11/16") Height 46 mm (1-13/16") Depth 18 mm (11/16")

• Due to continuous product improvement, specifications and design are subject to change without notice.

35-EN

Installation and Connections

Before installing or connecting the unit, please read the following and pages 3 to 5 of this manual thoroughly for proper use.

Warning

MAKE THE CORRECT CONNECTIONS.

Failure to make the proper connections may result in fire or product damage.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may result in fire, etc.

BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL.

Failure to do so may result in electric shock or injury due to electrical shorts.

DO NOT ALLOW CABLES TO BECOME ENTANGLED IN SURROUNDING OBJECTS.

Arrange wiring and cables in compliance with the manual to prevent obstructions when driving. Cables or wiring that obstruct or hang up on places such as the steering wheel, gear lever, brake pedals, etc. can be extremely hazardous.

DO NOT SPLICE INTO ELECTRICAL CABLES.

Never cut away cable insulation to supply power to other equipment. Doing so will exceed the current carrying capacity of the wire and result in fire or electric shock.

DO NOT DAMAGE PIPE OR WIRING WHEN DRILLING HOLES.

When drilling holes in the chassis for installation, take precautions so as not to contact, damage or obstruct pipes, fuel lines, tanks or electrical wiring. Failure to take such precautions may result in fire.

DO NOT USE BOLTS OR NUTS IN THE BRAKE OR STEERING SYSTEMS TO MAKE GROUND CONNECTIONS.

Bolts or nuts used for the brake or steering systems (or any other safety-related system), or tanks should NEVER be used for installations or ground connections. Using such parts could disable control of the vehicle and cause fire etc.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician immediately.

DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER VEHICLE OPERATION, SUCH AS THE STEERING WHEEL OR GEARSHIFT.

Doing so may obstruct forward vision or hamper movement etc. and results in serious accident.

Caution

HAVE THE WIRING AND INSTALLATION DONE BY EXPERTS.

The wiring and installation of this unit requires special technical skill and experience. To ensure safety, always contact the dealer where you purchased this product to have the work done.

USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM SECURELY.

Be sure to use only the specified accessory parts. Use of other than designated parts may damage this unit internally or may not securely install the unit in place. This may cause parts to become loose resulting in hazards or product failure.

ARRANGE THE WIRING SO IT IS NOT CRIMPED OR PINCHED BY A SHARP METAL EDGE.

Route the cables and wiring away from moving parts (like the seat rails) or sharp or pointed edges. This will prevent crimping and damage to the wiring. If wiring passes through a hole in metal, use a rubber grommet to prevent the wire’s insulation from being cut by the metal edge of the hole.

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST.

Avoid installing the unit in locations with high incidence of moisture or dust. Moisture or dust that penetrates into this unit may result in product failure.

Precautions

•Be sure to disconnect the cable from the (–) battery post before installing your CDA-9831/CDA-9830. This will reduce any chance of damage to the unit in case of a short-circuit.

•Be sure to connect the color coded leads according to the diagram. Incorrect connections may cause the unit to malfunction or damage to the vehicle's electrical system.

•When making connections to the vehicle's electrical system, be aware of the factory installed components (e.g. on-board computer). Do not tap into these leads to provide power for this unit. When connecting the CDA-9831/CDA-9830 to the fuse box, make sure the fuse for the intended circuit of the CDA-9831/CDA-9830 has the appropriate amperage. Failure to do so may result in damage to the unit and/or the vehicle. When in doubt, consult your ALPINE dealer.

•The CDA-9831/CDA-9830 uses female RCA-type jacks for connection to other units (e.g. amplifier) having RCA connectors. You may need an adaptor to connect other units. If so, please contact your authorized ALPINE dealer for assistance.

•Be sure to connect the speaker (–) leads to the speaker (–) terminal. Never connect left and right channel speaker cables to each other or to the vehicle body.

IMPORTANT

Please record the serial number of your unit in the space provided below and keep it as a permanent record. The serial number plate is located on the bottom of the unit.

36-EN

SERIAL NUMBER: INSTALLATION DATE: INSTALLATION TECHNICIAN: PLACE OF PURCHASE:

Installation

Metal plate

Detachable Front panel

Caution

When you install this unit in your car, do not remove the detachable front panel. If the detachable front panel is removed during installation, you might press too hard and warp the metal plate that holds it in place.

Caution

Do not block the unit’s fan or heat sink, thus preventing air circulation. If blocked, heat will accumulate inside the unit and may cause a fire.

Air ventilation hole

(Rear of CDA-9831/CDA-9830)

Mounting Sleeve (Included)

Dashboard

Connect each input lead coming from an amplifier or equalizer to the corresponding output lead coming from the left rear of the CDA-9831/CDA-

9830. Connect all other leads of the CDA-9831/CDA9830 according to details described in the CONNECTlONS section.

Lock Pin

Slide the CDA-9831/CDA-9830 into the dashboard. When the unit is in place, make sure the locking pins are fully seated in the down position. This can be done by pressing firmly in on the unit while pushing the locking pin down with a small screwdriver. This ensures that the unit is properly locked and will not accidentally come out from the dashboard. Install the detachable front panel.

Removal

1 Remove the detachable front panel.

2 Use a small screwdriver (or similar tool) to push the

locking pins to the “up” position (see above drawing). As each pin is unlocked, gently pull out on the unit to make sure it does not re-lock before unlocking the second pin.

3 Pull the unit out, keeping it unlocked as you do so.

this unit

Slide the mounting sleeve into the dashboard.

Screw

Hex Nut (M5)

Bolt Stud

Metal Mounting Strap

Ground Lead

Reinforce the head unit with the metal mounting strap (not supplied). Secure the ground lead of the unit to a clean metal spot using a screw (*1) already attached to the vehicle's chassis.

•For the screw marked “*2”, use an appropriate screw for the chosen mounting location.

Chassis

this unit

Face Plate

Screws (M5 × 8)

this unit

Ground Lead

• Secure the ground lead of the unit to a clean metal spot using a screw (*3) already attached to the vehicle's chassis.

(Included)

Mounting Bracket

37-EN

Connections

To amplifier (CDA-9831 only)

∗1

Ai-NET

EQ/DIVNORM

Blue

Blue/White

Pink/Black

Orange ILLUMINATION

Red

Ye llow

Black

SPEAKER RIGHT FRONT

SPEAKER LEFT REAR

SPEAKER LEFT FRONT

POWER ANT

REMOTE

TURN-ON

AUDIO

INTERRUPT IN

IGNITION

BATTERY

GND

Gray

Gray/Black

Violet/Black

SPEAKER RIGHT REAR

Violet

Green

Green/Black

White/Black

White

(

)

Antenna

To power antenna

To amplifier or equalizer

To vehicle phone

To the instrument cluster illumination lead (CDA-9831 only)

Ignition Key

Battery

Speakers

Front right

Rear right

Rear left

Front left

* 1 The label is attached on the bottom of the unit.

38-EN

;

Amplifier

;

CD Changer (Sold Separately)

Amplifier

Speakers

Front Left

Front Right

Rear Left

Rear Right

Subwoofers

1 Amplifier Link Connector

Outputs Amplifier Link control signals. Connect this to a separately sold Amplifier Link-compatible amplifier, using the (also separately sold) Amplifier Link box KCE-510M.

2 Antenna Receptacle 3 Power Antenna Lead (Blue)

Connect this lead to the +B terminal of your power antenna, if applicable.

This lead should be used only for controlling the vehicle's power antenna. Do not use this lead to turn on an amplifier, or a signal processor, etc.

4 Remote Turn-On Lead (Blue/White)

Connect this lead to the remote turn-on lead of your amplifier or signal processor.

5 Audio Interrupt In Lead (Pink/Black) 6 Illumination Lead (Orange) (CDA-9831 only)

This lead may be connected to the vehicle's instrument cluster illumination lead. This will allow the backlighting of the CDA-9831 to dim whenever the vehicle's lights are turned on.

7 Switched Power Lead (Ignition) (Red)

Connect this lead to an open terminal on the vehicle's fuse box or another unused power source which provides (+)12V only when the ignition is turned on or in the accessory position.

8 Battery Lead (Yellow)

Connect this lead to the positive (+) post of the vehicle's battery.

9 Ground Lead (Black)

Connect this lead to a good chassis ground on the vehicle. Make sure the connection is made to bare metal and is securely fastened using the sheet metal screw provided.

! Choke Coil with Fuse Holder

(10A)

" Power Supply Connector

# Right Front (+) Speaker Output Lead (Gray) $ Right Front (–) Speaker Output Lead (Gray/Black) % Right Rear (–) Speaker Output Lead (Violet/Black) & Right Rear (+) Speaker Output Lead (Violet) ( Left Rear (+) Speaker Output Lead (Green) ) Left Rear (–) Speaker Output Lead (Green/Black) ~ Left Front (–) Speaker Output Lead (White/Black) + Left Front (+) Speaker Output Lead (White) , Ai-NET Connector

Connect this to the output or input connector of another device (CD Changer, Equalizer, etc.) equipped with Ai-NET.

You can input TV/video sound by connecting an optional AiNET/RCA Interface cable (KCA-121B) to this component.

- Ai-NET Cable (Included with CD Changer)

. Front Output RCA Connectors

RED is right and WHITE is left.

/ Rear Output RCA Connectors

RED is right and WHITE is left.

: Subwoofer RCA Connectors

RED is right and WHITE is left.

; RCA Extension Cable (sold separately) < System Switch

When connecting a processor or divider using Ai-NET, place this switch in the EQ/DIV position. When no device is connected, leave the switch in the NORM position.

Be sure to turn the power off to the unit before changing the switch position.

To prevent noise/interference in the audio system.

• Locate the unit and route the leads at least 10 cm away from the car harness.

• Keep the battery power leads as far away from other leads as possible.

• Connect the ground lead securely to a bare metal spot (remove any paint, dirt or grease if necessary) of the car chassis.

• If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various noise

suppressors, contact them for further information.

• Your Alpine dealer knows best about noise prevention measures so consult your dealer for further information.

39-EN

LIMITED WARRANTY

ALPINE ELECTRONICS OF AMERICA, INC. AND ALPINE OF CANADA INC. ("Alpine"), are dedicated to quality craftsmanship and are pleased to offer this Warranty. We suggest that you read it thoroughly. Should you have any questions, please contact your Dealer or Alpine at one of the telephone numbers listed below.

[[

[PRODUCTS COVERED:

[[

This Warranty covers Car Audio/Visual Products and Related Accessories ("the product"). Products purchased in the Canada are covered only in the Canada. Products purchased in the U.S.A. are covered only in the U.S.A.

[[

[LENGTH OF WARRANTY:

[[

This Warranty is in effect for one year from the date of the first consumer purchase.

[[

[LIFETIME TAPE HEAD WARRANTY:

[[

All Alpine Car Audio analog tape heads excluding Video tape heads are warranted for life against manufacturing defects causing failure.

[[

[WHO IS COVERED:

[[

This Warranty only covers the original purchaser of the product, who must reside in the United States, Puerto Rico or Canada.

[[

[WHAT IS COVERED:

[[

This Warranty covers defects in materials or workmanship (parts and labor) in the product.

[[

[WHAT IS NOT COVERED:

[[

This Warranty does not cover the following: 1 Damage occurring during shipment of the product to

Alpine for repair (claims must be presented to the carrier).

2 Damage caused by accident, abuse, negligence,

misuse, improper connections, improper operation or failure to follow instructions contained in the Owner's manual.

3 Damage caused by act of God, including without

limitation, earthquake, fire, flood, storms or other acts of nature.

4 Any cost or expense related to the removal or

reinstallation of the product.

5 Service performed by an unauthorized person, company

or association.

6 Any product which has the serial number defaced,

altered or removed.

7 Any product which has been adjusted, altered or

modified without Alpine's consent.

8 Any product not distributed by Alpine within the United

States, Puerto Rico or Canada.

9 Any product not purchased from an Authorized Alpine

Dealer.

! Any product that has been determined to contain an

excessive amount of dust or dirt and any product that contains other contaminants including liquid or foreign objects.

[[

[HOW TO OBTAIN WARRANTY SERVICE:

[[

1 You are responsible for delivery of the product to an

Authorized Alpine Service Center or Alpine for repair and for payment of any initial shipping charges. Alpine will, at its option, repair or replace the product with a new or reconditioned product without charge. If the repairs are covered by the warranty, and if the product was shipped to an Authorized Alpine Service Center or Alpine, Alpine will pay the return shipping charges.

2 You should provide a detailed description of the

problem(s) for which service is required.

3 You must supply proof of your purchase of the product. 4 You must package the product securely to avoid

damage during shipment.

[[

[HOW WE LIMIT IMPLIED WARRANTIES:

[[

ANY IMPLIED WARRANTIES INCLUDING FITNESS FOR USE AND MERCHANTABILITY ARE LIMITED IN DURATION TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE AND NO PERSON IS AUTHORIZED TO ASSUME FOR ALPINE ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THE PRODUCT.

[[

[HOW WE EXCLUDE CERTAIN DAMAGES:

[[

ALPINE EXPRESSLY DISCLAIMS LIABILITY FOR INCIDENTAL AND CONSEQUENTIAL DAMAGES CAUSED BY THE PRODUCT. THE TERM "INCIDENTAL DAMAGES" REFERS TO EXPENSES OF TRANSPORTING THE PRODUCT TO THE ALPINE SERVICE CENTER, LOSS OF THE ORIGINAL PURCHASER'S TIME, LOSS OF THE USE OF THE PRODUCT, BUS FARES, CAR RENTALS OR OTHERS COSTS RELATING TO THE CARE AND CUSTODY OF THE PRODUCT. THE TERM "CONSEQUENTIAL DAMAGES" REFERS TO THE COST OF REPAIRING OR REPLACING OTHER PROPERTY WHICH IS DAMAGED WHEN THIS PRODUCT DOES NOT WORK PROPERLY. THE REMEDIES PROVIDED UNDER THIS WARRANTY ARE EXCLUSIVE AND IN LIEU OF ALL OTHERS.

[[

[HOW STATE/PROVINCIAL LAW RELATES TO THE

[[

WARRANTY:

This Warranty gives you specific legal rights, and you may also have other rights which vary form state to state and province to province. In addition, some states/provinces do not allow limitations on how long an implied warranty lasts, and some do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, limitations as to these matters contained herein may not apply to you.

[[

[IN CANADA ONLY:

[[

This Warranty is not valid unless your Alpine car audio product has been installed in your vehicle by an Authorized Installation Center, and this warranty stamped upon installation by the installation center.

[[

[HOW TO CONTACT CUSTOMER SERVICE:

[[

Should the product require service, please call the following number for your nearest Authorized Alpine Service Center.

U.S.A. 1-800-ALPINE-1 (1-800-257-4631) CANADA 1-800-ALPINE-1 (1-800-257-4631)

Alpine Electronics of America, Inc., 19145 Gramercy Place, Torrance, California 90501, U.S.A. Alpine Electronics of Canada, Inc., Suite 203, 7300 Warden Ave. Markham, Ontario, L3R 9Z6, Canada
