Alpine CDA-9826, CDA-9827 User Manual

Contents

Operating Instructions

WARNING

WARNING.................................................. 3

CAUTION ................................................... 3

PRECAUTIONS ......................................... 3

Basic Operation

Detaching the Front Panel................................. 5

Attaching the Front Panel ................................. 5

Initial System Start-Up ..................................... 5

Turning Power On and Off ............................... 5

Adjusting Volume/Balance (Between Left and

Right)/Fader (Between Front and Rear)/

Defeat ............................................................ 6

Audio Mute Function ........................................ 6

Displaying Time................................................ 6

Setting Time ...................................................... 6

Setting the Bass Control ................................... 7

Setting the Treble Control................................. 7

Setting the Bass Type ........................................ 7

Setting the MX Mode ....................................... 8

Blackout Mode On and Off............................... 8

Displaying the Title/Text ................................... 9

Titling Discs/Stations ...................................... 10

Erasing Disc Title/Station Title ....................... 10

SETUP Operation

Subwoofer On and Off .................................... 11

Scroll Setting................................................... 11

Turning Mute Mode On/Off ........................... 12

Setting the Tone Defeat for External

Devices ........................................................ 12

Setting the AUX Mode (V-Link) ..................... 12

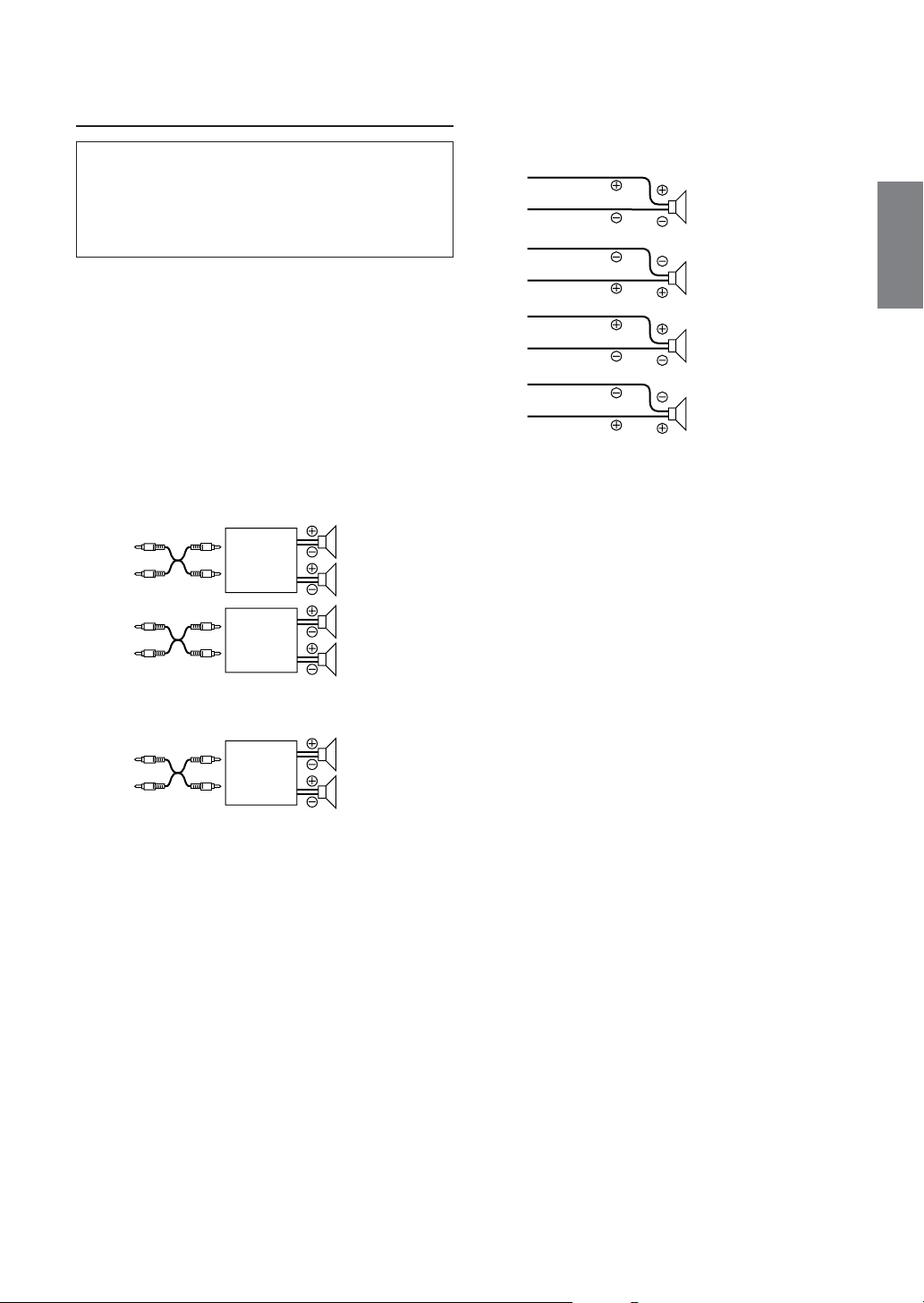

Connecting to an External Amplifier .............. 13

ENGLISH

Radio Operation

Changing the Radio Frequencies for each

Country ........................................................ 14

Manual Tuning ................................................ 14

Automatic Seek Tuning .................................. 14

Manual Storing of Station Presets .................. 14

Automatic Memory of Station Presets ............ 15

Tuning to Preset Stations ................................ 15

Station Title Search Function.......................... 15

Quick Search Function .................................... 15

CD Player Operation

Inserting/Ejecting Disc ................................... 16

Normal Play and Pause ................................... 16

Music Sensor (Skip)........................................ 17

Fast Forward and Backward ........................... 17

Repeat Play ..................................................... 17

M.I.X. (Random Play) .................................... 17

Scanning Programs ......................................... 18

Track Search Function .................................... 18

Quick Search Function .................................... 18

Controlling CD Changer (Optional) ............... 18

Multi-Changer Selection ................................. 19

MP3/WMA Operation

Playing MP3/WMA Files

(CDA-9827/CDA-9826 only) ....................... 20

Playing MP3 Files with the CD Changer

(Optional) .................................................... 20

Music Sensor (Skip)........................................ 20

Fast Forward and Backward ........................... 20

Repeat Play ..................................................... 20

M.I.X. (Random Play) .................................... 21

Scanning files .................................................. 21

Folder/File Search Function............................ 21

Quick Search Function .................................... 21

Playing MP3 Data ........................................... 21

Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and / or other countries.

1-EN

XM Radio Operation (Optional)

Receiving XM Channels with the XM Receiver

(Optional) .................................................... 22

Checking the XM Radio ID Number .............. 22

Storing XM Channel Presets ........................... 22

Receiving Stored XM Channels...................... 22

Channel/Category Search Function ................ 23

Quick Search Function .................................... 23

Changing the Display ...................................... 23

Setting the tuning method ............................... 23

Setting the Auxiliary Data Field Display ........ 23

MobileHub™Link Operation

(Optional)

About MobileHub™ Link .............................. 24

Telephone Mode ON/OFF .............................. 24

Incoming Calls ................................................ 24

Calling

Calling by the address book ........................ 25

Calling by using the Speed Dial .................. 25

Calling by the outgoing/incoming/absent/

incoming history ...................................... 25

SMS (Short Message Service) Operation

Receiving a short message........................... 25

Installation and Connections

Warning ........................................................... 34

Caution ............................................................ 34

Precautions ...................................................... 34

Installation ...................................................... 35

Connections .................................................... 36

LIMITED WARRANTY

Remote Control Operation

Controls on Remote Control

(CDA-9827 only)......................................... 26

Battery Replacement (CDA-9827 only) ......... 27

Information

About MP3/WMA .......................................... 28

In Case of Difficulty ....................................... 30

Specifications .................................................. 33

2-EN

WARNING

This symbol means important instructions. Failure to heed them can result in serious injury or death.

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE.

Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the vehicle in a safe location before performing these functions. Failure to do so may result in an accident.

KEEP THE VOLUME AT A LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISE WHILE DRIVING.

Failure to do so may result in an accident.

MINIMIZE DISPLAY VIEWING WHILE DRIVING.

Viewing the display may distract the driver from looking ahead of the vehicle and cause an accident.

DO NOT DISASSEMBLE OR ALTER.

Doing so may result in an accident, fire or electric shock.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND.

(Check with your dealer if you are not sure.) Failure to do so may result in fire, etc.

KEEP SMALL OBJECTS SUCH AS BATTERIES OUT OF THE REACH OF CHILDREN.

Swallowing them may result in serious injury. If swallowed, consult a physician immediately.

USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES.

Failure to do so may result in fire or electric shock.

DO NOT BLOCK VENTS OR RADIATOR PANELS.

Doing so may cause heat to build up inside and may result in fire.

CAUTION

This symbol means important instructions. Failure to heed them can result in injury or material property damage.

HALT USE IMMEDIATELY IF A PROBLEM APPEARS.

Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for repairing.

DO NOT MIX NEW BATTERIES WITH OLD BATTERIES. INSERT WITH THE CORRECT BATTERY POLARITY.

When inserting the batteries, be sure to observe proper polarity (+ and –) as instructed. Rupture or chemical leakage from the battery may cause fire or personal injury.

PRECAUTIONS

Temperature

Be sure the temperature inside the vehicle is between +60°C (+140°F) and –10°C (+14°F) before turning your unit on.

Moisture Condensation

You may notice the CD playback sound wavering due to condensation. If this happens, remove the disc from the player and wait about an hour for the moisture to evaporate.

Damaged Disc

Do not attempt to play cracked, warped, or damaged discs. Playing a bad disc could severely damage the playback mechanism.

Maintenance

If you have problems, do not attempt to repair the unit yourself. Return it to your Alpine dealer or the nearest Alpine Service Station for servicing.

USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS.

Use for other than its designed application may result in fire, electric shock or other injury.

DO NOT PLACE HANDS, FINGERS OR FOREIGN OBJECTS IN INSERTION SLOTS OR GAPS.

Doing so may result in personal injury or damage to the product.

3-EN

WARNING

PRECAUTIONS

Never Attempt the Following

Do not grip or pull out the disc while it is being pulled back into the player by the automatic reloading mechanism. Do not attempt to insert a disc into the unit when the unit power is off.

Inserting Discs

Yo ur player accepts only one disc at a time for playback. Do not attempt to load more than one disc. Make sure the label side is facing up when you insert the disc. Yo ur player will automatically eject any disc that is inserted incorrectly. If the player continues to eject a correctly inserted disc, push the RESET switch with a pointed object such as a ballpoint pen. Playing a disc while driving on a very bumpy road may result in skips, but this will not scratch the disc or damage the player.

New Discs

As a protective measure to prevent the CD from jamming, the CD player will automatically eject discs with irregular surfaces or inserted incorrectly. When a new disc is inserted into the player and ejected after initial loading, using your finger, feel around the inside of the center hole and outside edge of the disc. If you feel any small bumps or irregularities, this could inhibit proper loading of the disc. To remove the bumps, rub the inside edge of the hole and outside edge of the disc with a ballpoint pen or other such instrument, then insert the disc again.

Center Hole

New Disc

Correct Handling

Do not drop the disc while handling. Hold the disc so you will not leave fingerprints on the surface. Do not affix tape, paper, or gummed labels to the disc. Do not write on the disc.

CORRECT

INCORRECT

CORRECT

Disc Cleaning

Fingerprints, dust, or soil on the surface of the disc could cause the CD player to skip. For routine cleaning, wipe the playing surface with a clean, soft cloth from the center of the disc to the outer edge. If the surface is heavily soiled, dampen a clean, soft cloth in a solution of mild neutral detergent before cleaning the disc.

Disc Accessories

There are various accessories available on the market for protecting the disc surface and improving sound quality. However, most of them will influence the thickness and/or diameter of the disc. Using such accessories can cause the disc to be out of standard specifications and may create operational problems. We recommend not using these accessories on discs played in Alpine CD players.

Bumps

Outside (Bumps)

Irregular Shaped Discs

Be sure to use round shape discs only for this unit and never use any special shape discs. Use of special shape discs may cause damage to the mechanism.

Installation Location

Make sure the CDA-9827/CDA-9826/CDA-9825 will not be installed in a location subjected to:

• Direct sun and heat

• High humidity and water

• Excessive dust

• Excessive vibrations

4-EN

Disc StabilizerTransparent Sheet

Basic Operation

SOURCE/POWER

Detaching the Front Panel

Remote Controllable (CDA-9826 only)

This unit can be controlled with an optional Alpine remote control. For details, consult your Alpine dealer.

Initial System Start-Up

Be sure to press the RESET switch when using the unit for the first time, after installing the CD changer, etc., or after changing the car battery.

To do this, first, remove the detachable front panel. Behind the front panel, to the right of the connector, there is a small hole. Using a ball-point pen or other pointed object, press the RESET switch mounted behind this hole to complete the initialization procedure.

1 Press and hold the SOURCE/POWER button for more

than 3 seconds to turn off the power.

2 Press the (Release) button at lower left side until

the front panel pops out.

3 Grasp the left side of the front panel and pull it out.

NOTES

• The front panel may become hot in normal usage (especially

the connector terminals on the back of the front panel.) This is not a malfunction.

• To protect the front panel, place it in the supplied carrying

case.

Attaching the Front Panel

1 First, insert the right side of the front panel into the

main unit. Align the groove on the front panel with the projections on the main unit.

2 Push the left side of the front panel until it locks firmly

into the main unit.

RESET switch

Turning Power On and Off

1 Press the SOURCE/POWER button to turn on the unit.

NOTE

The unit can be turned on by pressing any other button except the eject c and DISP/TITLE button.

Press and hold the SOURCE/POWER button for at least 3 seconds to turn off the unit.

NOTE

The first time power is turned on, the volume will start from level

12.

About the alphanumeric display of this unit

• All English lower case characters are displayed as

upper case on this unit.

• The alphanumeric display in the following table shows

alphanumeric characters/numbers that may be difficult to distinguish.

Alphanumeric

Display

02568ABD

NOTES

• Before attaching the front panel, make sure that there is no

dirt or dust on the connector terminals and no foreign object between the front panel and the main unit.

• Attach the front panel carefully. Hold the panel by its sides to

avoid pushing any buttons by mistake.

Alphanumeric

Display

GHKMQRSZ

5-EN

Basic Operation

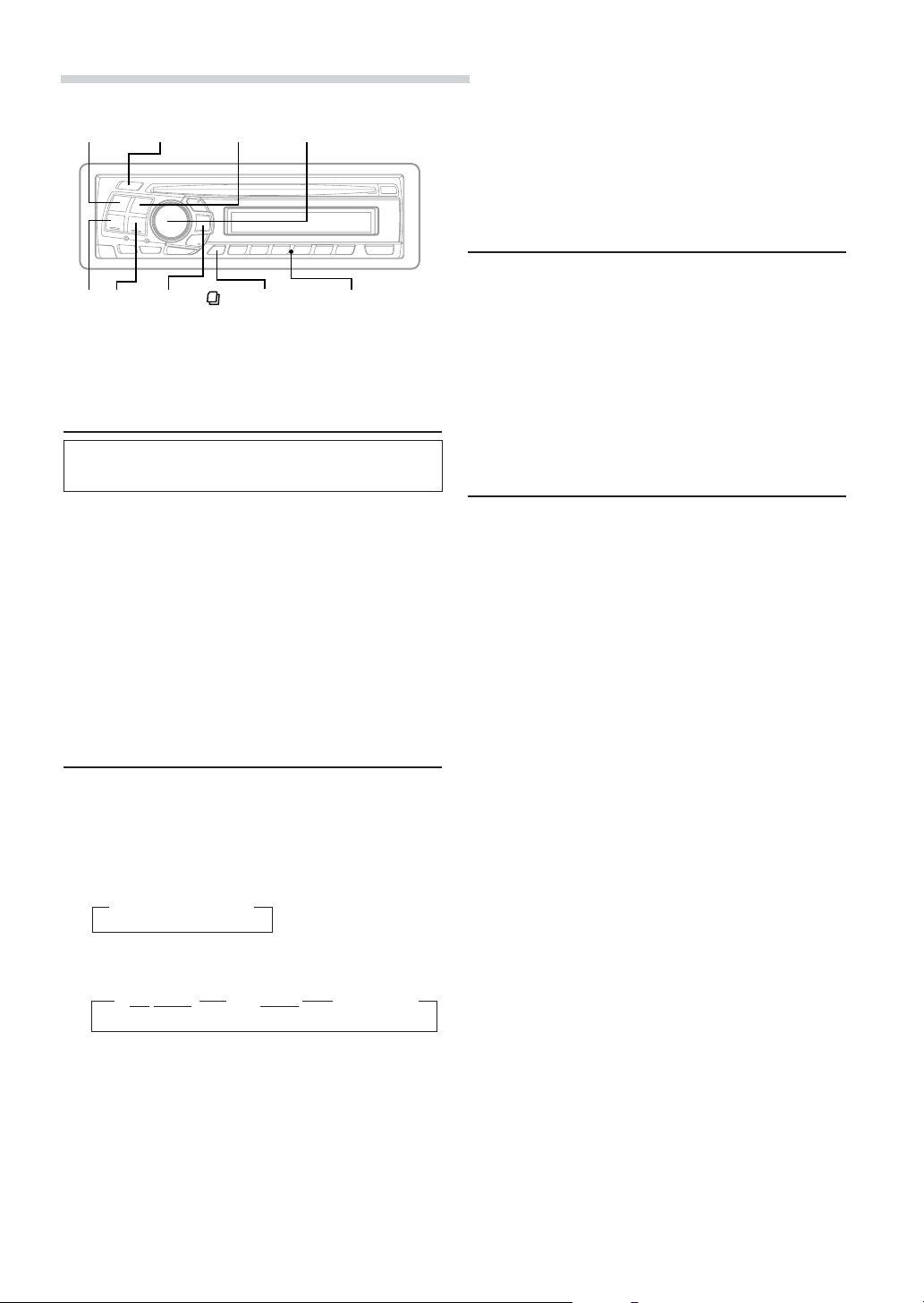

Displaying Time

MODE/Rotary encoder

MUTE

DISP/TITLE

BAND/TEL.

CENTER f

Adjusting Volume/Balance (Between Left and Right)/Fader (Between Front and Rear)/Defeat

1 Press the MODE (Rotary encoder) repeatedly to

choose the desired mode.

Each press changes the modes as follows:

→ BALANCE → FADER → DEFEAT

SUBWOOFER*← VOLUME ←

Volume : 0 ~ 35 Balance : L15 ~ R15 Fader: R15 ~ F15 Subwoofer: 0 ~ +15 Defeat : ON/OFF

NOTES

• If the MODE (Rotary encoder) is not pressed within 5

seconds after selecting the BALANCE, FADER, DEFEAT or SUBWOOFER mode, the unit automatically returns to the VOLUME mode.

• *When the subwoofer mode is OFF, its level cannot be

adjusted.

2 Turn the MODE (Rotary encoder) until the desired

sound is obtained in each mode. By setting Defeat ON, previously adjusted settings of BASS, TREBLE will return to the factory defaults, but MX will be turned off.

NOTE

Depending on the connected devices, some functions and display indications do not work.

1 Press the DISP/TITLE button repeatedly until the

time is displayed.

Each press changes the modes as follows:

Radio mode

→

Radio frequency

CD Player/Changer modes

Playing time

→

mode

TITLE mode

NOTES

• Selecting any tuner or CD function while in the clock priority

mode will interrupt the time display momentarily. The function selected will be displayed for about 5 seconds before the time returns to the display.

• When the power is off but the ignition key is on, press the

DISP/TITLE button to display the time.

•∗Fo r CDA-9825 model, the display above is shown with a

CD-TEXT compatible changer connected.

Clock priority

→ →

mode

Clock priority

→→

mode

TRACK

←

TEXT mode

TITLE mode

DISC TEXT mode

←

Setting Time

1 In the Clock priority mode, press and hold the DISP/

TITLE button for at least 3 seconds while the time is

displayed. The time indication will blink.

2 Turn the Rotary encoder to adjust the hours while the

time indication is blinking.

3 When the hour has been adjusted, press the Rotary

encoder.

4 Turn the Rotary encoder to adjust the minutes while

the time indication is blinking. The time is automatically set 5 seconds after the minute adjustment. The time can also be manually set by pressing the Rotary

encoder.

Audio Mute Function

Activating this function will instantly lower the volume level by 20 dB.

1 Press the MUTE button to activate the MUTE mode.

The audio level will decrease by about 20 dB. Pressing the MUTE button again will bring the audio back to its previous level.

6-EN

Setting the Bass Control

Setting the Treble Control

You can change the Bass Frequency emphasis to create your own tonal preference.

1 Press the CENTER f button to select the BASS (bass

Center frequency) control mode.

→ BASS → TREBLE → normal mode

2-1 *Setting the Bass Center Frequency:

Press the g or f button to select the desired bass center frequency.

→ 60Hz ↔ 80Hz ↔ 100Hz ↔ 200Hz ←

Emphasizes the displayed bass frequency ranges.

2-2 *Setting the Bass Band width (Q-Factor):

Press the BAND/TEL. button to select the desired bass Band Width.

→ B. Width1 → B. Width2 → B. Width3 → B. Width4

(Narrow) ←................................... → (Wide)

Changes the bass boost band width to wide or narrow. A wide setting will boost a wide range of frequencies above and below the center frequency. A narrower setting will boost only frequencies near the center frequency.

2-3 Setting the bass Level:

Turn the Rotary encoder to select the desired bass level (–7~+7). You can emphasize or weaken the bass frequency.

NOTES

• If no buttons are pressed within 15 seconds, the bass control

setting will be turned off automatically.

• The Bass Level settings will be individually memorized for

each source (FM, AM, XM, CD, etc.) until the setting is changed. The Bass frequency and Bass Band Width settings adjusted for one source are effective for all other sources (FM, AM, XM, CD etc.).

• Depending on the connected devices, some functions and

display indications do not work. However, Bass Level is still adjustable if an audio processor with the Bass function is connected.

• This function is inoperable when DEFEAT is ON.

* Selecting any of the "Setting the Bass Types" (TYPE 1 through

3), temporarily replaces the custom settings you have made above.

You can change the Treble Frequency emphasis to create your own tonal preference.

1 Press the CENTER f button to select the TREBLE

(treble Center frequency) control mode.

→ BASS → TREBLE → normal mode

2-1Setting the treble Center frequency:

Press g or f button to select the desired treble Center frequency.

→ 10.0kHz ↔ 12.5kHz ↔ 15.0kHz ↔ 17.5kHz

Emphasizes the displayed Treble frequency ranges.

←

2-2 Setting the treble Level:

Turn the Rotary encoder to select the desired Treble Level (–7~+7). You can emphasize the treble frequency.

NOTES

• If no buttons are pressed within 15 seconds, the Treble control

setting will be turned off automatically.

• The Treble Level settings will be individually memorized for

each source (FM, AM, XM, CD, etc.) until the setting is changed. The Treble frequency settings adjusted for one source are effective for all other sources (FM, AM, XM, CD, etc.).

• Depending on the connected devices, some functions and

display indications do not work. However, Treble Level is still adjustable if an audio processor with the Treble function is connected.

• This function is inoperable when DEFEAT is ON.

Setting the Bass Type

This function allows for 3 different Bass Type settings. Select the one that appeals to you the most.

1 Press and hold the CENTER f button for at least 2

seconds to set the Bass Type.

2 Select the desired Type (1 through 3) by pressing the

g or f button within 15 seconds.

Type 1 will sound best if you have a subwoofer in your system. Use Type 2 or 3 if you are using small diameter speakers.

3 Press and hold the CENTER f button for at least 2

seconds to return to the normal mode.

NOTES

• “Bass Center Frequency” and “Bass Band width” previously

set are replaced when selecting TYPE 1 through 3. When Bass Type is OFF, your previous settings are restored.

• Bass Type is not selectable when connected to an external

audio processor.

7-EN

Basic Operation

B. OUT

Rotary encoder

DISP/TITLE

SOURCE/POWER

Setting the MX Mode

MX (Media Xpander) makes vocals or instruments sound distinct regardless of the music source. The radio, CD, and MP3, will be able to reproduce the music clearly even in cars with a lot of road noise.

5 After setting, press the Rotary encoder to return to the

normal mode.

NOTES

• By "Setting the External Input Defeat Mode" (page 12) to ON,

operation is bypassed.

• To cancel MX mode for all music sources, press the MX

button to turn MX off.

• MX mode is automatically canceled if no buttons are pressed

within 15 seconds.

• Each music source, such as radio, CD, and MP3 can have its

own MX setting.

• On disks with both MP3 and CD-DA, when the source

changes from “MP3 to CD-DA” or “CD-DA to MP3”, the MX-mode switching process may delay playback slightly.

• Setting to MX OFF makes MX mode of each music source

OFF.

• This function is inoperable when DEFEAT is ON.

• There is no MX mode for AM radio.

• If an audio processor with the MX function (PXA-H700, etc.)

is connected, its own MX processing is applied to the music source. Since the processor MX settings may not match the head unit, the audio processor needs to be adjusted. For details, refer to the Owner’s Manual of the audio processor.

1 Press the MX button to select MX ON. 2 Press the SOURCE/POWER button to select the

source you want to MX (Media Xpander)-correct.

3 Press and hold the MX button for at least 2 seconds to

select the MX mode.

4 Turn the Rotary encoder to select your preferred

mode or OFF.

FM (MX level 1 to 3): The medium to high frequencies become more clear, and produces well balanced sound in all the bands. CD (MX level 1 to 3): CD mode processes a large amount of data during playback. MX takes advantage of this large data quantity to reproduce a more clear, clean output. MP3/WMA/XM (MX level 1 to 3): This corrects information that was omitted at the time of compression. This reproduces a well-balanced sound close to the original. DVD (or Video CD):

• (MOVIE MX level 1 to 2)

The dialog portion of the video is reproduced more clearly.

• (MUSIC MX level 1):

This disk contains a large quantity of data such as music clip. MX uses this data to reproduce the sound

accurately. AUX (MX level 1): Choose the MX mode (MP3, MUSIC, or MOVIE) that corresponds to the media connected. If two external devices are connected, the MX mode of each media can be selected.

Blackout Mode On and Off

When the Blackout mode is turned on, the display will turn off to reduce power consumption. This additional power enhances the sound quality.

1 Press and hold the B.OUT button for at least 3

seconds to start the blackout mode. By doing so the display will turn off.

NOTE

If any button on the unit is pressed during the blackout mode, the function will be displayed for 5 seconds to show the operation before returning to Blackout mode.

To cancel the blackout mode, press and hold the B.OUT button for at least 3 seconds.

8-EN

Displaying the Title/Text

It is possible to display the CD/Station title if the title has

“

been previously inputted. For details, see Stations

”

(page 10). Text information, such as the disc

Titling Disc/

name and the track name, will be displayed if playing a CD text compatible disc. It is also possible to display the folder name, the file name, and the tag, etc. while playing MP3/WMA files.

1 Press the DISP/TITLE button.

The mode will change every time the button is pressed.

About “Title” and “Text” Title: With this device, it is possible to input the CD/

Station name (refer to page 10). This inputted name is referred to as a “title.” You cannot input or display titles on MP3/WMA discs.

Text: Te xt compatible CDs contain text information such

as the disc name and track name. Such text information is referred to as “text.”

Radio mode:

FREQUENCY DISPLAY

CD mode: (Text is displayed for the CDA-9825 model when a compatible changer with CD text is connected.)

ELAPSED TIME DISPLAY

TEXT DISPLAY (DISC NAME)

TEXT DISPLAY (TRACK NAME)

MP3/WMA mode: (MP3 files can be played back with the CDA-9825 model if an MP3 compatible changer is connected.)

FILE/ELAPSED TIME DISPLAY

FOLDER NO./FILE NO. DISPLAY

FOLDER NAME DISPLAY

↓

CLOCK DISPLAY

↓

TITLE DISPLAY

CLOCK DISPLAY

TITLE DISPLAY

CLOCK DISPLAY

FILE NAME DISPLAY

TRACK NAME DISPLAY

ARTIST NAME DISPLAY

ALBUM NAME DISPLAY

FRAME DISPLAY

∗2

↓

∗2

↓

∗3

∗1

∗4

ID3 tag/ WMA tag

∗1

Displayed during playback of a disc with CD Text.

“ NO TEXT” will be displayed when the CD contains

no Text data. Te xt cannot be displayed for the CDA-9825 model.

∗2

If the title was not previously input, “NO TITLE” is displayed.

∗3

The recording sampling rate and bit rate of the MP3/WMA file are displayed.

∗4

If an MP3/WMA file contains ID3 tag/WMA tag information, all the ID3 tag/WMA tag information is displayed.(e.g., track name, artist name, and album name). All other tag data is ignored. “NO DATA” will be displayed if an MP3/WMA file contains no ID3 tag/WMA tag information.

∗5

"– – – – – – – –" is displayed for the folder name of the root folder.

About the indicator display

When displaying Title/Text, the following indicators are lit according to the mode.

Indicator/ Mode

CD Mode

While displaying Title

This indicator is constantly lit.

123456

MP3/WMA Mode

—

TUNER Mode

—

While

—

displaying Folder Name

—

While

—

displaying File Name

—

While

—

While displaying Text (Disc Name)

While displaying Text (Track Name)

displaying Artist Name

While displaying Album Name

While displaying Track Name

∗

While displaying Title

∗

Tag information

—

NOTES

• Some characters may not be displayed correctly with this

device, depending on the character type.

• The CD changer must also be CD Text compatible for the Text

information to be displayed.

• When the Scroll Setting (refer to page 11) is set to “SCR

MANU”, press and hold the DISP/TITLE button for at least 3 seconds to scroll the Text information only once (TEXT DISPLAY, FOLDER NAME DISPLAY, FILE NAME DISPLAY or TAG DISPLAY mode).

• "NO SUPRT" is displayed when the desired text information

cannot be displayed on this unit.

• The text or tag information may not be correctly displayed,

depending on the contents.

9-EN

Basic Operation

:/J

Rotary encoder

DISP/TITLE

6 Press the DISP/TITLE button to record the title.

NOTES

• If you cancel while entering a title, selected characters are

not written.

• You can enter 18 radio station titles and 18 CD titles on this

unit. If you try to store beyond the limit, the display will show “FULL DATA.” At this point, no more titles can be stored.

• The CD Changer title length or memory capacity varies

depending upon the model being used.

• To input a new title, one of the previously inputted titles must

first be deleted.

• When you want to erase a title, enter the “ ” symbol into

all spaces.

• The operations described in steps 3 to 5 must be made within

10 seconds. The input mode will be canceled if no action is taken for over 10 seconds.

Titling Discs/Stations

It is possible to title your favorite CD's or radio stations. You cannot input titles on MP3/WMA discs.

1 Press the DISP/TITLE button and select the title

display mode. For details, see “Displaying the Title/Text” (page 9).

2 Press and hold the DISP/TITLE button for at least 3

seconds. The first character will blink.

3 Turn the Rotary encoder to select the desired letter/

numeral/symbol available for naming.

4 Press the Rotary encoder to store the first character.

The first character will stop blinking and the display will automatically advance to the next character. When that character begins to blink, you may choose the next letter or symbol of your title.

5 Repeat the steps 3 and 4 above to complete the titling.

Pressing the Rotary encoder after entering the 8th character, automatically stores the title into memory.

When entering a title of less than 8 characters (for example, 3 character title): After entering 3 characters to complete your title, the 4th character space will be blinking. Go to step 6 to complete the title.

Erasing Disc Title/Station Title

1 Press the DISP/TITLE button to select the titling

mode. Then, press and hold for at least 3 seconds.

2 Within 10 seconds press and hold the -/J button for

at least 2 seconds to activate the title scanning mode. The title in the display will blink.

3 Press the g or f button repeatedly until the title

you want to erase is displayed.

4 Press and hold the -/J button for at least 2 seconds

to erase the title displayed.

5 Press the DISP/TITLE button to cancel the title

erasing mode.

NOTES

• You cannot erase CD-TEXT.

• "NO DATA" is displayed for 2 seconds if the title is not input

in step 2, or if all titles are erased in step 4.

10-EN

SETUP Operation

BAND/TEL.

f g

Rotary encoder

F/SETUP

Scroll Setting

This CD player can scroll the disc and track names recorded on CD-TEXT discs, as well as the text information of MP3/WMA files, folder names, and tags. (This function can be used for CDA-9825 model if the changer compatible with CD-Text is connected).

1 Press and hold the F/SETUP button for at least 3

seconds.

2 Press the f or g button to select

“SCR”(SCROLL).

Subwoofer On and Off

1 Press and hold the F/SETUP button for at least 3

seconds.

2 Press the f or g button to select “SUBW

(Subwoofer).”

3 Press the BAND/TEL. button to toggle mode between

SUBW ON and SUBW OFF.

NOTE

The initial setting at the factory is subwoofer ON.

4 Press the F/SETUP button after setting the SUBW ON. 5 Press the Rotary encoder repeatedly to select the

SUBW mode.

→ SUBW → BALANCE VOLUME ← DEFEAT ← FADER ←

6 Turn Rotary encoder until the desired sound is

obtained in each mode.

NOTES

• "Playing MP3 data" in the "SETUP" mode section is

described in MP3 Operation on page 21.

• Switching the incoming calls of the telephone in the SETUP

mode section is described in “MobileHub™ Link Operation” on page 24.

• “Checking the XM Radio ID Number,” “Setting the Tuning

Method” and “Setting the Auxiliary Data Field Display” in the SETUP mode section are described in "XM Radio Operation" on page 22-23.

• “Changing the Radio Frequencies for each Country” in the

SETUP mode section is described in "Radio Operation" on page 14.

3 Press the BAND/TEL. button to toggle the mode

between SCR AUTO and MANU.

• SCR AUTO: the CD text information, the text

information of folder and file names, and the tags are scrolled automatically.

• SCR MANU: the display is scrolled only when a disc is

loaded or when a track is changed, etc.

4 When the setting is completed, press the F/SETUP

button to return to the normal mode.

NOTES

• Initial mode is “SCR MANU.”

• The unit scrolls CD text names, folder names, file names or

tag display. The disc titles input manually (refer to page 10) cannot be scrolled.

11-EN

SETUP Operation

SOURCE/POWER

BAND/TEL.

F/SETUP

Setting the Tone Defeat for External Devices

When inputting external devices to this unit, turning DEFEAT ON will bypass BASS,TREBLE and MX, i.e., sound for external devices is output at the default setting.

1 Press and hold the F/SETUP button for at least 3

seconds.

2 Press the f or g button to select "INT."

Turning Mute Mode On/Off

If a device having the interrupt feature is connected, audio will be automatically muted whenever the interrupt signal is received from the device. This function can be turned ON or OFF from the head unit by following procedure below.

1 Press and hold the F/SETUP button for at least 3

seconds.

2 Press the f or g button to select the MUTE

mode.

3 Press the BAND/TEL. button to turn on or off the

MUTE mode. Each press toggles between the MUTE ON and OFF modes.

NOTE

The initial setting at the factory is “MUTE ON.”

4 Press the F/SETUP button again to return to normal

operation.

3 Press the BAND/TEL. button to toggle the mode

between INT ON and INT OFF.

When using Initial mode, set this to ON. When the Initial mode is not selected, set this to OFF.

4 Press the F/SETUP button to return to normal mode.

Setting the AUX Mode (V-Link)

You can input TV/video sound by connecting an optional Ai-NET/RCA Interface cable (KCA-121B) or Versatile Link Terminal (KCA-410C) to this component.

1 Press and hold the F/SETUP button for at least 3

seconds.

2 Press the f or g button to select “AUX.” 3 Press the BAND/TEL. button to toggle the mode

between AUX ON and AUX OFF.

NOTES

• The initial setting at the factory is AUX OFF.

• You can set the AUX mode display by pressing the

g or f button after AUX ON is set, select the AUX mode display setting, and then press the BAND button.

• When connecting the KCA-410C, you can set two AUX mode

displays.

12-EN

4 Press the F/SETUP button to return to normal mode. 5 To adjust the volume, etc., first press the SOURCE/

POWER button and select the AUX mode, then make the necessary adjustment.

NOTE

When using the Versatile Link Terminal (KCA-410C), you can connect two external inputs. To select the mode, press the BAND/ TEL. button on the unit.

+ 26 hidden pages
