Alpine 7909 User Manual

yiLPINE

SERIAL NUMBER: INSTALLATION DATE: INSTALLATION TECHNICIAN: WHERE PURCHASED:

_______

OWNER’S MANUAL

7909

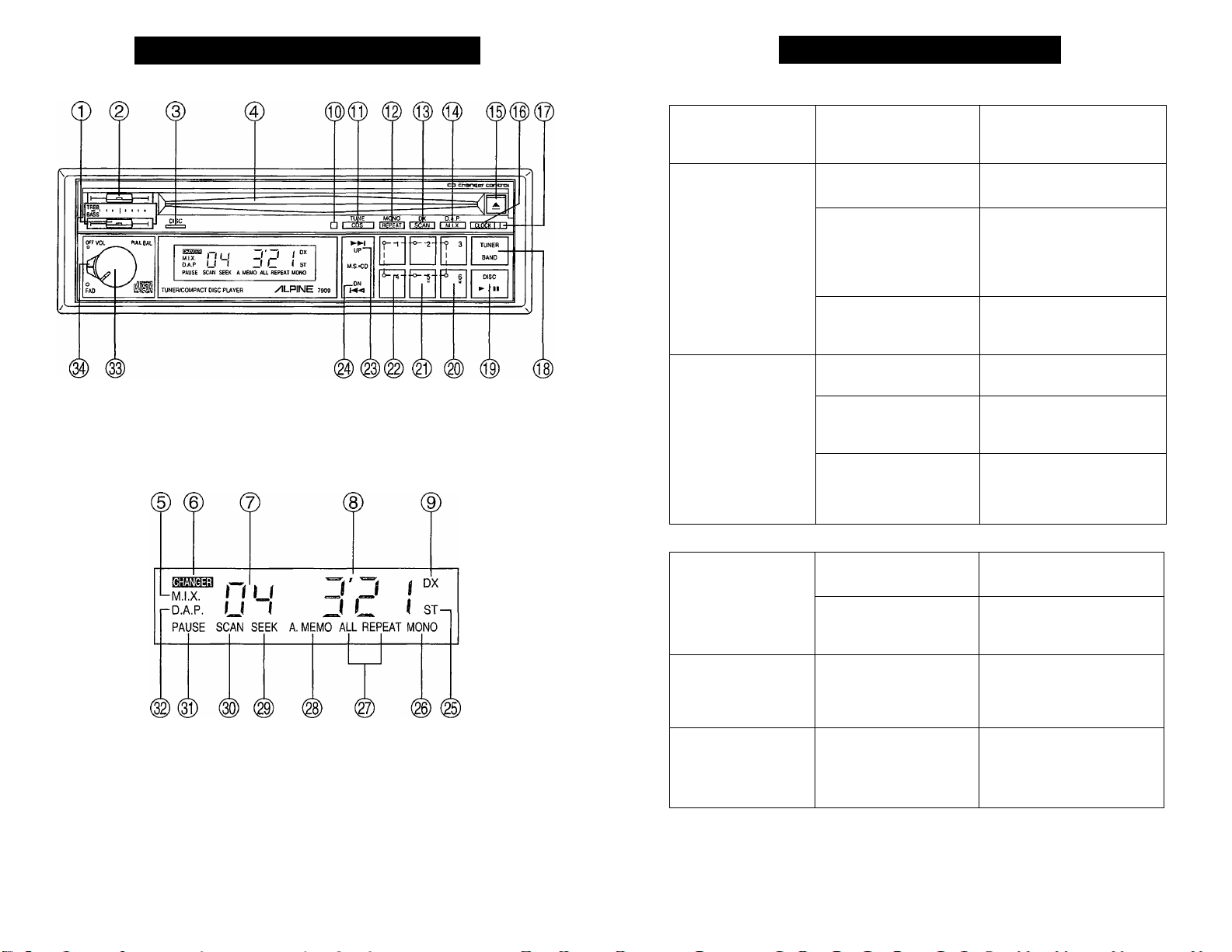

FM/AM Compact Disc Player

Alpine Electronics of America, Inc.

19145 Gramercy Place, Torrance, California 90501, U.S.A. Tel: 1-800-ALPINE-1 (1-800-257-4631)

Alpine Electronics of Canada, Inc.

Suite 203, 7300 Warden Ave. Markham, Ontario L3R 9Z6, Canada Tel: 1-800-ALPINE-1 (1-800-257-4631)

68P91508W59-0

Printed in Japan (S)

POINTS TO Observe for safe usage

DO NOT DISASSEMBLE OR ALTER

Attempts to disassemble or alter may lead to an accident, fire and/or electric shock.

KEEP SMALL ARTICLES OUT OF THE REACH OF CHIL DREN

Store small articles (screws, etc.) in places not accessible to children. If swallowed, consult a physician immediately.

USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES

Replace fuses only with fuses of the same ampere rating. Failure to do so may result in a fire and/or damage to the vehi cle.

HALT USE IMMEDIATELY IF A PROBLEM APPEARS

When problems appear, stop using the system immediately and contact the dealer from whom you purchased the equipment. Some problems which may warrant immediate attention include a lack of sound, noxious odors or smoke being emitted from the unit, or foreign objects dropped inside the unit.

USE ONLY IN CARS WITH A 12 VOLT NEGATIVE GROUND

Use only in cars with a 12 volts negative (-) ground. (Check with your dealer if you are not sure.) Failure to do so may result in fire, etc.

BEFORE WIRING, DISCONNECT THE CABLE FROM THE NEGATIVE BATTERY TERMINAL

Before doing any electrical wiring, disconnect the cable from the negative (-) terminal of the battery. Failure to do so may result in electric shock or injury due to electrical shorts.

POINTS TO OBSERVE FOR SAFE USAGE

KEEP ELECTRICAL CABLES TOGETHER TO AVOID OPER

ATING HAZARDS

Arrange wiring and cables in compliance with the installation manual to prevent obstructions when driving. Cables or wiring that obstructs or hangs up on places such as the steering wheel, gear lever, brake pedals can be extremely hazardous.

DO NOT CUT AWAY THE WIRE SHEATH AND USE POWER TO OTHER EQUIPMENT

Never cut away the cable shielding to use power to another piece of equipment. Doing so will exceed the current carrying capacity of the wire and result in fire or electric shock.

DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER VEHICLE OPERATION

Do not install in locations which might create hazards for the vehicle occupants or hinder vehicle operation (such as the steering wheel or gear shift) by obstructing forward vision or hampering movement etc.

/K Caution

DO NOT RAISE THE VOLUME EXCESSIVELY

Keep the volume at a level where you can still hear outside noises while driving. Driving while unable to hear outside

sounds could cause an accident.

DO NOT USE THIS EQUIPMENT OUTSIDE THE VEHICLE

Do not use this equipment for purposes other than those listed for a vehicle. Failure to do so may result in an electric shock or an injury.

KEEP FOREIGN OBJECTS OUT OF THE CD COMPART MENT SLOT

Keep any foreign objects, including fingers, out of the CD com partment slot.

STOP THE VEHICLE BEFORE CARRYING OUT ANY OP ERATION THAT COULD INTERFERE WITH YOUR DRIVING

If loading or unloading a CD interferes with your driving, stop

the vehicle in a safe location before attempting operation.

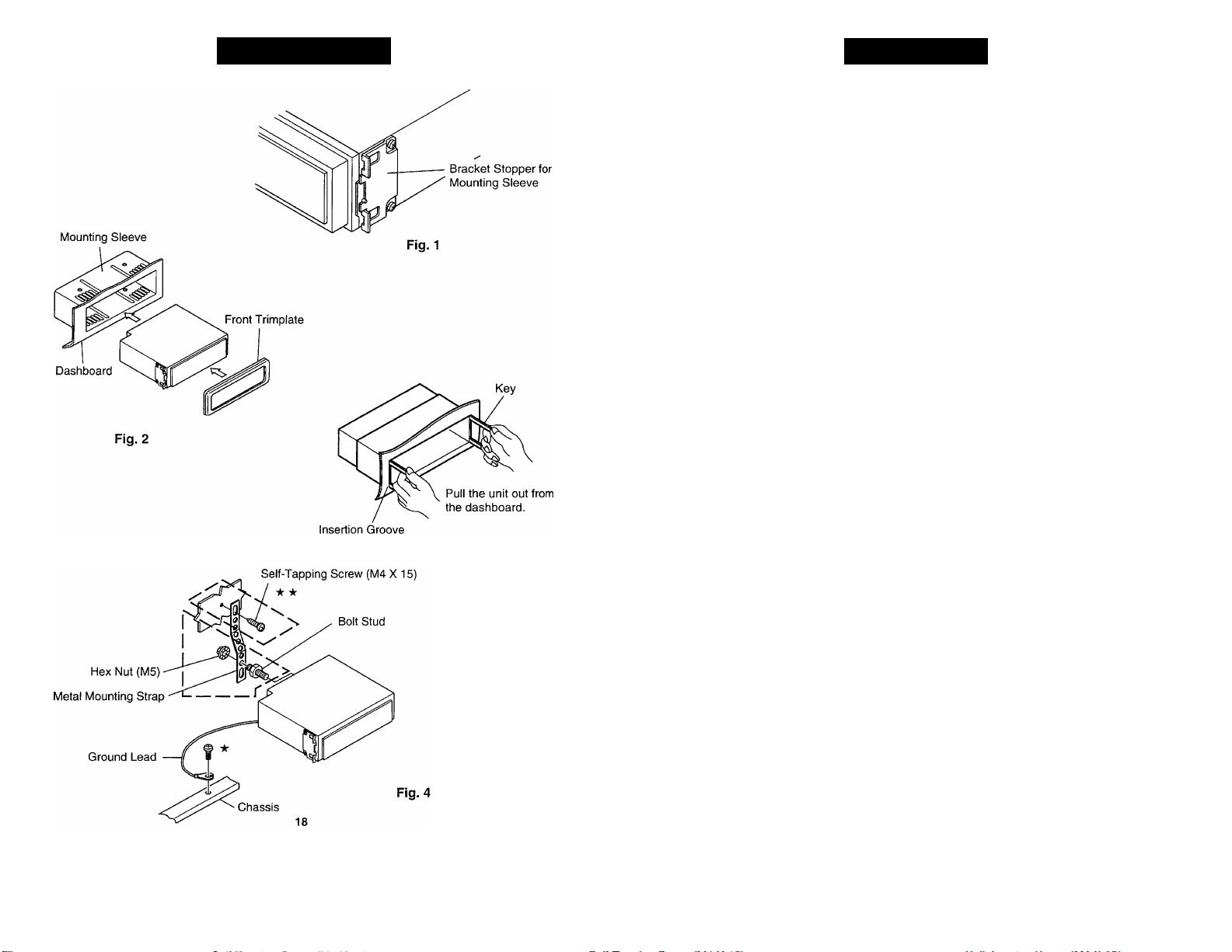

HAVE THE WIRING AND INSTALLATION DONE BY EX PERTS

The wiring and installation of this unit requires special technical skill and experience. To ensure safety, always contact the dealer where you purchased this unit to have the work done.

USE SPECIFIED ACCESSORY PARTS AND INSTALL THEM

SECURELY

Be sure to use only the specified accessory parts. Use of other

than designated parts may damage this unit internally or may not securely install the unit in place as parts that come loose can create hazards.

SPECIFICATIONS

POINTS TO OBSERVE FOR SAFE USAGE

COMPACT DISC PLAYER

System.................................................................................Optical (compact disc system)

Number of Quantization Bits

Sampling Rate...............................................................................................352.8 kHz (8X)

Channels..................................................................................................2-channels stereo

Number of D/A Converters....................................................................................................2

Frequency Response.................................................................5 - 20,000 Hz -i-O, -0.3 dB

Wow & Flutter (% WRMS).............................................................Below measurable limits

Total Harmonic Distortion.........................................................................0.002% (at 1 kHz)

Dynamic Range

Signal-to-Noise Ratio................................................................................................110 dBA

Channel Separation

FM TUNER

Tuning Range...........................................................................................87.7 - 107.9 MHz

Mono Usable Sensitivity............................................................16.3 dBf (1.8 p.V/75 ohms)

50 dB Quieting Sensitivity

Alternate Channel Selectivity...............................................................................................80 dB

S/N (signal-to-noise) Ratio..................................................................................................60 dB

Stereo Separation................................................................................................................35 dB

Capture Ratio......................................................................................................................2.0 dB

AM Suppression..................................................................................................................45 dB

AM TUNER

Tuning Range..............................................................................................530 - 1,620 kHz

Sensitivity.......................................................................................................................10|iV

GENERAL

Power Requirement

Qutput Voltage (at Volume Center)..........................................................500 mV/lOk ohms

Bass.............................................................................................................±18 dB at 30 Hz

Treble.........................................................................................................±15 dB at 15 kHz

Weight...................................................................................................1.8 kg (3 lbs. 15 oz)

CHASSIS SIZE

Width; 178mm (7"), Height: 50mm (2"), Depth: 153mm (6")

........................................................................................

.................................................................

....................................................................................

.........................................................

...........................................................

14.4V DC (11 - 16V allowable)

18-bit linear system

20.7 dBf (3.0 pV/75 ohms)

100 dB (at 1 kHz)

95 dB (at 1 kHz)

DO NOT INSTALL IN LOCATIONS WITH HIGH MOISTURE OR DUST

Avoid installing the unit in locations with high incidence of mois ture or dust. Moisture or dust that penetrates into this unit may cause smoke or fire.

MAKE THE CORRECT CONNECTIONS

Failure to make the correct connections can cause fire or acci dent to occur.

ARRANGE THE WIRING SO IT IS NOT CRIMPED OR PINCHED

Route the cables and wiring so as not be crimped by moving parts like seat rail or make contact with sharp or pointed spots

which might damage the wiring.

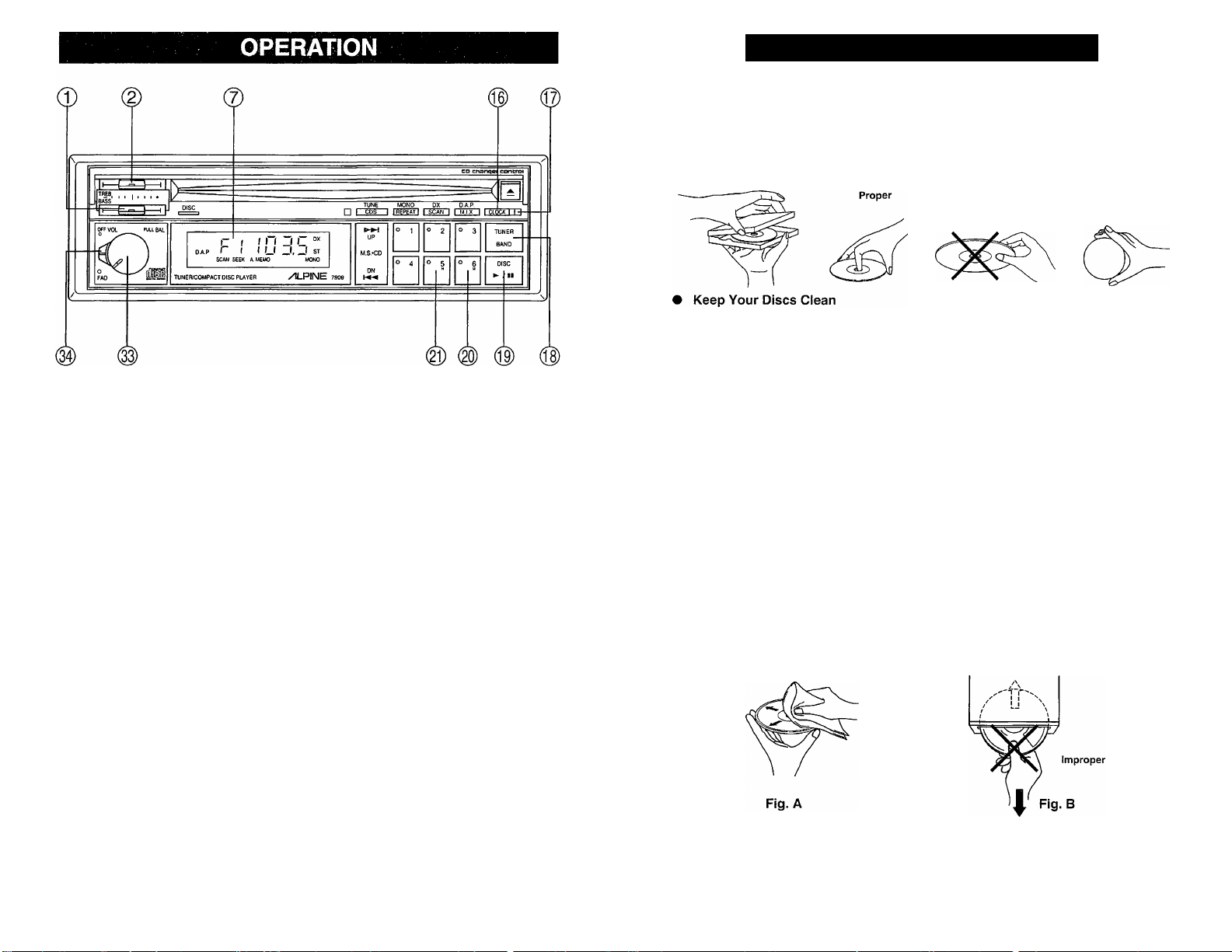

When playing 3-inch CDs in the 7909, do not use an adaptor ring. Adaptor rings may become stuck inside the player and damage the mechanism.

Irregular Shaped Discs

Make sure the discs you use in this unit do not have any irregularities. The outer and inner edges should be round and smooth. Use of irregularly shaped discs may cause damage to the mechanism.

NOSEPIECE SIZE

Width: 171 mm (6-3/4"), Height; 48mm (1-7/8"), Depth; 15mm (19/32")

NOTE: Due to product improvement, specifications and design are subject to

change without notice.
