Allied Telesis AT-PWR1200, AT-RPS3000, AT-PWR800, AT-PWR250 User Manual

AT-RPS3000
Redundant Power Supply
AT-RPS3000
AT-PWR250
AT-PWR800
AT-PWR1200
Installation Guide
2179
613-001498 Rev. B
All rights reserved. No part of this publication may be reproduced without prior written permission from Allied Telesis, Inc.
Allied Telesis and the Allied Telesis logo are trademarks of Allied Telesis, Incorporated. All other product names, company names, logos or other designations mentioned herein are trademarks or registered trademarks of their respective owners.
Allied Telesis, Inc. reserves the right to make changes in specifications and other information contained in this document without prior written notice. The information provided herein is subject to change without notice. In no event shall Allied Telesis, Inc. be liable for any incidental, special, indirect, or consequential damages whatsoever, including but not limited to lost profits, arising out of or related to this manual or the information contained herein, even if Allied Telesis, Inc. has been advised of, known, or should have known, the possibility of such damages.
Electrical Safety and Emissions Standards
This product meets the following standards.
U.S. Federal Communications Commission
Radiated Energy
Note: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with this instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Note: Modifications or changes not expressly approved of by the manufacturer or the FCC, can void your right to operate this equipment.
Industry Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
RFI Emissions FCC Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, VCCI
Class A, C-TICK, CE
Warning: In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
EMC (Immunity) EN55024
Electrical Safety EN60950-1 (TUV), UL 60950-1 (
CULUS
)
Laser Safety EN60825
3
Translated Safety Statements
Important: The indicates that translations of the safety statement are available in the PDF document “Translated Safety Statements” posted on the Allied Telesis website at www.alliedtelesis.com.
4

Contents

Preface ............................................................................................................................................................ 11
Document Conventions .................................................................................................................................... 12
Where to Find Web-based Guides ................................................................................................................... 13
Contacting Allied Telesis .................................................................................................................................. 14
Online Support ........................................................................................................................................... 14
Email and Telephone Support.................................................................................................................... 14
Warranty..................................................................................................................................................... 14
Returning Products .................................................................................................................................... 14
Sales or Corporate Information .................................................................................................................. 14
Management Software Updates................................................................................................................. 14
Chapter 1: Overview ...................................................................................................................................... 15
Features ........................................................................................................................................................... 16
LED Panel .................................................................................................................................................. 16
Power Supply Slots .................................................................................................................................... 17
RPS Connectors ........................................................................................................................................ 17
Power Supply Modules..................................................................................................................................... 19
System Power and Power for PoE+ ................................................................................................................. 21
System Power ............................................................................................................................................ 21
PoE+ Power ............................................................................................................................................... 22
Low-power and High-power Switches .............................................................................................................. 24
Configuration Examples ................................................................................................................................... 25
Low-power Switches .................................................................................................................................. 25
High-power Switches ................................................................................................................................. 28
PoE+ Switches........................................................................................................................................... 30
Invalid Configurations................................................................................................................................. 33
Choosing a Power Supply Module ................................................................................................................... 36
Non-PoE+ Switches ................................................................................................................................... 36
PoE+ Switches........................................................................................................................................... 37
Power Module Combinations for PoE+ Switches....................................................................................... 40
................................................................................................................................................................... 41
LEDs................................................................................................................................................................. 42
Module A/B Ports LEDs ............................................................................................................................. 42
Power Module Status LEDs ....................................................................................................................... 44
Power Module LED .................................................................................................................................... 46
On/Off Power Switches .................................................................................................................................... 47
Guidelines......................................................................................................................................................... 48
Chapter 2: Installing the AT-RPS3000 Chassis and Power Supply Modules ........................................... 49
Reviewing Safety Precautions.......................................................................................................................... 50
Planning the Installation ................................................................................................................................... 52
Unpacking the AT-RPS3000 Chassis and Power Supply Modules .................................................................. 54
AT-RPS3000 Chassis ................................................................................................................................ 54
Power Supply Modules .............................................................................................................................. 55
Selecting a Location for the AT-RPS3000 Chassis in the Equipment Rack ..................................................... 57
5
Contents
Installing the AT-RPS3000 Chassis in an Equipment Rack.............................................................................. 58
Installing a Power Supply Module..................................................................................................................... 61
Connecting the AT-RPS3000 Chassis to the x610 Series Switch ....................................................................65
Powering On the Power Supply Modules ......................................................................................................... 69
Chapter 3: Removing Power Supply Modules ............................................................................................. 75
Removing the AT-RPS-CBL1.0 Cable ..............................................................................................................76
Removing an AC Power Supply Module ........................................................................................................... 78
Chapter 4: Troubleshooting .......................................................................................................................... 83
Appendix A: Technical Specifications ......................................................................................................... 87
Physical Specifications .....................................................................................................................................87
Environmental Specifications ............................................................................................................................ 87
Power Specifications.........................................................................................................................................88
Certifications .....................................................................................................................................................88
Port Pin-outs ..................................................................................................................................................... 89
6

Figures

Figure 1: LED Panel .............................................................................................................................................................16

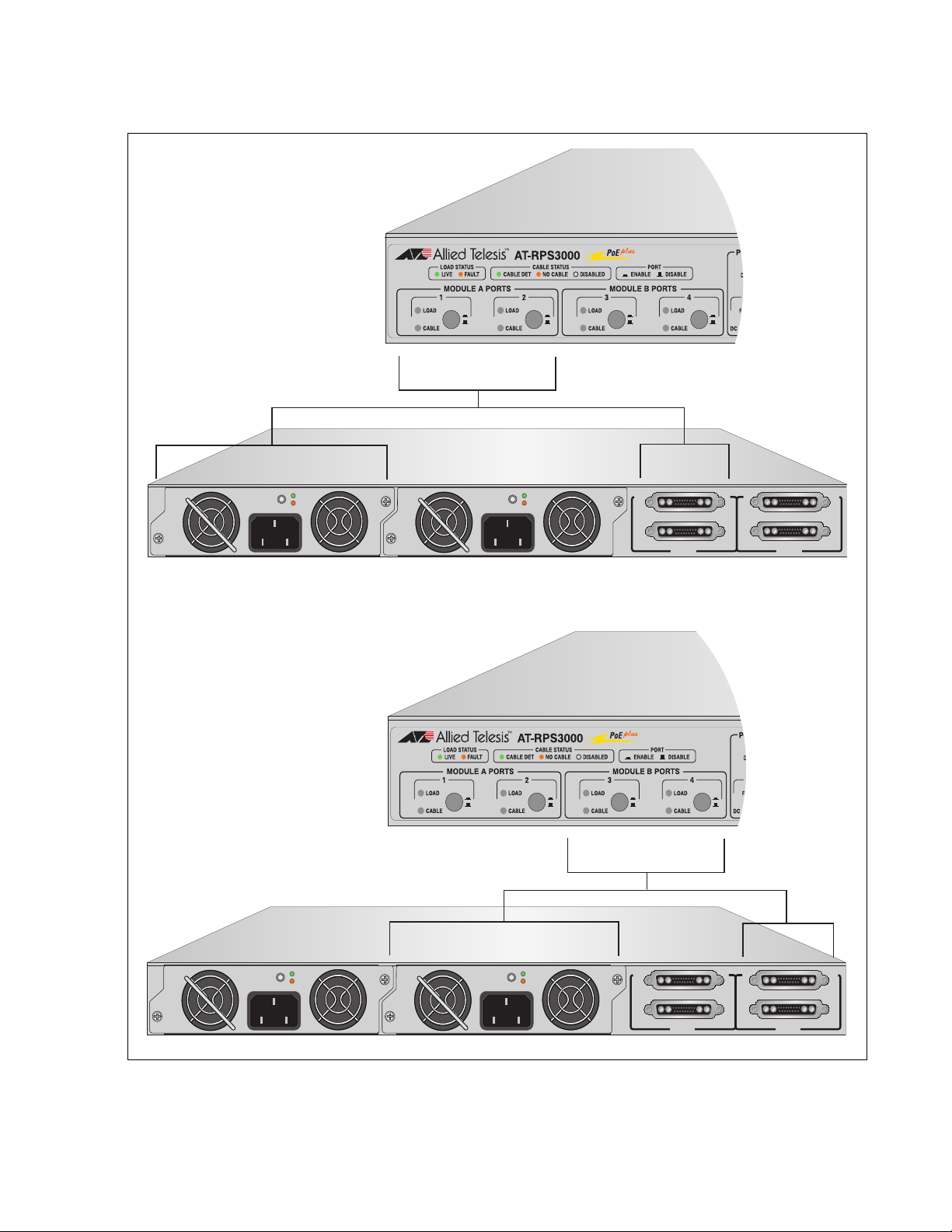

Figure 2: Slots A and B for the Power Supply Modules........................................................................................................17
Figure 3: Slot A and RPS 1 and 2 Ports...............................................................................................................................17
Figure 4: Slot B and RPS 3 and 4 Ports...............................................................................................................................18
Figure 5: RPS Ports..............................................................................................................................................................18
Figure 6: Removable and Non-removable Power Supply Modules in x610 Switches ..........................................................22

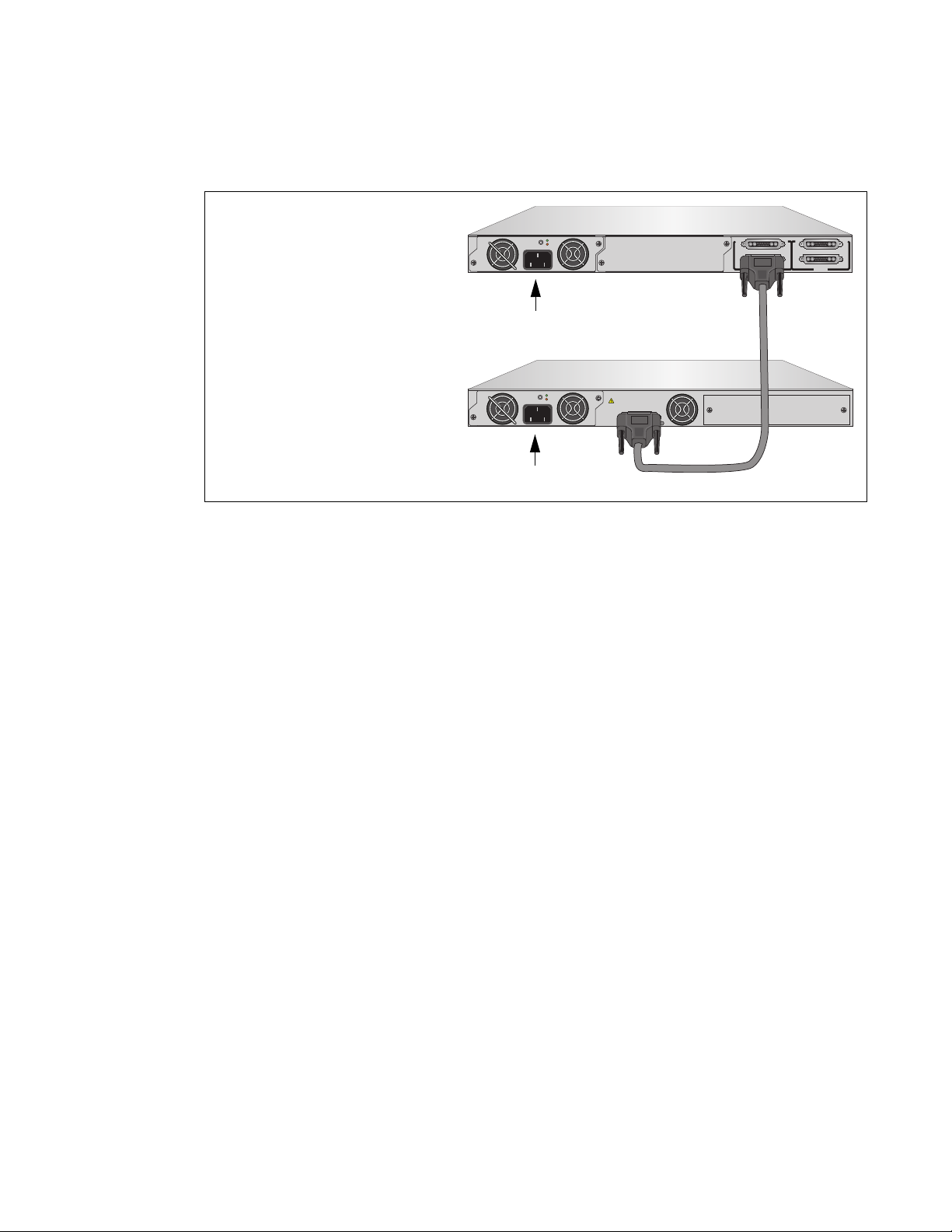

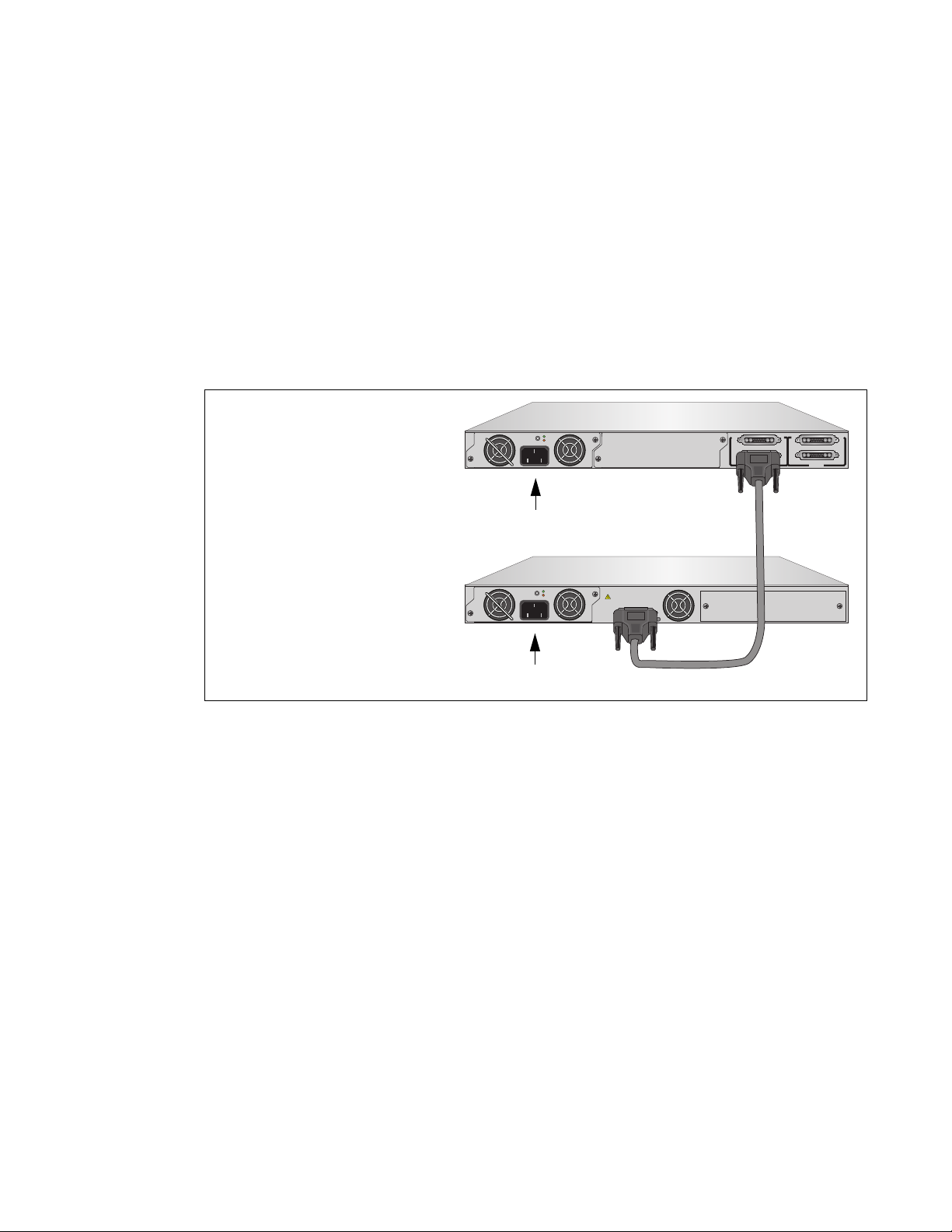

Figure 7: Example of a Single Low-power Switch Connected to an RPS System Port ........................................................25

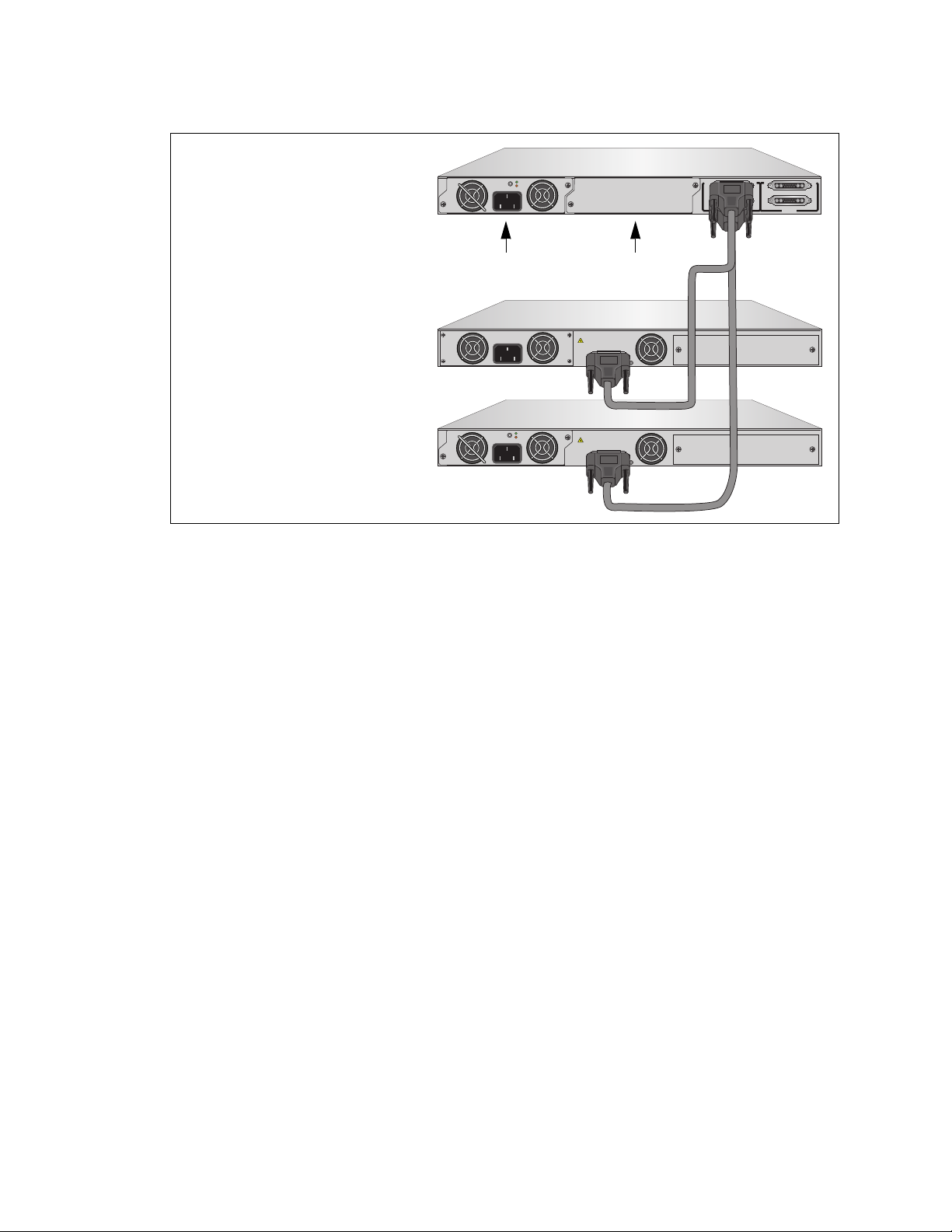

Figure 8: Example of a Non-PoE+, Low-power Switch Connected to an RPS PoE+/System Port ......................................26

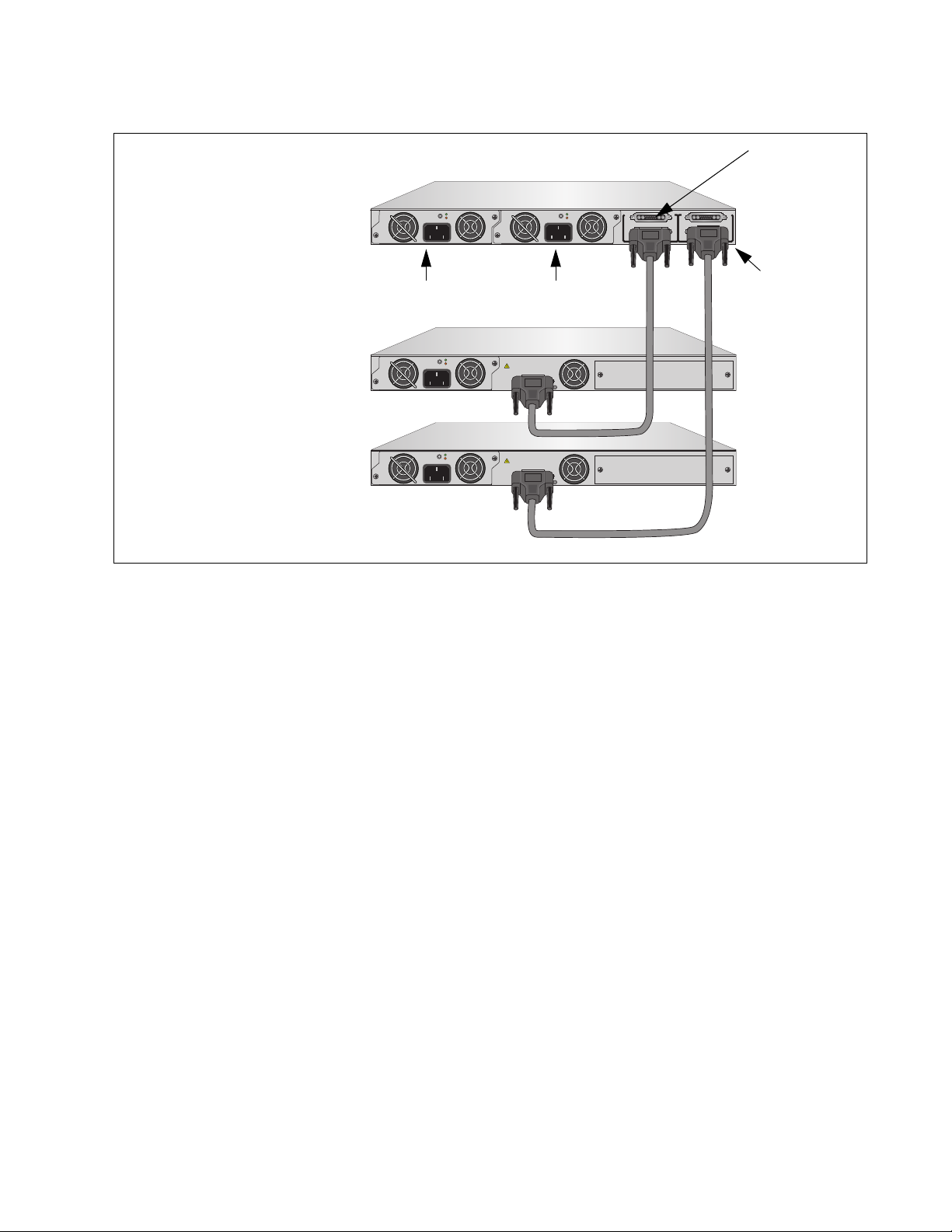

Figure 9: Example of Two Low-power Switches...................................................................................................................26

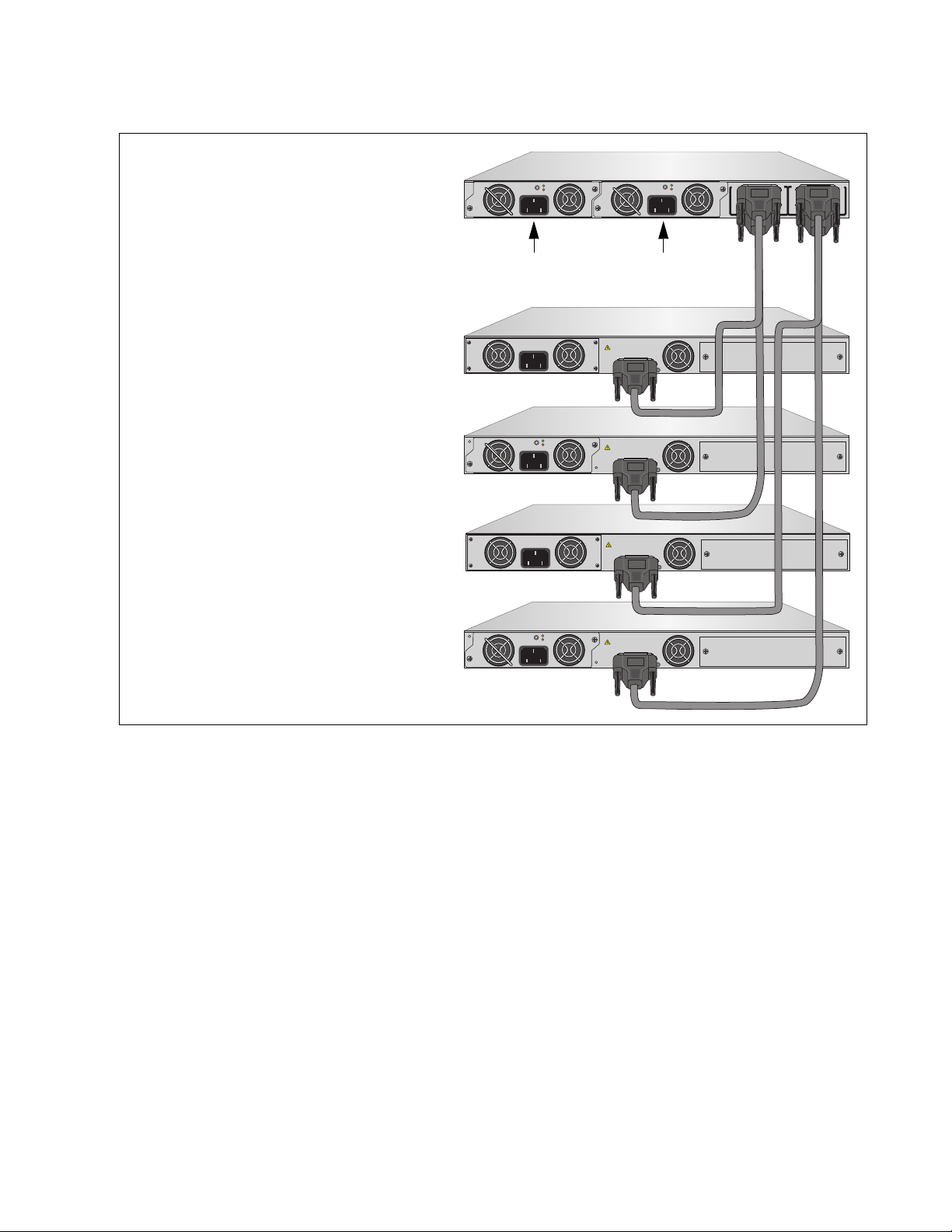

Figure 10: Example of Four Low-power Switches ................................................................................................................27
Figure 11: Example of Low-power and High-power Switches ..............................................................................................28
Figure 12: Example of Two High-power Switches on the System Ports...............................................................................29
Figure 13: Example of Two High-power, Non-PoE+ Switches on the PoE+/System Ports ..................................................29
Figure 14: Example of One PoE+ Switch .............................................................................................................................30
Figure 15: Example of Two PoE+ Switches .........................................................................................................................31
Figure 16: Example of Low-power PoE+ and Non-PoE+ Switches ......................................................................................32
Figure 17: Example of Low-power PoE+ and Non-PoE+ Switches ......................................................................................33
Figure 18: Example of an Invalid Configuration - A ..............................................................................................................34
Figure 19: Example of an Invalid Configuration - B ..............................................................................................................35
Figure 20: Example of Power Modules and Non-PoE+ Switches.........................................................................................36
Figure 21: Two AT-PWR800 Modules Providing Up to 480 Watts, with Full Redundancy ................................................... 37
Figure 22: Two AT-PWR800 Modules for 480 to 960 Watts, with Limited Redundancy ......................................................38
Figure 23: Two AT-PWR1200 Modules Providing Up to 780 Watts, with Full Redundancy................................................. 38
Figure 24: Two AT-PWR1200 Modules for 780 to 1560 Watts, with Limited Redundancy ..................................................39
Figure 25: Example of x610 Series Switches and AT-RPS3000 Chassis with Different Power Supply Modules ................40
Figure 26: LED Panel ...........................................................................................................................................................42
Figure 27: Module A Ports LEDs ..........................................................................................................................................42
Figure 28: Module B Ports LEDs ..........................................................................................................................................43

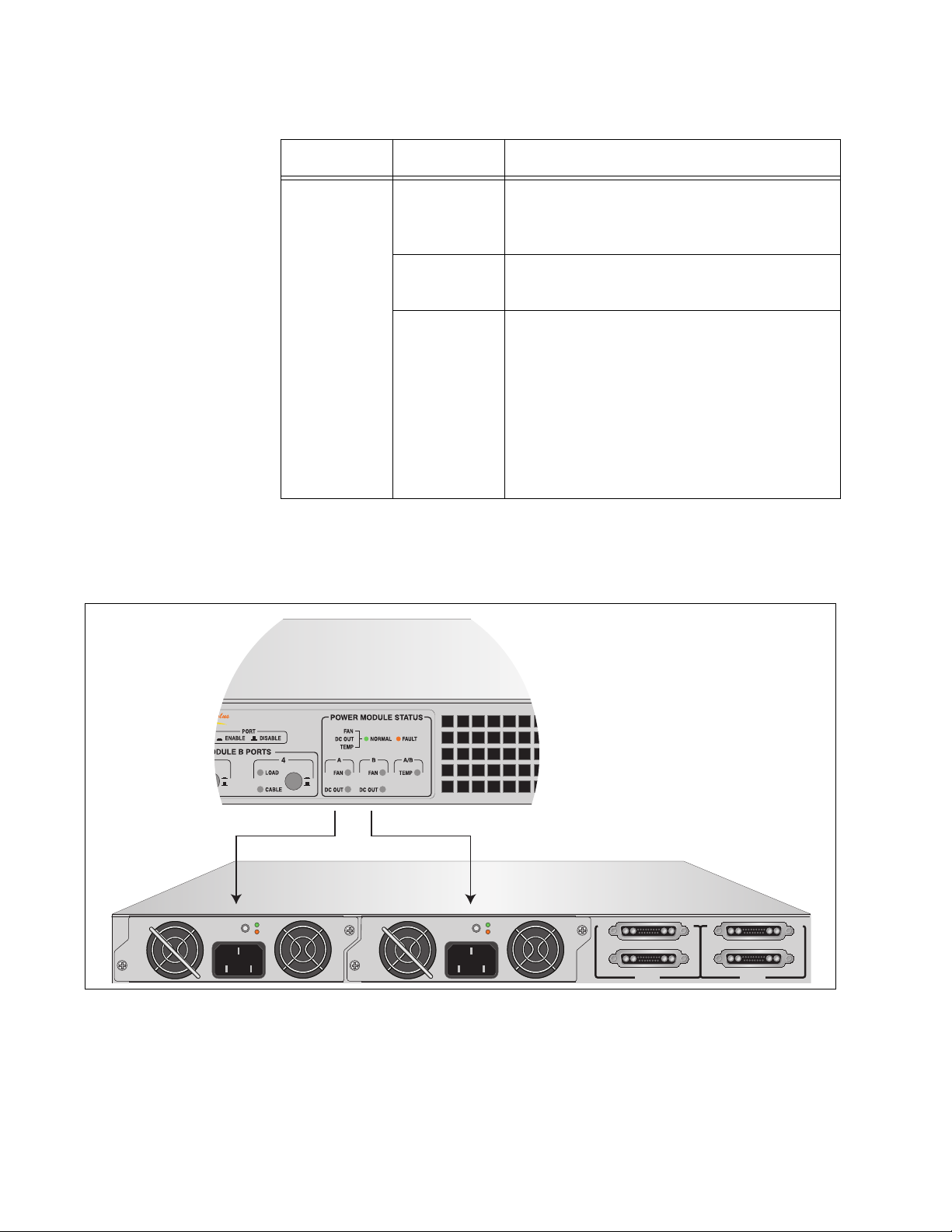

Figure 29: Power Module Status LEDs.................................................................................................................................44

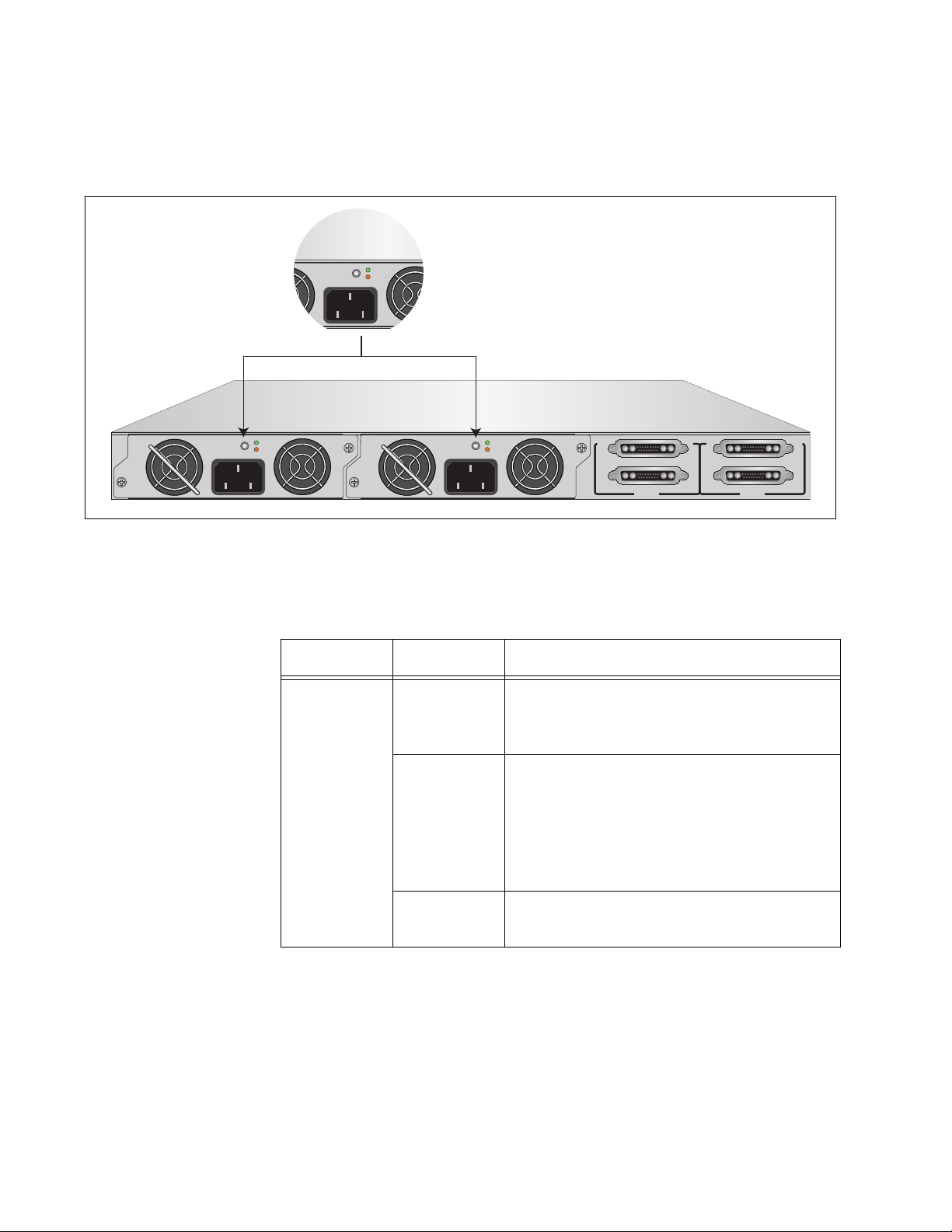

Figure 30: Power Module LED....................................................................................................
Figure 31: RPS Port On/Off Switches...................................................................................................................................47
Figure 32: 100 - 125 VAC 125 V NMA 5-20 Plug and Receptacle .......................................................................................52

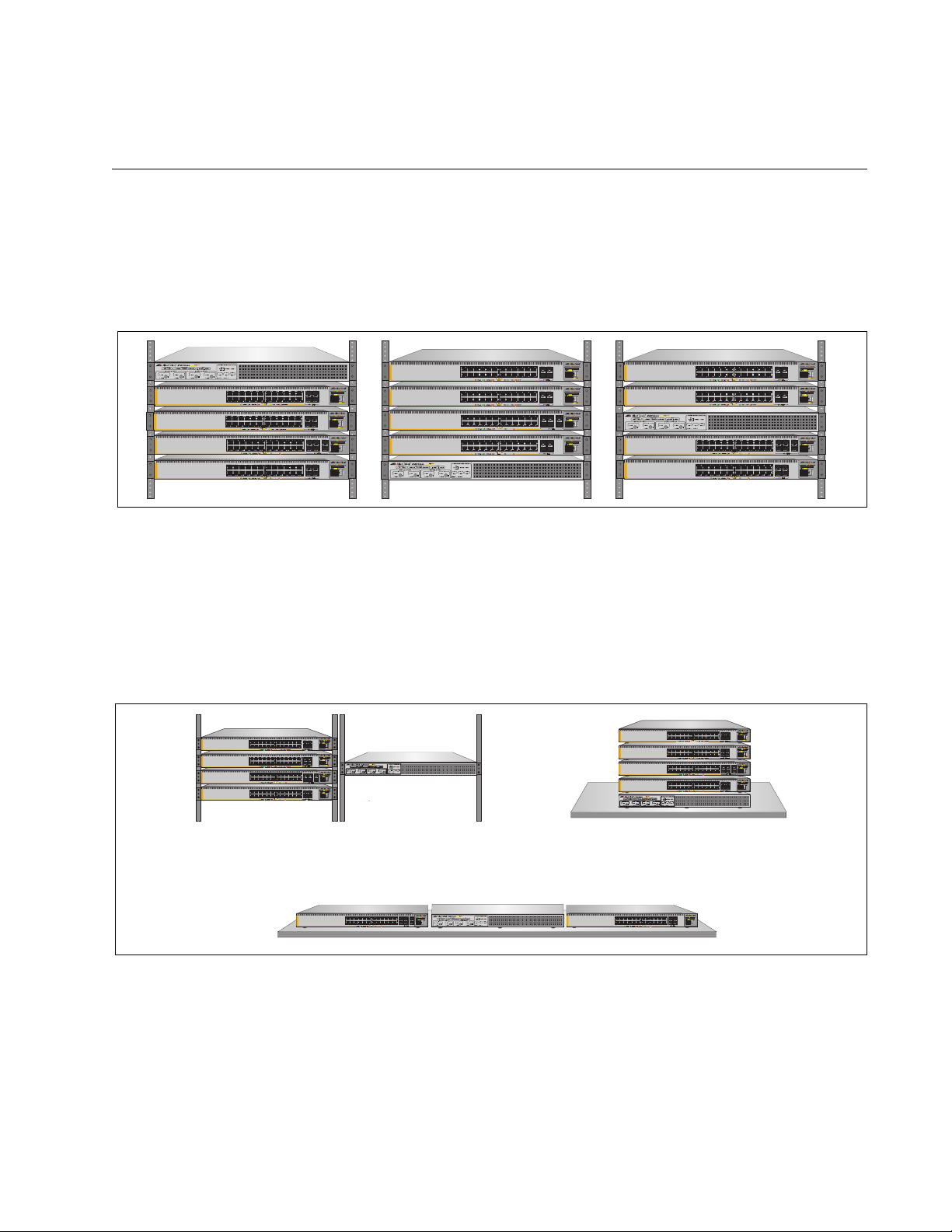

Figure 33: Positioning the AT-RPS3000 Chassis in the Equipment Rack ............................................................................57
Figure 34: Unauthorized AT-RPS3000 Chassis and x610 Series Switch Installations......................................................... 57
Figure 35: Turning the Switch Upside Down ........................................................................................................................58
Figure 36: Removing the Plastic Feet...................................................................................................................................58

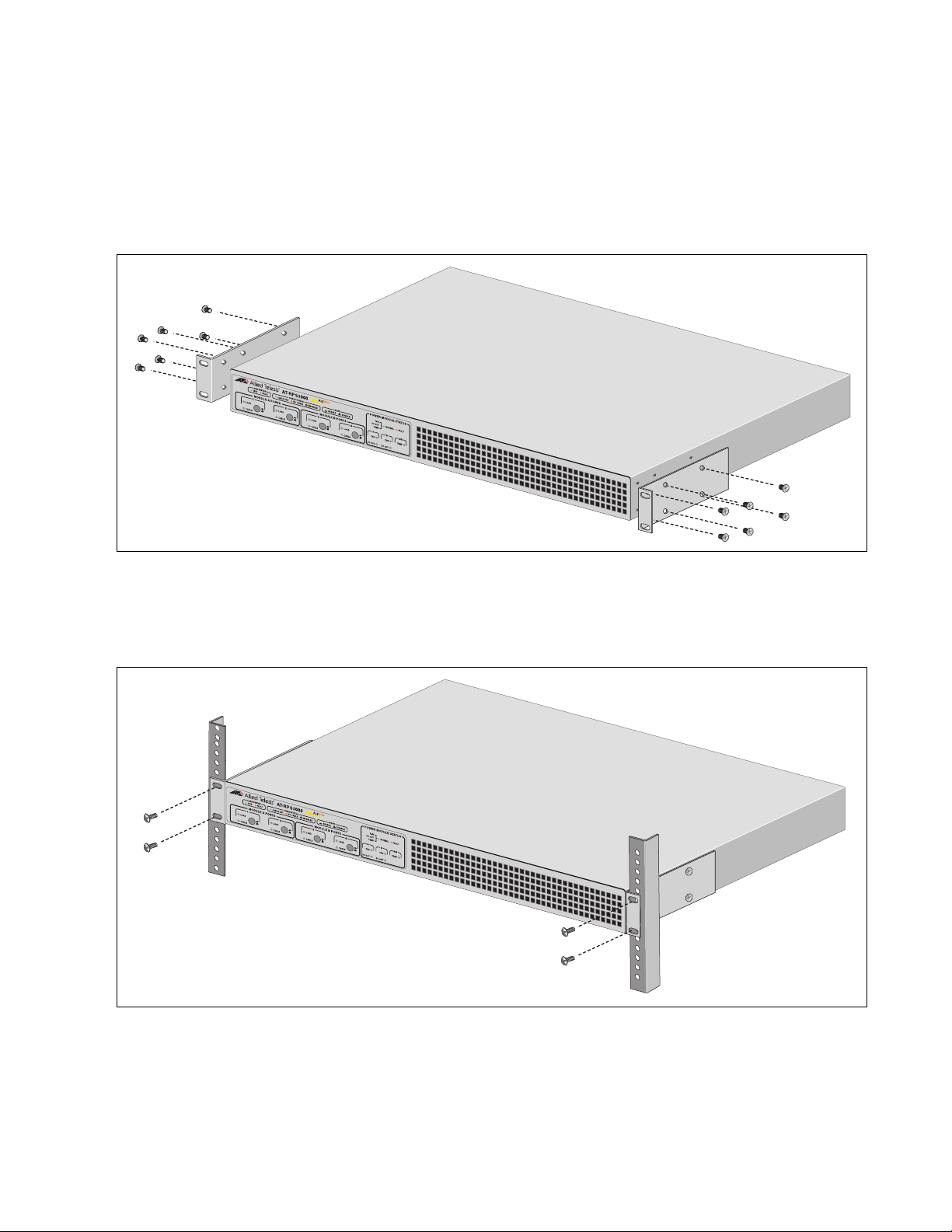

Figure 37: Attaching the Equipment Rack Brackets .............................................................................................................59
Figure 38: Mounting the AT-RPS3000 Redundant Power Supply in an Equipment Rack.................................................... 59
Figure 39: Removing the Blank Shipping Panel from the Back Panel..................................................................................61
Figure 40: Installing a Power Supply Module .......................................................................................................................62

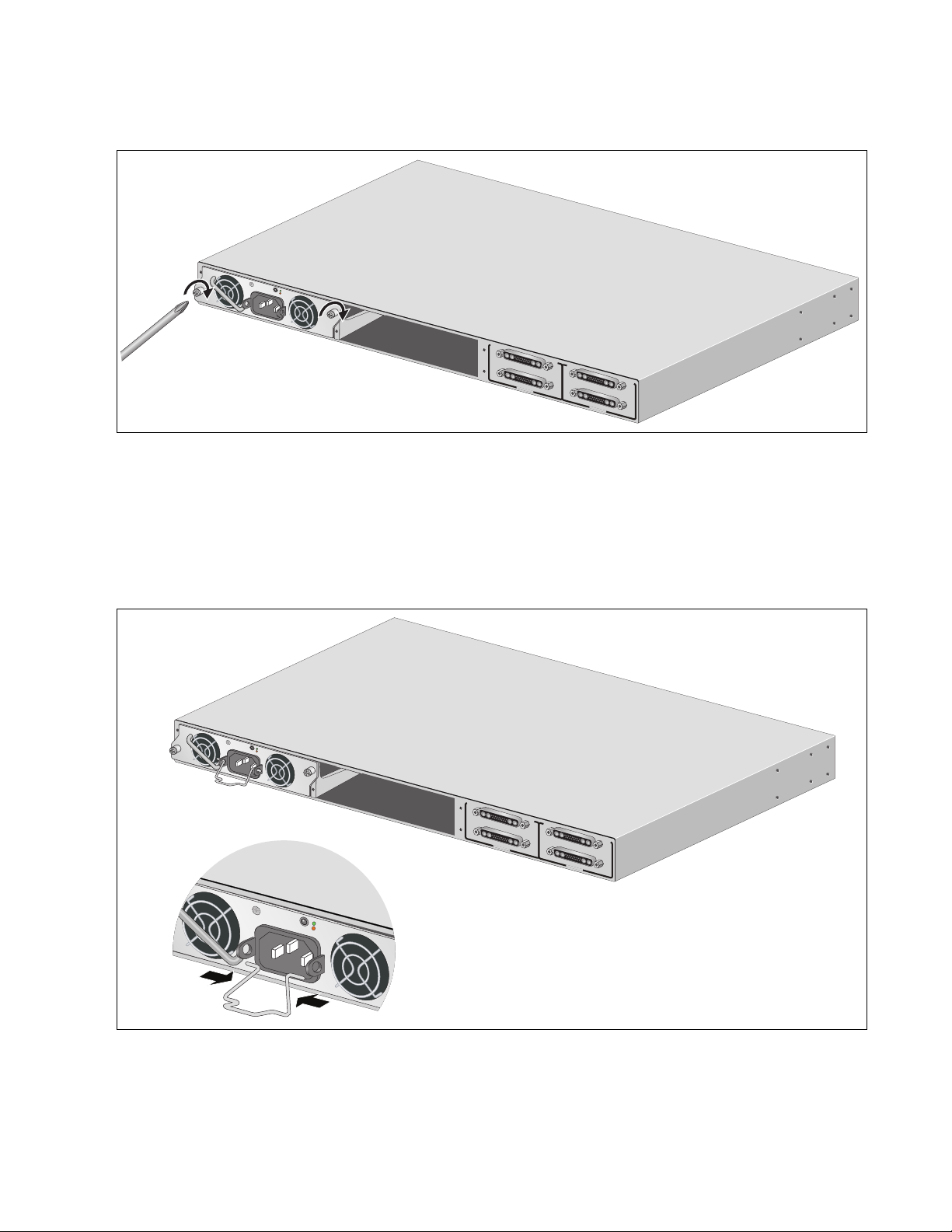

Figure 41: Securing a Power Supply Module .......................................................................................................................63
Figure 42: Installing a Power Cord Retaining Clip ................................................................................................................63

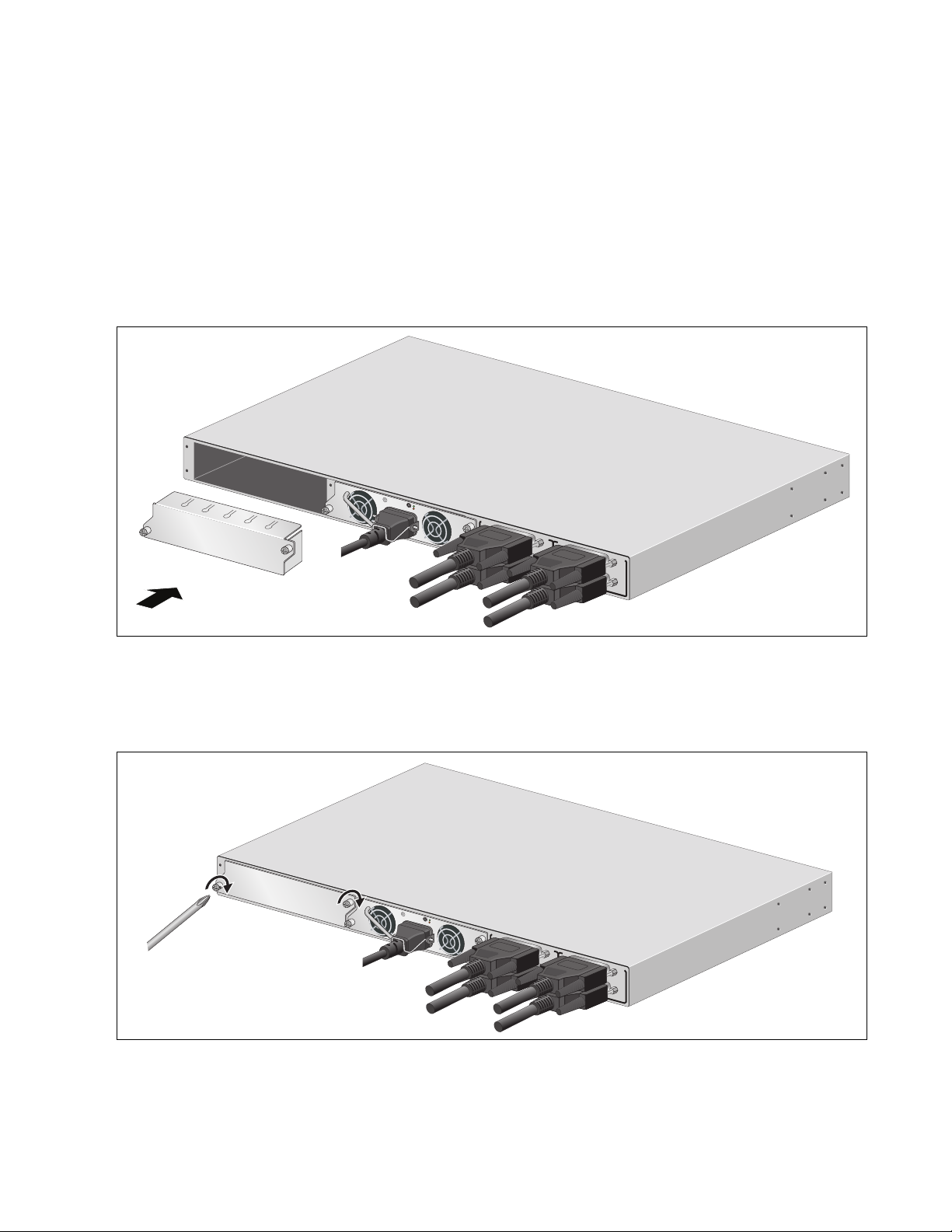

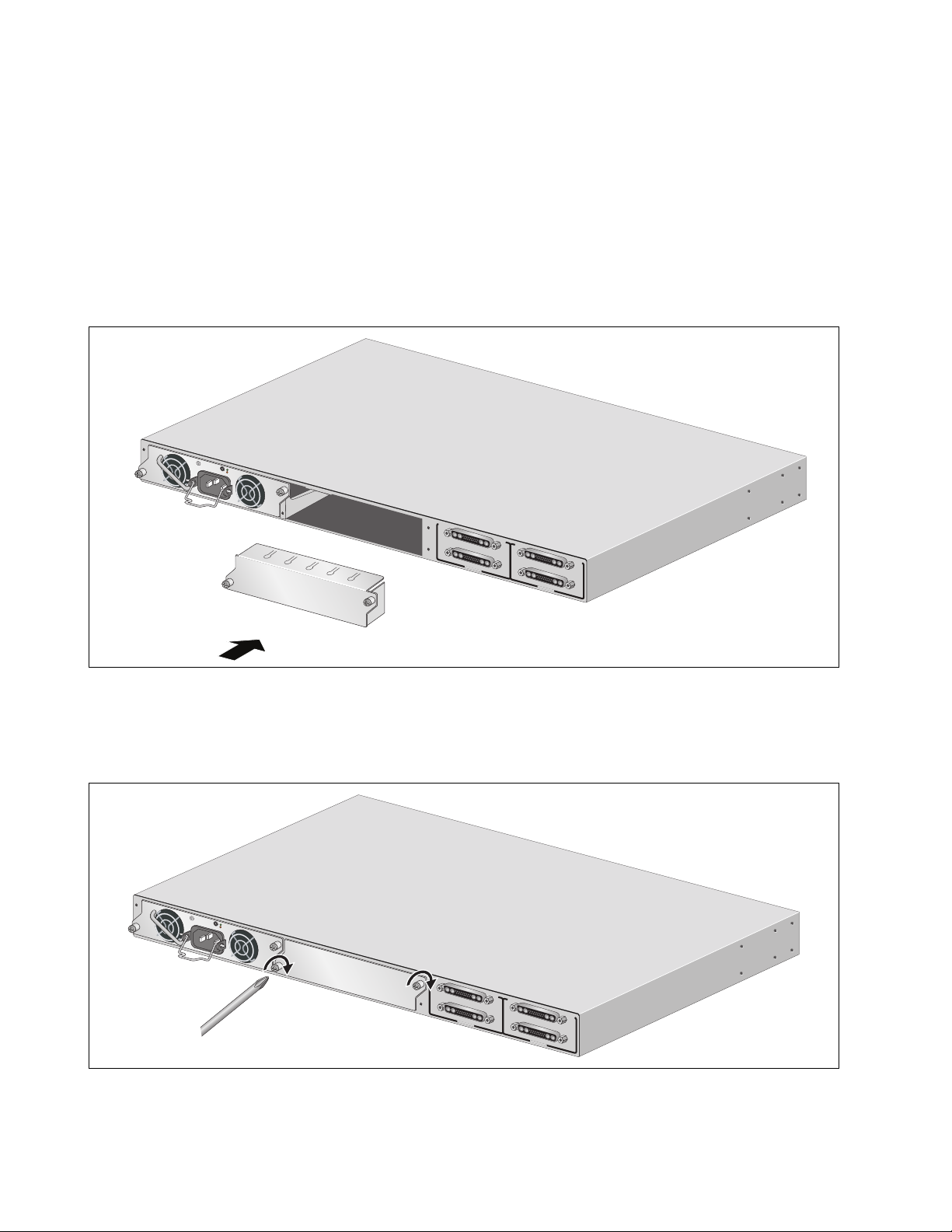

Figure 43: Installing the Slot Cover.......................................................................................................................................64
Figure 44: Securing the Slot Cover.......................................................................................................................................64

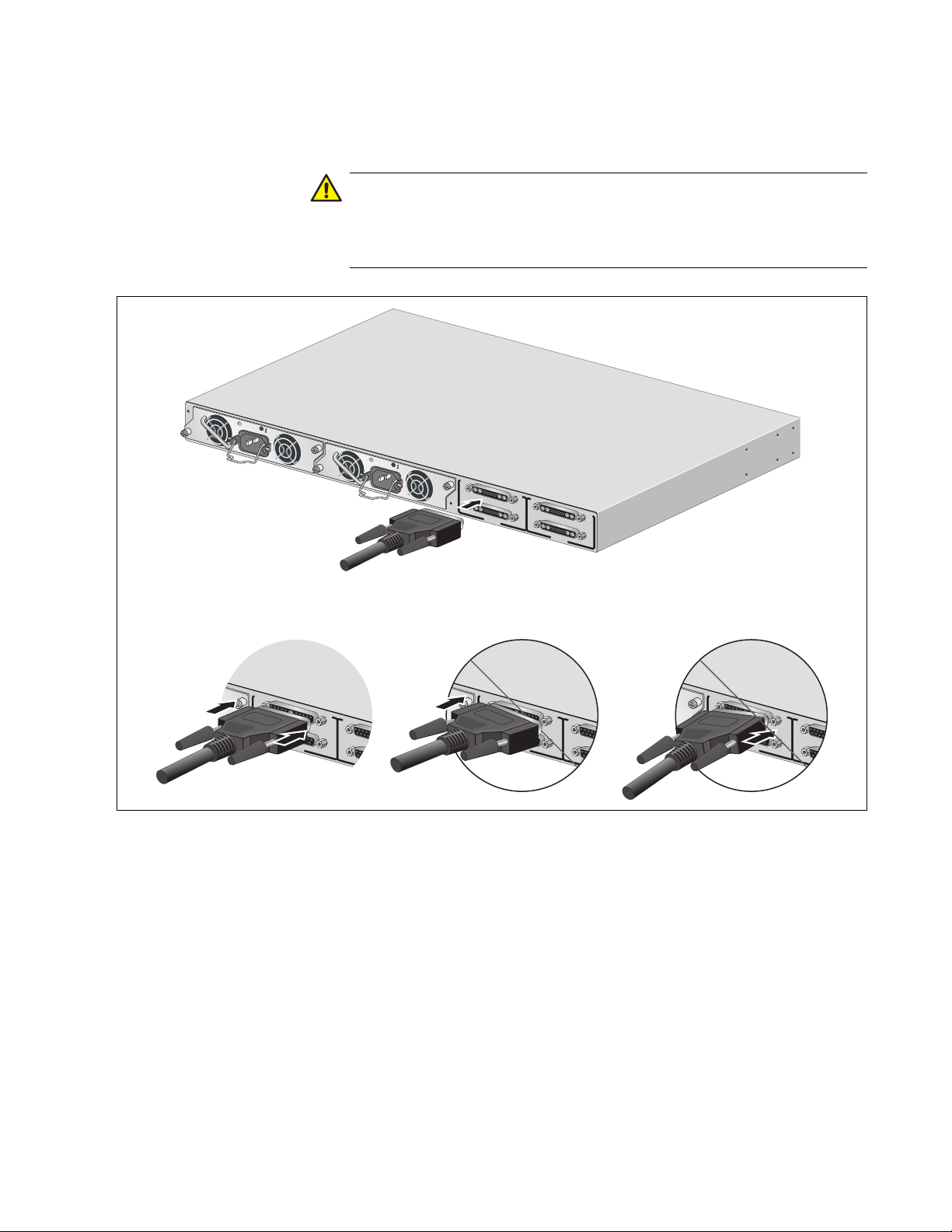

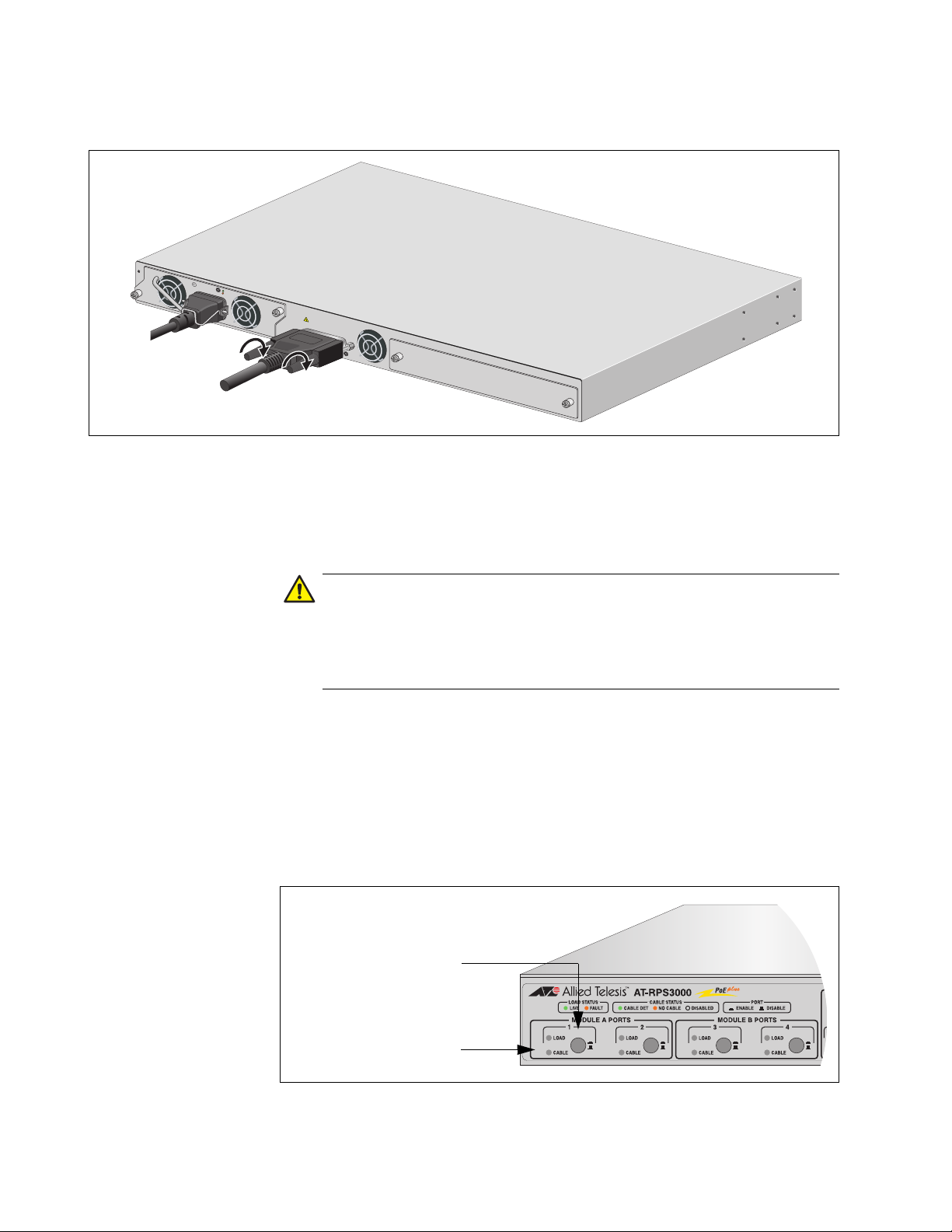

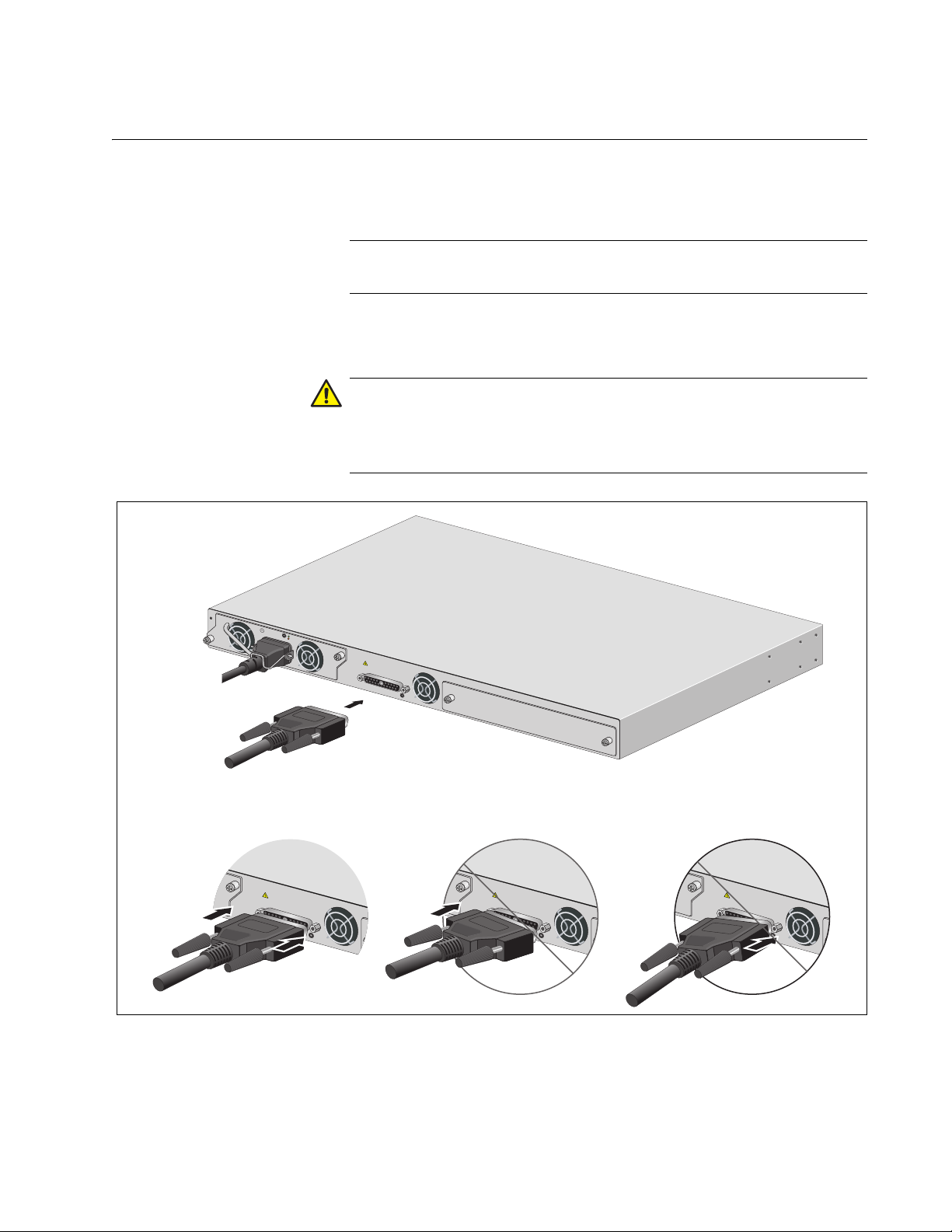

Figure 45: Connecting the AT-RPS-CBL1.0 Cable to the x610 Series Switch .....................................................................65

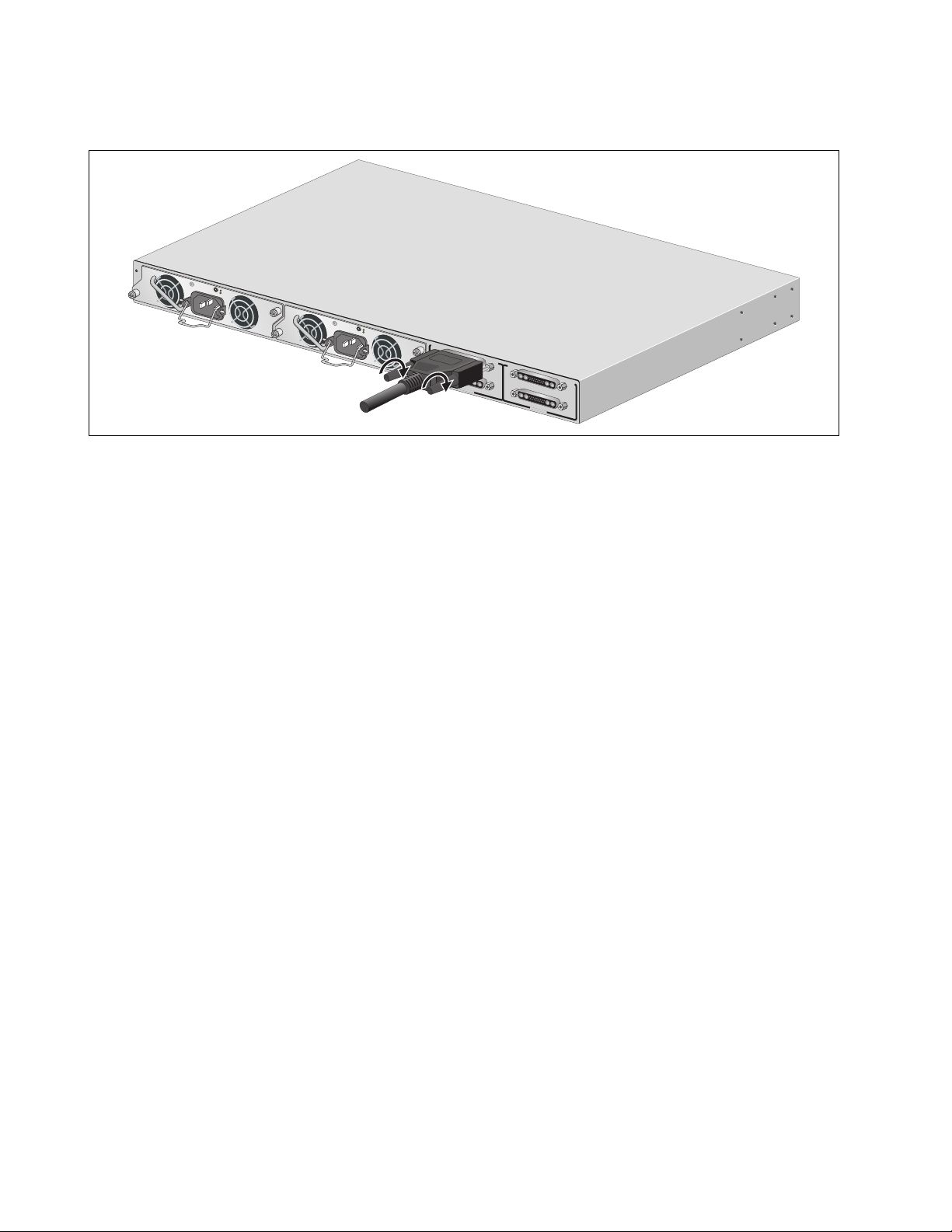

Figure 46: Securing the AT-RPS-CBL1.0 Cable to the Switch .............................................................................................66
Figure 47: RPS Port On/Off Buttons and CABLE LEDs .......................................................................................................66
Figure 48: Connecting the AT-RPS-CBL1.0 Cable to the AT-RPS3000 Chassis.................................................................67
Figure 49: Securing the AT-RPS-CBL1.0 Cable to the AT-RPS3000 Chassis.....................................................................68
..........................................46
7
Figures
Figure 50: Raising the Power Cord Retaining Clip ...............................................................................................................69

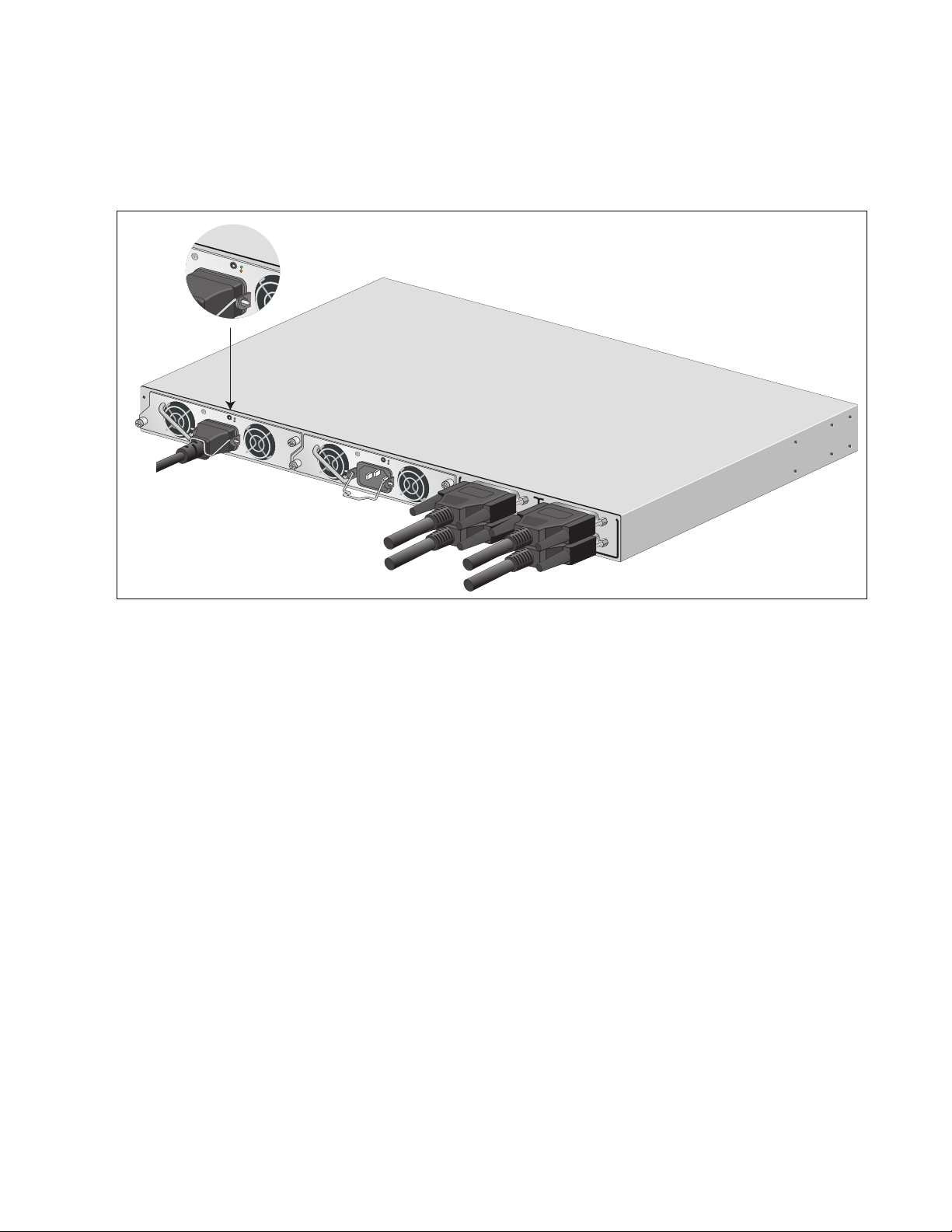

Figure 51: Connecting the AC Power Cord...........................................................................................................................70
Figure 52: Lowering the Power Cord Retaining Clip.............................................................................................................70
Figure 53: Lowering the Power Cord Retaining Clip.............................................................................................................71
Figure 54: Checking the FAN and DC OUT LEDs in the LED Panel ....................................................................................72
Figure 55: Checking the LOAD and CABLE LEDs in the LED Panel ...................................................................................73
Figure 56: Loosening the Thumbscrews that Secure the AT-RPS-CBL1.0 Cable to the AT-RPS3000 Chassis..................76
Figure 57: Removing the AT-RPS-CBL1.0 Cable from the AT-RPS3000 Chassis...............................................................77
Figure 58: Raising the Power Cord Retaining Clip ...............................................................................................................78
Figure 59: Removing the Power Cord...................................................................................................................................79
Figure 60: Loosening the Two Captive Screws ....................................................................................................................80
Figure 61: Removing the Power Supply from the Chassis ...................................................................................................80
Figure 62: Installing the Slot Cover.......................................................................................................................................81
Figure 63: Securing the Slot Cover.......................................................................................................................................81
Figure 64: Port Pin-outs for the RSP System and PoE+/System Ports ................................................................................89
8

Tables

Table 1: Power Supply Modules ..........................................................................................................................................19
Table 2: Valid and Invalid Power Supply Combinations in the AT-RPS3000 Chassis ........................................................20
Table 3: Low-power and High-power Switches ..................................................................................................................24
Table 4: Valid and Invalid Configurations of Low- and High-power Switches for a Power Supply Module ........................24
Table 5: Power Supply Module Combinations for PoE+ Switches ......................................................................................40
Table 6: Module A and B Ports LEDs .................................................................................................................................43
Table 7: Power Module Status LEDs ..................................................................................................................................45
Table 8: Power Module LED ...............................................................................................................................................46

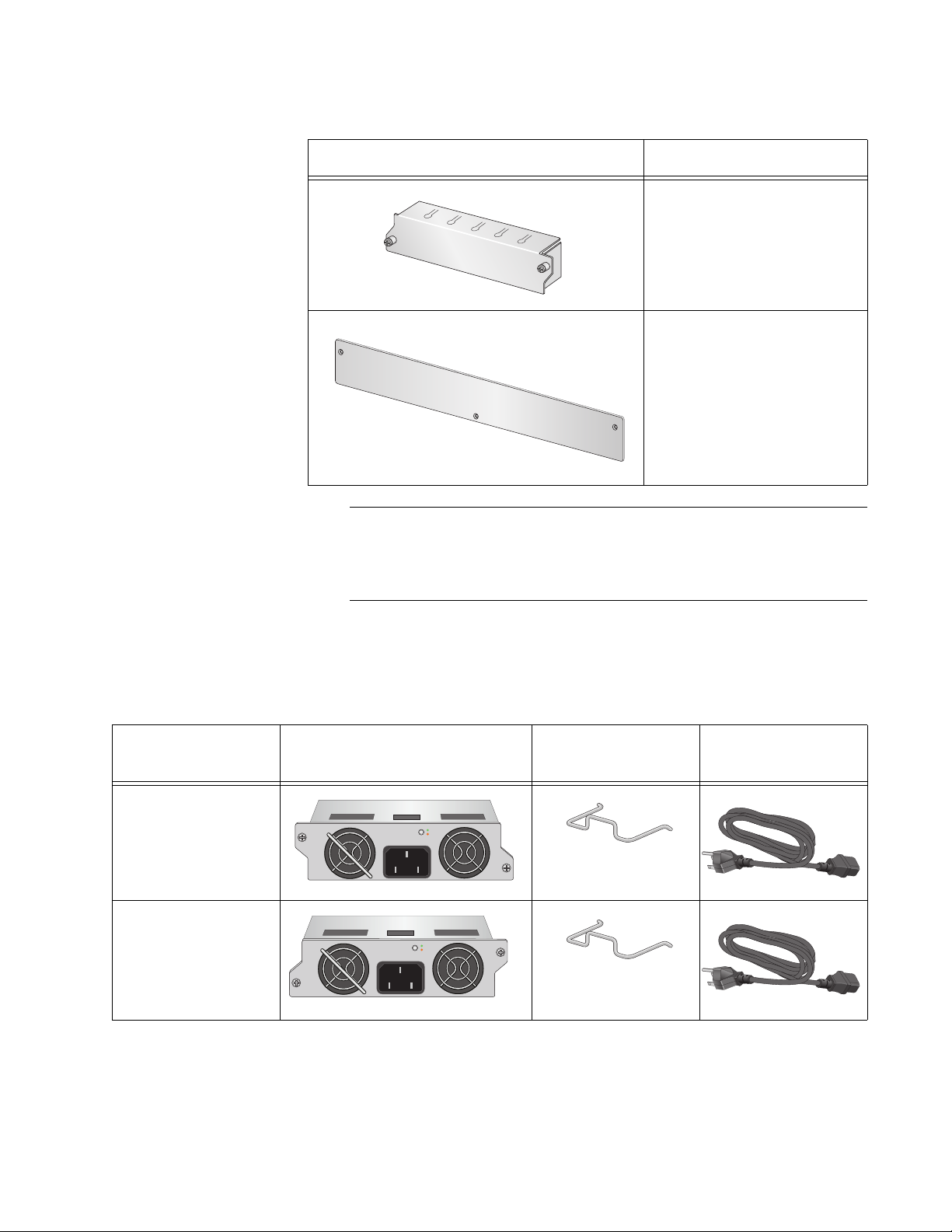

Table 9: AT-RPS3000 Chassis Components ......................................................................................................................54
Table 10: Power Supply Module Components ....................................................................................................................55
Table 11: RPS 1 and 3 System Ports ..................................................................................................................................89
Table 12: RPS 2 and 4 PoE+/System Ports ........................................................................................................................90
9
Tables
10

Preface

This guide contains the installation instructions for the AT-RPS3000 Chassis. The chassis is a modular power supply system for the x610 Series of Layer 3 Gigabit Ethernet switches. This preface contains the following sections:
“Document Conventions” on page 12
“Where to Find Web-based Guides” on page 13
“Contacting Allied Telesis” on page 14
11
Preface
Note
Caution
Warning

Document Conventions

This document uses the following conventions:
Notes provide additional information.
Cautions inform you that performing or omitting a specific action may result in equipment damage or loss of data.
Warnings inform you that performing or omitting a specific action may result in bodily injury.
12

Where to Find Web-based Guides

The installation and user guides for all of the Allied Telesis products are available for viewing in portable document format (PDF) from our web site at www.alliedtelesis.com/support/documentation.
AT-RPS3000 Redundant Power Supply Installation Guide
13
Preface

Contacting Allied Telesis

This section provides Allied Telesis contact information for technical support and for sales and corporate information.

Online Support You may request technical support online by accessing the Allied Telesis

Knowledge Base: www.alliedtelesis.com/support. You may use the Knowledge Base to submit questions to our technical support staff and review answers to previously asked questions.
Email and Telephone
Support
For Technical Support via email or telephone, refer to the Support & Services section of the Allied Telesis web site: www.alliedtelesis.com/ support. Select your country from the list displayed on the website and then select the appropriate menu tab.

Warranty For hardware warranty information, refer to the Allied Telesis web site at

www.alliedtelesis.com/support.
Returning
Products
Sales or
Corporate
Products for return or repair must first be assigned a return materials authorization (RMA) number. A product sent to Allied Telesis without an RMA number will be returned to the sender at the sender’s expense.
To obtain an RMA number, contact the Allied Telesis Technical Support group at our web site: www.alliedtelesis.com/support. Select your country from the list displayed on the website. Then select the appropriate menu tab.
You can contact Allied Telesis for sales or corporate information through our web site at www.alliedtelesis.com. To find the contact information for your country, select Contact Us.
Information
Management
Software Updates
14
New releases of management software for our managed products are available on our Allied Telesis web site at http://www.alliedtelesis.com/ support.

Chapter 1

Overview

This chapter contains the following sections:
“Features” on page 16
“Power Supply Modules” on page 19
“System Power and Power for PoE+” on page 21
“Low-power and High-power Switches” on page 24
“Configuration Examples” on page 25
“Choosing a Power Supply Module” on page 36
“LEDs” on page 42
“On/Off Power Switches” on page 47
“Guidelines” on page 48
15
Chapter 1: Overview
Warning
Note
2148

LED Panel

Features

The AT-RPS3000 Chassis is a modular power supply system for the x610 Series of Layer 3 Gigabit Ethernet switches. It protects the switches from power supply failures and provides additional PoE+ power.
The chassis can support two or four x610 Series switches, depending on the switch model. It has two slots for power supply modules, an LED panel for viewing the status of the power modules, and four RPS connectors.
As explained in this overview, the power supply modules in the chassis function in either a redundant or an active state, depending on the switch model. For non-PoE+ x610 Series switches, the chassis acts as the active power source for the switches, whose own internal, non-removable power supplies function as backup modules. For PoE+ switches, the chassis acts as a redundant power supply for system power and in a load-sharing mode for PoE+ power.
The AT-RPS3000 Chassis is designed specifically for the x610 Series of Layer 3 Gigabit Ethernet switches and should not be used with any other product.
The AT-RPS3000 Chassis is not a battery backup unit. The power supply modules in the chassis have to be connected to active power sources to deliver power to the switches.
LED Panel The front panel of the AT-RPS3000 Chassis has an LED panel that
displays status information about the power supply modules and RPS ports. The LEDs are described in “LEDs” on page 42.
16
Figure 1. LED Panel
AT-RPS3000 Redundant Power Supply Installation Guide
Note
Slot A Slot B
Slot A RPS 1 and 2 ports
Power Supply
Slots
A
A
The slots on the back panel of the chassis are for two power supply modules. The slots are labeled A and B.
1
B
SYSTEM
2
B
PoE+ / SYSTEM PoE+ / SYSTEM
MODULE A
SYSTEM
MODULE B
3
4
2166
Figure 2. Slots A and B for the Power Supply Modules
The chassis is shipped from the factory with a blank panel over the power supply slots.

RPS Connectors The four RPS connectors, which connect the chassis to up to four x610

Series switches, are paired with the power supply slots. RPS 1 and 2 ports receive power from the power supply module in slot A.
A
A
1
B
SYSTEM
2
B
PoE+ / SYSTEM PoE+ / SYSTEM
MODULE A
SYSTEM
MODULE B
3
4
2166
Figure 3. Slot A and RPS 1 and 2 Ports
17
Chapter 1: Overview
Slot B
RPS 3 and 4 ports
2166
B
B
1
2
3
4
SYSTEM
PoE+ / SYSTEM PoE+ / SYSTEM
SYSTEM
MODULE B
MODULE A
A
A
2206
B
B
1
2
3
4
SYSTEM
PoE+ / SYSTEM PoE+ / SYSTEM
SYSTEM
MODULE B
MODULE A
RPS 3 and 4 ports obtain power from the power supply module in slot B.
Figure 4. Slot B and RPS 3 and 4 Ports
The ports are labeled System and PoE+/System ports. The System ports provide system power to x610 Series switches, but not PoE+ power. You may use these ports to deliver system power to PoE+ and non-PoE+ switches.
Figure 5. RPS Ports
The PoE+/System ports provide PoE+ power and system power, provided that the power modules and the switches support PoE+. For more information on the System and POE+/System ports, refer to “System Power and Power for PoE+” on page 21.
18

Power Supply Modules

Note
This table lists the power supply modules that are currently available for the AT-RPS3000 Chassis and PoE+ x610 Series switches. One module supplies only system power to the x610 Series switches and two modules provide system power and PoE+ power.
AT-RPS3000 Redundant Power Supply Installation Guide
Table 1. Power Supply Modules
AT-PWR25 0
AT-PWR80 0
Power Supply Module
100-240VAC~ 5A MAX
AT-PWR250
100-240VAC~ 12A MAX
AT-PWR800
DC OUT FAULT
DC OUT FAULT
2186
Power
Source
Description
AC System power only.
2185
AC System power plus
480W for PoE+.
AC System power plus
780W for PoE+.
AT-PWR1200
DC OUT
100-240VAC~ 16A MAX
AT-PWR1200
FAULT
2187
There are AC and DC versions of the AT-PWR250 Module. The AC module is supported in the PoE+ x610 Switches and AT-RPS3000 Chassis. The DC module is only supported in the PoE+ x610 Switches. It is not supported in the AT-RPS3000 Chassis.
19
Chapter 1: Overview
Note
The power supply modules for the AT-RPS3000 Chassis and PoE+ x610 Series switches must be purchased separately. Non-PoE+ x610 Series switches come with non-removable power supply modules.
The AT-PWR800 and AT-PWR1200 Modules are compatible with non-PoE+ x610 Series switches. They may be used in the AT-RPS3000 Chassis to provide active system power to non-PoE+ switches.
The chassis has slots for two power supply modules. You may install one or two modules. The power supply modules may be the same model or different models. There are some combinations of power supply modules, however, that are not supported. Table 2 lists the valid and invalid combinations of modules for the chassis.
Table 2. Valid and Invalid Power Supply Combinations in the AT-RPS3000
Chassis
Valid Combinations Invalid Combinations
Two power supply modules of the same model (for instance, two AT-PWR800 Modules)
One AT-PWR800 Module and one AT-PWR1200 Module
One AT-PWR800 Module and one AT-PWR250 Module
One AT-PWR1200 Module and one AT-PWR250 Module
20
AT-RPS3000 Redundant Power Supply Installation Guide

System Power and Power for PoE+

Although the product name contains the acronym “RPS,” which stands for “redundant power supply,” the AT-RPS3000 Chassis actually functions as the active, primary source of system power for some of the switches in the x610 Series. For others it functions both as a redundant source of system power and as an active source of additional PoE+ power.
The easiest way to explain how and when the chassis supplies power to the x610 Series switch is to divide the discussion into the two types of power the switch may require:
“System Power,” next
“PoE+ Power” on page 22

System Power The switch uses system power to operate its switching, CPU, LEDs, fans,

and management functions. The only function not supported by system power is PoE+.
The switch may obtain its system power either from its own internal power supply module or from a module in the AT-RPS3000 Chassis. There is no load-sharing of system power. Consequently, one of the sources is going to be actively providing system power to the switch while the other source is held in a redundant state.
The active source of system power is different for non-PoE+ and PoE+ x610 Series switches. Non-PoE+ switches use the power modules in the AT-RPS3000 Chassis as their primary, active power source for system power, and place their internal power modules in a redundant state. Thus, a non-PoE+ switch relies upon the AT-RPS3000 Chassis to provide all of its system power, and activates its internal power supply only if it stops receiving system power from the chassis.
For PoE+ switches, the opposite is true. They use their internal power supply modules as the active source for system power, and the power module in the AT-RPS3000 Chassis as the redundant power source. Should there be a failure of the internal power supply in the switch or an interrupt in the AC power to it, the switch immediately begins to draw system power from the AT-RPS3000 Chassis to prevent any interruption to its network operations.
The easiest way to determine whether the switch is a PoE+ or non-PoE+ x610 Series switch is to examine its model name on the front panel. PoE+ switches have “POE+” in their product names. Another way is to look at the back panel to see if the power supply is removable or non-removable. PoE+ switches have removable power modules while non-PoE+ switches have non-removable modules, as shown in Figure 6.
21
Chapter 1: Overview
POWER SUPPLY
WARNING This unit m electric sho unit.
AT-PW R800
100-240 VAC~5A MAX
POWER SUPPLY
WARNING This unit ma electric shoc unit.
2158
DC OUT
FAULT
100-240 VAC~12A MAX
Non-removable Power SupplyRemovable Power Supply
(PoE+ Switches)
(non-PoE+ Switches)
Figure 6. Removable and Non-removable Power Supply Modules in x610
Switches
To summarize, a non-PoE+ x610 Series switch uses the AT-RPS3000 Chassis as its active source of system power and its internal, non­removable module as a redundant source. For a PoE+ x610 Series switch the reverse is true because its primary source of system power is its removable internal module and the redundant source is the power module in the AT-RPS3000 Chassis.
System power for PoE+ and non-PoE+ x610 Series switches is provided by all four RPS ports on the AT-RPS3000 Chassis. RPS 1 and 3 System ports provide only system power, and RPS 2 and 4 PoE+/System ports provide PoE+ power in addition to system power.
You may use any of the available power supply modules, listed in Table 1 on page 19, to provide system power to the x610 Series switches. In fact, the modules, when installed in the AT-RPS3000 Chassis, can provide system power to two low-power switches at the same time, as explained in “Low-power and High-power Switches” on page 24.
The switch and chassis do not display the active or redundant status of a power supply module. You may use the LEDs and switch’s management software to determine whether a power module is operating correctly, but not whether it is the active or redundant system power for the switch.

PoE+ Power The four x610 Series switches that support PoE+ on the twisted pair ports

do not come with power supply modules. The modules have to be purchased separately. You may use any of the three modules in a PoE+ switch, although the AC AT-PWR250 Module does not provide PoE+ power, only system power. The AT-PWR800 and AT-PWR1200 Power Supply Modules provide 480 and 780 watts, respectively, of PoE+ power, in addition to system power.
As explained earlier in this Overview, there is no load sharing of system power between the power supplies in the switch and AT-RPS3000 Chassis. Only one source is active while the other is held in a redundant
22
state.
AT-RPS3000 Redundant Power Supply Installation Guide
PoE+ power is different in that the power supplies in the switch and chassis do use load-sharing to provide power to the powered devices. This assumes, of course, that both supplies have PoE+ power. So, in essence, the AT-RPS3000 Chassis performs two roles for PoE+ switches. It acts as a redundant source of system power for the switches and, assuming the chassis has PoE+ power supplies, actively provides them with additional power for PoE+ so that they can support more powered devices.
Of the three available power supply modules for the chassis, two modules provide PoE+ power along with system power to the PoE+ switches. They are the AT-PWR800 and AT-PWR1200 Modules. These modules can provide PoE+ power to just one switch at a time, meaning that each PoE+ switch has to have a separate power module in the AT-RPS3000 Chassis, that is, if you want the switches to receive additional PoE+ power from the chassis.
All four RPS ports on the chassis may be used to provide system power to the switches. But only RPS 2 and 4 ports, labeled PoE+/System, may be used to supply PoE+ power. Thus, for a PoE+ switch to receive PoE+ power from a power supply in the chassis, it has to be connected to one of those ports. PoE+ switches that are connected to RPS 1 or 3 port will not receive extra PoE+ power, only redundant system power.
23
Chapter 1: Overview
Caution

Low-power and High-power Switches

The x610 Series switches are grouped into two categories of system power, which, as explained earlier, refers to the power required to run all switching and hardware functions, except for PoE+. The switch categories are low-power and high-power. The basic rule is that switches that have 24 ports are low-power devices while units that have 48 ports are high­power units. An exception is the 24-port AT-x610-24SPs/X Switch, which is a high-power device. The table shown here lists the two switch categories.
Table 3. Low-power and High-power Switches
Low-power Switches High-power Switches
AT-x610-24Ts AT-x610-48Ts
AT-x610-24Ts/X AT-x610-48Ts/X
AT-x610-24Ts-POE+ AT-x610-48Ts-POE+
AT-x610-24Ts/X-POE+ AT-x610-48Ts/X-POE+
AT-x610-24SPs/X
The two categories are important because the power supply modules can support two low-power switches or one high-power switch at the same time. This table lists the valid and invalid configurations of low- and high­power switches for the power modules.
Table 4. Valid and Invalid Configurations of Low- and High-power
Switches for a Power Supply Module
Valid Configurations Invalid Configurations
One low-power switch One low-power switch and one
high-power switch
Two low-power switches Two high power switches
One high-power switch
24
A power supply module that is connected to an invalid configuration may overload and fail. The responsibility for adhering to the rule belongs to the installer because the AT-RPS3000 Chassis cannot determine the low- or high-power status of the switches connected to its ports.

Configuration Examples

AT-x610-24Ts Switch
AT-RPS3000 Chassis
(Low-power)
with One Power Supply
Slot A
Slot B
RPS 1 System Port
The following examples illustrate different configurations of the chassis, switches, and power supply modules.
AT-RPS3000 Redundant Power Supply Installation Guide
Low-power
Switches
In the first example, the AT-RPS3000 Chassis, with one power supply module in slot A, is supporting a single low-power switch, connected to the RPS 1 System port. (The RPS 3 System and RPS 4 PoE+/System ports do not have power because slot B is empty.) The non-PoE+ AT-x610-24Ts Switch places its non-removable, internal power supply module in a redundant state, and receives all of its system power from the AT-RPS3000 Chassis and the power module in slot A. If there is an interruption of system power from the chassis, the switch automatically activates its internal power supply to maintain network operations.
A
AT-PWR800
A
100-240 VAC~12A MAX
100-240 VAC~12A MAX
DC OUT
FAULT
AT-PNL800/1200
WARNING This unit may have more than one power input. To reduce the risk of electric shock, disconnect both A/C and RPS inputs before servicing unit.
RPS INPUT
POWER SUPPLY
12V/21A MAX
1
B
SYSTEM
2
PoE+ / SYSTEM PoE+ / SYSTEM
B
MODULE A
RPS READY
3
SYSTEM
4
MODULE B
2140
Figure 7. Example of a Single Low-power Switch Connected to an RPS
System Port
It should be noted that even though the switch in the example is a non­PoE+ model, the power supply module in slot A can be any of the three available power modules, including the AT-PWR800 and AT-PWR1200 Modules. The three modules may be used to provide system power to PoE+ and non-PoE+ switches.
Non-PoE+ switches may be connected to either the RPS System or PoE+/ System port on the chassis. Non-PoE+ switches connected to an RPS PoE+/System port receive system power, but no power for PoE+, even if the power supply in the corresponding slot in the chassis contains a PoE+ module. This principal is illustrated in Figure 8 on page 26 where the single low-power, non-PoE+ switch from the previous example is now connected to the RPS 2 PoE+/System port, from which it receives just system power.
25
Chapter 1: Overview
AT-x610-24Ts Switch
AT-RPS3000 Chassis
(Low-power)
with One Power Supply
Slot A
Slot B
RPS 2 PoE+/System Port
AT-x610-24Ts Switch
AT-x610-24Ts/X Switch
AT-RPS3000 Chassis
(Low-power)
(Low-power)
with One Power Supply
RPS 1 System Port
RPS 2 PoE+/System Port
Slot A
Slot B
A
AT-PWR800
A
100-240 VAC~12A MAX
100-240 VAC~12A MAX
DC OUT
FAULT
AT-PNL800/1200
WARNING This unit may have more than one power input. To reduce the risk of electric shock, disconnect both A/C and RPS inputs before servicing unit.
RPS INPUT
POWER SUPPLY
12V/21A MAX
1
B
SYSTEM
2
PoE+ / SYSTEM PoE+ / SYSTEM
B
MODULE A
RPS READY
3
SYSTEM
4
MODULE B
2141
Figure 8. Example of a Non-PoE+, Low-power Switch Connected to an
RPS PoE+/System Port
This example illustrates how a power supply module can provide system power to two low-power switches at the same time. The power supply module in slot A is actively supporting the low-power AT-x610-24Ts and AT-x610-24Ts/X Switches, which are connected to the RPS 1 System and RPS 2 PoE+/System ports, respectively. The power supply module in the chassis actively delivers system power to both switches, whose own non­removable internal power supplies operate in redundant states. Again, as in the previous example, the power module in slot A can be any of the available models because they are all capable of supporting up to two low­power switches.
26
A
AT-PWR800
A
100-240 VAC~12A MAX
DC OUT
FAULT
AT-PNL 800/1200
1
B
SYSTEM
2
PoE+ / SYSTEM PoE+ / SYSTEM
B
MODULE A
3
SYSTEM
4
MODULE B
WARNING
100-240 VAC~12A MAX
This unit may have more than one power input. To reduce the risk of electric shock, disconnect both A/C and RPS inputs before servicing unit.
RPS INPUT
POWER SUPPLY
12V/21A MAX
RPS READY
2135
100-240 VAC~12A MAX
WARNING This unit may have more than one power input. To reduce the risk of electric shock, disconnect both A/C and RPS inputs before servicing unit.
RPS INPUT
POWER SUPPLY
12V/21A MAX
RPS READY
Figure 9. Example of Two Low-power Switches
AT-RPS3000 Redundant Power Supply Installation Guide
1. AT-x610-24Ts Switch
2. AT-x610-24Ts Switch
AT-RPS3000 Chassis with Two Power Supplies
3. AT-x610-24Ts Switch
4. AT-x610-24Ts/X Switch
Slot A Slot B
Low-power, Non-PoE+ Switches Powered by the Module in Slot A
Low-power, Non-PoE+ Switches Powered by the Module in Slot B
The chassis must have a second power supply to support three or four low-power switches, as illustrated in the following example. The power module in slot A supports switches 1 and 2, and the module in slot B powers switches 3 and 4.
The power supply modules in the chassis may be the same or different models. For instance, you might install two AT-PWR250 Modules or perhaps two AT-PWR1200 Modules. You may also combine the AT-PWR800 and AT-PWR1200 Modules in the chassis, installing one of each model in the slots. However, you may not combine the AT-PWR250 Module with the AT-PWR800 or AT-PWR1200 Module in the chassis, as explained in “Power Supply Modules” on page 19.
A
AT-PWR800
A
100-240 VAC~12A MAX
100-240 VAC~12A MAX
100-240 VAC~12A MAX
100-240 VAC~12A MAX
100-240 VAC~12A MAX
DC OUT
FAULT
AT-PWR800
WARNING This unit may have more than one power input. To reduce the risk of electric shock, disconnect both A/C and RPS inputs before servicing unit.
RPS INPUT
POWER SUPPLY
12V/21A MAX
WARNING This unit may have more than one power input. To reduce the risk of electric shock, disconnect both A/C and RPS inputs before servicing unit.
RPS INPUT
POWER SUPPLY
12V/21A MAX
WARNING This unit may have more than one power input. To reduce the risk of electric shock, disconnect both A/C and RPS inputs before servicing unit.
RPS INPUT
POWER SUPPLY
12V/21A MAX
WARNING This unit may have more than one power input. To reduce the risk of electric shock, disconnect both A/C and RPS inputs before servicing unit.
RPS INPUT
POWER SUPPLY
12V/21A MAX
100-240 VAC~12A MAX
DC POWER
FAULT
RPS READY
RPS READY
RPS READY
RPS READY
1
B
SYSTEM
2
PoE+ / SYSTEM PoE+ / SYSTEM
B
MODULE A
3
SYSTEM
4
MODULE B
2138
Figure 10. Example of Four Low-power Switches
27
Chapter 1: Overview
AT-x610-24Ts Switch
AT-x610-48Ts Switch
AT-RPS3000 Chassis
(Low-power)
(High-power)
with Two Power Supplies
Slot A Slot B
High-power
Switches
The power supply modules can support just one high-power switch at a time. In the example in Figure 11 on page 28, the chassis is supporting the AT-x610-24Ts and AT-x610-48Ts Switches, with two power supply modules, one for each switch. Even though the AT-x610-24Ts Switch is a low-power unit, the AT-x610-48Ts Switch must have its own dedicated power supply module because it is a high-power device.
A
AT-PWR 800
A
100-240 VAC~12A MAX
100-240 VAC~12A MAX
100-240 VAC~12A MAX
DC OUT
FAULT
AT-PWR 800
WARNING This unit may have more than one power input. To reduce the risk of electric shock, disconnect both A/C and RPS inputs before servicing unit.
POWER SUPPLY
WARNING This unit may have more than one power input. To reduce the risk of electric shock, disconnect both A/C and RPS inputs before servicing unit.
POWER SUPPLY
DC POWER
FAULT
100-240 VAC~12A MAX
RPS INPUT
RPS READY
12V/21A MAX
RPS INPUT
RPS READY
12V/21A MAX
1
B
SYSTEM
2
PoE+ / SYSTEM PoE+ / SYSTEM
B
MODULE A
3
SYSTEM
4
MODULE B
2136
Figure 11. Example of Low-power and High-power Switches
When a high-power, non-PoE+ switch is connected to the AT-RPS3000 Chassis, it responds just like a low-power switch. It places its internal power supply in the redundant state and draws its system power from the chassis.
In Figure 12 on page 29, the high-power, non-PoE+ AT-x610-48Ts and AT-x610-48Ts/X Switches are supported by separate power supply modules, with the AT-x610-48Ts Switch supported by the module in slot A and the AT-x610-48Ts/XSwitch powered by the module in slot B. If the chassis stops supplying system power to the switches, they activate their internal power supplies.
28
