Allied Telesyn AT-MX40F/ST, AT-MX50F/SM, AT-MX55F/SC User guide

AT-MX40F/ST, AT-MX50F/SM, AT-MX55F/SC

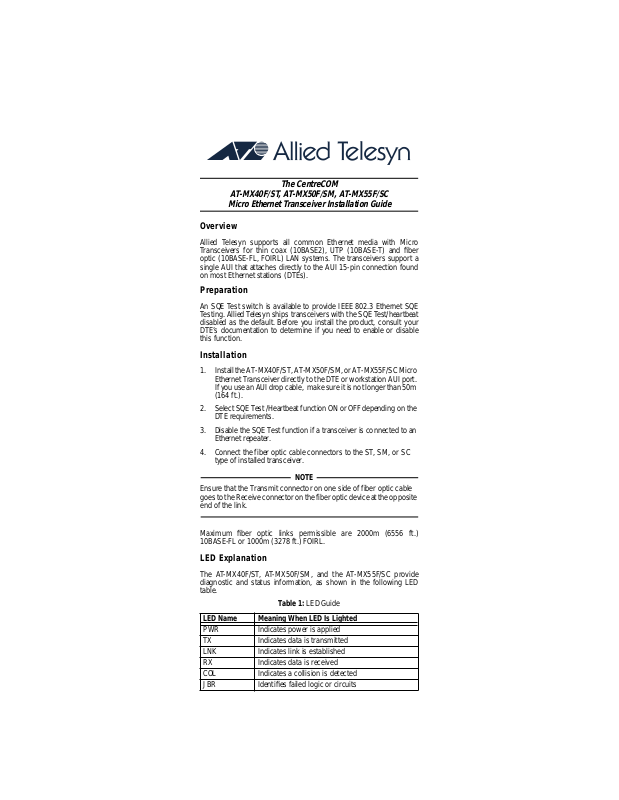

The CentreCOM

Micro Ethernet T ransceiver Installation Guide

Overview

Allied Telesyn supports all common Ethernet media with Micro
Transceivers for thin coax (10BASE2), UTP (10BASE-T) and fiber
optic (10BASE-FL, FOIRL) LAN systems. The transceivers support a
single AUI that attaches directly to the AUI 15-pin connection found
on most Ethernet stations (DTEs).

Preparation

An SQE Test switch is available to provide IEEE 802.3 Ethernet SQE
Testing. Allied Telesyn ships transceivers with the SQE T est/heartbeat
disabled as the default. Before you install the product, consult your
DTE’s documentation to determine if you need to enable or disable
this function.

Installation

1. Install the AT-MX40F/ST, AT-MX50F/SM, or AT-MX55F/SC Micro
Ethernet Transceiver directly to the DTE or workstation AUI port.
If you use an AUI drop cable, make sure it is not longer than 50m
(164 ft.).

2. Select SQE Test /Heartbeat function ON or OFF depending on the
DTE requirements.

3. Disable the SQE Test function if a transceiver is connected to an
Ethernet repeater.

4. Connect the fiber optic cable connectors to the ST, SM, or SC
type of installed transceiver.

NOTE

Ensure that the Transmit connector on one side of fiber optic cable
goes to the Receive connector on the fiber optic device at the opposite
end of the link.

Maximum fiber optic links permissible are 2000m (6556 ft.)
10BASE-FL or 1000m (3278 ft.) FOIRL.

LED Explanation

The AT-MX40F/ST, AT-MX50F/SM, and the AT-MX55F/SC provide
diagnostic and status information, as shown in the following LED
table.

Table 1: LED Guide

LED Name Meaning When LED Is Lighted

PWR Indicates power is applied
TX Indicates data is transmitted
LNK Indicates link is established
RX Indicates data is received
COL Indicates a collision is detected
JBR Identifies failed logic or circuits

RADIATED ENERGY

Complies with FCC Part 15B, Class B Limits:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device must not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment,
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with instructions, may cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encourage to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.

- Consult the dealer or an experienced radio/TV technician for help.
Changes and modifications not expressly approved by the manufacturer or registrant of this

equipment can void your authority to operate this equipment under Federal
Communications Commission rules.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.

STANDARDS : This product meets the following standards

RFI Emission EN55022 Class B
Immunity EN50082-1
Electrical Safety EN60950, UL1950, CSA 950

SAFETY
LIGHTNING DANGER

DANGER : DO NOT WORK on equipment or CABLES during periods of LIGHTNING ACTIVITY.
Operating temperature

This product is designed for a maximum ambient temperature of 40 degrees C.

Environmental Air Notice
CAUTION : UL listed for use in other Environmental Air Spaces in Accordance with Article 300-

22(C) of the U.S.A National Electrical Code. Note: Product is not Plenum rated.
This is a “ CLASS 1 LED PRODUCT .”

All Countries : Install product in accordance with local and National Electrical Codes.

NORMEN: Dieses Produkt erfüllt die Anforderungen der nachfolgenden Normen.

Hochfrequenzstörung EN55022 Klasse B
Störsicherheit EN50082-1
Elektrische Sicherheit EN60950, UL1950, CSA 950

SICHERHEIT
GEFAHR DURCH BLITZSCHLAG

GEFAHR : Keine Arbeiten am Gerät oder an den Kabeln während eines Gewitter ausführen.
BETRIEBSTEMPERATUR

Dieses Produkt wurde für den Betrieb in einer Umgebungstemperatur von nicht mehr als 40 °
C entworfen.

Das ist ein “ LED Produkt der Klasse 1 .”

Alle Länder : Installation muß örtlichen und nationalen elektrischen Vorschriften entsprechen.

SIKKERHED
FARE UNDER UVEJR

FARE : UNDLAD at arbejde på udstyr eller KABLER i perioder med LYNAKTIVITET.
BETJENINGSTEMPERATUR

Dette apparat er konstrueret til en omgivende temperatur på maksimum 40 grader C.
Dette er et “ Produkt under Klasse 1 LED .”

Alle Lande : Installation af produktet skal ske i overensstemmelse med lokal og national

lovgivning for elektriske installationer.

VEILIGHEID
GEVAAR VOOR BLIKSEMINSLAG

GEVAAR : NIET aan toestellen of KABELS WERKEN bij BLIKSEM.
Bedrijfstemperatuur :

De omgevingstemperatuur voor dit produkt mag niet meer bedragen dan 40 graden Celsius.
Dit is een " Klasse 1 LED-produkt ."

Alle landen : het toestel installeren overeenkomstig de lokale en nationale elektrische

voorschriften.

NORMES: ce produit est conforme aux normes de suivantes:

Emission d’interférences radioélectriques EN55022 Classe B
Immunité EN50082 - 1
Sécurité électrique EN60950, UL1950, CSA 950

SECURITE

Declaration Of Conformity

Canadian Department of Communications

DANGER DE FOUDRE
DANGER : NE PAS MANIER l'équipement ou les CABLES pendant les périodes d'activité

orageuse.

TEMPERATURE DE FONCTIONNEMENT

Ce produit est capable de tolérer une température ambiante maximum de 40 degrés Celsius.
Ce produit est un « Produit à diode électroluminescente de class 1. »

Pour tous pays : Installer le produit conformément aux normes électriques nationales et

locales.

TURVALLISUUS
SALAMANISKUVAARA

HENGENVAARA : ÄLÄ TYÖSKENTELE laitteiden tai KAAPELEIDEN KANSSA SALAMOINNIN

AIKANA.

KÄYTTÖLÄMPÖTILA

Tämä tuote on suunniteltu ympäröivän ilman maksimilämpötilalle 40 ° C.
Tämä on " ensimmäisen luokan valodiodituote. "

Kaikki maa t: Asenna tuote paikallisten ja kansallisten sähköturvallisuusmääräysten

mukaisesti.

NORME DI SICUREZZA
PERICOLO DI FULMINI

PERICOLO : NON LAVORARE sul dispositivo o sui CAVI durante PRECIPITAZIONI

TEMPORALESCHE.

Temperatura di funzionamento

Questo prodotto è concepito per una temperatura ambientale massima di 40 gradi centigradi.
Questo è un " Prodotto con LED di Classe I. "

Tutti i paesi : installare il prodotto in conformità alle vigenti normative elettriche nazionali.

SIKKERHET
FARE FOR LYNANTENNELSE

FARE : MÅ IKKE BRUKES på utstyr eller ledninger mens LYN-AKTIVITET er i gang.
Driftstemperatur

Dette produktet har blitt fremstilt til bruk med maksimum romtemperatur på 40 grader celsius.
Dette er et " klasse en LED produkt ."

Alle land : Produktet må installeres i samsvar med de lokale og nasjonale elektriske koder.

SEGURANÇA
PERIGO DE CHOQUE CAUSADO POR RAIO

PERIGO : NÃO TRABALHE no equipamento ou nos CABOS durante períodos suscetíveis de

QUEDAS DE RAIO.

TEMPERATURA DE FUNCIONAMENTO

Este produto foi projetado para uma temperatura ambiente máxima de 40 graus centígrados.
Este é um " Produto Classe 1 LED. "

Todos os países : Instale o produto de acordo com as normas federais e locais para instalações

elétricas.

SEGURIDAD
PELIGRO DE RAYOS

PELIGRO : NO REALICE NINGUN TIPO DE TRABAJO O CONEXION en los equipos o en LOS

CABLES durante TORMENTAS DE RAYOS.

Temperatura requerida para la operación

Este producto está diseñado para una temperatura ambiental máxima de 40 grados C.
Este es un " producto de diodo luminiscente (LED) clase 1. "

Para todos los países : Monte el producto de acuerdo con los Códigos Eléctricos locales y

nacionales.

SÄKERHET
FARA FÖR BLIXTNEDSLAG

FARA : ARBETA EJ på utrustningen eller kablarna vid ÅSKVÄDER.
DRIFTSTEMPERATUR

Denna produkt är konstruerad för rumstemperatur ej överstigande 40 grader Celsius.
Detta är en " Klass 1 lysdiodprodukt ."

Alla länder : Installera produkten i enlighet med lokala och statliga bestämmelser för elektrisk
