Alinco DJ-X10 User Manual
Specifications and Main Features
- The frequency range is from 0.1–1999.999950 MHz.
- Some of the fundamental modes include Dual VFO, memory (MR), scan programming (PMS), one-touch switching.
- Holds memory capacity of 1200 channels with 40 channels by 30 banking
- Scanning features include:
- Programmable scanning (PMS)
- Memory scan
- Mode-selected scanning
- VFO scan
- VFO-linked scanning
- Priority scan
- VFO and VFO-linked scanning
- Allows programming of a maximum of 20 scan programs
- Switchable from 40,7,8 and 10 channels with search functions including continuous, interval, peak and single searches.
- Battery save function available.
- Internal clock with 24hr system for clock ON and timer OFF.
- Cloning without the use of cables
- Can receive all modes AM/NFM/WFM/LSB/USB/CW/Auto.
- Channel Step is set between 20 and fixed steps from 50 Hz to 500 kHz.
- The ability to edit frequency.
*Notes: DJ-X10T (U.S. version) cellular blocked.
Frequently Asked Questions
Q: What is the frequency range of the DJ-X10?
The range starts from 0.1 and ends at 1999.999950 presuming all versions.
Q: A maximum of how many channels can the DJ-X10 hold?
The device can hold a maximum of 1200 channels which are organized into 30 banking systems that include 40 channels in each.
Q: Does it have a feature to save battery?
A: Certainly, it has a function to save battery when the device is not active.
Q: Is it possible for the DJ-X10 to scan different types of frequency modes?
A: Certainly, DJ-X10 facilitates numerous modes of scanning, including programmable scanning modes, memory scanning modes, and last priority scanning modes.
Q: Is it possible for the DJ-X10 to edit frequency?
A: Of course, the cordless device has frequency set modifications built in.
Q: What range of signals can a DJ-X10 receive?
A: It is capable of receiving any and all modes, including Amplitude Modulations, Normal Frequency Modulations, Wide Frequency Modulations, Lower Side Bands, Upper Side Bands, Continuous Waves and Auto as well.
Q: How accurate is the clock of the DJ-X10?
A: It is quite accurate as it has a built in twenty four hours clock with the minimum functionality of an on and off timer.
Q: I own two DJ-X10 receivers. Will I be able to configure their modes and settings all the same?
A: Yes, the DJ-X10 is equipped with a built in cable cloning function that helps disclose data between two similar devices.

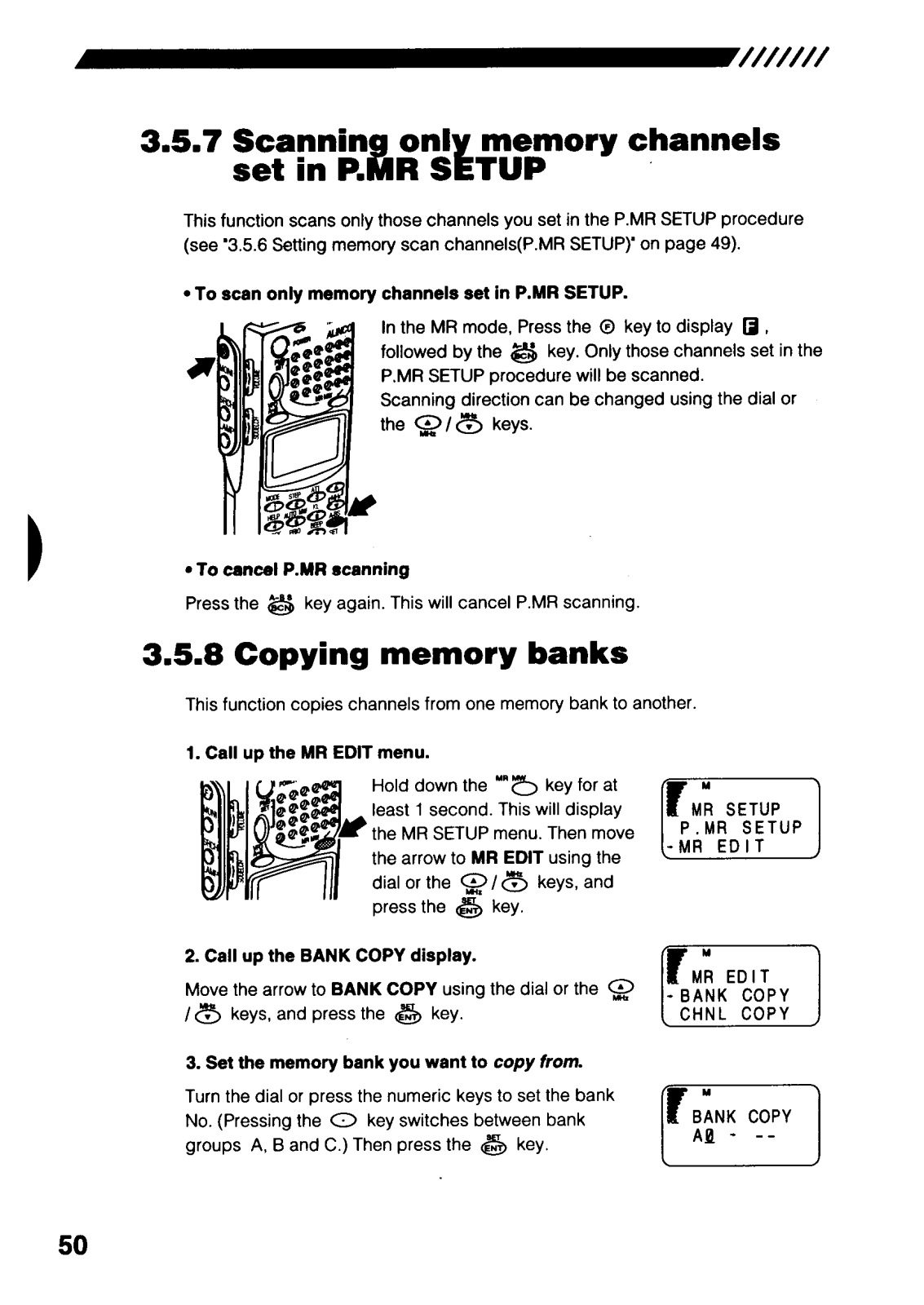

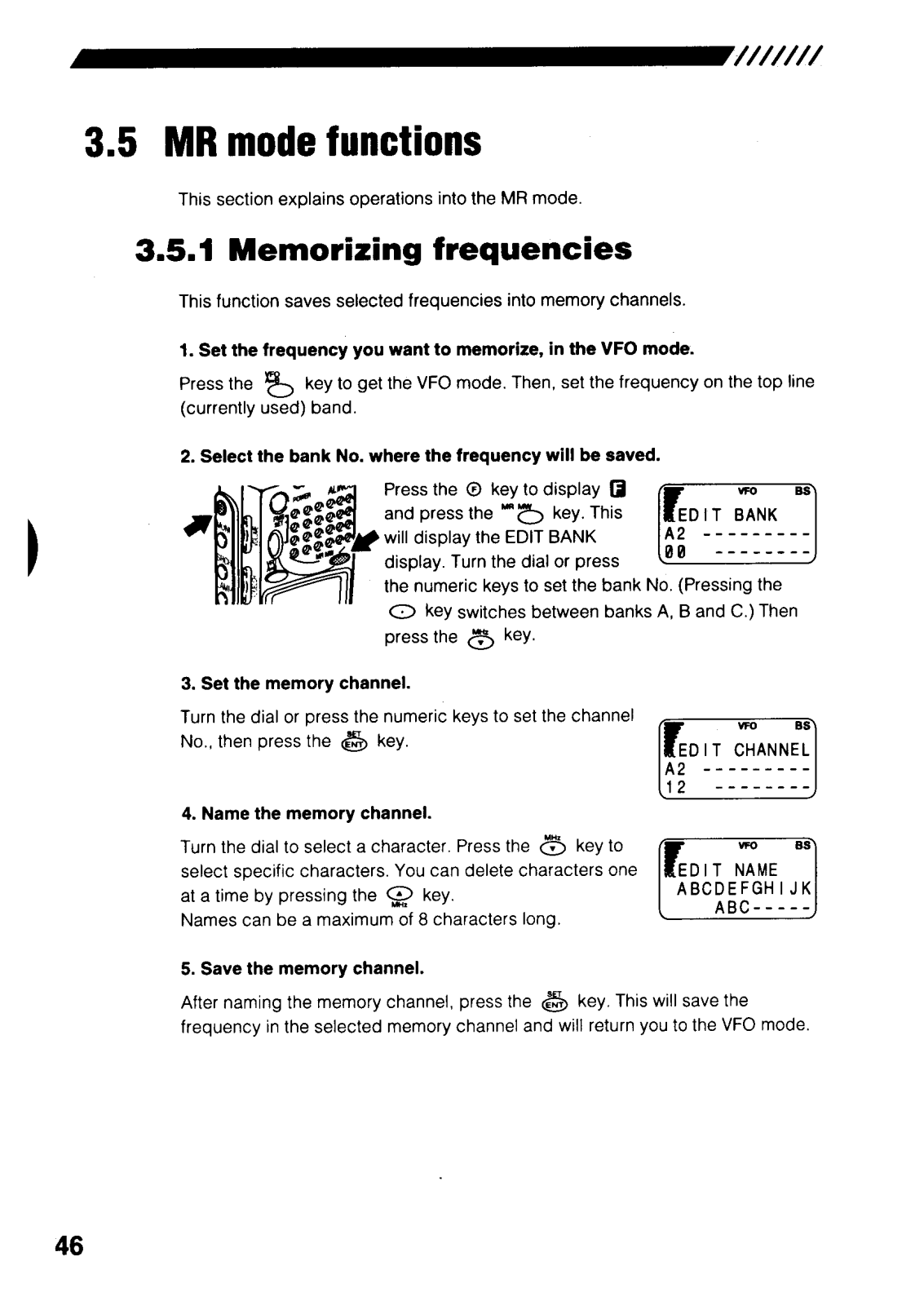

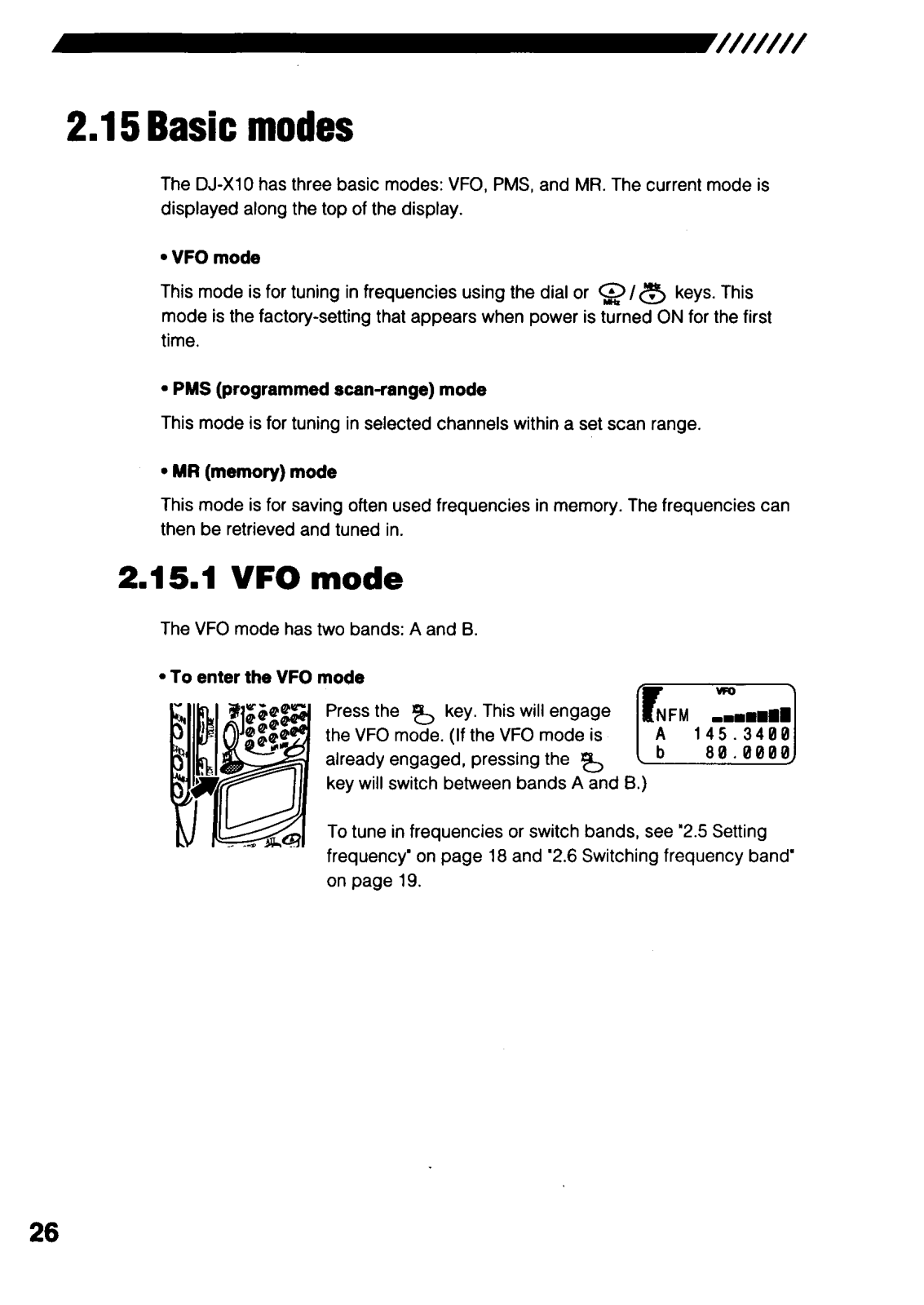

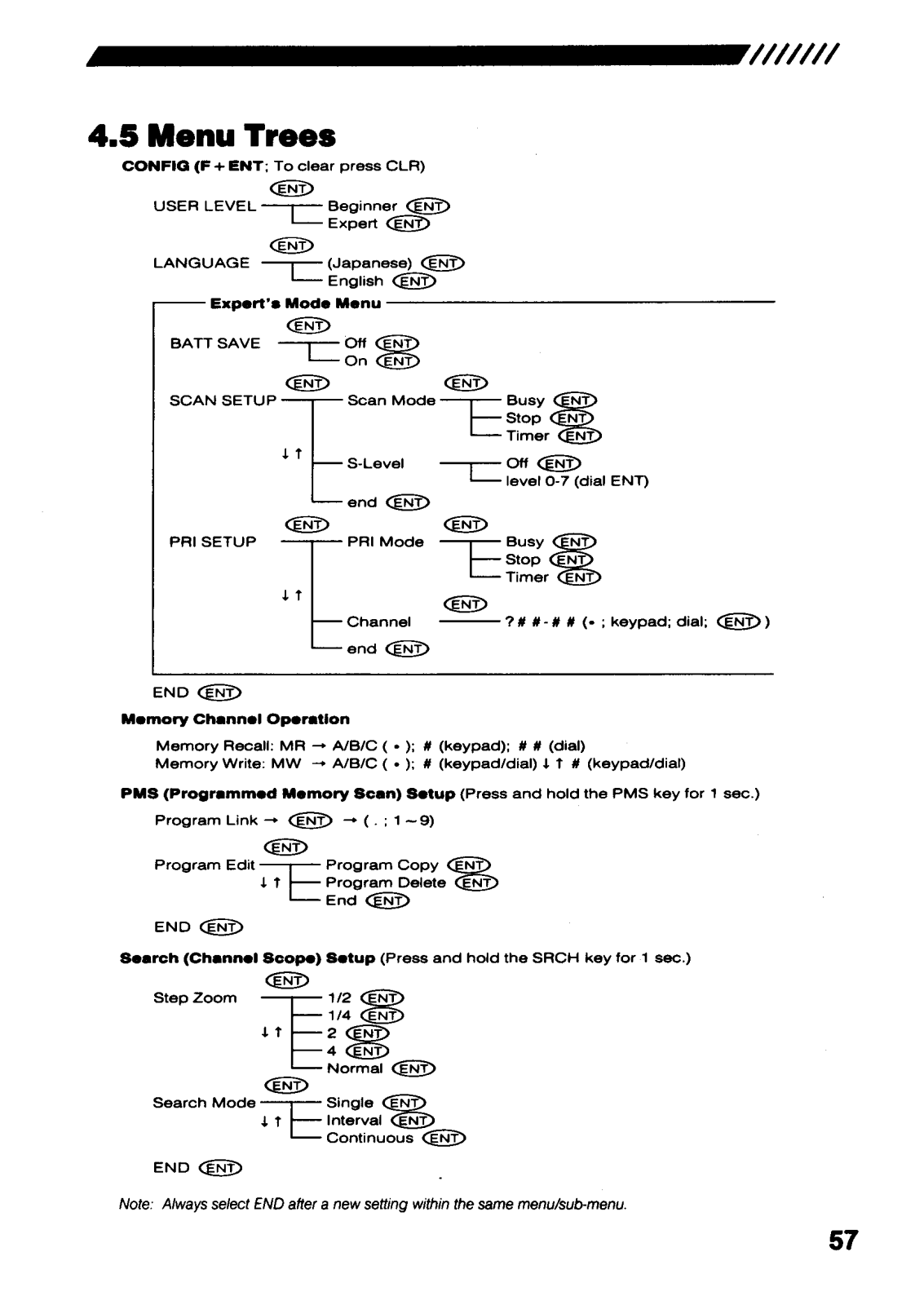

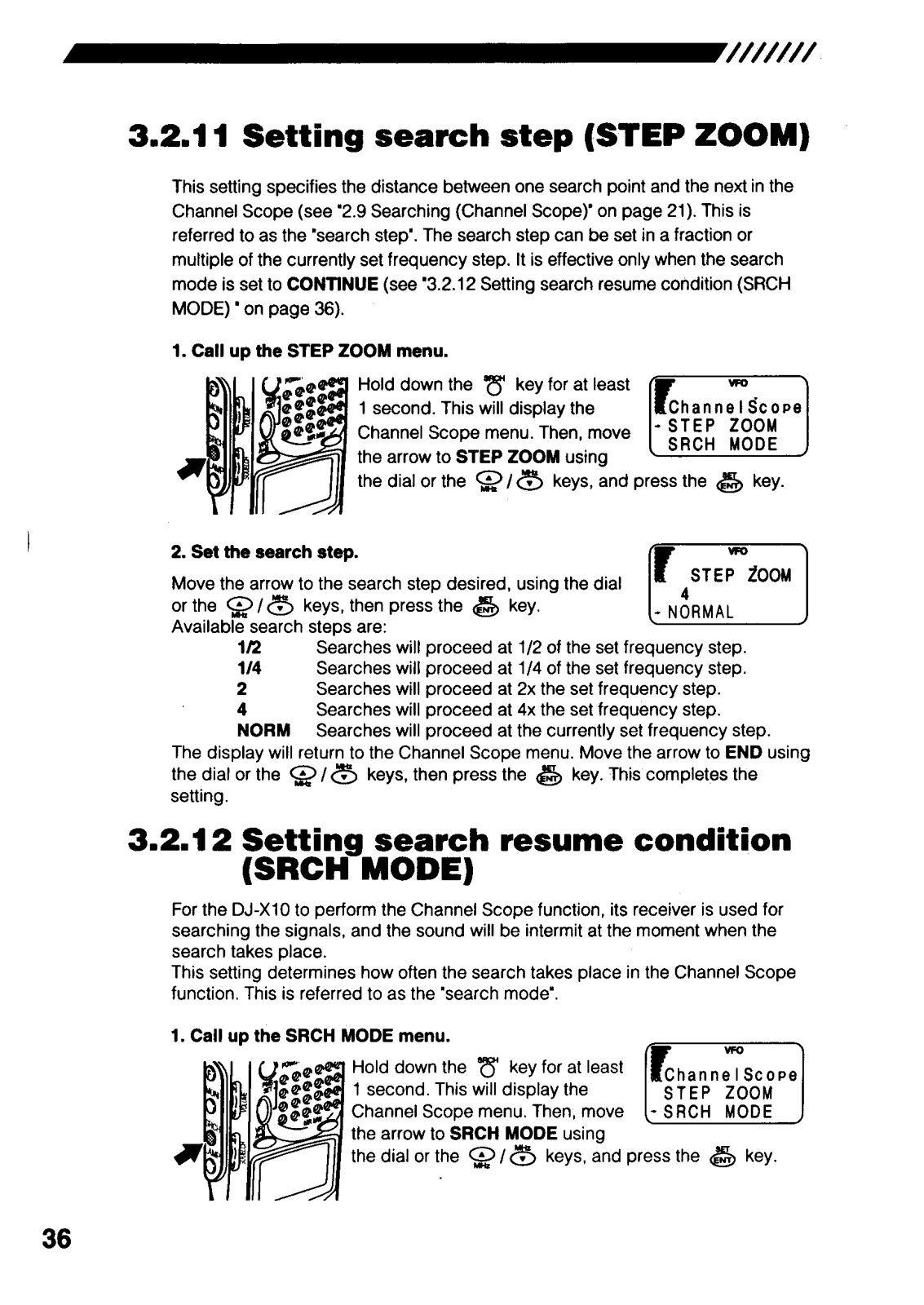

User Manual
Loading...
