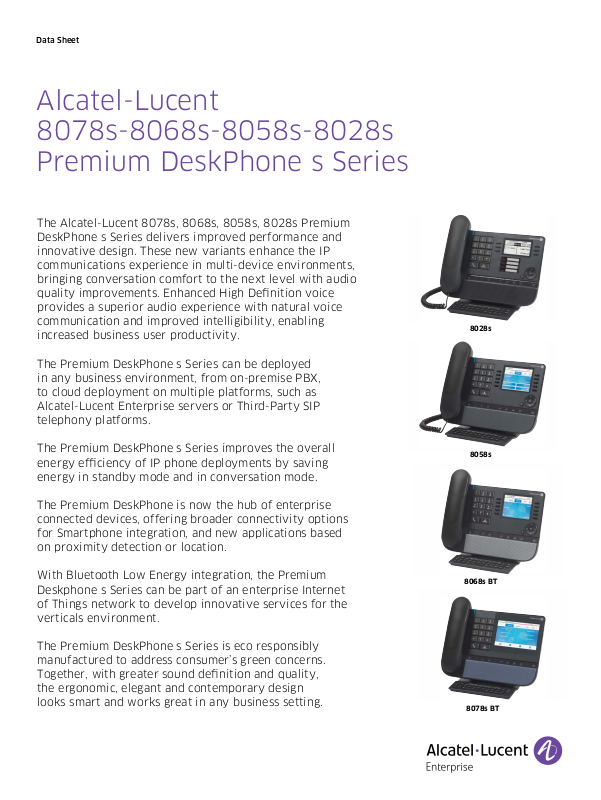

Data Sheet

Alcatel-Lucent
8078s-8068s-8058s-8028s
Premium DeskPhone s Series

The Alcatel-Lucent 8078s, 8068s, 8058s, 8028s Premium
DeskPhone s Series delivers improved performance and
innovative design. These new variants enhance the IP
communications experience in multi-device environments,
bringing conversation comfort to the next level with audio
quality improvements. Enhanced High Definition voice
provides a superior audio experience with natural voice
communication and improved intelligibility, enabling
increased business user productivity.

8028s

The Premium DeskPhone s Series can be deployed
in any business environment, from on-premise PBX,
to cloud deployment on multiple platforms, such as
Alcatel-Lucent Enterprise servers or Third-Party SIP
telephony platforms.

The Premium DeskPhone s Series improves the overall
energy efficiency of IP phone deployments by saving
energy in standby mode and in conversation mode.

The Premium DeskPhone is now the hub of enterprise
connected devices, offering broader connectivity options
for Smartphone integration, and new applications based
on proximity detection or location.

With Bluetooth Low Energy integration, the Premium
Deskphone s Series can be part of an enterprise Internet
of Things network to develop innovative services for the
verticals environment.

The Premium DeskPhone s Series is eco responsibly
manufactured to address consumer’s green concerns.
Together, with greater sound definition and quality,
the ergonomic, elegant and contemporary design
looks smart and works great in any business setting.

8058s

8068s BT

8078s BT

FEATURES BENEFITS

• Enhanced High Definition voice quality, Super Wideband ready

• Best in class power consumption

• 8058s, 8068s, 8068s Bluetooth, 8078, 8078s Bluetooth

• Optimized ergonomics

• Navigator

• Dedicated function keys

• Backlit display

• Intuitive icons and soft keys

• Alphabetic keyboard

• Built-in security

• Dual stack NOE & SIP protocol

• Easy installation, supports plug and play provisioning

• Easy to use with feature buttons and interactive soft keys

• Offers the full range of telephony services found in Alcatel-Lucent
acclaimed communication servers – OmniPCX® Enterprise and
OXO Connect – unsurpassed in terms of functionality, features,
reliability and quality of service

• Improve employee efficiency and productivity

• Leverage Alcatel-Lucent systems and solutions installed base

• Interoperability with survival router (embedded SIP Proxy)
provides continuity of service with OmniPCX Enterprise systems

• Interoperability with Third Party SIP server

• Compatible with IP-Touch 8 series

• IPv4/IPv6

• Wall-mountable

• Unified Communication companion

• Embedded software encryption capabilities

• Customization capabilities

Technical specifications

Physical characteristics

• Width: 252 mm

• Depth (including alphabetic keyboard):
200 mm

• Height: 204 mm

• Weight:
¬ 8078s BT, 8078s: 1450 g
¬ 8068s BT, 8068s, 8058s, 8028s: 1350 g

• Adjustable foot stand ranging from 25°
to 60°

• Color: Moon grey

Display

• 8078s BT, 8078s: 5 inch capacitive touch
color, 480 x 800 pixels, effective display
area size 108.00 x 64.80 mm2

• 8068s BT, 8068s, 8058s: 3.5 inch color,
240 x 320 pixels, effective display area
size 70.08 x 52.56 mm

• 8028s: 2.8 inch, 64 x 128, pixels black &
white, white backlight, effective display
area size 64 x 32 mm

• 8078s BT, 8078s, 8068s BT, 8068s,
8058s: Ambient light sensor, back shell
busy light indicator

• LCD backlight

8078s BT, 8078s, 8068s BT, 8068s, 8058s:

Manual adjustment based on user-defined
level, or auto-brightness mode based on
ambient light and user defined level

2

2

Keypad

• Navigator:
¬ 8078s BT, 8078s: Touch screen

with tool bar

¬ 8068s BT, 8068s, 8058s, 8028s:

4-way navigation + OK + cancel

• Contextual keys:
¬ 8078s BT, 8078s, 8068s BT,
¬ 8068s: 2 x 5, 8058s: 2 x 3

• Function keys:

On/off hook, dial pad, mute with LED,

volume keys ±, hands-free with LED,
2 personal keys/LED, redial, info and
message with LED

• Programmable keys:
¬ 8078s BT, 8078s, 8068s BT, 8068s:

Up to 72 soft keys (OmniPCX
Enterprise): Up to 40 soft keys (OXO
Connect or OmniPCX Office RCE)

¬ 8058s: Up to 68 soft keys (OmniPCX

Enterprise): Up to 36 soft keys (OXO
Connect or OmniPCX Office),
4 programmable lighted keys,
smart-add-on module

¬ 8028s: Up to 68 soft keys (OmniPCX

Enterprise): Up to 36 soft keys
(OmniPCX Office), 4 programmable keys
with LED and paper label

• Magnetic alphabetical keyboard

Connectivity

• RJ-45 LAN: Gigabit Ethernet 10/100/1000

• RJ-45 PC through 10/100/1000 Gigabit
Ethernet switch

• RJ-9 connector for corded handset

• RJ-9 connector for alphanumeric keyboard

• 3.5 mm jack 4 pole headset port

• SATA connector for external ringer and
audio active envelop indicator

• 2.1 x 5.5 mm DC power jack plug socket
for external AC/DC power adapter

• SATA connector for add-on module
connection

• USB A 2.5 W (5V, 500mA), upgradeable
to support 4.5W (5V, 900mA)

• USB C for future use (8078s BT, 8078s,
8068s BT, 8068s, 8058s)

• 8078s BT, 8078s, 8068s BT, 8068s
Bluetooth 4.1 Smart Ready (Classic & BLE)
embedded: Wideband Bluetooth handset
with 2 pin charge contacts and Bluetooth
headset support

Alcatel-Lucent 8078s-8068s-8058s-8028s Premium DeskPhone s Series

ALCATEL-LUCENT ENTERPRISE DATA SHE ET

2

Power

• Power over Ethernet (IEEE 802.3af)
¬ 8028s: Class 1
¬ 8078s BT, 8078s, 8068s BT, 8068s,

8058s: Class 2

• Power consumption (PoE) Idle – Active
(w/o Add-on, w/o USB)

¬ 8078s BT: 2.1 W – 3.5 W
¬ 8078s: 1.9 W – 3.2 W
¬ 8068s BT: 2 W - 3.1W
¬ 8068s: 1.8 W - 2.8 W
¬ 8058s: 1.6 W – 2.2 W
¬ 8028s: 1.5 W – 2 W

• Optional AC/DC power adapter:
100 V AC to 240 V AC/48 V DC

Audio characteristics

• Alcatel-Lucent Enterprise enhanced High
Definition (eHD) Technology

• Wideband comfort handset for 8078s,
8068s, 8058s & 8028s, Wideband
Bluetooth handset for 8078s BT, 8068s
BT, Hearing Aid Compatible (HAC).

• Full-duplex speakerphone, acoustic echo
cancellation

• OPUS Codec

• Wideband G722

• G711 (A-law and Mu-law)

• G729 AB, voice activity detection (VAD),
comfort noise generation (CNG)

Network and provisioning

• IP NOE and SIP v2 (RFC3261)

• DHCP and static IP
¬ Manual or dynamic host configuration

protocol (DHCP) network setup

• QoS support
¬ IEEE 802.1p/Q tagging (VLAN), Layer 3

TOS, and DSCP

¬ QoS tickets

• LLDP-MED

• IEEE 802.1 AB/LLDP-MED client (IPv4/
IPv6, automatic VLAN acquisition, PoE
management, inventory information)

• Energy Efficient Ethernet 802.3 az support

Security

• Authentication: Basic or digest, 802.1x
¬ 802.1x Message Digest 5 (MD5)/TLS:

For authentication, customer certificates
management (with centralized
deployment)

¬ Denial of service (DoS) attack protection:

Flooding

¬ ARP spoofing protection

• Transport: TLS 1.2/1.0 and SRTP
¬ Encryption and authentication of the

signaling traffic;

¬ Encryption of media traffic.

• Shipped with (X509v3 ) certificate
installed

¬ Certificates for 802.1x EAP-TLS (either

Alcatel-Lucent or customer certificates)

• IP Sec VPN support

Languages

• Multi-language support (menu): Arabic,
Catalan, Chinese (simplified), Chinese
(traditional), Croatian, Czech, Danish,
Dutch, English, English Australia, English
US/Canada, Estonian, Finnish, Flemish,
French, French Canadian, French Swiss,
German, German Austria, German Swiss,
Greek, Hebrew, Hungarian, Italian,
Italian Swiss, Japanese, Korean, Latvian,
Lithuanian, Norwegian, Polish, Portuguese,
Portuguese Brazil, Romanian, Russian,
Serbian, Slovak, Slovenian, Spanish,
Swedish, Taiwanese, Thai, Turkish,
Valencian.

Regulatory Standards

Safety

• EN 60950-1(+A11 +A1 +A12 +A2),

• IEC 60950-1 (Second Edition +Am1 +Am2),
ANSI/UL 60950-1(Second Edition),

• CAN/CSA-C22.2 NO. 60950-1-07
(+Am1 +Am2)

RF

• EN 300 328

• FCC 47 CFR Part 15 C

• RSS-247

• AS/NZS 4268

• Bluetooth qualification

EMC

• EN 55022 Class B

• EN 55032 Class B

• 47 CFR Part 15 B Class B

• ICES-003 Class B

• EN 55024

• EN 61000-6-1 (Immunity for residential
and commercial environments )

• EN 61000-6-2 (Immunity for industrial
environments)

• EN 61000-6-3 (Emission for residential
and commercial environments )

• EN 61000-6-4 ((Emission for industrial
environments)

• IEC 60945 (Maritime)

• IEC 62236-4 (Railway)

• EN 301 489-1

• EN 301 489-17

• EN 61000-3-2

• EN 61000-3-3

Telecom

• TIA / EIA 810-B, TIA 920.130-A-1,
AS/CA S004

Audio hearing aid

• FCC47 CFR Part 68, Industry Canada CS-03
Part V, Australia AS/ACIF S040

Eco-design

• 2009/125/EC, ROHS 2011/65/EU,
WEEE 2012/19/EU

Environmental Conditions

• Temperature: -5°C to +45°C

• Relative humidity: 5% to 85%

• Storage Temperature: -25°C/+70°C

• IP Class: IP 20

Serviceability

• Syslog mode

• Port mirroring

Product ships with

• DeskPhone with handset and
alphanumeric keyboard

• 3m network cable

• Safety sheet

Accessories

• 3MG27105AB Premium Add-on 10 keys
module

• 3MG07033WW Premium Add-on 40 keys
module with clip

• 3MG07032WW Premium Smart display
14 keys module with clip

• 3MG27032AA Wide Band Comfort
Handset

• 3MG27209AA Wide Band Bluetooth
Handset

• 3GV28047xx Monaural Headset

• 3GV28048xx Binaural Headset

• 3MG27208xx Magnetic Alphabetic
Keyboard

• 3BN67215WW Bluetooth Headset

• 3GV28057xx Binaural USB Headset

• 3MG27110AA Premium Wall Mounting Kit

• 3MG27006xx AC/DC Powear Adapter
100–240 V AC/48 V DC with EU, UK, US
and AUS plug and 3m connection cable
power

• 3MG08001AA Conference Module 8115
Audioffice

• 3MG08002AA Conference Module 8125
Audioffice
