ALATECH Technology FB006 User Manual

Bluetooth 4.0 Running Watch

Runaid 10

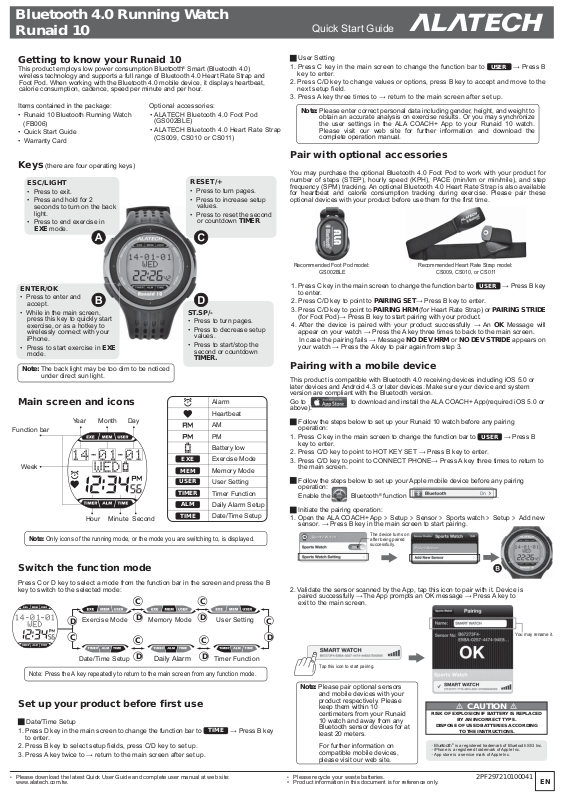

Quick Start Guide

Getting to know your Runaid 10

This product employs low power consumption Bluetooth

wireless technology and supports a full range of Bluetooth 4.0 Heart Rate Strap and
Foot Pod. When working with the Bluetooth 4.0 mobile device, it displays heartbeat,
calorie consumption, cadence, speed per minute and per hour.

Items contained in the package:

• Runaid 10 Bluetooth Running Watch
(FB006)

• Quick Start Guide

• Warranty Card

Optional accessories:

• ALATECH Bluetooth 4.0 Foot Pod

• ALATECH Bluetooth 4.0 Heart Rate Strap

®

Smart (Bluetooth 4.0)

(GS002BLE)

(CS009, CS010 or CS011)

Keys (there are four operating keys)

ESC/LIGHT

• Press to exit.

• Press and hold for 2
seconds to turn on the back
light.

• Press to end exercise in
EXE mode.

ENTER/OK

• Press to enter and
accept.

• While in the main screen,
press this key to quickly start
exercise, or as a hotkey to
wirelessly connect with your
iPhone.

• Press to start exercise in EXE
mode.

Note: The back light may be too dim to be noticed

under direct sun light.

Main screen and icons

Month Day

Function bar

Week

Note: Only icons of the running mode, or the mode you are switching to, is displayed.

Year

Hour SecondMinute

RESET/+

• Press to turn pages.

• Press to increase setup
values.

• Press to reset the second
or countdown TIMER.

ST.SP/-

• Press to turn pages.

• Press to decrease setup
values.

• Press to start/stop the
second or countdown

TIMER.

Alarm

Heartbeat

AM

PM

Battery low

EXE

MEM

USER

TIMER

ALM
TIME

Exercise Mode

Memory Mode

User Setting

Timer Function

Daily Alarm Setup

Date/Time Setup

User Setting

1. Press C key in the main screen to change the function bar to → Press B
key to enter.

2. Press C/D key to change values or options, press B key to accept and move to the
next setup field.

USER

3. Press A key three times to → return to the main screen after set up.

Note: Please enter correct personal data including gender, height, and weight to

obtain an accurate analysis on exercise results. Or you may synchronize
the user settings in the ALA COACH+ App to your Runaid 10 watch.
Please visit our web site for further information and download the
complete operation manual.

Pair with optional accessories

You may purchase the optional Bluetooth 4.0 Foot Pod to work with your product for
number of steps (STEP), hourly speed (KPH), PACE (min/km or min/mile), and step
frequency (SPM) tracking. An optional Bluetooth 4.0 Heart Rate Strap is also available
for heartbeat and calorie consumption tracking during exercise. Please pair these
optional devices with your product before use them for the first time.

Recommended Foot Pod model:

GS002BLE

1. Press C key in the main screen to change the function bar to → Press B key
to enter.

Recommended Heart Rate Strap model:

CS009, CS010, or CS011

USER

2. Press C/D key to point to PAIRING SET→ Press B key to enter.

3. Press C/D key to point to PAIRING HRM (for Heart Rate Strap) or PAIRING STRIDE
(for Foot Pod)→ Press B key to start pairing with your product.

4. After the device is paired with your product successfully → An OK Message will
appear on your watch → Press the A key three times to back to the main screen.

In case the pairing fails → Message NO DEV HRM or NO DEV STRIDE appears on

your watch → Press the A key to pair again from step 3.

Pairing with a mobile device

This product is compatible with Bluetooth 4.0 receiving devices including iOS 5.0 or
later devices and Android 4.3 or later devices. Make sure your device and system
version are compliant with the Bluetooth version.

Go to to download and install the ALA COACH+ App(required iOS 5.0 or
above).

Follow the steps below to set up your Runaid 10 watch before any pairing
operation:

1. Press C key in the main screen to change the function bar to → Press B
key to enter.

2. Press C/D key to point to HOT KEY SET → Press B key to enter.

3. Press C/D key to point to CONNECT PHONE→ Press A key three times to return to
the main screen.

Follow the steps below to set up your Apple mobile device before any pairing
operation:

Enable the Bluetooth

®

function .

Initiate the pairing operation:

1. Open the ALA COACH+ App > Setup > Sensor > Sports watch > Setup > Add new
sensor. → Press B key in the main screen to start pairing.

The device turns on
after being paired
successfully.

USER

Switch the function mode

Press C or D key to select a mode from the function bar in the screen and press the B
key to switch to the selected mode:

Exercise Mode

D
C

C
D

Memory Mode

C
D

Daily AlarmDate/Time Setup

C
D

User Setting

C
D

Timer Function

Note: Press the A key repeatedly to return to the main screen from any function mode.

Set up your product before first use

Date/Time Setup

1. Press D key in the main screen to change the function bar to → Press B key
to enter.

2. Press B key to select setup fields, press C/D key to set up.

3. Press A key twice to → return to the main screen after set up.

•

Please download the latest Quick User Guide and complete user manual at web site:
www.alatech.com.tw.

TIME

2. Validate the sensor scanned by the App, tap this icon to pair with it. Device is
paired successfully →The App prompts an OK message → Press A key to
exit to the main screen.

C
D

Tap this icon to start pairing.

Note: Please pair optional sensors

and mobile devices with your
product respectively. Please
keep them within 10
centimeters from your Runaid
10 watch and away from any
Bluetooth sensor devices for at
least 20 meters.

For further information on
compatible mobile devices,
please visit our web site.

•

Please recycle your waste batteries.

• Product information in this document is for reference only.

•Bluetooth® is a registered trademark of Bluetooth SIG Inc.

•iPhone is a registered trademark of Apple Inc.

•App store is a service mark of Apple Inc.

RISK OF EXPLOSION IF BATTERY IS REPLACED

DISPOSE OF USED BATTERIES ACCORDING

CAUTION

BY AN INCORRECT TYPE.

TO THE INSTRUCTIONS.

You may rename it.

2PF297210100041

EN

Bluetooth 4.0 Running Watch

Runaid 10

Federal Communications Commission (FCC) Statement

15.21
You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to

operate the equipment.

15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

FCC RF Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.

CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Quick Start Guide

•Bluetooth® is a registered trademark of Bluetooth SIG Inc.

•iPhone is a registered trademark of Apple Inc.

•App store is a service mark of Apple Inc.

•

Please download the latest Quick User Guide and complete user manual at web site:
www.alatech.com.tw.

•

Please recycle your waste batteries.

• Product information in this document is for reference only.

2PF297210100041

EN
