Akira LCT-32PBSTP Schematic

LCD TV

Service Manual

-2 -

MODEL:

LCT-32PBSTP

Model No.: LCT-32PBSTP.doc

Version: 1.0

-3 -

CONTENTS

SAFETY PRECAUTION .............................................................................................................4

SPECIFICATION ........................................................................................................................6

APPEARANCE & CONTROL FUNCTION ...............................................................................10

ALIGNMENT INSTRUCTION ...................................................................................................14

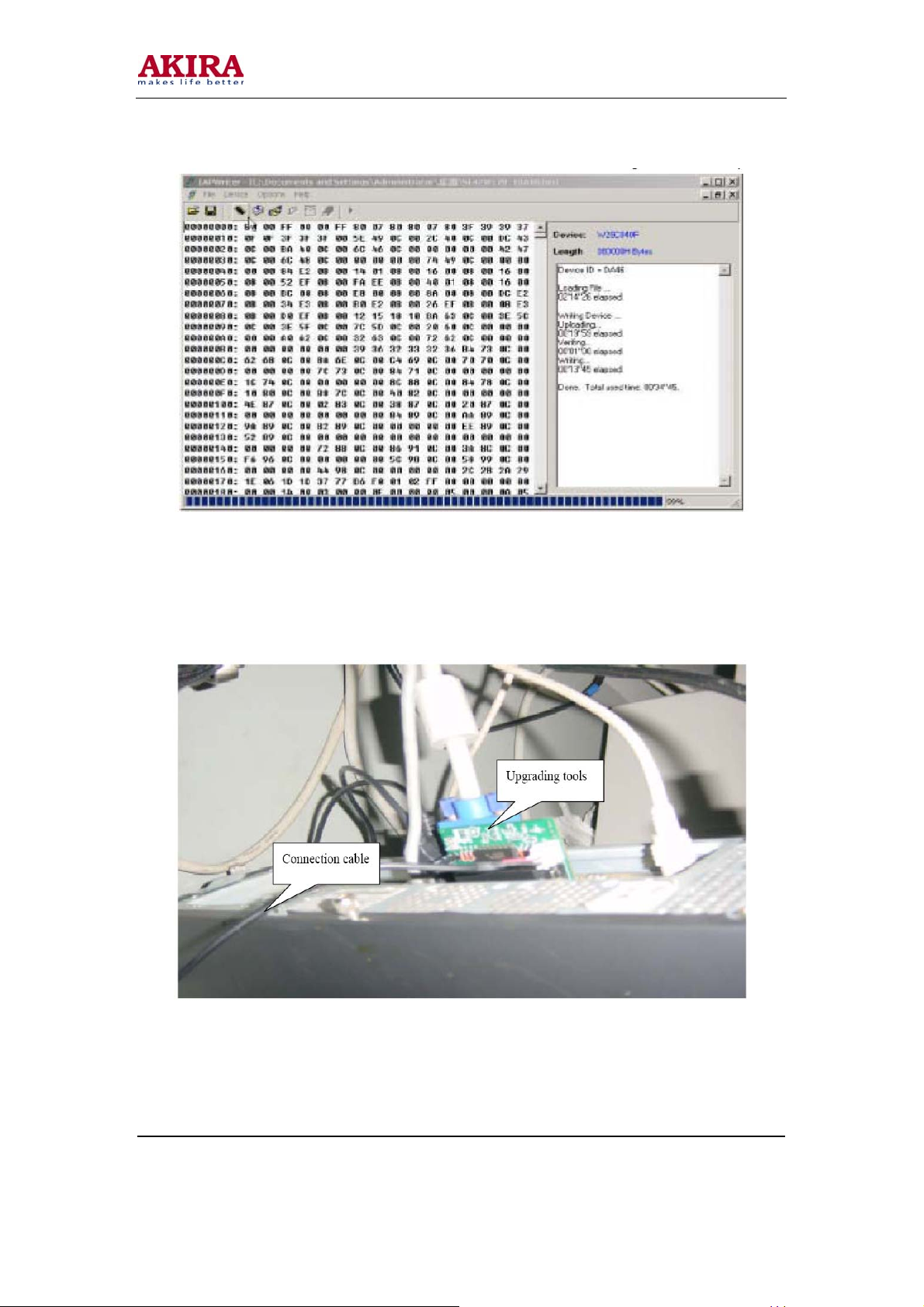

SOFTWARE UPGRADING.......................................................................................................26

WORKING PRINCIPAL ANALYSIS ..........................................................................................27

BLOCK DIAGRAM....................................................................................................................28

IC BLOCK DIAGRAM ...............................................................................................................29

WIRING DIAGRAM...................................................................................................................33

ASSEMBLY LIST ......................................................................................................................34

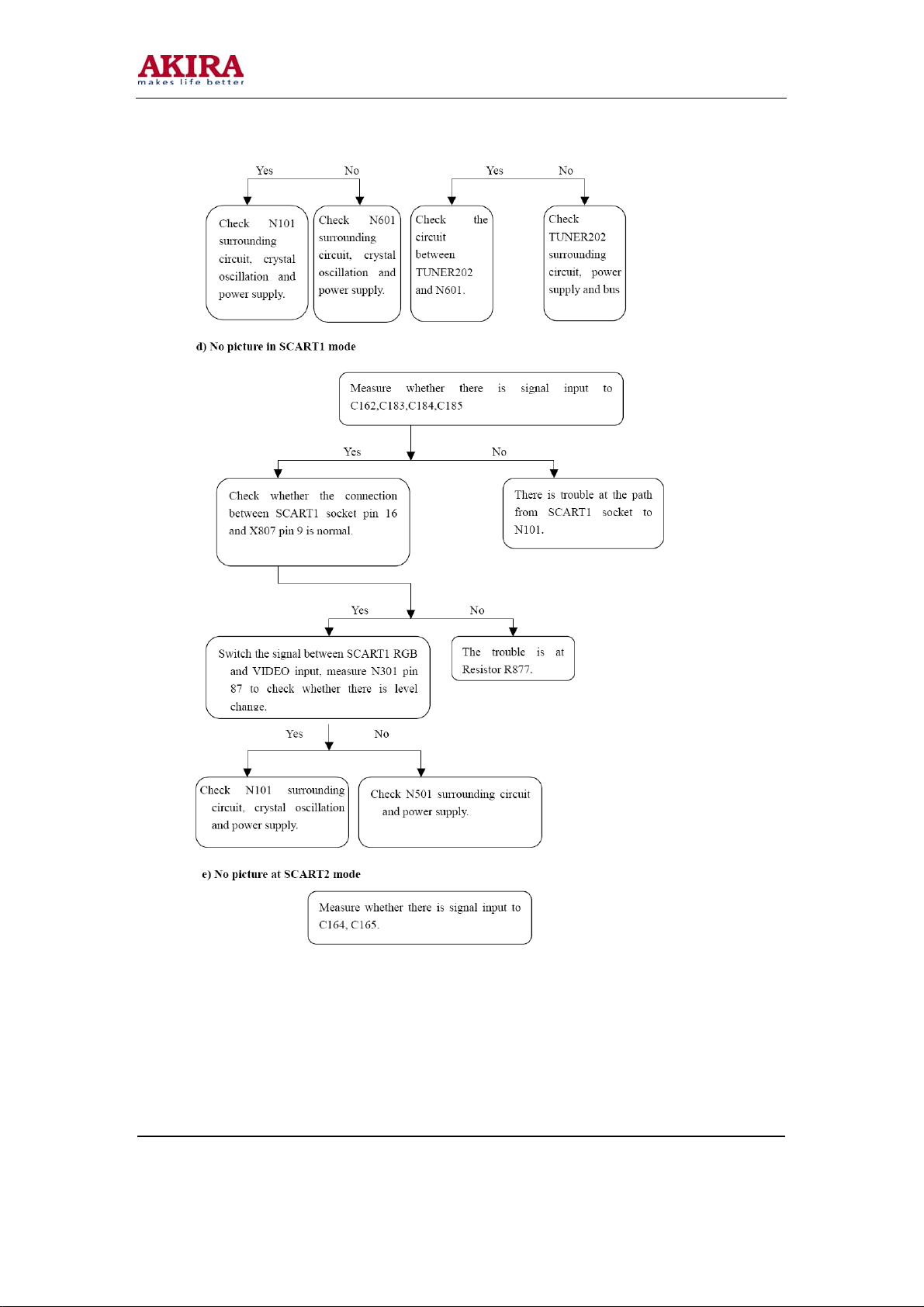

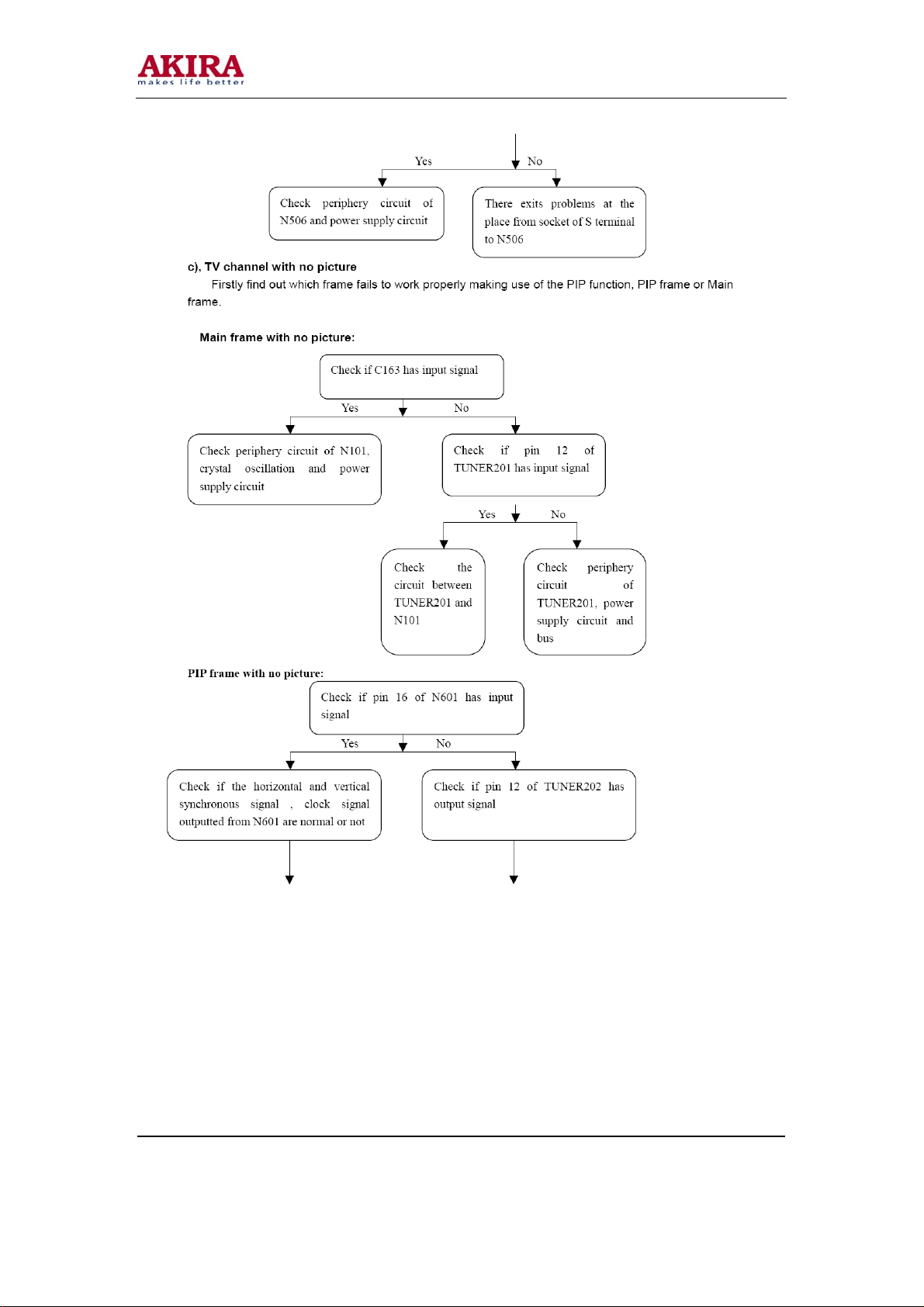

TROUBLE SHOOTING GUIDE ................................................................................................36

APPENDIX ...............................................................................................................................48

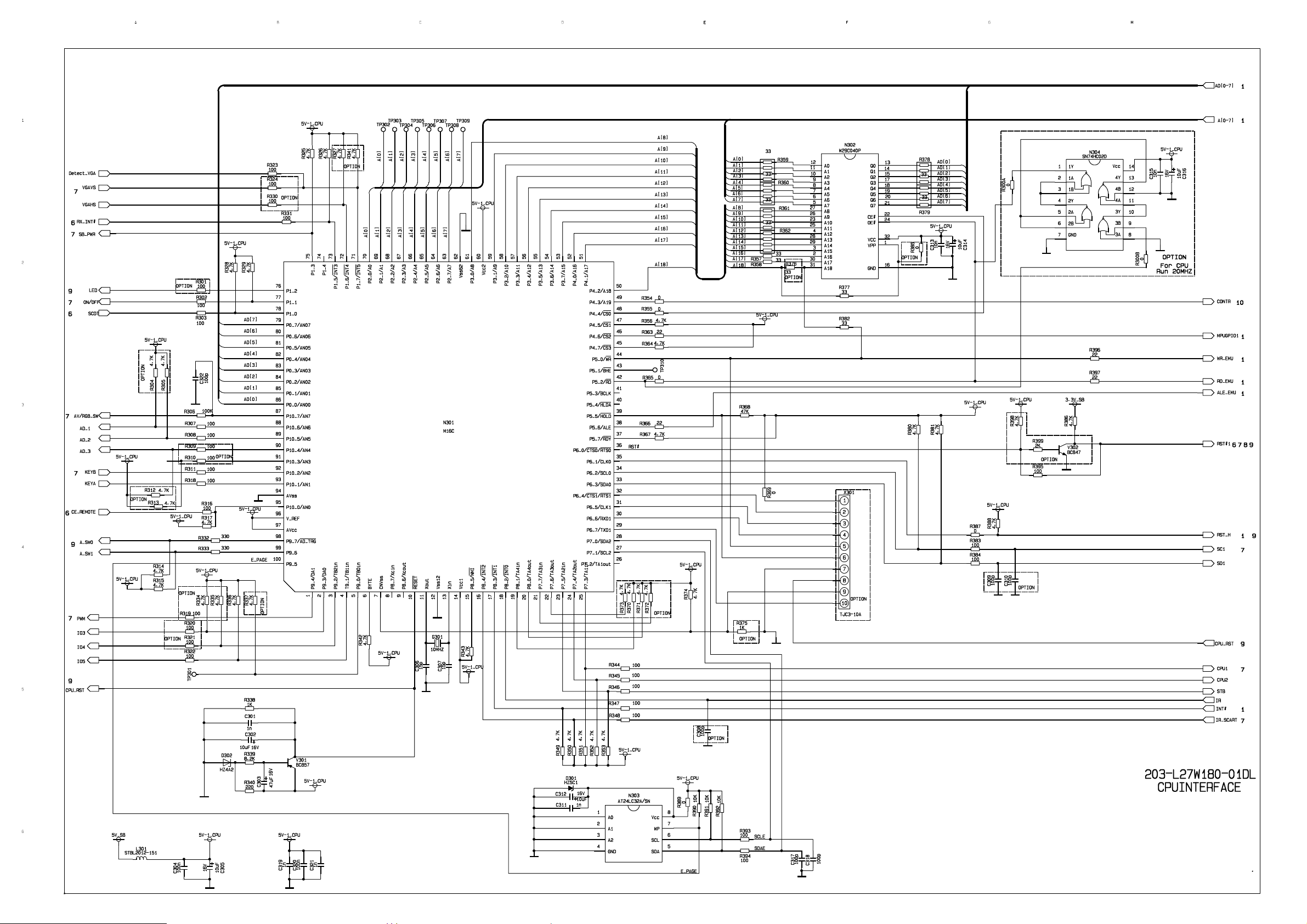

CIRCUIT DIAGRAM

PARTS LIST

Model No.: LCT-32PBSTP.doc

Version: 1.0

-4 -

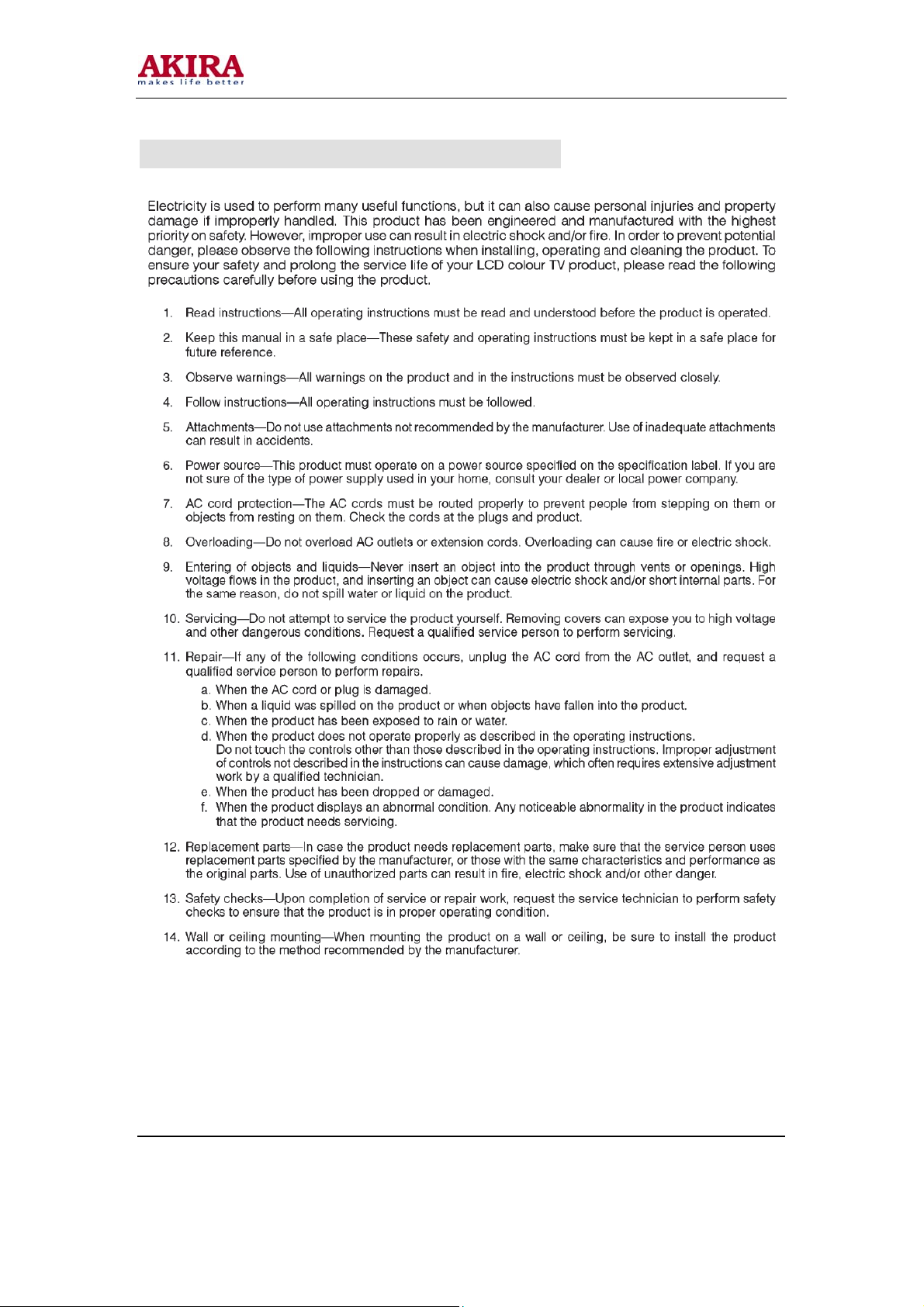

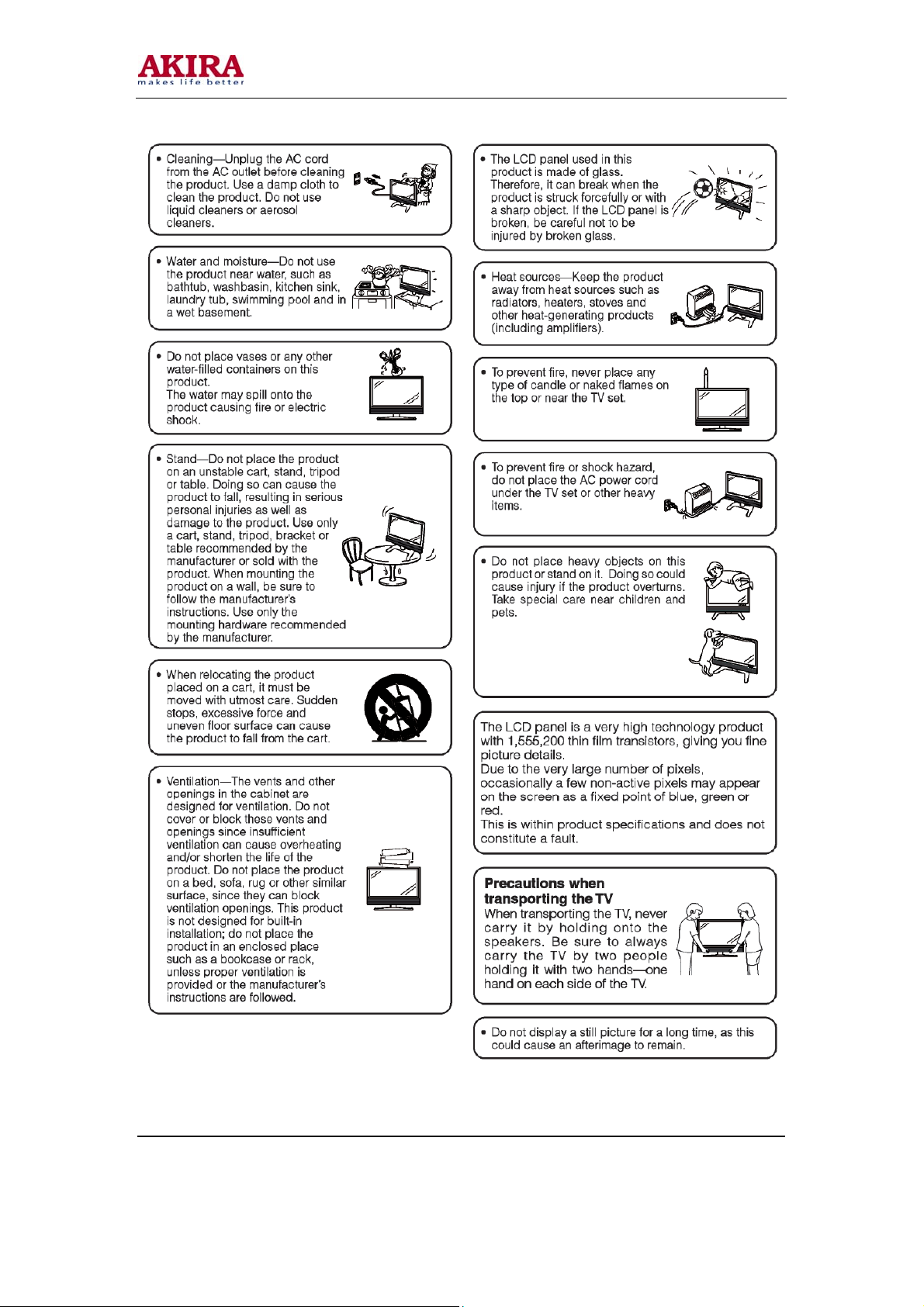

IMPORTANT SAFETY PRECAUTION

Model No.: LCT-32PBSTP.doc

Version: 1.0

-5 -

Model No.: LCT-32PBSTP.doc

Version: 1.0

-6 -

SSPPEECCIIFFIICCAATTIIOONN

Screen Size & Type 597 x 336 mm

Net TV Dimension 820 x 254 x 665 mm

Gross TV Dimension 950 x 362 x 783 mm

Net TV Weight 23kg

Gross TV Weight 32kg

General

Power Consumption (Normal Operation) 200 Watts (MAX)

Power Consumption (Standby Operation) 3 Watts (MAX)

Front Cabinet Colour Silver + Black

Back Cabinet Colour grey 05

Stand Type / Colour Swivel / Black + Silver

Power Adapter Input Voltage

Power Adapter Output Voltage

Power Adapter

Power Plug Type

No adaptor

Built-In Power

Operating

Reception & Playback

Panel

Mains Voltage 100-240V

Mains Frequency 50/60Hz

Supply

Power Plug Type 2.5-Amp round pin(VDE standard)

Operating Temperature 0 - 40 Deg C

Storage Temperature -25 - -55degC

Spec

Relative Humidity Level

RF PAL I , B/G , D/K

RF SECAM B/G , D/K , L/L'

RF NTSC N/A

System

VIDEO PAL yes

VIDEO SECAM yes

VIDEO NTSC NTSC PLAYBACK 3.58 / 4.43

Brand & Model CMO ,V320B1-L01

Resolution 1366 x 768

Displayable Colour 16.7M

Surface Treatment

90% RH Max(Ta<=40 Deg C & web-bulb temperature

should be 39degC Max(Ta>40degC

Hardness:3H,Haze:40% Anti-reflective coating<2%

Reflection

Model No.: LCT-32PBSTP.doc

Version: 1.0

-7 -

Viewing Angle (H/V) 170/170

Display Response Time 12ms

Contrast Ratio 800 : 1

Brightness 550cd/m2

Aspect 16:9

Lamp Life >=50,000

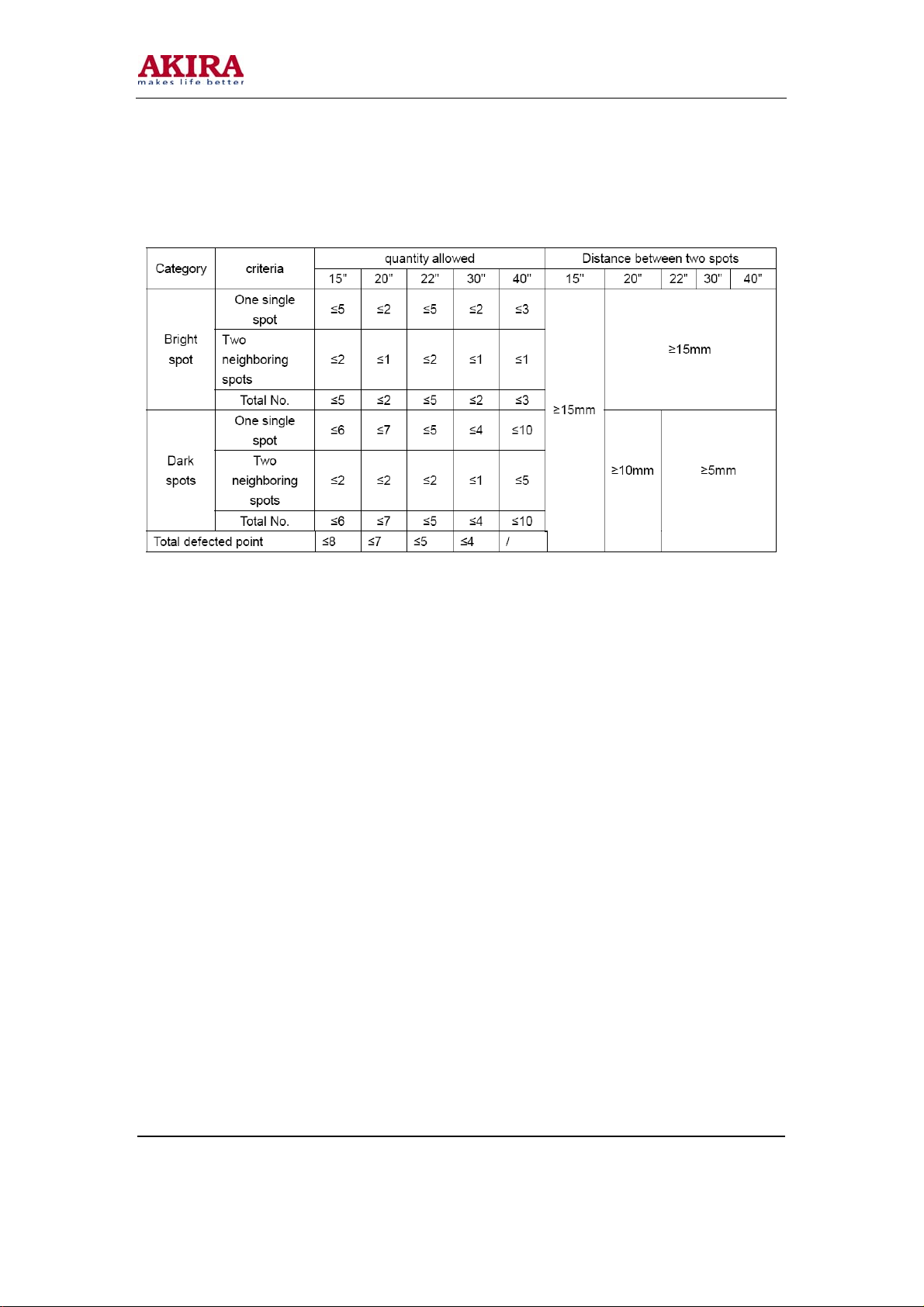

Bad pixels warranty (Bright / Dark / Total) Bright<2, dark<5, total no more then 5 dot

Channel Coverage 40 - 870Mhz

Preset Channels 1 to 200

S + Hyper Band CATV yes

Tuner

Aerial Input n/a

Detachable n/a

Comb Filter yes 3D

Velocity Modulation n/a

Noise Reduction Weak / Medium / Strong

Film Theater n/a

Detail Enhancer yes

Super Contrast n/a

Colour Transient Improvement yes

Picture Mode Option 4 , Vivid / Standard / Mild / Customer


Brightness Control Range 0 to 100

Contrast Control Range 0 to 100

Colour Control Range 0 to 100

Sharpness Control Range 0 to 100

Hue Control -50 to 50

Colour Temp Selection 3, Normal / Warm / Cool

Black Stretch yes

Audio Output 8 Watts x 2

NICAM Stereo yes

German A2 Stereo yes

Surround no

Audio

Dual Sound Decoding yes

Audio Mode Option 4 , Live / Pop / Rock / Customer

Volume Control 0 to 100

Treble Control -50 to 50

Model No.: LCT-32PBSTP.doc

Version: 1.0

-8 -

Bass Control -50 to 50

Balance Control -50 to 50

Auto Volume Level n/a

CVBS Input yes/1

S Video Input yes/1

Component YCbCr Input yes/1

Component YCbCr Displayable Modes 480i , 576i , 1080i

Progressive YPbPr Input yes , 1

Component YPbPr Displayable Modes 480p , 576p, 720p

VGA D-15 Input yes ,1

PC Audio L/R Input yes , No, earphone

SCART Input yes , 2

Terminals

SCART Output n/a

CVBS Output n/a

Optical Input n/a

Coaxial Input n/a

DVI Input n/a

Earphones Input yes , 1

HDMI Input yes , 1

Tele-text 1000 pages

Tele-text Language

P in P Type

Number of Tuner 2

Channel Scan Auto / Manual

Display Aspect Ratio Control Auto / 16:9/14:9/4:3/zoom/

OSD Language OSD with Chinese, English, Russian, Turkish

Other Features

Other Menu Feature OSD background

Screensaver No

Timer On yes

Timer Off yes

all , (West Europe, East Europe, Turkish / Greek, Cyrillic,

Arabic)

PIP / POP / PBP(4 wins) on all terminal and 9 picture

browse on TV

Sleep Timer yes 15,30,45,60,90,120

Auto Shutdown When No Signal 5 min

Picture Freeze yes

Model No.: LCT-32PBSTP.doc

Version: 1.0

-9 -

Child Lock yes

Local Keys Prog + , Prog - , Vol + , Vol - , Menu , TV/AV , Main Switch

Instruction Manual Lang English, Russian

Auto Tuning Yes

Manual Tuning Yes

Manual Fine Tuning Yes

Manual/Auto Colour System both

Manual/Auto Sound System both

Installation

Program Naming Yes

Skip Channel Yes

Exchange Channel Yes

Copy Channel Manual sort program

Remote Control Yes

Batteries for RC Yes

Euro 2 Pin Power Plug No

3 Pin Power Plug No

Instruction Manual Yes

Warrantee Card Yes , Russian

RF Cable Yes

S-Video Cable No

CVBS Cable No

Accessories

VGA Cable No

SCART Cable No

DVI Cable No

HDMI Cable No

Optical Cable no

Coaxial Cable no

Wall Mounting Bracket yes

SSppeecciiffiiccaattiioonn aarree ssuubbjjeecctt ttoo cchhaannggeess wwiitthhoouutt pprriioorr nnoottiiccee..

Model No.: LCT-32PBSTP.doc

Version: 1.0

-10 -

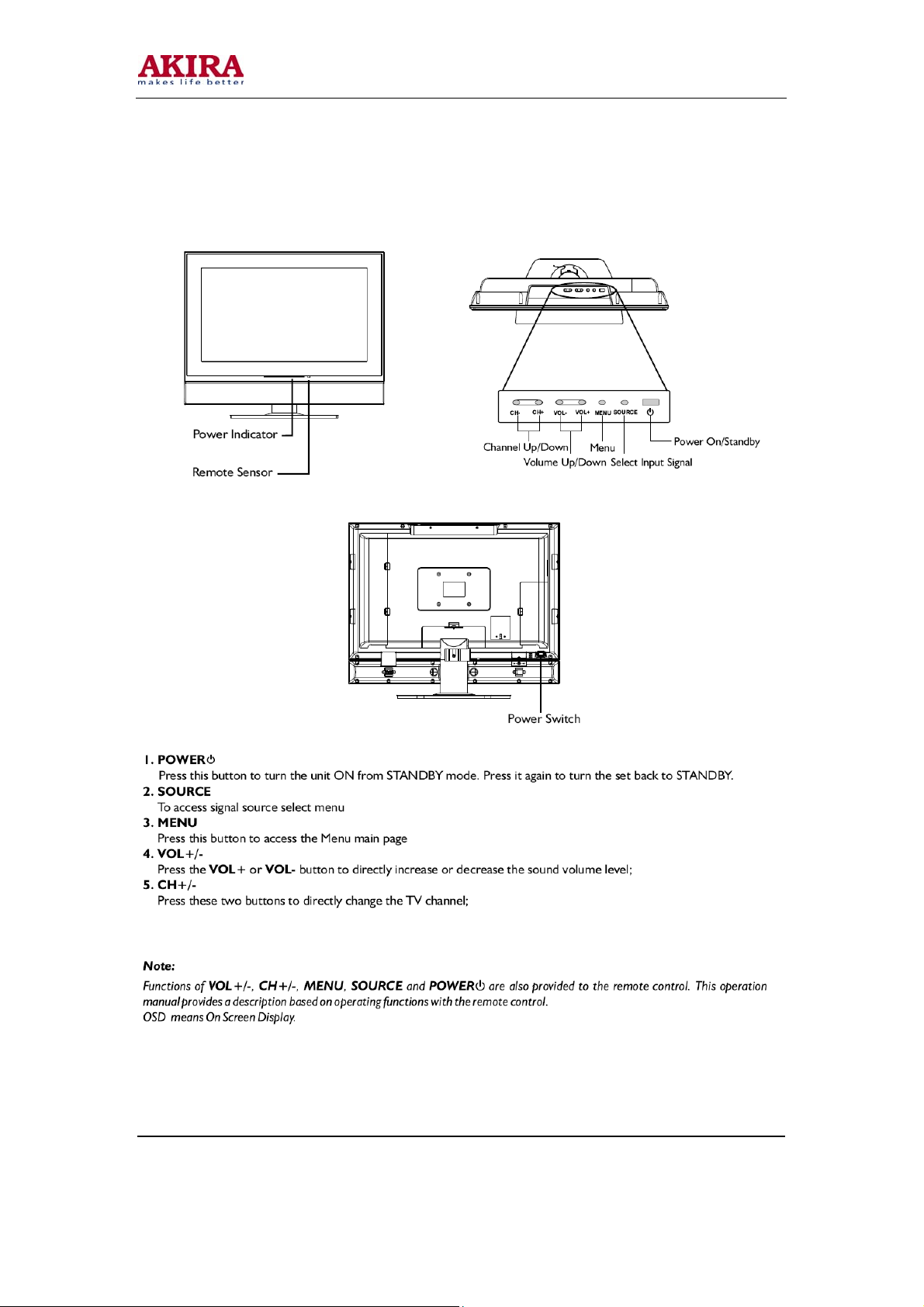

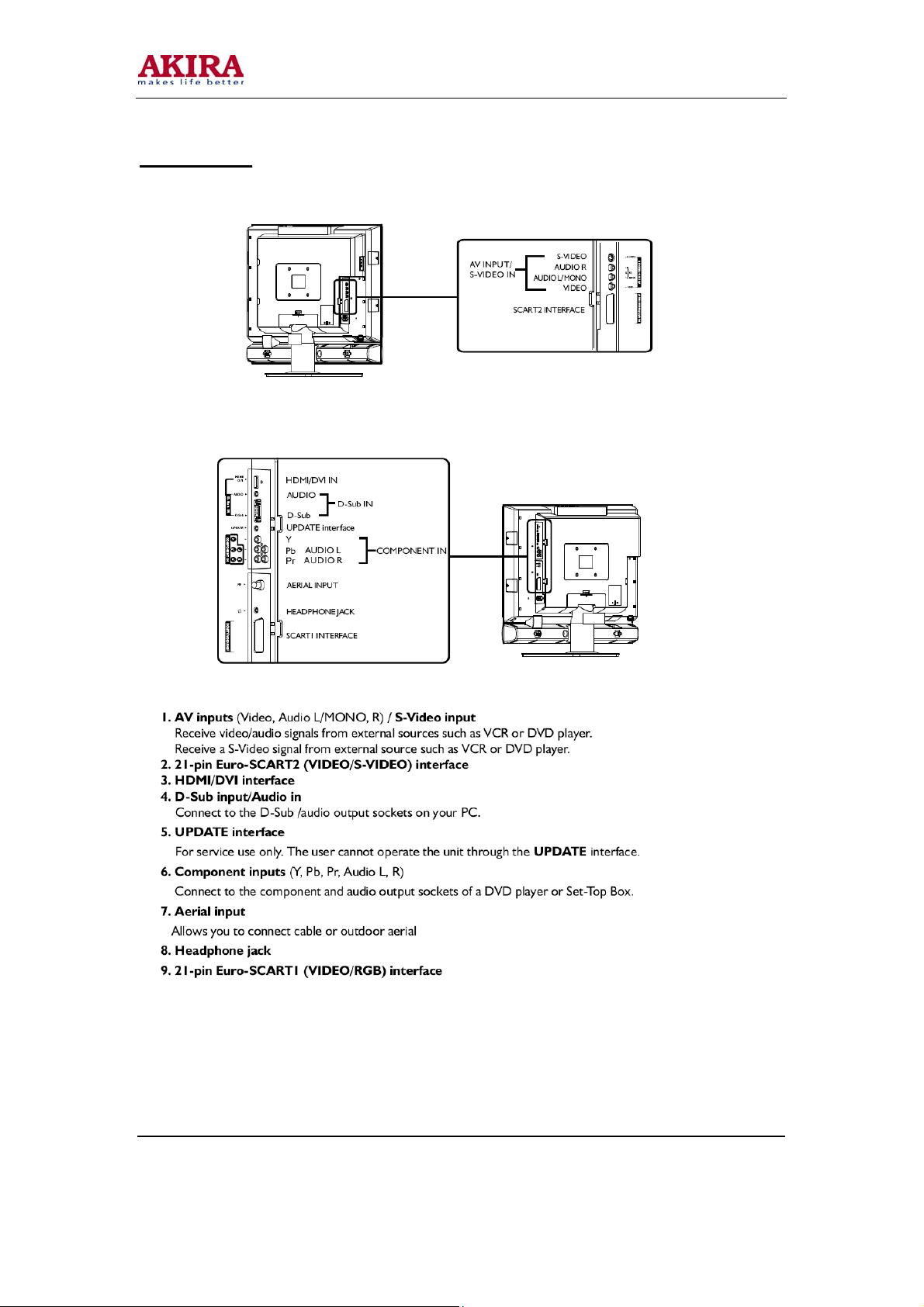

AAPPPPEEAARRAANNCCEE && CCOONNTTRROOLL FFUUNNCCTTIIOONN

Model No.: LCT-32PBSTP.doc

Version: 1.0

-11 -

MMAAIINN UUNNIITT

Model No.: LCT-32PBSTP.doc

Version: 1.0

-12 -

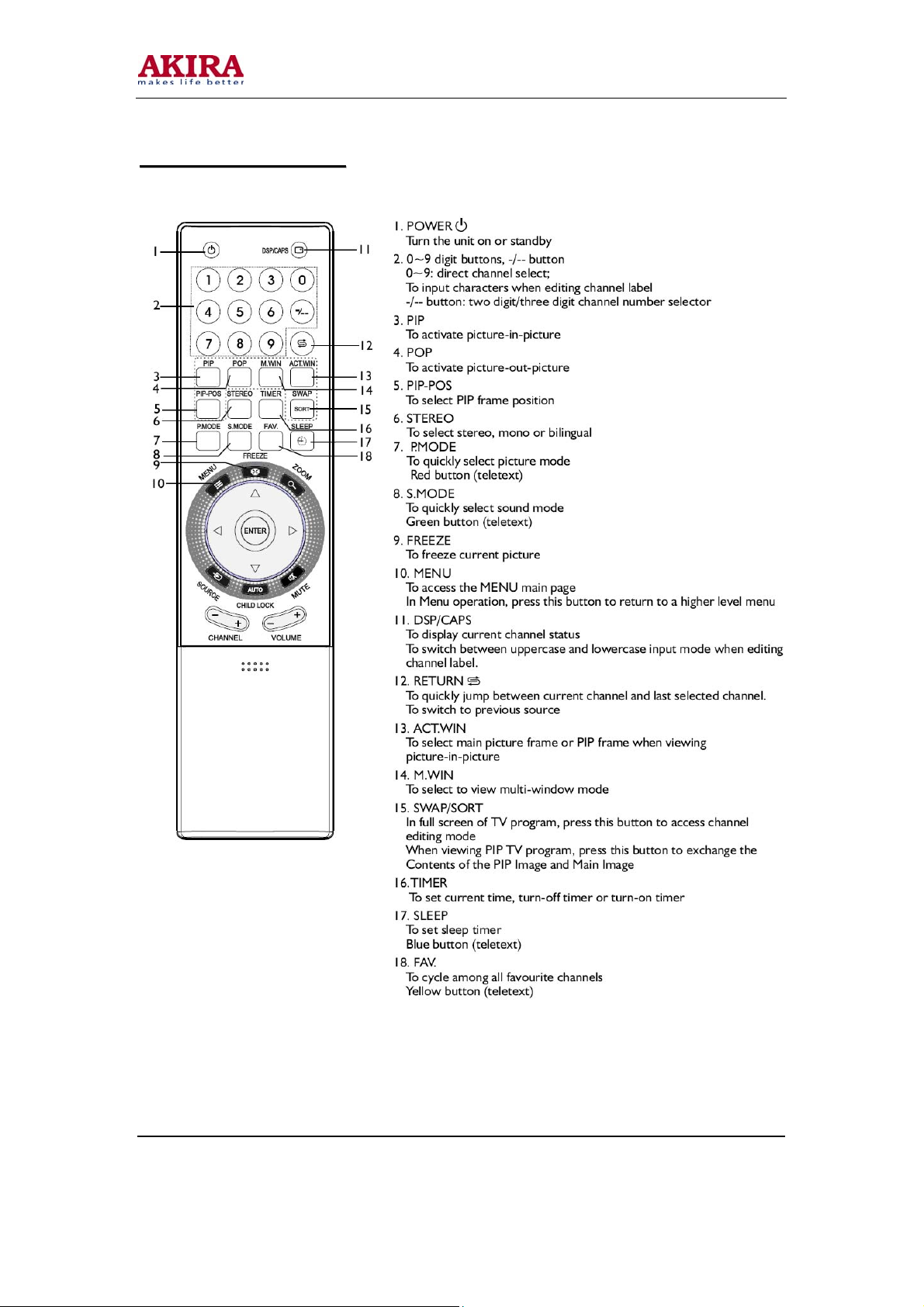

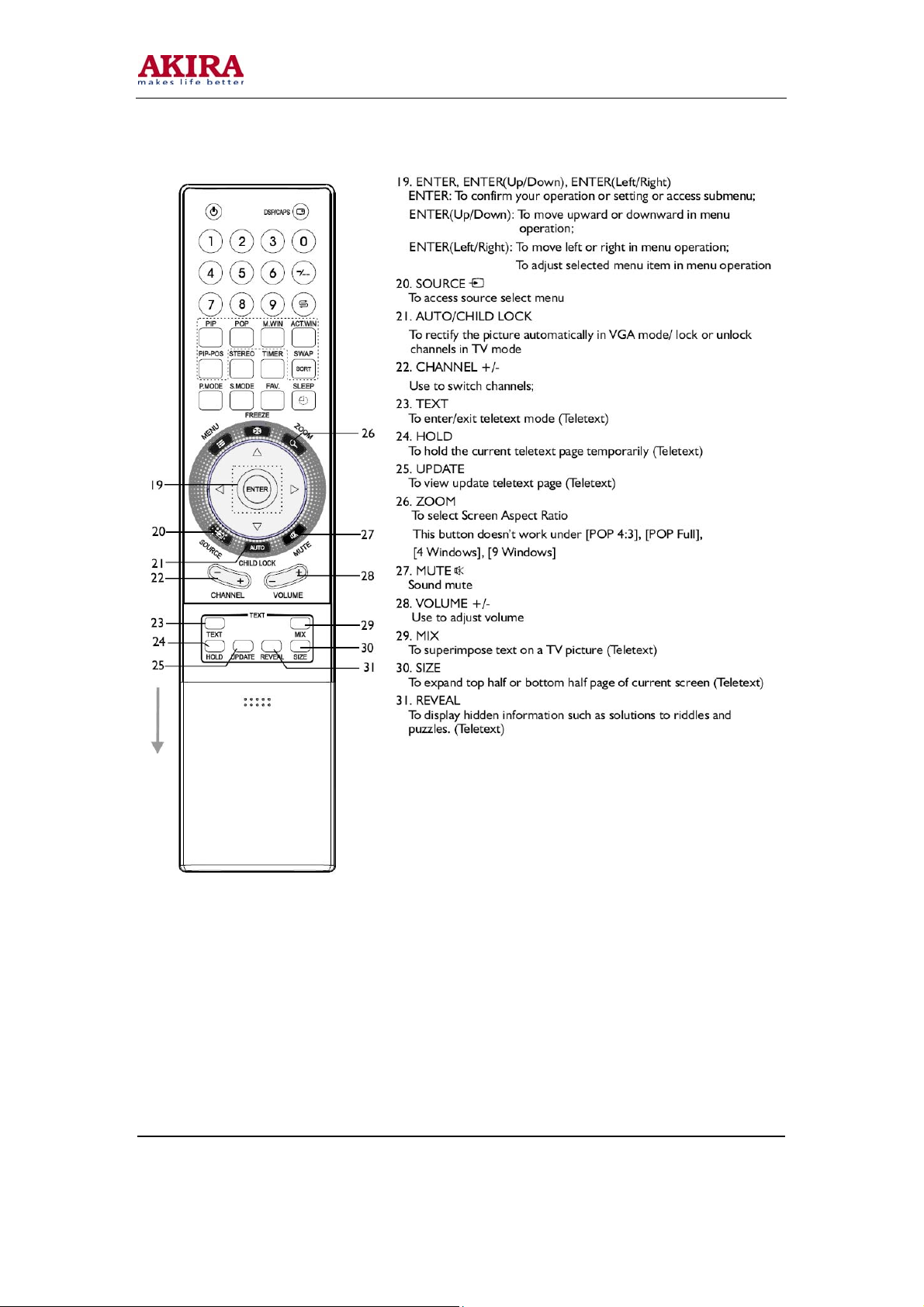

RREEMMOOTTEE CCOONNTTRROOL

L

Model No.: LCT-32PBSTP.doc

Version: 1.0

-13 -

Model No.: LCT-32PBSTP.doc

Version: 1.0

-14 -

AAlliiggnnmmeenntt IInnssttrruuccttiioonnss

1. Test equipment

PM5515 (Video signal generator)

PM54200(SCART signal generator)

VG-848(YUV, VGA and DVI signal generator)

K-7253 (VGA signal generator)

CA210 (White balancer)

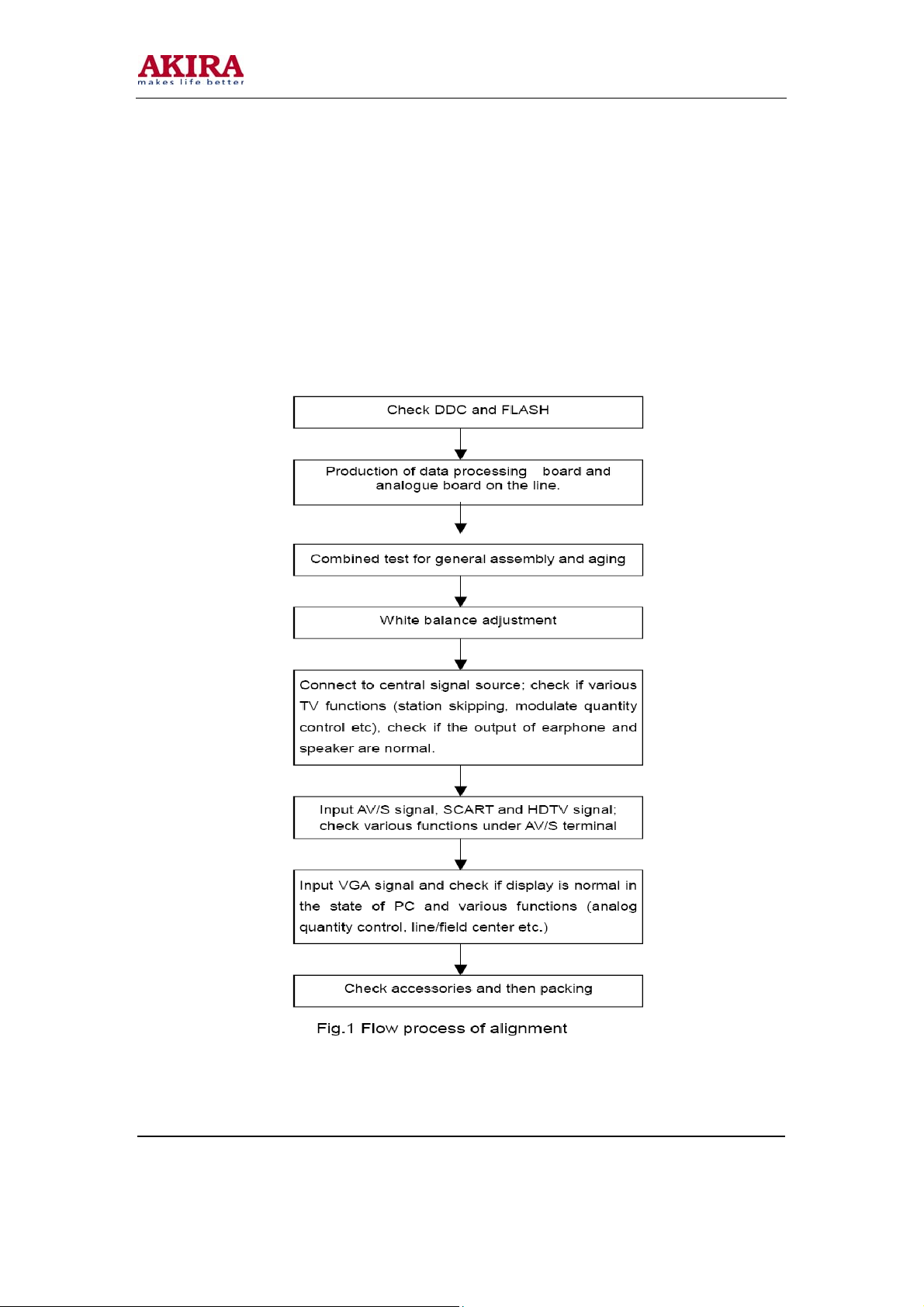

2. The alignment flow chart (see below figure)

Model No.: LCT-32PBSTP.doc

Version: 1.0

-15 -

3 Unit adjustments

Method for entering factory menu: Press MENU → -/--→9→1→8 one by one, then enter

factory menu, press the SLEEP button to select adjustment page, exit factory menu to press

the MENU button.

4 EEPROM initialization

Enter the first page of factory menu, select “EEPROM INITIALIZE” to be “on”, after turn off the

unit, repeating turn on the unit is over.

5 white balance adjustment

Input PAL signal of 16-level gray-scale (TIMING969 PATTAN921) from VG848 to AV channel,

enter user menu, set color to 0, APL to “off”, enter factory menu white balance adjustment

page, select color temperature, fixed the GGAIN to 50H, adjust BGIAN and RGAIN to 400nits,

then the color coordinate to 284, 299. Fixed the BOFFSET to 50H, adjust GOFFSET and

ROFFSET to 5nits, then the color coordinate to 284, 299. Select cool tint, adjust color

coordinate to 270, 283. Select warm tint, adjust color coordinate to 313, 329.

6. Performance Inspections

6.1 TV function

Enter the search menu → auto search, connect RF-TV terminal to the central signal source,

check if there is station skipping.

6.2 AV/S input terminal

Input AV/S signal, check the picture and sound is normal

6.3 SCART terminal (note: check the SCART terminal, set display mode to AUTO)

6.3.1 Check SCART INPUT special function

6.3.1.1 SCART1 terminal function

a. After turn on the unit, connect the SCART1 to PM54200 signal generator, then the unit auto select to SCART1 mode.

b. SCART signal generator sends CVBS signal to the unit, check if the image and sound is normal. It sends image format (16:9 and 4:3) to the unit, check if the unit auto identify is normal. Change SCART signal to RGB signal, check if the image and sound is normal, It sends image format (16:9 and 4:3) to the unit, check the unit auto identify is normal. Select the PIP mode, connect earphone cable, and check if the sound is normal.

Model No.: LCT-32PBSTP.doc

Version: 1.0

-16 -

6.3.1.2 SCART2 terminal function

a. After turn on the unit, connect the SCART2 to PM54200 signal generator, then the unit auto select to SCART2 AV mode.

b. SCART signal generator sends CVBS signal to the unit, check if the image and sound is normal. It sends image format (16:9 and 4:3) to the unit, check if the unit auto identify is normal, and display the SCART2 AV. Change SCART signal to Y/C signal, select the SCART2 Y/C channel mode, check if the image and sound is normal, It sends image format (16:9 and 4:3) to the unit, check if the unit auto identify is normal. Select the PIP mode, connect earphone cable, and check if the sound is normal.

6.3.2 Check SCART OUTPUT special function

6.3.2.1 SCART1 terminal function

Input signal in the TV states, connect the SCART1 terminal to the TV. Change the TV program,

check if output signal of SCART1 is TV signal, and the image and sound is normal, change the

unit channel, the CART1 output TV signal, it can not other signal.

6.3.2.2 SCART2 terminal function

Input signal in the TV/AV/S states, connect the SCART2 terminal to the TV. Change the unit

channel, check if output signal of SCART2 is current signal, and the image and sound is

normal.

6.4 YPbPr/YPbPr terminal Input the YUV signal (VG-848 signal generator), separate input

YUV format signal of table 1, check if the image and sound is normal. If the image is deflection

of the H-field, select auto sync correction of the SCREEN menu. If the image is slight disturb,

adjust the FINE TUNE correction of the SCREEN menu. Open the PIP mode, connect the

earphone, and check if the image and sound is normal.

Table 1 YUV Signal Format

H-frequency(kHz) V-frenquency(Hz) Signal

1 15.734 59.94 SDTV 480i

2 31.469 59.94 HDTV 480p

4 44.955 59.94 HDTV 720p

6 33.716 59.94 HDTV 1080i

7 15.625 50 SDTV 576i

8 31.25 50 HDTV 576p

9 33.75 50 HDTV 1080i

10 37.50 50 HDTV 720p

Model No.: LCT-32PBSTP.doc

Version: 1.0

-17 -

6.5 VGA terminal Input the VGA signal (VG-848 signal generator), separate input VGA format signal of table 1, check if the image and sound is normal. If the image is deflection of

the H-field, select auto sync correction of the SCREEN menu. If the image is slight disturb,

adjust the FINE TUNE correction of the SCREEN menu. Open the PIP mode, connect the

earphone, and check if the image and sound is normal.

6.6 HDMI terminal HDMI signal format receive the three high definition signal: 480P,

576P,720P/50/60 Hz, 1080I/50/60 Hz, except for the table 2 signal. Check if the image

(contain HDCP ON and OFF) and sound is normal. If the image is deflection of the H-field,

select auto sync correction of the SCREEN menu. Open the PIP mode, connect the earphone,

and check if the image and sound is normal.

TABLE2 VGA Signal Format

Resolution H-Frequency(kHz) V-Frenquency(Hz)

1 720 X 400 31.469 70.086 28.322 IBM

2 640 X 480 31.469 59.94 25.175 IBM

3 640 X 480 37.861 72.809 31.5 VESA

4 640 X 480 37.5 75 31.5 VESA

5 640 X 480 43.269 85.008 36 VESA

6 800 X 600 35.156 56.25 36 VESA

7 800 X 600 37.879 60.317 40 VESA

8 800 X 600 48.077 72.188 50 VESA

9 800 X 600 46.875 75 49.5 VESA

10 800 X 600 53.674 85.061 56.25 VESA

11 1024 X 768 48.363 60.004 65 VESA

12 1024 X 768 56.476 70.069 75 VESA

13 1024 X 768 60.023 75.029 78.75 VESA

14 1280 X 1024 63.98 60.02 108.00 VESA

Point clock pulse

Remark

Frenquency(MHz)

15 1024 X 768 68.667 84.98 94.486 VESA

Model No.: LCT-32PBSTP.doc

Version: 1.0

-18 -

6.7 Ex-Factory setting see to TABLE 3 -TABLE 9 TABLE 3 Factory Option Menus

Items Ex-Factory setting

IIC Bus-off Off

EEPROM Erase Off

Backlight Adjustable Off

Back Light 100

Menu Timeout 5

Blank switch enable On

ShowLogo On

Auto Program Sort On

TT Char Group

Dynamic Scart Off

Note: the latter 6 items should set according to clients’ require.

West Europe / East Europe / Cyrillic

/ Turkish /Greek/Arabic/Hebrew

Model No.: LCT-32PBSTP.doc

Version: 1.0

-19 -

TABLE 4 Factory Audio Setting TABLE 5 Factory Video Limit Setting

Items

LCT-27PBSTP LCT-32PBSTP LCT-37PBSTP LCT-42PBSTP

Volume 1 2CH 2CH 2CH 2CH

Volume 25 55H 57H 5AH 5AH

Volume 50 5CH 5EH 61H 61H

Volume 75 64H 65H 69H 69H

Volume 100 6BH 6DH 72H 72H

HP VOLUME SETTING

Volume 1 64H

Volume 25 96H

Volume 50 A1H

Volume 75 AEH

Volume 100 BEH

MSP Scart1

72H

Volume

Prescale Scart 4CH

Ex-Factory setting

Prescale FM/AM 27H

Prescale Nicam 64H

Scart TV Volume 20H

Scart AV Volume 72H

D/K select HDEV3 Off

AVC Off

Equalizer Bands

Max

Spatial Mode 0

Spatial Strength 00H

60H

Model No.: LCT-32PBSTP.doc

Version: 1.0

-20 -

Items CVBS SC-RGB YPBPR D-SUB HDMI

Bright Min D5H CFH C7H CFH D2H

Bright Middle 00H 00H 03H 05H 07H

Bright Max 38H 3DH 34H 3DH 31H

Contrast Min 09H 09H 09H 09H 08H

Contrast Middle 20 25H 20H 25H 23H

Contrast Max 2AH 31H 29H 31H 2CH

Sharpness Min 00H 00H 00H 00H 00H

Sharpness Middle 10H 10H 10H 10H

Sharpness Max 1FH 1FH 1FH 1FH 1FH

Color Min 00H 00H 00H 00H 00H

Color Middle 1DH 1DH 1DH 1DH 1DH

Color Max 2DH 2DH 2DH 2DH 2DH

Hue Min 80H 80H 80H 80H 80H

Hue Middle 20H 20H 20H 20H 20H

Hue Max 7FH 7FH 7FH 7FH 7FH

10H

Model No.: LCT-32PBSTP.doc

Version: 1.0

-21 -

TABLE 6 White Balance Adjust TABLE 7 Image analog setting TABLE9 SOUND

equilibrium value setting

ITEMS LCT-27PBSTP LCT-32PBSTP LCT-37PBSTP LCT-42PBSTP

R Offset 55 55 54 53

G Offset 51 53 57 49

B Offset 50 50 50 50

R Gain 42 36 36 37

G Gain 50 50 50 50

B Gain 21 40 51 38

Brightness 51 51 51 51

Contrast 100 100 100 100

Color Temperature Standard

R Offset 60 59 58 55

G Offset 55 55 58 52

B Offset 50 50 50 50

R Gain 35 25 24 32

G Gain 50 50 50 50

B Gain 28 48 61 48

Brightness 51 51 51 51

Contrast 100 100 100 100

Color Temperature Cold

R Offset 55 49 49 44

G Offset 53 51 53 47

B Offset 50 50 50 50

R Gain 62 51 58 66

G Gain 50 50 50 50

B Gain 8 23 33 22

Brightness 51 51 51 51

Contrast 100 100 100 100

Color Temperature Warm

Model No.: LCT-32PBSTP.doc

Version: 1.0

-22 -

CVBS Vivid Standard Mild Custom

Contrast 90 80 50 80

Brightness 40 35 35 35

Color 70 60 40 60

Hue 00 00 00 00

Sharpness 60 50 30 50

SC-RGB Vivid Standard Mild Custom

Contrast 90 85 50 85

Brightness 60 50 35 50

Color 80 65 40 65

Hue 00 00 00 00

Sharpness 60 50 30 50

YPBPR Vivid Standard Mild Custom

Contrast 90 85 50 85

Brightness 50 40 35 50

Color 80 65 40 65

Hue 00 00 00 00

Sharpness 60 50 30 50

D-SUB Vivid Standard Mild Custom

Contrast 90 80 50 80

Brightness 50 40 35 40

Color 80 65 40 65

Hue 00 00 00 00

Sharpness 60 50 30 50

HDMI Vivid Standard Mild Custom

Contrast 90 80 50 80

Brightness 50 35 35 35

Color 80 70 40 70

Hue 00 00 00 00

Sharpness 60 50 30 50

Note: in factory menu states, it can change the factory mode to value of the image and sound, else select the image

and sound balanced value in the other states.

Model No.: LCT-32PBSTP.doc

Version: 1.0

-23 -

Live Pop Rock Custom

120 Hz 50 50 65 50

500 Hz 50 50 55 50

1.5 kHz 50 60 55 50

5 kHz 80 70 55 50

10 kHz 85 70 55 50

6.8 Ex-factory setting of user menu

6.8.1 select TV channel

6.8.2 video menu, Mode: Standard, NR: Medium, APL:ON

6.8.3 sound menu, Volume: 20, Balance: 00, Equalizer: Custom, HP Volume: 20;

6.8.4 edit menu, Color System: Auto, Sound System: DK;

6.8.5 option menu, Default Zoom: Auto, Child Lock: Off, Menu Language: English, Country:

UK, WSS: OFF, Blue Screen: On.

Note: the 6.8.4 and 6.8.5 items should set according to clients require.

Model No.: LCT-32PBSTP.doc

Version: 1.0

-24 -

Software Upgrading

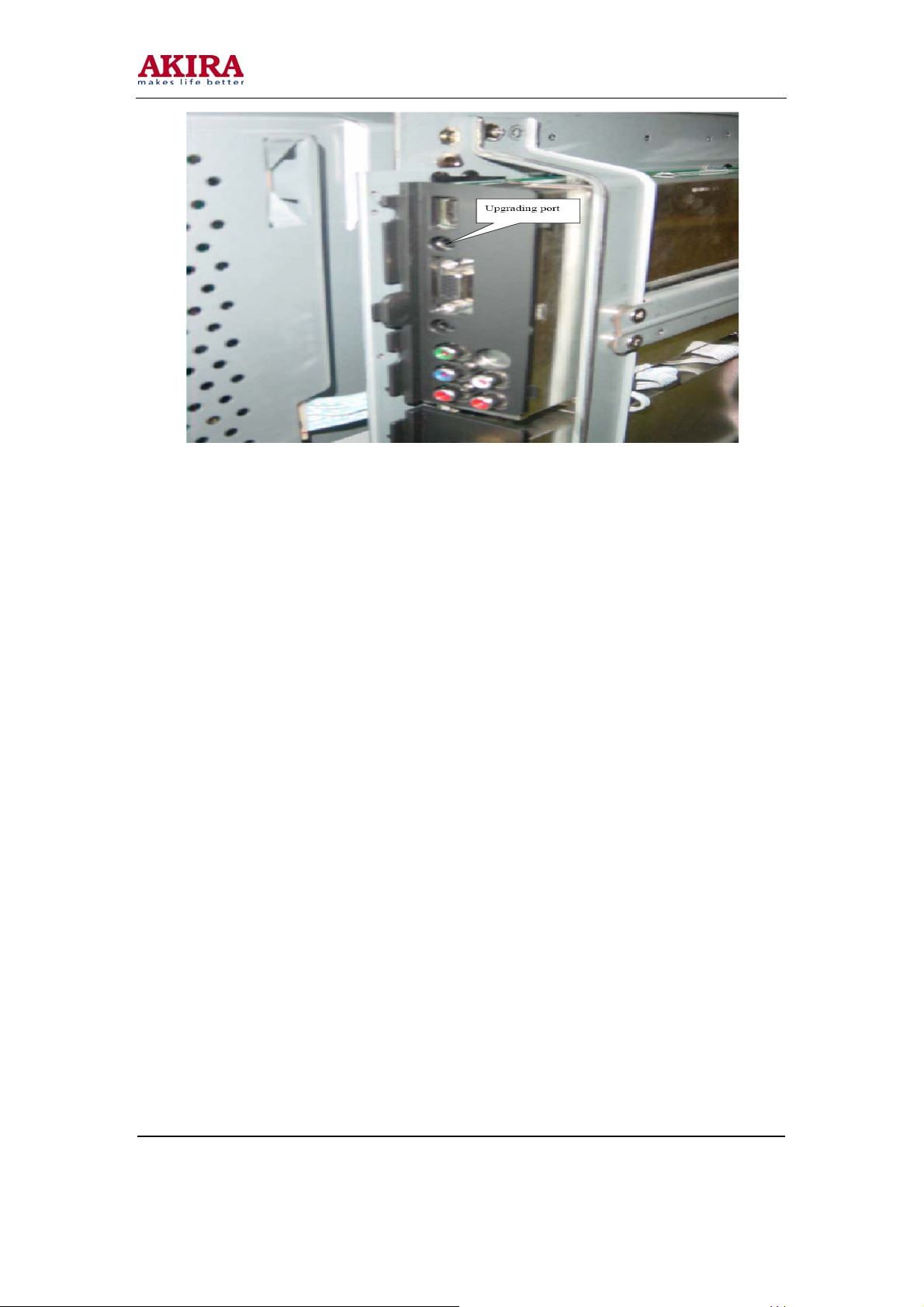

1. Enter the software upgrading state of the TV Method 1: press the VOL- button in the unit, turn on the main power switch, then the screen display black screen, but the indicator to blue. Method 2: Enter factory menu, select the IIC-BUS OFF item.

2. Connection upgrading tools with upgrading port.

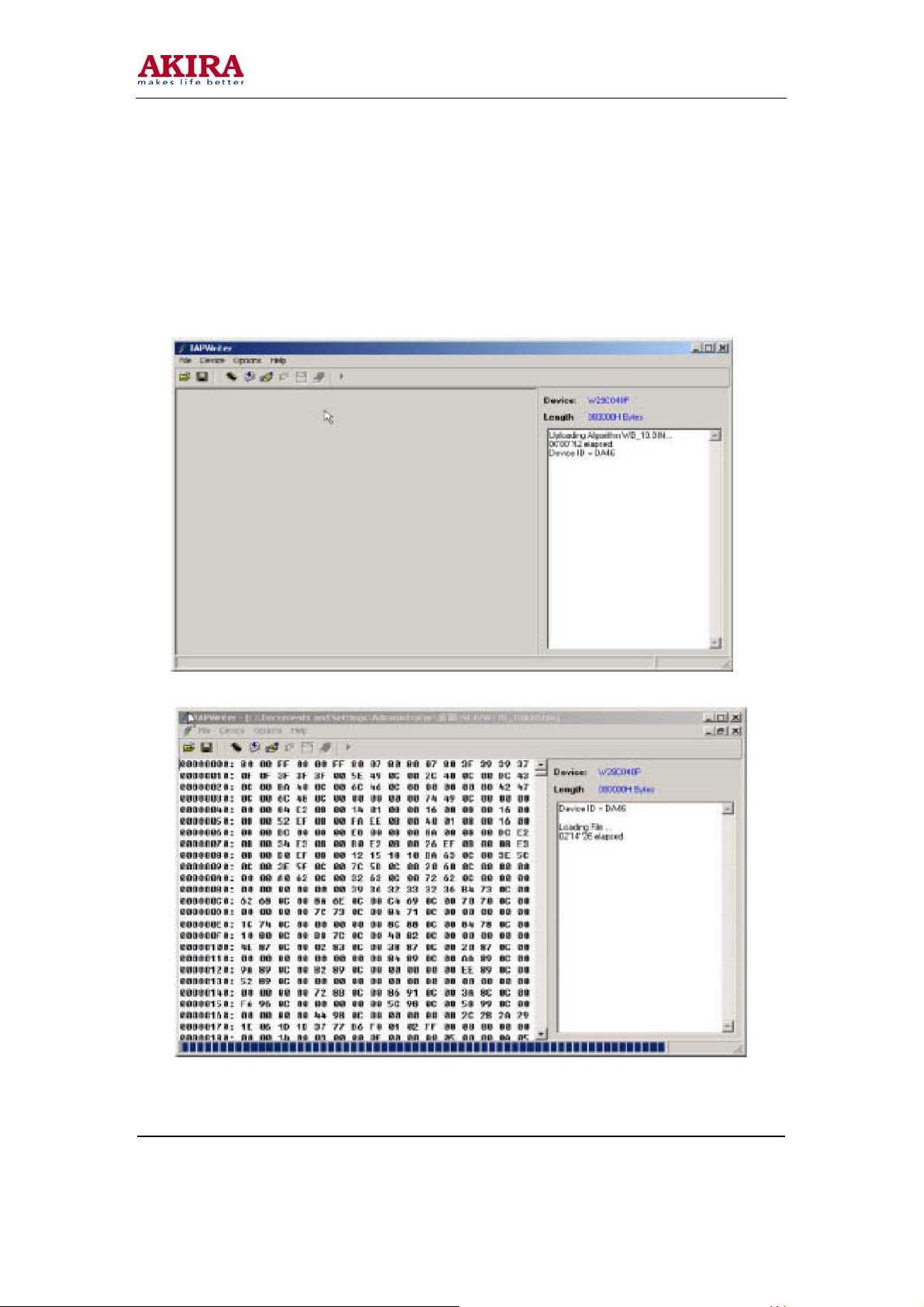

3. Dual- click IAPWriter logo, enter the upgrading states (if the PC and the IIC communication trouble, it can prompt.

4. Select the file menu load the software follow as:

Model No.: LCT-32PBSTP.doc

Version: 1.0

-25 -

5. Select WRITE DEVICE item of the device menu, till the right screen display “DONE”.

6. Turn off the power , restart the unit.

Note: because of the software, it may be no-stabilization, the software can auto download

and write.

Model No.: LCT-32PBSTP.doc

Version: 1.0

-26 -

NOTE: Do not shut the power off or turn the TV set on during the FLASH write.

Otherwise it may lead to no way for flash to rewrite.

Model No.: LCT-32PBSTP.doc

Version: 1.0

-27 -

WWoorrkkiinngg PPrriinncciippllee AAnnaallyyssiiss

1. Analog signal flow

Antenna reception signal send to integrative tuner (contain HF and IF amplifier circuit), the

tuner is controlled the command (SDA and SCL) of the MCU N301 (M16C), select appropriate

channel to system switch, via HF amplifier and IF amplifier decode, output video signal of

2VPP and sound signal of 1VPP.

Sound signal (SCART1, 2 sound, AV sound, YPbPr, HDMI and D-SUB) via N581 HEF4052BT

(sound diverter switch) to output signal, it send to N801(MPS3410 sound processing and

volume control) switch of audio. Select right/left sound channel, their send to digital sound

amplifier N803 (TPA3008) amplify, then send to speaker.

After output video signal of tuner, SCART1 video signal and RGB signal via matched

resistance, the signal thought alone channel send to main decode IC(N101 SVP-EX52) video

switch, A/D transition, digital decode, image scale and OSD superposition, then send to LVDS

level drive for LCD screen.

AV, S-Video, SCART2 video and Y/C signal thought matched resistance, the signal send to

the N506 video switch (SN74CBT3257CDR), via switching to selected signal (EX52_Y and

EX52_C) to main decode IC (N101 SVP-EX52) video switch, A/D transition, digital decode,

image scale and OSD superposition, then send to LVDS level drive for LCD screen.

D-sub and YPbPr signal thought matched resistance, the signal send to the N507 video switch

(SN74CBT3257CDR), via switching to selected signal (EX52_YUV) to main decode IC (N101

SVP-EX52) video switch, A/D transition, digital decode, image scale and OSD superposition,

then send to LVDS level drive for LCD screen.

2. Digital signal flow:HDMI signal thought HDMI reception chip N405 (SiI9011HDMI with

HDCP function), after receive, output digital format signal send to SVP-EX52 PIP channel

thought image scale and OSD superposition, then send to LVDS level drive for LCD screen.

The HDMI chip output audio digital format signal change to analog sound signal from N403

(CS4344 audio DA transfer chip), then N581 switched to N801 (MPS3410 sound processing

and volume control).

3. TELETEXT function

This unit adopt main decode IC N101(SVP-EX52) of Trident company, it has TELETEXT

decode function, after decoded, the teletext information in OSD display.

Model No.: LCT-32PBSTP.doc

Version: 1.0

-28 -

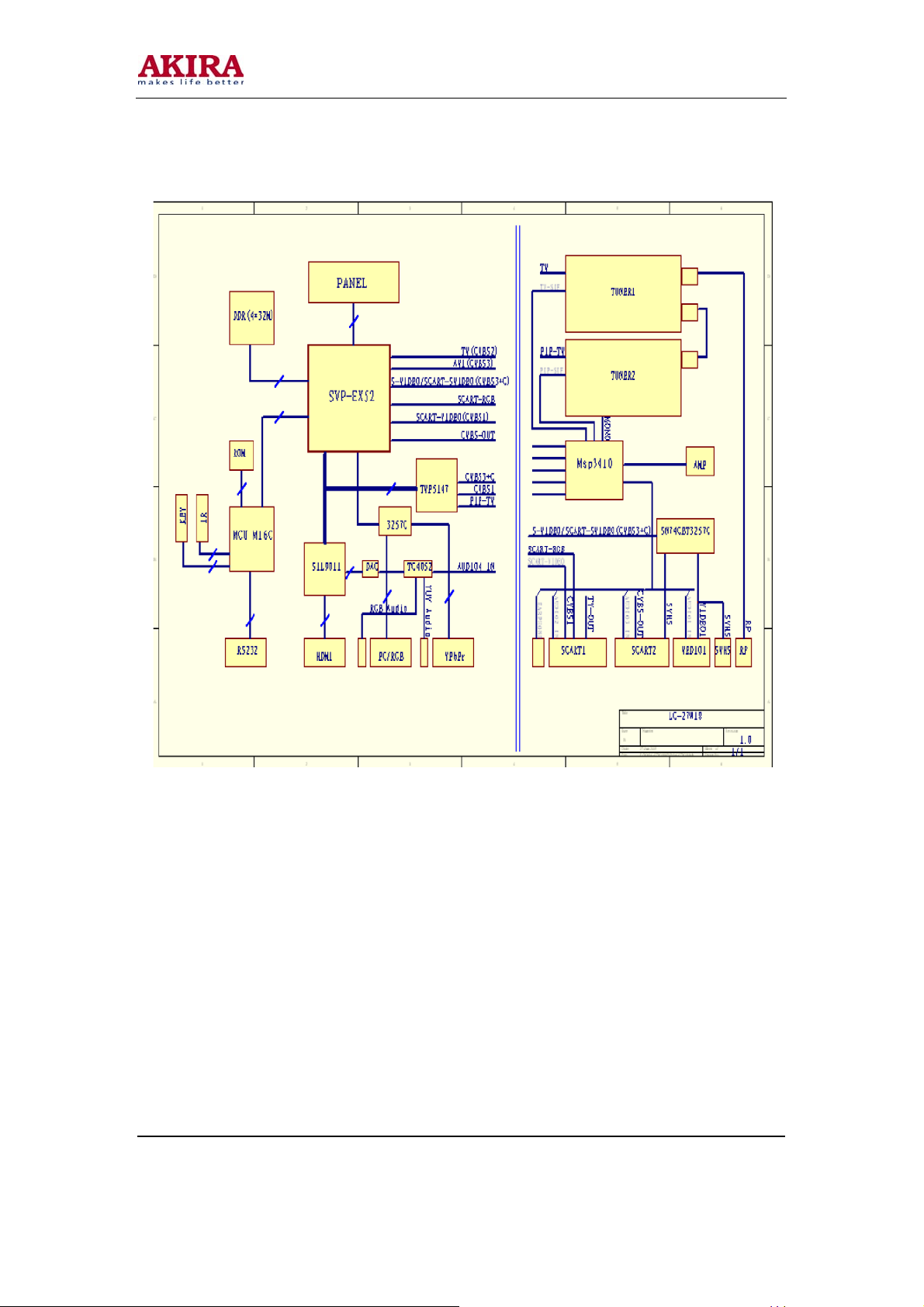

BBLLOOCCKK DDIIAAGGRRAAMM

Model No.: LCT-32PBSTP.doc

Version: 1.0

-29 -

IC Block Diagram

1. Sound processing IC (MSP3410)

Sound signal send to sound processing N801 MSP3410, and dual-circuit tuner has second

SIF, it sends to N801 (stereo decode and auto volume control), N801 has audio channel

switch, after switching in N581 (HEF4052BT), the audio input of VGA/HDMI/YPbPr will be sent

to N801 together with the audio signal of TV and AV to do the switching process. A way signal

thought volume and high-low sound controlled, output the left and right audio send to digital

audio amplifier N803 (TPA3008) amplify, then it send to speaker, other way signal output

left-right audio send to earphone amplifier N805 (NJW1109), after audio control and power

amplifier, it output to earphone socket. Other two ways signal output audio of TV out and AV

out by SCART terminal of video board. MSP3410 internal block diagram as follow:

Main pins instructions:

2, 3: SCL, SDA 27, 28: left-right audio of audio power amplification 36, 37: left-right audio of

earphone 24, 25: left-right audio of AV OUT 33, 34: left-right audio of TV OUT 47, 48: left-right

audio from main board 50, 51: left-right audio of SCART2 53, 54: left-right audio of SCART1 56,

57: left-right audio of AV IN 67, 69: SIF input of sub-channel and main-channel TV

59: MONO input of sub-channel TV

2. Sub-channel and SCART video signal decode IC (TVP5147)

Sub-tuner TUNER202 decode video, AV, S-VIDEO, SCART1 video, SCART2 video and Y/C

signal, after matching impedance, enter decoding IC N601 (TVP5147), so the PIP image of

sub-channel can selecting arbitrary video signal.

Model No.: LCT-32PBSTP.doc

Version: 1.0

-30 -

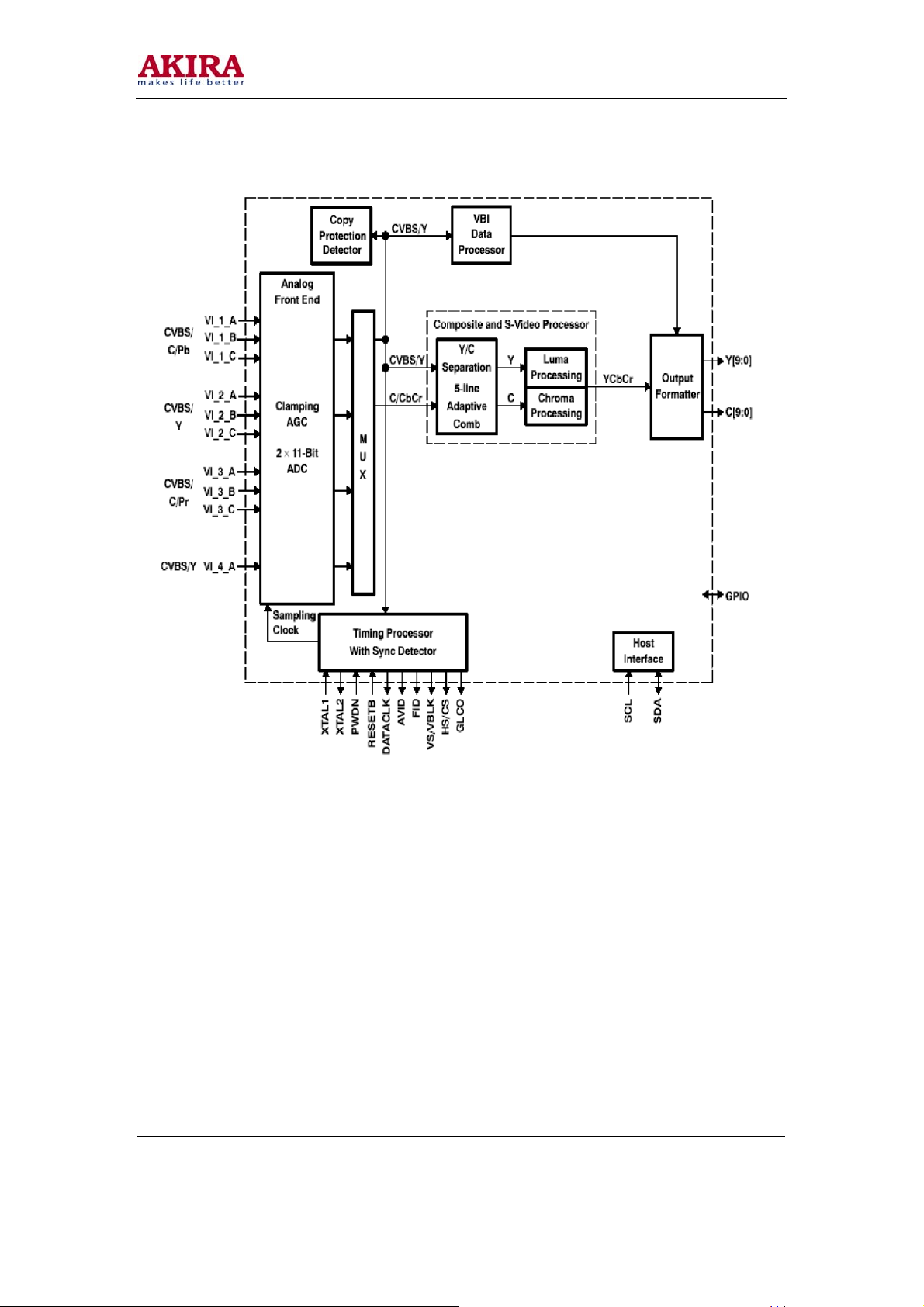

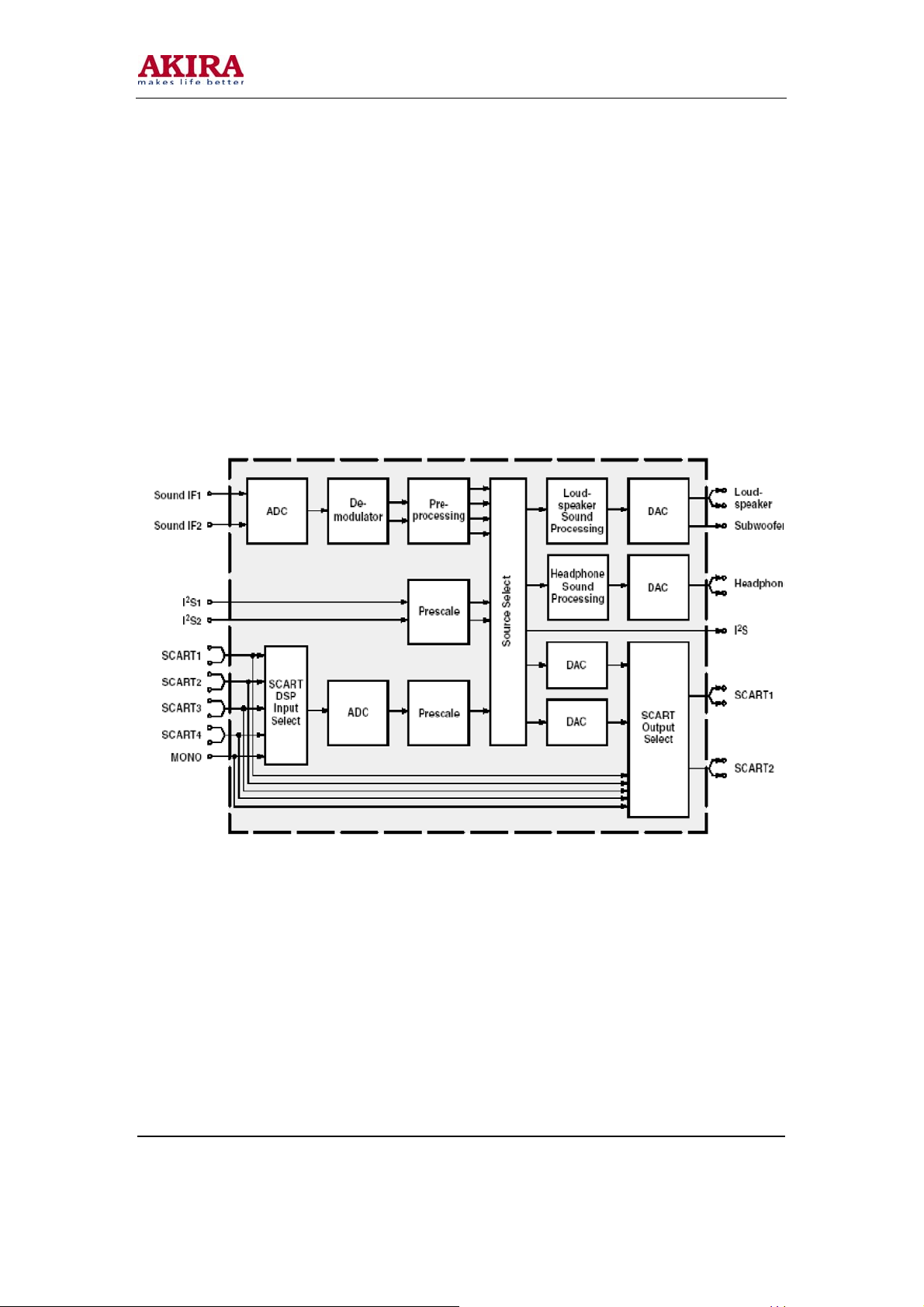

MSP3410 internal block diagram as follow:

TVP5147 main pins instructions:

28, 29: SCL, SDA

22: Video input for SCART1 7, 80: Y/C signal input for SCART2

16: video signal input of sub-tuner

8: Y signal input of AV or S-Video

1: C signal input of S-Video

9, 2, 18: YUV signal input of compatible DTV

Model No.: LCT-32PBSTP.doc

Version: 1.0

-31 -

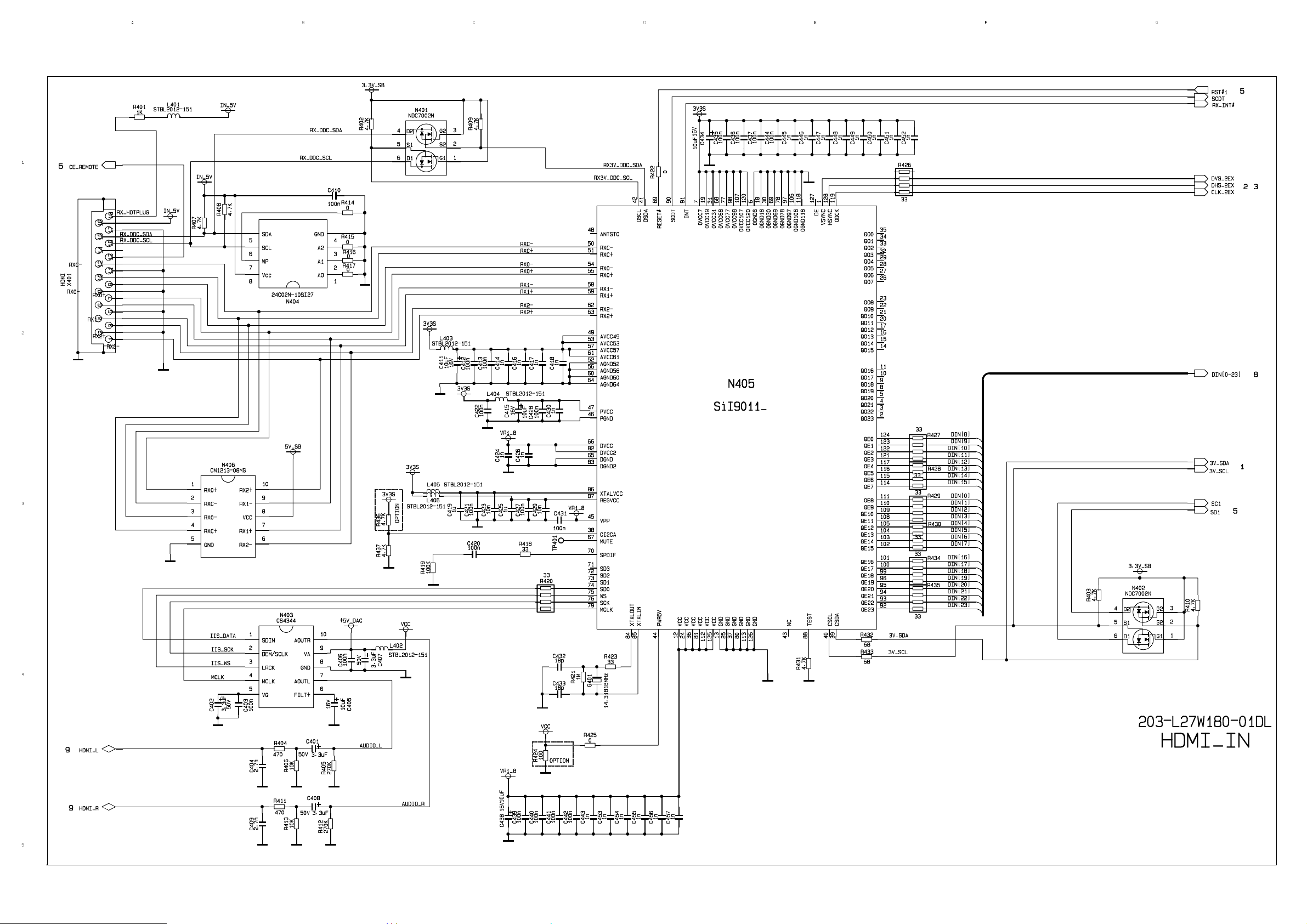

3. Reception HDMI signal (SiI9011)

After differential signal of HDMI send to N405 (SiI9011), then it transform 24bit for video digital

signal, and sent to IC N101 (SVP-EX52) processing.

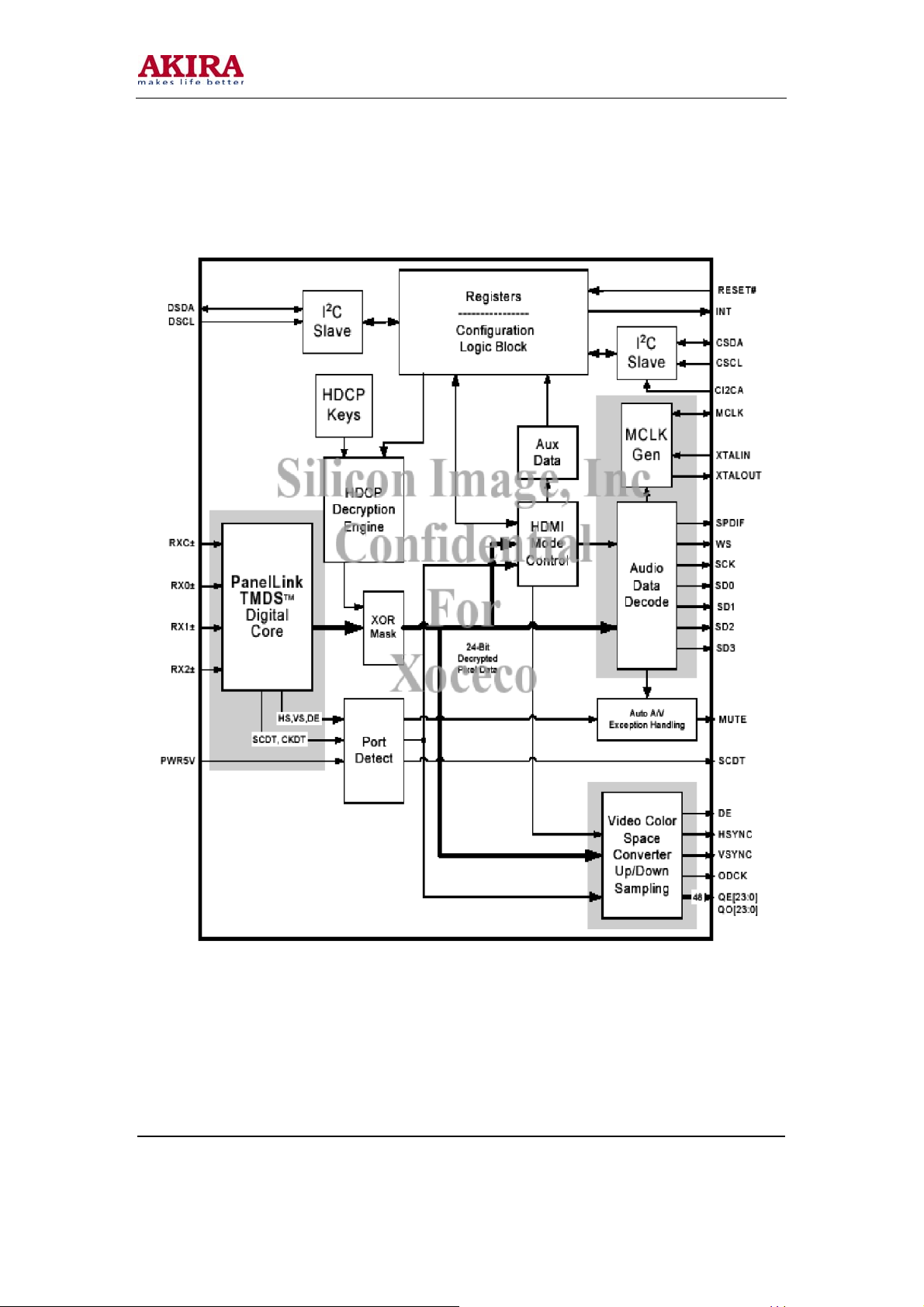

SiI9011 internal block diagram as follow:

Model No.: LCT-32PBSTP.doc

Version: 1.0

-32 -

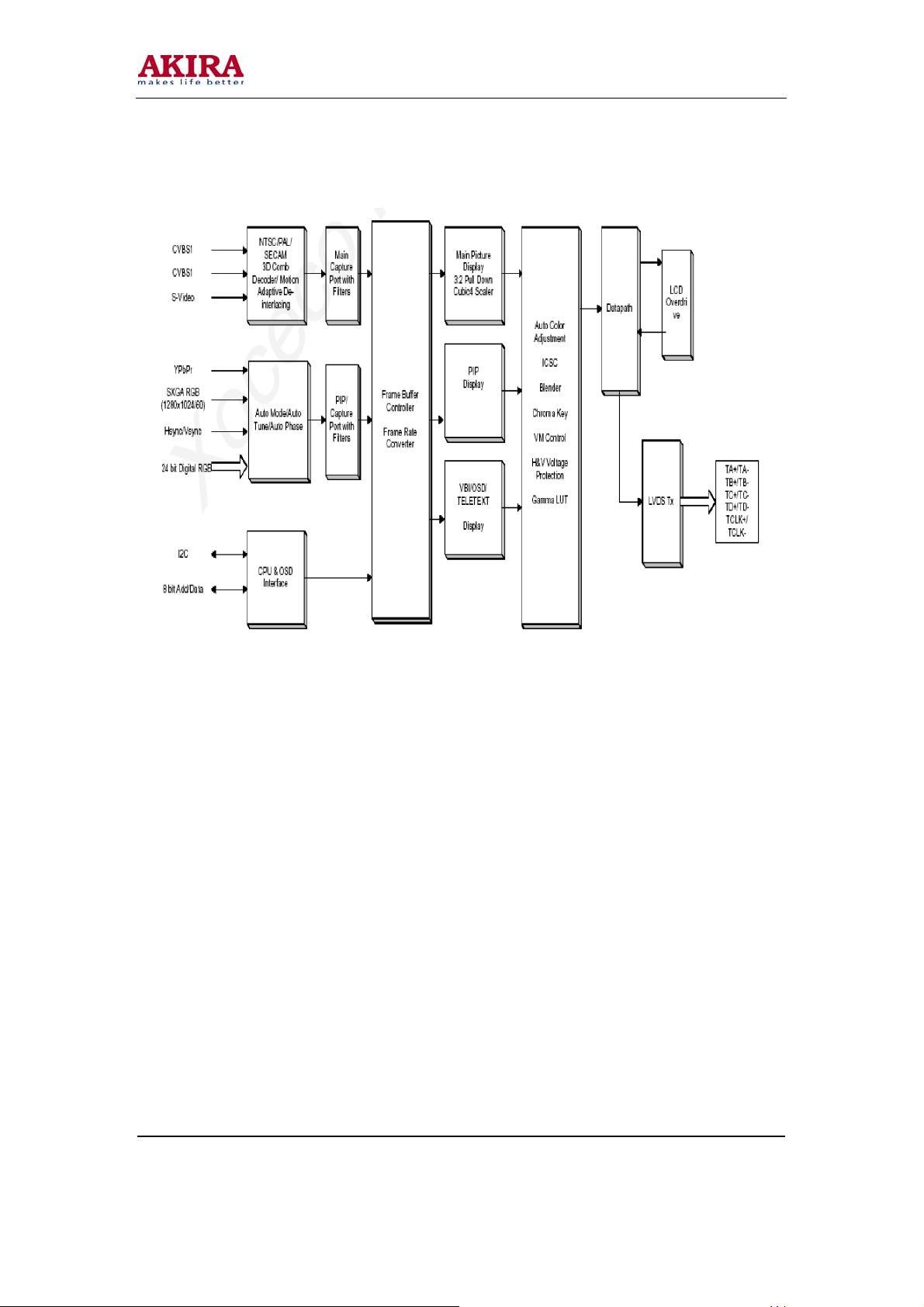

4. Main decode and processing IC(DPTV-SVP-EX52) SVP-EX52 internal block diagram as follow:

SVP-EX52 main pins instructions:

14, 16: SCL, SDA

10, 11: VGAHS, VGAVS input,

244, 231: EX52_Y and EX52_C input

243: main tuner video signal input

242: video signal input for Scart1

226, 248, 233: Scart1 RGB input

246, 232, 225: EX52_YUV input

236, 237: video output for SCART2

Model No.: LCT-32PBSTP.doc

Version: 1.0

-33 -

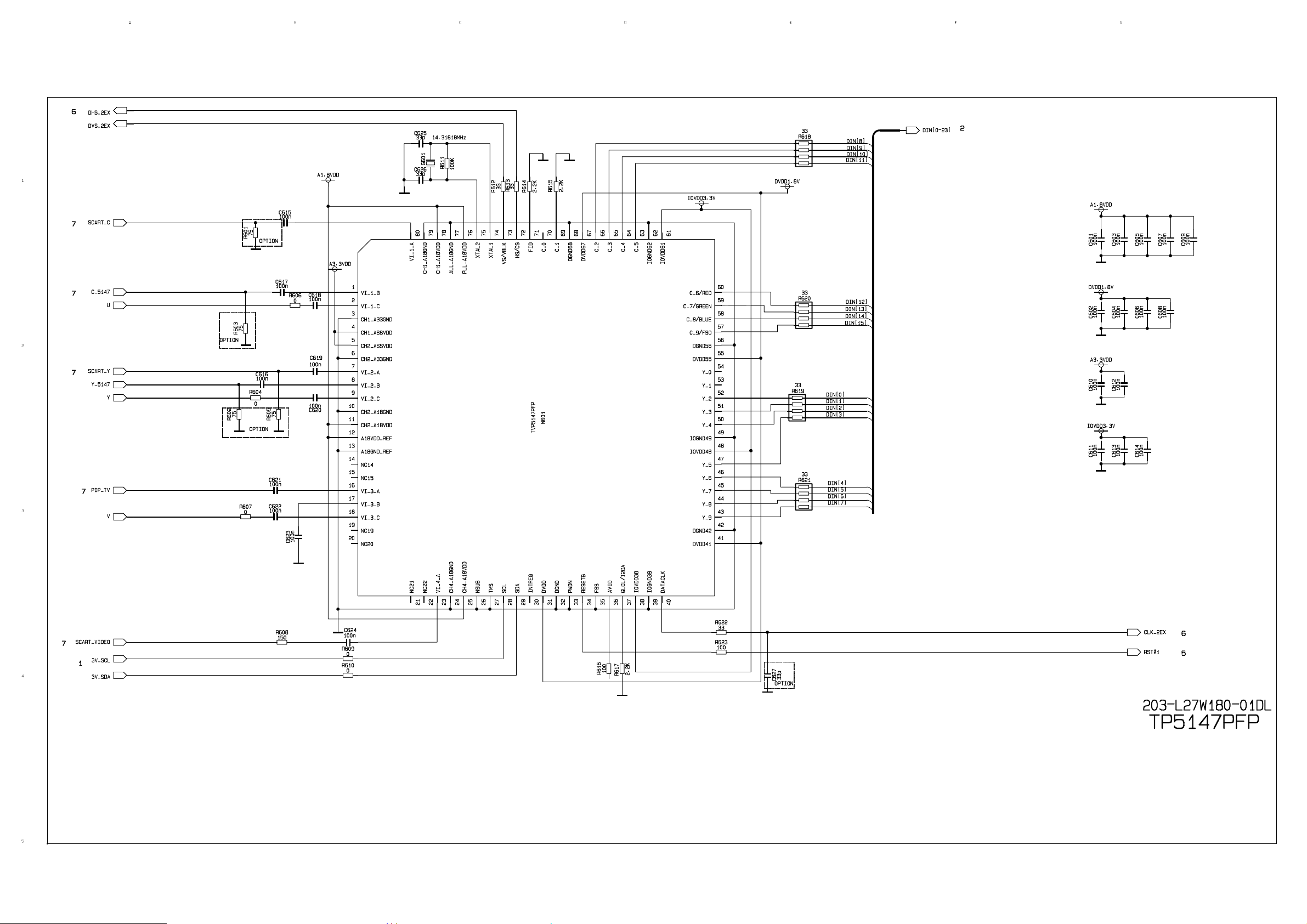

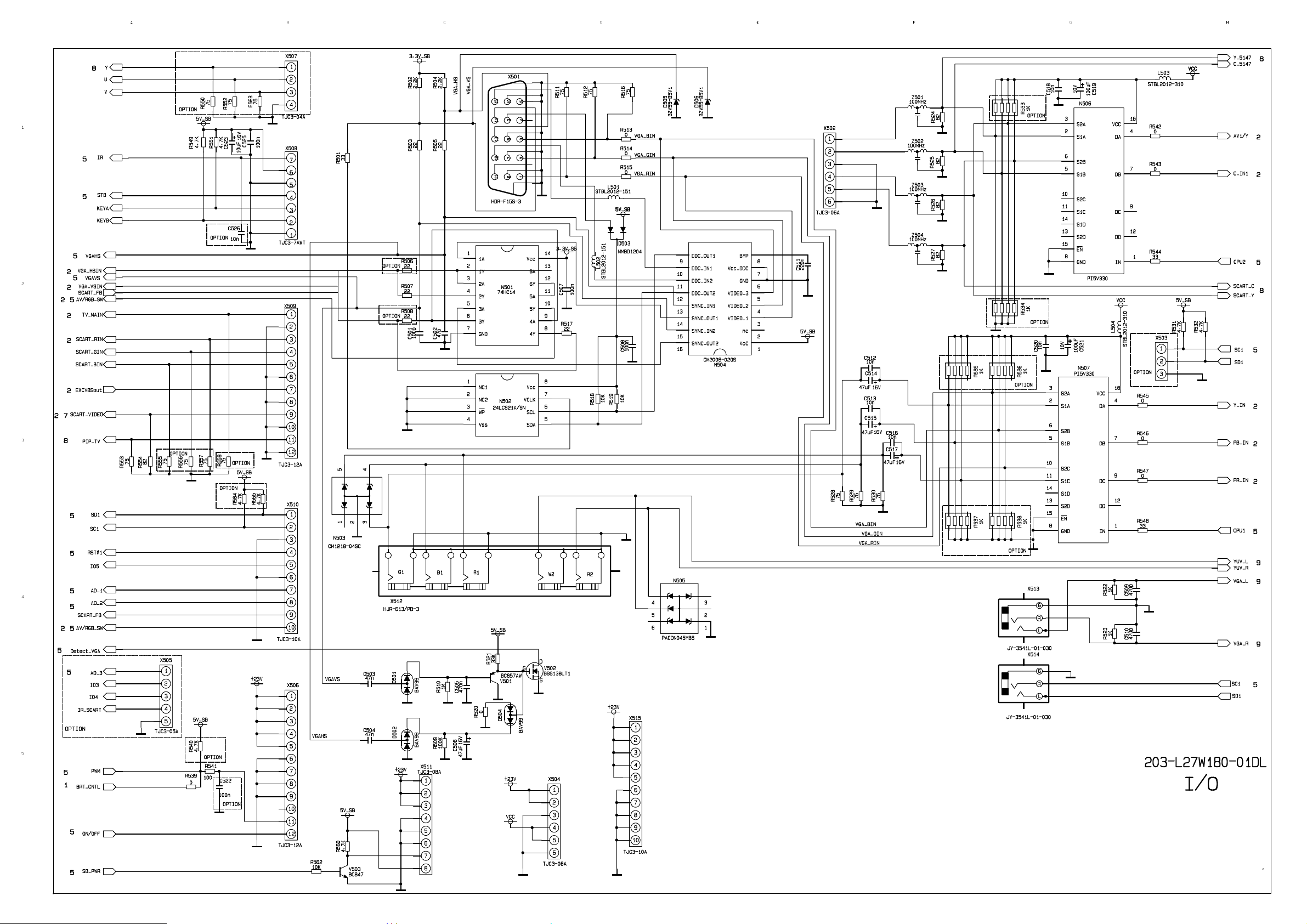

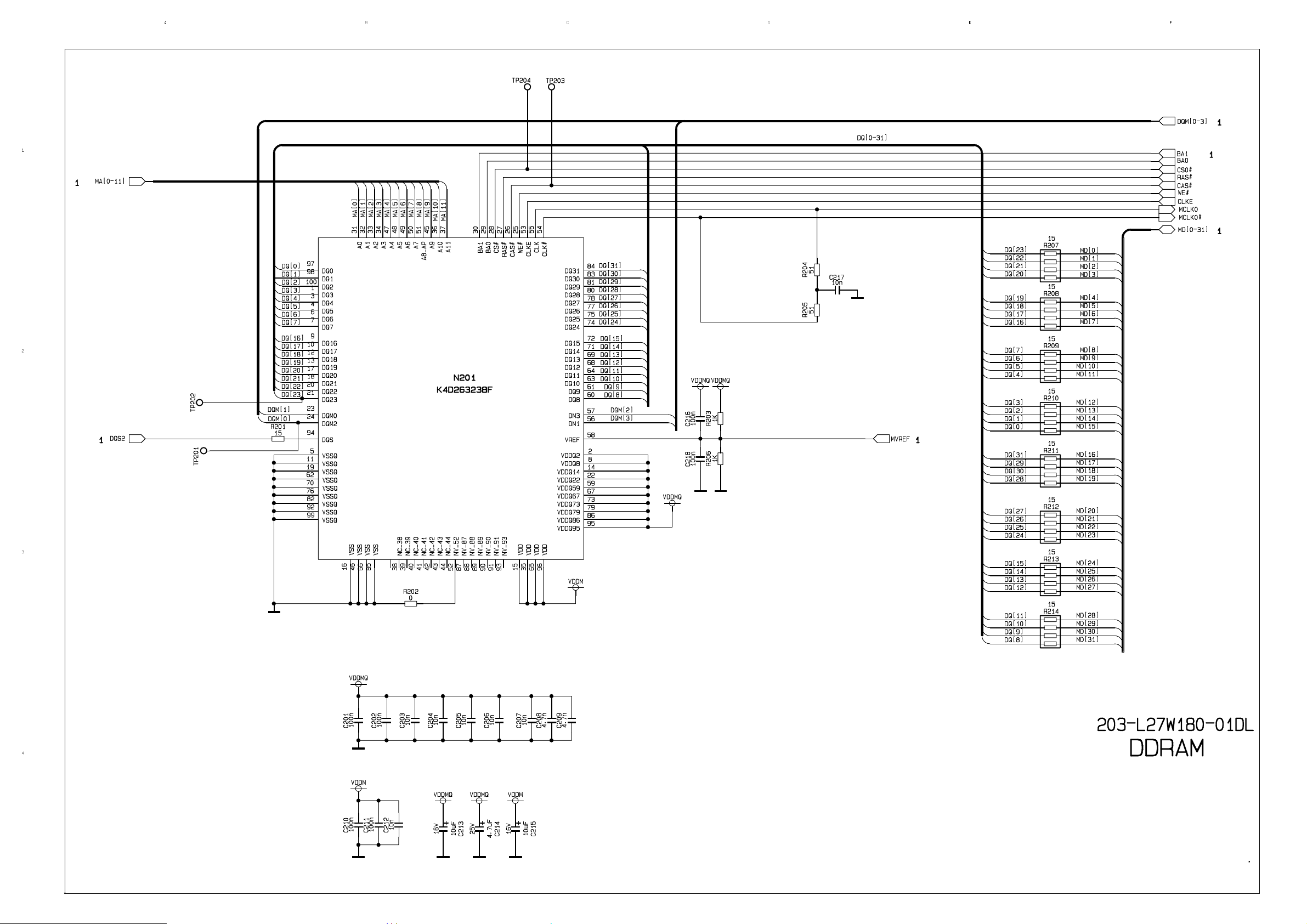

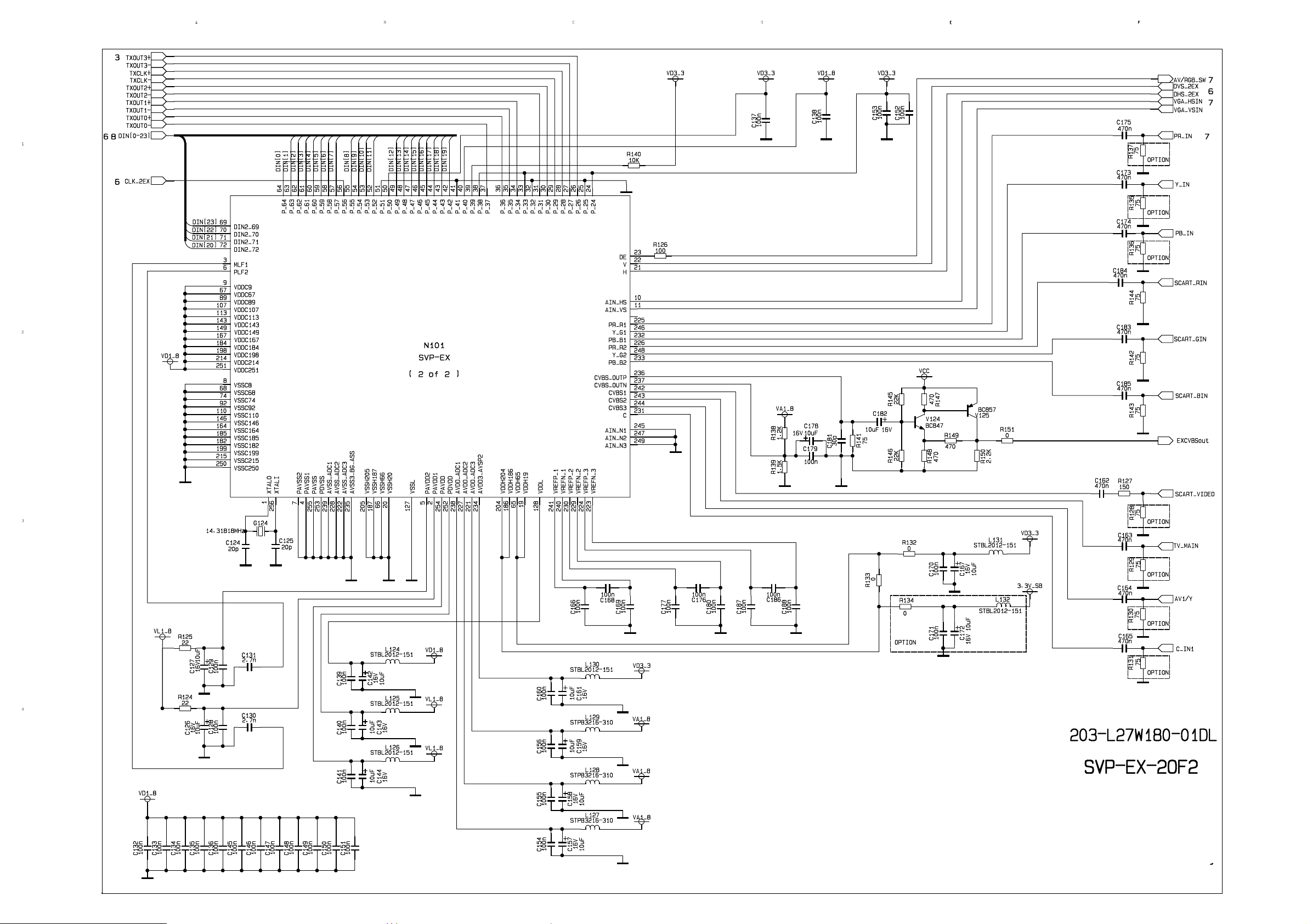

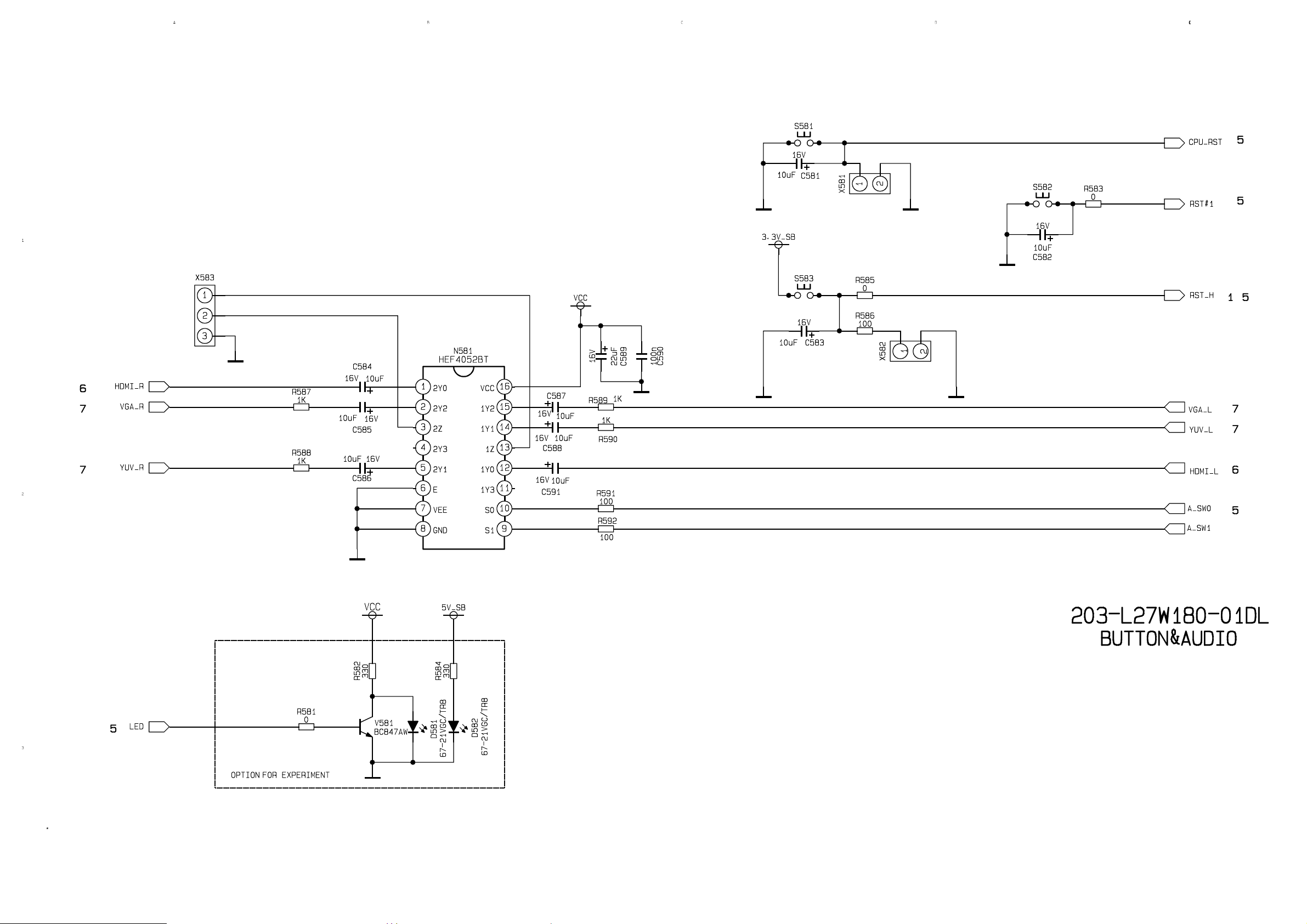

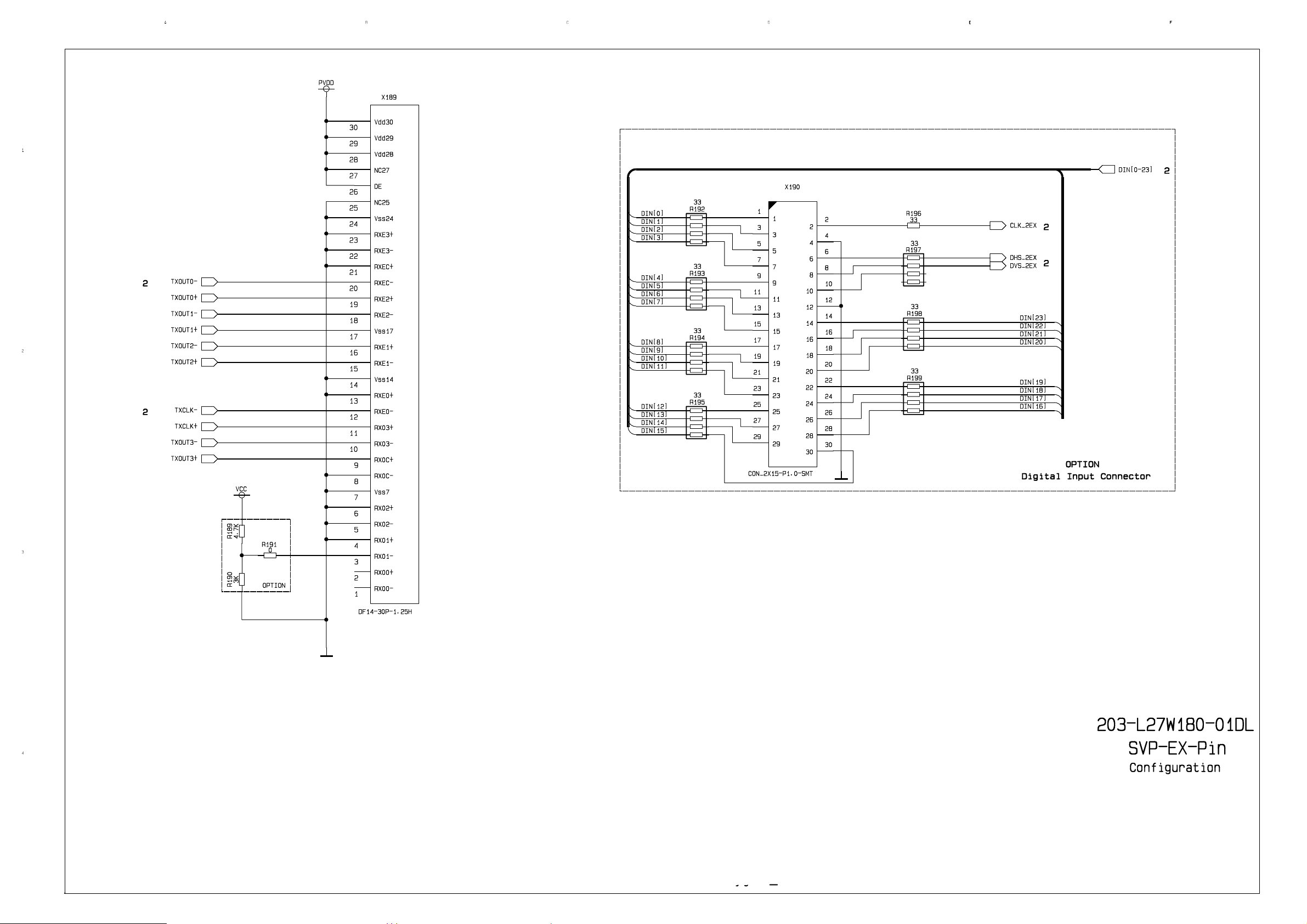

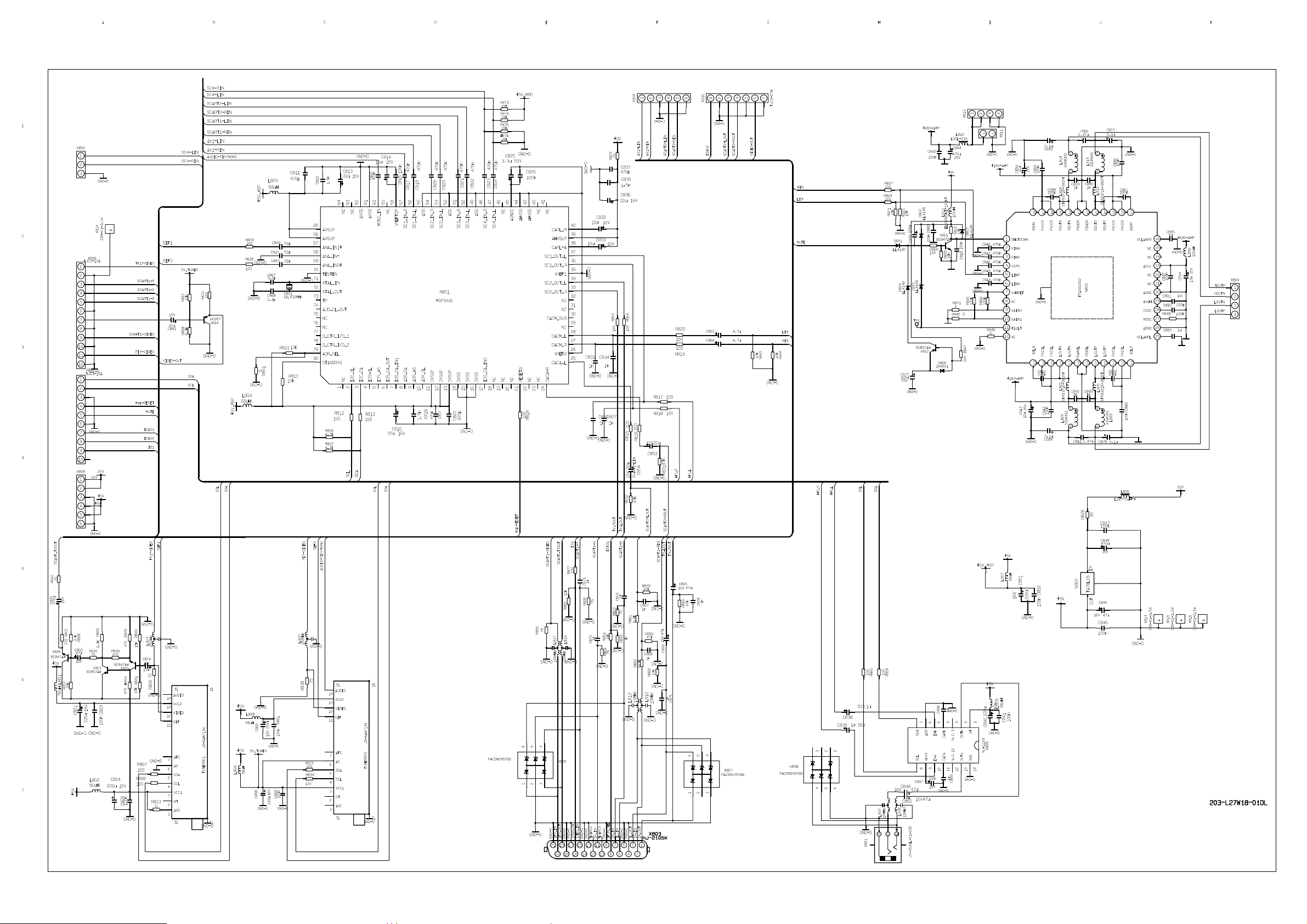

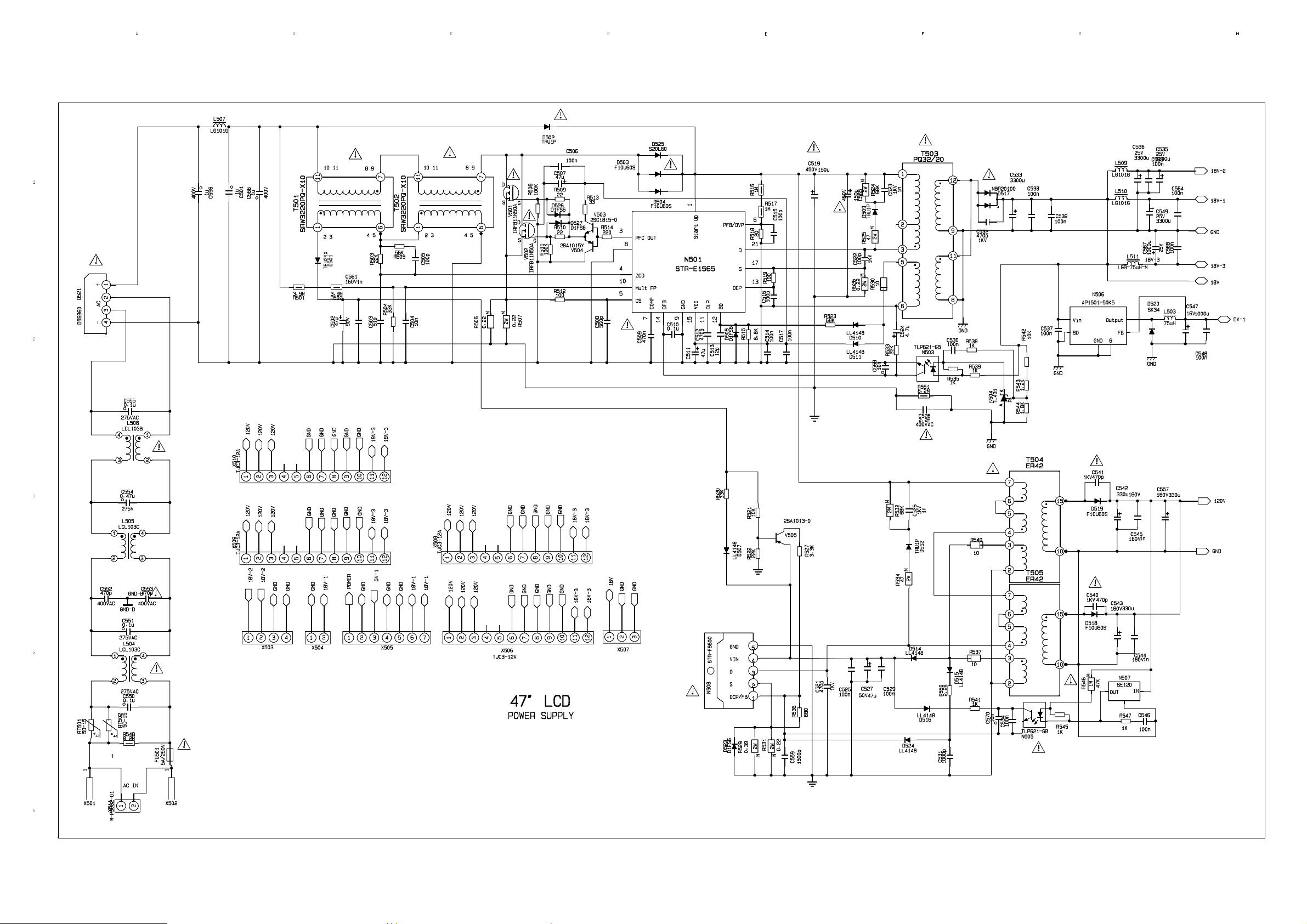

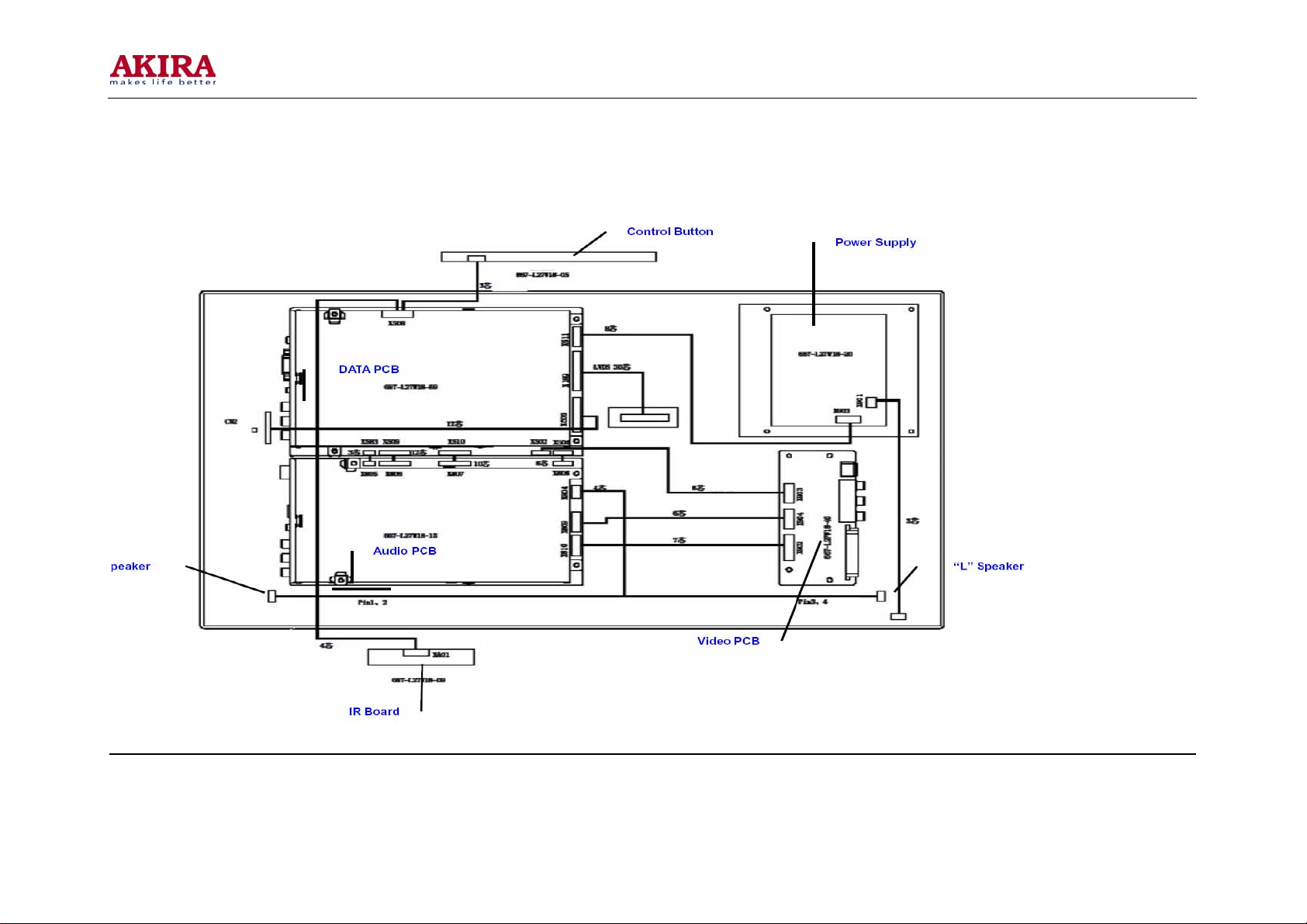

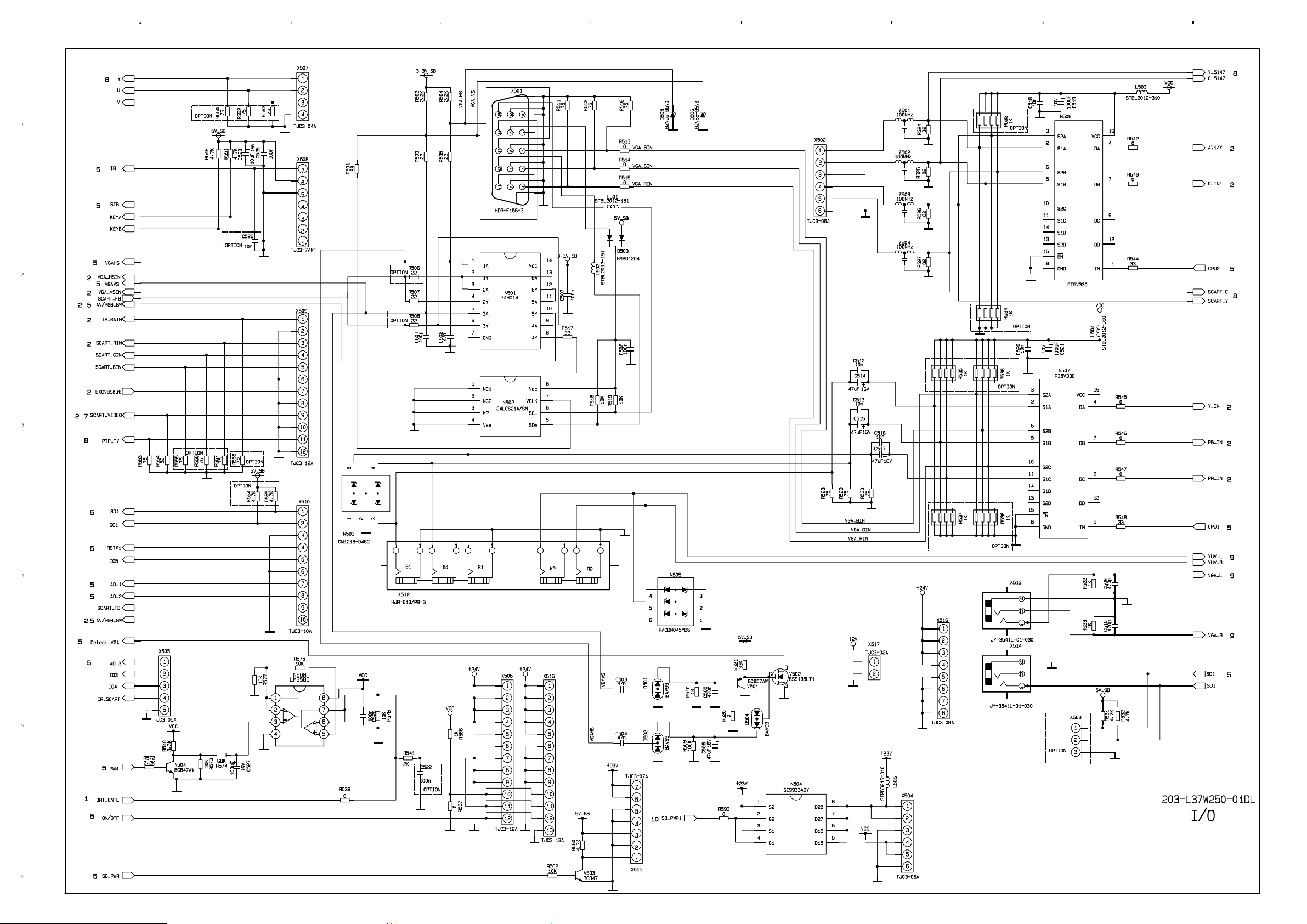

WWiirriinngg DDiiaaggrraamm

Model No.: LCT-32PBSTP.doc

Version: 1.0

-34 -

AAsssseemmbbllyy LLiisstt

Name Part no. Main IC and no.

Data processing board 667-L32W25-69 N101 DPTV-SVP-EX52 (353-DPTV0-20)

Audio processing board 667-L32W25-15 TUNER201 JS-6B2/122A2-A2 (590-40512-00)

Video processing board 667-L27W18-40

IR reception board 667-L32W18-09

N201 K4D2632838F (353-26323-10)

N302 W29C040P-90B (353-29040-30 )

N301 M30620SPGP (353-30620-20)

N601 TVP5147PFP (353-51470-10)

N405 SiI9011CLU (353-90110-10)

N403 CS4344CZZ (353-43440-10)

TUNER202 JS-6B2/121A2 (590-40511-00)

N801 MSP3410G (353-34100-80)

N803 TPA3008D2 (353-30080-10)

N805 NJW1109M (353-11092-20)

(LC-32W18S)

Button board 667-L27W18-05

(LC-32W18S)

667-L32W25-05

(LC-32W25S)

Model No.: LCT-32PBSTP.doc

Version: 1.0

-35 -

Identification criteria for the bright spot and dark spot of the LCD screen

Notes: 1 Definition of defected point (bright spot, dark spot): It is identified as a defected point if its area exceeds 1/2 of a single picture element (R, G, B). 2 Definition of bright spot: It is identified as a bright spot if it is bright in the state of dark field and its bright size remains unchanged 3 Definition of dark spot: It is identified as a dark spot if it is dark in the state of white field and its dark size remains unchanged 4 Definition of two neighboring points: Defects of a group of picture elements (RB,RG,GB).

Model No.: LCT-32PBSTP.doc

Version: 1.0

-36 -

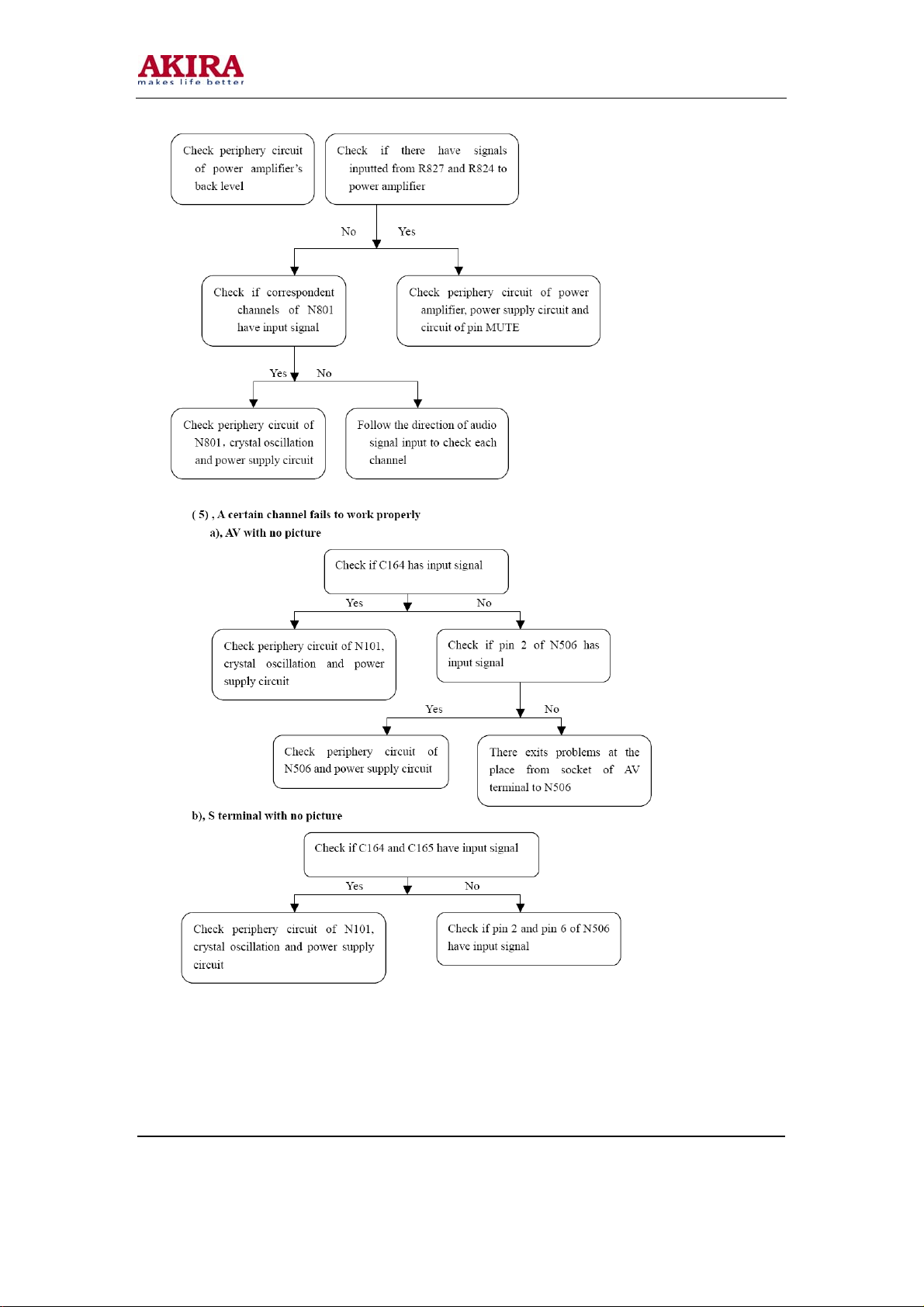

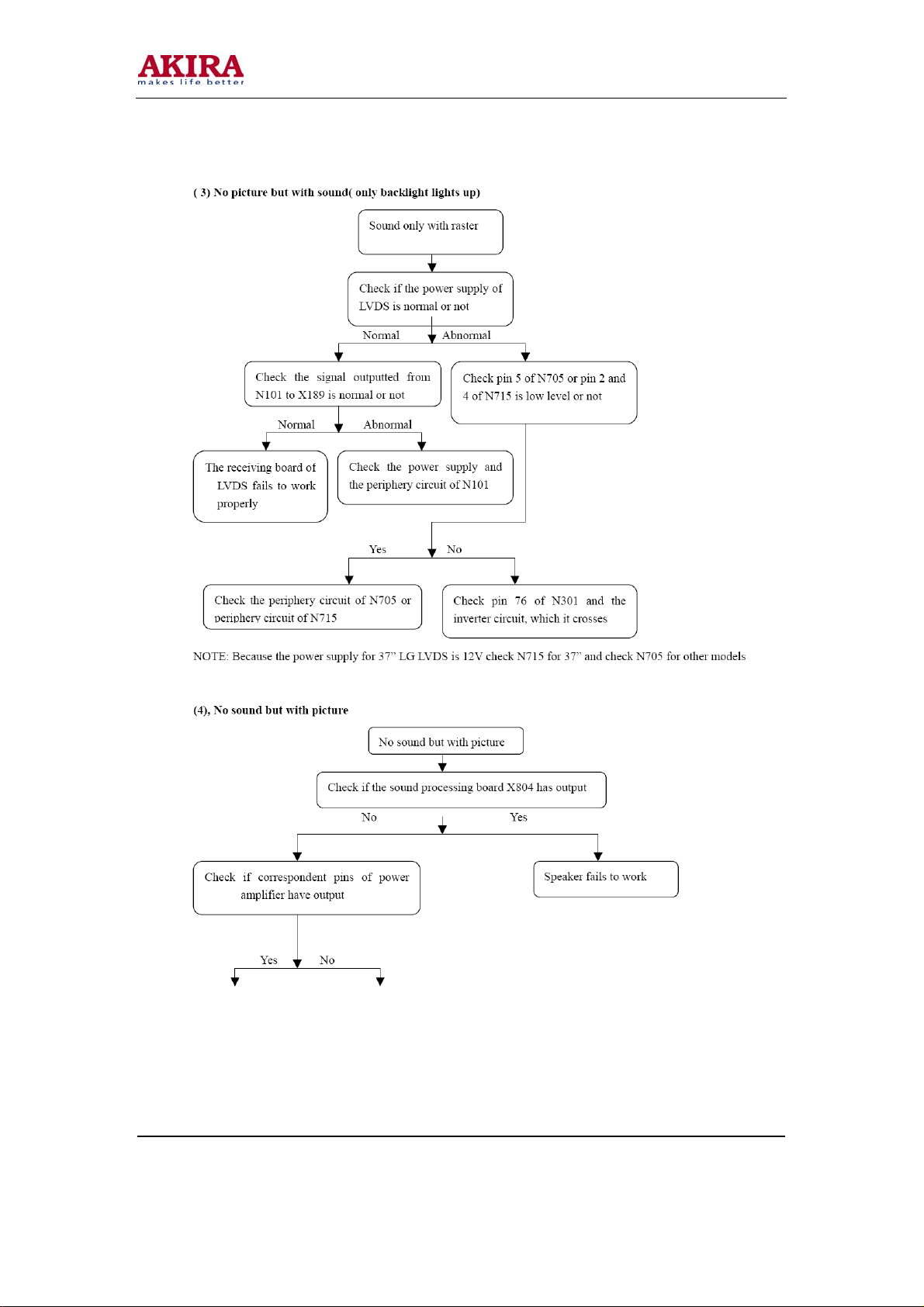

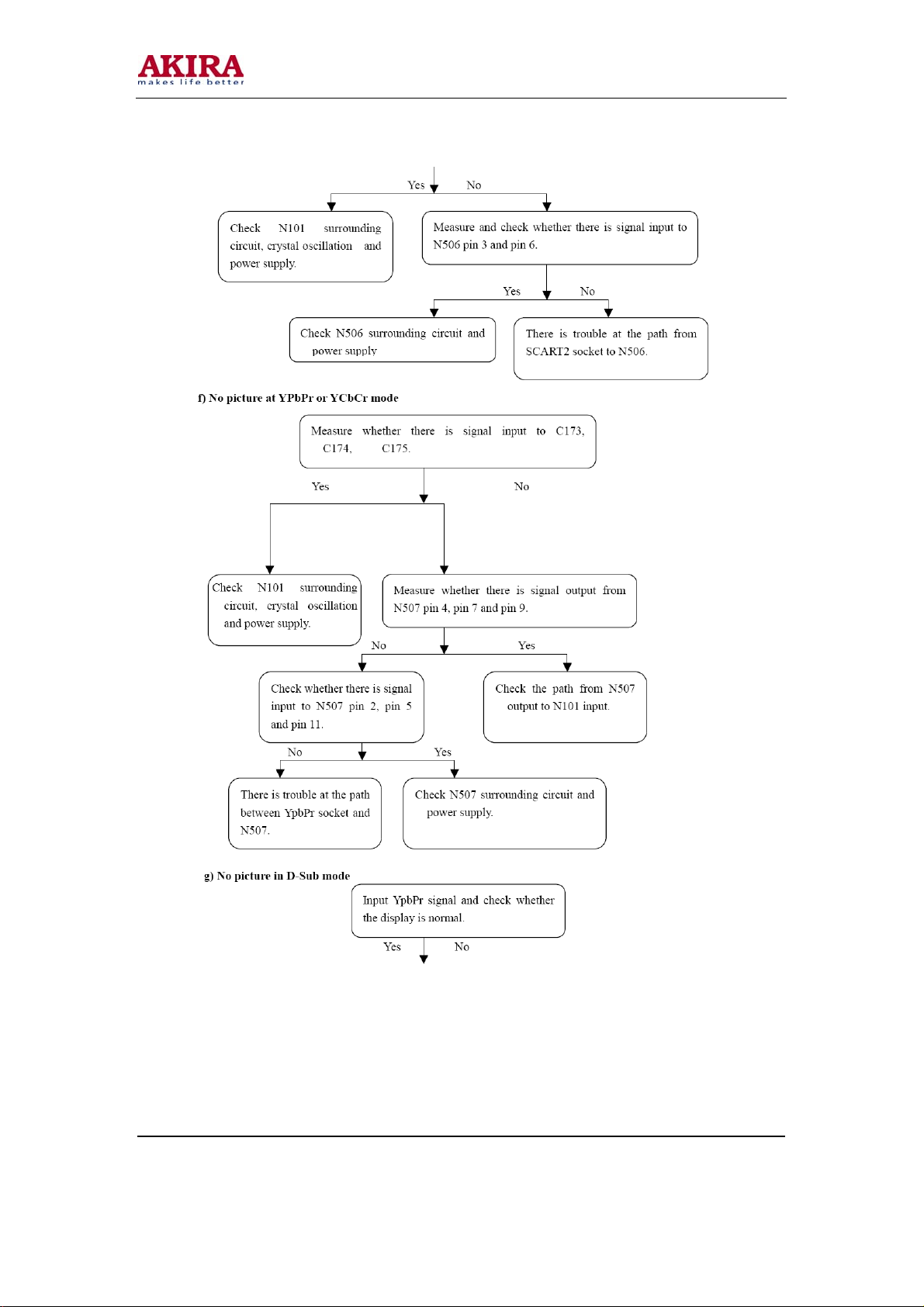

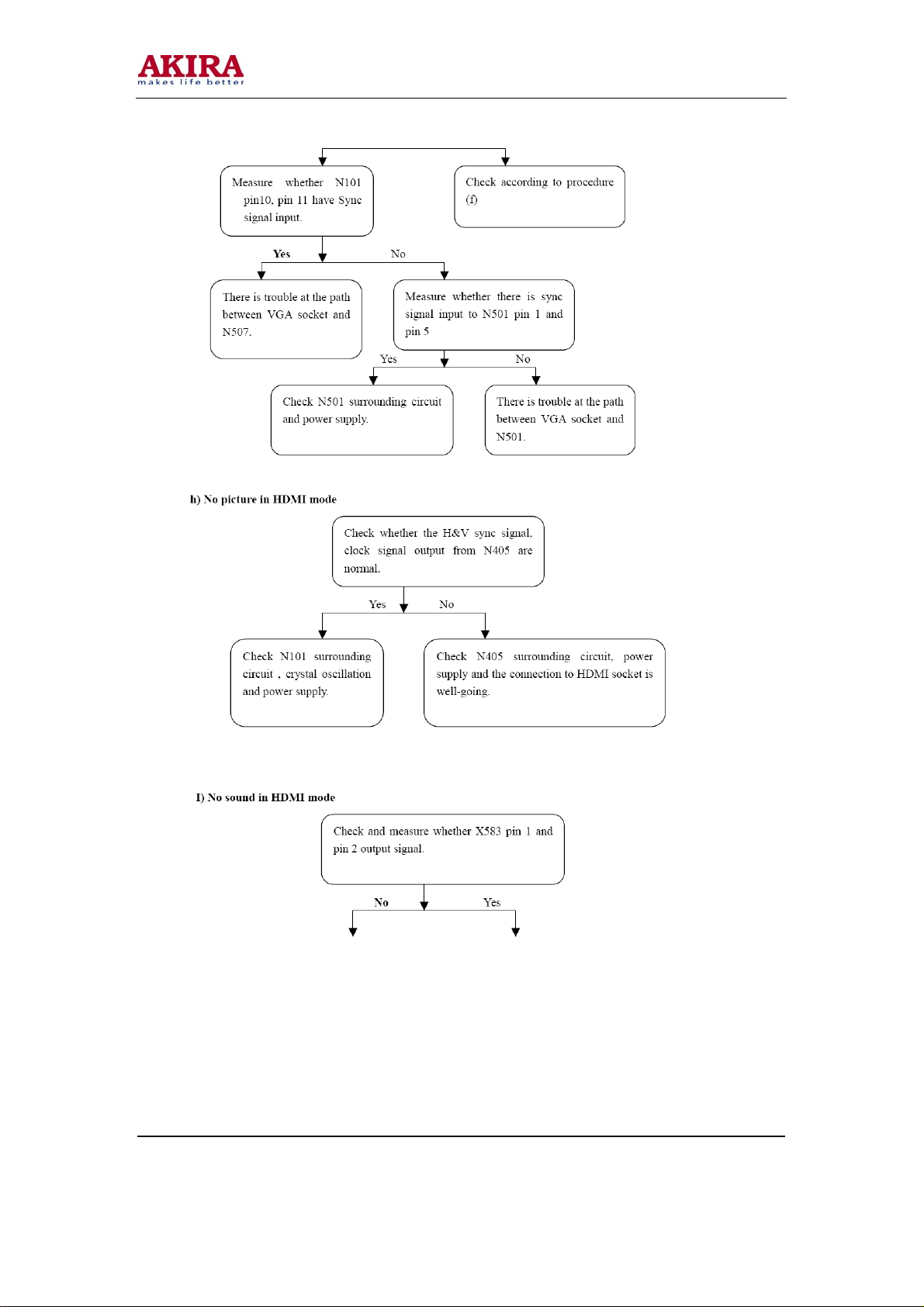

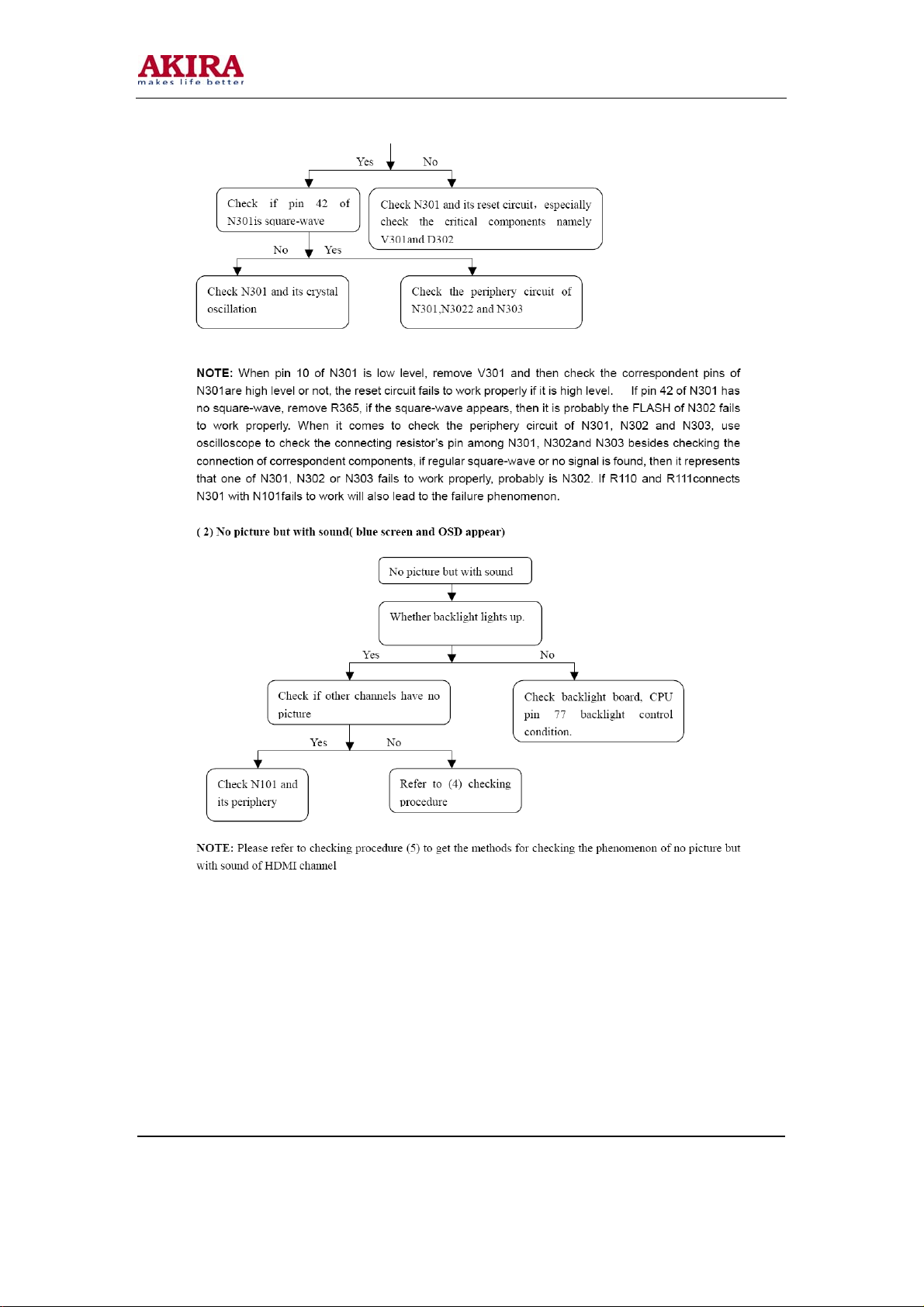

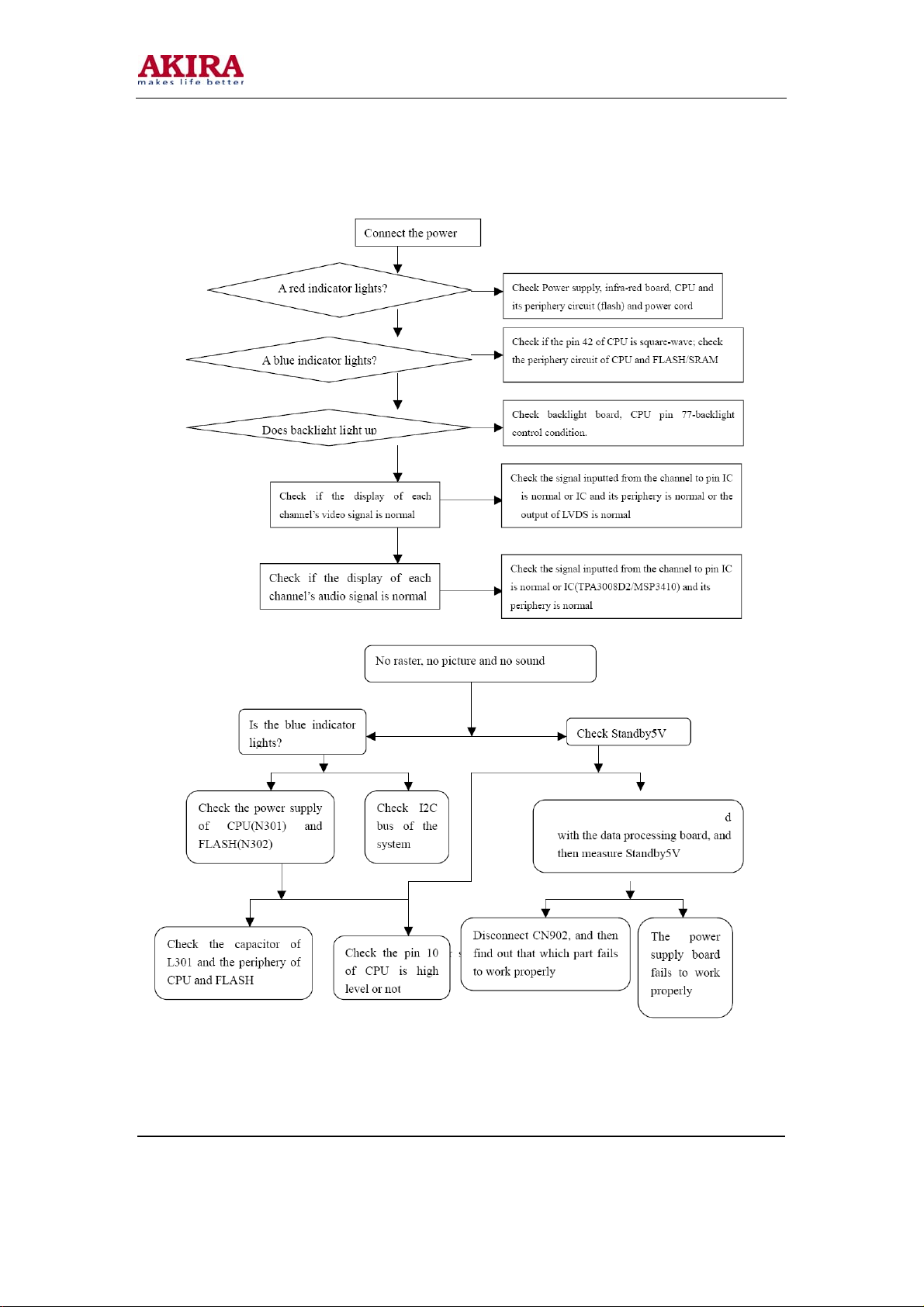

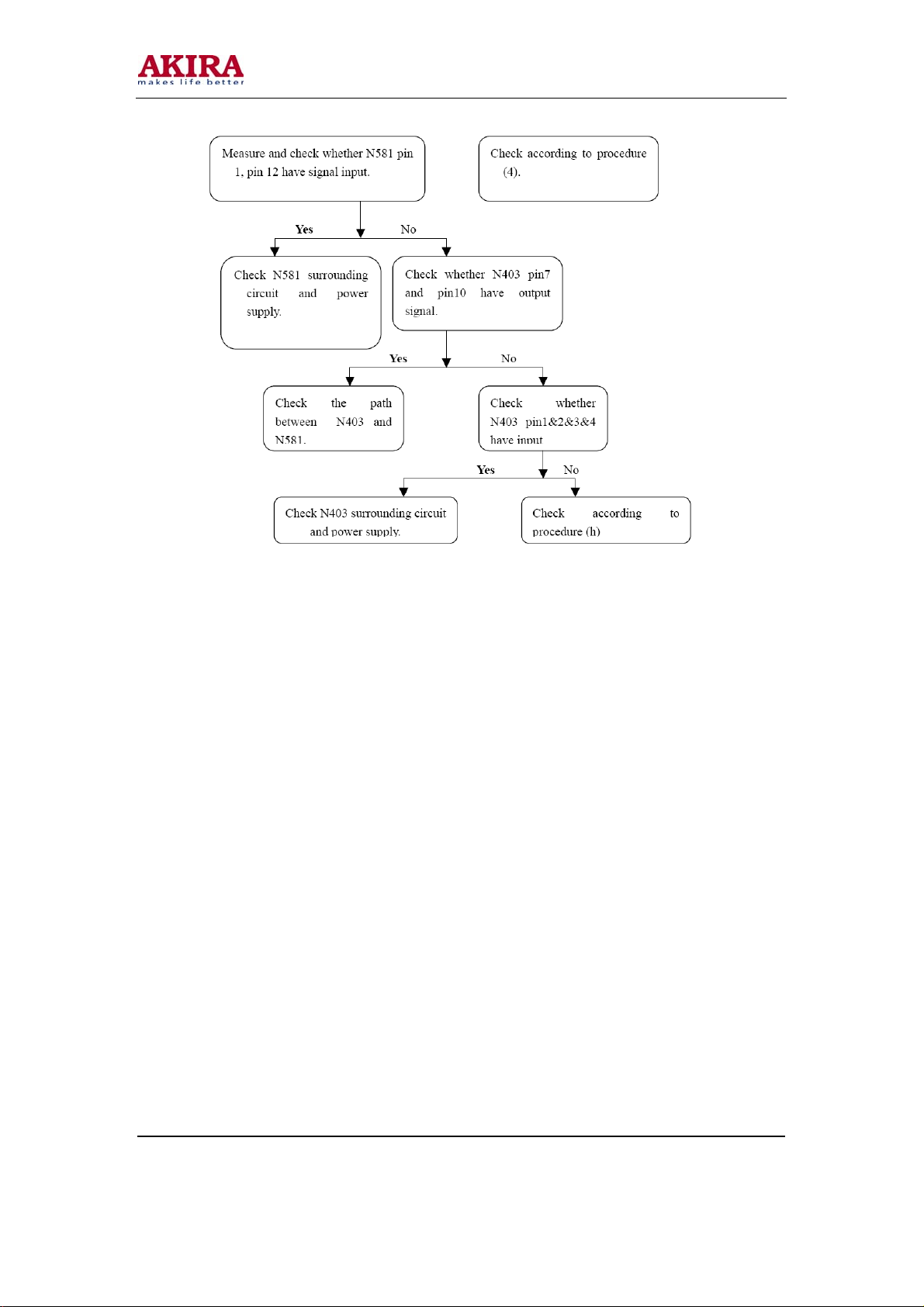

TTRROOUUBBLLEE SSHHOOOOTTIINNGG

1. Fault clearance

Before servicing please check to find the possible causes of the troubles according to the table

below:

1.1 Antenna (signal):

Picture is out of focus or jumping Bad status in signal receiving Poor signal Check if there are

Fringe in picture Check if the antenna is correctly oriented. Maybe there

failures with the electrical connector or the antenna.

Check if the antenna is properly connected.

is electric wave reflected from hilltop or building.

Picture is interfered by

stripe shaped bright spots

There appear streaks or

light color on the screen

Possibly due to interference from automobile, train, high

voltage transmission line, neon lamp etc. Maybe there is

interference between antenna and power supply line.

Please try to separate them in a longer distance.

Maybe the shielded-layer of signal wire is not connected

properly to the connector.

Check if interfered by other equipment and if interfered

possibly by the equipment like transmitting antenna,

non-professional radio station and cellular phone.

Model No.: LCT-32PBSTP.doc

Version: 1.0

-37 -

1.2 TV set:

Symptoms Possible cause

Unable to switch the power on

No picture and sound

Deterioration of color phase or

color tone

Screen position or size is not

proper

Picture is twisted and deformed Check to see if the picture-frame ratio is properly set up.

Picture color changed or colorless

Check to see if the power plug has been inserted properly

into the socket.

Check to see if the power supply of liquid crystal TV has

been switched on. (As can be indicated by the red LED at

the front of the TV set) See if it’s receiving the signal that is

transmitted from other source than the station Check if it’s

connected to the wrong terminal or if the input mode is correct.

Check if the signal cable connection between video frequency

source and the liquid crystal TV set is correct.

Check if all the picture setups have been corrected.

Check is the screen position and size is correctly set up.

Check the “Component” or “RGB” settings of the liquid

Crystal TV set and make proper adjustment according to

Picture too bright and there is

distortion in the brightest area

Picture is whitish or too bright

in the darkest area of the picture

No picture or signal produced

from the displayer if “XXX in

search” appears.

There appears an indication –

“outside the receivable scope)

signal types

Check if the contrast setting is too high. Possibly the output

quality of DVD broadcaster is set too high. It maybe also

due to improper terminal connection of the video frequency

signal in a certain position of the system.

Check if the setting for the brightness is too high Possibly the

brightness grade of DVD player (broadcaster) is set too high.

Check if the cable is disconnected. Check if it’s connected

to the proper terminal or if the input mode is correct.

Check if the TV set can receive input signal. The signal is not

correctly identified and VGA format is beyond the specified

scope.

Model No.: LCT-32PBSTP.doc

Version: 1.0

-38 -

Check if the batteries are installed in the reverse order. Check

Remote control cannot work

properly

No picture and sound, but only

hash.

Blur picture

No sound

When playing VHS picture search

tape, there are lines at the top or

bottom of the picture.

if the battery is effective. Check the distance or angle from the

monitor. Check if there is any obstruct between the remote

control and the TV set. Check if the remote control signal-

receiving window is exposed to strong fluorescence.

Check if the antenna cable is correctly connected, or if it has

received the video signal correctly.

Check if the antenna cable is correctly connected. Of if it has

received the right video signal.

Check if the “mute” audio frequency setting is selected. Check

if the sound volume is set to minimum. Make sure the

earphone is not connected. Check if the cable connection is

loose.

When being played or in pause VHS picture search tape

sometimes can’t provide stable picture, which may lead to

incorrect display of the liquid crystal TV, In this case please

press “auto” key on the remote control so as to enable the

liquid crystal TV set to recheck the signal and then to display

correct picture signal

Model No.: LCT-32PBSTP.doc

Version: 1.0

-39 -

TTRROOUUBBLLEE SSHHOOOOTTIINNGG GGUUIIDDEE

Model No.: LCT-32PBSTP.doc

Version: 1.0

-40 -

Model No.: LCT-32PBSTP.doc

Version: 1.0

-41 -

Model No.: LCT-32PBSTP.doc

Version: 1.0

-42 -

Model No.: LCT-32PBSTP.doc

Version: 1.0

-43 -

Model No.: LCT-32PBSTP.doc

Version: 1.0

-44 -

Model No.: LCT-32PBSTP.doc

Version: 1.0

-45 -

Model No.: LCT-32PBSTP.doc

Version: 1.0

-46 -

Model No.: LCT-32PBSTP.doc

Version: 1.0

-47 -

Model No.: LCT-32PBSTP.doc

Version: 1.0

-48 -

APPENDIX

Model No.: LCT-32PBSTP.doc

Version: 1.0

PPAARRTTSS LLIISSTT

Part Code Description QTY

128-05001-00 CONDUCTING FOIL 80X130 1

335-32002-00 PANEL V320B1-L01(C2) ! 1

360-30042-00 POWER SWITCH HF-606 ! 1

364-42201-00 SOCKET WP2-9C 2

485-10183-00 POWER CARD 300 FERRITE BEAD VDE ! 1

615-10579-00A PANEL HOLDER ASS'Y (CMO) 1

655-B1202-61 (12-PINS) LEAD WITH HOUSING 1

655-33901-16 (3-PINS) LEAD WITH HOUSING 1

655-4E301-55 (4-PINS) LEAD WITH HOUSING 1

655-41202-315 (4-PINS) LEAD WITH HOUSING 1

655-6E302-70 (6-PINS) LEAD WITH HOUSING 1

655-61202-169

655-71202-92 (7-PINS) LEAD WITH HOUSING 1

（6-PINS） LEAD WITH HOUSING

1

655-71202-92 (7-PINS) LEAD WITH HOUSING 1

655-74302-37 (7)-PINS LEAD WITH HOUSING 1

665-D0002-607 LVDS CALBES 30-PINS250mm 1

666-12301-00 FERRITE BEAD TY23X13.5X6 0.5

700-60255-100 LED-CONDUCTOR 1

700-60256-00 LED-CONDUCTOR 1

770-409B0-79 UL2468 20# 400mm 2

780-G18LHPAF2A BACK CABINET HIPS 1

785-20023-00 STUD CAP 4

808-1A861-AF0

808-1B857-AF0B KEY COVER GRAY 05 1

808-1B858-5D1 KEY COVER SILVERY WHITE 1

808-1C860-AF0B

808-10812-AF0 POWER CARD COVER 1

808-10859-AF0

808-10863-AF0 SPEAKERS CONNECTING BOARD 2

AV INTERFACE BOARD ( RIGHT ）

AV INTERFACE BOARD ( LEFT ）

DECORATION COVER ( LEFT RIGHT ）

1

4

808-10864-AF0

808-10865-AF0

BACK CABINETCOVER ( LEFT ）

BACK CABINET COVER ( RIGHT ）

1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

808-10866-AF0 BACK CABINET COVER (BOTTOM ) 1

808-70322-00 INSULATION SPACER 1

808-70336-00 CUSHION 1

808-80267-01 CONDUCTIVE GASKET (32X32X60) 4

851-23008-11 SCREW SJ2824 ST3X8C-D.Zn 4

851-23010-14 SCREW SJ2824 ST3X10C-Y 4

851-23010-31 SCREW SJ2824 ST3X10FT-D.Zn 1

851-34012-57 SCREW B(+)4X12G-D.Zn 14

851-34012-57 SCREW B(+)4X12G-D.Zn 2

851-34016-57 SCREW B(+)4X16G-D.Zn 18

851-34016-57 SCREW B(+)4X16G-D.Zn 4

851-43010-14 SCREW F(+)T3x10A-Y 2

851-43010-14 SCREW F(+)T3x10A-Y 4

851-53012-31 SCREW SJ2825ST3X12FT-DZn 2

852-23012-84 SCREW SJ2829 M3X12-Y 4

852-33010-81 SCREW B(+) M3X10-D.Zn 5

852-33012-81 SCREW B(+) M3X12-D.Zn 16

852-43012-84 SCREW F(+) M3X12-Y 3

852-44008-84 SCREW F(+) M4X8-Y 8

852-44010-84 SCREW F(+) M4X10-Y 10

852-54012-81 SCREW SJ2830 M4X12-D.Zn 8

852-64008-81 SCREW W(+) M4X8-D.Zn 1

859-11398-00B BACK-LIGHT STRIPE 1

862-20039-00A CARTON CLIPS 6

863-81273-00A POLY FOAM ( LEFT TOP EPE) 1

863-81274-00A POLY FOAM ( RIGHT TOP EPE) 1

863-81275-00A POLY FOAM ( LEFT BOTTOM EPE) 1

863-81276-00A POLY FOAM ( RIGHT BOTTOM EPE) 1

868-20037-02 FIBREWASHER φ8Xφ3.2X0.8RED 4

868-20109-00 WASHER 6

870-10288-00 PANEL CONNECTORS ( LEFT RIGHT ) 2

870-10289-00 POWER BRACKET 1

870-10410-00 WALL BRACKET 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

870-30190-00 LED-CONDUCTOR BRACKET 1

886-31021-00 ACCESSORIES BOX (15L) 1

886-31846-00 CARTON BOX BOTTOM 1

887-20047-01 ACCESSORIES PALSTIC BAG 1

887-20122-00 PALSTIC BAG 120*140*0.04 1

887-21074-00 PALSTIC BAG (100X230) 1

887-21097-P0 PALSTIC BAG 1200X1050 1

887-21167-00 W ALL BRACKET ACCESSORIES BAG 1

887-21270-00 PALSTIC BAG (150X900) 1

894-70040-11 WASHER GB862.1-87-4-D.Zn 1

364-93222-00 AV JACK EV-021F-AV3 2

485-10183-00 POWER CARD 300 FERRITE BEAD VDE ! -1

485-10200-00 POW ER CARD SW198+LASR-24+FERRITE BEAD ! 1

488-10012-00 BATTERY 7# 2

604-L32W18S3-01 I/M 1

605-L27X183-01 SPEAKER INSTALLATION GUIDE 1

605-L32K53-00 WALL BRACKET I/M 1

665-D0002-156 RFΦ9.5(m)-Φ9.5(m) 1

780-G18W0-1C1 FRONT CABINET 1

880-10813-B1 FRONT LOGO 1

881-62875-163 BACK PLATE LABEL (LCT-32PBSTP,AKIRA 1

881-80847-00 WRRANTY CARD 1

886-31845-050W CARTON BOX (LCT-32PBSTP,SKIRA) 1

301-IL27W18-02G RC-I02-0GREMOTE CONTROL UNIT ASS'Y (AKIRA) 1

852-34008-81 SCREW B(+) M4X8-D.Zn 8

855-B0016-00 EXPANSION BOLT M8X72 4

855-C4030-00 SCREW 4X30 20

863-80921-00 W ALL BRACKET POLY FOAM 1

870-10079-00A WALL BRACKET CONNECTORS 1

870-10080-00A WALL BRACKET HOLDER 1

886-31387-00

887-21167-00 W ALL BRACKET ACCESSORIES BAG 2

WALL BRACKET CARTON（455X195X95)

1

615-10505-00B ROTATION AXIS ASS'Y 1

742-30091-00 TIE 1

780-30184-AC0 TV STAND FACE COVER 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

808-10742-0G0

808-10830-0G0

808-10933-8A0 TV STAND FACE COVER 1

820-20054-00A TV STAND COUNNTERWEIGHT PLATE 1

851-43008-31 SCREW F(+)T3X8BT-D.Zn 1

851-43010-11 SCREW F(+)T3x10A-DZn 1

851-43035-11 SCREW F(+)T3x35A-DZn 1

851-44006-31 SCREW F(+)T4X6BT-D.Zn 8

852-44014-82 SCREW F(+)M4X14 DNi 8

868-20789-00 CUSHION 9

870-4B202-0G0 UPRIGHT POST ( SILVERY WHITE 06) 1

364-42201-00 SOCKET WP2-9C 2

384-20507-81 SPEAKER ST50-05 4

384-21912-W0 SPEAKER ST13-Q09 2

644-15002-18 UL1007 22# 150mm RED 2

665-D0002-622 SPEAK WIRES 120mm 2

780-30178-0G0 SPEAKER FRONT COVER 1

POST COVER （FR0NT）

POST COVER (BACK）

1

780-30179-AF0 SPEAKERBACK COVER 1

804-20440-00 SPEAKER CONNECTORS 2

808-70240-00 EVAGLUE 75X30X1 2

808-70259-00 EVAGLUE (25X15X2) 2

808-70367-00 EVAGLUE (900X4X1) 2

851-23008-31 SCREW SJ2824 ST3X8FT-D.Zn 4

851-23008-31 SCREW SJ2824 ST3X8FT-D.Zn 16

851-23010-14 SCREW SJ2824 ST3X10C-Y 4

851-24012-31 SCREW SJ2824 ST4X12FT-DZn 10

851-24012-31 SCREW SJ2824 ST4X12FT-DZn 4

360-10001-00 TACT SWITCH KFC-A06-4X4.5X5B 1

364-33101-00 3-PINS CONNECTORS TJC3-03A 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

467-1C210-H03 CARBON RESISTOR 1/6W-1K-J 1

467-1C220-H03 CARBON RESISTOR 1/6W-2K-J 1

467-1C243-H03 CARBON RESISTOR 1/6W-4.3K-J 1

467-1C330-H03 CARBON RESISTOR 1/6W-30K-J 1

782-L27W18-050A BUTTON PCB 1

870-30184-020

877-50490-0T0

340-10132-20 LIGHT-EMITTING DIODE HFT5038CPBR 2

655-3K301-02 (3-PINS) LEAD WITH HOUSING 1

364-36104-00 6-PINS CONNECTORS TJC3-06AWT 1

364-37104-00 7-PINS CONNECTORS TJC3-07AWT 1

364-49219-00 SOCKET HJ-2105F 1

364-91202-00 S-VIDEO TERMINAL CKX5-2K-2 1

364-93219-00 AV JACK AV3-14WKD 1

464-6D747-M0 ELECTROLYTIC CAP CD110-16V-470uF-M 1

353-05050-20 SMD IC PESD5V0L5UY 1

455-12068-H0 SMD RESISTOR FTR0603680JR 1

455-12268-H0 SMD RESISTOR FTR0603682JR 1

KEY BRACKET ( BLACK ）

KEY (PLATE SI LVERY WHITE ）

1

455-12268-H0 SMD RESISTOR FTR0603682JR 1

455-12310-H0 SMD RESISTOR FTR0603103JR 1

455-12347-H0 SMD RESISTOR FTR0603473JR 1

456-2210K-B1 SMD CAPACITOR 06032R102K250BA 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 1

456-3210H-11 SMD CAPACITOR 0603CG102J500BA 1

477-90003-00 SMD CERAMIC FILTER LFA20-2A1E103M 1

477-90004-00 SMD CERAMIC FILTER LFA20-2A1E104M 1

782-L27W18-4000 VIDEO PROCESSING BOARD PCB 1

667-L32K5-20A POW ER PCB ASS'Y KAS200-5S241812XS 1

343-18150-10 TRANSISTOR 2SC1815-Y 1

352-51170-00 IC HRM538BB5117 (D) 1

364-33104-00 3-PINS CONNECTORS TJC3-03AWT 1

364-34186-00 4-PINS CONNECTORS TJC10-4AWT 1

459-1410M-00 CERAMIC CAPACITOR DD410-SR104M25 1

464-6D622-M0 ELECTROLYTIC CAP CD110-16V-22uF-M 1

467-1C047-H0 CARBON RESISTOR 1/6W-47Ω-J 1

467-1C110-H0 CARBON RESISTOR 1/6W-100Ω-J 1

467-1C151-H0 CARBON RESISTOR 1/6W-510Ω-J 1

467-1C230-H0 CARBON RESISTOR 1/6W-3K-J 1

782-L32U18-0900 IR RECEIVE PCB 1

329-61805-00 CRYSTAL HC-49U 18.432MHZ 1

340-00003-00 DIODE IN4001 1

352-78090-90 IC TA78L09 (D) 1

364-11212-00 EARPHONE JACK ST-112 1

364-3A205-00 21 CONNECTORS HJ-2105W 1

364-3B101-00

十 2-PINS CONNECTORS TJC3-12A

1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

364-3D101-00

364-33101-00 3-PINS CONNECTORS TJC3-03A 1

364-34101-00 4-PINS CONNECTORS TJC3-04A 1

364-36101-00 6-PINS CONNECTORS TJC3-06A 1

364-37101-00 7-PINS CONNECTORS TJC3-07A 1

364-41205-00 ANT SOCKET HR-J2 1

462-90410-H0 POLYESTER CAP 63V-0.1uF-J 1

464-6D747-M0 ELECTROLYTIC CAP CD110-16V-470uF-M 1

464-6E610-M0 ELECTROLYTIC CAP CD110-25V-10uF-M 1

464-6F747-M1 ELECTROLYTIC CAP CD110-35V-470uF-M 1

467-1D010-H0 CARBON RESISTOR RT14-1/4W-10Ω-J 1

471-1056H-00 PEAKING COIL EL0606SKI-560J 1

十-PINS CONNECTORS TJC3-10A

1

471-1056H-00 PEAKING COIL EL0606SKI-560J 1

471-1110K-00 PEAKING COIL EL0606SKI-101K 1

471-2056H-60 PEAKING COIL LGA0307-56uH-J 1

471-2068K-10 PEAKING COIL LGA0410-68uH-K 1

477-40031-00 FIXED COIL LG750 1

477-40230-00 FIXED COIL LH470-1 1

590-40511-00 TUNER JS-6B2/121A2 1

590-40512-00 *TUNER JS-6B2/122A2-A2 1

615-10511-00B

615-10512-00A

665-N0120-00 COAXIAL CABLE CSYV-2B-120 1

665-N0260-00 *COAXIAL CABLE CSYV-2B-260 1

666-12301-00 FERRITE BEAD TY23X13.5X6 1

666-13501-0G FERRITE BEAD 3.5X1X6 1

TV BOARD SHUTTER ASS'Y (TOP ）

TV BOARD SHUTTER ASS'Y (BOTTOM ）

1

808-70397-00 INSULATION SPACER 4

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

852-53006-81 SCREW SJ2830 M3X6-D.Zn 2

859-1A1373-00 TVINTERFACE SPACE PLATE 1

870-10290-00 RF BRACKET 1

340-00001-0S SMD DIODE LL4148 1

342-08470-90 SMD TRANSISTOR BC847AW 1

342-08570-90 SMD TRANSISTOR BC857 AW 1

353-05050-20 SMD IC PESD5V0L5UY 1

353-11090-20 SMD ICNJW1109M 1

353-30080-10 SMD ICTPA3008D2 1

353-34100-80 *SMD IC MSP3410G PQFP80(M) 1

455-12000-H0 SMD RESISTOR FTR0603000XR 1

455-12075-H0 SMD RESISTOR FTR0603750JR 1

455-12082-H0 SMD RESISTOR FTR0603820JR 1

455-12110-H0 SMD RESISTOR FTR0603101JR 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

455-12110-H0 SMD RESISTOR FTR0603101JR 1

455-12112-H0 SMD RESISTOR FTR0603121JR 1

455-12122-H0 SMD RESISTOR FTR0603221JR 1

455-12147-H0 SMD RESISTOR FTR0603471JR 1

455-12220-H0 SMD RESISTOR FTR0603202JR 1

455-12222-H0 SMD RESISTOR FTR0603222JR 1

455-12227-H0 SMD RESISTOR FTR0603272JR 1

455-12268-H0 SMD RESISTOR FTR0603682JR 1

455-12310-H0 SMD RESISTOR FTR0603103JR 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

455-12310-H0 SMD RESISTOR FTR0603103JR 1

455-12315-H0 SMD RESISTOR FTR0603153JR 1

455-12322-H0 SMD RESISTOR FTR0603223JR 1

455-12347-H0 SMD RESISTOR FTR0603473JR 1

455-12412-H0 SMD RESISTOR FTR0603124JR 1

455-22000-H0 SMD RESISTOR RC11-1/8W-0-J 1

455-22310-H0 SMD RESISTOR RC11-1/8W-10K-J 1

455-22412-H0 SMD RESISTOR RC11-1/8W-120K-J 1

456-1447R-C3 SMD CAPACITOR C3216Y5V1C474ZT 1

456-2215K-B1 SMD CAPACITOR 06032R152K250BA 1

456-2410M-C1 SMD CAPACITOR 06032E104M250BA 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

456-2410M-C1 SMD CAPACITOR 06032E104M250BA 1

456-2422M-C1 SMD CAPACITOR 06032E224M250BA 1

456-2447R-C1 SMD CAPACITOR 06032E474Z250BA 1

456-2510R-C2 SMD CAPACITOR 08052E105Z250BA 1

456-3018H-11 SMD CAPACITOR 0603CG180J500BA 1

456-3056H-11 SMD CAPACITOR 0603CG560J500BA 1

456-3122H-11 SMD CAPACITOR 0603CG221J500BA 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

456-3122H-11 SMD CAPACITOR 0603CG221J500BA 1

456-3147H-11 SMD CAPACITOR 0603CG471J500BA 1

456-3210H-11 SMD CAPACITOR 0603CG102J500BA 1

462-90410-H02 POLYESTER CAP 63V-0.1uF-J 1

464-6C722-M02 ELECTROLYTIC CAP CD110-10V-220uF-M 1

464-6D610-M02 ELECTROLYTIC CAP CD110-16V-10uF-M 1

464-6D647-M02 ELECTROLYTIC CAP CD110-16V-47uF-M 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

464-6D647-M02 ELECTROLYTIC CAP CD110-16V-47uF-M 1

464-6D722-M02 ELECTROLYTIC CAP CD110-16V-220uF-M 1

464-6D747-M02 ELECTROLYTIC CAP CD110-16V-470uF-M 1

464-6E610-M02 *ELECTROLYTIC CAP CD110-25V-10uF-M 1

464-6E747-M02 ELECTROLYTIC CAP CD110-25V-470uF-M 1

464-60510-M02 ELECTROLYTIC CAP CD110-50V-1uF-M 1

464-60533-M02 ELECTROLYTIC CAP CD110-50V-3.3uF-M 1

477-40211-00 SMD INDUCTANCE SLF12575T-330M3R2 1

477-90003-00 SMD CERAMIC FILTER LFA20-2A1E103M 1

477-90004-00 SMD CERAMIC FILTER LFA20-2A1E104M 1

666-13207-00 SMD FERRITE BEAD STPB3216-380PT 1

782-L27W18-150A MIXING BOARD PCB 1

329-61003-00 CRYSTAL HC-49/US 10.000MHZ 1

329-61402-00 CRYSTAL HC-49/US 14.31818MHZ 1

329-62806-00 CRYSTAL HC-49uS 28.322MHz 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

340-50360-00 ZENER DIODE HZ4A2 1

340-50470-00 ZENER DIODE HZ5B1 1

364-11212-00 EARPHONE JACK ST-112 1

364-34101-00 4-PINS CONNECTORS TJC3-04A 1

364-36101-00 6-PINS CONNECTORS TJC3-06A 1

364-37101-00 7-PINS CONNECTORS TJC3-07A 1

364-37104-00 7-PINS CONNECTORS TJC3-07AWT 1

364-91204-00 VGA SOCKET B500 1

364-95209-00 AV JACK AV13-05-501 1

462-B0433-H0 POLYESTER CAP CL21X-50V-0.33uF-J 1

462-B0447-H0 POLYESTER CAP CL21X-50V-0.47uF-J 1

464-6C810-M0 ELECTROLYTIC CAP CD110-10V-1000uF-M 1

464-6F747-M0 ELECTROLYTIC CAP CD110-35V-470uF-M 1

615-10509-00A

615-10510-00A

655-B1202-52 (12-PINS) LEAD WITH HOUSING 1

655-T1202-50

655-31202-121 (3-PINS) LEAD WITH HOUSING 1

655-61202-144 (6-PINS) LEAD WITH HOUSING 1

804-20427-00 DIGITAL INTERFACE SPACE PLATE 1

808-70397-00 ISOLATION SHEET 4

340-00289-00 SMD DIODE BAV99LT1 1

DIGITAL BOARD SHUTTER ASS'Y (TOP ）

DIGITAL BOARD SHUTTER ASS'Y (BOTTOM ）

（10-PINS） LEAD W ITH HOUSING

1

340-00296-00 SMD DIODE SK34 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

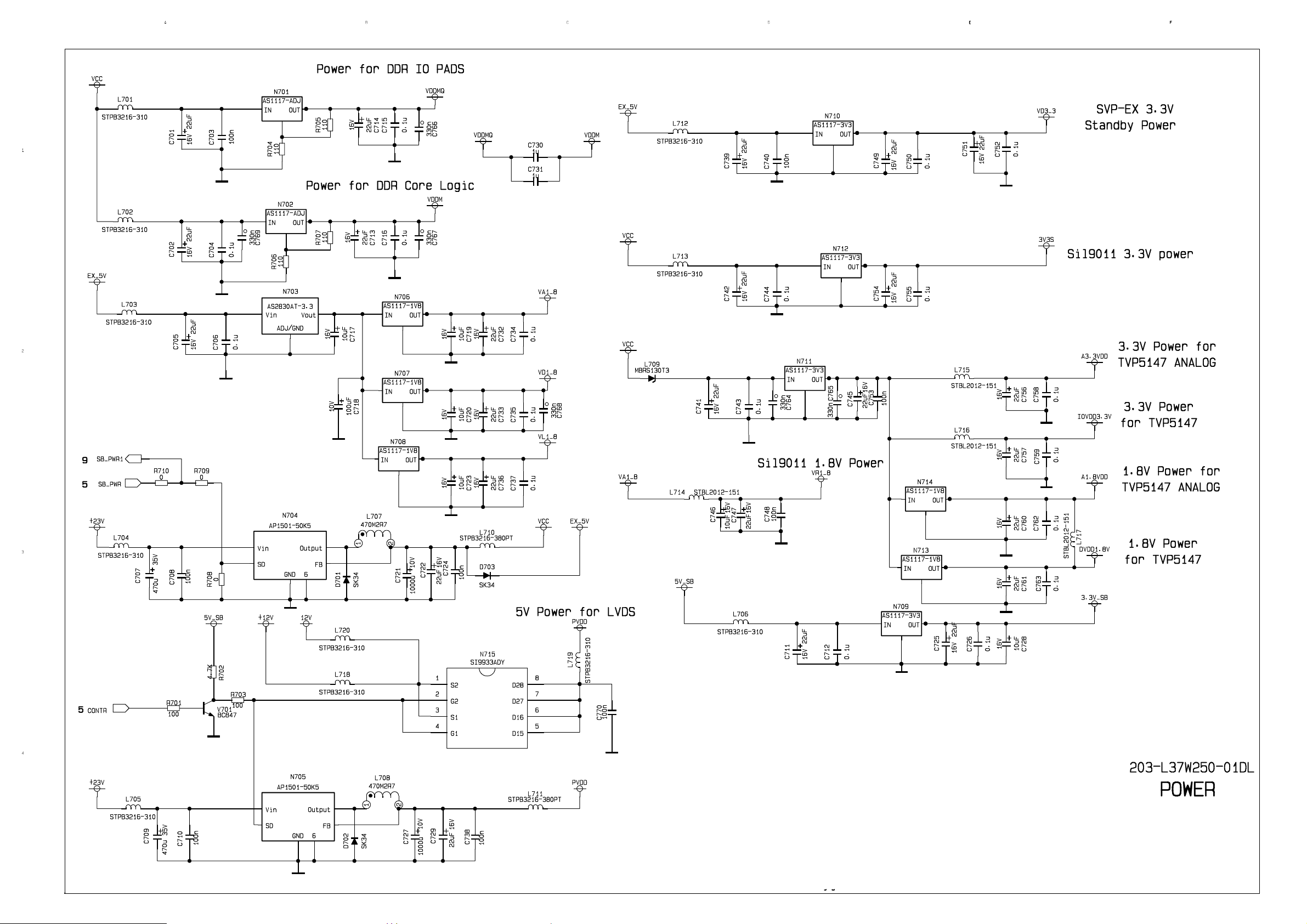

340-00296-00 SMD DIODE SK34 1

340-00362-00 SMD DIODE MBRST130LT3 1

340-00372-00 SMD DIODE MMBD1204 1

340-50512-00 SMD ZENER DIODE BZV55-B5V1 1

342-01380-00 *SMD TRANSISTOR BSS138LT1 1

342-08470-90 SMD TRANSISTOR BC847AW 1

342-08570-90 SMD TRANSISTOR BC857 AW 1

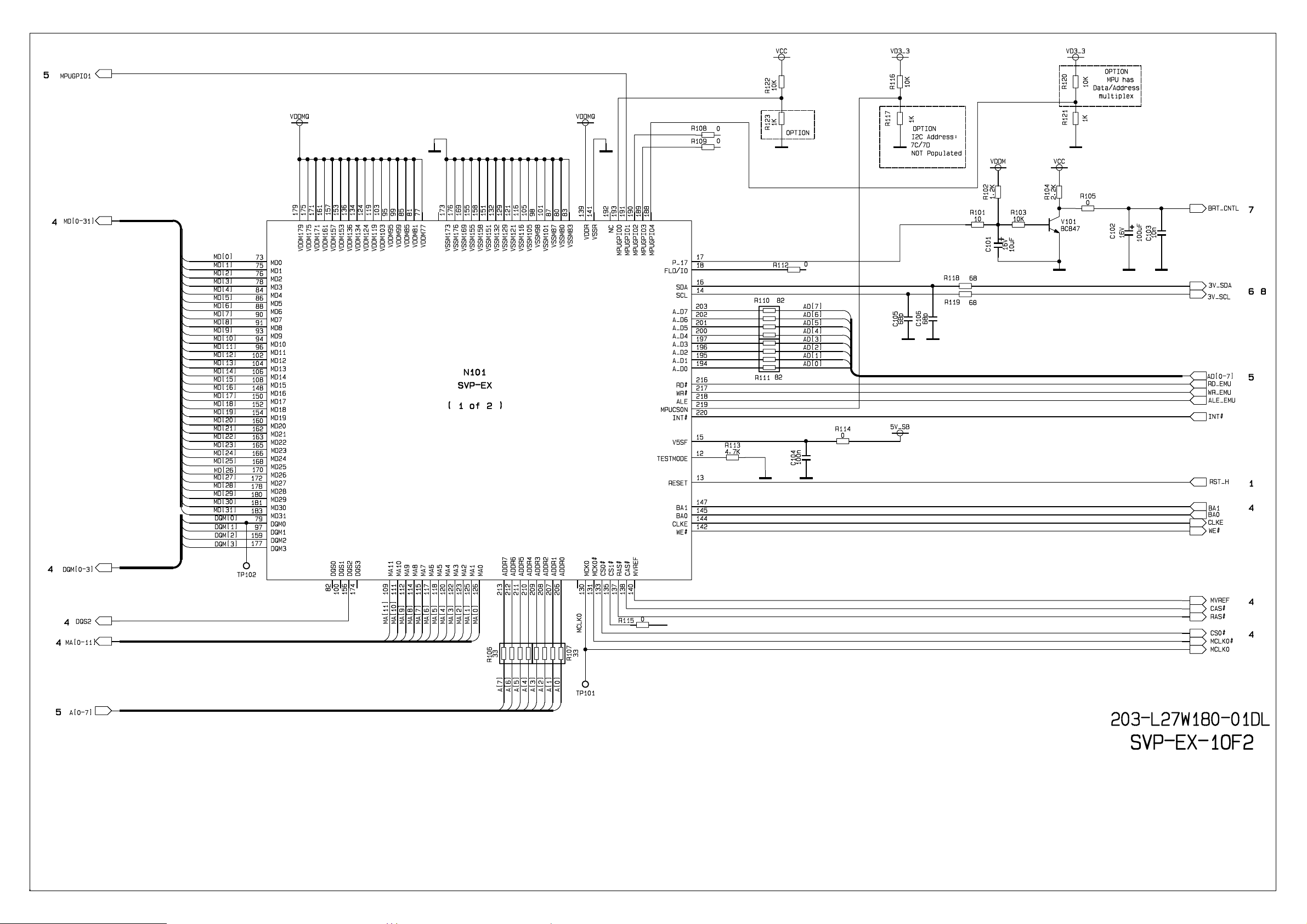

353-DPTV0-20 SMD IC DPTV-SVP-EX52 1

353-03580-80 SMD IC LM358D (M) 1

353-05040-20 SMD IC PESD5V0L4UG 1

353-05050-20 SMD IC PESD5V0L5UY 1

353-11170-G0 SMD IC AMS1117-1.8 (D) 1

353-11170-10 SMD IC B1117N-2.5 (D) 1

353-11170-20 SMD IC AS1117M-3.3 (M) 1

353-12130-10 SMD ICCM1213-08MS 1

353-15010-50 SMD ICAP1501-50K5 1

353-24020-60 SMD IC 24C02N-10SI27 1

353-24210-50 SMD IC 24LC21A/SN 1

353-24320-50

353-26323-10 SMD IC K4D2632838F-QC50 1

SMD IC24LC32A/SN 烧

1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

353-28300-00 SMD ICAS2830AT-3.3 (D) 1

353-29040-30 SMD IC W29C040P-90B 1

353-30620-20 SMD ICM30620SPGP (D) 1

353-32570-10 SMD ICSN74CBT3257CDR 1

353-40520-80 SMD IC HEF4052BT (M) 1

353-43440-10 *SMD ICCS4344CZZ 1

353-51470-10 SMD ICTVP5147PFP 1

353-70020-10 SMD IC NDC7002N 1

353-74140-40 SMD ICSN74LVC14AD 1

353-90110-10 SMD ICSiI9011CLU 1

364-T1904-00 SMD 19-PINSHDMI 1775245-2 1

364-T3001-00 SMD 30-PINSFF-A1255-WRS 1

454-03710-MB SMD ELECTROLYTIC CAP CDPS-10V-100uF-M 1

454-04610-MA SMD ELECTROLYTIC CAP CDPS-16V-10uF-M 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

454-04610-MA SMD ELECTROLYTIC CAP CDPS-16V-10uF-M 1

454-04622-MA SMD ELECTROLYTIC CAP CDPS-16V-22uF-M 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

454-04622-MA SMD ELECTROLYTIC CAP CDPS-16V-22uF-M 1

454-04647-MB SMD ELECTROLYTIC CAP CDPS-16V-47uF-M 1

454-04710-MC SMD ELECTROLYTIC CAP CDPS-16V-100uF-M 1

454-06547-MA SMD ELECTROLYTIC CAP CDPS-25V-4.7uF-M 1

454-08533-MA SMD ELECTROLYTIC CAP CDPS-50V-3.3uF-M 1

455-10015-H9 SMD RESISTOR NCA4R150JR 1

455-10033-H9 SMD RESISTOR NCA4R330JR 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

455-10033-H9 SMD RESISTOR NCA4R330JR 1

455-10082-H9 SMD RESISTOR NCA4R820JR 1

455-12000-H0 SMD RESISTOR FTR0603000XR 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

455-12000-H0 SMD RESISTOR FTR0603000XR 1

455-12010-H0 SMD RESISTOR FTR0603100JR 1

455-12015-H0 SMD RESISTOR FTR0603150JR 1

455-12022-H0 SMD RESISTOR FTR0603220JR 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

455-12022-H0 SMD RESISTOR FTR0603220JR 1

455-12033-H0 SMD RESISTOR FTR0603330JR 1

455-12047-H0 SMD RESISTOR FTR0603470JR 1

455-12051-H0 SMD RESISTOR FTR0603510JR 1

455-12068-H0 SMD RESISTOR FTR0603680JR 1

455-12075-H0 SMD RESISTOR FTR0603750JR 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

455-12075-H0 SMD RESISTOR FTR0603750JR 1

455-12082-H0 SMD RESISTOR FTR0603820JR 1

455-12110-H0 SMD RESISTOR FTR0603101JR 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

455-12110-H0 SMD RESISTOR FTR0603101JR 1

455-12122-H0 SMD RESISTOR FTR0603221JR 1

455-12133-H0 SMD RESISTOR FTR0603331JR 1

455-12147-H0 SMD RESISTOR FTR0603471JR 1

455-12210-H0 SMD RESISTOR FTR0603102JR 1

455-12212-H0 SMD RESISTOR FTR0603122JR 1

455-12215-H0 SMD RESISTOR FTR0603152JR 1

455-12222-H0 SMD RESISTOR FTR0603222JR 1

455-12233-H0 SMD RESISTOR FTR0603332JR 1

455-12247-H0 SMD RESISTOR FTR0603472JR 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

455-12247-H0 SMD RESISTOR FTR0603472JR 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

455-12247-H0 SMD RESISTOR FTR0603472JR 1

455-12282-H0 SMD RESISTOR FTR0603822JR 1

455-12310-H0 SMD RESISTOR FTR0603103JR 1

455-12322-H0 SMD RESISTOR FTR0603223JR 1

455-12347-H0 SMD RESISTOR FTR0603473JR 1

455-12368-H0 SMD RESISTOR FTR0603683JR 1

455-12410-H0 SMD RESISTOR FTR0603104JR 1

455-12415-H0 SMD RESISTOR FTR0603154JR 1

455-12427-H0 SMD RESISTOR FTR0603274JR 1

455-12510-H0 SMD RESISTOR FTR0603105JR 1

455-22000-H0 SMD RESISTOR RC11-1/8W-0-J 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

455-22110-H0 SMD RESISTOR RC11-1/8W-100-J 1

456-2247K-B1 SMD CAPACITOR 06032R472K250BA 1

456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

456-2410R-C1 SMD CAPACITOR C1608Y5V1E104ZT 1

456-2447R-C1 SMD CAPACITOR 06032E474Z250BA 1

456-2510R-C2 SMD CAPACITOR 08052E105Z250BA 1

456-3015H-11 SMD CAPACITOR 0603CG150J500BA 1

456-3018H-11 SMD CAPACITOR 0603CG180J500BA 1

456-3020H-11 SMD CAPACITOR C1608CH1H200JT 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

-75 -

Part Code Description QTY

456-3020H-11 SMD CAPACITOR C1608CH1H200JT 1

456-3030H-11 SMD CAPACITOR 0603CG300J500BA 1

456-3033H-11 SMD CAPACITOR C1608CH1H330JT 1

456-3047H-11 SMD CAPACITOR C1608CH1H470JT 1

456-3068H-11 SMD CAPACITOR C1608CH1H680JT 1

456-3110H-11 SMD CAPACITOR C1608CH1H101JT 1

456-3210H-11 SMD CAPACITOR 0603CG102J500BA 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

456-3210H-11 SMD CAPACITOR 0603CG102J500BA 1

456-3227K-B1 SMD CAPACITOR 06032R272K500BA 1

456-3310H-11 SMD CAPACITOR 0603CG103J500BA 1

456-3347K-B1 SMD CAPACITOR 06032R473K500BA 1

474-14A22-K0 SMD COIL SGMI3216M2R2KT 1

477-40212-00 SMD INDUCTANCE SLF12575T-470M2R7 1

666-12010-00 SMD FERRITE BEAD GB2012D151T 1

Model No.: LCT-32PBSTP.doc

Version: 1.0

Part Code Description QTY

666-12010-00 SMD FERRITE BEAD GB2012D151T 1

666-13204-00 SMD FERRITE BEAD STBL3216-190PT 1

666-13206-00 SMD FERRITE BEAD STPB3216-310PT 1

666-13207-00 SMD FERRITE BEAD STPB3216-380PT 1

782-L37W25-6900 DSP BOARD PCB 1

Model No.: LCT-32PBSTP.doc

Version: 1.0
