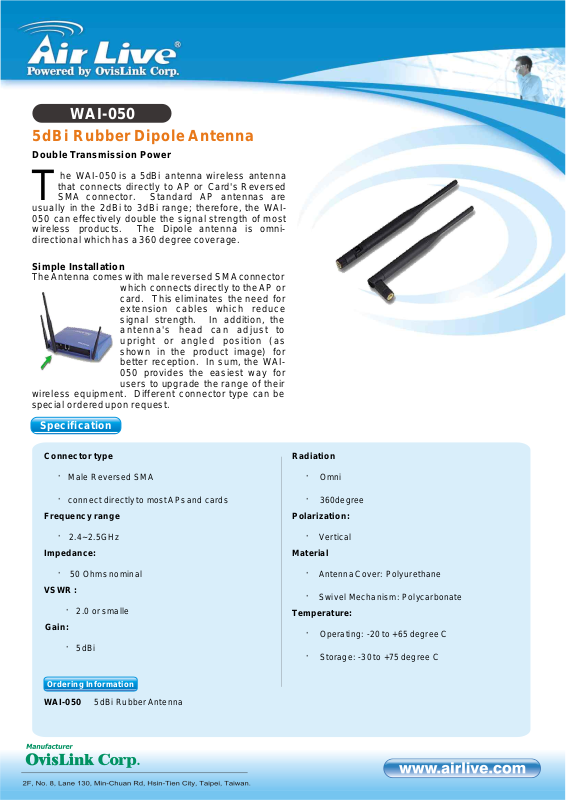

Airlive WAI-050 DATASHEET
WAI-050
5dBi Rubber Dipole Antenna
Double Transmission Power
he WAI-050 is a 5dBi antenna wireless antenna
that connects directly to AP or Card's Reversed
SMA connector. Standard AP antennas are
T
usually in the 2dBi to 3dBi range; therefore, the WAI050 can effectively double the signal strength of most
wireless products. The Dipole antenna is omnidirectional which has a 360 degree coverage.
Simple Installation
The Antenna comes with male reversed SMA connector
which connects directly to the AP or
card. This eliminates the need for
extension cables which reduce
signal strength. In addition, the
antenna's head can adjust to
upright or angled position (as
shown in the product image) for
better reception. In sum, the WAI050 provides the easiest way for
users to upgrade the range of their
wireless equipment. Different connector type can be
special ordered upon request.
Specification
Connector type
· Male Reversed SMA
· connect directly to most APs and cards
Frequency range
· 2.4~2.5GHz
Impedance:
· 50 Ohms nominal
VSWR :
· 2.0 or smalle
Gain:
· 5dBi
Ordering Information
WAI-050 5dBi Rubber Antenna
Radiation
· Omni
· 360degree
Polarization:
· Vertical
Material
· Antenna Cover: Polyurethane
· Swivel Mechanism: Polycarbonate
Temperature:
· Operating: -20 to +65 degree C
· Storage: -30 to +75 degree C
