AiM Yamaha R6 User Manual

Download
Plug&Play kit
Yamaha R1 2004/2005/2006 – R6 2004/2005
User manual
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
User manual Release 1.01
INDEX
Introduction ........................................................................................................................ 3
Chapter 1 – Plug&Play kit composition ........................................................................... 4
1.1 – Part Numbers ...................................................................................................................................... 6
Chapter 2 – Plug&Play kit installation .............................................................................. 7
Chapter 3 – MXL and Yamaha connectors pinout .......................................................... 8
3.1 – MXL and Yamaha R1 2004/05/2006 AMP connectors pinout ......................................................... 8
3.2 – MXL and Yamaha R6 2004/2005 AMP connectors pinout .............................................................. 9
Chapter 4 – First start up and working mode ................................................................ 10
4.1 – Running mode .................................................................................................................................. 10
4.1.1 – Error codes in “Running mode” ................................................................................................... 12
4.2 – Setting mode ..................................................................................................................................... 13
4.2.1 – Setting mode with stock ECU ..................................................................................................... 13
4.2.2 – Setting mode with YEC ECU kit .................................................................................................. 14
4.3 – Diagnostic mode ..................................................................................................... 17
Chapter 5 – Calibration, gear calculation, configuration, data download and analysis
........................................................................................................................................... 19
Appendix – Wirings and pinout ...................................................................................... 20
1
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
User manual Release 1.01
Presentation
AIM: world leader in data acquisition for racing applications.
Established in 1976, AIM is today a world leader producer of high performances instruments for racing applications: dashes, loggers, digital displays, lap timers.
AIM established new standards in a lot of motorsports: from kart to bikes, Dragster, and even snowmobiles!
AIM products merges the functionalities of traditional tachometers: RPM indicators, temperature, pressure and lap timers, with compact, high performing and friendly using units. Different products for different applications with a shared characteristics: the great innovation.
Each AIM system is designed, developed and tested by its technicians. The Research and development team is made of electronics and mechanicals engineers, physics and other specialists that develop firmware, software, hardware and the related documentation. Our reputation is build on quality products, innovative technologies and on the steady engagement of customer support.
2
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
User manual
0
Introduction
Release 1.01
MXL Plug&Play kit for Yamaha R1/R6 is the dash (with data acquisition in Pista version)
designed and developed for an easy and quick installation: with the minimum effort it will be possible to connect directly to the bike ECU and visualize (with no need of additional sensors):
• RPM
• Speed
• Water temperature
• Air temperature
Through the bike stock sensor it will be possible to sample:
• Oil level
• Fuel level
• Turning lights signal
• High beam signal
• Neutral signal)
• Battery charge level
MXL, like the stock dash is powered by the bike master switch. MXL Strada, Pista kits for Yamaha here described have been developed for the following
bike models:
Model Year 2004 Year 2005 Year 2006
R1
R6
9 9 9 9 9 z
9 = supported z = non supported
Note: thanks to the infrared transmitter/receiver (included in kit MXL Pista kit, optional to MXL Strada kit), lap times will be shown/recorded. MXL Pista, moreover, allows to
manage and record data coming from 5 external configurable channels (potentiometers suspensions, throttle sensor, brake pressure sensor, etc…).
MXL Plug&Play for Yamaha R1 2004/2005/2006 and Yamaha R6 2004/2005 has three
different operating mode:
• Running mode: is the standard mode that shows and, if connected to an MXL Pista records, data out coming from the engine and diagnosis codes;
• Setting mode: this mode allows to set some engine parameters. Setting mode
allows to modify the ECU mapping.
• Diagnostic mode: this mode allows to manage ECU problems and errors.
For what not expressly explained in this tutorial refer to MXL and/or Race Studio
Configuration user manuals.
3
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
User manual
1
Chapter 1 – Plug&Play kit composition
Release 1.01
Plug&Play kits for Yamaha bikes changes according to the chosen MXL model and to the bike year of production. In the above image kit components are numbered for more clarity.
MXL Strada Plug&Play kit for Yamaha R1 2004/2005/2006 and Yamaha R6 2004/2005: N.1 – MXL Strada (1);
N.1 – 12 pins AMP cable for MXL Strada (2); N.1 – Yamaha bracket kit (3) made up of:
n°1 – bracket; n°3 – washers; n°4 – M4*8 Phillips recess screws; n°3 –M5*18 Phillips recess screws;
N.1 – USB Cable (4) N.1 – Race Studio 2 Software CD (5) This manual + MXL user manual MXL (6).
Note: before installing the kit please verify that it contains all specified items.
4
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
User manual Release 1.01
MXL Pista Plug&Play kit for Yamaha R1 2004/2005/2006 and Yamaha R6 2004/2005:
N.1 – MXL Pista (1); N.1 – 12 pins AMP cable for MXL Pista (2); N.1 – Infrared receiver with 90 cm cable (3); N.1 – Infrared transmitter (4); N.1 – Transmitter power cable (5); N.1 – Yamaha bracket kit (6) made up of:
n°1 – bracket; n°3 – washers; n°4 – M4*8 Phillips recess screws; n°3 – M5*18 Phillips recess screws;
N.1 – USB Cable (7); N.1 – Race Studio 2 Software CD (8); This manual + MXL user manual (9).
Note: before installing the kit please verify that it contains all specified items.
5
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
User manual
10
1.1 – Part Numbers
Release 1.01
MXL Strada Plug&Play kit for Yamaha R1 04/05/06: part number X16MXLSYR1407; MXL Strada Plug&Play kit for Yamaha R6 04/05: part number X16MXLSYR6450; MXL Pista Plug&Play kit for Yamaha R1 04/05/06: part number X16MXLCYR1407; MXL Pista Plug&Play kit for Yamaha R6 04/05: part number X16MXLCYR6450.
Optional to all MXL Strada for Yamaha kits:
Infrared receiver: part number X41RX12090; Infrared transmitter: part number X02TXKMA01; Transmitter power cable: part number: V02POWTX0;
Spare parts:
Yamaha R1 2004/2005/06 and Yamaha R6 2004/2005 bracket kit: DNKTSTMXLY 12 pin AMP cable for MXL Strada: V02.554.350 12 pin AMP cable for MXL Pista: V02.554.340
6
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
User manual
2
Chapter 2 – Plug&Play kit installation
Release 1.01
MXL Plug&Play kit for Yamaha R1/R6 has been expressly designed to guarantee
maximum installation easiness.
Please note: this kit has been expressly tested to guarantee total compatibility with
a stock bike completely corresponding to the one sold by the manufacturer. The
only compatible variation is the original YEK (Yamaha Engineering Corporation) kit.
Through the four fixing points on the product rear it is possible to substitute the original dash in an easy and quick way with no need of bending, cutting or drilling anything: each component is “Plug&Play”.
The system is to be connected to the high beam chassis using the bracket included in the kit. This last is in black anodised aluminium, light weight and mechanically resistant.
GENERAL NOTES – Read these notes before installing the kit.
• Do not cut any cable: the wirings included in the kit are Plug&Play;
• be careful not to damage the stock connectors while plugging/unplugging them;
• do not install the system when the engine is hot;
• be careful not to lose screws and washers.
After having removed the stock dash:
• fix MXL to the bracket using the 4 supports highlighted in the below image;
• connect the wiring to the two connectors as explained in the below image.
7
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
3
Chapter 3 – MXL and Yamaha connectors pinout
Yamaha R1 and R6 bikes are equipped with a 16 pins AMP female connector.
8
3.1 – MXL and Yamaha R1 2004/05/2006 AMP connectors pinout

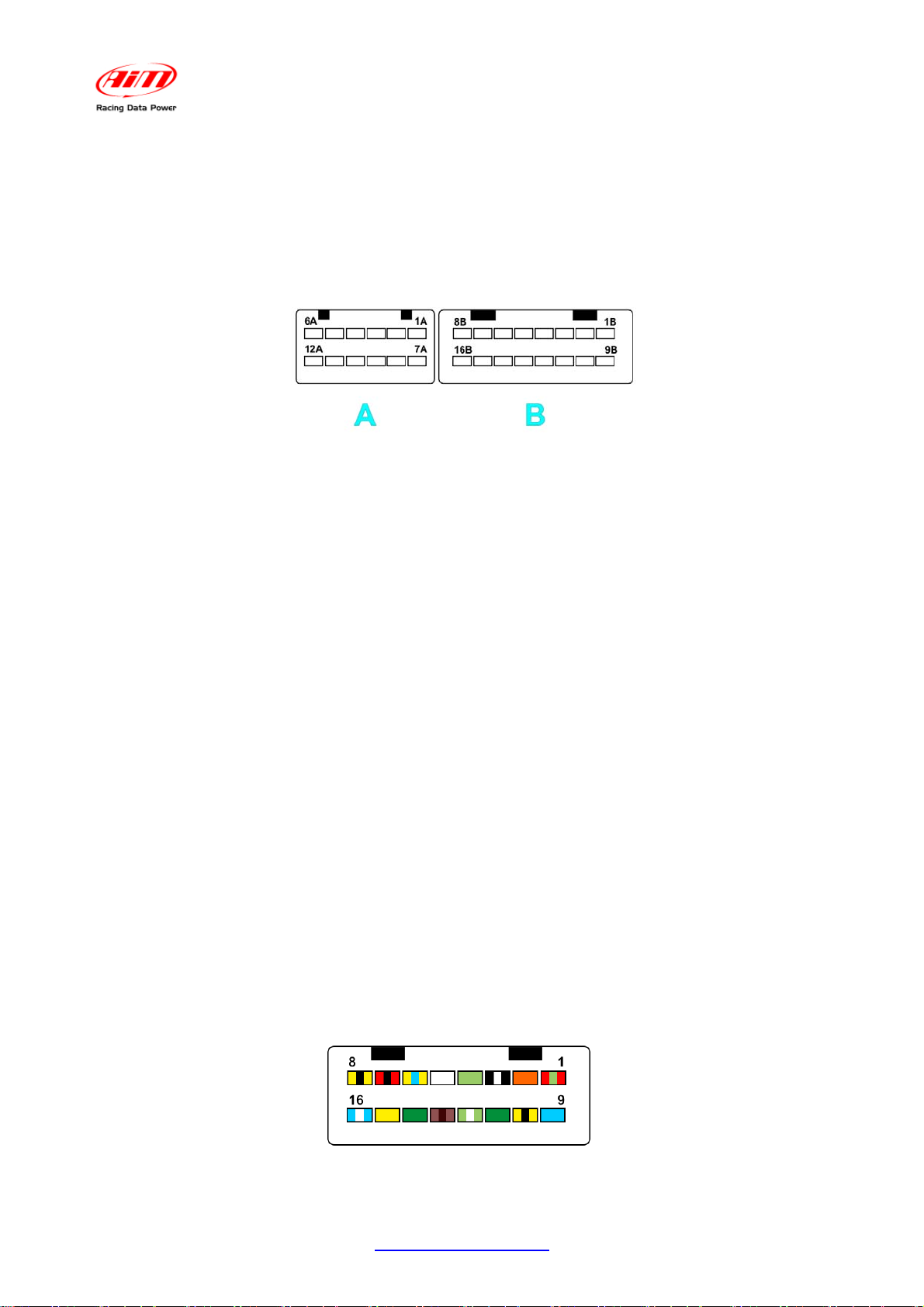

The below image shows MXL AMP connectors and the related pinout.
User manual Release 1.01
MXL AMP 12 pins male connector pinout
(“A”)
1A
2A
3A
4A
5A
6A
7A
8A
9A
10A
11A
12A
Analog channel 10 (free)
+Vb
GND
Lap (optical)
+Vref
GND
Analog channel 6 (free)
Analog channel 5 (free)
Analog channel 7 (free)
Analog channel 9 (free)
+Vref
GND
MXL AMP 16 pins male connector pinout
(“B”)
1B
2B
3B
4B
5B
6B
7B
8B
9B
10B
11B
12B
13B
14B
+Vb
+Vb EXT
GND
not used
not used
Linea K
oil level
RPM
+Vb
Hi-beam
Turning lights
Fuel
Turning lights
P1
15B
16B
P2
Neutral
Here below is shown 16 pin AMP female connector installed on Yamaha bike with cable colours.
8
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
11
3.2 – MXL and Yamaha R6 2004/2005 AMP connectors pinout
The image here below shows MXL AMP connectors and the related pinout.
User manual Release 1.01
MXL AMP 12 pins male connector pinout
(“A”)
1A
2A
3A
4A
5A
6A
7A
8A
9A
10A
11A
12A
Analog channel 10 (free)
+Vb
GND
Lap (optical)
+Vref
GND
Analog channel 6 (free)
Analog channel 5 (free)
Analog channel 7 (free)
Analog channel 9 (free)
+Vref
GND
MXL AMP 16 pins male connector pinout
(“B”)
1B
2B
3B
4B
5B
6B
7B
8B
9B
10B
11B
12B
13B
14B
RPM
Oil level
not used
not used
K line
not used
GND
+Vb
+Vb
Turning lights
Turning lights
Hi-beam
Neutral
not used
15B
16B
Fuel
+Vb ext
Here below is shown 16 pin AMP female connector installed on Yamaha bike with cable colours.
9
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
User manual
4
Chapter 4 – First start up and working mode
Release 1.01
MXL Plug&Play kit for Yamaha R1/R6 can be installed on stock bikes and on bikes
equipped with original YEC (Yamaha Engineering Corporation) kit. Once the bike powered on, MXL automatically recognizes and shows on the display the kind of ECU installed. Supported ECUs are:

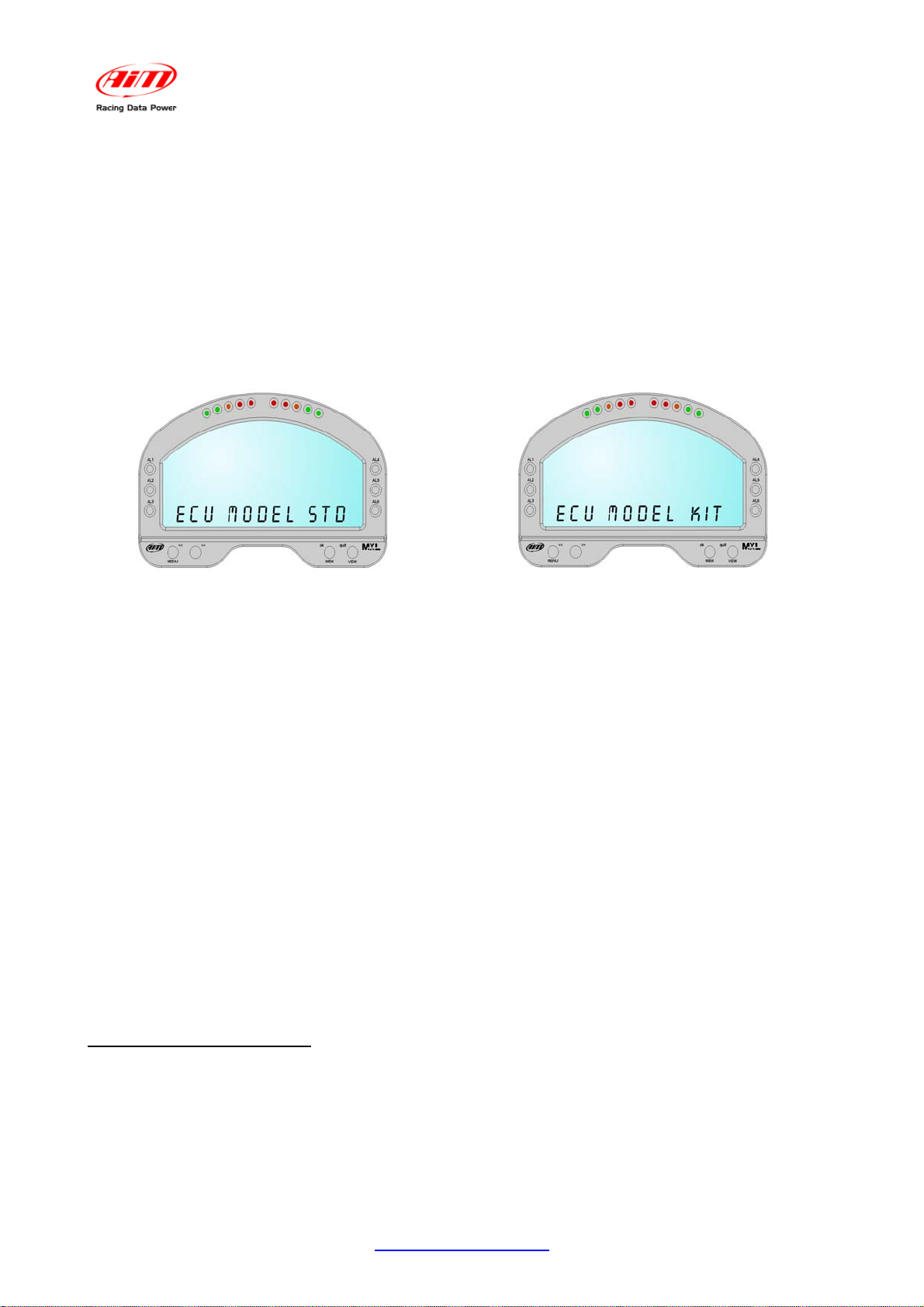

• Standard ECU (stock): the display shows “ECU MODEL STD” (image below on the left);
• YEC kit (YEC ECU): the display shows “ECU MODEL KIT” (image below on the right).
9
4.1 – Running mode
After ECU recognition, MXL starts working in “Running mode” and shows and manages,
as default settings, different information according on MXL model.
MXL STRADA
RPM1 from ECU Shown Rear speed wheel from ECU Shown Water temperature from ECU Shown + alarm LED Air temperature from ECU Shown + alarm LED Oil pressure from sensors alarm LED Fuel level alarm from sensors alarm LED Turning lights from sensors alarm LED High beam from sensors alarm LED Engaged gear (neutral included) automatically calculated Shown Yamaha error code from ECU Available2
1
RPM data can be sampled both by the bike ECU and by a stock sensor. To use the data coming from the
ECU set “RPM” box in MXL system configuration layer on “ECU”; to use the data coming from the stock sensor set “RPM” box in MXL system configuration layer on “AIM sensor”. Refer to Race Studio Configuration user manual for further information concerning MXL configuration. In case a deep analysis of
RPM channel is wished use data coming from the stock sensor (set “AIM sensor”) whose sampling frequency is higher.
2
Yamaha_ERR channel is not shown by the default configuration. To see it on MXL display configure the logger using Race Studio Configuration software. Refer to Race Studio Configuration user manual for further information concerning MXL channels configuration.
10
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
User manual Release 1.01
MXL PISTA
RPM3 from ECU Shown and recorded Rear wheel speed from ECU Shown and recorded Water temperature from ECU Shown and recorded+alarm LED Air temperature from ECU Shown and recorded+alarm LED Oil pressure from sensors alarm LED Fuel level alarm from sensors alarm LED Turning lights from sensors alarm LED High beam from sensors alarm LED Engaged gear (neutral included) internally calculated Shown and recorded Yamaha error codes from ECU Available4
3
RPM data can be sampled both by the bike ECU and by a stock sensor. To use the data coming from the
ECU set “RPM” box in MXL system configuration layer on “ECU”; to use the data coming from the stock sensor set “RPM” box in MXL system configuration layer on “AIM sensor”. Refer to Race Studio Configuration user manual for further information concerning MXL configuration. In case a deep analysis of
RPM channel is wished use data coming from the stock sensor (set “AIM sensor”) whose sampling frequency is higher.
4
Yamaha_ERR channel is not shown by the default configuration. To see it on MXL display configure the logger using Race Studio Configuration software. Refer to Race Studio Configuration user manual for further information concerning MXL channels configuration.
11
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
14
4.1.1 – Error codes in “Running mode”
Yamaha bikes have a diagnostic feature that shows error codes.
Here below are shown “Running Mode” error codes and the related meaning.
11 Camshaft pick up sensor problem 12 Crankshaft pick up sensor problem 13,14 Air pressure sensor problem 15,16 TPS sensor problem 17,18 Engine valve EXUP sensor problem 19 Stock bike sensor problem 20 Air pressure sensor problem 21 Water temperature sensor problem 22 Air temperature sensor problem 23 Air pressure sensor problem 30,41 Over turn sensor problem 33 Cylinder#1 ignition problem 34 Cylinder#2 ignition problem 35 Cylinder #3 ignition problem 36 Cylinder #4 ignition problem 42 Speed sensor or neutral (N) sensor problem 43,46 Injection system problem 47 EXUP valve position sensor problem 48 EXUP valve servo sensor problem 50 ECU internal problem
User manual Release 1.01
Warning: always refer to Yamaha and YEC official documentation for a complete
description of the errors.
In case diagnostic function detects more errors YAMAHA_ERR channel shows
error codes in sequence.
12
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
User manual
12
4.2 – Setting mode
Release 1.01
“Setting mode” allows to modify some ECU map settings. They changes depending on if
it’s a stock ECU or an YEK kit.
Powering on MXL it starts in “Running Mode”: press “MENU/<<” and “VIEW/QUIT” at a time to enter setting mode. The display shows “DIAG SETUP” message as here below.
Confirm pressing “OK/MEM”. The display shows settable parameters in different pages. Use “>>”/”<<” buttons to scroll the pages. Once reached the page to be set press “MEM/OK” to enter that page setting, use “>>”/”<<” buttons to modify the settings and press again “MEM/OK” to save the new
settings ad exit. In case no modification has been made but the page has been entered it
is anyway necessary to press again “MEM/OK” to exit the page.
13
4.2.1 – Setting mode with stock ECU
In case the bike has a stock ECU it is only possible to change each cylinder injection
times (and consequently CO value). This setting can be made with the engine on or off. The below table shows settable parameters.
PAGE DESCRIPTION VALUE CO CYLINDER 1 Modifies first cylinder CO value (the
higher is the value the richer is the mixture).
CO CYLINDER 2 Modifies second cylinder CO value (the
higher is the value the richer is the mixture).
CO CYLINDER 3 Modifies third cylinder CO value (the
higher is the value the richer is the
Allowed values are between
-128 and +127. Default value is 0.
mixture).
CO CYLINDER 4 Modifies fourth cylinder CO value (the
higher is the value the richer is the mixture).
Refer to Yamaha technical manual for further information.
To exit setup mode recycle power on the bike.
13
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
User manual
15
4.2.2 – Setting mode with YEC ECU kit
Release 1.01
In case of a bike equipped with ECU YEC kit it is possible to modify both injection and ignition parameters. It is also always possible to come back to the default configuration. As

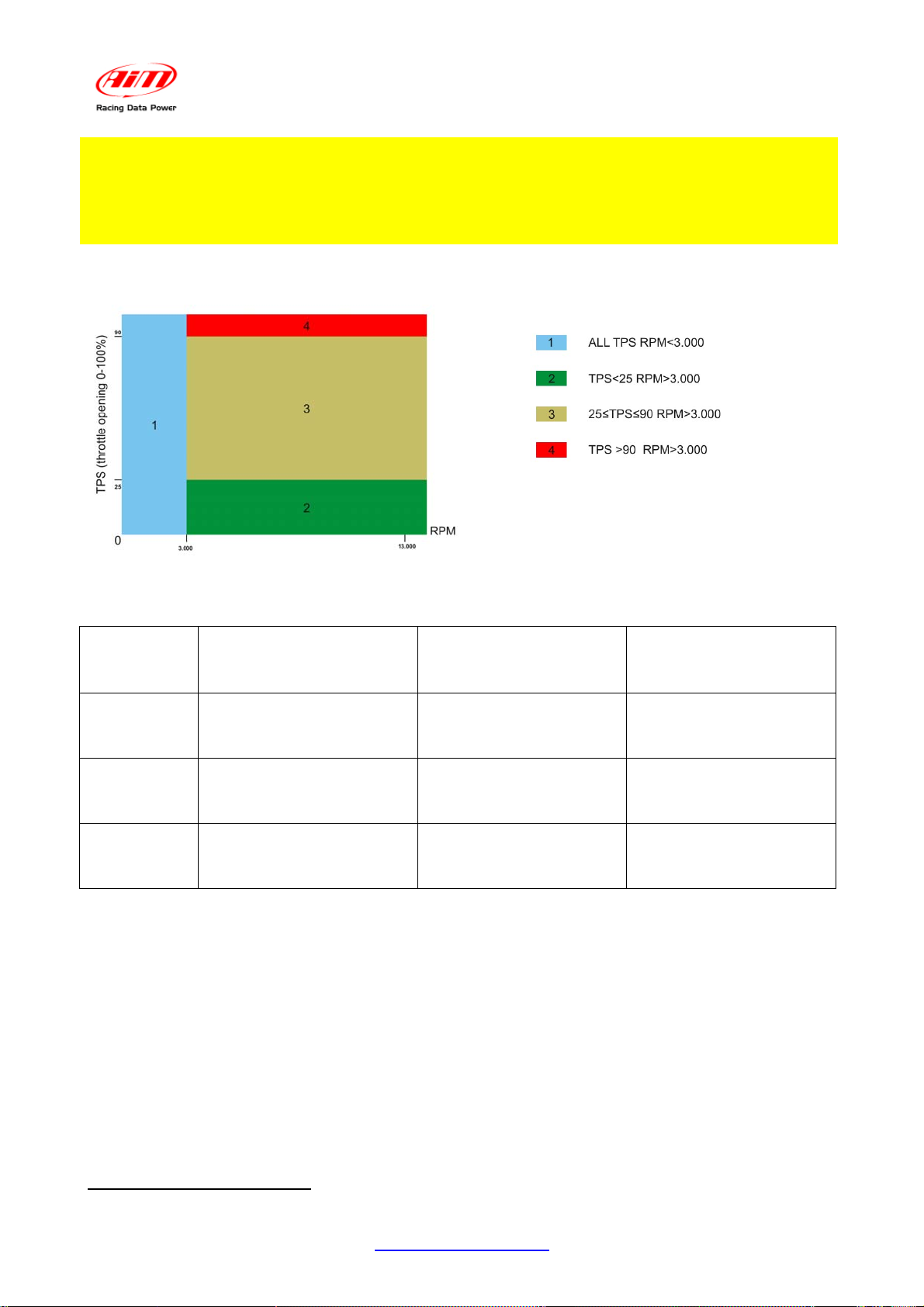

shown on the injection map, it is possible to have richer or leaner air/fuel mixtures in nine
different points of the map.
In the below table characteristics of each point of the map are explained.
Map point Characteristics Description Value
1 TPS<25 RPM<3.000 Modifies the quantity
of fuel injected in
Correction ±25% of the value in the map
point “1” of the map.
2 TPS<25 RPM>3.000 Modifies the quantity
of fuel injected in
Correction ±25% of the value in the map
point “2” of the map.
3 25≤TPS≤90 ALLRPM Modifies the quantity
of fuel injected in
Correction ±25% of the value in the map
point “3” of the map.
4 TPS>90 RPM<9.000 Modifies the quantity
of fuel injected in
Correction ±25% of the value in the map
point “4” of the map.
5 TPS>90 9.000≤RPM≤10.000 Modifies the quantity
of fuel injected in
Correction ±25% of the value in the map
point “5” of the map.
6 TPS>90 10.000≤RPM≤11.000 Modifies the quantity
of fuel injected in
Correction ±25% of the value in the map
point “6” of the map.
7 TPS>90 11.000≤RPM≤12.000 Modifies the quantity
of fuel injected in
Correction ±25% of the value in the map
point “7” of the map.
8 TPS>90 12.000≤RPM≤13.000 Modifies the quantity
of fuel injected in
Correction ±25% of the value in the map
point “8” of the map.
9 TPS>90 RPM>13.000 Modifies the quantity
of fuel injected in
Correction ±25% of the value in the map
point “9” of the map.
Growing the value the mixture will be richer.
14
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
User manual Release 1.01
Warning: value selected in point “4” of the map (TPS>90 RPM<9.000) is applied in points 5,6,7,8 and 9 too. In these last pages the shown value is to be added to the
one selected in point “4” of the map.
Ex.: point “4” shows value 10%: the mixture is 10% richer in this point;
point “5” shows value 3%: the mixture is 10+3=13% richer in this point.
Ignition map is divided in 4 parts.
Parameters can be modified in three points of the map as explained in the table here below.
Map point Characteristics Description Value
2 Advance5 TPS<25 Changes the ignition
timing in point “2” of
the map.
3 Advance5 25≤TPS≤90 Changes the ignition
timing in point “3” of
the map.
4 Advance5 TPS>90 Changes the ignition
timing in point “4” of
the map.
Correction between +15° and -15° of the map value. Correction between +15° and -15° of the map value. Correction between +15° and -15° of the map value.
5
Ignition advance
15
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
User manual Release 1.01
It is recommended to always refer to Yamaha YEC kit user manual to better take advantage from this fonctionality. ECU kit offers two other possibilities to modify parameters.
Page Description Value
INJN COR TO SPEED Modifies the quantity if
injected mixture according to the vehicle speed.
DEFAULT VALUES SET Shows the number of
modified parameters (injection and ignition).
Modifications can be cancelled.
20 correction possibilities (+10/-
10);
+10 multiplies by two the default parameter;
-10 avoid any correction;
0 uses the default parameter;
Each level is a 10% increment (or so) compared to the correction factor the ECU already uses. Number of modified parameters.
After having shown the number of modified parameters it is possible to come back to default settings pressing “>>”/”<<” and then “MEM/OK”. Led 4 starts blinking and default parameters are restored.
16
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
User manual
5
4.3 – Diagnostic mode
Release 1.01
It allows to monitor the behaviour of sensors and signals out coming from the ECU. It is possible to switch from Running mode to diagnostic mode when the engine is off.
To enter Diagnostic Mode from Running Mode press first “MENU/<<” and “VIEW/QUIT” at one time and then “MENU/<<” e “>>”.Diagnostic mode will show information concerning different sensors in different pages. Use “MENU/<<” and “>>” to scroll through the pages.
The table here below shows the pages.
Page Description Shown data
THROTTLE SENSOR Master throttle angle Valve open angle (from 0° to
125°). ATMO PRESSURE Atmospheric pressure Atmospheric pressure in Kpa. INTAKE PRESSURE Intake air pressure. AirBox pressure in Kpa. INTAKE TEMP Intake air temperature. Intake air temperature in °C. WATER TEMP Water temperature Water temperature in °C VEHICLE SPEED Vehicle speed. Shows
Reads pulses form 0 to 99.
incremental number of pulses read by the sensor.
OVERTURN SENSOR Value read by the anti-
Voltage value*10 (from 0 to 50)
overturn sensor. BATTERY VOLTAGE Battery voltage Battery voltage SWITCH (STOCK BIKE) Switch (stock) 1 = OFF (stock on)
0 = OFF (stock off)
SWITCH (YEC KIT) Switch (ECU kit) 1 = ON
0 = OFF SELECT SWITCH (STOCK BIKE) SELECT SWITCH (YEC KIT)
Neutral Switch 1 = Neutral
0 = Gear
Map selection switch (kit YEC)
1 = SB
0 = ST IGNITION COIL 1 When engine-off switch is selected and de-selected the IGNITION COIL 2 IGNITION COIL 3
engine off switch turns the coil on 5 times (shown value is
not important). IGNITION COIL 4 INJECTOR 1 When engine-off switch is selected and de-selected the
INJECTOR 2 INJECTOR 3
engine off switch turns the injector on 5 times (shown value
is not important). INJECTOR 4
AI SOLENOID (STOCK only)
When engine-off switch is selected and de-selected the
engine off switch turns the AI Solenoid on 5 times. MAIN RELAY When engine-off switch is selected and de-selected the
engine off switch turns the main relay on 5 times (shown
value is not important). FAN RELAY (STOCK only) When engine-off switch is selected and de-selected the
engine off switch turns the fan relay on 5 times. PROJECTOR RELAY When engine-off switch is selected and de-selected the
engine off switch turns the projector relay on 5 times.
17
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
User manual Release 1.01
EXUP EXUP open angle EXUP open angle in degree. SUBTHROTTLE When engine-off
switch is selected and
Secondary throttle position in
degrees. de-selected secondary throttle position changes from totally open to totally close..
ERRCODEEEPROM (STOCK only)
Cylinder number in case of ECU
Cylinder number (from 1 to 4).
Shows 0 in case of no error. EEPROM error.
ERRHAPPENED (STOCK only) ERRHAPPENEDCLR (Stock only)
Shows the sequence of detected errors. Shows the number of detected errors. Can
Shows the sequence of detected
errors (range from 11 to 50)
In case of no error shows 0,
otherwise numbers from 1 to 25. be reset moving the engine switch from OFF to ON.
To exit “Diagnostic” mode recycle the power on both MXL and the ECU.
Warning: refer to Yamaha and YEC official documentation for a complete
description of the errors.
18
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
User manual
6
Chapter 5 – Calibration, gear calculation, configuration, data
Release 1.01
download and analysis
MXL Strada/ Pista can show on the display the engaged gear.
At first start up MXL starts gear calibration and shows “RUNNING GEAR CAL” on the
display bottom string.
Warning
• For MXL to show engaged gear it is necessary to perform “Gear calibration procedure”. Refer to Race Studio configuration user manual to know how to do it.
• In case crown/pinion ratio has been changed a new calibration and a new gear calculation is to be done.
• Refer to Race Studio Configuration user manual for further information concerning gear sensor calibration and gear calculation.
MXL can be configured only using a PC and Race Studio 2 software (included in the kit).
To connect MXL to the PC use the proper USB cable included in the kit. For any further information concerning Race Studio 2 software installation and
functionalities refer to the related user manual.
When a test session is over it is possible to download stored data (MXL Pista only) and save them in the database integrated in Race Studio 2 software.
For further information concerning data download refer to Race Studio Configuration
user manual.
19
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
User manual Release 1.01
7
Appendix – Wirings and pinout
N. rev. / Rev. N.
Descrizione / Description
Data / Date
Binder 719
N. 1 - 4 pins
Firma / Signature Contr. da / Ckd. by
female connector
Lenght
Connection
Lap in
Analog GND
432
330 mm
+VB
Lap in
4
3 2
14
4 pins Binder 719
solder termination view
female connector pinout
AMP 12 pins
1 - 4*0.35 mm² cable
7
red
bleu
white
black
Binder 719 connector table
10 9 8
12 pins AMP
654321
12 11
12 pins AMP
female connector
contact insertion view
female connector pinout
1
234
Lap
Channel Binder Pin Cable Colour
Plug&Play kit for MXL Strada Yamaha R1 2004/2005/2006 - R6 2004/2005 optical lap cable
Rif. / Ref.
Progettato da / Designed by Contr. da / Ckd. by Approvato da / Approved by Nome file / File name Data / Date Scala / Scale
Q.tà/Q.ty
L.I.
Racing Data Power
Material / Material N. articolo / Item N.
Titolo / Title
Cavo Lap ottico MXL Strada per Plug&Play Yamaha R1 2004/2005/2006 - R6 2004/2005
N. disegno / Drawing N. Rev. / Rev. Foglio / Sheet
02.554.35
1 of 1
20
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
User manual Release 1.01
N. rev. / Rev. N.
Descrizione / Description
Channel
Ch. 5
Ch. 6
Ch. 7
Ch. 9
Ch. 5/Gyro
Lap
Binder pin
1 2 3
4
1 2 3
4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
Binder 719 connectors table
Cable colour
white black
n.c.
blue
white black
n.c.
blue
white black
n.c.
blue
white black
red
blue
white black
red
blue
white black
red
blue
AMP 12 pin
8 6
5
7 6
5
9
12
11
10 12
2
11
1 3 2
11
4 3 2 4
Connection
Analogic input 5
Analogic GND
V Reference 1
Analogic input 6
Analogic GND
V Reference 1
Analogic input 7
analogico GND
V Reference 2
Analogic input 9
Analogic GND
+Vb
V Reference 2
Analogic input 10
Analogic GND
+Vb
V Reference 2
Lap in
Analogic GND
+Vb
Lap in
Data / Date
Firma / Signature Contr. da / Ckd. by
Lenght
330 mm
330 mm
380 mm
380 mm
430 mm
430 mm
Rif. / Ref.
Progettato da / Designed by Contr. da / Ckd. by Approvato da / Approved by Nome file / File name Data / Date S cala / Scale
Q.tà/Q.ty
Material / Material N. articolo / Item N.
L.I.
Racing Data Power
28/06/2005
Titolo / Title
Cavo MXL Pista per kit Plug&Play Yamaha R1 2004/2005/2006 - R6 2004/2005
N. disegno / Drawing N. Rev. / Rev. Foglio / Sheet
2 of 2
21
MXL Plug&Play kit for Yamaha R1 2004/2005/2006 – R6 2004/2005/
User manual Release 1.01
N. rev. / Rev. N.
Descrizione / Description
Canale
Ch. 5
Ch. 6
Ch. 7
Ch. 9
Ch. 10 / Gyro
Tabella connettori Binder 719
Pin Binder
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
Data / Date
Colore cavo Pin AMP 12 Connessione
Bianco
nero
n.c.
blu
Bianco
nero
n.c.
blu
Bianco
nero
n.c.
blu
Bianco
nero
rosso
blu
Bianco
nero
rosso
blu
8 6
5
7 6
5
9
12
11
10 12
2
11
1 3 2
11
Analog input 5
Analog GND
V reference 1
Analog input 6
Analog GND
V reference 1
Analog input 7
Analog GND
V reference 2
Analog input 9
Analog GND
+ VB
V reference 2
Analog input 10
Analog GND
+ VB
V reference 2
Firma / Signature Contr. da / Ckd. by
Lunghezza
330 mm
330 mm
380 mm
380 mm
430 mm
Lap in
Analog GND
+ VB
Lap in
430 mm
Titolo / Title
Bianco
nero
rosso
blu
Cavo MXL Pista per Plug&Play Yamaha R1 2007/2008 - R6 2006/2007/2008
1
Lap
Rif. / Ref.
Progettato da / Designed by Contr. da / Ckd. by Approvato da / Approved by Nome file / File name Data / Date Scala / Scale
Q.tà/Q.ty
Material / Material N. articolo / Item N.
2 3 4
4 3 2 4
N. disegno / Drawing N. Rev. / Rev. Foglio / Sheet
Racing Data Power
04.554.34
2 di 2
22
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
