AiM GT Steering Wheel User Manual

AiM Srl.

Via Cavalcanti, 8
20063 Cernusco S/N (MI)
Italia
Tel. [phone]

GT 320-350
STEERING WHEEL

USER GUIDE

Made in Italy

www.aim-sportline.com

04

12

18

22

26

30

32

34

37

38

GT 320-350 Steering Wheel

GETTING STARTED

HOW TO CONFIGURE GT STEERING WHEEL

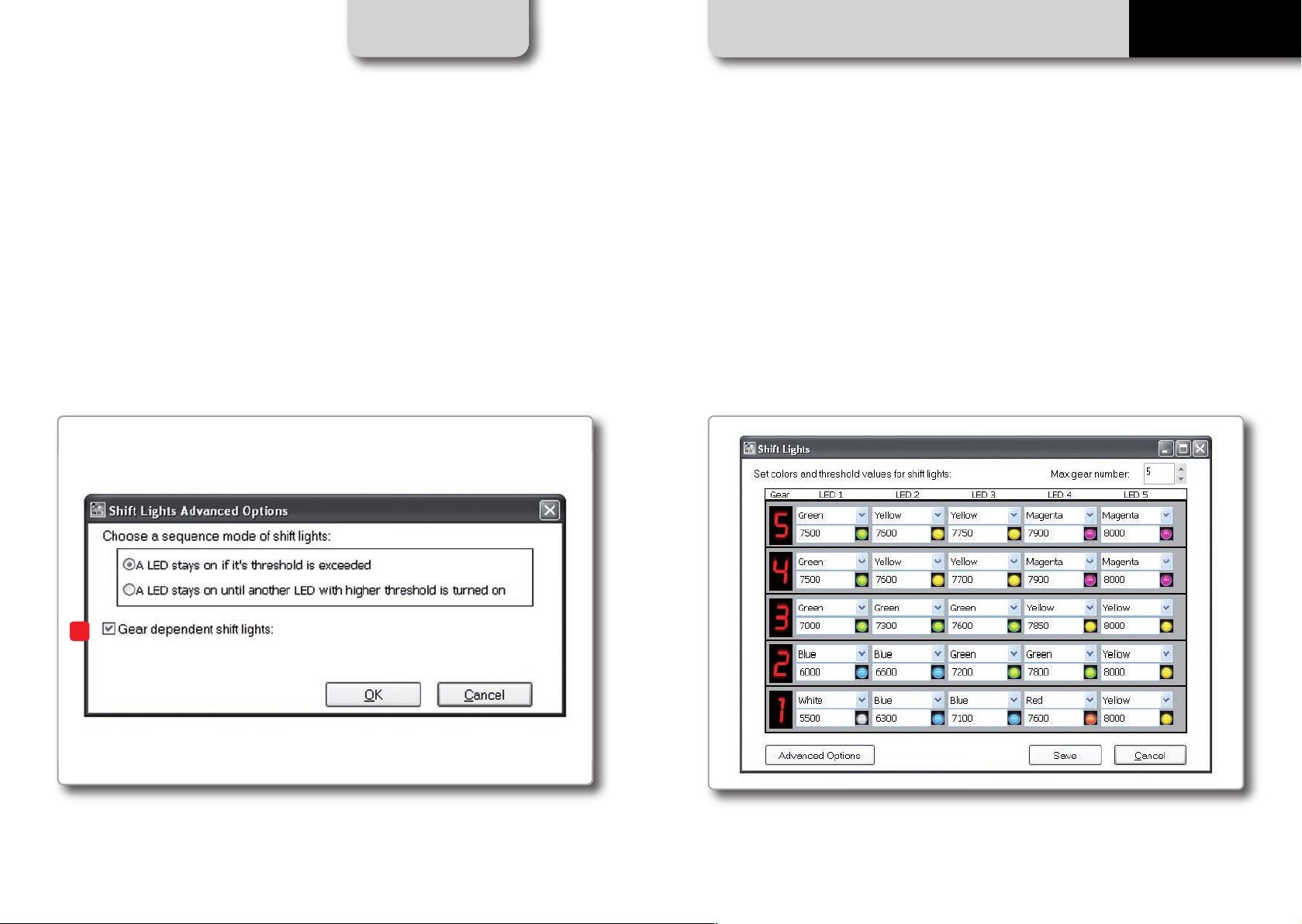

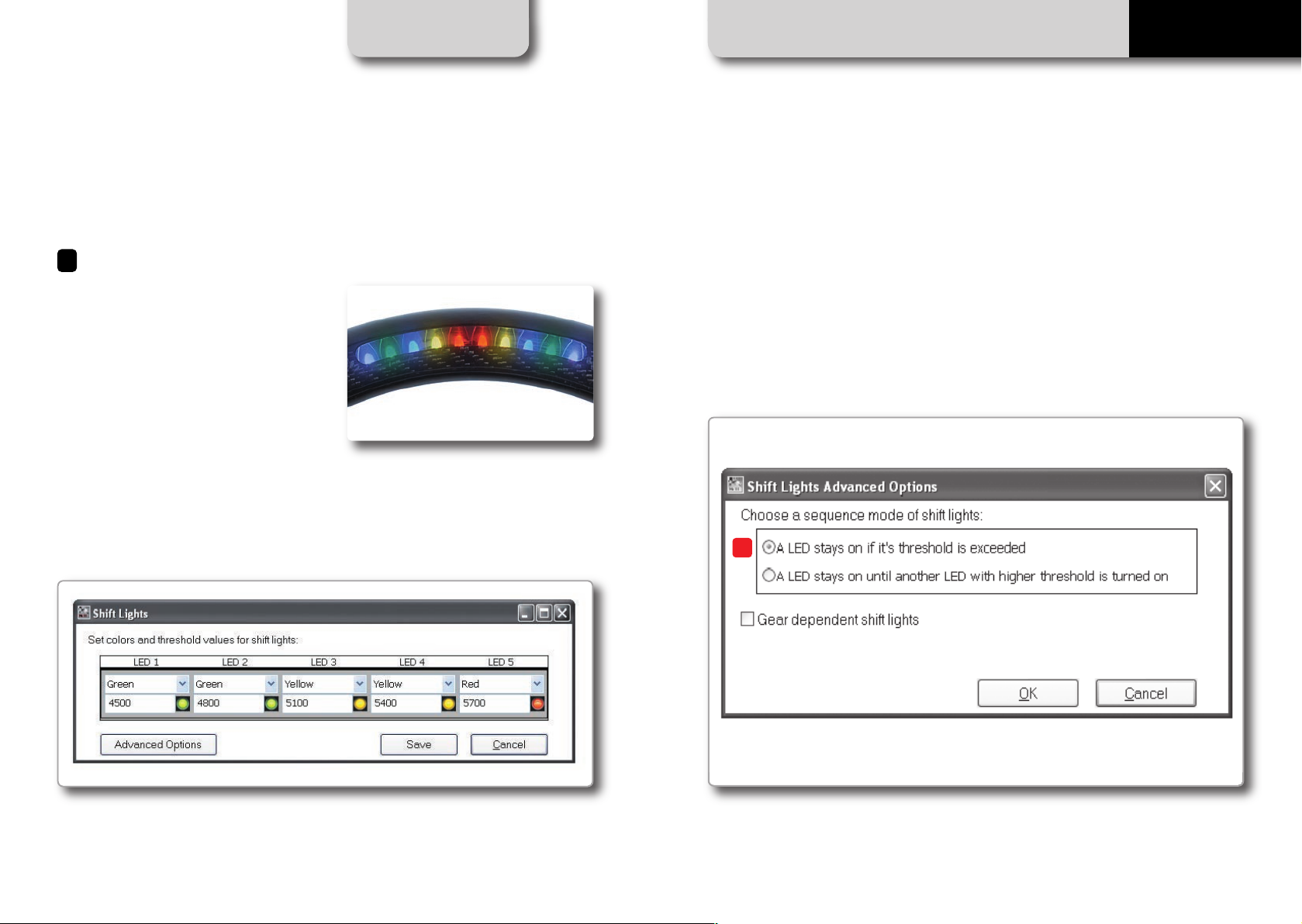

SHIFT LIGHTS CONFIGURATION

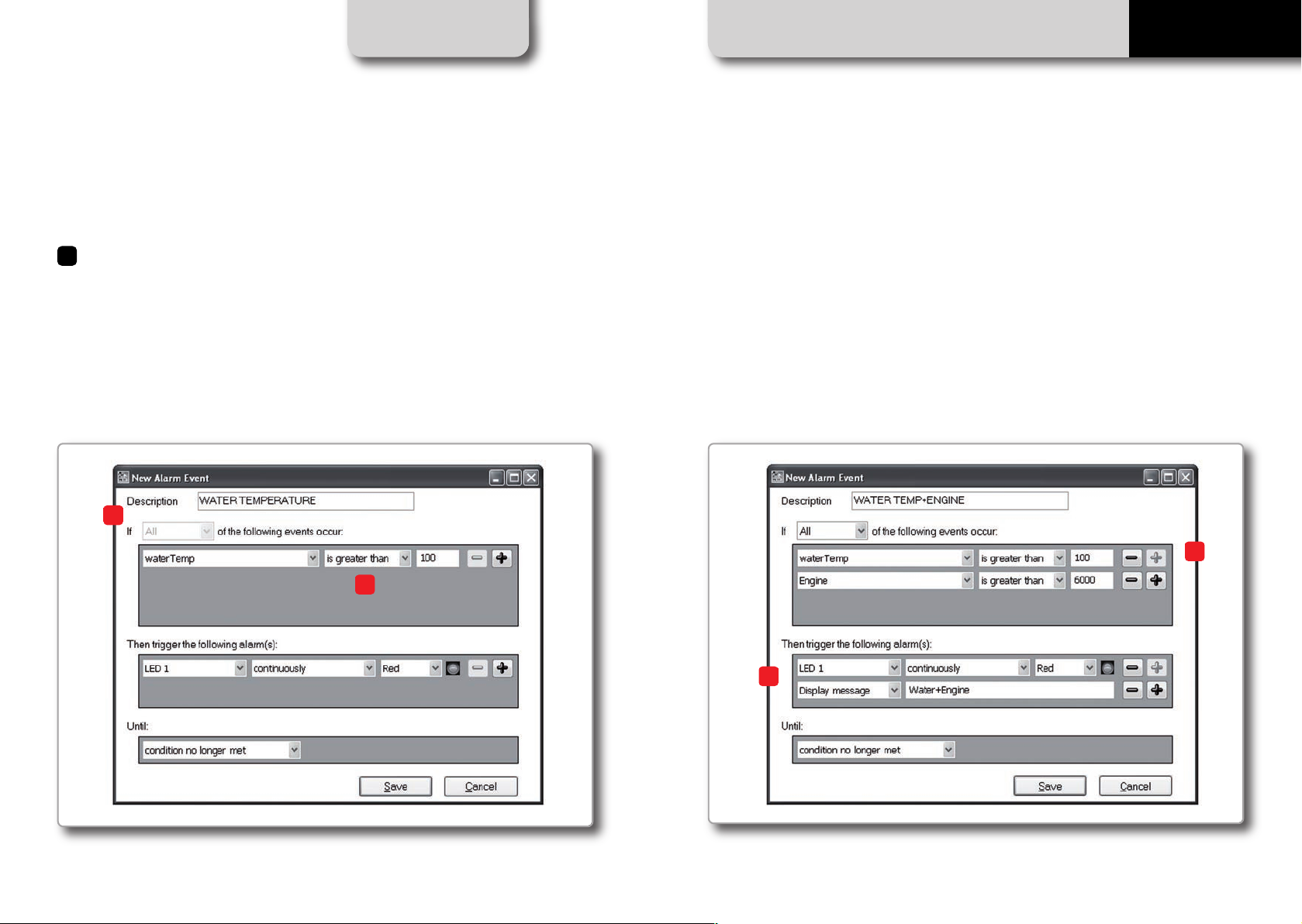

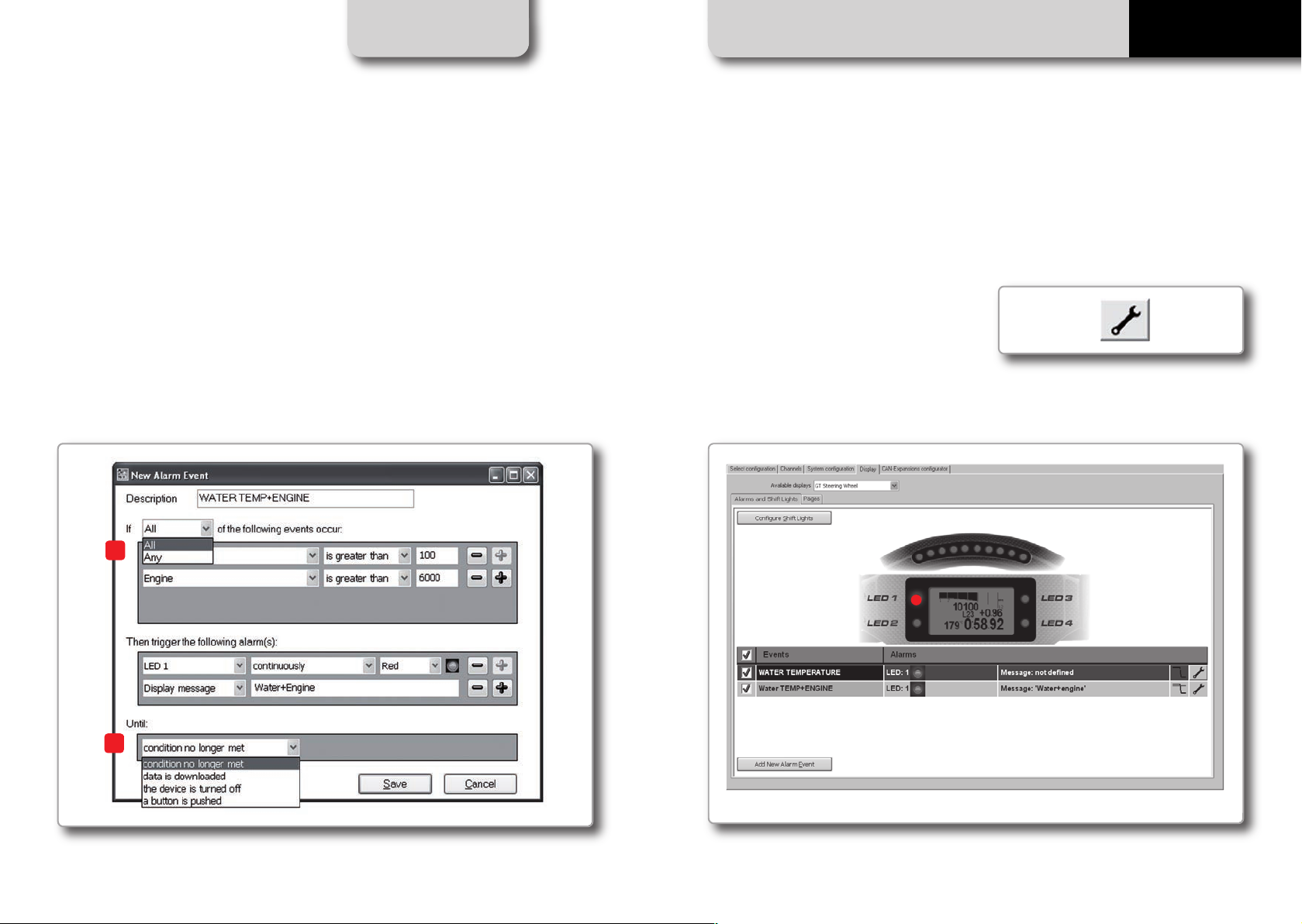

ALARMS CONFIGURATION

PAGE CONFIGURATION

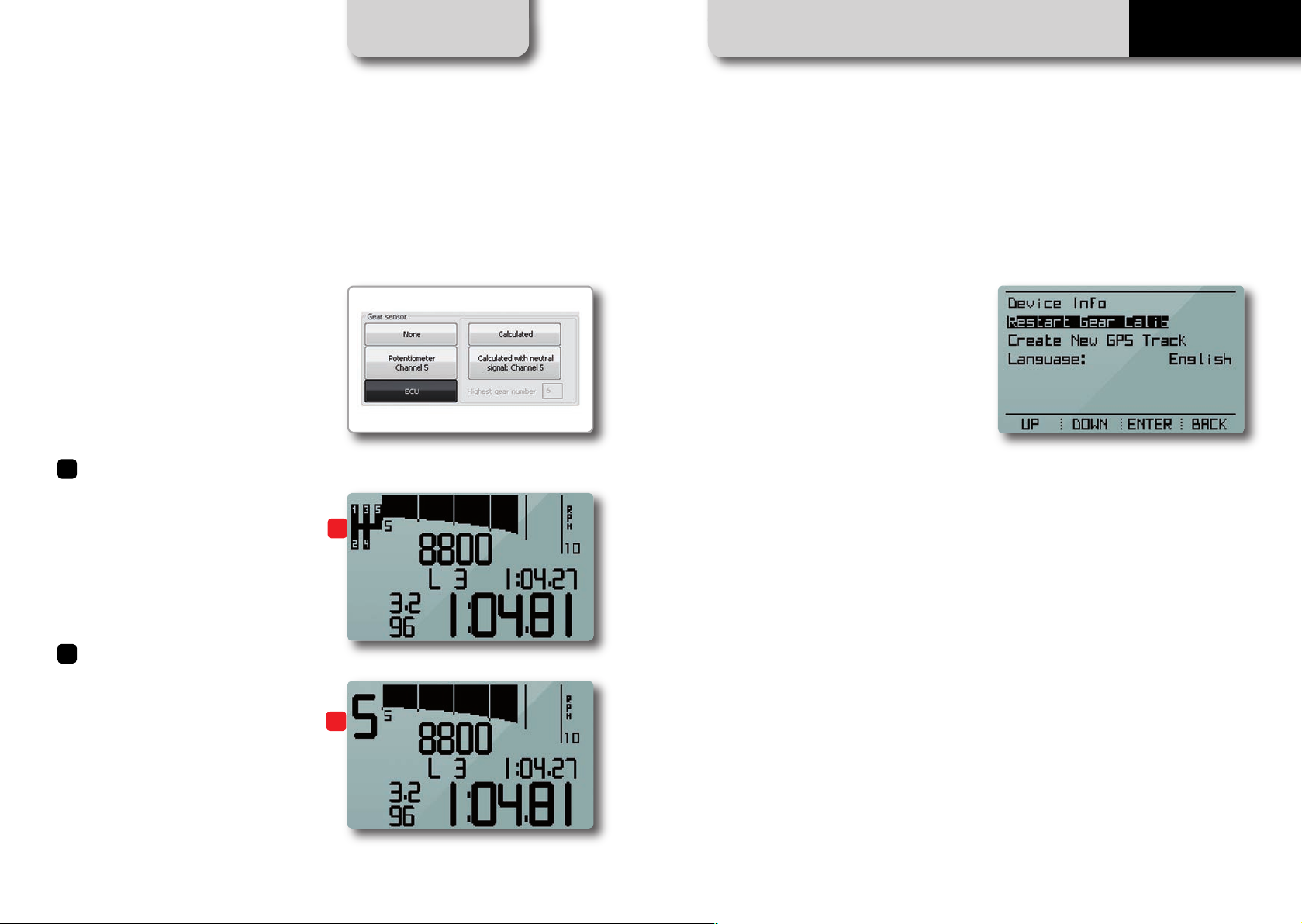

ENGAGED GEAR

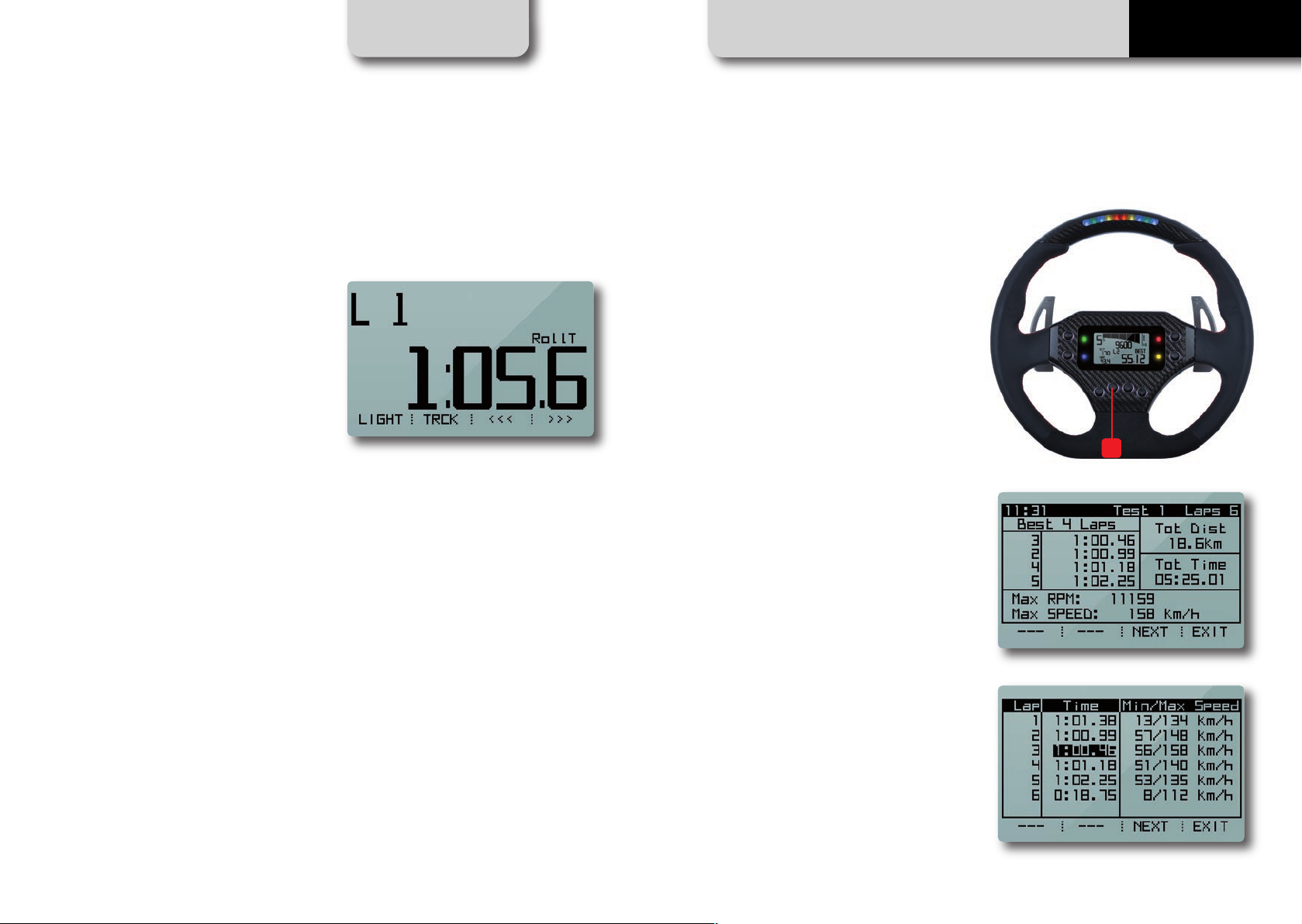

POWERING ON/OFF DATA RECALL

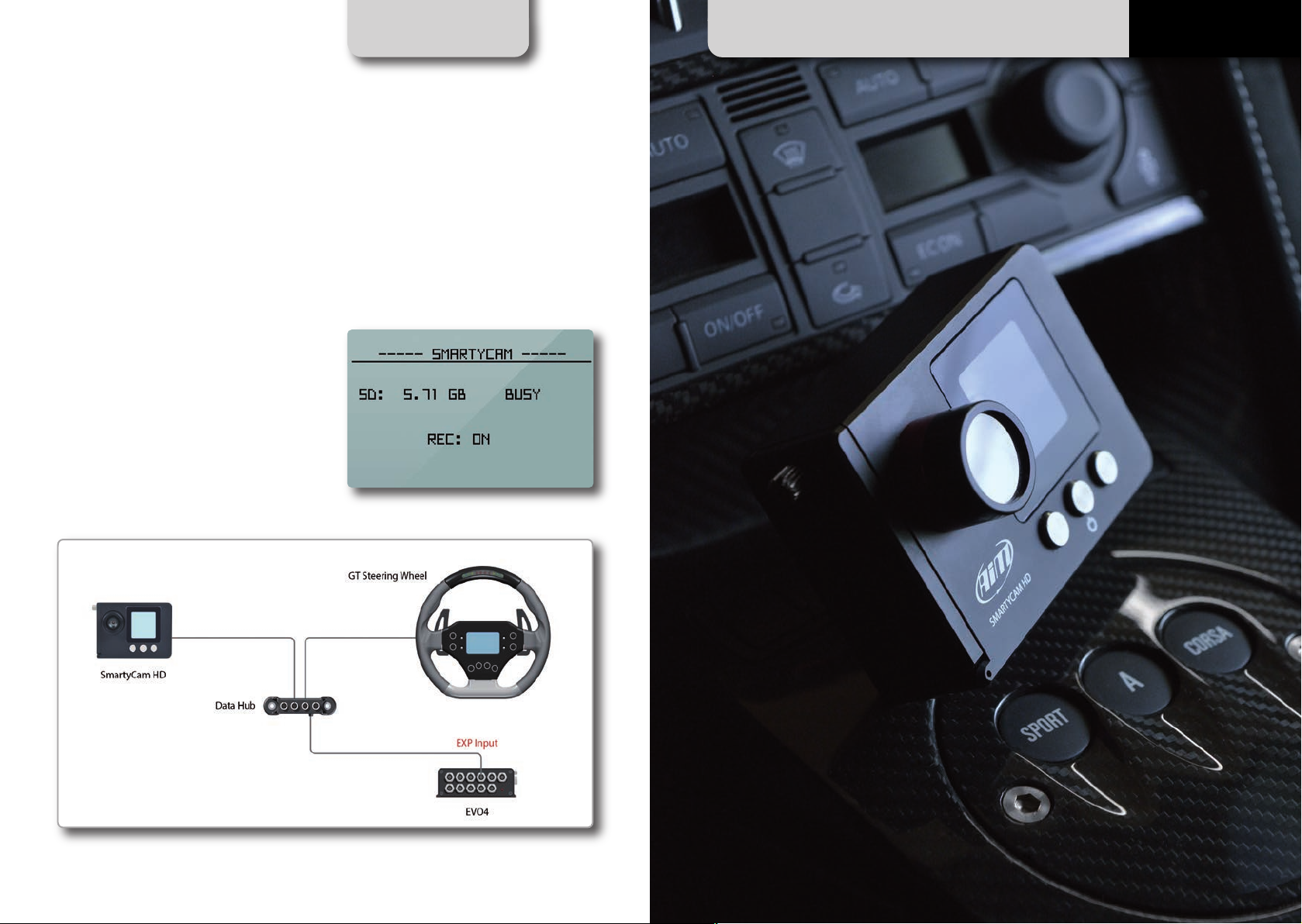

INTERACTION WITH SMARTYCAM

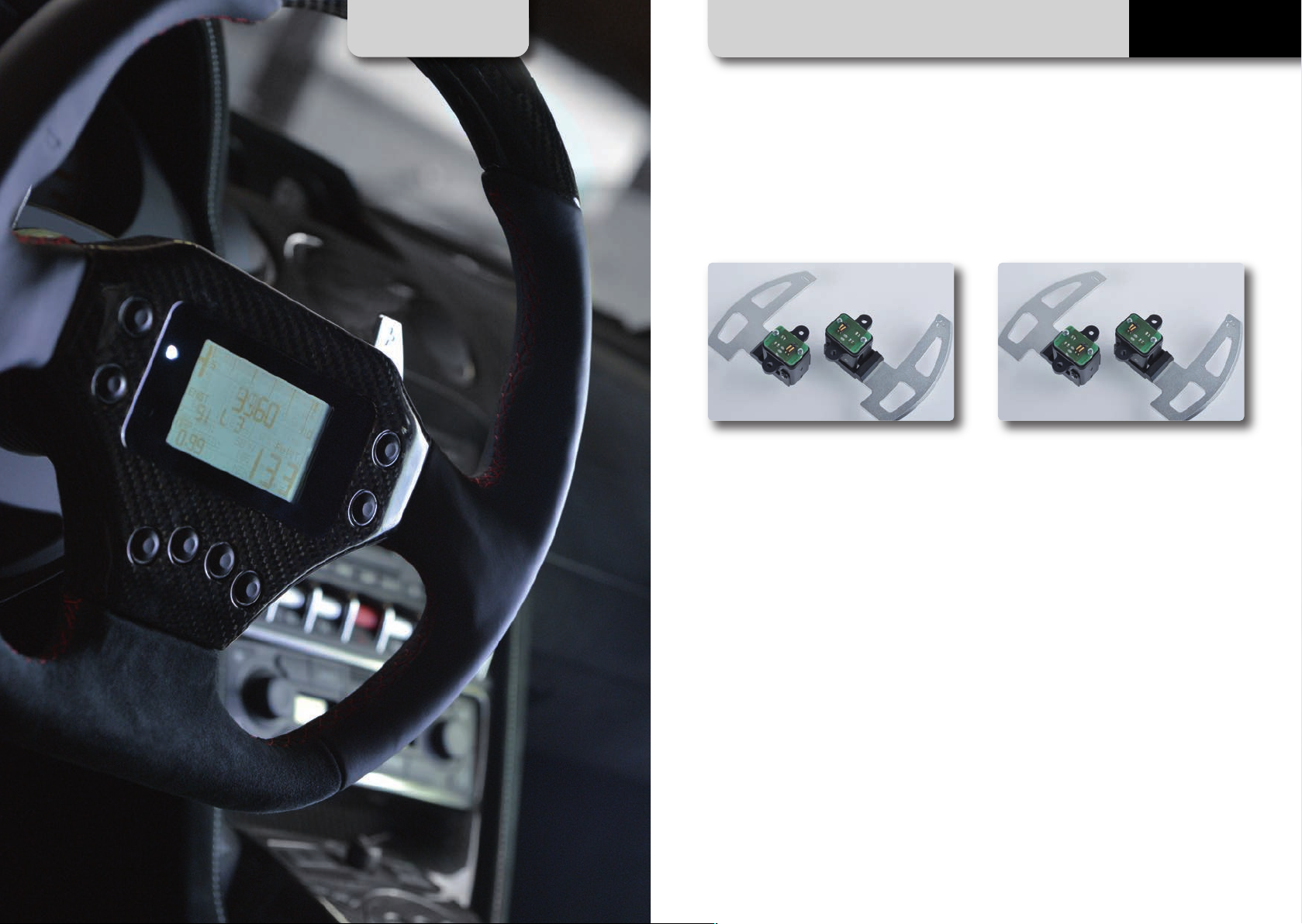

ACCESSORIES

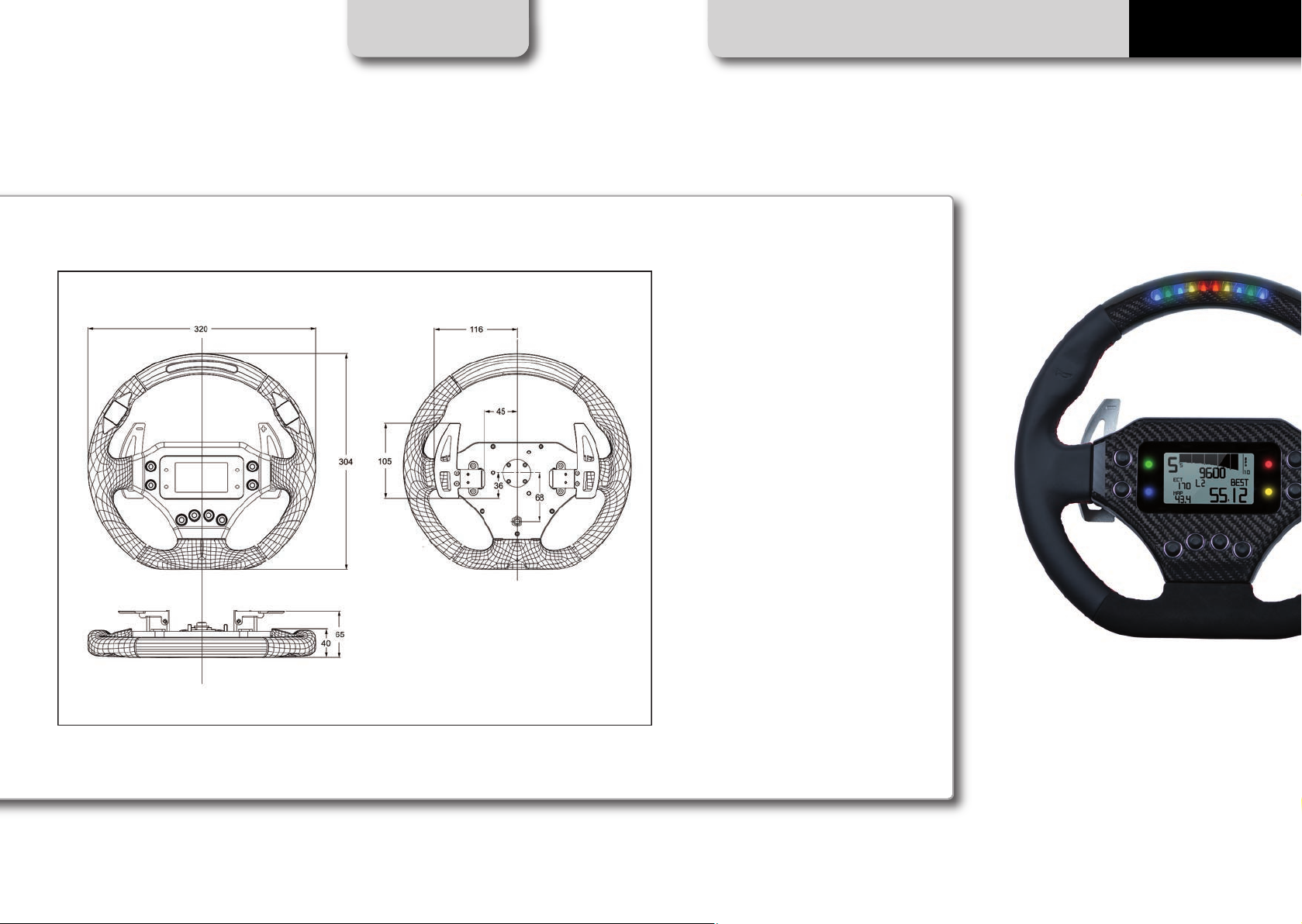

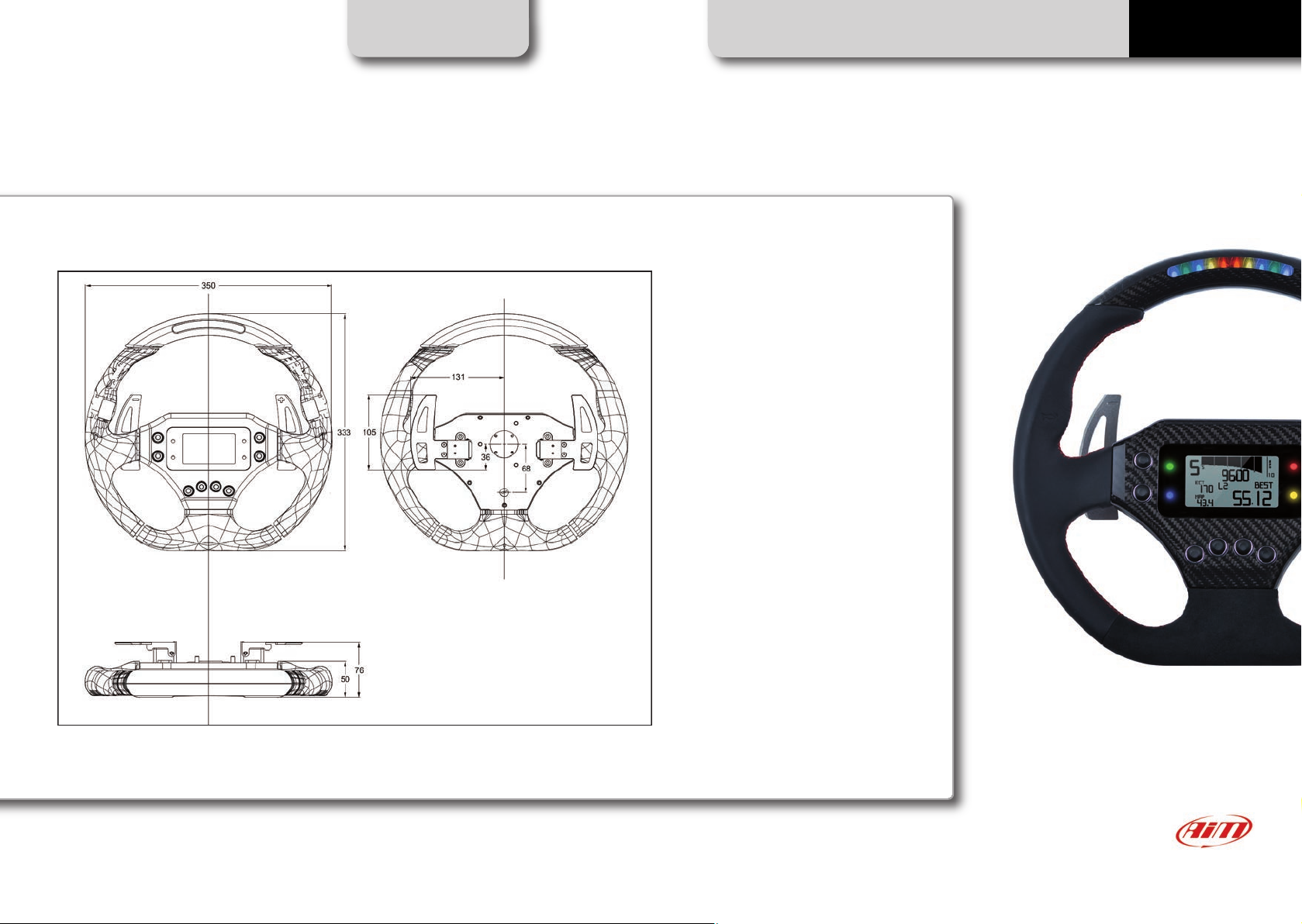

TECHNICAL DRAWINGS

Thanks

We would like to thank you for choosing GT
Steering Wheel, the new wheel showing
real time data sampled by EVO4 logger.

With GT Steering Wheel you can view va­lues coming from the ECU, from accelero­meters, as well as from the GPS built into
the EVO4, while also receiving information
from the on-board camera SmartyCam.

GT Steering Wheel also shows data coming
from your Engine Control Unit via ECU
Bridge, the interface module connecting
the ECU to AiM visors and steering wheels.

You can also activate up to four external
units from the GT Steering Wheel.

Its graphic display allows a more precise
and enjoyable visualization of data.
Size and make have been specifically
designed for GT and Touring cars use.

02 03

Multifunctional Pushbuttons

The four buttons beside the Steering wheel
display can be used to activate external
units.

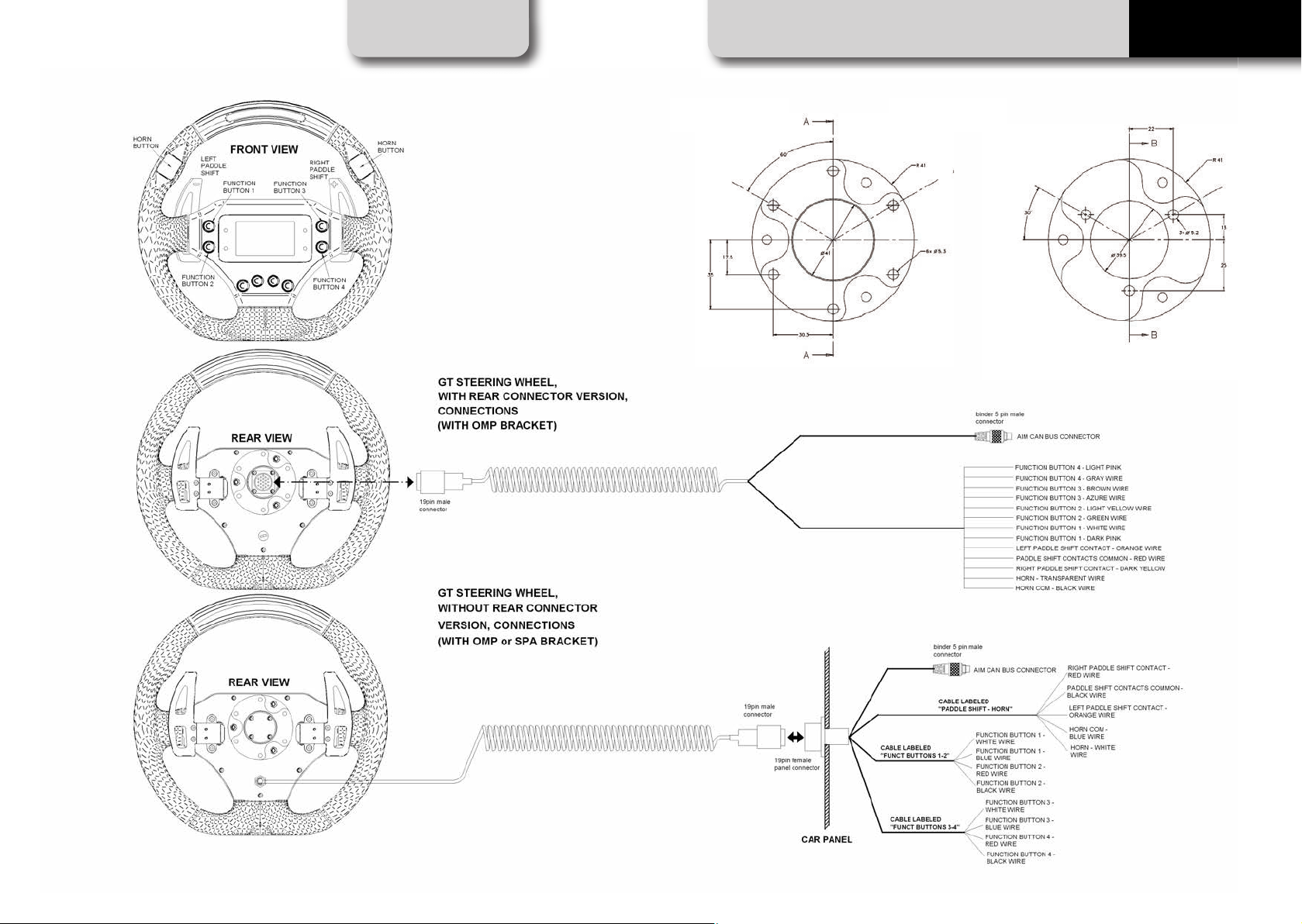

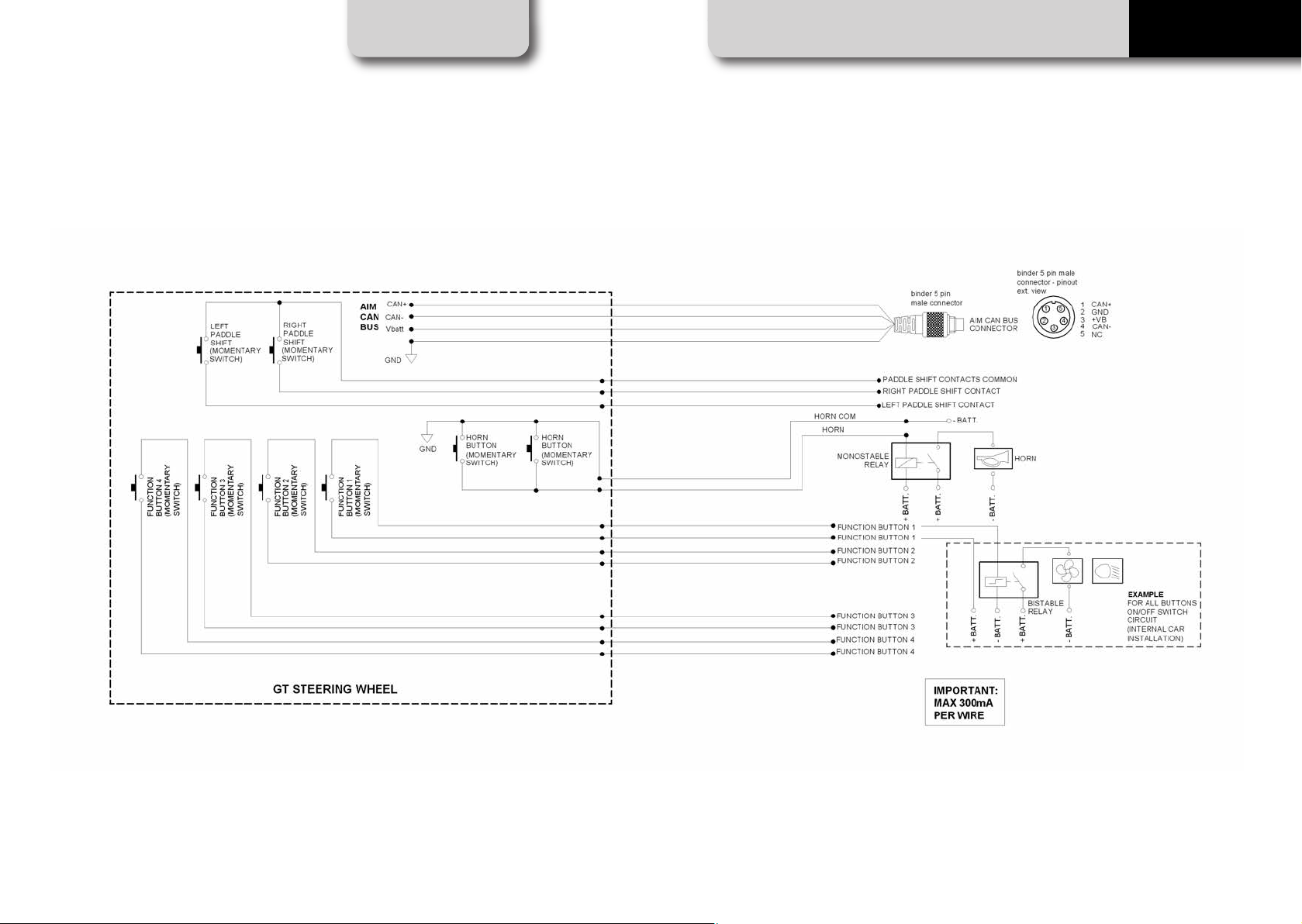

In the Appendix 1 you can see the related
wirings.

CHAPTER 1

GETTING STARTED

Display

GT STEERING WHEEL

Shift Lights

Horn

Paddleshift ( - )

Function Button 1

Function Button 2

Horn

Paddleshift (+)

Function Button 3

Function Button 4

Alarms Leds

Multifunctional
Pushbuttons

04 05

CHAPTER 1

GETTING STARTED

GT STEERING WHEEL

06 07

CHAPTER 1 GETTING STARTED

How To install and Connect GT Steering Wheel

to EVO4 and ECU Bridge

1

GT STEERING WHEEL

GT Steering Wheel must be connected via
CAN bus to your EVO4 (by plugging the
CAN cable into the logger “EXP” port).
Its firmware version must be 43.05.02 or
newer.

The wheel can also be connected to your
ECU Bridge using its CAN connector.

Its firmware version must be 45.02.02.

08 09

CHAPTER 1 GETTING STARTED

42

GT STEERING WHEEL

Please check the firmware version of your
EVO4.
Connect it to PC via USB, open the Race
Studio 2 software and press
‘Device Info’ button (1).

3

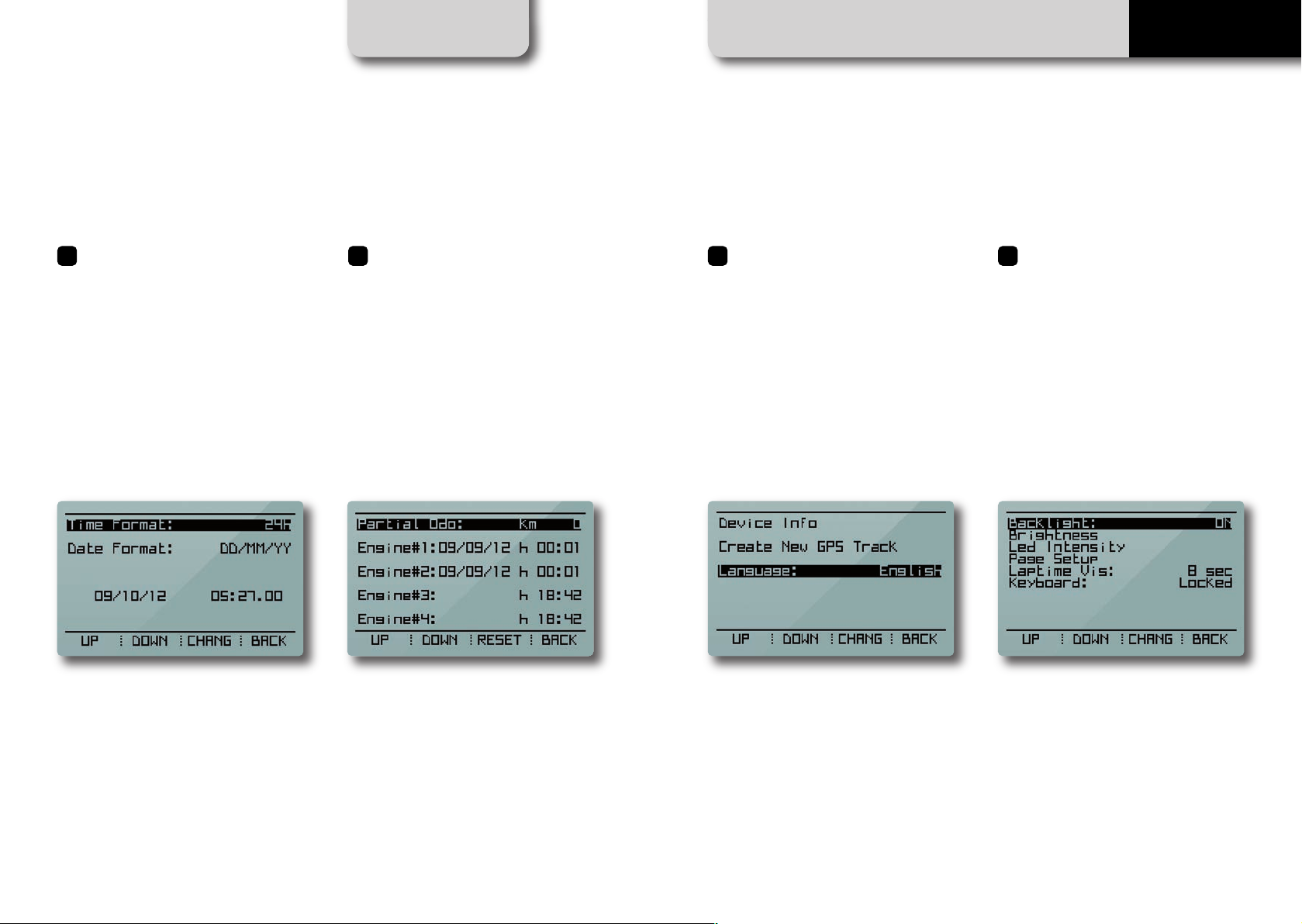

Alternatively, with GT Steering wheel on,

SELECT MENU>>SYSTEM MANAGEMENT
>> DEVICE INFO (2).

If the firmware is out of date:

If the EVO4 firmware is older than

43.05.02, open aim-sportline.com and se­lect Download>>Firmware and dow­nload the current version onto your

1

2

computer.

3

Then run the firmware update program by
following the included instructions.

10 11

CHAPTER 2 HOW TO CONFIGURE GT STEERING WHEEL

How to Configure GT Steering Wheel

1

GT STEERING WHEEL

GT Steering Wheel receives its configura­tion parameters from EVO4, so you must
configure EVO4 in order to make
GT Steering Wheel display your data
correctly.

Therefore, select GT Steering Wheel as the
display in EVO4 configuration.

GT Steering Wheel pages, shift lights and
alarms configuration is done using the Race
Studio 2 software.

12

13

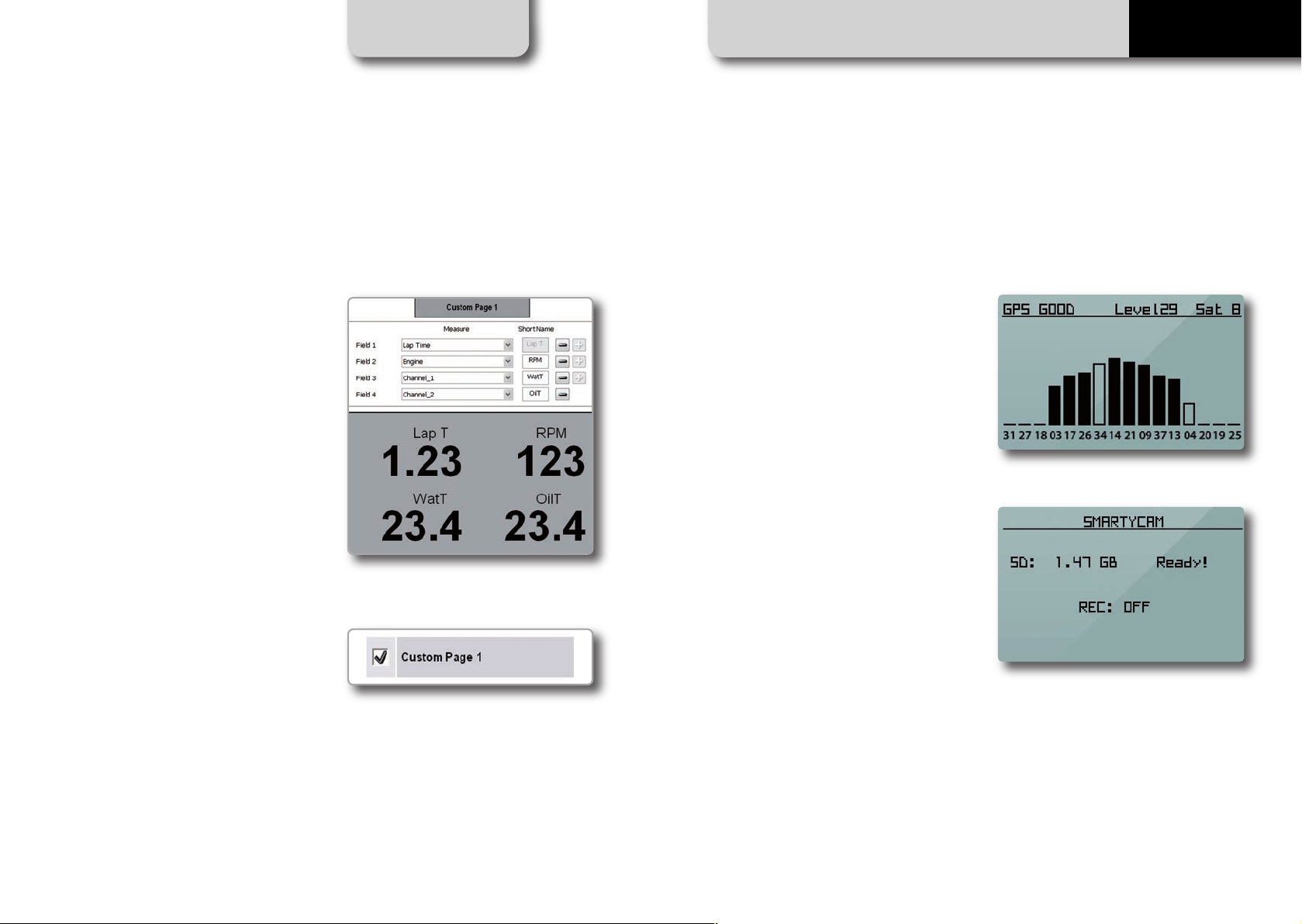

Pages Configuration

2

CHAPTER 2 HOW TO CONFIGURE GT STEERING WHEEL

GT STEERING WHEEL

GT Steering Wheel is able to fully configure
up to nine pages, allowing you to view your
data in user definable and very customiza­ble ways.

1

Select the “Pages” tab to enter the Pages
Configuration panel.
Custom pages are all disabled by default.

2

n

Lap Time:

shows the lap time of the previous lap;

n

Predictive Time:

Shows a forecast of the current lap time;

n

Rolling Time:

shows the lap time for ten seconds, then
shows the rolling time;

n

+/- Best Time

Shows a prediction of the current lap time
compared with the best lap of the session.

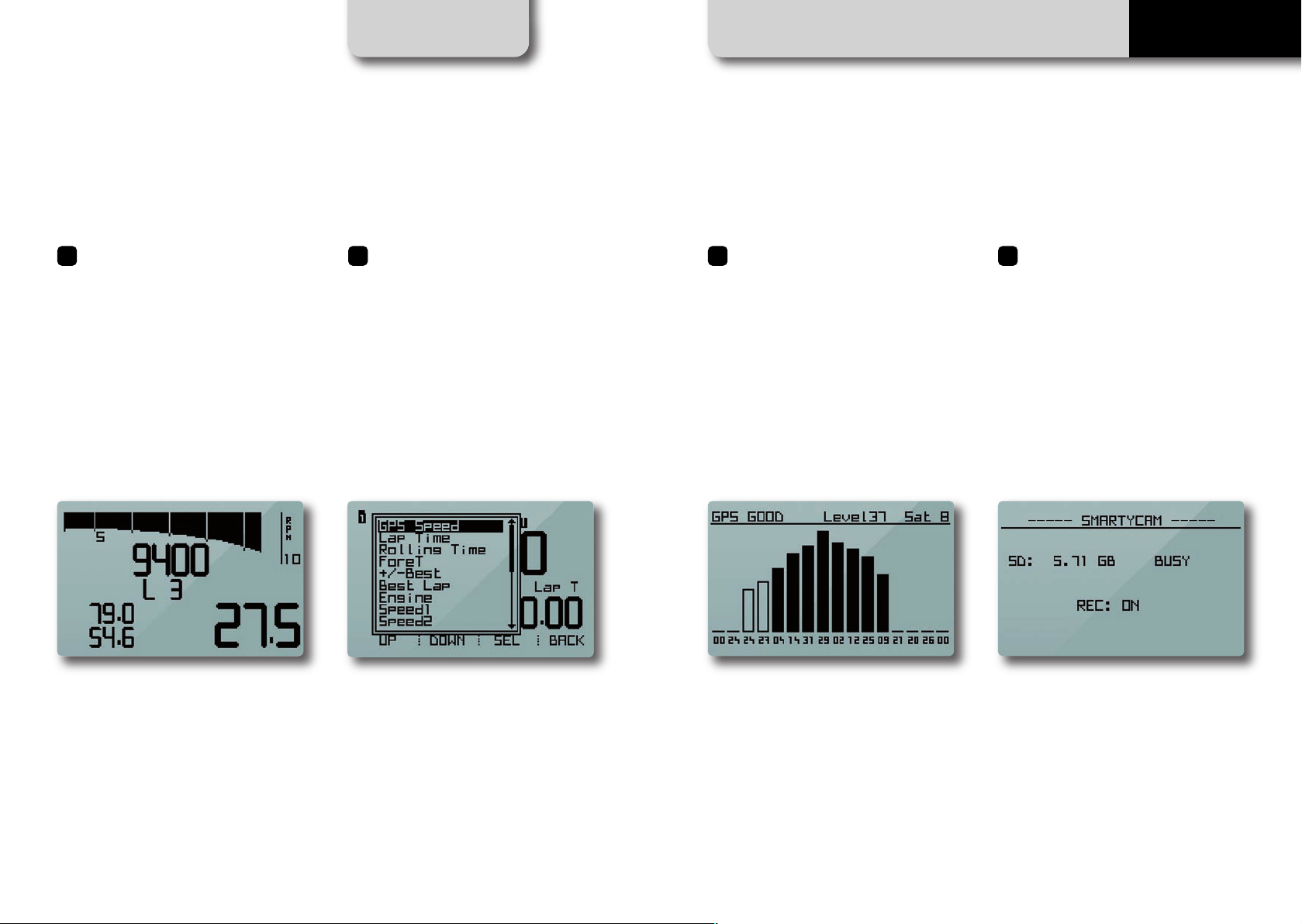

The first available page is:
RPM and lap time. (1) Here you can configure two channels and choose one of the different
Lap Time visualizations: (2)
