EVO4 Data Logger
USER GUIDE
Made in Italy
www.aim-sportline.com
Thanks.
EVO4 Data Logger
04
08
12
16
20
22
28
32
36
38
48
INTRODUCTION
GETTING STARTED
GENERAL INFORMATION
LINKS, SENSORS AND CONFIGURATIONS
ECU CONNECTIONS
THE RPM CHANNEL
THE SPEED CHANNEL
ANALOG INPUTS
GPS
GPS MANAGER SOFTWARE
DATA SHEET EVO4
Firstly, we would like to thank you for choosing the EVO4 Data Logging System as the
tool for improving your race craft setup and
on-track performance.
The EVO4 system, with its advanced expansion and sampling capabilities, gives you
the flexibility of recording data from a variety of sensors and sources.
With integrated GPS, a built-in three axis accelerometer, and direct connectivity to
hundreds of aftermarket and factory ECUs,
the EVO4 is an exceptional data platform.
As you begin working with your new EVO4
system, we are sure questions will come up.
If they do, please let us know…info@aimsportline.com. We are all too happy to help!
One more thing before digging into your
new data system…we are constantly working on bettering our software and firmware, so please be sure to check the
website periodically for any applicable
software or firmware updates…www.aimsportline.com
0203
INTRODUCTION
What is EVO4?
EVO4 is a complete, compact and
expandable data logger, suitable for
installation on both car and motorcycle.
What data reads?
EVO4 acquires:
5 analog inputs, at a configurable frequency from 1 to 1000 Hz per channel.
These signals can be: 0-5 Volt, 0-500
mV, 0-50mV, thermocouples K.
2 digital inputs, suitable to receive signals from speed sensors.
1 RPM input, suitable to receive
signals from low voltage of the coil or
square wave 0-12 Volts.
Data coming from internal triaxial
accelerometer.
Data from the internal GPS with
external antenna.
Data coming from the engine control unit (ECU). There are three
hardware protocols available:
CAN, RS232 and Linea K.
Hundreds of ECU are fully supported.
The lap time transmitted from the
infrared receiver.
The internal temperature of the
system.
What is the
maximum frequency of
acquisition possible?
It is possible to acquire signals at a
maximum total frequency of 5000
samples per second (i.e. 5000 Hz).
How much
memory is available?
EVO4 has 16 MB of non-volatile
memory capable of recording more
than 4 hours of data at a total frequency of 500 samples per second.
To what purpose you
can use the GPS?
The integrated GPS is useful for
different purposes.

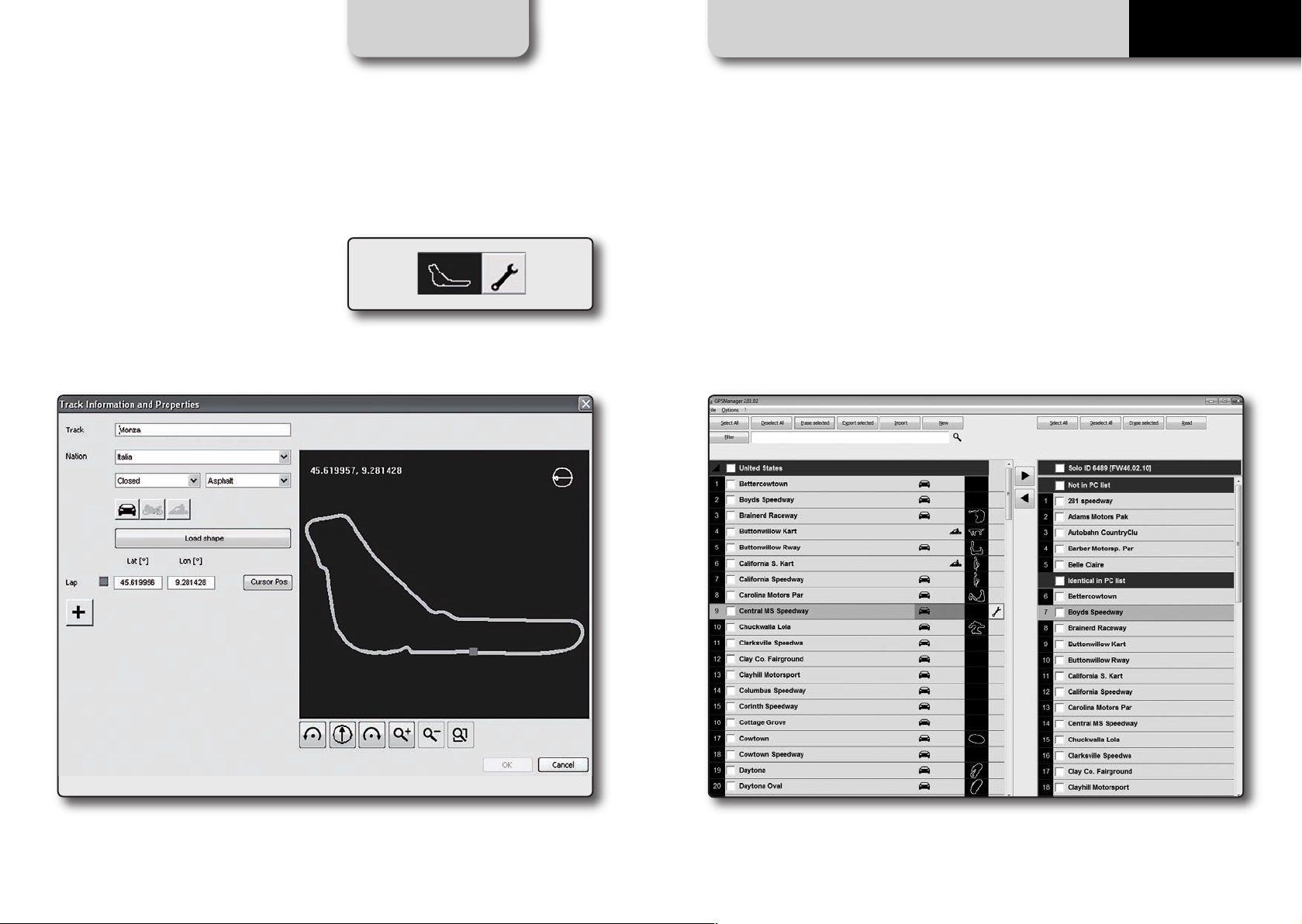

Lap time calculation:
A large database of world tracks are
avaliable.
The coordinates of the finish line are
available for meny world tracks.
When turned on, EVO4 recognizes
which track you are at and uses the
coordinates to calculate the lap time
with high precision.
Measurement of the speed of the
vehicle:
In contrast to the measurement of the
wheel speed, the speed measure
based on GPS signals is not affected by
the variation of the size of the wheel
(due to the centrifugal force, the crushing and, in case of bikes, the inclination of the bke itself) and is thus more
precise.
Analysis of the trajectories:
GPS receiver is an important tool to
properly calculate the trajectory at
every single lap and then to compare
the different driving strategies.
Which displays can be
connected?
EVO4 can be connected to the following dashes:
GDash
MXL Dash
Formula Steering Wheel
GT steering wheel 32/35
Which expansion
modules are available?
EVO4 can be connected to the
following expansion modules (max.8)
Channel Expansion: 4 additional
analog channels 0-5 Volt. You can add
up to 7 channel expansion.
TCHub: 4 thermocouple channels.
LCU-One Lambda Controller
Memory Module: memory module
with additional SD card.
SmartyCam: the powerful camera
with data overlay.
0405
EVO4
INTRODUCTION
0607
EVO4
CHAPTER 1
GETTING STARTEDEVO 4
BeaconEcu - Can RS232
Speed 1-2
GPS AntennaAnalog Input Channel
Exp.RPM K/L line
USB
Status EVO4
GPS Output
Power Connection 8-18 VDC
0809
CHAPTER 1
GETTING STARTEDEVO 4
EVO4 Kit includes.
1
- EVO4
2
- GPS Antenna
3
- RPM cable + K Line + Dig. out
4
- Connection cable to ECU CAN/RS232
5
- USB cable for connection to PC
6
- Software RaceStudio2 CD
12
34
56
1011
CHAPTER 2
Power.
Power is provided by connecting the appropriate cable to the battery of your vehicle. It is not
necessary to use special attention, because there is a stabilizer that regulates the internal power
supply used by the system.
So you can connect EVO4 without any problem to a NOT stabilized power source from 8 to 24
Volts. Even shutting down the system does not require special attention: when the power is
turned off, a small battery in the system keeps the internal power supply on for a few seconds
in order to properly close the internal data files.
If your power is too spiky, an external power filter (code X60FLCEVO4), is available.
GENERAL INFORMATIONEVO 4
Wiring diagram of external filter X60FLCEVO4
1211
CHAPTER 2
GENERAL INFORMATIONEVO 4
Data Recording.
EVO4 is equipped with a 16 MB circular
memory *, capable of recording 8 million
samples.
The test length that can be recorded
depends on the sampling frequency
(i.e. how many channels per second are
recorded).
For example, in case your acquisition has a
global frequency of 500 Hz, which is fairly
common, the system can record almost 4
hours of testing.
If you require larger memory, the external
Memory Module is available: it can manage
a SD Card up to 16 Gygabyte SD and can
provide virtually unlimited recording capability.
*
"Circular buffer" means that once it reaches saturation,
the oldest data are overwritten by the most recent
n
The LED on the front shows:
n
1 Hz blink : Stand-by status
n
Solid state : Data recording in progress
n
3 Hz blink: system configuration
problems
n
Flashing in alternating colors: firmware
upgrade in progress
Start/Stop Recording.
EVO4 starts recording when one of the
following situations persist for more than
three seconds:
n
RPMs over 500 rpm threshold
n
Speed over 10 km / h
Thanks to a pre-buffers, EVO4 records also
the three seconds before the engine starts.
Data Download.
After activating the Aim software Race Studio2, the data are transmitted to the PC
using the USB cable supplied with the product.
If you have recorded the test on the Memory Module, you can directly insert the
SD card into your PC.
At the end of the data download, you can
delete the data in EVO4 or leave them in
memory, to eventually download them to
another PC.
Status LED
1415
Links, Sensors
and Configurations.
CHAPTER 3LINKS, SENSORS AND CONFIGURATIONS
You will see this screenshot:
EVO 4
Here are the different EVO4 connection
possibilities:
n
To ECU
n
To RPM signal
n
To speed signal
n
To analog inputs
n
To expansions
n
To the optical lap time receiver
When connecting EVO4 to a sensor, to ECU,
or to an expansion module, you must also
configure it in order to make EVO4 record
the proper data.
In particular, per every channel you have to
define:
n
The connected sensor
n
The frequency acquisition of the sensor
n
The unit of measure
Please use Aim software RaceStudio2
for system configuration.
RaceStudio2
Configuration.
In this chapter it is explained how to configure EVO4 with RaceStudio2 software.
Connect EVO4 to your PC and run
RaceStudio2.
-> Select the button
"Device Configuration"
-> Select EVO4.
1
Press the “New” button and fill in the
required fields.
You must now define the parameters of the
system.
Each point will be explained in more depth
in the dedicated chapter.
16
117
CHAPTER 3LINKS, SENSORS AND CONFIGURATIONS
EVO 4

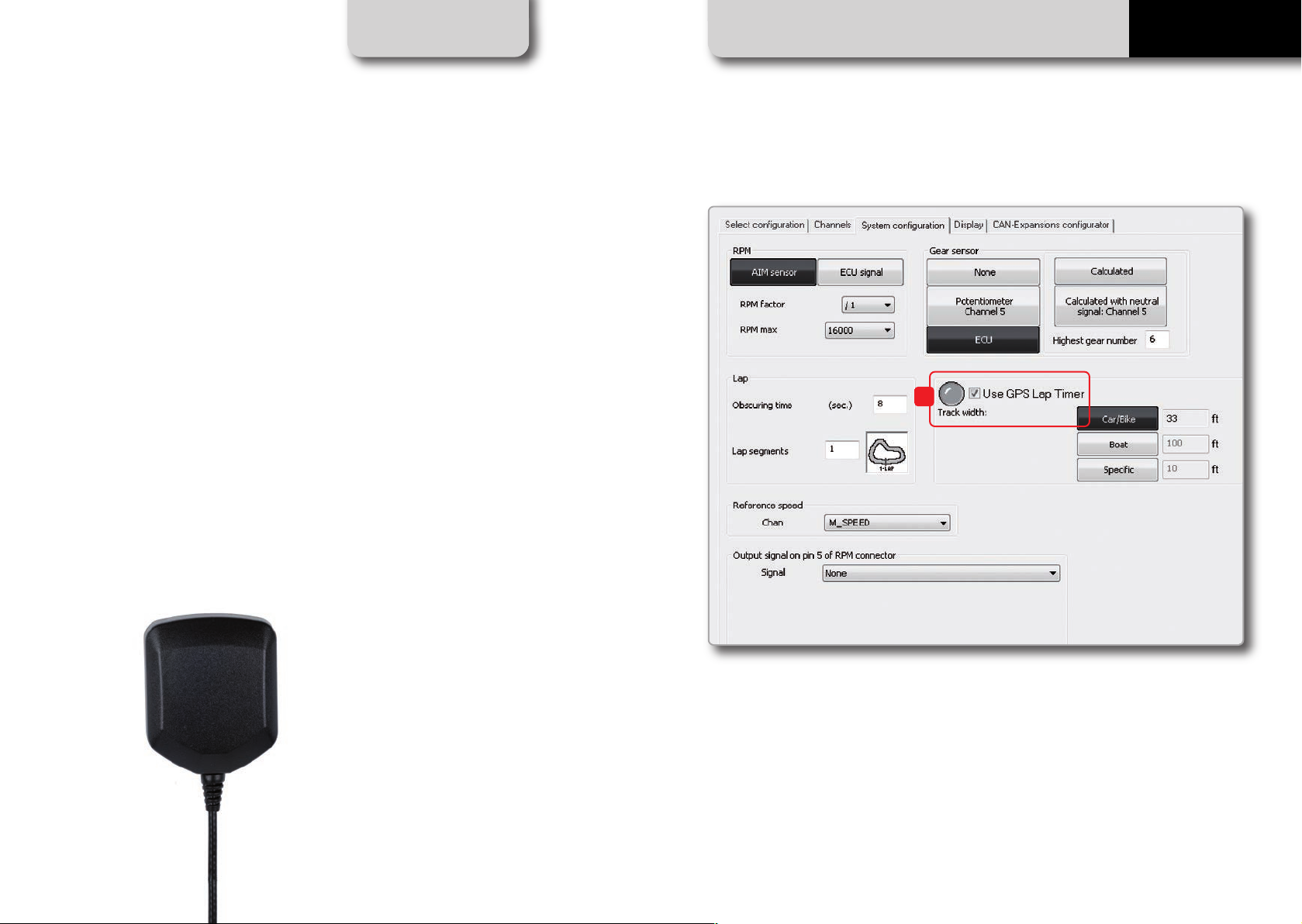

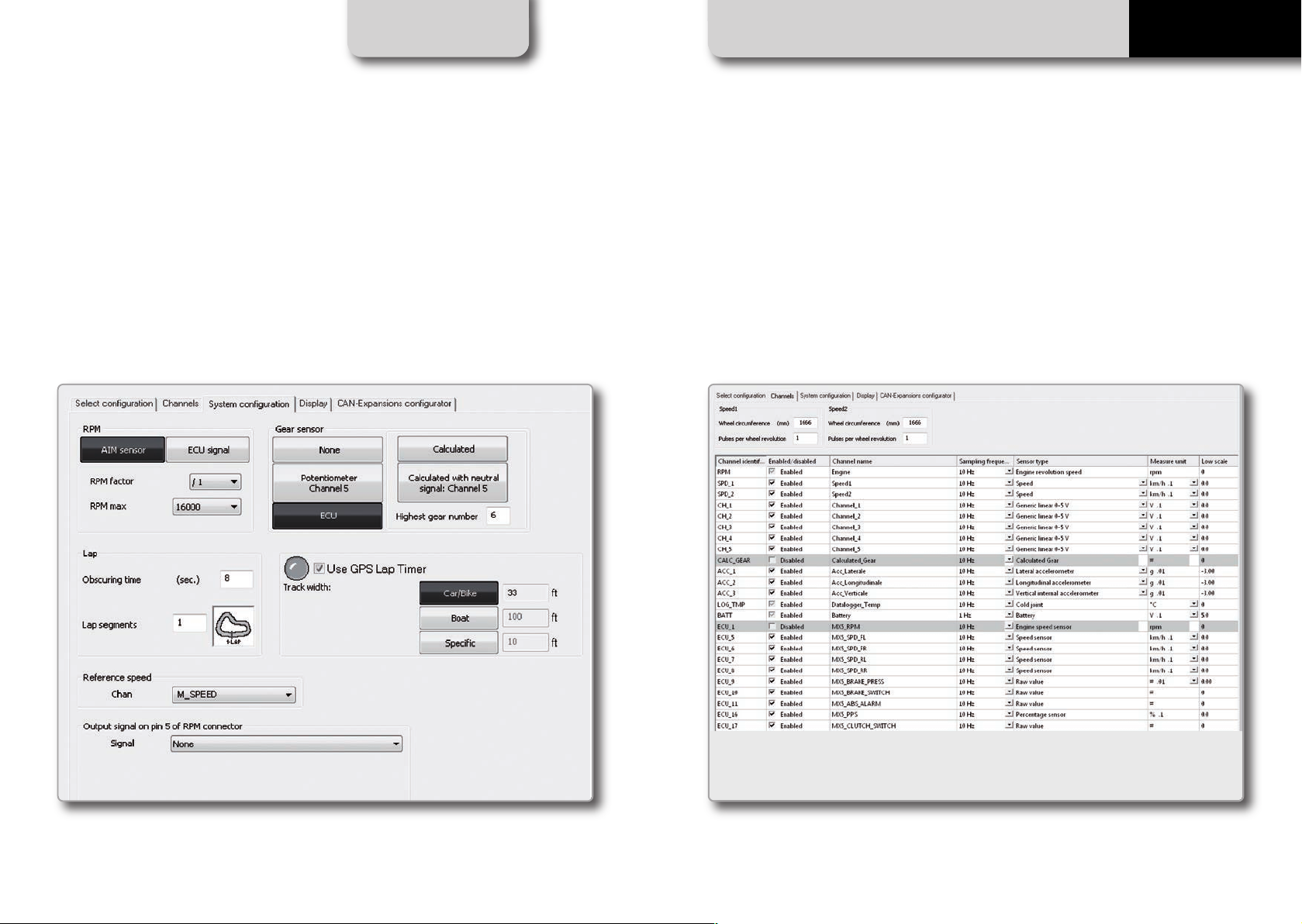

System Configuration.
In the following RaceStudio2 page you can
set:
n
How RPMs are acquired: from ECU
data stream or reading a digital signal.
n
The maximum rpm value.
n
The division factor of the engine
revolutions, ie the constant for which to
divide the digital pulses number in order
to obtain the correct value.
n
How to get the gear number:
by calculation, potentiometer or ECU.
n
To use GPS in order to get lap time
n
To select a speed signal as Reference
Speed.
n
How to manage digital output.

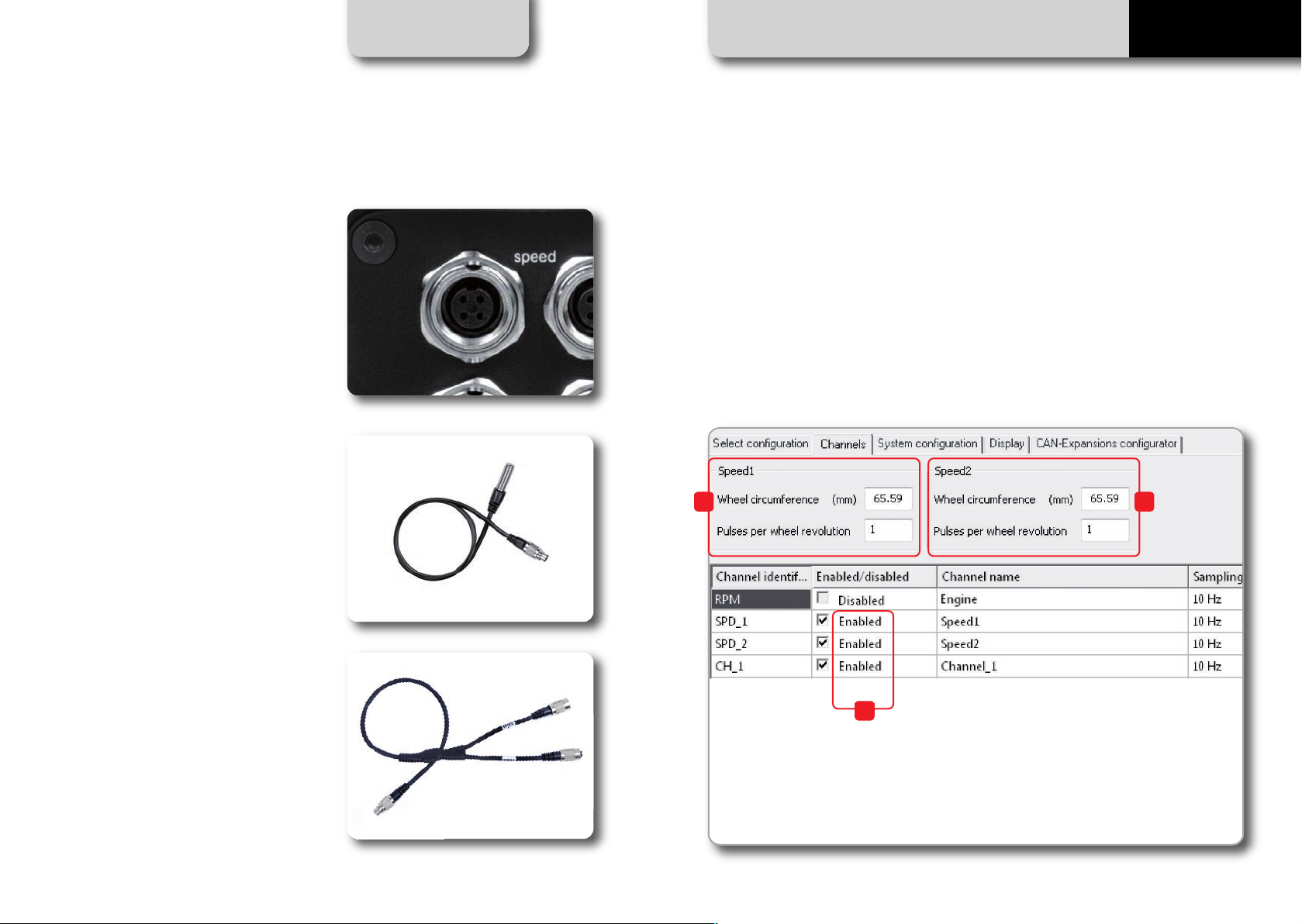

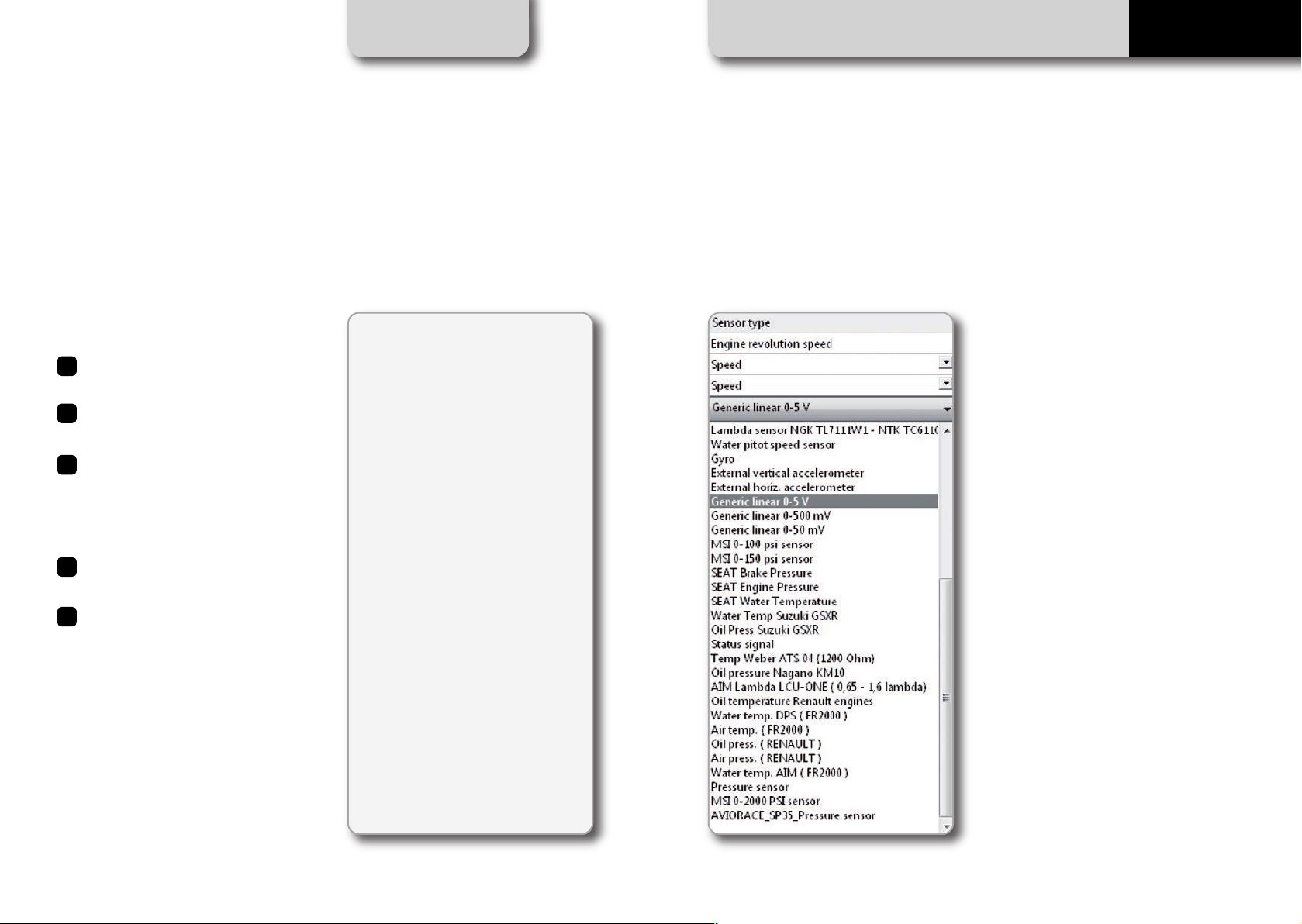

Channels Configuration.
In the following RaceStudio2 page you can
define:
n
Which channels are enabled.
n
The type of sensor connected.
n
The sampling frequency.
n
The unit of measure.
18
1199
ECU Connections.
CHAPTER 4ECU CONNECTIONS
EVO 4
EVO4 can acquire data from all the ECU published on the list on our website:
http://www.aim-sportline.com/pages/download/section_documentation_ecus.htm
This list includes about 500 different protocols and is constantly being updated, since all the
ECUs are often improved and new models appear. When possible, we have explain how to configure your ECU to ensure compatibility between the data flow transmitted and what the protocol is designed to manage.
From the hardware point of view, EVO4 is compatible with all currently available connections:
CAN, RS232 or line K. If you need a CAN or RS232 connection, you must connect the cable to
the connector labeled "ECU"; if you have to use the OBDII K Line, please use the connector labeled "rpm / K".

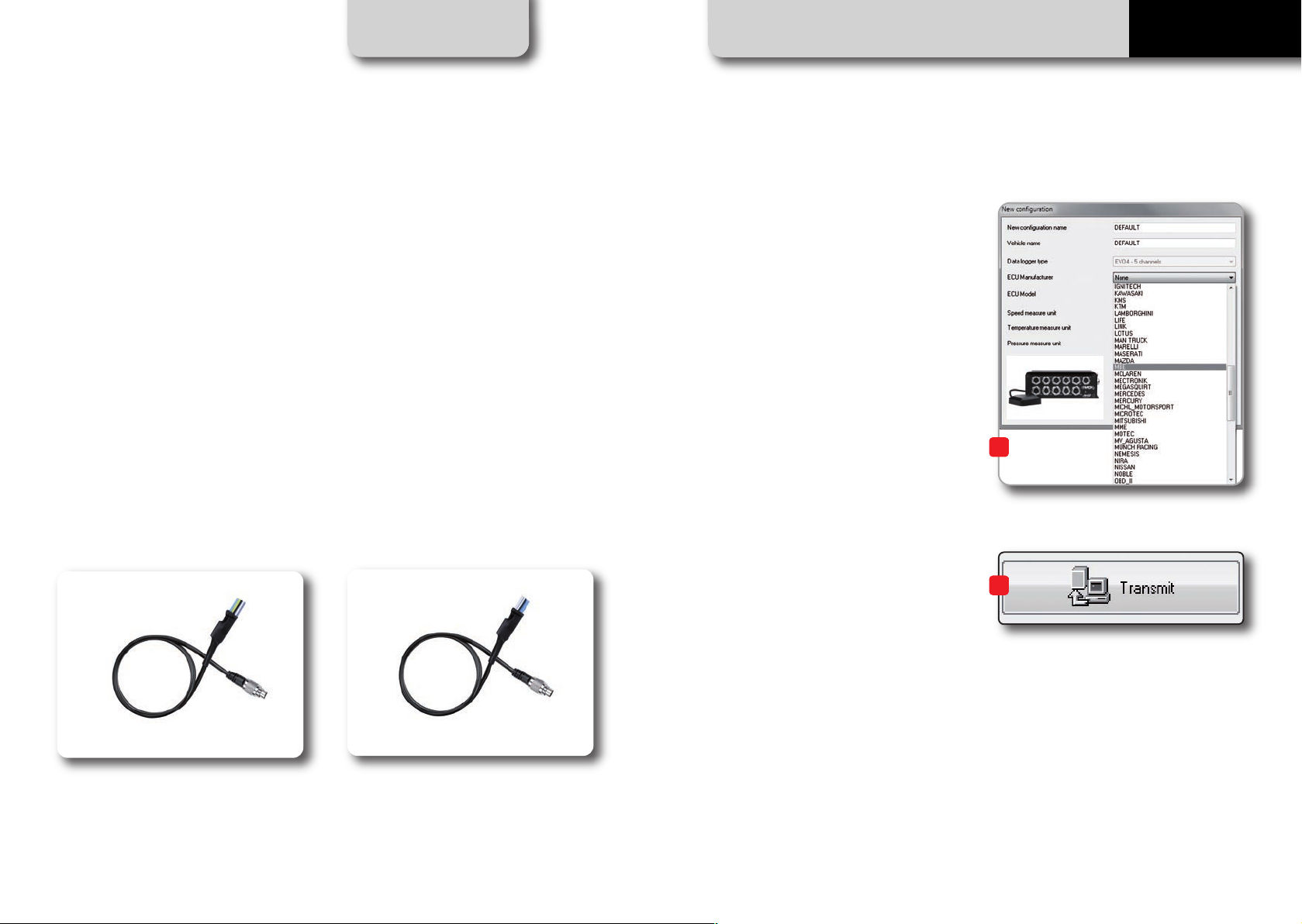

The steps to manage the data coming from the ECU are:
n
1. Determine which hardware connection is available for your ECU.
If your ECU transmits the data to CAN or RS232, you need to connect the cable 04.563.01
(Shown below left) to the connector labeled ECU.
If it is equipped with a K line, you must use the cable 04.563.05 (shown below right) and
connect to the connector labeled "rpm / K".
n
2. Please read the documentation about
your ECU in www.aim-sportline.com, and
identify the name of the proper software
driver.
n
3. Configure EVO4 setting that software
driver in RaceStudio2. (1)
n
4. Select the channels to be recorded.
n
5. Send the configuration to EVO4. (2)
1
2

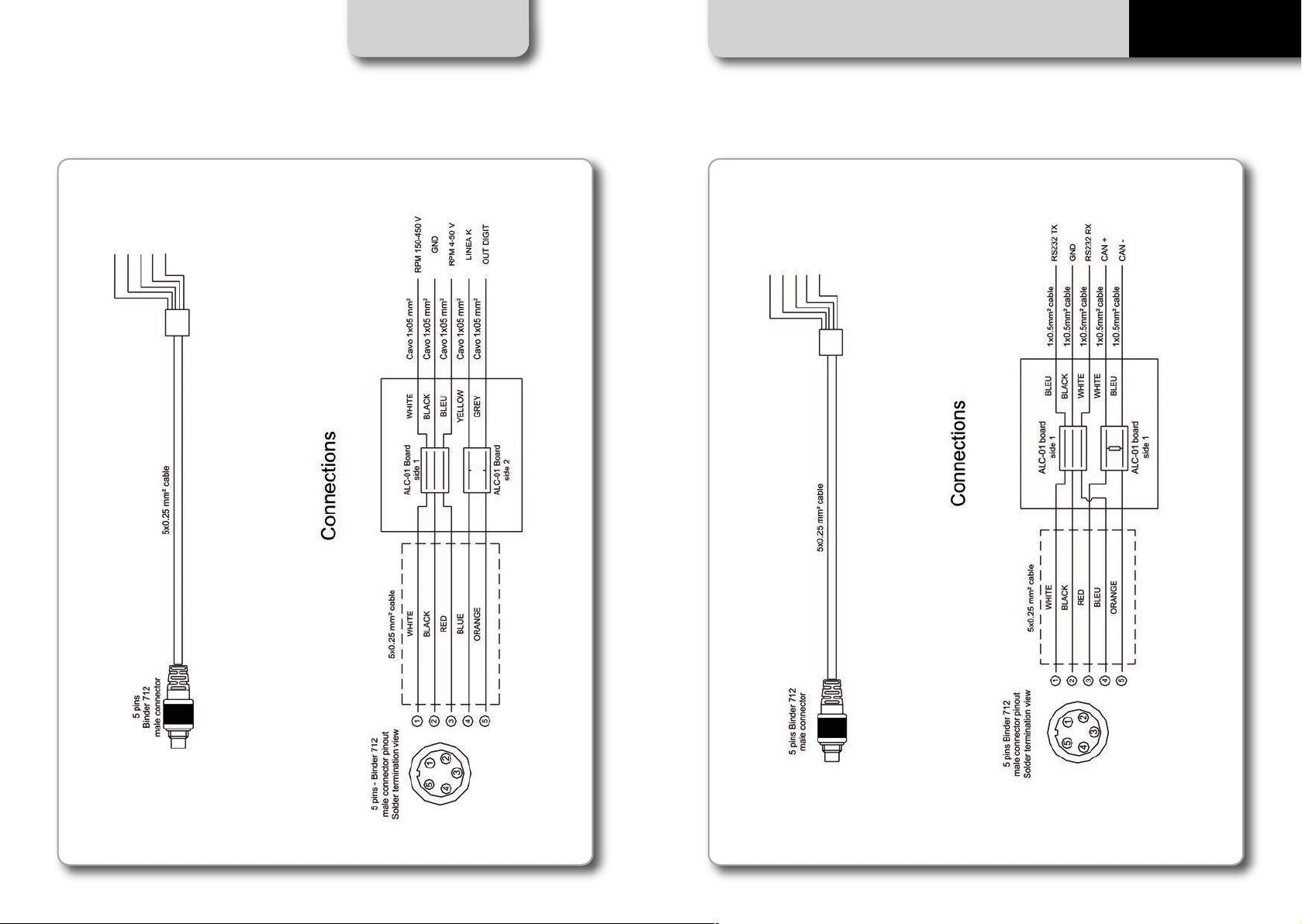

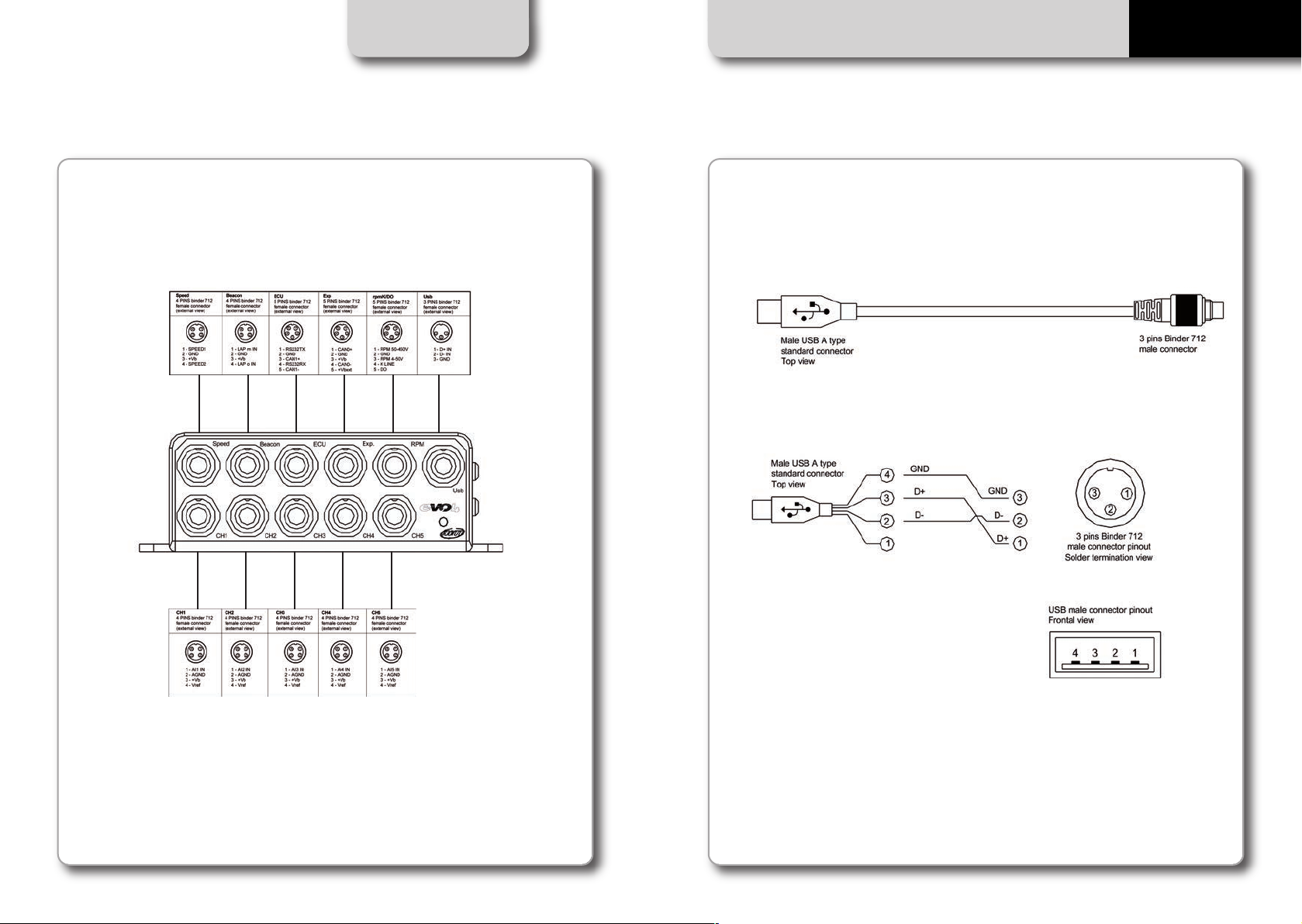

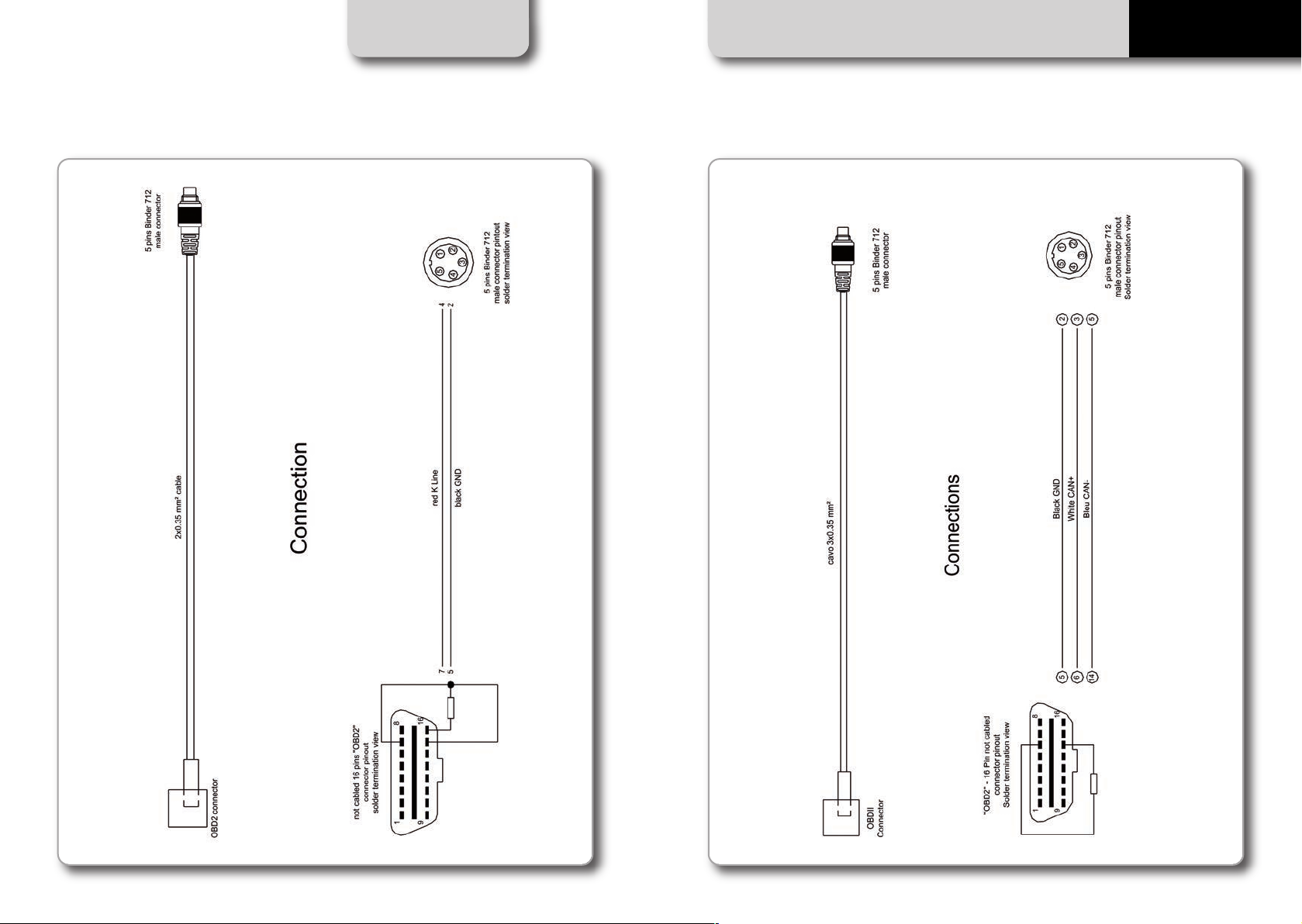

Please refer to drawings listed in the appendix for further information regarding these cables.
20
1219

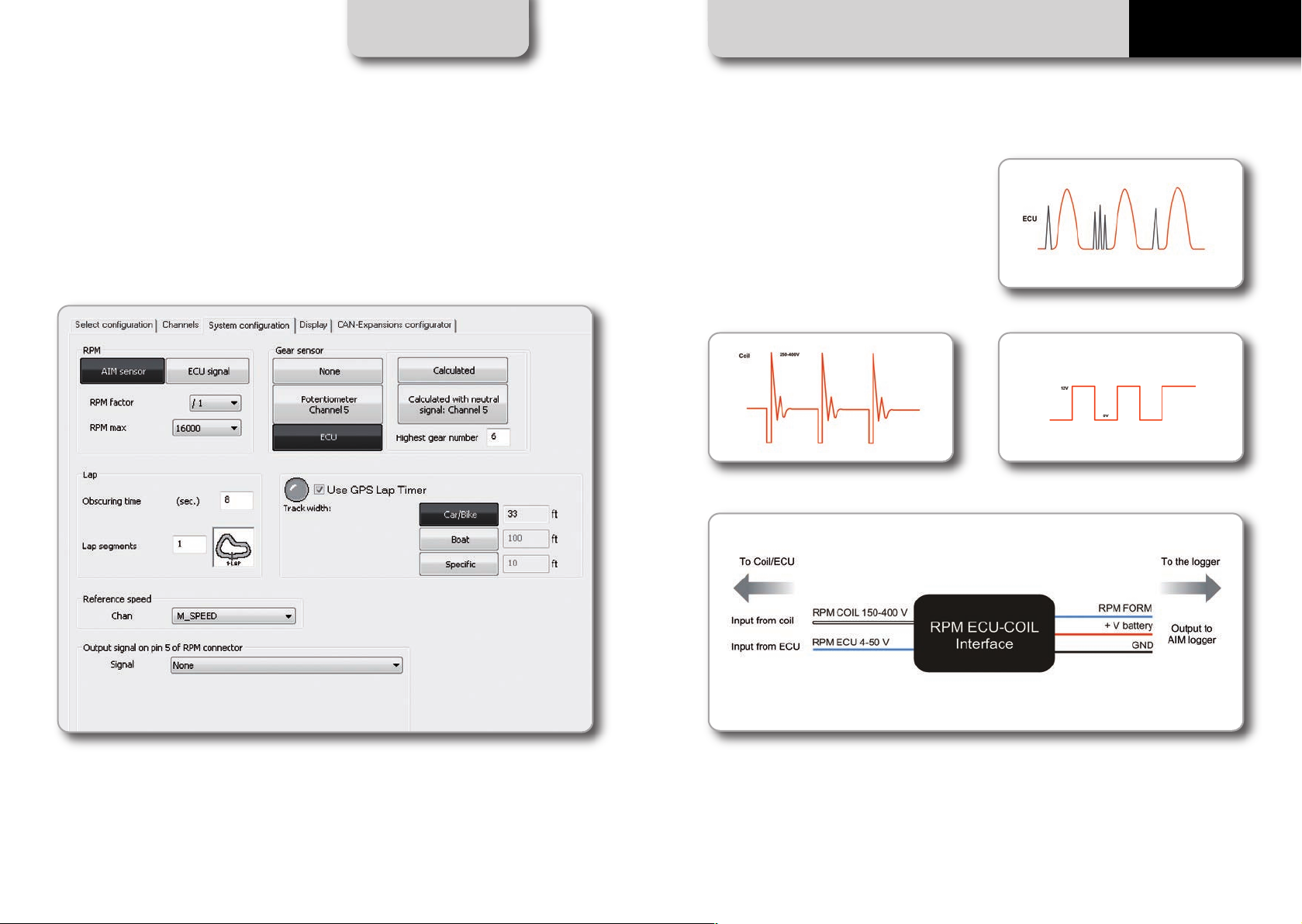

The RPM Channel.
CHAPTER 5THE RPM CHANNEL
EVO 4
EVO4 can get the RPM signal in many
different ways:
n
From ECU
n
Through a square wave signal (8 to 50 V)
n
From the low voltage (from 150 to 400 V)
of the coil.
n
From the spark plug by converting the
inductive RPM signal read from the spark
plug into a square wave signal.
In this case you must use an optional
RPM adapter Code X10ADRPM000.
n
How to read RPM from ECU
To get RPM from the ECU, connect EVO4,
configure it as shown in the previous paragraph and enable RPM acquisition from
ECU.
In this case, RPM is of course just one of the
many data flowing from your ECU to EVO4.
n
Acquiring the RPM via a 5-50 V square
wave signal or coil (150-400 V)
In case your engine is not managed by any
ECU, EVO4 can read the signal from the low
voltage of the coil (whose peak can be from
150 to 400 V) or from a possible square
wave (the peak can be from 5 at 50V.)
The connector labeled "rpm / K", reported
in Figure 13, receives the signals:
The connection cable is in the kit and its
code is 04.563.02.
You will find the technical drawing in the
Appendix.

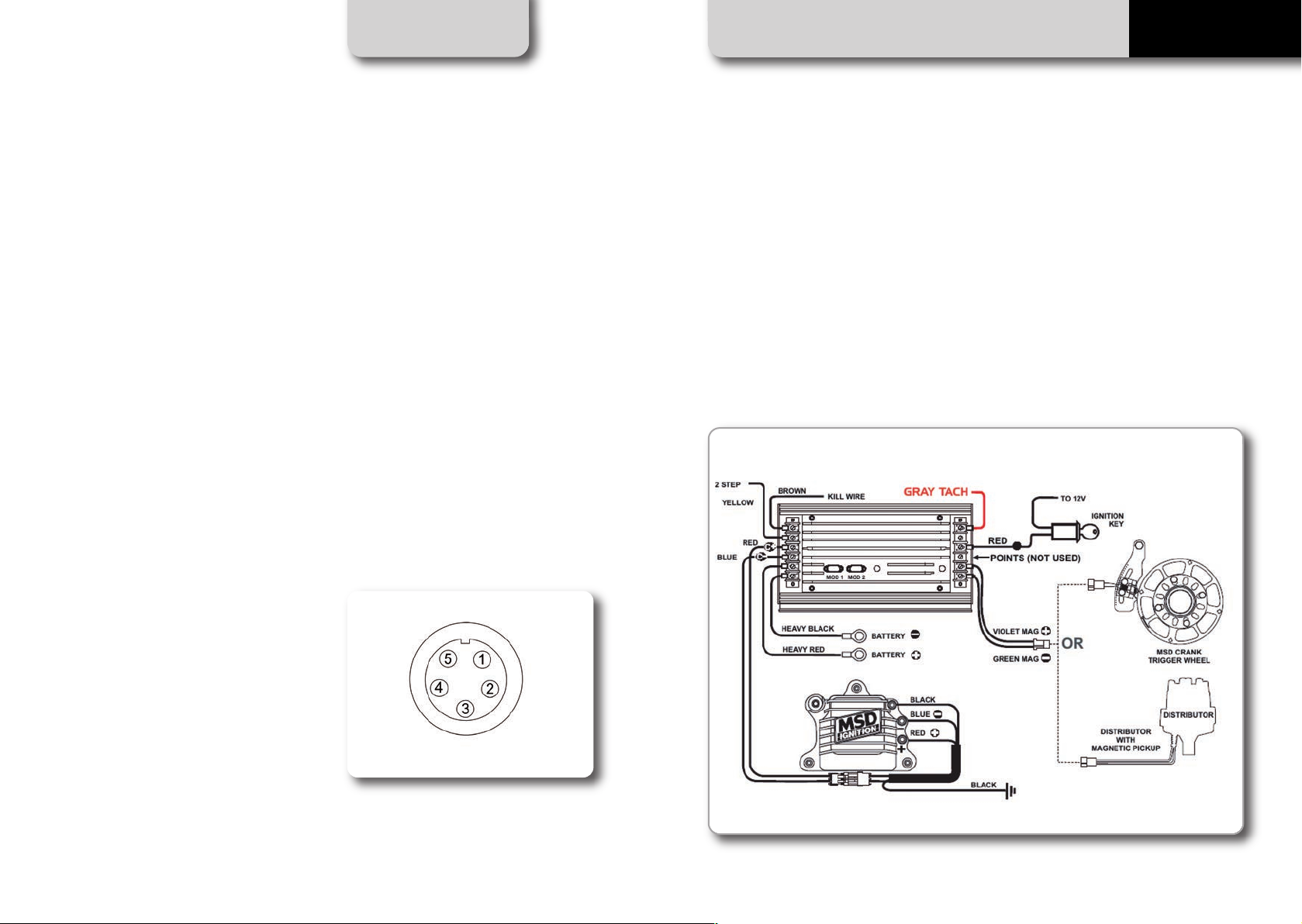

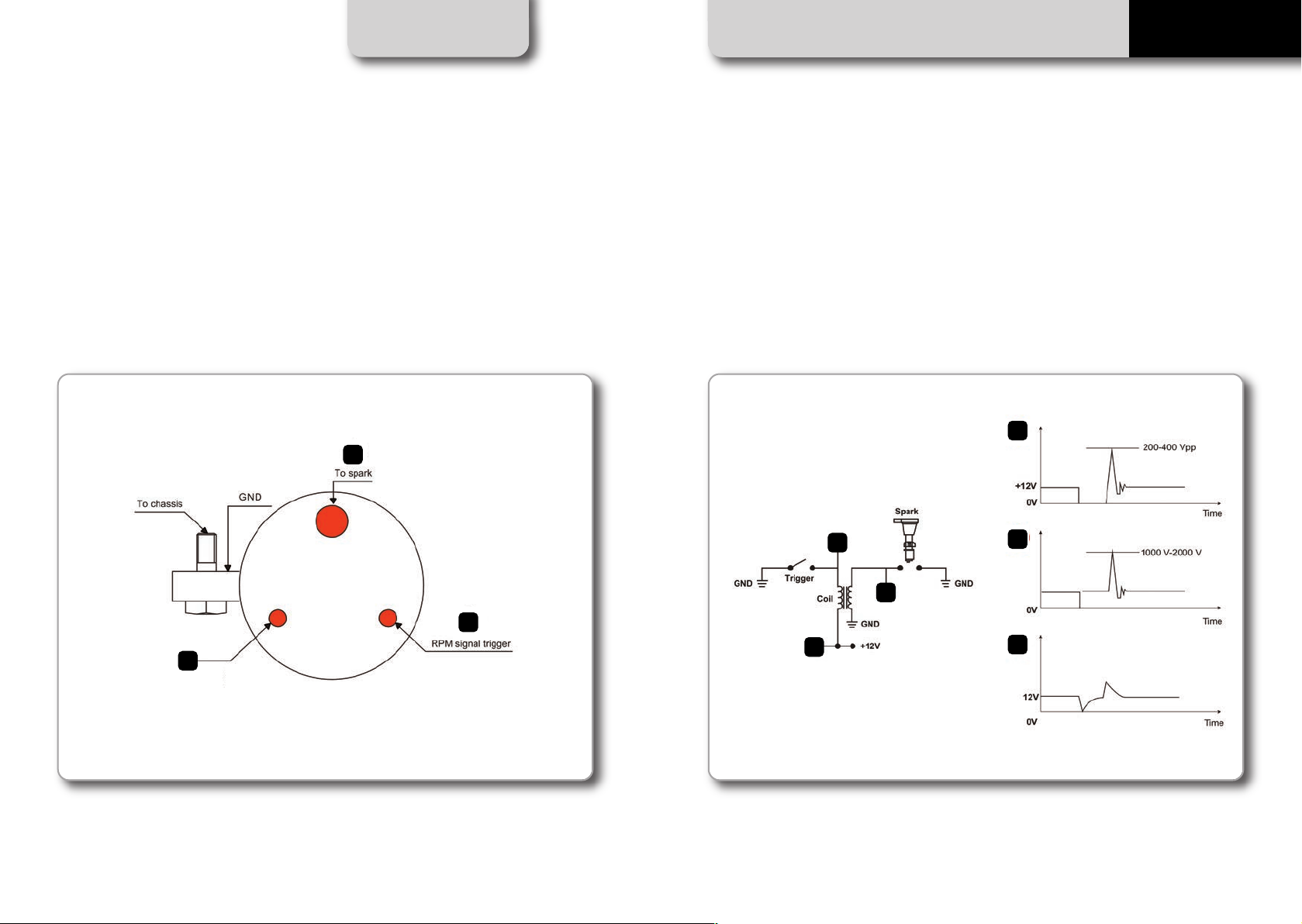

The following image shows an example of
wiring for the ignition system. The output
cable, labeled gray tach, which can be acquired directly from EVO4 through the 5-50
volts. input, is shown here:
n
Low coil voltage 150-400 V on Pin 1
n
4-50 V square wave on pin 3
22
123
CHAPTER 5THE RPM CHANNEL
EVO 4
If an output is not available from the ignition system, the system has to be connected to the low voltage of the coil.
The coil from which to get the signal, is
schematically shown in the image below.
n
Point 1
Is the low voltage input of the coil.
n
Point 2
Is connected to the spark plug.
n
Point 3
Is connected to the positive pole of the
battery (+12 V).
Shows an example of connection between
coil and spark plug.
The voltage at the points indicated by the
numbers 1, 2 and 3 is shown.
1
2
1
2
2
24
1
3
3
3
125
CHAPTER 5
THE RPM CHANNEL
EVO 4
In order to properly configure EVO4 using
the control panel you must:
n
Ensure AIM sensor is selected.
n
Define "max RPM."
n
Select the possible multiplication factor
(RPM factor).
Its value is typically 1 for two-stroke engines and four-stroke multi-cylinder, and 2 for
single-cylinder four-stroke engines.
n
When the RPM signal is noisy
Sometimes the signal from a low voltage
point 0-50 V of the coil is particularly noisy
and EVO4 does not read RPM properly, as
in the examples:
Dirty signal from the coilFiltered wave signal
Dirty signal from the ECU
26
In such cases, the filter shown in Fig.17 (Code X05ADRPMM30) can be useful. The input of the
filter must be connected to the signal RPM, and the output to the input square wave EVO4 for
5-50 V (pin 3 of connector rpm / K).
12727
9
The Speed Channel.
CHAPTER 6THE SPEED CHANNEL
EVO 4
EVO4 can receive the speed signal from
three different sources:
n
The ECU
n
The Built - in GPS receiver
n
The two digital channels
It is possible that EVO4 receive and store
different values of speed at the same time:
the more powerful ECUs transmit up to four
wheel speed values; considering speed values that come from GPS and from the two
digital channels, there may be 7 different
speed values.
*Note that even if EVO4 can read and record up to seven values of speed, only ONE
of these is used for some special functions,
such as:
n
Gear calculation
n
Distance measurement
n
Data visualization in analysis software
This speed is called “Reference Speed”and
is defined in the software RaceStudio2.
n
Speed read from ECU
If your ECU sends the value of speed in its
data stream, it is possible to read, record
and show that information.
Simply enable the channel in RaceStudio2
and set define this speed as "Reference
"
Speed.
ECU - CAN - RS232GPS Output
Speed 1-2
n
Speed read from GPS receiver
The GPS receiver integrated in EVO4 is configured in order to obtain the best performance in terms of reactivity and accuracy.
We know that GPS signals are extremely
weak, only 20 watts, and are transmitted
from satellites at 20.000 km away.
Data accuracy can therefore sometimes be
not as good as we would like.
However, we can say that it is generally
more than satisfactory and that GPS speed
is very often better than wheel speed.
28
GPS Antenna
129
n
Speed read from the wheel
EVO4 has two wheel speed inputs, in the
same "speed" connector:
The digital sensor X05SNBS00 detects the
presence of a metallic tooth placed at a distance between 0.5 and 2 mm.
CHAPTER 6 THE SPEED CHANNEL
n
For configuring wheel speed
parameters.
Enter the Program Configuration panel and
after enabling the channel desired speed
(speed 1, speed 2 or both), set the wheel
circumference and the number of pulses
per revolution:
EVO 4
If you wish to acquire two speed inputs, you
must use the cable code: 04.563.02.
30
21
3
31
Analog Inputs.
EVO4 has five 12 bits analog inputs, recorded
up to 1000 times per second each.
You can connect 0-5 Volt signals, ratiometric
potentiometers, pressure sensors, thermo-resistances and K-type thermocouples.
Please, follow the steps:
1
Connect the sensor to the desired input
2
Enable the channel in the Channels table
3
Select the proper sensor type; sensors of
many different types are properly handled,
such a: Temperature sensors, Pressure Sensors, Potentiometers, Generic Sensors.
4
Set the sampling frequency
5
Set the unit of measure.
CHAPTER 7ANALOG INPUTS
n
Temperature sensors
K thermocouples
Thermo-PT100 resistors
Temperature sensors VDO
n
Pressure Sensors
VDO 40-120 ° C
VDO 50-150 ° C
VDO 60-200 ° C
MSI 0-2 bar
MSI 0-5 bar
MSI 0-10 bar
MSI 0-2000 psi
n
Potentiometers
Distance
Zero-based
Zero Central
n
Generic Sensors
0-50 mV
0-500
0-5 V
EVO 4
32
33
CHAPTER 7ANALOG INPUTS
EVO 4

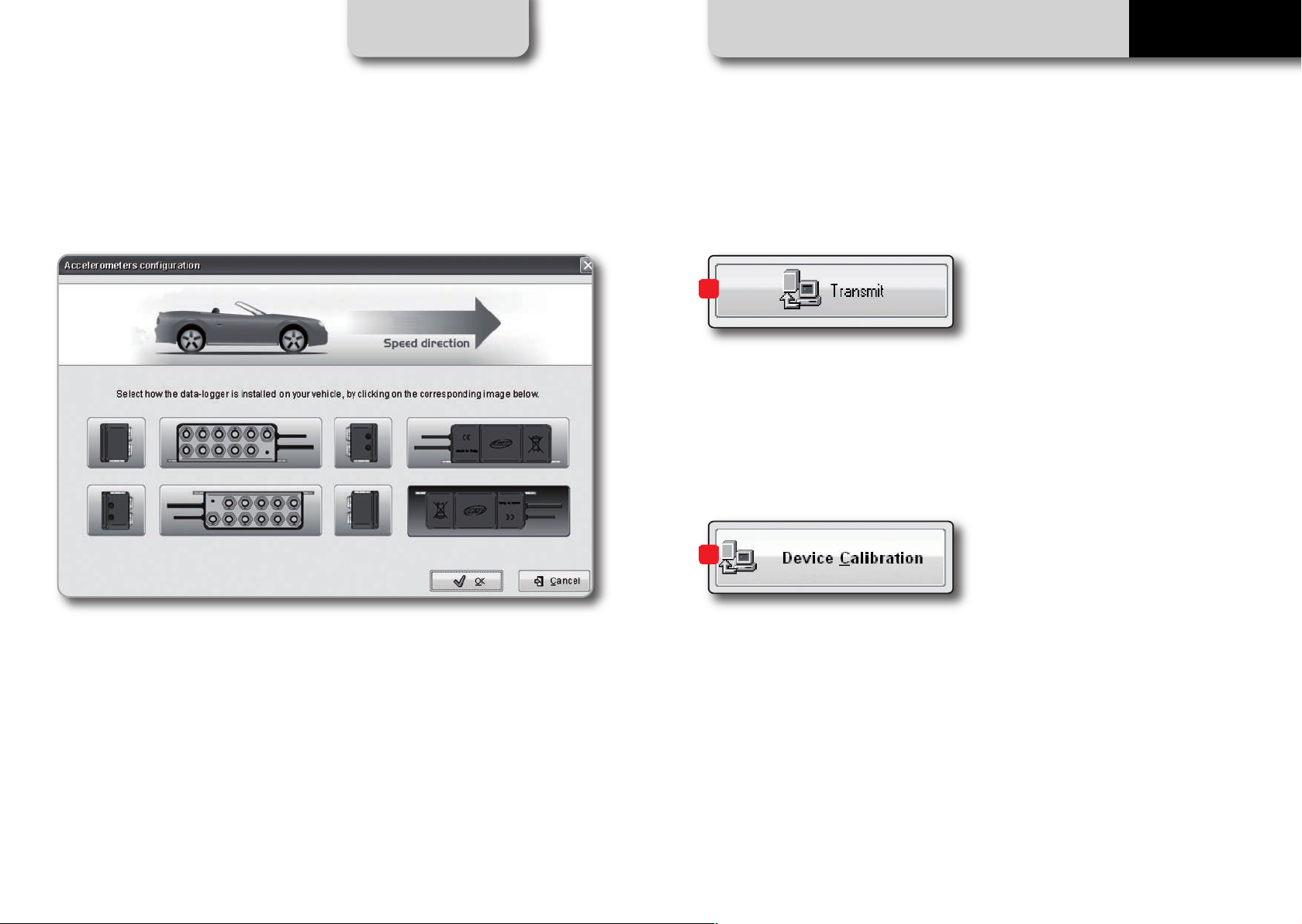

A triaxial accelerometer is to be properly configured. When selected, the following screen appears:
After having transmitted the configuration
to EVO4, you must calibrate the sensor by
pressing the button “Transmit”.
1
The calibration is used to define the range
of some sensors such as potentiometers
and accelerometers.
2
On this screen you can define the direction of installation EVO4. Simply select the image consistent with your installation. The three signals from the accelerometer are automatically related
to the proper directions.
34
35
GPS.
CHAPTER 8GPS
EVO 4
The integrated GPS in EVO4 provides the
following information, updated ten times
per second:
n
Position (latitude, longitude, altitude)
n
Speed
n
Longitudinal acceleration
n
Latitudinal acceleration
In the case EVO4 knows the finish line of
the track and split coordinates, it can also
calculate:
n
Lap times
n
Split times
n
Test length
To transmit track information to EVO4, use
GPSManager software, as explained in the
dedicated chapter.
n
How to configure
In order to use GPS data to compute lap
times and split times, you have to:
n
Properly configure EVO4.
n
Transmit EVO4 the coordinates of the
finish line and split lines.
To configure EVO4, access the
“Setup Menu” and set “GPS Lap Timer”.(1)
You can set Finish and Split line coordinates
in two different ways:
n
Use the software GPS Manager to transmit information relating to the tracks
where you are going to drive.
EVO4 will automatically recognize the track
and will use the proper coordinates.
n
Set the finish line coordinate directly on
the track.
This can be done only if EVO4 is connected
to a dash.
1
36
37
GPS MANAGER SOFTWARECHAPTER 8
EVO 4
GPS Manager
Software.
By GPS Manager you can update, modify,
transmit and receive to and from EVO4 the
coordinates of finish line and split points of
all the tracks where you are going to run.

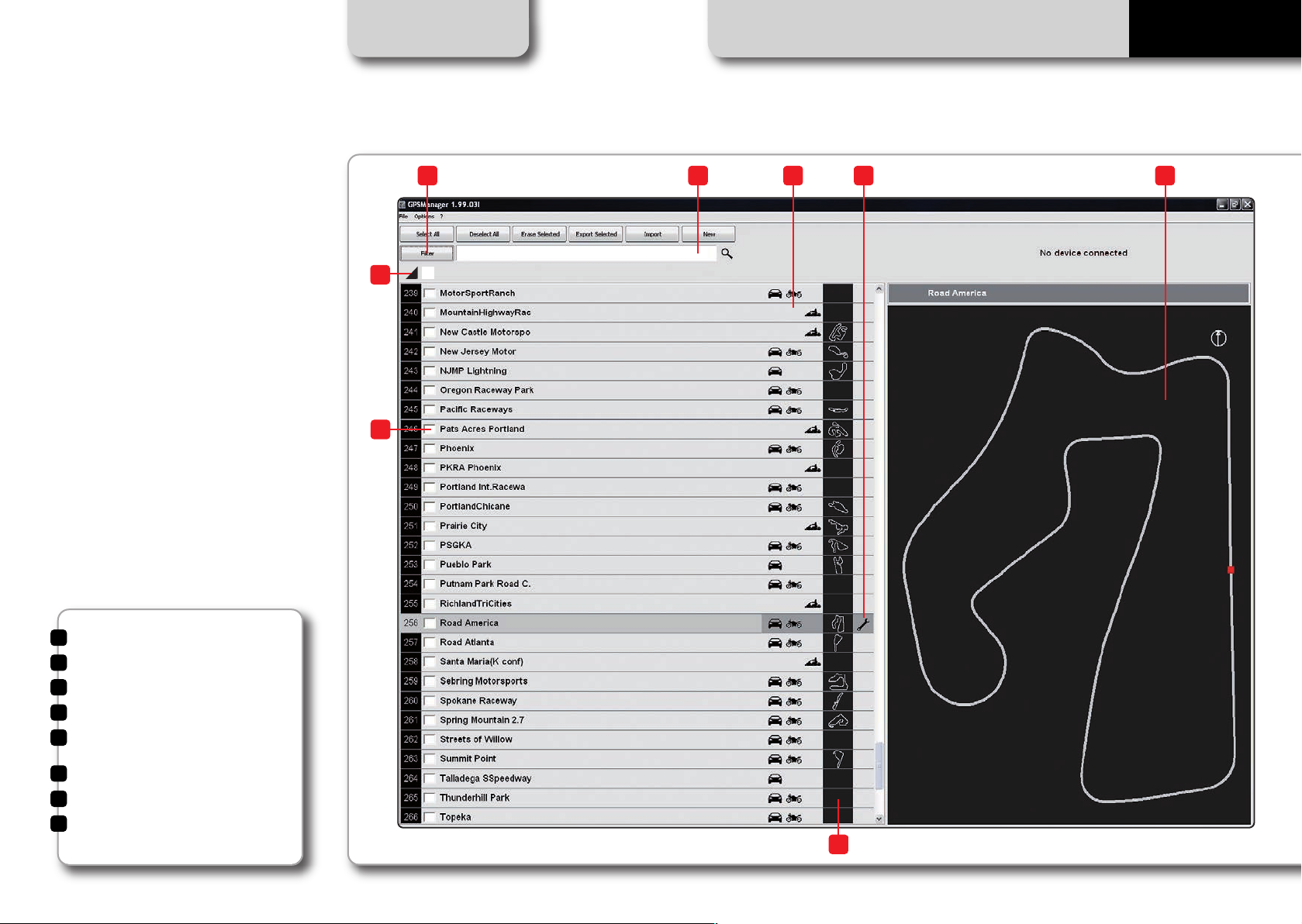

When opening the software, if there is no
system connected to your PC via USB cable,
you will see the screen shown.
As you can see, the screen is divided into
two parts. On the left you see the track list,
split in dependance of the countries of origin.
If available, you will see the track layout and
the type of vehicle that usually race on the
track: car, motorcycle or kart.
On the right side of the screen, you will find
a big picture of the track.
12
3
54
8
7
Track management command
1
Selection window for dynamic filters
2
Track type: car, bike, karts
3
Track data manager
4
Track shape, with starting line
5
and split points position
Small track shape
6
Track selection
7
Open/Close Country track data
8
6
3839
Filters in track data base management.
GPS MANAGER SOFTWARECHAPTER 8
EVO 4
In order to only see tracks you need, you
can filter the list of tracks in different ways.
The filters can be static, (1) that is to say, are
recorded and used every time you use
GPSManager, or dynamic, (2) that are not
saved when quitting the program.
1
n
Static Filters.
A static filter is activated by the button
below. The window shown will appear.
2
It will allow you to select nations, the type
of vehicle and type of circuit.
The lists show only countries, vehicles and
types of circuit present at least once in the
database.
For example, if you have not used any track
in Germany, this country will not appear in
the list.
By default all countries, types of vehicle and
tracks are abilited.
n
Dynamic Filters.
The Dynamic filters are activated in the box
at the top left of the screen:
The dynamic filters allow you to further filter the tracks (in fact the car) merging different characteristics.
For example, writing "Spain closed," you will
see only closed circuits for cars in Spain.
If you are interested in only the car tracks,
for example, you must disable karts and
motorcycles.
4041
How to add a new track to the PC database.
GPS MANAGER SOFTWARECHAPTER 8
EVO 4

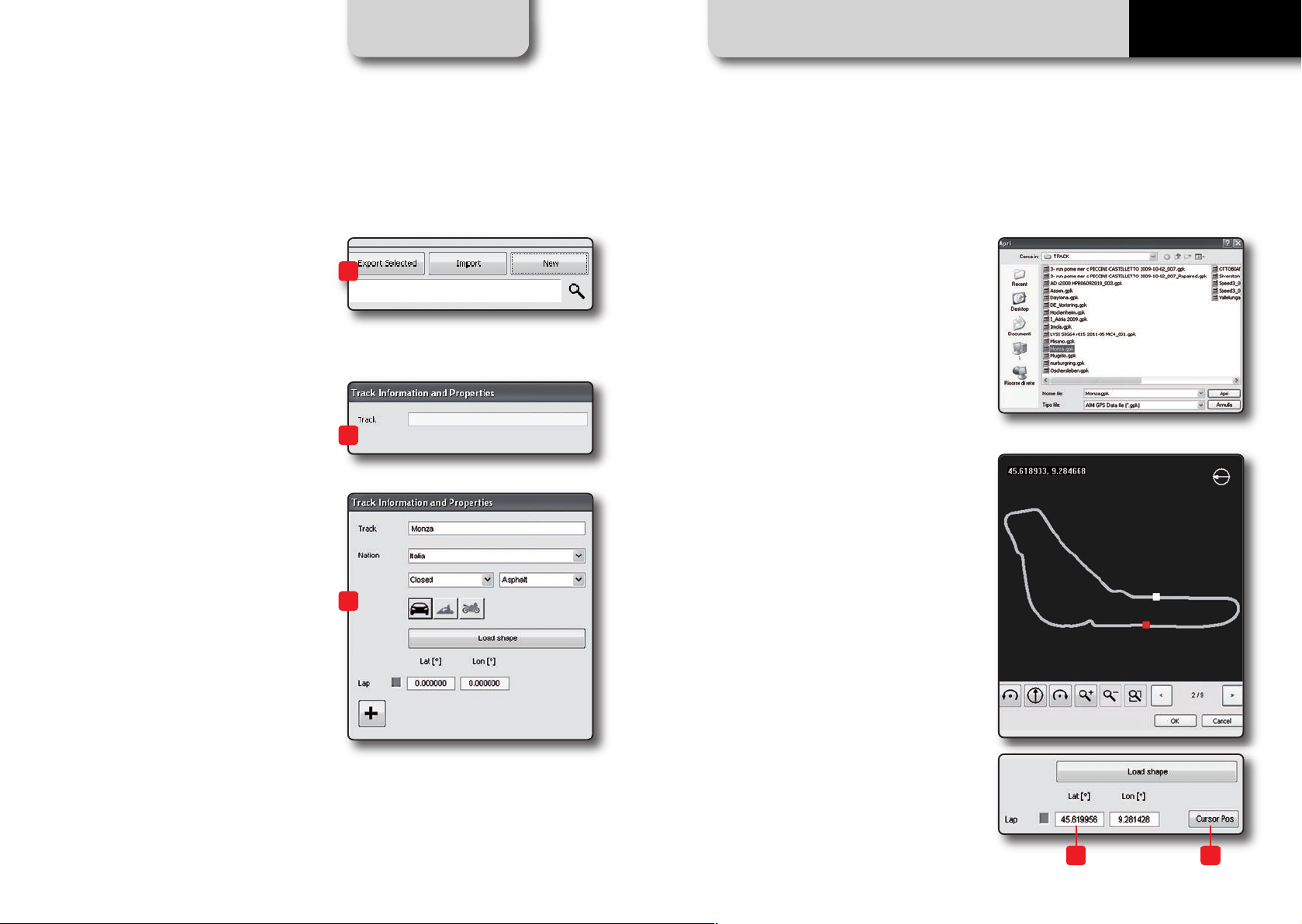

To add a new track
1) Press the button “New”
2) Enter the name of the track.
3) Enter the required information: Country, Type of circuit (Closed, Oval or
Open) (asphalt, dirt, ice, water).
Finally, using the icon buttons, set the type
of vehicle that usually run on the circuit:
Cars, Motorcycles or Karts.
If you have already run a test on the track
and have downloaded data, you can associate the shape of the track, pressing the
“Load Track” button.
You can now select the file“.GPK”,
1
containing the coordinates of all the points
of your test.
2
The shape of the track appears, splitted in
different laps of the test. It is possible to
scroll through the different laps, to zoom,
to rotate the drawing.
After having selected the desired lap, push
“OK” for saving the image of that lap.
That image will be used as a reference
3
shape for the future.
Finish line coordinates are read from the
“.GPK” file but can be modified as desired
in one of the following ways:
Define the coordinate by hand (1)
Position the cursor on the desider point
of the track and click the pushbutton
“Cursor Pos” (2)
In case of a Point to Point track, it is obviously useful to define the coordinates of the
starting and finish line.
Push “OK” for saving the configuration.
4243
1
2
GPS MANAGER SOFTWARECHAPTER 8
EVO 4
How to modify track data in the PC database.How to read, write and delete tracks information
in EVO4.
Click the icon. The window containing the
data of the track you can edit at will.
Connect your system to your PC using the
USB cable.
The GPS Manager screen will display two
lists: on the left, the tracks in your PC and
on the right, the tracks in EVO4.
EVO4 manages only the name of the tracks
and coordinates of the finish and split
points, but not their country or the shape.
4445
GPS MANAGER SOFTWARECHAPTER 8
EVO 4

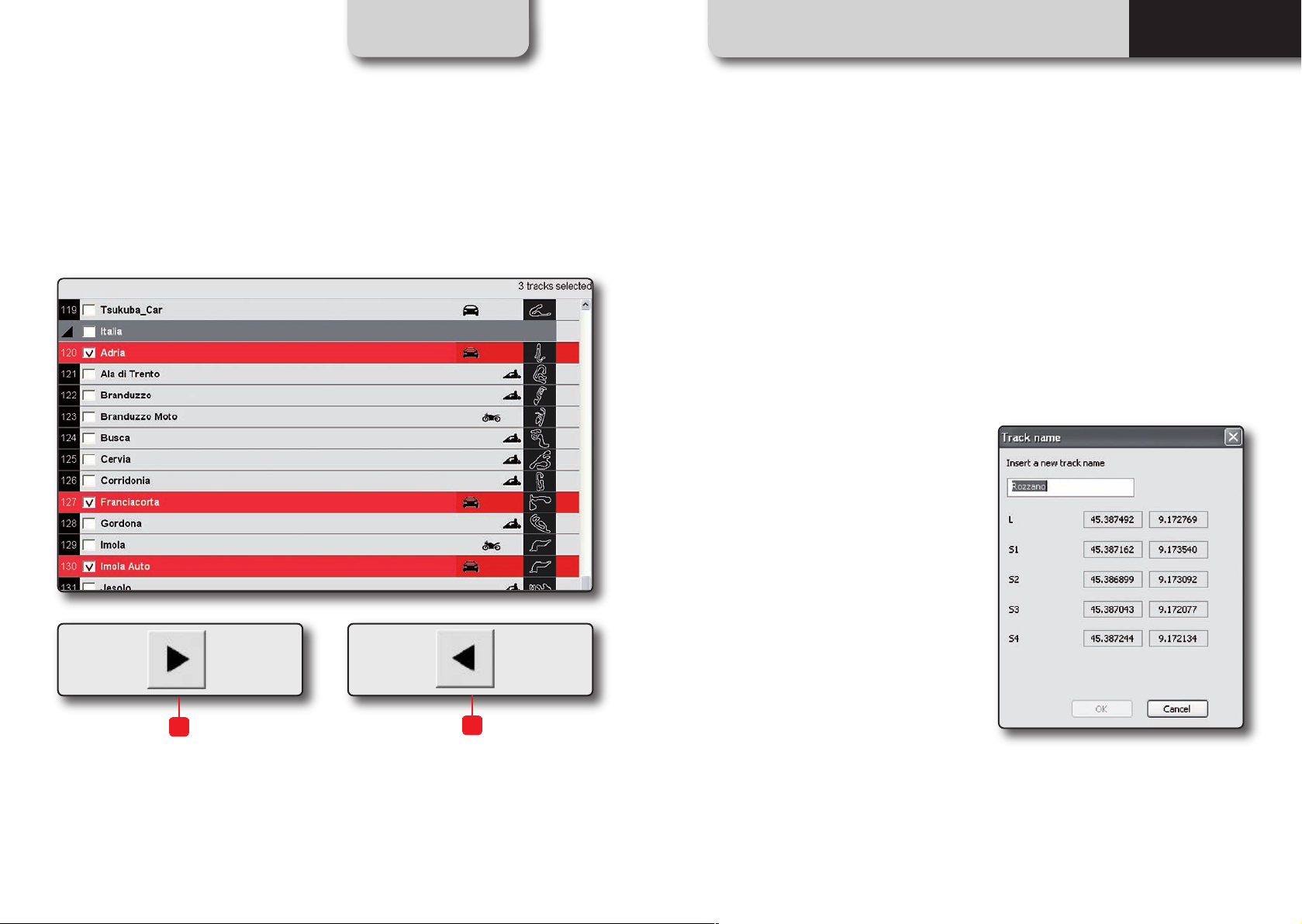

n
To transmit track information to EVO4
Select tracks to be submitted by clicking on
the square check, or double-click on the
name of the track.
n
To receive track information from EVO4
Select tracks to be submitted by clicking on
the square check, or double-click on the
name of the track
n
To erase a track’s information
from EVO4.
Select the track to be erased in the right
panel and press "Delete Sel".
n
To modify track’s information in EVO4
You can only change a track name in the
EVO4 track list.
To do this, double click on it. A window will
appear containing the name ready for editing.
1
n
Drag in the right panel or press the
button ►.
n
The tracks’ information are updated in
EVO4 panel.
4647
n
Drag in the left panel or press the
◄ button.
n
Tracks’ information are updated in the
PC list.
2
CHAPTER 9 DATA SHEET EVO 4
Pinout EVO4.USB Cable for EVO4.
EVO 4
4849
CHAPTER 9DATA SHEET EVO 4
RPM, Gear flash and K Line cable for EVO4.EVO4 CAN and serial ECU connection cable.
EVO 4
5051
CHAPTER 9DATA SHEET EVO 4
EVO4 K and L line cable with OBDII connection.EVO4 CAN cable with OBDII connection.
EVO 4
5253
EVO4

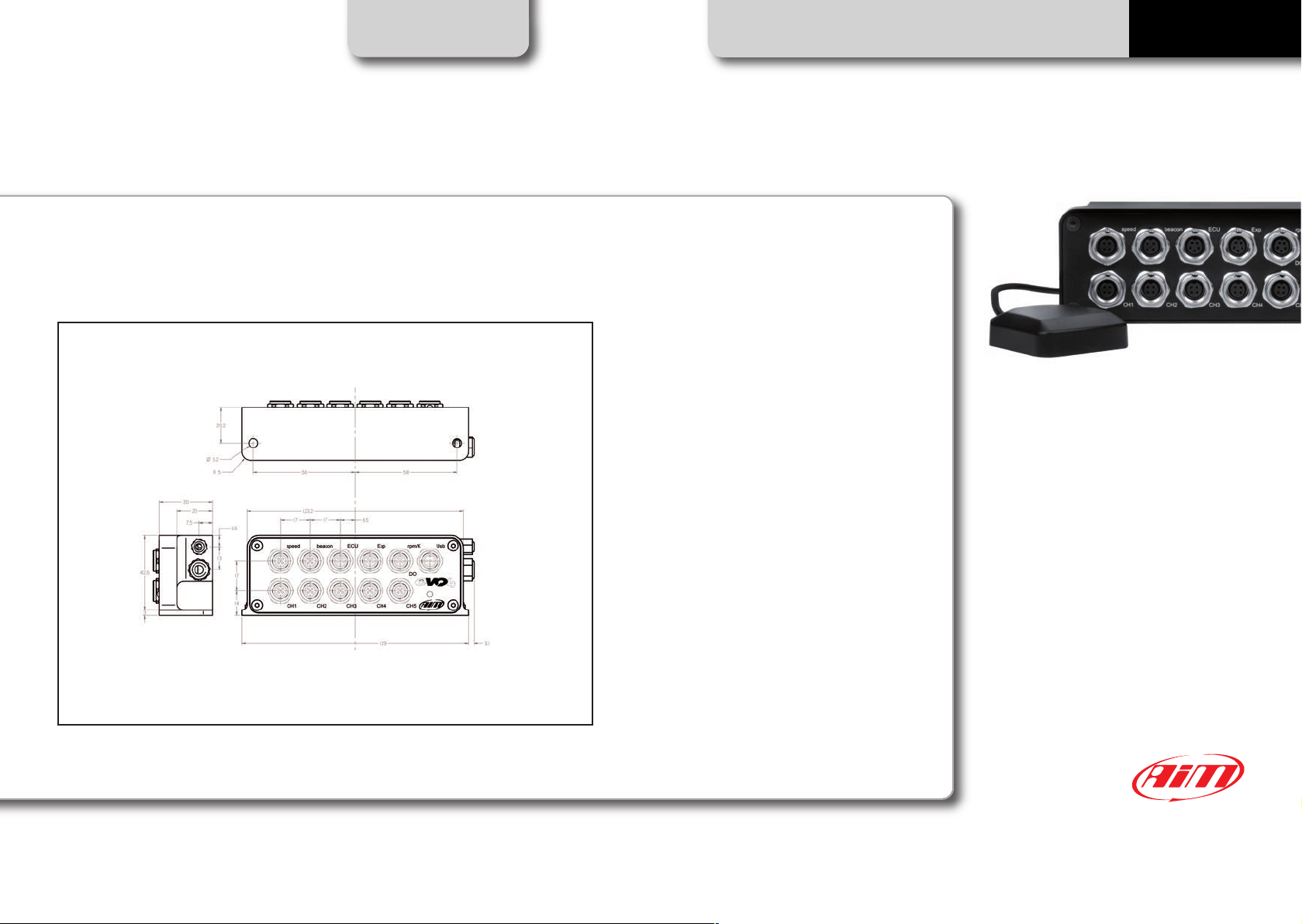

CHAPTER 9DATA SHEET EVO 4
n
5 fully configurable analog channels
n
2 speed channels
n
1 digital RPM channel
n
1 tri-axial internal accelerometer
n
Integrated GPS module
n
Laptime
(magnetic/optical lap and GPS lap)
n
CAN protocol for external expansion
modules
n
ECU Interface
n
5 KHz total sampling frequency
n
USB cable for data download
n
Memory: 16 Mb
n
External power: 9-15 V
n
Power consumption:
80-100 mA at 12V
n
Dimensions: 123 x 30 x 42,5 mm
n
Weight: 260g
n
Waterproof IP67
EVO 4
Our web site aim-sportline.comis constantly
updated.
We try to share with you our experiences
about our products and how to use them
in the tracks all over the world.
Please, constantly check it and download
the last versions of the firmware of your
products.
5455
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
