Page 1
Electrolux
REFRIGERATOR- FREEZER
COMBINATION
ERB 19000 W
From the Electrolux Group. The world's No.1 choice.
The Electrolux Group is the world's largest producer of powered appliances for
kitchen, cleaning and outdoor - use. More than 55 million Electrolux Group products
(such as refrigeration, cookers, washing machines, vacuum cleaners, chain saws
and lawn mowers) are sold each year to a value of approx. USD 14 billion in more
than 150 countries around the world.
INSTRUCTION BOOK
200369245 B/Za/16. (05.)
Page 2
Before installing and using the appliance read this user's instruction book carefully. It contains
safety precautions, hints, information and ideas. If the refrigerator is used in compliance with
the instructions written, it will operate properly and provide you with greatest satisfaction.
The symbols below help you to find things more easily:
!
Safety precautions
Warnings and information at this symbol serve safety for you and your appliance.
i
Hints, useful information
i
Environmental information
Symbol for ideas
At this symbol ideas can be found according to food and its storing.
The symbol on the product or on its packaging indicates that this product may not be
treated as household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed information about recycling of this
product, please contact your local city office, your household waste disposal service or
the shop where you purchased the product.
Contents
Important safety information 45
General safety precautions 45
Precautions for child safety 45
Safety precautions for installation 45
Safety precautions for isobutane 45
Instructions for the User 46
General information 46

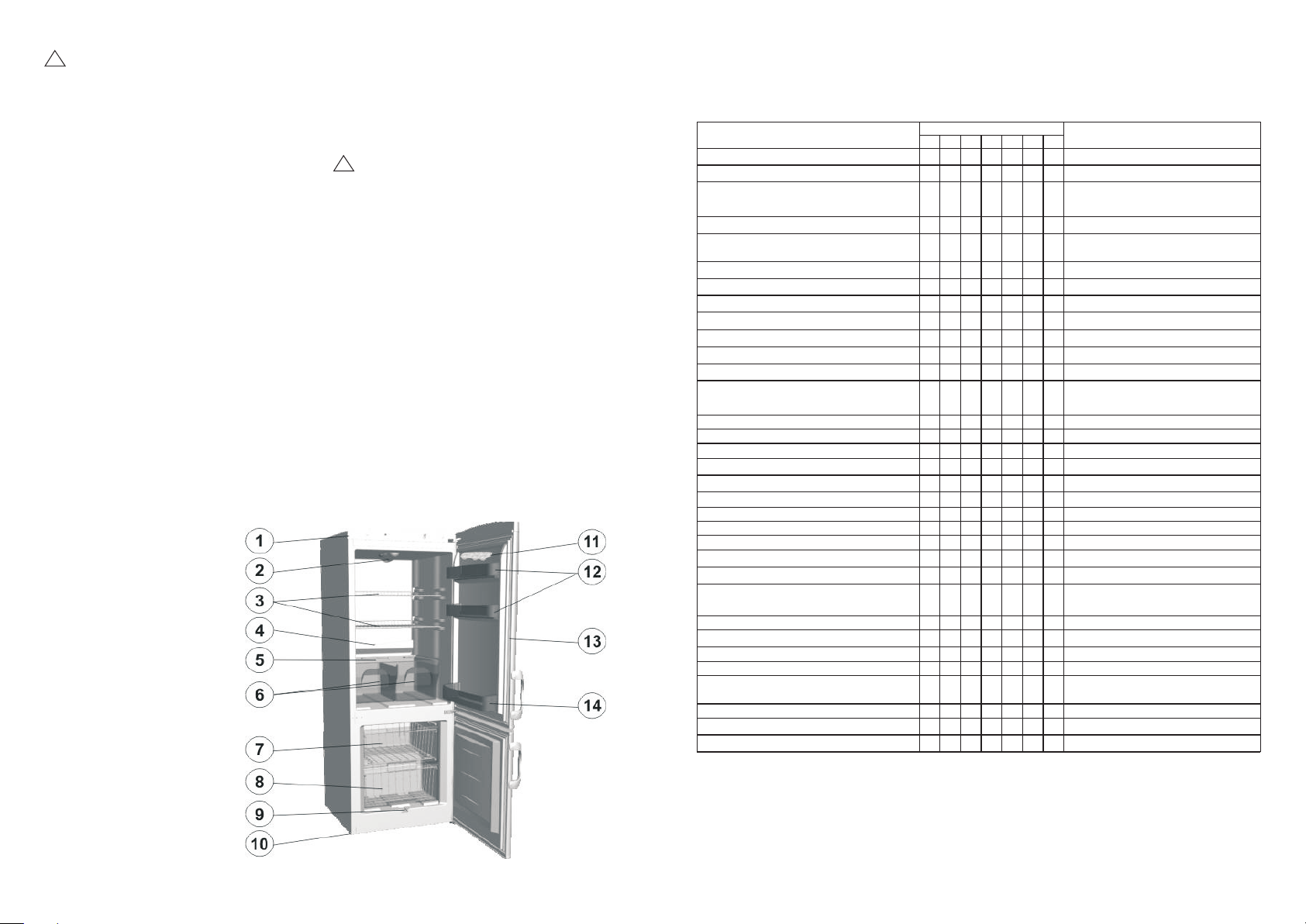

Description of the appliance, main parts 46
Handling the appliance 47
Putting it into use 47
Controlling the temperature, selling 47
How to use the refrigerator 47
Storing in the refrigerator 47
Storage time and temperature of foods 47
How to use the freezer 47
Freezing 47
Storing in the freezer 48
How to make ice cubes 48
Some useful information and advice 48
Hints and ideas 48
How to save energy 49
The appliance and environment 49
Maintenance 49
Defrosting 49
Regular cleaning 50
When the refrigerator is not in use 50
Trouble shooting 50
How to change the bulb 50
If something does not work 51
Instructions for the Installer 52
Technical data 52
Installing the appliance 52
Transportation, unpacking 52
Cleaning 52
Placement 52
Change of door opening direction 53
Electrical connection 54
Storage time chart (1) 55
Storage time chart (2) 56
Warranty and service 56
Guarantee conditions 56
Service and spare parts 56
Declaration of guarantee terms 56
From the Electrolux Group. The world's No.1 choice.
The Electrolux Group is the world's largest producer of powered appliances for kitchen,
cleaning and outdoor use. More than 55 million Electrolux Group products (such as
refrigeration's, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers)
are sold each year to a value of approx. USD 14 billion in more than 150 countries around the
world.
1
1. Applying the guarantee is subject to the
consumer providing proof of purchase
showing the purchase and/or delivery date.
2. The guarantee will not apply if damage
caused to delicate parts, such as glass
(vitreous ceramic), synthetic materials and
rubber, is the result of inappropriate use.
3. The guarantee cannot be called on for minor
faults that do not affect the value or the
overall reliability of the appliance.
4. The statutory warranty does not apply when
defects are caused by:
- a chemical or electrochemical reaction
caused by water,
- abnormal environmental conditions in
general,
- unsuitable operating conditions,
- contact with harsh substances.
5. The guarantee does not apply to defects due
to transport which have occurred outside of
our responsibility. Nor will the guarantee
cove r those c a u s e d by inadequat e
installation or assembly, lack of maintenance
or fa ilur e to respe ct t he a s semb ly
instructions or directions for use.
6. Defects that result from repairs or measures
carried out by people who are not qualified
or expert or defects that result from the
addition of non-original accessories or spare
parts are not covered by the guarantee.
7. Appliances that are easy to transport may be
delivered or sent to the consumer services
de par tme nt. Ho me repairs a re o nly
anticipated for bulky appliances or built-in
appliances.
8. If the appliances are built-in, built-under,
fixed or suspended in such a way that
removing and replacing them in the place
where they are filled takes more than half an
hour, the costs that result there from will be
charged for. Connected damage caused by
these removal and replacement operations
will be the responsibility of the user.
9. If, during the guarantee period, repairing the
same defect repeatedly is not conclusive, or
if the repa i r co s t s ar e co n sidered
disproportionate, in agreement with the
consumer, the defective appliance may be
replaced with another appliance of the same
value.
In this event, we reserve the right to ask for a
financial contribution calculated according
to the length of time it has been used.
10. A repair under guarantee does not mean that
the normal guarantee period will be extended
nor that a new guarantee period begins.
11. We give a twelve month guarantee for
repairs, limited to the same defect.
12. Except in the event where liability is legally
imposed, this declaration of guarantee terms
excludes any compensation for damage
outside the appliance for which the
consumer wishes to assert his rights. In the
ev ent o f legal ly admi t ted lia bili t y,
compensation will not exceed the purchase
price paid for the appliance.
For exported appliances, the user must first
make sure that they satisfy the technical
cond itions (e.g.: vol tage, frequency,
installation instructions, type of gas, etc.) for
the country concerned and that they can
wi t h st a n d the lo c a l cli m a ti c an d
environmental conditions. For appliances
purchased abroad, the user must first ensure
that they meet the qualifications required.
Non-essential or requested adjustments are
not covered by the guarantee and are not
possible in all cases.
Our consumer services department is always at your disposal, even after the guarantee period has
expired.
Address for our consumer services department:
ELECTROLUX HOME PRODUCTS BELGIUM
Bergensesteenweg, 719- 1502 LEMBEEK
Tel. 02.3630444
14
Page 3
Foods
In the fresh food
compartment +2 - +7°C
In the **** frozen food
compartment -18°C
Vegetables:
green bea ns, green peas, mixed vegetables , marrow, corn, etc.
1 day 12 mo nths
Ready-cook ed foods:
vegetable dish, trimmings, wi th meat, etc.
1 day 12 mo nths
Ready-cook ed foods:
sirloin stea ks, stew f rom knu ckle of h am, mea t from pig puddin g, etc.
1 day 6 mon ths
Foods f rom potatoes, pa sta:
mashed po tato, gno cchi, dum pling, pa sta fi lled with jam , chips
1 day 12 mo nths
Soups:
meat-broth, soup from gree n beans, soup from green peas, et c.
1 day 6 mon ths
Fruits:
sour cherry, cher ry, gooseberry, frui t cream, mashed maroon
1 day 12 mo nths
Meat:
chicken, du ck, goos e fillets, tu na fish
1 day
1 day
5 mon ths
6 mon ths
Popsicle, i ce-cream
1 day 3 weeks
Storage time chart (2)
Storage time of deep-frozen and frozen products
Warranty and service
Guarantee conditions
Service and spare parts
If calling the service is unavoidable, announce the
trouble at a brand-mark service nearest to your
place.
When announcing, the appliance has to be
identified according to its data label.
The data label of the appliance is stuck to the wall
of the interior beside the vegetable box in the fresh
food compartment in the bottom on the left side.
The manufacturer reserves the right to make any changes in the products.
Declaration of guarantee terms
Our appliances are produced with the greatest of
care. However, a defect may still occur. Our
consumer services department will repair this
upon request, either during or after the guarantee
period. The service life of the appliance will not,
however, be reduced as a result.
This declaration of guarantee terms is based on
European Union Directive 99/44/EC and the
provisions of the Civil Code. The statutory rights
that the consumer has under this legislation are
not affected by this declaration of guarantee
terms.
This declaration does not affect the vendors
statutory warranty to the end user. The appliance
is guaranteed within the context of and in
adherence with the following terms:
All necessary data are there which are needed to
the service announcement
(type, model, serial number, etc.). Note here the
data from the data label of your appliance:
1. In accordance with provisions laid
down in paragraphs 2 to 15, we will remedy free of
charge any defect that occurs within 24 months
from the date the appliance is delivered to the first
end user. These guarantee terms do not apply in
the event of use for professional or equivalent
purposes.
2. Performing the guarantee means that
the appliance is returned to the condition it was in
before the defect occurred. Defective parts are
replaced or repaired. Parts replaced free of charge
become our property.
3. So as to avoid more severe damage, the
defect must be brought to our attention
immediately.
13
Model
Product No.
Serial No.
Date of purchase:
Important safety information
General safety precautions
!
Keep these instructions and they should remain
at the appliance when moving away or
changing owner.
This appliance is designed for storing food,
domestic use according to these instructions
only.
Specialized companies that are qualified to do
so by the manufacturer must carry out service
and repairs including repairing and changing
the power cord. Accessory parts supplied by
them should be used only for repairing.
Otherwise the appliance can be damaged or can
cause other damage or injury.
The appliance is out of circuit only in that case
if the plug is removed from the socket. Before
cleaning and maintenance always unplug it (do
not get it by the cable). If the socket is difficult
to reach, switch off the appliance by cutting off
the current.
Power cord must not be lengthened.
Make sure that the power plug is not squashed
or damaged by the back of the fridge/freezer.
A damaged power plug may overheat and cause
a fire.
Do not place heavy articles or the fridge/freezer
itself on the power cord.
- There is a risk of a short circuit and fire.
Do not remove the power cord by pulling on its
lead, particularly when the fridge/freezer is
being pulled out of its niche.
- Damage to the cord may cause a short-circuit,
fire and/or electric shock.
- If the power cord is damaged, it must be
replaced by a certified service agent or
qualified service personnel.
If the power plug socket is loose, do not insert
the power plug.
- There is a risk of electric shock or fire.
Without the lamp cover of interior lighting you
must not operate the appliance.
When cleaning, defrosting, taking out frozen
food or ice tray do not use sharp, pointed or
hard devices, as they can cause damage to the
appliance.
Be careful not to allow liquids to the
temperature control and lighting box.
Ice and ice-cream can cause hurt if they are
eaten immediately after removal from the
frozen food compartment.
After dissolving frozen food must not be
refrozen, it must be used up as soon as possible.
Store pre-packed frozen food in accordance
with the fr o z e n fo o d manufactu r e r s
instructions.
You must not make defrosting faster with any
electric heating appliance or chemicals.
Do not put hot pot to the plastic parts.
Do not store flammable gas and liquid in the
appliance, because they may explode.
Do not store carbonated drinks, bottled drinks
and bottled fruits in the frozen food
compartment.
Check and clean the outlet of melting water
coming during defrosting regularly - a label
inside the appliance warns you for this. If it is
clogged the melting water gathered can cause
earlier failure.
!
Precautions for child safety
Do not allow children to play with the
packaging of the appliance. Plastic foil can
cause suffocation.
Adults must handle the appliance. Do not allow
children to play with it or its controlling parts.
If you are discarding the appliance pull the plug
out of the socket, cut the connection cable (as
close to the appliance as you can) and remove
the door to prevent playing children to suffer
electric shock or to close themselves into it.
!
Safety precautions for installation
Put the appliance to the wall to avoid touching
or catch ing war m part s (comp ress or,
condenser) to prevent possible burn.
When moving the appliance take care of the
plug not to be in the socket.
When placing the appliance take care not to
stand it on the power cord.
Adequate air circulation should be around the
appliance, lacking this leads to overheating. To
achieve sufficient ventilation follow the
instructions relevant to installation.
See chapter Placement.
2
Page 4
Safety precautions for
Foods
Sto rage time in da ys
Meth od of pac kaging
1 2 3 4 5 6 7
Raw meat X X x x x
cling film, airtight
Cook ed meat X X X x x x dish covered
Roast ed meat X X X x x
dish covered
Raw minced meat X dish covered
Roast ed minced m eat X X x x dish covered
Cold cuts, Vienna sa us age X X x x
cling film, cellopha ne, grease-pr oof
paper
Fresh fish X x x c ling film, airtight
Cook ed fish X X x x
dish covered
Fried fish X X x x x
dish covered
Tinned fish, o pen X x x
dish covered
Fresh chicken X X X x x x c ling film, ai rtight
Fried chicken X X X x x x dish covered
Fresh hen X X x x x
cling film, airtight
Boiled hen X X x x x
dish covered
Fresh duck, goose X X X x x x c ling film, ai rtight
Roast ed duck, goose X X X X x x x dish covered
Buff er unopened X X X X X X X original packaging
Buff er opened X X x x x x x original packaging
Milk in a plastic ba g X X X x x
original packaging
Cream X X x x
plast ic box
Sour cream X X X X x x x plastic box
Cheese (hard) X X X X X X X alum inum foil
Cheese (soft) X X X X x x x cling film
Curds X X X X x x x cling film
Egg X X X X X X X
Spinach, sorrel X X x x
cling film
Green peas, green beans X X X X x x x cling film
Mushroom X X x x x cling film
Carr ot, roots X X X X X X X cling film
Bell-pepper X X x x x
cling film
Tom ato X X X X X X X cling film
Cabbage X X X X X x x cling film
Quickly rotting frui ts (strawberry,
raspberry, etc.
X X X x x
cling film
Other fruits X X X X x x x cling film
Tinned fruits opened X X X x x
dish covered
Cak es filled with c ream X X x x
dish covered
!
isobutane
Warning
The refrigerant of the appliance is isobutane
(R600a) that is inflammable and explosive to
a greater extent.
Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of
obstruction.
Do not use mechanical devices or other means
to accelerate the defrosting process, other
t h an t h os e r e co mm e n d ed b y t h e
manufacturer.
General information
The official designation of the appliance is
refrigerator- freezer combination with one motor
compressor and freezer placed in the upper part”.
The appliance has, besides the general services, a
freezer with its own door and is completely
separated from the other unit. According to this
the appliance is suitable for storing frozen and
deep-frozen food, freezing products in quantity
given in the users instructions at home.
1. Work plate
2. Lighting box
3. Glass shelf / Wire shelf
4. Defrost water collector
5. Glass shelf
6. Vegetable box
7. Frozen food drawer
8. Frozen food basket
9. Defrost water collecting funnel
10. Adjustable feet
11. Egg tray
12. Door shelf
13. Door gasket
14. Bottle shelf
Instructions for the User
Description of the appliance, main parts
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the
food storage compartments of the appliance,
unless they are of the type recommended by
the manufacturer.
!
For the safety of life and property keep the
precautions of these user's instructions as the
manufacturer is not responsible for damages
caused by omission.
The appliance can meet the requirements of
standards between different temperature limits
according to the climate class.
The letter symbol for climate class can be found
on the data label.
3
Storage time chart (1)
Time and method of storage of fresh foods in the refrigerator
Notation:
X usual storage time
x possible storage time (concerns to really fresh product only)
12
Page 5
1
6
7
8
2
3
4
5
Fix the double door
holder onto the left side
using the screws (2
pieces). Be careful that
the door edge of the
freezer is parallel with
the edge of the mantle
(figure 10).
Change the position of
the lower door mask
c o v e r ( F i g ur e 7 ) .
Remove opening mask
on from the work plate
and fix it to the other
s i de wi t h d ou b le
adhesive tape enclosed
in the bag of spare parts
(Figure 8).
Install work plate back
to the refrigerator.
Fit the door of the
refr i g e r a tor to th e
double door hinge.
Fix the upper door shaft
onto the left side using
the screws you removed
previously. Be careful
that the door edge of the
refrigerator is parallel
with the edge of the
mantle.
Put over the handle on
the opposite side and
cover up the vacant
holes with the plastic
nails from the bag of
spare parts.
Af t e r r el e a s ed the
screws the adaptation of
t h e doors can be
adjusted with the horizontal control of middle
door hinge.
Put the appliance to its place, set it's level with
leveling front legs, and connect it to the
electricity supply.
In case you do not want to perform the procedures
above, call the nearest brand-mark service.
Technicians will accomplish the refilling expertly
for charge.
Electrical connection
This refrigerator is designed to operate on 230
V AC (~) 50 Hz supply.
The plug must be put into a socket with
protective contact. If there is no such, it is
recommended to get an electrician to fit an
earthed socket in compliance with standards
near the refrigerator.
This appliance complies with the
following E.E.C. Directives:
- 73/23 EEC of 19.02.73 (Low Voltage
Directive) and subsequent modifications,
- 89/336 EEC of 03.05.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
11
Handling the appliance
Putting it into use
Place the accessories into the appliance then plug to
the mains socket. The thermostat knob is installed in
the work plate on the refrigerator. You can switch the
appliance on and set the temperature with it by
turning the knob clockwise.
The next paragraph will give instructions for setting.
Controlling the temperature, setting
The thermostat interrupts the operation of the
appliance automatically for more or less time
depending on the setting then restarts it assuring the
required temperature. The closer it is set to maximum
position the more intensive the refrigerating will be.
When the thermostat knob is set to a medium
position (between minimum and maximum), in the
freezer a temperature colder than -18 00, in the
refrigerator around +5 ºC can be reached. Setting it to
a medium position is adequate for everyday use.
The temperature coming about in the refrigerator is
effected by not only the position of the thermostat but
the ambient temperature, frequency of door openings
and the quantity of food put into it newly, etc.
In the maximum position - in case of
i
increased demand e.g. during heat waves
- the compressor may operate continually.
This does not cause damages to the
appliance.
How to use the refrigerator
For adequate cooling developing interior air
i
circulation is necessary. For this reason you are asked
not to cover the air circulation gaps behind the
shelves (e.g. with tray etc.).
Do not put hot food into the refrigerator.
i
Allow it to reach room temperature naturally. In
this way the unnecessary frost building up can be
avoided.
i
Foods can take over odors from each other.
So it is essential to put foods in closed dishes or wrap
them in cellophane, aluminum foil, and greaseproof
paper or cling film before placing them into the
refrigerator. This way foods will keep their moisture
e.g. vegetables will not dry out after some days.
Storing in the refrigerator
When placing the different kinds of food take into
consideration the sketch below in figure:
1.Butter, cheese
2.Eggs
3.Tubes, cans, sour cream, small bottles
4.Drinks in big bottles, soda-water and mousse
siphon
5. Frizzed food storage
6. Fast freeze
7. Fruits, vegetables, salads
8. Milk, dairy products, ready-cooked foods,
confectionery, foods in dishes covered,
opened, cans, bottles laid, fresh meat,
sausages, etc.
Storage time and temperature of foods
The storage time chart at the end of the instruction
book gives information about storage time.
The storage time can not be determined exactly in
advance, as it depends on the freshness and handling
of the cooled food. That is why the storage time made
known is only informative.
If you do not want to use up deep-frozen foods
bought immediately they can be stored for about 1
day (until dissolving) in the refrigerator.
How to use the freezer
Freezing
In the compartment various fresh food can be frozen
at home. Mind the following to get thorough result.
Freeze fresh and faultless food only. Before starting
freezing set the thermostatic control knob to
maximum position and put the wire drawer in the
frozen food compartment to the highest position.
Then put in the quantity to be frozen, directly into the
wire shelf. Freezing is completed in approx. 24
hours. After 24 hours set the thermostatic control
knob back to Medium position, which is usually
adequate for everyday use. It is practical to store the
frozen food in the lower basket.
4
Page 6
Avoid opening the door of frozen food
i
compartment during freezing if possible.
It is not expedient to set the thermostat knob
i
to higher (e.g. max) position. Freezing time could
be reduced this way, but the temperature of the
fresh food compartment would go beyond 0 ºC
permanently, which would cause freezing to foods
and drinks stored there.
Never freeze food in bigger quantity than
i
given in the “Technical data” at the same time,
otherwise freezing will not be thorough and
after dissolving various deterioration may take
place (losing taste and aroma, lysing, etc.).
Storing in the freezer
After finishing freezing it is practical to put the
frozen food from the wire drawer in the frozen
food compartment into the basket under that
making room for a next possible freezing. Food
already stored is not damaged by another freezing.
Do not forget to keep to the storage time
i
given on the packaging of frozen products if you
buy them frozen.
It is safe to store quick-frozen, frozen foods
i
only if they have not dissolved even for a short
time until placing them into freezer.
If the deep-frozen food has already dissolved,
refreezing is not recommended, it has to be used
as soon as possible.
Some useful information and advice
i
The variable shelves are worth paying attention
to, which increases the usability of the fresh
food compartment considerably. Rearranging
the shelves is also possible when the door is
open at an angle of 90.
After opening and closing the door of freezer
vacuum will rise inside the appliance because
of the low temperature. So wait 2-3 minutes
after closing the door if you want to open it
again while inner pressure equalizes.
Take care of operating the freezer at a position
of thermostatic control so that the inside
temperature can never be warmer than -18 ºC
It is practical to make sure of faultless
operation of the appliance daily so as to notice
possible failure in time and prevent
deterioration of frozen foods.
Normal operating sounds:
o A thermostat controls the compressor and you
will hear a faint click when thermostat cuts in
and out.
o You may hear faint gurgling or bubbling sound
when the refrigerant is pumped thorough the
coils at the rear, to the cooling plate/evaporator.
o When the compressor is on, the refrigerant is
being pumped round and you will hear a
whirring sound or pulsating noise from the
compressor.
o The fridge evaporator (this part cool down the
fridge section) is foamed into the cabinet. The
temperature of this part changing during its
work, and parallel with this its dimensions are
slightly changing, too. These changes might
cause a cracking noise, which is natural,
harmless phenomenon.
Should you want to check the temperature of
food stored in the refrigerator, set the
thermostat knob into a medium position, place
a glass of water centrally in the cabinet, and
put a proper thermometer with an accuracy of
+/- 1 ºC into it. If after 6 hours you
!
measure a value between +3 ºC and +8 ºC
the r efr igerator w ork s properly. The
measuring shall be performed under steadystated conditions (without changing the load).
If the freezer temperature is measured using a
thermometer, put it between the products
since this will reflect the real temperature in
the frozen products.
Hints and ideas
In this chapter practical hints and ideas are given
about how to use the appliance to reach maximum
energy saving and there is environmental
information about the appliance as well. using a
thermometer, put it between the products since
this will reflect the real temperature in the frozen
products.
5
The plastic bag of accessories also contains two
spacers to be fitted into special holes in the
back of the appliance. Fit the spacers into the
holes, taking care to ensure that the spacer is
positioned as shown in Figure. Then turn them
through 45° until they lock into place.
Do not stand the appliance on a sunny place or
close to a radiator or cooker.
If it is unavoidable because of furnishing and the
appliance has to be stood near a cooker take these
minimum distances into consideration:
In case of gas or electric cooker 3 cm must be left,
when it is less put a 0,5 - 1 cm non-flam insulation
between the two appliances.
In case of oil or coal-fired stove the distance must
be 30 cms since they give off more heat.
The refrigerator is designed to operate when it is
totally pushed to the wall.
When placing the refrigerator keep minimal
!
distances recommended in figure.
A: placing it under a wall-cupboard
B: placing it freely
Change of door opening direction
Should the setting-up place or handling demand it,
door opening direction
Appliances on the
market are right-
handed.
Following operations
Remove the refrigerator work plate (figure 5).
Unscrew the upper door hinge of the
refrigerator, and then screw it back on the
other side (Figure 6).
Remove the screws of the lower door hinge on
the left side and screw it back on the other side
of refrigerator (Figure 6).
Fit the door of the freezer to the lower door
hinge.
10
can be refilled from
right-handed to lefthanded.
are to be done on the
basis of figures and
explanations:
D i s c on n e c t t h e
appliance from the
electricity supply.
T i l t b a c k t h e
appliance carefully. It
is recommended to
ask another person for
help, who can keep
the appliance at this
position safely.
Remove cover from
the upper door mask,
and rem ov e upper
door shaft (Figure 1).
Take off the door of
the Refrigerator by
pulling it slightly
upwards.
Dismount the double
d o or h o ld er b y
removing two screws
in front (Figure 2).
Take off the door of
the freezer by pulling
it slightly upwards,
and remove plastic
door limiter from the
bottom of the door by
removing the screw.
Install left door limiter
enclosed in the bag of
spare parts (Figure 3).
Page 7
Instructions for the Installer
Technical data
Installing the appliance
Transportation, unpacking
It is recommended to deliver the appliance in
or igi nal pa cka ging , in v ert ical position
considering the protective warning on packaging.
After each transportation the appliance must not
be switched on for approx. 2 hours.
Unpack the appliance and check if there are
damages on it. Report possible damages
immediately to the place you bought it. In that
case retain packaging.
Cleaning
Remove every adhesive tape and everything else,
which ensure the accessories not to move in the
appliance.
Wash the inside of the appliance using lukewarm
water and mild detergent. Use soft cloth. After
cleaning, wipe out the inside of the appliance.
Placement
The ambient temperature has an effect on the
energy consumption and proper operation of the
appliance. When placing, take into consideration
that it is practical to operate the appliance
between ambient temperature limits according
to the climate class that is given i
the chart below and can be found in the data label.
If the ambient temperature goes below the lower
data the temperature of the cooling compartment
can go beyond the prescribed temperature.
If the ambient temperature goes beyond the upper
data this means longer operating time of the
compressor, breakdown in the automati c
defrosting increasing temperature in the cooling
compartment or increasing energy consumption.
When placing the appliance ensure that it stands
level. This can be achieved by two adjustable feet
(1) at the bottom in front.
i
How to save energy
Avoid pulling the appliance in a sunny place and
near anything that gives off heat.
Be sure that the condenser and the compressor
are well ventilated. Do not cover the sections
where ventilation is.
Wrap products in tightly closing dishes or cling
film to avoid building up unnecessary frost.
Do not leave the door open longer than
necessary and avoid unnecessary openings.
Put warm foods into the appliance when they are
at room temperature.
Keep the condenser clean.
The appliance and environment
This appliance does not contain gasses which
could damage the ozone layer, in either its
refrigerant circuit or insulation materials. The
appliance shall not be discarded together with the
urban refuse and rubbish. Avoid damaging the
cooling unit, especially at the rear near the heat
exchanger. Information on your local disposal
sites may be obtained from your municipal
authorities.
The materials used on this appliance marked with
the symbol are recyclable.
Maintenance
Defrosting
Bleeding part of the moisture of cooling chambers
in form of frost and ice goes with the operation of
the appliance.
Thick frost and ice has an insulating effect, so it
reduces cooling efficiency as the temperature
increases in the cooling chambers and they need
more energy.
At this type of appliance defrosting the cooling
plate of the refrigerator is automatic without any
external intervention. The thermostatic control
interrupts the operation of compressor at regular
intervals for more or less time during this cooling
is interrupted the temperature of the cooling plate
goes above 0 °C due to interior heating load of the
compartment, so defrosting occurs. When the
surface temperature of the cooling plate has
reached +3 - +4 °C the thermostatic control
restarts operation of the system.
Melting water flows through defrost water outlet
leaded through the back into the evaporative tray
maintained on the top of compressor and
evaporates due to its warmth.
Check and clean the outlet of melting water
coming during defrosting regularly
- a label inside the appliance warns you for
this. If it is clogged the melting water
gathered can cause earlier failure as it can
go to the insulating of the appliance.
Clean the melting water outlet with the supplied
pipe scraper that can be seen in the figure above.
The pipe scraper has to be stored in the outlet.
The most typical case of clogging up in the
melting water outlet when you put food wrapped
in some paper into the appliance and this paper
contacts back plate of the refrigerator and freezes
to it. If you remove the food right at this moment
the paper will tear and it can cause clogging up in
the outlet by gelling into it.
i
So you are asked to be careful because of the
above when placing foods wrapped in paper into
the appliance. In case of increased demand e.g.
during heat waves, the refrigerator temporarily
happens to operate constantly. During this the
automatic defrosting is ineffective.
9
6
Page 8
Remaining small ice and frost stains on back plate
Problem Possible cause Solution
It is too war m in the refrigerator
Thermostatic control can be set wrongly.
If products are not cold enough or placed
wrong.
The door does not close tightly or it is not
shut properly.
Set the thermostat knob to higher
position.
Place the products to the appropriate
place.
Check if the door closes well and the
gasket is unhurt and clean.
It is too war m in the freezer
Thermostatic control can be set wrongly.
The door does not close tightly or it is not
shut properly.
Products in big quantity to be frozen
were put in.
Products to be frozen are placed too
closely to each other
Set the thermostat knob to higher
position. Check if the door c loses well
and the gasket is unhurt and clean.
Wait some hours and then check the
temperature again.
Place the products in a way so that
cold air could circulate among them.
Water flows at the back plate of the
refrigerator
Water flows into the chamber
Water flows onto the floor
It is nor mal. During automatic defrosting
frost mel ts on the back plate.
The outlet of the chamber can be
clogged up. Products placed in c an
prevent water fr om flowing into the
collector
The melting water outlet flows not into
the evaporative tray above the
compres sor
Clean t he outlet.
Replace the products so that they can
not touc h the back plate directly.
Put the melting water outlet to the
evaporative tray.
There are too much frost and ice.
Products are not wrapped properly.
Doors are not shut properly or do not
close tight.
The thermostati c control c an be set
wrongly.
Wrap the produc ts better
Check if the doors close well and the
gaskets are unhurt and clean.
Set the thermostat knob to a position
that gi ves higher temperature.
The compressor operates
continual ly.
The thermostati c control i s set wrongly.
Doors are not shut properly or do not
close tight.
Products in big quantity to be frozen
were put in.
Set the thermostat knob to a position
that gi ves higher temperature.
Check if the doors close well and the
gaskets are unhurt and clean.
Wait some hours and then check the
temperature again.
Put food at max. room temperature.
The appliance does not work at all.
Neither cooling, nor lighting works.
Indicator lamps do not give light.
Too warm food was put in.
The appliance is in too warm pl ace.
Plug is not connected to the mains
socket proper.
The fuse burnt out.
The thermostati c control i s not on.
Try to reduce the temperature in the
room where the appliance stands.
Connect the mains plug properly.
Change the fuse.
Start the appliance accor ding to
instructions in chapter Putting it into
use”.
Call an electrician.
The appliance is nois y.
There is no voltage in the mains socket.
(Try to connec t another appliance into it.)
The appliance is not supported properly.
Check if the appliance stands stable
(all the four feet should be on the floor).
of the refrigerator after defrosting period is not
abnormal.
The freezer can not be equipped with automatic
defrosting set since the deep-frozen and frozen
foods do not endure melting temperature.
When small frost and ice occurs scrape off and
remove frost and ice coating with the supplied
plastic scraper.
The tray in figure is not a piece of accessories to
the appliance!
When ice coating is so thick that it cannot be
removed with the plastic scraper, the cooling plate
has to be defrosted. Frequency of defrosting
depends on usage (generally 2-3 times a year).
Take the frozen foods out of the appliance, and put
them into a basket lined with paper or cloth. Store
them in a possibly cool place or replace them into
another refrigerator.
Pull out the mains plug from the mains socket, so
both parts of the appliance are out of operation.
Open the doors of both parts of the appliance and
clean the refrigerator according to Regular
cleaning. Maintain and clean the freezer as
following:
Sweep the melting water with a cloth or sponge
off the cooling plate. The melting water swept
down gathers in the bottom of the appliance and
can be removed with a hygroscopic cloth or a
sponge
Wipe the surfaces after defrosting.
Put the mains plug into the mains socket and put
foods taken out back to their places.
It is recommended to operate the appliance at the
highest position of the thermostatic control for
some hours so that it can reach the sufficient
storing temperature as soon as possible.
Regular cleaning
It is recommended to wash the inside of the
refrigerator in 3-4 weeks time using lukewarm
water then wipe it (it is practical to clean the inside
of the freezer and defrost it at a time).
Household cleaner or soap must not be used.
After breaking the circuit wash the appliance with
lukewarm water then wipe it. Clean the door
gasket with clean water. After cleaning apply
voltage to the appliance.
It is recommended to remove the dust and dirt
collected on the back of the refrigerator and the
condenser and to clean the evaporative tray on top
of the compressor once or twice a year.
When the refrigerator is not in use
In case the appliance will not be used for a long
time, follow these steps:
Break the circuit of the appliance.
Remove foods from the refrigerator.
Defrost and clean it as written before.
Leave the door open to avoid a build up of air
inside.
Trouble shooting
How to change the bulb
Should the light fail to work you can change it as
below:
Break the circuit of the appliance.
Press the front hook and at the same time slide the
cover in the direction indicated by horizontal
arrow (1), than remove cover by pulling it gently
down as indicated by arrow (2). So the bulb can be
replaced. (Bulb type: 230-240 V, 15 W, F 14
thread)
After changing the bulb replace the cover, snap it
in place and apply voltage to the appliance.
7
If something does not work
During operation of the appliance some smaller
but annoying trouble can often occur, which does
not require calling a technician out. In the
following chart information is given about them
to avoid unnecessary charges on service.
We draw your attention that operation of
appliance goes with certain sounds (compressorand circulating sound).
In as m uch as the advice does not lead to r esult, call the neares t brand-m ark service.
This is not trouble, but means normal operation.
!
We draw it to your attention again that the
appliance operates discontinuously, so the
stopping of compressor does not mean being nocurrent. That is why you must not touch the
electrical parts of the appliance before breaking
the circuit.
8
Loading...
